RefRigeRated Sandwich UnitS
REFRIGERATED SANDWICH UNITS
SPECIFICATIONS: LR071, LR152, LR192, LR243, LR283, LR324
ExtErior Finish: The exterior front, sides, and doors are stainless steel. The bottom and back
are galvanized steel.
intErior Finish: Interior liner and interior door panel are smooth aluminum.
insulation: The complete cabinet and doors are foamed-in-place with polyurethane
insulation.
hardwarE: Pull door handles, one adjustable gray epoxy shelf per door*, four 4-1/2"
casters.
ElEctrical: 115/60/1, cord and plug furnished.
rEFrigEration: Base mount refrigeration system. Separate temperature controls for the pan
well and storage areas. Automatic defrost in the storage area with a separate
power switch in the pan well area for easy manual defrost. Refrigerated sand wich units may be built in on three sides. The air intake and exhaust is
through the base of the unit. Maximum operating sound level 56-59 dBA.
Operating temperature: 33˚F-41˚F in pan well area, 38°F in storage area.
approvals: UL listed.
C-UL listed.**
UL Sanitation listed to NSF#7.**
*Due to the unit cooler, a shelf will not fit behind right door.
SPECIFICATION
GUIDE
Stan d a r d f e at u r eS
Air-cooled condensing unit
•
Automatic defrost in storage area
•
Crumb tray
•
Cutting board
•
Expansion valve control
•
4-1/2” casters
•
Stainless steel exterior (galv. back)
•
•
1 stainless steel door on LR071
•
8 pan opening (1/6 size pans) maximum on the LR071
model. Pans not included.
•
2 stainless steel doors on LR152
•
18 pan opening (1/6 size pans) maximum on the LR152
model. Pans not included.
•
2 stainless steel doors on LR192
•
24 pan opening (1/6 size pans) maximum on the LR192
model. Pans not included.
•
3 stainless steel doors on LR243
•
24 pan opening (1/6 size pans) maximum on the LR243
model. Pans not included.
•
3 stainless steel doors on LR283
•
30 pan opening (1/6 size pans) maximum on the LR283
model. Pans not included.
•
4 stainless steel doors on LR324
•
36 pan opening (1/6 size pans) maximum on the LR324
model. Pans not included.
*Most options are available two weeks from receipt of order. Please contact us for specific questions.
**C-UL is Underwriters Laboratories Safety Certification Mark which indicates that UL has tested the equipment to applicable CSA Standards.
**UL Sanitation is Underwriters Laboratories Sanitation Mark which indicates that UL has tested the equipment to applicable NSF Standards.
Stan d a r d f e at u r eS
Maximum operating sound level 56-59 dBA.
•
Operating temperature: 33°F-41°F in pan well area, 38°F storage area
•
Polyurethane insulation
•
Stainless steel lids for pan area
•
Stocked for same day shipment
•
Gray epoxy shelves
•
UL, C-UL & UL Sanitation listed to NSF #7**
•
Warranties: 18 month labor plus 1 year parts
•
opt i o n a l f e at u r e S*
Legs in lieu of casters
•
Door locks
•
Full door pan slides
•
Painted enamel front, back and sides
•
Polycarbonate pans
•
Stainless steel exterior (S/S back)
•
Stainless steel interior
•
Stainless steel pans
•
Warranties: 5 year compressor plus 1 year service
•

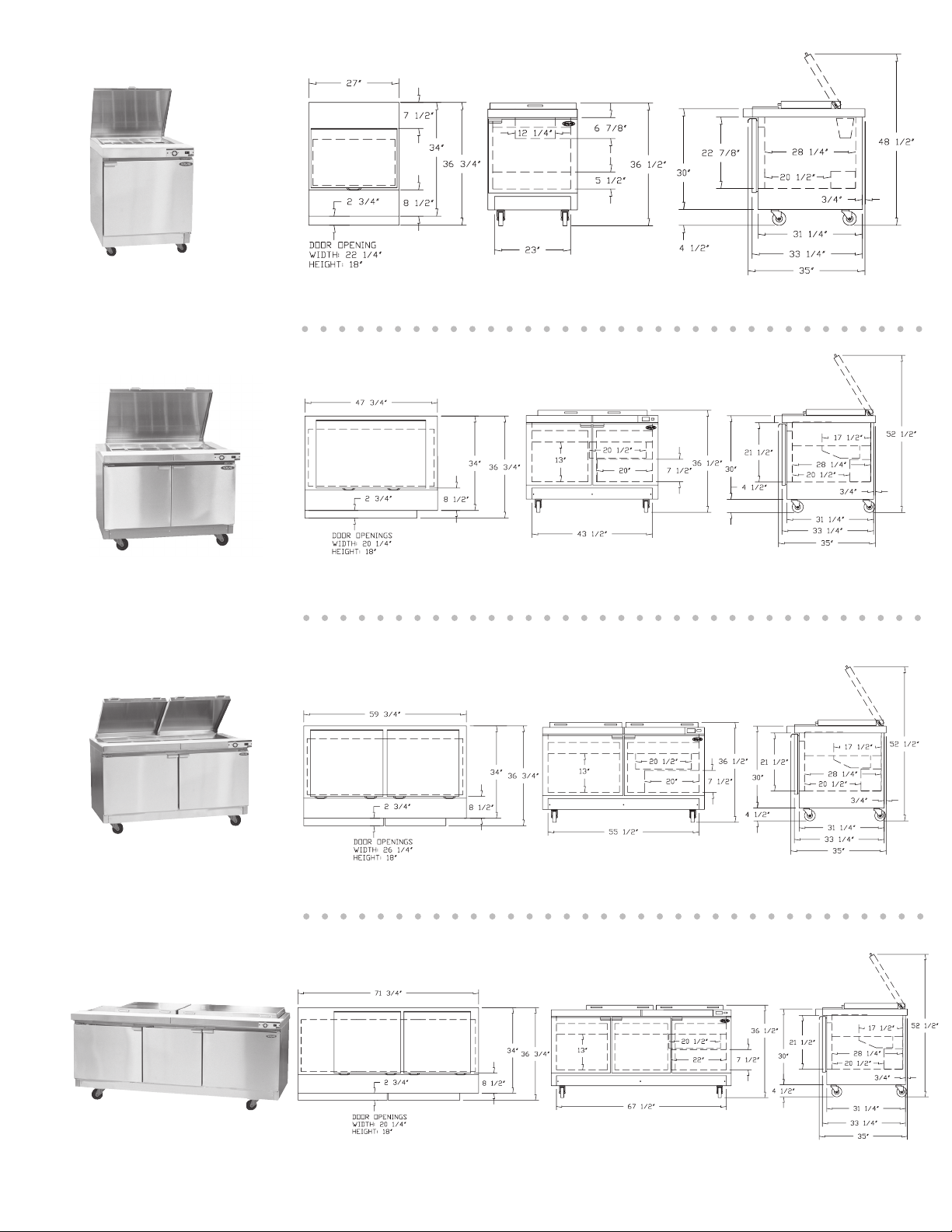

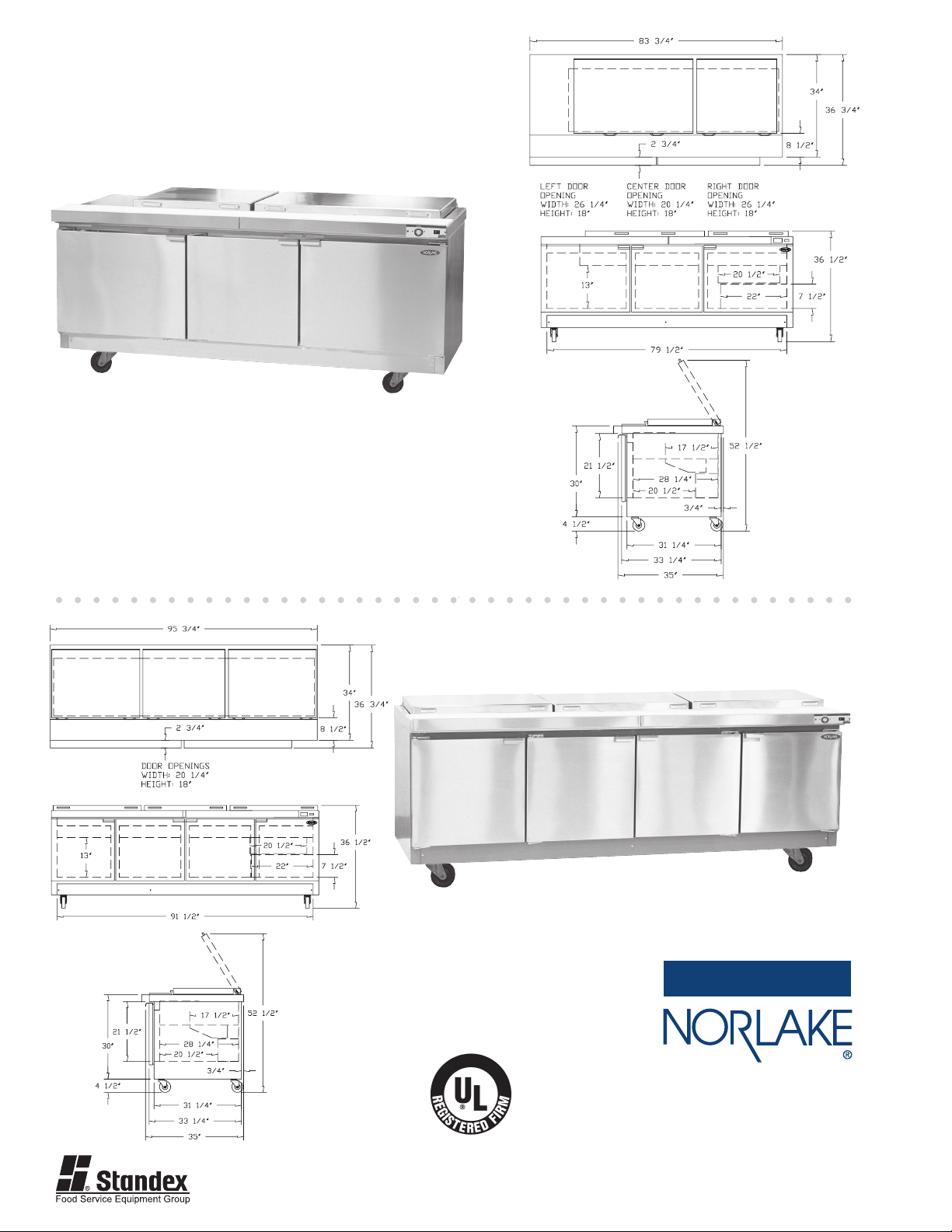

Sp e c i ficatio n S
LR071 LR152 LR192 LR243 LR283 LR324
Crated Height 43-1/2" 43-1/2" 43-1/2" 43-1/2" 43-1/2" 43-1/2"
Crated Width 32" 53" 65" 77" 89" 101"
Crated Depth 40-1/2" 40-1/2" 40-1/2" 40-1/2" 40-1/2" 40-1/2"
Crated Weight (lbs.) 200 410 440 460 470 480
Interior Height 22-7/8" 13" 13" 13" 13" 13"
Interior Width 23" 43-1/2" 55-1/2" 67-1/2" 79-1/2" 91-1/2"
Interior Depth 28-1/4" 28-1/4" 28-1/4" 28-1/4" 28-1/4" 28-1/4"
Overall Height 36.5" 36.5" 36.5" 36.5" 36.5" 36.5"
Overall Width 27" 47-3/4" 59-3/4" 71-3/4" 83-3/4" 95-3/4"
Overall Depth (with crumb tray) 35"(36-3/4") 35"(36-3/4") 35”(36-3/4") 35"(36-3/4") 35"(36-3/4") 35"(36-3/4")
3
Gross Cubage (ft.
Shelf Area (sq. ft.) Incl. bottom 8.5 11.4 14.9 20.4 23.9 29.5
Number of Shelves 1 1* 1* 2* 2* 3*
Number of Casters 4 4 4 4 4 4
Number of Legs 4 optional 4 optional 4 optional 4 optional 4 optional 4 optional
Condensing Unit Size 1/7 1/4 1/4 1/3 1/3 1/3
Refrigerant R-134a R-134a R-134a R-134a R-134a R-134a
Electrical Characteristics 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Cord & Plug Furnished
Maximum Fuse Size 15 15 15 15 15 15
NEMA Plug Configuration 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Total Amp Draw 4.1 9.1 8.5 8.8 8.8 8.8
) 7 15 19 24 28 32
Yes Yes Yes Yes Yes Yes
* Due to the unit cooler, a shelf will not fit behind the right door.
Specifications subject to change without notice.
