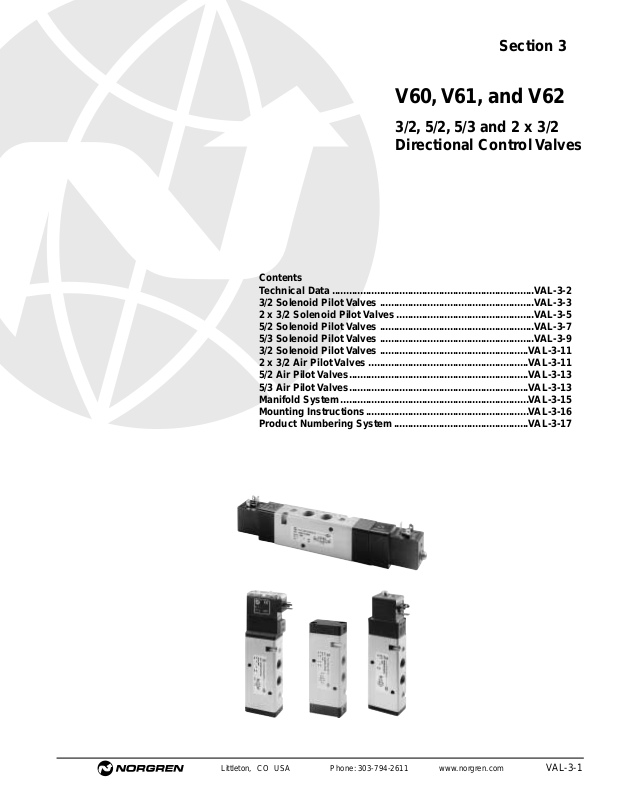

VAL-3-1

Section 3

Contents

Technical Data ........................................................................VAL-3-2

3/2 Solenoid Pilot Valves .......................................................VAL-3-3

2 x 3/2 Solenoid Pilot Valves.................................................VAL-3-5

5/2 Solenoid Pilot Valves .......................................................VAL-3-7

5/3 Solenoid Pilot Valves .......................................................VAL-3-9

3/2 Solenoid Pilot Valves .....................................................VAL-3-11

2 x 3/2 Air Pilot Valves.........................................................VAL-3-11

5/2 Air Pilot Valves................................................................VAL-3-13

5/3 Air Pilot Valves................................................................VAL-3-13

Manifold System...................................................................VAL-3-15

Mounting Instructions ..........................................................VAL-3-16

Product Numbering System................................................VAL-3-17

V60,V61, and V62

3/2, 5/2, 5/3 and 2 x 3/2 Directional Control Valves

V60 Series

● High flow rate

● Manual override option

● Manifold system for easy assembly

● Low power consumption

● Maintenance-free

3/2, 5/2, 5/3 and 2 x 3/2

Directional control valves

Technical data

Medium:

Compressed air, filtered to 50 µm, lubricated or non-lubricated.

Operation:

Solenoid pilot or air pilot operated Mounting: Individual or fixed length manifold Connection:

1/8" NPT up to 3/8" NPT Operating pressure:

Maximum pressure 116 to 145 psi (8 to 10 bar) Flow direction:

Internal pilot supply: fixed

External pilot supply: optional Flow:

Size NPT 3/2, 5/2 2 x 3/2, 5/3

Cv (l/min) Cv (l/min) 1/8 0.75 (750) 0.50 (500) 1/4 1.3 (1300) 0.95 (950) 3/8 2.6 (2600) 1.9 (1900)

Ambient temperature: 14°F to +122°F (-10°C to +50°C)

Fluid temperature: 14°F to +122°F (-10°C to +50°C)

Consult our Technical Service for use below 36°F (+2°C).

Materials

Housing and base plate: aluminum

Spindle: stainless steel, Piston, spacers and cover: synthetic material Static and dynamic seals: NBR Screws: zinc plated Springs: stainless steel

Alternative models

ISO G ports.

VAL-3-2

Littleton, CO USA Phone: 303-794-2611 www.norgren.com

V60 Series

Littleton, CO USA Phone: 303-794-2611 www.norgren.com

VAL-3-3

V60P417A-Ax**** 1/8 Internal Not collected Primary 0.75 (750) 29 to 116 (2 to 8) – 0.49 (.22) 1 V60P427A-Ax**** 1/8 External Not collected Primary 0.75 (750) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 0.49 (.22) 1 V60P417D-Cx13AA 1/8 Internal Collected Secondary 0.75 (750) 29 to 145 (2 to 10) – 0.46 (.21) 4 V60P427D-Cx13AA 1/8 External Collected Secondary 0.75 (750) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 0.46 (.21) 4 V61B417A-Ax**** 1/4 Internal Not collected Primary 1.30 (1300) 29 to 116 (2 to 8) – 0.64 (.29) 1 V61B427A-Ax**** 1/4 External Not collected Primary 1.30 (1300) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 0.64 (.29) 1 V61B417D-Cx13AA 1/4 Internal Collected Secondary 1.30 (1300) 29 to 145 (2 to 10) – 0.60 (.27) 4 V61B427D-Cx13AA 1/4 External Collected Secondary 1.30 (1300) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 0.60 (.27) 4 V62S417A-Ax**** 3/8 Internal Not collected Primary 2.60 (2600) 29 to 116 (2 to 8) – 1.15 (.52) 1 V62S427A-Ax**** 3/8 External Not collected Primary 2.60 (2600) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 1.15 (.52) 1 V62S417D-Cx13AA 3/8 Internal Collected Secondary 2.60 (2600) 29 to 145 (2 to 10) – 1.10 (.50) 4 V62S427D-Cx13AA 3/8 External Collected Secondary 2.60 (2600) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 1.10 (.50) 4 V60P317A-Ax**** 1/8 Internal Not collected Primary 0.75 (750) 29 to 116 (2 to 8) – 0.5 (.22) 2 V60P327A-Ax**** 1/8 External Not collected Primary 0.75 (750) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 0.5 (.22) 2 V60P317D-Cx13AA 1/8 Internal Collected Secondary 0.75 (750) 29 to 145 (2 to 10) – 0.5 (.21) 4 V60P327D-Cx13AA 1/8 External Collected Secondary 0.75 (750) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 0.5 (.21) 4 V61R317A-Ax**** 1/4 Internal Not collected Primary 1.30 (1300) 29 to 116 (2 to 8) – 0.64 (.29) 2 V61R327A-Ax**** 1/4 External Not collected Primary 1.30 (1300) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 0.64 (.29) 2 V61R317D-Cx13AA 1/4 Internal Collected Secondary 1.30 (1300) 29 to 145 (2 to 10) – 0.60 (.27) 4 V61R327D-Cx13AA 1/4 External Collected Secondary 1.30 (1300) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 0.60 (.27) 4 V62S317A-Ax**** 3/8 Internal Not collected Primary 2.60 (2600) 29 to 116 (2 to 8) – 1.15 (.52) 2 V62S327A-Ax**** 3/8 External Not collected Primary 2.60 (2600) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 1.15 (.52) 2 V62S317D-Cx13AA 3/8 Internal Collected Secondary 2.60 (2600) 29 to 145 (2 to 10) – 1.10 (.50) 4 V62S327D-Cx13AA 3/8 External Collected Secondary 2.60 (2600) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 1.10 (.50) 4 V60P411A-Ax**** 1/8 Internal Not collected Primary 0.75 (750) 22 to 116 (1.5 to 8) – .66 (.30) 3 V60P422A-Ax**** 1/8 External Not collected Primary 0.75 (750) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) .66 (.30) 3 V60P411D-Cx13AA 1/8 Internal Collected Secondary 0.75 (750) 22 to 145 (1.5 to 10) – .44 (.20) 4 V60P422D-Cx13AA 1/8 External Collected Secondary 0.75 (750) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) .44 (.20 4 V61R411A-Ax**** 1/4 Internal Not collected Primary 1.30 (1300) 22 to 116 (1.5 to 8) – 0.84 (.38) 3 V61R422A-Ax**** 1/4 External Not collected Primary 1.30 (1300) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 0.84 (.38) 3 V61R411D-Cx13AA 1/4 Internal Collected Secondary 1.30 (1300) 22 to 145 (1.5 to 10) – 0.60 (.27) 4 V61R422D-Cx13AA 1/4 External Collected Secondary 1.30 (1300) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 0.60 (.27) 4 V62S411A-Ax**** 3/8 Internal Not collected Primary 2.60 (2600) 22 to 116 (1.5 to 8) – 1.34 (.61) 3 V62S422A-Ax**** 3/8 External Not collected Primary 2.60 (2600) 26" Hg to 116 (-0.9 to 8) 44 to 116 (3 to 8) 1.34 (.61) 3 V62S411D-Cx13AA 3/8 Internal Collected Secondary 2.60 (2600) 22 to 145 (1.5 to 10) – 1.10 (.50) 4 V62S422D-Cx13AA 3/8 External Collected Secondary 2.60 (2600) 26" Hg to 145 (-0.9 to 10) 44 to 145 (3 to 10) 1.10 (.50) 4

3/2 Solenoid Pilot Valves

1 (+) 12 (Solenoid 2)

2 (–) 12 + 14

3 (+) 14 (Solenoid 1)

Symbol Model Port

size

Pilot exhaust

Pilot supply

Solenoid variant

Flow Cv (l/min)

Operating pressure psi (bar)

Pilot pressure psi (bar)

Dimensional drawing no.

lbs (kg)

Double solenoid DIN EN 175 301-803 (DIN 43650 type C) 4 pin

Coil & voltage codes

Secondary

24 V d.c. 13 A 2 W

VVoollttaaggee

Coil code

Power inrush/hold

SSyymmbbooll

Plug no.

Function Actuation

12 V d.c. 12J 2 W 54469-01

24 V d.c. 13J 2 W 54469-02

24 V 50/60 Hz 14J 4/2.5 VA 54469-04

48 V 50/60 Hz 16J 4/2.5 VA 54469-07

110/120 V 50/60 Hz 18J 4/2.5 VA 54469-03

220/240 V 50/60 Hz 19J 6/5 VA 54469-08

VVoollttaaggee

Coil code

Power inrush/hold Model

Voltage tolerance: ±10%

Rating: 100% E.D.

Protection class: IP 65 with sealed plugs (ISO 6952)

Electrical details

Plug configuration, valve side/twin pilot

**** Insert coil connector code from tables below. For manual override options, substitute ‘x’ as follows: 1 = without manual override NC = Normally closed

2 = locking NO = Normally open 3 = non-locking

Primary (22 mm coil industrial standard)

3-Pin Industrial Standard 22mm

A = no connector B = Cable grip 0-240Vac/Vdc 54934-01 C = 6 ft molded cable, 0-240Vac/Vdc 54934-21 H = Cable grip w/indicator light 24Vdc 54934-08 J = Cable grip w/indicator light 120Vac 54934-02 Z = 1/2" Conduit 0-240Vac/Vdc 54934-05 5 = 6 ft molded cable w/indicator light, surge suppression, 24Vac/Vdc 54934-30 6 = 6 ft molded cable w/indicator light, 120Vac 54934-35

4-Pin Connector

A = no connector Y = 4–pin cable grip 0-240Vac/Vdc 0588666 X = 4–pin 10’ molded cable 0-240Vac/Vdc 0102144

Connectors

V60 Series

VAL-3-4

Littleton, CO USA Phone: 303-794-2611 www.norgren.com

1 V60 1.38 0.67 – 0.13 0.26 0.67 1/8 0.87 0.64 1.10 – 4.49 0.98 0.98 0.18 0.71 1.02 1.38 – –

(35) (17) – (3.2) (6.5) (17) (22) (16.2) (28) – (114) (25) (25) (4.5) (18) (26) (35) – –

1 V61 1.81 0.71 0.13 0.26 0.79 1/4 0.98 0.83 1.10 – 5.12 1.26 1.14 0.18 0.94 1.02 1.57 – –

(46) (18) – (3.2) (6.5) (20) (25) (21) (28) – (130) (32) (29) (4.5) (24) (26) (40) – –

1 V62 2.13 0.83 – 0.18 0.31 1.10 3/8 1.34 0.96 1.73 – 5.71 0.47 1.42 0.18 1.02 1.42 2.17 – –

(54) (21) – (4.5) (8) (28) (34) (24) (44) – (145) (12) (36) (4.5) (26) (36) (55) – –

2 V60 1.38 0.67 – 0.13 0.26 0.67 1/8 0.87 0.64 1.10 – 4.49 0.98 0.98 0.18 0.71 1.02 1.38 – –

(35) (17) – (3.2) (6.5) (17) (22) (16) (28) – (114) (25) (25) (4.5) (18) (26) (35) – –

2 V61 1.81 0.71 – 0.13 0.26 0.79 1/4 0.98 0.83 1.10 – 5.12 1.26 1.14 0.18 0.94 1.02 1.57 – –

(46) (18) – (3.2) (6.5) (20) (25) (21) (28) – (130) (32) (29) (4.5) (24) (26) (40) – –

2 V62 2.13 0.83 – 0.18 0.31 1.10 3/8 1.34 0.96 1.73 – 5.71 0.47 1.34 0.18 1.02 1.42 2.17 – –

(54) (21) – (4.5) (8) (28) (34) (24) (44) – (145) (12) (34) (4.5) (26) (36) (55) – –

3 V60 1.38 – – 0.13 0.26 0.67 1/8 0.87 0.64 1.10 6.30 – 0.98 – 0.18 0.71 1.02 1.38 – –

(35) – – (3.2) (6.5) (17) (22) (16) (28) (160) – (25) – (4.5) (18) (26) (35) – –

3 V61 1.81 – – 0.13 0.26 0.79 1/4 0.98 0.83 1.10 7.05 – 1.26 – 0.18 0.94 1.02 1.57 – –

(46) – – (3.2) (6.5) (20) (25) (21) (28) (179) – (32) – (4.5) (24) (26) (40) – –

3 V62 2.13 – – 0.18 0.31 1.10 3/8 1.34 0.96 1.73 7.64 – 0.47 – 0.18 1.02 1.42 2.17 – –

(54) – – (4.5) (8) (28) (34) (24) (44) (194) – (12) – (4.5) (26) (36) (55) – –

4 V60 1.38 0.67 – 0.13 0.26 0.67 1/8 0.87 0.64 1.10 4.69 – 0.98 0.98 0.18 0.71 1.02 1.38 1.81 0.59

(35) (17) – (3.2) (6.5) (17) (22) (16) (28) (119) – (25) (25) (4.5) (18) (26) (35) (46) (15)

4 V61 1.81 0.71 – 0.13 0.26 0.79 1/4 0.98 0.83 1.10 5.24 – 1.26 1.14 0.18 0.94 1.02 1.57 1.81 0.59

(46) (18) – (3.2) (6.5) (20) (25) (21) (28) (133) – (32) (29) (4.5) (24) (26) (40) (46) (15)

4 V62 2.13 0.83 – 0.18 0.31 1.10 3/8 1.34 0.96 1.73 5.79 – 0.47 1.42 0.18 1.02 1.42 2.17 2.13 0.59

(54) (21) – (4.5) (8) (28) (34) (24) (44) (147) – (12) (36) (4.5) (26) (36) (55) (54) (15)

* Manual override ** External pilot supply 10-32 *** Collected pilot exhaust 10-32 **** Solenoid 1 ***** Solenoid 2

ABC D E F G H JK LMNOP QR STUDimensional

drawing no.

Type

All Dimensions in Inches (mm)

QNO

*****

****

10 (12)

12 (10)

(1) 3

1 (3)

***

V60 Series

Littleton, CO USA Phone: 303-794-2611 www.norgren.com

VAL-3-5

V60PA11A-Ax**** 1/8 Internal Not collected Primary 0.50 (500) 29 to 116 (2 – 8) – 0.75 (0.34) 7 V60PA11D-Cx13AA 1/8 Internal Collected Secondary 0.50 (500) 29 to 145 (2 – 10) – 0.53 (0.24) 8 V61RA11A-Ax**** 1/4 Internal Not collected Primary 0.95 (950) 29 to 116 (2 – 8) – 0.95 (0.43) 7 V61RA11D-Cx13AA 1/4 Internal Collected Secondary 0.95 (950) 29 to 145 (2 – 10) – 0.73 (0.33) 8 V62SA11A-Ax**** 3/8 Internal Not collected Primary 1.90 (1900) 29 to 116 (2 – 8) – 0.73 (0.33) 7 V62SA11D-Cx13AA 3/8 Internal Collected Secondary 1.90 (1900) 29 to 145 (2 – 10) – 1.39 (0.63) 8 V60PB11A-Ax**** 1/8 Internal Not collected Primary 0.50 (500) 29 to 116 (2 – 8) – 0.75 (0.34) 7 V60PB11D-Cx13AA 1/8 Internal Collected Secondary 0.50 (500) 29 to 145 (2 – 10) – 0.53 (0.24) 8 V61RB11A-Ax**** 1/4 Internal Not collected Primary 0.95 (950) 29 to 116 (2 – 8) – 0.95 (0.43) 7 V61RB11D-Cx13AA 1/4 Internal Collected Secondary 0.95 (950) 29 to 145 (2 – 10) – 0.73 (0.33) 8 V62SB11A-Ax**** 3/8 Internal Not collected Primary 1.90 (1900) 29 to 116 (2 – 8) – 1.61 (0.73) 7 V62SB11D-Cx13AA 3/8 Internal Collected Secondary 1.90 (1900) 29 to 145 (2 – 10) – 1.39 (0.63) 8 V60PC11A-Ax**** 1/8 Internal Not collected Primary 0.50 (500) 29 to 116 (2 – 8) – 0.75 (0.34) 7 V60PC11D-Cx13AA 1/8 Internal Collected Secondary 0.50 (500) 29 to 145 (2 – 10) – 0.53 (0.24) 8 V61RC11A-Ax**** 1/4 Internal Not collected Primary 0.95 (950) 29 to 116 (2 – 8) – 0.95 (0.43) 7 V61RC11D-Cx13AA 1/4 Internal Collected Secondary 0.95 (950) 29 to 145 (2 – 10) – 0.73 (0.33) 8 V62SC11A-Ax**** 3/8 Internal Not collected Primary 1.90 (1900) 29 to 116 (2 – 8) – 1.61 (0.73) 7 V62SC11D-Cx13AA 3/8 Internal Collected Secondary 1.90 (1900) 29 to 145 (2 – 10) – 1.39 (0.63) 8

2 x 3/2 Solenoid Pilot Valves

NC/NC

NO/NO

NO/NC

Symbol Model Port size Pilot exhaustPilot supply

Solenoid variant

Flow Cv (l/min)

Operating pressure (bar)

Pilot pressure (bar)

Dimensional drawing no.

lbs (kg)

1 (+) 12 (Solenoid 2)

2 (–) 12 + 14

3 (+) 14 (Solenoid 1)

Double solenoid DIN EN 175 301-803 (DIN 43650 type C) 4 pin

Coil & voltage codes

Secondary

24 V d.c. 13 A 2 W

VVoollttaaggee

Coil code

Power inrush/hold

SSyymmbbooll

Plug no.

Function Actuation

12 V d.c. 12J 2 W 54469-01

24 V d.c. 13J 2 W 54469-02

24 V 50/60 Hz 14J 4/2.5 VA 54469-04

48 V 50/60 Hz 16J 4/2.5 VA 54469-07

110/120 V 50/60 Hz 18J 4/2.5 VA 54469-03

220/240 V 50/60 Hz 19J 6/5 VA 54469-08

VVoollttaaggee

Coil code

Power inrush/hold Model

Voltage tolerance: ±10%

Rating: 100% E.D.

Protection class: IP 65 with sealed plugs (ISO 6952)

Electrical details

Plug configuration, valve side/twin pilot

Primary (22 mm coil industrial standard)

3-Pin Industrial Standard 22mm

4-Pin Connector

A = no connector Y = 4–pin cable grip 0-240Vac/Vdc 0588666 X = 4–pin 10’ molded cable 0-240Vac/Vdc 0102144

Connectors

**** Insert coil connector code from tables below. For manual override options, substitute ‘x’ as follows: 1 = without manual override NC/NC = Both valves normally closed

2 = locking NO/NO = Both valves normally open 3 = non-locking NO/NC = 1 valve normally open, 1 valve normally closed

V60 Series

VAL-3-6

Littleton, CO USA Phone: 303-794-2611 www.norgren.com

7 V60 1.97 – 0.64 0.13 0.26 0.67 1/8 0.87 1.28 1.10 6.89 – 0.98 – 0.18 1.32 1.02 1.38 – –

(50) – (16.2) (3.2) (6.5) (17) (22) (32.4) (28) (175) – (25) – (4.5) (33.6) (26) (35) – –

7 V61 2.60 – 0.83 0.13 0.26 0.79 1/4 0.98 1.65 1.10 7.83 – 1.26 – 0.18 1.73 1.02 1.57 – –

(66) – (21) (3.2) (6.5) (20) (25) (42) (28) (199) – (32) – (4.5) (44) (26) (40) – –

7 V62 3.07 – 0.96 0.18 0.31 1.10 3/8 1.34 1.92 1.73 8.58 – 0.47 – 0.18 1.02 1.42 2.17 – –

(78) – (24.4) (4.5) (8) (28) (34) (48.8) (44) (218) – (12) – (4.5) (26) (36) (55) – –

8 V60 1.97 0.67 0.64 0.13 0.26 0.67 1/8 0.87 1.28 1.10 5.28 – 0.98 0.98 0.18 1.32 1.02 1.38 1.81 0.59

(50) (17) (16.2) (3.2) (6.5) (17) (22) (32.4) (28) (134) – (25) (25) (4.5) (33.6) (26) (35) (46) (15)

8 V61 2.60 0.71 0.83 0.13 0.26 0.79 1/4 0.98 1.65 1.10 6.02 – 1.26 1.14 0.18 1.73 1.02 1.57 1.81 0.59

(66 (18) (21) (3.2) (6.5) (20) (25) (42) (28) (153) – (32) (29) (4.5) (44) (26) (40) (46) (15)

8 V62 3.07 0.87 0.96 0.18 0.31 1.10 3/8 1.34 1.92 1.73 6.77 – 0.47 2.40 0.18 1.02 1.42 2.17 2.13 0.59

(78) (22) (24.4) (4.5) (8) (28) (34) (48.8) (44) (172) – (12) (61) (4.5) (26) (36) (55) (54) (15)

* Manual override ** External pilot supply 10-32 *** Collected pilot exhaust 10-32 **** Solenoid 1 ***** Solenoid 2

ABCDEFGHJKLMNOPQRSTUDimensional

drawing no.

Type

All Dimensions in Inches (mm)

L Q

4 2

A C

N O

*****

****

***
