Model No. NTL15909.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals.
If a decal is missing or illegible, call the telephone
number on the front cover of this manual and request a free replacement decal. Apply the decal in
the location shown. Note: The decals may not be
shown at actual size.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your incline trainer before using your incline trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this incline trainer are adequately informed of all warnings and precautions.
3. Use the incline trainer only as described.
4. Place the incline trainer on a level surface,
with at least 8 ft. (2.4 m) of clearance behind
it and 2 ft. (0.6 m) on each side. Do not place
the incline trainer on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the incline
trainer.
5. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
6. Do not operate the incline trainer where
aerosol products are used or where oxygen
is being administered.
trainer with bare feet, wearing only stockings,
or in sandals.
11. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local NordicTrack dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the incline trainer. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
7. Keep children under age 12 and pets away
from the incline trainer at all times.
8. The incline trainer should be used only by
persons weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the incline trainer at a time.
10. Wear appropriate exercise clothes when
using the incline trainer. Do not wear loose
clothes that could become caught in the incline trainer. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the incline
15. Never move the walking belt while the power
is turned off. Do not operate the incline
trainer if the power cord or plug is damaged,
or if the incline trainer is not working properly. (See TROUBLESHOOTING on page 22 if
the incline trainer is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the incline
trainer (see HOW TO TURN ON THE POWER
on page 15).
17. Never start the incline trainer while you are
standing on the walking belt. Always hold the
handrails while using the incline trainer.
3
8. The incline trainer is capable of high speeds.
1
Adjust the speed in small increments to
avoid sudden jumps in speed.
9. The pulse sensor is not a medical device.
1
Various factors, including the user's move-
ent, may affect the accuracy of heart rate
m
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
20. Never leave the incline trainer unattended
while it is running. Always remove the key,
unplug the power cord, and switch the
reset/off circuit breaker to the “off” position
when the incline trainer is not in use. (See the
drawing on page 5 for the location of the
reset/off circuit breaker.)
21. Do not attempt to move the incline trainer until
it is properly assembled. (See ASSEMBLY on
page 6, and HOW TO MOVE THE INCLINE
TRAINER on page 21.) You must be able to
safely lift 45 lbs. (20 kg) to move the incline
trainer.
3. Inspect and properly tighten all parts of the
2
incline trainer regularly.
24. Never insert or drop any object into any
pening on the incline trainer.
o
DANGER: A
5.
2
cord immediately after use, before cleaning
the incline trainer, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The incline trainer is intended for in-home use
only. Do not use the incline trainer in any
commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
lways unplug the power
22. Do not change the incline of the incline
trainer by placing objects under the incline
trainer.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
INCLINE TRAINER X5i INTERACTIVE. The INCLINE
TRAINER X5i INTERACTIVE offers a selection of features designed to make your workouts at home more
enjoyable and effective.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
Pulse Sensor
Accessory Tray
Handrail
®
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Key/Clip
Console
Fan
Walking Belt
Walking Platform
Idler Roller
Adjustment Bolts
Wheel
Platform Cushion
Reset/Off
Circuit Breaker
Power Cord
5
ASSEMBLY
#8 x 3/4"
Screw (1)–14
#8 x 1" Tek
Screw (2)–4
3/8" Nut (7)–2
3/8" Star
Washer (8)–8
5/16" Star
Washer (9)–8
Base Foot Spacer
(11)–4
3/8" x 3 1/2" Patch Bolt (5)–4
3/8" x 2 1/2" Bolt (6)–2
5/16" x 2 3/4" Bolt (4)–4
3/8" x 5" Patch Bolt (34)–4
5/16" x 1 3/8"
Bolt (3)–4
#8 x 1 1/2"
Screw (19)–2
ssembly requires two persons. Set the incline trainer in a cleared area and remove all packing materials. Do
A
not dispose of the packing materials until assembly is completed. Note: The underside of the incline trainer
walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the
top of the walking belt or the shipping carton. This is normal and does not affect incline trainer performance. If
there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive
cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
1. Make sure that the power cord is unplugged.
1
With the help of a second person, tip the incline
rainer onto its left side. Have the second per-
t
son hold the incline trainer to prevent it from
ipping.
t
Attach four Base Feet (10) and four Base Foot
Spacers (11) to the Base (80) with four #8 x 1"
Tek Screws (2) in the locations shown. Be care-
ful not to overtighten the Tek Screws.
11
11
10
10
1
1
10
2
2
11
10
2
80
2
2. Identify the Right Upright (79), which is marked
with a “Right” sticker. Hold the Right Upright
near the incline trainer.
See the lower inset drawing. Tie the wire tie in
the Right Upright (79) around the end of the
Upright Wire (78). See the upper inset draw-
ing. Then, pull the other end of the wire tie until
the Upright Wire is routed out of the side hole in
the top of the Right Upright.
Orient the Right Upright (79) as shown. Attach
the Right Upright to the Base (80) with two 3/8"
x 3 1/2" Patch Bolts (5) and two 3/8" Star
Washers (8). Start both Patch Bolts before
tightening either of them. Be careful not to
pinch the Upright Wire (78).
With the help of a second person, tip the incline
trainer onto its right side. Have the second per-
son hold the incline trainer to prevent it from
tipping.
Attach the Left Upright (not shown) as described above. Note: There are no wires on the
left side.
2
78
Wire
Tie
79
80
79
8
78
5
79
78
Wire
Tie
7
3. With the help of a second person, carefully tip
the incline trainer down so that the Base (80) is
flat on the floor.
Attach a Wheel (12) to each side of the Base
80) with a 3/8" x 2 1/2" Bolt (6) and a 3/8" Nut
(
(7) (only one side is shown).
3
7
12
6
80
4. Set the Console Cover (87) face down on a soft
surface. Remove the two #8 x 1 1/2" Screws
(19) from the Console Back (89). Save the
Screws for step 6. Separate the Console Back
from the Console Cover and remove the
Console Crossbar (not shown) from inside.
5. Position the Console Crossbar (103) between
the Uprights (77, 79) as shown. Attach the
Console Crossbar to the Uprights with four 5/16"
x 2 3/4" Bolts (4) and four 5/16" Star Washers
(9). Do not fully tighten the Bolts yet.
Remove the wire tie from the Upright Wire (78).
4
89
19
87
5
4
9
103
77
4
78
Wire Tie
79
9
8

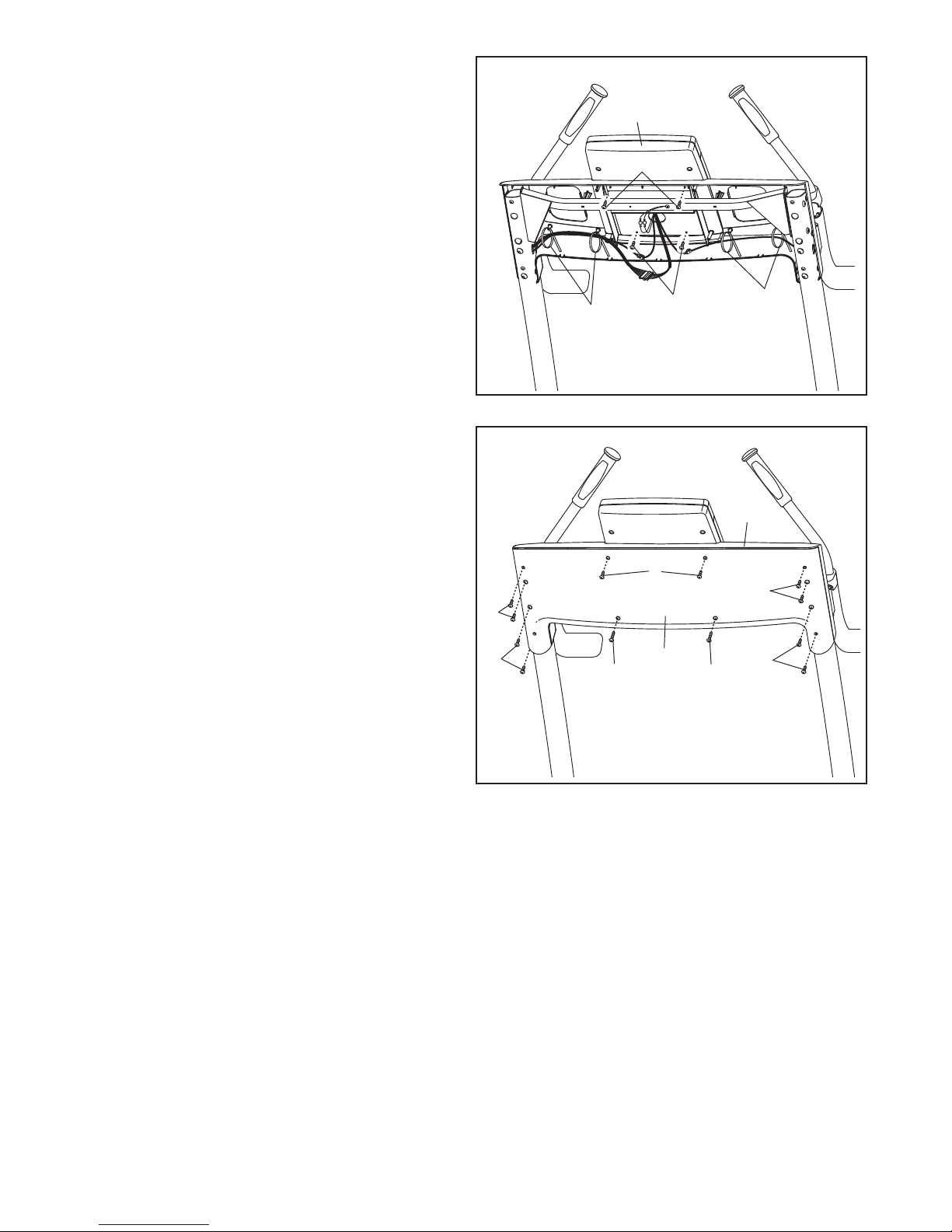

6. Set the Console Cover (87) on the Uprights (77,
79). Make sure that the Console Cover is oriented with the wire ties toward the bottom as
hown.
s
ttach the Console Cover (87) with the two #8 x
A
1 1/2" Screws (19) that you removed in step 4.
Start both Screws before tightening either of
them. Do not overtighten the Screws.
Insert the Upright Wire (78) through the loops in
the ties.
6
Ties
7
8
19
78
79
77
7. Identify the Left and Right Pulse Handrails (86,
102).
Hold the Left Pulse Handrail (86) near a
Handrail (88). Insert the Left Pulse Wire (90)
into the top of the Handrail and out of the hole.
Slide the Left Pulse Handrail into the Handrail.
Be careful not to pinch the Left Pulse Wire.
Attach the Left Pulse Handrail (86) to the
Handrail (88) with two 5/16" x 1 3/8" Bolts (3)
and two 5/16" Star Washers (9). Note: See the
inset drawing. Use the two indicated bolt
holes.
Attach the Right Pulse Handrail (102) to the
other Handrail (88) as described above.
7
86
86
Bolt
Holes
102
90
Hole
88
Hole
9
3
88
88
90
9
3
91
9
8. Have a second person hold the Left Pulse
Handrail (86) near the Left Upright (77). Insert
the Left Pulse Wire (90) from the Left Pulse
andrail through the hole in the Left Upright and
H
out of the hole in the side of the Left Upright.
hen, insert the Left Pulse Wire through the
T
loops in the ties.
8
102
86
Attach the Left Pulse Handrail (86) to the Left
Upright (77) with two 3/8" x 5" Patch Bolts (34)
and two 3/8" Star Washers (8). Start all four
Patch Bolts before firmly tightening any of
them.
Attach the Right Pulse Handrail (102) to the
Right Upright (79) as described above.
9. Have a second person hold the Console (85)
near the Console Cover (87). Insert the wires
from the Console through the indicated hole.
Connect the Upright Wire (78), the Left and
Right Pulse Wires (90, 91), and the Ground
Wires (97) to the wires extending from the
Console (85). See the inset drawing. The con-
nectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
8
Ties
90
34
Ties
79
91
34
8
77
Hole
9
85
87
Hole
97
91
78
90
Wires
Console Wire
10
78
10. Attach the Console (85) with four #8 x 3/4"
Screws (1). Start all four Screws before tight-
ening any of them. Do not overtighten the
crews.
S
ighten the four loops around the wires by
T
pulling on the ends of the ties.
See step 5. Tighten the 5/16" x 2 3/4" Bolts (4).
10
85
1
11. Attach the Console Back (89) to the Console
Cover (87) with two #8 x 1 1/2" Screws (19) and
ten #8 x 3/4" Screws (1). Start all twelve
Screws before tightening any of them. Do
not overtighten the Screws. Make sure no
wires are pinched.
11
1
1
Ties
19
1
Ties
87
1
1
89
19
1
11
12. Press the Left and Right Accessory Trays (99,
100) into the Console Cover (87).
2
1
lide the two Handrail Covers (76) down against
S
the Handrails (88).
99
100
76
88
87
76
88
13. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included hex
keys in a secure place. One of the hex keys is used to adjust the walking belt (see pages 23 and 24). To pro-
tect the floor or carpet from damage, place a mat under the incline trainer.
12
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
our incline trainer features a walking belt coated with
Y
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to the
walking belt or the walking platform. Such substances will deteriorate the walking belt and cause
excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your incline trainer, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your incline trainer being damaged, always use a
surge suppressor with your incline trainer (see
drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call
the telephone number on the front cover of this
manual and order part number 146148, or see your
local electronics store.
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
lug. Plug the power cord into a surge suppressor,
p
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The incline trainer is not compatible
with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet
2
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the incline
trainer. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
Grounding Plug
13
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The incline trainer console offers an impressive array
of features designed to make your workouts more effective and enjoyable. When the manual mode of the
console is selected, the speed and incline of the incline
trainer can be changed with the touch of a button. As
you exercise, the console will display continuous exercise feedback. You can even measure your heart rate
using the handgrip pulse sensor.
In addition, the console features nine calorie workouts.
Each workout automatically controls the speed and incline of the incline trainer as it guides you through an
effective exercise session. You can even use the random workout generator to get a new workout every
time you exercise.
The console also features an iFit training mode that allows your incline trainer to communicate with your
wireless network through an optional iFit Live module.
The iFit Live module allows you to download personalized workouts and to track and analyze your workout
results on the iFit Live website. To purchase an iFit
Live module at any time, go to www.ifit.com or call
the telephone number on the front cover of this
manual.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 15. To use the manual mode, see page 15. To use a calorie workout,
see page 17. To use a random workout, see page
18. To use the information mode, see page 19. To
use the stereo sound system, see page 20. To use
the iFit training mode, see page 20.
14
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the incline trainer has been ex-
osed to cold temperatures, allow it to warm to
p
room temperature before turning on the power. If
ou do not do this, you may damage the console
y
displays or other electrical components.
Plug in the power cord (see
page 13). Next, locate the
reset/off circuit breaker on
the incline trainer frame
Reset
near the power cord. Make
sure that the circuit breaker
is in the “reset” position.
IMPORTANT: The console features a display demo
mode, designed to be used if the incline trainer is
displayed in a store. If the displays light as soon
as you plug in the power cord and switch the
reset/off circuit breaker to the reset position, the
demo mode is turned on. To turn off the demo
mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page 19 to turn off the demo mode.
Next, stand on the walking platform of the incline
trainer. Locate the clip at-
Key
tached to the key (see
the drawing at the right),
and slide the clip securely onto the waistband of your clothes.
Clip
Then, insert the key into
the console. After a moment, the displays will light. IMPORTANT: In an emer-
gency situation, the key can be pulled from the
console, causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean
athletic shoes while using the incline trainer. The
first time the incline trainer is used, observe the
alignment of the walking belt, and center the walking belt if necessary (see page 24).
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
f necessary, press the Incline buttons to adjust the
I
incline level to 0 percent.
2. Select the manual mode.
Each time the key is inserted, the main menu
will appear. To select the
manual mode, use the
increase and decrease
buttons next to the Enter
button and highlight
START. Press the Enter button. If you have selected a workout or the iFit training mode, press
the Menu button to return to the main menu.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
one of the buttons, the speed setting will change
by 0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting. To select a
speed setting that includes a decimal—such as 3.5
mph—press two numbered buttons in succession.
For example, to select a speed setting of 3.5 mph,
press the 3 button and then immediately press the
5 button.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE
on page 19. For simplicity, all instructions in this manual refer to miles.
15
4. Change the incline of the incline trainer as
desired.
o change the incline of the incline trainer, press
T
the Incline increase and decrease buttons or one
f the incline buttons numbered -3 to 40. Each time
o
you press one of the buttons, the incline will gradually change until it reaches the selected incline setting.
Note: As the incline changes, the maximum
speed of the incline trainer will change. When
the incline is from -3% to -2.5%, the maximum
speed will be 8 mph; when the incline is from 2% to -1.5%, the maximum speed will be 8.5
mph; when the incline is from -1% to -0.5%, the
maximum speed will be 9 mph; when the incline is from 0% to 15%, the maximum speed
will be 10 mph; when the incline is from 15.5%
to 25%, the maximum speed will be 8 mph; and
when the incline is from 25.5% to 40%, the maximum speed will be 6 mph.
5. Monitor your progress with the display.
The console offers several display modes. The display mode that you select will determine which
workout information is shown. To select the desired display mode, repeatedly press the Display
button or the increase and decrease buttons next
to the Enter button.
As you walk or run on the incline trainer, the center
display can show the following workout information:
• The incline level of the incline trainer.
• The speed of the walking belt.
• The elapsed time.
If desired, adjust the volume level by pressing the
Volume (VOL) increase and decrease buttons on
the console.
To reset the console, press the Stop button, re-
ove the key, and then reinsert the key.
m
6. Measure your heart rate if desired.
Before using
the handgrip
pulse sensor,
remove the
Contacts
sheets of clear
plastic from the
metal contacts
if necessary. In
addition, make
sure that your
hands are clean.
To measure your heart rate, stand on the walking
platform and hold the metal contacts on the
handrail for approximately ten seconds—avoid
moving your hands. When your pulse is detected,
your heart rate will be shown. For the most accu-
rate heart rate reading, continue to hold the
contacts for about 15 seconds.
7. Turn on the fan if desired.
The fan features low and high speed settings.
Press the Coolaire Fan increase and decrease buttons repeatedly to select a fan speed or to turn off
the fan. Note: If the fan is on when the walking belt
is stopped, the fan will turn off automatically after a
few minutes.
8. When you are finished exercising, remove the
key from the console.
• The distance that you have walked or run.
• The approximate number of calories you have
burned.
• Your pace in minutes per mile or minutes per
kilometer.
• Your heart rate (see step 6 on this page).
Regardless of which display mode you select, the
speed and incline settings will appear in the display
for a few seconds each time you change the setting.
Step onto the walking platform and press the Stop
button. Next, remove the key from the console and
put it in a secure place.
When you are finished using the incline trainer,
switch the reset/off circuit breaker to the “off” position and unplug the power cord. IMPORTANT: If
you do not do this, the incline trainerʼs electrical components may wear prematurely.
16
HOW TO USE A CALORIE WORKOUT
1. Insert the key into the console.
See step 1 on page 15.
2. Select a calorie workout.
If you have selected the manual mode, a workout,
or the iFit training mode, press the Menu button to
return to the main menu.
To select a calorie workout, use the increase and
decrease buttons next to the Enter button and
highlight WORKOUTS. Press the Enter button.
Then, press the increase and decrease buttons to
highlight the desired workout category and press
the Enter button. You can also press the Cals butons on the console.
Use the increase and decrease buttons to select the
desired workout. When you select a workout, the
display will show the name of the workout, the maximum speed setting, the maximum incline setting,
and a profile of the speed settings of the workout.
3. Start the workout.
Press the Start button to start the workout. A moment after you press the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
Each calorie workout is divided into segments. One
speed setting and one incline setting are programmed for each segment. Note: The same
speed setting and/or incline setting may be programmed for consecutive segments.
During the workout, the profile will
Current Segment
show your
progress. Press
the Display button
repeatedly to view
the profile. The
flashing segment of the profile represents the current segment of the workout. The height of the
flashing segment indicates the speed setting for
the current segment.
At the end of the first segment of the workout, a series of tones will sound. If a different speed and/or
incline setting is programmed for the second seg-
ment, the speed setting and/or incline setting will
appear in the display for a moment to alert you and
the incline trainer will automatically adjust to the
peed and incline settings for the next segment.
s
he workout will continue in this way until the last
T
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline buttons; however, when the next segment begins,
the incline trainer will automatically adjust to
the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
incline trainer will automatically adjust to the speed
and incline settings for the next segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. In addition, if you manually change the speed or incline of the incline trainer during the workout,
the number of calories you burn will be affected.
4. Monitor your progress with the display.
See step 5 on page 16. When a calorie workout is
selected, the console can also show a flame representing 25 calories and a profile of the speed settings of the workout.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.
17
HOW TO USE A RANDOM WORKOUT
1. Insert the key into the console.
See step 1 on page 15.
2. Select a random workout.
At the end of the first segment of the workout, a series of tones will sound. If a different speed and/or
incline setting is programmed for the second seg-
ent, the speed setting and/or incline setting will
m
appear in the display for a moment to alert you and
he incline trainer will automatically adjust to the
t
speed and incline settings for the next segment.
If you have selected the manual mode, a workout,
or the iFit training mode, press the Menu button to
return to the main menu.
To select a random workout, use the increase and
decrease buttons next to the Enter button and highlight WORKOUTS. Press the Enter button. Then,
press the increase and decrease buttons to highlight RANDOM TRAIL and press the Enter button.
Press one of the Cals buttons to select the desired
number of calories. The incline trainer will create a
new workout based on random speed and incline
settings. Press the Cals button repeatedly to create
different workouts.
When you select a workout, the display will show
the name of the workout, the maximum speed setting, the maximum incline setting, and a profile of
the speed settings of the workout.
3. Start the workout.
Press the Start button to start the workout. A moment after you press the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
Each random workout is divided into segments.
One speed setting and one incline setting are programmed for each segment. Note: The same
speed setting and/or incline setting may be programmed for consecutive segments.
During the workout, the profile will
Current Segment
show your
progress. Press
the Display button
repeatedly to view
the profile. The
flashing segment of the profile represents the current segment of the workout. The height of the
flashing segment indicates the speed setting for
the current segment.
The workout will continue in this way until the last
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can override
the setting by pressing the Speed or Incline buttons; however, when the next segment begins,
the incline trainer will automatically adjust to
the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
incline trainer will automatically adjust to the speed
and incline settings for the next segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that
you burn will depend on your weight. In addition, if you manually change the speed or incline of the incline trainer during the workout,
the number of calories you burn will be affected.
4. Monitor your progress with the display.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.
18
THE INFORMATION MODE
The console features an information mode that keeps
rack of the total distance that the walking belt has
t
moved and the total number of hours that the incline
rainer has been used. The information mode also al-
t
lows you to select miles or kilometers to measure distance, and to turn on and turn off the display demo
mode. You can also adjust the contrast level of the
display and view the status of the optional iFit Live
module.
To select the information mode, hold down the Stop
button, insert the key into the console, and then release the Stop button. When the information mode is
selected, the following information will appear in the
display:
The display will show the
total number of miles that
the walking belt has moved
and the total number of
hours the incline trainer has
been used.
The display will show the selected unit of measurement. To change the unit of measurement, press the
Speed increase button. To view distance in miles, select ENGLISH. To view distance in kilometers, select
METRIC.
The console features a display demo mode, designed
to be used if the incline trainer is displayed in a store.
While the demo mode is turned on, the console will
unction normally when you plug in the power cord,
f
switch the reset/off circuit breaker to the “reset” posi-
ion, and insert the key into the console. However,
t
when you remove the key, the displays will remain lit,
although the buttons will not function. If the demo
mode is turned on, the word “ON” will appear in display
while the information mode is selected. To turn on or
turn off the demo mode, press the Speed decrease
button.
The display will also show the contrast level of the display. Press the Incline increase and decrease buttons
to adjust the contrast.
The display will show whether an accessory is plugged
into the console. If the iFit Live module is plugged in,
the display will show the words “WIFI STATUS.” If a
USB device is plugged in, the display will show the
words “USB STATUS.” If nothing is plugged in, the display will show the words “NO MODULE DETECTED.”
To exit the information mode, remove the key from the
console.
19
HOW TO USE THE STEREO SOUND SYSTEM
HOW TO USE THE IFIT TRAINING MODE
To play music or audio books through the consoleʼs
peakers, you must connect your MP3 player, CD
s
player, or other personal audio player to the console.
Locate the audio wire. Plug one end into the audio jack
on the side of the console. Then, plug the audio wire
into a jack on your MP3 player, CD player, or personal
audio player. Make sure that the audio wire is fully
plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume level on your personal audio player or press
the Volume increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
The optional iFit Live module allows your incline trainer
o communicate with your wireless network and un-
t
locks exciting new features. For example, you can
ownload personalized workouts and track and ana-
d
lyze your workout results on the iFit Live website. To
purchase an iFit Live module at any time, go to
www.ifit.com or call the telephone number on the
front cover of this manual.
To use the iFit training mode, insert the iFit Live module into the console. Use the increase and decrease
buttons next to the Enter button and highlight IFIT
TRAINING. Press the Enter button.
For more information on the iFit training mode, go to
www.iFit.com. Note: To use an iFit Live module, you
must have access to a computer with an internet connection and a USB port. You must also have your own
wireless network including an 802.11b router with
SSID broadcast enabled (hidden networks are not supported).
20
HOW TO MOVE THE INCLINE TRAINER
Before moving the incline trainer, insert the key into the
console, raise the incline to the maximum incline level,
remove the key, and unplug the power cord.
Due to the size and weight of the incline trainer, moving
it requires two or three persons. Hold the upright firmly
near the console. Tip the incline trainer back until it rolls
freely on the wheels. CAUTION: To decrease the possibil-
ity of injury or of damage to the incline trainer, do not
lift the incline trainer by the plastic belly pan. Do not
pull on the console. Carefully roll the incline trainer on the
wheels to the desired location and then lower it to the level
position. CAUTION: To reduce the risk of injury, use ex-
treme caution while moving the incline trainer. Do not
attempt to move the incline trainer over uneven surfaces.
Console
Belly
Pan
Upright
Wheel
21
TROUBLESHOOTING
Most incline trainer problems can be solved by following the steps below. Find the symptom that applies,
nd follow the steps listed. If further assistance is needed, please see the front cover of this manual.
a
PROBLEM: The power does not turn on
OLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
S
is plugged into a properly grounded outlet (see page 13). Use only a single-outlet surge suppressor that meets all of the specifications described on page 13. IMPORTANT: The incline trainer is
not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the in-
cline trainer frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the incline trainer still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the incline trainer is displayed
in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To
turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit,
see THE INFORMATION MODE on page 19 to turn off the demo mode.
c
Tripped Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Next, remove the three indicated #8
x 1/2" Cover Screws (18). Lift off the Left Roller Cover
(38).
a
38
18
18
22
Locate the Reed Switch (55) and the Magnet (41) on
op
the left side of the Pulley (42). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
hat the gap between the Magnet and the Reed
t
Switch is about 1/8 in. (3 mm). If necessary, loosen
he #8 x 3/4" Clamp Screw (20), move the Reed
t
T
View
1/8 in.
0
2
41
Switch slightly, and then retighten the Screw.
Reattach the Left Roller Cover (not shown) and run the
55
42
incline trainer for a few minutes to check for a correct
speed reading.
PROBLEM: The incline of the incline trainer does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Stop button again. Then,
press the Incline increase or decrease button. The incline trainer will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
If the incline does not calibrate, press the Stop button, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 13.
b. If the walking belt is overtightened, incline trainer per-
formance may decrease and the walking belt may be-
b
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
3–4 in.
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the incline trainer for a few
minutes. Repeat until the walking belt is properly
tightened.
Idler Roller Bolts
c. If the walking belt still slows when walked on, please see the front cover of this manual.
23
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
NPLUG THE POWER CORD. If the walking belt
U
has shifted to the left, use the hex key to turn the
eft idler roller bolt clockwise 1/2 of a turn; if the walk-
l
ing belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert
the key, and run the incline trainer for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 3 to 4 in. (8 to 10 cm) off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the incline trainer for a few minutes. Repeat until
the walking belt is properly tightened.
a
b
24
EXERCISE GUIDELINES
WARNING: B
exercise program, consult your physician.
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning any
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
PART LIST—Model No. NTL15909.1 R0110A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
46 #8 x 3/4" Screw
1
24#8 x 1" Tek Screw
345/16" x 1 3/8" Bolt
445/16" x 2 3/4" Bolt
543/8" x 3 1/2" Patch Bolt
623/8" x 2 1/2" Bolt
723/8" Nut
8 10 3/8" Star Washer
985/16" Star Washer
10 4 Base Foot
11 4 Base Foot Spacer
12 2 Wheel
13 8 #8 x 1/2" Screw
14 1 Hex Wrench
15 1 5/32" Hex Key
16 4 #6 x 1" Screw
17 8 #8 x 3/4" Tek Screw
18 9 #8 x 1/2" Cover Screw
19 4 #8 x 1 1/2" Screw
20 1 #8 x 3/4" Clamp Screw
21 4 #8 Belt Guide Screw
22 2 1/4" x 1 1/2" Bolt
23 2 5/16" x 1 3/4" Bolt
24 2 5/16" x 1 1/4" Bolt
25 2 1/4" x 2 1/2" Bolt
26 1 3/8" x 1" Bolt
27 1 3/8" x 1 3/4" Bolt
28 2 3/8" x 4 1/4" Bolt
29 2 1/4" Motor Bolt
30 2 #8 Star Washer
31 4 1/4" Star Washer
32 4 3/8" Jam Nut
33 4 5/16" Flange Nut
34 4 3/8" x 5" Patch Bolt
35 15 Clip
36 2 Plastic Fastener
37 1 Incline Stop Bracket
38 1 Left Roller Cover
39 1 Right Roller Cover
40 1 Motor Belt
41 1 Magnet
42 1 Drive Roller/Pulley
43 2 Belt Guide
44 1 Walking Platform
45 1 Left Platform Decal
46 1 Right Platform Decal
47 1 Idler Roller
48 1 Walking Belt
49 1 Front Hood
50 1 Power Cord
1 1 Grommet
5
52 1 Belly Pan Cover
53 1 Reset/Off Circuit Breaker
54 1 Belly Pan
55 1 Reed Switch
56 1 Reed Switch Clamp
57 1 Left Rear Cushion
58 1 Frame
59 1 Belly Pan Plate
60 1 Front Left Cushion
61 1 Front Belly Pan
62 1 Right Front Cushion
63 1 Top Incline Motor Cover
64 1 Incline Motor
65 1 Bottom Incline Motor Cover
66 1 Incline Motor Wire
67 5 Wire Clamp
68 1 Right Rear Cushion
69 1 Resistor
70 1 Electronics Plate
71 1 Controller
72 8 8" Wire Tie
73 2 Releasable Tie
74 2 8" Cable Tie
75 1 Drive Motor
76 2 Handrail Cover
77 1 Left Upright
78 1 Upright Wire
79 1 Right Upright
80 1 Base
81 2 Round Grommet
82 2 Caution Decal
83 1 Warning Decal
84 2 Base Cap
85 1 Console
86 1 Left Pulse Handrail
87 1 Console Cover
88 2 Handrail
89 1 Console Back
90 1 Left Pulse Wire
91 1 Right Pulse Wire
92 4 Pulse Plate
93 4 Pulse Plate Housing
94 2 Pulse Handle
95 1 Audio Wire
96 1 Console Fan
97 2 Ground Wire
98 2 Handrail Cap
99 1 Left Accessory Tray
100 1 Right Accessory Tray
26
Key No. Qty. Description Key No. Qty. Description
101 1 Incline Sensor Wire
102 1 Right Pulse Handrail
103 1 Console Crossbar
*–8" White Wire, M/F
*–10" Blue Wire, 2F
*–4" Blue Wire, M/F
*–8" Black Wire, M/F
*–10" Red Wire, M/F
*–10" Brown Wire, 2F
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
38
1
1
1
1
1
1
1
1
1
21
21
24
24
23
23
25
25
13
31
31
35
35
35
35
35
35
35
35
35
36
39
42
41
48
44
43
49
47
43
52
54
14
50
51
53
15
40
35
35
1
1
18
1
46
45
36
18
18
18
18
18
EXPLODED DRAWING A—Model No. NTL15909.1 R0110A
28
EXPLODED DRAWING B—Model No. NTL15909.1 R0110A
1
1
1
1
1
1
17
17
17
17
18
56
20
22
22
26
27
13
29
31
31
32
32
32
33
33
55
59
57
60
58
61
63
67
65
64
62
68
71
75
72
66
74
32
33
33
73
13
13
13
70
69
13
13
18
18
30
30
1
1
1
1
1
1
1
37
101
29
2
2
2
6
6
7
7
28
28
8
83
82
82
79
12
12
84
84
78
10
11
11
81
80
78
81
2
77
10
10
8
5
8
5
11
10
11
90
94
93
16
92
92
16
93
92
93
16
94
92
16
93
86
102
98
98
88
76
76
8
8
8
3
3
4
4
34
34
9
9
9
9
91
88
EXPLODED DRAWING C—Model No. NTL15909.1 R0110A
30
102
96
85
87
89
95
97
1
1
1
1
1
1
1
1
1
1
67
1
99
1
1
1
1
1
1
100
6
7
103
19
19
19
19
EXPLODED DRAWING D—Model No. NTL15909.1 R0110A
31
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.nordictrackservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and drive motor are warranted for a lifetime. Parts and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 295530 R0110A Printed in USA © 2010 ICON IP, Inc.
Loading...
