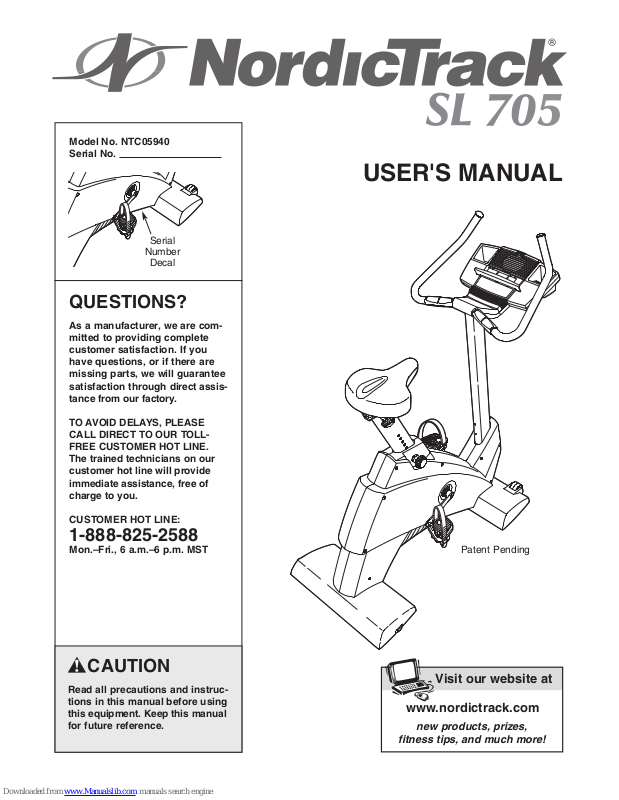

Model No. NTC05940
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
USER'S MANUAL
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
atent Pending
P
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
IMPORTANT PRECAUTIONS
WARNING:
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. Use the exercise cycle indoors on a level surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
Keep children under the age of 12 and pets
5.
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
To reduce the risk of serious injury, read the following important precau-
7. Wear suitable clothing when using the exercise cycle; do not wear loose clothing that
could become caught on the exercise cycle.
Always wear athletic shoes.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercising,
stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
2
BEFORE YOU BEGIN
Congratulations for selecting the new NordicTrack
®
SL 705 exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fitness, building
The NordicTrack
endurance, and toning the entire body.
®
SL 705 offers an impressive array
of features designed to let you enjoy this healthful
exercise in the comfort and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, call our Customer Service
Water Bottle Holder*
Bookrack
Pulse Sensor
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, mention
the product model number and serial number when
calling. The model number is NTC05940. The serial
number can be found on a decal attached to the exer
cise cycle (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Handlebar
-
Seat
Seat Knob
Seat Post Knob
REAR
*No water bottle
is included
Upright
FRONT
Wheel
Pedal Strap
Pedal
RIGHT SIDE
Leveling Foot
3
ASSEMBLY
M4 x 16mm Screw
(57)–5
M8 x 25mm Patch Screw
(59)–4
M8 Split Washer
(55)–18
M8 x 40mm Button Screw
(54)–12
M8 Nylon
Locknut (63)–4
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and phillips
screwdriver .
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers to the
quantity needed for assembly.
not in the parts bag, check to see if it has been pre-assembled.
Note: Some small parts may have been pre-attached for shipping. If a part is
1. Identify the Front Stabilizer (15). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with four M8 x 40mm Button
Screws (54) and four M8 Split Washers (55).
1
1
15
55
54
55
54
4
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 40mm Button Screws (54) and four M8 Split
Washers (55).
2
1
16
55
While another person holds the Upright (2) in the posi-
3.
tion shown, connect the Upper W
the Lower Wire Harness (43). Carefully pull the
upper end of the Upper Wire Harness to remove
the slack from the Wire Harnesses.
Make sure that the Upright (2) is turned so the top
slopes down in the direction shown. Slide the
Upright onto the Frame (1). Be careful to avoid pinching the Wire Harnesses (42, 43). Attach the Upright to
the Frame with four M8 x 40mm Button Screws (54)
and four M8 Split Washers (55).
ire Harness (42) to
3
Top must
slope down in
this direction.
54
55
55
54
2
55
1
42
43
54
Do not pinch the
Wire Harnesses
(42, 43) during
this step.
55
54
4. Hold the Handlebar (3) near the Upright (2). Feed the
Upper Wire Harness (42) up through the indicated hole
in the Handlebar. Attach the Handlebar to the Upright
with two M8 x 25mm Patch Screws (59) and two M8
Split Washers (55). Be careful to avoid pinching the
Upper Wire Harness.
4
59
55
3
Hole
42
2
Do not pinch
the Upper
ire Harness
W
(42) during
this step.
5
5. Have another person hold the Console (4) near the
Handlebar (3).
Connect the Upper Wire Harness (42) to the wire harness on the Console (4). Locate the two ground wires
that are connected with a screw to the Handlebar (3).
Connect the two ground wires to the two smallest wires
on the Console. Next, locate the pulse wire extending
from the Handlebar and connect it to the corresponding wire on the Console.
Attach the Handlebar Cover (5) to the Handlebar (3)
with an M4 x 16mm Screw (57).
Carefully insert all excess wires into the Console (4).
Attach the Console to the metal plate on the Handlebar
(3) with four M4 x 16mm Screws (57).
avoid pinching the wires.
Be careful to
5
4
3
57
Do not pinch
the wires during
this step.
Ground
Wires
42
Pulse
Wire
5
57
6. Turn the Seat Post Knob (20) counterclockwise two or
three turns to loosen it. Next, pull the Knob, raise the
Seat Post (8) a few inches, and then release the Knob.
Move the Seat Post up and down slightly until the
pin on the Knob snaps into one of the holes in the
Seat Post. Then, turn the Knob clockwise until it is
tight.
Attach the Seat Bracket (7) to the Seat Post (8) with
two M8 x 25mm Patch Screws (59). Make sure that
the Seat Bracket is oriented so the slot is on the
indicated side.
7. Attach the Seat (9) to the Seat Carriage (11) with four
M8 Nylon Locknuts (63) and four M8 Split Washers
(55). Note:
may be pre-attached to the underside of the Seat.
Slide the Seat Carriage (1
Move the Seat to the desired position. Insert the Seat
Knob (10) into the slot in the side of the Seat Bracket,
and tighten the Seat Knob into the Seat Carriage.
The Nylon Locknuts and Split W
1) into the Seat Bracket (7).
ashers
6
7
8
7
9
7
59
Slot
20
11
10
55
63
6
8. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must
be kept tightened.
Identify the Left Pedal Strap (25), which is marked
with an “L.” Attach the Left Pedal Strap to the Left
Pedal (22), and adjust it to the desired position.
Adjust the Right Pedal Strap (not shown) in the
same way.
9. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the receiver
included with the chest pulse sensor.
counterclockwise into the Left Crank
Arm.
Important: T
ighten both
Arm
8
25
22
24
Remove the access door from the underside of the
Console (4). You may need to use a small standard
screwdriver to remove the access door.
Slide the receiver onto the indicated plastic pin on the
Console (4);
exactly as shown. Locate the two small screws included
with the chest pulse sensor. Attach the receiver to the
Console with the two screws as shown.
Connect the wire on the receiver to the indicated wire on
the Console (4).
Reattach the access door. Make sure that no wires are
pinched. Note: The other wires included with the chest
pulse sensor may be discarded.
make sure that the receiver is oriented
Access
Door
4
Pin
Wire
Receiver
Screws
7
HOW TO OPERATE THE EXERCISE CYCLE
HOW T
CYCLE
Stand in front of
the exercise cycle,
hold the handlebars firmly, and
placed your foot
against one of the
wheels. Tip the
exercise cycle until
it can be moved on
the wheels. Carefully move the exercise cycle to the desired location
and then lower it.
cycle, use extreme caution while moving it.
If the exercise
cycle rocks slightly
during use, turn the
leveling feet under
the rear stabilizer
until the rocking
motion is eliminated.
O MOVE AND LEVEL THE EXERCISE
Wheel
Due to the weight of the exercise
Leveling
Foot
to loosen it (if the knob is not loosened enough, it may
scratch the seat post). Next, pull the knob, slide the
seat post to the desired height, and then release the
knob. Move the seat post up and down slightly until
the pin on the knob snaps into one of the holes in
the seat post. Then, turn the knob clockwise until it is
tight.
HOW TO ADJUST THE SEAT
The seat can be
adjusted to the position that is the most
comfortable for you.
Before adjusting
the seat, dismount
the exercise cycle;
do not adjust the
seat while you are
sitting on it.
adjust the seat, first
turn the seat knob
counterclockwise
two or three turns to
loosen it. Slide the seat forward or backward to the
desired position, and then firmly tighten the seat knob.
To
Seat
Knob
Seat
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the height of the
seat, first turn the
seat post knob
counterclockwise
two or three turns
Seat
Post
Seat
Seat
Post
Knob
HOW TO ADJUST THE PEDAL STRAPS
The pedal straps
can be adjusted to
the position that is
the most comfortable for you. Press
the tabs on the pedals, adjust the
straps to the
desired position,
and then release
the tabs.
Ta b
Pedal
Strap
8
CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.
TURES OF THE CONSOLE
FEA
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the exercise cycle can be
changed with the touch of a button. As you exercise,
the console will provide continuous exercise feedback.
You can even measure your heart rate using the handgrip pulse sensor. Note: For information about an
optional chest pulse sensor, see page 19.
The console also offers six resistance and pace programs. Each program automatically changes the resistance of the exercise cycle and prompts you to
increase or decrease your pace as it guides you
through an effective workout.
In addition, the console features two heart rate programs that automatically change the resistance of the
exercise cycle and prompt you to vary your pace to
keep your heart rate near a target heart rate as you
exercise.
Left Display
Matrix
The console also features iFIT
ogy. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio
cable, you can connect the exercise cycle to your
home stereo, portable stereo, computer, or VCR and
play special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the resistance of the exercise cycle and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation.
CDs and videocassettes, call toll-free 1-888-825-
2588.
With the exercise cycle connected to your computer,
you can also go to our Web site at www.iFIT.com and
access programs directly from the internet. Explore
www.iFIT.com for more information.
Training Zone Bar
.com interactive technol-
To purchase iFIT.com
9
HOW T
O USE THE MANUAL MODE
Begin pedaling to activate the console.
1
The exercise cycle requires no batteries or
external power source. Power is supplied by a
generator as you pedal. To activate the console,
begin pedaling at a speed of about 3 miles per
hour or faster. After a few seconds, the console
displays will light. A tone will then sound and the
console will be ready for use.
Select the manual mode.
2
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
select the manual mode by pressing the Program
Select button repeatedly until a track appears in
the matrix.
Begin pedaling and change the resistance of
3
the exercise cycle as desired.
As you pedal,
change the resistance of the exercise cycle by
pressing the
Resistance buttons. There are
ten resistance levels. Note: After the Resistance
buttons are pressed, it will take a moment for the
exercise cycle to reach the selected resistance
level.
Monitor your progress with the matrix, the
4
Training Zone bar, and the two displays.
The matrix
When the manual
mode or the
iFIT.com mode is
selected, the
matrix will show a
—
track representing 1/4 mile. As you exercise, the
indicators around the track will light in succession
until the entire track is lit.
en and the indicators will again begin to light in
succession.
The Training Zone
bar—The Training
Zone bar will show
your pace and the
approximate intensity level of your
exercise. For example, if three or four indicators in the bar are lit, the
bar shows that your pace is ideal for fat burning.
During programs, the Training Zone bar will also
prompt you to increase or decrease your pace.
The left display—
The left display will
show the elapsed
time, your pedaling
speed, the distance
you have pedaled,
and the resistance
level of the exercise cycle. The display will change
from one number to the next every few seconds,
as shown by the indicators around the display.
Note: When a program is selected, the display will
show the time remaining in the program instead of
the elapsed time.
The right
display—The right
display will show
your pedaling pace
(in revolutions per
mile) and the
approximate numbers of
(see F
change from one number to the next every few
seconds, as shown by the indicators.
will also show your heart rate when you use the
handgrip pulse sensor or the optional chest pulse
sensor
exercise cycle changes, the display will show the
resistance level.
fat calories and calories you have burned
BURNING on page 21).
T
A
. Note: Each time the resistance of the
The track will then dark-
The display will
The display
10
Note: The console
can display speed
and distance in
either miles or kilometers.
which unit of measurement is selected, you must select the console’s user mode. Hold
down the Program Select button for about three
seconds. The letter “E” for English miles or the letter “M” for metric kilometers will appear in the left
display. To change the unit of measurement, press
the + button.
While the user
mode is selected,
press the Program
Start button. The
left display will
then show the total
number of hours
that the exercise cycle has been used. Press the
Program Start button again. The left display will
then show the total number of miles pedaled. To
exit the user mode, press the Program Select button again.
Measure your heart rate if desired.
To find
5
Note: If you hold the handgrip pulse sensor
and wear the optional chest pulse sensor at
the same time, the console will not display
your heart rate accurately.
If there are
thin sheets of
plastic on the
metal contacts on the
handgrip
pulse sensor,
peel off the
plastic. T
measure your heart rate, hold the handgrip pulse
sensor with your palms resting on the contacts.
void moving your hands.
A
o
Contacts
When your pulse is
detected, the Heart
Rate indicator
above the right display will begin to
flash, one or two
dashes (– –) will
appear in the right display, and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
Note: If you continue to hold the pulse sensor, the
right display will show your heart rate for up to 30
seconds. The display will then show your heart
rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
Turn on the fan if desired.
6
To turn on the fan at low speed, press the Fan
button. Pivot the fan to the desired angle. To turn
on the fan at high speed, press the Fan button a
second time. To turn off the fan, press the Fan
button a third time.
When you are finished exercising, the console
7
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound, the console will pause, and the
left display will begin to flash.
If the pedals are not moved for about one minute,
the console will turn off, but the displays will not
be reset. If the pedals are not moved for about
five minutes, the console will turn off and the displays will be reset.
11
HOW TO USE RESISTANCE AND PACE
PROGRAMS
Begin pedaling to activate the console.
1
See step 1 on page 10.
Select one of the six resistance and pace
2
programs.
When the power is
turned on, the
manual mode will
be selected. To
select a resistance
and pace program,
press the Program
Select button repeatedly until a “P 1,” “P 2,” “P 3,”
“P 4,” “P 5,” or “P 6” appears in the right display.
When a resistance and pace program is selected,
the matrix will show the first seven pace settings
for the program. The left display will show how
long the program will last.
Press the Program Start button or begin
3
pedaling to start the program.
Each program is divided into several time segments of different lengths. One pace setting and
one resistance setting are programmed for each
segment. (The same pace setting and/or resistance setting may be programmed for two or more
consecutive segments.)
The pace setting
for the first segment will be
shown in the flash
ing Current
Segment column
of the matrix. (The
resistance settings
are not shown in the matrix.) The pace settings
for the next several segments will be shown in the
columns to the right.
As you exercise, the Training Zone bar will help
you to keep your pedaling pace near the pace
setting for the current segment. The lit indicators
-

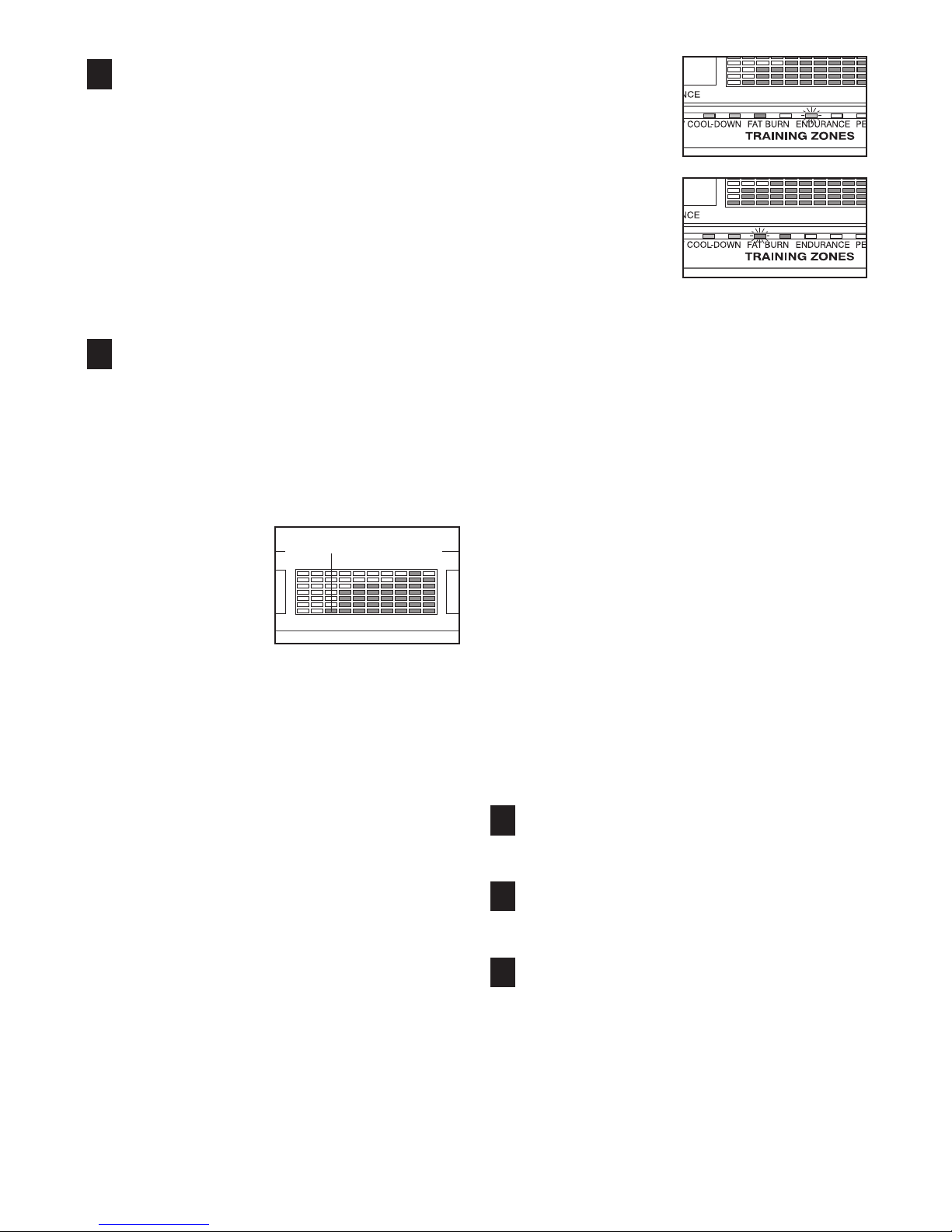

Current Segment
in the bar will show
your actual pace. If
an indicator to the
right of the lit indicators is flashing
(see drawing a),
increase your pace.
If an indicator to
the left of any lit
indicator is flashing
(see drawing b),
decrease your
pace. When no
indicator is flashing, your pace matches the pace
setting for the current segment. Important: The
pace settings are intended only to provide
motivation. Your actual pace may be slower
than the current pace setting. Make sure to
exercise at a pace that is comfortable for you.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all pace settings
will move one column to the left. The pace setting
for the second segment will then be shown in the
flashing Current Segment column and the resistance of the exercise cycle will automatically
change to the resistance setting for the second
segment.
Note: If all of the indicators in the Current Segment
column are lit after the pace settings have moved
to the left, the pace settings will move downward
so only the highest indicators appear in the matrix.
The program will continue until the pace setting
for the last segment is shown in the Current
Segment column and no time remains in the program.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, with the Resistance buttons. However
when the next segment begins, the resistance will
automatically change if a dif
ting is programmed for the next segment.
stop pedaling for several seconds, a tone will
sound and the program will pause. To restart the
program, simply resume pedaling.
a
b
,
ferent resistance set-
If you
12
Monitor your progress with the
two displays.
4
See step 4 on page 10.
Measure your heart rate if desired.
5
See step 5 on page 11.
Turn on the fan if desired.
6
See step 6 on page 11.
When the program is finished, the console
7
will automatically turn off.
See step 7 on page 11.
HOW T
Each heart rate program helps you to keep your heart
rate near a certain percentage of your maximum heart
rate during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 30 years old, your maximum heart
rate is 190.) Heart rate program 1 is designed to keep
your heart rate between 50% and 80% of your maximum heart rate while you exercise; heart rate program 2 is designed to keep your heart rate between
50% and 85% of your maximum heart rate.
Follow the steps below to use a heart rate program.
O USE HEART RATE PROGRAMS
Begin pedaling to activate the console.
1
See step 1 on page 10.
Select one of the heart rate programs.
2
When the power is
turned on, the manual mode will be
selected. To select
a heart rate program, press the
Program Select
button repeatedly until an “H 1” or “H 2” appears
in the right display.
Enter your age.
3
When a heart rate
program is selected, the word “AGE”
and the current
age setting will
flash in the left display. You must
enter your age to use a heart rate program. If
you have already entered your age, press the
Enter button and go to step 4. If you have not
entered your age, press the + or – button repeatedly to enter your age, and then press the
Enter button.
Once you have entered your age, it will be saved
in memory.
13
Hold the handgrip pulse sensor.
4
o use a heart rate program, you must use the
T
handgrip pulse sensor (see step 5 on page 11) or
the optional chest pulse sensor
handgrip pulse sensor, it is not necessary to hold
the handgrips continuously during the program.
However, you should hold the handgrips frequently for the program to operate properly.
time you hold the handgrips, keep your hands
on the metal contacts for at least 30 seconds.
Note: When you are not holding the handgrips,
the letters “PLS” will appear in the right display
instead of your heart rate.
Press the Program Start button or begin
5
pedaling to start the program.
Each heart rate program consists of 20 oneminute segments. One resistance setting and
one heart rate setting are programmed for each
segment. (The same resistance setting and/or
heart rate setting may be programmed for two or
more consecutive segments.)
. If you use the
Each
odically compare
your heart rate to
the heart rate set
ting for the current
segment; if neces
sary, an indicator
in the bar will then
flash to prompt you
to increase or
decrease your
pace to bring your
heart rate closer to
the current heart
rate setting. If an indicator to the
indicators is flashing (see drawing a), increase
your pace. If an indicator to the left of any lit indicator is flashing (see drawing b), decrease your
pace. When no indicator is flashing, your heart
rate is near the current heart rate setting.
Important: The heart rate settings are intended only to provide motivation. Your actual
heart rate may be slower than the current
heart rate setting. Make sure to exercise at a
pace that is comfortable for you.
-
a
-
b
right of the lit
The resistance
setting for the first
segment will be
shown in the flashing Current
Segment column
of the matrix. The
resistance settings
for the next several segments will be shown in the
columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all resistance set
tings will move one column to the left. The resis
tance setting for the second segment will then be
shown in the flashing Current Segment column
the resistance of the exercise cycle will auto
and
matically adjust to the resistance setting for the
second segment.
As you exercise, the Training Zone bar will help
you to keep your heart rate near the heart rate
setting for the current segment.
in the bar will show your actual pace. When you
hold the handgrip pulse sensor or wear the
optional chest pulse sensor
Current Segment
-
-
The lit indicators
, the console will peri-
The program will continue until the resistance setting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can manually override the resistance setting for the current segment, if desired, with the Resistance buttons.
However, when the next segment begins, the
exercise cycle will automatically adjust to the
resistance setting for the next segment. If you
stop pedaling for several seconds, a tone will
sound and the program will pause. To restart the
program, simply resume pedaling.
-
Monitor your progress with the two displays.
6
See step 4 on page 10.
urn on the fan if desired.
T
7
See step 6 on page 11.
When the program is finished, the console
8
will automatically turn off.
See step 7 on page 11.
14
HOW TO CONNECT YOUR CD PLAYER, VCR,
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT
LEFT
PHONES
OR COMPUTER
o use iFIT.com CDs
T
, the exercise cycle must be con
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
15 and 16 for connecting instructions. To use iFIT.com
videocassettes, the exercise cycle must be connected
to your VCR. See page 17 for connecting instructions.
To use iFIT.com programs directly from our Web
site, the exercise cycle must be connected to your
home computer. See page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type
AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
-
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
A, B
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
A
Audio
Cable
Head-
phones
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8”
Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
C
Audio
Cable
1/8”
Y-adapter
B
Audio
Cable
Headphones
Headphones
1/8”
Y-adapter
15
HOW TO CONNECT YOUR HOME STEREO
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
PHONES
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
A
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
If your computer has a 1/8” LINE OUT jack,
Note:
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
A
Audio
Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B
B
1/8”
Audio Cable
Y-adapter
Headphones/Speakers
RCA
Audio
Cable
ire removed from
W
LINE OUT
Y-adapter
Adapter
jack
16
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH
3
4
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH
34
A
Note: If your VCR has an unused
AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter
. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
A
Adapter
Audio Cable
B
RCA Y-adapter
Audio Cable
Adapter
Wire removed from
AUDIO OUT jack
17
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes, the exercise
cycle must be connected to your portable CD player,
portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT YOUR CD
YER, VCR, OR COMPUTER on page 15. To pur-
PLA
chase iFIT.com CDs and videocassettes, call tollfree 1-888-825-2588.
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a resistance and pace program (see step 3 on
page 12). However, an electronic “chirping” sound
will alert you when the resistance setting and/or
the pace setting is about to change.
Note: If the resistance of the exercise cycle
and/or the pace setting does not change when
a “chirp” is heard:
Follow the steps below to use an iFIT.com CD or
video program.
Begin pedaling to activate the console.
1
See step 1 on page 10.
Select the iFIT.com mode.
2
When the console
is turned on, the
manual mode will
be selected. To
select the iFIT.com
mode, press the
iFIT.com button.
The indicator above the button will light.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
• Make sure that the indicator above the
iFIT.com button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
5
See step 4 on page 10.
Measure your heart rate if desired.
6
See step 5 on page 11.
Turn on the fan if desired.
7
See step 6 on page 11.
When the program is finished, the console will
8
automatically turn off.
Press the play button on your CD player or
4
VCR.
A
moment after the play button is pressed, your
personal trainer will begin guiding you through
See step 7 on page 11.
18
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
program (see step 3 on page 12). However, an
electronic “chirping” sound will alert you when the
resistance setting and/or the pace setting is about
to change.
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the exercise cycle must be connected to your home computer.
See HOW TO CONNECT YOUR COMPUTER on
page 16. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web
site.
Follow the steps below to use a program from our
Web site.
Begin pedaling to activate the console.
1
See step 1 on page 10.
Select the iFIT.com mode.
2
When the console
is turned on, the
manual mode will
be selected. To
select the iFIT.com
mode, press the
iFIT.com button.
The indicator above the button will light.
Go to your computer and start an internet
3
connection.
Monitor your progress with the two displays.
8
See step 4 on page 10.
Measure your heart rate if desired.
9
See step 5 on page 11.
Turn on the fan if desired.
10
See step 6 on page 11.
When you are finished exercising, the console
11
will automatically turn off.
See step 7 on page 11.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest
pulse sensor provides
hands-free operation
and continuously monitors your heart rate
during your workouts.
To purchase the
optional chest pulse
sensor, call toll-free
1-888-825-2588.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
5
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count
down will begin.
Return to the exercise cycle and begin
7
pedaling.
When the on-screen countdown ends, the pro
gram will begin. The program will function in
almost the same way as a
resistance and pace
THE OPTIONAL INTERACTIVE STAND
The new NordicTrack
Wireless Workout interactive stand features a
built-in CD player and
a selection of
NordicTrack workout
CDs that control the
settings of your exercise equipment without
wires or cables. While
you work out, you can
listen to a virtual personal trainer and motivating music
through the stand’
speakers. The stand even incorporates a CleanAire
ionizer that keeps airborne contaminants to a mini
-
mum in your exercise room.
.NordicT
www
2588 for more information or to order.
rack.com or call toll-free 1-888-825-
®
s high-quality
V
, ported 4” stereo
-
isit
19
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. To clean the exercise cycle, use a
soft, damp cloth. To prevent damage to the console,
keep liquids away from the console and keep the console out of direct sunlight.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the Right Side Shield (27) must be removed.
Using an adjustable wrench, turn the Right Pedal (21)
counterclockwise and remove it. Remove the Seat
Post Knob (20). Next, remove the M4 x 25mm Screws
(65). Turn the Right Crank Arm (24) so that it is pointing toward the front of the exercise cycle and then
slide off the Right Side Shield.
20
65
27
urn the right crank arm for a moment. Repeat until
T
the console displays correct feedback. When the reed
switch is correctly adjusted, reattach the right side
shield, the seat post knob, and the right pedal.
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the Drive Belt (47) may need to be adjusted. To
adjust the Drive Belt, you must first remove both side
shields. See HOW TO ADJUST THE REED SWITCH
at the left and remove the side shields.
47
63
24
21
65
Next, locate the Reed Switch (46). Turn the Right
Crank Arm (24) until the Magnet (30) is aligned with
the Reed Switch. Loosen, but do not remove, the indicated Screw (57). Slide the Reed Switch slightly closer to or away from the Magnet. Then, retighten the
Screw.
24
46
57
30
Next, turn the indicated M8 Nylon Locknut (63) until
the Drive Belt (47) is properly tightened. Then, reattach the side shields.
PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the pulse sensor. Excessive movement may interfere with heart
rate readings. Do not hold the metal contacts too
tightly; doing so may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
20
EXERCISE GUIDELINES
Fat Burning
WARNING:
• Before beginning this or any exercise program, consult your physician. This
cially important for individuals over the
age of 35 or individuals with pre-existing
health problems.
• The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
is espe-
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number or the middle number in your training zone as you
exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
-
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers
your age; the three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning; the middle number is the recommended
heart rate for maximum fat burning; and the highest
number is the heart rate for aerobic exercise.
above
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts.
may complete up to five workouts each week, if
desired.
lar and enjoyable part of your everyday life.
After a few months of regular exercise, you
The key to success is make exercise a regu
21
-
PART LIST—Model No. NTC05940 R0204A
Key No. Qty. Description Key No. Qty. Description
1
2 1 Upright
3
4 1 Console
5 1 Handlebar Cover
6 2 Pulse Sensor
7 1 Seat Bracket
8 1 Seat Post
9 1 Seat
10 1 Seat Knob
11 1 Seat Carriage
12 2 Seat Bushing
13 1 Front Stabilizer Cover
14 1 Rear Stabilizer Cover
15 1 Front Stabilizer
16 1 Rear Stabilizer
17 2 Wheel
18 1 Right Pedal Strap
19 4 Leveling Foot
20 1 Seat Post Knob
21 1 Right Pedal
22 1 Left Pedal
23 1 Right Crank Arm
24 1 Left Crank Arm
25 1 Left Pedal Strap
26 1 Left Side Shield
27 1 Right Side Shield
28 1 Snap Ring
29 1 Pulley
30 1 Magnet
31 1 Crank Assembly
32 1 Thrust Washer
33 2 Crank Bearing
34 1 Flywheel/Generator
35
36 1 Resistance Cable
37 1 Spring
38
39 1 Idler Arm
1 Frame
1 Handlebar
1 “C” Magnet
1 Resistance Motor
40
41 1 Control Bracket
42
43 1 Lower Wire Harness
44 1 Adjustment Bracket
45 1 Clamp
46 1 Reed Switch/Wire
47 1 Drive Belt
48 1 Flywheel Axle
49 1 Shoulder Screw
50 2 Flange Screw
51 4 Stand-off
52 1 M10 Nylon Locknut
53 2 Bolt Set
54 12 M8 x 40mm Button Screw
55 18 M8 Split Washer
56 8 M4 x 38mm Screw
57 13 M4 x 16mm Screw
58 3 5/16” x 12mm Button Screw
59 4 M8 x 25mm Patch Screw
60 4 M5 x 12mm Screw
61 2 Handgrip
62 1 M10 Washer
63 7 M8 Nylon Locknut
64 3 M6 Nut
65 13 M4 x 25mm Screw
66 1 Eyebolt
67 1 Idler Bolt
68 1 M10 x 22mm Tapered Bolt
69 2 M5 Nut
70 1 M6 x 38mm Bolt
71 4 M5 Washer
72 4 M6 Nylon Locknut
73 4 M6 x 18mm Bolt
74
75 1 Pulse Wire
# 1 Allen Wrench
#
1 Control Board
1 Upper Wire Harness
2 Handlebar Endcap
1 User’s Manual
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
22
1
2
3
4
5
8
7
11
9
10
6
12
13
14
15
16
17
19
19
20
21
22
24
23
25
18
26
27
32
33
28
34
35
36
37
38
39
40
41
42
43
44
66
67
68
48
49
50
50
51
53
53
53
54
54
55
55
54
54
55
55
56
56
56
56
57
58
54
54
60
60
57
57
62
63
63
52
63
59
59
69
69
64
65
65
65
65
65
65
45
46
57
47
57
55
55
55
55
19
19
61
71
64
70
33
55
55
55
30
29
31
73
73
72
72
74
75
57
EXPLODED DRAWING—Model No. NTC05940 R0204A
23
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
• the MODEL NUMBER of the product (NTC05940)
• the NAME of the product (NordicTrack
®
SL 705 exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 22 and 23)
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®SL 705 exercise cycle (“Product”) is warranted to be free of all defects in material
and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the product for one year after the date of purchase.
Labor is covered for one year.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our
option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain
as set out in your User’s Manual (“Manual”).
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name
O GET
T
HOW
and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service
where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return
Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered by warranty
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property
ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclu
sion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness
for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how
long an implied warranty lasts.
No one is authorized to change, modify or extend the terms of this limited warranty
you may have other rights which vary from state to state.
Accordingly
ICON HEAL
, the above limitation may not apply to you.
TH & FITNESS, INC., 1500 S. 1000 W
., LOGAN, UT 84321-9813
.
, loss of revenues or profits, loss of enjoy-
.
This warranty gives you specific legal rights and
-
Part No. 207425 R0204A Printed in China © 2004 ICON Health & Fitness, Inc.
Loading...
