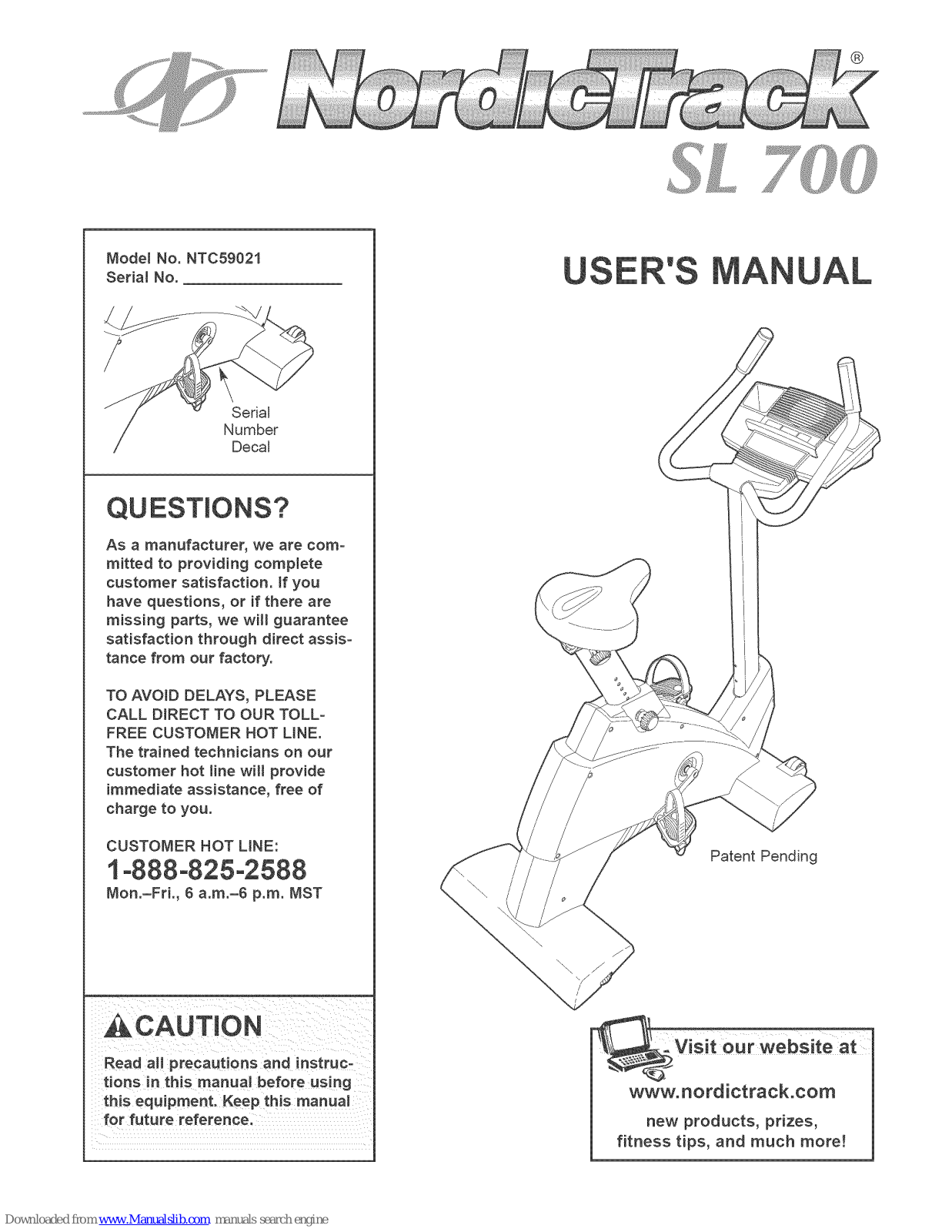

Page 1

Model No. NTC59021

Seriai No.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete customer satisfaction, if you have questions, or if there are

missing parts, we will guarantee satisfaction through direct assis- tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE. The trained technicians on our

customer hot line witl provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1°888°825°2588

Mon.-Fti., 6 a.m.-6 p.m. MST

_CAUTION

Read all precautions and instruc- tions in this manua_ before using this equipment. Keep this manual

for future reference.

Patent Pending

t our website at_

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

Page 2

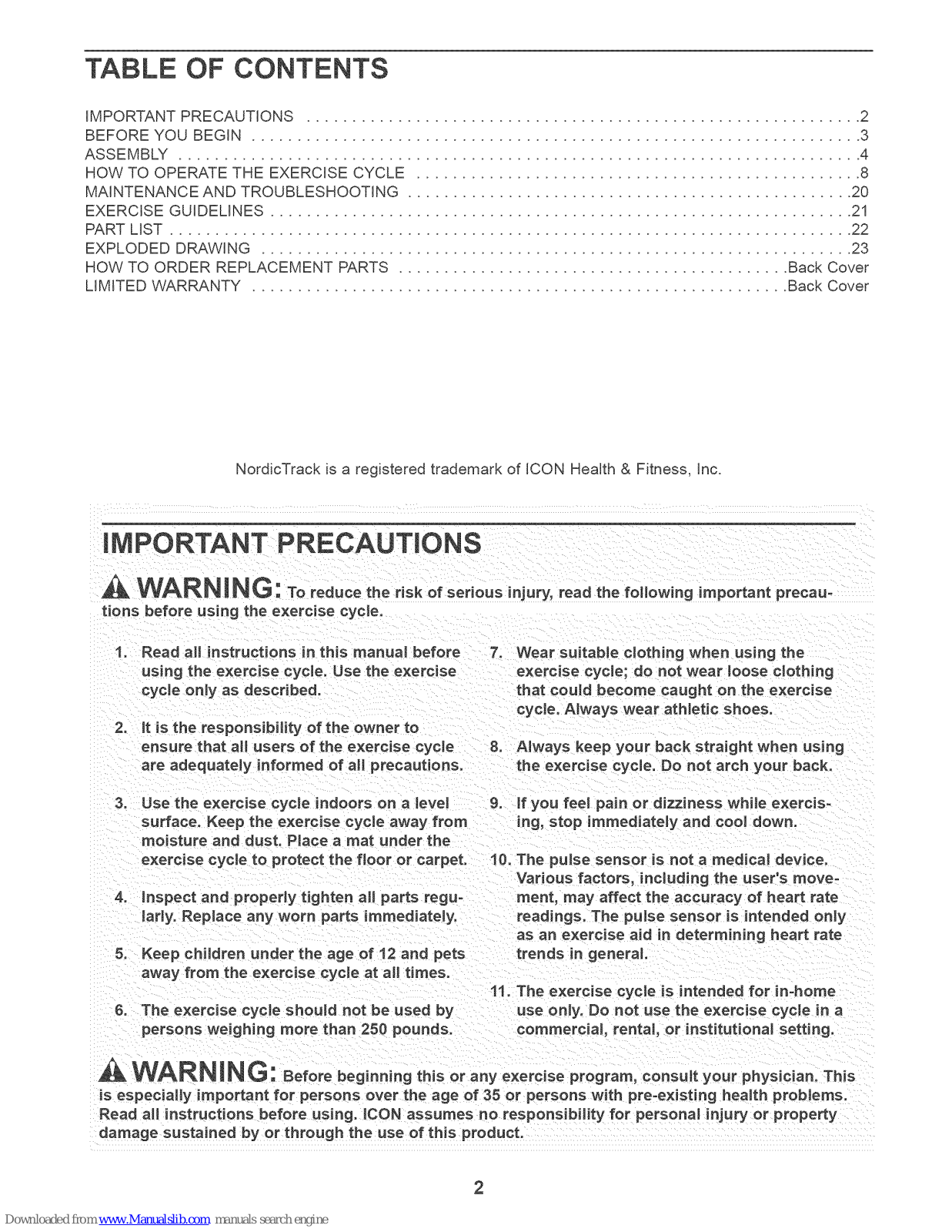

TABLE OF CONTENTS

NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

iMPORTANT PRECAUTIONS

_'_WARNING: Toreducether,skofser,ous,njury,readthefo.ow,ng,mportant precau-

tionsbefore using the exercise cycle.

1. Read all instructions in this manual before 7. Wear suitable clothing when using the using the exercise cycle, Use the exercise

cycle only as described,

2. it is the responsibility of the owner to ensure that all users of the exercise cycle are adequately informed of all precautions.

exercise cycle; do _ot wear loose clothing that could become caught on the exercise cycle. Always wear athletic shoes.

8. Always keep your back straight when using the exercise cycle. Do not arch your back.

3. Use the exercise cycle indoors on a level surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor or carpet.

5. Keep children under the age of 12 and pets away from the exercise cycle at aJ_times.

9. if you feel pain or dizziness while exercis- ing, stop immediately and cool down.

10. The puJae sensor is not a medical device, Various factors, including the user's move°

inspect and proper_y tighten all parts regu- merit, may affect the accuracy of heart rate laHy. Replace any worn parts immediately, readings. The pulse sensor is intended only

as an exercise aid in determining heart rate trends in general

6. The exercise cycle should not be used by persons weighing more t_an 250 pounds.

11. The exercise cycle is intended for in=home use onJyo Do not use the exercise cycle in a commercial rental, or institutional setting.

WAR NING: Beforebeginningth_soranyexerciseprogram,consultyourphysician.Th_s

is especially important for persons over the age of 35 or persons with pre-existing heaJth problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Page 3

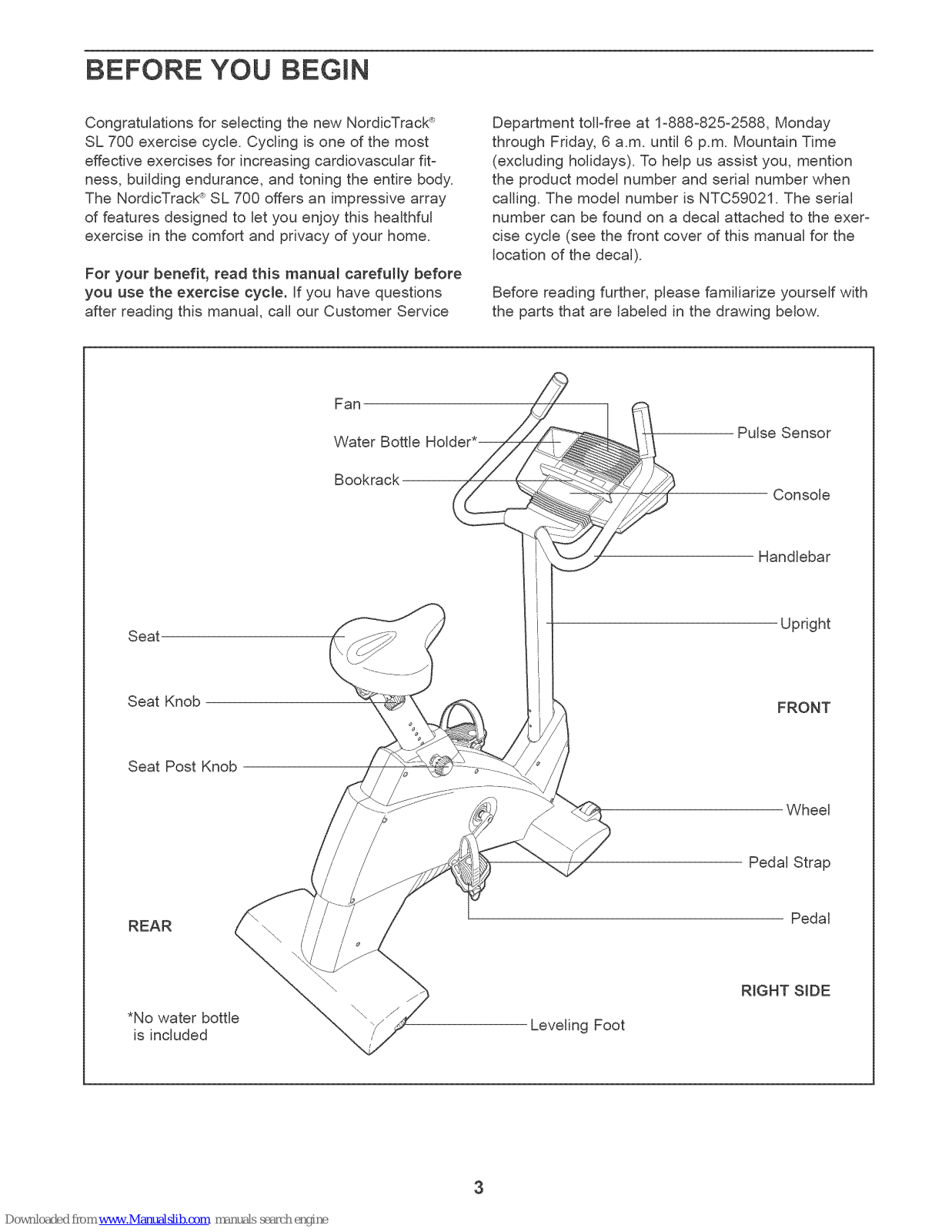

BEFORE YOU BEGIN

Congratulations for selecting the new NordicTrack _ SL 700 exercise cycle. Cycling is one of the most effective exercises for increasing cardiovascular fit- ness, building endurance, and toning the entire body. The NordicTrack _ SL 700 offers an impressive array of features designed to let you enjoy this healthful exercise in the comfort and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycme. If you have questions

after reading this manual, call our Customer Service

Department toGfree at 1-888-825-2588, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, mention

the product model number and serial number when

calling. The model number is NTC59021. The serial number can be found on a decal attached to the exer-

cise cycle (see the front cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Fan

Water Bottle HoI_

Bookrack

Seat

Seat Knob

Pulse Sensor

Console

Handlebar

Upright

FRONT

Seat Post Knob

Wheel

REAR

Pedal Strap

Pedal

*No water bottle

is included

Leveling Foot

RIGHT SIDE

Page 4

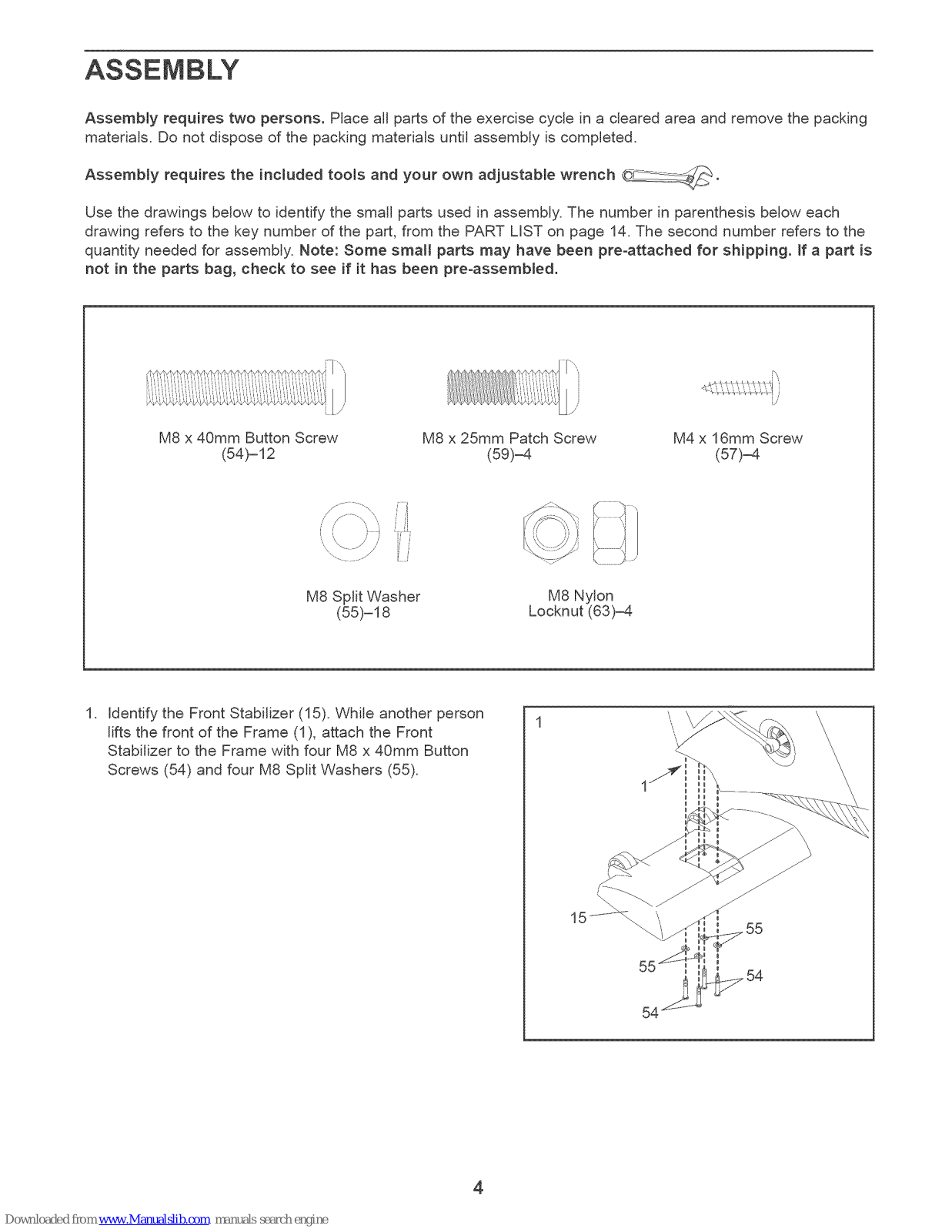

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench ©__../_.

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LiST on page 14. The second number refers to the quantity needed for assembly. Note: Some smaml parts may have been pre°attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

M8 x 40mm Button Screw M8 x 25mm Patch Screw M4 x 16mm Screw

(54)=12 (59).4 (57).4

/ 7¸ "\ i_¸ I

" - " ii

. ',, ,,, ..... ;,'ii_

M8 Split Washer

(55)-18

M8 Nylon

Locknut (63)-4

1. identify the Front Stabilizer (15). While another person lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with four M8 x 40mm Button Screws (54) and four M8 Split Washers (55).

Page 5

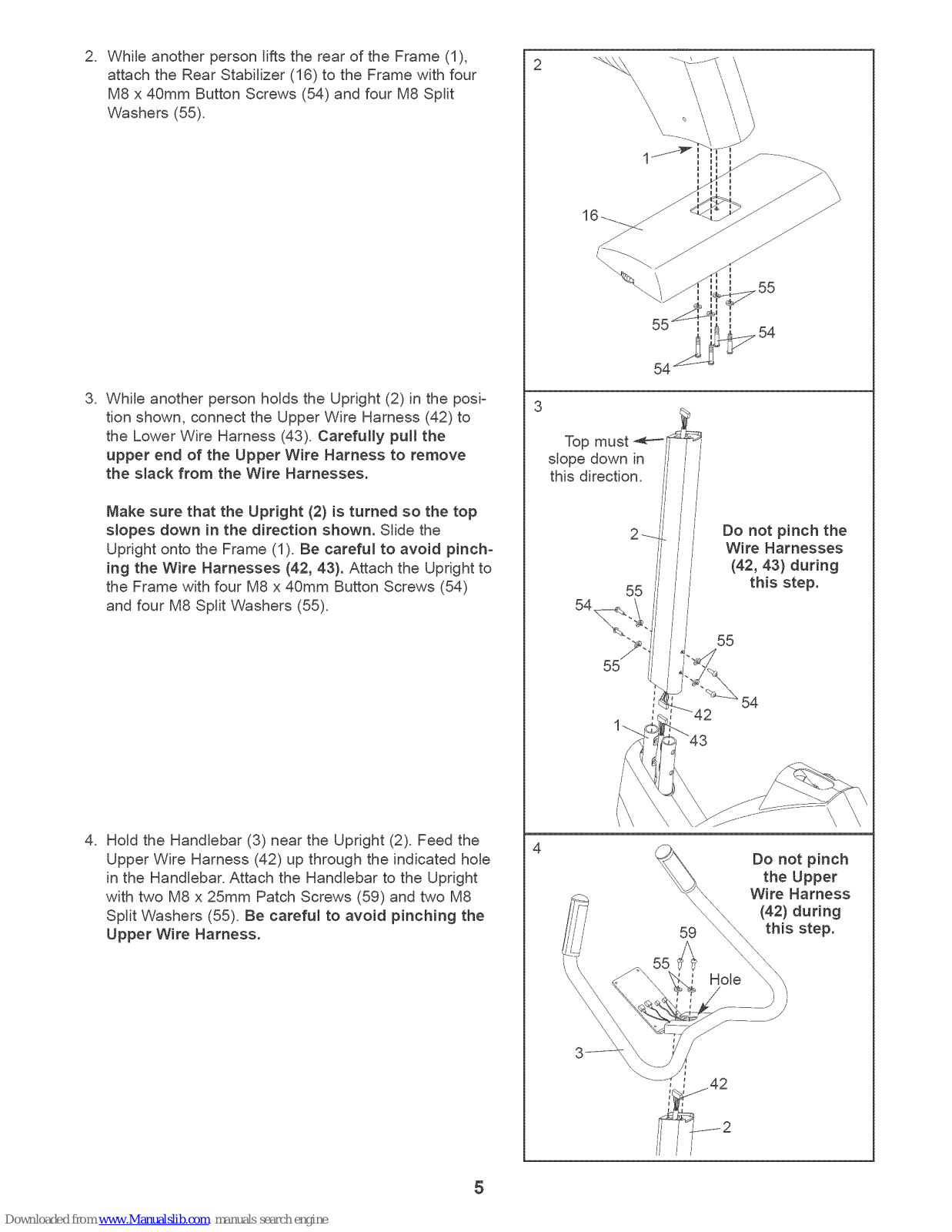

2. While another person lifts the rear of the Frame (1), attach the Rear Stabilizer (16) to the Frame with four

M8 x 40mm Button Screws (54) and four M8 Split

Washers (55).

3. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (42) to the Lower Wire Harness (43). Carefuffy pul! the

upper end of the Upper Wire Harness to remove

the slack from the Wire Harnesses.

Make sure that the Upright (2) is turned so the top

slopes down in the direction shown. Slide the

Upright onto the Frame (1). Be careful to avoid pinch= ing the Wire Harnesses (42, 43). Attach the Upright to

the Frame with four M8 x 40mm Button Screws (54)

and four M8 Split Washers (55).

4. Hold the Handlebar (3) near the Upright (2). Feed the Upper Wire Harness (42) up through the indicated hole in the Handlebar. Attach the Handlebar to the Upright

with two M8 x 25mm Patch Screws (59) and two M8

Split Washers (55). Be careful to avoid pinching the Upper Wire Harness.

\\ \

\\ \ \,

•54

Top must

slope down in

this direction.

Do not pinch the

Wire Harnesses

(42, 43) during

this step.

Do not pinch

the Upper

Wire Harness

(42) during

this step.

Page 6

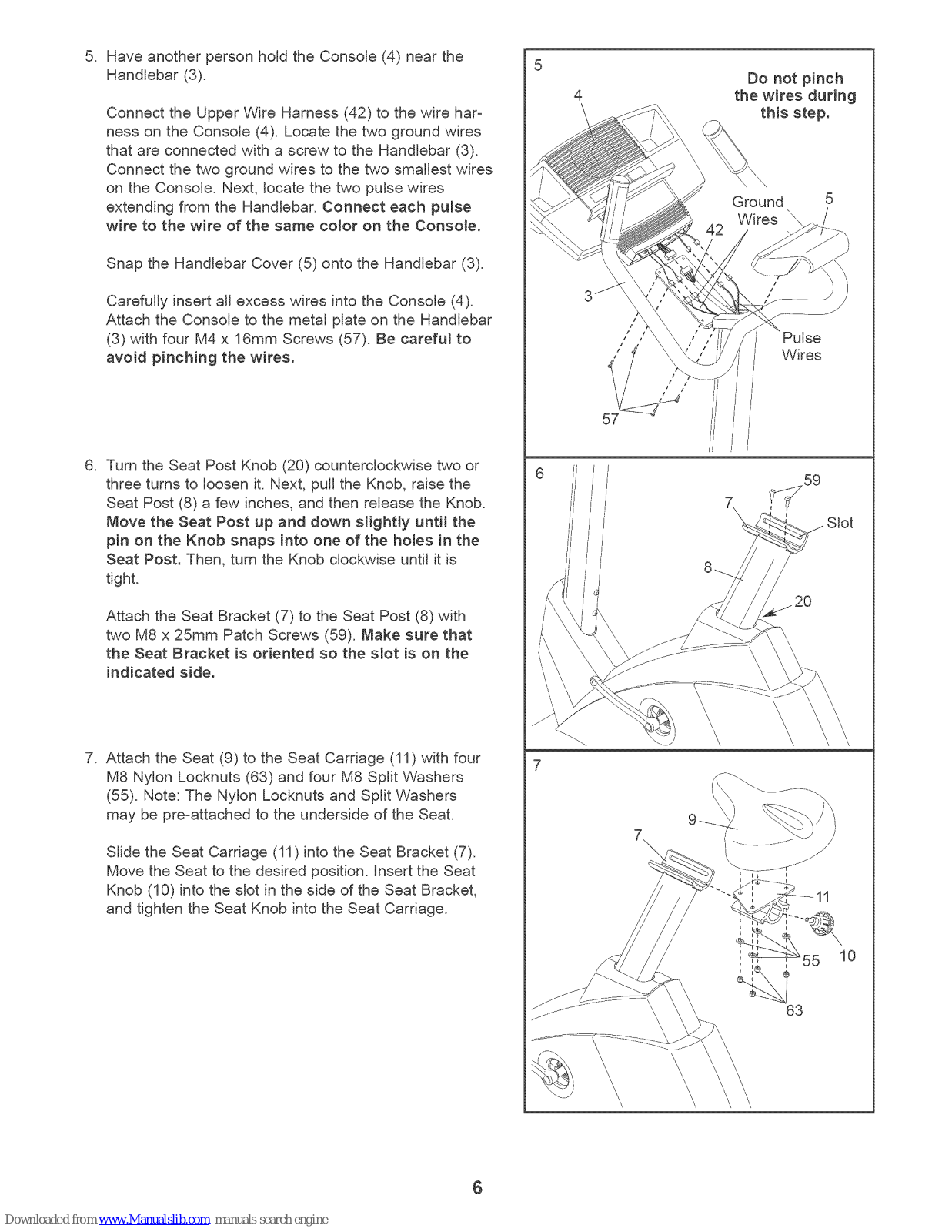

5. Have another person hold the Console (4) near the Handlebar (3).

Connect the Upper Wire Harness (42) to the wire har= ness on the Console (4). Locate the two ground wires

that are connected with a screw to the Handlebar (3).

Connect the two ground wires to the two smallest wires

on the Console. Next, locate the two pulse wires extending from the Handlebar. Connect each pulse

wire to the wire of the same color on the Console.

Snap the Handlebar Cover (5) onto the Handlebar (3).

Carefully insert all excess wires into the Console (4).

Attach the Console to the metal plate on the Handlebar

(3) with four M4 x 16mm Screws (57). Be careful to

avoid pinching the wires.

6. Turn the Seat Post Knob (20) counterclockwise two or

three turns to loosen it. Next, pull the Knob, raise the

Seat Post (8) a few inches, and then release the Knob. Move the Beat Post up and down slightly until the pin on the Knob snaps into one of the holes in the

Beat Post. Then, turn the Knob clockwise until it is tight.

Attach the Seat Bracket (7) to the Seat Post (8) with two M8 x 25mm Patch Screws (59). Make sure that

the Beat Bracket is oriented so the slot is on the

indicated side.

7. Attach the Seat (9) to the Seat Carriage (11) with four M8 Nylon Locknuts (63) and four M8 Split Washers

(55). Note: The Nylon Locknuts and Split Washers may be pre=attached to the underside of the Seat.

Slide the Seat Carriage (11) into the Seat Bracket (7). Move the Seat to the desired position. Insert the Seat

Knob (10) into the slot in the side of the Seat Bracket,

and tighten the Seat Knob into the Seat Carriage.

///

//'

Do not pinch

the wires during

this step.

Ground 5

Wires \

Pulse

Wires

J i

I l

J i

i I

Page 7

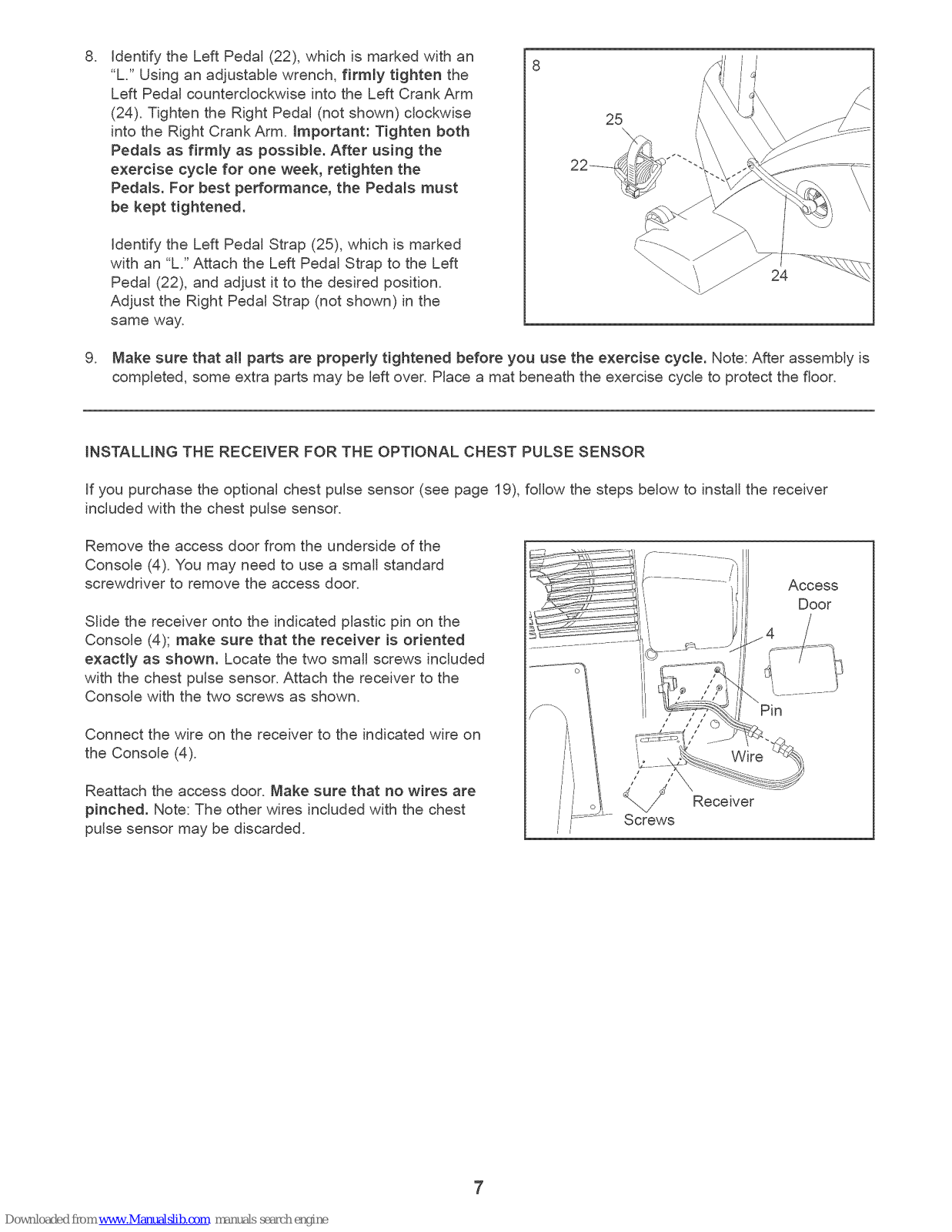

identify the Left Pedal (22), which is marked with an

"L" Using an adjustable wrench, firmly tighten the

Left Pedal counterclockwise into the Left Crank Arm

(24). Tighten the Right Pedal (not shown) clockwise into the Right Crank Arm. Important: Tighten both

Pedats as firmly as possible. After using the

exercise cycle for one week, retighten the

Pedats. For best performance, the Pedals must

be kept tightened.

identify the Left Pedal Strap (25), which is marked

with an "L" Attach the Left Pedal Strap to the Left

Pedal (22), and adjust it to the desired position.

Adjust the Right Pedal Strap (not shown) in the same way.

Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

iNSTALLiNG THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR

if you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the receiver included with the chest pulse sensor.

Remove the access door from the underside of the Console (4). You may need to use a small standard

screwdriver to remove the access door.

Slide the receiver onto the indicated plastic pin on the Console (4); make sure that the receiver is oriented

exactly as shown. Locate the two small screws included

with the chest pulse sensor. Attach the receiver to the

Console with the two screws as shown.

Connect the wire on the receiver to the indicated wire on the Console (4).

Reattach the access door. Make sure that no wires are pinched. Note: The other wires included with the chest

pulse sensor may be discarded.

I I

I o

Screws

////

Wire

Receiver

Page 8

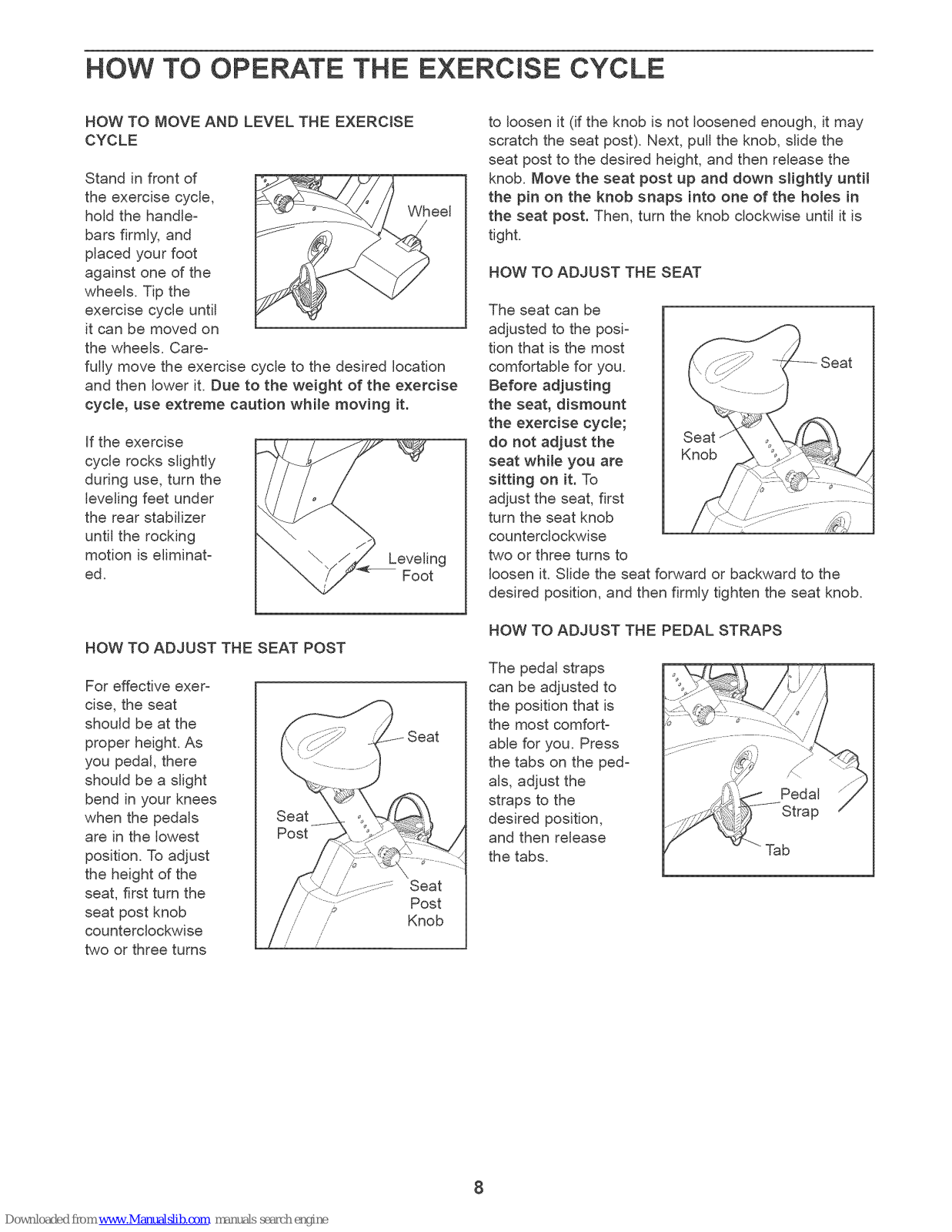

HOW TO OPERATE THE EXERCmSE CYCLE

HOW TO MOVE AND LEVEL THE EXERCISE CYCLE

Stand in front of the exercise cycle,

hold the handle- Wheel bars firmly, and

placed your foot against one of the

wheels. Tip the

exercise cycle until it can be moved on

the wheels. Care-

fully move the exercise cycle to the desired location

and then lower it. Due to the weight of the exercise cycle, use extreme caution while moving it.

if the exercise cycle rocks slightly

during use, turn the leveling feet under

the rear stabilizer until the rocking

motion is eliminat- ed.

HOW TO ADJUST THE SEAT POST

For effective exer- cise, the seat

should be at the proper height. As

you pedal, there should be a slight bend in your knees

when the pedals

are in the lowest position. To adjust

the height of the seat, first turn the

seat post knob counterclockwise

two or three turns

Foot

Knob

to loosen it (if the knob is not loosened enough, it may scratch the seat post). Next, pull the knob, slide the seat post to the desired height, and then release the knob. Move the seat post up and down slightly until the pin on the knob snaps into one of the holes in the seat post. Then, turn the knob clockwise until it is tight.

HOW TO ADJUST THE SEAT

The seat can be adjusted to the posi=

tion that is the most comfortable for you.

Before adjusting the seat, dismount the exercise cycle; do not adjust the seat while you are sitting on it. To adjust the seat, first

turn the seat knob counterclockwise two or three turns to loosen it. Slide the seat forward or backward to the

desired position, and then firmly tighten the seat knob.

HOW TO ADJUST THE PEDAL STRAPS

The pedal straps can be adjusted to the position that is

the most comfort- able for you. Press

the tabs on the ped- als, adjust the straps to the desired position,

and then release the tabs.

Strap

Tab

Page 9

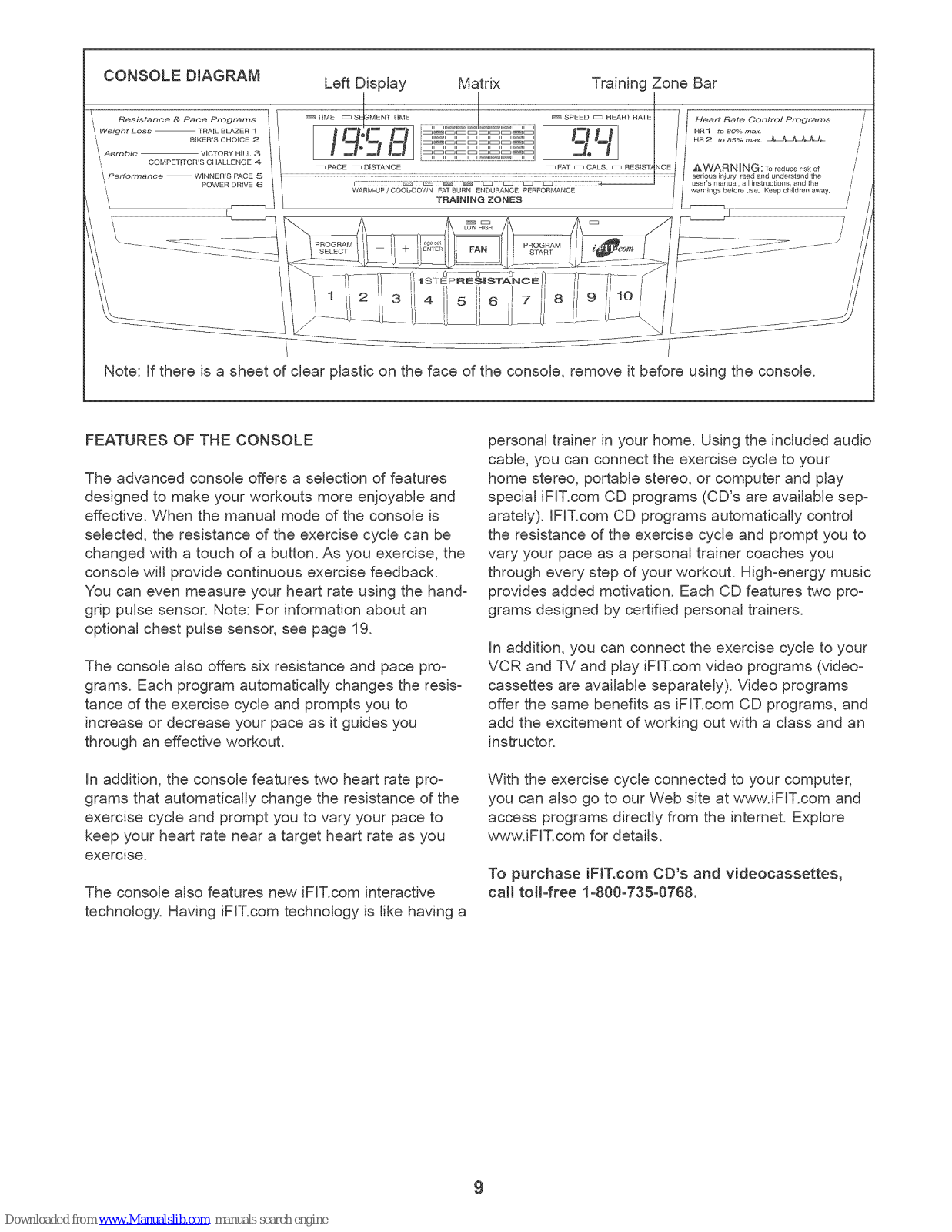

CONSOLE DIAGRAM Left Display Matrix Training Zone Bar

TRAINING ZONES

Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.

FEATURES OF THE CONSOLE

The advanced console offers a selection of features designed to make your workouts more enjoyable and

effective. When the manual mode of the console is selected, the resistance of the exercise cycle can be

changed with a touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the hand- grip pulse sensor. Note: For information about an optional chest pulse sensor, see page 19.

The console also offers six resistance and pace pro- grams. Each program automatically changes the resis- tance of the exercise cycle and prompts you to increase or decrease your pace as it guides you through an effective workout.

in addition, the console features two heart rate pro- grams that automatically change the resistance of the exercise cycle and prompt you to vary your pace to keep your heart rate near a target heart rate as you

exercise.

The console also features new iFF.com interactive technology Having iFIT.com technology is like having a

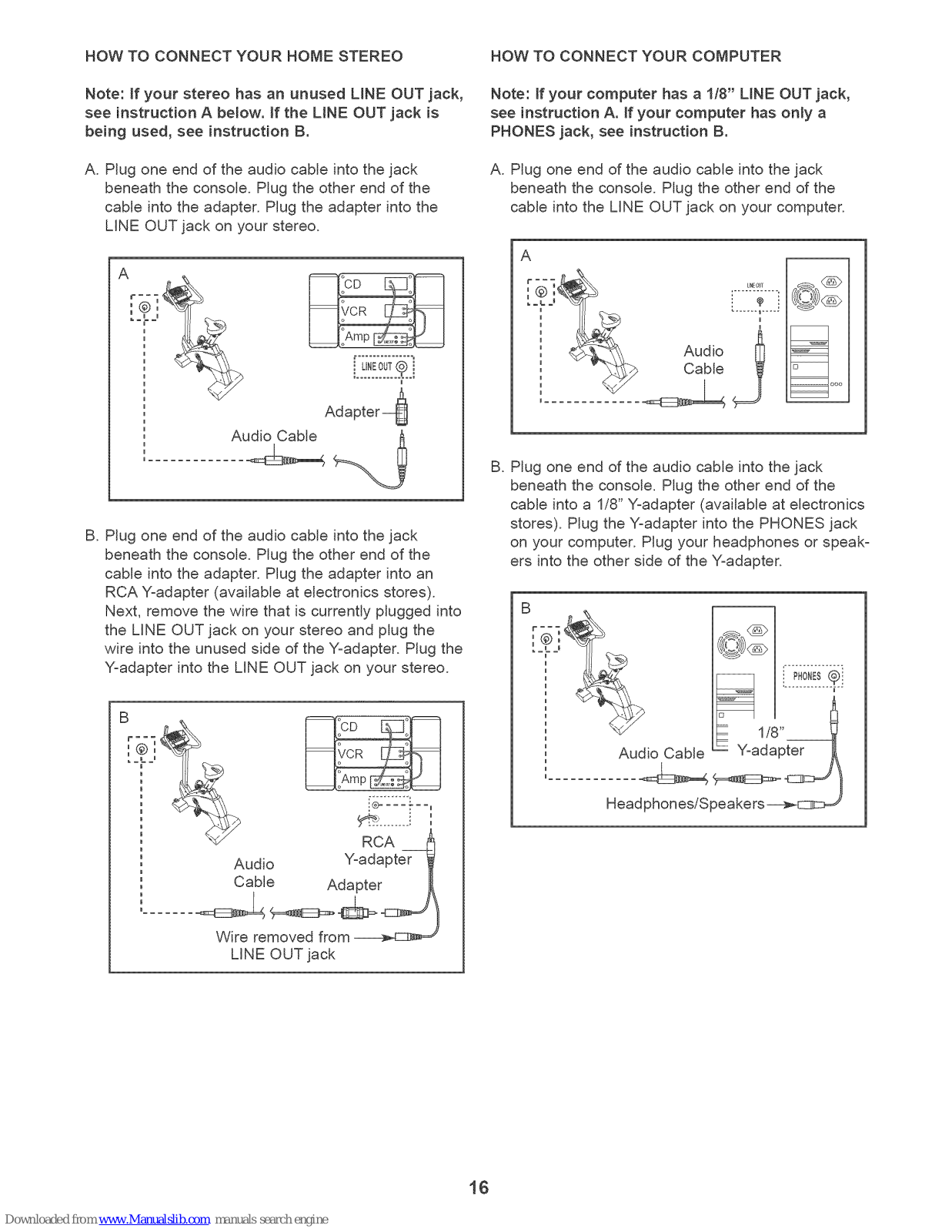

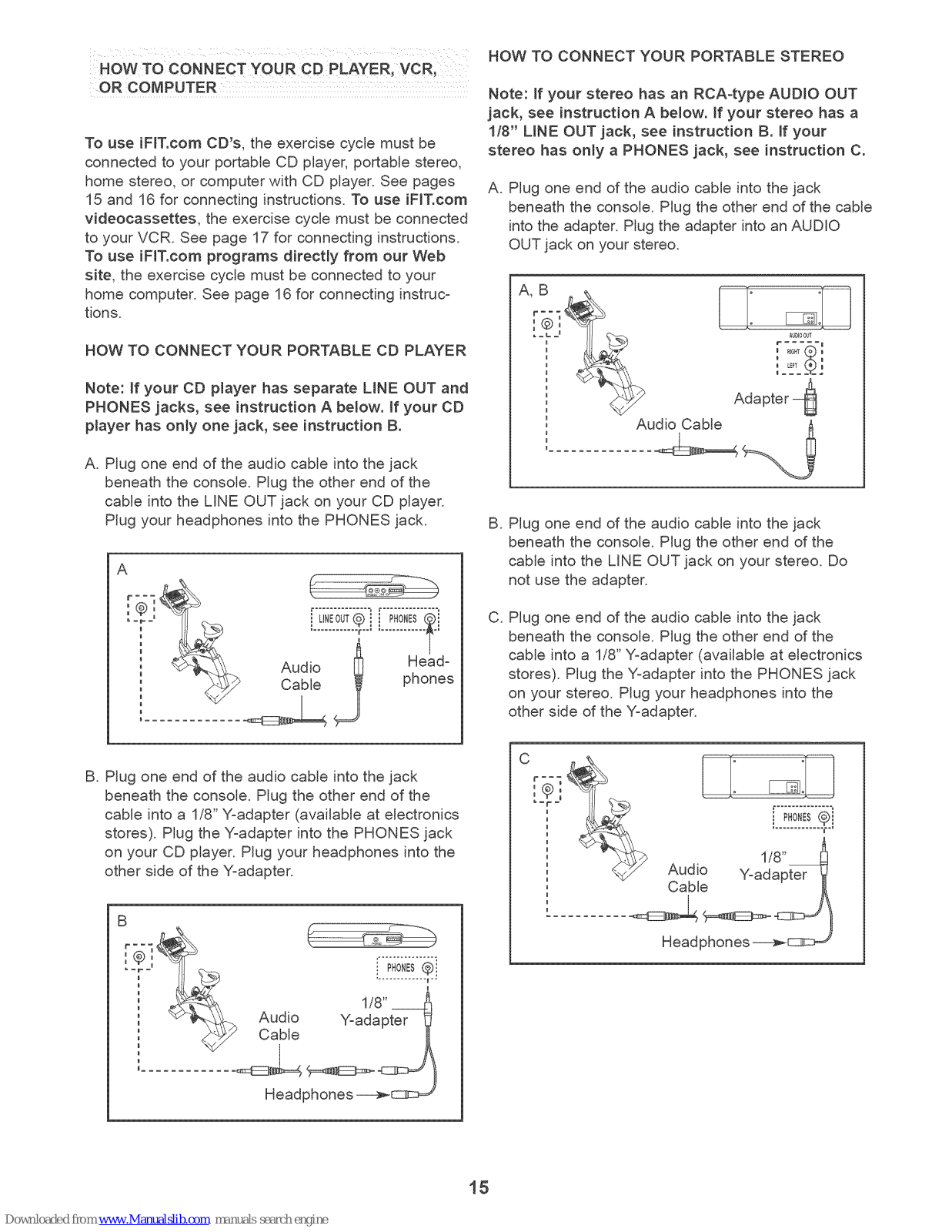

personal trainer in your home. Using the included audio cable, you can connect the exercise cycle to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (CD's are available sep- arately). IFIT corn CD programs automatically control the resistance of the exercise cycle and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation. Each CD features two pro- grams designed by certified personal trainers.

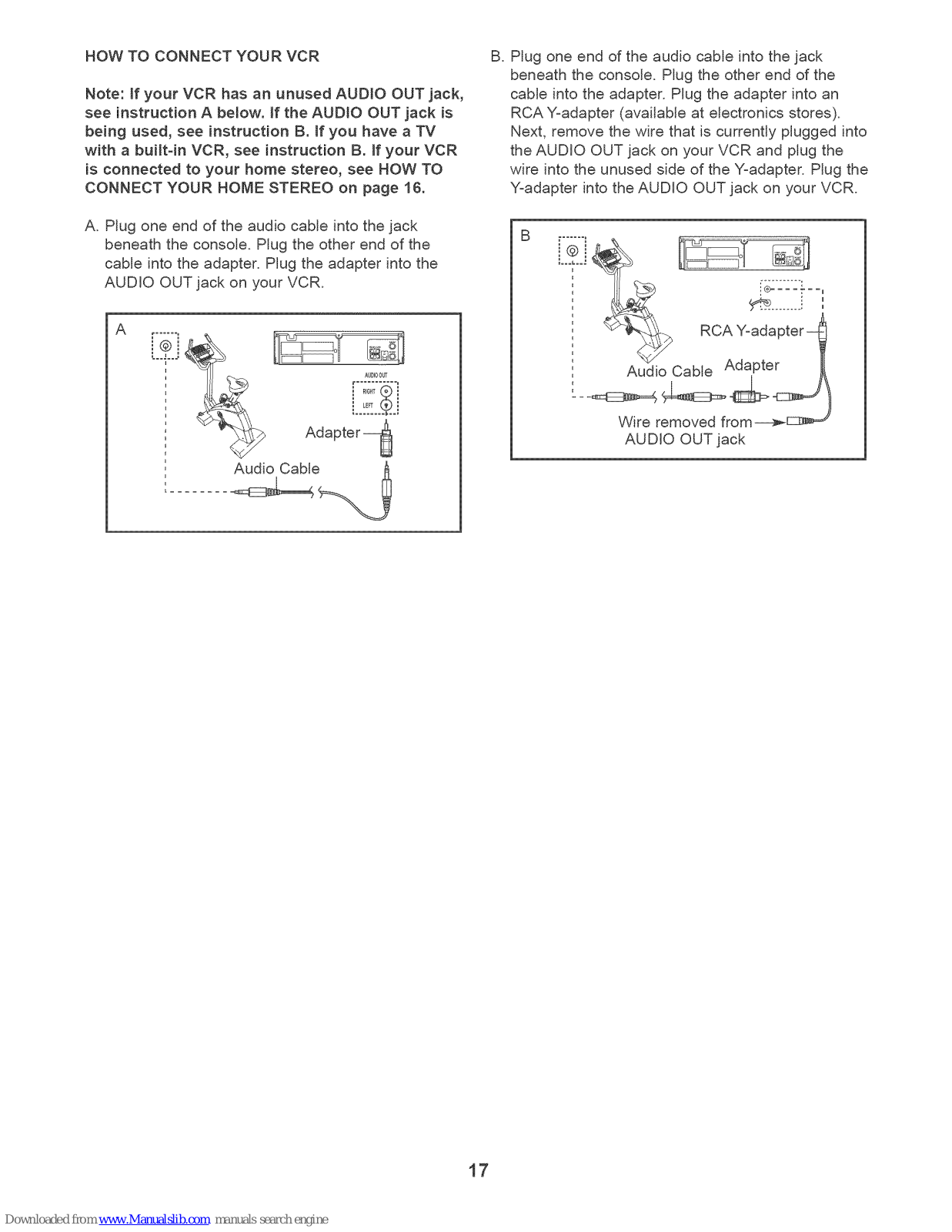

In addition, you can connect the exercise cycle to your VCR and TV and play iFIT com video programs (video- cassettes are available separately). Video programs offer the same benefits as iFIT.com CD programs, and add the excitement of working out with a class and an

instructor.

With the exercise cycle connected to your computer, you can also go to our Web site at www.iFIT.com and access programs directly from the internet. Explore

www.iFF com for details.

To purchase iFIT.com CD's and videocassettes, call toll4ree 1-800-735-0768.

Page 10

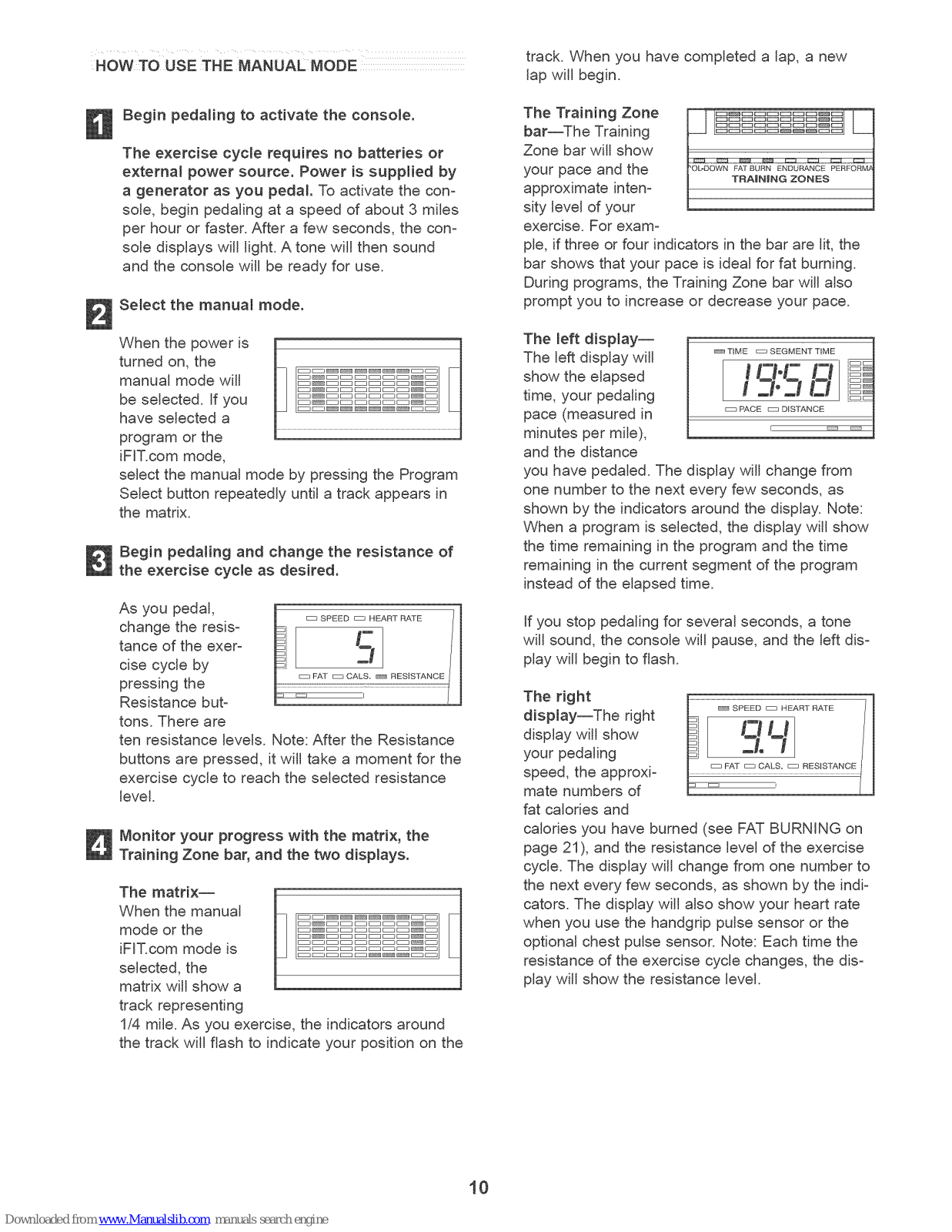

HOW TO USE THE MANUAL MODE

Begin pedaling to activate the console.

The exercise cycle requires no batteries or external power source. Power is supplied by

a generator as you pedal. To activate the con- sole, begin pedaling at a speed of about 3 miles per hour or faster. After a few seconds, the con- sole displays will light. A tone wi]] then sound and the console will be ready for use.

Select the manual mode.

When the power is turned on, the

manual mode will be selected. If you

have selected a program or the

iFIT.com mode, select the manual mode by pressing the Program Select button repeatedly until a track appears in

the matrix.

Begin pedaling and change the resistance of the exercise cycle as desired.

As you pedal,

change the resis- tance of the exer-

cise cycle by pressing the

Resistance but- tons. There are ten resistance levels. Note: After the Resistance

buttons are pressed, it will take a moment for the exercise cycle to reach the selected resistance

level

Monitor your progress with the matrix, the Training Zone bar, and the two displays.

The matrix-- 1

When the manual mode or the iFIT.com mode is

selected, the matrix will show a

track representing

]

1/4 mile. As you exercise, the indicators around

the track will flash to indicate your position on the

track. When you have completed a lap, a new lap will begin.

The Training Zone bar--The Training Zone bar will show

your pace and the approximate inten-

sity level of your exercise. For exam-

ple, if three or four indicators in the bar are lit, the bar shows that your pace is ideal for fat burning.

During programs, the Training Zone bar will also

prompt you to increase or decrease your pace.

The left display-- The left display will

show the elapsed time, your pedaling

pace (measured in minutes per mile),

and the distance

TIME _ SEGMENT TIME !li_

l L-H- L7

[12i°2112i J

PACE _ DISTANCE

you have pedaled. The display will change from one number to the next every few seconds, as

shown by the indicators around the display. Note: When a program is selected, the display will show

the time remaining in the program and the time remaining in the current segment of the program

instead of the elapsed time.

If you stop pedaling for several seconds, a tone

will sound, the console will pause, and the left dis- play will begin to flash.

The right display--The right

display will show your pedaling

speed, the approxi- mate numbers of

fat calories and calories you have burned (see FAT BURNING on page 21 ), and the resistance level of the exercise

cycle. The display will change from one number to the next every few seconds, as shown by the indi-

cators. The display will also show your heart rate when you use the handgrip pulse sensor or the

optional chest pulse sensor. Note: Each time the resistance of the exercise cycle changes, the dis-

play will show the resistance level.

Page 11

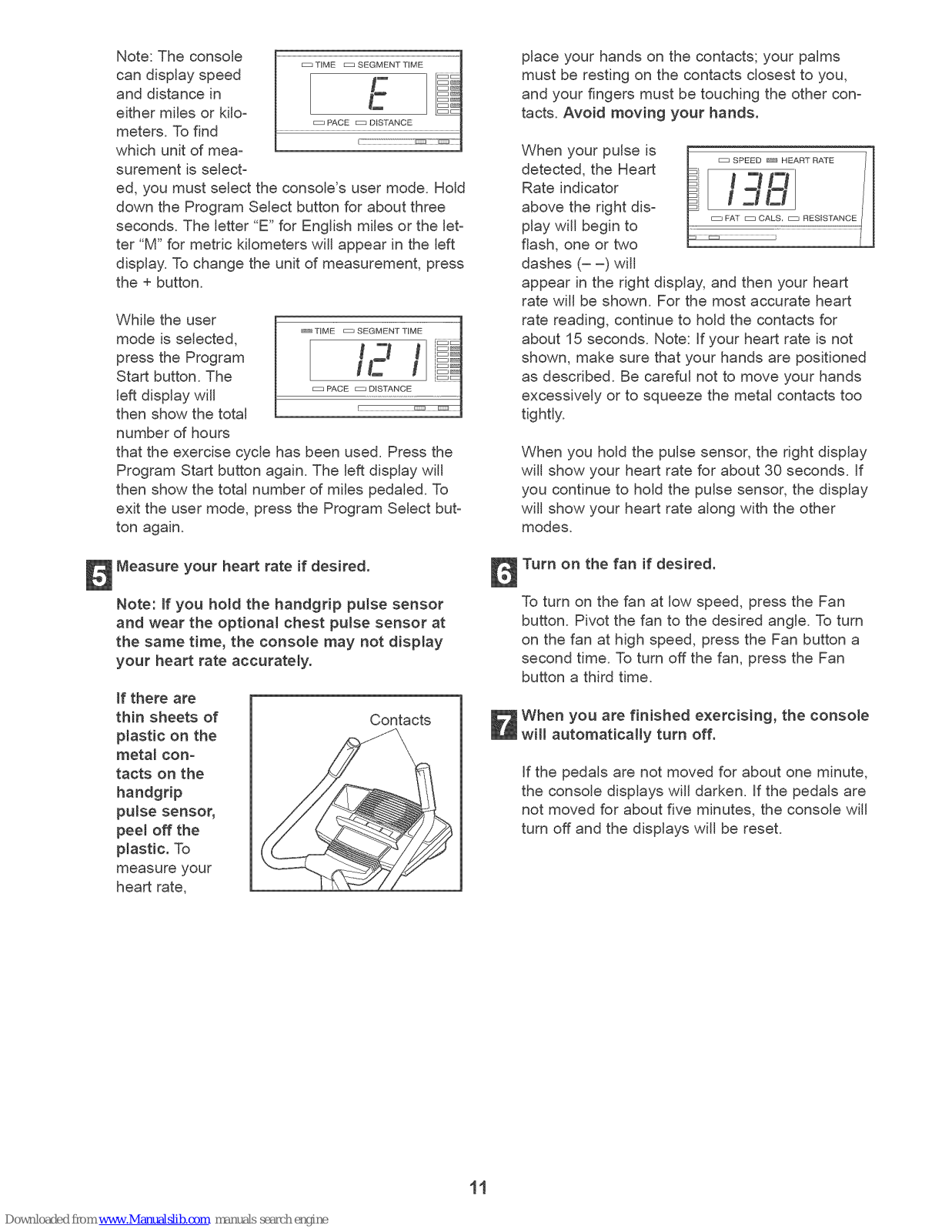

Note: The console can display speed

and distance in either miles or kilo- meters. To find

which unit of mea-

surement is select- ed, you must select the console's user mode. Hold

down the Program Select button for about three seconds. The letter "E" for English miles or the let-

ter "M" for metric kilometers will appear in the left display. To change the unit of measurement, press

the + button.

While the user mode is selected,

press the Program Start button. The

left display will then show the total

number of hours that the exercise cycle has been used. Press the

Program Start button again. The left display will then show the total number of miles pedaled. To

exit the user mode, press the Program Select but- ton again.

Measure your heart rate if desired.

Note: Jfyou hold the handgrip pulse sensor and wear the optional chest pulse sensor at

the same time, the console may not display

your heart rate accurately.

Jf there are thin sheets of

plastic on the metal con-

tacts on the handgrip pulse sensor,

peel off the plastic. To

measure your heart rate,

Contacts

place your hands on the contacts; your palms must be resting on the contacts closest to you,

and your fingers must be touching the other con- tacts. Avoid moving your hands.

When your pulse is detected, the Heart

Rate indicator above the right dis- play will begin to

flash, one or two dashes (- -) will

appear in the right display, and then your heart rate will be shown. For the most accurate heart

rate reading, continue to hold the contacts for about 15 seconds. Note: Jfyour heart rate is not

shown, make sure that your hands are positioned as described. Be careful not to move your hands

excessively or to squeeze the metal contacts too tightly.

When you hold the pulse sensor, the right display will show your heart rate for about 30 seconds, if

you continue to hold the pulse sensor, the display will show your heart rate along with the other

modes.

Turn on the fan if desired.

To turn on the fan at low speed, press the Fan button. Pivot the fan to the desired angle. To turn on the fan at high speed, press the Fan button a second time. To turn off the fan, press the Fan

button a third time.

When you are finished exercising, the console

automatically turn off.

If the pedals are not moved for about one minute, the console displays will darken. Jf the pedals are

not moved for about five minutes, the console will turn off and the displays will be reset.

Page 12

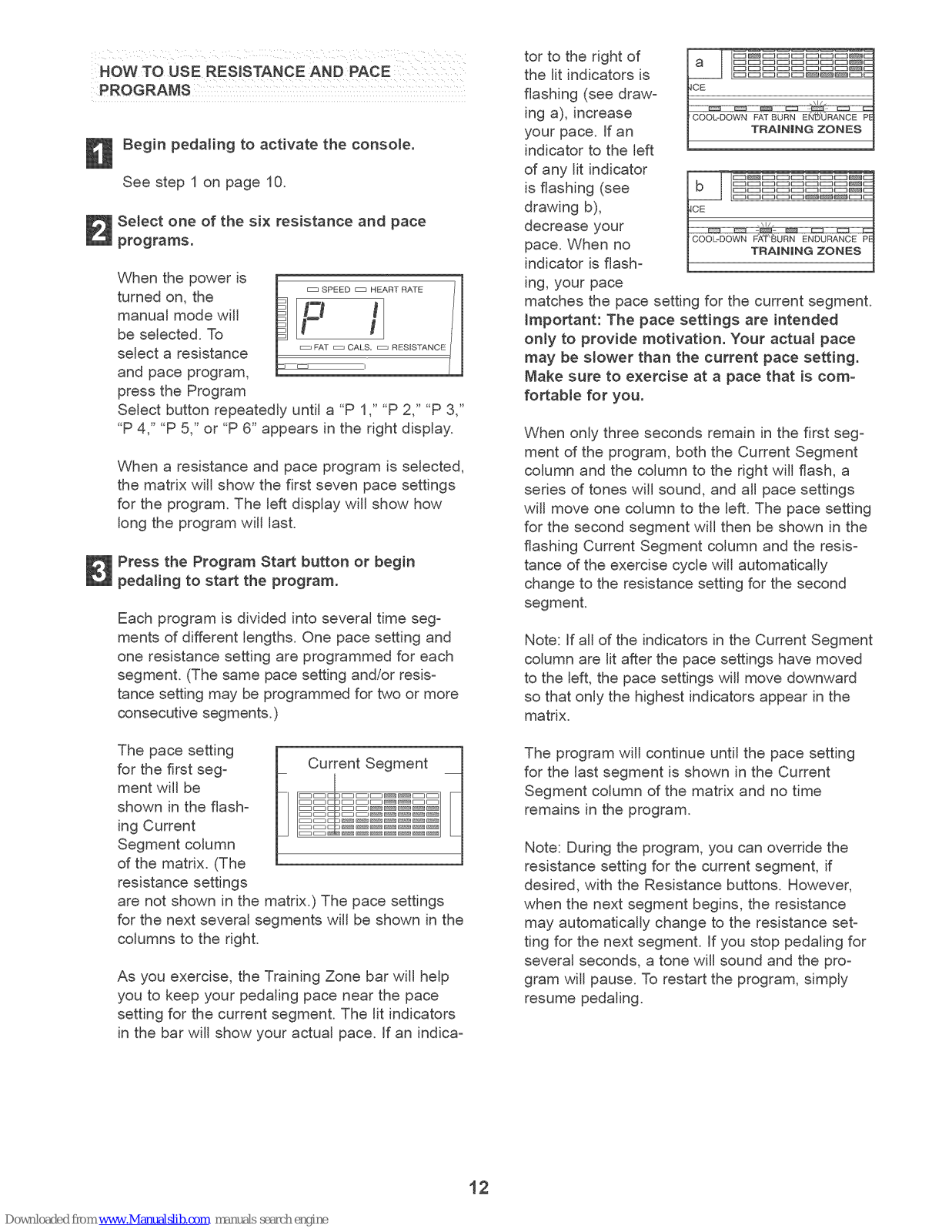

HOWTO USE RESISTANCE AND PACE

PROGRAMS

Begin pedaling to activate the console.

See step 1 on page 10.

Select one of the six resistance and pace programs.

When the power is turned on, the _ SPEED_ HEARTRATE manual mode will

be selected. To select a resistance

and pace program, press the Program Select button repeatedly until a "P 1," "P 2," "P 3," "P 4," "P 5," or "P 6" appears in the right display.

When a resistance and pace program is selected, the matrix will show the first seven pace settings

for the program. The left display will show how

long the program will last.

Press the Program Start button or begin pedaling to start the program.

Each program is divided into several time seg- ments of different lengths. One pace setting and one resistance setting are programmed for each segment. (The same pace setting and/or resis- tance setting may be programmed for two or more consecutive segments.)

The pace setting

for the first seg-

ment will be shown in the flash-

ing Current Segment column of the matrix. (The resistance settings

Current Segment

.......

are not shown in the matrix.) The pace settings

for the next several segments will be shown in the

columns to the right.

As you exercise, the Training Zone bar will help

you to keep your pedaling pace near the pace setting for the current segment. The lit indicators in the bar will show your actual pace. If an indica-

tot to the right of the lit indicators is

flashing (see draw-

ing a), increase your pace. If an indicator to the left

of any lit indicator is flashing (see

drawing b), _cE decrease your

pace. When no indicator is flash-

ing, your pace matches the pace setting for the current segment.

important: The pace settings are intended onJy to provide motivation. Your actual pace

may be slower than the current pace setting. Make sure to exercise at a pace that is corn=

fortable for you.

When only three seconds remain in the first seg= ment of the program, both the Current Segment

column and the column to the right wilJ flash, a series of tones wilJ sound, and alJ pace settings

will move one column to the left. The pace setting

for the second segment wilJ then be shown in the

flashing Current Segment column and the resis=

tance of the exercise cycle wilJ automatically change to the resistance setting for the second

segment.

Note: if all of the indicators in the Current Segment column are lit after the pace settings have moved

to the left, the pace settings wilJ move downward so that only the highest indicators appear in the matrix.

The program will continue until the pace setting

for the last segment is shown in the Current

Segment column of the matrix and no time remains in the program.

Note: During the program, you can override the resistance setting for the current segment, if

desired, with the Resistance buttons. However,

when the next segment begins, the resistance

may automatically change to the resistance set- ting for the next segment. If you stop pedaling for

several seconds, a tone will sound and the pro- gram will pause. To restart the program, simply

resume pedaling.

Page 13

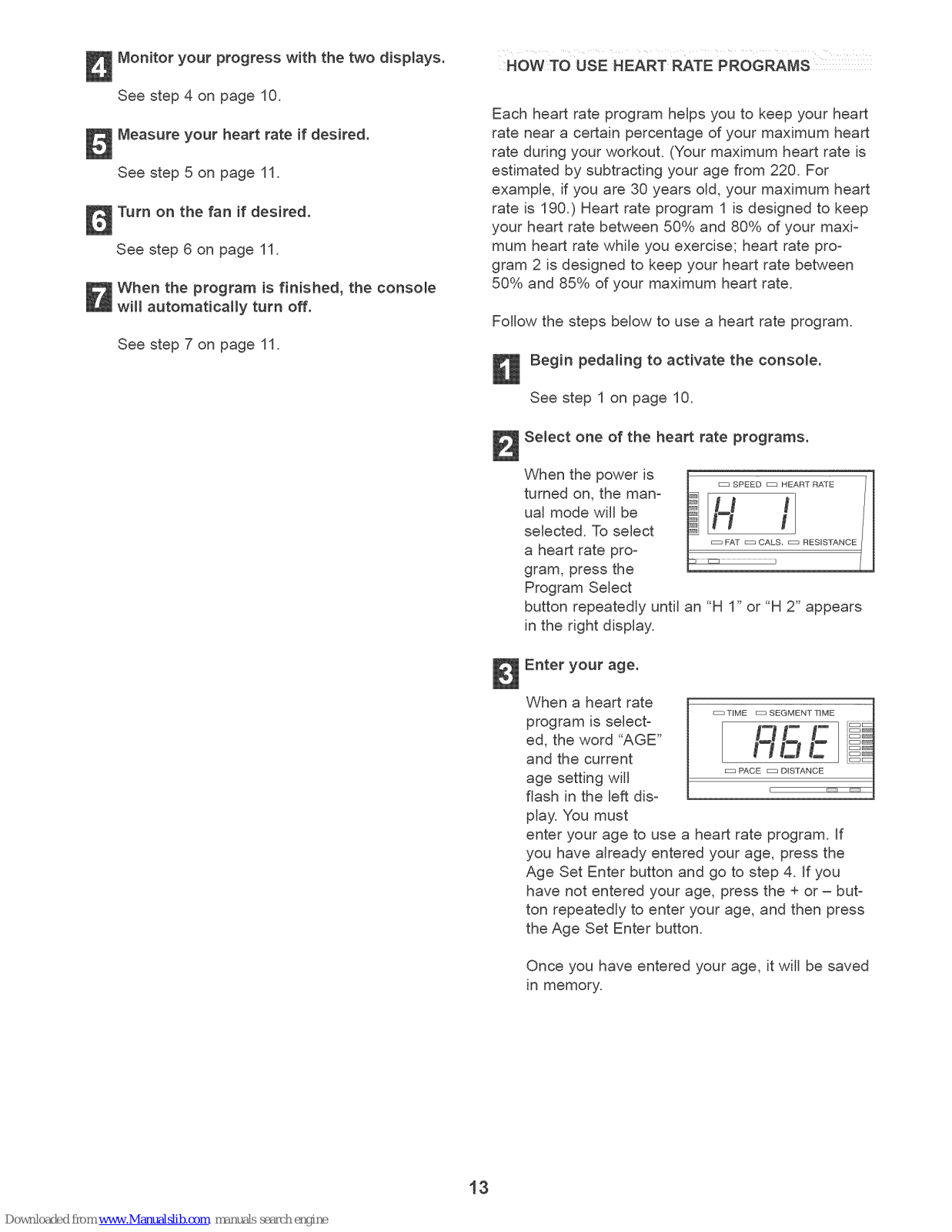

Monitor your progress with the two displays.

See step 4 on page 10.

Measure your heart rate if desired.

See step 5 on page 11.

Turn on the fan if desired.

See step 6 on page 11.

When the program is finished, the console

will automatically turn off.

See step 7 on page 11.

HOW TO USE HEART RATE PROGRAMS

Each heart rate program helps you to keep your heart rate near a certain percentage of your maximum heart rate during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For example, if you are 30 years old, your maximum heart rate is 190.) Heart rate program 1 is designed to keep your heart rate between 50% and 80% of your maxi= mum heart rate while you exercise; heart rate pro- gram 2 is designed to keep your heart rate between 50% and 85% of your maximum heart rate.

Follow the steps below to use a heart rate program.

Begin pedaling to activate the console.

See step 1 on page 10.

Select one of the heart rate programs.

When the power is turned on, the man-

ual mode will be selected. To select

a heart rate pro- gram, press the Program Select button repeatedly until an "H 1" or "H 2" appears in the right display.

Enter your age.

When a heart rate program is select-

ed, the word "AGE" and the current

age setting will flash in the left dis-

play. You must

_TIME _ SEGMENT TIME _

PACE _ DISTANCE

C _

enter your age to use a heart rate program, if you have already entered your age, press the Age Set Enter button and go to step 4. if you have not entered your age, press the + or = but- ton repeatedly to enter your age, and then press the Age Set Enter button.

Once you have entered your age, it will be saved in memory.

Page 14

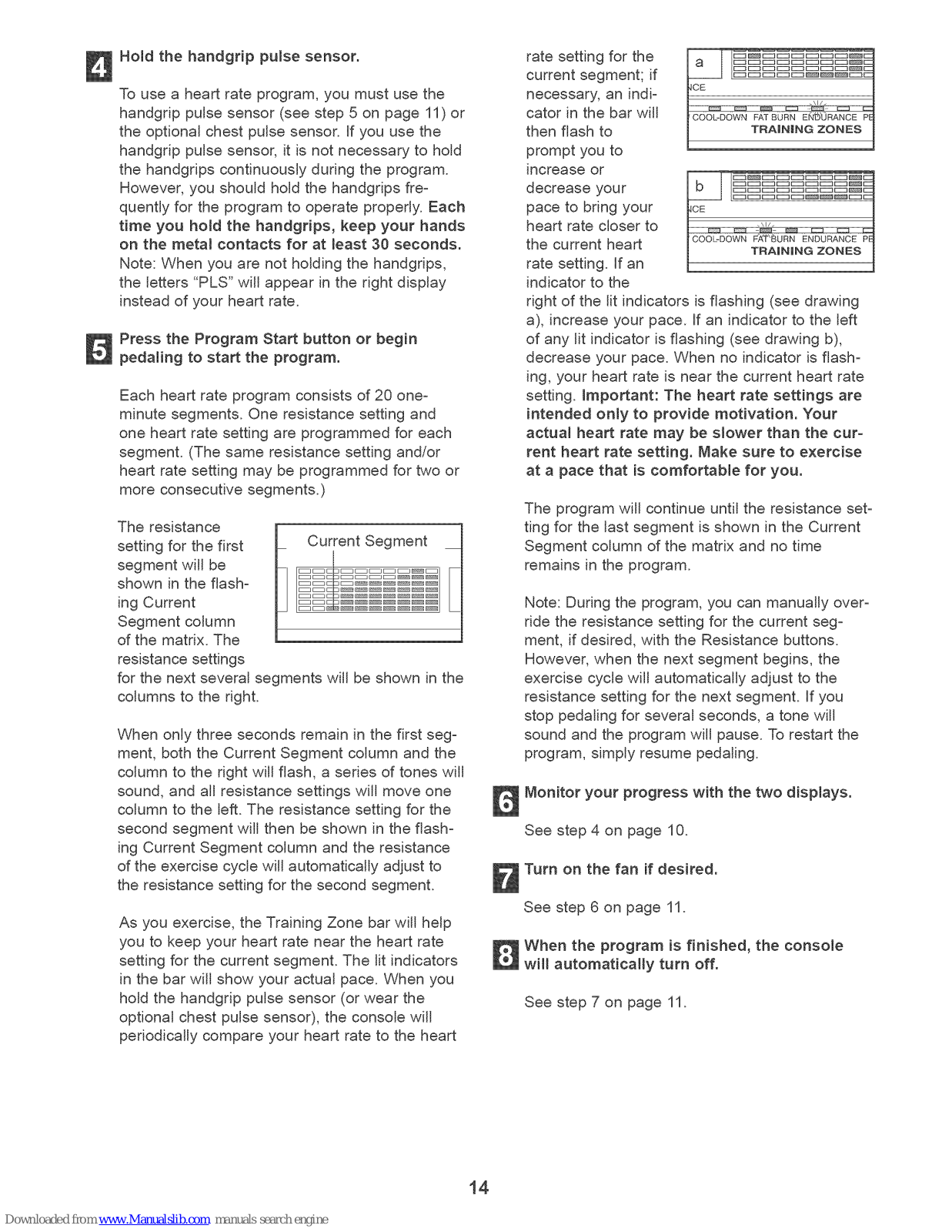

Hold the handgrip pulse sensor.

To use a heart rate program, you must use the handgrip pulse sensor (see step 5 on page 11) or

the optional chest pulse sensor, if you use the handgrip pulse sensor, it is not necessary to hold

the handgdps continuously during the program. However, you should hold the handgrips fre-

quently for the program to operate properly. Each time you hold the handgrips, keep your hands

on the metal contacts for at least 30 seconds. Note: When you are not holding the handgrips, the letters "PLS" will appear in the right display

instead of your heart rate.

Press the Program Start button or begin pedaling to start the program.

Each heart rate program consists of 20 one- minute segments. One resistance setting and

one heart rate setting are programmed for each segment. (The same resistance setting and/or

heart rate setting may be programmed for two or more consecutive segments.)

The resistance setting for the first Current Segment segment will be

shown in the flash- ing Current Segment column

of the matrix. The resistance settings

for the next several segments will be shown in the

columns to the right.

When only three seconds remain in the first seg- ment, both the Current Segment column and the

column to the right will flash, a series of tones will sound, and all resistance settings will move one

column to the left. The resistance setting for the second segment will then be shown in the flash-

ing Current Segment column and the resistance of the exercise cycle will automatically adjust to

the resistance setting for the second segment.

As you exercise, the Training Zone bar will help

you to keep your heart rate near the heart rate setting for the current segment. The lit indicators

in the bar will show your actual pace. When you hold the handgrip pulse sensor (or wear the

optional chest pulse sensor), the console will periodically compare your heart rate to the heart

rate setting for the current segment; if

necessary, an indi- 4cE cator in the bar will

then flash to prompt you to

increase or decrease your

pace to bring your _cE heart rate closer to

the current heart rate setting. If an

indicator to the right of the lit indicators is flashing (see drawing

a), increase your pace. If an indicator to the left of any lit indicator is flashing (see drawing b),

decrease your pace. When no indicator is flash- ing, your heart rate is near the current heart rate

setting. Important: The heart rate settings are intended only to provide motivation. Your

actual heart rate may be slower than the cur- rent heart rate setting. Make sure to exercise

at a pace that is comfortable for you.

The program will continue until the resistance set- ting for the last segment is shown in the Current

Segment column of the matrix and no time remains in the program.

Note: During the program, you can manually over- ride the resistance setting for the current seg-

ment, if desired, with the Resistance buttons. However, when the next segment begins, the

exercise cycle will automatically adjust to the resistance setting for the next segment. If you

stop pedaling for several seconds, a tone will sound and the program will pause. To restart the

program, simply resume pedaling.

Monitor your progress with the two displays.

See step 4 on page 10.

Turn on the fan if desired.

See step 6 on page 11.

When the program is finished, the console

witl automat{caHy turn off.

See step 7 on page 11.

Page 15

HOW TO CONNECT YOUR CD PLAYER, VCR_ OR COMPUTER

To use iFIT.com CD's, the exercise cycle must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages

15 and 16 for connecting instructions. To use iFIT.com videocassettes, the exercise cycle must be connected to your VCR. See page 17 for connecting instructions. To use iFIT.com programs directly from our Web site, the exercise cycle must be connected to your home computer. See page 16 for connecting instruc-

tions.

HOW TO CONNECT YOUR PORTABLE CB PLAYER

Note: if your CD player has separate LiNE OUT and PHONES jacks, see instruct{on A below, if your CD player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the LiNE OUT jack on your CD player. Plug your headphones into the PHONES jack.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCAotype AUDIO OUT

jack, see instruction A below, if your stereo has a

118" LiNE OUT jack, see instruction B. if your stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable intothe adapter. Plug the adapter into an AUDIO

OUT jack on your stereo.

A_JOI00UT

B RIGHT ('_) m

=(_==

LEFT B

Adapter

Audio Cable

Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Do not use the adapter.

Plug one end of the audio cable into the jack beneath the console. Plug the other end of the cable into a 1/8" Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into a 1/8" Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the

other side of the Y-adapter.

r= = =:_

2-'

1/8" [_

Audio Y-adapter

UaDle 4::3r__t

Page 16

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER

Note: if your stereo has an unused LiNE OUT jack, see instruction A below. Jfthe UNE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into the

LiNE OUT jack on your stereo.

I LINEOUT(_) i

Audio Cable _%%..._

u.............

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an RCA Yzadapter (available at electronics stores).

Next, remove the wire that is currently plugged into the LiNE OUT jack on your stereo and plug the wire into the unused side of the Yzadapter. Plug the Y=adapter into the LiNE OUT jack on your stereo.

RCA

Audio Y=adapter Cable Adapter

Wire removed from

LiNE OUT jack

Note: if your computer has a 1/8" UNE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the LiNE OUT jack on your computer.

L......%1

i '

", Audio [_

! - "_ Cable

ooo

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into a 1/8" Y_adapter (available at electronics stores). Plug the Y_adapter into the PHONES jack on your computer. Plug your headphones or speakz ers into the other side of the Y_adapter.

Audio Cable

i Pt°NEs

= 1/8"

Y-adapter

Headphones/Speakers_

Page 17

HOW TO CONNECT YOUR VCR

Note: ifyour VCR has an unused AUDIO OUT jack, see instructionA below. JftheAUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-inVCR, see instructionB.If your VCR

isconnected toyour home stereo,see HOW TO

CONNECT YOUR HOME STEREO on page 16.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.

Adapter_

.........

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an

RCA Y=adapter (available at electronics stores). Next, remove the wire that is currently plugged into

the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y=adapter. Plug the

Y=adapter into the AUDIO OUT jack on your VCR.

t ...... _ e,

RCA Y=ada

Audio Cable Adapter

Wire removed from

AUDIO OUT jack

Page 18

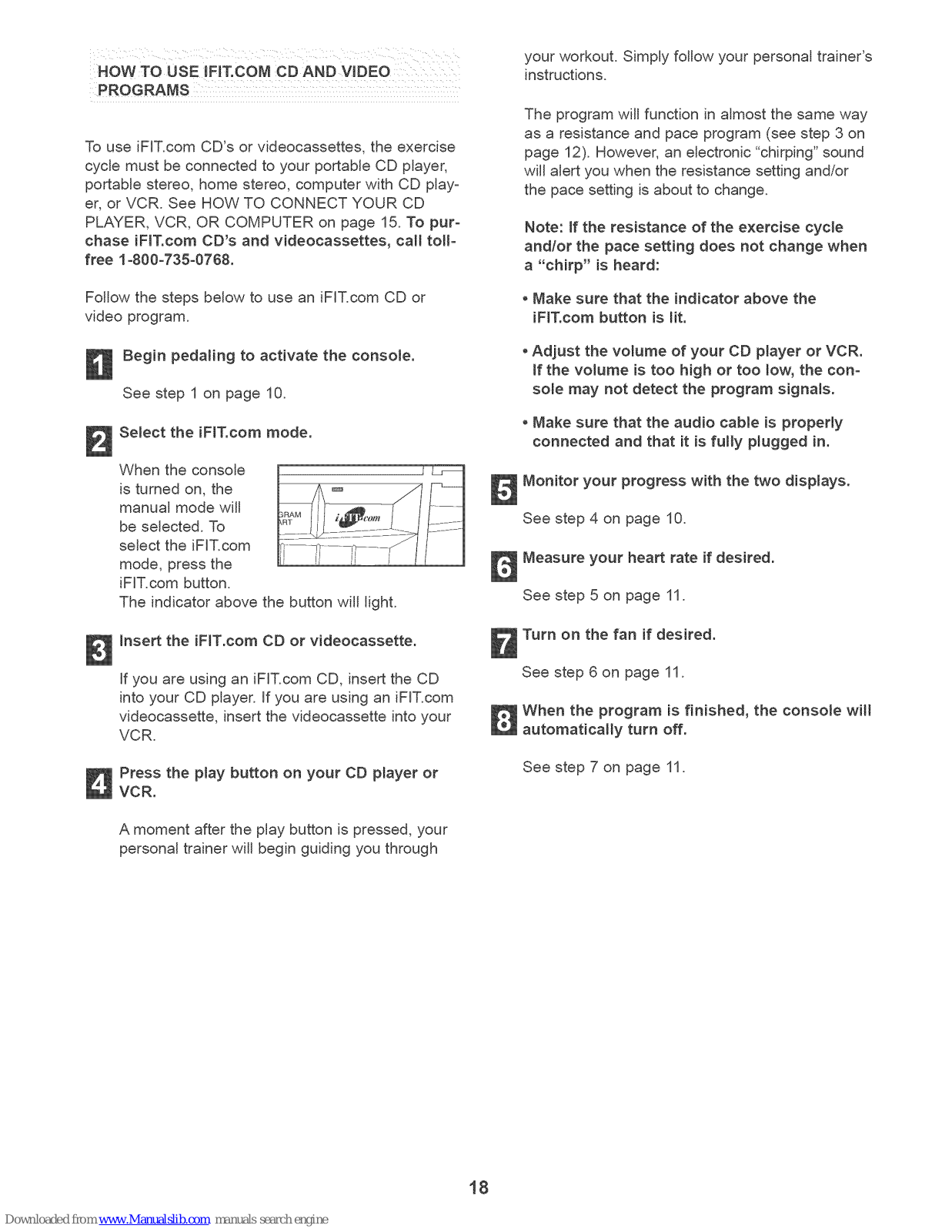

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

To use iFIT.com CD's or videocassettes, the exercise cycle must be connected to your portable CD player, portable stereo, home stereo, computer with CD play= er, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 15. To pur- chase iFIT.com CD's and videocassettes, calI toll-

free 1-800-738-0768.

Follow the steps below to use an iFIT.com CD or video program.

Begin pedaling to activate the console.

See step 1 on page 10.

Se{ect the iF_T.com mode.

When the console is turned on, the

manual mode will be selected. To select the iFF.com

mode, press the iFF.com button.

The indicator above the button will light.

insert the iF_T.com CD or videocassette.

if you are using an iFIT.com CD, insert the CD into your CD player, if you are using an iFIT.com videocassette, insert the videocassette into your

VCR.

Press the play button on your CD player or

VCR.

A moment after the play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer's instructions.

The program will function in almost the same way as a resistance and pace program (see step 3 on

page 12). However, an electronic "chirping" sound

will alert you when the resistance setting and/or

the pace setting is about to change.

Note: If the resistance of the exercise cycle and/or the pace setting does not change when

a "chirp" is heard:

Make sure that the indicator above the iF_T.com button is lit.

Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con=

sole may not detect the program signals. Make sure that the audio cable is properly

connected and that it is fulty plugged in.

Monitor your progress with the two displays.

See step 4 on page 10.

Measure your heart rate if desired.

See step 5 on page 11.

Turn on the fan if desired.

See step 6 on page 11.

When the program is finished, the console will automatically turn off.

See step 7 on page 11.

Page 19

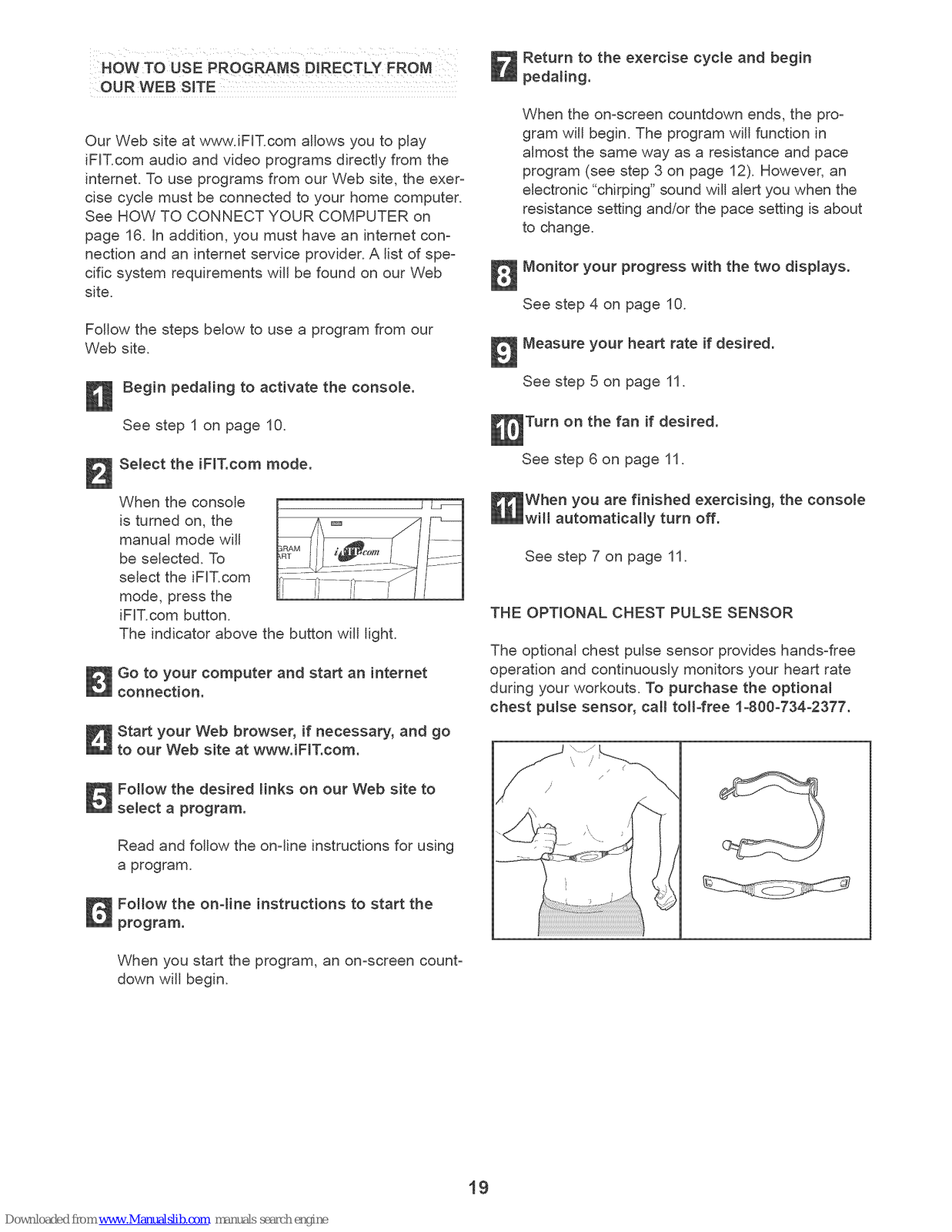

HOWTO USE PROGRAMS DIRECTLY FROM

OUR WEB SITE

Our Web site at www.iFIT.com allows you to play iFF.com audio and video programs directly from the

internet. To use programs from our Web site, the exer- cise cycle must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on

page 16. In addition, you must have an internet con- nection and an internet service provider. A list of spe-

cific system requirements will be found on our Web site.

Follow the steps below to use a program from our Web site.

Begin pedaling to activate the console.

See step 1 on page 10.

Select the iF_T.com mode.

When the console is turned on, the

manual mode will be selected. To select the iFF.com

mode, press the iFF.com button.

The indicator above the button will light.

Go to your computer and start an internet connection.

Start your Web browser, if necessary, and go to our Web site at wv_w.iFIT.com.

Follow the desired links on our Web site to semecta program.

Read and follow the onqine instructions for using a program.

Follow the onqine instructions to start the program.

When you start the program, an on-screen count- down will begin.

Return to the exercise cycle and begin pedaling.

When the on-screen countdown ends, the pro- gram will begin. The program wiJJfunction in

almost the same way as a resistance and pace program (see step 3 on page 12). However, an

electronic "chirping" sound will alert you when the resistance setting and/or the pace setting is about

to change.

Monitor your progress with the two displays.

See step 4 on page 10.

Measure your heart rate if desired.

See step 5 on page 11.

Turn on the fan if desired.

See step 6 on page 11.

When you are finished exercising, the console will automatically turn off.

See step 7 on page 11.

THE OPTIONAL CHEST PULSE SENSOR

The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optionam chest pulse sensor, call toll-free 1-800-734-2377.

Page 20

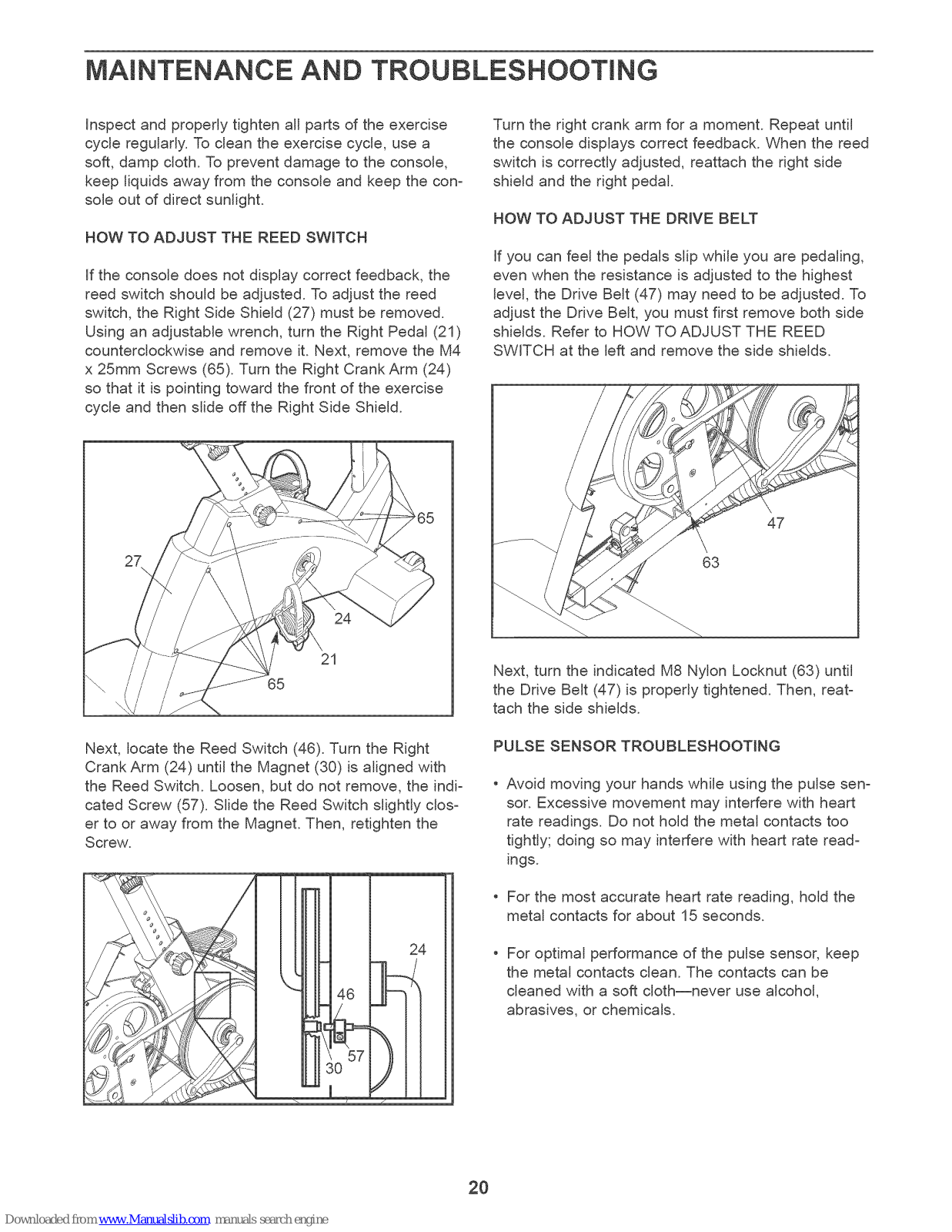

MAINTENANCE AND TROUBLESHOOTING

inspect and properly tighten all parts of the exercise cycle regularly. To clean the exercise cycle, use a soft, damp cloth. To prevent damage to the console, keep liquids away from the console and keep the con- sole out of direct sunlight.

HOW TO ADJUST THE REED SWITCH

if the console does not display correct feedback, the reed switch should be adjusted. To adjust the reed switch, the Right Side Shield (27) must be removed. Using an adjustable wrench, turn the Right Pedal (21) counterclockwise and remove it. Next, remove the M4 x 25ram Screws (65). Turn the Right Crank Arm (24) so that it is pointing toward the front of the exercise cycle and then slide off the Right Side Shield.

/ 65

Next, locate the Reed Switch (46). Turn the Right Crank Arm (24) until the Magnet (30) is aligned with

the Reed Switch. Loosen, but do not remove, the indi- cated Screw (57). Slide the Reed Switch slightly clos-

er to or away from the Magnet. Then, retighten the Screw.

Turn the right crank arm for a moment. Repeat until the console displays correct feedback. When the reed switch is correctly adjusted, reattach the right side shield and the right pedal.

HOW TO ADJUST THE DRIVE BELT

if you can feel the pedals slip while you are pedaling, even when the resistance is adjusted to the highest level, the Drive Belt (47) may need to be adjusted. To adjust the Drive Belt, you must first remove both side

shields. Refer to HOW TO ADJUST THE REED SWITCH at the left and remove the side shields.

Next, turn the indicated M8 Nylon Locknut (63) until the Drive Belt (47) is properly tightened. Then, teat=

tach the side shields.

PULSE SENSOR TROUBLESHOOTING

Avoid moving your hands while using the pulse sen= sot. Excessive movement may interfere with heart

rate readings. Do not hold the metal contacts too

tightly; doing so may interfere with heart rate read-

ings.

• For the most accurate heart rate reading, hold the metal contacts for about 15 seconds.

For optimal performance of the pulse sensor, keep

the metal contacts clean. The contacts can be

cleaned with a soft cloth--never use alcohol,

abrasives, or chemicals.

Page 21

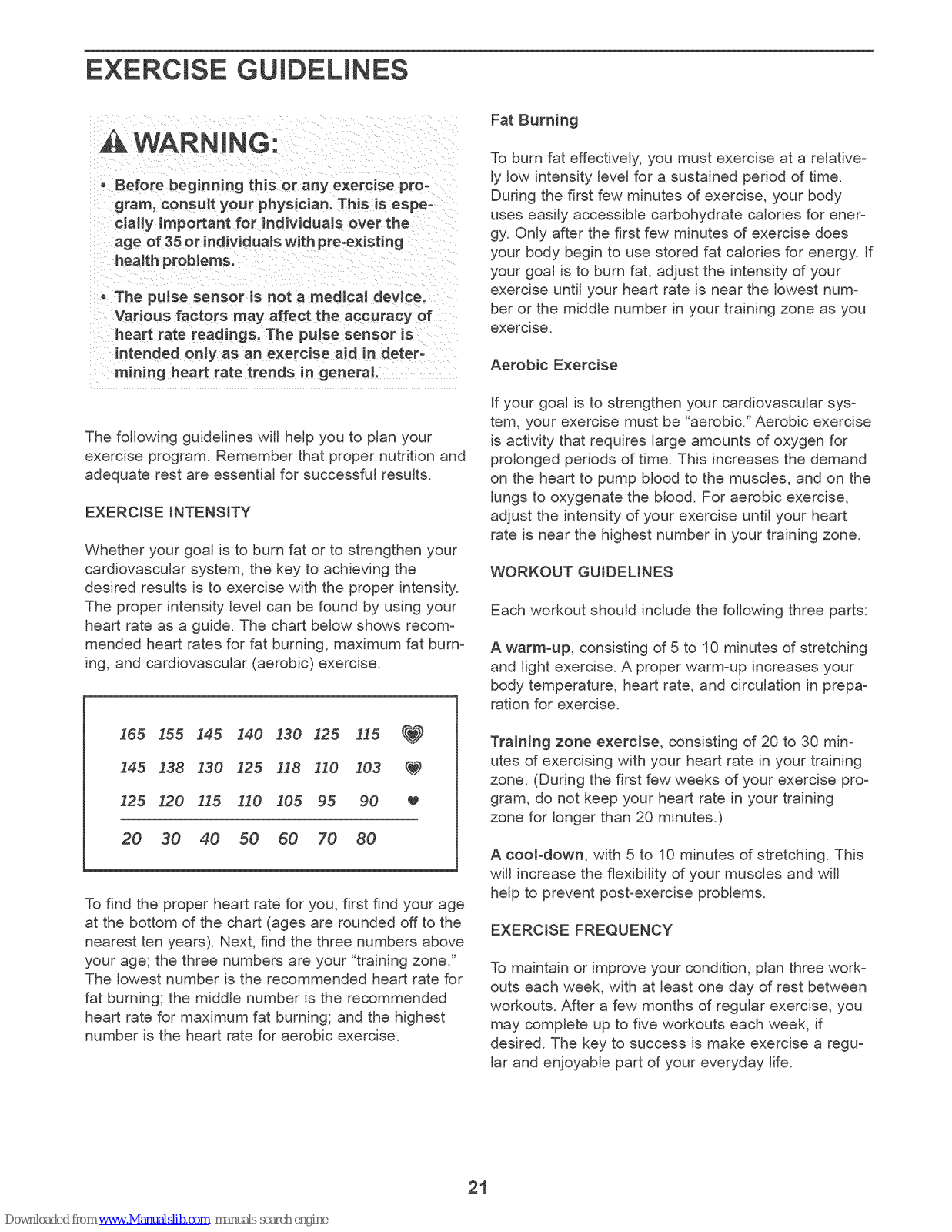

EXERCDSE GUIDELINES

WARNING'.

o Before beginning this or any exercise pro=

gram, consult your physician. This is espe- cially important for individuaJs over the age of 35 or individuals with pre-existing hea_th problems.

o The pu_se sensor is not a medical device.

VaNoua factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in deter- mining heart rate trends in general

The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom- mended heart rates for fat burning, maximum fat burn- ing, and cardiovascular (aerobic) exercise.

I65 155 I45 140 130 125 115 _ 145 138 130 125 1!8 110 103 C_)

125 !20 115 110 105 95 90

20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above your age; the three numbers are your "training zone."

The lowest number is the recommended heart rate for

fat burning; the middle number is the recommended

heart rate for maximum fat burning; and the highest number is the heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relative= ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener- gy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num- ber or the middle number in your training zone as you

exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys- tem, your exercise must be "aerobic." Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise, consisting of 20 to 30 min- utes of exercising with your heart rate in your training zone. (During the first few weeks of your exercise pro- gram, do not keep your heart rate in your training zone for longer than 20 minutes.)

A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, plan three work- outs each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. The key to success is make exercise a regu- lar and enjoyable part of your everyday life.

Page 22

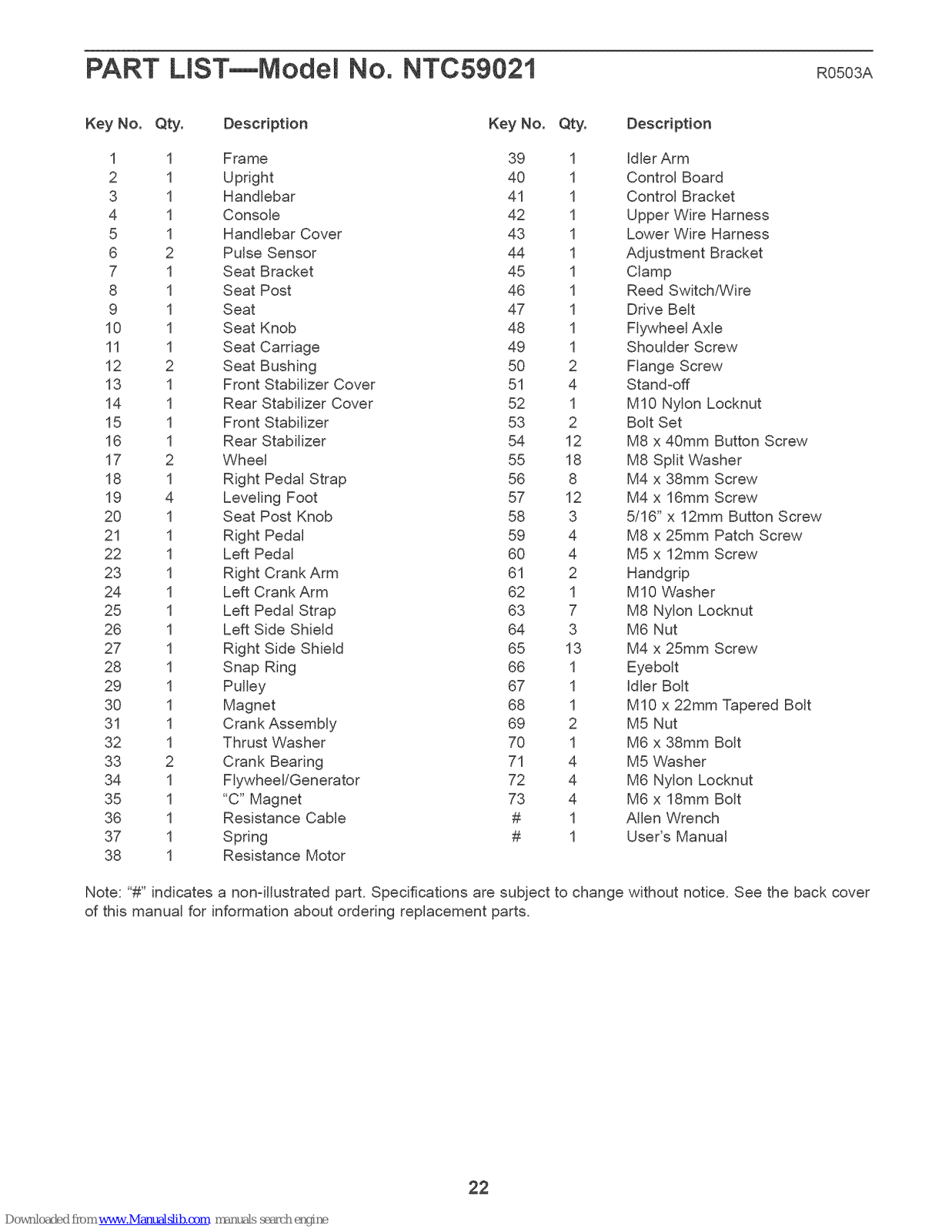

PART LiST--Model No. NTC59021 Ro5o3A

Key No. Qty. Description Key No. Qty. Description

1 1 Frame 39 1 idler Arm

2 1 Upright 40 1 Control Board 3 1 Handlebar 41 1 Control Bracket

4 1 Console 42 1 Upper Wire Harness 5 1 Handlebar Cover 43 1 Lower Wire Harness

6 2 Pulse Sensor 44 1 Adjustment Bracket 7 1 Seat Bracket 45 1 Clamp

8 1 Seat Post 46 1 Reed Switch/Wire 9 1 Seat 47 1 Drive Belt

10 1 Seat Knob 48 1 Flywheel Axle 11 1 Seat Carriage 49 1 Shoulder Screw 12 2 Seat Bushing 50 2 Flange Screw

13 1 Front Stabilizer Cover 51 4 Stand-off 14 1 Rear Stabilizer Cover 52 1 M10 Nylon Locknut

15 1 Front Stabilizer 53 2 Bolt Set 16 1 Rear Stabilizer 54 12 M8 x 40mm Button Screw

17 2 Wheel 55 18 M8 Split Washer 18 1 Right Pedal Strap 56 8 M4 x 38mm Screw 19 4 Leveling Foot 57 12 M4 x 16mm Screw

20 1 Seat Post Knob 58 3 5/16" x 12mm Button Screw 21 1 Right Pedal 59 4 M8 x 25mm Patch Screw

22 1 Left Pedal 60 4 M5 x 12mm Screw 23 1 Right Crank Arm 61 2 Handgrip

24 1 Left Crank Arm 62 1 MI0 Washer 25 1 Left Pedal Strap 63 7 M8 Nylon Locknut

26 1 Left Side Shield 64 3 M6 Nut 27 1 Right Side Shield 65 13 M4 x 25mm Screw

28 1 Snap Ring 66 1 Eyebolt 29 1 Pulley 67 1 idler Bolt 30 1 Magnet 68 1 MI0 x 22mm Tapered Bolt 31 1 Crank Assembly 69 2 M5 Nut

32 1 Thrust Washer 70 1 M6 x 38mm Bolt 33 2 Crank Bearing 71 4 M5 Washer

34 1 Flywheel/Generator 72 4 M6 Nylon Locknut 35 1 "C" Magnet 73 4 M6 x 18mm Bolt

36 1 Resistance Cable # 1 Allen Wrench 37 1 Spring # 1 User's Manual

38 1 Resistance Motor

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.

Page 23

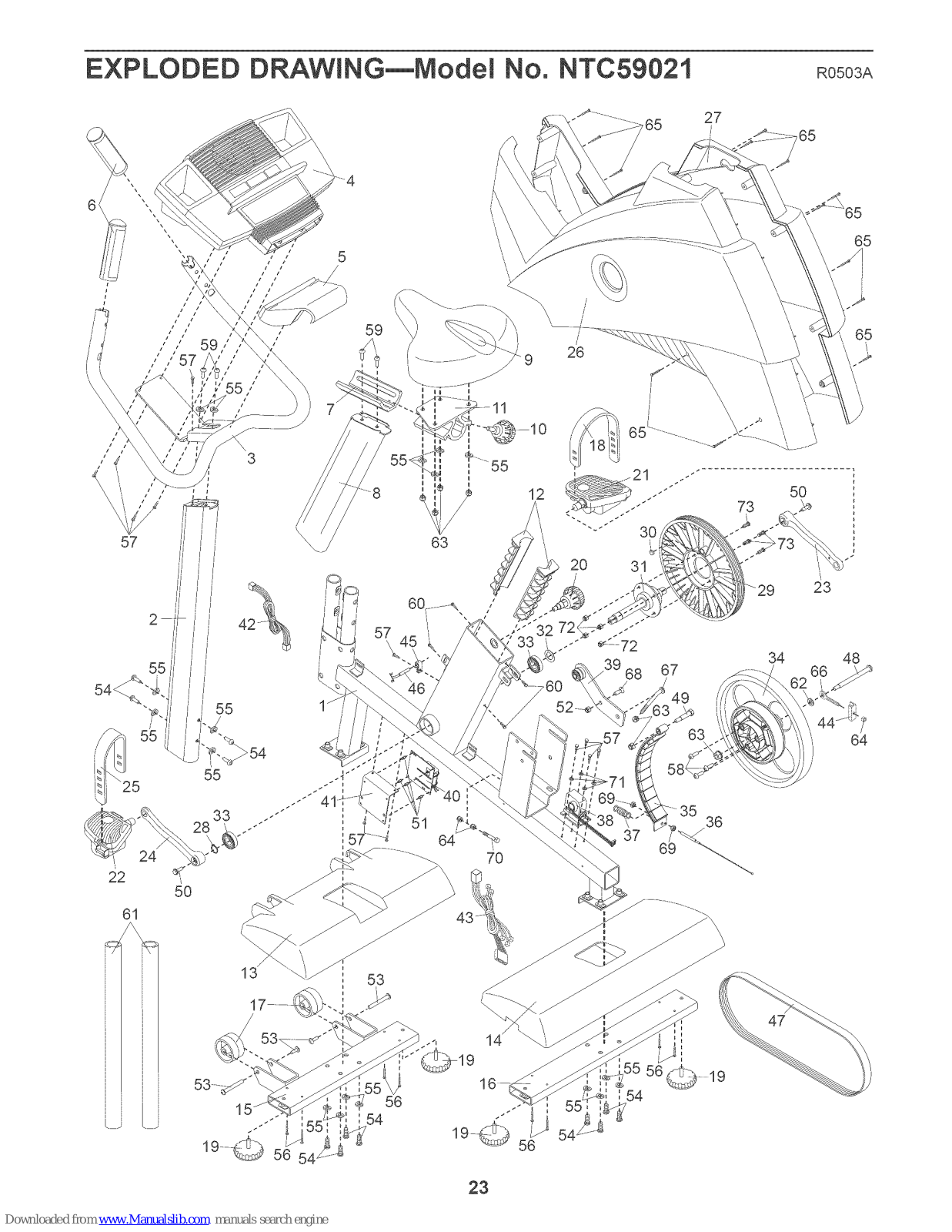

EXPLODED DRAWJNG--ModeI No. NTCSg021 Roso3A

' / 5

" S

/ /

13 5,3

65 .......... Y ....

Page 24

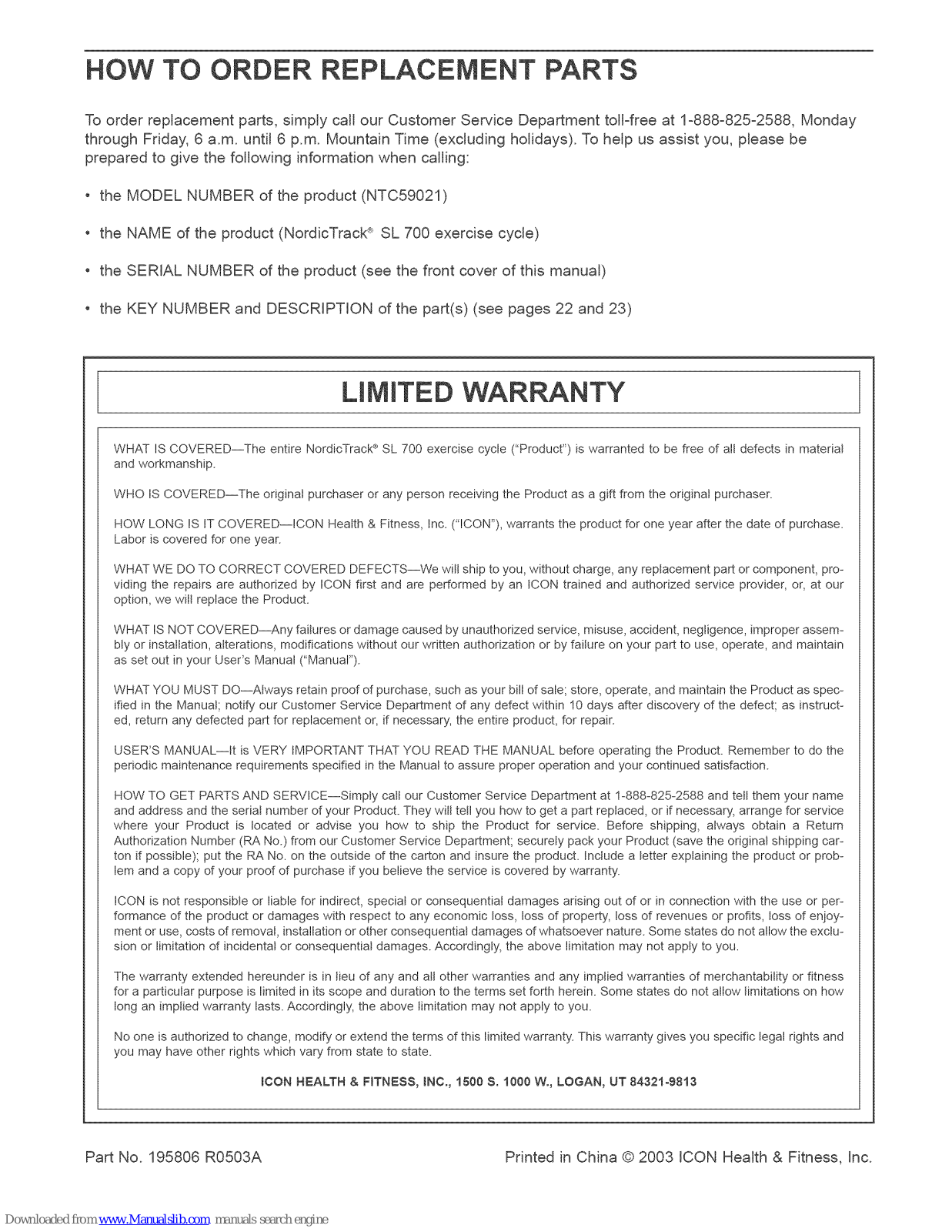

HOW TO ORDER REPLACEMENT PARTS

To order replacement parts, simply call our Customer Service Department toll-free at 1-888z825z2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:

• the MODEL NUMBER of the product (NTC59021)

• the NAME of the product (NordicTrack _ SL 700 exercise cycle)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRiPTiON of the part(s) (see pages 22 and 23)

LmMITED WARRANTY

WHAT IS COVERED--The entire NordicTrack {_SL 700 exercise cycle ("Product") is warranted to be free of all defects in material and workmanship.

WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.

HOW LONG IS tT COVERED--ICON Health & Fitness, tnc. ('ICON"), warrants the product for one year after the date of purchase. Labor is covered for one year.

WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or component, pro- viding the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our

option, we will replace the Product.

WHAT IS NOT COVERED--Any faitures or damage caused by unauthorized service, misuse, accident, negligence, improper assem-

bly or installation, alterations, modifications without our written authorization or by faiture on your part to use, operate, and maintain

as set out in your User's Manual ("Manual").

WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of sale: store, operate, and maintain the Product as spec-

ified in the Manual: notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instruct-

ed, return any defected part for replacement or, if necessary, the entire product, for repair.

USER*S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.

HOW TO GET PARTS AND SERVICE--Simply calt our Customer Service Department at 1-888-825-2588 and tell them your name

and address and the serial number of your Product. They wilt tetl you how to get a part replaced, or if necessary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return

Authorization Number (RA No.) from our Customer Service Department: securely pack your Product (save the odginat shipping car- ton if possible): put the RA No. on the outside of the carton and insure the product, tnctude a letter explaining the product or prob-

lem and a copy of your proof of purchase if you believe the service is covered by warranty.

ICON is not responsible or liable for indirect, speciat or consequential damages arising out of or in connection with the use or per-

formance of the product or damages with respect to any economic toss, toss of property, loss of revenues or profits, loss of enjoy-

ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages. Accordingly, the above limitation may not appty to you.

The warranty extended hereunder is in lieu of any and alt other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how

long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and

you may have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

NordicTrack SL 700 NTC59021, SL 700, NTC59021 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
