NordicTrack S3000 User Manual

Model No. NTL29105.1
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Serial No.
The serial number is found in the location shown below. Write the serial number in the space above.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if a part is damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
CALL TOLL-FREE:
USER'S MANUAL
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.nordictrackservice.com
CAUTION
Read all precautions and in­structions in this manual before using this equipment. Keep this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
ollowing important precautions and information before operating the treadmill.
f
. It is the responsibility of the owner to ensure
1
hat all users of the treadmill are adequately
t informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
he power cord or plug is damaged or if the
t
readmill is not working properly. (See TROU-
t BLESHOOTING on page 24 if the treadmill is not working properly.)
14. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
15. Read, understand, and test the emergency stop procedure before using the treadmill (see page 11).
4. Keep the treadmill indoors, away from mois­ture and dust. Do not place the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Do not operate the treadmill until it is properly assembled (see ASSEMBLY on page 6).
7. Inspect and properly tighten all parts of the treadmill regularly.
8. Keep children under the age of 12 and pets away from the treadmill at all times.
9. The treadmill should not be used by persons weighing more than 350 pounds (160 kg). Do not allow more than one person on the tread­mill at a time.
When connecting the power cord (see page
10.
9), plug the power cord into grounded circuit capable of carrying 20 or more amps. No other appliance should be on the same cir cuit. Do not use an extension cord.
-
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensors are not medical devices. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.
18. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and move the on/off switch to the “off” position when the treadmill is not in use.
19. Do not change the incline of the treadmill by placing objects under it.
20. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per sonal trainer describes the change.
-
Do not use an extension cord. Do not modify
11. the power cord or use an adaptor to connect the power cord to an improper receptacle.
12. Keep the power cord away from heated sur faces.
13. Never move the walking belt while the power is turned off. Do not operate the treadmill if
When using iFIT.com CDs and videos, you can
21. manually override the speed and incline set­tings at any time by pressing the speed and in­cline buttons. However, when the next “chirp”
-
is heard, the speed and/or incline will change to the next settings of the CD or video pro­gram.
3
22. Always remove iFIT.com CDs and videos from
Do not remove or insert this plug while the safety key is inserted in the console. Touch metal frame before removing or inserting plug. Static sensitive components may be affected.
WARNING
!
our CD player or VCR when not in use.
y
23. Never insert or drop any object into any opening on the treadmill.
24. Make sure to perform all maintenance proce-
ures outlined in this manual. Failure to do so
d will void the warranty and may result in dam­age to the treadmill.
25. DANGER: Always unplug the power
ord immediately after use, before cleaning
c the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Servicing other than the procedures in this manual should be per-
ormed by an authorized service representa-
f tive only.
26. The treadmill is intended for in-home use only. Do not use the treadmill in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown below is found on the treadmill in the indicated location. If the decal is missing or illegi­ble, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
Underside
of Console
4
BEFORE YOU BEGIN
Congratulations for selecting the revolutionary NordicTrack®S3000 treadmill. The NordicTrack S3000 treadmill offers an impressive array of features de-
igned to help you achieve your fitness goals in the
s convenience and privacy of your home.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, see the front cover of this manual. To
Console
Accessory Tray
Handrail
Handgrip Pulse Sensor
help us assist you, please note the product model number and serial number before contacting us. The model number of your treadmill is NTL29105.1. The
erial number can be found on a decal attached to the
s treadmill (see the front cover of this manual for the lo-
ation of the decal).
c
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Water Bottle Holder
Key/Clip
Walking Belt
Foot Rail
Roller Adjustment Bolts
Circuit Breaker
On/off Switch
Power Cord
Cushioned Walking Platform
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly can be completed using the included hex keys.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
mall amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
s condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. Slide the Right and Left Uprights (95, 97) onto the brack­ets near the front of the Frame (76).
Uprights are on the correct sides; the indicated holes must be facing inward.
Raise the Right Upright (95) until the lower hole in the front of the Right Upright is aligned with the upper hole in the bracket on the Frame (76). Finger tighten an Upright Bolt (96) into the Right Upright and the bracket. Do not
tighten the Upright Bolt yet.
Repeat this step with the Left Upright (97).
2. While a second person holds the Handrail (91) near the Uprights (95, 97), feed the Power Wire Harness (57) in the right Handrail down into the right Upright. Pull the end of the Power Wire Harness out of the lower end of the right Upright. If there is a wire tie on the end of the Power Wire Harness, remove it. Then, set the Handrail on the Uprights.
Finger tighten eight Handrail Bolts (99) into the Uprights (95, 97) and the Handrail (91). Do not tighten the
Handrail Bolts yet. Be careful to avoid pinching the Power Wire Harness (57).
Make sure that the
1
2
97
91
99
97
Holes
86
96
99
57
95
96
76
89
85
99
95
Note: The CD Holder (86) and the Cup Holder (85) are replaceable. If these parts become dislodged from the Console Base (89), simply press them back in.
3. Connect the Power Wire Harness (57) in the indicated lo­cation. Push all of the excess wire up into the right Upright (95).
connected.
Make sure that the Wire Harness is fully
3
95
57
6
4. Be careful to avoid pinching your hands or the Power Wire Harness (not shown) during this step.
While a second person holds the Uprights (95, 97), re-
ove the two Upright Bolts (96) used in step 1. Next,
m slide the Uprights fully onto the brackets on the Frame (not shown). Attach each Upright with four Upright Bolts (96) as shown.
Firmly tighten all eight Upright Bolts.
4
99
99
99
97
Firmly tighten the eight Handrail Bolts (99).
5. Plug the indicated end of the Power Cord (48) fully into the treadmill as shown.
6. After the treadmill is moved to the location where it will be used (see HOW TO MOVE THE TREADMILL below), make sure that both Rear Feet (5) and both Wheels (not shown) rest firmly on your floor. If the treadmill rocks slightly on your floor, loosen the Rear Foot Locknut (113) above the right Rear Foot. Turn the right Rear Foot clockwise or counterclockwise until the rocking motion is eliminated. Then, retighten the Rear Foot Locknut.
95
96
96
5
48
6
113
5
113
5
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys for adjustment purposes. To protect the floor or carpet from damage, place a mat under the treadmill.
HOW TO MOVE THE TREADMILL
Note: It may be helpful to leave the treadmill at an in­cline while moving the treadmill.
Before moving the treadmill, make sure that the power cord is un­plugged from the wall outlet.
Due to the size and weight of the treadmill, moving it requires two persons. While one person lifts the indi-
cated end, firmly hold the handrails and tip the treadmill forward until it rolls on the front wheels. Carefully move the treadmill to the desired location and then lower it.
CAUTION: To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over uneven surfaces.
Lift
Handrails
Here
Wheels
7
HOW TO USE THE CHEST PULSE SENSOR
OW TO PUT ON THE CHEST PULSE SENSOR
H
he chest pulse sensor consists of two components—
T the chest strap and the sensor unit (see the drawing below). Insert the tab on one end of the chest strap into one end of the sensor unit, as shown in the inset draw­ing. Press the end of the sensor unit under the buckle on the chest strap. The tab should be flush with the front of the sensor unit.
Chest Strap
Tabs
Tab
ach use, it may remain activated longer than nec-
e essary, draining the battery prematurely.
• Store the chest pulse sensor in a warm, dry place. o not store the chest pulse sensor in a plastic bag
D or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time; do not expose it to temperatures above 122° Fahrenheit (50° Celsius) or below 14° Fahrenheit (-10° Celsius).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest strap may be hand washed and air dried.
CHEST PULSE SENSOR TROUBLESHOOTING
Sensor Unit
Next, wrap the chest pulse sen­sor around your chest and attach the other end of the chest strap to the sensor unit. Adjust the length of the chest strap, if necessary. The chest pulse sen­sor should be under your clothes, tight against your skin, and as high under the pectoral muscles or breasts as is comfortable. Make sure that the logo on the sensor unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side (the electrode areas are covered by shallow ridges). Using saline solution such as saliva or contact lens so­lution, wet both electrode areas. Return the sensor unit to a position against your chest.
Sensor
Unit
Buckle
The instructions on the following pages explain how the chest pulse sensor is used with the con­sole. If the chest pulse sensor does not function properly, try the steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: If the chest pulse sensor does not function when positioned as de­scribed, move it slightly lower or higher on your chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sensor unit. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.
• As you walk or run on the treadmill, position your-
self near the center of the walking belt. For the
console to display heart rate readings, the user must be within arm’s length of the console.
The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contrac tions (pvcs), tachycardia bursts, and arrhythmia.
-
CHEST PULSE SENSOR CARE AND MAINTENANCE
• Thoroughly dry the chest pulse sensor after each use. The chest pulse sensor is activated when the electrode areas are wetted and the heart rate monitor is put on; the chest pulse sensor shuts off when it is removed and the electrode areas are dried. If the chest pulse sensor is not dried after
• The operation of the chest pulse sensor can be affected by magnetic interference caused by high power lines or other sources. If it is suspected that this is a problem, try relocating the treadmill.
• The CR2032 battery in the chest pulse sensor may need to be replaced (see page 25).
8
TREADMILL OPERATION
OW TO CONNECT THE POWER CORD
H
This product must be grounded.
tion or break down, grounding provides a path of least
esistance for electric current to reduce the risk of elec-
r
ric shock.
t
If it should malfunc-
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use an adapter to connect the plug to an improper receptacle.
This product is for use on a dedi­cated, 20-amp, 120-volt circuit. No other appli­ance should be on the same cir­cuit. This product is equipped with a cord having an equipment­grounding conductor and a grounding plug. Plug one end of the cord into the treadmill as shown in drawing 1. Attach the cord bracket over the cord with two bracket screws.
1
Cord
Bracket
Bracket Screws
lug the grounding plug into a standard NEMA 5-20
P receptacle as shown in drawing 2. Do not modify the plug or the receptacle. Do not use an adapter, a surge protector, or an extension cord.
2
NEMA 5-20
Receptacle
9

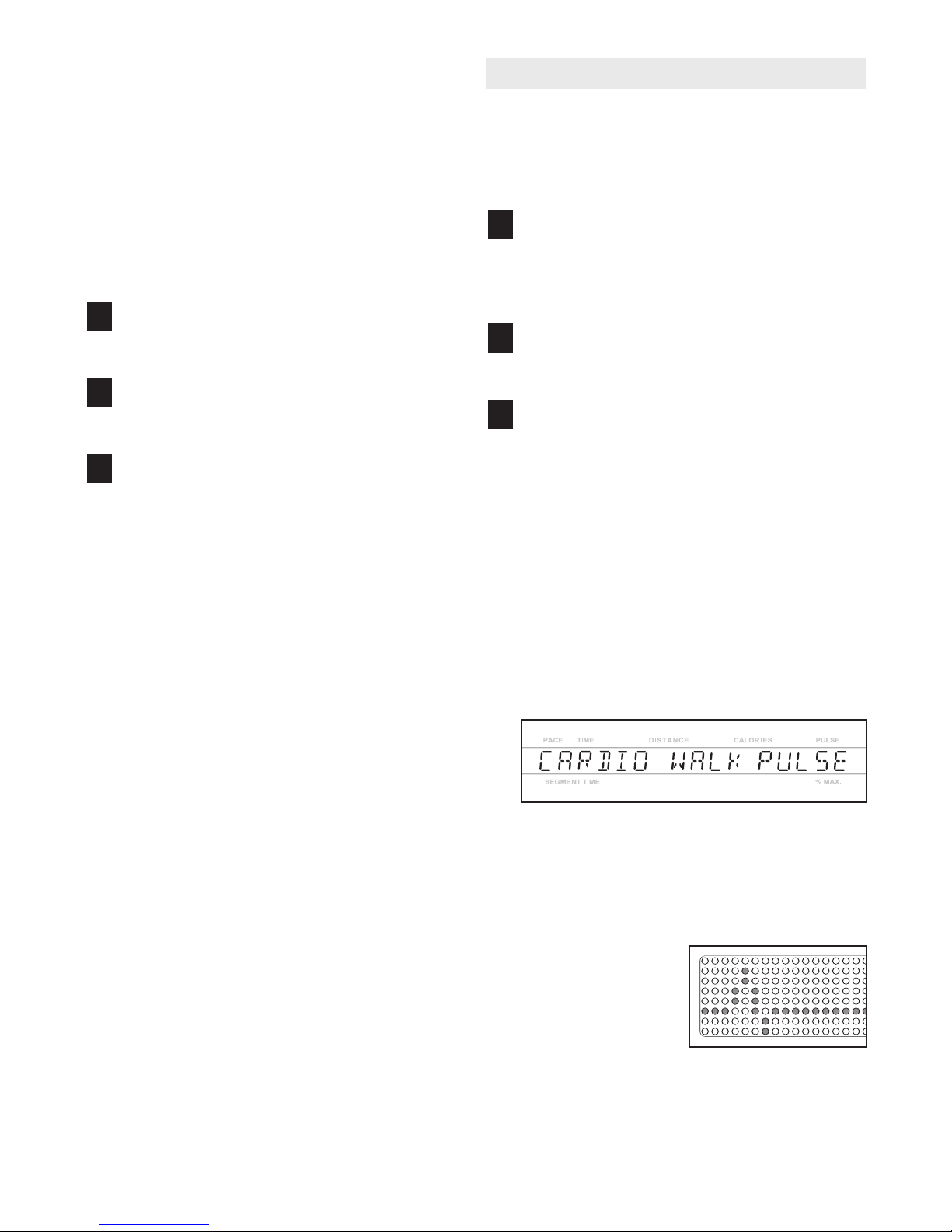

Matrix
Main Display
Note: If there is a sheet of clear plastic on the face of the
onsole, remove it.
c
FEATURES OF THE CONSOLE
The console offers an impressive array of features to help you get the most from your exercise.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will provide continuous exercise feedback. The console will also show your heart rate when you use the hand­grip pulse sensor or the chest pulse sensor.
Six preset workout programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout.
In addition, the console offers three pulse-driven pro
­grams that adjust the speed and incline of the treadmill to keep your heart rate near target levels during your workouts, and a unique fitness test program that mea­sures your relative fitness level.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
To pur­chase iFIT.com CDs or videocassettes, call the toll­free telephone number on the front cover of this manual.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available.
See www.iFIT.com for
more information.
To purchase additional iFIT.com CDs or videocas­settes, call the toll-free telephone number on the front cover of this manual.
10
CAUTION: Before operating the
onsole, read the following precautions.
c
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing at the
ight) while operating the treadmill.
r
• Adjust the speed in small increments to avoid sudden jumps in speed.
• The pulse sensors are not medical devices. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.
• If you have heart problems, or if you are over 60 years of age and have been inactive, do not use the pulse-driven programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
Insert the key into the console.
3
Find the key and the clip and attach
he clip to the
t waistband of your clothes. Next, insert the key into the console. Test
the clip by carefully tak­ing a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.
Insert the key into the console again. After a mo­ment, various displays and indicators on the con­sole will light.
Enter your weight.
Key
Clip
Key
4
Although you can use the console without entering your weight, the console will more accurately count the Calories that you burn if you enter your weight. To enter your weight, first press the ENTER AGE/WT button. The words ENTER WEIGHT and the current weight setting will ap­pear in the main display.
GETTING STARTED
Plug in the power cord.
1
See HOW TO PLUG IN THE POWER CORD on page 9.
Move the on/off switch to the on position.
2
Locate the on/off switch on the treadmill near the power cord. Move the on/off switch to the “on” position.
On
Position
Press the + and – buttons above the ENTER AGE/WT button to enter your weight. To enter your weight quickly, hold the buttons down. Once you have entered your weight, it will be saved in the console’s memory.
To use the manual mode of the console, follow the steps beginning on page 12. To use a preset program, see page 14. page 15. To use the fitness test program, see page
17. To use an iFIT.com CD or video program, see page 21. To use an iFIT.com program directly from
our Web site, see page 22.
To use a pulse-driven program, see
1
1
OW TO USE THE MANUAL MODE
H
Insert the key into the console.
1
See GETTING STARTED on page 11.
elect the manual mode.
S
2
When the key is inserted, the manual mode will automatically be selected. If a program or the iFIT.com mode has been selected, press the MODE button repeatedly until the main display ap­pears as shown below.
Press the START button or the SPEED + button
3
to start the walking belt.
A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking.
As you exercise, change the speed of the walking belt as de­sired by pressing the SPEED + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed quickly, press the QUICK SPEED buttons. The speed range is 0.5 mph to 12
After the buttons are pressed, it may
Note:
mph. take a moment lected speed setting.
To stop the walking belt, press the STOP button. The time will begin to flash in the main display. Note: If the walking belt is stopped and no console buttons are pressed for five minutes, the console will enter a time out mode and the words PUSH ANY BUTTON TO START A NEW PROGRAM will begin to scroll across the main display.
To restart the walking belt, press the or the SPEED + button and then adjust the speed as desired.
for the treadmill to reach the se-
START
button
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the INCLINE + and – but-
ons. Each time a button
t is pressed, the incline will change by 0.5%. The incline range is 0% to 15%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.
Follow your progress with the matrix and the
5
main display.
The matrix—When
the manual mode or the iFIT.com mode is selected, the matrix will display a 1/4-mile track. As you exer­cise, the indicators around the track will light in sequence to show your position on the track. Each time you complete a 1/4-mile lap, a new lap will begin.
The main display—The main display will show the following information:
Incline—The left end of the main display will show the incline level of the treadmill.
Pace/Time—When the manual mode or the iFIT.com mode is se lected, this section of the main display will show the elapsed time. When a preset program or a pulse-driven program is se­lected, the display will show the time remaining in the program and the time remaining in the current segment of the program. The display will change from one number to the other every seven sec onds. During the fitness test program, the display will show the elapsed time and the time remaining in the current segment of the program. Note: Any time that the speed setting changes, the display will show your current pace (in for seven seconds.
-
minutes per mile
-
)
12
Distance—The center
section of the main dis-
lay will show the dis-
p tance that you have
alked or run.
w
Calories—This section of the main display will show the approximate number of Calories you have burned.
Pulse/% Max—When you are using the hand­grip pulse sensor or the chest pulse sensor, this section of the main dis­play will show your heart rate (see step 6 on this page). When a pulse-driven program is selected, the display will show your heart rate and the
centage
(See step 5 on page 16 for an explanation of your estimated maximum heart rate.) The display will change from one number to the other every seven seconds.
Speed—The right end of the main display will show the speed of the walking belt.
of your
estimated maximum heart rate
corresponding per-
.
To reset the displayed time, distance, and Calories at any time, press the RESET button.
Measure your heart rate if desired.
6
ote: If you use the
N handgrip pulse sensor and the chest pulse sensor at the same time, the console will not display your heart rate accurately. Before using the handgrip pulse sensor, remove the sheets of clear plastic from the metal contacts. In addition, make sure that your hands are clean.
To measure your heart rate,
and hold the handgrip pulse sensor with both
rails
hands. Your palms must be resting on the upper contacts and your fingers must be touching the lower contacts—avoid moving your hands. When your pulse is detected, the words ACQUIR­ING PULSE will appear in the main display and then your heart rate will be shown. For the most
accurate heart rate reading, continue to hold the contacts for at least 15 seconds.
stand on the foot
Note: The console can display speed and dis­tance in either miles or kilometers. To find which unit of measure­ment is selected, hold down the STOP button while inserting the console. An E for English miles or an M for metric kilometers will appear on the right end of the main display. Press the change the unit of measurement. When the de sired unit of measurement is selected, remove the key and then reinsert it. Note: For simplicity, all
instructions in this manual refer to miles.
SPEED + b
the key into
utton to
-
When you are finished exercising, stop the
7
walking belt and remove the key.
Step onto the foot rails and press the STOP button. Next, remove the key from the console and put the key in a secure place. Note: If the dis-
plays and indicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When the treadmill is not in use, switch the on/off switch near the power cord to the “off” position and unplug the power cord.
13
OW TO USE PRESET PROGRAMS
H
nsert the key into the console.
I
1
ee GETTING STARTED on page 11.
S
Select one of the six preset programs.
2
When the key is inserted, the manual mode will automatically be selected. To select one of the six preset programs, press the MODE button repeat­edly until the words CARDIO WALK 1, CARDIO WALK 2, ENDURANCE 1, ENDURANCE 2, FIN­ISH LINE 1, or FINISH LINE 2 appear in the main display. Note: CARDIO WALK 1 is a low-intensity walking program; CARDIO WALK 2 is a low-inten­sity running program; ENDURANCE 1 is a medium-intensity walking program; ENDURANCE 2 is a medium-intensity running program; FINISH LINE 1 is a high-intensity walking program; and FINISH LINE 2 is a high-intensity running program.
When a preset program is selected, the maximum incline setting for the program will flash at the left end of the main display and the maximum speed setting will flash at the right end of the main dis­play. After three seconds, the name of the se­lected program and the total program time will scroll across the main display. If desired, you can change the maximum incline setting or the maxi mum speed setting by pressing the INCLINE or SPEED buttons. If you increase either setting, the difficulty level of the entire program will increase; if you decrease either setting, the difficulty level of the entire program will decrease.
When a preset pro­gram is selected, the matrix will show a graph representing the speed settings for the program.
Press the START button to start the program.
3
A moment after the button is pressed, the tread mill will automatically adjust to the first speed and incline settings for the program. and begin walking.
Hold the handrails
Each program is divided into several time segments of different lengths. The main display will show
oth the time remaining in the program and the
b time remaining in the current segment of the pro-
ram. One speed set-
g ting and one incline setting are pro­grammed for each segment. The speed setting for the first segment is shown in the flashing CUR­RENT SEGMENT column of the matrix. (The incline settings are not shown in the matrix.) The speed settings for up­coming segments are shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the CURRENT SEG­MENT column and the column to the right will flash and a tone will sound. In addition, if the speed and/or incline of the treadmill is about to change, the speed setting and/or incline setting will flash in the main display to alert you, and three tones will sound. When the first segment is com­pleted,
the left
will then be shown in the flashing CURRENT SEG­MENT column and the treadmill will automatically adjust to the speed and incline settings for the sec­ond segment.The program will continue until the speed setting for the final segment is shown in the CURRENT SEGMENT column and no time re­mains in the program. The walking belt will then slow to a stop.
­Note: Each time a segment ends and the speed settings move to the left,
all speed settings will move one column to
. The speed setting for the second segment
CURRENT SEGMENT
if all of the indicators in the CURRENT SEGMENT column are lit, the speed settings may move downward so that only the highest indicators in the columns appear in the matrix.
again, if not all of the indicators in the CURRENT SEGMENT column are lit, the speed settings will move back up.
Note: You can manually override the speed or in­cline setting for the current segment by pressing the SPEED or INCLINE buttons. Every few times a SPEED button is pressed, an additional indica­tor will light or darken in the CURRENT SEGMENT
-
column. (If any of the columns to the right of the CURRENT SEGMENT column have the same number of lit indicators as the CURRENT SEG­MENT column, an additional indicator may light or
When the speed settings move to the left
14
darken in those columns as well.) Important: When the next segment of the program begins,
he treadmill will automatically adjust to the
t speed and incline settings for the next segment.
To stop the program at any time, press the STOP button. The time will begin to flash in the main dis­play. To restart the program, press the START but­ton. The walking belt will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
Follow your progress with the main display.
4
See step 5 on page 12.
Measure your heart rate if desired.
5
See step 6 on page 13.
When the program is completed, remove the
6
key.
Step onto the foot rails. Remove the key from the console and put the key in a secure place. Note: If
the displays and indicators on the console re­main lit after the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When the treadmill is not in use, switch the on/off switch near the power cord to the “off” position and unplug the power cord.
OW TO USE PULSE-DRIVEN PROGRAMS
H
Pulse-driven programs automatically control the speed and incline of the treadmill to keep your heart rate near a target level while you exercise. Follow the steps below to use a pulse-driven program.
Put on the chest pulse sensor.
1
You must wear the chest pulse sensor to use a pulse-driven program. See the instructions on
page 8.
Insert the key into the console.
2
See GETTING STARTED on page 11.
Select one of the three pulse-driven programs.
3
When the key is inserted, the manual mode will be selected. To select one of the three pulse-driven programs, press the MODE button repeatedly until the words CARDIO WALK PULSE, ENDURANCE PULSE, or MANUAL PULSE appear in the main display. Note: The CARDIO WALK PULSE pro­gram will keep your heart rate near 65% of your
estimated maximum heart rate
page 16 for an explanation of your estimated max­imum heart rate). The ENDURANCE PULSE pro­gram will keep your heart rate near 80% of your estimated maximum heart rate. The MANUAL PULSE program will keep your heart rate near a percentage that you select.
(see step 5 on
15
When a pulse-driven program is selected, the name of the selected program and the total pro­gram time will scroll across the main display. The words ENTER AGE and the current age setting will then be shown (see step 4 on page 16).
During pulse-driven programs, the matrix will show a moving graphic that repre­sents your heart rate. Each time a heart­beat is detected, additional peak will appear in the graphic.
an
Enter your age.
4
You must enter your age to use a pulse-driven program. To enter your age, press the + and – but-
tons above the ENTER AGE/WT button. The but-
ons can be held down to enter your age quickly.
t The age range is 20 to 80 years. When your age is shown, press the ENTER AGE/WT button.
If you have selected the CARDIO WALK PULSE program or the ENDURANCE PULSE program, go to step 6. If you have selected the MANUAL PULSE program, go to step 5.
Each pulse-driven program is divided into one­minute segments. The main display will show both
he time remaining in the program and the time re-
t maining in the current segment of the program.
ne target heart rate setting is programmed for
O each segment. (During the MANUAL PULSE pro­gram, the same target heart rate setting will be programmed for all segments.)
When only three seconds remain in the first seg­ment of the program, a series of tones will sound and then the speed and/or incline of the treadmill will change, if needed, to bring your heart rate closer to the target heart rate setting for the next segment. The speed and/or incline setting will flash in the main display to alert you before the speed and/or incline changes. The program will continue until no time remains in the program. The walking belt will then slow to a stop.
Enter a target heart rate setting.
5
After you have entered your age, the words ENTER PERCENT and the current target heart rate setting for the program will be shown in the main display. The target heart rate setting repre­sents a
heart rate
220 minus your age. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190). If you are 30 years old, a target heart rate setting of 50 is equal to 95 beats per minute (50% of 190 is 95).
If desired, you can change the target heart rate setting by pressing the + and – buttons above the ENTER AGE/WT button. The buttons can be held down to change the target heart rate setting quickly. The target heart rate setting can be from 50% to 85% of your estimated maximum heart rate.
percentage
. Your estimated maximum heart rate is
of your
estimated maximum
If the speed and incline setting for the current seg­ment is too high or too low, you can adjust the set­ting with the SPEED or INCLINE buttons. However, if you will automatically speed, the incline will the incline, the speed will
crease treadmill will always attempt to keep your heart rate near the target heart rate setting for the cur­rent segment.
lowest setting, the speed cannot be increased any further. When the incline reaches the highest set­ting, the speed cannot be decreased any further.
If your pulse is not detected during the program, the letters PLS will flash in the main display and the speed and incline of the treadmill may auto­matically decrease until your pulse is detected. If this occurs, see the instructions on page 8
To stop the program at any time, press the STOP button. Pulse-driven programs should not be stopped temporarily and then restarted. To use a pulse-driven program again, reselect the program and start it at the beginning.
the incline, the speed will
decrease
increase
Note: When the incline reaches the
the speed, the incline ; if you
decrease
decrease
increase
. If you
; if you
increase.The
the
increase
de-
.
Press the
START
button to start the program.
6
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and in­cline settings for the program. Hold the handrails and begin walking.
16
Follow your progress with the main display.
7
See step 5 on page 12.
When the program is completed, remove the
8
key.
See step 6 on page 15.
OW TO USE THE FITNESS TEST PROGRAM
H
The fitness test program measures your relative fitness
evel. For the best results, the program should be used
l
t a time when your energy level is high; the program
a should not be used if you have already exercised dur­ing the day. Follow the steps below to use the program.
Put on the chest pulse sensor.
1
You must wear a chest pulse sensor to use a pulse-driven program.
on page 8.
Insert the key into the console.
See the instructions
2
See GETTING STARTED on page 11.
Select the fitness test program.
3
When the key is inserted, the manual mode will be selected. To select the fitness test program, press the MODE button repeatedly until the words FIT­NESS TEST appear in the main display.
Press the START button to start the program.
5
When the button is pressed, the main display will show the words LEVEL 1, indicating that the first four-minute level of the fitness test program has
egun. The incline of the treadmill will automati-
b cally adjust to 3% and the walking belt will begin to move at 1.5 mph. Hold the handrails and begin walking.
The fitness test program is divided into seven, four-minute levels. One speed setting and one in­cline setting are programmed for each level. At the end of each minute of the program, a tone will sound; when the first four-minute level is com­pleted, a tone will sound and the main display will show the words LEVEL 2, indicating that the sec­ond four-minute level has begun. The incline will then change to 4% and the speed of the walking belt will increase to 2.5 mph.
When the fitness test program is selected, the words FITNESS TEST will scroll across the main display. The words ENTER AGE and the current age setting will then be shown (see step 4 below).
During the fitness test program, the matrix will show a moving graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.
Enter your age.
4
Your must enter your age to use the fitness test program.
page 16.
To enter your age, see step 4 on
At the beginning of each four-minute level, the speed and/or incline of the treadmill will automati­cally increase. The fitness test program will con­tinue in this way until your heart rate reaches 70% of your estimated maximum heart rate and the cur­rent four-minute level is completed.
test program will then end, regardless of how many levels remain.
When the fitness test program is completed, the words COOL DOWN will be shown in the main dis­play and a two-minute cool-down period will begin. The speed and incline will then decrease.
When the cool-down period is completed, the walking belt will slow to a stop and your fitness level will be shown in the main display. There are ten fitness levels; fitness level 10
The fitness
is the highest.
17
Note: The SPEED and INCLINE buttons will not
LINE OUT
P
HONES
LINE OUT
PHONES
function while the fitness test program is selected. If
our pulse is not detected during the program, the
y letters PLS will flash in the main display. If your
ulse is not detected at the end of any four-minute
p level, the fitness test program will end and the main display will show a fitness level of 00.
The fitness test program cannot be stopped tem­porarily and then restarted. However, the program can be stopped at any time with the STOP button. The main display will then show an estimated fit­ness level.
HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs
o your portable CD player, portable stereo, home
t
tereo, or computer with CD player. See pages 18 to
s
, the treadmill must be connected
20 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 20 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your home com­puter. See page 20 for connecting instructions.
When the program is completed, remove the
6
key.
See step 6 on page 15.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
A. Plug one end of the audio cable into the indicated
jack on the left side of the console. Plug the other end of the cable into the PHONES jack or LINE OUT jack on your CD player. Plug your headphones into the other jack on the console.
A
Audio Cable
Headphones
18
HOW TO CONNECT YOUR PORTABLE STEREO
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
A
UDIO OUT
RIGHT
LEFT
A
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
LINE OUT
CD
VCR
Amp
LINE OUT
A
LINE OUT
CD
V
CR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
HOW TO CONNECT YOUR HOME STEREO
ote: If your stereo has an RCA-type AUDIO OUT
N jack, see instruction A below. If your stereo has a
.5mm LINE OUT jack, see instruction B. If your
3 stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
B
Audio Cable
ote: If your stereo has an unused LINE OUT jack,
N see instruction A below. If the LINE OUT jack is
eing used, see instruction B.
b
A. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
B
C. Plug one end of the audio cable into the indicated
jack on the left side of the console. Plug the other end of the cable into the PHONES jack on your stereo. Plug your headphones into the other jack on the console.
C
Audio Cable
Headphones
19
Audio Cable
Adapter
Wire removed from
LINE OUT jack
RCA
Y-adapter
HOW TO CONNECT YOUR COMPUTER
LINE OUT
AUDIO OUT
RIGHT
LEFT
V
IDEO AUDIO
ANT. IN
R
FOUT
I
N
OUT
C
H
34
A
AUDIO OUT
R
IGHT
LEFT
V
IDEO AUDIO
ANT. IN
RF OUT
IN
O
UT
C
H
3
4
V
IDEO AUDIO
A
NT. IN
R
FOUT
IN
OUT
C
H
3
4
. Plug one end of the audio cable into the indicated
A
jack on the left side of the console. Plug the other
nd of the cable into the PHONES jack or LINE
e OUT jack on your computer. Plug your headphones into the other jack on the console.
HOW TO CONNECT YOUR VCR
ote: If your VCR has an unused AUDIO OUT jack,
N see instruction A below. If the AUDIO OUT jack is
eing used, see instruction B. If you have a TV
b with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 19.
A
A. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
Audio Cable
A
Headphones
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
left side of the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
RCA
Audio Cable
Y-adapter
Adapter
Wire removed from
AUDIO OUT jack
20
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill
ust be connected to your portable CD player, portable
m
tereo, home stereo, computer with CD player, or
s VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page
18. Note: To purchase iFIT.com CDs or videocas-
settes, call the toll-free telephone number on the front cover of this manual.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key fully into the console.
1
See GETTING STARTED on page 11.
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To select the iFIT.com mode, press the IFIT.COM button. The indicator on the button will light.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
change before the personal trainer describes the change.
If the speed or incline settings are too high or too
ow, you can manually override the settings at any
l time by pressing the SPEED or INCLINE buttons on the console. However,
is heard, the speed and/or incline will change to the next settings for the program.
To stop the walking belt at any time, press the STOP button on the console. The time will begin to flash in the main display. To restart the pro­gram, press the START button. After a moment, the walking belt will begin to move at 1 mph.
When the next “chirp” is heard, the speed and incline will change to the next settings for the program.
When the program is completed, the walking belt will stop and the time will begin to flash in the main display. Note: To use another CD or video pro­gram, press the STOP button or remove the key and go to step 1.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and
that the time is not flashing in the main dis­play. If the time is flashing, press the START button on the console.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that it is not wrapped around a power cord.
when the next “chirp”
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the main display, press the START button on the con­sole. The treadmill will not respond to a CD or video program while the time is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may
21
Follow your progress with the main display.
5
See step 5 on page 12.
Measure your heart rate if desired.
6
See step 6 on page 13.
When the program is completed, remove the
7
key.
See step 6 on page 15.
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 20. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key fully into the console.
1
See GETTING STARTED on page 11.
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To select the iFIT.com mode, press the IFIT.COM button. The indicator on the button will light.
When the on-screen countdown ends, the program
ill begin and the walking belt will begin to move.
w Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the SPEED or INCLINE buttons on the console.
is heard, the speed and/or incline will change to the next settings for the program.
To stop the walking belt at any time, press the STOP button on the console. The time will begin to flash in the main display. To restart the program, press the START button. After a moment, the walking belt will begin to move at 1 mph.
the next “chirp” is heard, the speed and incline will change to the next settings for the program.
When the program is completed, the walking belt will stop and the time will begin to flash in the time display. Note: To use another program, press the STOP button and go to step 5.
However, when the next “chirp”
When
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count down will begin.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the time is not flashing in the main display. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord
Follow your progress with the main display.
.
8
See step 5 on page 12.
When the program is completed, remove the
9
key.
-
See step 6 on page 15.
22
THE INFORMATION MODE/DEMO MODE
he console features an information mode that keeps
T track of the total number of hours that the treadmill has
een operated and the total number of miles that the
b walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.
To select the information mode, hold down the STOP button while inserting the key into the console. When the information mode is selected, the main display will show the following information:
The left side of the main display will show the total number of hours that the treadmill has been used.
The center of the main display will show the total distance that the walking belt has moved.
The right side of the main dis­play will show an E for English miles or an M for
etric kilometers. Press the
m SPEED + button to change the unit of measurement.
IMPORTANT: Make sure that there is not a letter D in the main display. If a D ap-
pears, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the con­sole is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will au­tomatically light in a preset sequence, although the buttons on the console will not operate.
display when the information mode is se-
in the
If a D appears
lected, press the SPEED – button so the display is blank.
To exit the information mode, remove the key from the console.
23
TROUBLESHOOTING
50”
Most treadmill problems can be solved by following the steps outlined in this section. Find any symptoms that apply, and follow the steps listed. If further assistance is needed, please see the front cover of this manual.
. SYMPTOM: THE POWER DOES NOT TURN ON
1
a. Make sure that the power cord is fully plugged into the treadmill. In addition, make sure that the power cord
is plugged into a properly grounded outlet (see page 9).
b. Make sure that the key is inserted into the console.
c. Check the circuit breaker located on the treadmill near the power
cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill near the power
cord. The switch must be in the “on” position.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes,
and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. Make sure that the on/off switch is in the “on” position.
e. If the treadmill still will not run, please see the front cover of this manual.
c
Tripped
d
Reset
On
Position
3. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a.. If the walking belt is overtightened, performance may de-
crease and the walking belt may be damaged. If the walking belt is properly tightened, you should be able to lift each edge of the walking belt 1 to 2 inches off the walking plat-
If adjustments need to be made, first remove the
form. key and unplug the power cord. Using the included hex key, turn both roller bolts counterclockwise 1/4 of a turn. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
b. If the walking belt still slows when walked on, please see the front cover of this manual.
a
1”–2”
Roller
Bolts
24
4. SYMPTOM: THE WALKING BELT IS OFF-CENTER
f the walking belt has shifted to the left: Remove the
a.I
key and unplug the power cord. Using the included hex
ey, turn each roller adjustment bolt 1/4 of a turn in the di-
k rection shown. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Repeat until the walking belt is centered.
b.
If the walking belt has shifted to the right: Remove the key and unplug the power cord.
Using the included hex key, turn each roller adjustment bolt 1/4 of a turn in the di­rection shown. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and use the treadmill for a few minutes. Repeat until the walking belt is centered.
If the walking belt slips when walked on: Remove the
c.
key and unplug the power cord.
Using the included hex key, turn both roller adjustment bolts clockwise 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 1 to 2 inches off the walking platform. The center of the walking belt should just touch the walking platform. Make sure to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few min­utes. Repeat until the walking belt is properly tightened.
a
b
c
5. SYMPTOM: THE CHEST PULSE SENSOR DOES NOT FUNCTION PROPERLY
a. If the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROUBLESHOOTING on
page 8.
b. If the chest pulse sensor still does not function properly, the
battery should be changed. To replace the battery, locate
b
Cover the battery cover on the back of the sensor unit. Insert a coin into the slot in the cover and turn the cover counter­clockwise to the “open” position. Remove the cover.
CR2032 Battery
Rubber
Next, remove the old battery from the sensor unit. Insert a
CR 2032 battery, making sure that the writing is on
new
Gasket
top. In addition, make sure that the rubber gasket is in place in the sensor unit. Replace the battery cover and turn it to the closed position.
6. SYMPTOM: THE INCLINE OF THE TREADMILL DOES NOT CHANGE CORRECTLY OR DOES NOT CHANGE WHEN IFIT.COM CDS AND VIDEOS ARE PLAYED
With the key in the console, press one of the INCLINE buttons.
a.
While the incline is changing,
remove the
key. After a few seconds, reinsert the key. The treadmill will automatically rise to the maximum incline level
and then return to the minimum level. This will recalibrate the incline system.
25
7. SYMPTOM: THE SURFACE OF THE WALKING PLATFORM IS DAMAGED
50”
. Both sides of the walking platform are designed to be used as walking surfaces. If the surface becomes
a
damaged, or if there is any wood showing through the coating, the walking platform can be turned over. The
alking platform typically needs to be turned over after approximately 6,000 to 7,500 miles. Follow the in-
w structions below to turn over the walking platform.
Remove the key and unplug the power cord. Remove the
1 two Hood Screws (2) and lift off the Motor Hood (1). Next, re­move the two Rear Roller Bolts (82), the two Roller Guard Screws (80), and the Right and Left Roller Guards (81, 83).
Remove the six Platform Screws (6). Lift the Rear Roller (79) and slide it out of the Walking Belt (71). Lift the Walking Platform (70) a few inches, slide it out of the Walking Belt, turn it over, and
82
83
71
80
6
82
79
81
6
70
80
6
then slide it back into the Walking Belt. Slide the Rear Roller back into the Walking Belt. Reattach the six Platform Screws (6). Reattach the Right and Left Roller Guards (81, 83) with the two Roller Guard Screws (80). Insert the Rear Roller Bolts (82) into the Roller Guards and thread them into the Rear Roller (79). Reattach the Motor Hood (1) with the two Hood Screws (2).
2
Next, the Walking Belt (71) will need to be adjusted to the proper tension. Using chalk, make two marks exactly 50” apart on the Walking Belt as shown in the drawing. Then, tighten both Rear Roller Bolts (82) until the two chalk marks move apart an additional 3/16” to 1/4”. Make sure to keep the Walking Belt centered.
71
82
26
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for individu-
c als over the age of 35 or individuals with pre­existing health problems.
The pulse sensors are not medical devices. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
begin to use stored is to burn fat, adjust the speed and incline of the tread-
ill until your heart rate is near the lowest number in
m your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
fat calories
for energy. If your goal
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible ergy. Only after the first few minutes does your body
carbohydrate calories
for en
-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex­ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
27
PART LIST—Model No. NTL29105.1 R0207A
To locate the parts listed below, see the EXPLODED DRAWING on pages 30 and 31.
ey No. Qty. Description Key No. Qty. Description
K
1 1 Motor Hood 2 3 4 4 Hood Mounting Clip 5 2 Rear Foot 6 6 Platform Screw 7 6 Isolator 8 2 Breaker Screw
9 6 Isolator Nut 10 1 Foot Rail, Left 11 2 Foot Rail Inset 12 4 Pulse Sensor Base 13 14 1 Belt Tension Bolt 15 4 Pulley Screw 16 17 4 Power Box Screw 18 1 Power Cord Bracket 19 2 Bracket Screw 20 21 1 Idler Bolt 22 2 Outlet Nut 23 1 Belt Tension Nut 24 25 1 Belt Tension Wheel 26 1 Front Roller Bolt 27 2 Lock Washer 28 2 Ground Nut 29 1 Static Decal 30 1 Belt Tension Spring 31 4 Motor Nut 32 1 Belt Tension Bracket 33 34 3 Speed Disk Screw 35 2 Sensor Screw 36 37 1 CD Holder Foam 38 1 Sensor Bracket 39 40 41 1 Motor Isolator 42 2 Incline Motor Nut, Top/Idler Nut 43 1 Incline Motor Bolt, Top 44 4 Pulse Sensor Screw 45 46 2 Hood Bracket, Front 47 48 1 Power Cord 49 1 Power Cord Outlet 50 2 Wheel Spacer 51 1 Warning Decal 52 4 Motor Bushing
2 Hood Screw 2 Sensor Bracket Screw
1 Front Endcap, Left
2 Outlet Bolt
1 Motor Belt
2 Frame Inserts
1
1 Speed Sensor
2 1
1
1
Speed Disk
Sensor Bracket Nut Motor
7" Filter Wire
On/Off Circuit Breaker
53 4 Motor Mount Washer 5
4 1 High Voltage Decal
5
5 4 Motor Bolt 56 1 Power Supply Box 57 1 Power Wire Harness 58 1 Wiring Plate, Right 59 1 #10 Screw Hex Key 60 1 CD Holder Foam, Long 61 1 Incline Motor 62 1 Incline Motor Bolt, Lower 63 1 Cup Holder Foam 64 2 Wheel Bolt 65 66 2 Incline Leg Bolt 67 2 Incline Leg Nut 68 69 1 Incline Leg 70 1 Walking Platform 71 1 Walking Belt 72 73 1 Front Roller/Pulley 74 18 Foot Rail Screw/Power Box Screw 75 1 Foot Rail, Right 76 77 14 Small Insert 78 10 Endcap Screw 79 1 Rear Roller 80 2 Roller Guard Screw 81 1 Roller Guard, Right 82 2 Rear Roller Adj. Bolt 83 1 Roller Guard, Left 84 1 Rear Endcap, Left 85 86 1 CD Holder Insert 87 1 Key/Clip 88 89 1 Console Base 90 2 Handrail Endcap 91 92 93 4 Console Back Screw 94 1 Console Back 95 1 Upright, Right 96 8 Upright Bolt 97 98 4 Pulse Sensor 99
100 1 Upright Wire Harness 101 1 Controller Wire 102 103 1 Hex Key, 5/16" 104 1 Tie Block
2 Wheel
4 Mounting Clips
1 Front Endcap, Right
1 Frame
1
1 Console
1
13
1
8
1 Hex Key, 7/32"
Cup Holder Insert
Handrail Console Back Screw
Upright, Left
Handrail Bolt
28
Key No. Qty. Description Key No. Qty. Description
1
1
05 2 Belt Guide Bolt 106 1 Voltage Decal, Small 1
07 5 Cable Tie 108 2 Belt Guide 1
09 1 Motor Controller Box 110 1 Rear Endcap, Right 111 1 Motor Flywheel 112 1 Motor Pulley 1
13 2 Rear Foot Locknut 114 1 Foam Grip, Left 115 2 Rear Roller Adj. Washer 116 2 Wheel Washer 117 1 Right Foam Grip 118 2 Nylon Incline Washer 119 2 Ground Screw 120 2 Hood Bracket, Back 121 1 Incline Motor Spacer 122 1 iFIT Cable 123 1 Ferrite Clamp 124 1 Controller Plate 125 2 Controller Bolt
26 2 Controller Nut # 1 28" Wire Harness, 3 Wire # # 1 22" Wire Harness # # 1 12" Green Wire, F/M Ring # 1 4" Green Wire F/Ring,14Ga # 1 4" Black Wire, 2F # # 1 15" White Wire Harness # 1 15" Blue Wire Harness # 1 4" White Wire Harness # 1 4" Black Wire Harness # 1 4" Red Wire Harness # 1 Controller Wire Harness # 1 15" Green/Yellow Jumper Wire # 1 Wire w/Resistor # 1 User's Manual
# These parts are not illustrated
1 25" Wire Harness, 5 Wire
1 12" Green Wire, 2 Ring
1 4" White Wire, M/F
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. When ordering parts, be prepared to pro­vide the following information:
• the MODEL NUMBER OF THE PRODUCT (NTL29105.1)
• the NAME OF THE PRODUCT (NordicTrack S3000 treadmill)
• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 28 and 29 and the EXPLODED DRAWING on pages 30 and 31)
29
89
88
86
85
103
102
107
60
37
63
97
90
99
96
96
96
96
95
93
90
91
93
99
114
12
12
98
98
117
100
45
101
94
29
87
92
92
92
92
92
92
92
92
92
92
93
99
99
59
44
44
44
122
123
100
EXPLODED DRAWING—Model No. NTL29105.1 R0207A
30
7
9
74
74
120
9
7
1
2
2
74
13
108
20
21
34
35
36
39
38
55
48
40
47
49
41
43
125
17
31
56
54
26
42
30
24
25
33
32
23
42
6
108
7
9
7
5
76
77
78
6
80
82
81
70
75
79
82
83
80
78
77
84
5
6
10
11
74
74
74
6
72
74
73
71
11
51
109
110
6
9
9
7
115
115
14
52
53
53
24
77
77
77
113
74
74
120
4
68
15
111
112
106
6
19
18
61
62
9
64
67
66
64
65
69
67
66
65
116
116
121
50
50
74
74
74
74
46
46
3
9
7
52
52
8
52
55
27
105
105
27
16
22
104
119
28
119
28
118
74
58
57
78
17
126
78
78
77
77
124
31
LIMITED WARRANTY
HAT IS COVERED—The entire
W material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the drive motor for a lifetime. The rollers are covered for four years after the date of purchase. The parts are covered for two years. The belt, the deck, and labor
re covered for one year.
a
HAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or
W component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, im­proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain as set out in your User’s Manual (“Manual”). This warranty does not extend to products used for commercial or rental purposes.
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov­ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces­sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship­ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser­vice is covered by warranty.
ordicTrack S3000
N
readmill (“Product”) is warranted to be free of all defects in
t
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim­itation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 253039 R0207A
Printed in USA
2007 ICON IP, Inc.
©
Loading...
