Model No. NTCCBE19520
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
USER’S MANUAL
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Page 2
TABLE OF CONTENTS
!
!
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

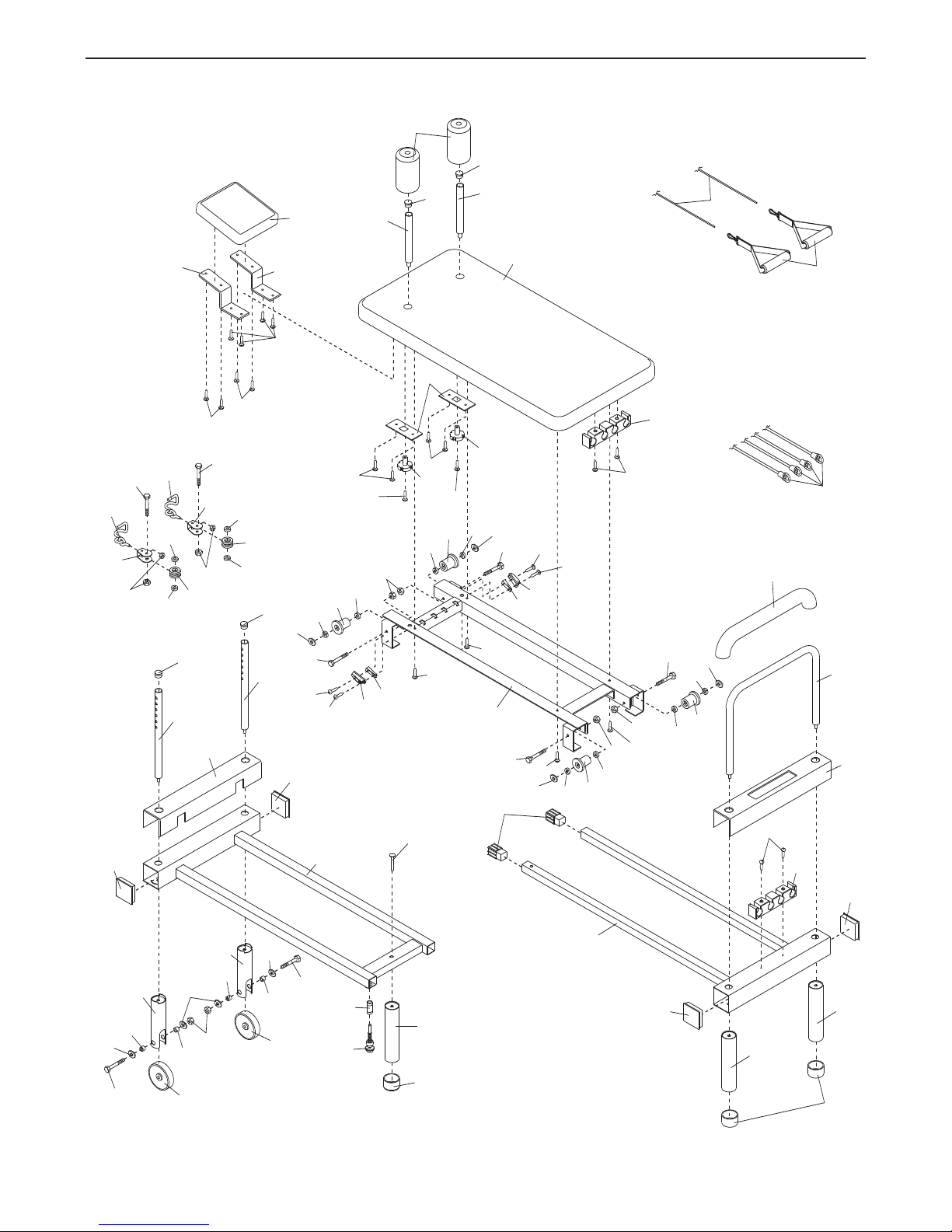

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the exercise bench.
1. Read all instructions in this manual before
using the exercise bench. Use the exercise
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise bench are adequately informed of all precautions.
3. The exercise bench is intended for home use
only. Do not use the exercise bench in any
commercial, rental, or institutional setting.
4. Use the exercise bench only on a level surface. Cover the floor beneath the exercise
bench to protect the floor.
Make sure all parts are properly tightened
5.
each time you use the exercise bench.
Replace any worn parts immediately
Keep hands and feet away from moving parts.
6.
7. Keep children under 12 and pets away from
the exercise bench at all times.
8. Always tie back long hair to prevent it from
becoming caught in moving parts or pulleys.
.
9. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
10. The exercise bench is designed to support a
maximum user weight of 115 kg (250 lbs.).
11. The exercise bench is not designed to be
used with weights.
12. If you feel pain or dizziness at any time while
exercising, stop immediately and cool down.
13. The decal shown here has
been placed on the exercise
bench in the location
shown on page 3. If the
decal is missing, or if it is
not legible, please call our
Customer Service
Department toll-free at
1-888-936-4266 to order a
free replacement decal.
Apply the replacement
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
2
Page 3
BEFORE YOU BEGIN
Thank you for selecting the versatile PILATES by
NordicTrack
bench features more than 500 exercises to develop
every major muscle group of the body. Whether your
oal is to tone your body, increase muscle size and
g
strength, or improve your cardiovascular system, the
PILATES exercise bench will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the exercise bench. If you have questions after
Headrest
Pulley
Shoulder Block
Outer Frame
Handle
®
exercise bench. The PILATES exercise
Tube
reading this manual, please call our Customer Service
Department toll-free at 1-888-936-4266, Monday
through Friday, 8h00 until 18h00 Eastern Time
(excluding holidays). To help us assist you, please note
he product model number and serial number before
t
calling. The model number is NTCCBE19520. The serial
number can be found on a decal attached to the exercise bench (see the front cover of this manual).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Pulley Housing
Nylon Rope
Carriage
Adjustment Knob
Inner Frame
Resistance Cord
Foot Bar
Resistance Bracket
Warning
Decal
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
3
Page 4
ASSEMBLY
Make Things Easier for Yourself
• As you assemble the exercise bench, make sure
all parts are oriented as shown in the drawings.
Everything in this manual is designed to ensure
that the exercise bench can be assembled successfully by anyone. Most people find that by
setting aside plenty of time, assembly will go
smoothly.
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
1. Tighten the Adjustment Knob (17) into the hole in
the bottom of Outer Frame (1), and engage the
adjustment hole in the Inner Frame (2).
• Assembly requires two people.
The following tools (not included) are required
for assembly:
• two adjustable wrenches
• one standard screwdriver
• one Phillips screwdriver
one Rubber Mallet
•
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
ube (12) into the end of the Outer
2. Insert a Pulley
Frame (1). Tighten the Pulley Tube into the top of
a Wheel Leg (13). Note: Be sure that the Wheel
(19) attached to the Wheel Leg is parallel to
the Carriage (6), and that the holes in the
Pulley Tube are parallel to the end of the
Outer Frame, as shown.
Attach the other Pulley
(13) in the same manner.
T
ube (12) and Wheel Leg
T
1
17
2
12
12
6
1
13
13
19
2
4
Page 5

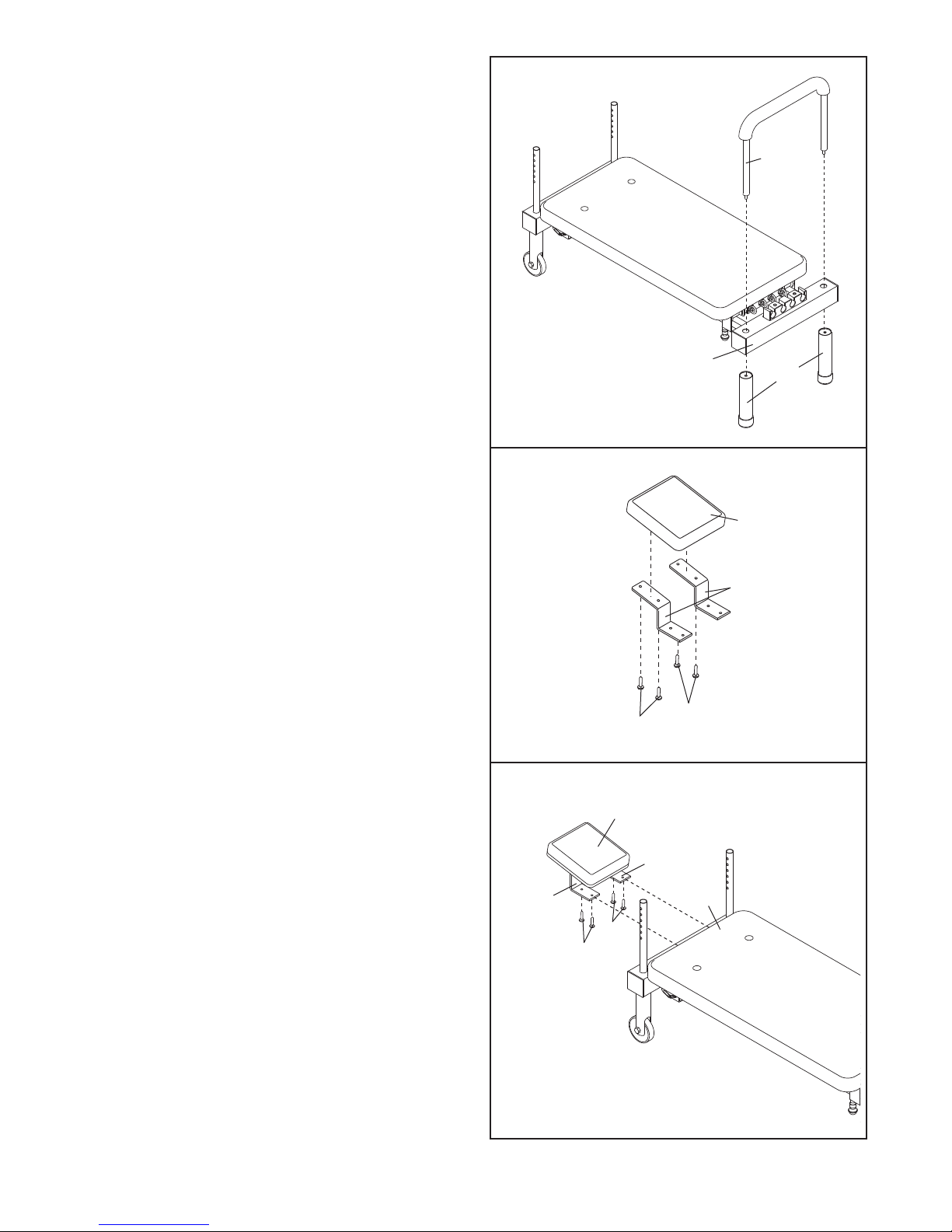

3. Insert the Foot Bar (32) into the end of the Inner
Frame (2). Attach two Cap Legs (14) to the ends
f the Foot Bar.
o
3
32
4. Attach the Headrest (9) to the long ends of the
pair of Headrest Frames (7) with four M6 x 18mm
Screws (36).
5. Rest the exercise bench on its side for this step.
Attach the pair of Headrest Frames (7) to the bottom of the Carriage (6) with four M6 x 18mm
Screws (36).
above the Carriage, as shown in step 6.
Be sure that the Headrest (9) is
2
14
4
9
7
36
36
5
9
7
7
36
36
6
5
Page 6
6. Tighten the two Carriage Tubes (11) into the
holes in the Carriage (6).
Slide a Shoulder Block (10) onto each Carriage
ube (11).
T
6
11
0
1
11
6

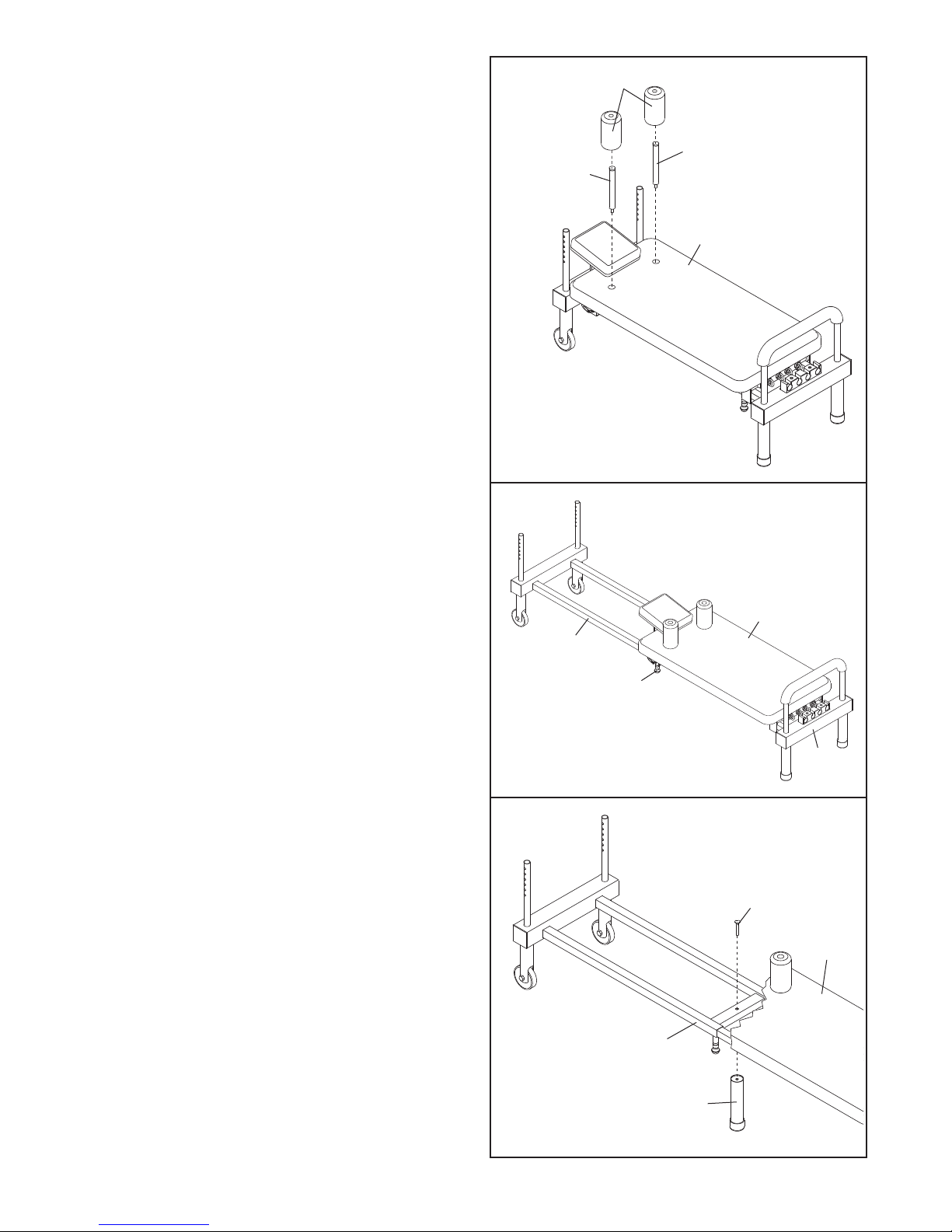

7. Pull the Adjustment Knob (17) out of the Inner
Frame (2). Slide the Inner Frame out of the Outer
Frame (1) and engage the Knob into the adjustment hole in the Inner Frame.
Slide the Carriage (6) to the indicated end of the
exercise bench.
8. Reach under the Carriage (6) and insert an M10
x 50mm Carriage Bolt (41) through the indicated
hole in the Outer Frame (1).
ighten a Cap Leg (14) onto the M10 x 50mm
T
Carriage Bolt (41).
7
6
1
17
2
8
41
6
1
14
6
Page 7
9. Orient the two Pulley Housings (26) as shown.
Slide the Eyebolt/Pins (51, 52) into a set of holes
n the Pulley Tubes (12).
i

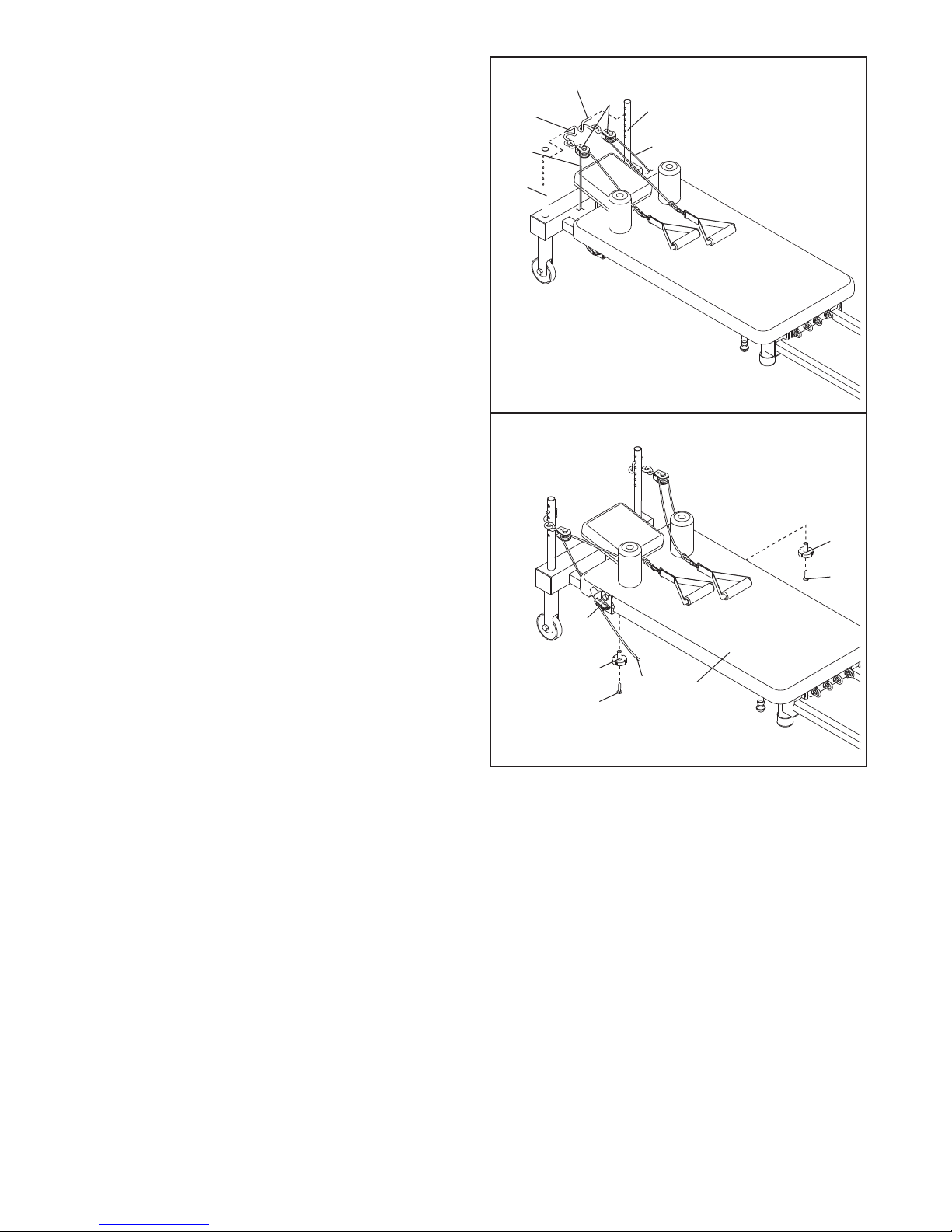

oute a Nylon Rope (23) through a Pulley
R
Housing (26) in the direction shown. Route the
other Nylon Rope through the other Pulley
Housing as shown.
9
5
2
12
51
26
2
3
12
23
10. Insert the ends of the two Rope Storage Knobs
(31) into the square holes in the Carriage Plates
(49, not shown). Attach the Rope Storage Knobs
to the Carriage (6) with two M6 x 61mm Screws
(47).
Route the Nylon Ropes (23) through the Rope
Grips (28). Pull on the Ropes so that they are
secure in the teeth on the Rope Grips.
Wrap the ends of the Nylon Ropes (23) around
the Rope Storage Knobs (31).
11. Make sure that all parts have been properly tightened. The use of the remaining parts will be
explained in ADJUSTMENTS, beginning on the
following page.
10
28
31
47
23
31
47
6
7
Page 8
ADJUSTMENTS
This section explains how to adjust the exercise bench. Refer to the accompanying exercise guide and video to
see the correct form for each exercise.
Make sure that all parts are properly tightened each time you use the exercise bench. Replace any worn parts
mmediately. The exercise bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not
i
use solvents.

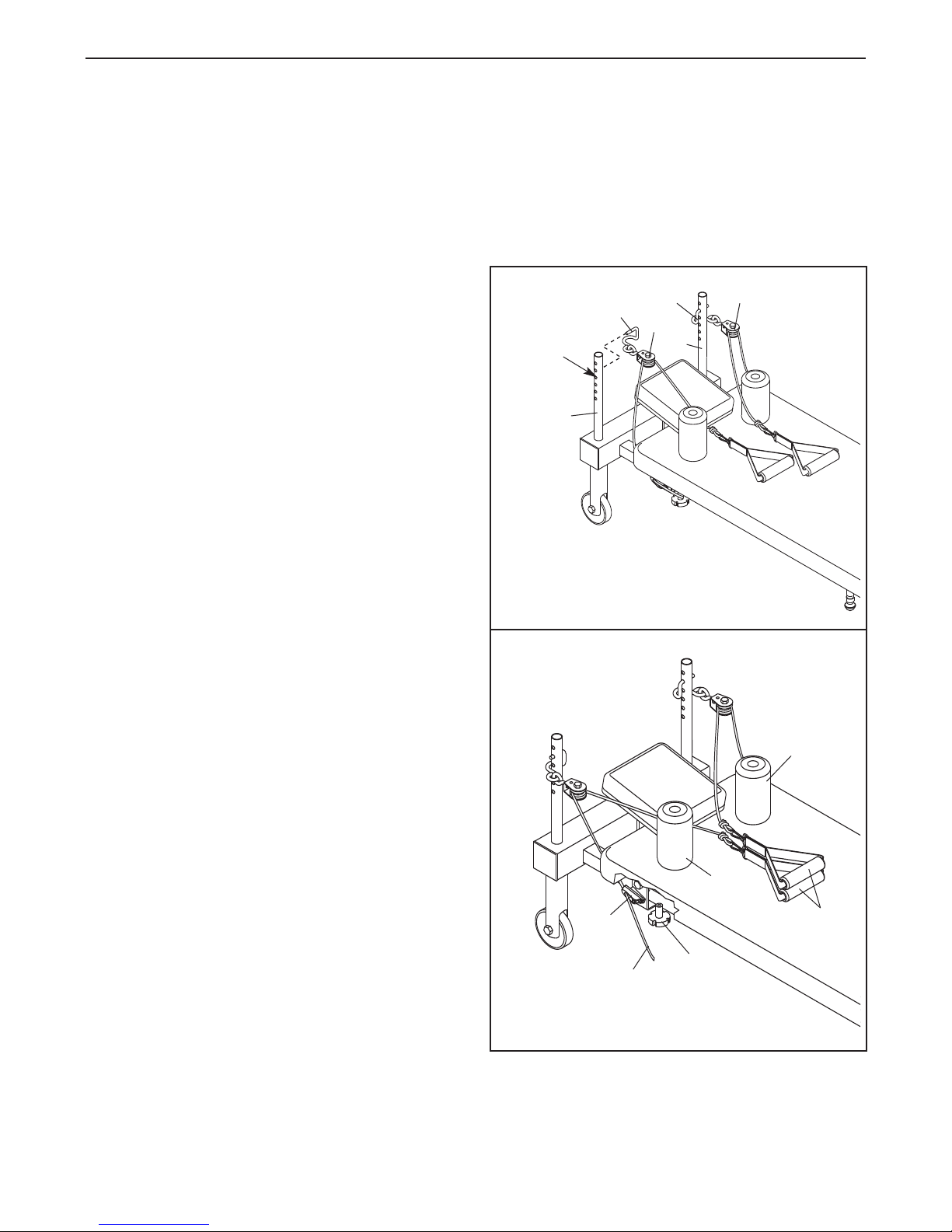

ADJUSTING THE PULLEY HEIGHT
To adjust the height of the Pulley Housings (26), pull
the Eyebolt/Pins (51, 52) out of the Pulley Tubes (12).
Reinsert the Eyebolt/Pins into another set of adjustment holes in the Pulley Tubes.
Adjustment
Holes
12
52
51
26
12
26
ADJUSTING THE NYLON ROPE LENGTH
To adjust the length of the Nylon Ropes (23), hold the
Handles (24) together between the Shoulder Blocks
(10). Pull the Ropes free from the Rope Grip (28)
teeth.
Pull a Nylon Rope (23) tight and resecure it in the
teeth of the Rope Grip (28). Wrap the end of the
Rope around the Rope Storage Knob (31).
Repeat with the other Nylon Rope (23).
28
10
10
24
31
23
8
Page 9
ADDING RESISTANCE

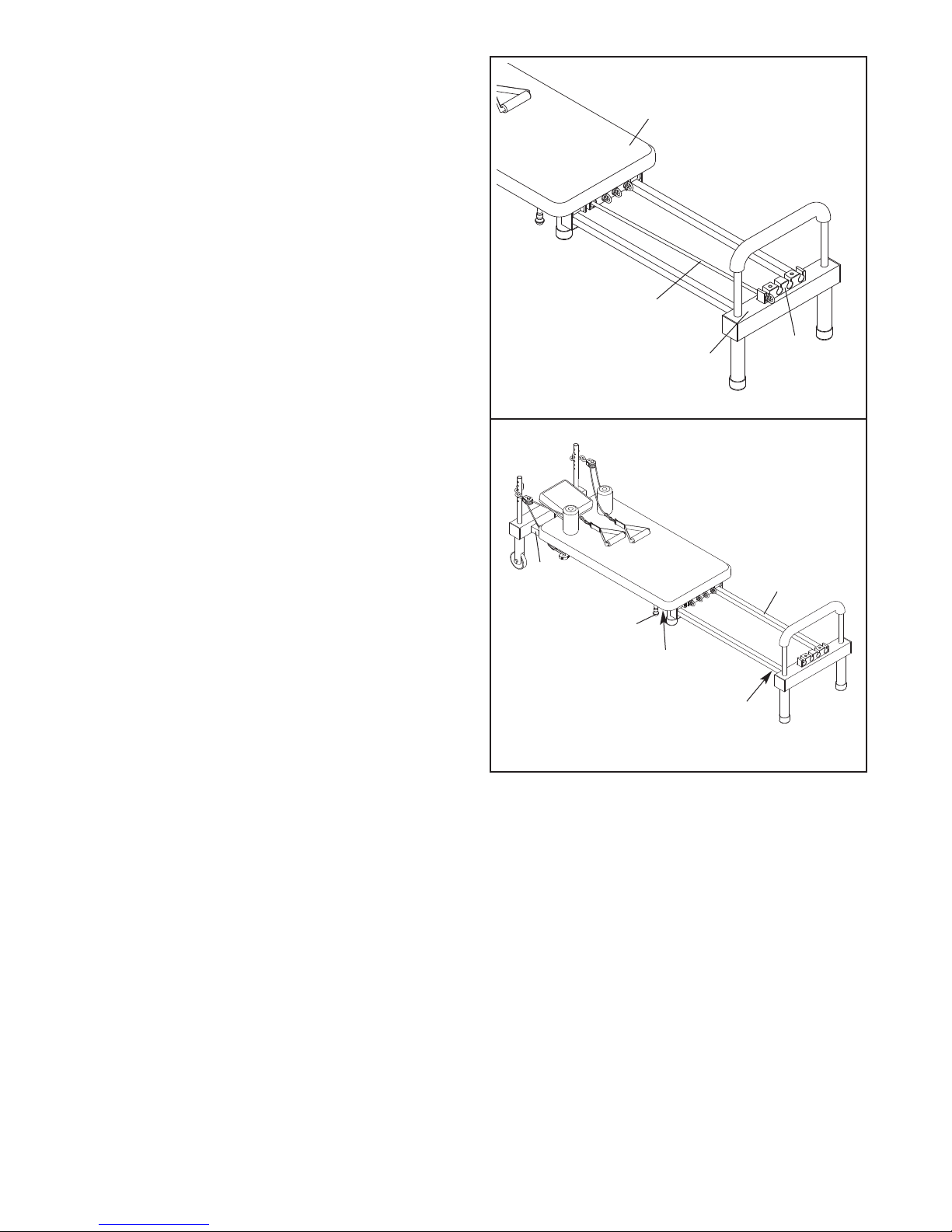

To add resistance to the movement of the Carriage
(6), engage a Resistance Cord (22) to the Resistance
Bracket (21) on the Inner Frame (2). To add more
resistance, engage more Resistance Cords to the
Bracket.
STORING THE EXERCISE BENCH
The exercise bench can be shortened when not in use.
To change the length of the bench, pull the Adjustment
Knob (17) out of the Inner Frame (2). Slide the Inner
Frame into, or out of, the Outer Frame (1). Engage the
Knob into one of the adjustment holes in the Inner
Frame (2).
6
22
21
2
1
2
17
Adjustment
Hole
Adjustment
Hole
9
Page 10
PART LIST—Model No. NTCCBE19520 R0602B
Key No. Qty. Description Key No. Qty. Description
1
2 1 Inner Frame
3 1 Outer Frame Cover
4 1 Inner Frame Cover
5 1 Carriage Frame
6 1 Carriage
7 2 Headrest Frame
8 4 25mm Round Inner Cap
9 1 Headrest
10 2 Shoulder Block
11 2 Carriage Tube
12 2 Pulley Tube
13 2 Wheel Leg
14 3 Cap Leg
15 3 50mm Round Outer Cap
16 4 75mm Square Inner Cap
17 1 Adjustment Knob
18 1 Adjustment Spacer
19 2 Wheel
20 4 Wheel Spacer
21 2 Resistance Bracket
22 4 Resistance Cord
23 2 Nylon Rope
24 2 Handle
25 2 Small Carriage Wheel
26 2 Pulley Housing
27 2 Pulley
28 2 Rope Grip
1 Outer Frame
9 2 Grip Base
2
30 12 Bearing
31 2 Rope Storage Knob
32 1 Foot Bar
33 1 Foot Bar Cover
34 2 M6 x 45mm Screw
35 2 Inner Frame Cap
36 12 M6 x 18mm Screw
37 2 M4 x 20mm Screw
38 2 M4 x 16mm Screw
39 4 M8 x 84mm Bolt
40 2 M4 x 40mm Screw
41 1 M10 x 50mm Carriage Bolt
42 2 M10 x 65mm Bolt
43 2 M10 Nylon Locknut
44 8 M8 Nylon Locknut
45 4 M10 Washer
46 2 M8 x 36mm Bolt
47 2 M6 x 61mm Screw
48 2 Large Carriage Wheel
49 2 Carriage Plate
50 4 M6 x 15mm Screw
51 1 Left Eyebolt/Pin
52 1 Right Eyebolt/Pin
53 4 M8 Washer
# 1 User’s Manual
# 1 Exercise Guide
# 1 Video
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
10
Page 11
EXPLODED DRAWING—Model No. NTCCBE19520 R0602B
9
7
7
36
36
36
10
11
11
6
23
24
22
21
34
33
32
4
15
14
14
16
16
40
21
2
35
25
30
30
30
48
46
46
26
26
27
27
30
30
30
30
44
44
12
12
16
16
3
1
41
18
17
14
15
19
19
13
13
20
20
20
42
42
43
20
8
8
8
8
45
45
45
47
31
47
49
31
50
50
52
51
37
39
30
30
25
30
44
39
37
28
29
29
28
36
36
39
39
44
44
36
36
30
30
48
5
38
38
53
53
53
53
11
Page 12
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-936-4266, Monday
hrough Friday 8h00 until 18h30 Eastern Time (excluding holidays). To help us assist you, please be prepared to
t
ive the following information:
g
1. the MODEL NUMBER of the product (NTCCBE19520)
2. the NAME of the product (PILATES by NordicTrack
3. the SERIAL NUMBER of the product (see the front cover of this manual)
4. the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on
pages 10 and 11 of this manual).
®
exercise bench)
LIMITED WARRANTY
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for
which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any
product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that
specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of inci
dental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty
extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantabili
ty or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some
provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
Part No. 185250 R0602B Printed in China © 2002 ICON Health & Fitness, Inc.
-
-
Loading...
