NordicTrack NTTL09990 User Manual

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

Patent Pending

Model No. NTTL09990
Serial No.

Find the serial number in the location
shown below. Write the serial number
in the space above for reference.

Serial Number Decal

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through di­rect assistance from our factory.

TO AVOID UNNECESSARY DE­LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni­cians on our Customer Hot Line
will provide immediate assis
tance, free of charge to you.

-

USER'S MANUAL

CUSTOMER HOT LINE:

1-888-825-2588

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING is attached in the center of this manual.

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described in this
manual.

3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should not be used by persons
weighing more than 250 pounds.

less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector
away from heated surfaces.

13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)

14. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.

16. The pulse sensor is not a medical device.
Various factors, including the user's move­ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth­ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.

Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8),
plug the power cord into a surge protector (not
included) and plug the surge protector into a
grounded circuit capable of carrying 15 or
more amps. No other appliance should be on
the same circuit. Do not use an extension cord.

11.

Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or

17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/off switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the loca­tion of the on/off switch.)

18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.

19. Do not change the incline of the treadmill by
placing objects under the treadmill.

20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.

3

1. When using iFit.com CD’s and videos, an

2

electronic “chirping” sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the

chirp” and be prepared for speed and/or in-

“

line changes. In some instances, the speed

c
and/or incline may change before the per­sonal trainer describes the change.

22. When using iFit.com CD’s and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
“chirp” is heard, the speed and/or incline will
change to the next settings of the CD or video
program.

4. Inspect and tighten all parts of the treadmill

2

regularly.

25. Never insert or drop any object into any
pening.

o

DANGER: Always unplug the power

26.

cord immediately after use, before cleaning
the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.

23. Always remove iFit.com CD’s and videos from
your CD player or VCR when you are not
using them.

27. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer­cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If the decal is missing or illegible, please
call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING RE­PLACEMENT PARTS on page 27). Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack

XP1000 treadmill. The EXP1000 treadmill combines

E
advanced technology with innovative design to help
you get the most from your exercise program in the
convenience of your home. And when you’re not exer-

ising, the unique EXP1000 can be folded up, requiring

c
less than half the floor space of other treadmills.

For your benefit, read this manual carefully before
using the treadmill

please call our Customer Service Department toll-free

. If you have additional questions,

Book Holder

Hand Weight Holder*

Console

Handrail

Key/Clip

LEFT SIDE

®

at 1-888-825-2588, Monday through Friday, 6 a.m.

ntil 6 p.m. Mountain Time (excluding holidays). To

u
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is NTTL09990. The serial num-

er can be found on a decal attached to the treadmill

b
(see the front cover of this manual for the location).

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Water Bottle Holder†

Pulse Sensor

Foot Rail

Rear Roller
Adjustment Bolts

Lock Knob

Walking Belt

RIGHT SIDE

On/Off Switch

Circuit Breaker

Power Cord

Cushioned Walking Platform

*For information about optional hand

weights, see page 21.

†No water bottle is included.

5

ASSEMBLY

ssembly requires two people.Set the treadmill in a cleared area and remove all packing materials. Do not

A
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the
treadmill to the upright position.

While a second person tips the treadmill to one side
and holds it, insert one of the Extension Legs (102) into
the treadmill as shown. Make sure that the Extension
Leg is turned so the Base Pad (99) is on the bottom.

Next, tip the treadmill to the other side and insert the
other Extension Leg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(102) are resting flat on the floor.

2. With the help of a second person, carefully lower the
treadmill frame and then tip the Uprights (69) down as
shown. Make sure that the Extension Legs (102) re-

main in the Uprights.

Attach each Extension Leg (102) with two Screws (80) as
shown.

With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.

Note: One replacement Base Pad (99) may be included.
Use the extra Pad if one becomes worn or needs to be re­placed.

1

102

99

2

99

Frame

69

99

69

102

80

102

80

3. Place one of the Handrail Spacers (65) on the right
Upright (69) as shown, with the cutout toward the tread­mill (see inset drawing A). Pull the Upright Wire Harness
(98) up through the Handrail Spacer. Place the other
Handrail Spacer on the left Upright (not shown).

Have a second person hold the Handrails (66) near the
Uprights (69) as shown. Connect the Upright Wire
Harness (98) to the wires extending from the right
Handrail. Insert the connectors and the Wire Harness
(98) into the hole in the Console Base (81) (see inset
drawing B).

Be careful not to pinch the Wire Harness (98) as you set

6

the Handrails (66) on the Spacers (65).

66

A

69

65

B

98

81

3

65

Cutout

81

98

69

4. Insert two Handrail Bushings (75) into the right Upright
(69). Turn the Handrail Bushings so they fit on the

pright with the thick half of the Bushings inwards as

U
shown in the inset drawing.

Insert two Handrail Bolts (78) with Handrail Washers
(77) into the Handrail Bushings (75), the right Upright
(69), and the right Handrail Spacer (65). Lift up the right
Handrail (66) to align the Bolts with the holes in the
Handrail. Next, thread the Bolts into the Handrail (66).

Do not tighten the Bolts yet.

4

66

65

69

75

77

Thick

Half

Attach the left Handrail (not shown) in the same way.
Tighten all four Handrail Bolts (78).

5. Press the Lock Knob Sleeve (70) into the left Upright (69).

Make sure that the Lock Pin Collar (72) and the Spring
(71) are on the Lock Pin. Insert the Lock Pin into the left
Upright (69). Press the Lock Knob Spacer (117) onto left
Upright. Tighten the Lock Knob (68) onto the Lock Pin.

6. Look at the Endcap (58). If the left or right foot on the
Endcap does not touch the floor, the included thick
base pads should be attached to the treadmill as de­scribed below.

75

77

5

69

68

70

117

6

78

71

72

74

Refer to assembly step 2. Lower the treadmill frame
and the Uprights (69) as shown. If the left foot of the
Endcap (58) was off the ground, remove the two Base
Pads (99) from the right Upright (69). Attach the in­cluded thick base pads to the Upright. If the right side
of the Endcap was off the ground, attach the thick base
pads to the left Upright.

Note: If either side of the Endcap (58) lifts off the floor
when the treadmill is used, attach the thick base pads
as described.

7. Make sure that all parts are tightened before you use the treadmill. Note: If there is a thin sheet of clear
plastic on the face of the hood decal and the “ComforTrack” decal, remove it. Keep the included allen wrench in

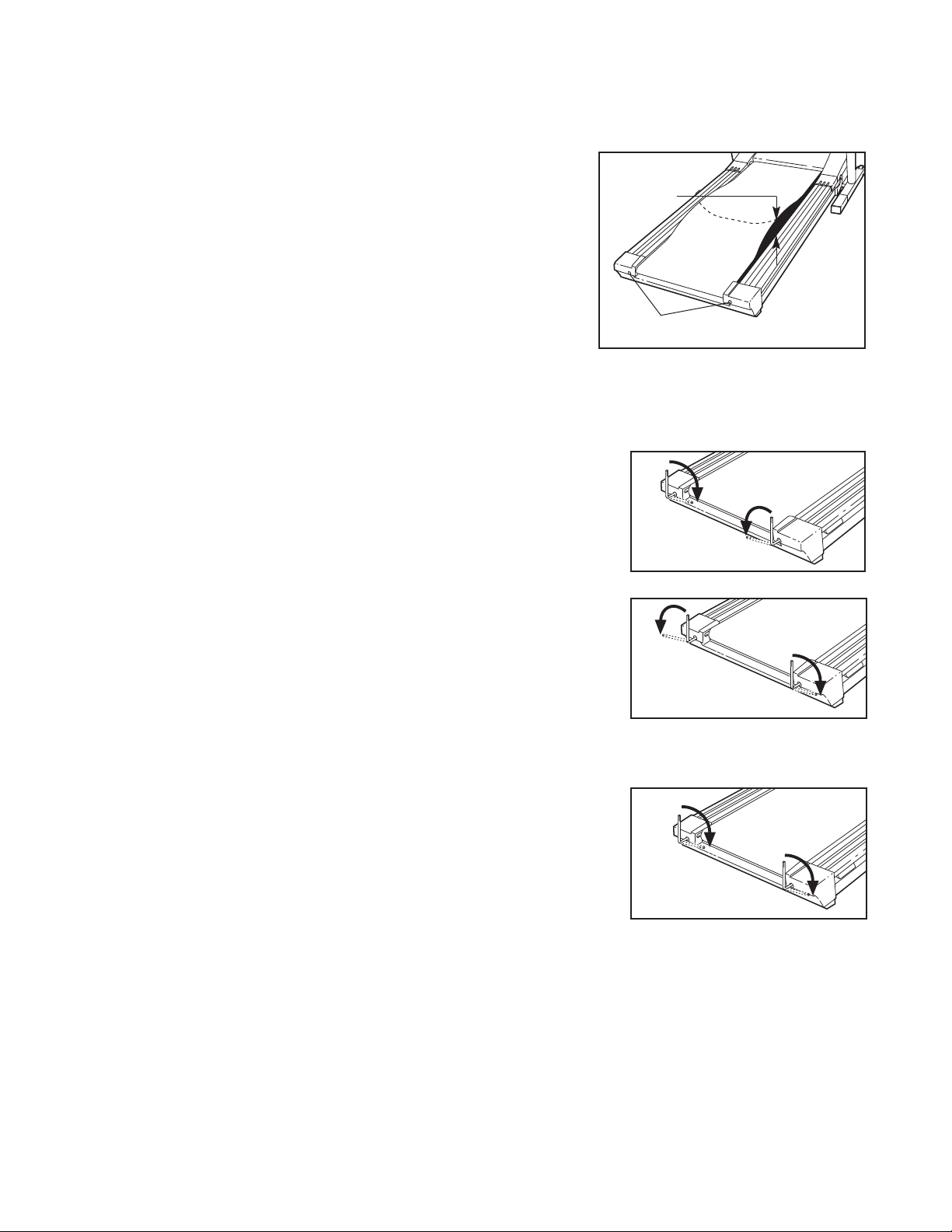

a secure place. The allen wrench is used to adjust the walking belt (see page 24). To protect the floor or car­pet from damage, place a mat under the treadmill.

Foot

58

Foot

7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETMWALKING BELT

our treadmill features a walking belt coated with

Y
PERFORMANT LUBE

IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat­form. They will deteriorate the walking belt and
cause excessive wear.

HOW TO PLUG IN THE POWER CORD

M

T

, a high-performance lubricant.

DANGER: Improper connection

of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service­man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet in­stalled by a qualified electrician.

Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can re­sult from weather conditions or from other appliances
being turned on or off.

To decrease the pos­sibility of your tread­mill being damaged,
always use a surge
protector (not in­cluded) with your
treadmill.

1

Grounded Outlet Box

Grounding Pin

of electric shock. This product is equipped with a cord

aving an equipment-grounding conductor and a

h

rounding plug.

g

protector, and plug the surge protector into an ap­propriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.

This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole recep­tacle as shown in drawing 2 if a properly grounded out­let is not available.

The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.

The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw.

covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is
grounded before using an adapter.

Grounding Plug

lug the power cord into a surge

P

Some 2-pole receptacle outlet box

Treadmill Power Cord

Grounding Plug

Surge protectors are
sold at most hardware
stores and department
stores. Use only a UL­listed surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.

This product must be
grounded. If it should

malfunction or break
down, grounding pro­vides a path of least re
sistance for electric cur
rent to reduce the risk

8

Grounded Outlet

2

-

-

Metal Screw

Grounded Outlet Box

Adapter

Grounding Pin

Grounding Plug

Lug

Grounding Pin

Surge Protector

Program

Display

Pulse

Sensor

Note: If there is a thin sheet
of clear plastic on the face
of the console, remove it.

FEATURES OF THE CONSOLE

The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the built-in pulse sensor.

Three preset workout programs are also offered. Each
program automatically controls the speed and incline
of the treadmill to give you an effective workout. You
can even create your own custom workout programs
and store them in memory for future use.

The console also features new iFit.com interactive tech­nology. IFit.com technology is like having a personal
trainer right in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, or computer and play special
iFit.com CD programs (CD’s are available separately).
IFit.com CD programs automatically control the speed
and incline of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. Each CD features
two programs designed by certified personal trainers.

Key

Pulse

Sensor

Clip

In addition, you can connect the treadmill to your VCR
and TV and play iFit.com video programs (videocas­settes are available separately). Video programs offer
the same benefits as iFit.com CD programs, but add
the excitement of working out with a class and an
instructor—the hottest new trend at health clubs.

With the treadmill connected to your computer, you
can also go to our new internet site at www.iFit.com
and access basic programs, audio programs, and
video programs directly from the internet. And by
adding an optional upgrade module to the treadmill,
you can use virtually endless features from our internet
site. See www.iFit.com for complete details.

To purchase iFit.com CD’s or videocassettes or an
optional upgrade module, call toll-free 1-800-735-0768.
See page 21 for information about other accessories
that will help you get even more from your exercise.

To use the manual mode of the console, follow the
steps beginning on page 11.
see page 12. To create and use a custom program,
see pages 14 and 15. To use an iFit.com CD or

video program, refer to page 18. To use an iFit.com
program directly from our internet site, see page 20.

To use a preset program,

9
