Page 1
X300
User Guide
Page 2
Thank you for choosing
NOMVDIC™, founded by a group of people with the spirit of
exploration. As a user-focused and technology-based enterprise,
we believe that our products have the potential to inspire you to
seek out the infinite possibilities of entertainment, extending the
dimensions of your home, and redefining it to fit the lifestyle you like.
We created NOMVDIC for you who seek more.
Once again, thank you for choosing NOMVDIC™.
Page 3
Safety Precautions
Please read the following Safety Precautions before you start using the projector.
• Read all warnings and follow all instructions.
• Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
• Place the projector in a well-ventilated area. Do not place anything on the projector that
prevents heat dissipation.
• Do not place the projector on an uneven or unstable surface. The projector may fall over,
causing personal injury or projector malfunction.
• Do not look straight at the projector lens during operation. The intense light beam may damage
your eyes.
• Do not block the projection lens with any objects when the projector is under operation as this
could cause objects to become heated and deformed or even cause a fire.
• Do not attempt to disassemble the projector. There are dangerous high voltages inside which
may cause death if you should come into contact with live parts.
• When moving the projector, be careful not to drop or bump the projector on anything.
• Do not place any heavy objects on the projector or connection cables.
• Do not stand the projector on end vertically. Doing so may cause the projector to fall over,
causing personal injury or projector malfunction.
• Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install
near any heat sources such as radiators, heat registers, stoves, or other devices (including
amplifiers) that may increase the temperature of the projector to dangerous levels.
• Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to
fail. If the projector does become wet, disconnect it from the power supply and contact us to
have the projector serviced.
• When the projector is under operation, you may sense some heated air and odor from its
ventilation grill. It is a normal operation and not a defect.
Page 4
• Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide and third blade are provided for your safety. If the
plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into
the outlet.
• When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure
grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the
point where it emerges from the projector.
• In some countries, the voltage is NOT stable. This projector is designed to operate safely within
a voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur.
In areas where voltage may fluctuate or cut out, it is recommended that you connect your
projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).
• If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector o
and contact your dealer or NOMVDIC™. It is dangerous to continue using the projector.
• Use only attachments/accessories specified by the manufacturer.
• Disconnect the power cord from the AC outlet if the projector is not being used for a long period
of time.
• Refer all servicing to qualified service personnel.
CAUTION: Possibly hazardous optical radiation is emitted from this product. As with any
bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.
Page 5
Content
Safety Precautions ....................................................................................... 3
Introduction ................................................................................................. 10
Package Contents ......................................................................................................................... 10
Product Overview ............................................................................................................................ 11
Projector ................................................................................................................................................................ 11
Connection Ports ................................................................................................................................................13
Remote Control .................................................................................................................................................. 14
Initial Setup ...................................................................................................16
Choosing a Location - Projection Orientation ......................................................................16
Making Connections ...................................................................................18
Connecting to Power ......................................................................................................................18
DC Power (Power Outlet) ................................................................................................................................ 18
USB-C Power Bank .......................................................................................................................................... 20
Using the Battery ................................................................................................................................................21

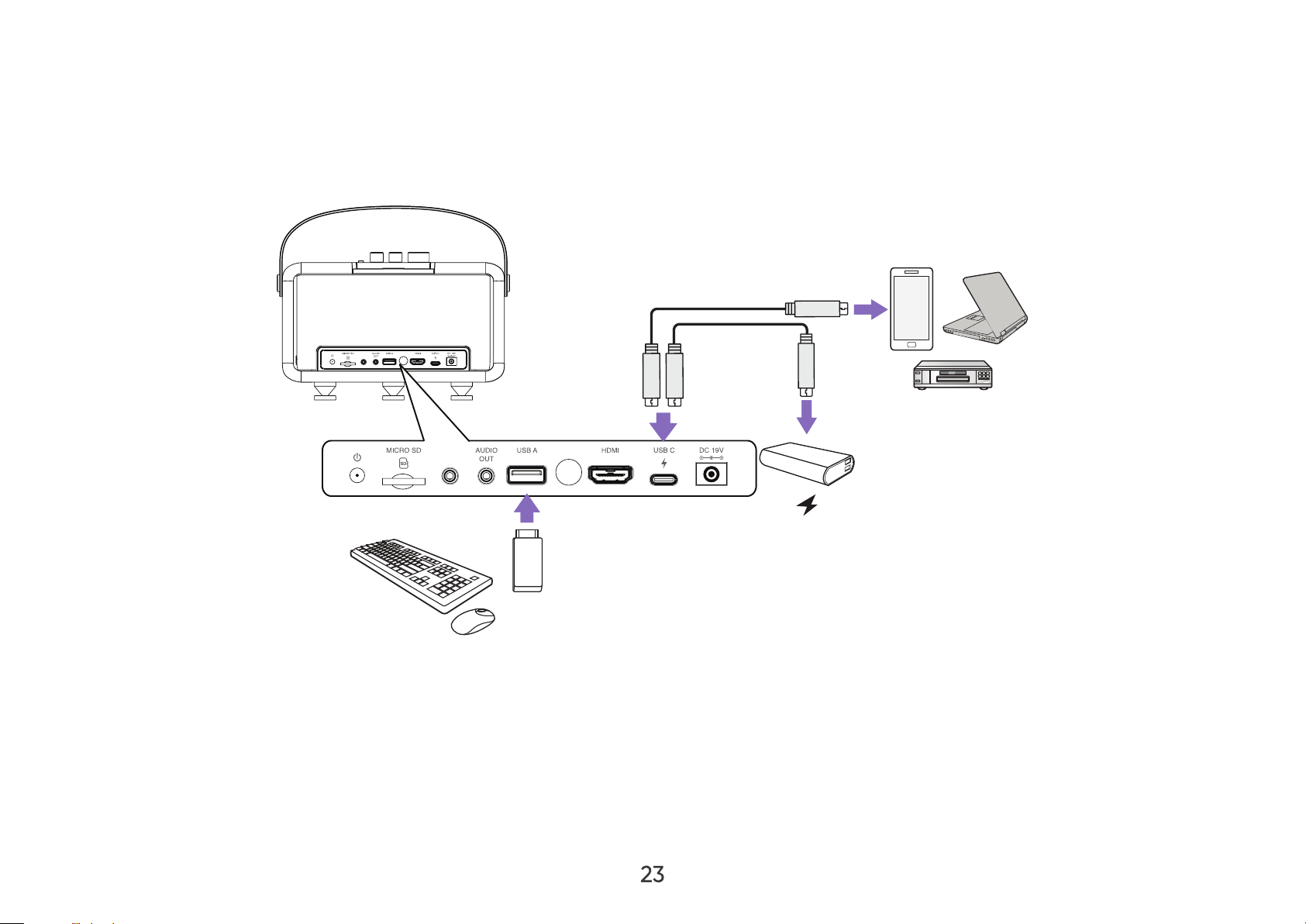

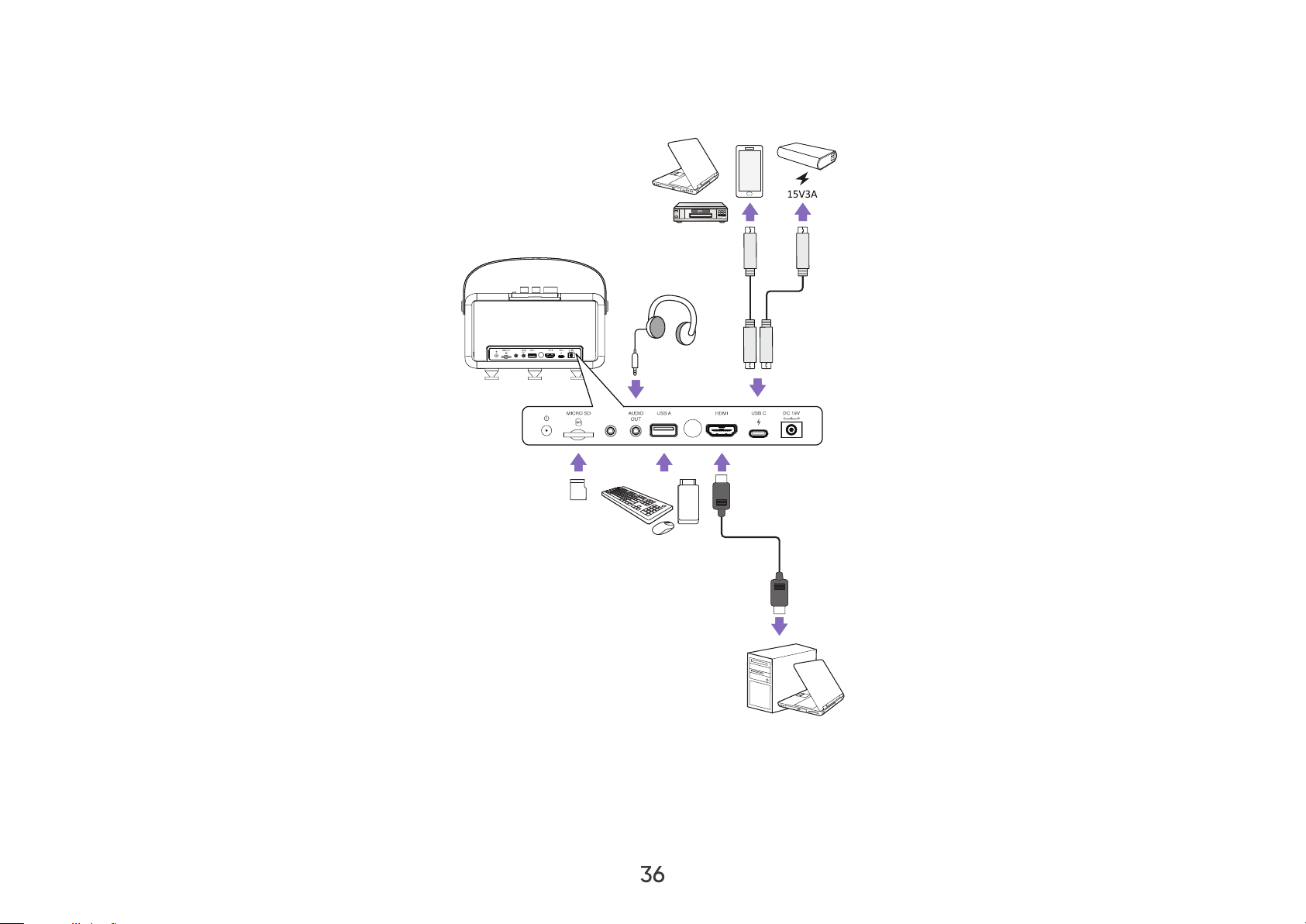

Connecting to External Devices ................................................................................................22

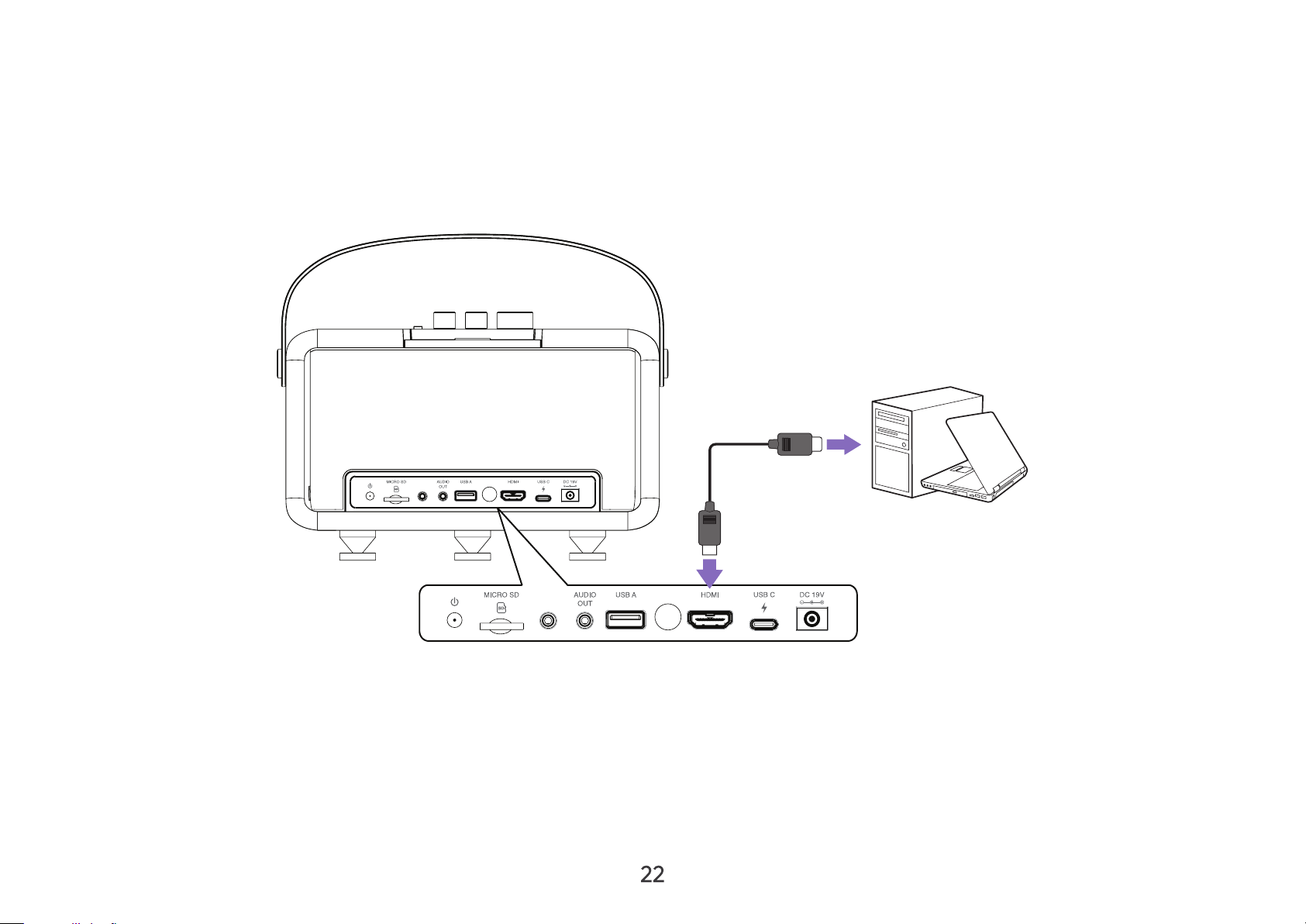

HDMI Connection ...............................................................................................................................................22

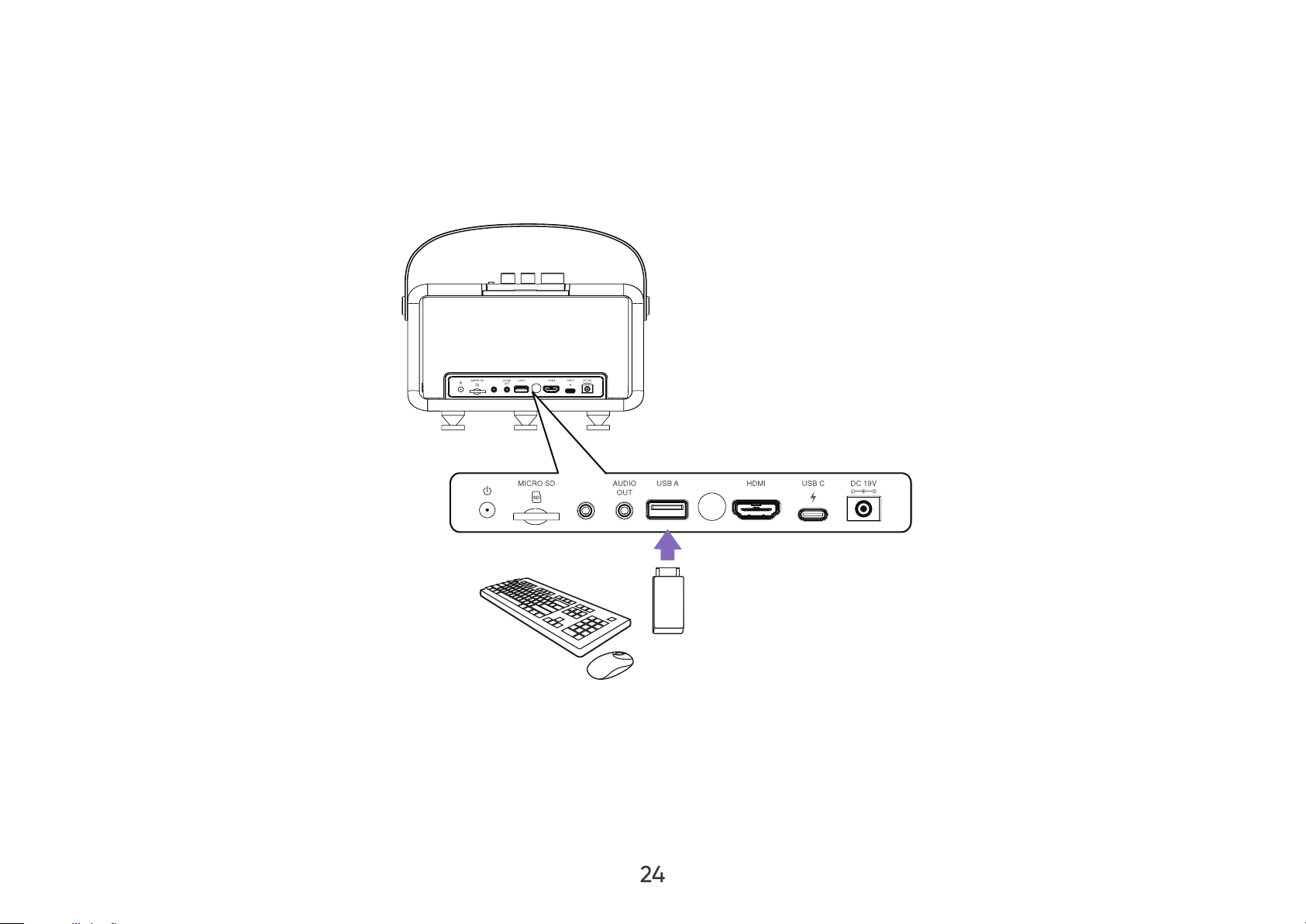

USB Connection .................................................................................................................................................23
Wireless Screen Mirroring .............................................................................................................25
Page 6
Connecting to Audio ......................................................................................................................26
Bluetooth Speaker ............................................................................................................................................26
Bluetooth Out .....................................................................................................................................................27
Connecting to Networks ..............................................................................................................28
Wi-Fi Connection ...............................................................................................................................................28
Custom SSID ........................................................................................................................................................29
NOMVDIC Remote Control App ................................................................................................ 30
Using the Projector ......................................................................................31
Starting Up the Projector ..............................................................................................................31

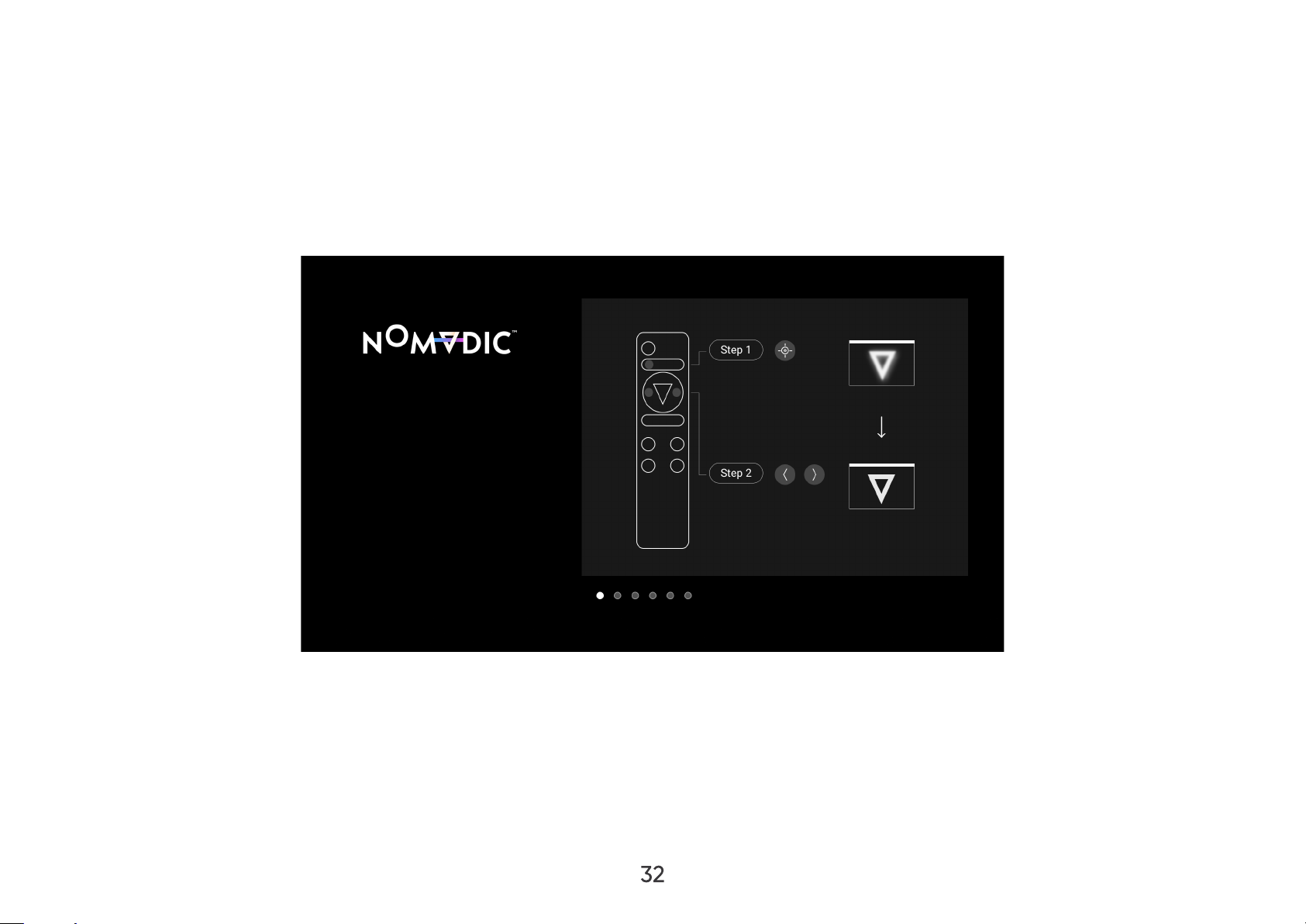

First Time Activation ....................................................................................................................... 32

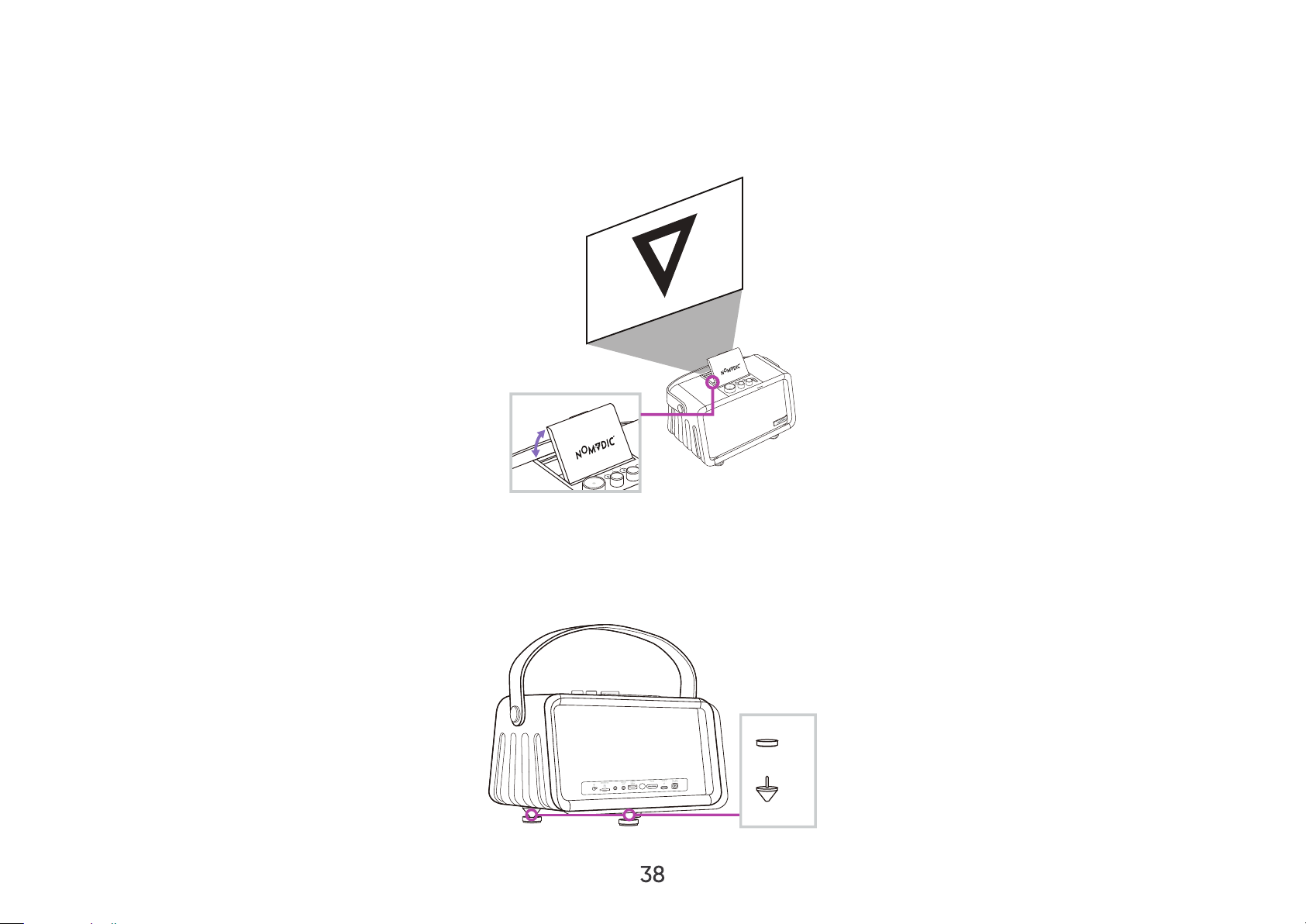

Manual Focus ......................................................................................................................................................32

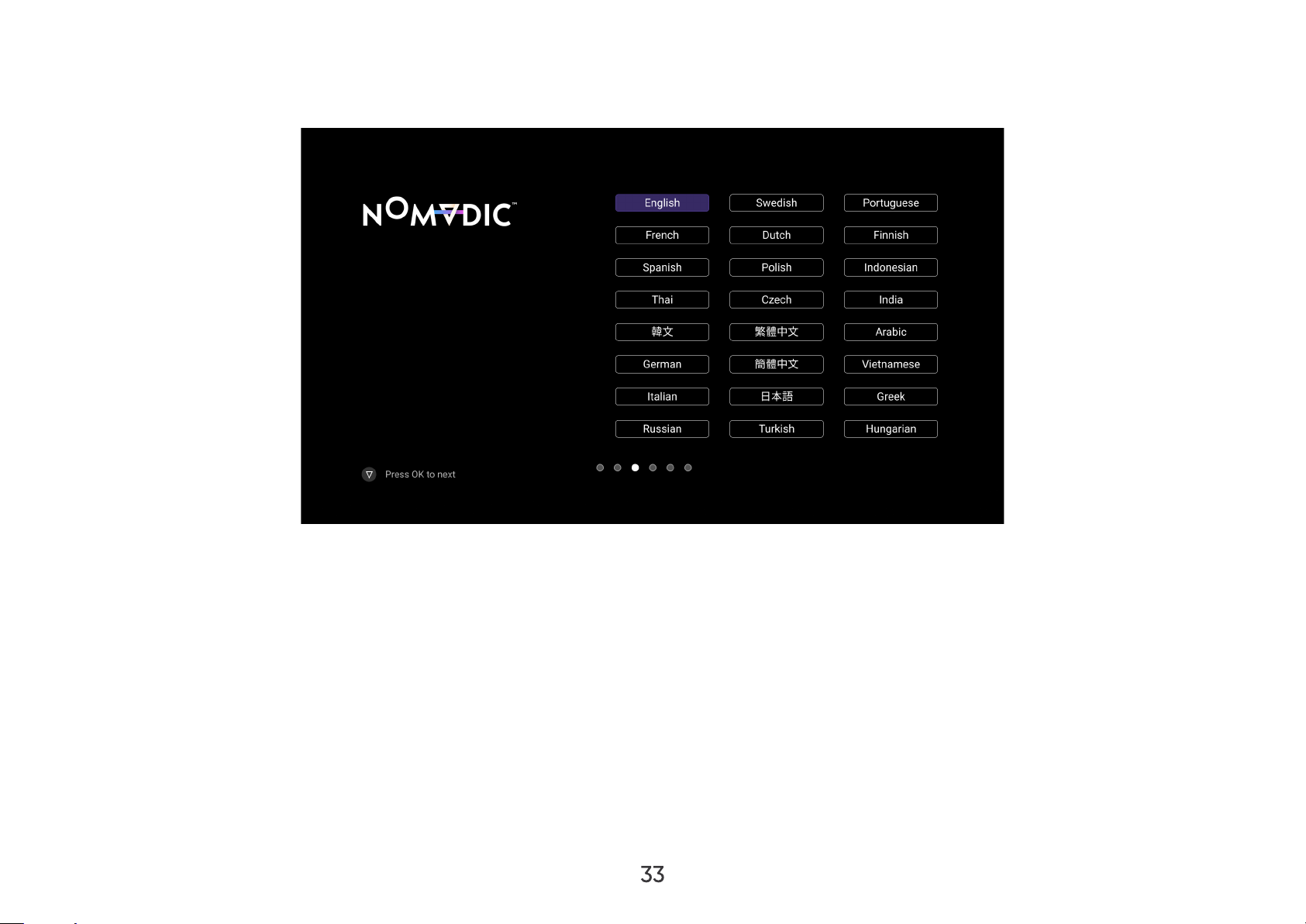

Preferred Language..........................................................................................................................................33

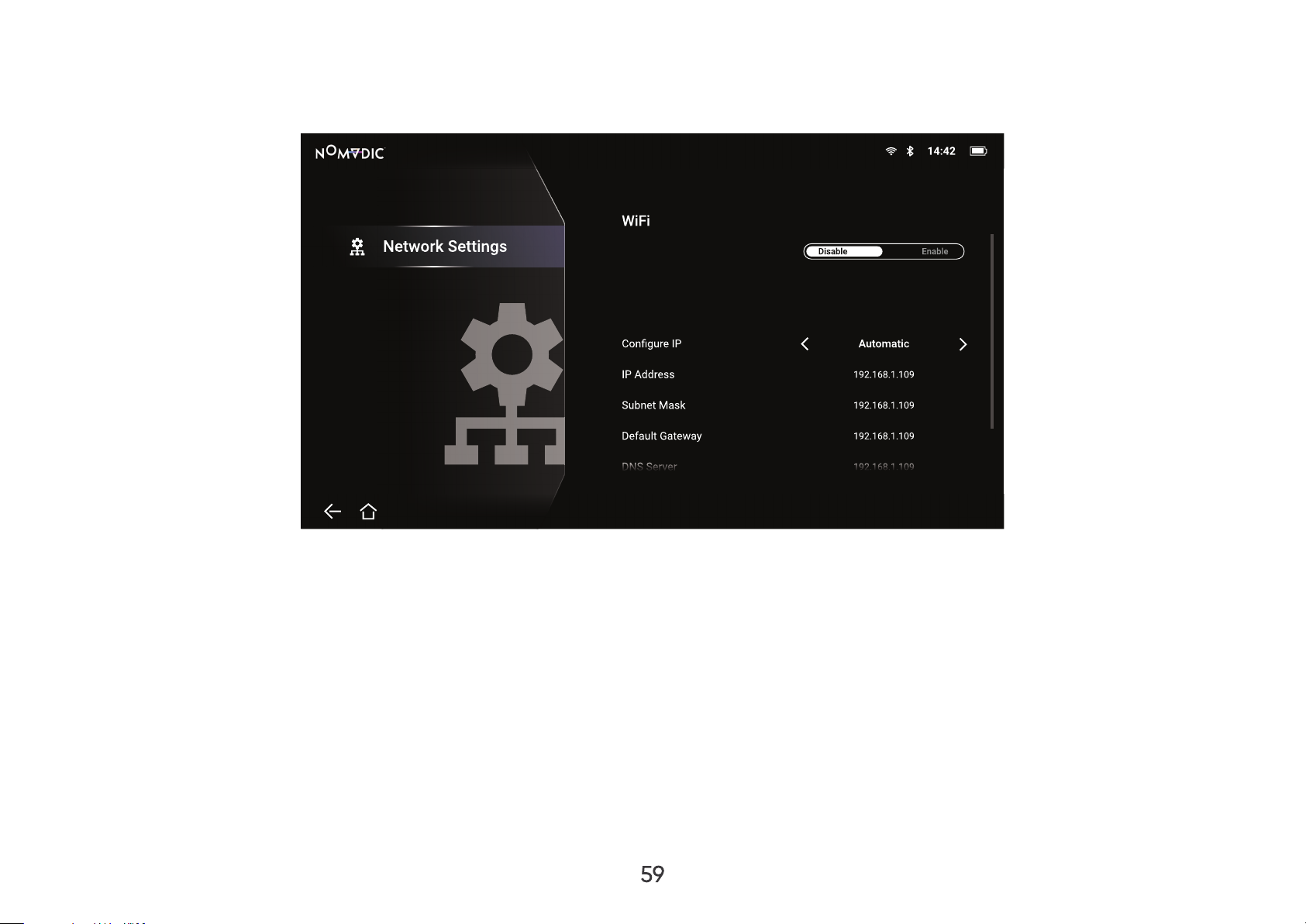

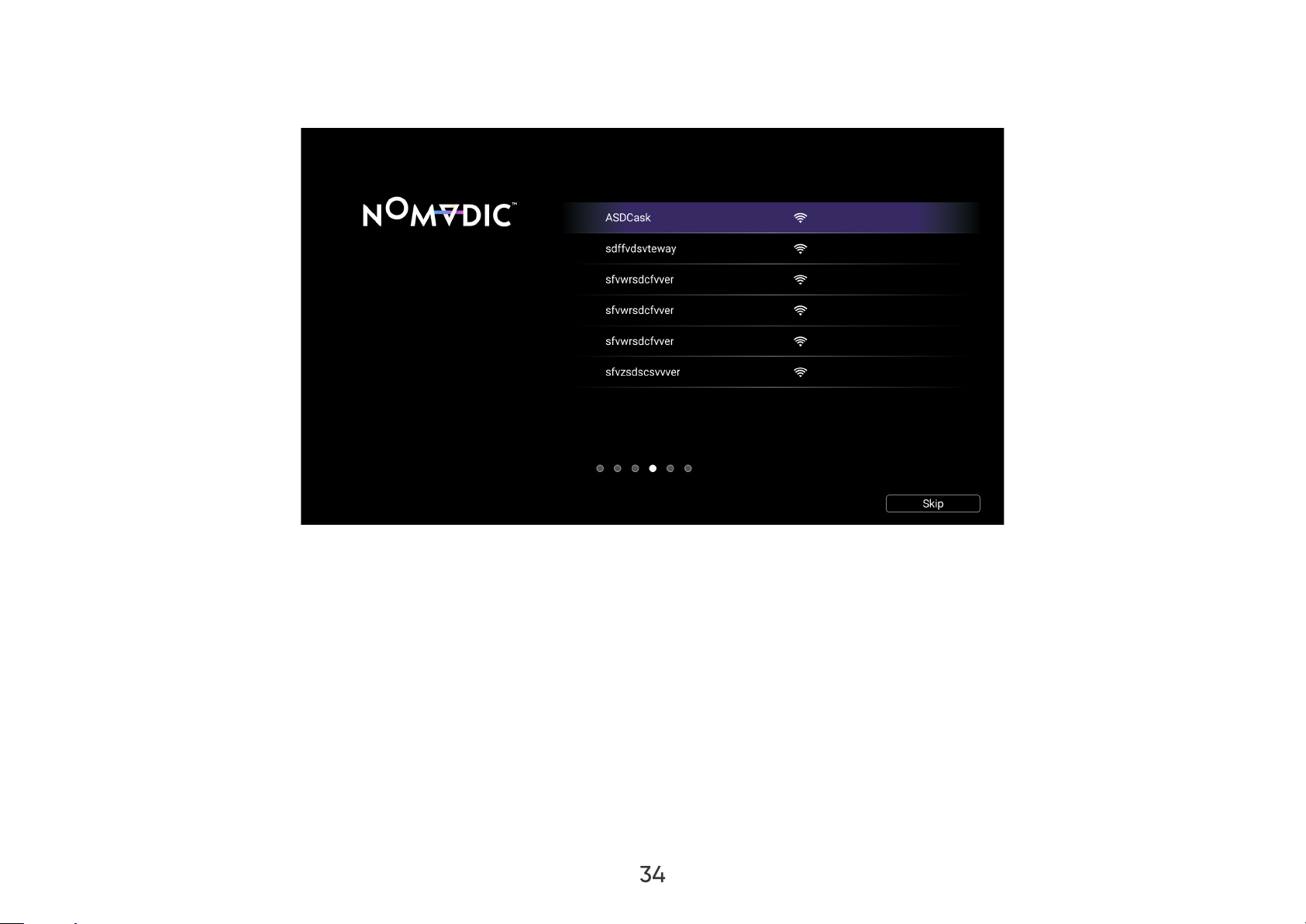

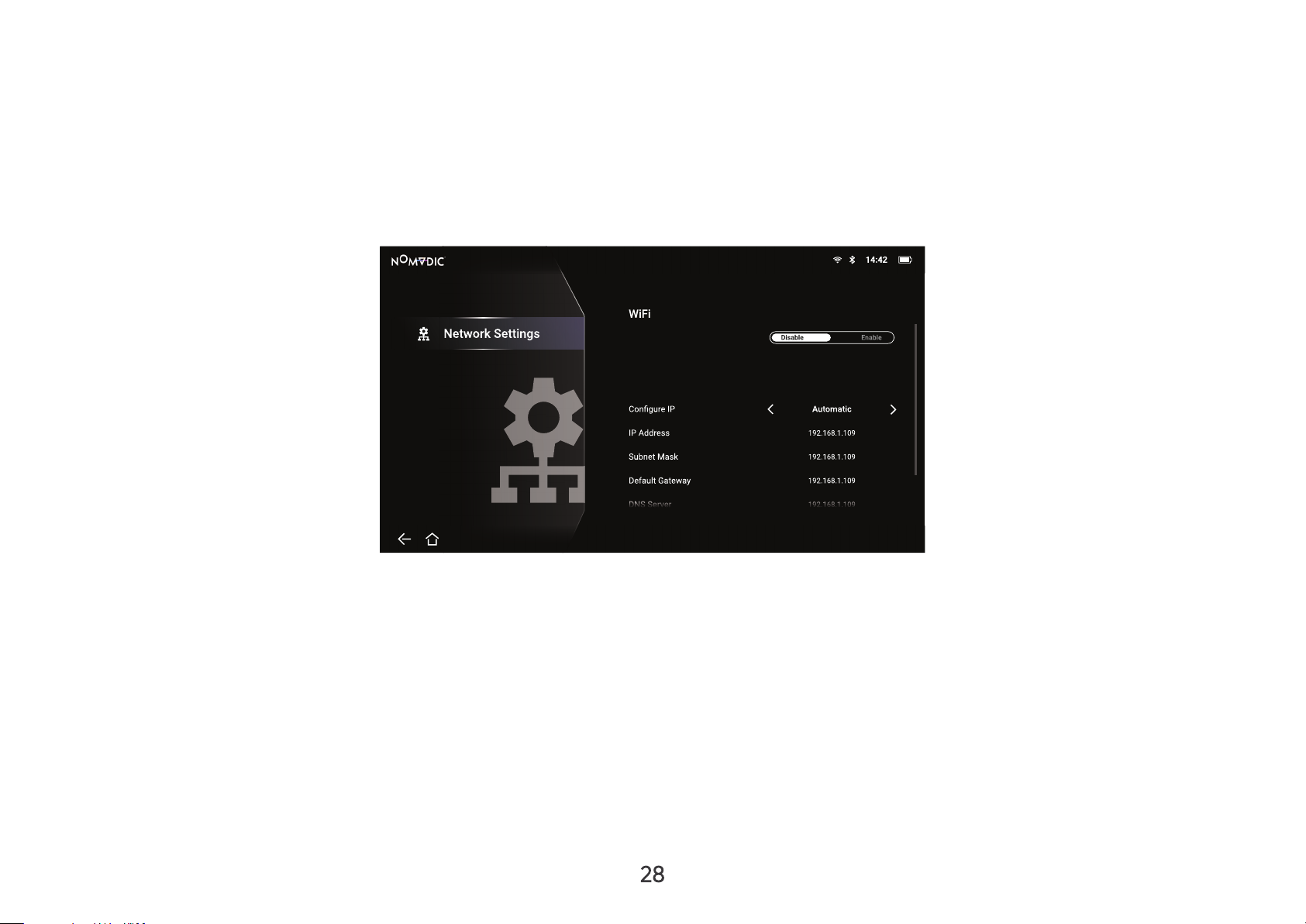

Network Settings................................................................................................................................................34

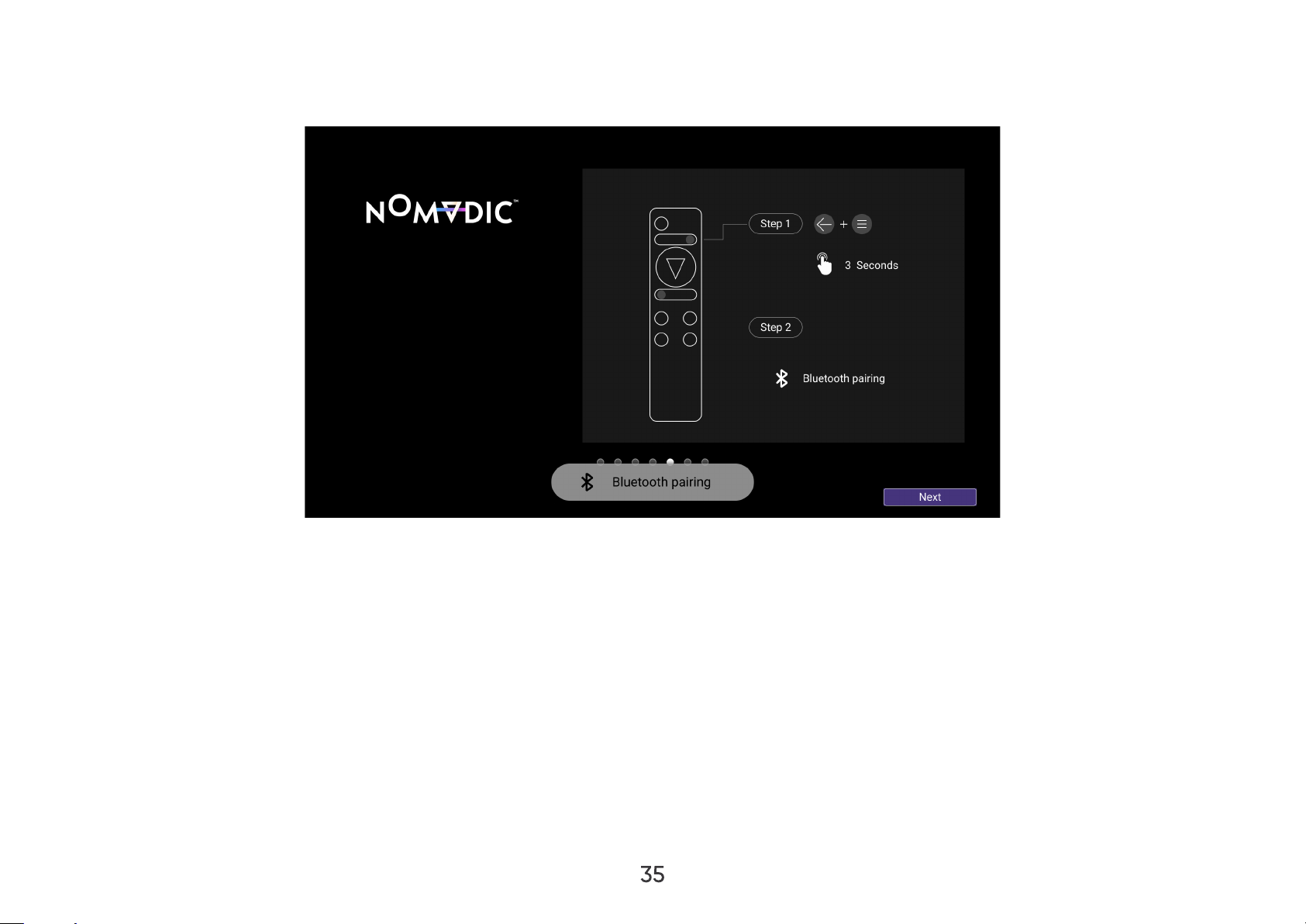

Bluetooth Pairing ...............................................................................................................................................35
Selecting an Input Source ............................................................................................................ 36

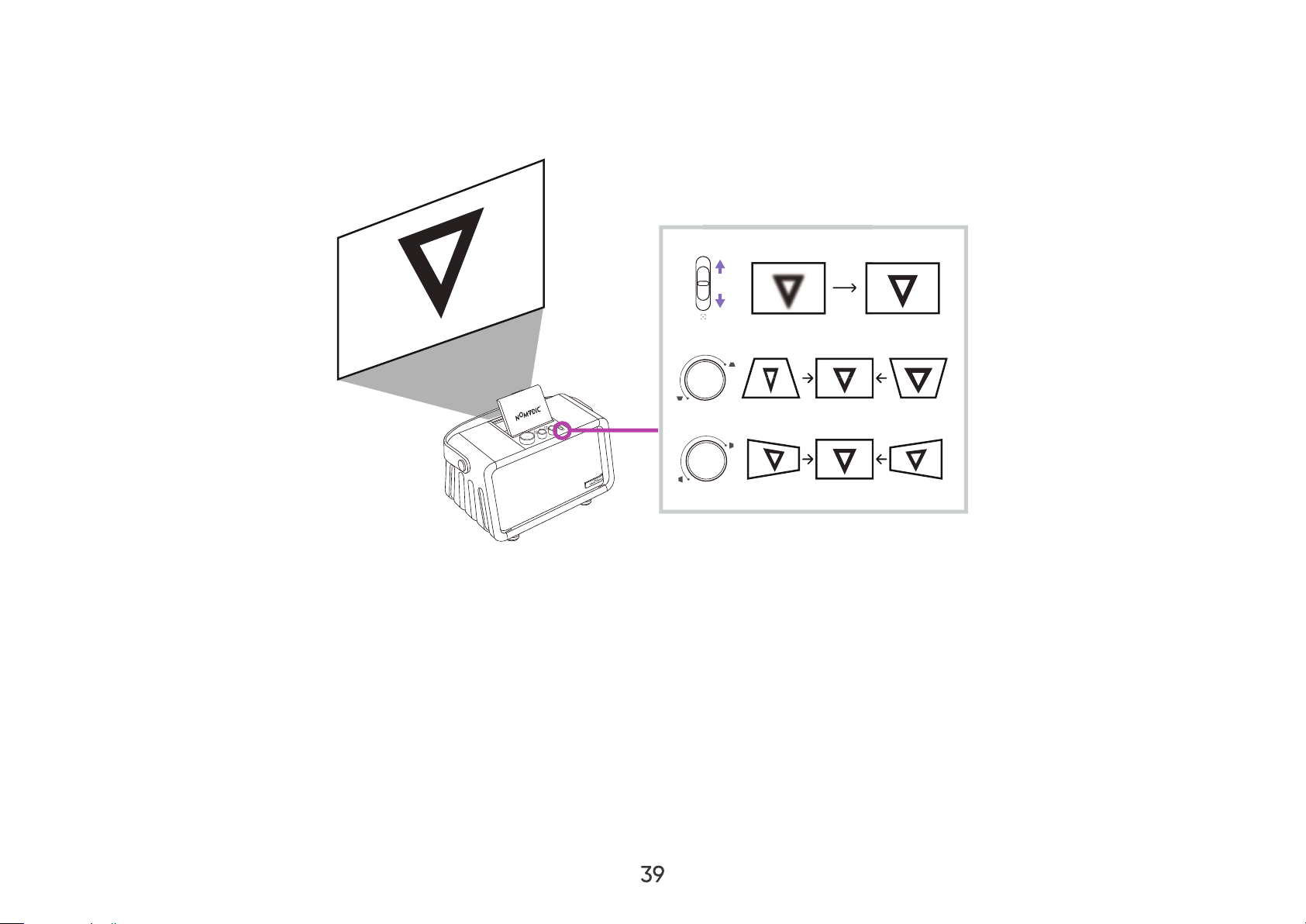

Adjusting the Projected Image ..................................................................................................38
Adjusting the Projector’s Height and Projection Angle ........................................................................38
Fine-Tuning the Image Clarity ......................................................................................................................39
Shutting Down the Projector ...................................................................................................... 40
Page 7
Operating the Projector .............................................................................41

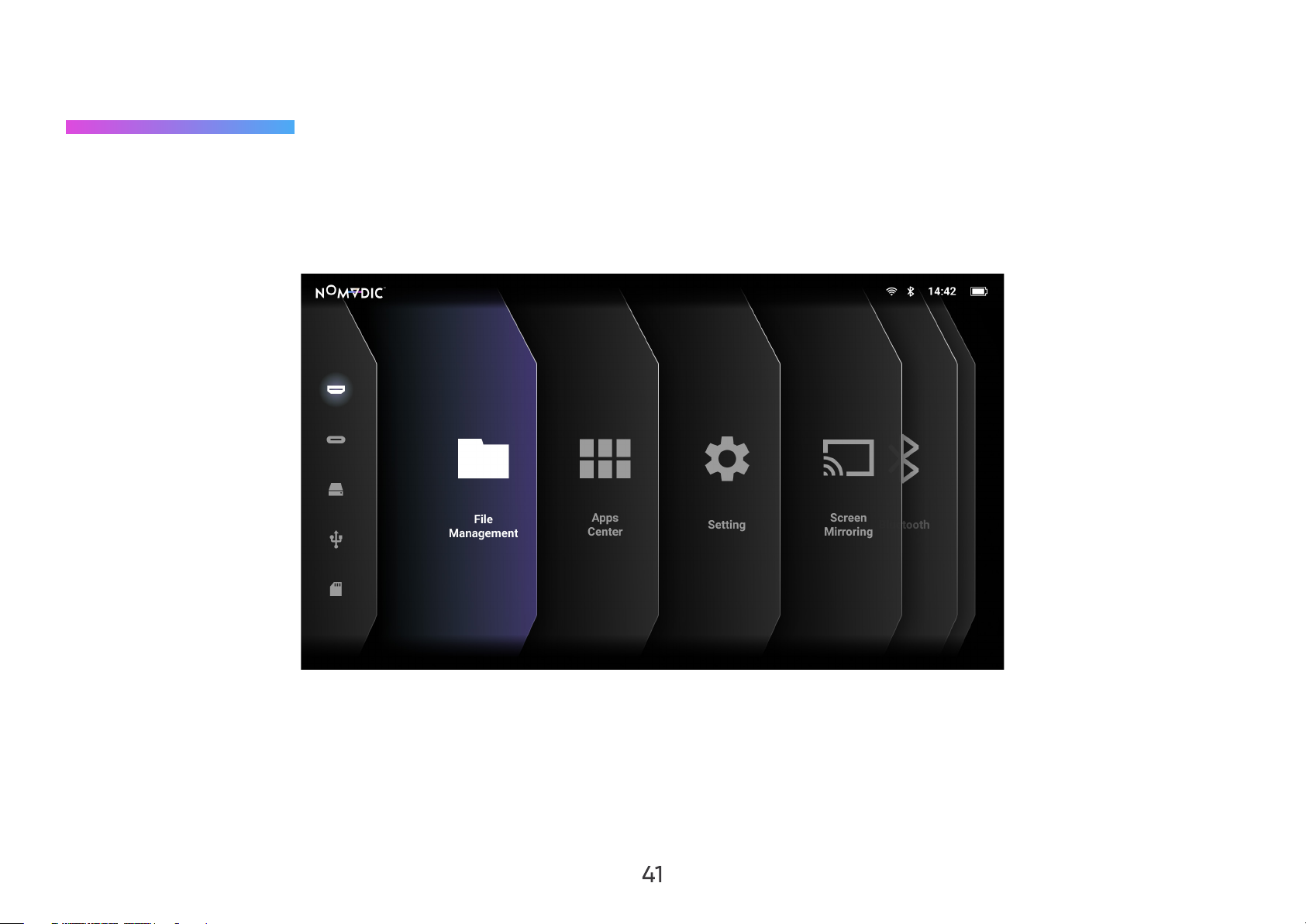

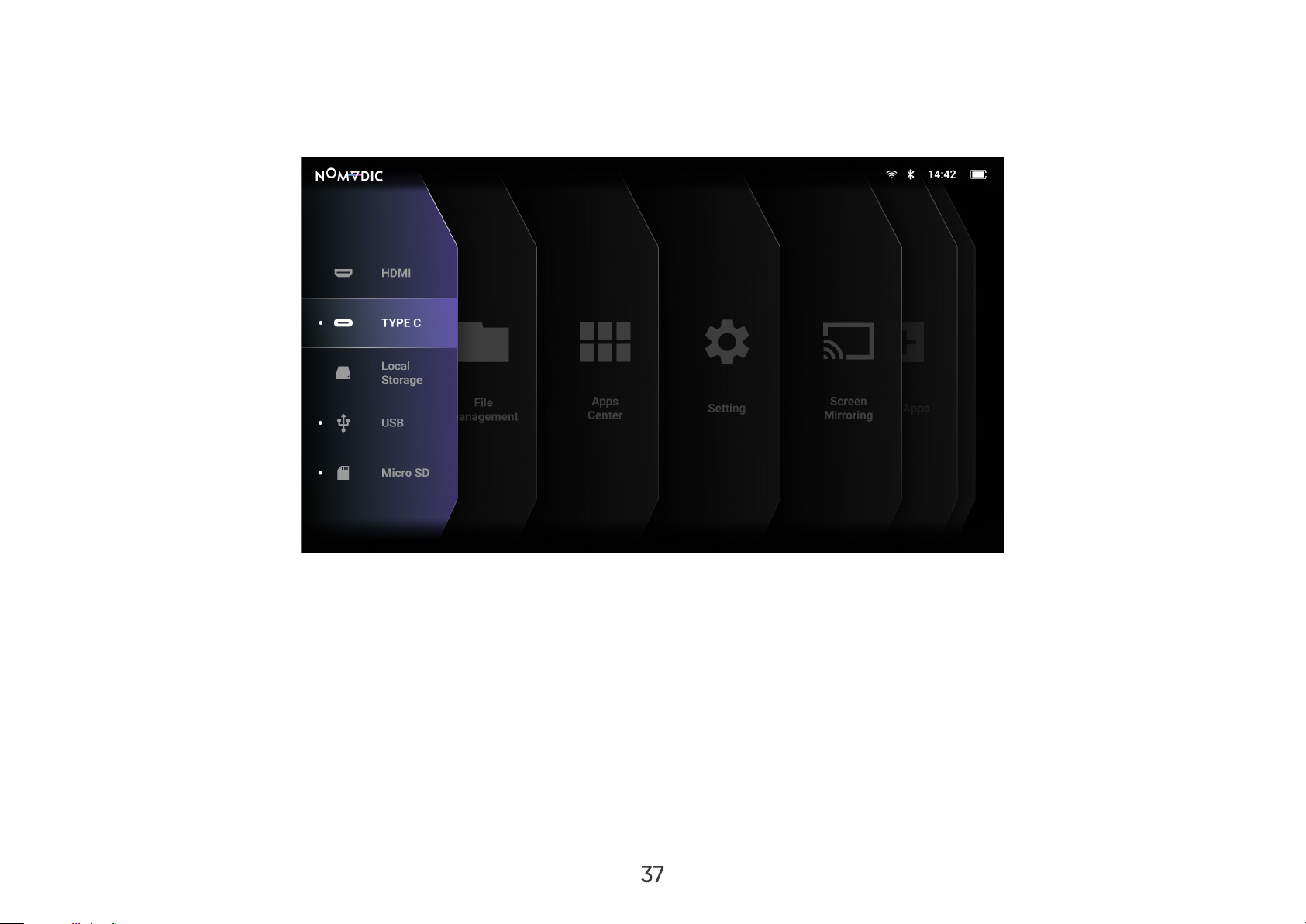

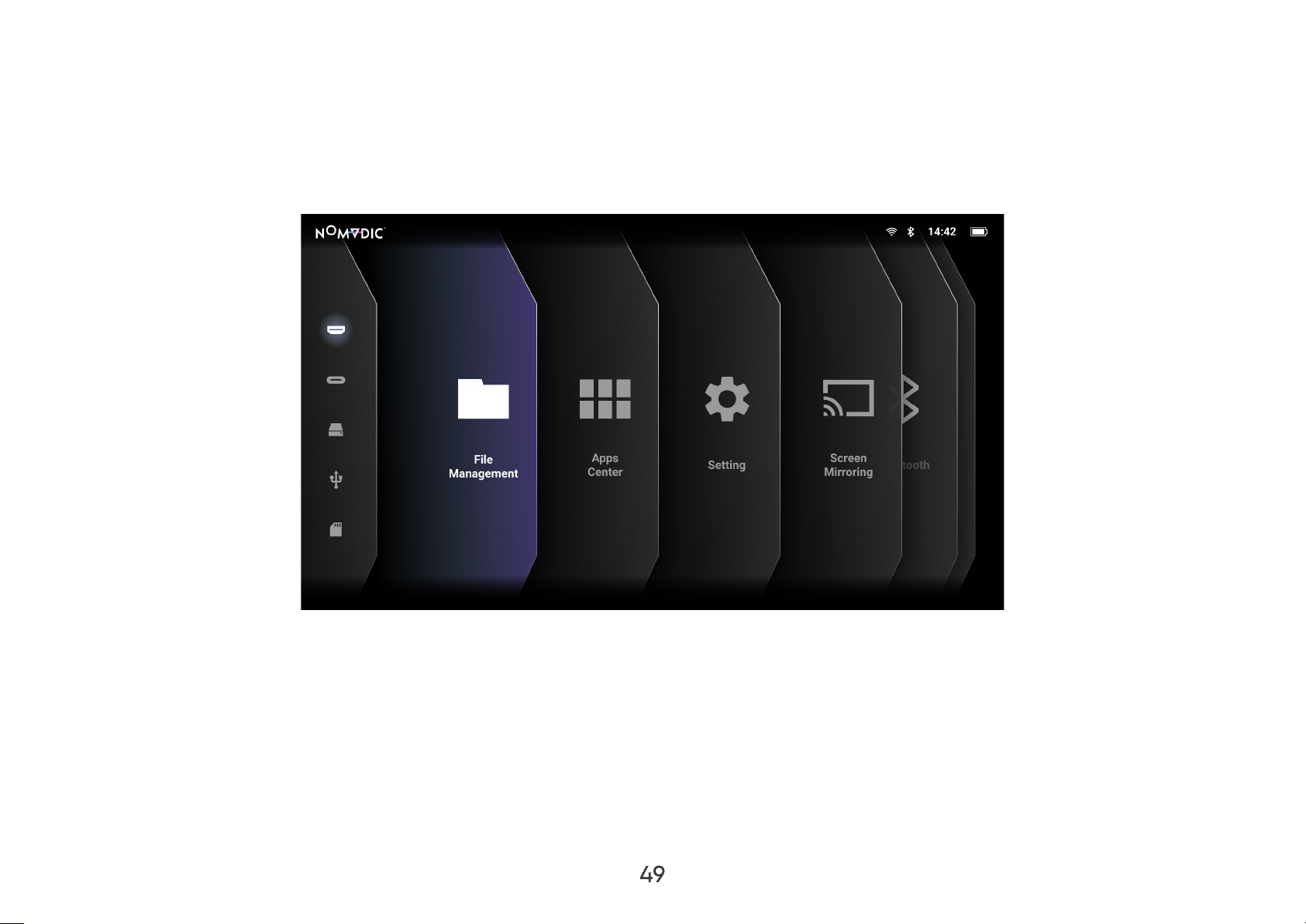

Home Screen .................................................................................................................................... 41
Home Screen - On-Screen Display (OSD) Menu Tree ........................................................43
Menu Operations ............................................................................................................................49

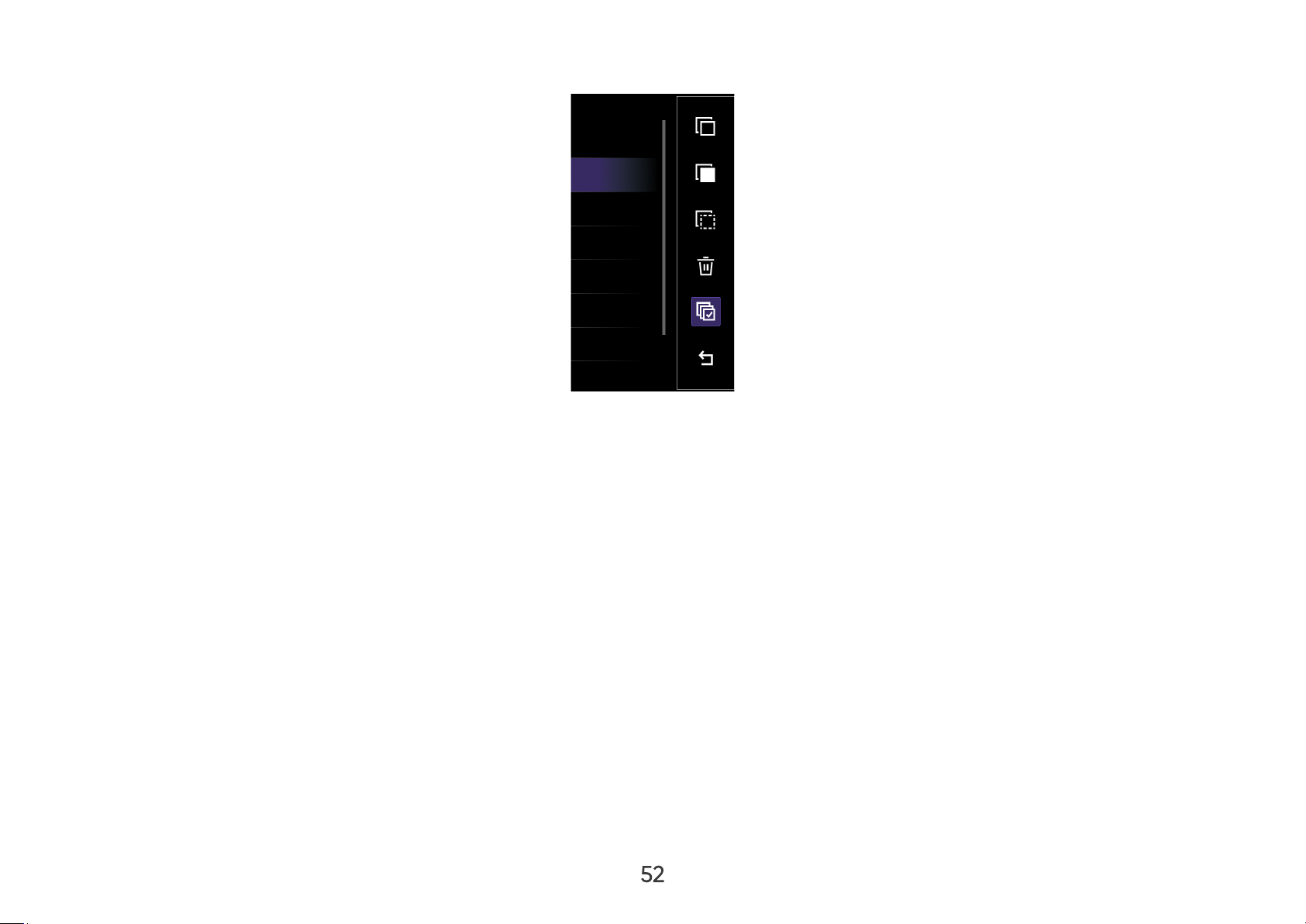

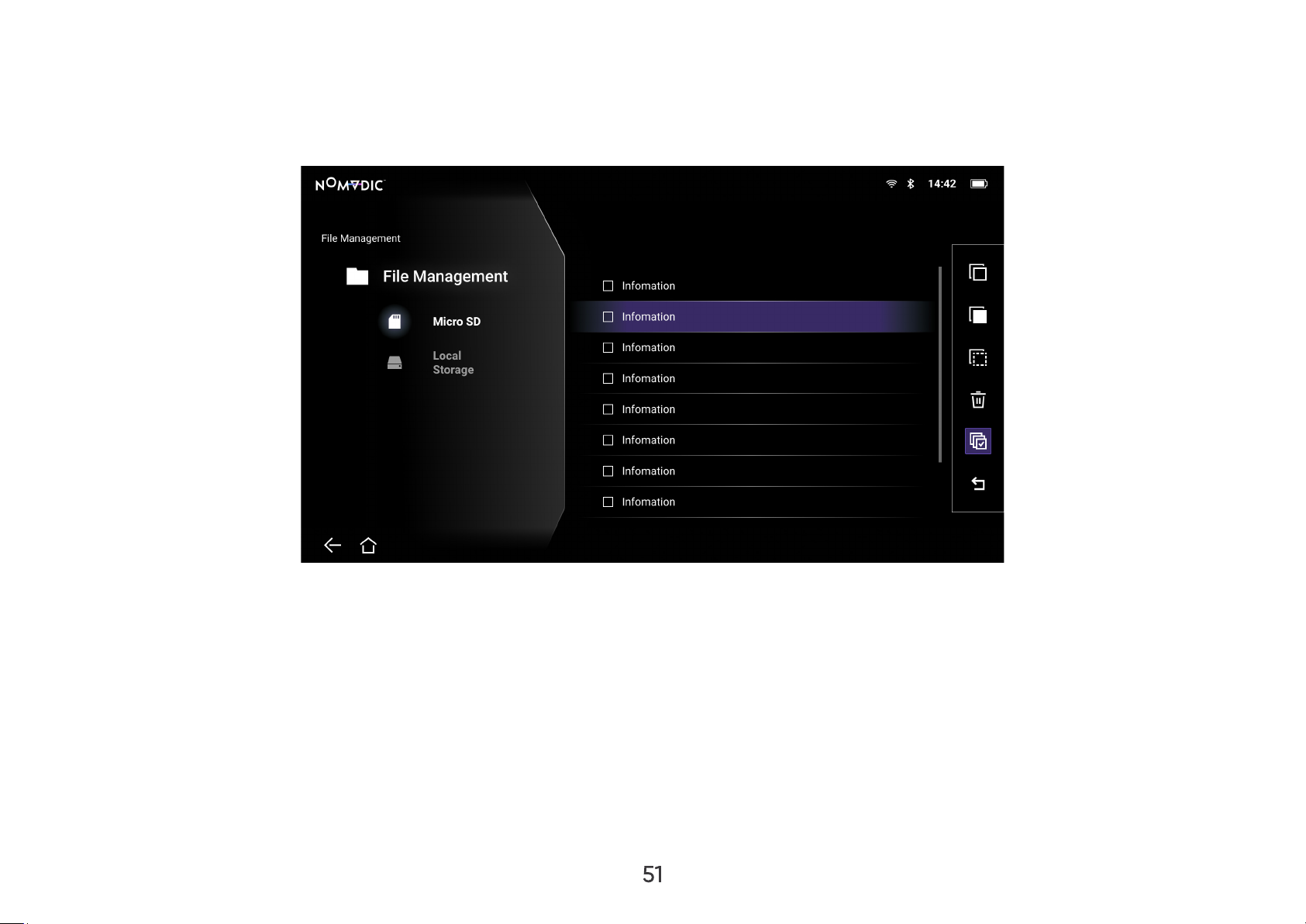

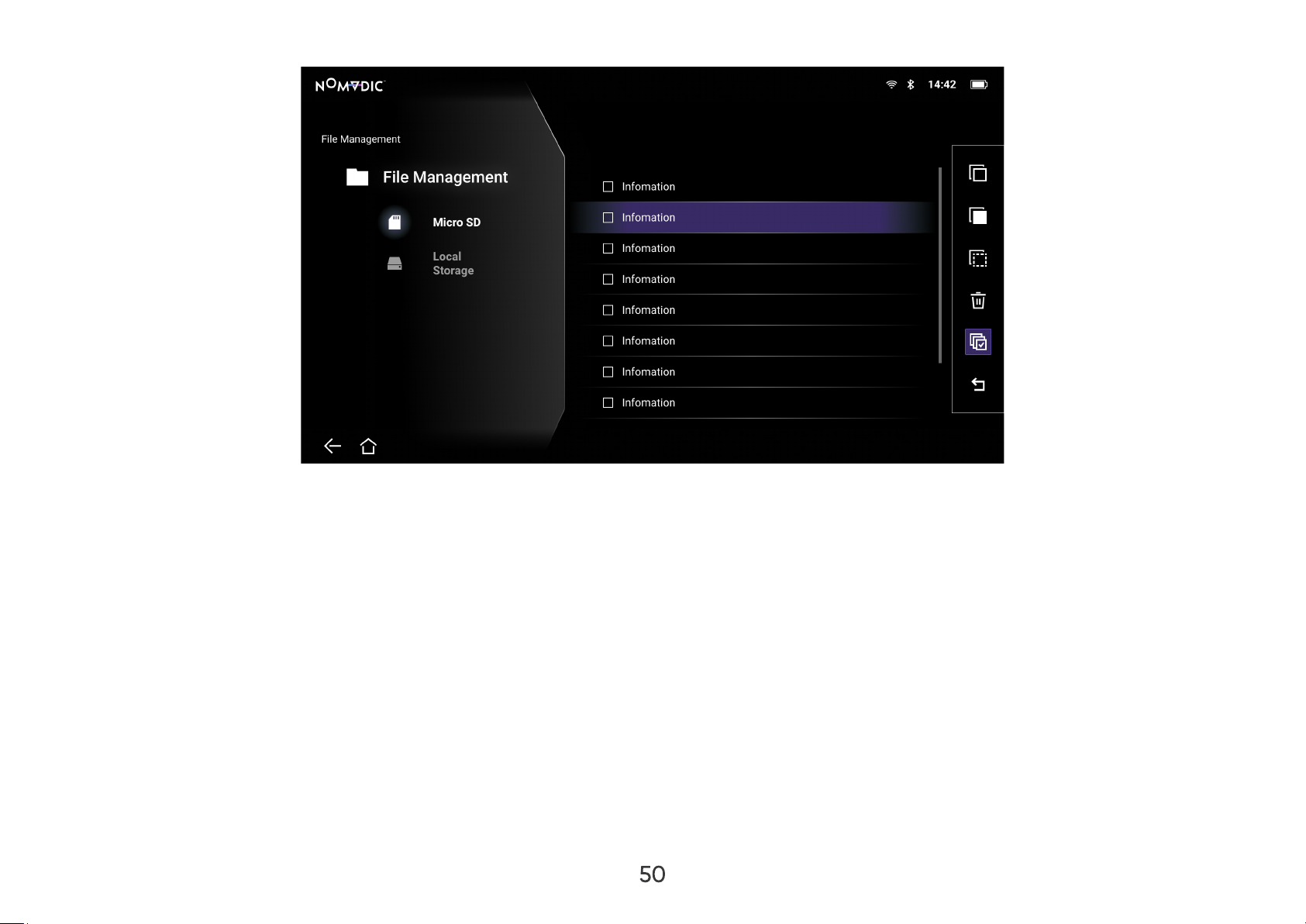

File Management ...............................................................................................................................................49

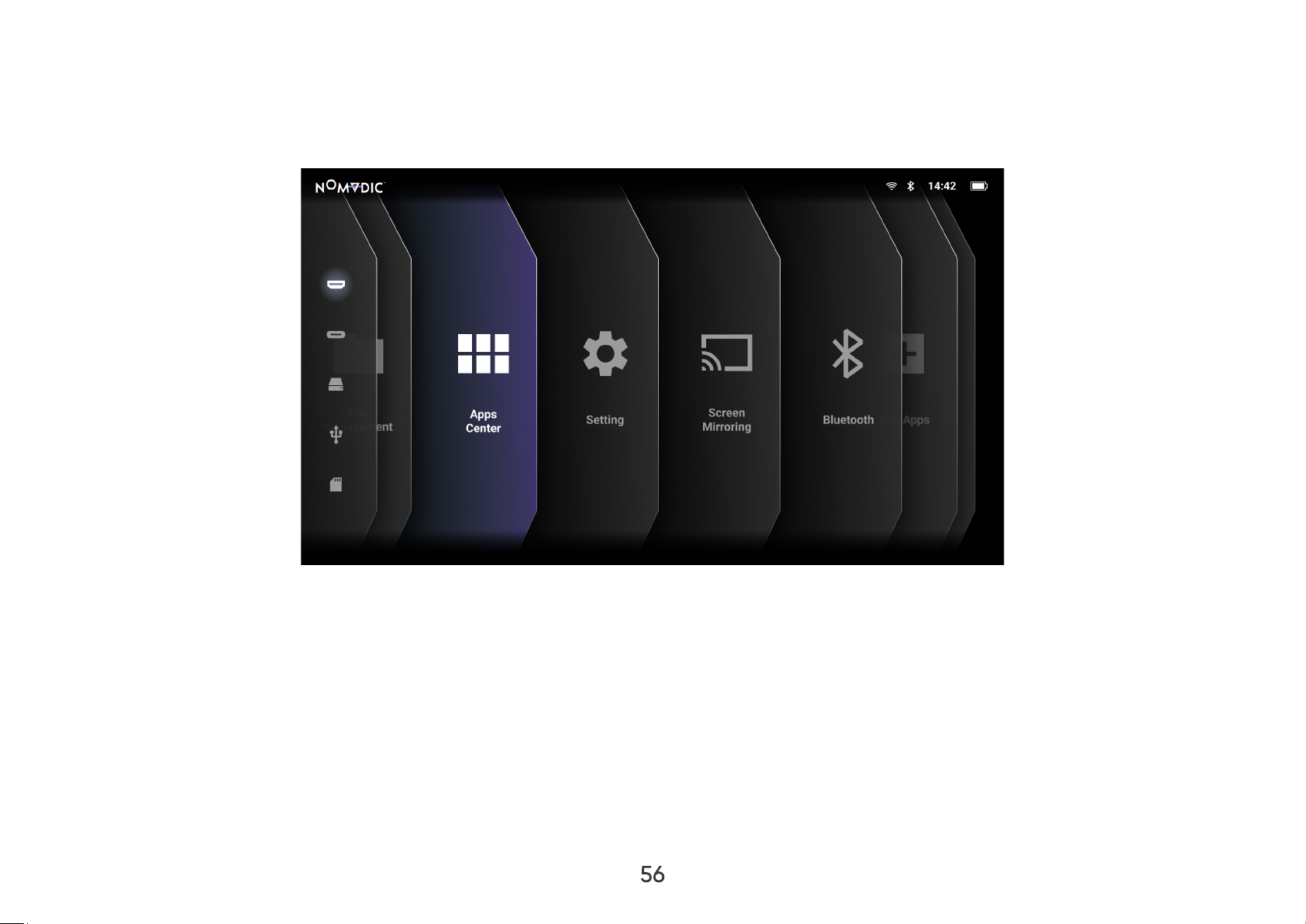

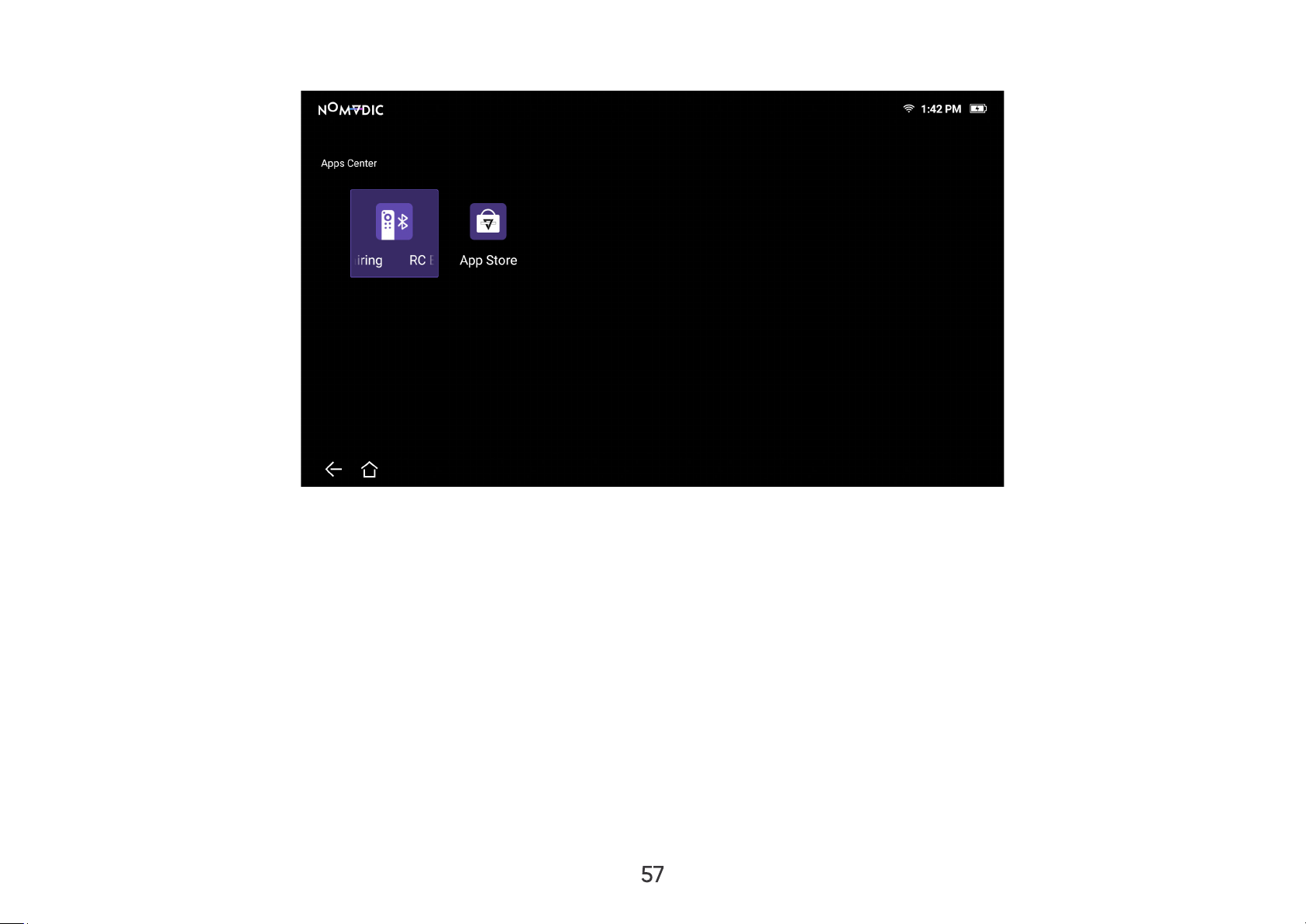

Apps Center .........................................................................................................................................................56

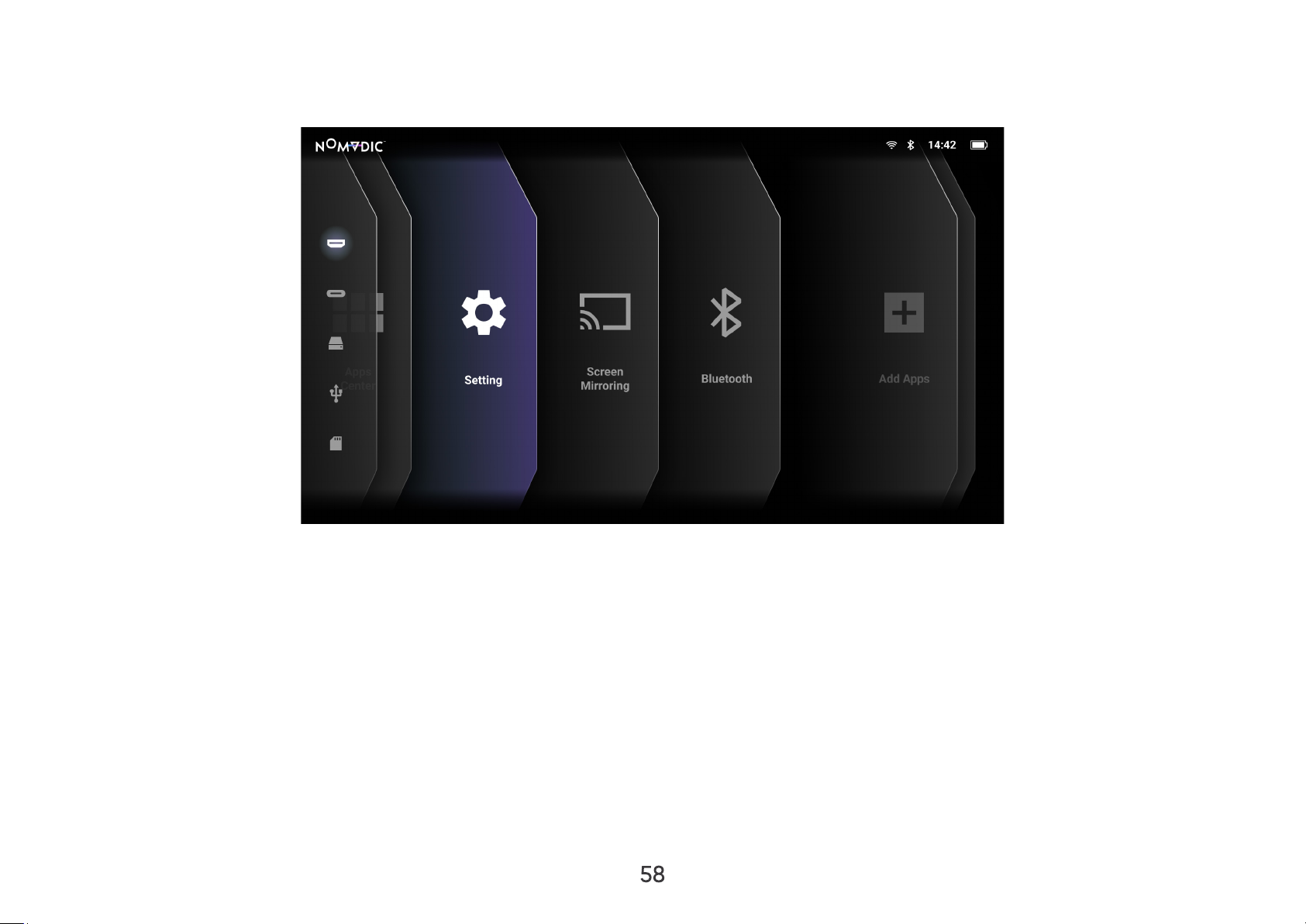

Setting ...................................................................................................................................................................58

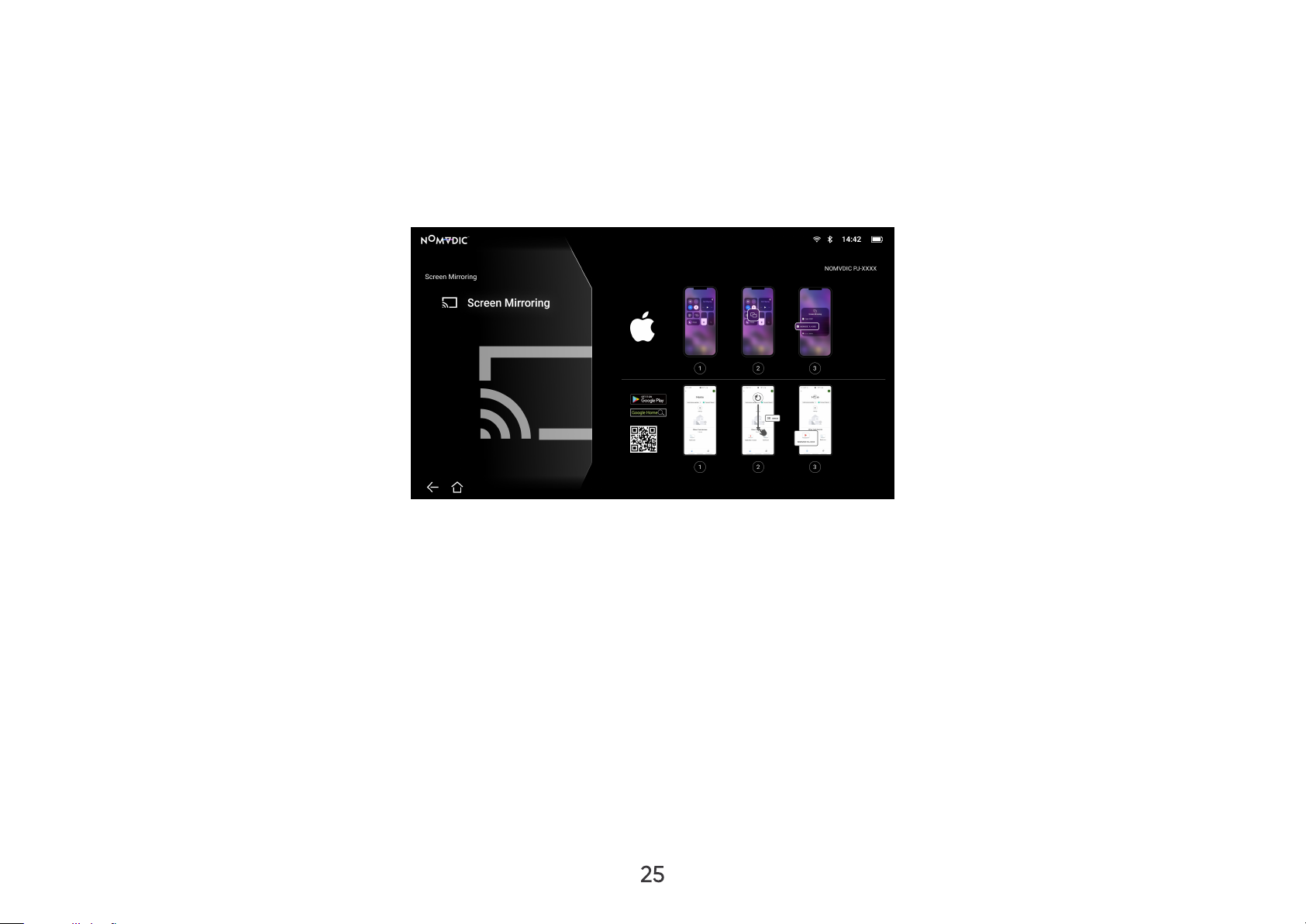

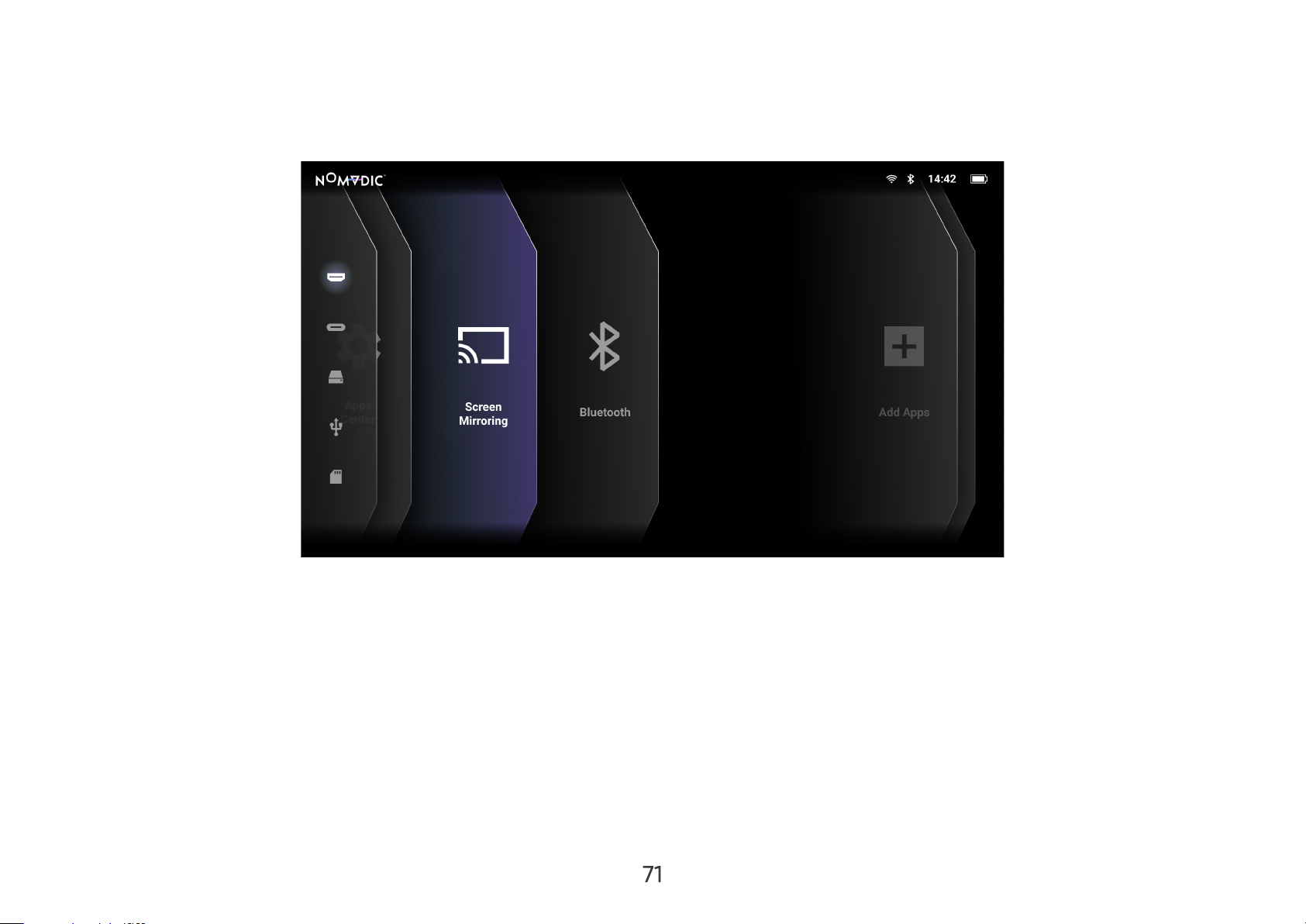

Screen Mirroring ...................................................................................................................................................71

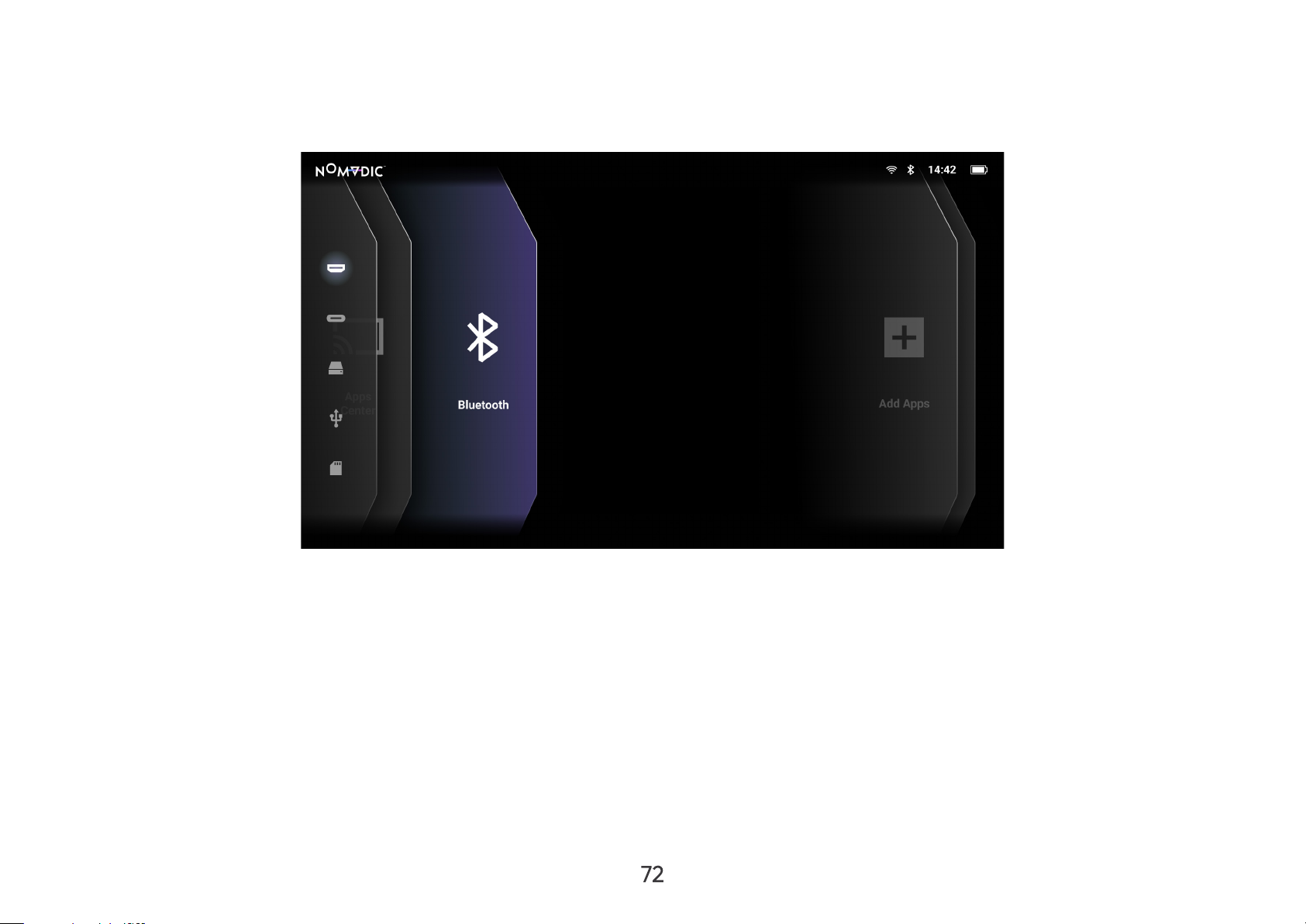

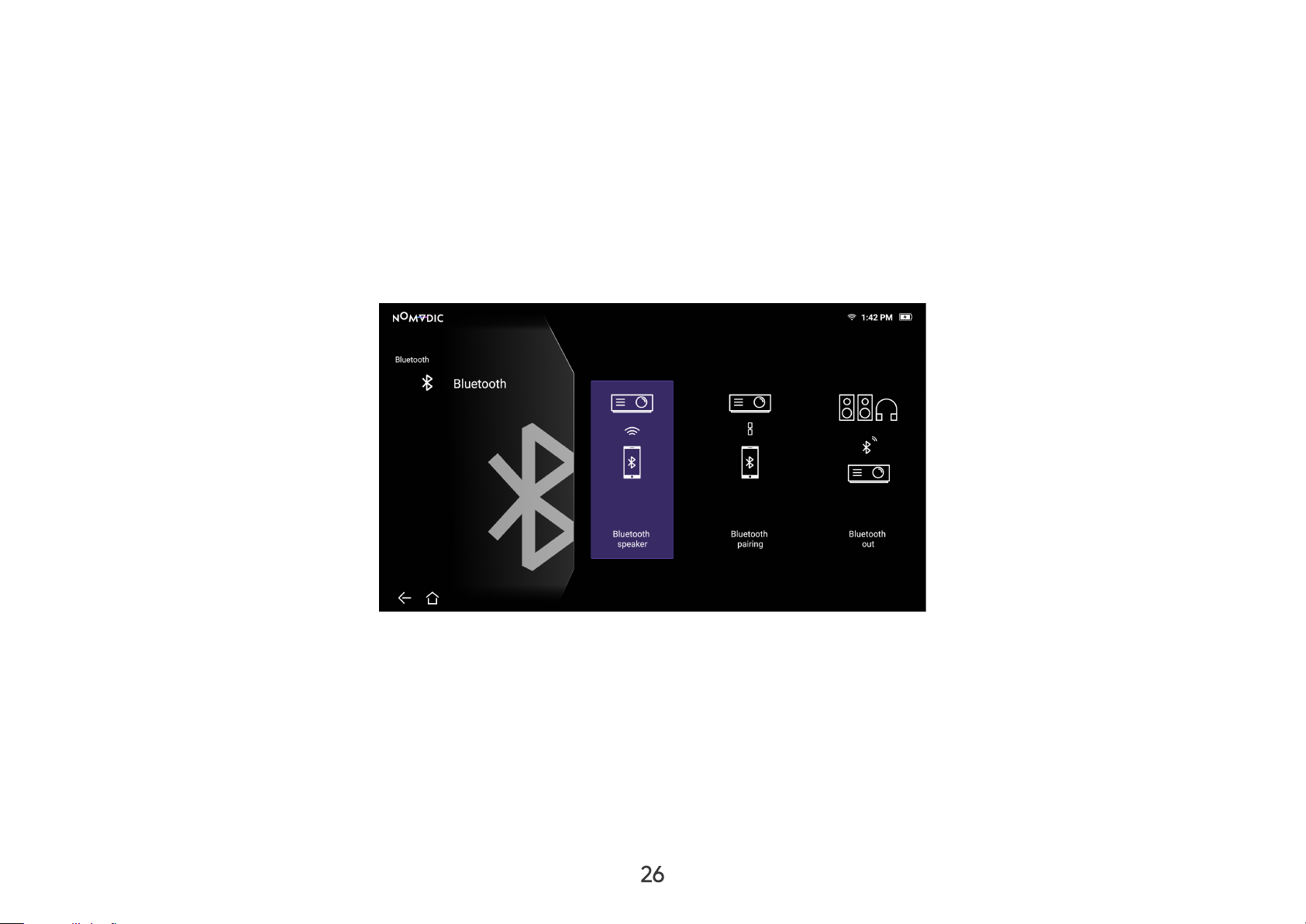

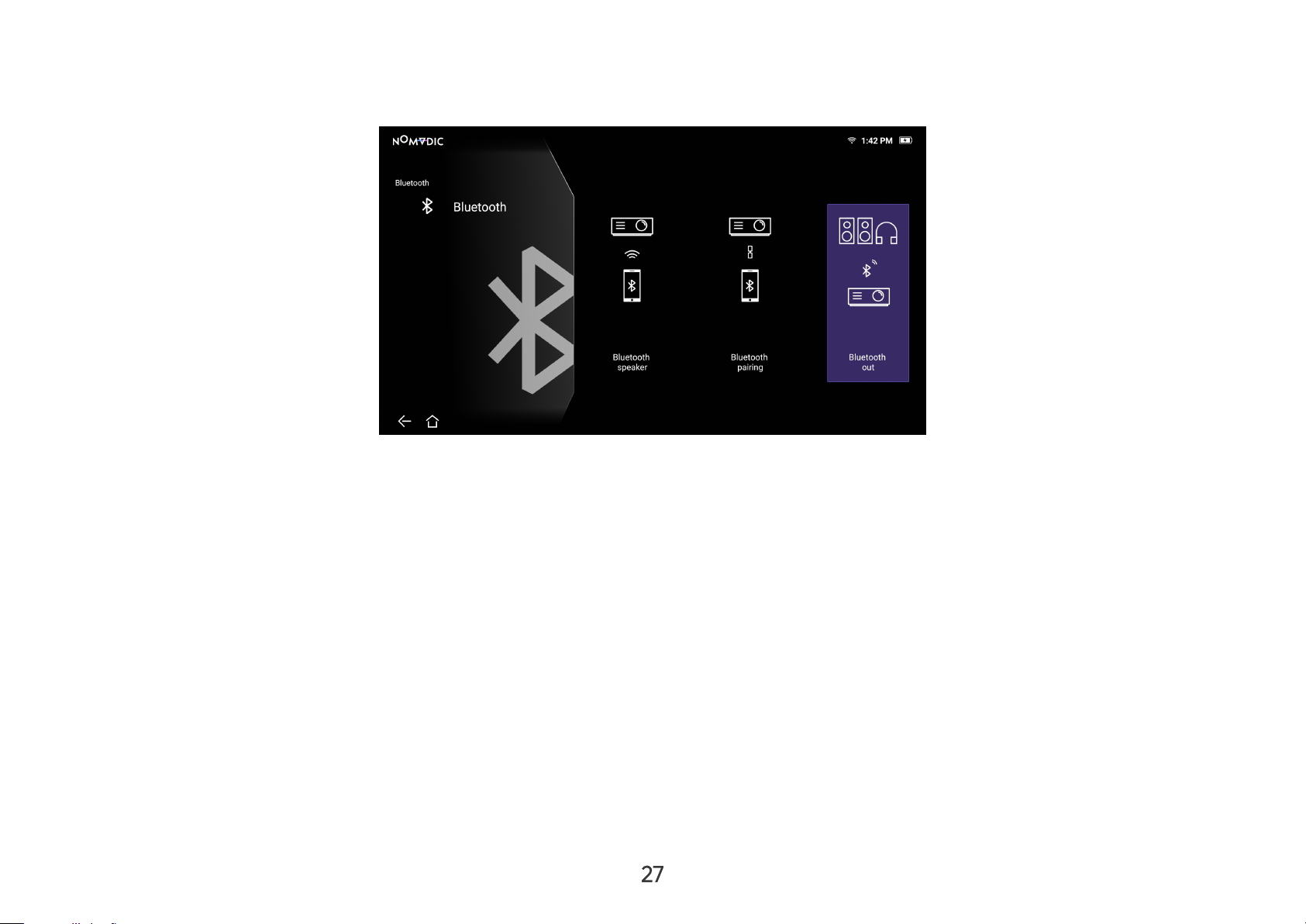

Bluetooth .............................................................................................................................................................. 72

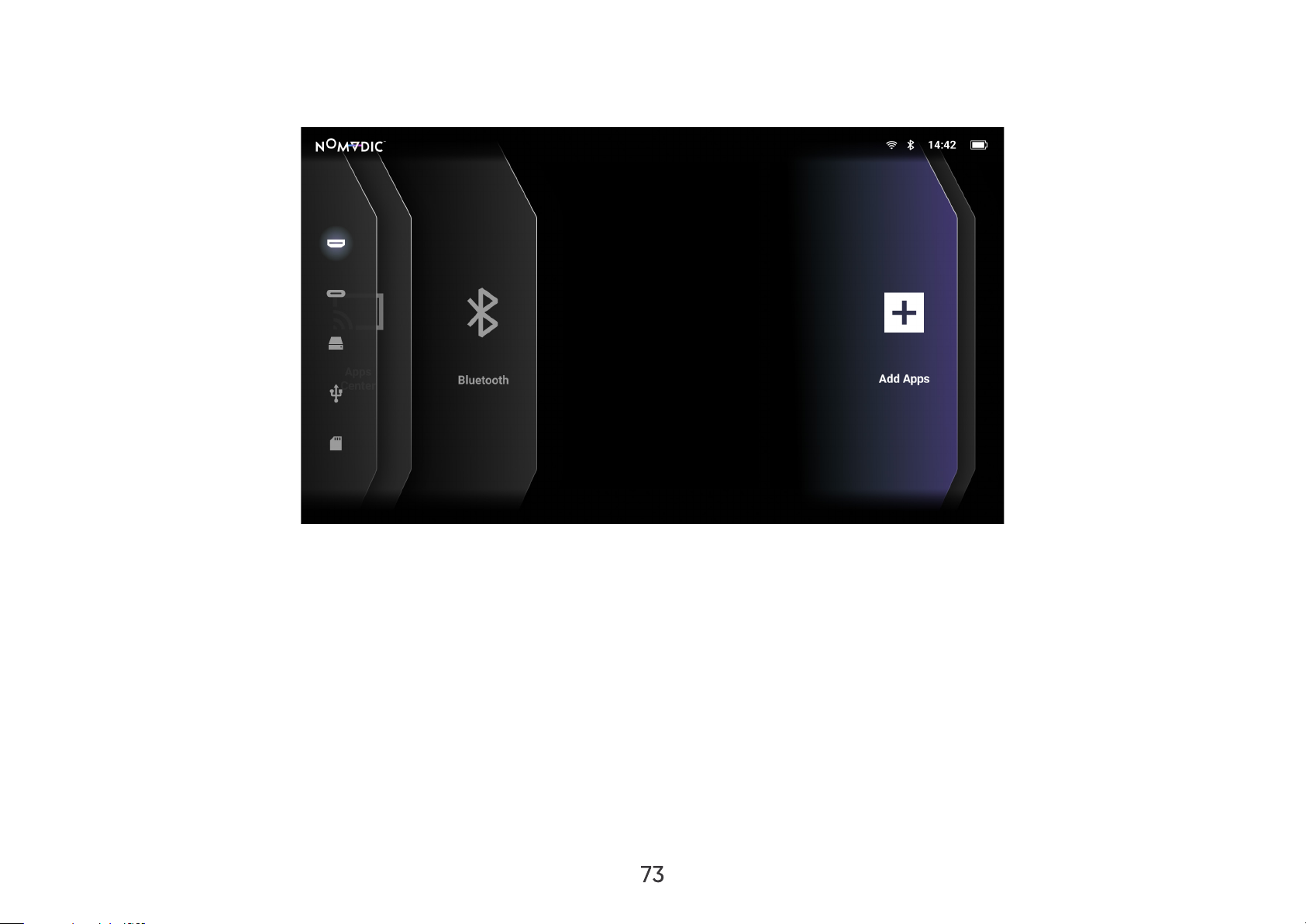

Add App ................................................................................................................................................................ 73
Input Source Selected - On-Screen Display (OSD) Menu Tree ......................................74

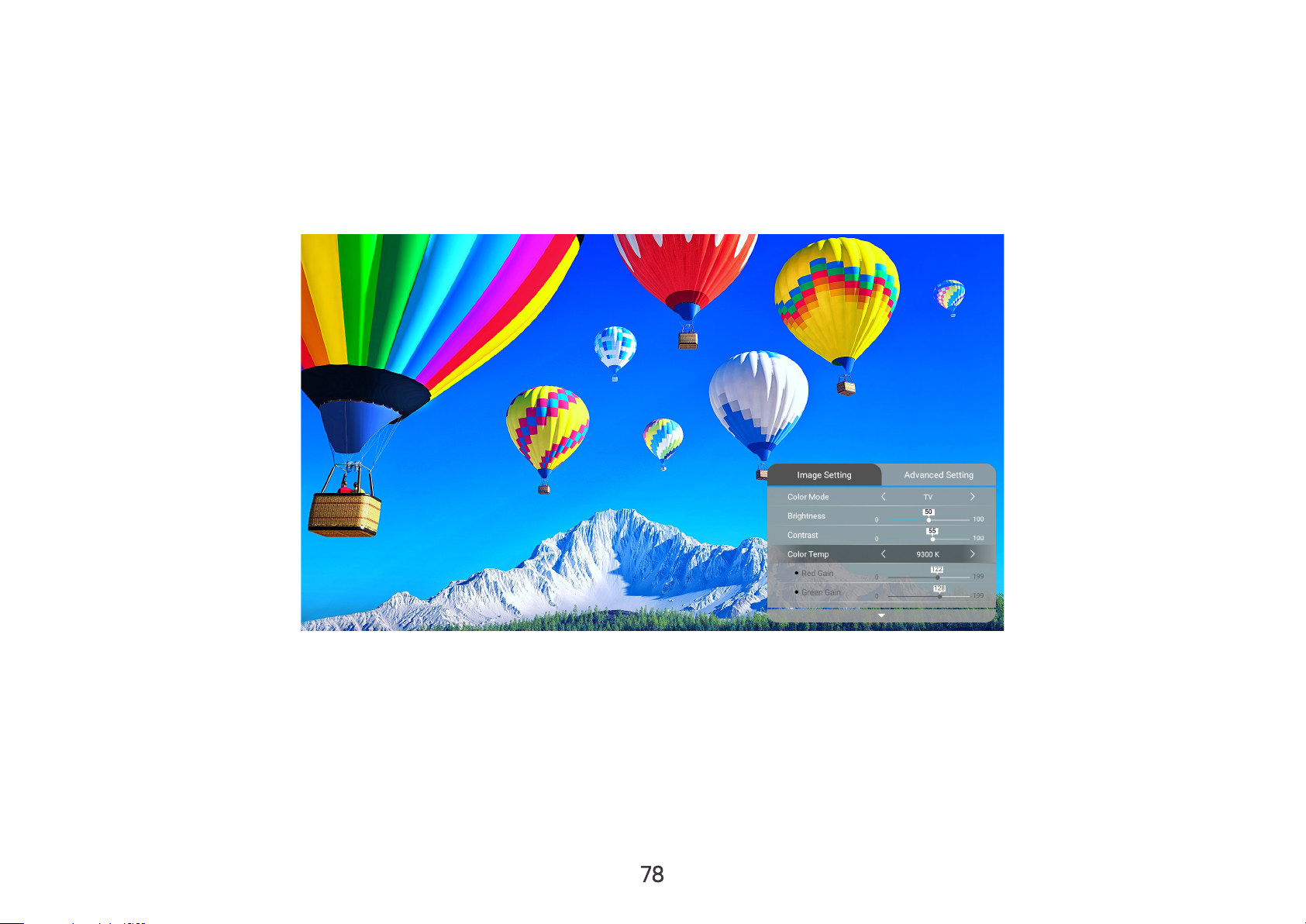

Image Setting Menu .........................................................................................................................................78

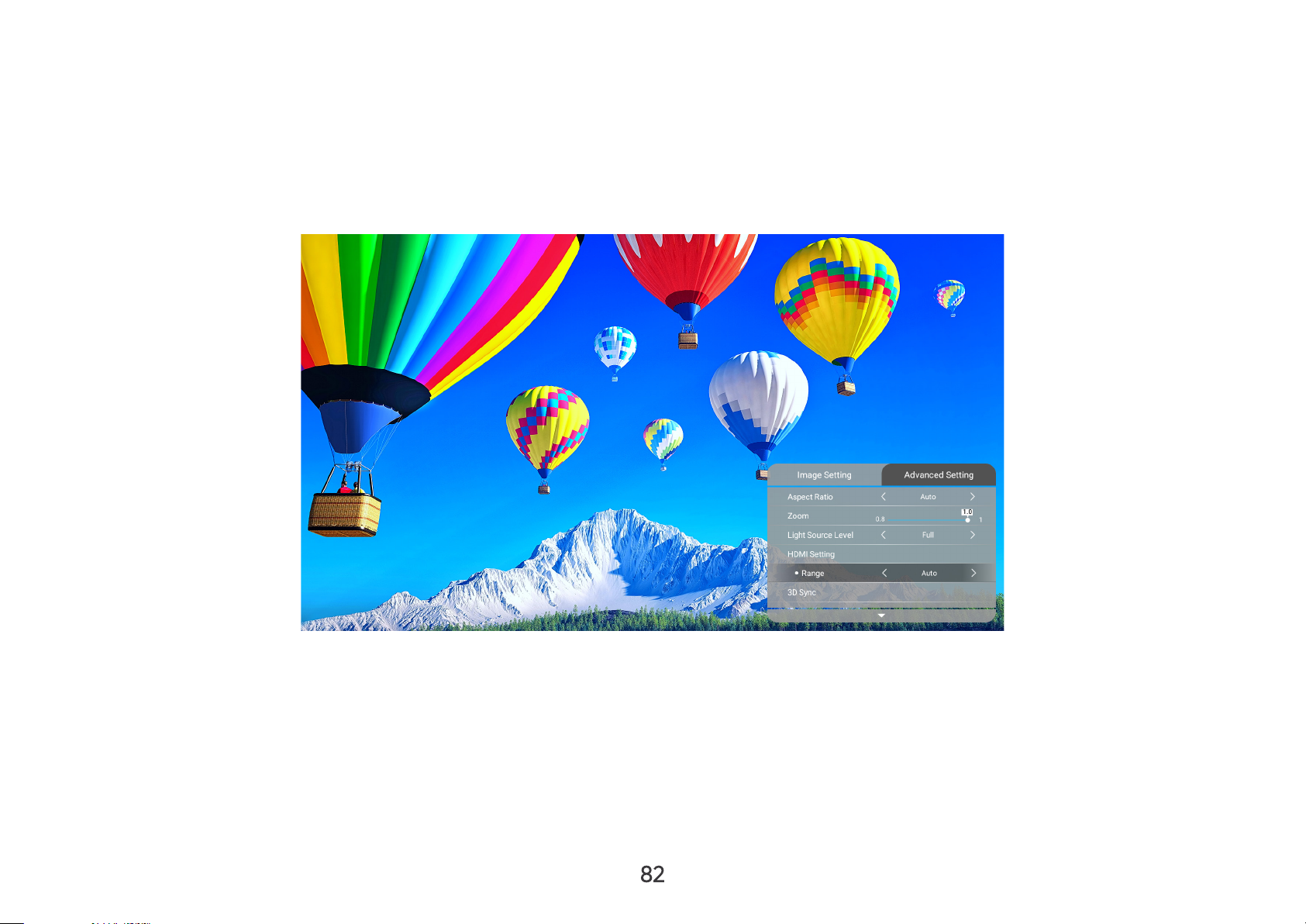

Advanced Setting Menu ..................................................................................................................................82
Page 8
Appendix ...................................................................................................... 86
Specifications ...................................................................................................................................86
Timing Chart .....................................................................................................................................88
HDMI Video Timing ............................................................................................................................................88
HDMI PC ................................................................................................................................................................89
USB C Timing ........................................................................................................................................................91
Troubleshooting ..............................................................................................................................92
LED Indicators ..................................................................................................................................93
Maintenance .....................................................................................................................................94
General Precautions .........................................................................................................................................94
Cleaning the Lens ..............................................................................................................................................94
Storing the Projector ........................................................................................................................................94
Page 9
Regulatory and Service Information ....................................................... 95
Compliance Information ............................................................................................................... 95
FCC Compliance Statement .........................................................................................................................95
CE Conformity for European Countries ...................................................................................................... 97
Declaration of RoHS2 Compliance ..............................................................................................................98
Indian Restriction of Hazardous Substances ...........................................................................................99
Copyright Information ................................................................................................................ 100
Customer Service ..............................................................................................................................................101
Limited Warranty .............................................................................................................................................102
Page 10
Introduction
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
Package Contents
X300
Remote Control
Batteries
Remote Control Audio Cable USB C Cable Power Adapter
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
Register now for a one-year warranty
on your NOMVDIC™!
ࠕ【々ౌ【あ〟居宑宒宐宙宇完宆寭〥孴೧ؔ
〥ฯৄ、〇ぃ〵【屆
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity can be found at the following
website: http://www.nomvdic.io/
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament
and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC).
Power Cord Quick Start Guide Warranty Card Compliance Card Speaker Spike Shoes Speaker Spikes
NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact
customer service for more information.
10
Page 11
Product Overview
1
5
678
9
234
Projector
10
5
678
1
234
9
11
1111
Page 12
Item Description
Play and pause the content in the media
player
1 Play/Pause & Volume Button
2 Vertical Keystone Vertical keystone adjustment
3 Horizontal Keystone Horizontal keystone adjustment
4 Focus Adjustment Slider Adjusts the focus
5 Battery Indicator Indicates remaining battery power
6 Bluetooth
7 AUX Auxiliary source selection
8 Speaker Mute Mute the speaker
9 Mirror/Adjust the Projection Angle Covers the lens and projection mirror
10 Handle Leather handle
NOTE: Does not support content control
(e.g., smartphone) in Bluetooth
speaker mode.
Activate Bluetooth Speaker Mode1 (press for 1
second), or Bluetooth Pairing Mode (press for 3
seconds).
11 Harman Kardon Speakers Harman Kardon speakers
¹ To connect the X300 with a paired smart device, select “X300” from the smart device’s Bluetooth sengs to connect again each me.
12
Page 13
Connection Ports
AUX
1 2 3
4 5 6 7 8 9
2
Port Description
1 Power Toggle Power On/O
2 Micro SD Micro SD socket (SDXC up to 256 GB - FAT32/NTFS)
3 Audio In or AUX (3.5 mm jack) 3.5 mm jack audio input socket
4 Audio Out (3.5 mm jack) 3.5 mm jack audio output socket
5 USB A (5V/2A Out) USB 2.0 Type A port (USB Reader - FAT32/NTFS)
6 IR Sensor IR sensor
7 HDMI HDMI port
8 USB-C USB-C port
9 DC In Power input socket
¹ Supports HDMI 1.4, HDCP 1.4.
² iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.
³ Please use the supplied USB-C cable, and ensure your USB-C device can support video transmission as well as charging.
13
Page 14
Remote Control
Button Description
1 Power
2 Focus
3 Settings Display the Settings menu.
OK/Up/Down/Left/
4
Right
5 Return Return to the previous screen.
6 Home Access the Home screen.
7 Increase Increase the volume.
8 Play/Pause
9 Decrease Decrease the volume.
Turn on Bluetooth Speaker Mode, turn the Light Source O, or Restart
the Projector.
To manually adjust, press the Focus button on the remote control and
use the Left and Right arrows.
Confirm the selection.
Navigate and select the desired menu items and make adjustments.
Play/Pause content.
NOTE: Only supports built-in media player.
1
2
3
4
5
7
9
6
8
10
10 Mute Mute/Unmute.
NOTE: You can also control the X300 with the NOMVDIC Remote Control App. To learn more, see page 30.
14
Page 15
Remote Control - Eective Range
To ensure proper function of the remote control follow the steps below:
1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
Remote Control - Replacing the Batteries
1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
2. Remove any existing batteries (if necessary) and install two AAA batteries.
3. Observe the battery’s polarities as indicated.
4. Replace the battery cover by aligning it with the base and pushing it back into position.
NOTE:
• Avoid leaving the remote control and batteries in excessive heat or a humid environment.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• If the batteries are drained or if you will not be using the remote control for an extended period of time, remove the batteries to
avoid damage to the remote control.
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
• Avoid high or low extreme temperatures that a battery can be subjected to during use, storage or transportation; and low air
pressure at high altitude.
• Dispose of the used batteries according to the manufacturer’s instructions and local environment regulations for your region.
15
Page 16
Initial Setup
Choosing a Location - Projection Orientation
Personal preference and room layout will decide the installation location. Consider the following:
• Size and position of your screen.
• Location of a suitable power outlet.
• Location and distance between the projector and other equipment.
The projector is designed to be installed in one of the following locations:
Front Table
The projector is placed near the floor
in front of the screen.
Front Ceiling
The projector is suspended upsidedown from the ceiling in front of the
screen.
Rear Table
The projector is placed near the floor
behind the screen.
Rear Ceiling
The projector is suspended upsidedown from the ceiling behind the
screen.
Location
NOTE: The Mirror can be
opened 90 degrees
to project onto the
ceiling. Select Front
Ceiling or Rear Table
when doing so.
¹ A rear projection screen is required.
16
Page 17
Projection Dimensions
• 16:9 Image on a 16:9 Screen
NOTE: (e) = Screen / (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size (b) Projection Distance (c) Image Height Image Width
in. mm in. mm in. mm in. mm
40 1016 38.78 984.97 19.61 498.11 0.05 1.27
50 1270 49.3 9 1254.46 24.51 622.63 0.05 1.27
(a)
(e)
(f)
(c)
(b)
60 1524 60 1523.95 29.42 747.16 0.05 1.27
70 1778 70.61 1793.44 34.32 871.68 0.05 1.27
80 2032 81.22 2062.93 39.22 996.21 0.05 1.27
90 2286 91.83 2332.42 44.12 1120.74 0.05 1.27
100 2540 102.44 2601.91 49.03 1245.26 0.05 1.27
110 2794 113.05 2871.41 53.93 1369.79 0.05 1.27
NOTE: There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically
test the projection size and distance before permanently installing the projector.
17
Page 18
Making Connections
Connecting to Power
DC Power (Power Outlet)
1. Connect the power cord to the power adapter.
2. Connect the power adapter to the DC IN jack at the rear of the projector.
3. Connect the power cord plug to a power outlet.
AUX
3
1
NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the
power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use
the disconnect device to switch o the power supply, or disconnect the power plug.
2
18
Page 19
CAUTION:
• Use only the bundled power adapter to charge the battery and supply power to your projector.
• Ensure that your projector is connected to the power adapter before turning it on for the first time. We strongly recommend that you
use a grounded wall socket while using your projector with the power adapter.
• The socket outlet must be easily accessible and near your projector.
• To disconnect your projector from its main power supply, unplug your projector from the power socket.
19
Page 20
USB-C Power Bank
1. Connect one end of the USB Type-C cable to the USB-C port of the projector.
2. Connect the other end of the USB Type-C cable to the power bank.
AUX
5V/2A
1
2
15V/3A
NOTE: The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output.
20
Page 21
Using the Battery
The battery level icon will show at the top right of the Home Screen. As the battery’s power level runs low, the screen will show
a “low battery message”.
Battery Usage Time Information
Charging About 3.5 hours
up to 3 hours (Battery Saving)/up to 2.5 hours (Eco) /up to 2
Usage Hours
NOTE: If only playing music, usage hours will be 6 hours.
hours (Full)
Battery Level Indicator (Charging)
During Charging: Flashing White LED light
Full Charge: Solid White LED light
CAUTION:
Read the following precautions for your projector’s battery:
• The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
• Follow the warning labels for your personal safety.
• Risk of explosion if battery is replaced by an incorrect type.
• Do not dispose of in fire.
• Never attempt to short-circuit your projector’s battery.
• Never attempt to dissemble and reassemble the battery.
• Discontinue usage if leakage is found.
• The battery and its components must be recycled or disposed of properly.
• Keep the battery and other small components away from children.
21
Page 22
Connecting to External Devices
HDMI Connection
Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the
HDMI port (it supports HDMI 1.4, HDCP 1.4) of your projector.
AUX
5V/2A
AUX
5V/2A
NOTE: iPhone/iPad users will need to use an additional adapter.
22
Page 23
USB Connection
USB-C Connection
Connect one end of a USB Type-C cable to the USB-C port of your device. Then connect the other end of the cable to the
USB-C port of your projector.
AUX
5V/2A
AUX
5V/2A
15V/3A
NOTE:
• Ensure your USB Type-C device can support video transmission.
• The X300 can also use a USB-C connected power bank to turn on the system. However, the Light Source Level will be limited to
Eco and Battery Saving. After powering on the system, the remaining power will charge the X300’s internal battery.
23
Page 24
USB Type A Connection
Connect one end of a USB Type A cable to the USB Type A port of your device (if applicable). Then connect the other end of
the cable to the USB A port of your projector.
Additionally, you can connect a keyboard, a mouse, dongles, storage devices, etc. to the projector’s USB A port.
AUX
5V/2A
AUX
5V/2A
24
Page 25
Wireless Screen Mirroring
Screen Mirroring provides a 5GHz Wi-Fi connection for users to mirror the screen on their personal device.
NOTE:
• Ensure your device is connected to the same network as the projector.
• It is recommended to use a 5GHz Wi-Fi network for best results.
For iOS:
1. Access the drop down control menu.
2. Select the “Screen Mirroring” icon.
3. Choose “NOMVDIC XXXX”.
For Android:
1. Download and install the “Google Home” application and open it.
2. Pull-to-refresh the app and wait for 30 seconds.
3. “NOMVDIC XXXX” will now be visible, select it.
NOTE: Some Android devices support direct “Casting”. If your device does, go to the Casting feature and choose
“NOMVDIC” from the list of available devices. If you do not have the “Google Home” application you can also scan
the QR code and follow the steps to directly cast your Android device.
25
Page 26
Connecting to Audio
Bluetooth Speaker
The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.
To connect and pair your device:
1. Go to: Home > Bluetooth.
2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then
press OK on the remote control.
3. A sound eect will be audible upon entering pairing mode.
4. Upon successful connection, another sound eect will be audible.
NOTE:
• Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.
• The projector’s name will be labeled as “NOMVDIC X300”.
• To connect the X300 with a paired smart device, select “X300” from the smart device’s Bluetooth settings to connect again each
time.
26
Page 27
Bluetooth Out
Connect the projector to external headphones or speakers that support Bluetooth.
To connect and pair your device:
1. Go to: Home > Bluetooth.
2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option. Then press OK on the
remote control.
3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.
NOTE: Bluetooth Out cannot work with Bluetooth Speaker or Bluetooth Pairing at the same time.
27
Page 28
Connecting to Networks
Wi-Fi Connection
To connect to a Wi-Fi network:
1. Go to: Home > Setting > Network Settings > Wi-Fi.
2. Press Left or Right on the remote control to select Enable.
Settings/
SSID
Name
3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks and press OK on the
remote control.
4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.
28
Page 29
Custom SSID
To connect to a Wi-Fi network:
1. Go to: Home > Setting > Network Settings > Wi-Fi.
2. Press Left or Right on the remote control to select Enable.
3. From the available Wi-Fi networks list select Others and press OK on the remote control.
4. Enter the SSID and select the security level.
5. Enter the password when prompted.
NOTE: It is recommended to let the system configure the network settings automatically by choosing Automatic for
Configure IP.
29
Page 30
NOMVDIC Remote Control App
In addition to the remote control supplied with the X300, the NOMVDIC Remote Control App can be downloaded to a
smartphone and be used to control the X300.
For iOS:
1. Go to the App Store.
2. Search for, select, and download the “NOMVDIC Remote Control” App.
3. Install the App.
4. Connect your smartphone and the X300 to the same Wi-Fi network.
For Android:
1. Go to the Google Play Store.
2. Search for, select, and download the “NOMVDIC Remote Control” App.
3. Install the App.
4. Connect your smartphone and the X300 to the same Wi-Fi network.
30
Page 31
Using the Projector
Starting Up the Projector
1. Ensure the projector’s power cord is properly connected to a power outlet and the Lens Cover is open.
2. After plugging in the DC Power Adapter, switch the Power Toggle to the On position.
NOTE: The Status LED will be blinking green during startup, and solid green after the startup process.
1 2
31
Page 32
First Time Activation
If the projector is activated for the first time, you will need to adjust the focus and setup: Projection Orientation, Preferred
Language, Network Settings, and Bluetooth Pairing. Follow the on-screen instructions using the remote control. When the
“Finish screen” appears, this indicates the projector is ready to use.
Manual Focus
Use the Remote Control or the Focus Adjustment Slider to manually focus the image.
32
Page 33
Preferred Language
Select the desired language and press OK on the remote control to confirm the selection.
33
Page 34
Network Settings
Select one of the available Wi-Fi network options. For more information, see page 28.
NOTE: You can also control the X300 with the NOMVDIC Remote Control App. To learn more see page 30.
34
Page 35
Bluetooth Pairing
Pair the Bluetooth remote. For more information, see page 26.
35
Page 36
Selecting an Input Source
The projector can be connected to multiple devices at the same time. However, it can only display one source at a time.
AUX
5V/2A
AUX
5V/2A
36
Page 37
The projector will automatically search for input sources. If multiple sources are connected, press the Left button on the
remote control until the source input tab is selected and then choose the input source.
NOTE: Ensure the connected sources are also turned on.
37
Page 38
Adjusting the Projected Image
Adjusting the Projector’s Height and Projection Angle
Adjust the Lens Cover to an angle that best fits your usage scenario. Typically 45°~55° and 90° oer the best result.
45°~55°
or 90°
The projector feet can also be changed to adjust the height of the projector.
NOTE: The cone-shaped feet help the speaker get better and cleaner sounds by reducing any unwanted movements. We
suggest using the cone-shaped feet if the X300 is placed indoors and not carried around. The cone-shaped feet
are used to prevent possible damage to the surface where the speaker stands.
x3
AUX
x3
38
Page 39
Fine-Tuning the Image Clarity
If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the
projected image can become trapezoidal. However, the “Keystone Adjustment” function can correct the issue.
You can improve the clarity of the image by pressing the Focus button on the remote control, then using the Left and Right
buttons to adjust. Additionally, you can use the Focus Adjustment Slider to clarify the image.
39
Page 40
Shutting Down the Projector
Switch the Power Toggle to O to power o the projector.
NOTE: Pressing Power on the remote control, you can choose from three options: Bluetooth Speaker, Turn Light Source O,
and Restart.
40
Page 41
Operating the Projector
Home Screen
The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional
buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the
remote control, regardless of what page you are on.
41
Page 42
Menu Description
File Management
Apps Center
Setting
Screen Mirroring
Bluetooth
Add App
Provides a user interface to manage files and folders.
Access and view all the applications you have installed.
Manage various categories such as: Network settings, Date
& Time, Basic and Advanced settings, Firmware update, and
System Information.
Mirror your personal device’s screen through the projector.
Select the appropriate Bluetooth mode.
Select your favorite Apps and add them to the Home
Screen1.
Up to four (4) Apps can be added to the Home Screen.
42
Page 43
Home Screen - On-Screen Display (OSD) Menu Tree
Main Menu Sub-menu Menu Option
File Management
Apps Center
Enable/Disable
SSID
Configure IP
Setting
Network Settings Wi-Fi
Automatic Date & Time
Date
Date & Time
Time
Time Zone
Time Format
IP Address
Subnet Mask
Default Gateway
DNS Server
Disable
Enable
12 hours
24 hours
43
Page 44
Main Menu Sub-menu Menu Option
English
French
German
Italian
Spanish
Russian
繁體中文
簡體中文
日本語
韓語
Setting
Basic Settings Language
Swedish
Dutch
Turkish
Czech
Portuguese
Thai
Polish
Finnish
Arabic
Indonesian
Hindi
44
Page 45
Main Menu Sub-menu Menu Option
Vietnam
Language
Greek
Front Table
Front Ceiling
Projector Projection
Rear Table
Rear Ceiling
Setting
Basic Settings
Advanced Settings
V Keystone (-/+, -40~40)
H Keystone (-/+, -40~40)
Keystone
4 Corner
4 Corner Adjustment
Zoom 0.8x~1.0x
Focus Manual Focus
Disable
Power On Source
Power On/O Ring Tone
HDMI
USB C
Disable
Enable
Disable
Enable
45
Page 46
Main Menu Sub-menu Menu Option
Auto Power O
Smart Energy
Sleep Timer
Disable
10 minutes
20 minutes
30 minutes
Disable
30 minutes
1 hour
2 hours
3 hours
4 hours
Setting
Advanced Settings
Power Saving
Harman Kardon Audio Mode
46
8 hours
12 hours
Disable
Enable
Movie
Music
User
100Hz
500Hz
1500Hz
5000Hz
10000Hz
Page 47
Main Menu Sub-menu Menu Option
Audio Volume (-/+, 0~50)
Setting
Advanced Settings
Firmware Upgrade
harman/kardon
Light Source Level
High Altitude Mode
Reset Settings
Reset to Factory Default
Software Upgrade
Disable
Mute
Enable
Full
Eco
Battery Saving
Disable
Enable
Reset
Cancel
Reset
Cancel
Software Update Online
Software Update by
USB
Enable
OTA Reminder
Disable
Version Software Version
47
Page 48
Main Menu Sub-menu Menu Option
Light Source Hours
System Version
Setting
Screen Mirroring
Add App
Information
Memory Information
Wi-Fi Mac Address
Serial Number
xx GB (Free)/xx GB
(Total)
48
Page 49
Menu Operations
File Management
Easily manage files and folders.
1. Go to: Home > File Management.
2. Select a device on the source list: USB, Local Storage, microSD, etc. Use the directional buttons to select the desired file.
Then press OK on the remote control to open the selected file.
49
Page 50
3. Press the Return button to go to a previous a level.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
50
Page 51
How to Edit a File
1. While in File Management, press and hold the OK button for three (3) seconds.
2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
51
Page 52
3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
4. Select your desired action and press OK to execute.
5. If you are Copying or Cutting, select your destination folder to complete the process.
52
Page 53
How to Use Control Bar Buttons
The control bar buttons will appear on screen if a video, music, or photo file is opened.
Audio Picture Video
Previous Previous Previous
Play Play Rewind
Pause Pause Play
Next Next Pause
Shue Rotate (Left) Fast Forward
Repeat All Rotate (Right) Next
Repeat Once Information Shue
Playlist Repeat All
Information Repeat Once
Playlist
Information
53
Page 54
Tips for Using USB
When using USB for reading and/or storage please keep in mind the following:
1. Some USB storage devices may not be compatible.
2. If you use an USB extension cable, the USB device may not recognize the USB.
3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
4. Larger files will need extra time to load.
5. Data on USB storage devices may be damaged or lost. Back up important files.
Supported File Formats
Supported Oce formats:
Item Description
doc/docx Able to open and read documents in doc/docx.
Document Viewing Function
Supporting Interface
Language
xls/xlsx Able to open and read documents in xls/xlsx.
ppt/pptx Able to open and read documents in ppt/pptx.
PDF Able to open and read documents in PDF.
Supporting 44 Interface Languages
54
English, Simplified Chinese, Chinese (TW),
Chinese (HK), Spanish (LA), French (EU), PT (EU),
PT (BR), German, Russian, Italian, Swedish,
Spanish (EU), Korean, Arabic, Farsi, Serbian,
Bosnian, Macedonian, Bulgarian, Ukrainian,
Greek, Norwegian, Danish, Czech, Hungarian,
Slovak, Polish, Romanian, Finnish, Estonian,
Latvian, Lithuanian, British English, Slovenian,
Croatian, Turkish, Vietnamese, Bahasa
Indonesia, Dutch, Malay, Thai, Hindi, Hebrew,
Burmese, Catalan.
Page 55
Supported Multimedia formats:
Extension Type Codec
.xvid
.avi
.mp4
.m4v
.mov
.mkv Video H.264
.ts
.trp
.tp
.mts
.m2ts
.vob
.mpg Video MPEG-1
Supported Multimedia formats:
Supported Size
Device
(Max. Size)
Video Xvid, H.264
Audio MP3
Video H.264/MPEG-4
Audio AAC
Video H.264, MPEG-2
Audio MP3/AAC
Video MPEG-1, MPEG-2
Audio DVD-LPCM
NTFS Support FAT32 Format exFAT
Read Write Read Write Read Write
USB Memory Stick 256 GB V N/A V V N/A N/A
USB HDD 2 TB V N/A V V N/A N/A
microSD 256 GB V N/A V V N/A N/A
NOTE:
• Windows 10 built-in format tool only supports FAT32 format up to 32 GB.
• Firmware upgrade only supports FAT32 format.
55
Page 56
Apps Center
View, launch, and uninstall Apps.
1. Go to: Home > Apps Center.
56
Page 57
2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
To Uninstall Apps
1. Open the Apps Center by selecting: Home > Apps Center.
2. Use the directional buttons to select the desired App.
3. Press and hold OK on the remote control for three (3) seconds.
4. Select OK to uninstall the App.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
57
Page 58
Setting
Under Setting you can adjust Network, Date & Time, Basic, and Advanced Settings, Firmware Update, and view Information.
58
Page 59
Network Settings
1. Go to: Home > Setting > Network Settings.
Settings/
2. View and adjust your Wi-Fi and network settings.
3. To setup a Wireless connection, see page 28.
SSID
Name
59
Page 60
Date & Time
1. Go to: Home > Setting > Date & Time.
Settings/Date & Time
Date & Time
Automatic Date & Time
Date
2022-3-15
Time
14:42
2. Use the Up and Down buttons to select the desired option and press OK, or use the Left and Right buttons to make
adjustments or selections.
60
Page 61
Menu Description
Users can synchronize the date and time automatically after connecting
to the Internet.
Automatic Date & Time
Time Zone
Time Format
Enable
Turn on synchronization.
Disable
Turn o synchronization.
Select your location.
Select the displayed time format.
12 hours
12-hour clock.
24 hours
24-hour clock.
61
Page 62
Basic Settings
1. Go to: Home > Setting > Basic Settings.
Settings/Basic Settings
V Keystone
H Keystone
-40
-40
0
0
40
40
2. Use the Up and Down buttons to select the desired option and press OK, or use the Left and Right buttons to make
adjustments or selections.
3. To return to a previous menu press the Return button.
Menu Description
Language
Projector Position
Select your desired language.
Select the preferred projection position.
62
Page 63
Menu Description
Adjust trapezoidal screen image distortion.
Horizontal Keystone
Keystone can be adjusted horizontally manually.
Vertical Keystone
Keystone can be adjusted vertically manually.
4 Corner Adjustment
Adjust each corner individually for maximum projection flexibility.
Keystone
Zoom
Focus
NOTE: If 4 Corner Adjustment is on, H/V Keystone will be disabled.
Adjust the level of zoom.
Adjust the focus of the screen image.
Manual Focus
Adjust the focus with the Left and Right buttons on the remote control.
63
Page 64
Advanced Settings
1. Go to: Home > Setting > Advanced Settings.
Settings/Advanced Settings
Power On Source
Disable
Power On/Off Ring Tone
Auto Power On
2. Use the Up and Down buttons to select the desired option and press OK, or use the Left and Right buttons to make
adjustments or selections.
3. To return to a previous menu press the Return button.
Menu Description
Power On Source
Power On/O Ring Tone
Allows the user to enter the desired source directly after turning on the
projector.
Enable or disable the power on/o ring tone.
64
Page 65
Menu Description
Auto Power O
The projector can turn o automatically after a set period of time once
no input source is detected.
Sleep Timer
Smart Energy
Harman Kardon
Turn o automatically after a set period of time.
Power Saving
Lower power consumption if no input source is detected after five (5)
minutes.
NOTE: The power consumption of the LED will be changed to 30%
after no signal is detected for five (5) minutes.
Audio Mode
• Movie: Default audio mode.
• Music: Ideal for music playback.
• User: Allows the user to customize the audio equalizer.
NOTE: In User mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz
can be selected.
Audio Volume
Adjust the volume from 0 to 50.
Mute
Mute or unmute the volume.
65
Page 66
Menu Description
Select the suitable power consumption of the LED.
Full
100%
Eco
Light Source Level
High Altitude Mode
70%
Battery Saving
40%
NOTE: If using a USB-C connected power bank or the built-in
battery to charge the X300, the light source level will only
have Eco and Battery Saving options.
It is recommended that you use High Altitude Mode when your
environment is between 1,500-3,000 m above sea level, and a
temperature between 5°C-25°C.
NOTE: If you use this projector under other extreme conditions
excluding the above, it may display auto shut-down
symptoms, which is designed to protect your projector from
over-heating. In cases like this, you should switch to High
Altitude Mode to solve these symptoms. However, this is not
to state that this projector can operate under any and all
harsh or extreme conditions.
Reset the settings to default.
Reset Settings
NOTE: Language, High Altitude Mode, Projector Position, Network
Settings, All installed Apps in the Apps Center, Add App,
Bluetooth, Zoom, H/V Keystone, 4 Corner Adjustment, and
Light Source Hours will remain unchanged.
66
Page 67
Menu Description
Reset to Factory Default
Factory reset.
NOTE: Light Source Hours will remain unchanged.
67
Page 68
Firmware Upgrade
Users can update the firmware Online, or by USB, and check the version number.
NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.
1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
2. To enter the menu, go to: Home > Setting > Firmware Upgrade.
Settings/Firmware Upgrade
Software Upgrade
Firmware Upgrade
Software Update Online
Software Update By USB
OTA Reminder
Version
V0.2Software Version
68
Page 69
Firmware Update Online
1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
2. Select Enter by pressing OK on the remote control.
3. The system will check the NOMVDIC website (OTA) and display a dialog message if there is new Firmware.
4. By selecting Yes, a progress bar will appear as the update process begins.
5. Upon reaching 100%, the projector will restart. The whole process will take about 10 minutes.
6. After updating the Firmware, it will take a few minutes to restart the projector.
NOTE: The projector screen will be black for about 10 minutes during the updating process.
69
Page 70
Information
1. Go to: Home > Setting > Information.
Settings/Information
Information
Information
2. View system status and information.
NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
70
Page 71
Screen Mirroring
Mirror your personal device’s screen. To setup wireless Screen Mirroring, see page 25.
NOTE: Ensure your device is connected to the same network as the projector.
71
Page 72
Bluetooth
The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback. For more
information, see page 26.
72
Page 73
Add App
Add your favorite Apps to the Home Screen.
1. From the Home Screen, select Add App and then press OK on the remote control.
2. Use the directional buttons to select the desired App and press OK.
3. Now your favorite App will appear on the Home Screen.
NOTE: Only four (4) Apps can be added to the Home Screen.
Delete Apps from the Home Screen
1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
2. The message, “Do you want to Delete this application from My Favorites?” will appear.
3. Select Yes, and press OK to delete the App.
73
Page 74
Input Source Selected — On-Screen Display (OSD) Menu Tree
After your input source is selected, you can adjust the Image Setting and Advanced menus.
Main Menu Sub-menu Menu Option
Brightest
TV
Movie
Color Mode
Gaming
User 1
User 2
Brightness (-/+, 0~100)
Contrast (-/+, 0~100)
6500K
Image Setting
7500K
9300K
Color Temp
User
Tint (-/+, 0~100)
Red Gain (-/+, 0~100)
Green Gain (-/+, 0~100)
Blue Gain (-/+, 0~100)
Red Oset (-/+, 0~100)
Green Oset (-/+, 0~100)
Blue Oset (-/+, 0~100)
74
Page 75
Main Menu Sub-menu Menu Option
Saturation (-/+, 0~100)
Sharpness (-/+, 0~100)
1.8
2.0
2.2
Image Setting
Gamma
Color Management
2.35
2.5
sRGB
Cubic
Red
Green
Blue
Primary Color
Cyan
Magenta
Yellow
Hue (-/+, 0~100)
Saturation (-/+, 0~100)
Gain (-/+, 0~100)
Reset Current Color
Settings
OK
75
Page 76
Main Menu Sub-menu Menu Option
Auto
4:3
Aspect Ratio
16:9
16:10
Zoom 0.8x~1.0x
Full
Advanced
Light Source Level
HDMI Setting Range
3D Sync
Eco
Battery Saving
3D Format
3D Sync Invert
Auto
Full Range
Limited
Auto
Disable
Frame Sequential
Frame Packing
Top-Bottom
Side-by-Side
Disable
Invert
76
Page 77
Main Menu Sub-menu Menu Option
Movie
Music
100Hz
500Hz
User
Harman Kardon Audio Mode
Advanced
Audio Volume (-/+, 0~50)
Mute
Source
1500Hz
5000Hz
10000Hz
Disable
Enable
Information
Resolution
3D Format
77
Page 78
Image Setting Menu
After your input source is selected, you can adjust the Image Setting menu.
To access the Image Setting menu:
1. Press Setting on the remote control.
2. Use the Left/Right buttons on the remote control to select Image Setting (if applicable).
3. Then use the Up/Down buttons on the remote control to select the sub-menu(s).
4. Use the Left/Right buttons on the remote control to enter the sub-menu(s) and/or adjust the settings.
5. Press the Return button on the remote control to go to the previous menu or exit.
78
Page 79
Menu Description
The projector is preset with several predefined picture modes so that you
can choose one to suit your operating environment and input signal.
Brightest
Maximizes the brightness of the projected image. This mode is suitable for
environments where extra-high brightness is required, i.e. well-lit rooms.
TV
Optimized for viewing sports in well-lit environments.
Color Mode
Brightness
Gaming
Designed for playing video games.
Movie
Appropriate for colorful movies, video clips from digital cameras, or DVs
through the PC input. Best for low-light environments.
User 1/User 2
Recalls the customized user settings.
NOTE: Only supports HDMI/USB-C signal input.
The higher the value, the brighter the image. Lower values will result in a
darker image.
79
Page 80
Menu Description
Use this to set the peak white level after you have previously adjusted the
Brightness setting to suit your selected input and viewing environment.
Contrast
Select the color temperature setting.
• 6500K: Maintains normal white coloring.
Color Temp
Tint
Saturation
Sharpness
Gamma
• 7500K: A higher, cooler color temperature than 6500K.
• 9300K: The highest color temperature; makes the image appear the
most bluish-white.
• User Color: Adjust red, green, and blue values as desired.
The higher the value, the more greenish the picture becomes. The lower
the value, the more reddish the picture becomes.
Refers to the amount of that color in a video picture. Lower settings
produce less saturated colors; in fact, a setting of “0” removes that color
from the image entirely. If the saturation is too high, that color will be
overpowering and unrealistic.
A high value results in a sharper picture; a low value softens the picture.
Reflects the relationship between input source and picture brightness.
80
Page 81
Menu Description
Only in permanent installations with controlled lighting levels such as:
boardrooms, lecture halls, or home theaters should Color Management
be considered.
Color Management
Reset Current Color
Settings
Red Yellow
White
Magenta Cyan
Blue
Green
Color Management provides fine color control adjustment to allow for
more accurate color reproduction, should you require it.
If you have purchased a test disc, which contains various color test
patterns and can be used to test the color presentation on monitors, TVs,
projectors, etc., you can project any image from the disc on the screen
and enter the Color Management menu to make adjustments.
Return current color settings to their default values.
81
Page 82
Advanced Setting Menu
After your input source is selected, you can adjust the Advanced Setting menu.
To access the Advanced Setting menu:
1. Press Setting on the remote control.
2. Use the Right button on the remote control to select Advanced Setting.
3. Then use the Up/Down buttons on the remote control to select the sub-menu(s).
4. Use the Left/Right buttons on the remote control to enter the sub-menu(s) and/or adjust the settings.
5. Press the Return button on the remote control to go to the previous menu or exit.
82
Page 83
Menu Description
The Aspect Ratio is the ratio of the image width to the image height.
With the advent of digital signal processing, digital display devices, like
this projector, can dynamically stretch and scale the image output to a
dierent aspect than that of the image input signal.
NOTE: Only supports HDMI/USB-C signal input.
Auto
Scales an image proportionally to fit the projector’s native resolution in its
horizontal width. This is suitable for the incoming image which is neither
4:3 nor 16:9 and you want to make the most use of the screen without
altering the image’s aspect ratio.
4:3
Aspect Ratio
Scales an image so that it is displayed in the center of the screen with
a 4:3 aspect ratio. This is most suitable for 4:3 images like computer
monitors, standard definition TV, and 4:3 aspect DVD movies, as it
displays them without aspect alteration.
16:9
Scales an image so that it is displayed in the center of the screen with a
16:9 aspect ratio. This is most suitable for images which are already in a
16:9 aspect, like high definition TV.
Zoom
Light Source Level
16:10
Scales an image so that it is displayed in the center of the screen with a
16:10 aspect ratio. This is most suitable for images which are already in a
16:10 aspect.
Adjust the level of zoom.
Select the suitable power consumption of the LED.
83
Page 84
Menu Description
Range
Select a suitable color range according to the color range setting of the
connected output device.
HDMI Setting
3D Sync
• Auto: Sets the projector to detect the range of the input signal
automatically.
• Full: Sets the color range from 0~255.
• Limited: Sets the color range from 15~235.
Enables you to enjoy 3D movies, videos, and sporting events in a more
realistic way by presenting the depth of the images while wearing 3D
glasses.
3D Format
• Auto
• Disable
• Frame Sequential
• Frame Packing
• Top-Bottom
• Side-by-Side
3D Sync Invert
Allows for correction if the 3D image depth is inversed.
84
Page 85
Menu Description
Audio Mode
• Movie: Default audio mode.
• Music: Ideal for music playback.
• User: Allows the user to customize the audio equalizer.
NOTE: In User mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz
Harman Kardon
Audio Volume
Adjust the volume from 0 to 50.
Mute
Mute or unmute the volume.
can be selected.
Information
Shows the input source, resolution, and 3D format.
85
Page 86
Appendix
Specifications
Item Category Specifications
Type 0.23” 1080p - Full HD, LED
Display Size 40”~110”
Throw Distance 0.98-2.87 m (80”@2.06 m)
Lens F=1.7, f=6.35 mm
Projector
Input Signal
Resolution
Local Storage
Optical Zoom Fixed
Light Source Type RGB LED
Light Source 30,000 hours
Display Color 1.07 Billion Colors
Keystone Vertical: -/+ 40°; Horizontal: -/+ 40°
HDMI fh: 30K~97 kHz, fv: 24~85 Hz,
Native 1920 x 1080
Support VGA (640 x 480) to Full HD (1920 x 1080)
Total 16 GB
Available 10 GB
86
Page 87
HDMI 1 (HDMI 1.4, HDCP 1.4)
SD Card Micro SD (Supports up to 256 GB, SDXC)
USB Type C 1 (5V/2A)
Input
Output
Power Adapter
Operating Conditions
Dimensions
USB Type A 1 USB 2.0 Reader
Wi-Fi input 1 (5G, 802.11 a/b/g/n)
Audio In (3.5 mm) 1
Bluetooth input 1 (BT 4.2/Audio In)
Audio Out (3.5 mm) 1
Bluetooth output 1 (BT 4.2/Audio Out)
Speaker
USB Type A (Power) 1 (USB 2.0, 5V/2A, share with reader)
Input Voltage DC IN 100-240V, 50/60 Hz (auto switch)
Temperature 0°C to 40°C (32°F to 104°F)
Humidity 0% to 90% (non-condensing)
276 x 165 x 157 mm
(10.87” x 6.50” x 6.18”)
Physical (W x H x D)
276 x 165 x 171 mm
(10.87” x 6.50” x 6.73”)
8W Cube x 2
(Tweeter + Woofer) x 2
Default setup
With cone-
shaped feet
Weight
Power Consumption
Physical 2.8 kg (6.17 lbs)
On 90W (Typical)
O < 0.5W (Standby)
87
Page 88
Timing Chart
HDMI Video Timing
Timing Resolution
480i
480p
576i
576p
720/50p
720/60p
1080/50i
1080/60i
1080/24P
1080/50P
1080/60P
720(1440) x 480 15.73 59.9 4 27
720 x 480 31.47 5 9.9 4 27
720(1440) x 576 15.63 50 27
720 x 576 31.25 50 27
1280 x 720 37.5 50 74.25
1280 x 720 45 60 74.25
1920 x 1080 28.13 50 74.25
1920 x 1080 33.75 60 74.25
1920 x 1080 27 24 74.25
1920 x 1080 56.25 50 148.5
1920 x 1080 67.5 60 148.5
Horizontal
Frequency
(kHz)
Vertical Frequency
Dot Clock
Frequency
(Hz)
(MHz)
88
Page 89
HDMI PC
Resolution
640 x 480
720 x 400
800 x 600
1024 x 576
1024 x 600
Refresh Rate
(Hz)
59.94 31.469 25.175
72.809 37.861 31.5
75 37.5 31.5
85.008 43.269 36
70.087 31.469 28.3221
60.317 37.879 40
72.188 48.077 50
75 46.875 4 9.5
85.061 53.674 56.25
119.854 77.425 83
60 35.82 46.966
64.995 41.467 51.419
Horizontal Frequency
(kHz)
Dot Clock Frequency
(MHz)
1024 x 768
1152 x 864
1280 x 720
60.004 48.363 65
70.069 56.476 75
75.029 60.023 78.75
84.997 68.667 94.5
119.989 9 7. 441 115.5
75 67.5 108
60 45 74.25
89
Page 90
Resolution
Refresh Rate
(Hz)
Horizontal Frequency
(kHz)
Dot Clock Frequency
(MHz)
1280 x 768
1280 x 800
1280 x 960
1280 x 1024
1360 x 768
1400 x 1050
1440 x 900
1600 x 1200
59. 8 7 47.776 79.5
59. 8 1 49.702 83.5
74.934 62.795 106.5
84.88 71.554 122.5
60 60 108
85.002 85.938 148.5
60.02 63.981 108
75.025 79.9 76 135
85.024 91.146 157.5
60.015 47.712 85.5
59.97 8 65.317 121.75
59.887 55.935 106.5
60 75 162
1680 x 1050
1920 x 1080 (VESA)
640 x 480 @ 67Hz
832 x 624 @ 75Hz
1024 x 768 @ 75Hz
1152 x 870 @ 75Hz
59.95 4 65.29 146.25
60 67. 5 148.5
66.667 35 30.24
74.546 49.722 5 7.28
75.02 60.241 80
75.06 68.68 100
90
Page 91
USB C Timing
Resolution
480i
480p
576i
576p
720/50p
720/60p
1080/50i
1080/60i
1080/24p
1080/50p
1080/60p
Refresh Rate
(Hz)
59.94 15.73 27
59.94 31.47 27
50 15.63 27
50 31.25 27
50 37.5 74.25
60 45 74.25
50 28.13 74.25
60 33.75 74.25
24 27 74.25
50 56.25 148.5
60 67. 5 148.5
Horizontal Frequency
(kHz)
Dot Clock Frequency
(MHz)
91
Page 92
Troubleshooting
This section describes some common problems that you may experience when using the projector.
Problem or Issue Possible Solutions
• Ensure the power cord is properly attached to the projector
and to the power outlet.
The projector does not turn on
There is no picture
The image is blurred
The remote control does not work
• If the cooling process has not completed, please wait until it
has finished then try to turn on the projector again.
• If the above does not work, try another power outlet or
another electrical device with the same power outlet.
• Ensure the video source cable is connected properly, and that
the video source is turned on.
• If the input source is not selected automatically, select the
correct source with the Source key on either the projector or
the remote control.
• Improve the clarity of the image by pressing the Focus button
on the remote control, then using the Left and Right buttons
to adjust. Additionally, you can use the Focus Adjustment
Slider to clarify the image.
• Ensure the projector and screen are aligned properly. If
necessary, adjust the height of the projector as well as the
projection angle and direction.
• Ensure there are no obstacles between the remote control
and projector; and that they are within 8 m (26 ft) of each
other.
• The batteries may be out of power, please check and replace
if necessary.
The projector/system is frozen and will not respond
• Turn o the projector using the Power Toggle switch on the
rear I/O.
92
Page 93
LED Indicators
Location Light Status and Description
Green (blink: 2 seconds dark,
1 second bright)
LED Indicator
Battery White
Bluetooth
AUX
White (blink 1 min) Bluetooth pairing mode.
System boot process.
Green Finish the boot process; system is on. Mirror is open.
Blue Finish the boot process; system is on. Mirror is closed.
Dark System is o.
DC in: LED will be lit from left to right and loop repeatedly
until the battery is full.
Battery: LED will be lit from left to right and stop at the
battery percentage left.
White
Dark Turn o Bluetooth.
White Play the source’s sound.
Dark Disconnect from the sound’s source.
Launch the Bluetooth setting page and turn on system
Bluetooth.
Mute
White Turn mute on.
Dark Turn mute o.
93
Page 94
Maintenance
General Precautions
• Make sure the projector is turned o and the power cable is unplugged from the power outlet.
• Never remove any parts from the projector. Contact Customer Support when any part of the projector needs replacing.
• Never spray or pour any liquid directly onto the case.
• Handle the projector with care, as a darker-colored projector, if scued, may show marks more clearly than a lighter-colored projector.
Cleaning the Lens
• Use a canister of compressed air to remove dust.
• If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.
CAUTION: Never rub the lens with abrasive materials.
Storing the Projector
If you intend to store the projector for an extended period of time:
• Ensure the temperature and humidity of the storage area are within the recommend range.
• Retract the adjuster foot completely.
• Remove the batteries from the remote control.
• Pack the projector in its original packaging or equivalent.
Disclaimer
• It is not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been
reported to damage the lens and/or case of the projector.
• NOMVDIC™ will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
94
Page 95
Regulatory and Service Information
Compliance Information
This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding
applications shall refer to nameplate labels and relevant markings on the unit.
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
95
Page 96
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow
the specific operating instructions to satisfy RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment
should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Industry Canada Statement
CAN ICES-003(B) / NMB-003(B)
IC Warning Statement
This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le
fonctionnement.
Country Code Statement
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not
possible.
Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres
canaux n’est pas possible.
96
Page 97
IC Radiation Exposure Statement
This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body. The device for the band
5150-5825 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlê.
Cet équipement doit être installé et utilize avec un minimum de 20cm de distance entre la source de rayonnement et votre
corps. les dispositifs fonctionnant dans la bande 5150-5825 MHz sont réservés uniquement pour une utilisation à l’intérieur
afin de réduire les risques de brouillage.
Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems.
La bande 5150-5250 MHz est réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Ecodesign Directive
2009/125/EC and Radio Equipment Directive 2014/53/EU. Frequency Range : 2400-2483.5MHz, 5150-5250MHz
Max Output Power : under 20dBm
The following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive
2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted
municipal waste, but use the return and collection systems according to local law.
If the batteries, accumulators and button cells included with this equipment display the chemical symbol Hg,
Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more
than 0.002% Cadmium, or more than 0.004% Lead.
97
Page 98
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and
the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive)
and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee
(TAC) as shown below:
Substance
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis(2-Ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Benzyl butyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%
Proposed Maximum
Concentration
Actual Concentration
Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives
as noted below. Examples of exempted components are:
• Copper alloy containing up to 4% lead by weight.
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g.
piezoelectronic devices, or in a glass or ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.
98
Page 99
Indian Restriction of Hazardous Substances
Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits
use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations
exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
99
Page 100
Copyright Information
Copyright© NOMVDIC Corporation, 2021-2022. All rights reserved.
NOMVDIC™ is a trademark of NOMVDIC Corporation with trademark applications in the US and certain other countries.
Disclaimer: Third-party applications or application stores showed herein are for demonstration purposes only, and their
respective logos, trademarks are owned by their respective owners, who neither sponsor our products nor are aliated with
our company.
X300_UG_ENG_1a_20220608
100
Loading...
