Nokia TS253 User Manual

Nokia 88xx series and 8210

04.02.00

This Quick Guide is a generic guide for all Nokia 88xx series and 8210 phones. When you are asked to select the
modem you will see
Nokia 8810 Nokia 8810
Nokia 8850 Nokia 8850
Nokia 8210 Nokia 8210

Nokia ****

, please select one of the following:

Quick Guide to Using your Nokia Phone with Winfax Pro 9

SETTING UP YOUR WINFAX PRO 9 TO SEND AND RECEIVE FAXES WITH YOUR NOKIA PHONE

If you haven't yet installed Winfax Pro 9.0x on your PC, pl ease do so before continuing and also ch eck that you
have your Nokia Phone installed and that it works.

1. Connect your Nokia Phone to your computer via IrDA and start Winfax Pro 9.0x.

2. Go to Tools – Setup – Program Setup (Figure 1).

Figure 1. Accessing program setup dialog.

3. Click once on Modems and Other Fax Devices and then click the Properties button. Select the Nokia xxxx as
your Connection device from the Connection Device list by ticking the box on the right (Figure 2).

Copyright ã 1995 - 2000. Nokia. All rights reserved.

1(4)

Figure 2. Adding a new modem in Winfax Pro 9.0x.

4. Winfax Pro 9.0x will now configure your Nokia Phone to work as a faxmodem. First click the Yes button and then
click the Next button; now wait until Winfax has tested your modem. After that click the Next button (Figure 3).

Figure 3. The three steps to configure your modem.

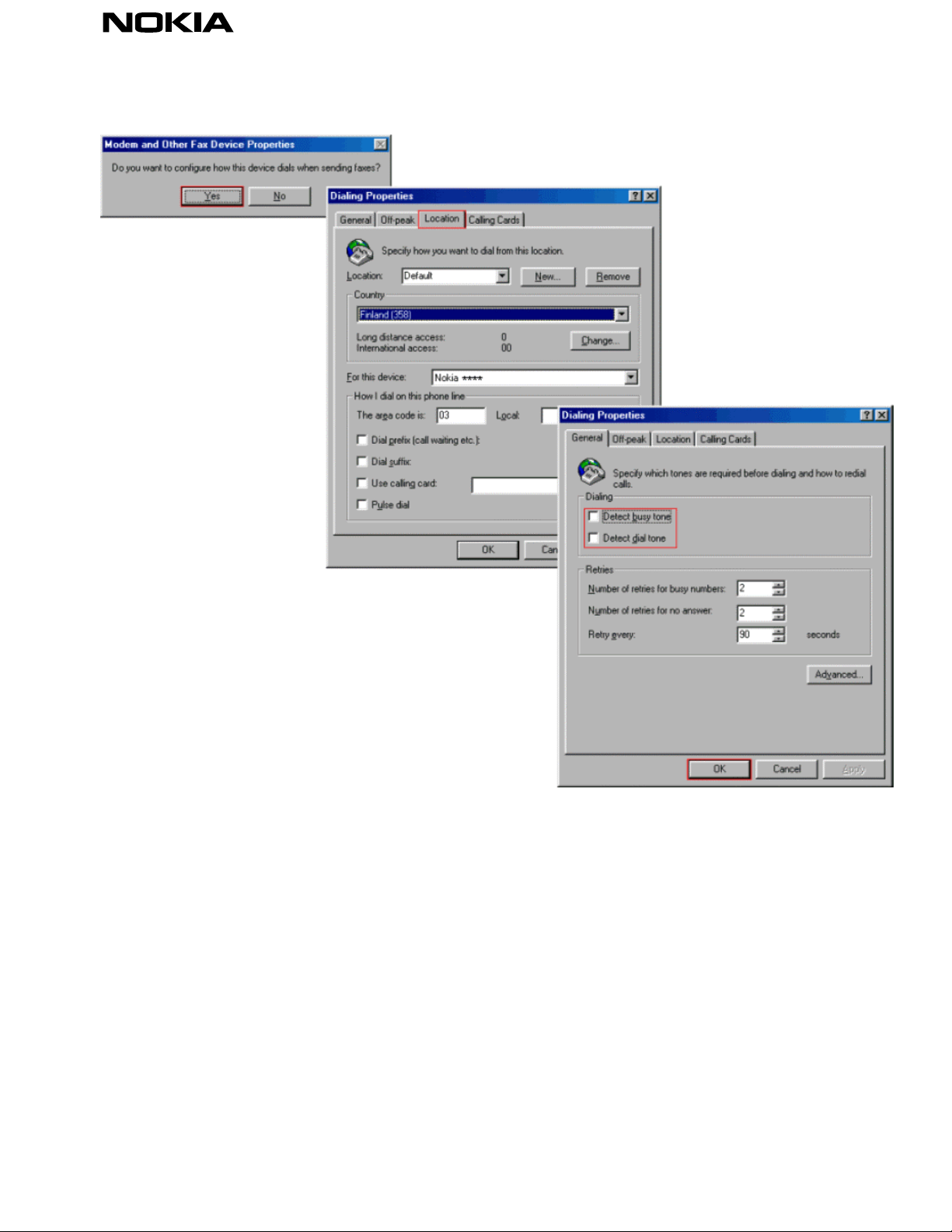

5. After you have successfully configured your modem click the Finish button. When the program asks you to select
the locations for your new modem just accept the default options by clicking the OK button (Figure 4).
