PAMS Technical Documentation
TFF-3 WLL Terminal
Service Tools
Issue 1 08/99 Nokia Mobile Phones Ltd.
TFF-3
Service Tools
PAMS Technical Documentation
AMENDMENT RECORD SHEET
Amendment
Number
Date Inserted By Comments
08/99 OJuntune Original
Page 2
Nokia Mobile Phones Ltd.
Issue 1 08/99
PAMS Technical Documentation
CONTENTS
Flash Loading Adapter FLA-5 (Sales Pack) 5. . . . . . . . . . . . . . . . . . . . . . .
Product Code 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLA-5 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Prommer FPS-4S (Sales Pack) 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FPS-4S 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Cable ADS-1 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of ADS-1 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modular Cable XCM-6 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TFF-3
Service Tools
Page No
Product Code 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XCM-6 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modular Cable XCM-1 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XCM-1 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D15-D15 Cable AXS-5 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of AXS-5 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC-M2Bus Cable SCF-6 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SCF-6 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Cable SRC-6 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SRC-6 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MBUS Cable DAU-9S 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of DAU-9S 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alternative to MBUS Cable DAU-9S 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Codes 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Views of DAU-2T and RS-232 Adapter 11. . . . . . . . . . . . . . . . . . . . . . . .
Modular T-adapter 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Modular T-adapter 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SW Security Device PKD-1 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Issue 1 08/99
Nokia Mobile Phones Ltd.
Page 3
TFF-3
Service Tools
View of SW Security Device 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAMS Technical Documentation
Page 4
Nokia Mobile Phones Ltd.
Issue 1 08/99
PAMS Technical Documentation

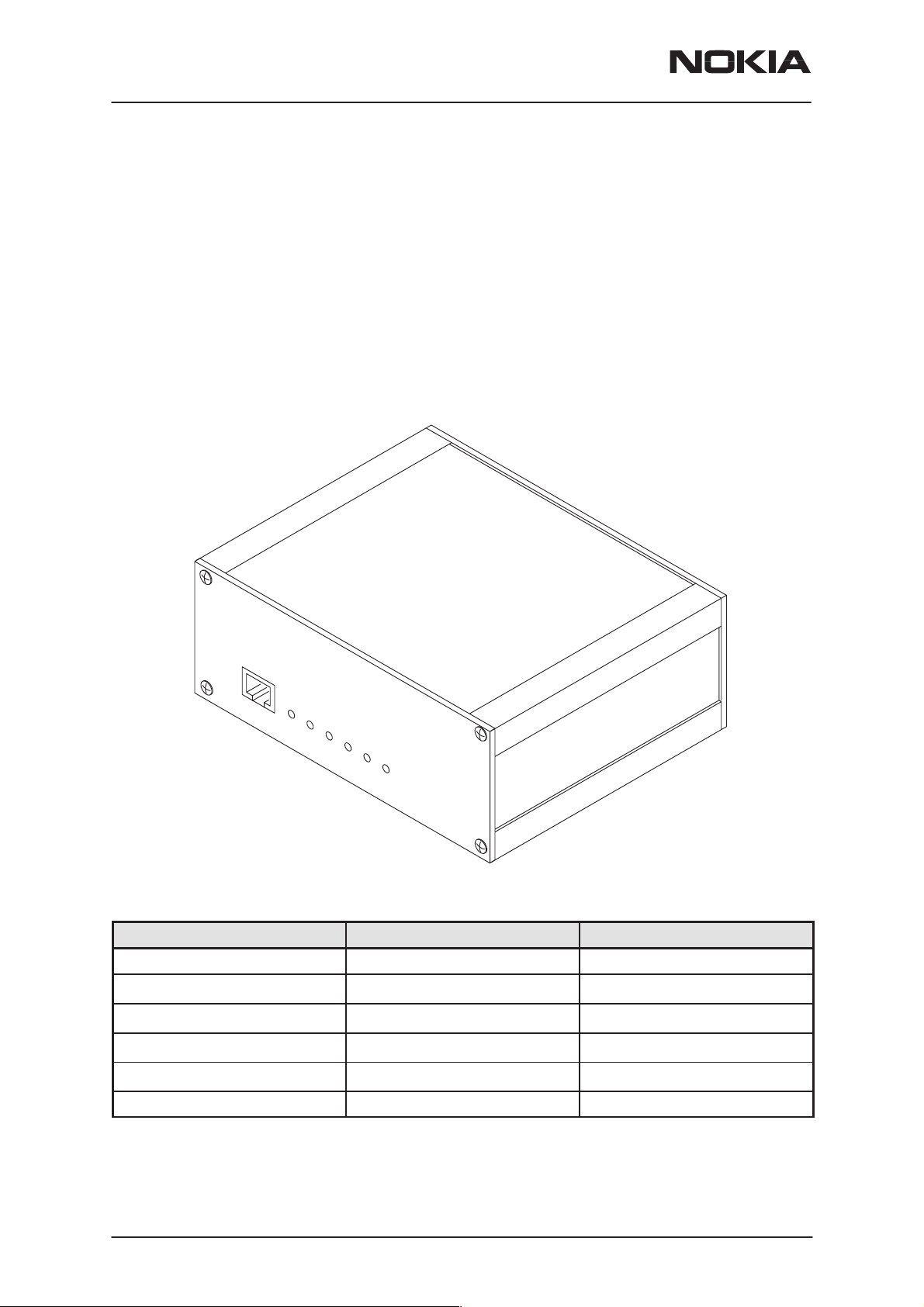

Flash Loading Adapter FLA-5 (Sales Pack)
The Flash Loading Adapter FLA-5 is used with the Service Cable XCM-6.
Power is supplied to FLA-5 from the Flash Security Box TDF-4 via the DC
cable PCC-1B, (The PCC-1B cable can be replaced with a Travel Charger
ACH-6), and is connected to the Flash Prommer FPS-4S with the cable
AXS-5.
Product Code
Flash Loading Adapter FLA-5: 0080178
View of FLA-5
TFF-3
Service Tools
The sales pack includes:
Sales Package Type Designation of parts NMP Code
FLA-5 0080178
Issue 1 08/99
Flash Loading Adapter
FLA-5
Service Cable SCH-5
(not needed with TFF–3)
Printer Cable AXS-5
SW diskette 8400041
Nokia Mobile Phones Ltd.
0770085
0730098
0730091
Page 5
TFF-3
Service Tools
Flash Prommer FPS-4S (Sales Pack)
The Flash Prommer FPS-4S is used to update the main software of the
phone. Updating is done by first loading the new MCU software from the
PC to the flash prommer, and then loading the new SW from the prommer
to the phone. When updating more than one phone in succession, the
MCU software only needs to be loaded to the prommer once.
Product Code
Flash Prommer FPS-4S: 0085095
View of FPS-4S
PAMS Technical Documentation
Page 6
The sales pack includes:
Sales Package Type Designation of parts NMP Code
FPS-4S 0085095
Flash Prommer FPS-4
Charger ACL-3E
Printer Cable
D9 - D9 Cable AXS-4
SW diskette 8400041
Nokia Mobile Phones Ltd.
0730090
0750090
0680015
0730029
Issue 1 08/99
PAMS Technical Documentation

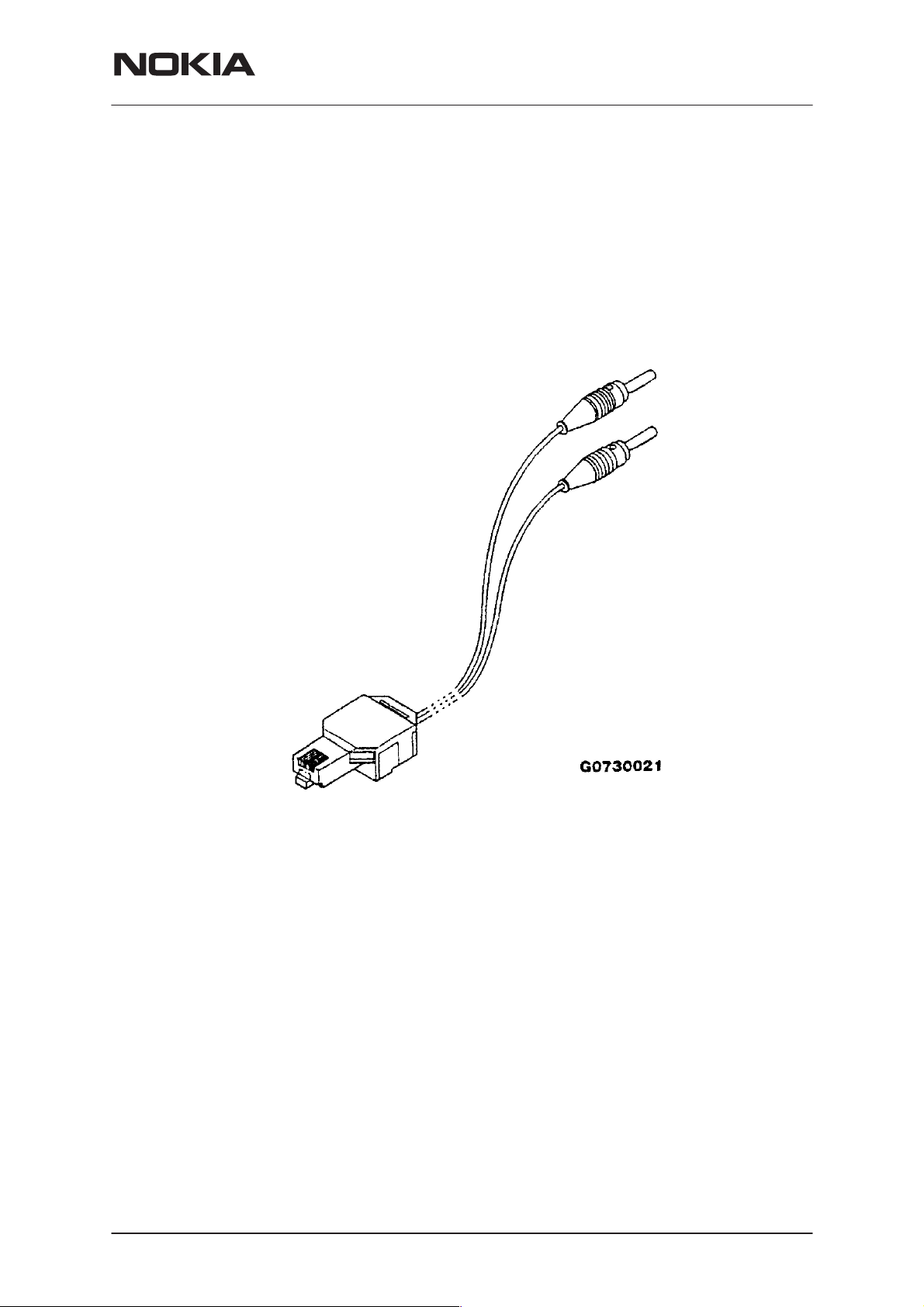

Audio Cable ADS-1
Audio cable is an adapter routing AF signals (MIC/EAR) from 8 pin
modular connector to two BNC connectors. It is used to connect JBA-4,
SCH-5, and DAU-9S.
Product code
Audio Cable ADS-1: 0730011
View of ADS-1
TFF-3
Service Tools
Modular Cable XCM-6
The modular Cable XCM-6 is a standard 30 cm long 8-core flat cable with
male modular-8 connectors in both ends. It is used for flash programming
betwrrn TFF-3 and FLA-5.
Product Code
Modular Cable XCM-6 0730159
View of XCM-6
Issue 1 08/99
Nokia Mobile Phones Ltd.
Page 7
TFF-3
Service Tools
Modular Cable XCM-1
The modular Cable XCM-1 is a standard 1m long 8-core flat cable with
male modular-8 connectors in both ends.
Product Code
Modular Cable XCM-1 4626131
View of XCM-1
PAMS Technical Documentation
D15-D15 Cable AXS-5
The D15-D15 Cable AXS-5 is used to connect two 15 pin D connectors.
e.g. between FLA-5 and FPS-4S.
Product Code
D15-D15 Cable AXS-5: 0730091
View of AXS-5
Page 8
Nokia Mobile Phones Ltd.
Issue 1 08/99
PAMS Technical Documentation
DC-M2Bus Cable SCF-6
The DC–M2Bus Cable is used for Flash programming.
Product Code
DC–M2Bus Cable: 0770036
View of SCF-6
TFF-3
Service Tools
Issue 1 08/99
Nokia Mobile Phones Ltd.
Page 9
TFF-3
Service Tools
Service Cable SRC-6
The Service Cable (BNC/TNC) is used to connect the transceiver to
measuring equipment during servicing.
Product Code
Service Cable SRC-6: 0630178
View of SRC-6
PAMS Technical Documentation
Page 10
Nokia Mobile Phones Ltd.
Issue 1 08/99
PAMS Technical Documentation
MBUS Cable DAU-9S
The MBUS Cable DAU-9S has a modular connector, and is used with the
modular T-adapter.
Product Code
MBUS Cable DAU-9S: 0730108
View of DAU-9S
TFF-3
Service Tools
Alternative to MBUS Cable DAU-9S
Product Codes
RS-232 D25/D9 adapter: 0730006
PC Link adapter DAU-2T: 0730006
Views of DAU-2T and RS-232 Adapter
Issue 1 08/99
Nokia Mobile Phones Ltd.
Page 11
TFF-3
Service Tools
Modular T-adapter
The modular T-adapter is the branching unit to provide the needed parallel
modular connections.
Product Code
Modular T-adapter: 4626134
View of Modular T-adapter
PAMS Technical Documentation
SW Security Device PKD-1
SW security device is a piece of hardware enabling the use of the service
software when connected to the parallel (LPT) port of the PC. Without the
dongle present it is not possible to use the service software. Printer or any
such device can be connected to the PC through the dongle if needed.
Caution: Make sure thet you have switched off the PC and the printer
before making connections!
Caution: Do not connected the PKD-1 to the serial port. You may
damage your PKD-1!
Product Code
SW Security Device PKD-1: 0750018
View of SW Security Device
Page 12
Nokia Mobile Phones Ltd.
Issue 1 08/99
