Nokia T5BQ1 User Manual

BTS Optimization/ATP

CDMA LMF

Software Release 2.16.X

English
Apr 2001
68P09253A74–O

SC4812ET

1.9 GHz and 800 MHz CDMA

Notice

While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from
any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has
been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions.
Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and
to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc.
does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it
convey license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Motorola products (machines and programs),
programming, or services that are not announced in your country. Such references or information must not be construed to mean
that Motorola intends to announce such Motorola products, programming, or services in your country.

Copyrights

This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted
Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy,
reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied,
reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the
purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license
under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product.

Usage and Disclosure Restrictions

License Agreement

The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and
may be used only in accordance with the terms of such an agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the
software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, without prior written permission of Motorola, Inc.

High Risk Activities

Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed,
manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe
controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life
Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or
implied warranty of fitness for such High Risk Activities.

Trademarks

and Motorola are registered trademarks of Motorola, Inc.

Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled
herein may be referred to by trademarks of their respective companies.

Copyright

 Copyright 2001 Motorola, Inc.
All Rights Reserved

Printed on

Recyclable Paper

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

DRAFT

REV010598

List of Figures iv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Tables vi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Information xi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FCC Part 15 xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FCC Part 68 xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Foreword xv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Safety xviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History xx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Patent Notification xxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1: Introduction

Optimization Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

SC4812ET BTS Optimization/ATP — CDMA LMF

CDMA 1.9 GHz and 800 MHz

BTS Equipment Identification 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 2: Preliminary Operations

Preliminary Operations: Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Power Up 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 3: Optimization/Calibration

Optimization/Calibration – Introduction 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Isolate Span Lines/Connect LMF 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing the LMF 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using CDMA LMF 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Download the BTS 3-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CSM System Time – GPS & LFR/HSO Verification 3-32. . . . . . . . . . . . . . . . . . . . .

Test Equipment Set–up 3-42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Set Calibration 3-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bay Level Offset Calibration 3-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Setup and Calibration 3-71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarms Testing 3-82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . continued on next page

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

i

DRAFT

Table of Contents – continued

Chapter 4: Automated Acceptance Test Procedure (ATP)

Automated Acceptance Test Procedures – Overview 4-1. . . . . . . . . . . . . . . . . . . . .

TX Spectral Purity Transmit Mask Acceptance Test 4-5. . . . . . . . . . . . . . . . . . . . .

TX Waveform Quality (rho) Acceptance Test 4-7. . . . . . . . . . . . . . . . . . . . . . . . . .

TX Pilot Time Offset Acceptance Test 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Code Domain Power Acceptance Test 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RX Frame Error Rate (FER) Acceptance Test 4-11. . . . . . . . . . . . . . . . . . . . . . . . . .

Generate an ATP Report 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 5: Leaving the Site

External Test Equipment Removal 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reset All Devices 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Updating BTS CAL LMF Files in the CBSC 5-1. . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Site Span Configuration Verification 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Set BTS Site Span Configuration 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Re–connect BTS T1 Spans and Integrated Frame Modem 5-6. . . . . . . . . . . . . . . .

LMF Removal 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reestablish OMC-R Control/ Verifying T1/E1 5-7. . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 6: Basic Troubleshooting

Basic Troubleshooting Overview 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Installation 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Download 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Calibration 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Transmit ATP 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Receive ATP 6-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: CSM Checklist 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C–CCP Backplane Troubleshooting 6-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS – Fault Isolation 6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Module Front Panel LED Indicators and Connectors 6-22. . . . . . . . . . . . . . . . . . . . .

Basic Troubleshooting – Span Control Link 6-29. . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix A: Data Sheets

Appendix A: Optimization (Pre–ATP) Data Sheets A-1. . . . . . . . . . . . . . . . . . . . . .

Appendix A: Site Serial Number Check List A-17. . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix B: FRU Optimization/ATP Test Matrix

Appendix B: FRU Optimization/ATP Test Matrix B-1. . . . . . . . . . . . . . . . . . . . . . .

ii

SC4812ET BTS Optimization/ATP — CDMA LMF

. . . continued on next page

Apr 2001

DRAFT

Table of Contents – continued

Appendix C: BBX Gain Set Point vs. BTS Output Considerations

Appendix C: BBX2 Gain Set Point vs. BTS Output Considerations C-1. . . . . . . . .

Appendix D: CDMA Operating Frequency Information

CDMA Operating Frequency Programming Information – North

American PCS Bands D-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix E: PN Offset/I & Q Offset Register Programming Information

Appendix E: PN Offset Programming Information E-1. . . . . . . . . . . . . . . . . . . . . .

Appendix F: Test Equipment Preparation

Test Equipment Preparation F-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual Cable Calibration F-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix G: In–Service Calibration

Introduction G-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Delta Calibration G-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

In–Service Calibration G-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index Index-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

iii

DRAFT

List of Figures

SC4812ET BTS Optimization/ATP — CDMA LMF

CDMA 1.9 GHz and 800 MHz

Figure 1-1: Null Modem Cable Detail 1-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-2: Typical Logical BTS Configurations 1-15. . . . . . . . . . . . . . . . . . . . . . . .

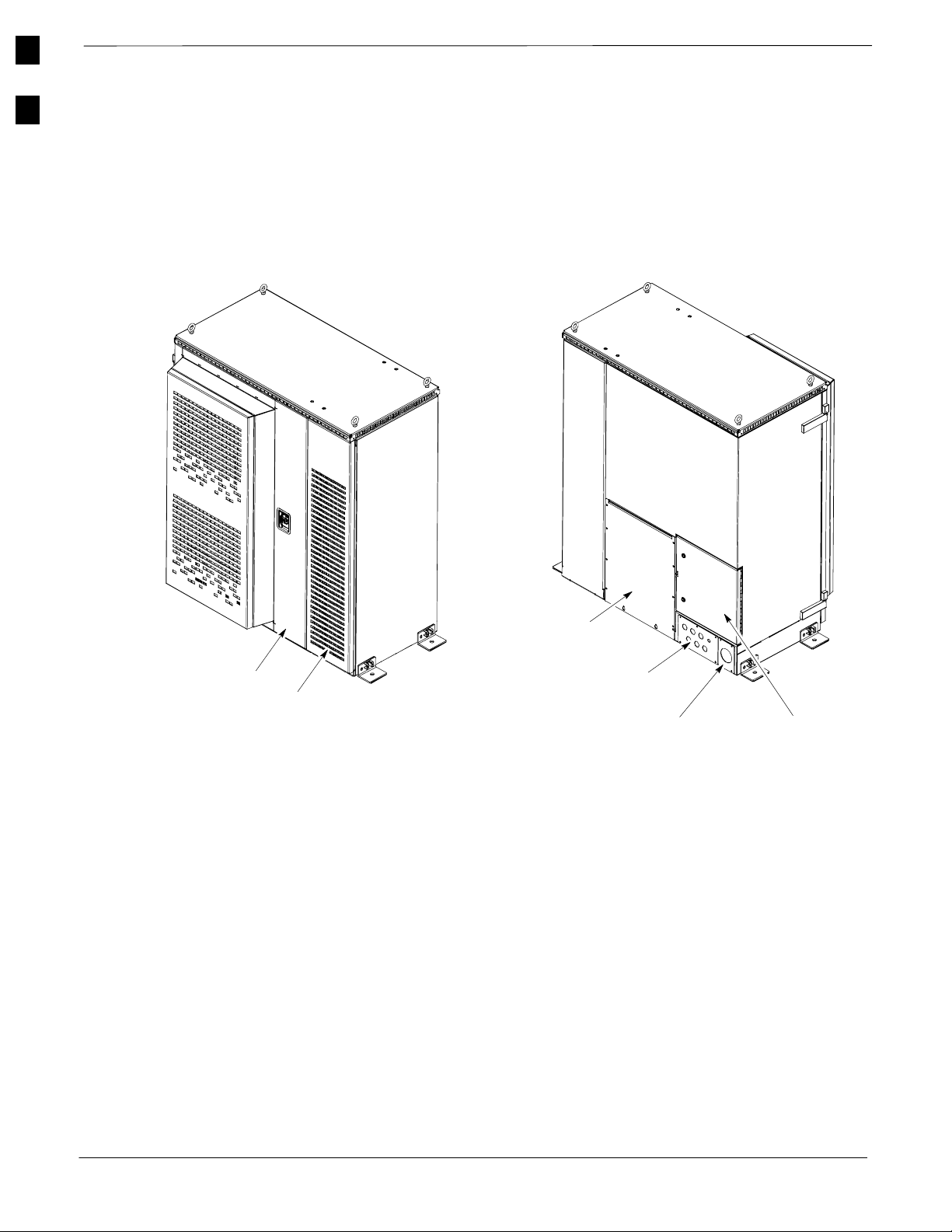

Figure 1-3: SC 4812ET RF Cabinet 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-4: RF Cabinet Internal FRUs 1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-5: SC 4812ET C–CCP Shelf 1-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-6: SC 4812ET Intercabinet I/O Detail (Rear View) 1-20. . . . . . . . . . . . . .

Figure 1-7: SC 4812ET I/O Plate Diagram 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-8: RFDS Location in an SC 4812ET RF Cabinet 1-22. . . . . . . . . . . . . . . .

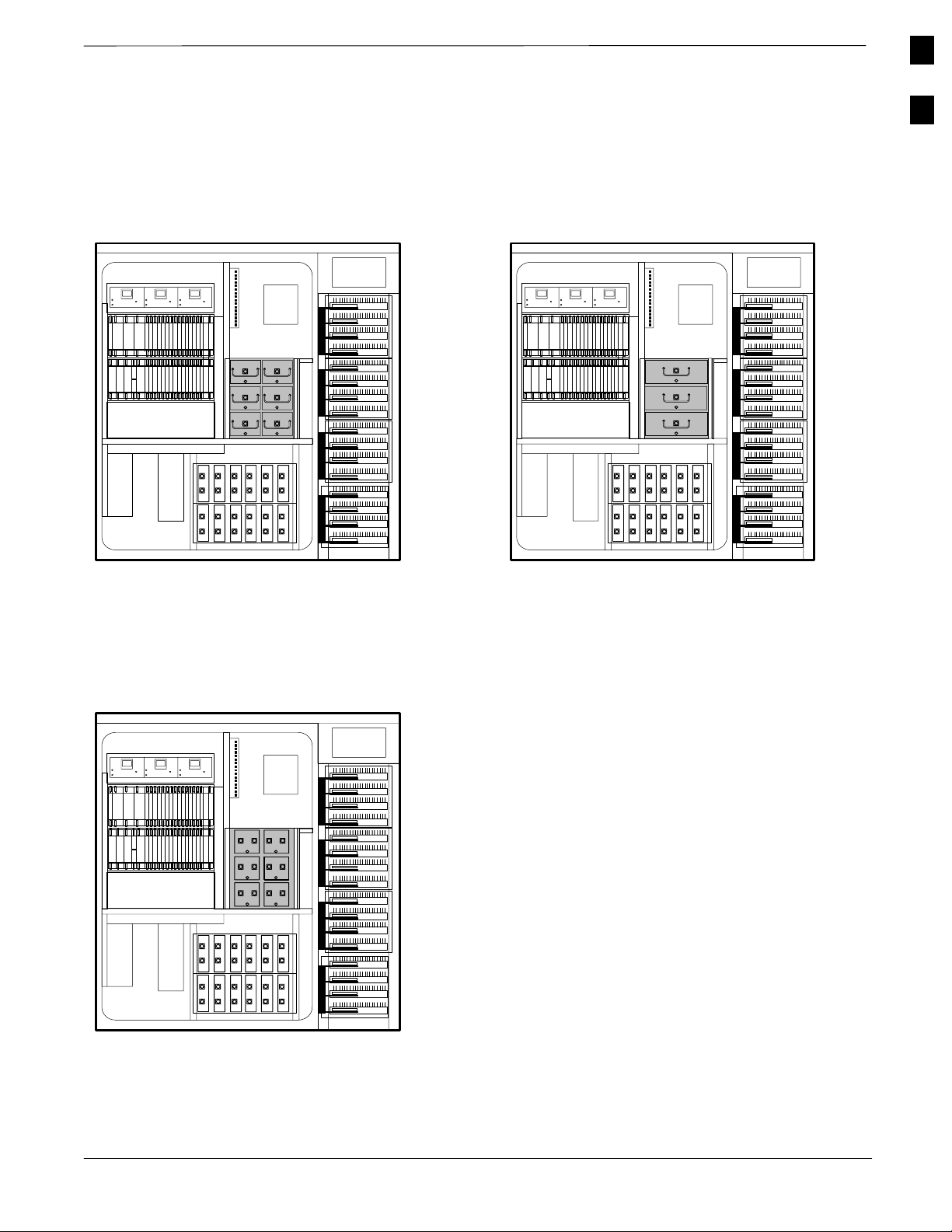

Figure 1-9: SC4812ET LPA Configuration with Combiners/Filters 1-25. . . . . . . . .

Figure 1-10: Power Cabinet 1-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

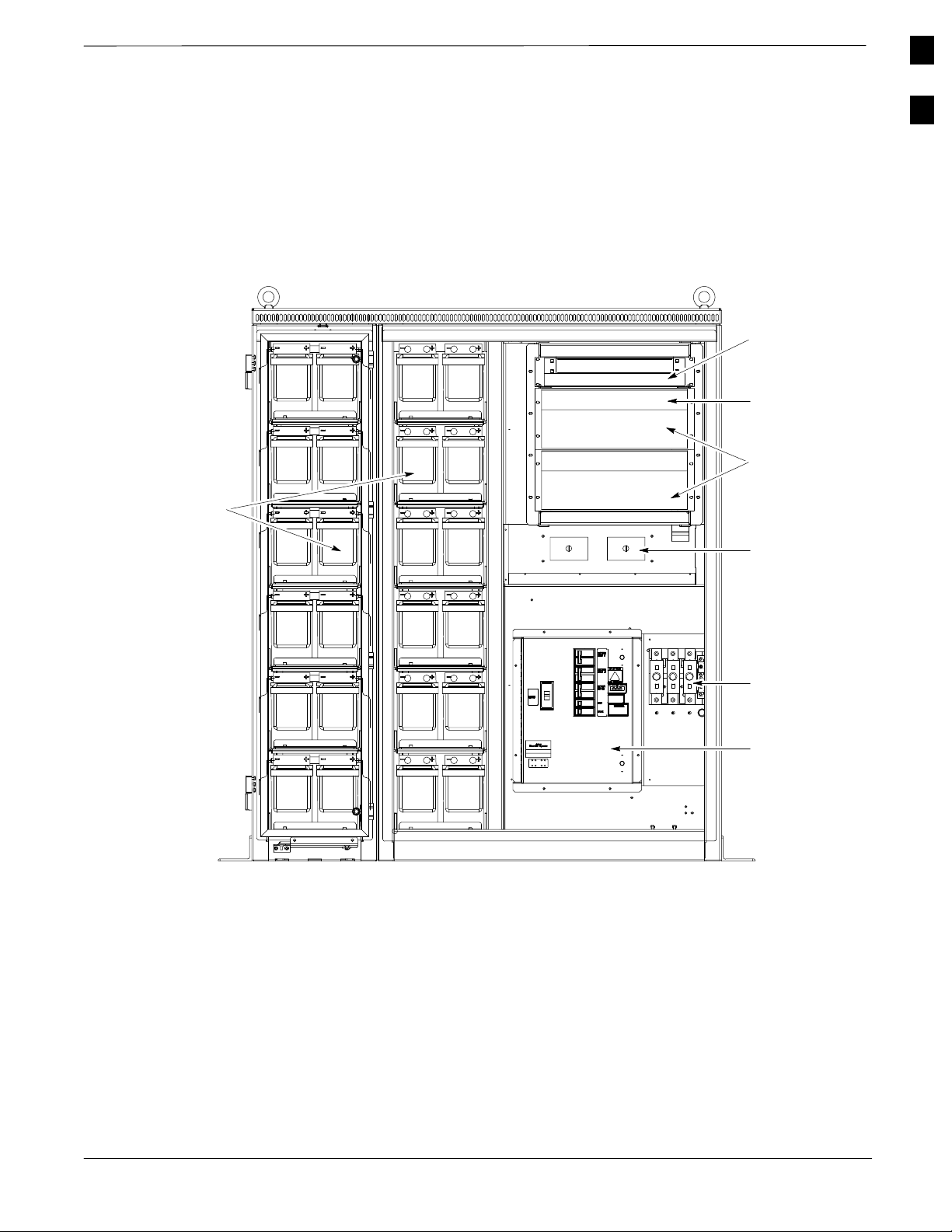

Figure 1-11: Power Cabinet with Batteries Installed (Doors Removed

for Clarity) 1-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-1: Backplane DIP Switch Settings 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-2: AC Load Center Wiring 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-3: Meter Alarm Panel 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-4: Temperature Compensation Panel 2-6. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-5: RF Cabinet Circuit Breaker Panel and 27V DC Terminal Locations 2-9

Figure 2-6: Heat Exchanger Blower Assembly 2-12. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-7: Power Cabinet Circuit Breaker Assemblies 2-13. . . . . . . . . . . . . . . . . . .

Figure 2-8: Power Cabinet AC Circuit Breakers 2-14. . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-9: Power Cabinet DC Circuit Breakers 2-15. . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-1: Back and Front View of the CSU 3-5. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-2: 50 Pair Punch Block 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-3: LMF Folder Structure 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-4: LMF Connection Detail 3-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-5: BTS Ethernet LAN Interconnect Diagram 3-19. . . . . . . . . . . . . . . . . . .

Figure 3-6: CDMA LMF Computer Common MMI Connections 3-26. . . . . . . . . . .

Figure 3-7: CSM MMI Terminal Connection 3-35. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-8: Cable Calibration Test Setup 3-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . continued on next page

iv

SC4812ET BTS Optimization/ATP — CDMA LMF

Apr 2001

DRAFT

List of Figures – continued

Figure 3-9: TX Calibration Test Setup (CyberTest and HP 8935) 3-46. . . . . . . . . . .

Figure 3-10: TX Calibration Test Setup HP 8921A and Advantest 3-47. . . . . . . . . .

Figure 3-11: Optimization/ATP Test Setup Calibration (CyberTest,

HP 8935 and Advantest) 3-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-12: Optimization/ATP Test Setup HP 8921A 3-49. . . . . . . . . . . . . . . . . . .

Figure 3-13: Calibrating Test Equipment Setup for TX Cable Calibration

(Using Signal Generator and Spectrum Analyzer) 3-55. . . . . . . . . . . . . . . . . . . . . . .

Figure 3-14: Calibrating Test Equipment Setup for RX ATP Test

(Using Signal Generator and Spectrum Analyzer) 3-56. . . . . . . . . . . . . . . . . . . . . . .

Figure 3-15: Battery Overtemperature Sensor 3-87. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-16: Location of Connector J8 on the Meter Alarm Panel 3-89. . . . . . . . . .

Figure 4-1: TX Mask Verification Spectrum Analyzer Display 4-6. . . . . . . . . . . . .

Figure 4-2: Code Domain Power and Noise Floor Levels 4-10. . . . . . . . . . . . . . . . .

Figure 6-1: CSM Front Panel Indicators & Monitor Ports 6-22. . . . . . . . . . . . . . . . .

Figure 6-2: GLI2 Front Panel Operating Indicators 6-25. . . . . . . . . . . . . . . . . . . . . .

Figure 6-3: MCC24/8E Front Panel LEDs and LED Indicators 6-27. . . . . . . . . . . .

Figure D-1: North America PCS Frequency Spectrum (CDMA Allocation) D-1. . .
Figure D-2: North American Cellular Telephone System Frequency

Spectrum (CDMA Allocation). D-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-1: HP8921A/600 Cables Connection for 10 MHz Signal and

GPIB without Rubidium F-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-2: HP8921A Cables Connection for 10 MHz Signal and GPIB

with Rubidium F-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-3: Cable Connections for Test Set without 10 MHz

Rubidium Standard F-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-4: Cable Connections for Test Set with 10 MHz

Rubidium Standard F-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-5: Cable CalibrationUsing HP8921 with PCS Interface F-13. . . . . . . . . . .

Figure F-6: Cable Calibration using Advantest R3465 F-16. . . . . . . . . . . . . . . . . . .

Figure F-7: Power Meter Detail F-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-8: Gigatronics 8542C Power Meter Detail F-20. . . . . . . . . . . . . . . . . . . . .

Figure G-1: Delta Calibration Setup – HP8921A to HP437B G-4. . . . . . . . . . . . . .

Figure G-2: Delta Calibration Setup – HP8921A to HP8921A G-4. . . . . . . . . . . . .

Figure G-3: Delta Calibration Setup – R3561L to HP437B G-6. . . . . . . . . . . . . . .

Apr 2001

Figure G-4: Delta Calibration Setup – R3561L to R3465 G-7. . . . . . . . . . . . . . . . .

Figure G-5: Delta Calibration Setup – HP8935 to HP437B G-8. . . . . . . . . . . . . . .

Figure G-6: Delta Calibration Setup – HP8935 to HP8935 G-9. . . . . . . . . . . . . . . .

Figure G-7: Optimization/ATP Test Setup Using Directional Coupler G-11. . . . . . .

Figure G-8: Optimization/ATP Test Setup Using RFDS G-12. . . . . . . . . . . . . . . . . .

. . . continued on next page

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

v

List of Tables

SC4812ET BTS Optimization/ATP — CDMA LMF

CDMA 1.9 GHz and 800 MHz

Table 1-1: CDMA LMF Test Equipment Support Table 1-4. . . . . . . . . . . . . . . . . .

Table 1-2: Abbreviations and Acronyms 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-3: C–CCP Shelf/Cage Card/Module Device ID

Numbers (Top Shelf) 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-4: C–CCP Shelf/Cage Card/Module Device ID

Numbers (Bottom Shelf) 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-5: BTS Sector Configuration 1-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-6: Sector Configurations 1-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-1: Initial Installation of Boards/Modules 2-1. . . . . . . . . . . . . . . . . . . . . . . .

Table 2-2: Initial Inspection and Setup 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-3: AC Voltage Measurements 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-4: Applying AC Power 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-5: Power Cabinet Power Up Tests 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-6: DC Power Pre–test (BTS Frame) 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-7: RF Cabinet Power Up 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-8: Battery Charge Test (Connected Batteries) 2-10. . . . . . . . . . . . . . . . . . . .

Table 2-9: Battery Discharge Test 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-10: Heat Exchanger Power Up 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-2: T1/E1 Span Isolation 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-3: LMF Operating System Installation 3-10. . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-4: Copying CBSC CDF Files to the LMF 3-12. . . . . . . . . . . . . . . . . . . . . . .

Table 3-5: Creating a Named Hyperlink Connection for MMI Connection 3-14. . . .

Table 3-6: LMF to BTS Connection 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-7: Pinging the Processors 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-8: BTS GUI Login Procedure 3-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-9: BTS CLI Login Procedure 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-10: BTS GUI Logout Procedure 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-11: BTS CLI Logout Procedure 3-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-12: Establishing MMI Communications 3-26. . . . . . . . . . . . . . . . . . . . . . . .

Table 3-13: Download and Enable MGLI2 3-28. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . continued on next page

vi

SC4812ET BTS Optimization/ATP — CDMA LMF

Apr 2001

DRAFT

List of Tables – continued

Table 3-14: Download Code and Data to Non–MGLI Devices 3-29. . . . . . . . . . . . .

Table 3-15: Select CSM Clock Source 3-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-16: Enable CSMs 3-30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-17: Enable MCCs 3-31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-18: Test Equipment Setup (GPS & LFR/HSO Verification) 3-34. . . . . . . . .

Table 3-19: GPS Initialization/Verification 3-36. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-20: LORAN–C Initialization/Verification 3-40. . . . . . . . . . . . . . . . . . . . . . .

Table 3-21: Test Equipment Setup 3-43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-22: Selecting Test Equipment Manually in a Serial Connection Tab 3-51. .

Table 3-23: Selecting Test Equipment Using Auto-Detect 3-52. . . . . . . . . . . . . . . . .

Table 3-24: Test Equipment Calibration 3-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-25: Cable Calibration 3-54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-26: Calibrating TX Cables Using Signal Generator and

Spectrum Analyzer 3-55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-27: Calibrating RX Cables Using a Signal Generator and

Spectrum Analyzer 3-56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-28: Setting Cable Loss Values 3-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-29: Setting TX Coupler Loss Values 3-58. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-30: BLO BTS.cal file Array Branch Assignments 3-61. . . . . . . . . . . . . . . .

Table 3-31: BTS.cal File Array (Per Sector) 3-62. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-32: Test Equipment Setup (RF Path Calibration) 3-63. . . . . . . . . . . . . . . . .

Table 3-33: BTS TX Path Calibration 3-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-34: Download BLO 3-66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-35: TX Path Audit 3-68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-36: All Cal/Audit Test 3-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-37: Create CAL File 3-70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-38: RFDS Parameter Settings 3-72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-39: Definition of Parameters 3-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-40: Valid NAM Field Ranges 3-74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-41: Measuring Directional Coupler Loss 3-75. . . . . . . . . . . . . . . . . . . . . . . .

Table 3-42: Set Antenna Map Data 3-77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-43: Set RFDS Configuration Data 3-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-44: RFDS Calibration 3-80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Apr 2001

Table 3-45: Program NAM Procedure 3-81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-46: Heat Exchanger Alarm 3-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-47: Door Alarm 3-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-48: AC Fail Alarm 3-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . continued on next page

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

vii

List of Tables – continued

Table 3-49: Minor Alarm 3-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-50: Single Rectifier Fail or Minor Alarm 3-84. . . . . . . . . . . . . . . . . . . . . . .

Table 3-51: Multiple Rectifier Failure or Major Alarm 3-85. . . . . . . . . . . . . . . . . . .

Table 3-52: Single Rectifier Fail or Minor Alarm 3-85. . . . . . . . . . . . . . . . . . . . . . .

Table 3-53: Multiple Rectifier Failure or Major Alarm 3-85. . . . . . . . . . . . . . . . . . .

Table 3-54: Battery Over Temperature Alarm 3-86. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-55: Rectifier Over Temperature Alarm 3-88. . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-56: Check Before Leaving the Site 3-89. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-1: ATP Test Procedure 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-2: Generate an ATP Report 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-1: External Test Equipment Removal 5-1. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-2: Copy Files from LMF to a Diskette 5-1. . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-3: Copy CAL Files From Diskette to the CBSC 5-2. . . . . . . . . . . . . . . . . .

Table 5-4: T1/E1 Span/IFM Connections 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-5: Terminate the LMF Session and Remove the LMF 5-3. . . . . . . . . . . . .

Table 6-1: Login Failure Troubleshooting Procedure 6-2. . . . . . . . . . . . . . . . . . . .

Table 6-2: Troubleshooting a Power Meter Communication Failure 6-2. . . . . . . .

Table 6-3: Troubleshooting a Communications Analyzer

Communication Failure 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-4: Troubleshooting Code Download Failure 6-4. . . . . . . . . . . . . . . . . . . . .

Table 6-5: Troubleshooting Data Download Failure 6-4. . . . . . . . . . . . . . . . . . . . .

Table 6-6: Troubleshooting Device Enable (INS) Failure 6-5. . . . . . . . . . . . . . . . .

Table 6-7: LPA Errors 6-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-8: Troubleshooting BLO Calibration Failure 6-6. . . . . . . . . . . . . . . . . . . .

Table 6-9: Troubleshooting Calibration Audit Failure 6-7. . . . . . . . . . . . . . . . . . . .

Table 6-10: Troubleshooting TX Mask Measurement Failure 6-8. . . . . . . . . . . . . .

Table 6-11: Troubleshooting Rho and Pilot Time Offset Measurement Failure 6-8.
Table 6-12: Troubleshooting Code Domain Power and Noise Floor

Measurement Failure 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-13: Troubleshooting Carrier Measurement Failure 6-9. . . . . . . . . . . . . . . .

Table 6-14: Troubleshooting Multi-FER Failure 6-10. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-15: No GLI2 Control via LMF (all GLI2s) 6-15. . . . . . . . . . . . . . . . . . . . . .

viii

Table 6-16: No GLI2 Control through Span Line Connection (Both GLI2s) 6-15. .

Table 6-17: MGLI2 Control Good – No Control over Co–located GLI2 6-15. . . . .

Table 6-18: MGLI2 Control Good – No Control over AMR 6-16. . . . . . . . . . . . . . .

Table 6-19: MGLI2 Control Good – No Control over Co–located GLI2s 6-16. . . . .

Table 6-20: BBX2 Control Good – No (or Missing) Span Line Traffic 6-16. . . . . . .

. . . continued on next page

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

List of Tables – continued

Table 6-21: No MCC24 Channel Elements 6-16. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-22: No DC Input Voltage to Power Supply Module 6-17. . . . . . . . . . . . . . .

Table 6-23: No DC Input Voltage to any C–CCP Shelf Module 6-18. . . . . . . . . . . .

Table 6-24: No DC Input Voltage to any C–CCP Shelf Module 6-18. . . . . . . . . . . .

Table 6-25: RFDS Fault Isolation – All tests fail 6-19. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-26: RFDS Fault Isolation – All RX and TX paths fail 6-19. . . . . . . . . . . . .

Table 6-27: RFDS Fault Isolation – All tests fail on single antenna path 6-20. . . . .

Table 6-28: Troubleshooting Control Link Failure 6-28. . . . . . . . . . . . . . . . . . . . . . .

Table A-1: Verification of Test Equipment Used A-1. . . . . . . . . . . . . . . . . . . . . . . .

Table A-2: Site Checklist A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-3: Preliminary Operations A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-4: GPS Receiver Operation A-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-5: LFR Receiver Operation A-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-6: LPA IM Reduction A-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-7: TX BLO Calibration (3–Sector: 1–Carrier, 2–Carrier

and 4–Carrier Non–adjacent Channels) A-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-8: TX Bay Level Offset Calibration (3–Sector: 2–Carrier

Adjacent Channels) A-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-9: TX Bay Level Offset Calibration (3–Sector: 3 or

4–Carrier Adjacent Channels) A-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-10: TX BLO Calibration (6–Sector: 1–Carrier, 2–Carrier

Non–adjacent Channels) A-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-11: TX Antenna VSWR A-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-12: RX Antenna VSWR A-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-13: CDI Alarm Input Verification A-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table B-1: When RF Optimization Is required on the BTS B-1. . . . . . . . . . . . . . . .

Table B-2: When to Optimize Inter–frame Cabling B-2. . . . . . . . . . . . . . . . . . . . . .

Table B-3: SC 4812ET BTS Optimization and ATP Test Matrix B-4. . . . . . . . . . .

Table C-1: BBX2 Gain Set Point vs. Actual BTS Output (in dBm) C-1. . . . . . . . .

Table D-1: 1900 MHz TX and RX Frequency vs. Channel D-2. . . . . . . . . . . . . . . .

Table D-2: 800 MHz TX and RX Frequency vs. Channel D-4. . . . . . . . . . . . . . . . .

Table E-1: PnMaskI and PnMaskQ Values for PilotPn E-3. . . . . . . . . . . . . . . . . . .

Table F-1: HP8921A/600 Communications Test Set Rear Panel

Connections Without Rubidium F-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Apr 2001

Table F-2: HP8921A/600 Communications Test Set Rear Panel

Connections With Rubidium F-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-3: System Connectivity F-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-4: Setting HP8921A GPIB Address F-6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-5: Pretest Setup for HP8921A F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . continued on next page

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

ix

List of Tables – continued

Table F-6: Pretest Setup for HP8935 F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-7: Advantest R3465 GPIB Address and Clock Setup F-9. . . . . . . . . . . . . .

Table F-8: Pretest Setup for Advantest R346 F-9. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-9: Calibrating Test Cable Setup (using the HP PCS Interface) F-10. . . . . . .

Table F-10: Procedure for Calibrating Test Cable Setup Using

Advantest R3465 F-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-11: Power Meter Calibration Procedure F-17. . . . . . . . . . . . . . . . . . . . . . . .

Table F-12: Calibrate Gigatronics 8542 Power Meter F-19. . . . . . . . . . . . . . . . . . . .

Table G-1: HP8921A Power Delta Calibration Procedure G-2. . . . . . . . . . . . . . . . .

Table G-2: Advantest Power Delta Calibration Procedure G-4. . . . . . . . . . . . . . . . .

Table G-3: HP8935 Power Delta Calibration Procedure G-7. . . . . . . . . . . . . . . . . .

Table G-4: In–Service Calibration G-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

x

SC4812ET BTS Optimization/ATP — CDMA LMF

Apr 2001

DRAFT

Product Information

Model & Options Charts

Refer to the SC 4812ET Field Replaceable Units manual
(68P64113A24) for detailed model structure and option information

This document covers only the steps required to verify the functionality
of the Base transceiver Subsystem (BTS) equipment prior to system
level testing, and is intended to supplement site specific application
instructions. It also should be used in conjunction with existing product
manuals. Additional steps may be required.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

68P09253A74

xi

DRAFT

FCC Part 15

FCC Part 15 Requirements

This section conveys FCC Part 15 requirements for the T/ET/ETL series
BTS cabinets.

Part 15.19a(3) – INFORMATION TO USER

NOTE

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

Part 15.21 – INFORMATION TO USER

CAUTION

Changes or modifications not expressly approved by
Motorola could void your authority to operate the
equipment.

xii

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

FCC Part 15 – continued

15.105(b) – INFORMATION TO USER

NOTE

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment OFF and ON, the
user is encouraged to try to correct the interference by one
or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and re-

ceiver.

– Connect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician

for help.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

xiii

DRAFT

FCC Part 68

FCC Part 68 Requirements

This equipment complies with Part 68 of the Federal Communications
Commission (FCC) Rules and regulations. A label inside the cabinet
frame easily visible with the door open in the upper portion of the
cabinet contains, among other information, the FCC Registration
Number and Ringer Equivalence Number (REN) for this equipment. If
requested, this information must be provided to the telephone company.

The REN is useful to determine the quantity of the devices which may
connect to the telephone line. Excessive RENs on the telephone line may
result in the devices not ringing in response to incoming calls. In most,
but not all areas, the sum of the RENs should not exceed five (5.0). To
be certain of the number of devices that may be connected to the line as
determined by the total RENs, contact the telephone company to
determine the maximum REN for the calling area.

If the dial–in site access modem causes harm to the telephone network,
the telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice is not
practical, the telephone company will notify you of the discontinuance as
soon as possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the operation of your dial–in
site access modem. If this happens, the telephone company will provide
advance notice so that you can modify your equipment as required to
maintain uninterrupted service.

If you experience trouble with the dial–in site access modem, please
contact:

Motorola Cellular Service Center (MCSC)
1501 W. Shure Drive
Arlington Heights, Illinois 60004
Phone Number: (847) 632–5390

for repair and/or warranty information. If the trouble is causing harm to
the telephone network, the telephone company may request you to
disconnect the equipment from the network until the problem is solved.
You should not attempt to repair this equipment yourself. This
equipment contains no customer or user–serviceable parts.

Changes or modifications not expressly approved by Motorola could
void your authority to operate this equipment.

xiv

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Foreword

Scope of manual

Text conventions

This manual is intended for use by cellular telephone system
craftspersons in the day-to-day operation of Motorola cellular system
equipment and ancillary devices. It is assumed that the user of this
information has a general understanding of telephony, as used in the
operation of the Public Switched Telephone Network (PSTN), and is
familiar with these concepts as they are applied in the cellular
mobile/portable radiotelephone environment. The user, however, is not
expected to have any detailed technical knowledge of the internal
operation of the equipment.

This manual is not intended to replace the system and equipment
training offered by Motorola, although it can be used to supplement or
enhance the knowledge gained through such training.

The following special paragraphs are used in this manual to point out
information that must be read. This information may be set-off from the
surrounding text, but is always preceded by a bold title in capital letters.
The four categories of these special paragraphs are:

*

NOTE

Presents additional, helpful, non-critical information that
you can use.

IMPORTANT

Presents information to help you avoid an undesirable
situation or provides additional information to help you
understand a topic or concept.

CAUTION

Presents information to identify a situation in which
equipment damage could occur, thus avoiding damage to
equipment.

WARNING

Presents information to warn you of a potentially
hazardous situation in which there is a possibility of
personal injury.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

. . . continued on next page

xv

DRAFT

Foreword – continued

Changes to manual

Receiving updates

The following typographical conventions are used for the presentation of
software information:In text, typewriter style characters represent
prompts and the system output as displayed on a Hyperterminal screen.

Changes that occur after the printing date are incorporated into your
manual by Cellular Manual Revisions (CMRs). The information in this
manual is updated, as required, by a CMR when new options and
procedures become available for general use or when engineering
changes occur. The cover sheet(s) that accompany each CMR should be
retained for future reference. Refer to the Revision History page for a list
of all applicable CMRs contained in this manual.

Technical Education & Documentation (TED) maintains a customer
database that reflects the type and number of manuals ordered or shipped
since the original delivery of your Motorola equipment. Also identified
in this database is a “key” individual (such as Documentation
Coordinator or Facility Librarian) designated to receive manual updates
from TED as they are released.

Reporting manual errors

To ensure that your facility receives updates to your manuals, it is
important that the information in our database is correct and up-to-date.
Therefore, if you have corrections or wish to make changes to the
information in our database (i.e., to assign a new “key” individual),
please contact Technical Education & Documentation at:

MOTOROLA, INC.
Technical Education & Documentation
1 Nelson C. White Parkway
Mundelein, Illinois 60060
U.S.A.

Phone:

Within U.S.A. and Canada 800-872-8225. . . . .

Outside of U.S.A. and Canada [phone]. .

FAX: [phone]. . . . . . . . . . . . . . . . . . . . . .

In the event that you locate an error or identify a deficiency in your
manual, please take time to write to us at the address above. Be sure to
include your name and address, the complete manual title and part
number (located on the manual spine, cover, or title page), the page
number (found at the bottom of each page) where the error is located,
and any comments you may have regarding what you have found. We
appreciate any comments from the users of our manuals.

xvi

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Foreword – continued

24-hour support service

Material Available from
Motorola Infrastructure Group
Worldwide Cellular Services

If you have any questions or concerns regarding the operation of your
equipment, please contact the Customer Network Resolution Center for
immediate assistance. The 24 hour telephone numbers are:

Arlington Heights, IL 800–433–5202. . . . . . . . .

Arlington Heights, International [phone].

Cork, Ireland 44–1793–565444. . . . . . . . . . . . . . . .

Swindon, England 44–1793–565444. . . . . . . . . . . . .

Material available from Motorola Infrastructure Group Worldwide
Cellular Services, identified by a Motorola part number can be ordered
from your sales account manager or by calling (800) 453–7988.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

xvii

DRAFT

General Safety

Remember! . . . Safety
depends on you!!

Ground the instrument

The following general safety precautions must be observed during all
phases of operation, service, and repair of the equipment described in
this manual. Failure to comply with these precautions or with specific
warnings elsewhere in this manual violates safety standards of design,
manufacture, and intended use of the equipment. Motorola, Inc. assumes
no liability for the customer’s failure to comply with these requirements.
The safety precautions listed below represent warnings of certain dangers
of which we are aware. You, as the user of this product, should follow
these warnings and all other safety precautions necessary for the safe
operation of the equipment in your operating environment.

To minimize shock hazard, the equipment chassis and enclosure must be
connected to an electrical ground. If the equipment is supplied with a
three-conductor ac power cable, the power cable must be either plugged
into an approved three-contact electrical outlet or used with a
three-contact to two-contact adapter. The three-contact to two-contact
adapter must have the grounding wire (green) firmly connected to an
electrical ground (safety ground) at the power outlet. The power jack and
mating plug of the power cable must meet International Electrotechnical
Commission (IEC) safety standards.

Do not operate in an explosive
atmosphere

Keep away from live circuits

Do not service or adjust alone

Do not operate the equipment in the presence of flammable gases or
fumes. Operation of any electrical equipment in such an environment
constitutes a definite safety hazard.

Operating personnel must:

 not remove equipment covers. Only Factory Authorized Service

Personnel or other qualified maintenance personnel may remove
equipment covers for internal subassembly, or component
replacement, or any internal adjustment.

 not replace components with power cable connected. Under certain

conditions, dangerous voltages may exist even with the power cable
removed.

 always disconnect power and discharge circuits before touching them.

Do not attempt internal service or adjustment, unless another person,
capable of rendering first aid and resuscitation, is present.

xviii

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

General Safety – continued

Use caution when exposing or
handling the CRT

Do not substitute parts or
modify equipment

Dangerous procedure
warnings

Breakage of the Cathode–Ray Tube (CRT) causes a high-velocity
scattering of glass fragments (implosion). To prevent CRT implosion,
avoid rough handling or jarring of the equipment. The CRT should be
handled only by qualified maintenance personnel, using approved safety
mask and gloves.

Because of the danger of introducing additional hazards, do not install
substitute parts or perform any unauthorized modification of equipment.
Contact Motorola Warranty and Repair for service and repair to ensure
that safety features are maintained.

Warnings, such as the example below, precede potentially dangerous
procedures throughout this manual. Instructions contained in the
warnings must be followed. You should also employ all other safety
precautions that you deem necessary for the operation of the equipment
in your operating environment.

WARNING

Dangerous voltages, capable of causing death, are present in this
equipment. Use extreme caution when handling, testing, and
adjusting.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

xix

DRAFT

Revision History

Manual Number

Manual Title

Version Information

68P09253A74–1

SC4812ET BTS Optimization/ATP — CDMA LMF
CDMA 1.9 GHz and 800 MHz

The following table lists the manual version , date of version, and
remarks on the version.

Version

Level

1 April 2001 Preliminary DRAFT of document

Date of

Issue

Remarks

xx

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Patent Notification

Patent numbers

4128740 4661790 4860281 5036515 5119508 5204876 5247544 5301353
4193036 4667172 4866710 5036531 5121414 5204977 5251233 5301365
4237534 4672657 4870686 5038399 5123014 5207491 5255292 5303240
4268722 4694484 4872204 5040127 5127040 5210771 5257398 5303289
4282493 4696027 4873683 5041699 5127100 5212815 5259021 5303407
4301531 4704734 4876740 5047762 5128959 5212826 5261119 5305468
4302845 4709344 4881082 5048116 5130663 5214675 5263047 5307022
4312074 4710724 4885553 5055800 5133010 5214774 5263052 5307512
4350958 4726050 4887050 5055802 5140286 5216692 5263055 5309443
4354248 4729531 4887265 5058136 5142551 5218630 5265122 5309503
4367443 4737978 4893327 5060227 5142696 5220936 5268933 5311143
4369516 4742514 4896361 5060265 5144644 5222078 5271042 5311176
4369520 4751725 4910470 5065408 5146609 5222123 5274844 5311571
4369522 4754450 4914696 5067139 5146610 5222141 5274845 5313489
4375622 4764737 4918732 5068625 5152007 5222251 5276685 5319712
4485486 4764849 4941203 5070310 5155448 5224121 5276707 5321705
4491972 4775998 4945570 5073909 5157693 5224122 5276906 5321737
4517561 4775999 4956854 5073971 5159283 5226058 5276907 5323391
4519096 4797947 4970475 5075651 5159593 5228029 5276911 5325394
4549311 4799253 4972355 5077532 5159608 5230007 5276913 5327575
4550426 4802236 4972432 5077741 5170392 5233633 5276915 5329547
4564821 4803726 4979207 5077757 5170485 5235612 5278871 5329635
4573017 4811377 4984219 5081641 5170492 5235614 5280630 5339337
4581602 4811380 4984290 5083304 5182749 5239294 5285447 D337328
4590473 4811404 4992753 5090051 5184349 5239675 5287544 D342249
4591851 4817157 4998289 5093632 5185739 5241545 5287556 D342250
4616314 4827507 5020076 5095500 5187809 5241548 5289505 D347004
4636791 4829543 5021801 5105435 5187811 5241650 5291475 D349689
4644351 4833701 5022054 5111454 5193102 5241688 5295136 RE31814
4646038 4837800 5023900 5111478 5195108 5243653 5297161
4649543 4843633 5028885 5113400 5200655 5245611 5299228
4654655 4847869 5030793 5117441 5203010 5245629 5301056
4654867 4852090 5031193 5119040 5204874 5245634 5301188

This product is manufactured and/or operated under one or more of the
following patents and other patents pending:

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

xxi

DRAFT

Patent Notification – continued

Notes

xxii

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Chapter 1: Introduction

Table of Contents

Optimization Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Scope of This Document 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Document Composition 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CDMA LMF Product Description 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Online Help 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why Optimize? 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Is Optimization? 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

When to Optimize 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Additional Information 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Overview 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LMF Hardware Requirements 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Test Equipment 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Calibration 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Cable Calibration 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Warm–up 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment List 1-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Optional Equipment 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Abbreviations and Acronyms 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

Apr 2001

BTS Equipment Identification 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Overview 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Logical BTS 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Major Components 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF Cabinet Internal FRUs 1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sector Configuration 1-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Cabinet 1-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Cabinet Internal FRUs 1-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

1

Table of Contents – continued

Notes

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Optimization Overview

Scope of This Document

Document Composition

This document provides information pertaining to the optimization and
audit tests of Motorola SC 4812ET Base Transceiver Subsystem (BTS)
equipment frames equipped with trunked high–power Linear Power
Amplifiers (LPAs) and their associated internal and external interfaces.

This document assumes the following prerequisites: The BTS frames
and cabling have been installed per the

– 68P64114A22, which covers the physical “bolt down” of all SC series

equipment frames, and the specific cabling configurations.

This document covers the following major areas:

BTS Hardware Installation Manual

 Introduction, consisting of preliminary background information (such

as component and subassembly locations and frame layouts) to be
considered by the Cell Site Field Engineer (CFE) before optimization
or tests are performed.

1

 Preliminary Operations, consisting of cabinet power up and power

down procedures.

 Optimization/calibration, covering topics of Local Maintenance

Facility (LMF) connection to the BTS equipment, Global Positioning
System (GPS) Verification, test equipment setup, downloading all
BTS processor boards, RF path verification, Bay Level Offset (BLO)
calibration and calibration audit, and Radio Frequency Diagnostic
System (RFDS) calibration.

 Acceptance Test Procedures (ATPs), consisting of ATP tests executed

by the LMF and used to verify all major transmit (TX) and
receive (RX) performance characteristics on all BTS equipment.

 Preparing to leave the site, presents instructions on how to properly

exit customer site, ensure that all equipment is operating properly, and
all work is complete according to Motorola guidelines.

 Basic troubleshooting, consisting of procedures for installation,

calibration, transmit and receive tests, backplane problems, GPS
failures, and module connectors.

 Appendices contain pertinent Pseudorandom Noise (PN) Offset,

frequency programming, output power data tables, data sheets that are
filled out manually by the CFE at the site, and information on test
equipment preparation.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-1

DRAFT

1

Optimization Overview – continued

CDMA LMF Product Description

The Code Division Multiple Access (CDMA) LMF is a graphical user
interface (GUI) based LMF. This product is specifically designed to
provide cellular communications field personnel the vehicle to support
the following CDMA BTS operations:

 Installation
 Maintenance
 Calibration
 Optimization

The LMF also provides Command Line Interface (CLI) capability.
Activate the CLI by clicking on a shortcut icon on the desktop. The CLI
cannot be launched from the GUI, only from the desktop icon.

Online Help

Task oriented online help is available in the LMF by clicking on Help
from the menu bar.

Why Optimize?

What Is Optimization?

Proper optimization and calibration assures:

 Accurate downlink RF power levels are transmitted from the site.
 Accurate uplink signal strength determinations are made by the site.

Optimization compensates for the site-specific cabling and normal
equipment variations. Cables that interconnect the BTS and Duplexer
assemblies (if used), for example, are cut and installed at the time of the
BTS frame installation at the site. Site optimization guarantees that the
combined losses of the new cables and the gain/loss characteristics and
built-in tolerances of each BTS frame do not accumulate, causing
improper site operation.

Optimization identifies the accumulated loss (or gain) for all receive and
transmit paths at the BTS site, and stores that value in a database.

 The RX path starts at the ancillary equipment frame RFDS RX

directional coupler antenna feedline port, through the RX input port
on the rear of the frame, through the DDRCs, Multicoupler Preselector
Card (MPC), and additional splitter circuitry, ending at a CDMA
Channel Processor (C–CCP) backplane Broad Band Transceiver
(BBX) slot in the C–CCP shelf.

 A transmit path starts at the BBX, through the C–CCP backplane slot,

travels through the LPA/Combiner TX Filter and ends at the rear of
the input/output (I/O) Panel. If the RFDS option is added, then the
TX path continues and ends at the top of the RFDS TX directional
coupler antenna feedline port installed in the ancillary equipment
frame.

. . . continued on next page

1-2

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Optimization Overview – continued

These values are factored in by the BTS equipment internally, leaving
only site specific antenna feed line loss and antenna gain characteristics
to be factored in by the CFE when determining site Effective Radiated
Power (ERP) output power requirements.

Each C–CCP shelf BBX board is optimized to a specific RX and TX
antenna port. (One BBX board acts in a redundant capacity for BBXs
1–12, and is optimized to all antenna ports). A single value is generated
for each path, thereby eliminating the accumulation of error that would
occur from individually measuring and summing the gain and loss of
each element in the path.

When to Optimize

New Installations

After the initial site installation, the BTS must be prepared for operation.
This preparation includes verifying hardware installation, initial power
up, and GPS verification. Basic alarm tests are also addressed.

A calibration audit of all RF transmit paths is performed to verify factory
calibration.

1

A series of ATP CDMA verification tests are covered using the actual
equipment set up. An ATP is also required before the site can be placed
in service.

Site Expansion

Optimization is also required after expansion of a site.

Periodic Optimization

Periodic optimization of a site may also be required, depending on the
requirements of the overall system.

Repaired Sites

Verify repair(s) made to the BTS by consulting an Optimization/ATP
Test Matrix table. This table outlines the specific tests that must be
performed anytime a BTS subassembly or RF cable associated with it is
replaced.

IMPORTANT

*

Refer to Appendix B for detailed basic guideline tables and
detailed Optimization/ATP Test Matrix.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-3

DRAFT

1

Optimization Overview – continued

Required Documents

The following documents are required to perform optimization of the
cell site equipment:

 Site document (generated by Motorola systems engineering), which

includes:

– General site information
– Floor plans
– Power levels
– Site PN
– Site paging and traffic channel allocation
– Board placement
– Site wiring lists
– Cell–site Data Files (CDF)

 Demarcation document (scope of work agreement)
 Equipment manuals for non-Motorola test equipment.

Additional Information

Test Equipment Overview

For other information, refer to the following manuals:

 CDMA LMF Operators Guide

Delivered as on-line help with your system

 4812ET Field Replacement Units Guide

(Motorola part number 68P09253A48)

 SC 4812ET RF & Power Cabinet Hardware Installation Manual

(Motorola part number 68P09253A93)

 Logical BTS Implementation

(Motorola part number 68P09253A79)

The LMF is used in conjunction with Motorola recommended test
equipment, and it is a part of a “calibrated test set.” To ensure consistent,
reliable, and repeatable optimization test results, only recommended test
equipment supported by the LMF must be used to optimize the BTS
equipment. Table 1-1 outlines the supported test equipment that meets the
technical criteria required for BTS optimization.

Table 1-1: CDMA LMF Test Equipment Support Table

Item Description

1-4

Hewlett Packard, model
HP 8921A

Hewlett Packard, model
HP 83236A

SC4812ET BTS Optimization/ATP — CDMA LMF

Cellular communications analyzer
(includes 83203B CDMA interface
option)

PCS interface for PCS band

DRAFT

. . . continued on next page

Apr 2001

Optimization Overview – continued

1

Table 1-1: CDMA LMF Test Equipment Support Table

Item Description

LMF Hardware Requirements

Hewlett Packard, model
HP 8935

Motorola CyberTest Cellular communications analyzer
Advantest R3465 with

3561 CDMA option
Gigatronix 8541C Power meter
HP437B Power meter

To ensure consistent, reliable, and repeatable optimization test results,
test equipment meeting the following technical criteria should be used to
optimize the BTS equipment. You can, of course, substitute test
equipment with other test equipment models supported by the LMF
meeting the same technical specifications.

An LMF computer platform that meets the following requirements (or
better) is recommended:

Cellular cmmunications analyzer

Cellular communications analyzer

 Notebook computer
 266 MHz (32 bit CPU) Pentium processor
 4 Gbyte internal hard disk drive
 Color display with 1024 x 768 (recommended) or 800 x 600 pixel

resolution

 64 MB RAM
 CD ROM drive
 3 1/2 inch floppy drive
 Serial port (COM 1)
 Parallel port (LPT 1)
 PCMCIA Ethernet interface card (for example, 3COM Etherlink III)

with a 10Base–T–to–coax adapter

 Windows 98/NT operating system

NOTE

If 800 x 600 pixel resolution is used, the LMF window
must be maximized after it is displayed.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-5

DRAFT

1

Optimization Overview – continued

Required Test Equipment

To ensure consistent, reliable, and repeatable optimization test results,
test equipment meeting the following technical criteria should be used to
optimize the BTS equipment. You can, of course, substitute test
equipment with other test equipment models supported by the LMF
meeting the same technical specifications.

NOTE

During manual testing, you can substitute test equipment
with other test equipment models not supported by the
LMF, but those models must meet the same technical

specifications.

The customer has the responsibility of accounting for any measurement
variances and/or additional losses/inaccuracies that can be introduced
as a result of these substitutions. Before beginning optimization or

troubleshooting, make sure that the test equipment needed is on hand
and operating properly.

Test Equipment Calibration

Test Cable Calibration

Equipment Warm–up

Optimum system performance and capacity depend on regular equipment
service, calibration, and characterization prior to BTS optimization.
Follow the original equipment manufacturer (OEM) recommended
maintenance and calibration schedules closely.

Equipment test cables are very important in optimization. Motorola
recommends that the cable calibration be run at every BTS with the test
cables attached. This method compensates for test cable insertion loss
within the test equipment itself. No other allowance for test cable
insertion loss needs to be made during the performance of tests.

Another method is to account for the loss by entering it into the LMF
during the optimization procedure. This method requires accurate test
cable characterization in a shop. The cable should be tagged with the
characterization information prior to field optimization.

After arriving at the a site, the test equipment should be plugged in and
turned on to allow warm up and stabilization to occur for as long as
possible. The following pieces of test equipment must be warmed–up for
a minimum of 60 minutes prior to using for BTS optimization or RFDS
calibration procedures.

1-6

 Communications test set
 Rubidium time base
 Power meter

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Optimization Overview – continued

Test Equipment List

The following pieces of test equipment are required during the
optimization procedure. Common assorted tools like screwdrivers and
frame keys are not listed but are still required. Read the owner’s manual
on all of the following major pieces of test equipment to understand their
individual operation prior to use in optimization.

10BaseT/10Base2 Converter
Ethernet LAN transceiver (part of CGDSLMFCPQ1700)

 PCMCIA Ethernet Adpater + Ethernet UTP adapter: 3COM model –

Etherlink III 3C589B

Transition Engineering model E–CX–TBT–03 10BaseT/10Base2
converter

1

NOTE

Always refer to specific OEM test equipment
documentation for detailed operating instructions.

NOTE

Xircom model PE3–10B2 or equivalent can also be used to
interface the LMF Ethernet connection to the frame.

RS–232 to GPIB Interface

 National Instruments GPIB–232–CT with Motorola CGDSEDN04X

RS232 serial null modem cable (see Figure 1-1) or equivalent; used to
interface the LMF to the test equipment.

 Standard RS–232 cable can be used with the following modifications:

– This solution passes only the 3 minimum electrical connections

between the LMF and the GPIB interface. The control signals are
jumpered as enabled on both ends of the RS–232 cable (9–pin D).
TX and RX signals are crossed as null modem effect. Pin 5 is the
ground reference.

– Short pins 7 and 8 together, and short pins 1, 4, and 6 together on

each connector.

Figure 1-1: Null Modem Cable Detail

9–PIN D–FEMALE 9–PIN D–FEMALE

5

GND

RX

TX
RTS
CTS

RSD/DCD

DTR

DSR

3
2
7
8
1
4
6

ON BOTH CONNECTORS
SHORT PINS 7, 8;
SHORT PINS 1, 4, & 6

GND

5

TX

2

RX

3

RTS

7

CTS

8

RSD/DCD

1

DTR

4
6

DSR

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

FW00362

1-7

DRAFT

1

Optimization Overview – continued

Model SLN2006A MMI Interface Kit

 Motorola Model TRN9666A null modem board. Connectors on

opposite sides of the board must be used as this performs a null
modem transformation between cables. This board can used for
10–pin to 8–pin, 25–pin to 25–pin and 10–pin to 10–pin conversions.

 Motorola 30–09786R01 MMI cable or equivalent ; used to interface

the LMF serial port connection to GLI2, CSM and LPA debug serial
ports.

 25 pin D to 25 pin D serial cable from PC to null modem board.

Communications System Analyzer

The communication system analyzer is used during optimization and
testing of the RF communications portion of BTS equipment and
provides the following functions:

(1) Frequency counter
(2) RF power meter (average and code domain)
(3) RF Signal generator (capable of CDMA modulation)
(4) Spectrum analyzer
(5) CDMA code domain analyzer

Four types of communication system analyzers are currently supported
by the LMF:

HP8921A/600 Analyzer – Including 83203B CDMA Interface,
manual control system card, and 83236A/B PCS Interface for 1900 MHz
BTSs.

Advantest R3465 Analyzer – Including R3561L test source unit
HP8935 Analyzer
CyberTest Communication Analyzer
GPIB Cables

 Hewlett Packard 10833A or equivalent; 1 to 2 meters (3 to 6 feet) long

used to interconnect test equipment and LMF terminal.

Power Meter

One of the following power meters is required for TX calibration and
audit if an HP8921A or Advantest R3465 analyzer is used:

 Hewlett Packard Model HP HP437B with HP8481A power sensor
 Gigatronix model 8541C with model 80601A power sensor

1-8

Timing Reference Cables

 Two BNC–male to BNC–male RG316 cables; 3 meters (10 ft.) long,

used to interconnect the HP8921A/600 or Advantest R3465
communications analyzer to the CSM front panel timing references in
the BTS.

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Optimization Overview – continued

 BNC “T” adapter with 50 ohm termination.

1

NOTE

Two Huber & Suhner 16MCX/11BNC/K02252D or
equivalent; right angle MCX–male to standard BNC–male
RG316 cables; 10 ft. long are required to interconnect the
HP8921A/600 communications analyzer to SGLN4132A
and SGLN1145A CSM board timing references.

NOTE

This BNC “T” adapter (with 50 ohm termination) is
required to connect between the HP 8921A/600 (or
Advantest R3465) EVEN SECOND/SYNC IN and the
BNC cable. The BNC cable leads to the 2–second clock
connection on the TIB. Erroneous test results may occur if
the “T” adapter with the 50 ohm termination is not
connected.

Digital Multimeter

 Fluke model 8062A with Y8134 test lead kit or equivalent; used for

precision DC and AC measurements, requiring 4–1/2 digits.

Directional Coupler

 Narda model 30661 30 dB (Motorola part no. 58D09732W01) coupler

terminated with two Narda Model 375BN–M loads, or equivalent.

RF Attenuators

 20 dB fixed attenuators, 20 W (Narda 768–20); used with test cable

calibrations or during general troubleshooting procedures.

 Narda Model 30445 30 dB (Motorola Part No. 58D09643T01) coupler

terminated with two Narda Model 375BN–M loads, or equivalent.

Miscellaneous RF Adapters, Loads, etc

 As required to interface test cables and BTS equipment and for

various test set ups. Should include at least two 50 Ohm loads (type
N) for calibration and one RF short, two N–type female–to–female
adapters.

High–impedance Conductive Wrist Strap

 Motorola model 42–80385A59; used to prevent damage from

Electrostatic Discharge (ESD) when handling or working with
modules.

Apr 2001

RF Load (at least three for trunked cabinets)

 100 W non–radiating RF load; used (as required) to provide dummy

RF loading during BTS transmit tests.

SC4812ET BTS Optimization/ATP — CDMA LMF

1-9

DRAFT

1

Optimization Overview – continued

RF Network Box (and calibrated cables)

 Motorola model SGLN5531A 18:3 Passive Antenna Interface used to

interface test equipment to the BTS receive and transmit antenna
inputs during optimization/ATP or general troubleshooting
procedures.

Optional Equipment

Frequency Counter

 Stanford Research Systems SR620 or equivalent. If direct

measurement of the 3 MHz or 19.6608 MHz references is required.

Spectrum Analyzer

 Spectrum Analyzer (HP8594E with CDMA personality card) or

equivalent; required for tests other than standard Receive band spectral
purity and TX LPA IM reduction verification tests performed by the
LMF.

Local Area Network (LAN) Tester

 Model NETcat 800 LAN troubleshooter (or equivalent); used to

supplement LAN tests using the ohm meter.

Span Line (T1/E1) Verification Equipment

 As required for local application

RF Test Cable (if not Provided with Test Equipment)

 Motorola model TKN8231A; used to connect test equipment to the

BTS transmitter output during optimization or during general
troubleshooting procedures.

Oscilloscope

 Tektronics model 2445 or equivalent; for waveform viewing, timing,

and measurements or during general troubleshooting procedure.

2–way Splitter

 Mini–Circuits model ZFSC–2–2500 or equivalent; provide the

diversity receive input to the BTS

High Stability 10 MHz Rubidium Standard

1-10

 Stanford Research Systems SR625 or equivalent. Required for CSM

and Low Frequency Receiver/High Stability Oscillator (LFR/HSO)
frequency verification.

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Optimization Overview – continued

Abbreviations and
Acronyms

Table 1-2: Abbreviations and Acronyms

Acronym Definition

AMR Alarm Monitor Reporting
ATP Acceptance Test Plan
BBX2 Broadband Transceiver
BLO Bay Level Offset
BTS Base Transceiver Subsystem
CBSC Centralized Base Station Controller
C–CCP Combined CDMA Channel Processor
CCD CDMA Clock Distribution
CDMA Code Division Multiple Access
CE Channel Element
CHI Concentration Highway Interface
CLI Command Line Interface
CIO Combiner Input/Output
CM Channel Module
CMR Cellular Manual Revision
CSM Clock Synchronization Manager
CSU Clock Synchronization Unit
DBPF Dual Bandpass Filter
DBM Debug Monitor
DMAC Digital Metering and Alarm Control (also see MAP)
DRDC Duplexer/RX Filter/Directional Coupler
DSP Digital Signal Processor
EMPC Expansion Multicoupler Preselector Card
FRU Field Replaceable Unit
FSI Frame Status Indicator
GLI 2 Group Line Interface II
GPS Global Positioning System
HSO High Stability Oscillator
IFM Integrated Frame Modem
I&Q Interphase and Quadrature
ISB InterShelf Bus
LAPD Link Access Protocol “D”
LFR Low Frequency Receiver
LMF Local Maintenance Facility

1

. . . continued on next page

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-11

DRAFT

1

Optimization Overview – continued

Table 1-2: Abbreviations and Acronyms

Acronym Definition

LORAN LOng RAnge Navigational
LPA Linear Power Amplifier
MAP Meter Alarm Panel (also refered to as DMAC)
MCC Multi–Channel CDMA
MGLI Master Group Line Interface
MM Mobility Manager
MMI Man Machine Interface
MPC Multicoupler Preselector Card
OMCR Operations Maintenance Center – Radio
PCS Personal Communication System
PCSC Personal Communication System Controller
PN Pseudo–random Noise
PSTN Public Switched Telephone Network
QPSK Quadrature Phase Shift Keyed
RFDS Radio Frequency Diagnostic Subsystem
RSSI Received Signal Strength Indicator
SCAP Super Cell Application Protocol
TCH Traffic Channel
TSI Time Slot Interchanger

1-12

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification

Equipment Overview

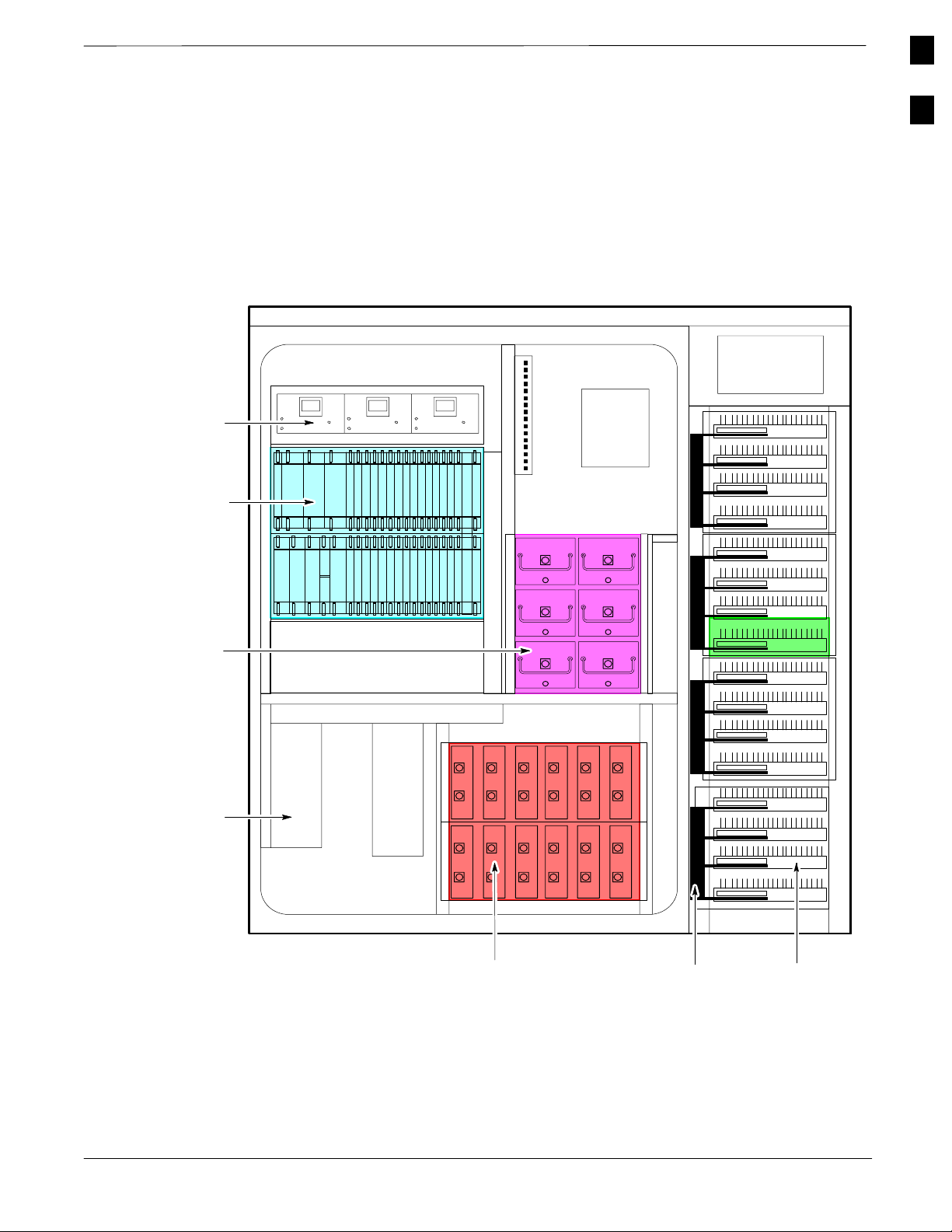

The SC 4812ET BTS consists of an RF Cabinet that is an outdoor,
weatherized version of the SC 4812T. The RF cabinet is powered by
27 Vdc and each cabinet has the capability to support up to 4 carriers (at
3 sector) or 2 carriers (at 6 sector).

The RF Cabinet houses the fan modules, C–CCP, LPA modules, LPA
trunking backplane, Bandpass 2:1 & 4:1 Combiners, Duplexer/Receive
Filter/Directional Couplers (DRDC) and a DC Power distribution
assembly. The Power Cabinet (PC) provides +27 Vdc distribution and
battery backup for the SC 4812ET. The Power Cabinet houses batteries,
battery heaters, rectifiers, an AC Load Center (ACLC), a power
distribution assembly, and two duplexed GFCI convenience outlets.

Logical BTS

A logical BTS can consist of up to four SC 4812ET frames. When the
LMF is connected to frame 1 of a logical BTS, you can access all
devices in all of the frames that make up the logical BTS. A logical BTS
CDF file that includes equippage information for all of the logical BTS
frames and their devices is required. A Centralized Base Station
Controller (CBSC) file that includes channel data for all of the logical
BTS fames is also required.

1

The first frame of a logical BTS has a –1 suffix (e.g., BTS–812–1) and
other frames of the logical BTS are numbered with suffixes, –101, –201,
and –301 (e. g. BTS–812–201). When you log into a BTS a FRAME
tab is displayed for each frame. If there is only one frame for the BTS,
there will only be one tab (e.g., FRAME–282–1) for BTS–282. If a
logical BTS has more than one frame, there will be a separate FRAME
tab for each frame (e.g. FRAME–438–1, FRAME–438–101, and
FRAME–438–202 for a BTS–438 that has all three frames). If an
RFDS is included in the CDF file, an RFDS tab (e.g., RFDS–438–1)
will be displayed.

Actions (e.g., ATP tests) can be initiated for selected devices in one or
more frames of a logical BTS. Refer to the Select devices help screen
for information on how to select devices.

C–CCP Shelf Card/Module Device ID Numbers

All cards/modules/boards in the frames at a single site, assigned to a
single BTS number, are also identified with unique Device ID numbers
dependent upon the Frame ID number in which they are located. Refer to
Table 1-3 and Table 1-4 for specific C–CCP Shelf Device ID numbers.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-13

DRAFT

1

BTS Equipment Identification – continued

Table 1-3: C–CCP Shelf/Cage Card/Module Device ID Numbers (Top Shelf)

Frame Card/Module ID Number (Left to Right)

#

Power

Power

Power

(PS–1)

(PS–2)

1 – – – 1 1 1 2 3 4 5 6 1 2 3 4 5 6 R1 –
101 – – – 101 101 101 102 103 104 105 106 101 102 103 104 105 106 R101 –
201 – – – 201 201 201 202 203 204 205 206 201 202 203 204 205 206 R201 –
301 – – – 301 301 301 302 303 304 305 306 301 302 303 304 305 306 R301 –

(PS–3)

AMR–1GLI2

–1

MCC2 BBX2 BBX2–RMPC/

EMPC

–1

Table 1-4: C–CCP Shelf/Cage Card/Module Device ID Numbers (Bottom Shelf)

Frame Card/Module ID Number (Left to Right)

#

HSO/

CSM–1CSM–2CCDACCD

LFR

1 – 1 2 – – – 2 2 7 8 9 10 11 12 7 8 9 10 11 12 – –

B

AMR–2GLI2–

2

MCC2 BBX2 SW MPC/

EMPC

–2

101 – 101 102 – – – 102 102 107 108 109 110 111 112 107 108 109 110 111 112 – –
201 – 201 202 – – – 202 102 207 208 209 210 211 212 207 208 209 210 211 212 – –
301 – 301 302 – – – 302 102 307 308 309 310 311 312 307 308 309 310 311 312 – –

1-14

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

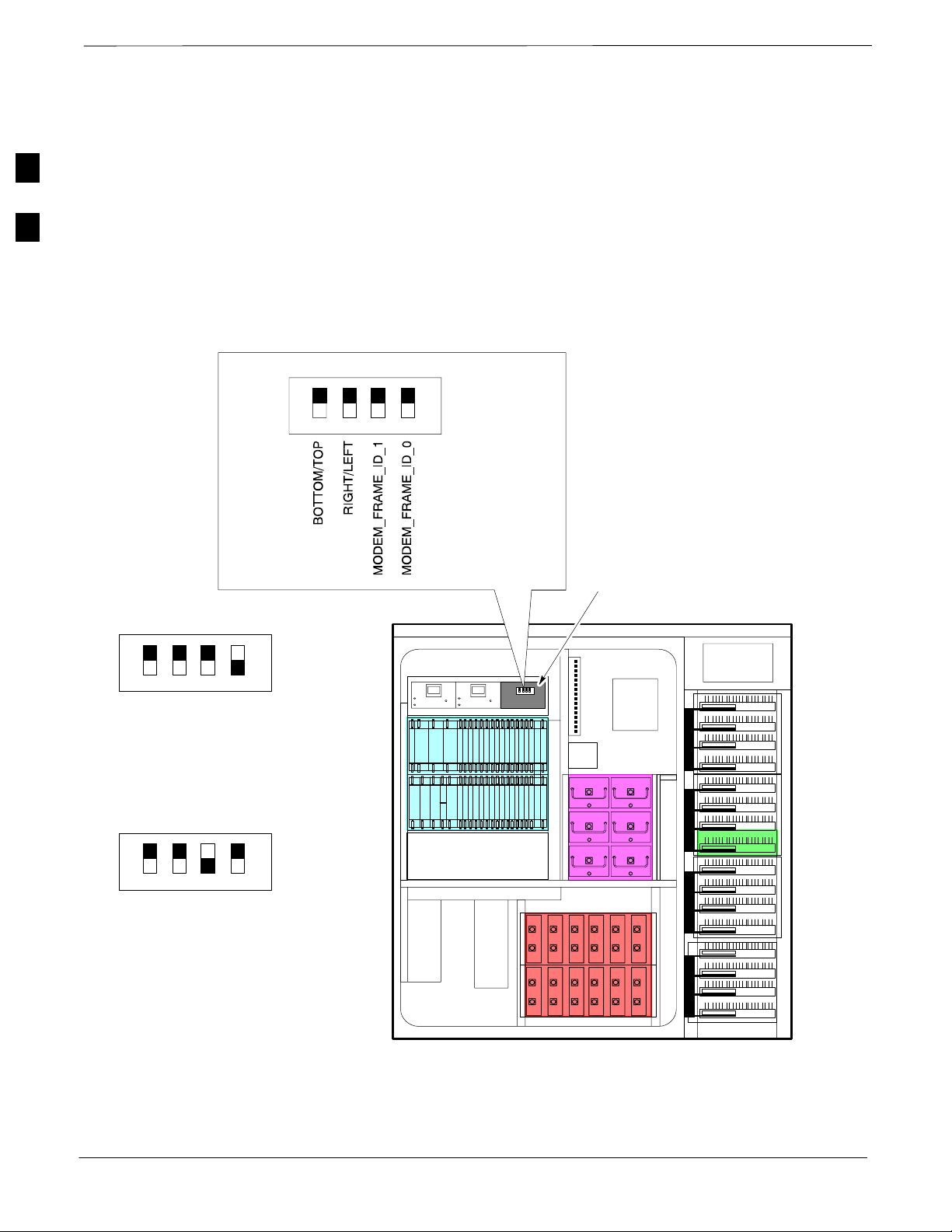

Figure 1-2: Typical Logical BTS Configurations

Two Frame Configuration Three Frame Configuration

1

BTSSPAN

1

BTSSPAN 1 10

AB

Frame

1

BTSSPAN

1

A

Frame

101

BTSSPAN 1 10

Frame

1

BTSSPAN

1

Four Frame Configuration

BTSSPAN 211

B

Frame

101

BBAA

A

Frame

BTSSPAN 1 10 BTSSPAN 211

Frame

1

B

A

Frame

301

Frame

101

B

Frame

201

AA A

BTSSPAN 310

201

FW00485REF

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-15

DRAFT

1

BTS Equipment Identification – continued

Major Components

The major components that make up the Motorola SC 4812ET are
illustrated in this section: the RF Cabinet (see Figure 1-3) and the Power
Cabinet (see Figure 1-10).

Figure 1-3: SC 4812ET RF Cabinet

Main Door

LPA Door

(Can only be opened after Main Door is open)

RF I/O

Area Cover Plate

Rear Conduit Panel

Rear I/O DoorRear DC Conduit Panel

FW00189

1-16

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

RF Cabinet Internal
FRUs

Figure 1-4 shows the location of the Internal Field Replaceable
Units (FRUs). A brief description of each Internal FRU is found in the
following paragraphs.

Figure 1-4: RF Cabinet Internal FRUs

1

CCP Fans

C–CCP Shelf

Combiner

Cage

Circuit

Breaker Panel

DC

Power

Dist.

5 RU Rack Space

OPTIONAL AREA

Punch

Block

(back)

ETIB

EBA

RFDS

Apr 2001

DRDC LPA’s

LPA Trunking

Duplexer/Directional Coupler

The DRDC combines, in a single module, the functions of antenna
duplexing, receive band pass filtering, and surge protection
(see.Figure 1-8).

SC4812ET BTS Optimization/ATP — CDMA LMF

Backplane

DRAFT

FW00163

1-17

1

BTS Equipment Identification – continued

Combiner Cage (2:1, 4:1, or Band pass Filter)

The Combiner Cage holds the transmit band pass filters, 2:1 combiners,
or 4:1 combiners, depending on system configuration.

Combined CDMA Channel Processor Shelf

The C–CCP shelf contains the following (see Figure 1-5):

 High Stability Oscillator (HSO) or Low Frequency Receiver (LFR)

card (1)

 Clock Synchronization Manager (CSM)card (2 – one with GPS

receiver)

 CDMA Clock Distribution (CCD) cards (2)
 Power Supply cards (2 minimum, 3 maximum)
 Multicoupler Preselector Cards (MPC) or Expansion Multicoupler

Preselector Cards (EMPC) (2)

 Alarm Monitoring and Reporting (AMR) cards (2)
 Multi Channel CDMA (MCC8E, MCC24s or MCC–1Xs) cards (up to

12)

 Broadband Transceiver (BBX2s or BBX–1Xs) cards (up to 13)
 Combined Input/Output (CIO) card (1)
 Group Line Interface (GLI2) cards (2)
 BBX2 Switch card (1)
 Modem (optional)
 Filler Panels (as required)
 Fan Module (3)

1-18

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

Figure 1-5: SC 4812ET C–CCP Shelf

1

SC 4812ET RF Cabinet

Power Supply

19 mm Filter Panel

CSM

HSO/LFR

Power Supply

CSM

CCD CCD

AMR

Power Supply

AMR

MODEM

GLI2GLI2

MCC24–3

MCC24–2

MCC24–1

MCC24–9

MCC24–8

MCC24–7

Punch Block

ETIB

RFDS

BBX2–1

BBX2–2

BBX2–3

BBX2–4

BBX2–5

BBX2–6

MCC24–6

MCC24–5

MCC24–4

BBX2–7

BBX2–8

BBX2–9

MCC24–11

MCC24–12

MCC24–10

BBX2–10

BBX2–RSwitch

MPC/EMPC–1MPC/EMPC–2

CIO

BBX2–11

BBX2–12

5 RU RACK

SPACE

NOTE: MCCs may be
MCC8Es, MCC24s or
MCC–1Xs. BBXs may
be BBX2s or
BBX–1Xs.

REF FW00304

EBA

The Punch Block is the interface point of the RF Cabinet between the
T1/E1 span lines, the Customer I/O, alarms, multi–cabinet timing
(RGPS and RHSO), and Pilot Beacon control (optional). (see
Figure 1-7).

Span I/O Board

The Span I/O Board provides the interface for the span lines from the
CSU to the C–CCP backplane (see Figure 1-7).

RF Diagnostic Subsystem

The RFDS provides the capability for remotely monitoring the status of
the SC 4812ET RF Transmit and Receive paths (Figure 1-8).

Heat Exchanger

The Heat Exchanger provides cooling to the internal compartment of the
RF Cabinet. The fan speed of the heat exchangers adjusts automatically
with temperature. The Heat Exchanger is located in the primary front
door of the RF Cabinet.

SC 4812ET Interface Board (ETIB) & LPA Control Brd (LPAC)

The ETIB is an interconnect board showing status LEDs for the RF
Cabinet, as well as providing secondary surge protection. The LPAC
board provides the interface for the LPA connection.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-19

DRAFT

1

BTS Equipment Identification – continued

SC 4812ET Trunking Backplane

The Trunking Backplane contains a complex passive RF network that
allows RF signals to share the resources of a bank of four LPAs. It also
provides DC Power and digital interconnect.

Figure 1-6: SC 4812ET Intercabinet I/O Detail (Rear View)

RF CABINET

(Rear View)

Exp. Punch

RF Expansion

Punch

Block

Block

27V

Microwave

RF GPS

1–3 Sector Antennas

4–6 Sector Antennas

RFDS Expansion

Ground Cable
Lugs

Expansion 1

Expansion 2

RGPS

RFGPS

27V Ret

Span/Alarm

LAN

2 Sec Tick
19 MHz Clock

DC Conduit

Pilot Beacon

SPAN I / O

RF CABINET

(Rear Door closed)

FW00147

1-20

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

Figure 1-7: SC 4812ET I/O Plate Diagram

1

Remote
ASU

1A 2A 3A 1B 2B 3B

4A 5A 6A 4B 5B 6B

RF Expansion Ports

1A 2A 3A 1B 2B 3B

4A 5A 6A 4B 5B 6B

1

2

Antenna’s

GND
Lugs

50 Pair

Punch
Block

(Alarms/Spans)

Spans

Alams

Modem

20 Pair

Punchblock

(RGPS)

RGD/RGPS

Micro–
wave

RF
GPS

LAN

IN OUT

A
B

19 MHz

2 Sec

RGD
Board

Power Input

+27V

Power Input

27V Ret

FW00171

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-21

DRAFT

1

BTS Equipment Identification – continued

Figure 1-8: RFDS Location in an SC 4812ET RF Cabinet

FRONT VIEW

(door not shown for clarity)

RFDS

WALL
MOUNTING
BRACKET

DRDC

BTS

CPLD

DRDC CAGE

ANT

CPLD

1B2B3B

4B5B6B

1A2A3A

4A5A6A

FW00170

1-22

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

Sector Configuration

There are a number of ways to configure the BTS frame. Table 1-5
outlines the basic requirements. When carrier capacity is greater than
two, a 2:1 or 4:1 cavity combiner must be used. For one or two carriers,
bandpass filters or cavity combiners may be used, depending on
sectorization and channel sequencing.

Table 1-5: BTS Sector Configuration

1

Number of

carriers

1 3 or 6 N/A Bandpass Filter, Cavity Combiner (2:1 or 4:1)
2 6 Non–adjacent Cavity Combiner (2:1 Only)
2 6 Adjacent Dual Band Pass Filter
2 3 Non–adjacent Cavity Combiner (2:1 or 4:1)

2 3 Adjacent Bandpass Filter
3,4 3 Non–adjacent Cavity Combiner (2:1 or 4:1)
3,4 3 Adjacent Cavity Combiner (2:1 Only)

Number of

sectors

Channel spacing Filter requirements

The matrix in Table 1-6 shows a correlation between the various sector
configurations and BBX cards.

NOTE

In Table 1-6, BBXs may be BBX2s or BBX–1Xs.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-23

DRAFT

1

BTS Equipment Identification – continued

Table 1-6: Sector Configurations

Config Ref. No. Description

3–Sector/2–ADJACENT Carriers – The configuration below maps TX with optional 2:1 cavity

combiners for 3 sectors/2 carriers for adjacent channels. Note that 2:1 cavity combiners are used (6
total).

1

2

3

4

5

6

7

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 N/A N/A N/A 1

N/A N/A N/A BBX–4 BBX–5 BBX–6 2

6–Sector/2–NON–ADJACENT Carriers – The configuration below maps TX with 2:1 cavity
combiners for 6 sectors/2 carriers for non–adjacent channels.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 BBX–4 BBX–5 BBX–6 1
BBX–7 BBX–8 BBX–9 BBX–10 BBX–11 BBX–12 2

3–Sector/2–NON–ADJACENT Carriers – The configuration below maps TX with 2:1 cavity
combiners for 3 sectors/2 carriers for non–adjacent channels.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 N/A N/A N/A 1
BBX–7 BBX–8 BBX–9 N/A N/A N/A 2

3–Sector/4–ADJACENT Carriers – The configuration below maps TX with 2:1 cavity combiners
for 3 sector/4 carriers for adjacent channels.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 N/A N/A N/A 1
BBX–7 BBX–8 BBX–9 N/A N/A N/A 2

N/A N/A N/A BBX–4 BBX–5 BBX–6 3
N/A N/A N/A BBX–10 BBX–11 BBX–12 4

3–Sector / 2–ADJACENT Carriers – The configuration below maps TX with bandpass filters for
3 sectors/2 carriers for adjacent channels.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 N/A N/A N/A 1

N/A N/A N/A BBX–7 BBX–8 BBX–9 2

3–Sector/3 or 4–NON–ADJACENT Carriers – The configuration below maps TX with 4:1
cavity combiners for 3 sectors/3 or 4 carriers for non–adjacent channels.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 N/A N/A N/A 1
BBX–7 BBX–8 BBX–9 N/A N/A N/A 2
BBX–4 BBX–5 BBX–6 N/A N/A N/A 3

BBX–10 BBX–11 BBX–12 N/A N/A N/A 4

6–Sector/1–Carrier – The configuration below maps TX with either bandpass filters or 2:1 cavity
combiners for 6 sector/1 carrier.

TX1 TX2 TX3 TX4 TX5 TX6 Carrier#

BBX–1 BBX–2 BBX–3 BBX–4 BBX–5 BBX–6 1

1-24

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

Figure 1-9: SC4812ET LPA Configuration with Combiners/Filters

1

5 RU RACK

SPACE

2 to 1 Combiner

3 Sector or 6 Sector

ETIB

RFDS

EBA

Sector

Numbering

3 Sector

(6 Sector)

C1, S1–S3

(C1, S1–S3)

C2, S1–S3

(C2, S1–S3)

C3, S1–S3

(C1, S4–S6)

C4, S1–S3

(C2, S4–S6)

5 RU RACK

SPACE

4 to 1 Combiner

3 Sector Only

ETIB

RFDS

EBA

C1

C2

C3

C4

Dual Bandpass Filter

3 Sector Only

2 Carrier Maximum

5 RU RACK

SPACE

ETIB

RFDS

EBA

Sector

Numbering

3 Sector

(6 Sector)

C1, S1–S3

(C1, S1–S3)

C2, S1–S3

(C2, S1–S3)

C3, S1–S3

(C1, S4–S6)

C4, S1–S3

(C2, S4–S6)

FW00166

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-25

DRAFT

1

BTS Equipment Identification – continued

Power Cabinet

Figure 1-10 illustrates the Power Cabinet design.

Figure 1-10: Power Cabinet

GFCI Outlet
Cover

Battery Door

Main Door

Rear I/O
Door

Rear DC
Conduit Panel

Rear AC Conduit
Panel

FW00193

1-26

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

BTS Equipment Identification – continued

Power Cabinet Internal
FRUs

Figure 1-11 shows the location of the Internal Field Replaceable
Units (FRUs). A brief description of each Internal FRU is found in the
following paragraphs.

Figure 1-11: Power Cabinet with Batteries Installed (Doors Removed for Clarity)

Batteries (Battery

Heaters located
under batteries)

1

Rectifier
Alarm Module

Temperature
Control Module

Rectifier
Shelves

GFCI Outlets
(Back)

NOTE

Punch Block is not
visible in this view.

DC Circuit
Breakers

AC Load
Center

FW00164

FRONT VIEW POWER CABINET

Batteries

The batteries provide a +24 Vdc backup to the RF Cabinet should AC
Power be lost. The Power Cabinet can accommodate a total of 24 12–V
batteries, configured in 12 strings of 2 batteries each. The time duration
of backup provided depends on system configuration.

Battery Heater

The battery heaters provide heating to the batteries in the Power Cabinet.
A separate heater is required for each string of batteries. The heater is a
pad the batteries sit on located top of each battery shelf. The number of
heaters is dependent on system configuration.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

1-27

DRAFT

1

BTS Equipment Identification – continued

Battery Compartment Fan

The battery compartment fan provides air circulation for the two battery
compartments. It is located on the inside of the battery compartment
door.

Heat Exchanger

The Heat Exchanger provides cooling to the rectifier compartment of the
Power Cabinet. The Heat Exchanger is located in the primary front door
of the Power Cabinet.

Rectifiers

The +27 Vdc rectifiers convert the AC power supplied to the Power
Cabinet to +27 Vdc to power the RF Cabinet and maintain the charge of
the batteries.

AC Load Center

The ACLC is the point of entry for AC Power to the Power Cabinet. It
incorporates AC power distribution and surge protection.

Punch Block

The Punch Block is the interface for the alarm signalling between the
Power Cabinet and the RF Cabinet.

1-28

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Chapter 2: Preliminary Operations

Table of Contents

Preliminary Operations: Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cellsite Types 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CDF 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Equipage Verification 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Installation of Boards/Modules 2-1. . . . . . . . . . . . . . . . . . . . . . . . . .

Setting Frame C–CCP Shelf Configuration Switch 2-2. . . . . . . . . . . . . . .

Initial Power Up 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cabling Inspection 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Inspection and Setup 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Up Sequence 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Applying AC Power 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Cabinet Power Up Tests 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Power Pre-test (BTS Frame) 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF Cabinet Power Up 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery Charge Test (Connected Batteries) 2-10. . . . . . . . . . . . . . . . . . . . . .

Battery Discharge Test 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Heat Exchanger Power Up 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Table of Contents – continued

Notes

2

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001

Preliminary Operations: Overview

Introduction

Cellsite Types

CDF

Site Equipage Verification

This section first verifies proper frame equipage. This includes verifying
module placement, jumper, and dual in–line package (DIP) switch
settings against the site-specific documentation supplied for each BTS
application. Next, pre-power up and initial power-up procedures are
presented.

Sites are configured as with a maximum of 4 carriers, 3–sectored with a
maximum of 4 carriers, and 6–sectored with a maximum of 2 carriers.
Each type has unique characteristics and must be optimized accordingly.

The Cell-site Data File (CDF) contains site type and equipage data
information and passes it directly to the LMF during optimization. The
number of modem frames, C–CCP shelves, BBX2 and
MCC24E/MCC8E boards (per cage), and linear power amplifier
assignments are some of the equipage data included in the CDF.

Review the site documentation. Match the site engineering equipage data
to the actual boards and modules shipped to the site. Physically inspect
and verify the equipment provided for the BTS or Modem frame and
ancillary equipment frame.

2

CAUTION

Always wear a conductive, high impedance wrist strap
while handling any circuit card/module to prevent damage
by ESD. After removal, the card/module should be placed
on a conductive surface or back into the anti–static bag it
was shipped in.

Initial Installation of
Boards/Modules

Table 2-1: Initial Installation of Boards/Modules

Step Action

1 Refer to the site documentation and install all boards and modules into the appropriate shelves as

required. Verify they are NOT SEATED at this time.

2 As the actual site hardware is installed, record the serial number of each module on a “Serial Number

Checklist” in the site logbook.

Apr 2001

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

2-1

Preliminary Operations: Overview – continued

Setting Frame C–CCP Shelf
Configuration Switch

2

If the frame is a Starter BTS, the backplane switch settings behind the
fan module should be set to the ON position (see Figure 2-1).

The switch setting must be verified and set before power is applied to the
BTS equipment.

Figure 2-1: Backplane DIP Switch Settings

ON

OFF

STARTER FRAME

FAN MODULE

REMOVED

ON

OFF

ON

OFF

RIGHT / LEFT

BOTTOM / TOP

RIGHT / LEFT

BOTTOM / TOP

EXPANSION
FRAME 1
SETTING

SC 4812ET

MODEM_FRAME_ID_1

MODEM_FRAME_ID_1

C–CCP SHELF

MODEM_FRAME_ID_0

EXPANSION
FRAME 2
SETTING

MODEM_FRAME_ID_0

5 RU RACK SPACE

ETIB

EBA

RFDS

FW00167

2-2

SC4812ET BTS Optimization/ATP — CDMA LMF

DRAFT

Apr 2001
