PAMS Technical Documentation
Chapter 3
TRANSCEIVER TFE–2
Original 03/98
Copyright 1998 Nokia Mobile Phones. All rights reserved.
TFE–2
PAMS
Variants
Technical Documentation
CONTENTS
Introduction 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Manual Structure 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Company Policy 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings and Cautions 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings: 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cautions: 1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction 1 – 5
Product and Module List 1 – 5
Exploded View of Transceiver TFE–2 1 – 6
Assembly Parts 1 – 7
Page No
Page 1 – 2
Original 03/98
PAMS
TFE–2
Technical Documentation
Appendix Structure
This section of the service manual contains specific details for the TFE–2
handportable telephone
The section comprises three chapters as follows: Chapter 1, Foreword
(this chapter); Chapter 2, Transceiver TFE–2, containing an exploded
view of the TFE–2 variant (including a list of assembly parts) plus
component parts lists covering the system module and the display
module; which aims to provide all user information that service personnel
are likely to require during servicing and repair of equipment.
NOTE: The Service Manual is intended for use by qualified
service personnel only.
Company Policy
Our policy is of continuous development; details of all technical
modifications will be included with service bulletins.
Variants
While every endeavour has been made to ensure the accuracy of this
document, some errors may exist. If any errors are found by the reader,
NOKIA MOBILE PHONES should be notified in writing.
Please state:
Title of the Document + Issue Number/Date of publication
Latest Amendment Number (if applicable)
Page(s) and/or Figure(s) in error
Please send to: Nokia Mobile Phones
PAMS Technical Documentation
PO Box 86
24101 SALO
Finland
Original 03/98
Page 1 – 3
TFE–2
PAMS
Variants
Warnings and Cautions
Please refer to the phone’s user guide for instructions relating to
operation, care and maintenance including important safety information.
Note also the following:
Warnings:
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES
FITTED WITH ELECTRONIC ENGINE MANAGEMENT
SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER
CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN
AFFECT THEIR OPERATION. IF NECESSARY, CONSULT
THE VEHICLE DEALER/MANUFACTURER TO DETERMINE
THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO
RF ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE
OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY
EXPLOSIVE ATMOSPHERES EG PETROL STATIONS,
BLASTING AREAS ETC. PERMISSION MUST BE OBTAINED
TO USE THE PHONE IN AIRCRAFT.
Technical Documentation
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT,
Cautions:
1. Servicing and alignment must be undertaken by qualified
2. Ensure all work is carried out at an anti–static workstation and
3. Ensure solder, wire, or foreign matter does not enter the
4. Use only approved components as specified in the parts list.
5. Ensure all components, modules screws and insulators are
INCLUDING CELLULAR TELEPHONES, MAY INTERFERE
WITH THE FUNCTIONALITY OF INADEQUATELY
PROTECTED MEDICAL DEVICES. OTHER ELECTRONIC
EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
personnel only.
that an anti–static wrist strap is worn.
telephone as damage may result.
correctly re–fitted after servicing and alignment. Ensure all
cables and wires are repositioned correctly.
Page 1 – 4
Original 03/98
PAMS
TFE–2
Technical Documentation
Introduction
The TFE–2 terminal ensures connections for landline telephone and
group 3 fax. These services are available in a very small and light WLL
terminal.
Product and Module List
Unit/type: Product code: Module code:
Transceiver TFE–2 0630143
• system module WT9 0201147
• mechanics MTFE1 0260876
Variants
Original 03/98
Page 1 – 5
TFE–2
PAMS
Variants

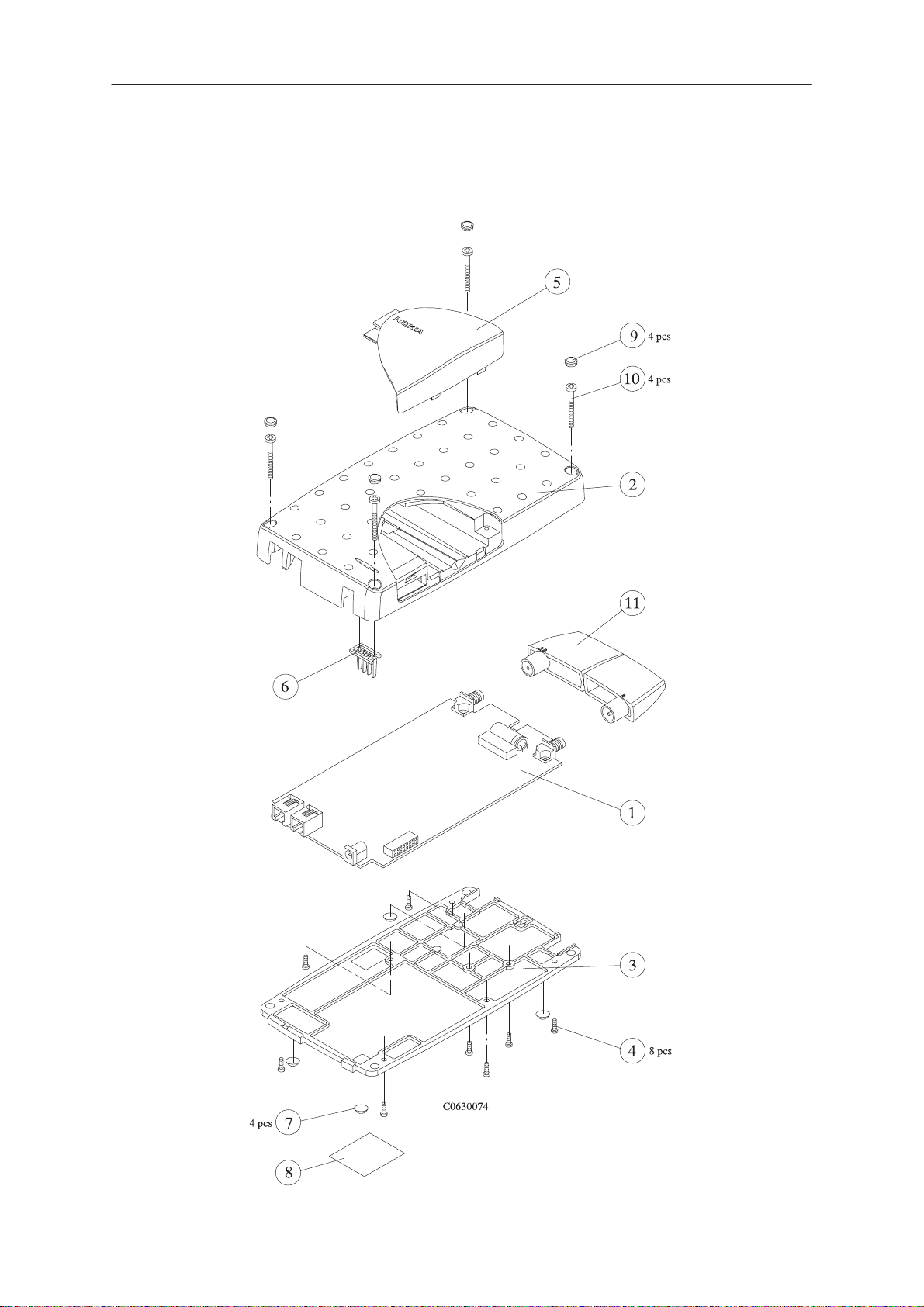

Exploded View of Transceiver TFE–2
Technical Documentation
Page 1 – 6
Original 03/98
PAMS
TFE–2
Technical Documentation
Variants
Assembly Parts
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 0201147 System module WT9
2 9530009 A–cover DMS00180
3 9530007 B–cover DMS00181
4 8 6290033 Screw M3x8 DIN7500C
5 9450786 Card–cover
6 9450787 Light guide
7 4 6501068 Adhesive foot
8 9380155 Type label 4D 22453
9 4 9450876 Cover plug
10 4 6290035 Screw
11 0660133 Antenna AHA–1E
Original 03/98
Page 1 – 7
TFE–2
PAMS
Variants
Technical Documentation
This page intentionally left blank.
Page 1 – 8
Original 03/98
