PAMS Technical Documentation
TFE/K–1
SERVICE SOFTWARE
INSTRUCTIONS
Original 09/97
TFE/K–1
PAMS
Service Software Instructions
AMENDMENT RECORD SHEET
Amendment
Number
Date Inserted By Comments
Technical Documentation
Page 2
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Service Software Instructions
TFE/K–1 SERVICE SOFTWARE INSTRUCTIONS
Contents
Introduction Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Servicing Equipment Page 6. . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Connections Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install Procedure Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction to Service Software Package User Interface Page 9. . . . .
Service Software Hardware Environment Page 9. . . . . . . . . . . . . . . .
Service Software Environment Page 9. . . . . . . . . . . . . . . . . . . . . . . . .
Service Software Executables Page 10. . . . . . . . . . . . . . . . . . . . . . .
Command Line Parameters Page 10. . . . . . . . . . . . . . . . . . . . . . . . .
Common Properties of the User Interface Page 11. . . . . . . . . . . . . . . . . .
Login Dialog box Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Window Page 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Menu Bar Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configure Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Page 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer Page 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View Page 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Identity Window Page 17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Help Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mouse Cursors Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reserved Keys Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Short Cut Function Keys Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alt Hot Keys Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ctrl Hot Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Hot Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Strokes Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help Functions Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dialog Boxes Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common Dialog boxes Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note Message Box Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Query Message Box Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error Message Box Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Custom Dialog Boxes Page 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Buttons Page 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reporting Status Page 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Original 09/97
Page 3
TFE/K–1
PAMS
Service Software Instructions
TFE/K–1 Specific Features Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Menu Bar Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
New command Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Open... command Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Close command Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialize command Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Normal Mode Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local Mode Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Faultlog Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exit command Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configure Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Options... command Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Directories... command Page 28. . . . . . . . . . . . . . . . . . . . . . . . . . .
Faultlog... command Page 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning Page 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AFC... command Page 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RSSI (AGC)... command Page 30. . . . . . . . . . . . . . . . . . . . . . . . . .
TX Power... command Page 32. . . . . . . . . . . . . . . . . . . . . . . . . . . .
TX I/Q... command Page 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing Page 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Testing (RF)... command Page 36. . . . . . . . . . . . . . . . . . . .
Self Tests... command Page 40. . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADC Readings... command Page 42. . . . . . . . . . . . . . . . . . . . . . .
Leds... command Page 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio & line adapter... command Page 44. . . . . . . . . . . . . . . . . . .
Audio Loop group: Page 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call Simulation.. command Page 46. . . . . . . . . . . . . . . . . . . . . . . .
Noise Sensitivity... command Page 47. . . . . . . . . . . . . . . . . . . . . .
Software Page 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Identity... command Page 49. . . . . . . . . . . . . . . . . . . . . . . .
Start Up Self–tests... command Page 50. . . . . . . . . . . . . . . . . . . .
Set Default Values... command Page 51. . . . . . . . . . . . . . . . . . . .
Network Settings... command Page 51. . . . . . . . . . . . . . . . . . . . .
LA settings... command Page 52. . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty State... command Page 53. . . . . . . . . . . . . . . . . . . . . . .
Dealer Page 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Settings... command Page 54. . . . . . . . . . . . . . . . . . . . . . . . .
Reset UI Default Values... command Page 55. . . . . . . . . . . . . . .
Quick Install... command Page 56. . . . . . . . . . . . . . . . . . . . . . . . . .
Advanced>>>... button Page 58. . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup code... command Page 59. . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Area Code... command Page 60. . . . . . . . . . . . . . . . . .
View Page 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Documentation
Page 4
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Quick/RF Info... command Page 61. . . . . . . . . . . . . . . . . . . . . . . .
Phone Identity... command Page 62. . . . . . . . . . . . . . . . . . . . . . . .
Help Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index command Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General help command Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Help command Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . . .
About... command Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix 1, Vocabulary Page 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Software Instructions
Original 09/97
Page 5
TFE/K–1
PAMS
Service Software Instructions
Introduction
General
TFE/K–1 Service Software ”WinTesla” is specially designed to facilitate the
servicing of first generation WLL terminals.
The software can be used to control the phone according to the user’s requirements merely by entering commands via the keyboard / mouse of a PC connected to the phone.
This section refers to Service Software Version 1.4 NMP After Sales will notify
service personnel about future upgrades via Technical Bulletins. Software upgrades will be available from your local NMP outlet.
Required Servicing Equipment
– Computer: Intel 386/33 MHz or compatible with one unused serial port
(COM1 or COM2*), one parallel port (LPT1), hard disk recommended.
Technical Documentation
– Operating System: DOS Version 5 & Microsoft Windows 3.1 or later
– Display: VGA based display
– Service Software for 3.5” disk (product code: 0774052) or for 5.25” disk
(product code: 0774053) .
– Software Protection Key PKD–1 (product code 0750018)
– M2BUS interface cable DAU–4S (product code 0730057)
Page 6
*)
Note: A number of PC’s of an older generation use the Intel, National Semiconductor, or
United Microelectronics IC 8250 as the serial port UART. This is a comparatively
inefficient circuit for current purposes and does not necessarily support the
M2BUS adapter at 9600 baud. The newer UART’s NS16450 and NS16550AF of
National Semiconductor offer solutions for these problems.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Mechanical Connections
Caution: Ensure that you have switched off the PC and the printer before
making connections !
Caution: Do not connect the PKD–1 to the serial port. This could damage
the PKD–1 !
The software controls the phone via a separate adapter connected to the serial
port of the PC and to the telephone’s M2BUS (DAU–4S and XCM–1).
Attach the protection key PKD–1 to parallel port one (25–pin female D–connector) of the PC. When connecting the PKD–1 to the parallel port be sure that you
insert the PC end of the PKD–1 to the PC (male side). If you use a printer on
parallel port one, place the PKD–1 between the PC and your printer cable.
The PKD–1 should not effect devices working with it. If some errors occur (errors in printing are possible) please try printing without the PKD–1. If printing is
OK without the PKD–1 please contact your dealer. We will offer you a new
PKD–1 in exchange for your old one.
Service Software Instructions
Original 09/97
Page 7
TFE/K–1
PAMS
Service Software Instructions
Attach the DAU–2T PC/MBUS adapter to the PC serial port, using an RS–232
9–pin to 25–pin adapter if necessary. Attach one end of the modular cable
XCM–1 to DAU–2T, and the other end to the system connector with the help of
the Service Adapter AFW–2.
Technical Documentation
Install Procedure
Start the phone by connecting the power supply to TFK–1. Switch PC power on.
To install software, proceed as follows:
1. If WinTesla has already been installed to PC, jump to step 5.
If not, Insert the WinTesla installation disk into drive A of your PC
2. Start the Installation program: select File –> Run from Program
3. Follow the Installation Software instructions.
4. Restart windows.
5. Remember to install WinTesla at least once before.
Insert the TFE/K–1 DLL installation disk into drive A of your PC.
6. Start Installation program: select File –> Run from Program
7. Follow the Installation Software instructions
manager menu, then type
A:INSTALL
manager menu, then type
A:INSTALL
and press OK button
and press OK button
Page 8
8. Start WinTesla by double clicking the WinTesla Icon
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Service Software Instructions
Introduction to Service Software Package User Interface
This chapter gives a short description of the Service Software properties.
Service Software Hardware Environment
To run the Service Software, a parallel port software protection device (PKD–1)
has to be connected. The user can use the Service Software functions for testing all supported Phone Types. The functions send messages from the PC to
the phone, receives results and show them on the PC display. The messages
are sent via a low level NMP proprietary bus protocol. An example bus is an
M2BUS interface, which needs M2BUS adapter (DAU–2) connected to the PC
RS–232 port and special M2BUS cable.
The recommended minimum hardware standard to run the Service Software
package is any computer which is 386 33Mhz or greater with at least 4 MB of
memory and VGA type display (640x480). This assumes that only the Service
Software package is active, i.e. other Windows packages are not running in the
background.
Note: if the Service Software is to be run on laptops, the power saving feature
MUST be switched off.
Service Software Environment
Service Software user interface is intended for Microsoft Windows 3.1x environment running in enhanced mode. For those who are familiar with Windows environment this application will be easy to use. Detailed information about Windows and application usage can be found from Microsoft Windows Version 3.1
Users Guide chapter one (Windows Basics) and chapter two (Application Basics).
As an ordinary Windows application, the main idea in the user interface is that
selections are made with menus, push buttons and shortcut keys. Selections
Original 09/97
Page 9
TFE/K–1
PAMS
Service Software Instructions
can be done by using keyboard and/or mouse. When messages from phone
are received, they cause display updating in special display windows. There is
always a status bar displayed at the bottom of the main window which contains
information about current actions.
Service Software Executables
Only one executable is needed – WinTesla. For TFE/K–1 there are two dlls:
– Functionality DLL is TFEK1.DLL
– User Interface DLL is TFEK1EN.DLL.
Command Line Parameters
There are NO command line parameters.
Technical Documentation
Page 10
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Service Software Instructions
Common Properties of the User Interface
This chapter describes how the User Interface CLF will appear to the user.
The User Interface is capable of being driven without the use of a mouse, as
the service engineer rarely has space on the bench to use a mouse.
Login Dialog box
When the Service Software application is invoked, by clicking the Service Software icon, the Login dialog box will be displayed on the screen.
Nokia logo and application name bitmap (–)
Displays Nokia logo and name of the application.
Application version static text (–)
Contains the name and version of the application.
Copyright notice static text (–)
Copyright is informed as: “Nokia Mobile Phones (c) 1996. All Rights Re-
served”.
Login Box edit box (–)
User Login ID edit box, where user enters his/her faultlog user name.
OK button (default key)
User name is stored in memory and dialog box is closed. When the dialog box
is closed, the application starts.
Original 09/97
Page 11
TFE/K–1
PAMS
Service Software Instructions
Cancel button (ESC)
The dialog box is closed and application is started, but the Faultlog feature is
disabled.
Help button (F1)
Activates the Windows Help application and displays context sensitive Help.
Main Window
The application supports a
service software interface will present a
pearance.
Note: MDI is to allow for future expansion, e.g. R&D features.
Technical Documentation
Multiple Document Interface (MDI).
Single Document Interface (SDI)
However, the
ap-
Title bar
The
title bar
A title bar contains the following elements:
• Application Control–menu button
• Maximize button
• Minimize button
• Name of the application
• Restore button
The properties of these elements and their usage is described in Ref 3– Microsoft Windows Version 3.1 Users Guide chapter one (Windows Basics) and
chapter two (Application Basics).
is located at the top of the window.
Page 12
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Menu bar
The
menu bar
The menu bar is a dynamic element and is dependent on the dongle type fitted
and whether a phone is connected.
Underlined characters in menu names and options indicates that the menu
selection can be done by pressing
be selected by activating menu bar with
row–keys to highlight desired menu. In that case, selection is done by pressing
Enter
.
Refer to section 3.3 – Menu bar for a detailed description of the contents of the
menu bar.
Menus can also be selected by using the mouse as described in Ref 3– Microsoft Windows Version 3.1 Users Guide.
Status bar
The
status bar
The status bar contains information about the menu selections and events.
The left area of the status bar describes actions of menu items as the user
uses the arrow keys to navigate through menus.
Service Software Instructions
is below the title bar and contains all available menu selections.
Alt+ underlined character
Alt
– key ( or
is displayed at the bottom of the Service Software main window.
F10
. Options can also
key ) and using ar-
The status bar texts are explained in detailed in each of command’s description.
The right areas of the status bar indicate which of the following keys are
latched down:
Indicator Description
USER Entered Login ID.
CAP The Caps Lock key is latched down.
NUM The Num Lock key is latched down.
SCRL The Scroll Lock key is latched down.
Tool bar
The
tool bar
document.
is NOT defined and will not be implemented until specified by this
Original 09/97
Page 13
TFE/K–1
PAMS
Service Software Instructions
Menu Bar
The Service Software package will have two menu bar configurations. The first,
is an abbreviated version that contains the minimum number of menus that allows package configurations when a phone is NOT connected. The second, is
described below:
The menu bar MUST only contain the follow menus for the Service Software
package when a phone is connected:
roduct*
• P
onfigure*
• C
• Tuning
• Testing
• Software
ealer
• D
• View
• Help*
* – always displayed, even if no phone is connected.
A menu is broken down into sections that are indicated with menu separators.
Each sections identifies a logical difference from itself and other sections, i.e.
between transmitter and receiver. Any items that are required to be added to a
menu lists will be added on the bottom of the appropriate menu section list. If a
new item is to be added which is common to two or more phone types, then
that menu item will become a common menu item.
Technical Documentation
Product
The menu lists will use the Microsoft [...] symbol after an item name to indicate
that selecting that item will NOT initiate an operation immediately, i.e. a dialog
box will be displayed for the user to select options or type in data and press an
OK button before the operation is performed.
The Product menu MUST contain the following menu items:
• N
ew Ctrl+R
• Open...
• Close
• I
nitialize
• N
ormal Mode F5
ocal Mode Shift+F5
• L
•F
aultlog
• A
ctivate Faultlog... F9
• E
dit Faultlog...
• E
xit Alt+F4
Page 14
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Configure
The Configure menu MUST contain the following menu items:
• O
ptions...
• D
irectories...
aultlog...
• F
• Phone Type Specific configuration items (where applicable)
Tuning
The Tuning menu MUST contain the following menu sections:
• Receiver
• Transmitter
• Voltages
• Phone Type Specific tuning items (where applicable)
An example T
Service Software Instructions
uning menu is shown below:
Testing
• A
FC...
• R
SI (AGC)...
• Tx

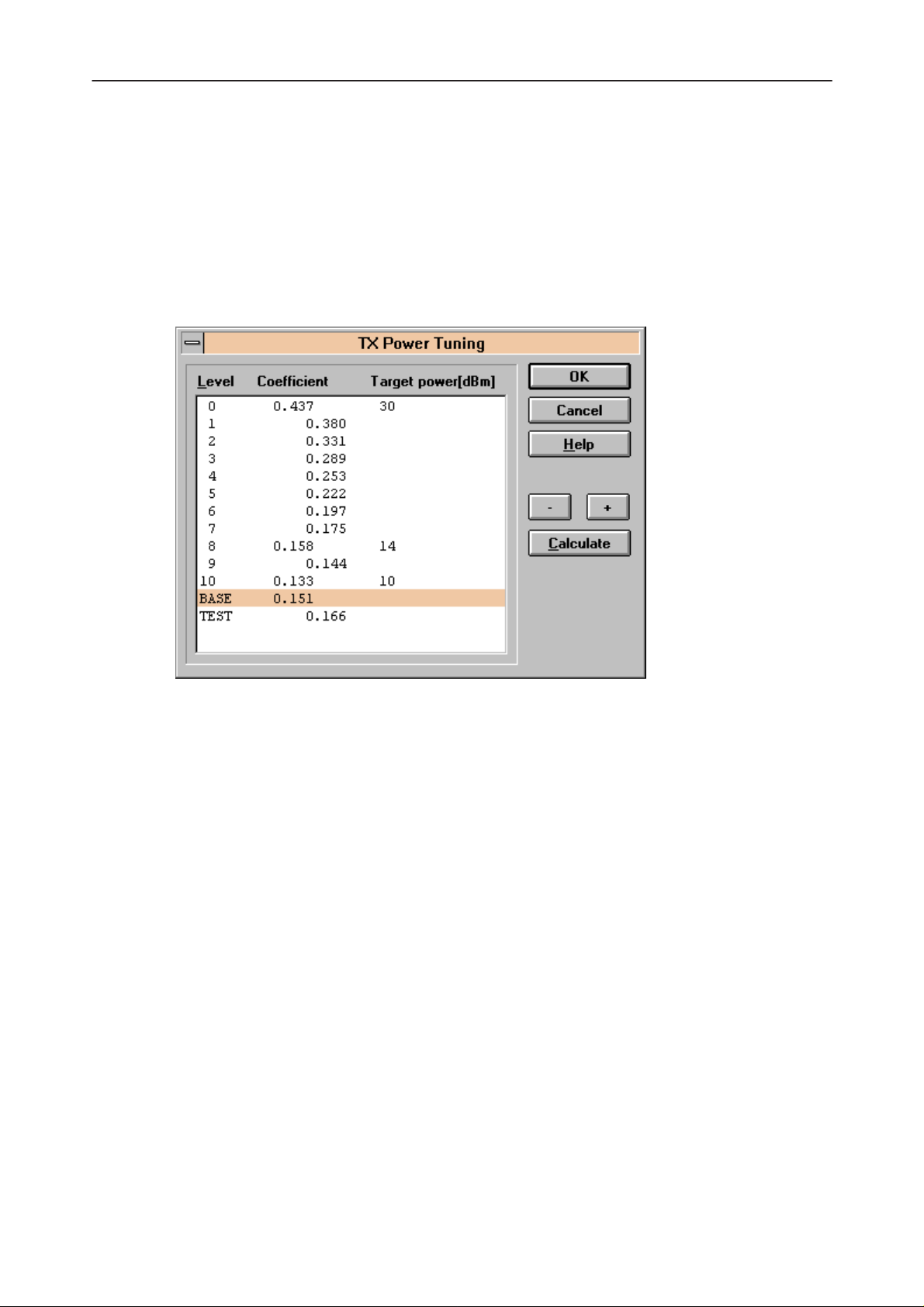

Power...
• Tx IQ
• B
• C
• LCD
• L
Additional menu items may be added within the sections according to the phone type being tuned, e.g. a Charger tuning menu
item will be added after the Battery tuning item but not in the
Transmitter tuning section.
The Testing menu MUST contain the following menu sections:
• Quick Tests
• Digital
• User Interface Flexi
• Transmitter
• Receiver
• Automatic Tests
• Phone Type Specific testing items (where applicable)
...
attery...
harger A/D...
A/D...
CD Display...
Original 09/97
Page 15
TFE/K–1
PAMS
Service Software Instructions
An example Te
• Q

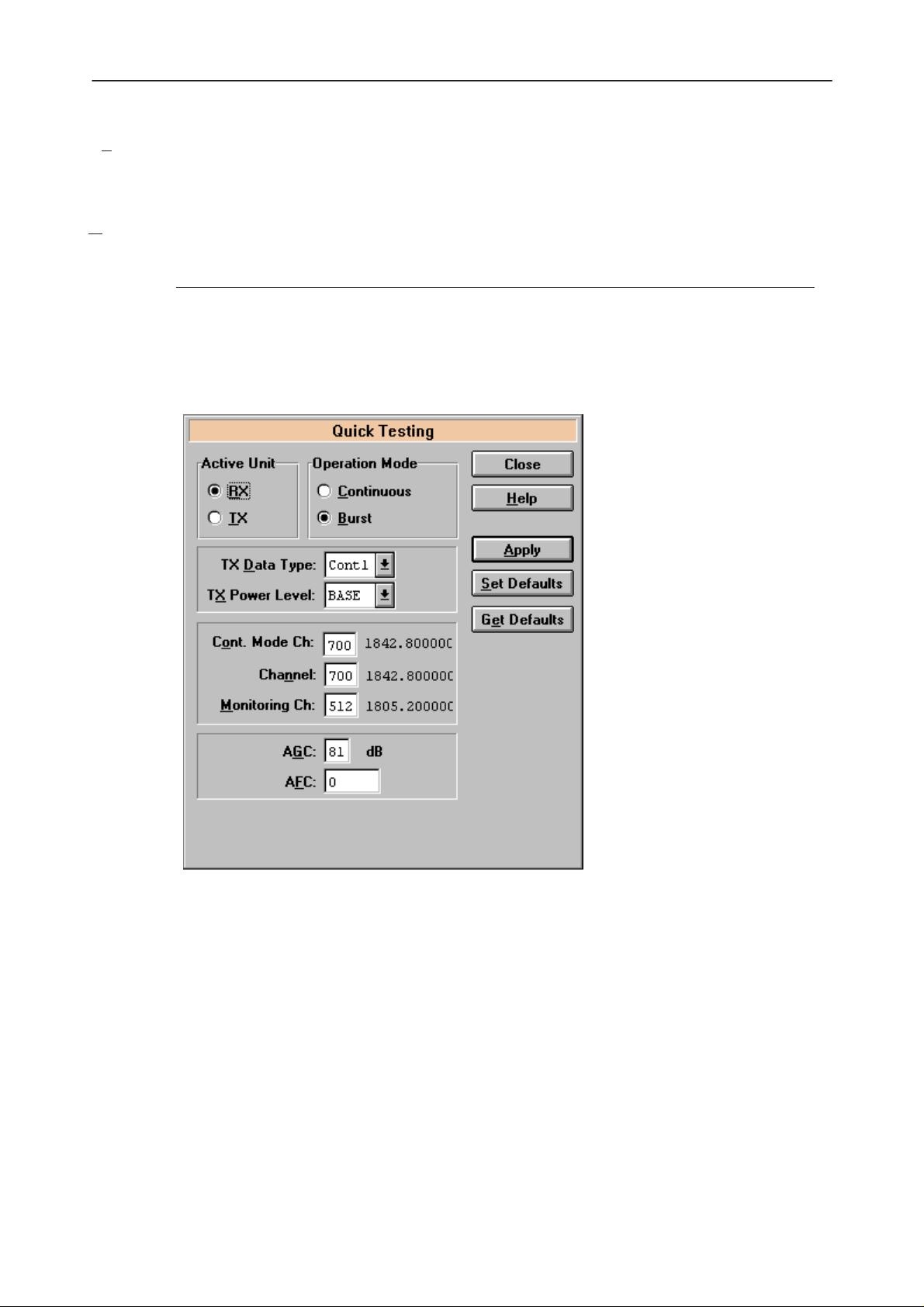

uick Testing (RF)...
• S
elf Tests...
• A
DC Readings
• Au
dio
• D
isplay...
• C
all Simulation...
• N
oise Sensitivity...
Additional menu items may be added within the sections
according to the phone type being tested.
Where a menu item consists of more than one test; a pop–up menu may be
added to identify the appropriate sub–tests, e.g. there may be two receiver
tests required for a particular phone type (Bit Error Rate and RSSI Monitoring).
These will be shown as a pop–up from the Receiver menu item.
sting menu is shown below:
Technical Documentation
Software
The Software menu MUST contain the following menu sections:
• Phone Identity/Numbers
• Flashing
• Phone Type Specific software items (where applicable)
An example S

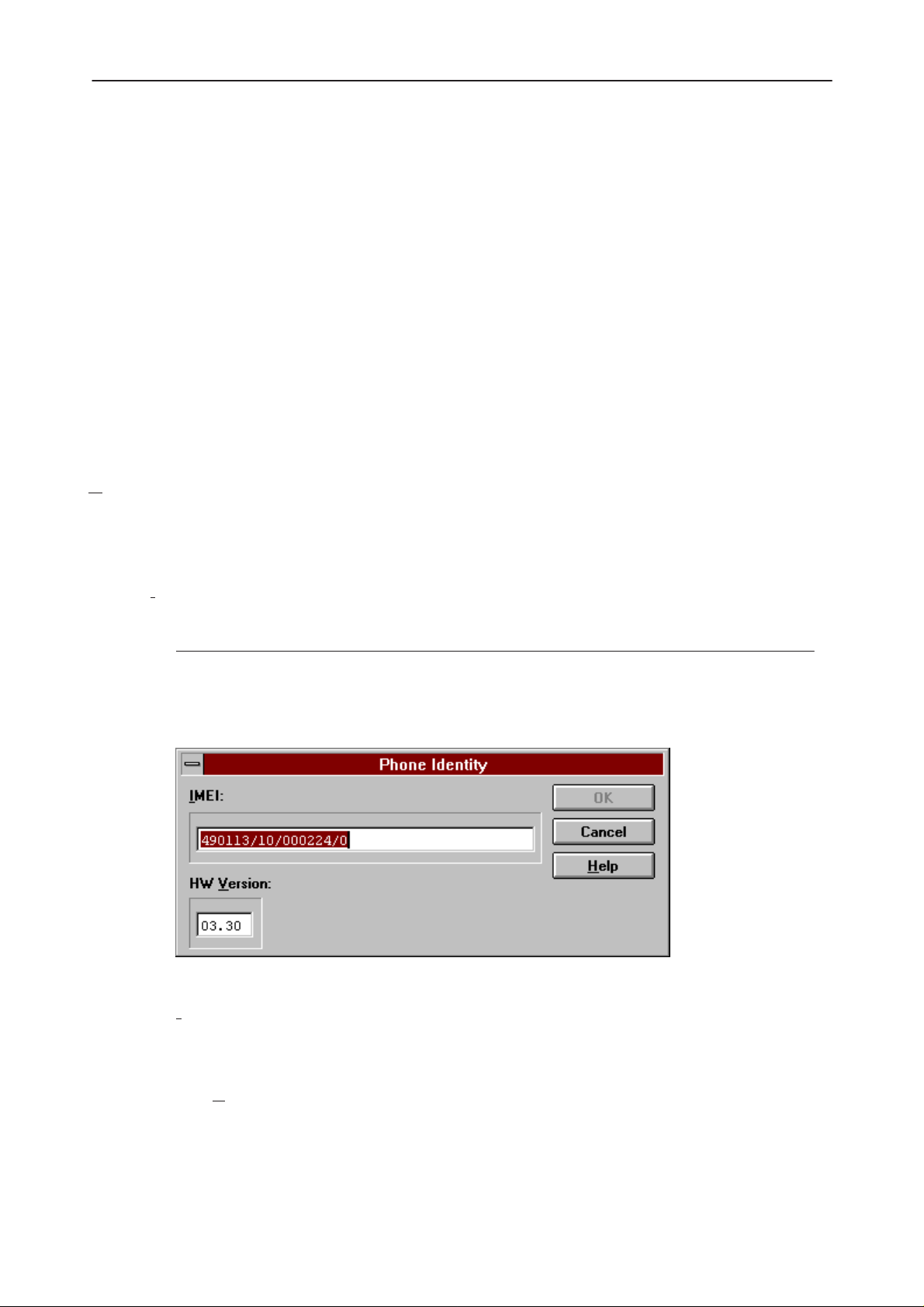

• Phone I
• S

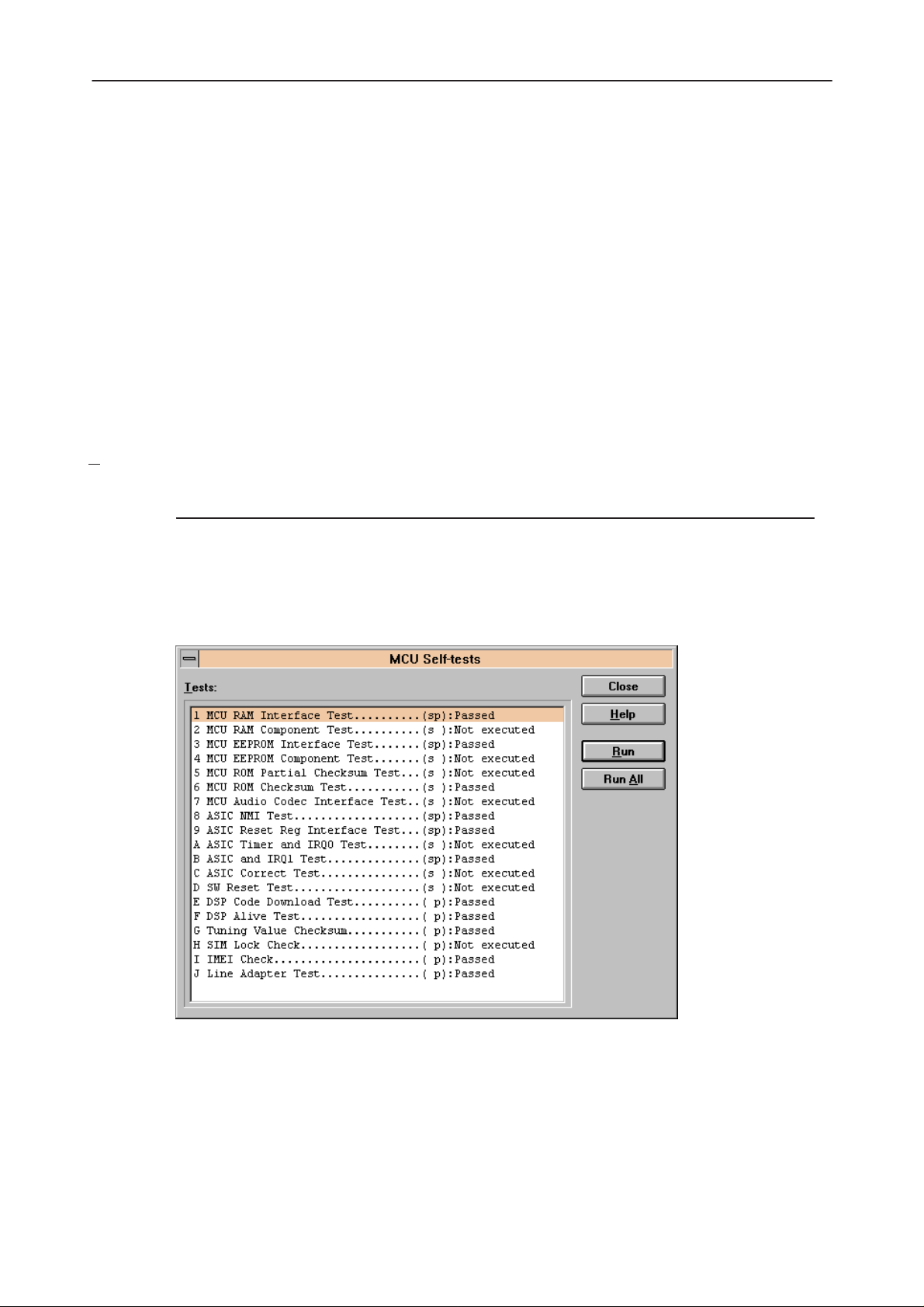

tart Up Self–Tests...
• Set Default V
• N
etwork Settings...

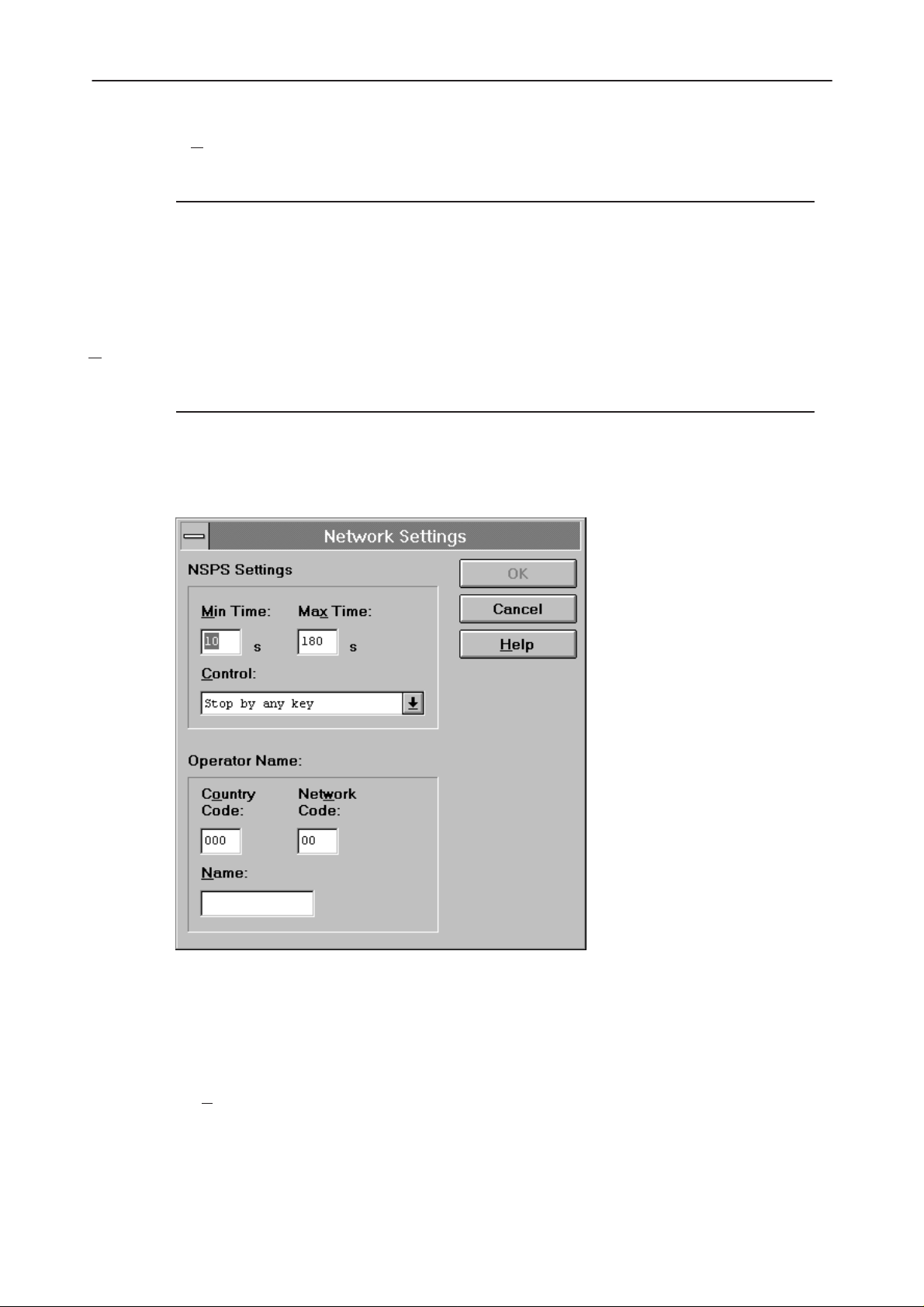

• L
A Settings...
• W

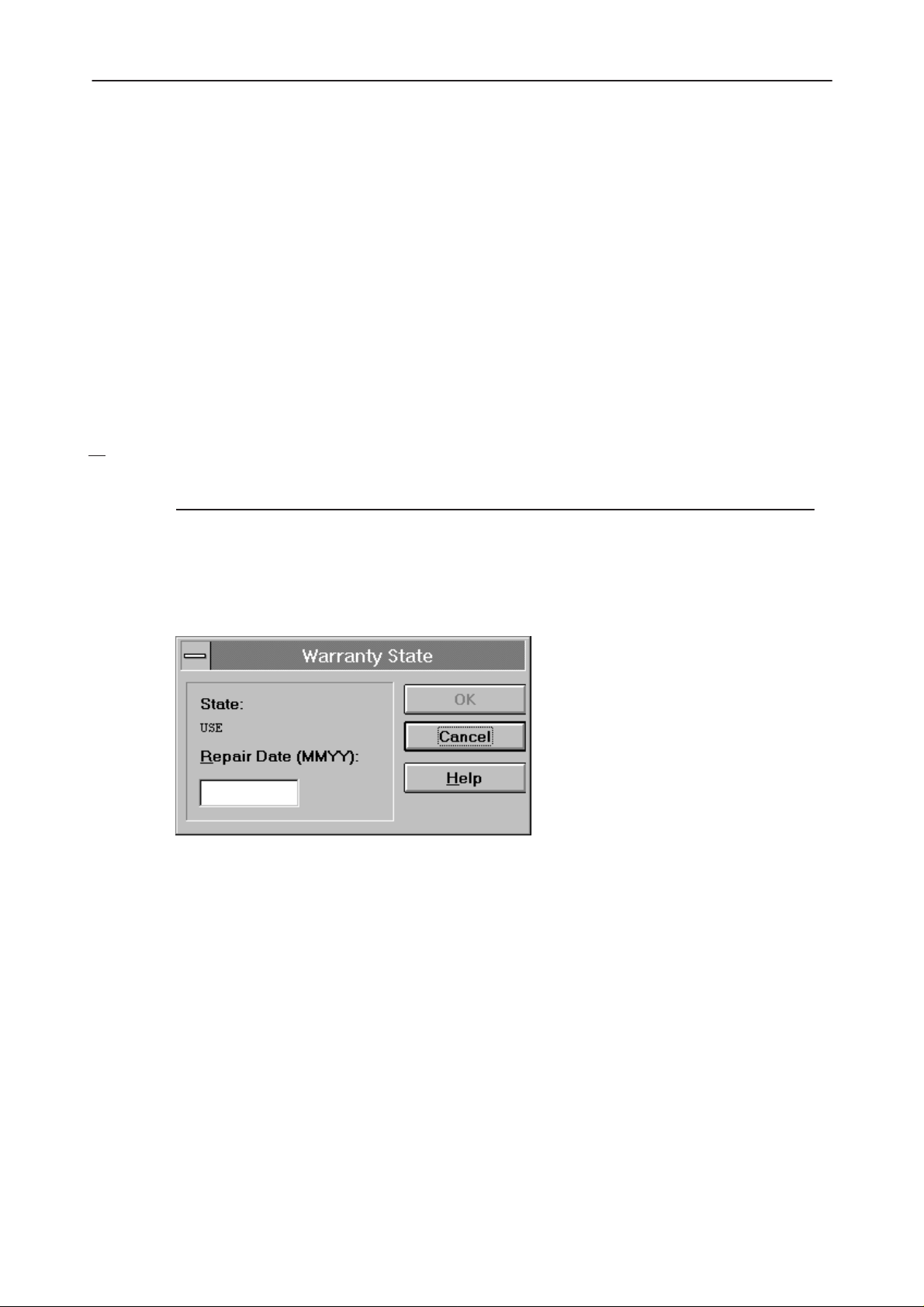

arranty State...
oftware menu is shown below:
dentity
alues...
Page 16
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Dealer
The Dealer menu MUST contain the following menu sections:
• Phone UI Data Editors
• Phone UI Data Transfer
• Phone Re–Initialization Functions
• Subscriber Data
• Phone Type Specific dealer items (where applicable)
An example D
• U

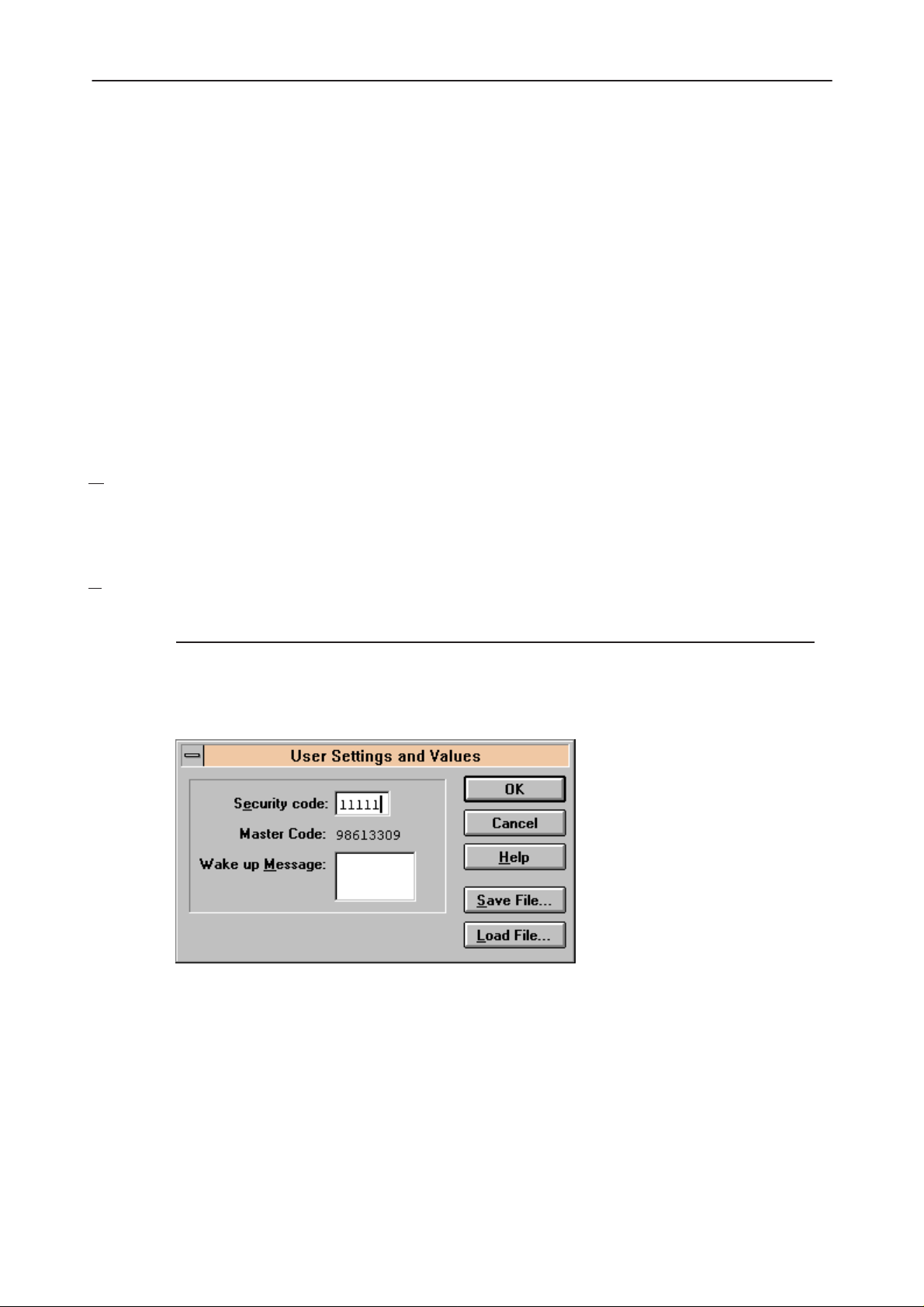

ser Settings
• Reset UI Default V
• Q

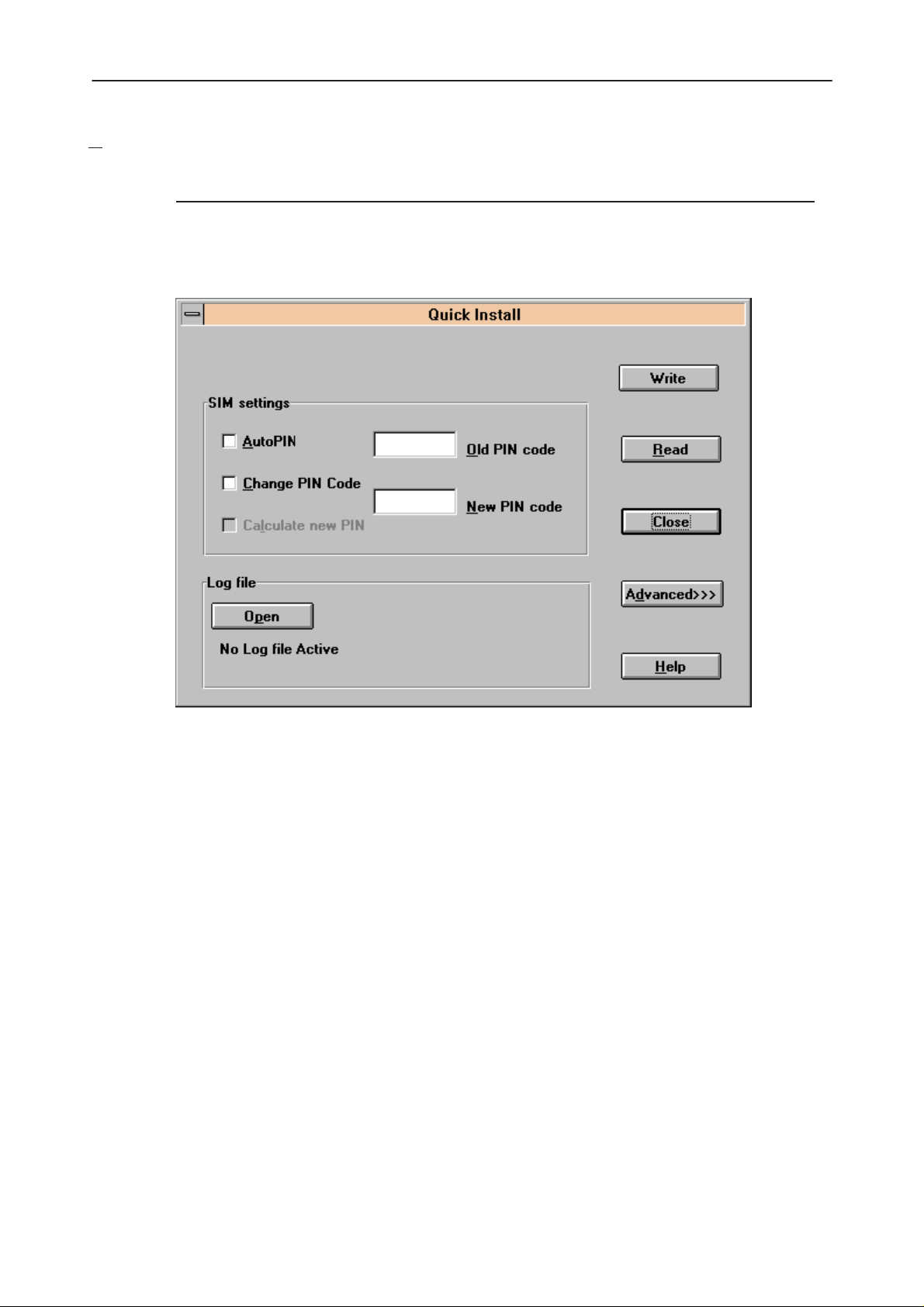

uick Install
• S
etup code
• A
utomatic Area Code
View
Service Software Instructions
ealer menu is shown below:
alues
The View menu MUST contain the following sections:
• Service Windows
• Production Windows (where applicable)
• R&D Windows (where applicable)
An example V
• Q
uick RF Info...
• P
hone Identity...
Phone Identity Window
The Phone Identity window should contain, as a minimum, the following data:
• Software Version(s)
• Hardware Version(s)
• Serial Number(s)
• Product Code
iew menu is shown below:
This window will only be used as a display window and therefore will not allow
editing of the displayed data. This window will not contain any controls other
than a scroll bar.
Original 09/97
Page 17
TFE/K–1
PAMS
Service Software Instructions
Help
The Help menu MUST contain the following menu items:
• I
ndex
• G
eneral Help
• U
sing Help
• A
bout WinTesla
Mouse Cursors
The standard Windows pointer will be used as the mouse cursor.
During time consuming tasks e.g. communication to phone, an hour glass will
be shown informing the user that a task is in progress. The application uses the
hour glass cursor to inform user that application has taken the control and any
actions from user will be ignored.
Technical Documentation
When a function is initiated, the hour glass will be displayed and when the function has finished the mouse pointer will return to normal.
Reserved Keys
The following Hot keys and Short Cut keys are reserved either as Microsoft
standard keys or as part of the Common Look and Feel specified by this document.
Short Cut Function Keys
Key Description Defined by
F1 Context Sensitive Help Microsoft
F5 Normal Mode NMP
Shift+F5 Local Mode NMP
F9 Activate Faultlog NMP
F10 Goto Menu Bar Microsoft
Ctrl+F4 Close Active Window Microsoft
Alt Hot Keys
Key Description Defined by
Alt+F4 Exit Active Application Microsoft
Alt+H Help Microsoft
Page 18
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Ctrl Hot Keys
Key Description Defined by
Ctrl+N File – New Microsoft
Ctrl+O F
Ctrl+P F
Ctrl+R P
Shift Hot Keys
Key Description Defined by
Shift+F5 Local Mode NMP
Key Strokes
Key Description Defined by
Service Software Instructions
ile – Open Microsoft
ile – Print Microsoft
roduct – New NMP
Alt+P Product Menu NMP
Alt+P,N N
Alt+P,O O
Alt+P,C C
Alt+P,I I
Alt+P,I,N N
Alt+P,I,L L
Alt+P,F F
Alt+P,F,A A
Alt+P,F,E E
Alt+P,E E
Alt+C C
Alt+C,O O
Alt+C,D D
Alt+C,F F
ew NMP
pen NMP
lose NMP
nitialize Pop–up NMP
ormal Mode NMP
ocal Mode NMP
aultlog Pop–up NMP
ctivate Faultlog NMP
dit Faultlog NMP
xit Application NMP
onfigure NMP
ption NMP
irectories NMP
aultlog NMP
Alt+T T
Alt+T,A A
Alt+T,R R
Alt+T,X Tx
Original 09/97
uning Menu NMP
FC NMP
SSI(AGC) NMP
Power NMP
Page 19
TFE/K–1
PAMS
Service Software Instructions
Alt+T,Q Tx I/Q
Alt+T,B B
Alt+T,C C
Alt+T,D LCD
Alt+T,L L
Alt+E Te
Alt+E+Q Q
Alt+E,S S
Alt+E,A A
Alt+E,U Au
Alt+E,L L
Alt+E,D D
Alt+E,C C
Alt+E,N N
Technical Documentation
NMP
attery NMP
harger NMP
A/D NMP
CD Display NMP
sting Menu NMP
uick Testing (RF) NMP
elf Tests NMP
DC Readings NMP
dio and Line Adapter NMP
eds NMP
isplay NMP
all Simulation NMP
oise Sensitivity NMP
Alt+S S
Alt+S,I Phone I
Alt+S,S S
Alt+S,V Set Default V
Alt+S,N N
Alt+S,L L
Alt+S,W W
Alt+D D
Alt+D,U U
Alt+D,V Reset UI Default V
Alt+D,Q Q
Alt+D,S S
Alt+D,A A
Alt+V V
Alt+V,Q Q
oftware Menu NMP
dentity NMP
tart–up Self Tests NMP
alues NMP
etwork Settings NMP
A Settings NMP
arranty State NMP
ealer Menu NMP
ser Settings NMP
uick Install NMP
etup code NMP
utomatic Area Code NMP
iew Menu NMP
uick/RF Info NMP
alues NMP
Page 20
Alt+V,P P
Alt+H H
Alt+H,I I
Alt+H,G G
Alt+H,U U
hone Identity NMP
elp Menu Microsoft
ndex Microsoft
eneral Help Microsoft
sing Help Microsoft
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Alt+H,A A
Help Functions
The Help User Interface will be the standard Windows help tool called WinHelp.
The context sensitive help is activated with F1–key. Help contains also Using
Help, which describes how to use the help facility. Refer to the Windows manual for a detailed description of Windows Help.
Dialog Boxes
The Service Software application uses many different dialog boxes. Dialog
boxes are used to display data and prompt the user for input.
Dialog boxes are opened from menus, or with shortcut keys. Dialog boxes have
different properties, but some features will be common.
All service dialog boxes must be modal, that is, the user will not be able to start
another operation without first closing the present dialog box.
Service Software Instructions
bout WinTesla Microsoft
All dialog box will contain the following entities:
– Help button
– Title bar
– At least one button other than Help
– Application Control–menu Button
Common Dialog boxes
This sections describes the common dialog boxes to be used in the Service
Software package, and the context in which they will be used.
Note Message Box
When the user has made illegal selection a
be opened and message text is displayed. A message box is also opened when
the program has some information for the user. The size of the dialog box may
vary. An information dialog box is recognized by the !–icon.
note message box
dialog box will
Dialog boxes will also contain an OK button and a Help button.
OK button (default key):
Acknowledge displayed information and continue. The Dialog box is closed af-
ter selection.
Help button (Alt+H):
Opens context sensitive help as F1–key does.
Original 09/97
Page 21
TFE/K–1
PAMS
Service Software Instructions
Query Message Box
Confirmations and questions are asked in
query dialog box is recognized by the ?–icon.
Dialog boxes will also contain a Yes button, a No button, and a Help button.
Yes button (Alt+Y or Y) (default key):
Accepts confirmation or question.
No button (Alt+N or N):
Denies confirmation or question.
Help button (Alt+H):
Opens context sensitive help as F1–key does.
The buttons may also be OK and Cancel. The operation of these buttons are
same as in a Note dialog box.
Technical Documentation
query message box
dialog box. A
Error Message Box
Error message box dialog boxes use a Stop–icon. When a “Stop”–dialog box is
displayed, current operation is terminated.
The dialog box will include a description of the failed operation, and reason.
Pressing F1 (Help) application opens the appropriate help topic that gives information about recommended actions.
Dialog boxes will also contain an OK button and a Help button.
OK button (default key):
Acknowledge displayed information and terminate current operation. The Dia-
log box is closed after selection.
Help button (Alt+H):
Open context sensitive help as F1–key does.
Page 22
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Custom Dialog Boxes
All custom dialog boxes will contain the predefined buttons as defined in section 3.8 – Buttons. However, it is recognized that features may require additional button types, but the addition of these non–standard buttons should be carefully considered to minimize any inconsistencies between implementations.
The buttons will be positioned down the right–hand side of the dialog boxes.
The default action will be OK, except where that default action could result in
an irretrievable failure.
All tuning dialog boxes that contain tuning results, will display the old tuned
data read from the phone before the tuning was performed, as well as the newly tuned data.
List boxes will be used to display lists of data, such as tuning data, test results
etc.
The use of Radio buttons should be limited and carefully considered. The use
of radios buttons defines the number of possible choices available to the user,
which may be acceptable for one project, but not for another.
Service Software Instructions
Original 09/97
Page 23
TFE/K–1
PAMS
Service Software Instructions
Buttons
All buttons must be the Microsoft style of buttons.
In general, the default button will be the OK button, the Close button or the Yes
button, but this will depend on the context of the dialog box that the button is
associated with.
OK button:
Accept and validate entered settings and values and closes the dialog box. If
the values have not been changed, then no action will be taken. The status bar
will reflect the status. The user should only be queried, if the settings or values
accepted will over–write data that CANNOT be reproduced.
A greyed OK button indicates that settings selected by the user are not acceptable.
Close button:
Closes the current dialog box. Does not send or store anything, and closes the
dialog box. The Close button is only used for dialog boxes that do not set or
change any data.
Technical Documentation
Cancel button (Esc):
Cancel operation. Does not send or store anything, and closes the dialog box.
A greyed Cancel button indicates that it is not possible to quit from this dialog
box.
Yes button (ALT+Y or Y):
Replies Yes to a question asked of the user.
No button (ALT+N or N):
Replies No to a question asked of the user.
Help button (ALT+H):
Open context sensitive help as F1–key does.
Reporting Status
The status bar will be used to report the present status to the user. When a feature is initiated, the status bar will be updated with a brief description of the
function. The status bar will also be updated at key points in a time consuming
function.
If an error is to be reported to the user, it will be displayed in the status bar as
well as displayed in a common error dialog box. This will mean the user is not
delayed from progressing on to the next operation unless an error occurs, in
which case the user will have to acknowledge the error by pressing the OK button.
Page 24
Original 09/97
PAMS
TFE/K–1
Technical Documentation
TFE/K–1 Specific Features
Menu Bar
TFE/K–1 Service software’s menus adopt the menu structure specified by CLF.
Product
New command
Activation Status Bar Text
Alt, P, N Rescan a new phone
Ctrl+R
This command scans a new product/phone. When a phone is found, a product
specific functionality module is loaded. If no phone or wrong phone/cellular type
is detected, functionality is unloaded and the user is informed.
Service Software Instructions
This function is also called automatically when application is started. The user
can also specify a regular poll which enables the WinTesla application to scan
the new phone periodically. If the phone is still the same, no changes are made.
If the phone has changed (with same phone type only serial number is
changed), the phone will be initialized in normal mode. If the phone has
changed to a different phone type, the current dlls are unloaded and new ones
are loaded for that phone.
The initialization routine checks a phone’s cellular type (GSM/PCN), and if an
unsupported phone is detected, the WinTesla application does not load the dlls.
If quick info view is open, the window will be automatically updated.
If phone identification view is open, the window will be automatically updated.
pen... command
O
Activation Status Bar Text
Alt, P, O Force load phone specific functionality
Enables the user to force load a specific phone’s WinTesla dll’s.
Close command
Activation Status Bar Text
Alt, P, C Closes loaded functionality
Closes the loaded functionality, and sends reset to the phone if dll’s are loaded
by the Open command.
Original 09/97
Page 25
TFE/K–1
PAMS
Service Software Instructions
I
nitialize command
Activation Status Bar Text
Alt, P, I –
Opens a submenu which contains the following options:
Normal Mode
Activation Status Bar Text
Alt, P, I, N Initializes phone to normal mode
F5
When normal mode has been activated, or the program has been started, self–
test results will be asked from the MCU. If any fault was found in the tests, an
error message is shown. If normal mode has been set successfully (no self test
error has been found), and paging listening has been started, the used AFC
value is requested from MS.
Technical Documentation
ocal Mode
L
aultlog
F
The initialization routine checks the phone’s cellular type (GSM/PCN), and if an
unsupported phone is detected, the application unloads the dll’s.
If the phone identification view is open, window will be automatically updated.
Also if the RF Information Window is open, it will be updated to Quick Info view.
Activation Status Bar Text
Alt, P, I, L Initializes phone to local mode
Shift+F5
This selection will change the MS state to
the phone is controlled in the local mode so that special actions can be made
(for example RF tunings).
Activation Status Bar Text
Alt, P, F –
local
. When local mode is selected,
Page 26
Opens a submenu which contains following options:
A
ctivate Faultlog...
Activation Status Bar Text
Alt, P, F, A Activates faultlogging
F9
Original 09/97
PAMS
TFE/K–1
Technical Documentation
E
dit Faultlog...
Activation Status Bar Text
Alt, P, F, E Activates faultlog editing
Ex
it command
Activation Status Bar Text
Alt, P, X Exit application
Alt+F4
Double–click the application’s
Control Menu button
Service Software Instructions
This command ends the Service Software session.
Configure
Options... command
Activation Status Bar Text
Alt, C, O Edit Service Software options
The Options dialog box contains the following items:
Language drop down list:
Current password edit box:
New Password edit box:
Retype Password edit box:
User ID edit box.
M2BUS Com Port drop down list.
Automatic Rescan edit box.
Original 09/97
Page 27
TFE/K–1
PAMS
Service Software Instructions
D
irectories... command
Activation Status Bar Text
Alt, C, D Edit directory settings
The Directories dialog box contains the following items:
ID D
ata edit box:
Logs edit box:
Fault log file(s) edit box:
Data V
Flash i
Blow failures edit box:
F
aultlog... command
alidation file(s) edit box:
mages edit box:
Technical Documentation
Activation Status Bar Text
Alt, C, F Edit faultlog settings
The Faultlog dialog box contains the following items:
Faultlog enabled/disabled radio buttons:
Allow M
Automatic fault log prompting Enabled 1/Disabled 2 radio buttons:
Station identity edit box:
Country of R
Warranty period months edit box / drop down list:
Maximum T
anual Entry enabled/disabled radio buttons:
epair edit box:
ime to repair edit box:
Page 28
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Tuning
The tuning menu offers functions for ME adjustments.
FC... command
A
Activation Status Bar Text
Alt, T, A Open an AFC diagram dialog box
Starts AFC tuning.
The following selections are automatically made when this tuning function is ac-
tivated:
Active Unit = RX
Operation mode = Continuous
Update RF Information window
Before tuning is stared, the user is requested to set the signal generator to a
specified input level (read from .INI file).
Service Software Instructions
The AFC Diagram dialog box will open when user accepts request:
The AFC Diagram dialog box contains the following items:
Repeat button (Alt+R):
The measurement can be started again by pressing Repeat button.
OK button (Alt+O):
The dialog box is closed, and tuning
is saved
to phone.
Original 09/97
Page 29
TFE/K–1
PAMS
Service Software Instructions
Cancel button (Esc):
The dialog box is closed, and tuning
The D/A converter range (DAC) is from +1023 to –1024, and the voltage range
is from 0.3 V to 3.9 V (voltage precision is 0.01 V).
The frequency error range is from –134 kHz to +134 kHz, with precision of 0.1
kHz. The result is rounded to the closest value.
When the function is exited, the following selections are set to the values which
were selected before this adjustment.
Active Unit
Operation mode
Update RF Information window
Also AFC is set to the previous value when exiting from this function.
R
SSI (AGC)... command
is not saved
Technical Documentation
to phone.
Activation Status Bar Text
Alt, T, R Open RSSI Calibration dialog box
Starts RSSI calibration.
The following selections are automatically made when this tuning function is ac-
tivated:
Active Unit = RX
Operation Mode = Continuous
Update RF Information window
The measurement is started automatically when RSSI calibration is entered.
The measurement is done in five steps:
1. The user is requested to set the signal generator to low input level (read from
.INI file).
Page 30
2. Measurement with low input level is executed
Original 09/97
PAMS
TFE/K–1
Technical Documentation
3. The user is requested to set the signal generator to high input level (read
from .INI file).
4. Measurement with high input level is executed
5. The RSSI Calibration dialog box will be updated when the previous steps
are done.
Service Software Instructions
The RSSI Calibration dialog box contains the following items:
AGC List box (Alt+A):
Gain code DAC can have values from 0 to 1023 and voltage from 0.26 V to
3.86 V (voltage precision is 0.01 V). Note that the needed input signal level is
also shown.
The difference column shows the difference between tuned DAC values and
mean straight line calculated from part slopes in dBs (see /1/). This can be calculated when all measurement results have been received from the phone.
Repeat button (Alt+R):
The measurement can be started again by pressing this button.
Original 09/97
Page 31
TFE/K–1
PAMS
Service Software Instructions
OK button (Alt+O):
The dialog box is closed, and tuning
Cancel button (Esc):
The dialog box is closed, and tuning
When calibration is ended, the DAC value checking is performed, and if it is not
successful, an error message is shown. The test checks if all DAC values are in
the same order as AGC values in the table.
When the function is exited, the following selections are set to the values which
were selected before this adjustment.
Active Unit
Operation Mode
Update RF Information window
The exit and the use of AGC–control values is done in the same way as exit
from power level tuning and power coefficient use:
Power... command
TX
is saved
to the phone.
is not saved
Technical Documentation
to the phone.
Activation Status Bar Text
Alt, T, X Open TX Power Tuning dialog box
Starts TX power tuning.
The user is first requested to select with which values tuning is started in the
Start Tuning dialog box.
The Start Tuning dialog box contains the following items:
Start Tuning With list box (Alt+S):
Current Values in PC memory
Tuning values are load from program’s internal memory.
Page 32
EEPROM Values
Tuning values are load from ME’s EEPROM.
Factory Default Values
Tuning values are load from ME’s flash.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
The following selections are made automatically when this tuning function is activated:
Active Unit = TX
the BASE power level is selected
Operation mode = Burst
The TX Power Tuning dialog box will be activated automatically after value
selection:
Service Software Instructions
The TX Power Tuning dialog box contains the following items:
Power Level & Coefficients list box (Alt+P):
The power is presented in GSM values (5..15) or PCN values (0...10). The
base power is selected automatically when the dialog box is opened. The test
value is reset to 0.035 when the program is started. The test value is not saved
to the EEPROM. The test value can be changed during tuning as other power
coefficients, and the program remembers its value when the tuning function is
activated again later.
If there are more power levels in the phone that can fit into the window, the window is scrollable. When the phone is initialized, the program asks for the number of power levels used in the phone.
Only four power coefficients (BASE, biggest, third smallest, and smallest) are
needed to tune, and the rest of them are calculated.
The tuning position is highlighted, and can be tuned with +/– keys or left/right
cursor keys.
Calculate button (Alt+C):
The calculation is activated with this button. The power coefficients which are
calculated from the tuned coefficients are displayed on different columns from
the others. All values can be tuned if needed.
Original 09/97
Page 33
TFE/K–1
PAMS
Service Software Instructions
+/– buttons (+/–):
The + and – buttons will cause power changes in 0.25dB steps (The D/A con-
verter control value ratio is 1.0292). When these keys are used, the coefficient
value is updated in the tuning window.
OK button (Enter):
The dialog box is closed, and tuning
Cancel button (Esc):
The dialog box is closed, and tuning
When selections are made, the power value checking is performed, and if it is
not successful, an error message is shown. The test checks that all power coefficients are in descending order (same order as the power levels).
If the power tuning function is ended, and EEPROM values are not received or
EEPROM fault is detected, an error message is shown.
When all power coefficients have such values as they don’t cause any error
messages, the function can be exited. The last used tuning power is in use after exit.
Technical Documentation
is saved
to phone.
is not saved
to phone.
TX I/Q
Because the stored power level range is larger than the number of used power
levels, the unused levels should be set to the nearest possible power level. (For
example in GSM the levels 2–4 are not used so they are set to the same value
as level 5).
The following is selected automatically when this tuning function is ended:
Active Unit = RX
... command
Activation Status Bar Text
Alt, T, Q Open TX I/Q Tuning dialog box
This function is used for tuning TX I and Q branch DC offset, amplitude difference, and phase difference.
The function opens the same Start Tuning dialog box as TX Power Tuning.
The following selections are made automatically when this tuning function is ac-
tivated:
Active Unit = TX
Operation Mode = Burst
Page 34
TX Power Level = 10(GSM); 5(PCN)
If TX Data Type = RANDOM => TX Data Type = 1
Update RF Information window
Original 09/97
PAMS
TFE/K–1
Technical Documentation
The TX I/Q Tuning dialog box is opened.
The TX I/Q Tuning dialog box contains the following items:
Tune TX I DC Offset scroll bar (Alt+I):
The DC Offset is shown as percent (%) from the ± maximum value.
0% means that there is no DC. The value range is –100%...+100%.
The value is rounded to the nearest integer value.
Service Software Instructions
Tune TX Q DC Offset scroll bar (Alt+Q):
The operation of this function is the same as above, except with this
selection the Q branch DC Offset is tuned. The value range is
–100%...+100%. The value is rounded to the nearest integer value.
Tune Amplitude Difference scroll bar (Alt+A):
When this selection is made, the user can increase or decrease the
amplitude difference in 0.1 dB steps. The value range is –1...+1.
Tune Phase Difference scroll bar (Alt+P):
When this selection is made, the user can increase or decrease the
phase difference in 0.5° steps. The current phase difference is
shown in the tuning window with numbers and bar figure. The value
range is 85...95.
OK button (Enter):
The dialog box is closed, and tuning
Cancel button (Esc):
The dialog box is closed, and tuning
After each value change, the new value is sent to the phone.
is saved
is not saved
to phone.
to phone.
The following are automatically selected when the TX I / Q tuning function is
ended:
Original 09/97
Active Unit = RX
Update RF Information window
Page 35
TFE/K–1
PAMS
Service Software Instructions
Testing
The Testing sub–menu offers functions for ME testing.
uick Testing (RF)... command
Q
Activation Status Bar Text
Alt, E, Q Open Quick Testing dialog box
This function is used for quick RF testing.
The command opens the Quick Testing dialog box, which contains data for
testing and adjustments.
Technical Documentation
Page 36
The Quick Testing dialog box contains the following items:
Active Unit group:
RX radio button (Alt+R):
When
RX
is selected, the following selections are made:
Data transmission is deactivated
TX power is deactivated
If operation mode is continuous,
– AGC is controlled
– RX continuous mode channel is activated
Original 09/97
PAMS
TFE/K–1
Technical Documentation
RF Information window is updated
The RX value is always given as default.
Note! The function is activated immediately, Apply is not needed.
TX radio button (Alt+T):
When
Note! The function is activated immediately, Apply is not needed.
Operation Mode group:
Continuous radio button (Alt+C):
When
TX
is selected, the following selections are made:
Data transmission is activated
If operation mode is continuous, TX continuous mode channel is ac-
tivated
If operation mode is burst, TX power is activated
RF Information window is updated
continuous
Service Software Instructions
selection is used:
the synthesizer is set to constant frequency.
the synthesizer channel number is as given with Continuous Mode
Channel selection
if Active Unit is TX, data (selected with TX Data Type) is sent
transmitter power is not connected
if Active Unit is RX, AGC is controlled
Note! The function is activated immediately, Apply is not needed.
Burst radio button (Alt+B):
When
Note! The function is activated immediately, Apply is not needed.
burst
selection is used,
the synthesizer is controlled by using GSM/PCN receiving/transmission/measuring synthesizer control sequence
the synthesizer channel numbers are as given with Channel/Monitoring Channel selections
if Active Unit is TX, data (selected with TX Data Type) is sent and the
TX power is connected
TX Data Type drop list (Alt+D):
This list changes the transmission data type, and consists the following options:
0, 1, and Random. After Random data selection 0 is used. If Operating Mode is
continuous
mode (see /1/).
Original 09/97
, TX Data Type Random causes different data sending than in burst
Page 37
TFE/K–1
PAMS
Service Software Instructions
TX Power Level edit box (Alt+T):
With this value is possible to change the transmission power. The user can give
the needed GSM/PCN power value (5..15/0...10) or select the test value, which
is tuned with TX power tuning function. The test value is found at the end of the
list.
TX Power have value
transmission power as GSM or PCN value. When the TX power is tuned with
test value (smallest value) the TX Power has value
Channel edit box (Alt+H):
The user can enter here the channel number that is used for both transmission
and receiving. The frequency of the selected channel is shown after selection.
Monitoring Channel edit box (Alt+M):
This field selects neighbour monitoring channel. The frequency of the selected
channel is shown after selection.
Continuous Mode Channel edit box (Alt+C):
To this edit box the user can enter the continuous mode channel which may
have all GSM channel numbers (1..124) or PCN channel numbers (512...885).
OFF
and is disabled (
greyed
Technical Documentation
) when active unit is RX or
TEST
.
The used frequency depends on the Active Unit. If Active Unit is RX, then RX
frequency is used, otherwise the TX frequency will be used. The frequency of
the selected channel is shown after selection.
AGC edit box (Alt+G):
This selection allows user to edit the AGC absolute value (value from A/D con-
verter). The AGC can have values from 0 dB to 93 dB in 3dB steps in GSM,
and from 0 dB to 81 dB in PCN.
The AGC value is shown only when its value is controlled by the PC. When the
Active Unit has value RX and Operation Mode is continuous, AGC is controlled
by the PC, except when next adjustment functions are activated:
RSSI Calibration
AFC Diagram
AFC edit box (Alt+F):
This selection allows user to edit the AFC D/A converter value. The AFC can
have values from –1024 to 1023.
The AFC value is the last time in the normal mode measured AFC D/A convert-
er value (11 bit 2–complement value is used with decimal digits). If AFC results
are not obtained, no text is shown. Neither is the AFC value shown in the following situations i.e. when AFC is not controlled by PC:
Page 38
AFC Diagram
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Apply button (Alt+A):
Accepts entered values and validates them. After validation, the application
sends corresponding messages to ME. Closes the dialog box, and updates Info
Window.
Note! Active Unit and Operation mode are not send with because they are activated immediately.
Set Defaults button (ALT+S):
Sets current values as default Quick Test values.
Get Defaults button (ALT+G):
Gets default Quick Test values as current values.
The following are automatically selected when the Quick testing function is ended:
Active Unit = RX
Update RF Information window
Service Software Instructions
The next table shows the dialog box’s properties in different situations:
ACTIVE UNIT = TX:
TX Data Type: Updated
AGC values: Greyed
Monitoring Channel: Greyed
OPERATION MODE = BURST:
TX Power Level: Updated
Continuous Mode Channel: Greyed
Channel: Updated
OPERATION MODE = CONT.:
TX Power Level: OFF, Greyed
Continuous Mode Channel: Updated
Channel: Greyed
ACTIVE UNIT = RX:
TX Data Type: Greyed
Original 09/97
TX Power Level: OFF, Greyed
Page 39
TFE/K–1
PAMS
Service Software Instructions
OPERATION MODE = BURST:
OPERATION MODE = CONT:
S
elf Tests... command
Activation Status Bar Text
Alt, E, S Open MCU Self–tests dialog box
Technical Documentation
AGC values: Greyed
Continuous Mode Channel: Greyed
Channel: Updated
Monitoring Channel: Updated
AGC values: Updated
Continuous Mode Channel: Updated
Channel: Greyed
Monitoring Channel: Greyed
This command is used for reading self test results, and running self tests.
When the selection is made, the test result is read from ME. The test result will
be shown to the user in the MCU Self–test dialog box.
Page 40
The MCU Self–test dialog box contains the following items:
Tests list box (Alt+T):
The field ”(p)” in the screen example means that the test is also run in power up.
The field ”(s ) ” in the screen example means that the test can be run separately.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Test states are updated according to results received from the phone. Possible
test states will be one of the following:
Passed
Failed
No response
Not executed
RUNNING....
Run button (Alt+R):
The user can select the desired test from list and hit the Run button. When the
user selects a test to be run, the text
and the test is run. When results are received, the test state field is updated according to the result.
If no response was received in the defined time, an
shown, and the test state is changed to
RUNNING...
No response
Service Software Instructions
is shown in test state field,
error message box
.
will be
Run All button (Alt+A):
The user can run all listed tests. The text
field, and test is run. When results are received, the test state field is updated
according to the result. When the state field is updated, the application moves
to next test, and repeats previous cycle.
Supported Self Tests
The following tests are available:
1 MCU RAM Interface Test :
2 MCU RAM Component Test :
3 MCU EEPROM Interface Test :
4 MCU EEPROM Component Test :
5 MCU ROM Partial Checksum Test :
6 MCU ROM Checksum Test :
7 MCU Audio Codec Interface Test :
8 ASIC NMI Test :
RUNNING...
is shown in test state
9 ASIC Reset Reg Interface Test :
A ASIC Timer and IRQ0 Test :
B ASIC and IRQ1 Test :
C ASIC Correct Test :
D SW Reset Test :
Original 09/97
Page 41
TFE/K–1
PAMS
Service Software Instructions
E DSP Code Download Test :
F DSP Alive Test :
G Tuning Value Checksum :
H SIM Lock Check :
I IMEI Check :
J Line adapter test :
A
DC Readings... command
Activation Status Bar Text
Alt, E, A Open ADC Readings dialog box
This command is used to read and show A/D values from the phone.
The command opens the ADC Readings dialog box.
Technical Documentation
The ADC Readings dialog box contains the static text fields, where measurements are updated to the window once a second.
A/D Readings
The following a/d readings are measured:
Battery Voltage :
System board temperature :
LA loop current (IBB) :
LA voltage (VBB) :
A/D Reference :
Accessory Detection :
Page 42
Original 09/97
PAMS
TFE/K–1
Technical Documentation
L
eds... command
Activation Status Bar Text
Alt, E, L Open Led Test dialog box.
Service Software Instructions
The Led test dialog box contains the following radio buttons for all four leds:
Off turn led off
On Light leds on
Blink Set led blinking
There is also button for turning all leds OFF, ON or BLINKING.
Use the tab key to move from Led1 group to Led4 group. The led state can be
changed with cursor keys.
When the dialog box is closed, all leds are always switched off.
Original 09/97
Page 43
TFE/K–1
PAMS
Service Software Instructions
Au
dio & line adapter... command
Activation Status Bar Text
Alt, E, U Open Audio & line adapter Tests dialog box.
This command is used for making audio and line adapter tests in Audio & line
adapter Test dialog box.
Technical Documentation
The Audio & Line adapter test dialog box contains the following items:
Line select group:
P
hone radio button (ALT+P)
sets phone line selected.
ax radio button (ALT+F)
F
sets fax line selected.
B
oth radio button (ALT+B)
selects both phone and fax line.
Line State group:
O
pen circuit radio button (ALT+O)
Line adapter acts as if it was not connected
A
ctive radio button (ALT+A)
Line voltage is fed to selected line(s) and audio path
to line adapter is open.
R
ing radio button (ALT+R)
Ring voltage is fed to selected line(s).
Page 44
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Audio Loop group:
Input group:
The following two different values can be selected for input:
L
ine Adapter radio button (ALT+L):
ystem Connector radio button (ALT+S):
S
Output group:
The following two different values can be selected for output:
Line Ad
System C
Loop group:
Service Software Instructions
Selects internal input.
Selects external input.
apter radio button (ALT+D):
Selects internal output.
onnector radio button (ALT+C):
Selects external output.
The following two different values can be selected for loop:
Off
radio button (ALT+F):
Turns audio loop off.
On
radio button (ALT+N):
Turns audio loop on.
When the dialog box is closed, the line adapter is set to Open circuit state. Also
the internal audio loop is turned off.
Original 09/97
Page 45
TFE/K–1
PAMS
Service Software Instructions
C
all Simulation.. command
Activation Status Bar Text
Alt, E, C Open Call Simulation dialog box
This command is used for making call simulation. The function opens the Call
Simulation dialog box.
Technical Documentation
The Call Simulation dialog box contains the following items:
TX Power Level edit box (Alt+T):
All power levels can be selected. This updates the same parameter as TX
Power Level in the RF–Controls dialog box. Note that the TEST value cannot
be selected. If the TEST value was in use when the Call simulation menu was
selected, the power level is changed to its smallest value.
Channel edit box (Alt+C):
This tells the normal operating RF channel number. Normal GSM/PCN channel
numbers can be selected. The same channel is used both for transmission and
receiving. This updates the same parameter as Channel in the RF–Controls
dialog box.
Monitoring Channels group:
Channel 1,2,3,4,5,6 edit box (Alt+1,2,...):
Channels for monitoring are specified with these six selections. All GSM/PCN
channel numbers can be used. If more than one selection has same number,
the monitoring channel list (neighbor list) will have less than 6 selected channels. The minimum number of monitoring channels is one (all channels have
the same value). The monitoring channel can also have the same value as the
normal operating channel.
Page 46
The first monitoring channel updates same parameter as Monitoring Channel
in the RF–Controls dialog box.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
A
pply button (Alt+A):
Validates and sends entered data to ME.
Set Defaults button (ALT+S):
Sets current values as default Call Simulation values.
Ge
t Defaults button (ALT+G):
Gets default Call Simulation values as current values.
Noise Sensitivity... command
Activation Status Bar Text
Alt, E, N Opens Noise Sensitivity dialog box
This command is used for noise sensitivity measurement.
The following selections are made automatically when this tuning function is ac-
tivated:
– Active Unit = RX
Service Software Instructions
– Operation mode = Continuous
– AGC = 81 dB
Before the function opens a Noise Sensitivity dialog box, the application
prompts:
Original 09/97
Page 47
TFE/K–1
PAMS
Service Software Instructions
The application then opens the Noise Sensitivity dialog box.:
The Noise Sensitivity dialog box contains the following items:
Measurements group:
Technical Documentation
Clipping distance is the difference to the signal clipping value. SNR is measured in the AD converter.
Clipping distance = clipping level (66) – signal value + comp_factor1 SNR = signal value – noise value + comp_factor1
Sensitivity = –92 dBm + 8 dB + comp_factor2 – SNR (for GSM)
Sensitivity = –90 dBm + 8 dB + comp_factor2 – SNR (for PCN)
The last value on the display is signal power difference between I and Q
branch. The numbers are shown with 0.1dB accuracy. The error message,
”OUT OF RANGE”, is shown only if the SNR and/or amplitude difference values
are not acceptable (SNR <= 18 dB + comp_factor2 – 0.5 dB(= accuracy) ; Sensitivity >= –100 dBm + 0.5 dB ; |Si – Sq| > 1 dB).
Signal/Noise radio button (Alt+S/Alt+N):
When buttons are pressed, the RX I and Q burst data is asked, and the text
”SIGNAL MEASURING...” or ”NOISE MEASURING...” will appear in the measurement group window. The power level value should be –92 dBm during signal measurement.
When signal data is received, the distance to clipping signal level is shown as
dBs on the display. When either signal or noise measurement results are received the ”MEASURING” text is removed and measurements are updated to
the screen. When both measurements (signal and noise) are done at least
once, the signal to noise relation and difference are also shown on the display.
Page 48
Original 09/97
PAMS
TFE/K–1
Technical Documentation
When exiting from this function, the following are automatically reset to the values which were selected before this adjustment.
– Active Unit
– Operation mode
– AGC value
Compensation factors:
Comp_factor1 = 4.64 dB (Compensation factor for 67.71 kHz signal, because
the ASIC filter attenuates 67.71 kHz signal 4.64 dB)
Comp_factor2 = 2.27 dB (Compensation factor for real and calculated noise
bandwidth difference. The real noise bandwidth is 80 kHz, and calculated bandwidth is 135 kHz)
Software
The software sub menu offers functions for Mobile Equipment mode and
memory settings.
Service Software Instructions
Phone I
dentity... command
Activation Status Bar Text
Alt, S, I Open Phone Identity dialog box for editing
This function is used to edit the phone identity. The function opens the Phone
Identity dialog box.
The Phone Identity dialog box contains the following items:
I
MEI edit box (Alt+I):
HW V
Original 09/97
Field where user can enter current IMEI value. The field can contain
up to 40 digits.
ersion edit box (Alt+V):
Field where user can enter current HW version. The field can contain
four digits and one dot. The dot is not sent to ME.
Page 49
TFE/K–1
PAMS
Service Software Instructions
OK button (Enter):
Checks if some values are changed and if IMEI was modified, asks
for confirmation. After confirmation, writes values to the phone.
Cancel button (Esc):
Cancels all edits, and does not save values to phone.
tart Up Self–tests... command
S
Activation Status Bar Text
Alt, S, S Open MCU Start Up Self–tests dialog box
This function is used for changing the state of the EEPROM selectable tests in
the MCU Start Up Self–tests dialog box.
Technical Documentation
The MCU Start Up Self–tests dialog box contains the following items:
Tests list box (Alt+T):
When the dialog box is opened, the previous values will be read from the MCU
EEPROM, and shown on the list box.
Status group:
When radio button On is selected, the test will be run each time automatic start
up self–tests are activated (e.g. in power–up).
OK button (Enter)
Selections are accepted and saved to EEPROM. A power–up routine is made
to phone.
Cancel button (Esc)
Selections are ignored and control is returned back to the main menu.
Page 50
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Set Default V
N
etwork Settings... command
alues... command
Activation Status Bar Text
Alt, S, V Set factory default values
This command is used for resetting default values to the phone’s EEPROM.
After selection application asks for confirmation: “Are you sure you want to re-
set factory settings?”. If Yes is answered, default settings are reset to phone.
Activation Status Bar Text
Alt, S, V Open Network Settings dialog box.
After selection, the following Network Settings dialog box is opened:
Service Software Instructions
The Network Settings dialog box contains the following items:
NSPS Settings group:
Min Time edit box (ALT+M):
Max
Original 09/97
Minimum time for NSPS.
Time edit box (ALT+X):
Maximum time for NSPS.
Page 51
TFE/K–1
PAMS
Service Software Instructions
Control drop list (ALT+C):
NSPS Control values:
– Stop by send key
– Stop by any key
– No key control
– NSPS not supported
Custom Operator Name group:
Co
untry Code:
Specified country code
Netw
ork Code:
Specified network code
Name:
Name of the operator matching with country and network code.
Length for operator name is 8 characters for TFE/K–1.
Technical Documentation
L
A settings... command
Activation Status Bar Text
Alt, S, L Open LA Settings dialog box.
This command is used for changing phone’s Line Adapter settings. Function
opens the following LA settings dialog box.
Page 52
LA settings dialog box has following items:
Dial timeout edit box
Determinates the time which is ellapsed between users last entered
digit and call attempt.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Silent period edit box
Silent period of ring tone.
Ringing period edit box
Ringing period of ring tone.
Howler timeout edit box
Timeout for howler tone, which is started if user leaves phone off–
hook for long enough period.
After closing of Dialog Box, phone is initialised.
W
arranty State... command
Activation Status Bar Text
Alt, S, W Open Warranty State dialog box.
Service Software Instructions
This command is used for setting the Phone’s Warranty State. The function
opens the following Warranty State dialog box.
The Warranty State dialog box contains the following items:
State static text:
USE
For normal phones.
DEFECTIVE
Original 09/97
For phones which are being swapped. Warranty and other
information is transferred to the working phone.
EXCHANGE
For phones which are already repaired from DEFECTIVE
units.
Page 53
TFE/K–1
PAMS
Service Software Instructions
Repair Date edit box (Alt+R):
Format is MMYY (Where MM is month and YY two last digits of the
year). The date is read from PC’s clock. This is enabled only if state
is DEFECTIVE.
OK button (ENTER):
Closes the dialog box and saves the Warranty State to the phone.
This button should be enabled only when phone is DEFECTIVE and
repair date is entered.
Cancel button (ESC):
Closes the dialog box, and does not save the Warranty State to the
phone.
Dealer
The dealer sub menu offers functions for Mobile Equipment settings for dealers.
Technical Documentation
ser Settings... command
U
Activation Status Bar Text
Alt, D, U Open User Settings and Values dialog box
This command is used for reading, storing, and modifying the user settings and
values.
After menu selection, the program presents
settings from phone?”. If user answers Yes, all needed user settings will be
read from the ME, including menu settings. If a reading error happens, an
dialog box is shown. If reading succeeds, the User Settings and Values dialog
box is opened.
a query
dialog box: “Read user
error
Page 54
The User Settings and Values dialog box contains the following items:
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Security code edit box (Alt+E):
Edit the security code which is saved to the ME memory together with other
user settings and values. Only digits are accepted for the Security code. Length
must be 5 digits.
Master Code static:
Code is 10 digits length, and it is read only.
Wake up Message string edit box (Alt+M):
Edit Wake up message. The wake up message name can have up to 16 char-
acters.
S
ave File... button (Alt+S):
Opens a default Windows File Save As dialog box, and asks for the filename
for saved user settings and values.
Load File... button (Alt+L):
Opens a default Windows File Open dialog box, and asks for the filename to
load user settings and values.
Service Software Instructions
Data entered in the dialog box is checked as valid before it is sent to the phone.
If the application finds wrong characters in the Wake up message, the application will inform user, and request correction. The information window is shown
during writing. The window tells how long a time it will approximately take to
write values.
When all values are sent and responses received, the waiting window is removed and User Settings and Values is back in control. The waiting state can
be broken with the Cancel (Esc) button. If writing to the ME is broken, only part
of the values in the ME may be changed.
Both save file and load file functions have a default name which is the previously used name. For instance, if user data was saved to file USERA.USR and
read function is activated, the default value is USERA.USR.
Reset UI Default V
Activation Status Bar Text
Alt, D, V Reset phone to UI and SCM factory settings
After selection, the application asks for confirmation: “Are you sure you want to
reset UI to factory settings?”. If Yes is answered, default settings are reset to
the phone.
alues... command
Original 09/97
Page 55
TFE/K–1
PAMS
Service Software Instructions
Q
uick Install... command
Activation Status Bar Text
Alt, D, Q Open Quick Install dialog box
This command is used for setting up PIN, AutoPIN other settings and values to
WLL terminal.
Technical Documentation
Quick Install dialog box has following items:
Write button (ALT+W):
This button registers phone to MBUS, reads necessary codes from
phone, and calculates new pin code, if Calculate new PIN Code
check box is checked.
If Change PIN Code check box is checked, PIN code request is set
on and PIN code is changed. Then selected options and codes are
written to WLL terminal and saved to log file, if one is active.
After that contents of Quick view window is updated.
Read button (ALT+R):
This button registers WLL–terminal to MBUS, reads necessary
codes from phone, and calculates new pin code, if PIN code algorithm is available. Also contents of Quick Info window is updated.
AutoPIN check box (ALT+A):
Checking this enables AutoPIN feature.
Page 56
Original 09/97
PAMS
TFE/K–1
Technical Documentation
AutoPIN is a feature, which saves PIN code to phone’s EEPROM.
This way end user can use the terminal, but cannot use the SIM card
on other devices, as the PIN code is unknown to user.
Change PIN Code check box (ALT+C):
Checking this enables setting of PIN code to SIM card. Sets also
PIN query to SIM on.
Calculate new PIN Code check box (ALT+L):
Checking this enables calculation of new PIN code. Active only when
valid PIN code Algorithm has been entered via Setup code dialog
box
Old PIN edit box (ALT+O):
Old PIN code can be entered to this edit box. Enabled only when
AutoPIN check box or Change PIN Code check box is checked.
Default value of old PIN code can be saved to tesla.ini file via Set
defaults button in Advanced Quick Install dialog box
New PIN edit box (ALT+N):
Service Software Instructions
New PIN code can be entered to this edit box. If PIN code calculation code has been entered via Setup code dialog box , new value is
displayed here. Active only when Change PIN Code check box is
active.
Open button (ALT+P):
This button opens dialog, which asks name of log file to contain info
about terminals that have been set up using Quick install. The name
is saved to tesla.ini file, and is suggested as default when next time
opening log file.
Log file is ASCII file, in which items are separated by spaces. At start
of log file is date of creation and filename.
Log file contains following information of each terminal on one line
separated by spaces. After logging has been activated, text on Open
button is changed to Close.
• Date of setup
• MCUSW version
• IMEI (including slashes)
• Security code
Original 09/97
• PIN code
• IMSI
Pressing Open button (now displaying Close text) while logging is
active, stops logging and “No log file active” text is displayed on Log
file edit box.
Page 57
TFE/K–1
PAMS
Service Software Instructions
Log file static text:
Static text containing log file name. Log file name can be entered
only by pressing Open button . Contains text “No log file active”
when logging has not been enabled.
Advance>>> button (ALT+D):
This button opens Advanced Quick Install dialog box .
When Quick Install dialog box is opened, also Quick Info window is opened.
When Write button is pressed, waiting window is displayed and operations de-
scribed above are executed. When all values are sent and responses received,
waiting window is removed and Quick Install dialog is back in control. The
waiting state can be interrupted with Cancel (ESC) button. If writing to the ME
is interrupted, only some of the values in the ME may be changed.
Data entered in dialog box is checked to be valid before it is sent to phone. If
application finds wrong characters, application will inform user and requests
correction.
If SIM goes to PUK state, PUK code must be entered from handset.
Technical Documentation
Advanced>>>... button
This button opens Advanced Quick Install dialog box , which can be used to
set default values for some special terminal settings, like dial time–out.
Page 58
Advanced Quick Install dialog box has following items:
Set defaults button (ALT+S):
This button sets current settings as default to tesla.ini file.
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Reset defaults button (ALT+R):
This button resets defaults settings to ini file.
Dial Time–out edit box (ALT+D):
Time out dial time–out in seconds.
Silent period edit box (ALT+S):
Silent period of ring tone is milliseconds.
Ringing period edit box (ALT+R):
Ringing period of ring tone is milliseconds.
Howler time–out edit box (ALT+H):
Howler time–out in milliseconds.
Extra Settings from INI file list box:
This edit box contains the extra settings, which can be found in ini
file.
S
etup code... command
Service Software Instructions
Activation Status Bar Text
Alt, D, S Open Setup Code dialog box
This command is used for setting code, which determinates algorithm for PIN
code calculation.
Setup code dialog box has following items:
Pin algorithm Code edit box (ALT+P):
Here user can enter code, which determinates algorithm for calculating new pin code from phones IMEI. Length of pin code resulting
from this algorithm is always 8 digits. The code is crypted and saved
to tesla.ini file. Once code has been entered and dialog box is
closed, it is not possible to see the entered code again.
Original 09/97
Page 59
TFE/K–1
PAMS
Service Software Instructions
A
utomatic Area Code... command
Activation Status Bar Text
Alt, D, A Open Automatic Area Code dialog box
This command is used for setting Automatic Area Code settings.
Note ! If Automatic Area Code has not been enabled in product profile, this
selection opens error dialog box, with text “This option is not available”. Otherwise Automatic Area Code dialog box is opened.
Technical Documentation
Automatic Area Code dialog box has following items:
Area Code edit box (ALT+C):
This edit box can be used to enter local Area Code, which is automatically added to outgoing call numbers, which don’t contain any of
Exception Rules number prefixes.
Exception Rules List box (ALT+E):
This list contains those number prefixes, which prevent Area Code
Addition to called number.
Selection edit box (ALT+S):
Here new Exception Rule can be entered.
Add button (ALT+A):
This button adds the number on Rule edit box to Exception Rules
list.
Delete button (ALT+D)
This button deletes current selection from list box.
Page 60
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Get Defaults button (ALT+G)
This button loads default Automatic Area Code settings from ini file.
Set Defaults button (ALT+S)
This button saves current Automatic Area Code settings to ini file.
When Automatic Area Code dialog box is opened, Area Code and Exception
Rules are read from phone. When OK button is pressed, codes in Area Code
edit box and Exception Rules list are checked. If codes are not OK, an error
message is shown. If codes are OK, they are written to phone.
View
Menu items (except the following) are
mainly for future usage.
Service Software Instructions
Quick/RF Info... command
Activation Status Bar Text
Alt, V, Q View Quick/RF information.
If the phone is in
normal
mode, the following Quick Info box is shown:
Note! Special conditions (For example phone’s SIM lock is ON) cause this dialog box to change color to make this special condition clear to the user.
Original 09/97
Page 61
TFE/K–1
PAMS
Service Software Instructions
If the phone is in local mode, the following RF Information box is shown. Information is shown in a modeless dialog box, which may be left open during the
other operations. It is also updated when ever needed.
Technical Documentation
Phone Identity... command
Activation Status Bar Text
Alt, V, P View phone identity.
This command opens the Phone Identity Information dialog box, which
shows identification information. Information is shown in a modeless dialog box
which may be left open during other operations. It is also updated when ever
needed.
Page 62
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Help
The Help menu offers commands which provide assistance with this application:.
Index command
Activation Status Bar Text
Alt, H, I Provide general instructions on using help.
This command displays the opening screen of Help. From the opening screen,
the user can jump to step–by–step instructions for using Service Software, and
various types of reference information.
Once Help is opened, the user can click the Contents button whenever the user
wants to return to the opening screen.
General help command
Service Software Instructions
Activation Status Bar Text
Alt, H, G General help
Using Help command
Activation Status Bar Text
Alt, H,U Display using help system information
SHIFT+F1
About... command
Activation Status Bar Text
Alt, H, A Displays the version number of this application.
See Login Dialog box.
Original 09/97
Page 63
TFE/K–1
PAMS
Service Software Instructions
Initialization File
The Service Software has an initialization file which has extension .INI. The initialization file is TESLA.INI which includes all the following selections (on mentioned menus or dialog boxes) and parameters:
RF Controls dialog box ([TFE/K–RF])
Channel (Channel=)
• Continuous Mode Channel (ContModeChannel=)
• Monitoring Channel (MonitoringChannel=)
• AFC (AFC=)
• AGC (AGC=)
• Data Type (DataType=)
• Power Level (PowerLevel=)
• DLL Filenames (TFE–1 and identical TFK–1)
• User Interface (UserInterface=)
• Functionality (Functionality=)
Technical Documentation
• RSSI Dialog box (TFE–1LEVELS and identical TFK–1LEVELS)
• AFC Level (AfcLevel=)
• RSSI Low (RssiLow=)
• RSSIHigh (RssiHigh=)
• AFC Level (AfcLevel=)
Page 64
Original 09/97
PAMS
TFE/K–1
Technical Documentation
Appendix 1, Vocabulary
Abbreviation Description
API Application Programming Interface
ASIC Custom circuit which for instance controls communication
between MCU and DSP
CLF Common Look and Field
DATA DATA interface module
DAU–4S M2BUS – RS–232 adapter
DCT2 Digital Core Technology Second Generation
DLL Dynamic Link Library
DSP Digital signal processor which controls radio interface and
speech coding/decoding
EEPROM Memory for adjustment parameters (Electrically Erasable
and Programmable Read Only Memory)
Service Software Instructions
IMEI International Mobile Equipment Identification code
M2BUS Serial communication bus which can be connected to
accessory devices and test PC
MCU Master Control Unit processor
MDI MCU DSP Interface; message interface via ASIC registers
ME Mobile Equipment
MFC Microsoft Foundation Class library
MS Mobile Station
MTI Message Transfer Interface
PC IBM PS/AT or compatible personal computer
PCBOX Local Net driver SW for PC
PCI Phone Controlling Interface SW for PC
RF Radio Frequency parts
RFI Radio Frequency Interface circuit
SW Software
TFE/K–1 TFE–1 and/or TFK–1
UI User Interface
WLL Wireless Local Loop
Original 09/97
Page 65
TFE/K–1
PAMS
Service Software Instructions
Technical Documentation
This page intentionally left blank.
Page 66
Original 09/97
Loading...
