TFE/K–1/2 SERVICE TOOLS
Contents
List of Service Accessories 8–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MBUS Cable DAU–4S 8–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 8–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of DAU–4S 8–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC/MBUS Adapter DAU–2T 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of DAU–2T 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D9/D25 RS–232 Adapter 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Adapter 8–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Cable ADS–1 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of ADS–1 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Connector PCS–1 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of PCS–1 8–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modular Cable XCM–1 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XCM–1 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SIM Adapter TDA–2 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of TDA–2 8–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SW Security Device PKD–1 8–8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SW Security Device 8–8. . . . . . . . . . . . . . . . . . . . . . . . .
Flash Prommer FPS–4 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FPS–4 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Adapter AFW–2 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of AFW–2 8–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handset HSE–1 8–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Handset HSE–1 8–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handset HSN–5 8–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Handset HSN–5 8–11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Tools
Original 05/98
8–3
TFE/K–1/2
PAMS
Service Tools
List of Service Accessories
MBUS Cable DAU–4S
DAU–4S is connected between the CAP adapter (AFW–1), which is connected
to the phone, and the serial (COM) port of the PC. It matches the MBUS data
bus signals to the serial data bus of the computer.
Product code
MBUS Cable DAU–4S: 0730057
View of DAU–4S
Technical Documentation
8–4
Original 05/98
PAMS
TFE/K–1/2
Technical Documentation
PC/MBUS Adapter DAU–2T
DAU–2, a modular cable, and service adapter (AFW–2) can be used to connect
TFK–1 to the PC.
Product Code
PC/MBUS Adapter DAU–2T: 0750006
View of DAU–2T
Service Tools
D9/D25 RS–232 Adapter
Suitable adapter between DAU–2 and computers having 9 pin D connector as a
serial port.
Product Code
D9/D25 RS–232 Adapter: 4626170
View of Adapter
Original 05/98
8–5
TFE/K–1/2
PAMS
Service Tools

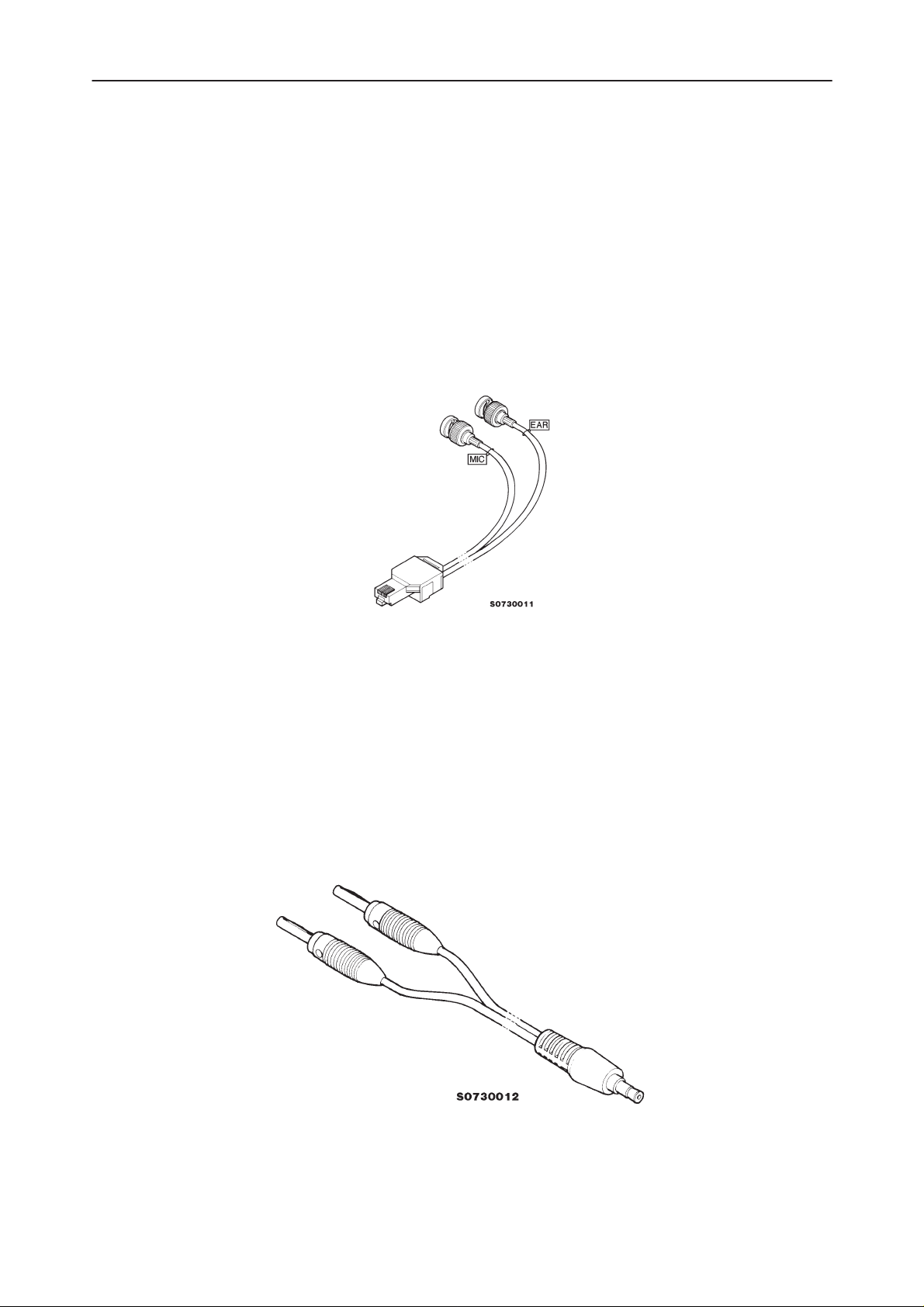

Audio Cable ADS–1
The Audio Cable is an adapter routing AF signals (MIC/EAR) from 8 pin modular connector to two BNC connectors. The Service Adapter (AFW–2) is used to
connect ADS–1 to TFE/K–1/2.
Product code
Audio Cable ADS–1: 0730011
View of ADS–1
Technical Documentation
Power Connector PCS–1
Suitable adapter between TFE/K–1/2 and the power supply. The PCS–1 must
be connected through the Service Adapter (AFW–2).
Product code
Power Connector PCS–1: 0730012
View of PCS–1
8–6
Original 05/98
PAMS
TFE/K–1/2
Technical Documentation
Modular Cable XCM–1
Suitable connecting cable between the Service Adapter (AFW–2) and the
Modular T–connector .
Product code
Modular Cable XCM–1: 4626131
View of XCM–1
Service Tools
SIM Adapter TDA–2
The SIM adapter has only one function, namely to connect a lite SIM card to
the phone when it is disassembled. The normal SIM card holder can not be
used as it is part of the mechanics.
Product code
SIM Adapter TDA–2: 0750057
View of TDA–2
Original 05/98
8–7
TFE/K–1/2
PAMS
Service Tools
SW Security Device PKD–1
SW security device is a piece of hardware enabling the use of the service software when connected to the parallel (LPT) port of the PC. Whitout the dongle
present it is not possible to use the service software. Printer or any such device
can be connected to the PC through the security device if needed.
Caution: Make sure thet you have switched off the PC and the printer before
making connections!
Caution: Do not connected the PKD–1 to the serial port. You may damage
your PKD–1!
Product Code
SW Security Device PKD–1: 0750018
View of SW Security Device
Technical Documentation
8–8
Original 05/98
PAMS
TFE/K–1/2
Technical Documentation

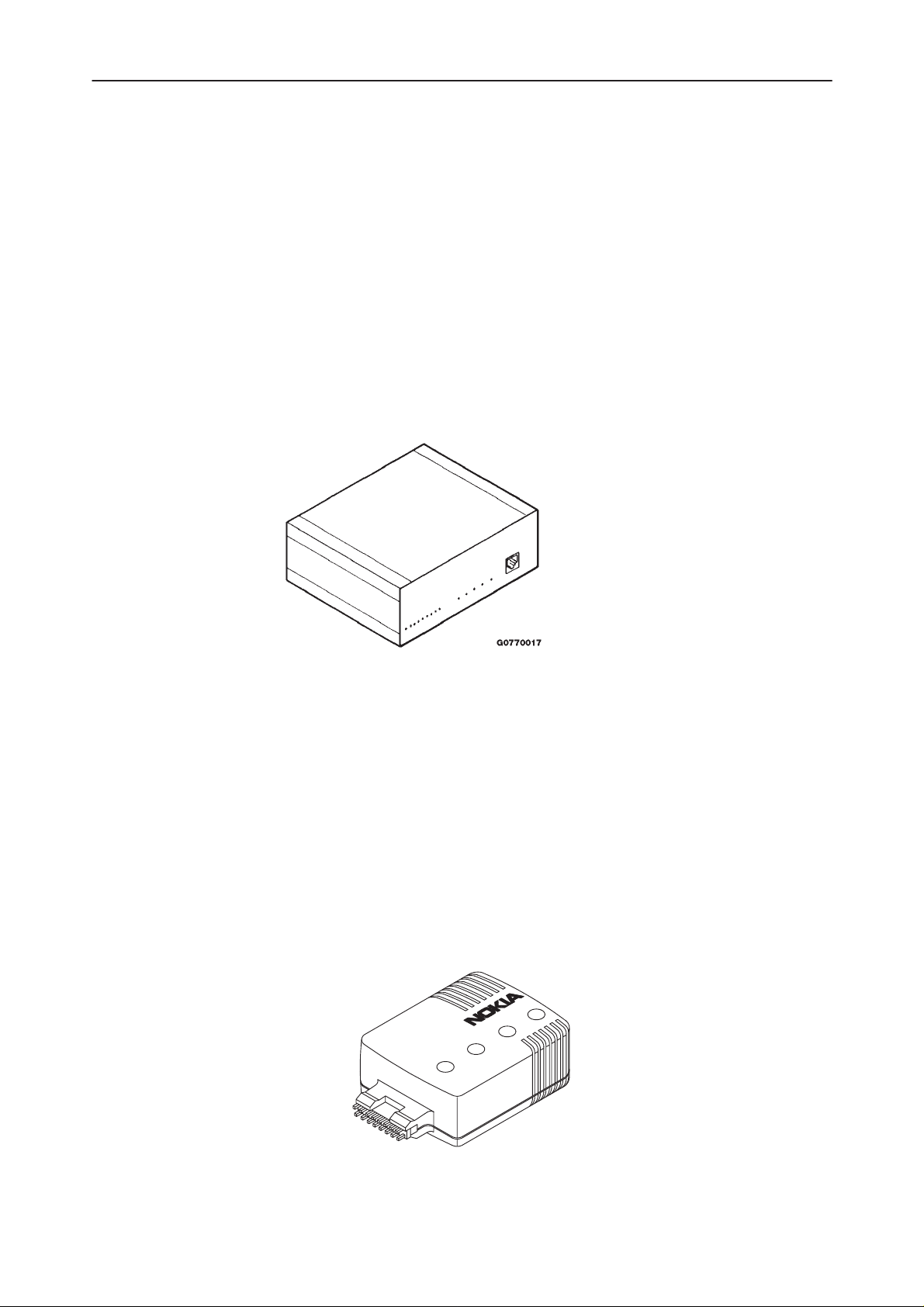

Flash Prommer FPS–4
Flash prommer is used to update the main software of the phone, should that
some day become necessary. Updating is done by first loading the new MCU
software from PC to the FLASH prommer and then loading the new SW from
prommer to the phone. When updating more than one phone in a row, the new
MCU SW must be loaded to the prommer only in the beginning.
Product Code
Flash Prommer FPS–4: 0750090
View of FPS–4
Service Tools
Service Adapter AFW–2
AFW–2 is used to connect DAU–2T, Audio Cable ADS–1 via the modular cable
to TFE/K–1/2. Also the flash prommer FPS–4 and Power Connector PCS–1
can be connected to TFE/K–1/2 with AFW–1.
Product Code
Service Adapter AFW–2: 0750110
View of AFW–2
Original 05/98
8–9
TFE/K–1/2
PAMS
Service Tools
Handset HSE–1
The handset HSE–1 is used when installing or testing the terminal.
Product Code
Handset HSE–1: 0640002
View of Handset HSE–1
Technical Documentation
8–10
Original 05/98
PAMS
TFE/K–1/2
Technical Documentation
Handset HSN–5
The handset HSN–5 is used when installing or testing the terminal.
Product Code
Handset HSN–5: 0640049
View of Handset HSN–5
Service Tools
Original 05/98
8–11
TFE/K–1/2
PAMS
Service Tools
Technical Documentation
This page intentionally left blank.
