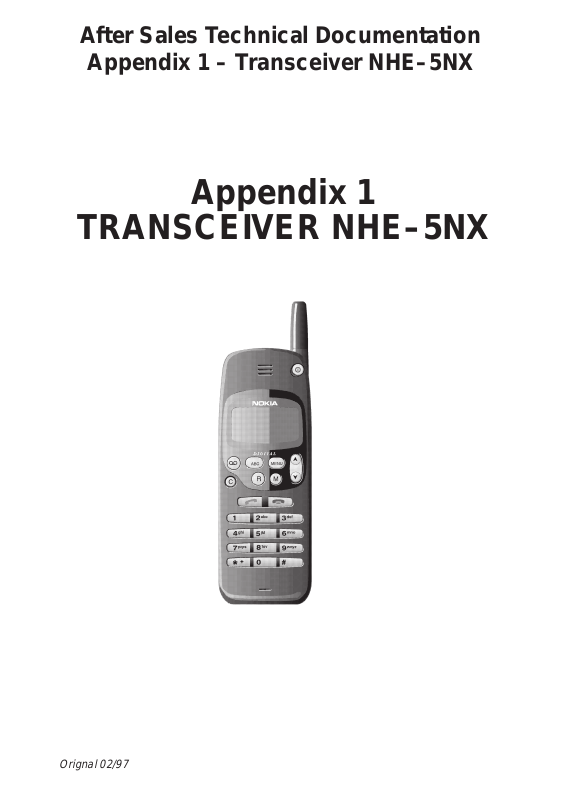

After Sales Technical Documentation
Appendix 1 – Transceiver NHE–5NX
Appendix 1
TRANSCEIVER NHE–5NX
Orignal 02/97
NHE–5NX
After Sales
Transceiver NHE–5NX
Contents
Appendix 1 Structure Page 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction Page 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product and Module List Page 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exploded View of Transceiver NHE–5NX Page 1–8. . . . . . . . . . . . . . . . . .
Assembly Parts Page 1–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Documentation
Page 1–2
Orignal 02/97
After Sales
NHE–5NX
Technical Documentation
Appendix 1 Structure
This section of the service manual (Appendix) describes the Nokia NHE–5NX
handportable telephone for use on the Global System for Mobile telephones
(GSM). The appendix contains only information specific to the Nokia NHE–5NX
variant.
NOTE: The Service Manual is intended for use by qualified service
personnel only.
Transceiver NHE–5NX
Orignal 02/97
Page 1–3
NHE–5NX
After Sales
Transceiver NHE–5NX
Introduction
The NHE–5NX transceiver, together with battery pack ensures all the desirable
features e.g. alphanumeric display and keypad, menu–control, shortcode
memory, retractable antenna etc. are available in a very small and light cellular
handportable.
Product and Module List
Unit/type: Product code: Module code:
Transceiver NHE–5NX (Nokia 1610) 0500333
• system module GT8 0200534
• MCU SW Module 0240258
• mechanics MNHE5NX 0260479
• window 9457277
• front cover – black 9457278
Technical Documentation
Transceiver NHE–5NX (Nokia 1611) 0501060
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, G 0261324
• window 9457277
• front cover – dark brown 9457731
Transceiver NHE–5NX (Nokia 1610 D2) 0500621
• system module GT8 0200534
• MCU SW Module 0240258
• mechanics MNHE5NX 0260949
• window 9457396
• front cover – black 9457278
Transceiver NHE–5NX (Nokia 1611 D2) 0501059
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, D 0261323
Page 1–4
• window 9457396
• front cover – dark brown 9457731
Orignal 02/97
After Sales
NHE–5NX
Technical Documentation
Transceiver NHE–5NX (Nokia 1610 TIM) 0500623
• system module GT8 0200534
• MCU SW Module 0240258
• mechanics MNHE5NX 0260950
• window 9457508
• front cover – black 9457278
Transceiver NHE–5NX (Nokia 1611 TIM) 0501061
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, T 0261325
• window 9457508
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1610 Itineris) 0500624
• system module GT8 0200534
• MCU SW Module 0240258
Transceiver NHE–5NX
• mechanics MNHE5NX 0260951
• window 9457510
• front cover – black 9457278
Transceiver NHE–5NX (N1611 Itineris) 0501062
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, FR 0261326
• window 9457510
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1610 Omnitel) 0500641
• system module GT8 0200534
• MCU SW Module 0240258
• mechanics MNHE5NX 0260952
• window 9457509
• front cover – black 9457278
Transceiver NHE–5NX (N1611 Omnitel) 0501063
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, OM 0261327
• window 9457509
• front cover – dark brown 9457731
Orignal 02/97
Page 1–5
NHE–5NX
After Sales
Transceiver NHE–5NX
Transceiver NHE–5NX (N1610 Greece) 0500642
• system module GT8 0200534
• MCU SW Module 0240258
• mechanics MNHE5NX 0260479
• window 9457277
• front cover – black 9457278
Transceiver NHE–5NX (N1611 Greece) 0501064
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, G 0261328
• window 9457277
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1610 PRC) 0500643
• system module GT8 0200534
• MCU SW Module 0240258
Technical Documentation
• mechanics MNHE5NX 0260479
• window 9457277
• front cover – black 9457278
Transceiver NHE–5NX (N1611 PRC) 0501065
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, P 0261329
• window 9457277
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1611 Movistar) 0501066
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, M 0261330
• window 9457516
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1611 Airtel) 0501067
Page 1–6
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, A 0261331
• window 9457517
• front cover – dark brown 9457731
Orignal 02/97
After Sales
NHE–5NX
Technical Documentation
Transceiver NHE–5NX (N1611) 0501068
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts 0261332
• window 9457277
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1611 Korea) 0501069
• system module GT8 0200534
• MCU SW Module 0240421
• mechanics MNHE5NX Ass Parts, Nokia 0261333
• window 9457277
• front cover – dark brown 9457731
Transceiver NHE–5NX (N1611 Mobistar) 0501070
• system module GT8 0200534
• MCU SW Module 0240421
Transceiver NHE–5NX
• mechanics MNHE5NX Ass Parts, MO 0261334
• window 9457688
• front cover – dark brown 9457731
Orignal 02/97
Page 1–7
NHE–5NX
After Sales
Transceiver NHE–5NX
Exploded View of Transceiver NHE–5NX
M1
Technical Documentation
NHE–5NX
M2
Page 1–8
Orignal 02/97
After Sales
NHE–5NX
Technical Documentation
Transceiver NHE–5NX
Assembly Parts
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 Window – See ’Product and Module List’
2 Front cover – See ’Product and Module List’
3 9790152 Keypad 4C 25521
4 9460160 Light guide 2D 25616
5 9530003 Front shield 2D 25028
6 9540016 Chassis 0D 25772
7 9450593 Back cover 2D 25413
8 0661008 Antenna helix 30 mm JTH/GSM 890–960 MHz
9 5149001 Buzzer with spring
10 5149003 Speaker & spring
11 5140023 Microphone with contacts
12 4850058 Display
16 8 6240001 Screw M2 x 6 4D 25962
17 4 6290001 PT screw 2.0 x 8.5 4D 25963
18 5200011 Actuator of the FPC connector
19 9380535 Type label (1610 DMP00666, Made in Finland)
Type label (1610 DMP00548, Greece)
Type label (1610 DMP00549, PRC)
Type label (1610 DMP00550, D2)
Type label (1610 DMP00551, TIM)
Type label (1610 DMP00552, Itineris)
Type label (1610 DMP00553, Omnitel)
Type label (1610 DMP00717, Movistar)
Type label (1610 DMP00718, Airtel)
Type label (1611 DMP01472, Greece)
Type label (1611 DMP01473, PRC)
Type label (1611 DMP01466, D2)
Type label (1611 DMP01469, TIM)
Type label (1611 DMP01470, Itineris)
Type label (1611 DMP01471, Omnitel)
Type label (1611 DMP01474, Movistar)
Type label (1611 DMP01475, Airtel)
Type label (1611 DMP01467, Nokia – Made in Germany)
Type label (1611 DMP01468, Nokia – Made in Korea)
Type label (1611 DMP01477, Korea)
Type label (1611 DMP01478, Mobistar)
M1 0200534 System module GT8
M2 Keyboard module GF2 *)
9450581 Connector cover 3D 25768
*) Keyboard module includes PCboard (9854058) and 2 pcs rivet nuts (9580020)
Orignal 02/97
Page 1–9
NHE–5NX
After Sales
Transceiver NHE–5NX
Technical Documentation
This page intentionally left blank.
