Nokia N93 Service Manual level 1-2

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support

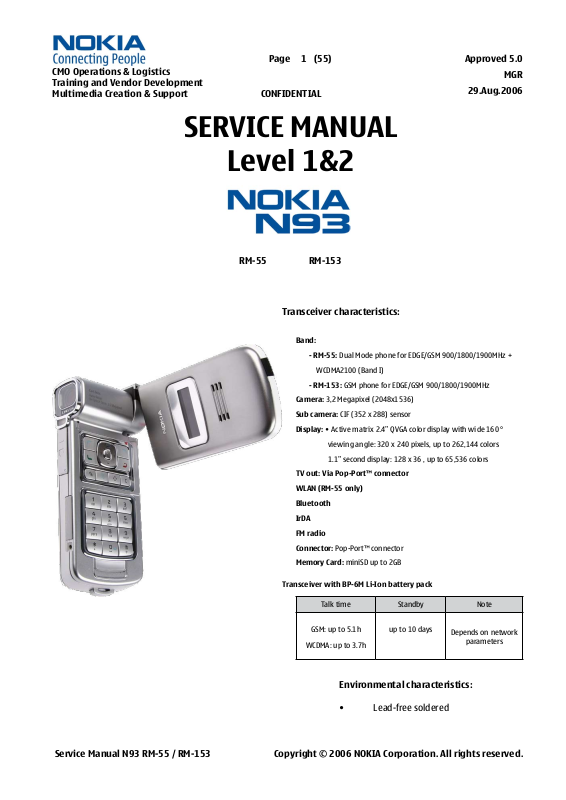

SERVICE MANUAL

Page (55)

1

CONFIDENTIAL

Level 1&2

Approved 5.0

MGR

29.Aug.2006

RM-55

RM-153

Transceiver characteristics:

Band:

- RM-55: Dual Mode phone for EDGE/GSM 900/1800/1900MHz +

WCDMA2100 (Band I)

- RM-153: GSM phone for EDGE/GSM 900/1800/1900MHz

Camera: 3,2 Megapixel (2048x1536)

Sub camera: CIF (352 x 288) sensor

Display: • Active matrix 2.4” QVGA color display with wide 160 °

viewing angle: 320 x 240 pixels, up to 262,144 colors

1.1” second display: 128 x 36 , up to 65,536 colors

TV out: Via Pop-Port™ connector

WLAN (RM-55 only)

Bluetooth

IrDA

FM radio

Connector: Pop-Port™ connector

Memory Card: miniSD up to 2GB

Service Manual N93 RM-55 / RM-153

Transceiver with BP-6M Li-Ion battery pack

Talk time Standby Note

GSM: up to 5.1h

WCDMA: up to 3.7h

up to 10 days

Depends on network

parameters

Environmental characteristics:

• Lead-free soldered

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

2

Approved 5.0

MGR

29.Aug.2006

TABLE OF CONTENTS

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

INTRODUCTION 3 GENERAL REPAIR INFORMATION PATHFINDER FOR WORKSHOP STAFF EXPLODED VIEW AND COMPONENT DISPOSAL - UPPER BLOCK EXPLODED VIEW AND COMPONENT DISPOSAL - LOWER BLOCK COMPONENT OVERVIEW NOKIA ONLINE (NOL) SERVICE TOOLS 1 SW-UPDATE 1 UPPER BLOCK - DISASSEMBLY 1 UPPER BLOCK - ASSEMBLY 2 LOWER BLOCK - DISASSEMBLY 2 LOWER BLOCK - ASSEMBLY 3 LEGEND FOR QUICK TROUBLE SHOOTER 4 QUICK TROUBLE SHOOTER PART 1 4 QUICK TROUBLE SHOOTER PART 2 4 QUICK TROUBLE SHOOTER PART 3 4 QUICK TROUBLE SHOOTER - ZOOMS PART 1 4 QUICK TROUBLE SHOOTER - ZOOMS PART 2 4 QUICK TROUBLE SHOOTER - ZOOMS PART 3 4 QUICK TROUBLE SHOOTER - ZOOMS PART 4 4 QUICK TROUBLE SHOOTER - ZOOMS PART 5 5 QUICK TROUBLE SHOOTER - ZOOMS PART 6 5 QUICK TROUBLE SHOOTER - ZOOMS PART 7 5 QUICK TROUBLE SHOOTER - ZOOMS PART 8 5 GONOGO TEST 5 BATTERY TEST 5

Page

4 5 6 7 8 9 0 2 3 0 8 5 2 3 4 5 6 7 8 9 0 1 2 3 4 5

CHANGE HISTORY

Status Version No. Date Comments

Draft 0.1 10.Mai.2006 Initial draft

Approved 1.0 12.Jun.2006 Approval

Approved 2.0 30.Jun.2006 Component overview updated/QTS implemented

Approved 3.0 10.Jul.2006 RM-153 added

Approved 4.0 17.Jul.2006 Mistake in chapter naming corrected

Approved 5.0 29.Aug.2006 POS Concept corrected, New toolkit V2 added

Service Manual N93 RM-55 / RM-153

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

3

Approved 5.0

MGR

29.Aug.2006

INTRODUCTION1.

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may exist. If you find any errors or if you have further suggestions, please notify NOKIA using the address below: mailto:cc-ts-rc.documentation@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified, so watch always out for the newest version.

Warnings and Cautions

Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including important safety information. Note also the following:

Warnings:

CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS

1. AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE

2. ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH

3. THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

Cautions:

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.

5. Ensure all cables and wires are repositioned correctly.

Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore every Service Supplier has to take care of all precautions, which are mentioned in the service level related “Service Partner Requirements”, available on NOKIA Online. Also see ESD Protection Requirements in this Service Manual.

Service Manual N93 RM-55 / RM-153

(55)

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

4

Approved 5.0

29.Aug.2006

GENERAL REPAIR INFORMATION2.

In this section the technician will get some general hints how to carry out repairs:

To familiarize oneself with NOKIA product read the tutorials or user guide on www.nokia.com -->Support-->

• Phones, by selecting the Phone Model. Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and con-

• necting your wristband. Use gloves to avoid corrosion and fingerprints.

• Protect windows and displays with a film to avoid dust and scratches.

• When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth).

• When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a glass

• fiber pencil because it scratches the surface and will lead later on to corrosion. Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they are

• not soldered. When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency

• leakage can have an influence on the device. Always use original NOKIA spare parts.

• Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered connec-

• tors or switches) and resolder them if necessary (Level 2 only). Remove redundant soldering flux after repair.

• Meet the torque requirements when assembling the unit (see also the document “torques for transceiver as-

• sembly” on NOKIA Partner Web Site/NOKIA Online). Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains

• about charger function, please test the phone with your own charger to be sure if phone or charger causes the malfunction. A SIM card is needed for all GoNoGo tests.

• When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the ap-

• propriate part code from the assembly, if needed. Please be aware that some malfunctions could be software related and solved by an update.

•

MGR

There are several documents available on NOL, which have to be followed:

•

• First, take care for the latest content pages of Service Bulletins, which are always available for each folder on

• NOKIA Online. This is also important to recognize, if existing documents have become invalid.

• The service level indicator at the bottom of each document tells the appropriate destination.

•

Downloads > Support Library >

1. Instructions

2. General Service Bulletins

3. Product related documents

4. Spare Part Service Bulletins

5. Service Tools Service Bulletins

6. Common Software Service Bulletins etc,…

Use General SB-217 as a reference or overview.

Please also check NOKIA Online (NOL) for latest news and files on a regular basis.

Service Manual N93 RM-55 / RM-153

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

5

Approved 5.0

MGR

29.Aug.2006

PATHFINDER FOR WORKSHOP STAFF3.

This is the NOL page (NOKIA Online) which is currently available in Europa, Middle East and Africa only!

In addition to the information in this Service Manual, there are several instructions and information, which have to be followed. Main documentation database is NOKIA Online with the purpose of serving different multimedia content, like video clips or interactive tutorials.

It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as required (see “Latest files in Support Library”). Every new information has to be processed and implemented as soon as possible. When logged into NOL you can also find needed information in different folder like:

Support Library Phones

Service Manuals Service Bulletins Software Repair Information

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online

Former NOKIA CarePoint content, such as

Online Troubleshooting

• Product information

• Videos – Disassembly/Assembly

•

can be found on

NOKIA Online

Care Services

Training

Phone Models

Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the phone:

Overview & Guides

Basic information about the phone,

features and technologies

To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix packages or Service Manuals only once and distribute it internally for further use.

Service Manual N93 RM-55 / RM-153

Disassembly & Assembly

Instructions how to disassemble and

assemble the phone

Troubleshooting

Step-by-step instructions on how to locate and repair the most common

problems with the phone

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

6

Approved 5.0

29.Aug.2006

EXPLODED VIEW AND COMPONENT DISPOSAL - UPPER BLOCK4.

Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

MGR

Service Manual N93 RM-55 / RM-153

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

7

Approved 5.0

29.Aug.2006

EXPLODED VIEW AND COMPONENT DISPOSAL - LOWER BLOCK5.

Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

MGR

Service Manual N93 RM-55 / RM-153

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

8

COMPONENT OVERVIEW6.

Approved 5.0

MGR

29.Aug.2006

Service Manual N93 RM-55 / RM-153

(55)

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

9

Approved 5.0

29.Aug.2006

NOKIA ONLINE (NOL)7.

NOL is the database where you can find the latest corresponding Service Bulletins (spare parts, SWAP units and service tools).

This will ensure, that you are using up-to-date order codes only.

Therefore Service Bulletins have to be checked from NOL on daily basis.

MGR

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

10

SERVICE TOOLS8.

FLS-4S incl. ACF-8, Driver and User Guide

Dongle and flash device incorporated into one package, developed specifically for POS use.

(55)

Approved 5.0

MGR

29.Aug.2006

ACF-8

Universal Power Supply is used to power FLS-4S.

Travel Charger AC-4

Small and lightweight charger for fast charging of your phone battery.

Internal Battery BP-6M

Inserted under the back cover, this Li-Ion battery provides power in a lightweight package.

Headset HS-23

Small and lightweight stereo headset with handsfree call handling, volume control, push to talk support, and comfortable earpieces for listening to the FM radio or music player.

Service Manual N93 RM-55 / RM-153

CA-53

Service Cable to connect the PC with the Pop-Port™ connector.

RJ-80

Soldering Jig

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

Lead-free Solder Wire

Mandatory for lead-free products (Level 2 only).

0772040 NMP Standard Toolkit (V2)

For more informations refer to the Service Bulletin (SB-011) on NOKIA Online.

11

(55)

Approved 5.0

MGR

29.Aug.2006

Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on NOKIA Online.

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

12

SW-UPDATE9.

Flash Concept – (Point of Sales)

To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on

NOKIA Online.

Service Manual N93 RM-55 / RM-153

Page

13

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

UPPER BLOCK - DISASSEMBLY10.

(55)

Approved 5.0

MGR

29.Aug.2006

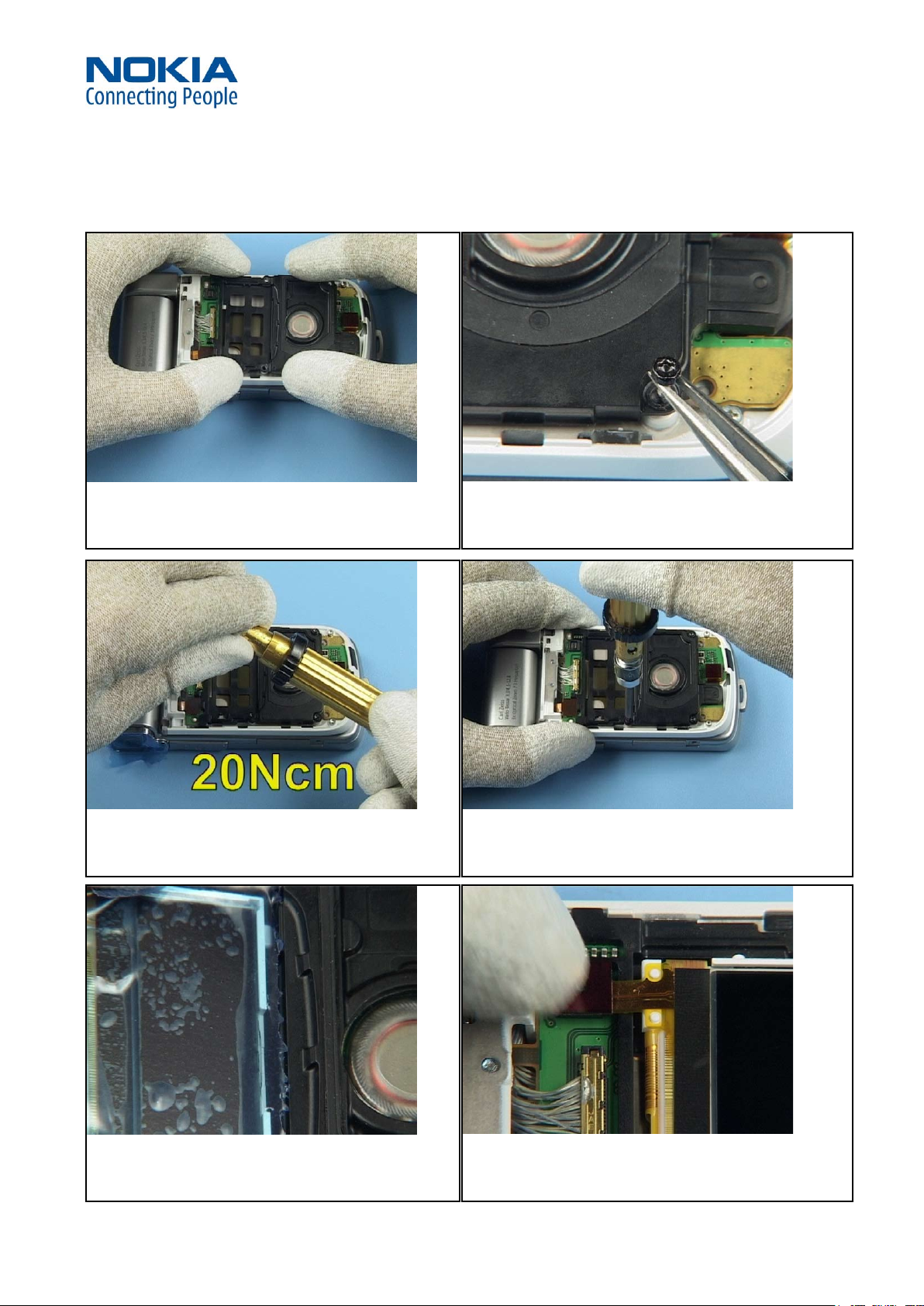

1. Needed tools: The SRT-6, the SS-93, metal tweezers, angled tweezers, a dental pic, a torx driver with a torx plus size 6 bit, and a torx plus driver size 6.

3. Ensure that no battery is inserted before going on.

2. Cover all windows with a plastic lm.

4. Pry open the Sub Display Window with the SRT-6.

5. Do not use it again.

Service Manual N93 RM-55 / RM-153

6. Undo the screw and remove it.

Page (55)

14

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

Approved 5.0

MGR

29.Aug.2006

7. Slide along the sides of the Flip C-Cover Assembly, open the two clips as shown.

9. Protect the Sub Display with a plastic lm.

8. Remove the Flip C-Cover assembly.

10. Carefully lever up the ex connector of the display.

11. Gently unlock the snaps of the Sub Display.

Service Manual N93 RM-55 / RM-153

12. Unscrew the four torx plus size 6 screws and remove them.

Page (55)

15

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

Approved 5.0

MGR

29.Aug.2006

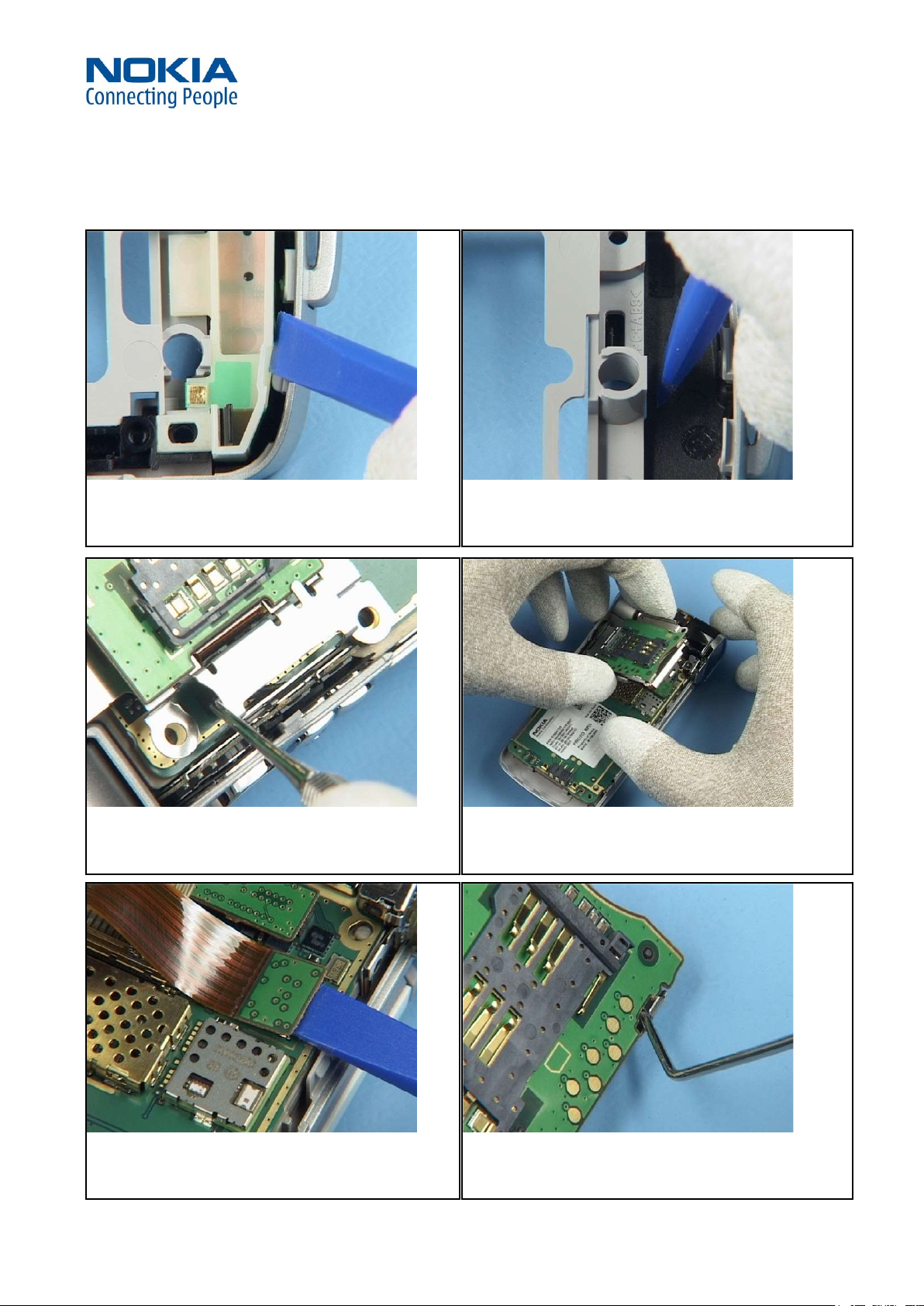

13. Unlock the plastic hooks of the Flip Frame.

15. Lift out the glued in IHF Slim.

14. Remove the Magnet.

16. Carefully lever up the CIF Camera ex connector.

17. Remove the CIF Camera.

Service Manual N93 RM-55 / RM-153

18. Lever up the Flip PWB Module.

Page (55)

16

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

Approved 5.0

MGR

29.Aug.2006

19. Now the glued in Earpiece can be removed easily.

21. Gently lever up the connector with the dental pic.

20. Open this ex connector evenly.

22. Undo both screws and remove them.

23. Open the assembly and remove the protection lm.

Service Manual N93 RM-55 / RM-153

24. Push out the Flip A-Cover together with the Main Display.

Page

17

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

25. Protect the display with a plastic lm.

27. Remove the IR Window.

26. Carefully lever out the Flip Soft Keymat.

28. Pull out the Flip Corner Bumper.

29. Mind the cables while removing the Detector Holder with tweezers.

Service Manual N93 RM-55 / RM-153

30. Use the angled tweezers for levering out the connector as shown.

Page

18

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

31. Unscrew both torx size 6 screws and discard them.

33. Carefully separate the parts, mind the switch of the Flip PWB Module.

32. Always use new screws when reassemble.

34. Peel off the Flip Frame Adhesive Tape with tweezers.

35. Ensure that no residues remain.

Service Manual N93 RM-55 / RM-153

36. Gently peel up the glued Flip PWB Module with the SS-93.

Page

19

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

37. Release the latches of the Capture Key Cover Module.

39. Now the Capture Key Cover Module can be removed easily.

38. Use the SS-93 to unlock all snaps.

40. Remove the Capture Key Button, Spring and the Zoom Key Lever.

41. Now the disassembly procedure is complete.

Service Manual N93 RM-55 / RM-153

Page

20

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

UPPER BLOCK - ASSEMBLY11.

(55)

Approved 5.0

MGR

29.Aug.2006

1. Align the Zoom Key Lever into the Capture Key Cover Module as shown.

3. Set the recess of the Zoom Key Lever in position shown.

2. Place the spring and the Capture Key Button.

4. Position the Capture Key Cover Module and press it down quickly.

5. Check the functionality of the Zoom Key Lever before continue.

Service Manual N93 RM-55 / RM-153

6. Now push the cover into the correct position.

Page

21

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

7. Use new adhesives before placing the Flip PWB Module.

9. Hold the switch in position shown and align the hinge over the Flip B-Cover.

8. Align the Flip PWB Module to the guides and smooth it down evenly.

10. Insert two new screws.

11. Fit the torx size 6 bit and set the correct torque.

Service Manual N93 RM-55 / RM-153

12. Apply the torque to both screws.

Page

22

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

13. Place the switch in position shown.

15. Close the connector while pushing from behind the Flip PWB Module.

14. Slot the smaller connector through the Flip B-Cover.

16. Place the Detector holder.

17. Insert the Flip Corner Bumper.

Service Manual N93 RM-55 / RM-153

18. And the IR Window.

Page

23

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

19. Carefully place the Flip Soft Keymat. The snaps are very delicate and can break easily.

21. Fit the Flip A-Cover Assembly, beginning from the bottom side.

20. Remove the protection lm from the Main Display. Slot the ex foil through the Flip B-Cover.

22. Click all snaps into their places.

23. Close the assembly. Insert both screws.

Service Manual N93 RM-55 / RM-153

24. Set the correct torque.

Page

24

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

25. To prevent destroying the plastic threats, turn the screws

left rst, then tighten them with the correct torque.

27. Close the connectors.

26. Check if there is no gap remaining between Flip A-Cover Assy and Flip B-Cover.

28. Always use a new Gasket when replacing the Earpiece.

29. Mind the alignment tap of the Earpiece.

Service Manual N93 RM-55 / RM-153

30. Gently t the Flip PWB Module.

Page

25

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

31. Insert the CIF Camera, close the connector.

32. Use a new Gasket when replacing the IHF Speaker.

32. Stick a new Flip Frame Adhesive Tape. Smooth it down evenly

and remove the protection lm.

33. Mind the spring contacts while handling the IHF Speaker.

34. Note the alignment tap while positioning the IHF Speaker.

Service Manual N93 RM-55 / RM-153

35. Insert the Magnet.

Page

26

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

36. Place the Flip Frame, mind the correct positioning.

38. Set the correct torque.

37. Insert the screws.

39. Tighten the four screws.

40. Insert the SUB Display.

Service Manual N93 RM-55 / RM-153

41. Close the connector.

Page

27

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

42. Place the Flip C-Cover, beginning from the top.

44. Insert the screw.

43. Push it down evenly.

45. Tighten it with the correct torque.

46. Cover the Main Display with a plastic lm.

Service Manual N93 RM-55 / RM-153

47. Place a new Sub Display Window, smooth it down evenly.

Page

28

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

LOWER BLOCK - DISASSEMBLY12.

(55)

Approved 5.0

MGR

29.Aug.2006

1. Needed tools: The SRT-6, the SS-93, metal tweezers, a dental pic, the torque driver with a torx plus and a torx size 6 bit, a torx plus and a torx driver size 6 and a DC plug.

3. Carefully pry open the Bezel S60 with the SRT-6 and remove it. Do not use it again.

2. Cover all windows with a plastic lm. Remove the battery if it

is inserted.

4. Lever out the Keymat S60.

5. Release the adhered Logo Label with the SRT-6.

Service Manual N93 RM-55 / RM-153

6. Carefully lift up the glued in Bezel ITU. Do not use it again.

Page

29

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

7. Remove the Keymat.

9. Remove the six torx plus size 6 screws in the order shown.

8. Open the SIM Flap and remove it as shown.

10. Carefully pry open the snaps of the Grip A-Cover with the SS-

93.

11. Separate the Grip B-Cover.

Service Manual N93 RM-55 / RM-153

12. Push out the SD Bung Painted.

Page

30

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

13. Ease out the Antenna Assy with the SS-93 carefully and remove it. The parts can be separate.

15. Carefully release the metal latches of the SDSIM Support Frame with the dental pic on both sides.

14. Hold down the Antenna Cover while lifting the Grip B-Cover.

16. Lift up the SDSIM PWB Module.

17. Disconnect the Flex foil connector.

Service Manual N93 RM-55 / RM-153

18. Bend out the metal latch as shown.

Page

31

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

19. Separate the SDSIM PWB.

21. Carefully lever out the connectors as shown with the dental pic.

20. Carefully lift out the Camera unit, mind that the coax cables are still connected.

22. Unlock both latches of the Camera Bezel Assembly. These clips are very delicate and can be broken easily.

23. Remove the Camera Bezel Assembly.

Service Manual N93 RM-55 / RM-153

24. Unlock the metal latches of the Camera Shield Frame Assembly.

Page

32

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

25. Remove the Camera IF PWB Module.

27. Cover the lens with a plastic lm.

26. Peel up the Camera Cushion.

28. Gently pry open the connector evenly with the dental pic as shown.

29. Also open the smaller connector.

Service Manual N93 RM-55 / RM-153

30. Disconnect the ex foil connector evenly.

Page

33

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

31. The POP Port Bung can now be removed.

33. Gently unlock both snaps of the Harness Holder Grip.

32. Use the DC Plug to remove the DC Jack.

34. Lever it out with the SS-93.

35. Undo both Torx size 6 screws and discard them.

Service Manual N93 RM-55 / RM-153

36. Always use new screws when reassemble.

Page

34

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

37. Bring the unit into position shown and separate the parts.

39. Remove the Side Keys.

38. Unlock the snaps of the Grip A-Cover and separate the parts.

40. Gently bend open the Mic Clip. Never touch the surface of the microphones.

41. The disassembling procedure is now complete.

Service Manual N93 RM-55 / RM-153

Page

35

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

LOWER BLOCK - ASSEMBLY13.

(55)

Approved 5.0

MGR

29.Aug.2006

1. Place the Mic Clip, do not touch the microphones.

3. Place the UI Frame into the Grip A-Cover.

2. Insert the Side Keymat.

4. Bring the parts in position shown.

5. Insert the new torx size 6 screws.

Service Manual N93 RM-55 / RM-153

6. Set the correct torque.

Page

36

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

7. Apply the correct torque to both screws.

9. Place the DC Jack into its compartment.

8. Insert the Harness Holder Grip.

10. Mind the guides while placing the Engine Module.

11. Close the ex connector.

Service Manual N93 RM-55 / RM-153

12. Carefully position and lock the connectors of the Hinge cables.

Page

37

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

13. Connect the Camera IF Module.

15. Shift the Camera Cushion into its correct position.

14. Place the Camera Shield Frame Assembly.

16. Insert the assembly into the Camera Bezel Assembly.

17. Now connect the Camera Module. Mind the correct positioning of the connectors.

Service Manual N93 RM-55 / RM-153

18. Ensure the correct positioning of the cables while placing the Camera Module into its housing.

Page

38

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

19. Slot the ex foil through the SDSIM Support Frame.

21. Close the ex foil connector.

20. Position the SDSIM PWB as shown.

22. Place the SDSIM PWB Module and click the latches into their places.

23. Click the Antenna Cover into its place.

Service Manual N93 RM-55 / RM-153

24. Insert the Antenna Assembly into the Grip B-Cover.

Page

39

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

25. Place the SD Bung Painted.

27. Insert the screws.

26. Position the Grip B-Cover over the Assembly.

28. Set the correct torque.

29. To prevent destroying the plastic threads, rst turn the screws left rst.

Service Manual N93 RM-55 / RM-153

30. Then tighten them in the correct order shown.

Page (55)

40

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

Approved 5.0

MGR

29.Aug.2006

31. Position the SIM Flap.

33. Insert the Keymat ITU.

32. Place the Grip C-Cover Assembly, beginning from the bottom.

34. Use a new Bezel ITU to x the keymat.

35. Smooth it down evenly.

Service Manual N93 RM-55 / RM-153

36. Place a new Logo Label.

Page

41

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

(55)

Approved 5.0

MGR

29.Aug.2006

37. Position the Keymat S60.

39. Complete the Assembly with the POP Port Bung Painted.

38. And x it with a new Bezel S60.

40. At least check the windows for cleanness.

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

42

LEGEND FOR QUICK TROUBLE SHOOTER14.

(55)

Approved 5.0

MGR

29.Aug.2006

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

43

QUICK TROUBLE SHOOTER PART 115.

(55)

Approved 5.0

MGR

29.Aug.2006

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

44

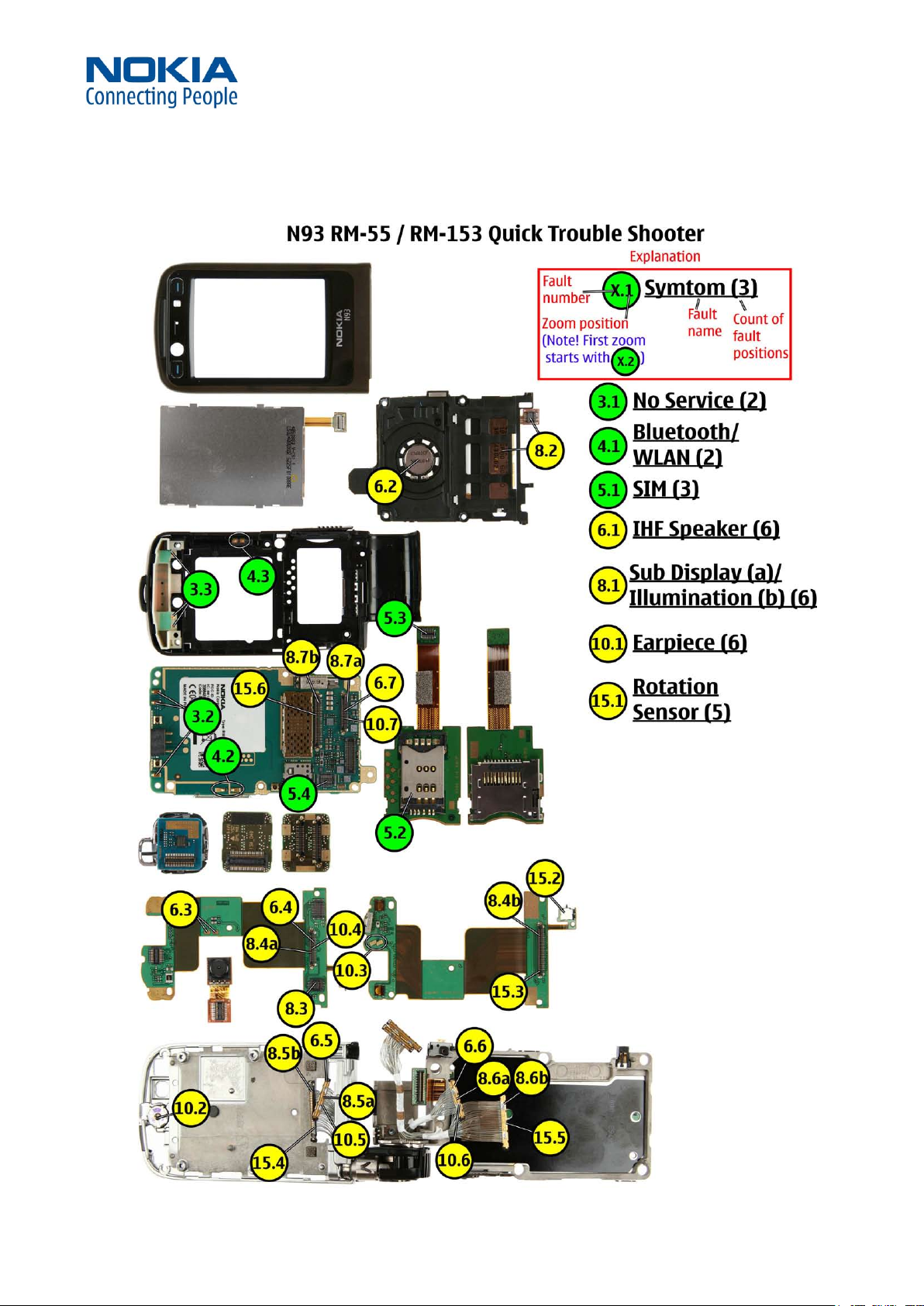

QUICK TROUBLE SHOOTER PART 216.

(55)

Approved 5.0

MGR

29.Aug.2006

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

45

QUICK TROUBLE SHOOTER PART 317.

(55)

Approved 5.0

MGR

29.Aug.2006

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

46

QUICK TROUBLE SHOOTER - ZOOMS PART 1 18.

1.1 POWER (5)

(55)

Approved 5.0

MGR

29.Aug.2006

2.1 CHARGING (4)

3.1 NO SERVICE (2)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

47

QUICK TROUBLE SHOOTER - ZOOMS PART 219.

4.1 BLUETOOTH (2)

5.1 SIM (3)

(55)

Approved 5.0

MGR

29.Aug.2006

6.1 IHF SPEAKER (5)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

48

QUICK TROUBLE SHOOTER - ZOOMS PART 320.

7.1 KEYPAD (4)

8.1 SUB DISPLAY (a) / ILLUMINATION (b) (6)

(55)

Approved 5.0

MGR

29.Aug.2006

9.1 MICROPHONE (3)

Service Manual N93 RM-55 / RM-153

Page (55)

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

49

QUICK TROUBLE SHOOTER - ZOOMS PART 421.

10.1 EARPIECE (6)

Approved 5.0

MGR

29.Aug.2006

11.1 LEDs (3)

12.1 SIDE KEYS (4)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

50

QUICK TROUBLE SHOOTER - ZOOMS PART 522.

13.1 FLASH/FLASH KEY (6)

(55)

Approved 5.0

MGR

29.Aug.2006

14.1 ZOOM/CAPTURE KEY (4)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

51

QUICK TROUBLE SHOOTER - ZOOMS PART 623.

15.1 ROTATOR SENSOR (5)

(55)

Approved 5.0

MGR

29.Aug.2006

16.1 MAIN DISPLAY (a) / ILLUMINATION (b) (6)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

52

QUICK TROUBLE SHOOTER - ZOOMS PART 724.

17.1 TOP KEYS (6)

(55)

Approved 5.0

MGR

29.Aug.2006

18.1 MAIN CAMERA (6)

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

53

QUICK TROUBLE SHOOTER - ZOOMS PART 825.

19.1 SUB CAMERA (10)

(55)

Approved 5.0

MGR

29.Aug.2006

20.1 CARD READER (3)

Service Manual N93 RM-55 / RM-153

(55)

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

54

Approved 5.0

MGR

29.Aug.2006

GONOGO TEST26.

To test the Camera, Bluetooth and IRDA functionality refer to the N93 User`s guide.

The User´s Guide is available on www.nokia.com.

Before starting the

GoNoGo test, check that

camera window is clean.

If not, clean the window

with cloth.

Bluetooth test

You need another Bluetooth device (e.g. 6230) to do a GoNoGo test. Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than 5m from each other.

Infrared test

You need another infrared device (e.g. 6230) to do a GoNoGo test. The infrared windows of the devices must be directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in receiver device.

Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This device is a Class 1 Laser product.

Reference unit, Bluetooth /infrared activated Test unit

Service Manual N93 RM-55 / RM-153

Page

CMO Operations & Logistics Training and Vendor Development Multimedia Creation & Support CONFIDENTIAL

55

BATTERY TEST27.

A battery tester lets you test the capacity of NOKIA batteries.

Please refer to the actual information on NOKIA Online.

(55)

Approved 5.0

MGR

29.Aug.2006

http://www.astratec.co.uk/

http://www.cadex.com/

Service Manual N93 RM-55 / RM-153

Nokia N93 Service Manual level 1-2

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION1.

GENERAL REPAIR INFORMATION2.

PATHFINDER FOR WORKSHOP STAFF3.

EXPLODED VIEW AND COMPONENT DISPOSAL - UPPER BLOCK4.

EXPLODED VIEW AND COMPONENT DISPOSAL - LOWER BLOCK5.

COMPONENT OVERVIEW6.

NOKIA ONLINE (NOL)7.

SERVICE TOOLS8.

SW-UPDATE9.

UPPER BLOCK - DISASSEMBLY10.

UPPER BLOCK - ASSEMBLY11.

LOWER BLOCK - DISASSEMBLY12.

LOWER BLOCK - ASSEMBLY13.

LEGEND FOR QUICK TROUBLE SHOOTER14.

QUICK TROUBLE SHOOTER PART 115.

QUICK TROUBLE SHOOTER PART 216.

QUICK TROUBLE SHOOTER PART 317.

QUICK TROUBLE SHOOTER - ZOOMS PART 1 18.

QUICK TROUBLE SHOOTER - ZOOMS PART 219.

QUICK TROUBLE SHOOTER - ZOOMS PART 320.

QUICK TROUBLE SHOOTER - ZOOMS PART 421.

QUICK TROUBLE SHOOTER - ZOOMS PART 522.

QUICK TROUBLE SHOOTER - ZOOMS PART 623.

QUICK TROUBLE SHOOTER - ZOOMS PART 724.

QUICK TROUBLE SHOOTER - ZOOMS PART 825.

GONOGO TEST26.

BATTERY TEST27.
