Nokia N80 Service Manual

Nokia Customer Care

Service Manual

RM-91; RM-92 (Nokia N80)

Mobile Terminal

Part No: 9246921 (Issue 1)

COMPANY CONFIDENTIAL

RM-91; RM-92

Nokia Customer Care Amendment Record Sheet

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 02/2006 M. Hautaniemi

Page ii COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Copyright Nokia Customer Care

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided ”as is“. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 1 COMPANY CONFIDENTIAL Page iii

RM-91; RM-92

Nokia Customer Care Warnings and cautions

Warnings and cautions

Warnings

• IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

• THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

• OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

• BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

• Servicing and alignment must be undertaken by qualified personnel only.

• Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

• Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

• Use only approved components as specified in the parts list.

• Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

• Ensure all cables and wires are repositioned correctly.

• Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

• During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 ESD protection Nokia Customer Care

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 1 COMPANY CONFIDENTIAL Page v

RM-91; RM-92

Nokia Customer Care Care and maintenance

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Company Policy Nokia Customer Care

Company Policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

• Title of the Document + Issue Number/Date of publication

• Latest Amendment Number (if applicable)

• Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 1 COMPANY CONFIDENTIAL Page vii

RM-91; RM-92

Nokia Customer Care Battery information

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the

product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Nokia N80 Service Manual Structure Nokia Customer Care

Nokia N80 Service Manual Structure

1 General Information 2 Parts Lists and Component Layouts 3 Service Software Instructions 4 Service Tools and Service Concepts 5 Disassembly/Reassembly Instructions 6 BB Troubleshooting and Manual Tuning Guide 7 RF Troubleshooting and Manual Tuning Guide 8 Camera Module Troubleshooting 9 System Module 10 Schematics

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-91; RM-92

Nokia Customer Care Nokia N80 Service Manual Structure

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

1 — General Information

Issue 1 COMPANY CONFIDENTIAL Page 1 –1

RM-91; RM-92

Nokia Customer Care General Information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 General Information Nokia Customer Care

Table of Contents

RM-91/92 product selection..................................................................................................................................1–5

RM-91/92 product features and sales package...................................................................................................1–5

Product and module list........................................................................................................................................1–7

Mobile enhancements............................................................................................................................................1–8

Technical specifications.........................................................................................................................................1–9

Transceiver general specifications..................................................................................................................1–9

Main RF characteristics for GSM850/900/1800/1900 and WCDMA1900/2100 phones...............................1–9

Battery endurance...........................................................................................................................................1–10

List of Tables

Table 1 Audio..........................................................................................................................................................1–8

Table 2 Car...............................................................................................................................................................1–8

Table 3 Data............................................................................................................................................................1–8

Table 4 Imaging......................................................................................................................................................1–9

Table 5 Messaging..................................................................................................................................................1–9

Table 6 Power.........................................................................................................................................................1–9

List of Figures

Figure 1 View of RM-91/92....................................................................................................................................1–5

Issue 1 COMPANY CONFIDENTIAL Page 1 –3

RM-91; RM-92

Nokia Customer Care General Information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 General Information Nokia Customer Care

RM-91/92 product selection

Nokia RM-91/RM-92 is a WCDMA/GSM dual mode handportable phone. RM-91 supports GSM (GSM850, EGSM900,GSM1800 & GSM1900) and WCDMA1900, RM-92 GSM (GSM850, E-GSM900, GSM1800 & GSM1900) and WCDMA2100.

According to GSM standard 05.05 it responds to class 4 (max. 2W) in EGSM 900, class 1 (1W) in GSM 1800 and class 1 in GSM 1900. RM-91/92 supports EGPRS (EDGE) class B as well as Bluetooth 1.2 standard. The handset has a full phase 2 Type Approval and it complies with the GSM Type Approval. RM-91/92 also has a full CE approval and FCC approval.

RM-91/92 supports two-way video calls with two integrated cameras. It is an MMS (Multimedia Messaging Service) enabled phone with a large bright color display and an integrated 3 megapixel camera with macro mode and a VGA digital camera.

The MMS implementation follows the OMA MMS standard release 1.2. WAP 2.0 compatible browser supports XHTML Mobile Profile (MP) and uses a TCP/IP stack to communicate

with a gateway in network. RM-91/92 uses Symbian 9.1a operating system and supports also MIDP Java 2.0 & CLDC1.1, providing a good

platform for 3rd party applications.

Figure 1 View of RM-91/92

RM-91/92 product features and sales package

Display and user interface

• Active matrix colour display (352x416, up to 262,144 colours)

• Automatic brightness control for display

• 4-way scroll key with center select, two softkeys, application-key, edit and clear key, send & end key, multimedia key

• Dedicated capture key for instant camera activation

• System: EGSM 850/900/1800/1900 + WCDMA 1900/2100 GHz

Issue 1 COMPANY CONFIDENTIAL Page 1 –5

RM-91; RM-92

Nokia Customer Care General Information

• User interface: S60 software on Symbian OS

Imaging and video

• Integrated 3 Megapixel camera with up to 20 x digital zoom and close-up mode

• Landscape capture with dedicated capture key

• Integrated Flash LED with anti-red eye

• High-quality video capture in MP4 and 3GP formats with up to 5x digital zoom

• Image and video editors

• Nokia Lifeblog

• Image and video uploading to the web

• XpressPrint over infrared, Bluetooth wireless technology, PictBridge and UPnP directly from Gallery

Entertainment

• Integrated digital music player with stereo audio. Supported file formats: MP3, AAC, m4a, eAAC+ and wma

• USB mass storage that enables easy drag and drop of files, such as music tracks

• Stereo FM radio with support for Visual Radio

• Multimedia player (RealPlayer) with 3GPP & MPEG4 AVC video streaming support

• Internet browser

Productivity

• Office document viewers (Microsoft Word, PowerPoint, Excel)

• PC Suite connectivity with USB, Bluetooth wireless technology, and IrDa

• WLAN connectivity

• Advanced S60 PIM (calendar, contacts, task list, PIM printing, etc.)

• Voice recording, dialing and voice commands

• Push to talk (PoC) application

• SettingWizard for easy settings configuration

• Video sharing and two-way video call

Messaging

• E-mail with document viewers to view attachments

• SMS, multimedia messaging (MMS)

Memory functions

• Up to 40 MB of internal dynamic memory for images, contacts, text messages, multimedia messages, ringing tones, images, video clips, calendar notes, to-do list and applications. Please note that the preinstalled applications on the user data area of the device memory will reduce the informed amount of available memory, unless uninstalled.

• Expandable memory: 128 MB miniSD card. *

• Hot swap slot for easy memory card insertion and removal

*The memory capacity of the memory card in the sales package may vary depending on the market and/or your network operator/service provider.

Page 1 –6 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 General Information Nokia Customer Care

Connectivity

• Integrated Wireless LAN (802.11g) and UPnP (Universal Plug and Play)

• Bluetooth wireless technology

• Infrared

• Pop-Port™ with USB 2.0 Full Speed with mass storage class

Operating frequency and data transfer

• WCDMA1900/2100 and quadband GSM/EDGE (EGSM 850/900/1800/1900) WCDMA1900/2100 with simultaneous voice and packet data (PS max speed UL/DL= 384/384kbps, CS max speed 64kpbs)

• EGPRS (Class A, Multislot class 11) – Max download 236.8 kbps; upload 118.4 kbps

• Data transfer (from compatible S40 phones S60 phones)

Java

• Java™ MIDP 2.0, CLDC 1.1

• Over-the-air download of Java™-based applications and games

Sales package

• Transceiver RM-91/92

• Charger (AC-4)

• Charger adapter (CA-44)

• Battery (BL-5B)

• Stereo headset (HS-23)

• Connectivity cable (CA-53)

• Wrist strap

• 128 MB miniSD memory card*

• Audio adapter (AD-15)

*The memory capacity of the memory card in the sales package may vary depending on the market and/or your network operator/service provider.

Product and module list

Module name Type code Notes

System/RF Module RM-91: 1ME

RM-92: 1NN

UI Module 1MJ Keyboard PWB with components.

Main PWB with components

Part of the UI Frame Assy Front Camera Module Camera module VGA Back Camera Module 3MP camera with macro Display Module Engine Shield Assembly Part of slide assembly Slide Assembly Mechanical assembly Core SW Module

Issue 1 COMPANY CONFIDENTIAL Page 1 –7

RM-91; RM-92

Nokia Customer Care General Information

Mobile enhancements

Table 1 Audio

Enhancement Type

Boom mono headset HDB-4 Fashion stereo headset HS-3 Mono headset HS-5 Stereo headset HDS-3 Retractable headset HS-10 Loopset LPS-4 FM radio headset HS-2R Wireless headset H-36W

HDW-3 HS-37W HS-4W

HS-11W Wireless clip-on headset HS-21W Music stand MD-1 Headset adapter AD-15 TTY adapter HAD-10

Table 2 Car

Enhancement Type

Mobile charger DC-4 Headrest handsfree BHF-3 Basic handsfree HF-3 Advanced car kit (sales pack) CK-7W Wireless car kit CK-1W Wireless plug-in car handsfree HF-6W Car kit CK-10 Car kit N616 Mobile holder CR-39

Table 3 Data

Enhancement Type

Connectivity adapter cable DKU-2

Page 1 –8 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 General Information Nokia Customer Care

Enhancement Type

Connectivity adapter cable CA-53 Wireless GPS module LD-1W Mini SD memory card

Table 4 Imaging

Enhancement Type

Photo flash PD-2 Image album PD-1

Table 5 Messaging

Enhancement Type

Nokia digital pen SU-1B Bluetooth QWERTY keypad SU-8W

Table 6 Power

Enhancement Type

Battery 820mAh Li-ion BL-5B Travel charger AC-3

AC-4

Charger adapter CA-44

Technical specifications

Transceiver general specifications

Unit Dimensions (L x W x T)

(mm)

Transceiver with BL-5B 820mAh li-ion battery back

95.4 x 50 x 23.4 (26mm at camera)

~ 134 97.4

Weight (g) Volume (cm3)

Main RF characteristics for GSM850/900/1800/1900 and WCDMA1900/2100 phones

Parameter Unit

Cellular system GSM850, EGSM900, GSM1800/1900, WCDMA1900 or

WCDMA2100

Issue 1 COMPANY CONFIDENTIAL Page 1 –9

RM-91; RM-92

Nokia Customer Care General Information

Parameter Unit

Rx frequency band GSM850: 869 - 894MHz

EGSM900: 925 - 960 MHz

GSM1800: 1805 - 1880 MHz

GSM1900: 1930 - 1990 MHz

WCDMA1900: 1930-1990MHz

WCDMA2100: 2110 - 2170 MHz Tx frequency band GSM850: 824 - 849MHz

EGSM900: 880 - 915 MHz

GSM1800: 1710 - 1785 MHz

GSM1900: 1850 - 1910 MHz

WCDMA1900: 1850-1910MHz

WCDMA2100: 1920 - 1980 MHz Output power GSM850: +5 ...+33dBm/3.2mW ... 2W

GSM900: +5 … +33dBm/3.2mW … 2W

GSM1800: +0 … +30dBm/1.0mW … 1W

GSM1900: +0 … +30dBm/1.0mW … 1W

WCDMA -50 … 24 dBm Number of RF channels GSM850: 124

GSM900: 174

GSM1800: 374

GSM1900: 299 Channel spacing 200 kHz Number of Tx power levels GSM850: 15

GSM900: 15

GSM1800: 16

GSM1900: 16

Battery endurance

Battery Capacity (mAh) Talk time Stand-by

BL-5B 820 up to 3 hrs (GSM)

up to 2.5 hrs (WCDMA)

up to 8 days

Charging times

AC-3 AC-4

approx. 120min approx. 70 min

Page 1 –10 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 General Information Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 1 –11

RM-91; RM-92

Nokia Customer Care General Information

(This page left intentionally blank.)

Page 1 –12 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

2 — Parts Lists and Component

Layouts

Issue 1 COMPANY CONFIDENTIAL Page 2 –1

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Table of Contents

Exploded view.........................................................................................................................................................2–5

Spare parts overview.............................................................................................................................................2–6

Mechanical spare parts list....................................................................................................................................2–7

RM-91 component parts lists and layouts............................................................................................................2–9

Component parts list 1ME_09a.........................................................................................................................2–9

Component layouts 1ME_09a.........................................................................................................................2–30

Component parts list 1ME_09b.......................................................................................................................2–32

Component layouts 1ME_09b.........................................................................................................................2–33

RM-92 component parts lists and layouts.........................................................................................................2–35

Component parts list 1NN_07a......................................................................................................................2–35

Component layouts 1NN_07a.........................................................................................................................2–52

Component parts list 1NN_07b......................................................................................................................2–54

Component layouts 1NN_07b.........................................................................................................................2–56

List of Figures

Figure 2 RM-91/92 exploded view........................................................................................................................2–5

Figure 3 RM-91/92 spare parts overview.............................................................................................................2–6

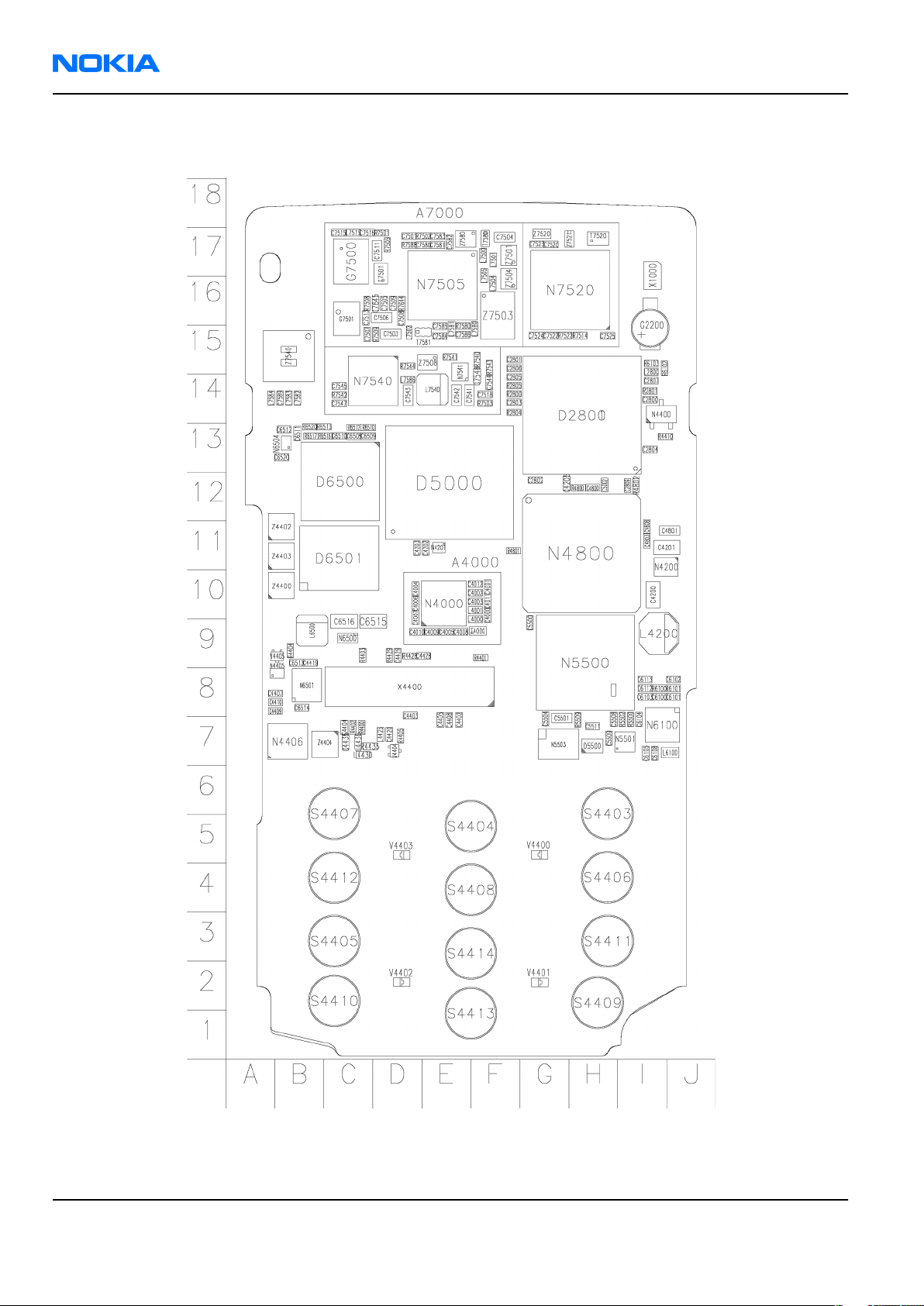

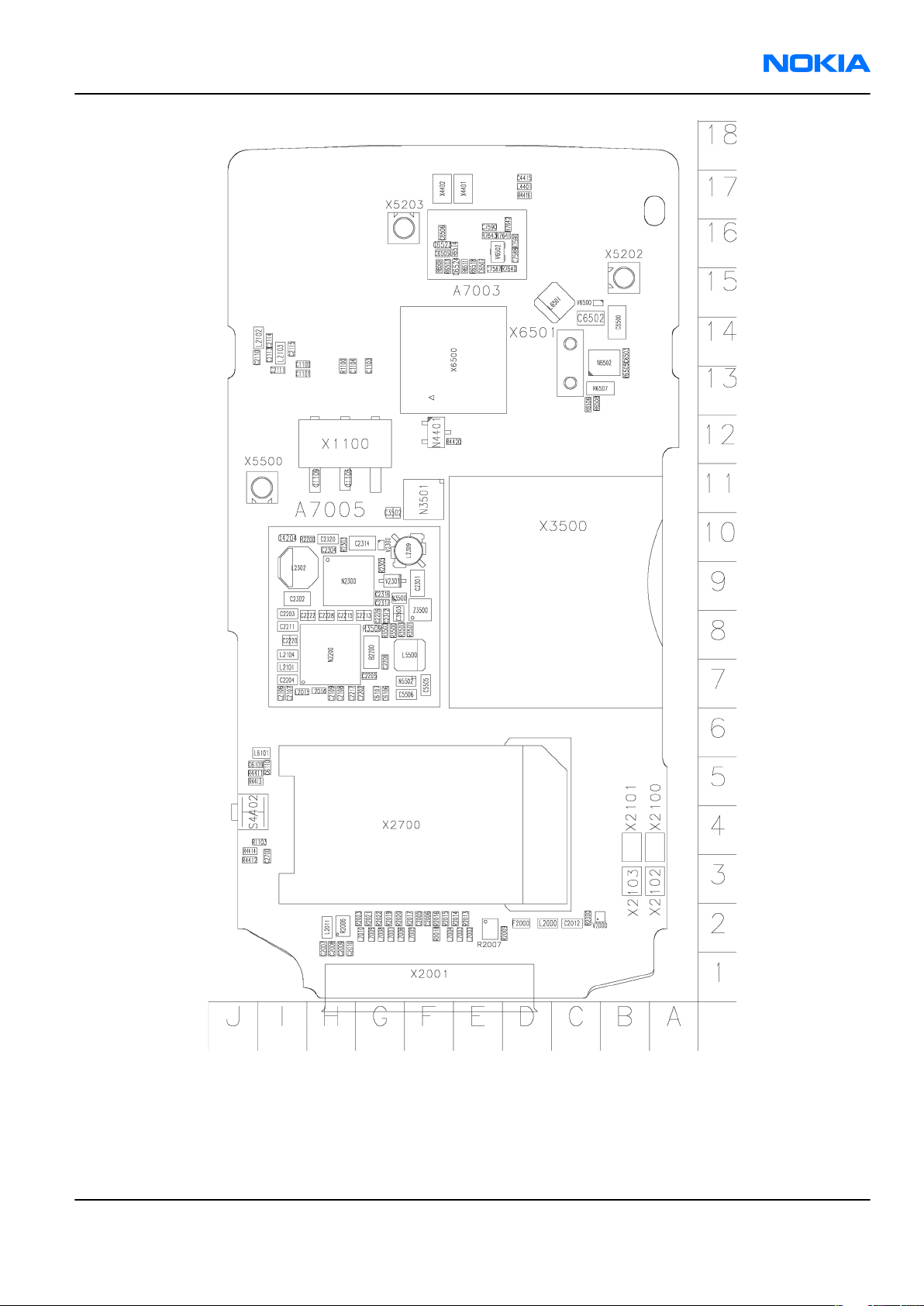

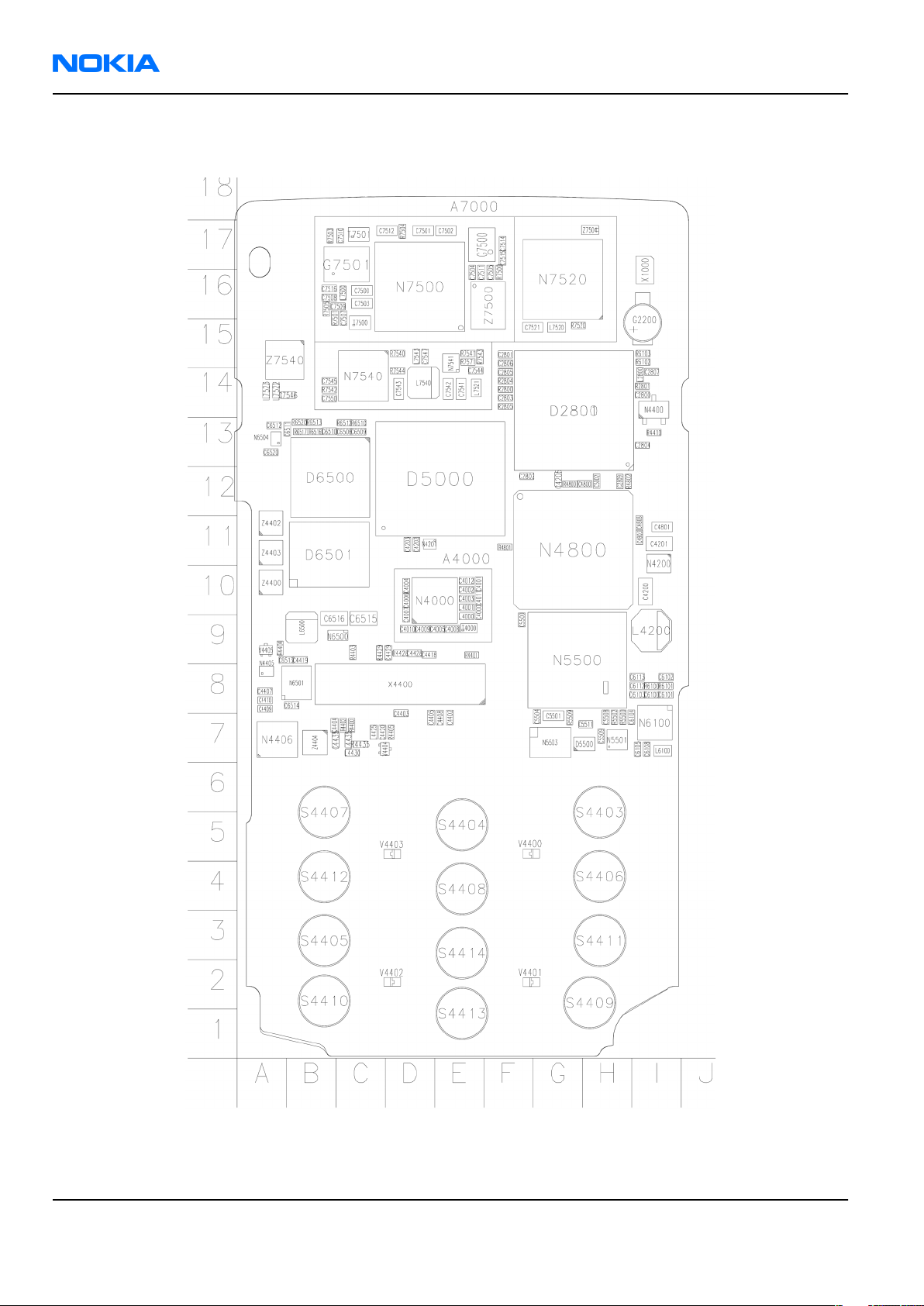

Figure 4 Component layout 1ME_09a top..........................................................................................................2–30

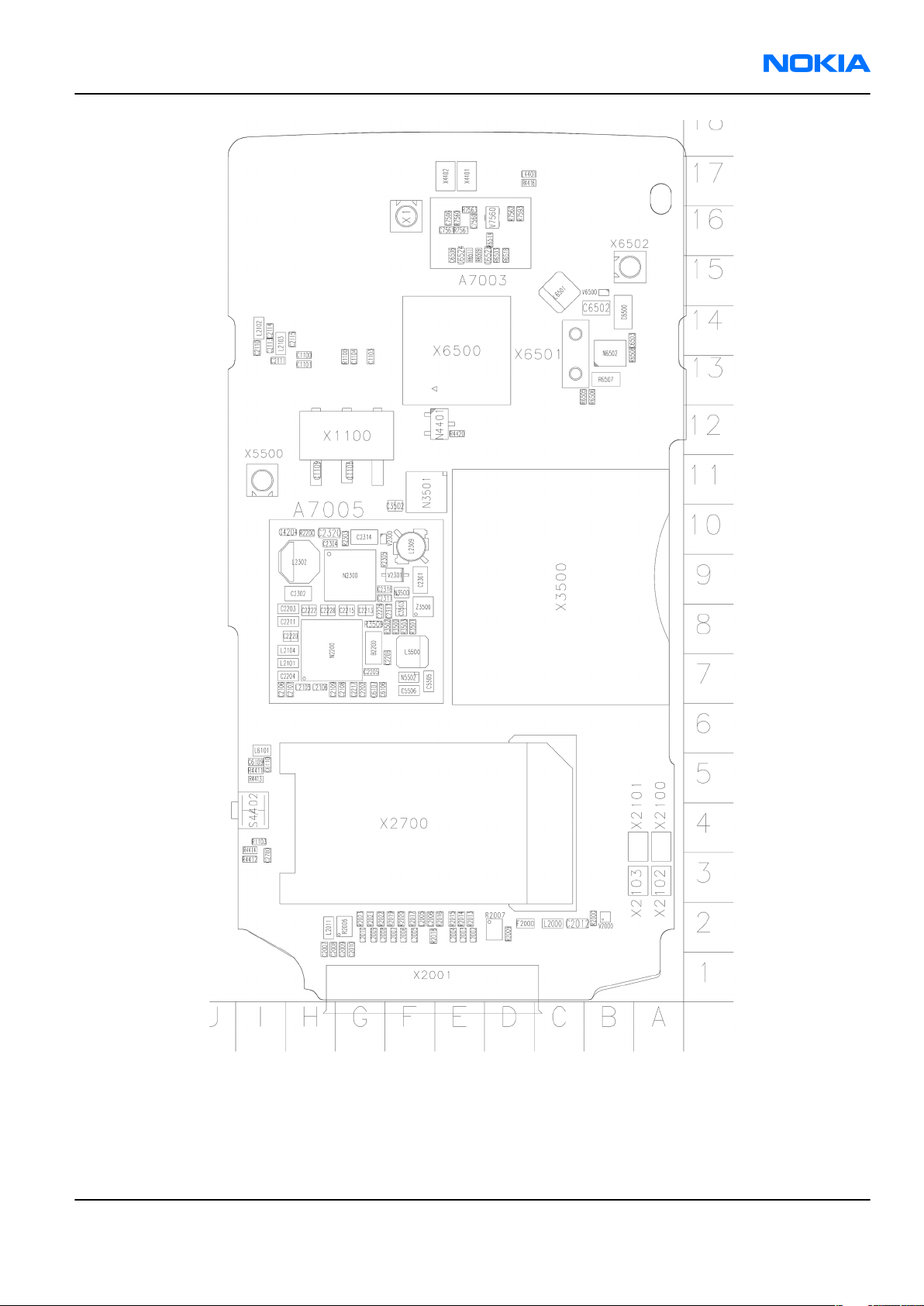

Figure 5 Component layout 1ME_09a bottom...................................................................................................2–31

Figure 6 Component layout 1ME_09b top..........................................................................................................2–33

Figure 7 Component layout 1ME_09b bottom...................................................................................................2–34

Figure 8 Component layout top 1NN_07a..........................................................................................................2–52

Figure 9 Component layout bottom 1NN_07a...................................................................................................2–53

Figure 10 Component layout top 1NN_07b........................................................................................................2–56

Figure 11 Component layout bottom 1NN_07b................................................................................................2–57

Issue 1 COMPANY CONFIDENTIAL Page 2 –3

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –4 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Exploded view

Figure 2 RM-91/92 exploded view

Issue 1 COMPANY CONFIDENTIAL Page 2 –5

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Spare parts overview

Figure 3 RM-91/92 spare parts overview

Page 2 –6 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Mechanical spare parts list

ITEM/CIRCUIT REF. QTY PART NAME

I001 1 A-COVER I002 1 KEYMAT S60 I003 2 SCREWS M1.6 X 4.5 T6+ I004 2 SCREWS M1.6 X 4.5 T6+ SILVER

A1 1 UI-KEYMAT PWB S60 ASSY (I005 -I007) I005 1 UI PWB I006 4 LEDS I007 1 DOMESHEET

I008 6 SCREW M1.8x6.0 REMFORM T6+ I009 1 LCD AM 352x416 COG 256kCO Keyno

A2 1 SLIDE ASSY (A3 + A4 + A5) A3 1 UI FRAME ASSY (I010 - I013 + A4) I010 1 UI SUPPORT I011 2 SCREWS M1.6 X 4.5 T6+ SILVER I012 1 EARPIECE + SPRING I013 1 CAMERA VGA (FRONT) I014 1 UI FRAME SPARE A4 1 1MJ UI PWB ASSY (I014 & I301 - I305) I015 1 1MJ UI PWB I301 1 IRDA I302 1 CAMERA SOCKET I303 1 LCD CONNECTOR I304 1 FLEXI CONNECTOR I305 1 BOARD TO BOARD CONNECTOR A5 1 ENGINE SHIELD ASSY (I101 - I103) I101 1 ENGINE SLIDE SHIELD I102 1 SLIDE SPRING I103 2 SLIDE METAL RUNNER

I104 1 FLEX I/CONN MODULE I105 1 KEYMAT BEZEL I106 1 ITU KEYMAT

Issue 1 COMPANY CONFIDENTIAL Page 2 –7

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

ITEM/CIRCUIT REF. QTY PART NAME

I201 1 DOMESHEET I202 1 RF SHIELDING LID I203 1 ENGINE MODULE I204 1 BASEBAND SHIELDING LID I205 1 3MP CAMERA

A6 1 SIM CARD READER ASSY (I206 & I306) I206 1 SIM FLAP I306 1 SIM CARD READER

A7 1 B-COVER ASSY (I207-I226) I207 1 VIBRA I208 1 MICROPHONE I209 1 DC-JACK I210 1 SD CARD DOOR I211 1 BLUETOOTH ANTENNA ASSY I212 1 CAMERA KEY I213 1 B-COVER I214 1 BATTERY BASE ASSY I215 1 C-COVER CATCH SPRING I216 1 C-COVER CATCH A8 1 ANTENNA ASSY (I217-I 222) I217 1 FLASH LED I218 1 IHF SPEAKER I219 1 IHF SPEAKER FOAM I220 1 ANTENNA GSM I221 1 ANTENNA WCDMA I222 1 POWER KEY SWITCH I223 1 POWER BUTTON I224 1 FLASH WINDOW I225 1 CAMERA WINDOW I226 1 CAMERA MACRO KEY

I227 1 TYPE LABEL I228 1 C-COVER

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS). To ensure you are always

using the latest codes, please check the PWS on a daily basis.

Page 2 –8 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

RM-91 component parts lists and layouts

Component parts list 1ME_09a

Item Side Grid ref. Type Description and value

MIRO_BT_SHIE

A4000 Top E 10

A7000 Top F 16

A7003 Bottom E 16

A7005 Bottom H 8

B2200 Bottom G 8 C1100 Bottom I 14 0402C Chipcap 5% NP0 10p 50V

C1101 Bottom I 13 0402C_H0.6 C1103 Bottom G 14 0402C Chipcap 5% NP0 10p 50V C1104 Bottom H 13 0402C Chipcap 5% NP0 10p 50V

C1105 Bottom H 11 0402C

LD_9590738 MIRO_RF_SHIE

LD_0264194 MIRO_PWR_SH

IELD_9590739 MIRO_BB_SHIE

LD_0264195

CRYSTAL_3.3X

1.6_H0.9

SHIELD R1113 BLUETOOTH ~ ~

SHIELD R1113 RF ASSY ~ ~

SHIELD R1113 POWER SUPPLY ~ ~

SHIELD R1113 BB ASSY ~ ~

CRYSTAL

32.768KHZ +-20PPM 12.5PF 32.768kHz ~

CHIPCAP X5R 100N M 16V 0402 100n 16V

Chipcap X7R 10% 50V 0402 1n0 50V

Chipcap X7R 10%

C1109 Bottom H 11 0402C

C2005 Bottom F 2 0402C

C2006 Bottom F 2 0402C C2007 Bottom H 2 0402C Chipcap 5% NP0 10p 50V C2008 Bottom H 2 0402C Chipcap 5% NP0 10p 50V C2009 Bottom H 2 0402C Chipcap 5% NP0 10p 50V C2010 Bottom H 2 0402C Chipcap 5% NP0 10p 50V

C2012 Bottom C 2 0603C_H0.95 C2106 Bottom I 7 0402C Chipcap 5% NP0 56p 50V C2107 Bottom I 7 0402C Chipcap 5% NP0 56p 50V C2108 Bottom H 7 0402C Chipcap 5% NP0 15p 50V C2109 Bottom H 7 0402C Chipcap 5% NP0 15p 50V C2110 Bottom J 14 0402C Chipcap 5% NP0 56p 50V

50V 0402 1n0 50V Chipcap X7R 10%

16V 0402 10n 16V Chipcap X7R 10%

16V 0402 10n 16V

CHIPCAP X5R 1U K 25V 0603 1u0 25V

Issue 1 COMPANY CONFIDENTIAL Page 2 –9

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

C2111 Bottom I 13 0402C Chipcap 5% NP0 56p 50V C2113 Bottom I 14 0402C Chipcap 5% NP0 56p 50V C2114 Bottom I 14 0402C Chipcap 5% NP0 56p 50V C2115 Bottom I 14 0402C Chipcap 5% NP0 56p 50V

Chipcap X5R 10%

C2202 Bottom G 7 0402C

C2203 Bottom I 8 0603C

C2204 Bottom I 7 0603C

C2205 Bottom G 7 0402C

C2206 Bottom G 7 0402C

6.3V 0402 220n 6.3V CHIPCAP X5R 4U7 K

6V3 0603 4u7 6.3V CHIPCAP X5R 4U7 K

6V3 0603 4u7 6.3V Chipcap X5R 10%

6.3V 0402 220n 6.3V Chipcap X7R 10%

50V 0402 1n0 50V

C2211 Bottom I 8 0603C

C2213 Bottom G 8 0405_GNM23

C2215 Bottom H 8 0405_GNM23

C2217 Bottom H 7 0402C

C2220 Bottom I 8 0405_GNM23

C2222 Bottom H 8 0405_GNM23

C2226 Bottom G 8 0402C

C2228 Bottom H 8 0405_GNM23

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 22U

C2301 Bottom F 9 0805C

C2302 Bottom I 9 0805C

C2304 Bottom H 10 0402C_H0.6

Page 2 –10 COMPANY CONFIDENTIAL Issue 1

M 6V3 0805 22u 6V3 CHIPCAP X5R 22U

M 6V3 0805 22u 6V3 CHIPCAP X5R 100N

M 16V 0402 100n 16V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 1U K

C2312 Bottom G 8 0402C

C2314 Bottom G 10 0805C

C2316 Bottom G 9 0402C

C2317 Bottom G 9 0402C

C2320 Bottom H 10 0603C

C2700 Bottom I 3 0402C_H0.6

C2800 Top I 14 0402C_H0.6

C2801 Top F 15 0402C_H0.6

6V3 0402 1u0 6.3V CHIPCAP X5R 4U7

M 25V 0805 4u7 25V CHIPCAP X5R 1U5 K

4V 0402 1u5 4V CHIPCAP X5R 1U5 K

4V 0402 1u5 4V CHIPCAP X5R 10UF

6V3 0603 10u 4V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 100N

C2802 Top G 12 0402C_H0.6

C2803 Top F 14 0402C_H0.6

C2804 Top I 13 0402C_H0.6

C2805 Top F 14 0402C_H0.6

C2806 Top F 15 0402C_H0.6 C2807 Top I 14 0402C Chipcap 5% NP0 12p 50V

C2809 Top I 12 0402C

C3502 Bottom G 10 0405_GNM23

C3503 Bottom G 8 0405_GNM23

M 16V 0402 100n 16V CHIPCAP X5R 100N

M 16V 0402 100n 16V

Chipcap X7R 10% 50V 0402 1n0 50V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIP ARRAY X5R 2X1U K 6V3 MA

0405 2x1u 6.3V C4000 Top F 10 0402C Chipcap 5% NP0 15p 50V C4001 Top F 10 0402C Chipcap 5% NP0 100p 50V

CHIPCAP X5R 1U K C4002 Top F 10 0402C

C4003 Top F 10 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –11

6V3 0402 1u0 6.3V

CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 1U K

C4004 Top D 10 0402C

C4005 Top E 9 0402C

C4006 Top D 10 0402C

C4007 Top D 10 0402C

C4008 Top E 9 0402C_H0.6

C4009 Top E 9 0402C_H0.6

C4010 Top D 9 0402C

C4011 Top F 10 0402C

6V3 0402 1u0 6.3V CHIPCAP X5R 1U5 K

4V 0402 1u5 4V CHIPCAP X5R 1U5 K

4V 0402 1u5 4V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 0U47

K 6.3V 0402 0u47 6V3 CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

C4012 Top F 10 0402C

C4200 Top I 10 0805C

C4201 Top J 11 0805C

C4202 Top E 11 0402C

C4203 Top D 11 0402C

C4204 Bottom I 10 0402C

C4205 Top G 12 0402C

C4402 Top E 7 0402C

C4403 Top D 8 0402C

C4404 Top C 7 0402C

CHIPCAP X5R 0U47 K 6.3V 0402 0u47 6V3

CHIPCAP X5R 22U M 6V3 0805 22u 6V3

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

Chipcap X7R 10% 50V 0402 1n0 50V

Chipcap X7R 10%

C4405 Top E 7 0402C

C4407 Top B 8 0402C

Page 2 –12 COMPANY CONFIDENTIAL Issue 1

50V 0402 1n0 50V CHIPCAP X5R 1U5 K

4V 0402 1u5 4V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 1U5 K C4408 Top E 7 0402C

C4409 Top B 8 0402C_H0.6

C4410 Top B 8 0402C_H0.6 C4415 Bottom D 17 0402C Chipcap 5% NP0 10p 50V

C4419 Top B 9 0402C C4420 Top D 7 0402C Chipcap 5% NP0 15p 50V C4428 Top E 9 0402C Chipcap 5% NP0 15p 50V C4429 Top D 9 0402C Chipcap 5% NP0 15p 50V C4435 Top C 7 0402C Chipcap 5% NP0 15p 50V

C4800 Top H 12 0402C_H0.6

4V 0402 1u5 4V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

CHIPCAP X5R 100N

K 10V 0402 100n 10V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

C4801 Top J 11 0603C

C4803 Top I 11 0402C_H0.6

C4808 Top I 11 0402C_H0.6

C5002 Top H 12 0402C_H0.6

C5500 Top G 9 0402C

C5501 Top G 7 0603C

C5504 Top G 7 0402C

C5505 Bottom F 7 0603C

C5506 Bottom F 7 0603C

C5508 Top H 7 0402C_H0.6

CHIPCAP X5R 1U K

6V3 0603 1u0 6.3V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

Chipcap X7R 10%

16V 0402 10n 16V

CHIPCAP X5R 4U7 K

6V3 0603 4u7 6.3V

CHIPCAP X5R 1U5 K

4V 0402 1u5 4V

CHIPCAP X5R 4U7 K

6V3 0603 4u7 6.3V

CHIPCAP X5R 4U7 K

6V3 0603 4u7 6.3V

CHIPCAP X5R 100N

M 16V 0402 100n 16V

CHIPCAP X5R 100N C5509 Top H 7 0402C

C5511 Top H 7 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –13

K 10V 0402 100n 10V

CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 100N

C6100 Top I 8 0402C_H0.6

C6101 Top J 8 0402C

C6102 Top J 8 0402C

C6103 Top I 8 0402C_H0.6

C6104 Top I 7 0402C_H0.6

C6105 Top I 7 0402C

C6106 Bottom G 7 0402C_H0.6

C6107 Bottom G 7 0402C_H0.6

M 16V 0402 100n 16V Chipcap X7R 10%

16V 0402 10n 16V CHIPCAP X7R 33N K

10V 0402 33n 10V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X7R 33N K

10V 0402 33n 10V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X7R 33N K

C6108 Top I 7 0402C C6109 Bottom J 5 0402C Chipcap 5% NP0 47p 50V C6110 Bottom I 5 0402C Chipcap 5% NP0 27p 50V

C6112 Top I 8 0402C

C6113 Top I 8 0402C

C6500 Bottom B 14 1206C_H1.8

C6502 Bottom C 14 0805C

C6503 Bottom B 14 0402C_H0.6

C6505 Bottom F 16 0402C

C6506 Bottom F 16 0402C

10V 0402 33n 10V

Chipcap X7R 10% 16V 0402 10n 16V

CHIPCAP X7R 33N K 10V 0402 33n 10V

CHIPCAP 2U2 K 25V 1206 2u2 25V

CHIPCAP X5R 4U7 K 6V3 0805 4u7 6V3

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

Chipcap X5R 10%

6.3V 0402 220n 6.3V CHIPCAP X5R 1U5 K

C6507 Bottom E 16 0402C

C6508 Top C 13 0402C_H0.6

C6509 Top C 13 0402C_H0.6

Page 2 –14 COMPANY CONFIDENTIAL Issue 1

4V 0402 1u5 4V CHIPCAP X5R 100N

M 16V 0402 100n 16V CHIPCAP X5R 100N

M 16V 0402 100n 16V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 1U5 K C6510 Top C 13 0402C

C6511 Top B 13 0402C

C6512 Top B 13 0402C

C6513 Top B 9 0402C

C6514 Top B 8 0402C

C6515 Top D 9 0805C

C6516 Top C 9 0805C

C6520 Top B 13 0402C

4V 0402 1u5 4V

CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

CHIPCAP X5R 1U5 K

4V 0402 1u5 4V

CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

CHIPCAP X5R 1U5 K

4V 0402 1u5 4V

CHIPCAP X5R 4U7 K

6V3 0805 4u7 6V3

CHIPCAP X5R 4U7 K

6V3 0805 4u7 6V3

CHIPCAP X5R 100N

K 10V 0402 100n 10V C6523 Bottom F 16 0402C Chipcap 5% NP0 15p 50V C6524 Bottom E 16 0402C Chipcap 5% NP0 15p 50V

Chipcap +-0.25pF C7501 Top D 17 0402C

C7503 Top D 15 0603C

C7504 Top F 17 0603C

C7505 Top D 16 0402C

C7506 Top D 16 0603C

C7507 Top C 15 0402C C7508 Top D 16 0402C Chipcap 5% NP0 18p 50V

C7509 Top D 16 0402C

C7511 Top D 17 0603C

NP0 2p7 50V

CHIPCAP X5R 1U K

6V3 0603 1u0 6.3V

CHIPCAP X5R 1U K

6V3 0603 1u0 6.3V

CHIPCAP X5R 1U K

6V3 0402 1u0 6.3V

CHIPCAP X5R 1U K

6V3 0603 1u0 6.3V

Chipcap X7R 10%

16V 0402 10n 16V

Chipcap +-0.25pF

NP0 2p7 50V

CHIPCAP NP0 2N2

G 16V 0603 2n2 16V

Chipcap X7R 10% C7513 Top C 16 0402C

C7515 Top C 17 0402C

C7516 Top C 17 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –15

16V 0402 10n 16V

Chipcap +-0.25pF

NP0 4p7 50V

CHIPCAP NP0 470P

J 6V3 0402 470p 6V3

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 100N

C7518 Top F 14 0402C_H0.6

C7520 Top G 17 0402C C7522 Top G 15 0402C Chipcap 5% NP0 15p 50V

C7523 Top G 17 0402C_AVX

C7524 Top G 15 0402C C7525 Top H 15 0402C Chipcap 5% NP0 18p 50V

C7541 Top E 14 0603C

C7542 Top E 14 0603C

M 16V 0402 100n 16V Chipcap +-0.25pF

NP0 2p7 50V

CHIPCAP NP0 HQ 3P9 J 16V 0402 3p9 16V

Chipcap +-0.25pF NP0 2p7 50V

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

CHIPCAP X5R 4U7 K

C7543 Top D 14 0603C

C7544 Top F 14 0402C C7545 Top C 14 0402C Chipcap 5% NP0 10p 50V

C7547 Top C 14 0402C C7548 Top F 14 0402C Chipcap 5% NP0 18p 50V

C7580 Top E 17 0402C

C7581 Top E 17 0402C

C7582 Top E 17 0402C

C7583 Top E 17 0402C C7584 Top E 15 0402C Chipcap 5% NP0 15p 50V C7585 Top E 15 0402C Chipcap 5% NP0 15p 50V

6V3 0603 4u7 6.3V CERCAP X7R 22N K

16V 0402 22n 16V

Chipcap X7R 10% 16V 0402 8n2 16V

C7586 Top E 15 0402C Chipcap 5% NP0 10p 50V

Chipcap X7R 10%

C7587 Bottom E 15 0402C C7588 Bottom D 16 0402C Chipcap 5% NP0 100p 50V

C7589 Top B 14 0402C C7590 Bottom E 16 0402C Chipcap 5% NP0 10p 50V

Page 2 –16 COMPANY CONFIDENTIAL Issue 1

16V 0402 10n 16V

CHIPCAP NP0 1P2 B 50V 0402 1p2 50V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

Chipcap X7R 10% C7645 Top D 16 0402C

D2800 Top H 14 VFBGA343

FBGA128_EMP

D2801 Top H 14

D5000 Top E 12

D5500 Top H 7 PDSO_G5

D6500 Top C 12 FBGA_195

D6501 Top C 11

TY

FBGA133_11.6 X13.1

WBGA_60_8.1 X6.6

16V 0402 10n 16V

RAP3GS V2.0E-PA

VFBGA ~ ~

COMBO 128M NOR

+128M DDR DRAM

FBGA128

COMBO 512 DDR +

1G NAND FBGA133

PBFREE

OR-GATE 2INPUT

74LVC1G32 SC70-5 ~ ~

OMAP DM290

GOLDENEYE NFBGA ~ ~

SDRAM 4X16 1.8V/

1.8V FBGA60

PBFREE 4Mx16 ~

8Mx16/8M x16 ~

32Mx16/12 8Mx8 ~

0603_FUSE_AV

F2000 Bottom D 2

G2200 Top I 15 BATTER_EECEP

G7500 Top C 17

G7501 Top C 16

L2000 Bottom D 2 0603_BLM

L2002 Bottom E 2 FERRITE_0402

L2003 Bottom E 2 FERRITE_0402

L2004 Bottom F 2 FERRITE_0402

X2MATS SM FUSE F 2.0A 32V 2A ~

VCO_DCS0273 3

NKG3176B_H1.0VCTCXO 38.4MHZ

RTC BACUP CAPAC

311 SIZE FOR 2.6V

4UAH 2.6V ~

VCO

3296-3980MHZ 4-

BAND MATSUSHITA

2.5V 2MA 38.4MHz ~

FERR.BEAD 220R/

100M 2A 0R05

0603

FERRITE BEAD 0.6R

600R/100MHZ

0402

FERRITE BEAD 0.6R

600R/100MHZ

0402

FERRITE BEAD 0.6R

600R/100MHZ

0402

3296-3980 MHz ~

220R/ 100MHz ~

600R/ 100MHz ~

FERRITE BEAD 0.6R

600R/100MHZ L2005 Bottom F 2 FERRITE_0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –17

0402

600R/ 100MHz ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

FERRITE BEAD 0.6R

L2006 Bottom G 2 FERRITE_0402

L2007 Bottom G 2 FERRITE_0402

L2008 Bottom G 2 FERRITE_0402

L2009 Bottom G 2 FERRITE_0402

L2010 Bottom G 2 FERRITE_0402

L2011 Bottom H 2 COIL_LK_1608

600R/100MHZ 0402

FERRITE BEAD 0.6R 600R/100MHZ 0402

CHIP COIL 68NH J Q12/100MHZ 0603 68nH ~

600R/ 100MHz ~

L2015 Bottom I 7 FERRITE_0402

L2016 Bottom H 7 FERRITE_0402

L2101 Bottom I 7 0603_BLM

L2102 Bottom I 14 0603L

L2103 Bottom I 14 0603L

L2104 Bottom I 8 0603_BLM

L2302 Bottom I 9 CHOKE_SER400

L2309 Bottom F 10 CHOKE_984FB

FERRITE BEAD 0.6R 600R/100MHZ 0402

FERR.BEAD 220R/ 100M 2A 0R05 0603

CHIP COIL 33N J Q40/250MHZ 0603 33nH ~

FERR.BEAD 220R/ 100M 2A 0R05 0603

CHOKE 10U 0.8A 0R24 4X4X1.8 10uH ~

CHOKE 22U M 1R4

0.33A 3.3X3.3X1.5 22uH ~

600R/ 100MHz ~

220R/ 100MHz ~

CHIP COIL 33N J

L2800 Top I 15 0402L

L4000 Top F 9 0402L

Page 2 –18 COMPANY CONFIDENTIAL Issue 1

Q23/800M 0402 33nH ~ CHIP COIL 2N2

+-0N3 Q30/800M 0402 2n2H ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIP COIL 22N J L4001 Top F 10 0402L

L4200 Top I 9 CHOKE_SER400

L4401 Bottom D 17 0402L

L4425 Top D 7 0402L_XL

L4430 Top C 7 0402L

L4435 Top C 7 0402L

L5500 Bottom F 8 CHOKE_SER300

L6100 Top J 7 COIL_0603CS

Q28/800M 0402 22nH ~

CHOKE 10U 0.8A

0R24 4X4X1.8 10uH ~

CHIP COIL 33N J

Q23/800M 0402 33nH ~

CHIP COIL 68N J

Q17/300M 0402 68nH ~

CHIP COIL 33N J

Q23/800M 0402 33nH ~

CHIP COIL 33N J

Q23/800M 0402 33nH ~

INDUCT WW 2.2UH

1A2 310 CASE SIZE 2u2H ~

CHIP COIL 47N G

Q38/200MHZ 0603 47nH ~

COIL_LQW1608CHIP COIL 120N J

L6101 Bottom I 6

L6500 Top B 9 CHOKE_SER300

L6501 Bottom C 15 CHOKE_SER300

L7500 Top F 17 0402L

L7501 Top F 17 0402L

L7502 Top D 15 FERRITE_0402

L7504 Top F 16 0402L

L7505 Top F 17 0402L

L7515 Top C 17 0402L

Q32/150MHZ 0603 120nH ~

INDUCT WW 2.2UH

1A2 310 CASE SIZE 2u2H ~

CHOKE 3.3UH

0R252 0A82 310

CASE SIZE 3u3H ~

CHIP COIL 12N J

Q31/800M 0402 12nH ~

CHIP COIL 12N J

Q31/800M 0402 12nH ~

FERRITE BEAD 0.6R

600R/100MHZ

0402

CHIP COIL 22N J

Q28/800M 0402 22nH ~

CHIP COIL 18N J

Q29/800M 0402 18nH ~

CHIP COIL 15N J

Q30/800M 0402 15nH ~

600R/ 100MHz ~

CHOKE_SER300

L7540 Top E 14

L7580 Top F 15 0402L

Issue 1 COMPANY CONFIDENTIAL Page 2 –19

_H1.5

CHOKE 3U3 1.2A

0R096 3X3X1.5 3u3H ~

CHIP COIL 2N7

+-0N3 Q29/800M

0402 2n7H ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIP COIL 2N7 +-0N3 Q29/800M

L7581 Top E 15 0402L

L7582 Top B 14 0402L

L7583 Top B 14 0402L

L7584 Top A 14 0402L

L7586 Top D 14 0402L

N2200 Bottom H 8 TFBGA_105

0402 2n7H ~ CHIP COIL 18N J

Q29/800M 0402 18nH ~ CHIP COIL 4N7

+-0N3 Q28/800M 0402 4n7H ~

CHIP COIL 5N6 +-0N3 Q28/800M 0402 5n6H ~

BASEBAND MODULE VILMA

1.04C TFBGA105 ~ ~

N2300 Bottom H 9 TFBGA64_H1.2

USMD5_1.47X

N3500 Bottom G 9

N3501 Bottom F 11 PBGA_N48

N4000 Top E 10

N4200 Top I 11

N4201 Top E 11

N4400 Top I 14 SC_59

N4401 Bottom F 12 SC_59

1.04_H0.675

uBGA63_4.6X4 .6 BRF6150 ~ ~

USMD_10_2.45 8X1.899

USMD4_1.313 X1.033

BETTY V2.1 LF TFBGA64 ~ ~

VREG LP3985ITLX-3.0 NOPB USMD5 ~ 3V

LEVEL SHIFT SN74AVCA406ZQC R ~ ~

DC/DC CONV LM3661-1.40V/

1.05V NOPB ~ ~ REG

LP3990TLX-1.8 NOPB 4BUMPS USMD4 ~ 1.8V

HALL IC SWITCH TLE4913 SC 59-3-x ~ ~

VREG

USMD5_1.47X

N4405 Top B 8

N4406 Top B 7 TFBGA_42

Page 2 –20 COMPANY CONFIDENTIAL Issue 1

1.04_H0.675

LP3985ITLX-2.8 NOPB USMD5 ~ 3V

14XLEVEL SHIFTER ST16C32245TBR uTFBGA42 ~ ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

HELEN3 PS2.0 N3

F761909 C27 N4800 Top H 11 uBGA_289

N5500 Top H 9 LBWA19EBE6

N5501 Top I 7 MLF_6

XBGA_N8_2.02

N5502 Bottom F 7

N5503 Top G 7 LLP_6

N6100 Top I 7

X1.02

WFBGA34_2_3. 54X3.54

UBGA289 ~ ~

LBWA19EBE6-72*-

TEMP-TEMP_ES8 2

1 ~ ~

REG MIC5319YML

500MA ADJ MLF6 ~ ADJ

DC/DC CONV

TPS6231YZD 1.5V

CSP8 ~ ~

REG LP3981YDX

2.8/NOPB 0.3A

LLP-6 ~ 2.8V

FM RECEIVER

TEA5761UK N3D TI

CSP ~ ~

XBGA_N8_2.02

N6500 Top C 9

N6501 Top B 8 LLP6

N6502 Bottom B 14 TK11892F

N6504 Top B 13

N7505 Top E 16 TFBGA144

N7520 Top H 16 RF9282E3.6

N7540 Top D 14 RF9372_H1.5

X1.02

USMD5_1.47X

1.04_H0.675

DC/DC CONV

TPS6231YZD 1.5V

CSP8 ~ ~

REG LP3990YDX

1.8V/150MA

BUMPED LLP-6 ~ ~

STEP-UP DC/DC

CONV TK11892F-

G-20 SON3024-8 ~ ~

VREG

LP3985ITLX-2.8

NOPB USMD5 ~ 3V

AHNE301A

TRANCEIVER RFIC

TFBGA144 ~ ~

PA RF9282E6.3

GSM/EDGE

850/900/1800/19

00 ~ ~

PA MODULE

RF9372E5.2

WCDMA

1850-1980MHZ ~ ~

DC CONV

uBGA8_1.849X

N7541 Top E 15

Issue 1 COMPANY CONFIDENTIAL Page 2 –21

1.696

LM3202TLX NOPB

REVB USMD8 ~ ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIP VARISTOR VWM14V VC50V

R1100 Bottom H 13 0402_VAR

R1103 Bottom I 4 0402_NTH5

R2000 Bottom C 2 0402_VAR

R2006 Bottom H 2 BGA11

0402 14V/50V ~ NTC RES 47K J

B=4050+-3% 0402 47k ~ CHIP VARISTOR

VWM14V VC50V 0402 14V/50V ~

ASIP 4 LINES AUDIO FILTER BGA11 ~ ~

uBGA11_1.6X2

R2007 Bottom E 2

R2009 Bottom D 2 0402R

R2013 Bottom E 2 0402_VAR

R2014 Bottom E 2 0402_VAR

R2015 Bottom F 2 0402_VAR

R2016 Bottom F 2 0402_VAR

R2017 Bottom F 2 0402_VAR

R2018 Bottom F 2 0402_VAR

.15

ASIP SILIC USB OTG / ESD BGA11 ~ ~

Resistor 5% 63mW 220k ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

CHIP VARISTOR VWM14V VC50V

R2019 Bottom G 2 0402_VAR

R2020 Bottom G 2 0402_VAR

R2021 Bottom G 2 0402_VAR

R2022 Bottom G 2 0402_VAR

Page 2 –22 COMPANY CONFIDENTIAL Issue 1

0402 14V/50V ~ CHIP VARISTOR

VWM14V VC50V 0402 14V/50V ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIP VARISTOR

VWM14V VC50V R2023 Bottom G 2 0402_VAR

R2200 Bottom H 10 0402R

R2303 Bottom H 10 0402R

R2305 Bottom G 9 0402R

R2800 Top F 14 0402R

R2801 Top I 14 0402R

R2804 Top F 14 0402R

0402 14V/50V ~

Resistor 5%

63mW 1k0 ~

Resistor 5%

63mW 18R ~

Resistor 5%

63mW 100R ~

Resistor 5%

63mW 10R ~

Resistor 5%

63mW 4k7 ~

Resistor 5%

63mW 4k7 ~

R2805 Top F 14 0402R

R3500 Bottom G 8 0402R

R3501 Bottom F 8 0402R

R3502 Bottom G 8 0402R

R3503 Bottom G 8 0402R

R3509 Bottom G 8 0402R

R4400 Top C 7 0402R

R4401 Top F 9 0402R

R4402 Top C 7 0402R

R4403 Top C 9 0402R

Resistor 5%

63mW 4k7 ~

Resistor 5%

63mW 12k ~

Resistor 5%

63mW 47R ~

Resistor 5%

63mW 47R ~

Resistor 5%

63mW 470k ~

Resistor 5%

63mW 100k ~

Resistor 5%

63mW 470k ~

Resistor 5%

63mW 100k ~

Resistor 5%

63mW 470k ~

Resistor 5%

63mW 68R ~

Resistor 5% R4404 Top B 9 0402R

R4405 Top D 7 0402R

R4410 Top I 13 0402R

Issue 1 COMPANY CONFIDENTIAL Page 2 –23

63mW 180R ~

Resistor 5%

63mW 180R ~

Resistor 5%

63mW 470k ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

Resistor 5%

R4411 Bottom J 5 0402R

R4412 Bottom J 3 0402R

R4413 Bottom J 5 0402_VAR

R4414 Bottom J 4 0402_VAR

R4416 Bottom D 17 0402_VAR

R4420 Bottom E 12 0402R

63mW 100R ~ Resistor 5%

63mW 100R ~ CHIP VARISTOR

VWM14V VC50V 0402 14V/50V ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

Resistor 5% 63mW 470k ~

R4428 Top D 9 0402R

R4429 Top D 9 0402R

R4435 Top C 7 0402R

R4800 Top H 12 0402R

R4801 Top F 11 0402R

R4802 Top I 12 0402R

R5500 Top I 7 0402R

R5502 Top I 7 0402R

R5509 Top H 7 0402R

Resistor 5% 63mW 22R ~

Resistor 5% 63mW 47R ~

Resistor 5% 63mW 10R ~

Resistor 5% 63mW 1k0 ~

Resistor 5% 63mW 10k ~

CHIPRES 0W06 270K F 200PPM 0402 270k ~

Resistor 5% 63mW 150k ~

Chipres 0W06 jumper 0402 0R ~

Resistor 5%

R6100 Top I 8 0402R

R6101 Top J 8 0402R

R6102 Top I 15 0402R

R6103 Top I 15 0402R

Page 2 –24 COMPANY CONFIDENTIAL Issue 1

63mW 10k ~ Resistor 5%

63mW 100k ~ Resistor 5%

63mW 10k ~ Resistor 5%

63mW 10k ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

Resistor 5% R6503 Bottom F 16 0402R

R6505 Bottom B 13 0402R

R6506 Bottom C 13 0402R

R6507 Bottom C 13 0805R

R6508 Bottom C 13 0402R

R6509 Bottom F 16 0402R

R6510 Top C 13 0402R

R6511 Bottom E 16 0402R

63mW 1k0 ~

Resistor 5%

63mW 10k ~

Resistor 5%

63mW 10k ~

CHIPRES 0W1 56R J

0805 56R ~

CHIPRES 0W06 4R3

J 0402 4R3 ~

Resistor 5%

63mW 10k ~

Resistor 5%

63mW 100R ~

Resistor 5%

63mW 10k ~

R6512 Top C 13 0402R

R6513 Top C 13 0402R

R6514 Bottom E 16 0402R

R6516 Top C 13 0402R

R6517 Top B 13 0402R

R6518 Bottom E 16 0402R

R6520 Top B 13 0402R

R7501 Top D 17 0402R

R7502 Top E 17 0402R

R7503 Top F 14 0402R

Resistor 5%

63mW 100R ~

Resistor 5%

63mW 2k2 ~

Chipres 0W06

jumper 0402 0R ~

Resistor 5%

63mW 100R ~

Resistor 5%

63mW 100R ~

Chipres 0W06

jumper 0402 0R ~

Resistor 5%

63mW 10R ~

Resistor 5%

63mW 2k2 ~

CHIPRES 0W06 10K

F 0402 10k ~

Resistor 5%

63mW 4k7 ~

CHIPRES 0W06 8K2 R7505 Top D 17 0402R

R7508 Top C 16 0402R

Issue 1 COMPANY CONFIDENTIAL Page 2 –25

F 0402 8k2 ~

Resistor 5%

63mW 10R ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

Resistor 5%

R7509 Top D 15 0402R

R7514 Top H 15 0402R

R7522 Top G 15 0402R

R7540 Top F 15 0402R

R7541 Top E 15 0402R

R7542 Top C 14 0402R

R7543 Top F 15 0402R

R7544 Top D 15 0402R

63mW 22k ~ Resistor 5%

63mW 15R ~ CHIPRES 0W06 27K

F 0402 27k ~ Chipres 0W06 47k

F 200ppm 0402 47k ~ CHIPRES 0W06 1K2

F 250PPM 0402 1k2 ~ Chipres 0W06

jumper 0402 0R ~ Resistor 5%

63mW 10k ~ Resistor 5%

63mW 10R ~

R7580 Top E 15 0402R

R7588 Top D 17 0402R

R7590 Bottom D 16 0402R

R7640 Bottom D 15 0402R

R7641 Bottom D 16 0402R

R7642 Bottom D 16 0402R

R7643 Bottom E 16 0402R

R7644 Top D 16 0402R

SWITCH_EVQP

S4402 Bottom J 4

T4000 Top F 9 TRANS_LDB10

7J01C

Resistor 5% 63mW 270R ~

Resistor 5% 63mW 10R ~

Resistor 5% 63mW 2k2 ~

Resistor 5% 63mW 27k ~

Resistor 5% 63mW 1k2 ~

Resistor 5% 63mW 100R ~

Resistor 5% 63mW 330R ~

Resistor 5% 63mW 10R ~

SWITCH TACT SPST 12V SIDE KEY 1.6N ~ ~

BALUN 2450 +-50MHZ 1DB

1.7X0.9 ~ ~ TRANSF BALUN

3800+-550MHZ

T7501 Top D 17 TRANS_LDB15

Page 2 –26 COMPANY CONFIDENTIAL Issue 1

0805 ~ ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

TRANSF BALUN

1800+-100mhz T7520 Top H 17 TRANS_LDB15

T7580 Top F 17 EHF4BG2450

T7581 Top E 15 EHF4BG2450

BGA4_1.01X1.

V2000 Bottom C 2

V2300 Bottom G 10

V2301 Bottom G 9 SOD323F

07 ASIP TVS BGA4 ~ ~

DIODE_PMEG3 002

2x1.25 ~ ~

TRANSF BALUN

1.9GHZ 1.6X0.8 ~ ~

TRANSF BALUN

1.8GHZ

1.6X0.8X0.65 ~ ~

SCH DI 30V IF 0A2

UFSM 3A IR 10UA

SOD882 ~ ~

SCH DI 30V 2A

SOD323F ~ ~

V4400 Top G 5 LED_CL_191

V4401 Top G 2 LED_CL_191

V4402 Top D 2 LED_CL_191

V4403 Top D 5 LED_CL_191

V4404 Top D 7 VMT3

V4405 Top B 9 VMT3

DIODE_PMEG3

V6500 Bottom C 15

002

LED BLUE 26MCD

5MA CL-191S-

HB1R ~ ~

LED BLUE 26MCD

5MA CL-191S-

HB1R ~ ~

LED BLUE 26MCD

5MA CL-191S-

HB1R ~ ~

LED BLUE 26MCD

5MA CL-191S-

HB1R ~ ~

TR 2SC5658QRS N

50V 0A1 0W15

VMT3 ~ ~

TR 2SC5658QRS N

50V 0A1 0W15

VMT3 ~ ~

SCH DI 30V IF 0A2

UFSM 3A IR 10UA

SOD882 ~ ~

Tr NPN 12V 35mA V6502 Bottom E 16 SOT323

TRACEABILITY_

X1000 Top I 17

X1100 Bottom H 12

Issue 1 COMPANY CONFIDENTIAL Page 2 –27

PAD

LYNX_BATT_CO NN

SOT323 ~ ~

MODULE ID

COMPONENT

2.8X1.8X0.3 ~ ~

SM LYNX

BATT.CONN 3POL

12V 2A H7 ~ ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

X2001 Bottom F 1

X2100 Bottom A 4

X2101 Bottom B 4

X2102 Bottom A 3

X2103 Bottom B 3

X2700 Bottom G 4

X3500 Bottom C 9

X4400 Top D 8

SYSCON_MQ20 2_NK_14R3

CONTACT_PAD _2.95X1.95

SIM_CONN_SP0 3_14206_04

MINISD_SC1S0 11V1S3

MOLEX_SD_50 0913_0708

SM SYSTEM CONNECTOR 14POL ~ ~

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ ~ SM CONN VIBRA

SPACER PAD

2.8X1.8 ~ ~ SM CONN VIBRA

SPACER PAD

2.8X1.8 ~ ~ SM CONN VIBRA

SPACER PAD

2.8X1.8 ~ ~ SM SIM CONN

11POL H2.0 ~ ~ CONN MINISD

PUSH-PUSH 3.3V

0.5A ~ ~ CONN BTB 2X35F

P0.4 ~ ~

CONTACT_PAD

X4401 Bottom E 17

X4402 Bottom F 17

X5202 Bottom B 15 COAX_MM8430

X5203 Bottom G 16 COAX_MM8430

X5500 Bottom I 11 COAX_MM8430

X6500 Bottom F 14

X6501 Bottom C 14

_2.95X1.95

CONTACT_PAD _2.95X1.95

CLE9016_0101ESM CAMERA MOD

POGO_CNO_32 11_3125H

SM CONN VIBRA SPACER PAD

2.8X1.8 ~ ~ SM CONN VIBRA

SPACER PAD

2.8X1.8 ~ ~ CONN SM COAX+

SW F 50R 250V 6GHZ ~ ~

CONN SM COAX+ SW F 50R 250V 6GHZ ~ ~

SKT 2X8F ~ ~ CONN POGO PINS

CNO-3211-3125H H4.3 ~ ~

FLIP_CHIP_16_

Z3500 Bottom F 9

Page 2 –28 COMPANY CONFIDENTIAL Issue 1

2.25X2.25

MMC ASP HIGH SPEED BGA16 ~ ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

Z4400 Top B 10

Z4402 Top B 11

Z4403 Top B 11

Z4404 Top C 7

Z7501 Top F 17

Z7503 Top F 16

Z7504 Top F 16

Z7508 Top E 15

uBGA25_2.69X

2.69 uBGA25_2.69X

2.69

FILTER_2.1X1. 7_10P_H0.6

MODULE_SP_L MZ_137

FILTER_2.1X1. 7_10P_H0.6

FILTER_2.0X1. 6X0.8_4P

ASIP 10-CH ESD EMI

FILTER BGA25 ~ ~

ASIP 10-CH ESD EMI

FILTER BGA25 ~ ~

ASIP 10-CH ESD EMI

FILTER BGA25 ~ ~

ASIP 10-CH ESD EMI

FILTER BGA25 ~ ~

DUAL RX SAW

FILTER

1800/1900MHZ

2016

TX SAW MODULE

GSM 850/900MHZ

4.5X3.2

DUAL RX SAW

FILTER

850/900MHZ 2016

SAW FILT

1850-1910MHZ

2X1.6X0.68

1800/1900 MHz ~

850/900M Hz ~

1850-1910 MHz ~

Z7520 Top G 17

Z7521 Top H 17

Z7540 Top B 15

Z7580 Top E 17

FERRITE_FBMJ 1608

FILTER_LFTC10 N

FILTER_SAW_Q CS12E_H1.6

FILTER_SAW_2 .1X1.7_H0.6_S

FERRITE BEAD

0R01 28R/100MHZ

0603

CER FILT

LFL181699TC1

2400-2480MHZ

1.6

DUPL 1880

+-30MHZ/1960

+-30MHZ

5X5X1.45

SAW FILT 1960

+-30MHZ/ 3.4

2.0X1.6 1960MHz ~

28R/ 100MHz ~

2400-2483 MHz ~

1880/1960 MHz ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –29

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Component layouts 1ME_09a

Figure 4 Component layout 1ME_09a top

Page 2 –30 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Figure 5 Component layout 1ME_09a bottom

Issue 1 COMPANY CONFIDENTIAL Page 2 –31

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Component parts list 1ME_09b

Item Grid ref. Grid ref. Type Description and value

MIC_WM_G15CY346MICROPHONE MOD -42

B2100 Bottom B 1

B2102 Bottom H 16 SPEAKER_HF_8203

C4418 Top E 9 0402C C4430 Top D 7 0402C Chipcap 5% NP0 15p 50V C7540 Top D 15 0402C Chipcap 5% NP0 10p 50V

+-3DB 5X5X3 ~ ~ SPEAKER HF 69+-2DB 8R

D16X4.36 ~ ~ Chipcap X7R 10% 50V

0402 1n0 50V

R3504 Bottom F 8 0402_VAR

R3505 Bottom F 8 0402_VAR

R3507 Bottom F 9 0402_VAR

R5508 Top H 7 0402R

R6522 Bottom E 16 0402R

R7523 Top H 17 0402R

CON_JACK_HR33NK

X2000 Bottom C 1

_2DJA_2S

CHIP VARISTOR VWM14V VC50V 0402

Chipres 0W06 jumper 0402 0R ~

CONN DC-JACK 2.0MM 3POL SPR 90DEG ~ ~

14V/ 50V ~

Page 2 –32 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Component layouts 1ME_09b

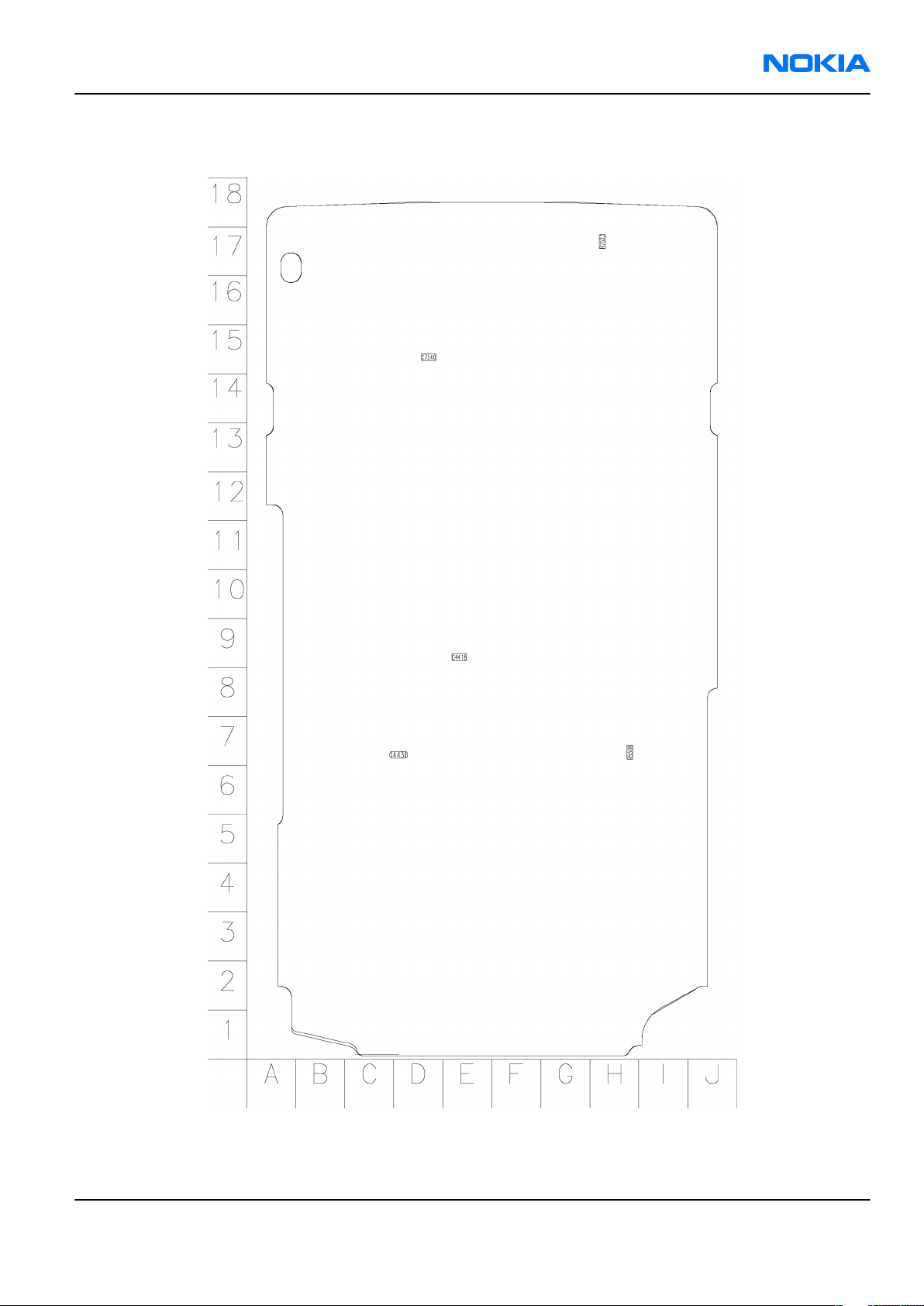

Figure 6 Component layout 1ME_09b top

Issue 1 COMPANY CONFIDENTIAL Page 2 –33

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

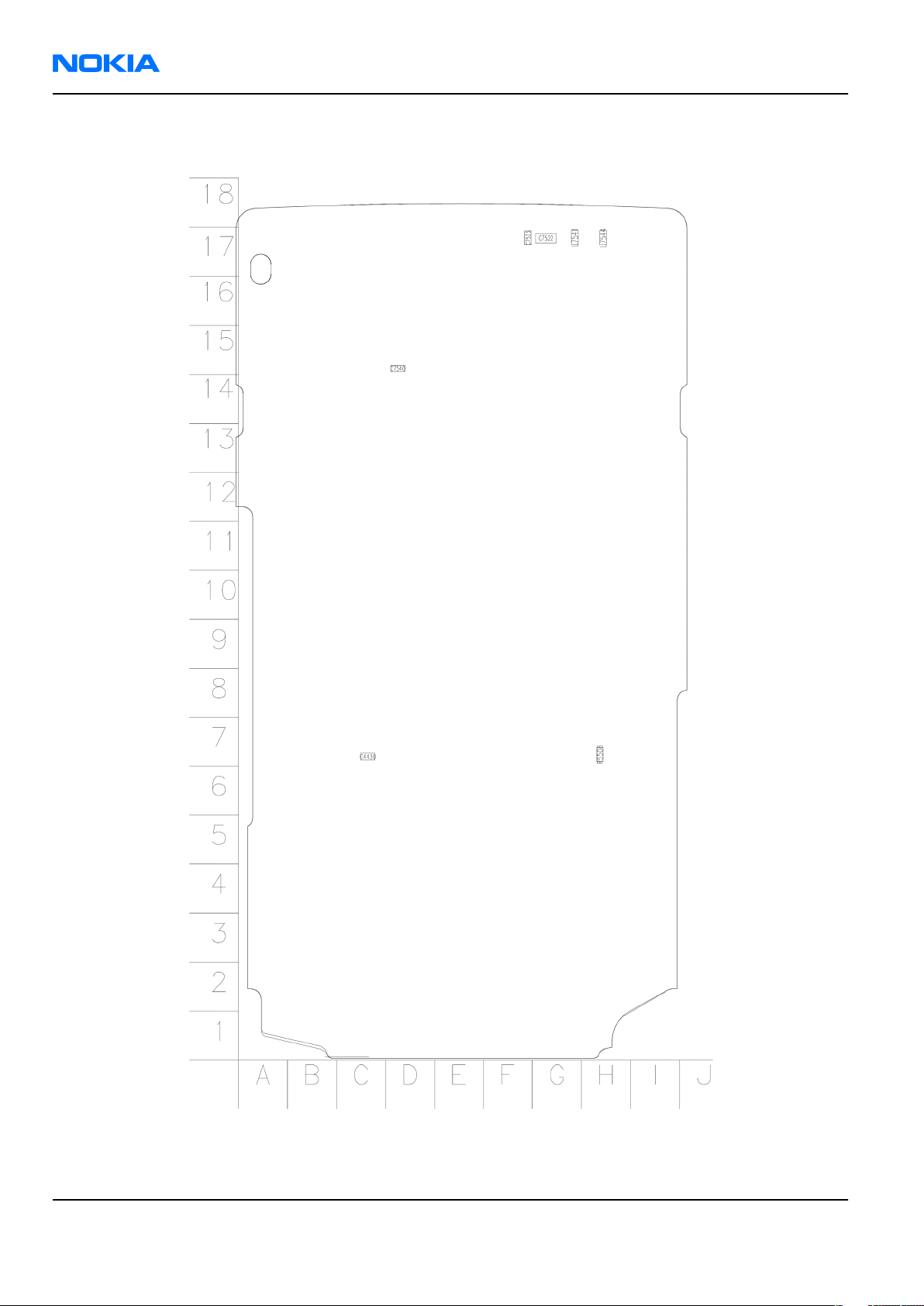

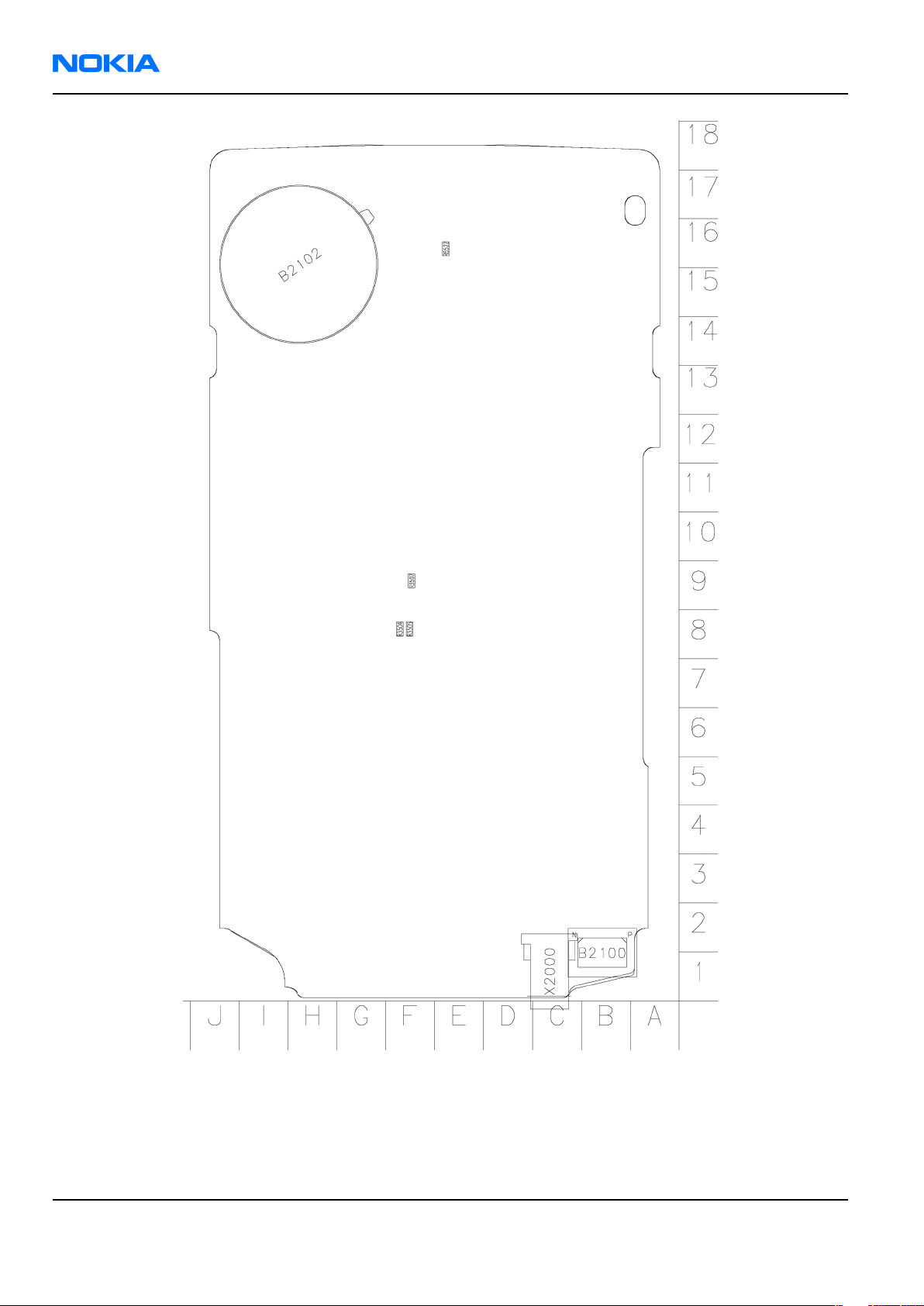

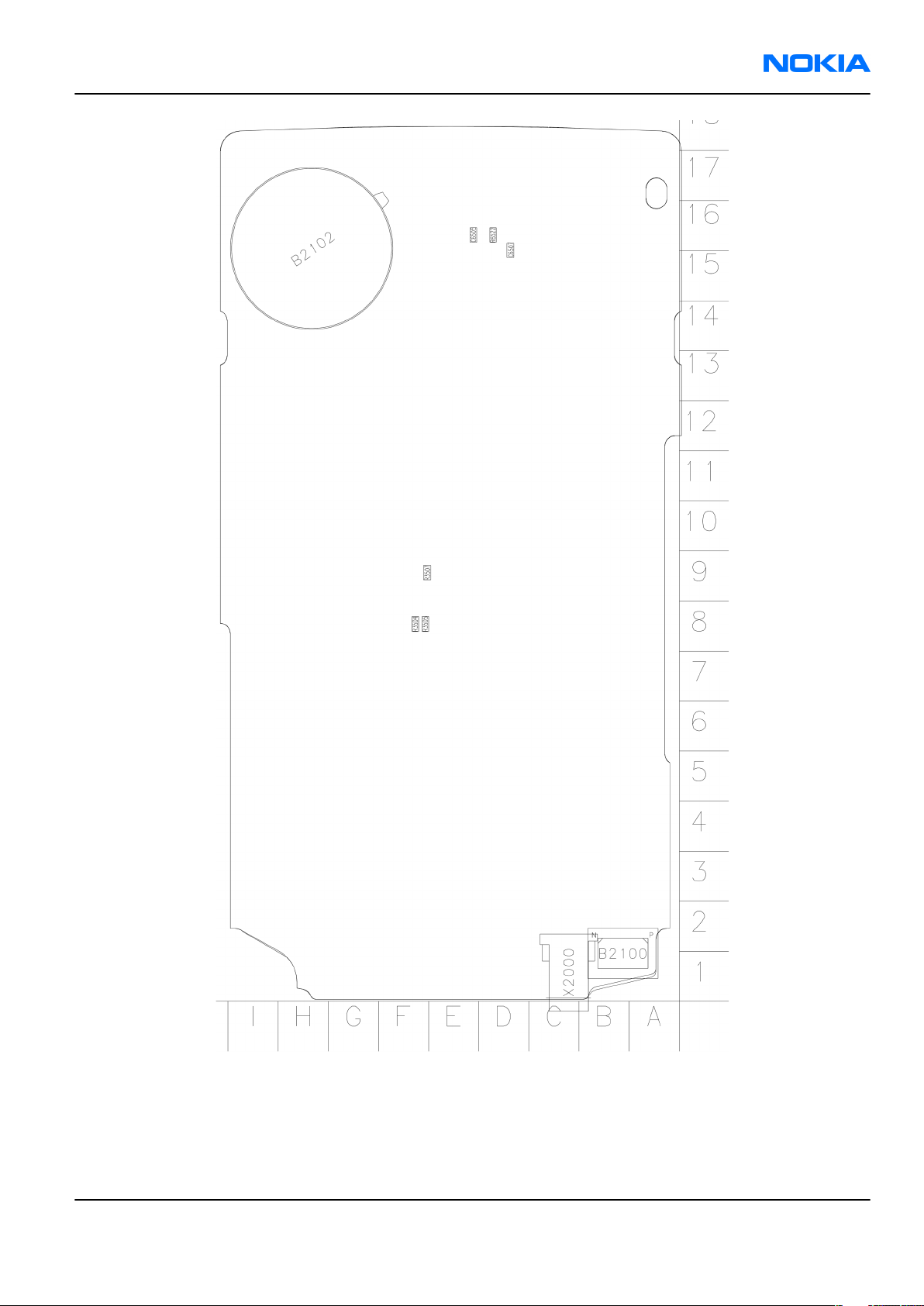

Figure 7 Component layout 1ME_09b bottom

Page 2 –34 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

RM-92 component parts lists and layouts

Component parts list 1NN_07a

Item Side Grid ref. Type Description and value

MIRO_BT_SHIELD

A4000 Top E 10

A7000 Top E 16

A7003 Bot E 16

A7005 Bot G 8

B2200 Bot G 8 C1100 Bot H 14 0402C Chipcap 5% NP0 10p 50V

C1101 Bot H 13 0402C_H0.6 C1103 Bot G 13 0402C Chipcap 5% NP0 10p 50V C1104 Bot G 13 0402C Chipcap 5% NP0 10p 50V

C1105 Bot G 11 0402C

C1109 Bot H 11 0402C

_9590738 MIRO_RF_SHIELD

_0264194 SHIELD R1113 RF ASSY ~ ~ MIRO_PWR_SHIE

LD_9590739 MIRO_BB_SHIELD

_0264195 SHIELD R1113 BB ASSY ~ ~ CRYSTAL_3.3X1.6

_H0.9

SHIELD R1113 BLUETOOTH ~ ~

SHIELD R1113 POWER SUPPLY ~ ~

CRYSTAL 32.768KHZ +-20PPM 12.5PF 32.768kHz ~

CHIPCAP X5R 100N M 16V 0402 100n 16V

Chipcap X7R 10% 50V 0402 1n0 50V

Chipcap X7R 10% 16V

C2005 Bot F 2 0402C

C2006 Bot F 2 0402C C2007 Bot H 2 0402C Chipcap 5% NP0 10p 50V C2008 Bot H 2 0402C Chipcap 5% NP0 10p 50V C2009 Bot G 2 0402C Chipcap 5% NP0 10p 50V C2010 Bot G 2 0402C Chipcap 5% NP0 10p 50V

C2012 Bot C 2 0603C_H0.95 C2106 Bot I 7 0402C Chipcap 5% NP0 56p 50V C2107 Bot H 7 0402C Chipcap 5% NP0 56p 50V C2108 Bot G 7 0402C Chipcap 5% NP0 15p 50V C2109 Bot H 7 0402C Chipcap 5% NP0 15p 50V C2110 Bot I 14 0402C Chipcap 5% NP0 56p 50V C2111 Bot I 13 0402C Chipcap 5% NP0 56p 50V

0402 10n 16V Chipcap X7R 10% 16V

0402 10n 16V

CHIPCAP X5R 1U K 25V 0603 1u0 25V

Issue 1 COMPANY CONFIDENTIAL Page 2 –35

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

C2113 Bot I 14 0402C Chipcap 5% NP0 56p 50V C2114 Bot I 14 0402C Chipcap 5% NP0 56p 50V C2115 Bot H 14 0402C Chipcap 5% NP0 56p 50V

Chipcap X5R 10% 6.3V

C2202 Bot G 7 0402C

C2203 Bot H 8 0603C

C2204 Bot H 7 0603C

C2205 Bot G 7 0402C

C2206 Bot F 7 0402C

C2211 Bot H 8 0603C

0402 220n 6.3V CHIPCAP X5R 4U7 K 6V3

0603 4u7 6.3V CHIPCAP X5R 4U7 K 6V3

0603 4u7 6.3V Chipcap X5R 10% 6.3V

0402 220n 6.3V Chipcap X7R 10% 50V

0402 1n0 50V CHIPCAP X5R 4U7 K 6V3

0603 4u7 6.3V

C2213 Bot G 8 0405_GNM23

C2215 Bot G 8 0405_GNM23

C2217 Bot G 7 0402C

C2220 Bot H 8 0405_GNM23

C2222 Bot H 8 0405_GNM23

C2226 Bot G 8 0402C

C2228 Bot H 8 0405_GNM23

C2301 Bot F 9 0805C

C2302 Bot H 9 0805C

C2304 Bot H 10 0402C_H0.6

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 22U M 6V3 0805 22u 6V3

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 1U K 6V3

C2312 Bot F 8 0402C

C2314 Bot G 10 0805C

C2316 Bot G 9 0402C

Page 2 –36 COMPANY CONFIDENTIAL Issue 1

0402 1u0 6.3V CHIPCAP X5R 4U7 M 25V

0805 4u7 25V CHIPCAP X5R 1U5 K 4V

0402 1u5 4V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 1U5 K 4V

C2317 Bot G 9 0402C

C2320 Bot H 10 0603C

C2700 Bot I 3 0402C_H0.6

C2800 Top I 14 0402C_H0.6

C2801 Top F 15 0402C_H0.6

C2802 Top F 12 0402C_H0.6

C2803 Top F 14 0402C_H0.6

C2804 Top I 13 0402C_H0.6

0402 1u5 4V CHIPCAP X5R 10UF 6V3

0603 10u 4V CHIPCAP X5R 100N M

16V 0402 100n 16V CHIPCAP X5R 100N M

C2805 Top F 14 0402C_H0.6

C2806 Top F 15 0402C_H0.6 C2807 Top I 14 0402C Chipcap 5% NP0 12p 50V

C2809 Top H 12 0402C

C3502 Bot F 10 0405_GNM23

C3503 Bot F 8 0405_GNM23 C4000 Top E 10 0402C Chipcap 5% NP0 15p 50V C4001 Top E 10 0402C Chipcap 5% NP0 100p 50V

C4002 Top E 10 0402C

C4003 Top E 10 0402C

C4004 Top D 10 0402C

16V 0402 100n 16V CHIPCAP X5R 100N M

16V 0402 100n 16V

Chipcap X7R 10% 50V 0402 1n0 50V

CHIP ARRAY X5R 2X1U K 6V3 MA 0405 2x1u 6.3V

CHIPCAP X5R 1U K 6V3 0402 1u0 6.3V

CHIPCAP X5R 1U5 K 4V

C4005 Top E 9 0402C

C4006 Top D 10 0402C

C4007 Top D 9 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –37

0402 1u5 4V CHIPCAP X5R 1U5 K 4V

0402 1u5 4V

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 100N M

C4008 Top E 9 0402C_H0.6

C4009 Top D 9 0402C_H0.6

C4010 Top D 9 0402C

C4011 Top E 10 0402C

C4012 Top E 10 0402C

C4200 Top I 10 0805C

C4201 Top I 11 0805C

C4202 Top D 11 0402C

16V 0402 100n 16V CHIPCAP X5R 100N M

16V 0402 100n 16V CHIPCAP X5R 0U47 K

6.3V 0402 0u47 6V3 CHIPCAP X5R 1U K 6V3

0402 1u0 6.3V CHIPCAP X5R 0U47 K

6.3V 0402 0u47 6V3 CHIPCAP X5R 22U M 6V3

0805 22u 6V3 CHIPCAP X5R 22U M 6V3

0805 22u 6V3 CHIPCAP X5R 1U5 K 4V

0402 1u5 4V

C4203 Top D 11 0402C

C4204 Bot H 10 0402C

C4205 Top G 12 0402C

C4402 Top E 7 0402C

C4403 Top D 8 0402C

C4404 Top B 7 0402C

C4405 Top D 7 0402C

C4407 Top A 8 0402C

C4408 Top E 7 0402C

C4409 Top A 8 0402C_H0.6

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

Chipcap X7R 10% 50V 0402 1n0 50V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 100N M

C4410 Top A 8 0402C_H0.6

C4418 Top D 9 0402C

Page 2 –38 COMPANY CONFIDENTIAL Issue 1

16V 0402 100n 16V Chipcap X7R 10% 50V

0402 1n0 50V

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 100N K

C4419 Top B 9 0402C C4420 Top C 7 0402C Chipcap 5% NP0 15p 50V C4428 Top D 9 0402C Chipcap 5% NP0 15p 50V C4429 Top D 9 0402C Chipcap 5% NP0 15p 50V C4435 Top B 7 0402C Chipcap 5% NP0 15p 50V

C4800 Top H 12 0402C_H0.6

C4801 Top I 11 0603C

C4803 Top I 11 0402C_H0.6

C4808 Top I 11 0402C_H0.6

10V 0402 100n 10V

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 1U K 6V3 0603 1u0 6.3V

CHIPCAP X5R 100N M 16V 0402 100n 16V

C5002 Top H 12 0402C_H0.6

C5500 Top F 9 0402C

C5501 Top G 7 0603C

C5504 Top G 7 0402C

C5505 Bot F 7 0603C

C5506 Bot F 7 0603C

C5508 Top H 7 0402C_H0.6

C5509 Top H 7 0402C_H0.6

C5511 Top H 7 0402C

C6100 Top I 8 0402C_H0.6

CHIPCAP X5R 100N M 16V 0402 100n 16V

Chipcap X7R 10% 16V 0402 10n 16V

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 1U K 6V3 0402 1u0 6.3V

CHIPCAP X5R 100N M 16V 0402 100n 16V

Chipcap X7R 10% 16V

C6101 Top I 8 0402C

C6102 Top I 8 0402C

C6103 Top I 8 0402C_H0.6

Issue 1 COMPANY CONFIDENTIAL Page 2 –39

0402 10n 16V CHIPCAP X7R 33N K 10V

0402 33n 10V CHIPCAP X5R 100N M

16V 0402 100n 16V

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 100N M

C6104 Top H 7 0402C_H0.6

C6105 Top I 7 0402C

C6106 Bot G 7 0402C_H0.6

C6107 Bot G 7 0402C_H0.6

C6108 Top I 7 0402C C6109 Bot I 5 0402C Chipcap 5% NP0 47p 50V C6110 Bot I 5 0402C Chipcap 5% NP0 27p 50V

C6112 Top I 8 0402C

16V 0402 100n 16V CHIPCAP X7R 33N K 10V

0402 33n 10V CHIPCAP X5R 100N M

16V 0402 100n 16V CHIPCAP X5R 100N M

16V 0402 100n 16V CHIPCAP X7R 33N K 10V

0402 33n 10V

Chipcap X7R 10% 16V 0402 10n 16V

C6113 Top I 8 0402C

C6500 Bot B 14 1206C_H1.8

C6502 Bot B 14 0805C

C6503 Bot B 14 0402C_H0.6

C6506 Bot E 16 0402C

C6508 Top C 13 0402C_H0.6

C6509 Top C 13 0402C_H0.6

C6510 Top B 13 0402C

C6511 Top B 13 0402C

C6512 Top A 13 0402C

CHIPCAP X7R 33N K 10V 0402 33n 10V

CHIPCAP 2U2 K 25V 1206 2u2 25V

CHIPCAP X5R 4U7 K 6V3 0805 4u7 6V3

CHIPCAP X5R 100N M 16V 0402 100n 16V

Chipcap X5R 10% 6.3V 0402 220n 6.3V

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIPCAP X5R 1U K 6V3 0402 1u0 6.3V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIPCAP X5R 1U K 6V3

C6513 Top A 9 0402C

C6514 Top B 8 0402C

C6515 Top C 9 0805C

Page 2 –40 COMPANY CONFIDENTIAL Issue 1

0402 1u0 6.3V CHIPCAP X5R 1U5 K 4V

0402 1u5 4V CHIPCAP X5R 4U7 K 6V3

0805 4u7 6V3

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIPCAP X5R 4U7 K 6V3

C6516 Top B 9 0805C

C6520 Top A 13 0402C C6523 Bot D 16 0402C Chipcap 5% NP0 15p 50V C6524 Bot E 16 0402C Chipcap 5% NP0 15p 50V

C7500 Top C 16 0603C

C7501 Top D 17 0603C

C7502 Top E 17 0603C

C7503 Top C 16 0603C

0805 4u7 6V3 CHIPCAP X5R 100N K

10V 0402 100n 10V

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

C7504 Top E 16 0402C Chipcap 5% X7R 3n9 50V

Chipcap X7R 10% 16V

C7505 Top F 16 0402C C7506 Bot E 16 0402C Chipcap 5% NP0 10p 50V

C7507 Top C 16 0402C_H0.6 C7508 Top B 16 0402C Chipcap 5% NP0 10p 50V

C7509 Top C 16 0402C_H0.6

C7510 Top C 17 0402C

C7511 Top E 16 0402C

C7512 Top D 17 0603C C7514 Top F 17 0402C Chipcap +-0.25pF NP0 2p7 50V C7515 Top F 17 0402C Chipcap +-0.25pF NP0 3p3 50V

C7516 Top B 16 0402C

0402 10n 16V

CHIPCAP X5R 100N M 16V 0402 100n 16V

CHIPCAP NP0 470P J 6V3 0402 470p 6V3

CHIPCAP X7R 33N K 10V 0402 33n 10V

CHIPCAP NP0 2N2 G 16V 0603 2n2 16V

CHIPCAP NP0 0P5 C 50V 0402 0p5 50V

CHIPCAP X5R 4U7 K 6V3

C7521 Top F 15 0603C

C7541 Top E 14 0603C

C7542 Top E 14 0603C

Issue 1 COMPANY CONFIDENTIAL Page 2 –41

0603 4u7 6.3V CHIPCAP X5R 4U7 K 6V3

0603 4u7 6.3V

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIPCAP X5R 4U7 K 6V3

C7543 Top D 14 0603C

C7544 Top E 14 0402C C7545 Top B 14 0402C Chipcap 5% NP0 10p 50V C7546 Top B 14 0402C Chipcap +-0.25pF NP0 1p0 50V C7547 Top D 15 0402C Chipcap +-0.25pF NP0 2p7 50V

C7550 Top B 14 0402C C7560 Bot E 16 0402C Chipcap 5% NP0 100p 50V

C7561 Bot E 16 0402C D2800 Top G 14 VFBGA343 RAP3GS V2.0E-PA VFBGA ~ ~

D2801 Top G 14 FBGA128_EMPTY

0603 4u7 6.3V CERCAP X7R 22N K 16V

0402 22n 16V

Chipcap X7R 5% 25V 0402 4n7 25V

Chipcap X7R 10% 16V 0402 10n 16V

COMBO 128M NOR +128M DDR DRAM FBGA128

8Mx16/8M x16 ~

FBGA133_11.6X1

D5000 Top E 12

D5500 Top H 7 PDSO_G5

D6500 Top B 12 FBGA_195

D6501 Top B 11

F2000 Bot D 2

G2200 Top I 15 BATTER_EECEP

G7500 Top E 17 NKG3176B_H1.0

G7501 Top C 17 VCO_DCS02733

L2000 Bot C 2 0603_BLM

L2002 Bot E 2 FERRITE_0402

3.1

WBGA_60_8.1X6.6SDRAM 4X16 1.8V/1.8V

0603_FUSE_AVX2 MATS SM FUSE F 2.0A 32V 2A ~

COMBO 512 DDR + 1G NAND FBGA133 PBFREE

OR-GATE 2INPUT 74LVC1G32 SC70-5 ~ ~

OMAP DM290 GOLDENEYE NFBGA ~ ~

FBGA60 PBFREE 4Mx16 ~

RTC BACUP CAPAC 311 SIZE FOR 2.6V 4UAH 2.6V ~

VCTCXO 38.4MHZ 2.5V 2MA 38.4MHz ~

VCO 3296-3980MHZ 4BAND MATSUSHITA

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/100MHZ 0402

32Mx16/12 8Mx8 ~

3296-3980 MHz ~

220R/ 100MHz ~

600R/ 100MHz ~

FERRITE BEAD 0.6R

L2003 Bot E 2 FERRITE_0402

L2004 Bot E 2 FERRITE_0402

Page 2 –42 COMPANY CONFIDENTIAL Issue 1

600R/100MHZ 0402 FERRITE BEAD 0.6R

600R/100MHZ 0402

600R/ 100MHz ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

L2005 Bot F 2 FERRITE_0402

L2006 Bot F 2 FERRITE_0402

L2007 Bot F 2 FERRITE_0402

L2008 Bot G 2 FERRITE_0402

L2009 Bot G 2 FERRITE_0402

L2010 Bot G 2 FERRITE_0402

L2011 Bot H 2 COIL_LK_1608

L2101 Bot H 7 0603_BLM

L2102 Bot I 14 0603L

L2103 Bot I 14 0603L

FERRITE BEAD 0.6R 600R/100MHZ 0402

CHIP COIL 68NH J Q12/100MHZ 0603 68nH ~

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP COIL 33N J Q40/250MHZ 0603 33nH ~

600R/ 100MHz ~

220R/ 100MHz ~

L2104 Bot H 8 0603_BLM

L2105 Bot H 7 FERRITE_0402

L2106 Bot H 7 FERRITE_0402

L2302 Bot H 9 CHOKE_SER400

L2309 Bot F 10 CHOKE_984FB

L2800 Top I 14 0402L

L4000 Top E 9 0402L

L4001 Top E 10 0402L

L4200 Top I 9 CHOKE_SER400

L4401 Bot D 17 0402L

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/100MHZ 0402

CHOKE 10U 0.8A 0R24 4X4X1.8 10uH ~

CHOKE 22U M 1R4 0.33A

3.3X3.3X1.5 22uH ~ CHIP COIL 33N J

Q23/800M 0402 33nH ~ CHIP COIL 2N2+-0N3

Q30/800M 0402 2n2H ~ CHIP COIL 22N J

Q28/800M 0402 22nH ~ CHOKE 10U 0.8A 0R24

4X4X1.8 10uH ~ CHIP COIL 33N J

Q23/800M 0402 33nH ~

220R/ 100MHz ~

600R/ 100MHz ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –43

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

CHIP COIL 68N J

L4425 Top C 7 0402L_XL

L4430 Top C 7 0402L

L4435 Top C 7 0402L

L5500 Bot F 8 CHOKE_SER300

L6100 Top I 7 COIL_0603CS

L6101 Bot I 6 COIL_LQW1608

L6500 Top B 9 CHOKE_SER300

L6501 Bot C 15 CHOKE_SER300

Q17/300M 0402 68nH ~ CHIP COIL 33N J

Q23/800M 0402 33nH ~ CHIP COIL 33N J

Q23/800M 0402 33nH ~ INDUCT WW 2.2UH 1A2

310 CASE SIZE 2u2H ~ CHIP COIL 47N G

Q38/200MHZ 0603 47nH ~ CHIP COIL 120N J

Q32/150MHZ 0603 120nH ~ INDUCT WW 2.2UH 1A2

310 CASE SIZE 2u2H ~ CHOKE 3.3UH 0R252

0A82 310 CASE SIZE 3u3H ~ FERRITE BEAD 0.6R

L7500 Top C 16 FERRITE_0402

FERRITE_FBMJ1608FERRITE BEAD 0R01

L7520 Top G 15

FERRITE_FBMJ1608FERRITE BEAD 0R01

L7521 Top E 14

L7522 Top A 14 0402L

L7523 Top A 14 0402L

CHOKE_SER300_

L7540 Top D 14

L7543 Top D 15 0402L

N2200 Bot H 8 TFBGA_105 N2300 Bot G 9 TFBGA64_H1.2 BETTY V2.1 LF TFBGA64 ~ ~

N3500 Bot F 9

H1.5

USMD5_1.47X1.0 4_H0.675

600R/100MHZ 0402

28R/100MHZ 0603

28R/100MHZ 0603 CHIP COIL 1N5 +-0N3

Q33/800M 0402 1n5H ~ CHIP COIL 3N9 +-0N3

Q28/800M 0402 3n9H ~ CHOKE 3U3 1.2A 0R096

3X3X1.5 3u3H ~ CHIP COIL 3N9 +-0N3

Q28/800M 0402 3n9H ~ BASEBAND MODULE

VILMA 1.04C TFBGA105 ~ ~

VREG LP3985ITLX-3.0 NOPB USMD5 ~ 3V

600R/ 100MHz ~

28R/ 100MHz ~

LEVEL SHIFT SN74AVCA406ZQCR

N3501 Bot F 11 PBGA_N48 N4000 Top E 10 uBGA63_4.6X4.6 BRF6150 ~ ~

Page 2 –44 COMPANY CONFIDENTIAL Issue 1

1.8/3V BGA48 ~ ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

DC/DC CONV

N4200 Top I 11

USMD_10_2.458 X1.899

LM3661-1.40V/1.05V NOPB ~ ~

USMD4_1.313X1.

N4201 Top D 11

N4400 Top I 14 SC_59

N4401 Bot E 12 SC_59

N4405 Top A 8

N4406 Top A 7 TFBGA_42

N4800 Top G 11 uBGA_289

N5500 Top G 9 LBWA19EBE6

N5501 Top H 7 MLF_6

N5502 Bot F 7

033

USMD5_1.47X1.0 4_H0.675

XBGA_N8_2.02X1 .02

REG LP3990TLX-1.8 NOPB 4BUMPS USMD4 ~ 1.8V

HALL IC SWITCH TLE4913 SC 59-3-x ~ ~

VREG LP3985ITLX-2.8 NOPB USMD5 ~ 3V

14XLEVEL SHIFTER ST16C32245TBR uTFBGA42 ~ ~

HELEN3 PS2.0 N3 F761909 C27 UBGA289 ~ ~

LBWA19EBE6-72*TEMP-TEMP_ES8 2 1 ~ ~

REG MIC5319YML 500MA ADJ MLF6 ~ ADJ

DC/DC CONV TPS6231YZD 1.5V CSP8 ~ ~

N5503 Top G 7 LLP_6

WFBGA34_2_3.5

N6100 Top I 7

N6500 Top C 9

N6501 Top B 8 LLP6

N6502 Bot B 14 TK11892F

N6504 Top A 13

N7500 Top D 16 TFBGA_188

N7520 Top G 16 RF9282E3.6

N7540 Top C 14 RF9372_H1.5

4X3.54 XBGA_N8_2.02X1

.02

USMD5_1.47X1.0 4_H0.675

REG LP3981YDX 2.8/ NOPB 0.3A LLP-6 ~ 2.8V

FM RECEIVER TEA5761UK N3D TI CSP ~ ~

DC/DC CONV TPS6231YZD 1.5V CSP8 ~ ~

REG LP3990YDX 1.8V/ 150MA BUMPED LLP-6 ~ ~

STEP-UP DC/DC CONV TK11892F-G-20 SON3024-8 ~ ~

VREG LP3985ITLX-2.8 NOPB USMD5 ~ 3V

RF SYSTEM MODULE PIHI2.22 9.0X9.0X1 ~ ~

PA RF9282E6.3 GSM/ EDGE 850/900/1800/1900 ~ ~

PA MODULE RF9372E5.2 WCDMA 1850-1980MHZ ~ ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –45

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

uBGA8_1.849X1.

N7541 Top E 15

R1100 Bot G 13 0402_VAR

R1103 Bot I 4 0402_NTH5

R2000 Bot B 2 0402_VAR

R2006 Bot G 2 BGA11

R2007 Bot D 2 R2009 Bot D 2 0402R Resistor 5% 63mW 220k ~

R2013 Bot E 2 0402_VAR

R2014 Bot E 2 0402_VAR

R2015 Bot E 2 0402_VAR

696

uBGA11_1.6X2.15ASIP SILIC USB OTG / ESD

DC CONV LM3202TLX NOPB REVB USMD8 ~ ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

NTC RES 47K J B=4050 +-3% 0402 47k ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

ASIP 4 LINES AUDIO FILTER BGA11 ~ ~

BGA11 ~ ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

CHIP VARISTOR

R2016 Bot E 2 0402_VAR

R2017 Bot F 2 0402_VAR

R2018 Bot F 2 0402_VAR

R2019 Bot F 2 0402_VAR

R2020 Bot F 2 0402_VAR

R2021 Bot G 2 0402_VAR

R2022 Bot G 2 0402_VAR

R2023 Bot G 2 0402_VAR R2200 Bot H 10 0402R Resistor 5% 63mW 1k0 ~ R2303 Bot G 10 0402R Resistor 5% 63mW 18R ~

VWM14V VC50V 0402 14V/50V ~ CHIP VARISTOR

VWM14V VC50V 0402 14V/50V ~

R2305 Bot G 9 0402R Resistor 5% 63mW 100R ~ R2800 Top F 14 0402R Resistor 5% 63mW 10R ~ R2801 Top I 14 0402R Resistor 5% 63mW 4k7 ~

Page 2 –46 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

R2804 Top F 14 0402R Resistor 5% 63mW 4k7 ~ R2805 Top F 14 0402R Resistor 5% 63mW 4k7 ~ R3500 Bot F 8 0402R Resistor 5% 63mW 12k ~ R3501 Bot F 8 0402R Resistor 5% 63mW 47R ~ R3502 Bot F 8 0402R Resistor 5% 63mW 47R ~ R3503 Bot F 8 0402R Resistor 5% 63mW 470k ~ R3509 Bot G 8 0402R Resistor 5% 63mW 100k ~ R4400 Top C 7 0402R Resistor 5% 63mW 470k ~ R4401 Top E 9 0402R Resistor 5% 63mW 100k ~ R4402 Top C 7 0402R Resistor 5% 63mW 470k ~ R4403 Top C 9 0402R Resistor 5% 63mW 68R ~ R4404 Top A 9 0402R Resistor 5% 63mW 180R ~ R4405 Top D 7 0402R Resistor 5% 63mW 180R ~ R4410 Top I 13 0402R Resistor 5% 63mW 470k ~ R4411 Bot I 5 0402R Resistor 5% 63mW 100R ~ R4412 Bot I 3 0402R Resistor 5% 63mW 100R ~

CHIP VARISTOR

R4413 Bot I 5 0402_VAR

R4414 Bot I 4 0402_VAR

R4416 Bot D 17 0402_VAR R4420 Bot E 12 0402R Resistor 5% 63mW 470k ~ R4428 Top D 9 0402R Resistor 5% 63mW 22R ~ R4429 Top C 9 0402R Resistor 5% 63mW 22R ~ R4435 Top C 7 0402R Resistor 5% 63mW 47R ~ R4800 Top G 12 0402R Resistor 5% 63mW 10R ~ R4801 Top F 11 0402R Resistor 5% 63mW 1k0 ~ R4802 Top H 12 0402R Resistor 5% 63mW 10k ~

VWM14V VC50V 0402 14V/50V ~ CHIP VARISTOR

VWM14V VC50V 0402 14V/50V ~

CHIPRES 0W06 270K F

R5500 Top H 7 0402R R5502 Top H 7 0402R Resistor 5% 63mW 150k ~

R5509 Top G 7 0402R R6100 Top I 8 0402R Resistor 5% 63mW 10k ~ R6101 Top I 8 0402R Resistor 5% 63mW 100k ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –47

200PPM 0402 270k ~

Chipres 0W06 jumper 0402 0R ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

R6102 Top I 15 0402R Resistor 5% 63mW 10k ~ R6103 Top I 15 0402R Resistor 5% 63mW 10k ~ R6503 Bot D 16 0402R Resistor 5% 63mW 1k0 ~ R6505 Bot C 13 0402R Resistor 5% 63mW 10k ~ R6506 Bot B 13 0402R Resistor 5% 63mW 10k ~

CHIPRES 0W1 56R J

R6507 Bot B 13 0805R

R6508 Bot B 14 0402R R6509 Bot E 16 0402R Resistor 5% 63mW 10k ~ R6510 Top C 13 0402R Resistor 5% 63mW 100R ~ R6511 Bot E 16 0402R Resistor 5% 63mW 10k ~ R6512 Top C 13 0402R Resistor 5% 63mW 100R ~

0805 56R ~ CHIPRES 0W06 4R3 J

0402 4R3 ~

R6513 Top B 13 0402R Resistor 5% 63mW 2k2 ~

Chipres 0W06 jumper

R6514 Bot D 16 0402R R6516 Top B 13 0402R Resistor 5% 63mW 100R ~ R6517 Top B 13 0402R Resistor 5% 63mW 100R ~

R6518 Bot D 16 0402R R6520 Top B 13 0402R Resistor 5% 63mW 10R ~ R7500 Top F 16 0402R Resistor 5% 63mW 22k ~ R7501 Top B 16 0402R Resistor 5% 63mW 4k7 ~

R7503 Top B 17 0402R

R7504 Top D 17 0402R

R7505 Top B 16 0402R

R7520 Top G 15 0402R

0402 0R ~

Chipres 0W06 jumper 0402 0R ~

CHIPRES 0W06 1K0 F 200PPM 0402 1k0 ~

CHIPRES 0W06 8K2 F 0402 8k2 ~

Chipres 0W06 5R6 J 0402 5R6 ~

CHIPRES 0W06 27K F 0402 27k ~

Chipres 0W06 47k F

R7540 Top D 15 0402R

R7541 Top E 15 0402R

R7542 Top B 14 0402R R7543 Top E 15 0402R Resistor 5% 63mW 10k ~

Page 2 –48 COMPANY CONFIDENTIAL Issue 1

200ppm 0402 47k ~ CHIPRES 0W06 1K0 F

200PPM 0402 1k0 ~ Chipres 0W06 jumper

0402 0R ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

R7544 Top D 14 0402R Resistor 5% 63mW 10R ~ R7560 Bot E 16 0402R Resistor 5% 63mW 330R ~ R7561 Bot E 16 0402R Resistor 5% 63mW 27k ~ R7562 Bot D 16 0402R Resistor 5% 63mW 1k2 ~ R7563 Bot E 16 0402R Resistor 5% 63mW 2k2 ~ R7571 Top E 15 0402R Resistor 5% 63mW 4k7 ~ R7593 Bot D 16 0402R Resistor 5% 63mW 100R ~

SWITCH_EVQP7J

S4402 Bot I 4

T4000 Top E 9 TRANS_LDB10

T7500 Top C 15 TRANS_LDB15

T7501 Top C 17 TRANS_LDB15 V2000 Bot B 2 BGA4_1.01X1.07 ASIP TVS BGA4 ~ ~

V2300 Bot G 10 V2301 Bot F 9 SOD323F SCH DI 30V 2A SOD323F ~ ~

V4400 Top F 5 LED_CL_191

V4401 Top F 2 LED_CL_191

V4402 Top D 2 LED_CL_191

01C

DIODE_PMEG3002SCH DI 30V IF 0A2 UFSM

SWITCH TACT SPST 12V SIDE KEY 1.6N ~ ~

BALUN 2450+-50MHZ 1DB 1.7X0.9 ~ ~

TRANSF BALUN 2134 +-90MHZ 0805 ~ ~

TRANSF BALUN 3800 +-550MHZ 0805 ~ ~

3A IR 10UA SOD882 ~ ~

LED BLUE 26MCD 5MA CL-191S-HB1R ~ ~

LED BLUE 26MCD 5MA

V4403 Top D 5 LED_CL_191

V4404 Top C 7 VMT3

V4405 Top A 9 VMT3

DIODE_PMEG3002SCH DI 30V IF 0A2 UFSM

V6500 Bot B 15

V7560 Bot D 16 SOT323

X1 Bot F 16 COAX_MM8430

TRACEABILITY_PADMODULE ID COMPONENT

X1000 Top I 16

Issue 1 COMPANY CONFIDENTIAL Page 2 –49

CL-191S-HB1R ~ ~ TR 2SC5658QRS N 50V

0A1 0W15 VMT3 ~ ~ TR 2SC5658QRS N 50V

0A1 0W15 VMT3 ~ ~

3A IR 10UA SOD882 ~ ~ Tr NPN 12V 35mA

SOT323 ~ ~ SM COAX CONN+SW F

50R 250V 6GHZ ~ ~

2.8X1.8X0.3 ~ ~

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid ref. Type Description and value

LYNX_BATT_CONNSM LYNX BATT.CONN

X1100 Bot G 12

3POL 12V 2A H7 ~ ~

X2001 Bot F 1

X2100 Bot A 4

X2101 Bot A 4

X2102 Bot A 3

X2103 Bot A 3

X2700 Bot F 4

X3500 Bot C 9

X4400 Top D 8

X4401 Bot E 17

X4402 Bot E 17

SYSCON_MQ202_ NK_14R3

CONTACT_PAD_2. 95X1.95

SIM_CONN_SP03_ 14206_04

MINISD_SC1S011 V1S3

MOLEX_SD_5009 13_0708 CONN BTB 2X35F P0.4 ~ ~

CONTACT_PAD_2. 95X1.95

SM SYSTEM CONNECTOR 14POL ~ ~

SM CONN VIBRA SPACER PAD 2.8X1.8 ~ ~

SM SIM CONN 11POL H2.0 ~ ~

CONN MINISD PUSHPUSH 3.3V 0.5A ~ ~

SM CONN VIBRA SPACER PAD 2.8X1.8 ~ ~

X5500 Bot I 11 COAX_MM8430

X6500 Bot E 14 CLE9016_0101E

POGO_CNO_3211

X6501 Bot C 14

X6502 Bot B 15 COAX_MM8430

Z3500 Bot F 8

Z4400 Top A 10

Z4402 Top A 11

Z4403 Top A 11

Z4404 Top B 7

_3125H

FLIP_CHIP_16_2. 01X2.02_H0.715

uBGA25_2.47X2.47ASIP 10-CH ESD EMI

SM COAX CONN+SW F 50R 250V 6GHZ ~ ~

SM CAMERA MOD SKT 2X8F ~ ~

CONN POGO PINS CNO-3211-3125H H4.3 ~ ~

SM COAX CONN+SW F 50R 250V 6GHZ ~ ~

MMC ASP HIGH SPEED BGA16 ~ ~

FILTER BGA25 ~ ~

Page 2 –50 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

MODULE_SP_LMZ

Z7500 Top F 16

Z7501 Top H 17 FILTER_LFTC10N

Z7540 Top A 15

_137

P_TC3N_12_1_AG I

TX SAW MODULE GSM 850/900MHZ

CER FILT LFL181699TC1 2400-2480MHZ 1.6

DUPL BAW 1920-1980/2110-2170 MHZ 3.8X3.8

850/900M Hz ~

2400-2483 MHz ~

1920-1980 / 2110-2170 MHZ ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –51

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Component layouts 1NN_07a

Figure 8 Component layout top 1NN_07a

Page 2 –52 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Figure 9 Component layout bottom 1NN_07a

Issue 1 COMPANY CONFIDENTIAL Page 2 –53

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Component parts list 1NN_07b

Item Side Grid ref. Type Description and value

MICROPHO NE MOD -42

MIC_WM_G

B2100 Bottom B 1

B2102 Bottom H 16

C4430 Top C 7 0402C

C6505 Bottom E 16 0402C

15CY346

SPEAKER_H F_8203

+-3DB 5X5X3 ~ ~

SPEAKER HF 69+-2DB 8R D16X4.36 ~ ~

Chipcap 5% NP0 15p 50V

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

C6507 Bottom D 16 0402C

C7522 Top G 17 0603C

C7523 Top F 17 0402C

C7540 Top D 15 0402C

L7541 Top G 17 0402L

L7544 Top H 17 0402L

R3504 Bottom F 8 0402_VAR

CHIPCAP X5R 1U5 K 4V 0402 1u5 4V

CHIPCAP X5R 4U7 K 6V3 0603 4u7 6.3V

CHIPCAP N750 1P8 C 50V 0402 1p8 50V

Chipcap 5% NP0 10p 50V

CHIP COIL 3N3 +-0N3 Q28/800M 0402 3n3H ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V ~

CHIP VARISTOR VWM14V VC50V

R3505 Bottom F 8 0402_VAR

Page 2 –54 COMPANY CONFIDENTIAL Issue 1

0402 14V/50V ~

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid ref. Type Description and value

CHIP VARISTOR VWM14V VC50V

R3507 Bottom F 9 0402_VAR

R5508 Top H 7 0402R

R6522 Bottom D 16 0402R

CON_JACK_ HR33NK_2

X2000 Bottom C 1

DJA_2S

0402 14V/50V ~ Chipres

0W06 jumper 0402 0R ~

Chipres 0W06 jumper 0402 0R ~

CONN DCJACK 2.0MM 3POL SPR 90DEG ~ ~

Issue 1 COMPANY CONFIDENTIAL Page 2 –55

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

Component layouts 1NN_07b

Figure 10 Component layout top 1NN_07b

Page 2 –56 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Parts Lists and Component Layouts Nokia Customer Care

Figure 11 Component layout bottom 1NN_07b

Issue 1 COMPANY CONFIDENTIAL Page 2 –57

RM-91; RM-92

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –58 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

3 — Service Software

Instructions

Issue 1 COMPANY CONFIDENTIAL Page 3 –1

RM-91; RM-92

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –2 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

Table of Contents

Phoenix installation steps in brief........................................................................................................................3–5

Installing Phoenix...................................................................................................................................................3–6

Updating Phoenix installation..............................................................................................................................3–8

Uninstalling Phoenix..............................................................................................................................................3–9

Repairing Phoenix installation...........................................................................................................................3–11

Phone data package overview............................................................................................................................3–11

Installing phone data package...........................................................................................................................3–12

Uninstalling phone data package.......................................................................................................................3–15

Configuring users in Phoenix..............................................................................................................................3–17

Managing connections in Phoenix......................................................................................................................3–17

Installing flash support files for FPS-10.............................................................................................................3–19

Updating FPS-10 flash prommer software........................................................................................................3–22

List of Figures

Figure 12 Dongle not found..................................................................................................................................3–6

Figure 13 Disclaimer text.......................................................................................................................................3–7

Figure 14 InstallShield Wizard Complete.............................................................................................................3–8

Figure 15 Installation interrupted........................................................................................................................3–9

Figure 16 Remove program.................................................................................................................................3–10

Figure 17 Finish uninstallation...........................................................................................................................3–10

Figure 18 Repair program...................................................................................................................................3–11

Figure 19 Data package setup information.......................................................................................................3–13

Figure 20 Data package destination folder.......................................................................................................3–14

Figure 21 InstallShield Wizard Complete...........................................................................................................3–15

Figure 22 Uninstalling phone data package......................................................................................................3–16

Figure 23 Finishing data package uninstallation..............................................................................................3–16

Figure 24 Phoenix login.......................................................................................................................................3–17

Figure 25 New user configured..........................................................................................................................3–17

Figure 26 Select mode: Manual...........................................................................................................................3–18

Figure 27 Connections list...................................................................................................................................3–19

Figure 28 Connection information.....................................................................................................................3–19

Figure 29 Product support module information (example from RM-1)..........................................................3–19

Figure 30 Flash update welcome dialog............................................................................................................3–20

Figure 31 Flash installation interrupted............................................................................................................3–20

Figure 32 Flash destination folder......................................................................................................................3–21

Figure 33 Finish flash update..............................................................................................................................3–22

Figure 34 Choosing Prommer maintenance......................................................................................................3–22

Figure 35 Prommer SW update finished............................................................................................................3–23

Figure 36 Prommer maintenance window........................................................................................................3–23

Figure 37 Flash directory window......................................................................................................................3–24

Issue 1 COMPANY CONFIDENTIAL Page 3 –3

RM-91; RM-92

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –4 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

Phoenix

installation steps in brief

Before you begin

Recommended hardware requirements:

• Computer processor: Pentium 700 MHz or higher

• RAM 256 MB

• Disk space 100-300 MB Supported operating systems:

•

Windows 2000

•

Windows XP

Service Pack 3 or higher

Service Pack 1 or higher

Context

Phoenix

is a service software for reprogramming, testing and tuning phones.

Phoenix

• Service software support for all phone models included in the package

• Flash update package files for programming devices

• All needed drivers for:

The phone model specific data package includes all changing product specific data:

• Product software binary files

• Files for type label printing

• Validation file for the faultlog repair data reporting system

• All product specific configuration files for

To use

installation contains:

• PKD-1 (DK2) dongle

• DKU-2 USB cable

Note: Separate installation packages for flash update files and drivers are also available, but it is

not necessary to use them unless there are updates between separate update packages are used, they should be used after installed.

Note:

Uninstallation should be made from the

Phoenix

, you need to:

and phone data packages should only be used as complete installation packages.

Phoenix

software components

Windows

Control Panel.

Phoenix

service software releases. If

and data packages have been

Steps

1. Connect a PKD-1 (DK2) dongle to the computer parallel port.

2. Install

3. Install the phone-specific data package.

4. Configure users.

5. Manage connection settings (depends on the tools you are using).

• Update FPS-10 software

• Activate SX-4 smart card, if you need tuning and testing functions.

Issue 1 COMPANY CONFIDENTIAL Page 3 –5

Phoenix

Note: There is no need to activate FPS-10.

Note: When FPS-10 is used only for product software updates, SX-4 smart card is not needed.

.

RM-91; RM-92

Nokia Customer Care Service Software Instructions

Results

Phoenix

is ready to be used with FPS-10 flash prommer and other service tools.

Installing

Phoenix

Before you begin

• Check that a dongle is attached to the parallel port of your computer.

• Download the computer (in

• Close all other programs.

• Depending on your operating system, administrator rights may be required to install

• If uninstalling or rebooting is needed at any point, you will be prompted by the InstallShield program.

Phoenix

C:\TEMP

installation package (for example,

, for instance).

phoenix_service_sw_2004_39_x_xx.exe

Phoenix

) to your

.

Context

At some point during the installation procedure, you may get the following message:

Figure 12 Dongle not found

This may be a result of a defective or too old PKD-1 dongle. Check the COM/parallel ports used. After correcting the problem, you can restart the installation. For more detailed information, please refer to

Tip: Each feature in

program. Press the F1 key or the feature’s Help button to activate a Help file.

Phoenix

has its own Help function, which can be activated while running the

Phoenix

Help files.

Steps

1. To start the installation, run the application file (for example,

2. In the

Welcome

dialogue, click Next.

phoenix_service_sw_2004_39_x_xx.exe

).

Page 3 –6 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

3. Read the disclaimer text carefully and click Yes.

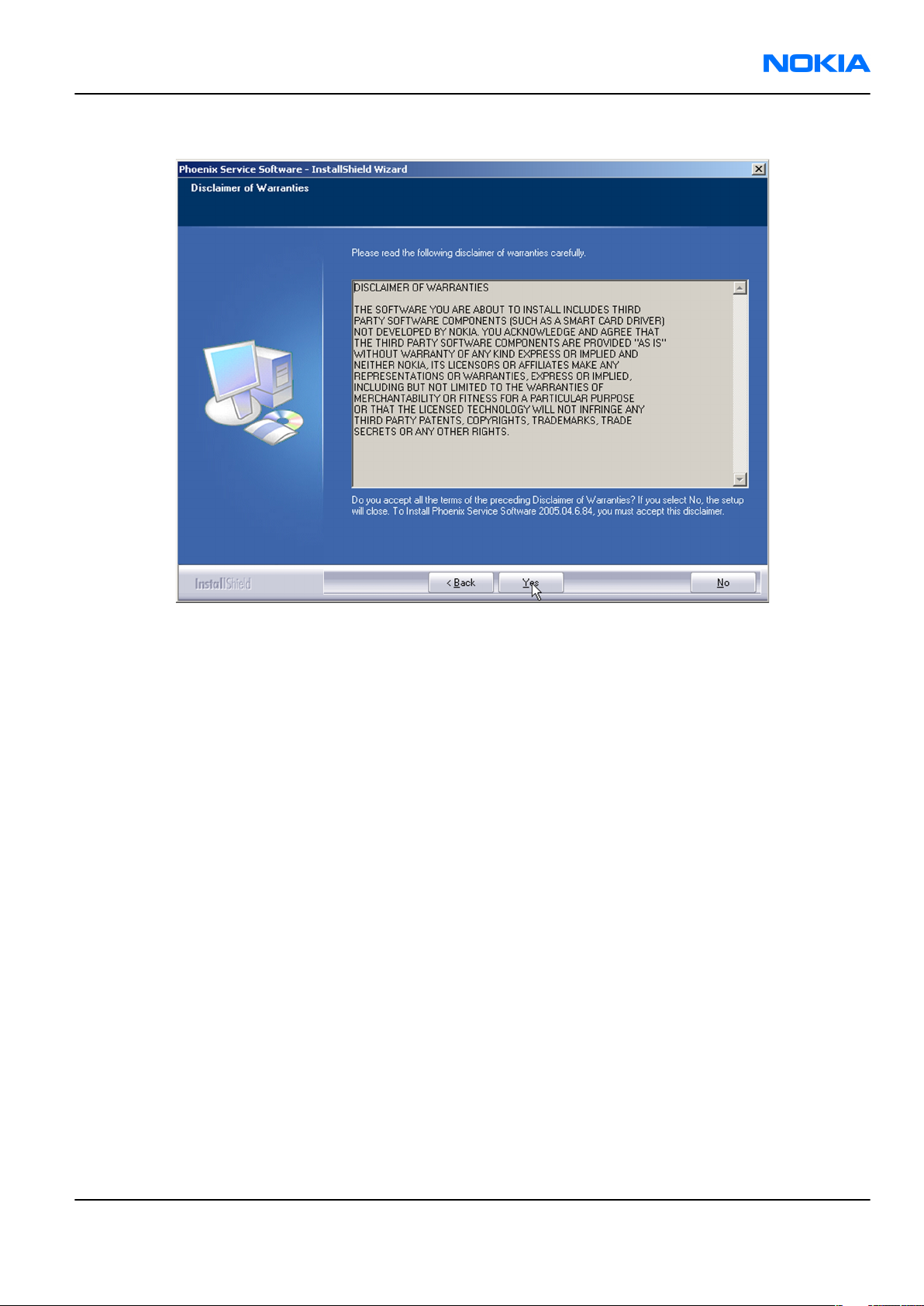

Figure 13 Disclaimer text

4. Choose the destination folder. The default folder

C:\ProgramFiles\Nokia\Phoenix

is recommended.

5. To continue, click Next. To choose another location, click Browse (not recommended).

6. Wait for the components to be copied. The progress of the installation is shown in the

Setup Status

window.

7. Wait for the drivers to be installed and updated. The process may take several minutes to complete. If the operating system does not require rebooting, the PC components are registered right away. If the operating system requires restarting your computer, the Install Shield Wizard will notifies about it. Select Yes... to reboot the PC immediately or No... to reboot the PC manually afterwards. After the reboot, all components are registered.

Note:

Phoenix

does not work, if the components have not been registered.

Issue 1 COMPANY CONFIDENTIAL Page 3 –7

RM-91; RM-92

Nokia Customer Care Service Software Instructions

8. To end the installation, click Finish.

Figure 14 InstallShield Wizard Complete

Next action

After the installation,

• installing phone model specific data package for

• configuring users and connections FPS-10 flash prommer can be used after updating their flash update package files.

Updating

Phoenix

can be used after:

Phoenix

installation

Context

• If you already have the software when new versions are released.

• To update

• When you are updating, for example, from version a14_2004_16_4_47 to a15_2004_24_7_55, the update will take place automatically without uninstallation.

• Always use the latest available versions of both can be found in the phone model specific Technical Bulletins and phone data package (shown during installation).

• If you try to update to a15_2004_24_7_55), you are asked if you want to uninstall the existing version. In this case you can choose between a total uninstallation or a repair installation in a similar way when choosing to uninstall the application from the

Phoenix

, you need to follow the same steps as when installing it for the first time.

Phoenix

Windows

service software installed on your computer, you need to update the

Phoenix

with the same version you already have (for example, a15_2004_24_7_55

Control Panel.

and the phone-specific data package. Instructions

readme.txt

files

• If you try to install an older version (for example, downgrade from a15_2004_24_7_55 to a14_2004_16_4_47), installation will be interrupted.

Page 3 –8 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

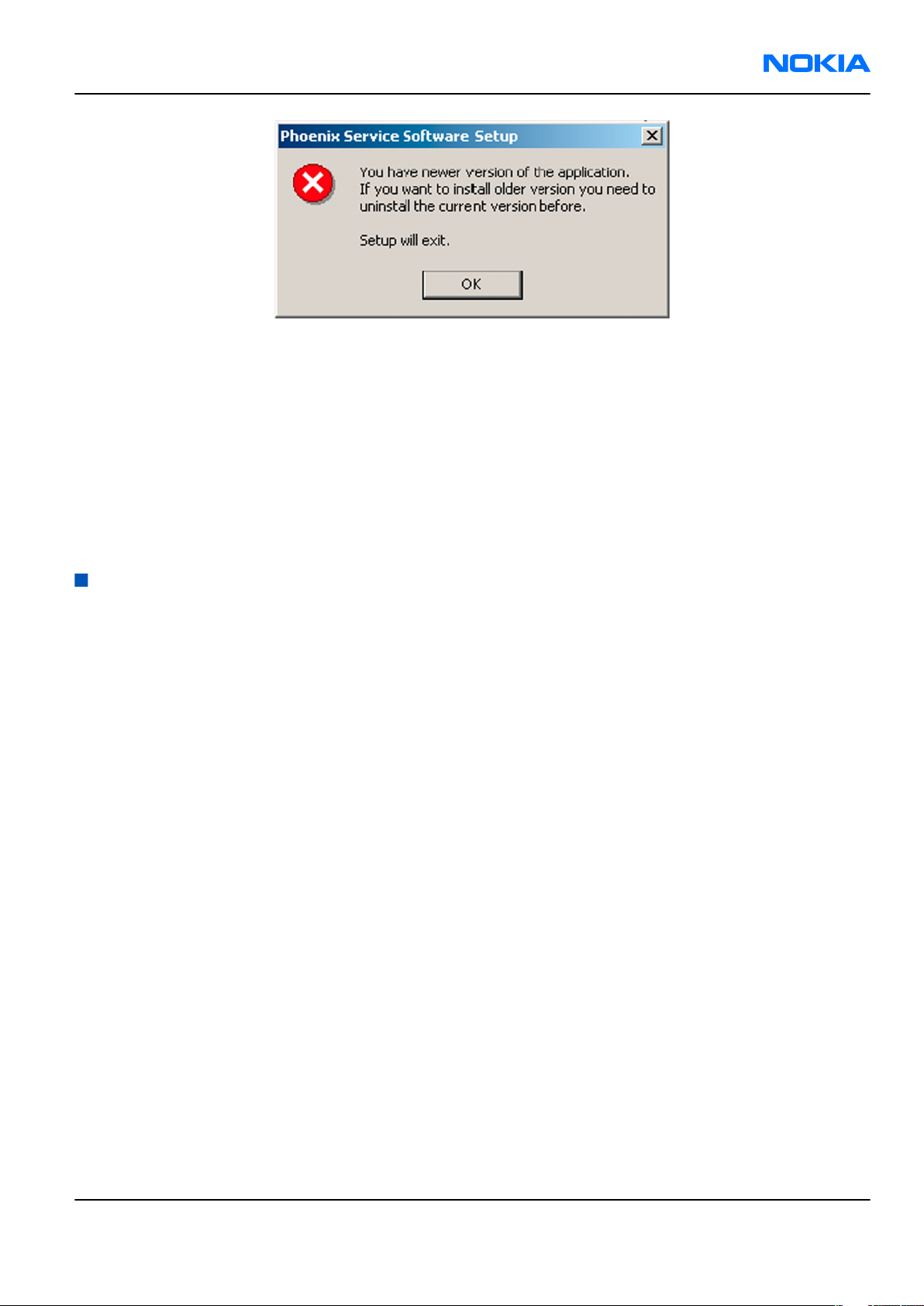

Figure 15 Installation interrupted

• Always follow the instructions on the screen.

Steps

1. Download the installation package to your computer hard disk.

2. Close all other programs.

3. Run the application file (for example,

phoenix_service_sw_2004_39_x_xx.exe

).

Results

A new

Phoenix

version is installed and driver versions are checked and updated.

Uninstalling

Phoenix

Context

You can uninstall

Phoenix

service software manually from the

Windows

Control Panel.

Steps

1. Open the Windows Control Panel, and choose Add/Remove Programs.

Issue 1 COMPANY CONFIDENTIAL Page 3 –9

RM-91; RM-92

Nokia Customer Care Service Software Instructions

2. To uninstall

Phoenix

, choose Phoenix Service Software→Change/Remove→Remove .

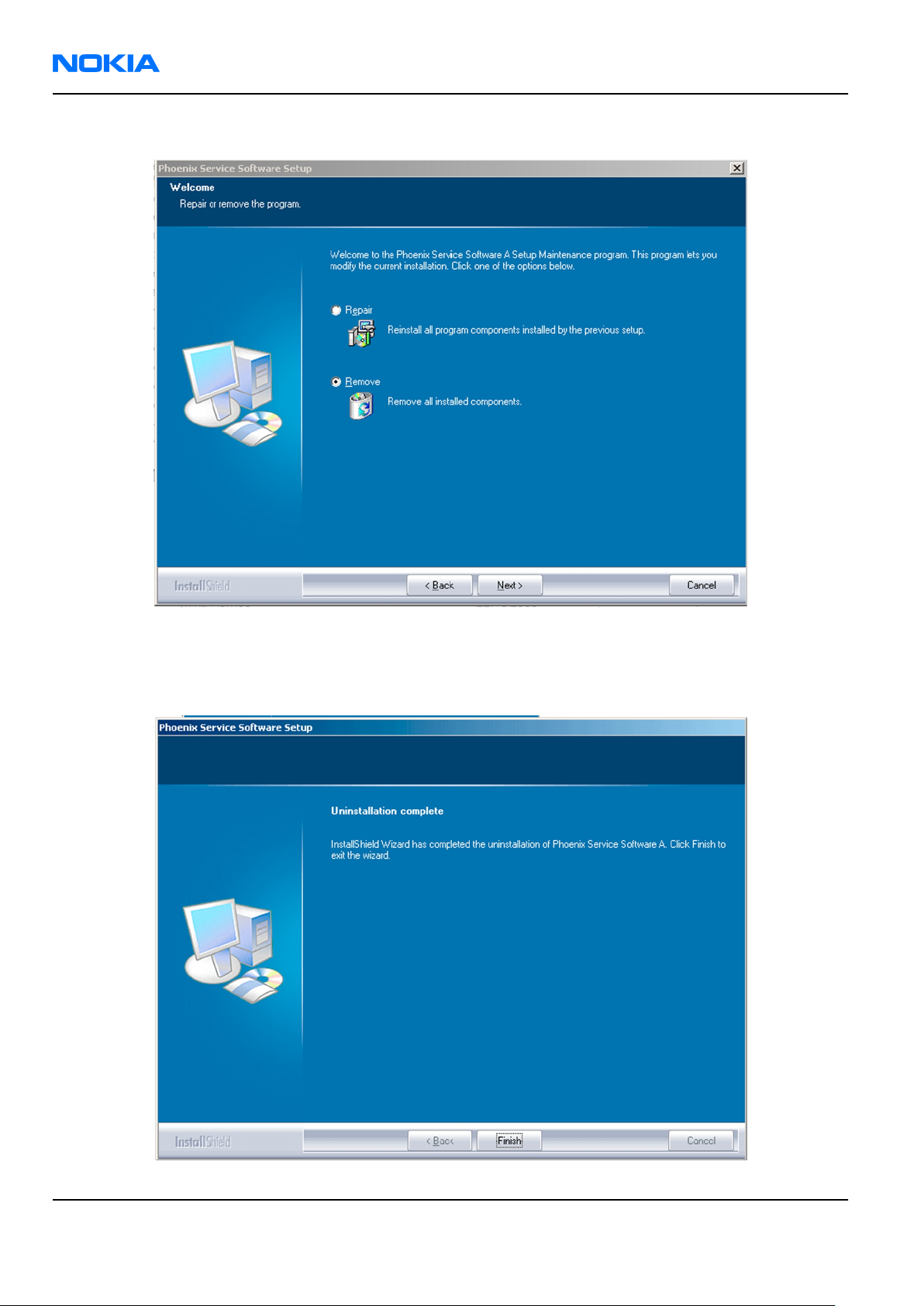

Figure 16 Remove program

The progress of the uninstallation is shown.

3. If the operating system does not require rebooting, click Finish to complete.

Figure 17 Finish uninstallation

Page 3 –10 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

If the operating system requires rebooting, InstallShield Wizard will notify you. Select Yes... to reboot the PC immediately and No... to reboot the PC manually afterwards.

Repairing

Phoenix

installation

Context

If you experience any problems with the service software or suspect that files have been lost, use the repair function before completely reinstalling

Note: The original installation package (for example,

must be found on your PC when you run the repair setup.

Phoenix

.

phoenix_service_sw_a15_2004_24_7_55.exe

Steps

1. Open Windows Control Panel→Add/Remove Programs .

2. Choose Phoenix Service Software→Change/Remove .

3. In the following view, select Repair.

)

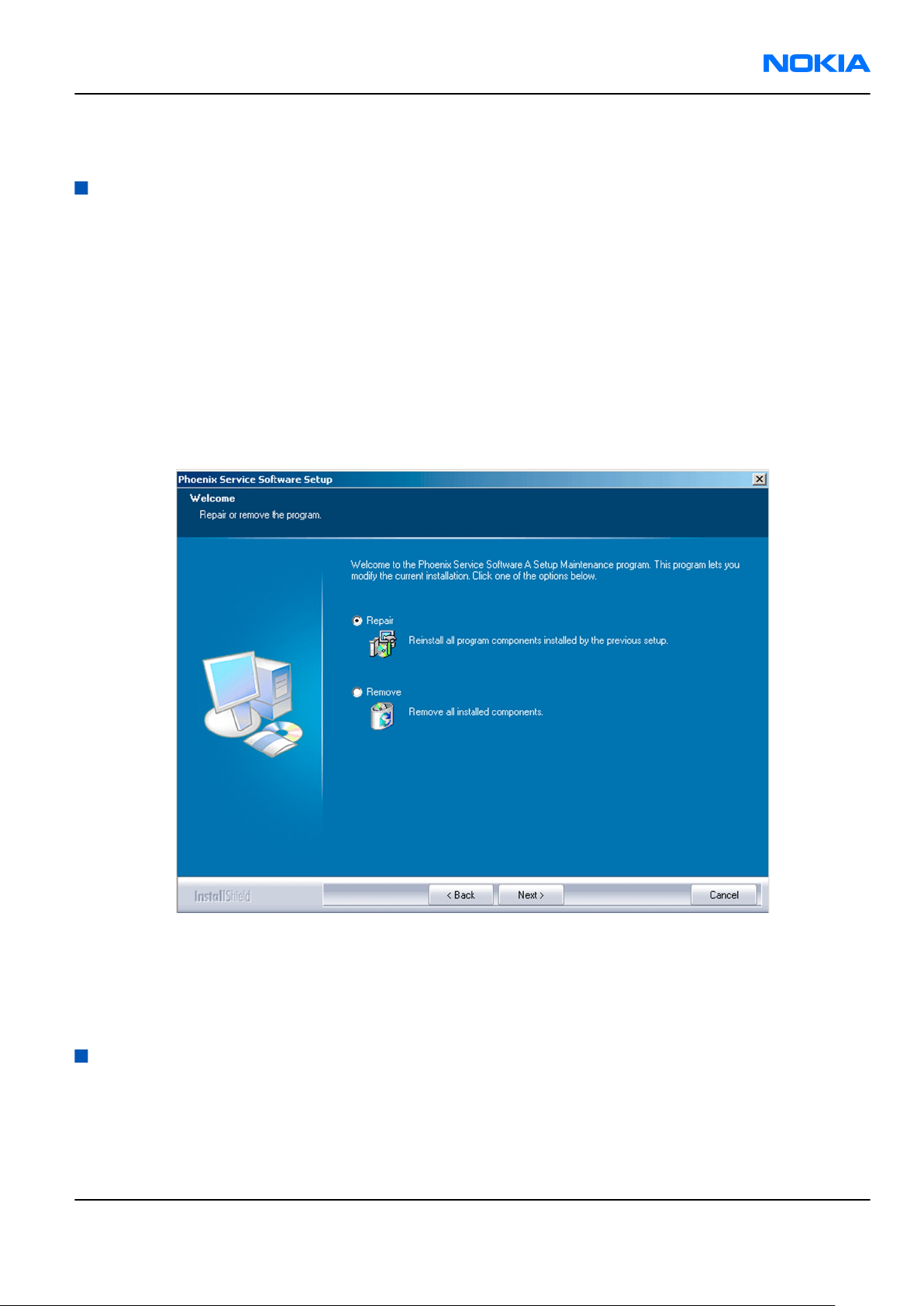

Figure 18 Repair program

Phoenix

The procedure is the same as when updating

4. To complete the repair, click Finish.

reinstalls components and registers them.

Phoenix

.

Phone data package overview

Each product has its own data package (DP). The product data package contains all product-specific data files to make the Phoenix service software and tools usable with a certain phone model.

The phone data package contains the following:

• Product software binary files

Issue 1 COMPANY CONFIDENTIAL Page 3 –11

RM-91; RM-92

Nokia Customer Care Service Software Instructions

• Files for type label printing

• Validation file for the fault log repair data reporting system

• All product-specific configuration files for Phoenix software components

Data files are stored in C:\Program Files\Nokia\Phoenix (default).

Installing phone data package

Before you begin

• A phone-specific data package contains all data required for the to be used with a certain phone model.

• Check that a dongle is attached to the parallel port of your computer.

• Install

Phoenix

service software.

Phoenix

service software and service tools

• Download the installation package (for example, in C:\TEMP).

• Close all other programs.

(XX-XX = type designator of the product) If you already have

released.

Note: Often

version of available versions of both. Instructions can be found in phone-specific Technical Bulletins and

readme.txt

Phoenix

files of data packages.

installed on your computer, you will need to update it when a new version is

and the phone-specific data package come in pairs, meaning that a certain

can only be used with a certain version of a data package. Always use the latest

XX-XX_dp_EA_v_1_0.exe

Steps

1. To start the installation, run the application file (for example,

Wait for the installation files to be extracted.

) to your computer (for example,

XX-XX_dp_EA_ v_1_0.exe

),

Page 3 –12 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

2. Click Next.

3. In the following view you can see the contents of the data package. Read the text carefully. There is information about the

Phoenix

version required with this data package.

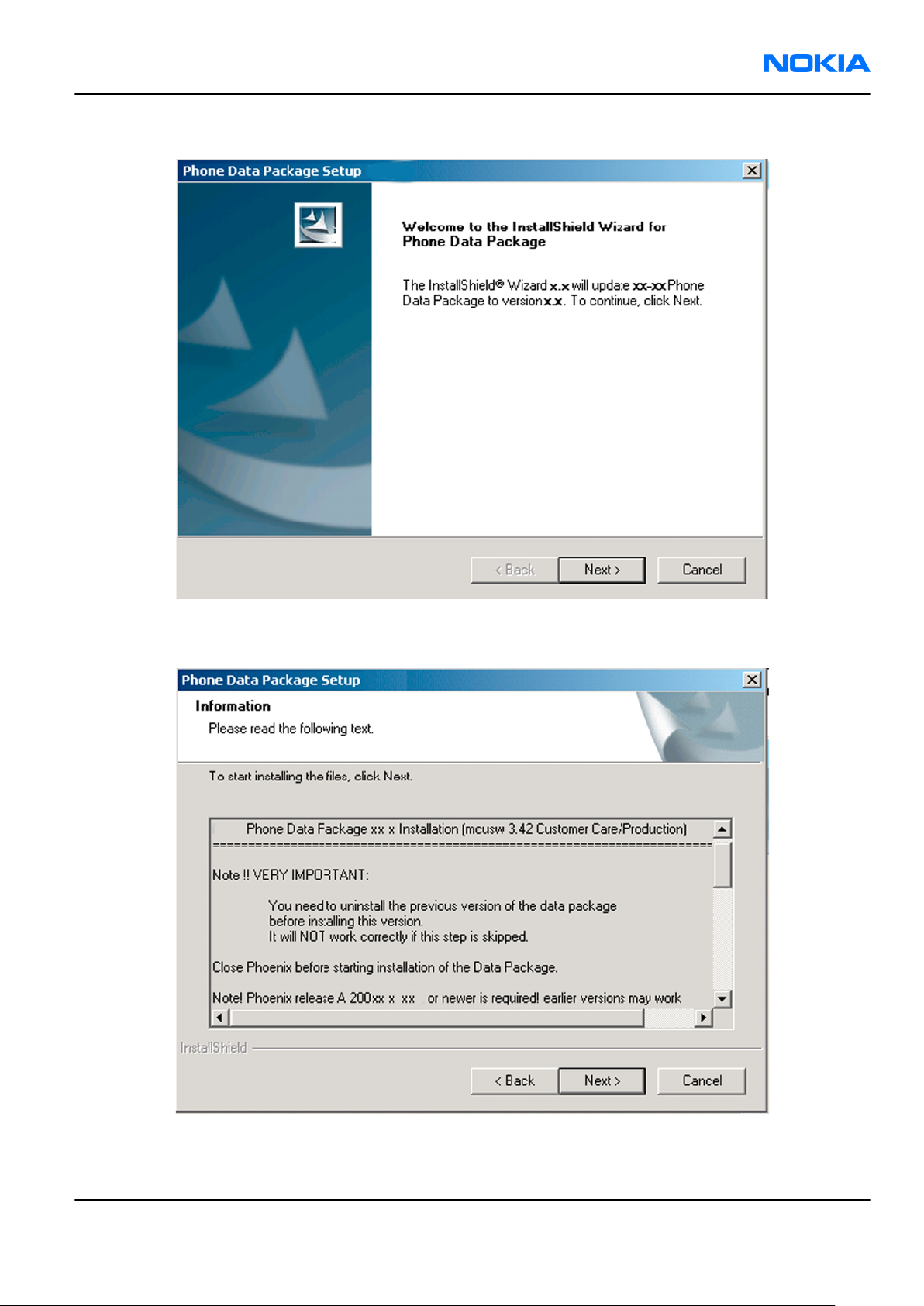

Figure 19 Data package setup information

4. To continue, click Next.

Issue 1 COMPANY CONFIDENTIAL Page 3 –13

RM-91; RM-92

Nokia Customer Care Service Software Instructions

5. Choose the destination folder, and click Next to continue.

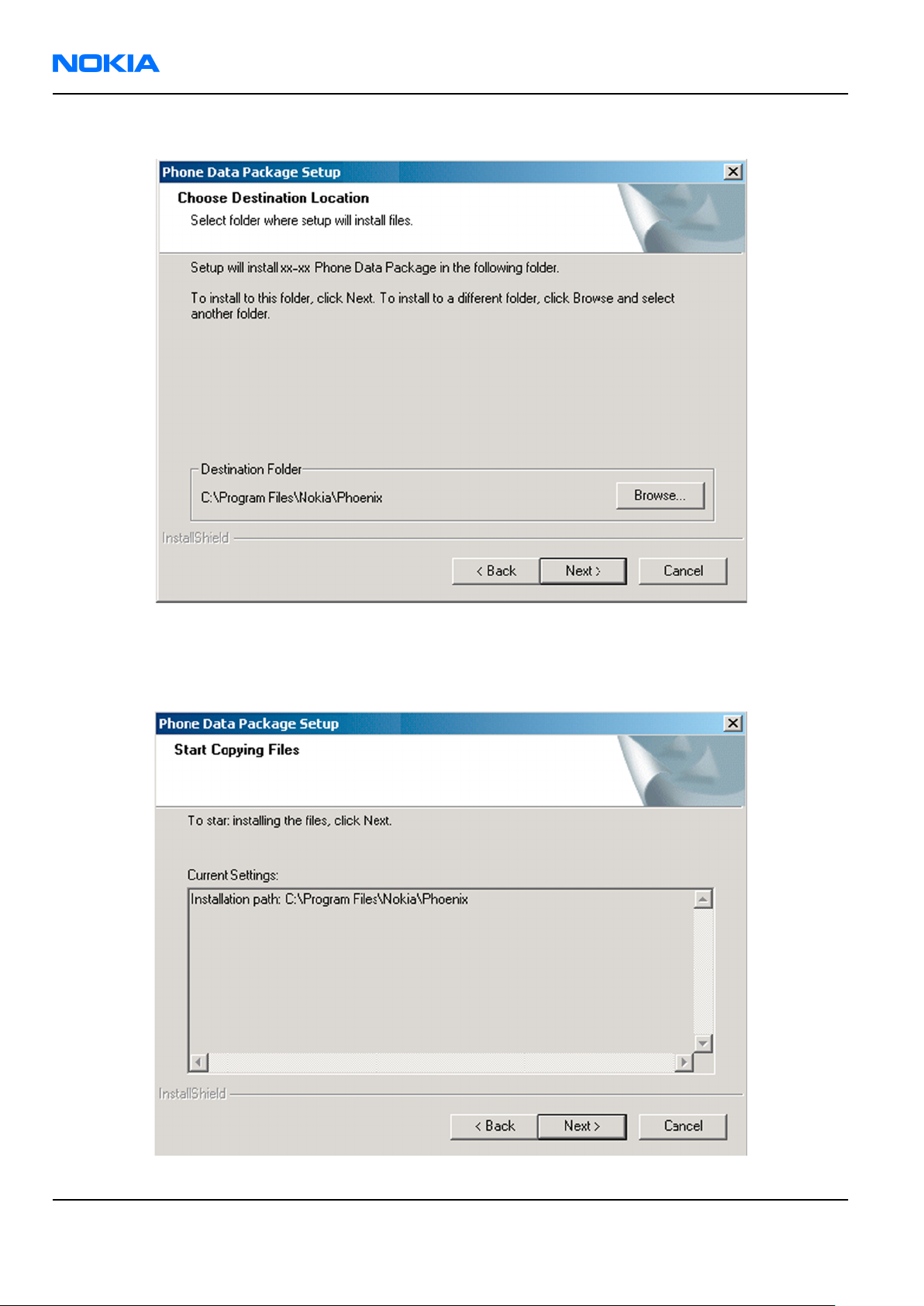

Figure 20 Data package destination folder

The InstallShield Wizard checks where

6. To start copying the files, click Next.

Phoenix

is installed, and the directory is shown.

Page 3 –14 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

Phone model specific files are installed. Please wait.

7. To complete the installation, click Finish.

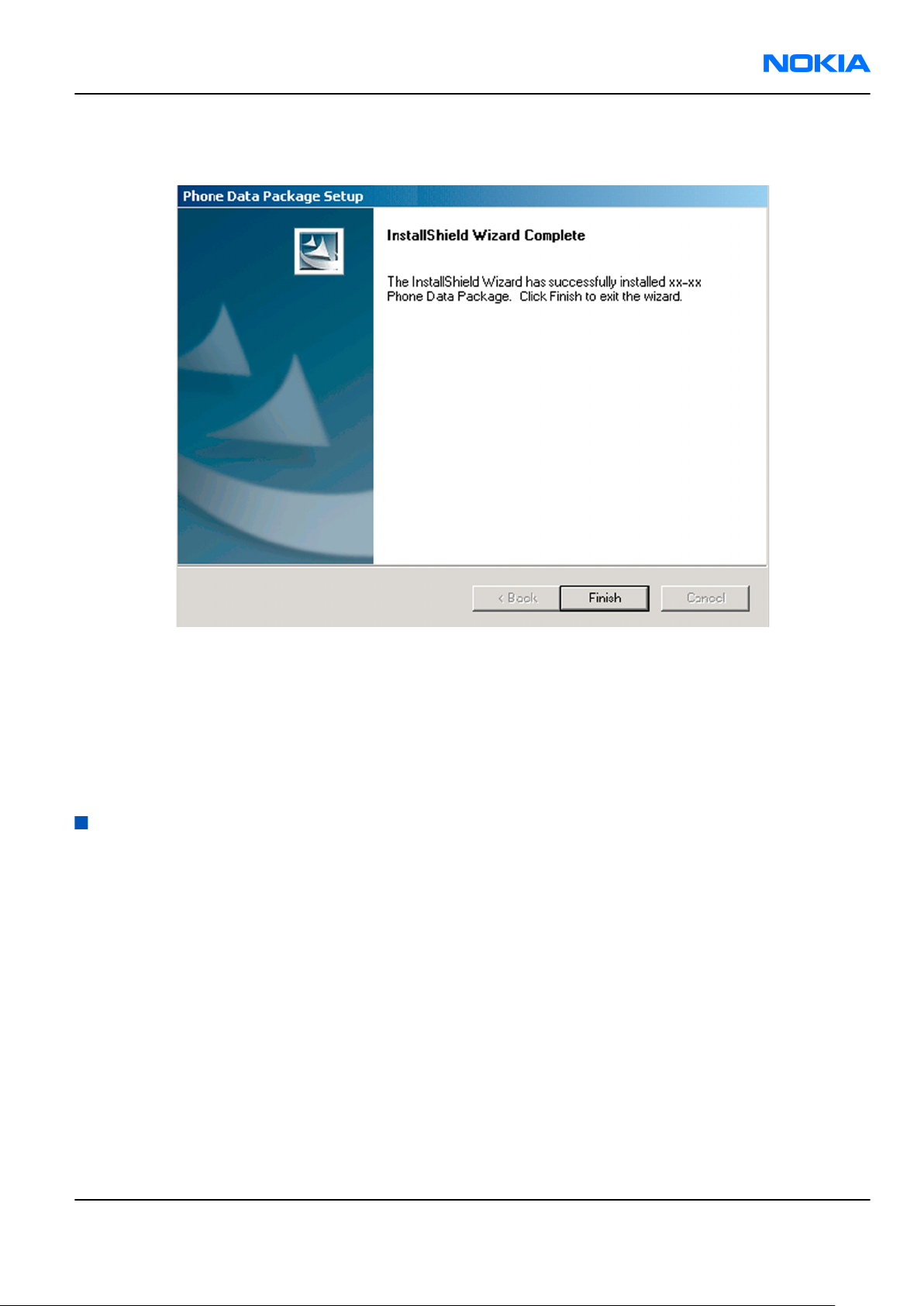

Figure 21 InstallShield Wizard Complete

Next action

Phoenix

• Configuring users

• Managing connections

FPS-10 can be used after updating their flash update package files.

can be used for flashing phones and printing type labels after:

Uninstalling phone data package

Context

There is no need to uninstall an older version of a data package, unless instructions to do so are given in the

readme.txt

Please read all related documents carefully.

file of the data package and bulletins related to the release.

Steps

1. Locate the data package installation file (e.g.

2. To start the uninstallation procedure, double-click the data package installation file.

XX-XX_dp_EA_v_1_0.exe

) from your computer.

Issue 1 COMPANY CONFIDENTIAL Page 3 –15

RM-91; RM-92

Nokia Customer Care Service Software Instructions

3. To uninstall the data package, click OK or to interrupt the uninstallation, click Cancel.

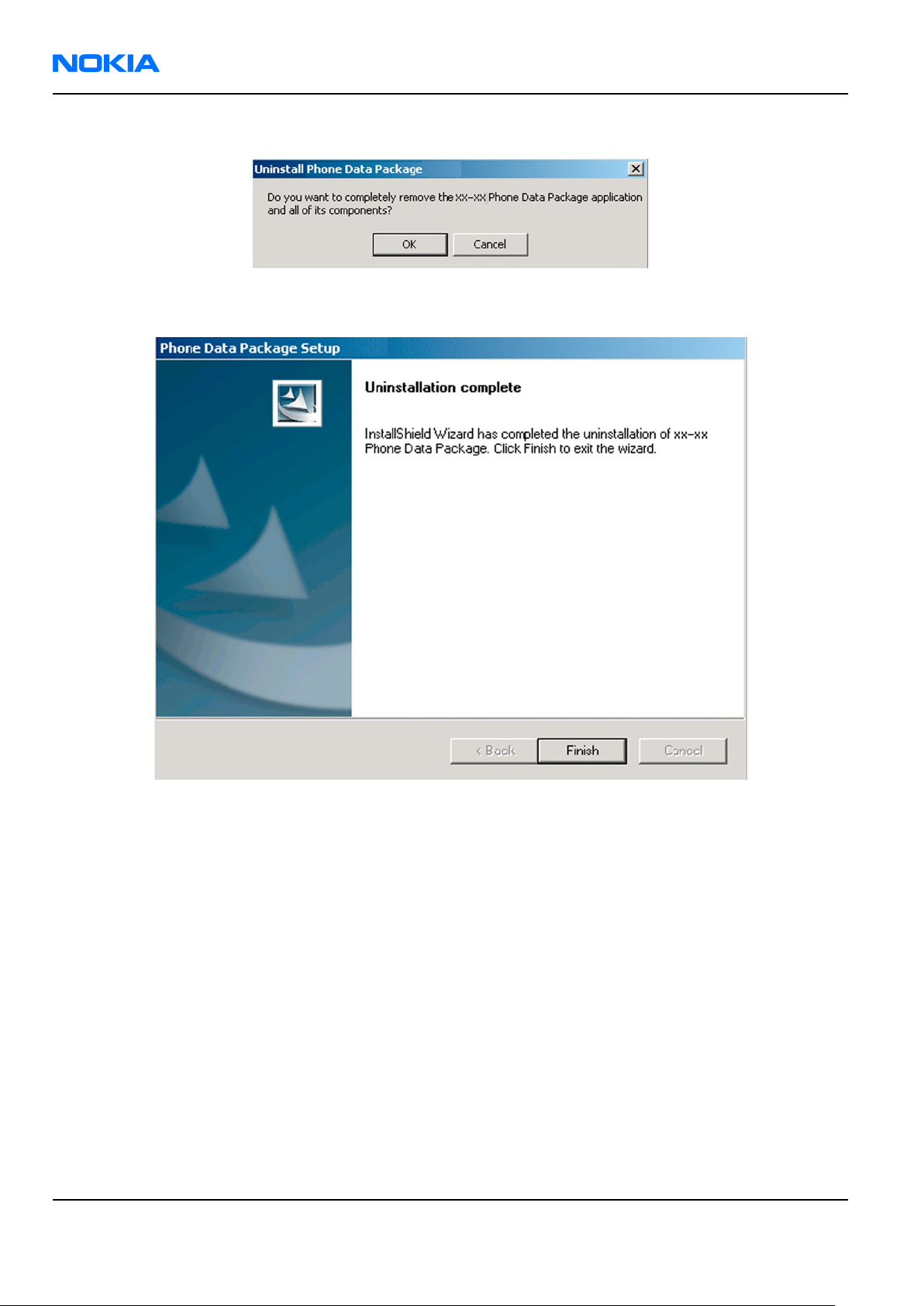

Figure 22 Uninstalling phone data package

4. When the data package is uninstalled, click Finish.

Figure 23 Finishing data package uninstallation

Alternative steps

• You can also uninstall the data package manually from

Control Panel→Add/Remove Programs→xx-xx* Phone Data Package . (*= type designator of the phone).

Page 3 –16 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

Configuring users in

Phoenix

Steps

1. Start

2. To add a new user, or to edit existing ones, click Maintain.

3. To add a new user, click New.

4. Type in the name and initials of the user, and click OK.

5. Select the desired user from the

Phoenix

If the user ID is already configured, select s/he from the

The user is added to the user name list.

service software, and log in.

Figure 24 Phoenix login

User name

drop-down list, and click OK.

User name

drop-down list, and click OK.

Figure 25 New user configured

Managing connections in

Phoenix

Context

With the Manage Connections feature you can edit and delete existing connections or create new ones.

Note: After choosing the desired connection, and connecting the phone to a PC for the first time,

allow the PC to install the USB device drivers first. Please note that this may take some time to complete.

If there are problems after the driver installation, check that the USB connection is active from the Windows Control Panel. If the problem persists, contact the local PC support.

Steps

1. Start

2. Choose File→Manage Connections... .

Issue 1 COMPANY CONFIDENTIAL Page 3 –17

Phoenix

, and log in.

RM-91; RM-92

Nokia Customer Care Service Software Instructions

3. To add a new connection, click Add.

4. Select Manual mode, and click Next to continue.

If you want to create the connection using the Connection Wizard, connect the tools and a phone to your PC. The wizard will automatically try to configure the correct connection.

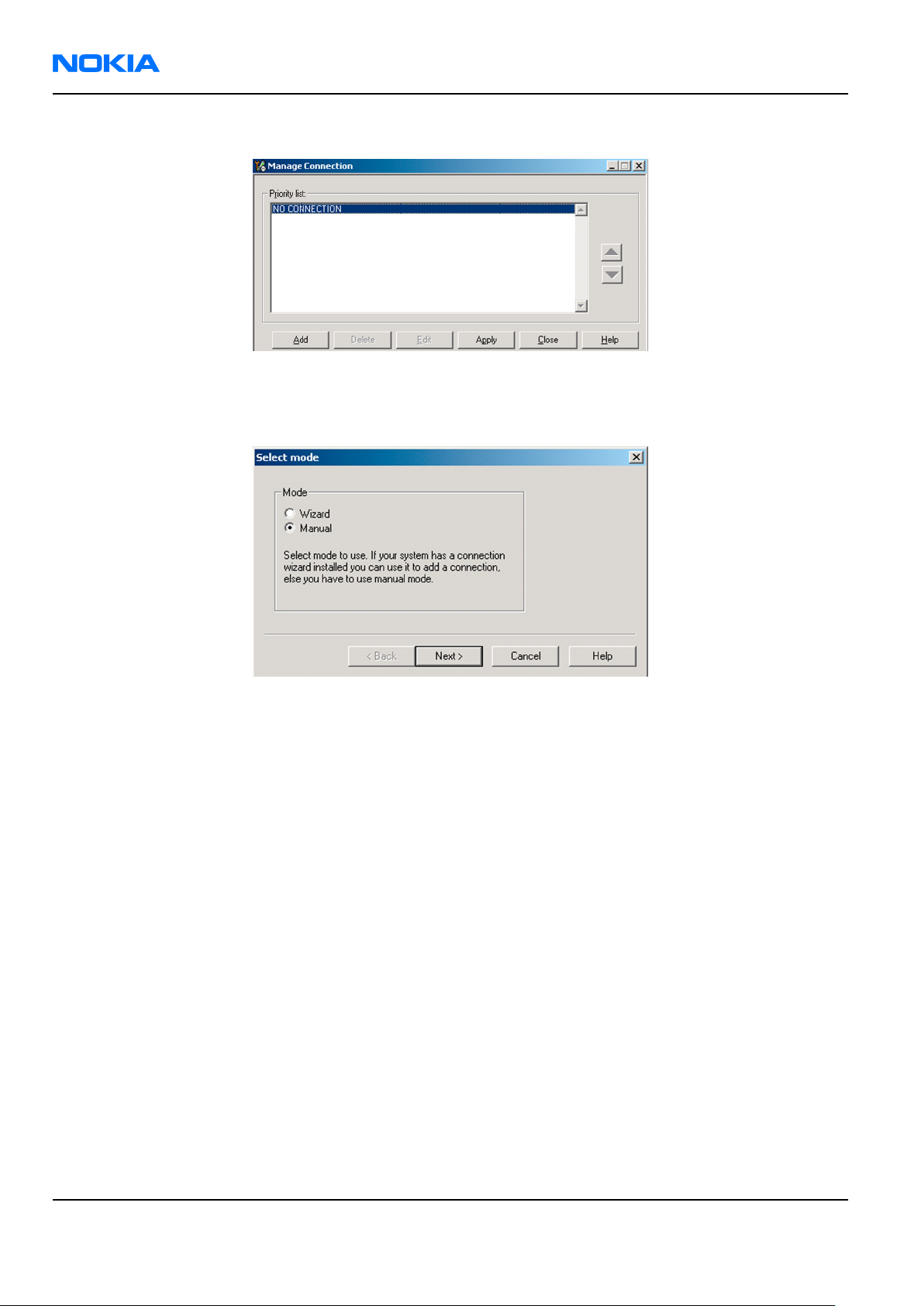

Figure 26 Select mode: Manual

i For an FPS-10 flash prommer with a USB Connection, choose the following connection settings:

• Media: FPS-10 USB

• DEVICE_INDEX: 0

• SERIAL_NUM: See Serial No from the label attached to the bottom of FPS-10

• ACTIVE_MEDIA: USB

ii For an FPS-10 flash prommer with a LAN connection, choose the following connection settings:

• Media: FPS-10 TCP/IP

• NET_SERV_NAME: Click Scan.... Choose your own FPS-10 device based on the correct MAC address.

See Serial No from the label attached to the bottom of your FPS-10.

• PORT_NUM: Use the default value, and click Next.

• PROTOCOL_FAMILY: Use the default value, and click Next.

• SOCKET TYPE: Use the default value, and click Next.

• TX_BUFFER_SIZE: Use the default value, and click Next.

• RX_BUFFER_SIZE: Use the default value, and click Next.

iii For an FPS-8 flash prommer, choose the following connection settings:

• Media: FPS-8

• PORT_NUM: COM Port where FPS-8 is connected

• COMBOX_DEF_MEDIA: FBUS

Page 3 –18 COMPANY CONFIDENTIAL Issue 1

RM-91; RM-92 Service Software Instructions Nokia Customer Care

iv For a plain USB connection, choose the following connection settings:

Note: First connect the DKU-2 USB cable between the PC USB port and phone.

• Media: USB

5. To complete the configuration, click Finish.

6. Click the connection you want to activate. Use the up/down arrows located on the right hand side to move it on top of the list, then click Apply.

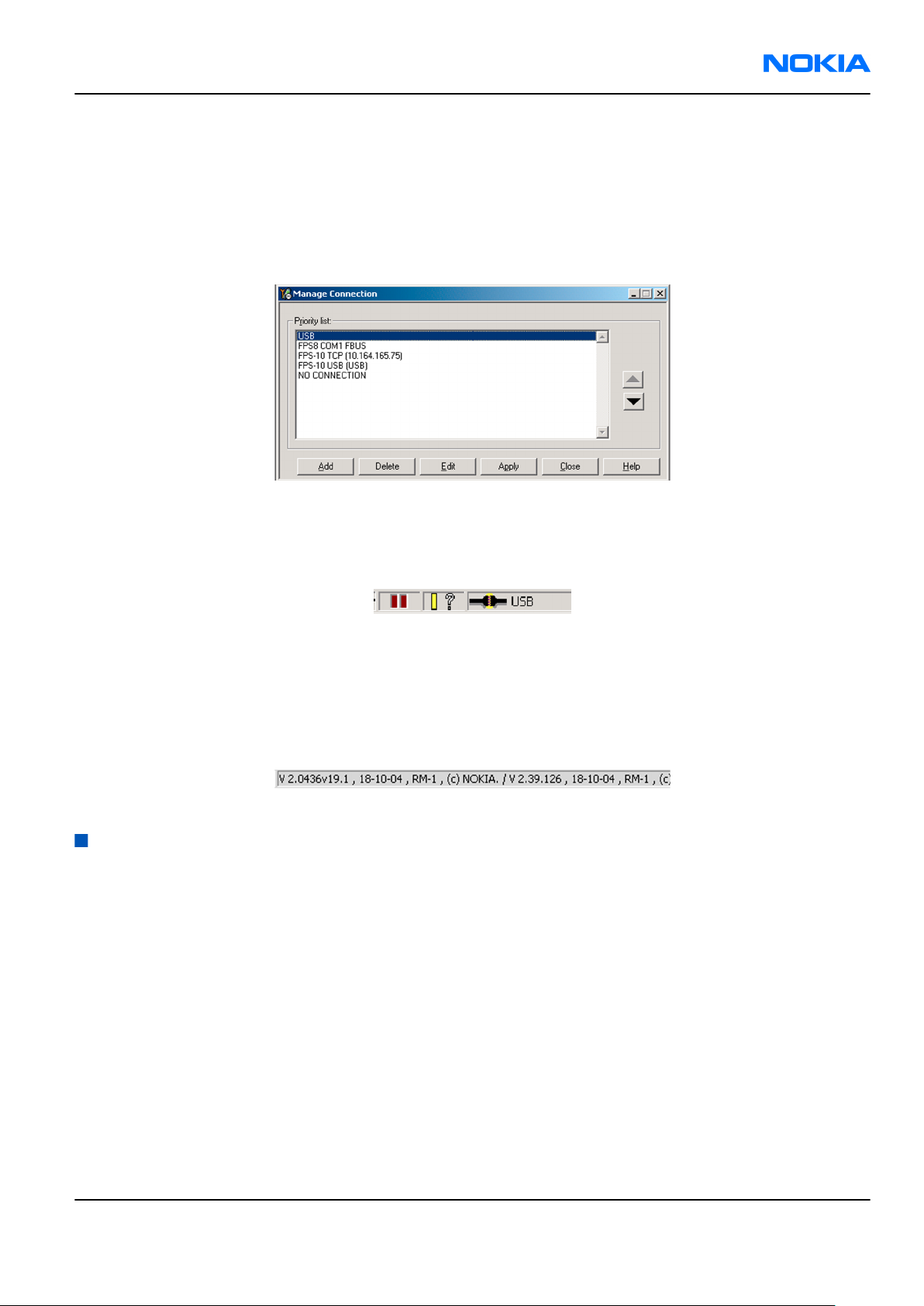

Figure 27 Connections list

The connection is activated, and it can be used after closing the The connection information is shown at the right hand bottom corner of the screen.

Figure 28 Connection information

7. To use the connection, connect the phone to your PC with correct service tools. Make sure the phone is switched on, and then choose File→Scan Product .

Manage Connection

window.

Results

The product support module information appears in the status bar:

Figure 29 Product support module information (example from RM-1)

Installing flash support files for FPS-10

Before you begin

Note: You need to install flash support files for FPS-10 only, if you don’t have the latest Phoenix

available or the flash support files have changed after the latest Phoenix release.

• Flash support files are installed automatically, when you install Phoenix. Use Phoenix packages later than

June 2005.

• Normally it is enough to install Phoenix and the phone-specific data package because the Phoenix

installation always includes the latest flash update package files for FPS-10.

• A separate installation package for flash support files is available, and the files can be updated according

to this instruction, if updates appear between new Phoenix / data package releases

Context

If you are not using a separate installation package, you can skip this section and continue with ”Updating

FPS-10 flash prommer software“ (page 3–22) after installing a new phone data package.

Issue 1 COMPANY CONFIDENTIAL Page 3 –19

RM-91; RM-92

Nokia Customer Care Service Software Instructions

Steps

1. To begin installation, double- click

flash_update_x_yy.exe

.

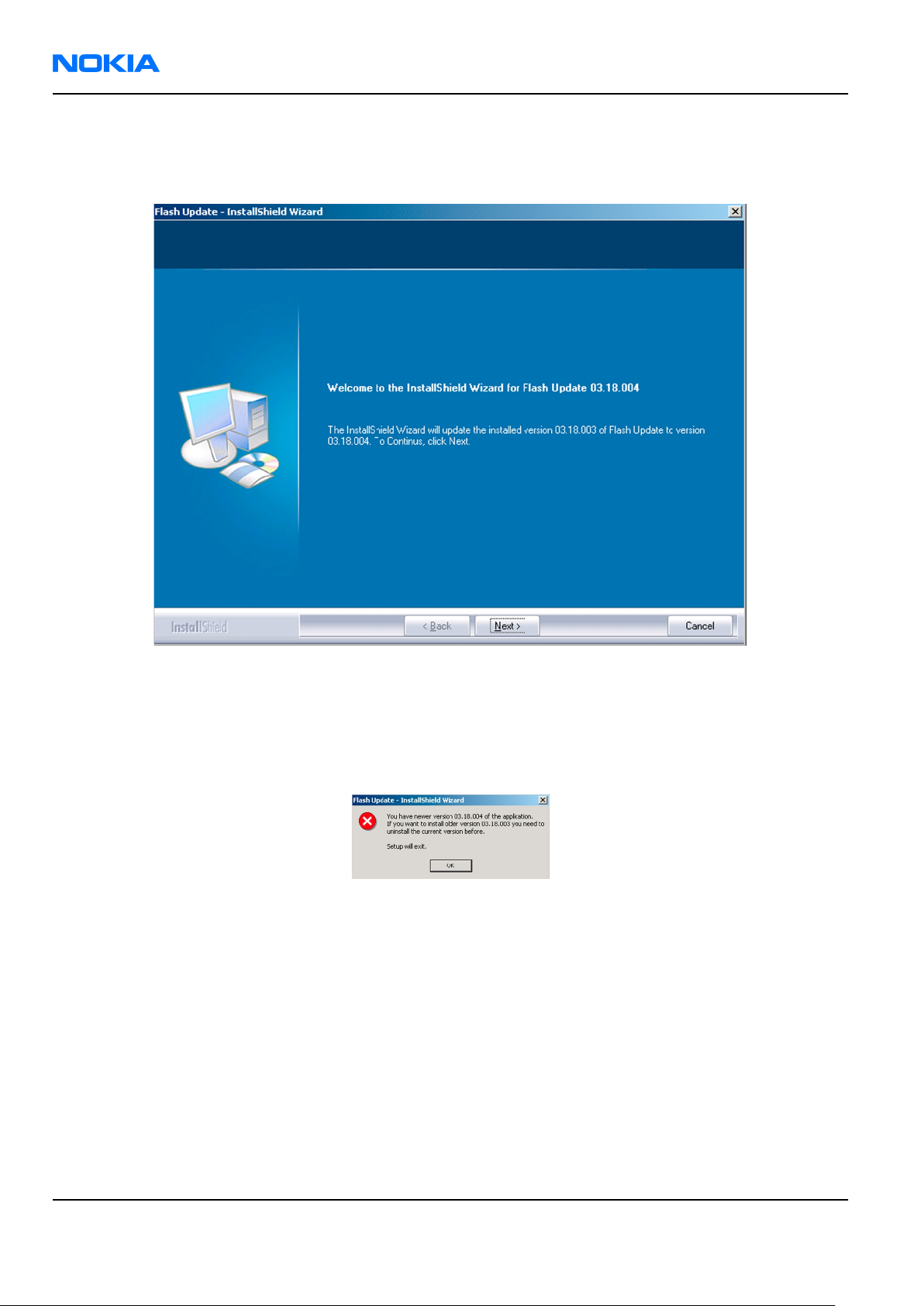

Figure 30 Flash update welcome dialog

If the same version of Flash Update package already exists, and you want to reinstall it, the previous package is first uninstalled. Restart installation again after that.

2. If you try to downgrade the existing version to older ones, the setup will be aborted. If you really want

to downgrade, uninstall newer files manually from Control Panel and then rerun the installation again.

Figure 31 Flash installation interrupted

If an older version exists on your PC and it needs to be updated, click Next to continue installation.

Page 3 –20 COMPANY CONFIDENTIAL Issue 1

Nokia N80 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Amendment Record Sheet

Copyright

Warnings and cautions

ESD protection

Care and maintenance

Company Policy

Battery information

Nokia N80 Service Manual Structure

RM-91/92 product selection

RM-91/92 product features and sales package

Product and module list

Mobile enhancements

Technical specifications

Transceiver general specifications

Main RF characteristics for GSM850/900/1800/1900 and WCDMA1900/2100 phones

Battery endurance

Exploded view

Spare parts overview

Mechanical spare parts list

RM-91 component parts lists and layouts

Component parts list 1ME_09a

Component layouts 1ME_09a

Component parts list 1ME_09b

Component layouts 1ME_09b

RM-92 component parts lists and layouts

Component parts list 1NN_07a

Component layouts 1NN_07a

Component parts list 1NN_07b

Component layouts 1NN_07b

Phone data package overview

Installing phone data package

Uninstalling phone data package

Installing flash support files for FPS-10
