Nokia MMDS-CPE6 User Manual

Installing and using the Expedience Outdoor Subscriber Unit (OSU)

Broadband Wireless Access System

This document is intended for use by professional equipment installers. Subscribers of the high speed Internet service should not attempt to install the OSU.

Part Number:104-0009-0001-03

Expedience and LinkMonitor are trademarks of NextNet Wireless, Inc.

Other brand and product names may be registered trademarks or trademarks of their respective holders.

Part number: 104-0009-0001-03

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCT.

FOR WARRANTY INFORMATION ON THE EXPEDIENCE OSU, CONTACT THE INTERNET SERVICE PROVIDER THAT SUPPLIED THE OSU.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE THAT ARE PROVIDED ON THE EXPEDIENCE BROADBAND WIRELESS ACCESS MODEM CD-ROM ARE PROVIDED “AS IS” WITH ALL FAULTS. NEXTNET WIRELESS DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL NEXTNET WIRELESS OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OF DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS GUIDE, EVEN IF NEXTNET WIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CONTENTS
Welcome ..............................................................................................	1
Before you begin ..................................................................................	1
Additional material required for installation .....................................................	1
Pre-installation planning ......................................................................................	2
Connecting the OSU to a computer ...................................................	3
Installation overview .............................................................................................	3
Cabling overview ...................................................................................................	4
Installing the OSU ..............................................................................	5
Selecting an installation location for the OSU ..................................................	5
Installation overview .............................................................................................	5
Attach the mounting bracket to the outside of the building ..........................	6

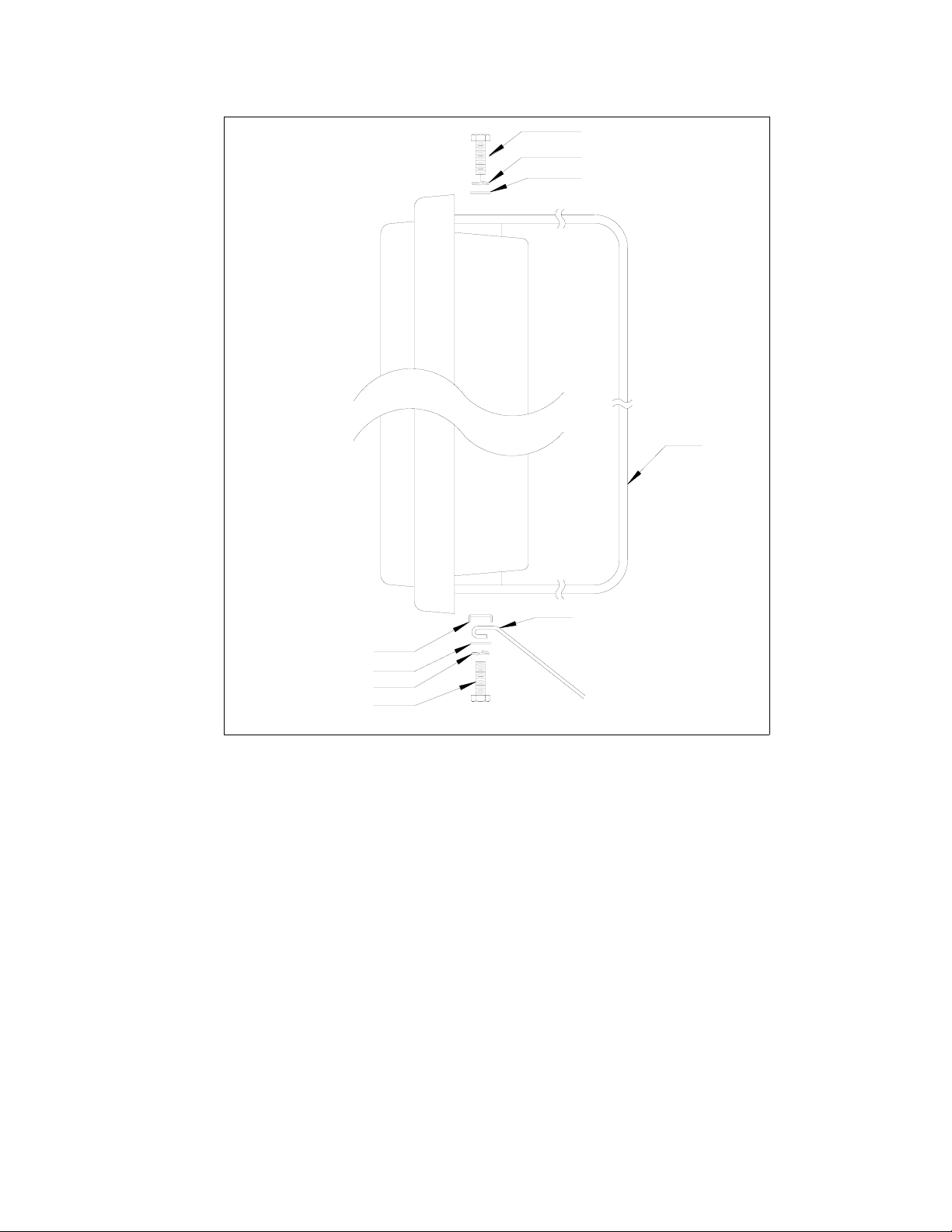

Setting the OSU inside the mounting bracket ..................................................	8
Partially tightening adjustment screws to hold OSU in place ........................	8
Running cables through building’s wall ...........................................	10
Attaching the NIM box to the outside of building ...........................	10
Plugging cables into NIM box ..........................................................	11
Connecting ground wires ..................................................................	12
Plugging in power cord and RJ-45 cord ............................................	13
(Optional) Finding the strongest service provider signal .................	13
Installing the LinkMonitor program ................................................................	13
Using the software-assisted method to find the strongest signal ................	14
Using the sound (auditory) method to find the strongest signal .................	15
Setting up the computer to receive an IP address ............................	15
Configuring IP address assignment for routers ................................	17
Connecting to the Internet ................................................................	17
Refreshing the OSU’s connection .....................................................	17
Windows users: Refreshing the connection ....................................................	17
Non-Windows users: Refreshing the connection ..........................................	17
Connecting the OSU to a network ....................................................	17
FCC information ................................................................................	19

i i i

iv I n s t a l l i n g a n d u s i n g t h e E x p e d i e n c e O S U

Welcome

This document describes how to install and use the Expedience outdoor subscriber unit (OSU) to obtain wireless high-speed Internet access. Subscribers can connect the OSU to a computer or to a small office/home office (SOHO) local area network (LAN) through a hub, switch, or router.

This document is intended for use by professional equipment installers. Subscribers of the high-speed Internet service should not attempt to install the OSU. For questions about OSU operation or installation, subscribers should contact the ISP that supplied the OSU device.

Before you begin

This section describes items the installer or subscriber must purchase before the OSU is installed. This section also describes items you need to have available and things to consider before beginning the OSU installation.

Additional material required for installation

•The subscriber’s computer must be equipped with an Ethernet network interface card (NIC). The NIC is not provided with the OSU, but subscribers can purchase a NIC at most computer and electronics stores.

•An RJ-45 Ethernet cable. This cable must be an outdoor rated, TIA/EIA category 5 Ethernet cable. The length of this cable depends on where you plan to install the Network Interface Manager (NIM) box on the building and where the computer (or hub) is placed inside the building.

•Ground wire of sufficient length to run between the OSU and a ground rod. Also, you need to obtain ground wire to run between the NIM box and the ground rod.

•It is recommended that the ground wire be an 8 AWG, solid aluminum or copper wire.

•It is recommended that the ground rod used be 8 feet (2.5 m) copper. Note that most buildings have an existing ground rod outside, at the main power connection site. If desired, you can install a rod into the ground outside the building.

•OSU to NIM box communication cable. Four lengths of cable are available. Select the cable length appropriate to the OSU installation location. Table 1 lists the cable lengths you can order and use.

Table 1 OSU communication cables

Cable	Part number

25 feet (7.5 m)	597-6020-0025
50 feet (15 m)	597-6020-0050
75 feet (22.5 m)	597-6020-0075
100 feet (30 m)	597-6020-0100

•Anti-seize compound to be applied to the stainless steel screws that hold the OSU to the mounting bracket.

•If you mount the OSU or NIM box on a brick or masonry surface, lead screw anchors are required.

Pre-installation planning

•Find an appropriate location on the outside of the building to mount OSU.

•To provide Internet service, the OSU communicates with a base station on the service provider’s communications tower. The service provider must provide you with information about the nearest communications tower. For example, if the tower nearest to the building is north of the building, you will install the OSU on the north side of the building.

•Mount the OSU on a high location on the building, such as under the eaves.

•Find an appropriate location on the outside of the building to mount the NIM box.

•Locate the components shipped with the OSU device. Table 2 lists these components.

Table 2 OSU package components

Component	Part number	Quantity

OSU device (vertical)	900-0055-1000	1
—OR—
OSU device (horizontal)	900-0055-2000	1

Mounting bracket	350-0009-0010	1
1/4 X 2" lag bolt, hex HD, grade 2 Galv.	594-9907-1464	4

1/4-20X.875 bolt, hex HD, SS	594-9909-1428	2
Self-drilling hex head 10 X 1.5	594-2909-1048	2

1/4 split lock washer, SS	596-3003-1416	3
1/4 flat washer, SS	596-3004-1420	7
Double tab washer	596-3099-1416	1

External OSU network interface box	123-0009-0055	1
Power supply (home to NIM)	420-0010-1010	1

Power cord	597-5120-0107	1
Wire tie	593-0005-0032	1
OSU Installation Guide	104-0009-0001	1

Installation software CD-ROM	110-0002-0001	1

2 I n s t a l l i n g a n d u s i n g t h e E x p e d i e n c e O S U

Figure 3 illustrates the OSU package contents. Components are not to scale.

Hex screw (2)

Lag bolt (4)

Power supply

Self-drilling hex screw (2)

Double tab washer (1)

Flat washer (7)

Split lock washer (3)

Power cable

Software CD-ROM

Mounting bracket

OSU Installation Guide

OSU

Network interface box

Figure 3 OSU package contents

Connecting the OSU to a computer

This section describes how to connect the OSU to a computer.

If the OSU is to be connected to a network device (such as a router or switch), refer to the section “Connecting the OSU to a network” on page 17, in this guide.

Installation overview

The installation consists of the following major tasks, each of which is explained in greater detail in the sections that follow:

1Attach the OSU to the outside of the building.

2Run the power cable and the RJ-45 Ethernet cable through a hole drilled through the building’s wall.

3Mount the NIM box to the outside of the building.

4Connect the cables into the NIM box.

5Connect the ground wires.

6Connect the power cord to standard household power. Connect the RJ-45 Ethernet cable.

7Adjust the OSU to obtain the strongest service provider signal.

8Ensure that the computer is set up to automatically obtain an IP address.

9Connect to the Internet.

Cabling overview

Figure 4 illustrates the routing of the ground wires, the RJ-45 Ethernet cable, the power cord, and the OSU communication cable.

Note: The ground wire, RJ-45 cable, anti-seize compound for the hex screws, and computer NIC are not supplied with the system.

	Building’s roof
OSU bracket mounted to
building's exterior
Subscriber’s computer
OSU communication cable
Power supply
Building’s wall
	NIM box
	mounted to
	building’s exterior
Ground wire
(not supplied)	to grounding rod
	to grounding rod
Ethernet cable (not supplied)	(not supplied)

Figure 4 Connecting cables overview

4 I n s t a l l i n g a n d u s i n g t h e E x p e d i e n c e O S U
