Installing and using the
Expedience RSU-2510
Directions for connecting your RSU to a computer or
LAN and obtaining high-speed Internet access.
i
Expedience and LinkMonitor are trademarks of NextNet Wireless, Inc.
Other brand and product names may be registered trademarks or trademarks of their respective holders.
Part number: 104-0015-0002
©2002 NextNet Wireless, Inc. All rights reserved.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR
APPLICATION OF ANY PRODUCT.
FOR WARRANTY INFORMATION ON THE EXPEDIENCE RSU-2510, CONTACT THE INTERNET SERVICE PROVIDER THAT
SUPPLIED THE RSU.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE THAT ARE PROVIDED ON
THE EXPEDIENCE BROADBAND WIRELESS ACCESS MODEM CD-ROM ARE PROVIDED “AS IS” WITH ALL FAULTS. NEXTNET
WIRELESS DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL NEXTNET WIRELESS OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OF DAMAGE TO DATA ARISING OUT
OF THE USE OR INABILITY TO USE THIS GUIDE, EVEN IF NEXTNET WIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
ii
Contents
Welcome................................................................................ 1
Before you begin .................................................................. 1
Connecting your RSU to a computer ...................................... 3
Installation overview ............................................................ 3
Setting up the computer to dynamically receive an IP address .... 3
Windows 95, Windows NT, Windows 98, Windows ME: Setting up
the network connection ......................................................... 3
Windows 2000: Setting up the network connection ................... 3
Windows XP: Setting up the network connection ....................... 4
Plugging in the RSU .............................................................. 4
Finding the strongest service provider signal ............................ 7

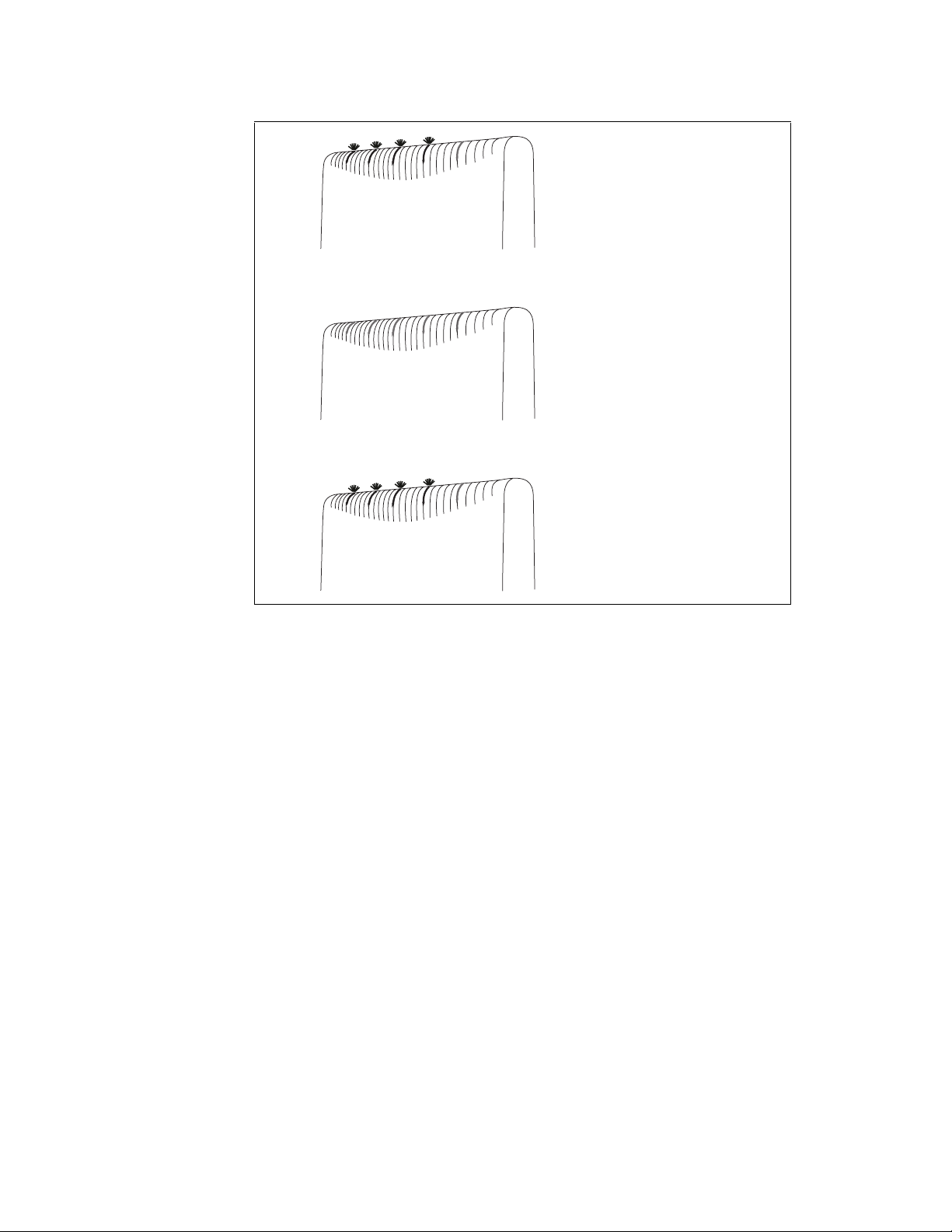

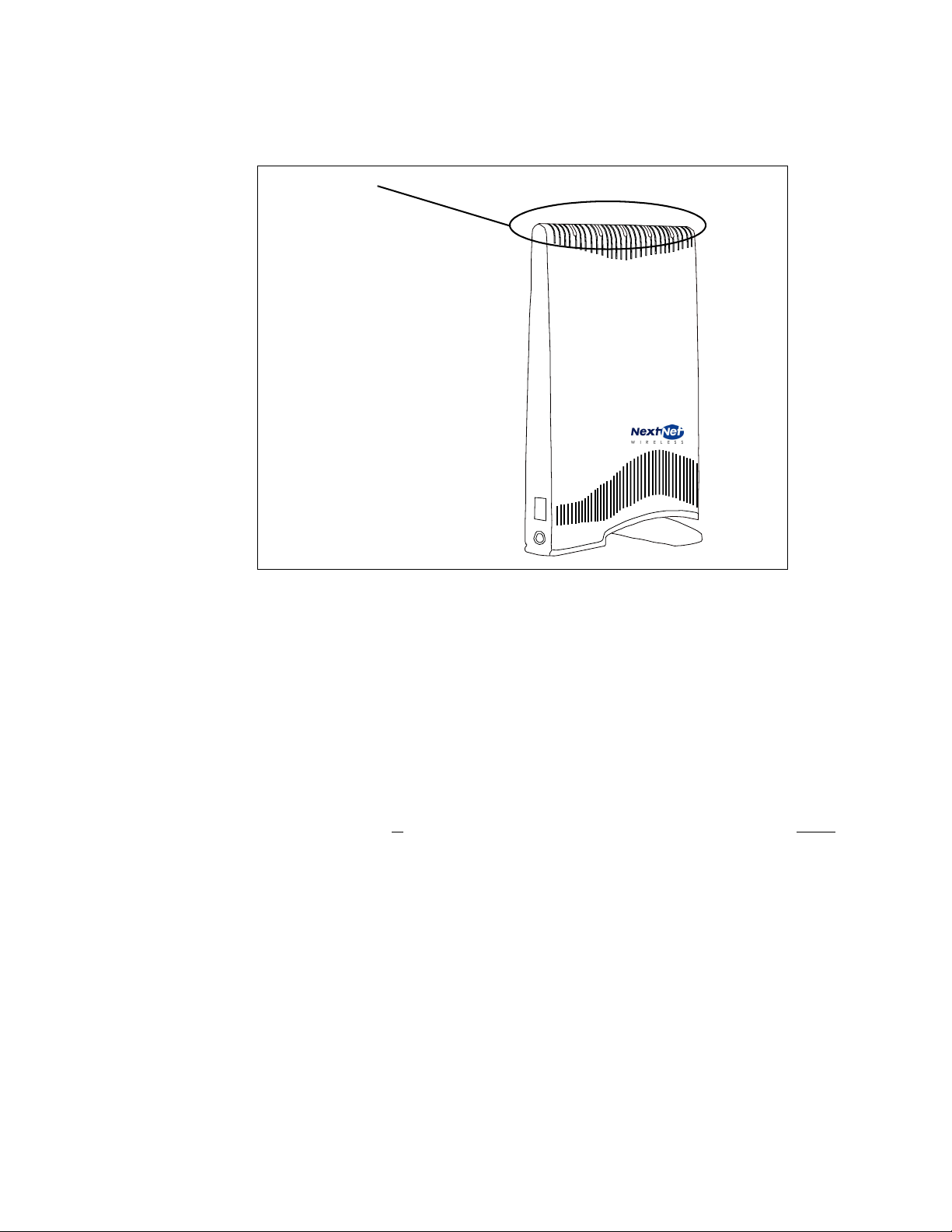

Using the indicator lights to find the strongest service provider
signal ................................................................................. 8
Using the software-assisted method to find the strongest signal 10
Fine-tuning the connection to the service provider ...................12
Connecting to the Internet ...................................................12
Renewing the host computer’s IP address........................... 13
Windows users: Renewing the IP address ...............................13
Non-Windows users: Renewing the IP address ........................13
Connecting the RSU to a network ........................................ 13
Troubleshooting .................................................................. 13
The RSU can successfully receive a signal at home, but not
at work or at a friend’s house ...............................................13
The RSU cannot receive your service provider’s signal ..............14

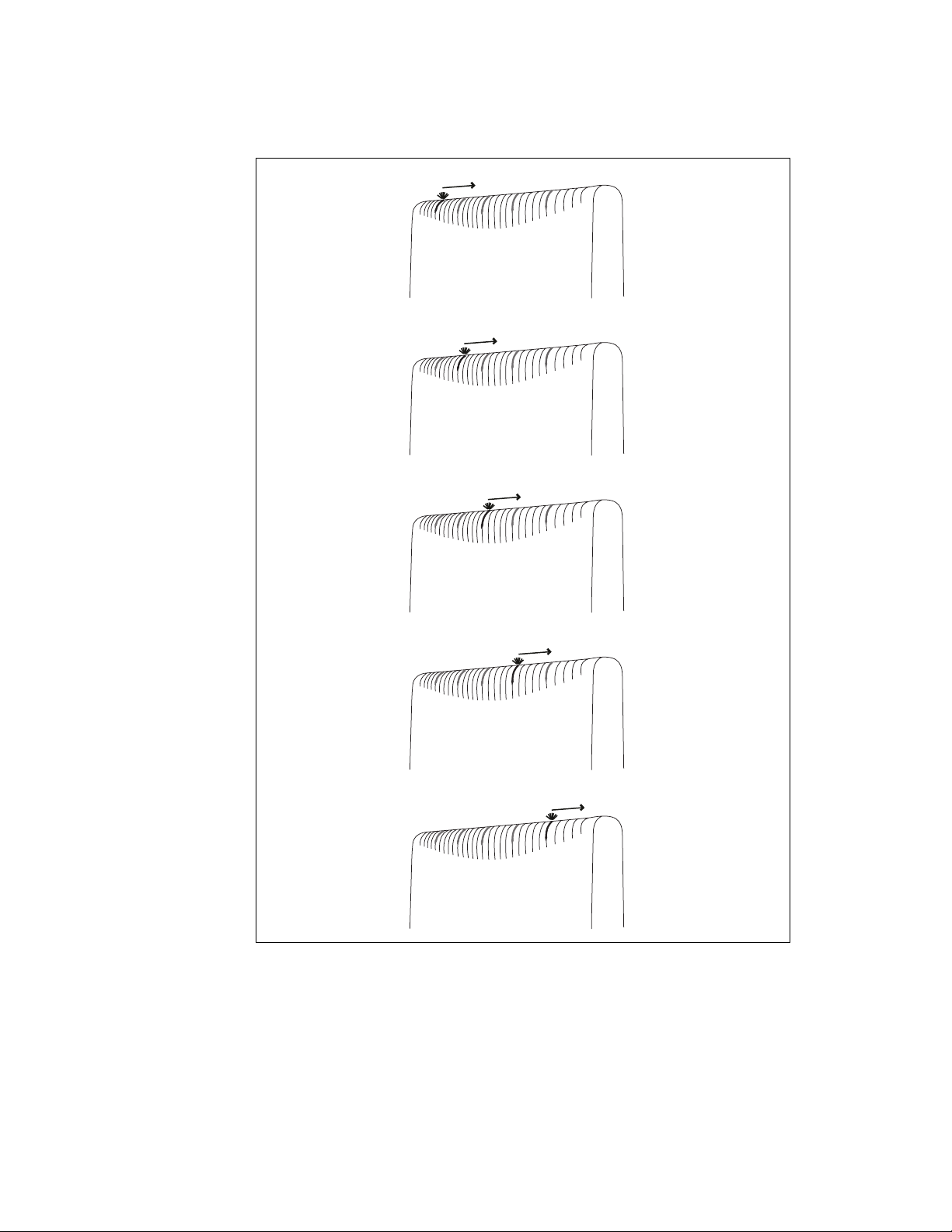

The RSU’s lights blink in sequence .........................................14
You successfully completed the signal scan, but your Internet
browser cannot connect to a web site ....................................16
The lights on the RSU blink more slowly than normal ...............16
You receive a dialog box indicating that you cannot connect
to your service provider .......................................................16
LinkMonitor application cannot communicate with RSU when
VPN is used ........................................................................17
RSU malfunctions after you write on the RSU or attach stickers
to the RSU .........................................................................17
FCC information ................................................................... 19
iii
iv
Welcome
This document describes how to install and use your Expedience residential subscriber unit
(RSU-2510) to obtain wireless high-speed Internet access. You can connect your RSU to a
computer or to a small office/home office (SOHO) local area network (LAN) through a hub,
switch, or router.
BEFORE YOU BEGIN
• Make sure your computer is equipped with an Ethernet network interface card (NIC).
• The Ethernet cable that is supplied with your RSU plugs into any standard Ethernet NIC.
• Find an appropriate location for your RSU.
• Make sure you are operating the RSU in a room near an outside window on the first or
• You need to locate the RSU close to a wall outlet. The RSU uses a standard power supply
• Your RSU comes with a category-5 Ethernet cable. If you choose to place the RSU a
• Locate the components shipped with your RSU device:
The NIC is not provided with the RSU, but you can purchase a NIC at most computer
and electronics stores.
second floor of your home or office.
and can sit on a desktop or shelf.
good distance from your computer, you may need to purchase a longer Ethernet cable.
If you purchase a cable, make sure the cable is a category-5 Ethernet cable with RJ-45
connectors on each end.
•RSU device
•Software CD-ROM
• RSU Quick Start Guide
• Power cable and power supply box
• Ethernet cable
1
Figure 1 illustrates the RSU package contents.
Ethernet cable
Power cable
Power supply
Software CD-ROM
RSU device
Quick Start
ibedobus posim udring
adet. Abed obus
posimudring a det.
Edokejfus erosi
mquesum an yape i cesi.
Loremjes ge ibe pos det
Abedji bedji ver o hich.
Lifwanj de manit clos o
manit closni.
Figure 1: RSU package contents
Table 1 lists the standard contents in your RSU package.
Table 1: RSU package components
Component Part number
RSU package (vertical polarization) 900-0015-1001
RSU device (vertical polarization) 127-0015-1001
Power supply cord 420-0015-1000
Power cord 597-5120-0107
Quick Start Guide 102-0015-0003
Installation software CD-ROM 110-0002-0001
Ethernet cable 597-6010-0001
Quick Start Guide
2
Connecting your RSU to a computer
This section describes how to connect your RSU to a computer.
If you want to connect your RSU to a network device (such as a router or switch), refer to the
section “Connecting the RSU to a network” on page 13, in this guide.
INSTALLATION OVERVIEW
The installation consists of the following major tasks, each of which is explained in greater detail
in the sections that follow:
1 After ensuring your Ethernet NIC is installed properly, make sure your computer is set up to
automatically obtain an IP address.
2 Plug in the RSU.
3 Find the strongest signal from your service provider.
4 If necessary, fine-tune the connection to your service provider.
5 Connect to the Internet.
1
SETTING UP THE COMPUTER TO DYNAMICALLY RECEIVE AN IP ADDRESS
Most RSU users need to set up their computer’s operating system so that the computer can
receive an IP address automatically from their service provider.
This section describes how to set up Windows 95, Windows NT, Windows 98, Windows ME,
Windows 2000, and Windows XP. If you are operating a non-Windows operating system, check
the system’s help file. Most help files explain how to set up a system to dynamically receive an IP
address.
If you need to use a static IP address, refer to instructions from your service provider.
WINDOWS 95, WINDOWS NT, WINDOWS 98, WINDOWS ME: SETTING
UP THE NETWORK CONNECTION
1From the Start menu, select Settings. Then select Control Panel.
2 In the window that appears, double click the Network icon.
3 Select the TCP/IP entry for the NIC.
4 Click Properties.
5 Select the IP Address tab.
6 Activate the Obtain an IP Address automatically radio button.
7 To close the windows, click OK.
8 Turn off your computer.
WINDOWS 2000: SETTING UP THE NETWORK CONNECTION
1From the Start menu, select Settings. Then select Network and Dial-up Connections.
2 Right click the connection you want to alter; that is, the name of your NIC. From the pop-
up menu, select Properties.
3 The Local Area Connection Properties window appears. Select the Internet Protocol
(TCP/IP) item. Click Properties.
4 In the window that appears, activate the Obtain an IP address automatically radio button.
To close the window, click OK. On the remaining open window, click OK again.
5 Turn off your computer.
3
WINDOWS XP: SETTING UP THE NETWORK CONNECTION
1. From the Start menu, select Settings. Then select Network Connections.
2. Right click the connection you want to alter; that is, the name of your NIC. From the popup menu, select Properties.
3. The Local Area Connection Properties window appears. Select the Internet Protocol
(TCP/IP) item. Click Properties.
4. Activate the Obtain an IP Address automatically radio button.
5. Turn off your computer.
2
PLUGGING IN THE RSU
You can connect the RSU directly to a computer, or you can connect it to a small office/home
office (SOHO) network.
• If you are directly connecting the RSU to your computer, complete the steps in this section.
• If you are connecting the RSU to a network, refer to the section “Connecting the RSU to a
network” on page 13 in this guide.
To plug in the RSU:
1 On the side of the RSU, locate the Ethernet jack. Plug one end of the Ethernet cable into the
Ethernet jack (Figure 2).
2 Connect the RSU’s AC power cord to the power source, then plug the power cord into a wall
outlet. Plug the power source cord into the side of your RSU (Figure 2).
Figure 2: Ethernet Jack Location on Side of RSU
4
