Nokia LD-4W User Guide

Nokia Bluetooth GPS Module
LD-4W User Guide

Issue 1 EN

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this LD-4W product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.

© 2007 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of
Nokia Corporation. Other product and company names mentioned
herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the
right to make changes and improvements to any of the products
described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of
data or income or any special, incidental, consequential or indirect
damages howsoever caused.

2

The contents of this document are provided "as is". Except as
required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at
any time without prior notice.

The availability of particular products may vary by region. Please
check with the Nokia dealer nearest to you.

Unauthorized changes or modifications to this device may void the
user's authority to operate the equipment.

Export Controls
This device may contain commodities, technology or software
subject to export laws and regulations from the US and other
countries. Diversion contrary to law is prohibited.

Issue 1

English

3

Contents

Contents

1. Introduction .............................................................. 5

Water-resistance........................................................................................ 5

Bluetooth wireless technology............................................................... 6

About the GPS............................................................................................. 7

2. Get started................................................................. 9

Parts............................................................................................................ 10

Chargers..................................................................................................... 10

Charge the battery.................................................................................. 11

3. Basic use .................................................................. 13

Switch on .................................................................................................. 13

Switch off.................................................................................................. 14

Pair with another device....................................................................... 14

Support for WAAS/EGNOS.................................................................... 16

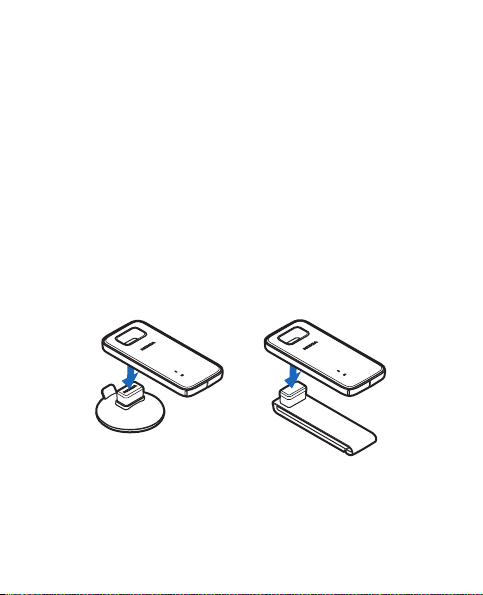

Suction cup and belt clip...................................................................... 16

Key ring...................................................................................................... 17

Clear settings or reset............................................................................ 17

4. Battery information ................................................ 18

Care and maintenance ................................................. 20

4

Introduction

1. Introduction

With the Nokia Bluetooth GPS Module you can determine
your current position and direction easily. The GPS module
uses Bluetooth wireless technology to communicate
positioning information to a compatible device, such as a
mobile phone or PC.

To use the GPS module, you need a compatible software
application on the device that you connect to it.

Read this user guide carefully before using the GPS module.
Also read the user guide for the device that you connect to
the module.

Keep all accessories and enhancements out of reach of
small children.

■ Water-resistance

You can use this device in the rain, but do not submerge it in
water.

English

5

Introduction

If the device has been exposed to sweat or salt water, wipe
it immediately with freshwater to avoid corrosion. The
device must be carefully wiped dry.

■ Bluetooth wireless technology

Bluetooth wireless technology allows you to connect
compatible devices without cables. The GPS module and a
compatible device do not need to be in line of sight, but
they should be within 10 meters (33 feet) of each other.
Connections may be subject to interference from
obstructions, such as walls, or other electronic devices.

The GPS module complies with the Bluetooth Specification

2.0 + EDR that supports the Serial Port Profile 1.1. Check
with the manufacturers of other devices to determine their
compatibility with this device.

There may be restrictions on using Bluetooth technology in
some locations. Check with your local authorities or service
provider.

6

Introduction

■ About the GPS

The GPS (Global Positioning System) is a worldwide
satellite-based radio navigation system.

The GPS module can calculate its location to an accuracy of
10 meters (33 feet). The accuracy depends on the number of
GPS satellites to which the GPS module is in a line of sight.
In optimal conditions, the accuracy may be within a few
meters.

If you stand still, GPS cannot detect which way you are
facing because it determines your direction as you move.

Almost all digital cartography is inaccurate and incomplete
to some extent. Never rely solely on the cartography
provided for use with this device.

The use of the GPS module requires the module and your
compatible device to be switched on. Do not switch on your
device where it may cause interference or danger.

The GPS is operated by the government of the United States,
which is solely responsible for its accuracy and
maintenance. The accuracy of location data can be affected
by adjustments to GPS satellites made by the United States

English

7
