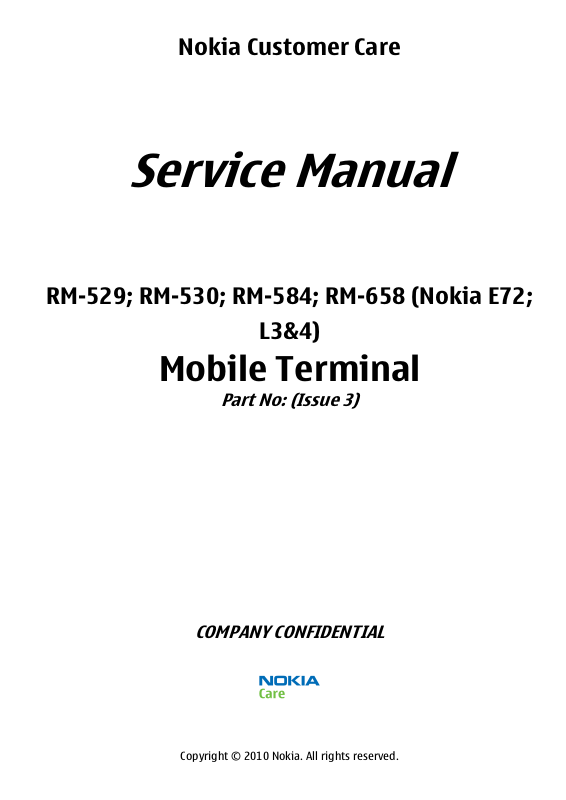

Nokia E72, E73, RM-529, RM-530, RM-584 Service Manual

...

Nokia Customer Care

Service Manual

RM-529; RM-530; RM-584; RM-658 (Nokia E72;

L3&4)

Mobile Terminal

Part No: (Issue 3)

COMPANY CONFIDENTIAL

RM-529; RM-530; RM-584; RM-658

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 09/2009 MT Issue 2 10/2009 MT The CA-58RS RF tuning cable has been replaced with

the CA-128RS RF tuning cable in the

and Service Concepts

Minor updates have been made to FS-114 and FLS-5 service tools, WLAN functionality testing concept with SB-7, and GPS testing concept with GPS RF coupler in the chapter.

Issue 3 06/2010 NS RM-658 delta chapter added.

Service Tools and Service Concepts

chapter.

Service Tools

Page ii COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 Copyright

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 3 COMPANY CONFIDENTIAL Page iii

RM-529; RM-530; RM-584; RM-658

Warnings and cautions

Warnings

•

IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

•

THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

•

OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

•

BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

•

Servicing and alignment must be undertaken by qualified personnel only.

•

Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

•

Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

•

Use only approved components as specified in the parts list.

•

Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

•

Ensure all cables and wires are repositioned correctly.

•

Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

•

During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 For your safety

For your safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

Issue 3 COMPANY CONFIDENTIAL Page v

RM-529; RM-530; RM-584; RM-658

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Page vi COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 Care and maintenance

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

•

Keep the phone and all its parts and accessories out of the reach of small children.

•

Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

•

Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

•

Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

•

Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

•

Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

•

Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

•

Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

•

Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Issue 3 COMPANY CONFIDENTIAL Page vii

RM-529; RM-530; RM-584; RM-658

Company policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

•

Title of the Document + Issue Number/Date of publication

•

Latest Amendment Number (if applicable)

•

Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Page viii COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 Battery information

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Li-Pol batteries, discharge the battery from time to time by leaving the product

switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Issue 3 COMPANY CONFIDENTIAL Page ix

RM-529; RM-530; RM-584; RM-658

Battery information

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 Nokia E72; L3&4 Service Manual Structure

Nokia E72; L3&4 Service Manual Structure

1 General Information 2 Service Tools and Service Concepts 3 BB Troubleshooting and Manual Tuning Guide 4 RF Troubleshooting 5 Camera Module Troubleshooting 6 System Module 7 Service information RM-658 delta chapter Glossary

Issue 3 COMPANY CONFIDENTIAL Page xi

RM-529; RM-530; RM-584; RM-658

Nokia E72; L3&4 Service Manual Structure

(This page left intentionally blank.)

Page xii COMPANY CONFIDENTIAL Issue 3

Nokia Customer Care

1 — General Information

Issue 3 COMPANY CONFIDENTIAL Page 1 – 1

RM-529; RM-530; RM-584; RM-658

General Information

(This page left intentionally blank.)

Page 1 – 2 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

Table of Contents

Product selection................................................................................................................................................... 1–5

Product features and sales package.................................................................................................................... 1–6

Product and module list ....................................................................................................................................... 1–7

Mobile enhancements........................................................................................................................................... 1–8

Technical specifications..................................................................................................................................... 1–10

Transceiver general specifications .............................................................................................................. 1–10

Main RF characteristics for GSM850/900/1800/1900 and WCDMA VIII/II/I phones ................................ 1–10

Main RF characteristics for GSM850/900/1800/1900 and WCDMA V/II/I phones .................................... 1–11

Battery endurance......................................................................................................................................... 1–13

Environmental conditions ............................................................................................................................ 1–13

List of Tables

Table 1 Audio......................................................................................................................................................... 1–8

Table 2 Car.............................................................................................................................................................. 1–8

Table 3 Data ........................................................................................................................................................... 1–8

Table 4 Messaging................................................................................................................................................. 1–9

Table 5 Music ......................................................................................................................................................... 1–9

Table 6 Navigation ................................................................................................................................................ 1–9

Table 7 Power........................................................................................................................................................ 1–9

Table 8 GSM......................................................................................................................................................... 1–13

List of Figures

Figure 1 View of RM-530....................................................................................................................................... 1–5

Issue 3 COMPANY CONFIDENTIAL Page 1 – 3

RM-529; RM-530; RM-584; RM-658

General Information

(This page left intentionally blank.)

Page 1 – 4 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

Product selection

RM-529, RM-530 and RM-584 are quadband phones. RM-529 supports WCDMA850/1900/2100 bands and WLAN. RM-530 supports WCDMA900/1900/2100 bands and WLAN. RM-584 supports WCDMA850/1900/2100 bands, but does not support WLAN. The devices have HSDPA and HSUPA.

For WCDMA the maximum bit rate is up to 384 kbit/s for downlink and 384 kbit/s for uplink with simultaneous CS speech or CS video (max. 64 kbit/s). The HSDPA peak is 10.2 Mbps and HSUPA peak is 2 Mbps (with limited use cases).

In PS/CS mode, the device supports DTM Class with multi slot class 11 (max. 4 RX + 3TX, sum 5). With EGPRS this means maximum download speed of up to 236.8 kbit/s simultaneously with speech. With GPRS this means maximum download speed of up to 64.2 kbit/s simultaneously with speech.

In PS only mode, the device supports MSC 32 (max. 5 Rx + 3 TX, sum 6) timeslots resulting in maximum download speed of up to 296 kbit/s with EGPRS, and up to 107kbit/s with GPRS

The device is an MMS (Multimedia Messaging Service) enabled multimedia terminal. The MMS implementation follows the OMA MMS standard release 1.2. The device also supports A-GPS, and Bluetooth 2.0 standard with stereo audio profiles (A2DP & AVRCP).

The device has a QVGA 2.4” display (320 x 240) capable of displaying 16 million colours and an integrated 5 Mpix autofocus camera with flash. The 2nd VGA camera is for video calls.

The device uses Symbian 9.3 operating system, S60 (release 3.2) UI, and supports the full Web Browser for S60 which brings desktop-like Web browsing experience to mobile devices.

The device also supports MIDP Java 2.0, providing a good platform for compelling 3rd party applications.

Figure 1 View of RM-530

Issue 3 COMPANY CONFIDENTIAL Page 1 – 5

Product features and sales package

Bearers and transport

•

CSD, HSCSD

•

GPRS/EGPRS Class B, Multi slot class 32

•

Dual Transfer Mode (DTM) class A, multi slot class 11

•

WCDMA DL 384 kbit/s, UL 384 kbit/s

•

HSDPA up to 10.2 Mbps

•

HSUPA 2 Mbps

Connectivity

•

Assisted GPS (A-GPS)

•

WLAN (not in RM-584)

•

Bluetooth 2.0 with stereo audio profiles (A2DP and AVRCP)

•

High Speed USB with micro USB connector

•

MicroSD memory card - support up to 16 GB

•

3.5 mm AV connector

RM-529; RM-530; RM-584; RM-658

General Information

Display

•

QVGA 2.4” display (320 x 240), 16M colours

•

Digital Ambient Light Sensor (ALS) – used to optimize display/key brightness and power consumption

•

Orientation sensor (accelerometer) assisted UI turn (portrate / landscape) and turn-to-mute

Imaging and video

•

5 Mpix autofocus camera

•

2nd VGA camera for video calls

•

Video streaming and sharing

•

Dedicated keys for image capture, recording and zooming

•

Image and video editors

Music

•

Music player with MP3/AAC/AAC+/eAAC+/WMA support

•

Noise cancellation (2- MIC noise cancellation for uplink)

•

Speech codec support for AMR-WB, AMR, FR, EFR

•

Mono IHF speaker

•

RDS FM Radio

Productivity

Context management

•

OMA DRM version 2.0

•

PIM (Calendar + Contacts + Active Notes)

•

OTA provisioning & over the air SW update (FOTA)

•

PC Suite for local data synchronization

Page 1 – 6 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

•

Ovi

•

Active Standby

•

Active Synch data synchronization

•

Web Browser (OSS), Java ™ MIDP 2.0, XHTML browsing over TCP/IP

Messaging

•

Email (SMTP, IMAP4, POP3)

•

SMS, MMS (OMA 1.3)

•

Audio Messaging (AMS)

Voice

•

Rich Calls: 2-way video conferencing (video call), video sharing

•

Voice commands, enhanced voice dialling (SIND)

•

Audio message reader for text messages and E-mail

•

VoIP calls

Add-on software framework

•

Symbian OS 9.3

•

Nokia Series 60, 3rd edition, feature pack 3.2

•

Java: MIDP2.0

Additional features

•

City compass to support easy pedestrian routing and guidance

•

Status LED light around navi-key to indicate events like missed call, SMS etc.

•

Vibrating alert

•

Speech codec support for AMR-WB, AMR, FR, EFR

Basic sales package

Basic sales package, there may be sales area variations.

•

Transceiver RM-529, RM-530 or RM-584

•

Battery (BP-4L/1500mAh)

•

Travel charger AC-8

•

Stereo headset (WH-601)

•

Micro USB connectivity cable (CA-101)

•

MicroSD card 4GB (MU-41)

•

Nokia PC Suite in microSD card

•

Short user guide

Product and module list

Module name Type code Notes

System/RF module PWB 2WS UI flex PWB 2WT Flash light PWB 2YD

Issue 3 COMPANY CONFIDENTIAL Page 1 – 7

Module name Type code Notes

AV flex PWB 2WU

Mobile enhancements

Table 1 Audio

Enhancement Type

Headsets (stereo) WH-601 inbox

WH-500 WH-600

Wireless headsets (BT stereo) BH-503

BH-504

Table 2 Car

RM-529; RM-530; RM-584; RM-658

General Information

Enhancement Type

Car navigation Nokia 500 Auto Navigation Car kit CK-7W

CK-15W CK-100 CK-300 (BT & plug-in)

CK-600 FM transmitter CA-300 Holder CR-39

CR-82

CR-99 Mobile charger DC-4 Mobile holder easy mount HH-12

HH-17 Plug-in car handsfree HF-200

HF-300

HF-310

HF-510

Table 3 Data

Enhancement Type

MicroSD card, 512MB MU-28 MicroSD card, 1GB MU-22

Page 1 – 8 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

Enhancement Type

MicroSD card, 2GB MU-37 MicroSD card, 4GB MU-41 MicroSD card, 8GB MU-43 MicroSD card, 16GB MU-44 Micro USB connectivity adapter cable CA-101/CA_101D

Table 4 Messaging

Enhancement Type

Digital pen SU-27W Wireless keyboard SU-8W

Table 5 Music

Enhancement Type

Bluetooth speakers MD-5W (BT & plug-in)

MD-7W (BT & plug-in)

Music speakers MD-6

MD-8

Table 6 Navigation

Enhancement Type

Wireless GPS module LD-3W

LD-4W

Table 7 Power

Enhancement Type

Battery 1500 mAh Li-Polymer BP-4L Charger adapter AC-146c Charger AC-5

AC-8 DC-8 DC-9 DC-11

Issue 3 COMPANY CONFIDENTIAL Page 1 – 9

Technical specifications

Transceiver general specifications

RM-529; RM-530; RM-584; RM-658

General Information

Unit Dimensions (L x W x T)

Transceiver with BP-4L 1500 mAh Li-Polymer battery back

(mm)

114 x 59.5 x 10.1 128 65

Weight (g)

Volume (cm3)

Main RF characteristics for GSM850/900/1800/1900 and WCDMA VIII/II/I phones

Parameter Unit

Cellular system GSM850, EGSM900, GSM1800/1900, WCDMA VIII

(900), WCDMA II (1900) and WCDMA I (2100)

Rx frequency band GSM850: 869 - 894 MHz

EGSM900: 925 - 960 MHz GSM1800: 1805 - 1880 MHz GSM1900: 1930 - 1990 MHz WCDMA VIII (900): 925- 960 MHz WCDMA II (1900): 1930-1990MHz WCDMA I (2100): 2110 - 2170 MHz

Tx frequency band GSM850: 824 - 849 MHz

EGSM900: 880 - 915 MHz GSM1800: 1710 - 1785 MHz GSM1900: 1850 - 1910 MHz WCDMA VIII (900): 880 - 915 MHz WCDMA II (1900): 1850-1910MHz WCDMA I (2100): 1920 - 1980 MHz

Output power GSM850: +5 ...+33dBm/3.2mW ... 2W

GSM900: +5 … +33dBm/3.2mW … 2W GSM1800: +0 … +30dBm/1.0mW … 1W GSM1900: +0 … +30dBm/1.0mW … 1W WCDMA VIII (900): -50 ... +24 dBm/0.01μW ...

251.2mW WCDMA II (1900): -50 ... +24dBm/0.01µW ...

251.2mW WCDMA I (2100): -50 ... +24 dBm/0.01μW ...

251.2mW

Page 1 – 10 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

Parameter Unit

EDGE output power EDGE850: +5 … +27dBm/3.2mW … 794mW

EDGE900: +5 … +27dBm/3.2mW … 794mW EDGE1800: +0 … +26dBm/1.0mW … 400mW EDGE1900:+0 … +26dBm/1.0mW … 400mW

Number of RF channels GSM850: 124

GSM900: 174 GSM1800: 374 GSM1900: 299 WCDMA VIII (900): 152 WCDMA II (1900): 289

WCDMA I (2100): 277 Channel spacing 200 kHz (WCDMA II 100/200 kHz) Number of Tx power levels GSM850: 15

GSM900: 15

GSM1800: 16

GSM1900: 16

WCDMA VIII (900): 75

WCDMA II (1900): 75

WCDMA I (2100): 75

Main RF characteristics for GSM850/900/1800/1900 and WCDMA V/II/I phones

Parameter Unit

Cellular system GSM850, EGSM900, GSM1800/1900, WCDMA V (850), WCDMA II

(1900) and WCDMA I (2100)

Rx frequency band GSM850: 869 - 894MHz

EGSM900: 925 - 960 MHz GSM1800: 1805 - 1880 MHz GSM1900: 1930 - 1990 MHz WCDMA V (850): 869 - 894 MHz WCDMA II (1900): 1930 - 1990 MHz WCDMA I (2100): 2110 - 2170 MHz

Issue 3 COMPANY CONFIDENTIAL Page 1 – 11

RM-529; RM-530; RM-584; RM-658

Parameter Unit

Tx frequency band GSM850: 824 - 849MHz

EGSM900: 880 - 915 MHz GSM1800: 1710 - 1785 MHz GSM1900: 1850 - 1910 MHz WCDMA V (850): 824 - 849 MHz WCDMA II (1900): 1850 - 1910 MHz WCDMA I (2100): 1920 - 1980 MHz

Output power GSM850: +5 ...+33dBm/3.2mW ... 2W

GSM900: +5 … +33dBm/3.2mW … 2W GSM1800: +0 … +30dBm/1.0mW … 1W GSM1900: +0 … +30dBm/1.0mW … 1W WCDMA V (850): -50 ... +24 dBm/0.01μW ... 251.2mW

General Information

WCDMA II (1900): -50 ... +24 dBm/0.01μW ... 251.2mW WCDMA I (2100): -50 ... +24 dBm/0.01μW ... 251.2mW

EDGE output power EDGE850: +5 … +27dBm/3.2mW … 794mW

EDGE900: +5 … +27dBm/3.2mW … 794mW EDGE1800: +0 … +26dBm/1.0mW … 400mW EDGE1900:+0 … +26dBm/1.0mW … 400mW

Number of RF channels GSM850: 124

GSM900: 174 GSM1800: 374 GSM1900: 299 WCDMA V (850): 108 WCDMA II (1900): 289

WCDMA I (2100): 277 Channel spacing 200 kHz (WCDMA V and II 100/200 kHz) Number of Tx power levels GSM850: 15

GSM900: 15

GSM1800: 16

GSM1900: 16

WCDMA V (850): 75

WCDMA II (1900): 75

WCDMA I (2100): 75

Page 1 – 12 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 General Information

Battery endurance

Battery Capacity (mAh) Talk time Stand-by

Table 8 GSM

BP-4L 1500 ~6.5 h (GSM)

~5 h (WCDMA)

Charging times

AC-8

2 h

Environmental conditions

Temperature conditions

Environmental condition Ambient temperature Notes

Normal operation Reduced performance

Intermittent operation

-15oC...+55oC

-25oC...-15oC +55oC...+70oC

-40oC...-15oC +70oC...+85 oC

Specifications fulfilled Operational for shorts periods

only

Operation not guaranteed but an attempt to operate does not damage the phone.

~450 h (GSM) ~500 h (WCDMA)

No operation or storage

Charging allowed Long term storage conditions

<-40oC...>+85oC

-25oC...+50oC 0oC...+85oC

No storage or operation: an attempt may damage the phone.

Humidity

Relative humidity range is 5...95%. The HW module is not protected against water. Condensed or splashed water might cause malfunction. Any

submerge of the phone will cause permanent damage. Long-term high humidity, with condensation, will cause permanent damage because of corrosion.

Vibration

The module should withstand the following vibrations:

•

5 - 10 Hz; +10dB / octave

•

10 - 50 Hz; 5.58 m2 / s3 (0.0558 g2/ Hz)

•

50 - 300 Hz; - 10 dB / octave

ESD strength

Conducted discharge is 8 kV (>10 discharges) and air contact 15 kV ( >10 discharges ). The standard for electrostatic discharge is IEC 61000-4-2, and this device fulfils level 4 requirements.

Issue 3 COMPANY CONFIDENTIAL Page 1 – 13

RM-529; RM-530; RM-584; RM-658

RoHS

This device uses RoHS compliant components and lead-free soldering process.

General Information

Page 1 – 14 COMPANY CONFIDENTIAL Issue 3

Nokia Customer Care

2 — Service Tools and Service

Concepts

Issue 3 COMPANY CONFIDENTIAL Page 2 – 1

RM-529; RM-530; RM-584; RM-658

Service Tools and Service Concepts

(This page left intentionally blank.)

Page 2 – 2 COMPANY CONFIDENTIAL Issue 3

RM-529; RM-530; RM-584; RM-658 Service Tools and Service Concepts

Table of Contents

Service tools........................................................................................................................................................... 2–5

Product specific tools....................................................................................................................................... 2–5

FS-114........................................................................................................................................................... 2–5

MJ-222 .......................................................................................................................................................... 2–5

RJ-230 ........................................................................................................................................................... 2–5

SA-131 .......................................................................................................................................................... 2–5

General tools..................................................................................................................................................... 2–5

AC-35............................................................................................................................................................. 2–6

ACF-8............................................................................................................................................................. 2–6

CU-4............................................................................................................................................................... 2–7

FLS-5 ............................................................................................................................................................. 2–8

FPS-21........................................................................................................................................................... 2–8

JXS-1.............................................................................................................................................................. 2–9

PK-1............................................................................................................................................................... 2–9

SB-6............................................................................................................................................................... 2–9

SB-7............................................................................................................................................................... 2–9

SRT-6.......................................................................................................................................................... 2–10

SS-210........................................................................................................................................................ 2–10

SS-46.......................................................................................................................................................... 2–10

SS-62.......................................................................................................................................................... 2–10

SS-93.......................................................................................................................................................... 2–10

SX-4............................................................................................................................................................ 2–11

Cables.............................................................................................................................................................. 2–11

CA-101 ....................................................................................................................................................... 2–11

CA-128RS ................................................................................................................................................... 2–11

CA-31D ....................................................................................................................................................... 2–11

CA-35S........................................................................................................................................................ 2–12

CA-89DS ..................................................................................................................................................... 2–12

DAU-9S....................................................................................................................................................... 2–12

PCS-1.......................................................................................................................................................... 2–13

XRS-6.......................................................................................................................................................... 2–13

Service concepts ................................................................................................................................................. 2–14

POS (Point of Sale) flash concept ................................................................................................................. 2–14

Flash concept with FPS-21............................................................................................................................ 2–15

CU-4 flash concept with FPS-21.................................................................................................................... 2–16

Module jig service concept........................................................................................................................... 2–17

BB/RF tuning concept with module jig ....................................................................................................... 2–18

Bluetooth testing concept with SB-6 .......................................................................................................... 2–19

WLAN functionality testing concept with SB-7 .......................................................................................... 2–20

GPS testing concept with GPS RF coupler.................................................................................................... 2–21

List of Figures

Figure 2 POS flash concept ................................................................................................................................ 2–14

Figure 3 Basic flash concept with FPS-21......................................................................................................... 2–15

Figure 4 CU-4 flash concept with FPS-21.......................................................................................................... 2–16

Figure 5 Module jig service concept ................................................................................................................. 2–17

Figure 6 Service concept for RF testing and RF/BB tuning ............................................................................. 2–19

Figure 7 WLAN functionality testing concept with SB-7................................................................................. 2–20

Figure 8 RF testing concept with RF coupler ................................................................................................... 2–21

Issue 3 COMPANY CONFIDENTIAL Page 2 – 3

RM-529; RM-530; RM-584; RM-658

Service Tools and Service Concepts

(This page left intentionally blank.)

Page 2 – 4 COMPANY CONFIDENTIAL Issue 3

+ 158 hidden pages
