Nokia 7070, RH-116, RH-117 Service Manual

Nokia Customer Care

Service Manual

RH-116; RH-117 (Nokia 7070 prism)

Mobile Terminal

Part No: 9210680 (Issue 2)

COMPANY CONFIDENTIAL

RH-116; RH-117

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 06/2008 Jeff Zhao Issue 2 10/2008 Jeff Zhao CA-89DS cable, CA-99PS adapter and service concepts

with FPS-21 were added.

Page ii COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Copyright

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 2 COMPANY CONFIDENTIAL Page iii

RH-116; RH-117

Warnings and cautions

Warnings

•

IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

•

THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

•

OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

•

BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

•

Servicing and alignment must be undertaken by qualified personnel only.

•

Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

•

Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

•

Use only approved components as specified in the parts list.

•

Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

•

Ensure all cables and wires are repositioned correctly.

•

Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

•

During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 For your safety

For your safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

Issue 2 COMPANY CONFIDENTIAL Page v

RH-116; RH-117

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

•

Keep the phone and all its parts and accessories out of the reach of small children.

•

Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

•

Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

•

Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

•

Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

•

Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

•

Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

•

Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

•

Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 ESD protection

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 2 COMPANY CONFIDENTIAL Page vii

RH-116; RH-117

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the

product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Company policy

Company policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

•

Title of the Document + Issue Number/Date of publication

•

Latest Amendment Number (if applicable)

•

Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 2 COMPANY CONFIDENTIAL Page ix

RH-116; RH-117 Company policy

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Nokia 7070 prism Service Manual Structure

Nokia 7070 prism Service Manual Structure

1 General Information 2 Service Tools and Service Concepts 3 Baseband Troubleshooting Instructions 4 RF Troubleshooting Instructions 5 System Module Glossary

Issue 2 COMPANY CONFIDENTIAL Page xi

RH-116; RH-117

Nokia 7070 prism Service Manual Structure

(This page left intentionally blank.)

Page xii COMPANY CONFIDENTIAL Issue 2

Nokia Customer Care

1 — General Information

Issue 2 COMPANY CONFIDENTIAL Page 1 –1

RH-116; RH-117

General Information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 General Information

Table of Contents

RH-116/RH-117 product selection ........................................................................................................................1–5

Features...................................................................................................................................................................1–5

Hardware features ............................................................................................................................................1–5

Software features..............................................................................................................................................1–6

UI features..........................................................................................................................................................1–6

Mobile enhancements.......................................................................................................................................1–6

Technical specifications.........................................................................................................................................1–7

General specifications.......................................................................................................................................1–7

Battery endurance.............................................................................................................................................1–7

Environmental conditions ................................................................................................................................1–8

Electrical characteristics ...................................................................................................................................1–8

List of Tables

Table 1 Power.........................................................................................................................................................1–6

Table 2 Car...............................................................................................................................................................1–6

Table 3 Audio..........................................................................................................................................................1–7

Table 4 Normal and extreme voltages.................................................................................................................1–8

Table 5 Current consumption................................................................................................................................1–9

List of Figures

Figure 1 RH-116/RH-117 product picture.............................................................................................................1–5

Issue 2 COMPANY CONFIDENTIAL Page 1 –3

RH-116; RH-117

General Information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 General Information

RH-116/RH-117 product selection

The RH-116 is the EU version of the telephone with a dual band transceiver unit designed for the GSM900 and GSM1800 networks.

The RH-117 is the US version of the telephone with a dual band transceiver unit designed for the GSM850 and GSM1900 networks.

Figure 1 RH-116/RH-117 product picture

Features

Hardware features

•

Fold with internal antenna

•

GSM dualband 900/1800 for Europe, MEA, China, APAC and LTA·

•

GSM dualband 850/1900 for LTA/NA

•

Display: True (65,536) color active high resolution display 128x160 (active area 1.8”)

•

Codecs: HR, FR, EFR and AMR

•

Integrated hands free speaker

•

Easy flash II system connector

•

Ringing volume: 95 phon from 10cm distance

•

Built-in Vibra

•

GPRS rel-4, class B, GPRS MSC10

•

EGPRS MSC6

Issue 2 COMPANY CONFIDENTIAL Page 1 –5

Software features

•

OS: ISA

•

UI Style: S40

•

MIDP 2.0 Java, with latest APIs

•

Browser: XHTML over TCP/IP (WAP 2.0 compliant)

•

MMS 1.2

UI features

•

Douglas V UI style with 5-way scroll

•

Nokia Series 40 user interface

•

MP3 ringing tones & 24 polyphonic ringing tones

•

Themes, colour games and wall papers

•

Java games (downloadable)

•

To-do list and Notes

•

Countdown timer

•

Phonebook image

•

Menu with animated icons

•

2 font sizes are supported in the editor

•

Calendar in day/week/month view

•

Chinese lunar Calendar II (not for all regions)

RH-116; RH-117

General Information

Mobile enhancements

Table 1 Power

Type Name

BL-4B Battery 700 mAh Li-Ion AC-3 Compact charger AC-4 Travel charger AC-5 Compact travel charger CA-44 Charger adapter DC-4 Mobile charger

Table 2 Car

Type Name

CK-15W Display car kit CK-20W Multimedia car kit CK-25W Multimedia car kit

Page 1 –6 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 General Information

Table 3 Audio

Type Name

HS-38W Nokia bluetooth headset BH-202 HS-40 Headset HS-47 Stereo headset HS-50W Nokia bluetooth headset BH-300 HS-51W Nokia bluetooth headset BH-301 HS-52W Nokia bluetooth headset BH-201 HS-58W Nokia bluetooth headset BH-200 HS-68W Nokia bluetooth headset BH-203 HS-73W Nokia bluetooth headset BH-302 HS-78W Nokia bluetooth headset BH-100 HS-79W Nokia bluetooth headset BH-303 HS-80W Nokia bluetooth headset BH-208 HS-84W/88W Nokia bluetooth headset BH-204 HS-85W Nokia bluetooth headset BH-206 HS-86W Nokia bluetooth headset BH-207 MD-4 Mini speakers

Technical specifications

General specifications

Unit Dimension LxWxT (mm) Weight (g) Volume (cc)

Transceiver with BL-4B 700mAh Li-Ion battery pack

87.5x44x15.8 78 52

Battery endurance

Nokia measurements of operation times in GSM900/1800

Talk time

Battery: BL-4B 700mAh 5 h

Standby time

Battery: BL-4B 700mAh 416 h

Issue 2 COMPANY CONFIDENTIAL Page 1 –7

Note: Variation in operation times will occur depending on SIM card, network settings and usage.

Talk time is increased by up to 30% if half rate is active and reduced by 5% if enhanced full rate is active.

Environmental conditions

RH-116; RH-117

General Information

Environmental

condition

Normal operation Reduced performance Intermittent or no

operation

No operation or storage

Charging allowed Long term storage

conditions Humidity and water

resistance

Ambient temperature Notes

-15 oC ... +55 oC

-30 ...15 oC and +55oC ... +70 oC

-40 oC ... -30 oC and +70 oC ... +85oC

<-40 oC and >+85 oC

-15 oC ... +55 oC 0 oC ... +85 oC

Specifications fulfilled Operational only for short periods Operation not guaranteed but an

attempt to operate will not damage the phone

No storage. An attempt to operate may cause permanent damage

Relative humidity range is 5 to 95%. Condensed or dripping water may

cause intermittent malfunctions. Protection against dripping water

has to be implemented in (enclosure) mechanics.

Continuous dampness will cause permanent damage to the module.

Electrical characteristics

Table 4 Normal and extreme voltages

Voltage Voltage (V) Condition

General conditions Nominal voltage 3.90V a Lower extreme voltage 3.30V b Higher extreme voltage 4.30V c

HW shutdown voltages Vmstr+ 2.1V ± 0,1V Off to on Vmstr- 1.9V ± 0,1V On to off

SW shutdown voltages SW shutdown 3. 1V In call SW shutdown 3. 2V In idle

Page 1 –8 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 General Information

Min operating voltage Vcoff+ 3. 1V ± 0,1V Off to on Vcoff- 2. 8V ± 0,1V On to off

HW reset demands Min 1. 0V d Max --

a. The nominal voltage is defined as being 15% higher than the lower extreme voltage. TA will test with this nominal voltage at an 85% range (0.85x3.9V a 3.3V).

b. This limit is set to be above SW shutdown limit in TA. c. During fast charging of an empty battery, this voltage might exceed this value. Voltages between 4.20 and

4.60 might appear for a short while. d. The minimum battery cell voltage required for the reset circuitry to turn on. This is not confirmed by

measures at pt.

Table 5 Current consumption

Condition Min Typical Max Unit

Call (MoU) (E)GSM 900 GSM 1800

244

173

168

GSM 1900 Idle (MoU) 1.68 mA Power off 150 250 mA

Issue 2 COMPANY CONFIDENTIAL Page 1 –9

RH-116; RH-117

General Information

(This page left intentionally blank.)

Page 1 –10 COMPANY CONFIDENTIAL Issue 2

Nokia Customer Care

2 — Service Tools and Service

Concepts

Issue 2 COMPANY CONFIDENTIAL Page 2 –1

RH-116; RH-117

Service Tools and Service Concepts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Service Tools and Service Concepts

Table of Contents

Service Tools ...........................................................................................................................................................2–5

CA-106DS ............................................................................................................................................................2–5

CA-111DS ............................................................................................................................................................2–5

CA-112DS ............................................................................................................................................................2–5

CA-128RS ............................................................................................................................................................2–6

CA-41PS...............................................................................................................................................................2–6

CA-52PS...............................................................................................................................................................2–6

CA-89DS ..............................................................................................................................................................2–6

CA-99PS...............................................................................................................................................................2–7

DA-72 ..................................................................................................................................................................2–7

DAU-9S................................................................................................................................................................2–7

FLS-4S..................................................................................................................................................................2–7

FLS-5 ...................................................................................................................................................................2–8

FPS-10.................................................................................................................................................................2–8

FPS-21.................................................................................................................................................................2–9

JBV-1 ................................................................................................................................................................ 2–10

MJ-167.............................................................................................................................................................. 2–11

PCS-1................................................................................................................................................................ 2–11

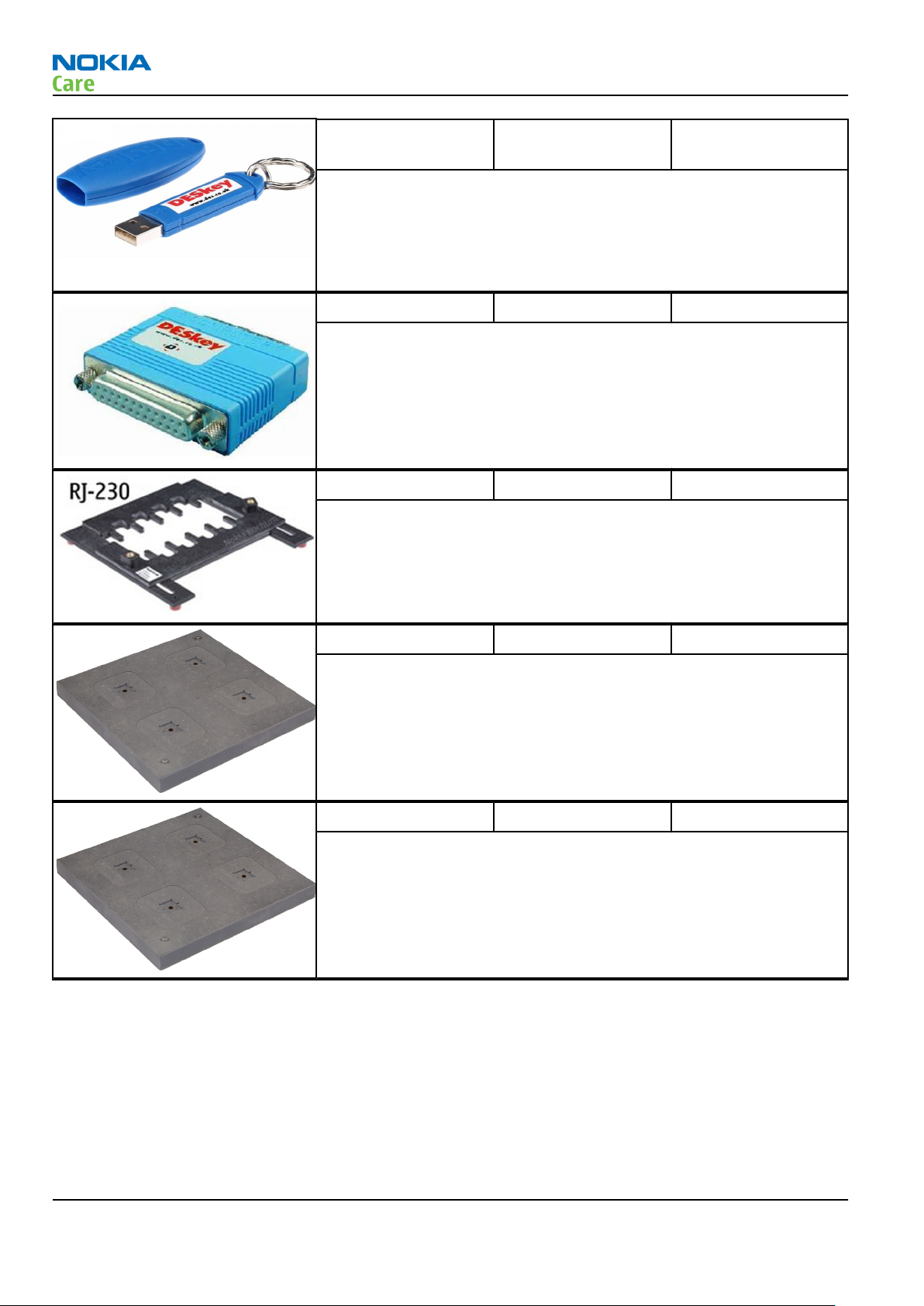

PK-1.................................................................................................................................................................. 2–12

PKD-1 ............................................................................................................................................................... 2–12

RJ-230 .............................................................................................................................................................. 2–12

RJ-51 ................................................................................................................................................................ 2–12

RJ-72 ................................................................................................................................................................ 2–12

SA-93................................................................................................................................................................ 2–13

SS-6 .................................................................................................................................................................. 2–13

SS-93................................................................................................................................................................ 2–13

ST-28................................................................................................................................................................ 2–13

ST-30................................................................................................................................................................ 2–14

SX-4.................................................................................................................................................................. 2–14

XCS-4 ................................................................................................................................................................ 2–14

XRS-6................................................................................................................................................................ 2–14

Service concepts .................................................................................................................................................. 2–15

POS flash concept with FLS-4S....................................................................................................................... 2–15

POS flash concept with FLS-5 ........................................................................................................................ 2–16

Flash concept with FPS-10............................................................................................................................. 2–17

Flash concept with FPS-21............................................................................................................................. 2–18

RF-test/BB-tune concept with JBV-1............................................................................................................. 2–19

EM calibration concept with JBV-1................................................................................................................ 2–20

RF-test/BB-tune & flash concept with JBV-1, FPS-10................................................................................... 2–21

RF-test/BB-tune & flash concept with JBV-1, FPS-21................................................................................... 2–22

RF/BB tune& flash concept with MJ-167, FPS-10......................................................................................... 2–23

RF/BB tune& flash concept with MJ-xxx, FPS-21.......................................................................................... 2–24

List of Figures

Figure 2 POS flash concept with FLS-4S............................................................................................................. 2–15

Figure 3 POS flash concept with FLS-5............................................................................................................... 2–16

Figure 4 Flash concept with FPS-10................................................................................................................... 2–17

Figure 5 Flash concept with FPS-21................................................................................................................... 2–18

Figure 6 RF-test/BB-tune concept with JBV-1................................................................................................... 2–19

Issue 2 COMPANY CONFIDENTIAL Page 2 –3

RH-116; RH-117

Service Tools and Service Concepts

Figure 7 EM calibration concept with JBV-1...................................................................................................... 2–20

Figure 8 RF-test/BB-tune & flash concept with JBV-1, FPS-10......................................................................... 2–21

Figure 9 RF-test/BB-tune & flash concept with JBV-1, FPS-21......................................................................... 2–22

Figure 10 RF/BB tune& flash concept with MJ-167, FPS-10............................................................................. 2–23

Figure 11 RF/BB tune& flash concept with MJ-xxx, FPS-21.............................................................................. 2–24

Page 2 –4 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Service Tools and Service Concepts

Service Tools

The table below gives a short overview of service devices that can be used for testing, error analysis, and repair of product RH-116; RH-117. For the correct use of the service devices, and the best effort of workbench setup, please refer to various concepts.

CA-106DS Easy flash II cable The cable is used for connecting phone DC port to the flash prommer

FPS-10.

CA-111DS Easy flash II cable The cable is used for connecting phone DC port to either POS flashing

device FLS-4S or to the PROMMER box FPS-11.

CA-112DS Easy flash II cable The CA-112DS easy flash II cable is used for connecting phone DC port

to the PROMMER facilities (FLS-5, FPS-20).

Issue 2 COMPANY CONFIDENTIAL Page 2 –5

RH-116; RH-117

Service Tools and Service Concepts

CA-128RS RF Cable This RF cable is used together with MJ-167 to connect to RF

measurement equipment.

CA-41PS Power cable Power cable for connection of e.g. the JBV-1 docking station to the

FPS-10 prommer box.

CA-52PS DC Cable The cable is used to connect JBV-1 docking station to the phone

charger jack for ADC/VCHAR/ICHAR calibration.

CA-89DS Cable Provides VBAT and Flashbus connections to mobile device

programming adapters.

Page 2 –6 COMPANY CONFIDENTIAL Issue 2

RH-116; RH-117 Service Tools and Service Concepts

CA-99PS Adapter CA-99PS adapter, 3.5 jack to 5.5 plug.

DA-72 Docking station

adapter

The docking station adapter is used for this phone in combination with JBV-1. The adapter supports flashing and energy management calibration,

Features include:

•

compatible with JBV-1

•

easy phone attachment and detachment

•

reliable phone locking

•

switch for detecting phone

•

replaceable SIM interface

DAU-9S MBUS cable The MBUS cable DAU-9S has a modular connector and is used, for

example, between the PC's serial port and module jigs, flash adapters or docking station adapters.

Note: Docking station adapters valid for DCT4 products.

FLS-4S Flash device FLS-4S is a dongle and flash device incorporated into one package,

developed specifically for POS use.

Issue 2 COMPANY CONFIDENTIAL Page 2 –7

RH-116; RH-117

Service Tools and Service Concepts

FLS-5 Flash device FLS-5 is a dongle and flash device incorporated into one package,

developed specifically for POS use.

Note: FLS-5 can be used as an alternative to PKD-1.

FPS-10 Flash prommer FPS-10 interfaces with:

•

Control unit

•

Flash adapter

•

Smart card

FPS-10 flash prommer features:

•

Flash functionality for BB5 and DCT-4 terminals

•

Smart Card reader for SX-2 or SX-4

•

USB traffic forwarding

•

USB to FBUS/Flashbus conversion

•

LAN to FBUS/Flashbus and USB conversion

•

Vusb output switchable by PC command

FPS-10 sales package includes:

•

FPS-10 prommer

•

Power Supply with 5 country specific cords

•

USB cable

Note: FPS-21 is substitute FPS-10 if FPS-10 has not been set

up.

Page 2 –8 COMPANY CONFIDENTIAL Issue 2

+ 120 hidden pages
