JVB-1 Docking Station and MJF-32 Adapter

The JVB-1 Docking Station has been designed for calibration and soft ware update use. The MJF-32 Docking Station Adapter makes signal connections to the phone. JVB-1 and MJF-32 are used as one unit.
JVB-1 main electric functions include:
- adjustable VBATT calibration voltage, current measurement limit voltage "VCHAR", cur­rent measurement calibration current "ICHAR"
- adjustable ADC calibration voltage via BTEMP and BSI signal
- BTEMP and BSI calibration resistor
- signals from FBUS to the phone via parallel jig
- control via FBUS or USB
- Flash OK/FAIL indication
In calibration mode JVB-1 is powered by external power supply 11-16V DC. In flashing power for the phone can be taken from FPS-8.
MJF-32 main electric functions are:
- phone recognizing from BTEMP
- filters of FBUS signals

Product Code

JVB-1 Docking Station: 0770298
MJF-32 Docking Station Adapter: 0770528
Issue 1 04/03 Nokia Corporation Page 3
NSB-9
Service tools CCS Technical Documentation

View of JBV-1 and MJF-32 together

Page 4 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

MJS-48 Module Test Jig

Module Test Jig MJS-48 is designed for regional Central Services for RM9 module test­ing. It can be used for flashing and RF-, battery-, system-, radio- and SIM reader testing.

Product Code

MJS-48 Module Test Jig: 0770392

View of MJS-48

Note: For RF-tests and tunings, it is possible to bypass the regulator (with jumper).
The nominal supply voltage for MJS-48 is +4.2 V (when the jumper is in bypass posi­tion).
The supply voltage must not exceed +5.0 V (min 3.2V) (when the jumper is in bypass position).
Issue 1 04/03 Nokia Corporation Page 5
NSB-9
Service tools CCS Technical Documentation

MJS-70 Soldering Jig

MJS-70 Soldering Jig is used for soldering and as a rework jig for RM9 module.
PWB fits into the jig either side up.

Product Code

MJS-70 Module Jig: 0770408

View of MJS-70

Page 6 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

SS-4 Domesheet Assembly Jig

SS-4 Domesheet is a jig for domesheet assembly.
Note: Insert PWB bottom connector end first.

Product code

SS-4 Domesheet Assembly Jig: 0770616

View of SS-4

Issue 1 04/03 Nokia Corporation Page 7
NSB-9
Service tools CCS Technical Documentation

FPS-8 Flash Prommer (Sales Pack)

The Flash Prommer FPS-8 is used with e.g. MJF-32 and JVB-1. Power is supplied to FPS-8 from the Universal Power Supply.
The sales pack includes:
- FPS-8 Flash Prommer 0750123
- FPS-8 Activation Sheet 9359289
- Universal Power Supply 0680032
- AXS-4 Service Cable (D9-D9) 0730090
- Printer cable 0730029
- SW activation and istallation FPS-8 CD 0774271

Sales package code

FPS-8 Flash Prommer: 0080321

View of FPS-8

Page 8 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

FPS-8C Parallel Flash Prommer (Sales Pack)

The Parallel Flash Prommer FPS-8C is used with MJF-32 and JVB-1. Flash programming can be done to maximum of 8 phones parallel. FPS-8C consists of eight SF11C program­ming cards. SF11C card is functionally identical to FPS-8.

Sales package code

FPS-8C Parallel Flash Prommer: 0080396

View of FPS-8C

Issue 1 04/03 Nokia Corporation Page 9
NSB-9
Service tools CCS Technical Documentation

ACF-8 Universal Power Supply

ACF-8 Universal Power Supply is used to power FPS-8. ACF-8 has 6 V DC and 2.1 A out­put.

Product Code

ACF-8 Universal Power Supply: 0680032

View of ACF-8

-8
Page 10 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

FLA-29 POS (Point Of Sale) Flash Adapter

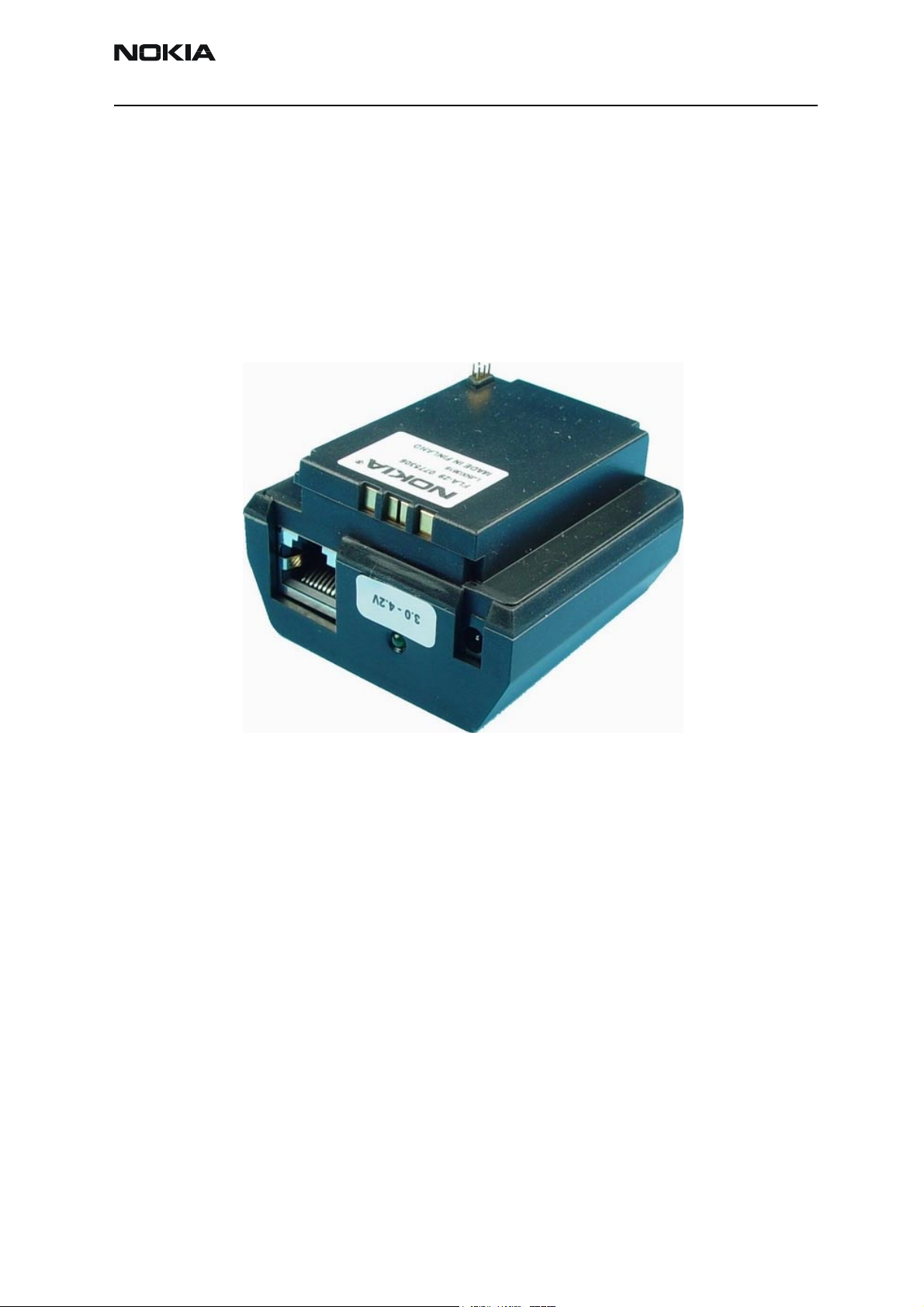

FLA-29 POS Flash Adapter is used in place of the phone's normal battery during service, to supply a controlled operating voltage.

Product Code

FLA-29 POS Flash Loading Adapter: 0775306

View of FLA-29

Issue 1 04/03 Nokia Corporation Page 11
NSB-9
Service tools CCS Technical Documentation

FLC-2 DC Cable

The FLC-2 is used to supply a controlled operating voltage to the FLA-29 POS adapter when used with the FPS-8 flash prommer.

Product Code

FLC-2 DC Cable: 0730185

View of FLC-2

2
Page 12 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

AXS-4 Service Cable

The AXS-4 D9-D9 Service Cable is used to connect two 9 pin D connectors e.g. between PC and FPS-8. Cable length is 2 meters.

Product code

AXS-4 D9-D9 Service Cable: 0730090

View of AXS-4

Issue 1 04/03 Nokia Corporation Page 13
NSB-9
Service tools CCS Technical Documentation

XCS-1 Service Cable

The XCS-1 Service Cable is used to connect FLS-4 to FLA-29.

Product code

XCS-1 Service Cable: 0730218

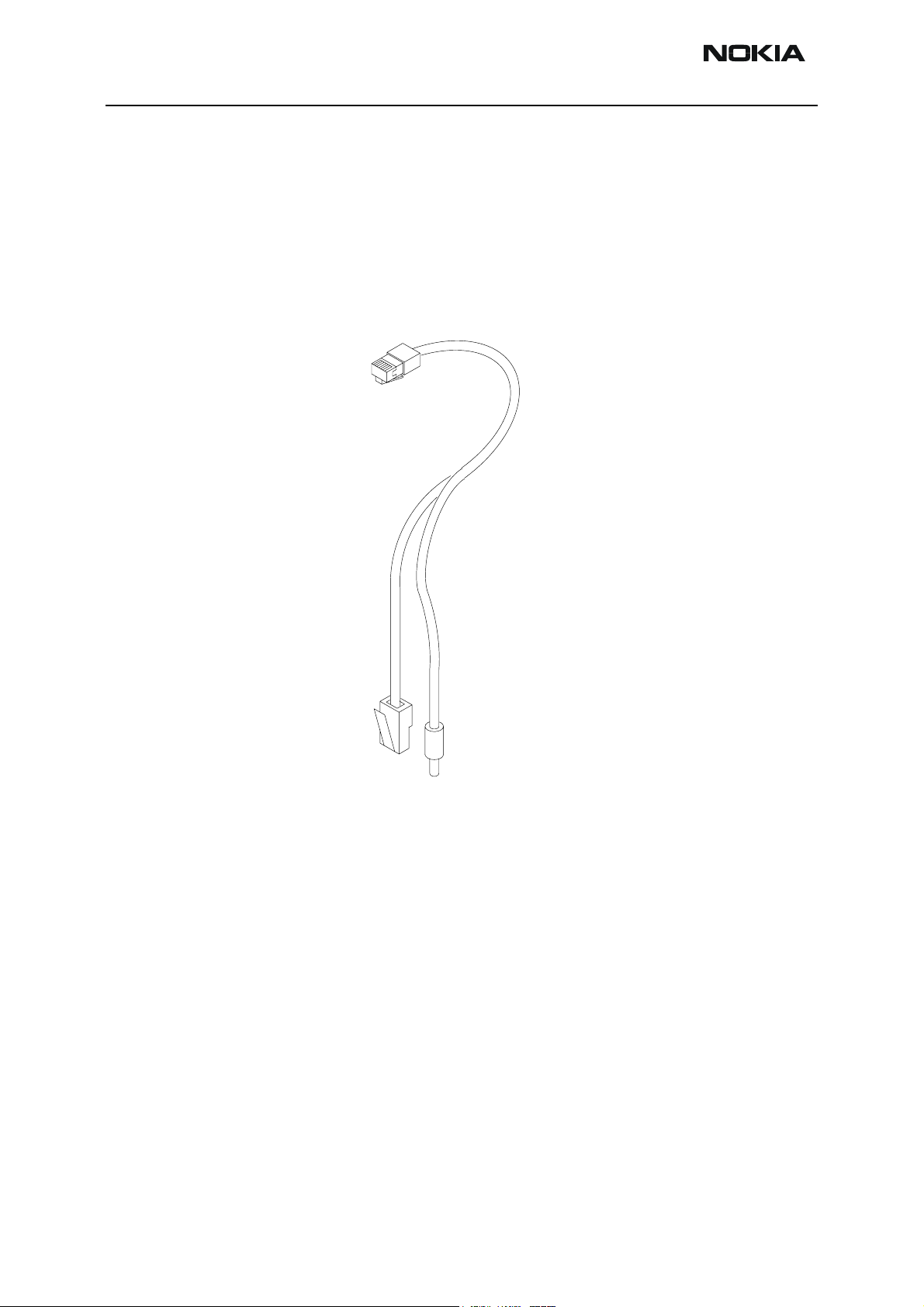

View of XCS-1

Page 14 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

SW Security Device PKD-1

SW security device (dongle) is a piece of hardware enabling the use of the service soft­ware when connected to the parallel (LPT) port of the PC. Without the dongle present it is not possible to use the service software. Printer or any such device can be connected to the PC through the dongle if needed.
Caution: Make sure that you have switched off the PC and the printer before mak-
ing connections!
Caution: Do not connect the PKD-1 to the serial port. You may damage your PKD-1!
Product Code
SW Security Device PKD-1: 0750018

View of SW Security Device

Issue 1 04/03 Nokia Corporation Page 15
NSB-9
Service tools CCS Technical Documentation

FLS-4S POS (Point Of Sale) Flash Device (Sales Pack)

FLS-4S is a dongle and flash device incorporated into one package, developed specifically for POS use.

Product Code

Sales Pack -Americas 0080543

View of FLS-4S

Page 16 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

PCS-1 Power Cable

The PCS-1 Power Cable (DC) is used to connect e.g. JVB-1 to FPS-8 or MJS-48 to an external power supply.

Product Code

PCS-1 Power Cable: 0730012

View of PCS-1

Issue 1 04/03 Nokia Corporation Page 17
NSB-9
Service tools CCS Technical Documentation

XRF-1 RF Cable

RF cable XRF-1 is used to connect e.g. Module Jig MJS-48 to RF measurement equip­ment.

Product code

XRF-1 RF Cable: 0730085

View of XRF-1

Page 18 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

DAU-9S MBUS Cable

The MBUS Cable DAU-9S has a modular connector, and is used with between PC's serial port and e.g. Module Jig MJS-48.

Product Code

DAU-9S MBUS Cable: 0730108

View of DAU-9S

Issue 1 04/03 Nokia Corporation Page 19
NSB-9
Service tools CCS Technical Documentation

SCB-3 DC Cable

The DC Cable SCB-3 is used to connect e.g. JVB-1 to the phone.

Product Code

SCB-3 DC Cable: 0730114

View of SCB-3

Page 20 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools

XCS-4 Modular Cable

XCS-4 is a shielded cable (one specially shielded conductor) modular cable for flashing and service purposes.

Product code

XCS-4 Modular Cable: 0730178

View of XCS-4

Issue 1 04/03 Nokia Corporation Page 21
NSB-9
Service tools CCS Technical Documentation

Printer Cable

This cable is used to connect the PC to FPS-8.

Product code

Printer Cable: 0730029

View of Printer Cable

Page 22 Nokia Corporation Issue 1 04/03
NSB-9
CCS Technical Documentation Service tools
