Nokia 6788i, RM-636 Service Manual

Service Manual L1&2

Service Manual

L1&2

Transceiver characteristics: Band:

TD-SCDMA ： 2.0G GSM： 900/1800/1900MHz, EDGE,HSDPA

Display:

2.8” LCD QVGA(240 x 320 pixels )

Operation system：

Series 60

Transceiver with BL-6F Lion battery

Talk time Standby time Note 300 min(TD-SCDMA)

250 min (GSM)

200 hrs (GSM) 210 hrs (TD-SCDMA)

Depends on network parameters

Version 1.1

1

Confidential

TABLE OF CONTENTS

1. CHANGE HISTORY...........................................................................................................................3

2. COPYRIGHT......................................................................................................................................4

3. WARNINGS AND CAUTIONS...........................................................................................................5

3.1 WARNINGS .....................................................................................................................................5

3.2 CAUTIONS.......................................................................................................................................5

4. ESD PROTECTION...........................................................................................................................6

5. CARE AND MAINTENANCE .............................................................................................................7

6. BATTERY INFORMATION ................................................................................................................8

7. EXPLODED VIEW .............................................................................................................................9

8. SERVICE DEVICES.........................................................................................................................11

9. SW-UPDATE....................................................................................................................................13

10. DISASSEMBLY INSTRUCTION....................................................................................................14

11. ASSEMBLY INSTRUCTION..........................................................................................................27

12. ASSEMBLY HINTS........................................................................................................................35

13. L2 SOLDER COMPONENTS.........................................................................................................36

Version 1.1

2

Confidential

Service Manual L1&2

1. CHANGE HISTORY

Version Status Review Data Author Note

V1.0 Original FU QIAN 2010.1.25 Gaoling V1.1 Updated Diana Luo 2010.3.11 Gaoling Update the talk time

Version 1.1

3

Confidential

Service Manual L1&2

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service suppliers, follo w these regularly and comply with the given instructions.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If you find any errors or if you have further suggestions, please notify NOKIA using the address below：

CMO Operation & Logistics Training and Vendor Development Multimedia Creation & Support

mailto:Service.Manuals@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified, so watch always out for the newest version.

Service Manual L1&2

2. COPYRIGHT

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks o r trade names of their respective owners.

Nokia operates a policy of continuous dev elopment. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be r esp onsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provide d “as is”. Except as required by applicable law, no w arranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in rel atio n to th e accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or wit hdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT：

This document is intended for use by qualified service personnel only.

Version 1.1

4

Confidential

3. WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and mai ntenance including important safety information. Note also the follow ing:

3.1 WARNINGS

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER T O DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

Service Manual L1&2

3.2 CAUTIONS

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTUR ER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.

5. Ensure all cables and wires are repositi oned correctly.

Version 1.1

5

Confidential

4. ESD PROTECTION

Version 1.1

6

Nokia requires that service points have sufficient ESD pr otection (against s tatic electricity) when servicing the phone. Any product of which the covers are removed m ust be handled with ESD protection. Th e SIM card can be replaced without ESD protection if the product is otherwise ready for use. To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity discharge. All ESD sensitive parts must be packed in metallised protective ba gs during shipping and handling outside any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative

Confidential

Service Manual L1&2

.

5. CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

• Keep the phon e and all its parts and accessories out of the r each of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can

contain minerals that will corrode electronic c ircuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

Service Manual L1&2

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may dama ge electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cle anin g solvents, or strong detergents to clean the phone.

• Do not paint the p ho ne. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could dama ge the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the pro duct, battery, charger or any accessory.

Version

7

1.1

Confidential

6. BATTERY INFORMATION

Note: A new battery’s full performance is achieved only after two or three complete charge and discharge cycles! The battery can be charged and discharged hundreds of times but it will eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery. Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by th e manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime.

If left unused a fully charged battery will discharge itself over time Temperature extremes can affect the ability of your battery to charge.

For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product).

Service Manual L1&2

Do not attempt to discharge the battery by any other means Use the battery only for its intended purpose.

Never use any charger or battery which is da maged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip

or pen) causes direct connection of the + and - terminals of the batter y (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or e connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Battery performance is particularly limited in temp eratures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Version

8

1.1

Confidential

7. EXPLODED VIEW

See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

Service Manual L1&2

Version

9

1.1

Confidential

Service Manual L1&2

Version

10

1.1

Confidential

8. SERVICE DEVICES

Service Manual L1&2


DESCRIPTION Nokia Standard toolkit

Camera removal tool

Dongle and flash device incorporated into one package, developed specifically for POS use.

This cable provides a connection from the USB port of the personal computer or notebook to the micro USB connector of the phone and allows P oint of Sale (POS) locations to flash the mobile terminal.

Version

11

1.1

Confidential

Service Manual L1&2

Small and lightweight charger for fast charging of your phone battery.

Version

12

1.1

Confidential

9. SW-UPDATE

Flash concept – (Point of Sales) Please follow the service manual to update software. Ch eck always for the latest version of flash software, which is available on NOKIA Online.

Service Manual L1&2

For instructions, see the Care Suite User Guide.

Version

13

1.1

Confidential

10. DISASSEMBLY INSTRUCTION

Service Manual L1&2

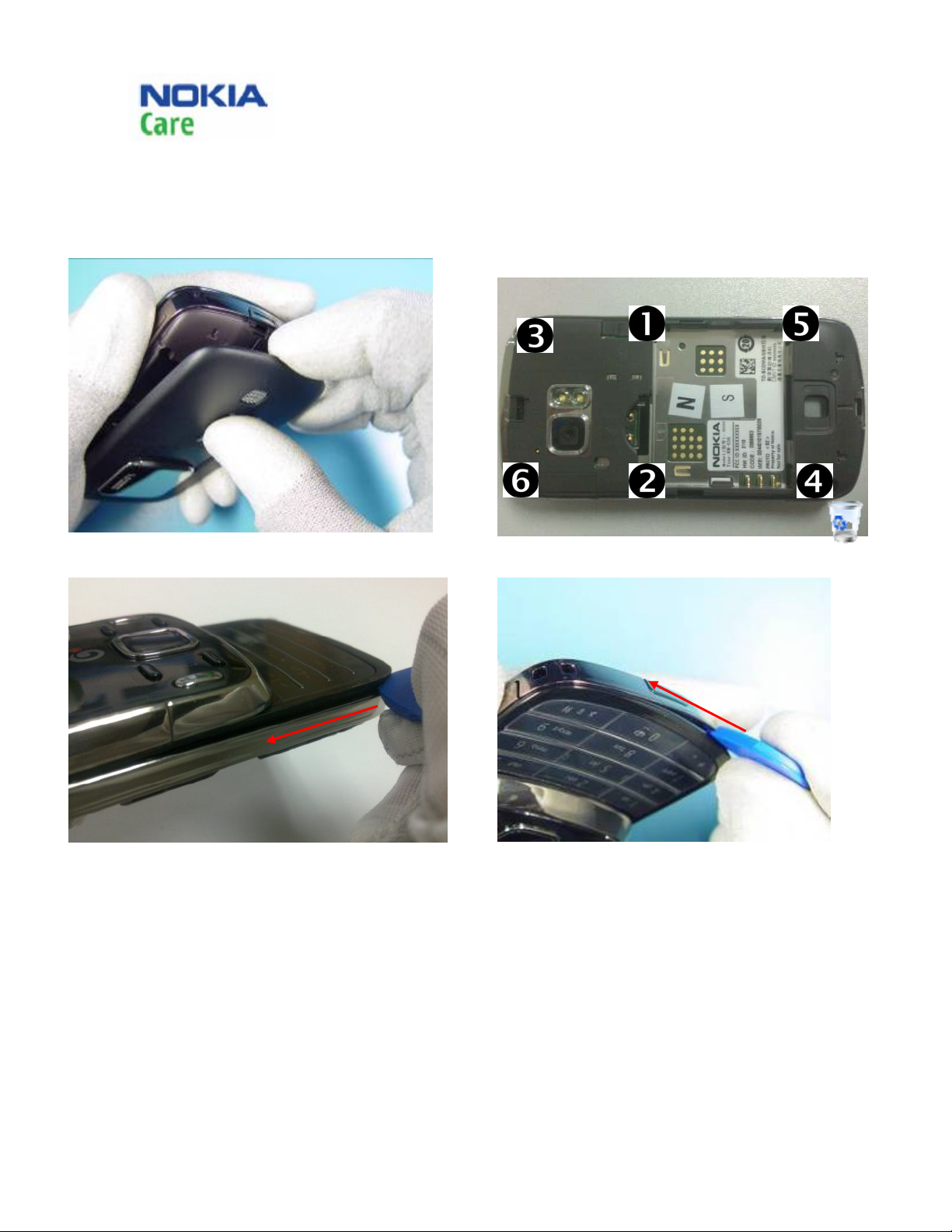

1) Press the release button of the BATTERY COVER and remove the BATTERY COVER.

3) Detach the BASE REAR HSG ASM with an SRT-6 tool in arrow direction on one side.

2) Release the six Screws m14x30 from BASE REAR HSG ASM using Torx+ size 5 screw driver. Screws have always to be renewed.

4) Then detach it on the bottom side.

Version

14

1.1

Confidential

5) And at finally on the other side.

6) Flip open the BASE REAR HSG ASM carefully..

Service Manual L1&2

7) Attention：There is a connector here, Slowly pull out.

8) Release the connector from SUB PCBA using an SS-93 tool carefully and remove the BASE REAR HSG ASM.

Version

15

1.1

Confidential

9) Unscrew the two screws using Torx+ size 5 screw driver. Screws have always to be renewed.

Service Manual L1&2

10) Raise one side of SUB-PCBA with an SS-93 tool as shown.

11) Raise the other side of SUB-PCBA with an SS-93 tool as shown.

12) Release SUB-PCBA.

Version

16

1.1

Confidential

13) Disassemble the td gsm antenna frame asm wit h SS-93.

Service Manual L1&2

14) Remove USB CAP.

15) Lift up the DC JACK with DC PLUG.

16) Detach the AUDIO JACK with AUDIO PLUG.

Version

17

1.1

Confidential

17) Press the part marked by the red circle in the picture.

Service Manual L1&2

18) Release the MAIN PCBA on all sides using an SS-93 tool.

19) Lift up the PWB from upper part and release the connector from UI Flex using an SS-93 tool carefully.

20) Remove the PWB.

Version

18

1.1

Confidential

21) Use SS-100 to detach the 5M CAMERA.

Service Manual L1&2

22) Release the main key dome asm with tweezers.

23) Release the main key asm from SLIDE and re move it.

24) Unscrew the four screws m14x25 from SLIDE FRONT ASM using Torx+ size 5 screw driver. Screws have always to be renewed.

Version

19

1.1

Confidential

25) Then slide open in arrow direction to get access to the DECO.

Service Manual L1&2

26) Make holes on the DECO as shown with dental too l.

27) Lift up the DECO on one side with tweezers.

28) Lift up the DECO on the other side with tweezers.

Version

20

1.1

Confidential

29) Remove the DECO to get access to the screws.

Service Manual L1&2

30) Unscrew the two screws m14x25 from SLIDE FRONT ASM using Torx+ size 5 screw driver. Screws have always to be renewed.

31) Detach the SLIDE FRONT ASM from SLIDE with an SRT-6 tool and slide it in arrow direction.

32) Proceed to open the SLIDE FRONT ASM on the top side.

Version

21

1.1

Confidential

33) Do the same on the other side in arrow directi on as shown.

Service Manual L1&2

34) Lift up the SLIDE FRONT ASM and remove it.

Lift up the EARPIECE using a dental tool carefull y and remove

35) it. EARPIECE has always to be renewed.

36) Uninstall the earpiece foam.

Version

22

1.1

Confidential

37) Protect LCD with protection foil to avoid scratc hes.

Service Manual L1&2

38) Release UI FLEX ASSY one side from SLIDE using an SS-93 tool.

39) Do the same to the other side.

40) Flip open the CONNECTOR FLEX carefully.

Version

23

1.1

Confidential

. 41) Release it carefully with a dental tool.

Service Manual L1&2

42) Open the CONNECTOR FLEX and get access to the LCD CONNECTOR.

43) Disconnect the LCD CONNECTOR with an SS-93 tool.

44) Disconnect the LCD CONNECTOR.

Version

24

1.1

Confidential

45) Clean out the adhesive left on the slide.

Service Manual L1&2

46) Tilt the SLIDE . Remove the LCD MODULE.

47) Slide open the SLIDE as shown.

48) Move the MAIN FPC out of SLIDE with tweezers.

Version

25

1.1

Confidential

49) Lift up one side of the MAIN FPC with SS-93 tool.

Service Manual L1&2

50) Lift up the other side of the MAIN FPC with SS-93 tool.

51) Detach the MAIN FPC carefully as shown.

52) Clean out the adhesive left on the slide.

Version

26

1.1

Confidential

11. ASSEMBLY INSTRUCTION

Service Manual L1&2

1) Attention: the guiding holes on the MAIN FPC should be put on the guiding holes of the SLIDE exactly.

3) Make the MAIN FPC with connector go through the hole of slide.

2) Slide open the SLIDE as shown.

4) Connect the LCD connector.

Version

27

1.1

Confidential

5)

Lift up the MAIN FPC with DOME as shown.

Service Manual L1&2

6) Put the LCD CONNECTOR under the UI FLEX ASSY, then title it and put it into the frame.

7) Put the adhesive on the part marked red, then paste the CONNECTOR FLEX.

8) Fix the CONNECTOR FLEX.

Version

28

1.1

Confidential

9) Paste the DOME. Attention: the guiding holes.

Service Manual L1&2

10) Install the earpiece foam.

11) Install the EARPIECE.

12) Install the SLIDE FRONT ASM.

Version

29

1.1

Confidential

13) Screw the two m14x25 screws using Torx+ size 5 screw driver.

14) Tighten the four m14x25 driver

.

Service Manual L1&2

screws using Torx+ size 5 screw

15)

Install the CAMERA with SS-100. Attention: the CAMERA

should be installed in the trough on the MAIN PWB exactly.

16) Paste the main key dome asm on the MAIN PCBA .

Version

30

1.1

Confidential

17) Attention: the guiding holes.

18) Connect the connector between MAIN FPC and M A IN PCBA.

Service Manual L1&2

19) Install main key asm into the SLIDE.

20).Install the td gsm antenna frame asm.

Version

31

1.1

Confidential

21) Install the SUB-PCBA

23) Install the AUDIO JACK.

22) Tighten the two m14x15 screws using Torx+ size 5 screw driver.

24) Install the DC JACK.

Service Manual L1&2

Version

32

1.1

Confidential

25) Install the USB CAP.

26) Connect the SUB-PCBA and MAIN PCBA.

Service Manual L1&2

27) Screw the six m14x30 screws using Torx+ size 5 screw driver.

28) Install the BATT COVER.

Version

33

1.1

Confidential

29) Press the BATT COVER.

30) Fix it.

Service Manual L1&2

31) Put on the DECO and end of assembling.

Version

34

1.1

Confidential

12. ASSEMBL Y HINTS Screw order for Assembly

Service Manual L1&2

Torque：10 Ncm Torque：10 Ncm

Torque：10 Ncm Torque：8 Ncm

Version

35

1.1

Confidential

13. L2 SOLDER COMPONENTS

Service Manual L1&2

Version

36

1.1

Confidential

Nokia 6788i, RM-636 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. CHANGE HISTORY

2. COPYRIGHT

3. WARNINGS AND CAUTIONS

3.1 WARNINGS

3.2 CAUTIONS

4. ESD PROTECTION

5. CARE AND MAINTENANCE

6. BATTERY INFORMATION

7. EXPLODED VIEW

8. SERVICE DEVICES

9. SW-UPDATE

10. DISASSEMBLY INSTRUCTION

11. ASSEMBLY INSTRUCTION

12. ASSEMBL Y HINTS Screw order for Assembly

13. L2 SOLDER COMPONENTS
