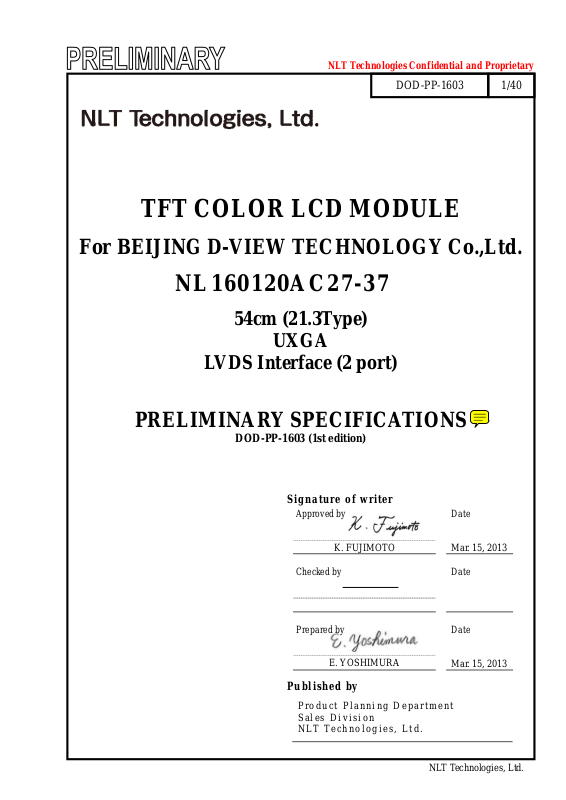

NLT NL160120AC27-37 Specification

NLT Technologies Confidential and Proprietary

DOD-PP-1603 1/40

TFT COLOR LCD MODULE

For BEIJING D-VIEW TECHNOLOGY Co.,Ltd.

NL160120AC27-37

54cm (21.3Type)

UXGA

LVDS Interface (2 port)

PRELIMINARY SPECIFICATIONS

DOD-PP-1603 (1st edition)

Signature of writer

Approved by

K. FUJIMOTO

Checked by

Prepared by

E. YOSHIMURA

Published by

Date

Mar. 15, 2013

Date

Mar. 15, 2013

Product Planning Department Sales Division NLT Technologies, Ltd.

NLT Technologies, Ltd.

• WARRANTY

NLT Technologies, Ltd. (hereinafter called "NLT") warrants that this product meets the product specifications set forth in this document. If this product under normal operation is found to be non-conforming to the product specifications, and such non-conformance is promptly notified to NLT within one (1) year after the delivery date, and further such non-conformance is solely attributable to NLT, NLT shall repair the non-conforming product or replace it with a conforming one, free of charge. However, this warranty does not apply to any non-conformance resulting from any one of the following:

1) Unauthorized or improper repair, maintenance or modification

2) Operation or use against specifications, instructions or warnings given by NLT

3) Any other causes attributable to customer

In case NLT repairs or replaces a product after the one (1) year warranty period, NLT shall be entitled to charge for such repair or replacement. Those replaced parts shall be covered with six (6)-month warranty period from the replacement day. Non-conforming products may be replaced with substitutes instead of repair when the manufacture of this product has been terminated.

EXCEPT AS EXPRESSLY SET FORTH HEREIN, NLT DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND DISCLAIMS ANY REMEDIES.

• MAINTENANCE

The specifications of maintenance parts are subject to change with equivalent or better quality. NLT will not accept maintenance for only mounting parts on circuit board (e.g. connector, fuse, capacitor, resistor, etc.) or only parts for backlight (e.g. reflector sheet, light guide plate, etc.). but for a whole module by unit.

If NLT plans to discontinue this product, NLT shall inform it to customers in six (6)-month advance from the issued date of official announcement. In addition, after the product discontinuation, NLT may replace a product with a whole product not repairing parts.

• CHANGE CONTROL

For the purpose of product improvement, this product design is subject to change for improvement in specifications, appearance, parts, circuits and so on. In case that the design change affects the product specifications, NLT shall inform it to customers in advance.

• HANDLING OF DOUBTFUL POINTS

Any question arising out of, or in connection with, this SPECIFICATION or any matter not stipulated

herein will be settled each time upon consultation betw e en bot h parties.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 2/40

INTRODUCTION

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 3/40

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

Color LCD module NL160120AC27-37 is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.

The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a Color-filter glass substrate.

Grayscale data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual TFT arrays.

The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array.

1.2 APPLICA TION

• Color monitor system

1.3 FEATURES

• Ultra-wide viewing angle (Super Fine TFT (SFT))

• High luminance

• High contrast

• High resolution

• Low reflection

• Wide color gamut

• 256 gray scale in each R, G, B sub-pixel (8-bit), 16,777,216 colors

• LVDS interface

• Selectable LVDS data input map

• Small foot print

• LED backlight type

• LED driver circuit Built-in

NLT Technologies Confidential and Proprietary

DOD-PP-1603 5/40

NLT Technologies, Ltd.

2. GENERAL SPECIFICATIONS

Display area

NLT Technologies Confidential and Proprietary

DOD-PP-1603 6/40

432.0 (H) × 324.0 (V) mm

Diagonal size of display Drive system Display color Pixel

Pixel arrangement

Sub-pixel pitch Pixel pitch Module size Weight Contrast ratio

Viewing angle

Designed viewing direction Polarizer surface

Polarizer pencil-hardness

Color gamut

54cm (21.3 inches) a-Si TFT active matrix 16,777,216 colors 1,600 (H) × 1,200 (V) pixels (1 pixel consis ts of 3 sub-pixels (RGB).) RGB vertical stripe

0.090 (H) × 0.270 (V) mm

0.270 (H) × 0.270 (V) mm

457.0 (W) × 350.0 (H) × 21.5 (D) mm (typ.) 2,700 g (typ.) 1,400:1 (typ.)

At the contrast ratio ≥ 10:1

• Horizontal: Right side 88° (typ.), Left side 88° (typ.)

• Vertical: Up side 88° (typ.), Down side 88° (typ.)

Viewing angle with optimum grayscale (γ≒DICOM): Normal axis

(perpendicular) Note1

Antiglare 2H (min.) [by JIS K5600]

At LCD panel center

72 % (typ.)[against NTSC color space]

Response time

Luminance

Signal system

Power supply voltage

Backlight

Power consumption

Note1: When the product luminance is 450cd/m2, the gamma characteristic is designed to γ≒DICOM.

Ton+Toff (10%

40ms (typ.)

At the maximum luminance control

900cd/m

2 ports LVDS interface (Characteristics of AC receiver THC63LVD824A, THine Electronics, Inc. or equivalent) [RGB 8-bit signals, Data enable signal (DE), Dot clock (CLK)]

LCD panel signal processing board: 12.0V LED driver board: 12.0V

2

(typ.)

←→

90%)

LED backlight type built in LED Driver Circuit

At checkered flag pattern, the maximum luminance control

57.0W (typ.)

NLT Technologies, Ltd.

)

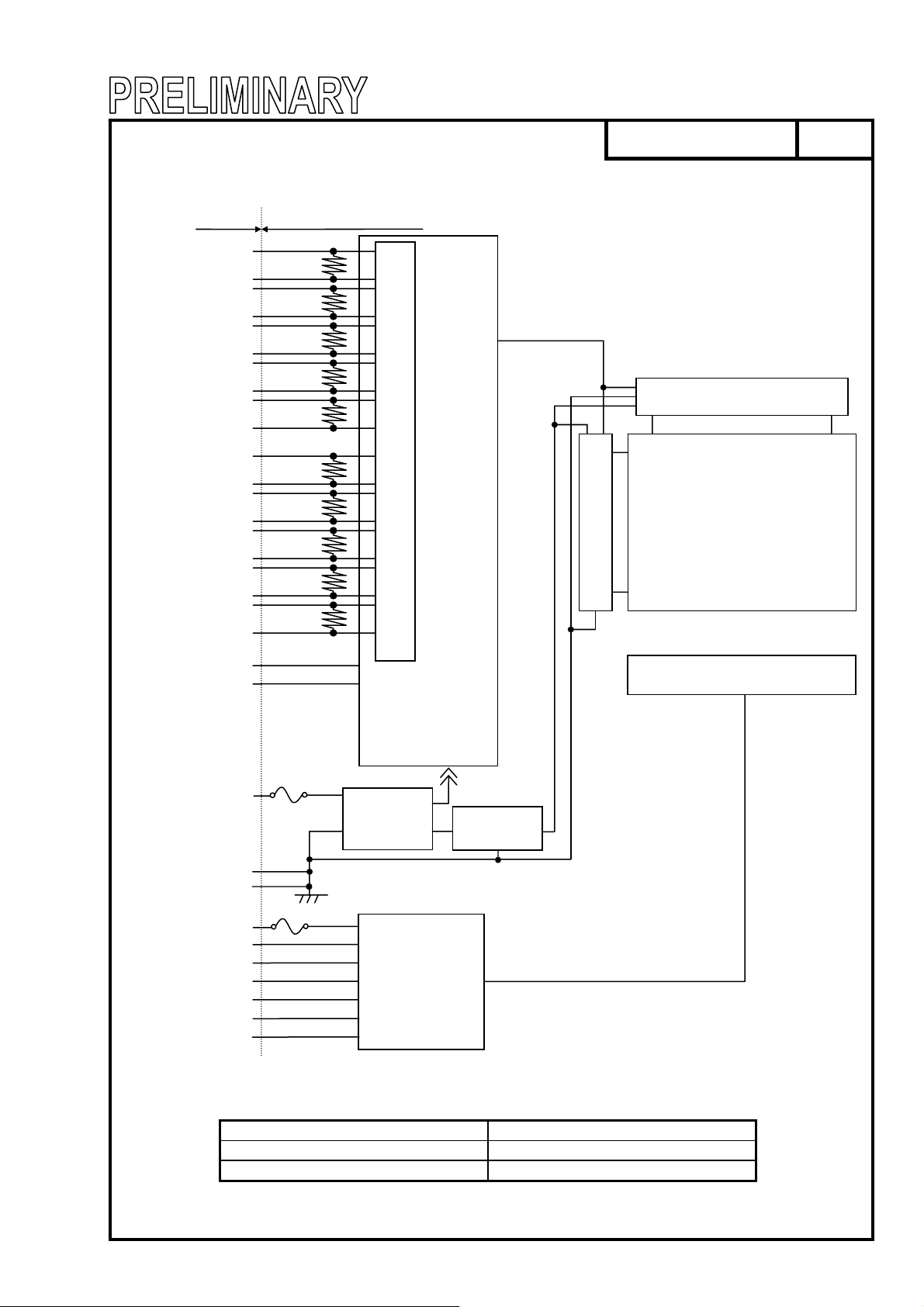

3. BLOCK DIAGRAM

I/F

DA0+

DA0-

DA1+

DA1-

DA2+

DA2-

CKA+

CKA-

DA3+

DA3-

DB0+

DB0-

DB1+

DB1-

DB2+

DB2-

CKB+

CKB-

DB3+

DB3-

TxSEL0 TxSEL1

VDD

FG

GND

Note1, Note2

VDDB

BRTC

BRTH

BRTI

BRTP

PWSEL

GNDB

Note1, Note2

Note1: Relations between GND (Signal ground), FG (Frame ground) and GNDB (LED driver board

ground) in the LCD module are as follows.

GND- FG Connected GND- GNDB Not connected FG- GNDB Not connected

Note2 GND, FG and GNDB must be connected to customer equipment's ground, and it is

recommended that these grounds be connected together in customer equipment.

Note3 Each pair of the LVDS signal has a 100Ω terminating resistance between D+ and D-.

LCD module (product

100Ω

100Ω 100Ω

100Ω

Fuse

Converter

Fuse

LVDS receiver

DC/DC

LED Driver board

Controller

Power supply

For drive

NLT Technologies Confidential and Proprietary

DOD-PP-1603 7/40

H-driver

4,800 Lines

TFT LCD panel

1,200 Lines

V-driver

H: 1,600 × 3 (R, G, B) V: 1,200

Backlight

NLT Technologies, Ltd.

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

Parameter Specification Unit

NLT Technologies Confidential and Proprietary

DOD-PP-1603 8/40

Module size

Display area

Weight 2,700 (typ.), 2,980 (max.) g

Note1: Excluding warpage of the cover for LED driver board. Note2: See "11. OUTLINE DRAWINGS".

4.2 ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

Power supply

voltage

Input voltage

for signals

LCD panel signal processing board VDD -0.3 to +14.0 V

LED driver board VDDB -0.3 to +15.0 V

LCD panel signal processing board

LED driver board

457.0 ±0.5 (W) × 350.0 ±0.5 (H) × 21.5 (typ., D)

23.0 (max. D)

432.0 (H) × 324.0 (V)

Note1

BRTI signal VBI -0.3 to +1.5 V

BRTP signal VBP -0.3 to +5.5 V

BRTC signal VBC -0.3 to +5.5 V

Vi -0.3 to +3.45 V VDD= 12.0V

Note1, Note2

Note2 mm

Ta= 25°C

VDDB= 12.0V

mm

PWSEL signal VBS -0.3 to +5.5 V

Storage temperature Note6 Tst -20 to +60

Operating temperature

Note6

Relative humidity

Note4, Note6

Absolute humidity

Note4 Note6

Operating altitude -

Storage altitude -

Front surface TopF 0 to +60

Rear surface TopR 0 to + 60

≤ 95

RH

AH

≤ 85

≤ 70 ≤ 73

Note5

≤ 5,100

≤ 13,600

°C

%

g/m3

m

-20°C ≤ Ta ≤ 60°C

40°C < Ta ≤ 50°C

50°C < Ta ≤ 55°C

-

Note2

Note3

Ta ≤ 40°C

Ta > 55°C

0°C ≤ Ta ≤ 55°C

Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/Note2: Measured at LCD panel surface (including self-heat) Note3: Measured at LCD module's rear shield surface (including self-heat) Note4: No condensation Note5: Water amount at Ta= 55°C and RH= 70% Note6: The image quality may cause degradation in case of rapid change humidity and temperature.

NLT Technologies, Ltd.

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDD 10.8 12.0 13.2 V -

NLT Technologies Confidential and Proprietary

DOD-PP-1603 9/40

(Ta= 25°C)

Power supply current IDD -

Permissible ripple voltage VRP - - 100 mVp-p for VDD

Differential input threshold voltage

Input voltage swing VI 0 - 2.4 V Note4

Terminating resistance RT - 100 -

High VTH - - +100 mV

Low VTL -100 - - mV

500

Note1

700

Note2

mA at VDD= 12.0V

at VCM= 1.2V Note3, Note4

Ω

-

Note1: Checkered flag pattern (by EIAJ ED-2522) Note2: Pattern for maximum current Note3: Common mode voltage for LVDS driver Note4: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/-

NLT Technologies, Ltd.

y

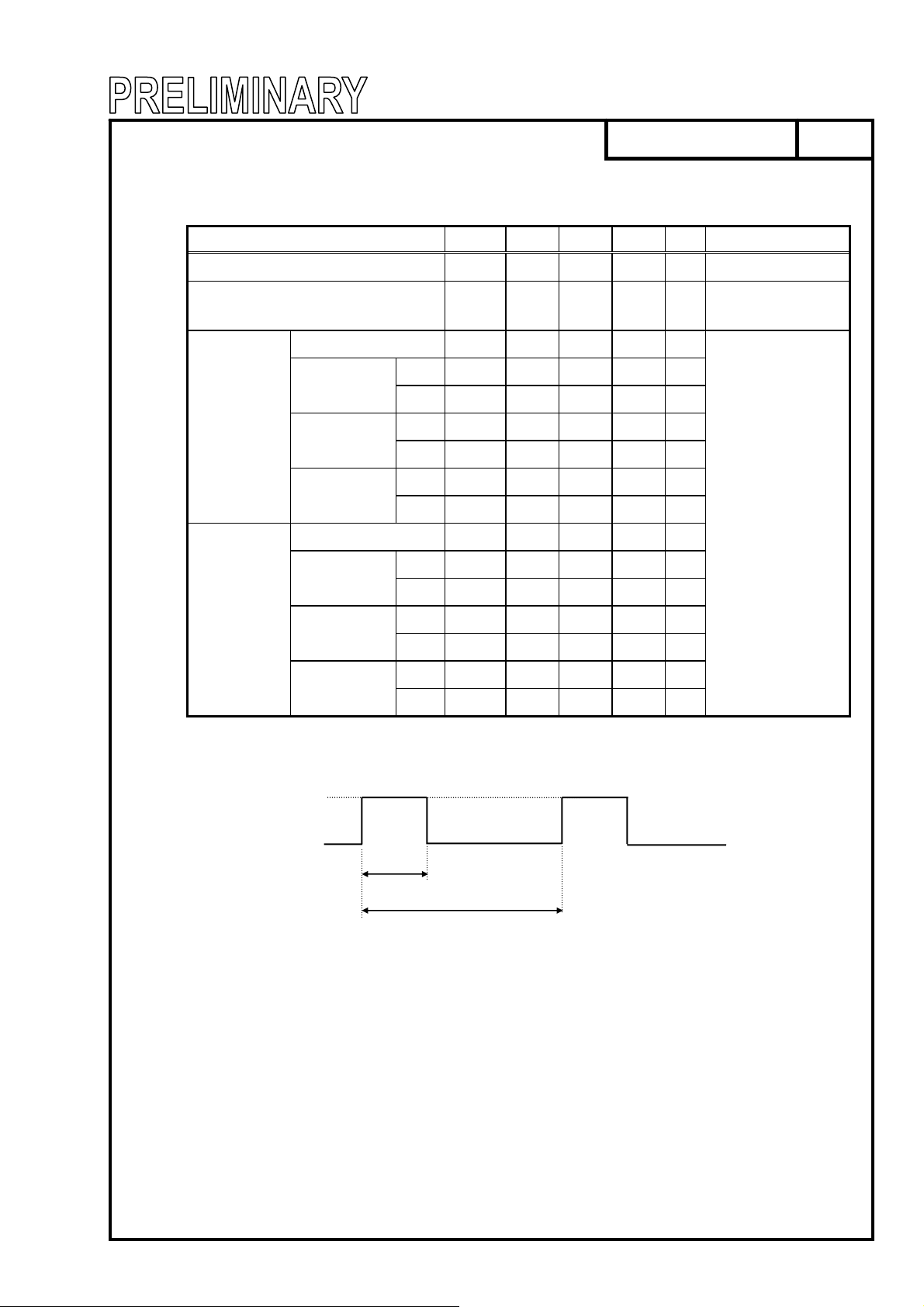

4.3.2 LED Driver board

NLT Technologies Confidential and Proprietary

DOD-PP-1603 10/40

(Ta= 25°C)

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDDB 11.4 12.0 12.6 V -

VDDB= 12.0V,

Power supply current IDDB - 4,200 5,800 mA

BRTI signal VBI 0 - 1.0 V

At the maximum luminance control

BRTP signal

Input voltage

for signals

Input current

for signals

BRTC signal

PWSEL signal

BRTI signal IBI -200 - -100

BRTP signal

BRTC signal

PWSEL signal

4.3.3 LED Driver board current wave

4,200 mA (typ.)

0mA

Duty: At the maximum luminance control 100% to at the minimum luminance control 1%. Luminance control frequency: 270Hz (typ.)

Note1: Luminance control frequency indicate the input pulse frequency, when select the external

pulse control. See "4.6.2 Detail of BRTP timing".

Note2: The power supply lines (VDDB and GNDB) have large ripple voltage during luminance

control. See "4.3.4 Power supply voltage ripple ".

There is the possibility that the ripple voltage produces acoustic noise and signal wave noise

in audio circuit and so on. Put a capacitor (5,000 to 6,000μF) between the power supply lines (VDDB and GNDB) to reduce the noise, if the noise occurred in the circuit.

High VBPH 2.0 - 5.25 V Low VBPL 0 - 0.8 V High VBCH 2.0 - 5.25 V Low VBCL 0 - 0.8 V High VBSH 2.0 - 5.25 V Low VBSL 0 - 0.8 V

High IBPH - - 1,000 Low IBPL -600 - High IBCH - - 300 Low IBCL -300 - High IPSH - - 1,000 Low IPSL -600 - -

Dut

Luminance control frequency

μA

-

μA μA μA μΑ μΑ μA

NLT Technologies, Ltd.

4.3.4 Power supply voltage ripple

This product works, even if the ripple volt age levels are beyond the per missible values as following

the table, but there might be noise on the display image.

Power supply voltage

VDD 12.0V

NLT Technologies Confidential and Proprietary

DOD-PP-1603 11/40

Ripple voltage Note1

(Measure at input terminal of power supply)

≤ 100

Unit

mVp-p

VDDB 12.0V

≤ 200

Note1: The permissible ripple voltage includes spike noise. Note2: The load variation influence does not include.

Example of the power supply connection

a) Separate the power supply b) Put in the filter

Power

VDD

VDDB

Power

Filter

VDD

VDDB

4.3.5 Fuse

Parameter

Type Supplier

VDD FCC16132AB

CCF1N10

VDDB

TF16AT5.00T

Fuse

KAMAYA

ELECTRIC Co., Ltd.

KOA Corporation

Rating

1.25A 32V

10A 60V

5.0A 32V

Fusing current

2.5A, 5 seconds maximum

20 A, 1 seconds maximum

10 A, 5 seconds maximum

Note1: The power supply capacity should be more than the fusing current. If it is less than the fusing

current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may occur.

mVp-p

Remarks

Note1

NLT Technologies, Ltd.

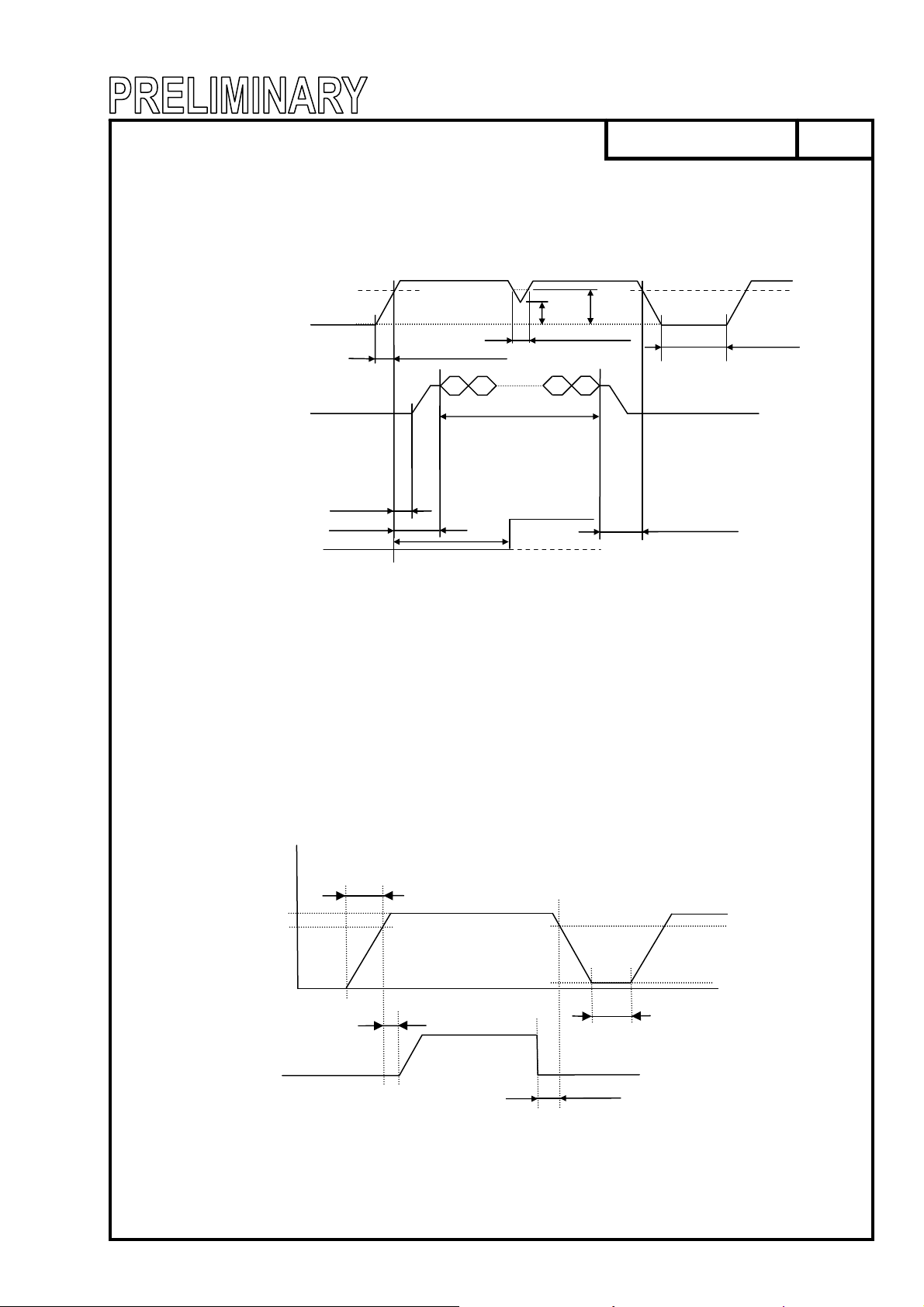

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

VDD Note1

10.8V

0V

LVDS signal *1,*2 Note2

0V

*1: A0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/- and CKB+/*2: LVDS signals should be measured at the terminal of 100 Ω resistance.

t > 10ms t > 10ms

Note1: If there is a voltage variation (voltage drop) at the rising edge of VCC below 10.8V, there is a

possibility that a product does not work due to a protection circuit.

Note2: LVDS signals must be set to Low or High-impedance, except the VALID period (See above

sequence diagram), in order to avoid the circuitry damage.

If so me of signals are cut while this product is working, even if the signal input to it once

again, it might not work normally. If a customer stops the display and function signals, VDD also must be shut down.

Note3: The backlight should be turned on within the valid period of LVDS signals, in order to avoid

unstable data display.

4.4.2 LED driver board

VDDB

Voltage

0.1ms < tr

12.0V

11.4V

0V

BRTC

Note1: The backlight should be turned on within the valid period of LVDS signals, in order to avoid

unstable data display.

Note2: If tr is more than 100 ms, the backlight will be turned off by a protection circuit for LED

driver board.

Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 12/40

ON OFF ON

10.8V

9.6V

0.1ms < Tr < 80ms

t ≥ 450ms

≤ 100 ms

0ms < t

VDD dip < 20ms

VALID period

Display on screen

OFF

0ms < t < 35ms

ON

200ms < t

0ms < t

Toff > 200ms

11.4V

Under than 1.2V

Time

10.8V

NLT Technologies, Ltd.

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

(1) CN1

CN1 socket (LCD module side): DF19G-30P-1H (56) (HIROSE ELECTRIC Co,.Ltd.) Adaptable plug: DF19-30S-1C (HIROSE ELECTRIC Co,.Ltd.)

Pin No. Symbol Signal Remarks

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 TxSEL0

26 TxSEL1

27 GND Ground Signal ground Note2 28 VDD 29 VDD 30 VDD

DA0DA0+ DA1DA1+ DA2DA2+ GND CKACKA+ DA3DA3+ DB0DB0+ GND DB1DB1+ GND DB2DB2+ CKBCKB+ DB3DB3+ GND

Pixel data A0 Odd pixel data input (LVDS DIFFERENTIAL DATA) Note1

Pixel data A1 Odd pixel data input (LVDS DIFFERENTIAL DATA) Note1

Pixel data A2 Odd pixel data input (LVDS DIFFERENTIAL DATA) Note1 Ground Signal ground Note2 Pixel clock Odd pixel clock input (LVDS DIFFERENTIAL DATA) Note1

Pixel data A3 Odd pixel data input (LVDS DIFFERENTIAL DATA) Note1

Pixel data B0 Even pixel data input (LVDS DIFFERENTIAL DATA) Note1 Ground Signal ground Note2 Pixel data B1 Even pixel data input (LVDS DIFFERENTIAL DATA) Note1 Ground Signal ground Note2 Pixel data B2 Even pixel data input (LVDS DIFFERENTIAL DATA) Note1

Pixel clock Even pixel clock input (LVDS DIFFERENTIAL DATA) Note1

Pixel data B3 Even pixel data input (LVDS DIFFERENTIAL DATA) Note1 Ground Signal ground Note2

Select LVDS data input map

Power supply 12V Note2

Note3, Note4

Note1: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter. Note2: All GND terminals should be used without any non-connected lines. Note3: This terminal is pulled-up in the product. Note4: See "4.7 LVDS data input map.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 13/40

TxSEL1 TxSEL0 Mode

Open Open A Open Low B

Low Open C Low Low A

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 14/40

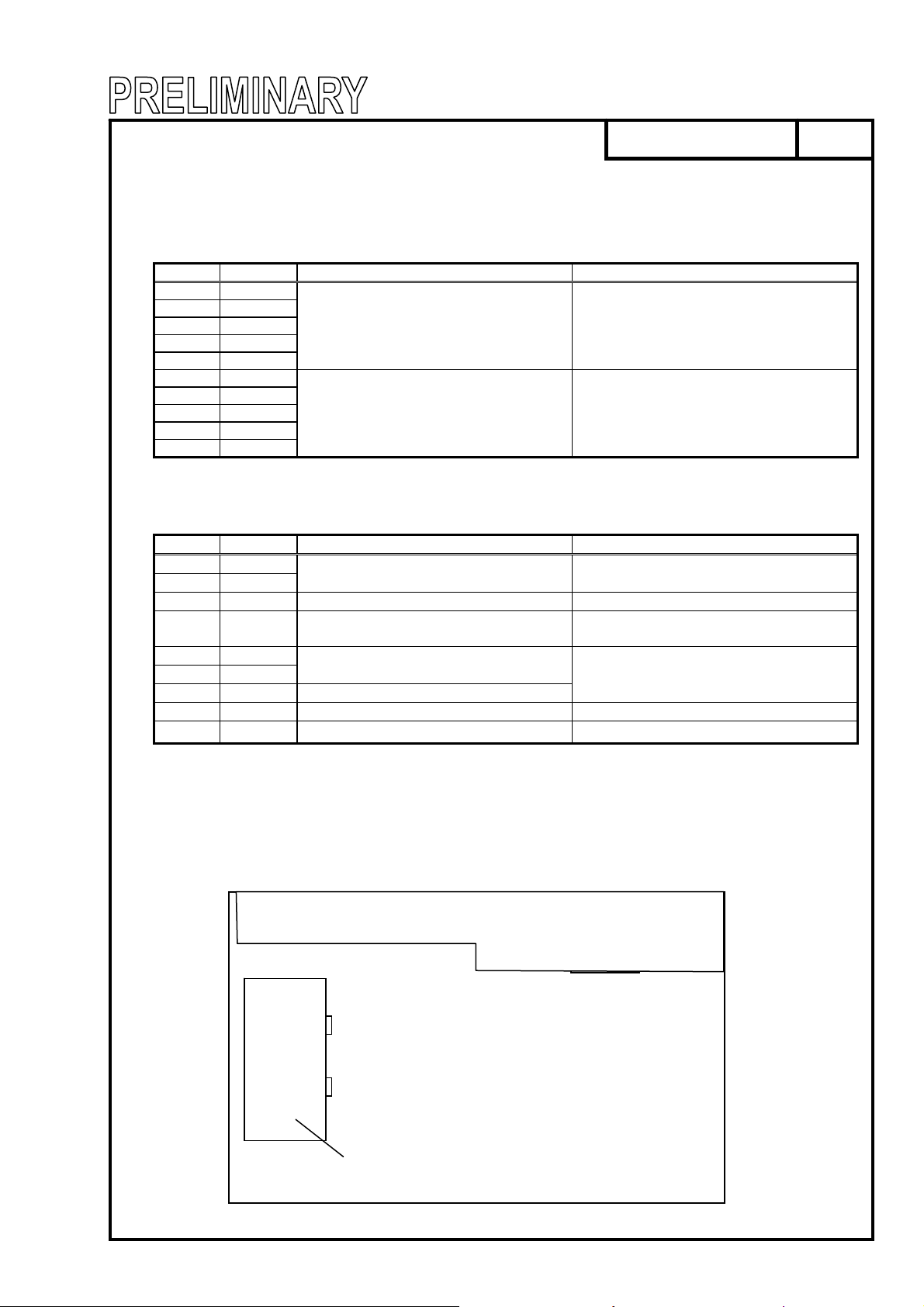

4.5.2 LED driver board

CN201 socket (LCD module side): DF3Z-10P-2H (2∗) (HIROSE ELECTRIC Co,.Ltd.) Adaptable plug: DF3-10S-2C (HIROSE ELECTRIC Co,.Ltd.)

Pin No. Symbol Function Description

1 GNDB 2 GNDB 3 GNDB 4 GNDB 5 GNDB 6 VDDB 7 VDDB 8 VDDB 9 VDDB

10 VDDB

LED driver board ground Note1

Power supply Note1

Note1: All VDDB and GNDB terminals should be used without any non-connected lines.

CN202 socket (LCD module side): IL-Z-9PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE)) Adaptable plug: IL-Z-9S-S125C3 (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Function Description

1 GNDB 2 GNDB 3 N. C. - Keep this pin Open.

4 BRTC 5 BRTH

6 BRTI 7 BRTP BRTP signal 8 GNDB LED driver board ground Note1 9 PWSEL Selection of luminance control signal method Note2, Note3

LED driver board ground Note1

Backlight ON/OFF control signal

Luminance control terminal

High or Open: Backlight ON Low Backlight OFF

Note2

Note1: All GNDB terminals should be used without any non-connected lines. Note2: See "4.6 LUMINANCE CONTROL ". Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

4.5.3 Positions of socket

Rear side

1 CN202 9 ← Insert direction 10 CN201 1

↑

CN1

Insert

direction

LED driver board

NLT Technologies, Ltd.

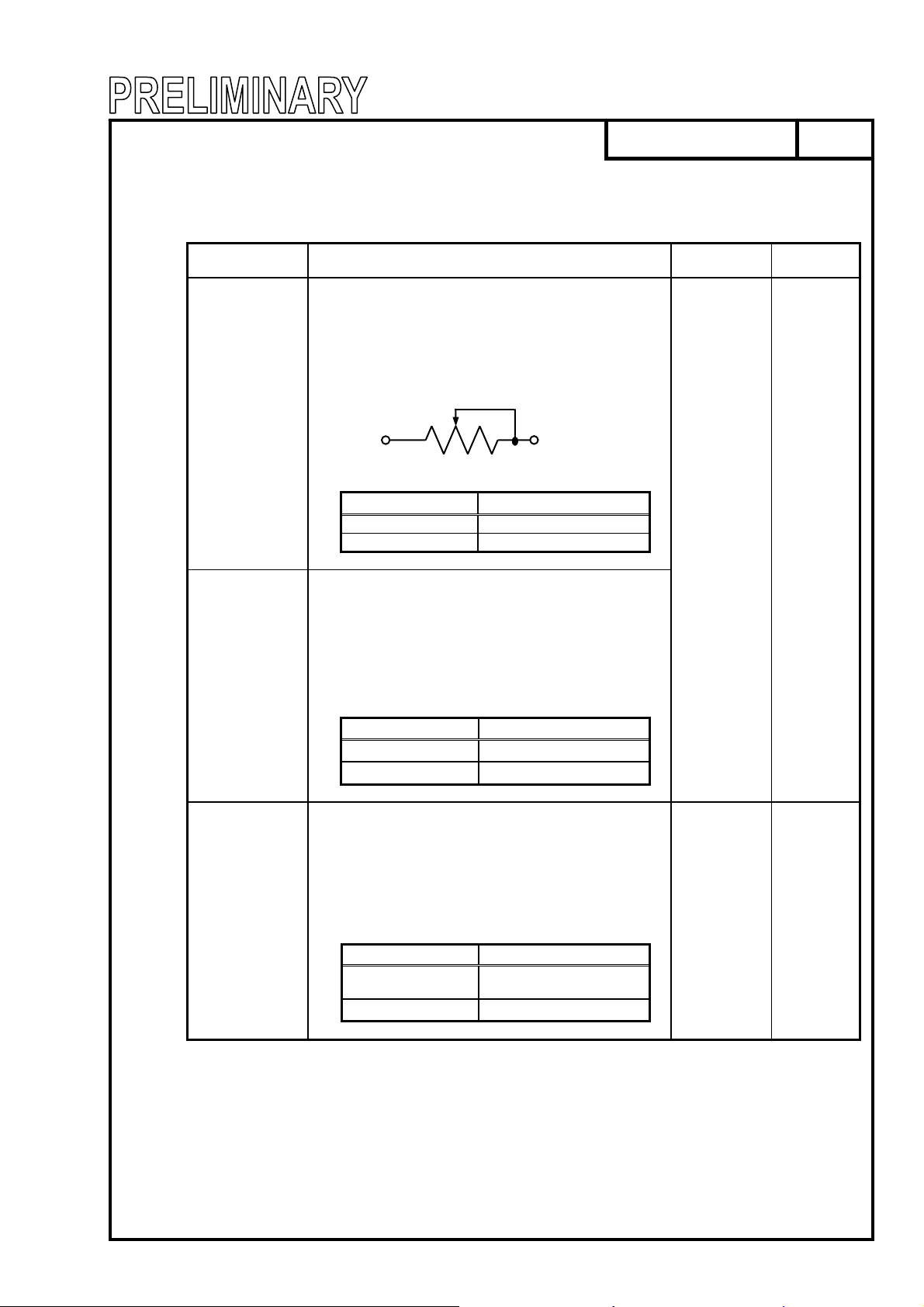

4.6 LUMINANCE CONTROL

4.6.1 Luminance control methods

Method Adjustment and luminance ratio

Variable resistor control

Note1

Voltage control

Note1

Pulse width modulation

Note1

Note2

Note4

Note1: In case of the variable resistor control method and the voltage control method, noises may

appear on the display image depending on the input signals timing for LCD panel signal processing board.

Use PWM method, if interference noises appear on the display image!

Note2: The LED driver board will stop working, if the Low period of BRTP signal is more than 50ms

while BRTC signal is High or Open. Then the backlight will not turn on anymore, even if BRTP signal is input again. This is not out of order. The LED driver board will start to work when power is supplied again.

Note3: These data are the target values. Note4: See "4.6.2 Detail of BRTP timing".

NLT Technologies Confidential and Proprietary

DOD-PP-1603 15/40

• Adjustment

The variable resistor (R) for luminance control should be 10kΩ ±5%, 1/10W. Minimum point of the resistance is the minimum luminance and maximum point of the resistance is the maximum luminance. The resistor (R) must be connected between BRTH-BRTI terminals.

• Luminance ratio Note3

• Adjustment

Voltage control method works, when BRTH terminal is 0V and VBI voltage is input between BRTI-BRTH terminals. This control method can carry out continuation adjustment of luminance. Luminance is the maximum when BRTI terminal is Open

• Luminance ratio Note3

• Adjustment

PWSEL terminal is Low and PWM signal (BRTP signal) is input into BRTP terminal. The luminance is controlled by duty ratio of BRTP signal.

• Luminance ratio Note3

BRTH

Resistance Luminance ratio

BRTI Voltage (VBI) Luminance ratio

Pulse width modulation (PWM) method works, when

Duty ratio Luminance ratio

0.01

1.0 100% (Max. Luminance)

R

0 kΩ

10 kΩ

0 V 0% (Min. Luminance)

1.0 V 100% (Max. Luminance)

BRTI

0% (Min. Luminance)

100% (Max. Luminance)

1% (Min. Luminance)

(At frequency: 325 Hz)

PWSEL

terminal

High or Open Open

Low BRTP signal

BRTP

terminal

NLT Technologies, Ltd.

≤

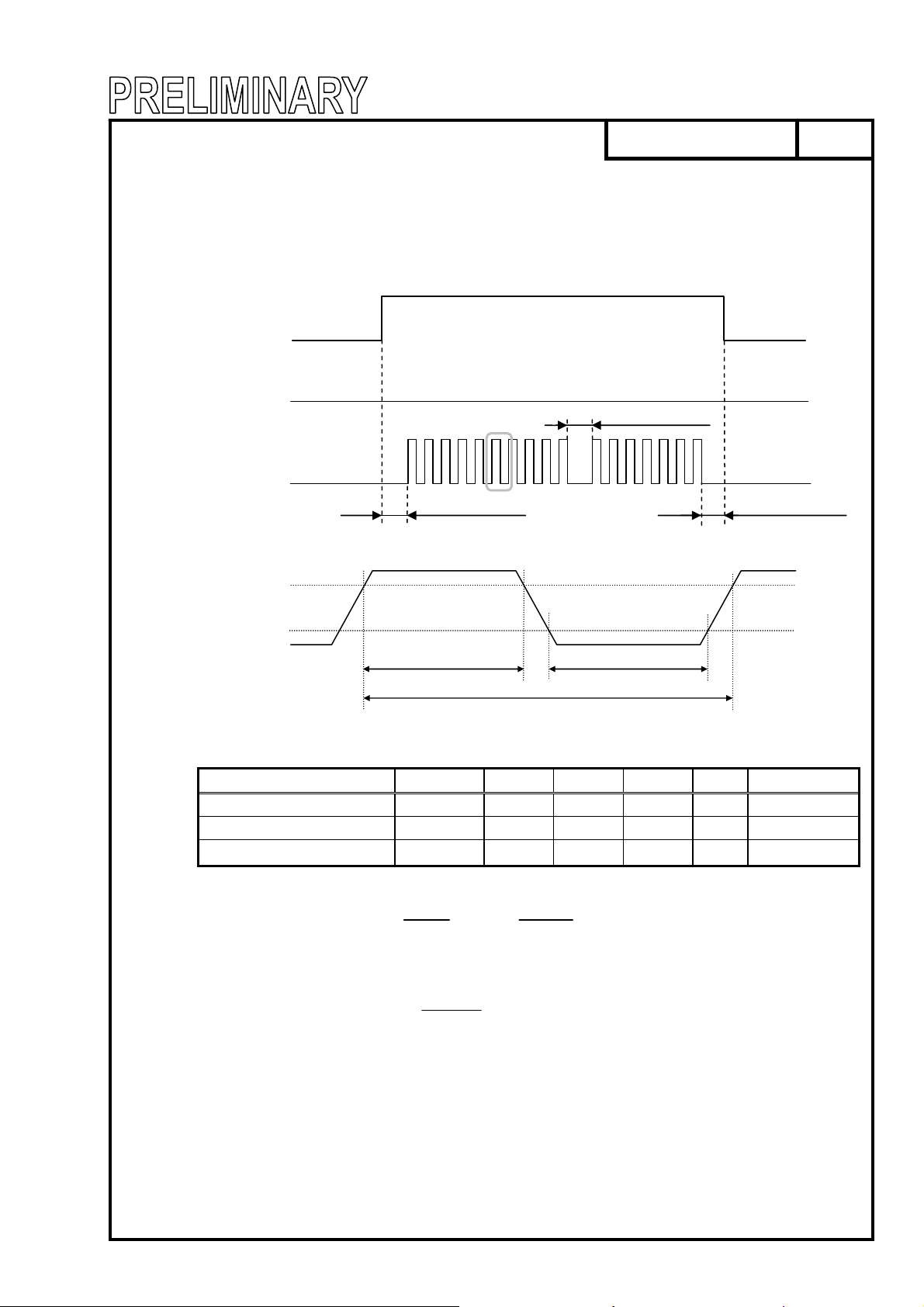

4.6.2 Detail of BRTP timing

(1) Timing diagrams

• Outline chart

BRTC

PWSEL (Low)

BRTP

• Outline chart

BRTP

VBPH

VBPL

(2) Each parameter

Note1: Definition of parameters is as follows.

Note2: A recommended f

Note3: Depending on the frequency used, so noise may appear on the screen, please conduct a

thorough evaluation.

Note4: While the BRTC signal is high, do not set the tPWH (PWM pulse width) is less than 30μs. It

may cause abnormal working of the backlight. In this case, turn the backlight off and then on again by BRTC signal.

Note5: Regardless of the PWM frequency, both PWM duty ratio and PWM pulse width must be

always more than the minimum values.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 16/40

A

tPWH

tPW

Parameter Symbol min. typ. max. Unit Remarks

PWM frequency f

PWM duty ratio DR

PWM pulse width tPWH 30 - -

f

=

PWM

value is as follows.

PWM

185 - 1,000 Hz Note1,2,3

PWM

1 - 100 % Note4,5

PWM

1

tPW

, DL=

tPWH

tPW

2n-1

f

= × fv

PWM

4

(n= integer, fv= frame frequency of LCD module)

0ms ≤ tPWL ≤ 50ms

tPWL

μs

0ms

tPWL ≤ 50ms 0ms ≤ tPWL ≤ 50ms

Note1,4,5

NLT Technologies, Ltd.

N

4.7 LVDS data input map.

4.7.1 Mode A

Input data Note1

odd

Pixel data

even

RA2 RA3 RA4 RA5 RA6 RA7 GA2 GA3 GA4 GA5 GA6 GA7 BA2 BA3 BA4 BA5 BA6 BA7 RSVD

ote3

RSVD

ote3

DE RA0 RA1 GA0 GA1 BA0 BA1 RSVD

ote3

CLK RB2

RB3 RB4 RB5 RB6 RB7 GB2 GB3 GB4 GB5 GB6 GB7

Pixel data

BB2 BB3 RB4 RB5 RB6 RB7 RSVD

ote3

RSVD

ote3

RSVD

ote3

RB0 RB1 GB0 GB1 BB0 BB1 RSVD

ote3

CLK

→ →

52

→ → →

56

→

→ → → → → →

24

→ → →

→ →

→

16

→

→ 31

→

51

→

52

→ →

6

→ → → → → → →

20

→

22

→ →

→ → →

50

→ →

2

→ →

10

→ →

Transmitter

Pin THC63LVDF83D Pin

51

TA0 TA1

54

TA2

55

TA3 TA4

3

TA5

4

TA6

6

TB0

7

TB1

11 TB2 12

TB3

14

TB4

15

TB5

19

TB6

20

TC0 1st

22

TC1

23

TC2 TC3

27

TC4

28

TC5

30

TC6

50

TD0

2

TD1

8

TD2

10

TD3 TD4

18

TD5

25

TD6 CLKIN

TA0 TA1

54

TA2

55

TA3

56

TA4

3

TA5

4

TA6 TB0

7

TB1

11 TB2 12

TB3

14

TB4

15

TB5

19

TB6 TC0 2nd TC1

23

TC2

24

TC3

27

TC4

28

TC5

30

TC6 TD0

TD1

8

TD2 TD3

16

TD4

18

TD5

25

TD6

31

CLKIN

100

NLT Technologies Confidential and Proprietary

DOD-PP-1603 17/40

THC63LVD823B

53

R12

54

R13

57

R14

58

R15

59

R16

60

R17

63

G12

64

G13

65

G14

66

G15

67

G16

68

G17

73

B12

74

B13

75

B14

76

B15

77

B16

78

B17

7

RSVD

8

RSVD

9

DE

51

R10

52

R11

61

G10

62

G11

69

B10

70

B11

10 CLK

81

R22

82

R23

83

R24

84

R25

85

R26

86

R27

91

G22

92

G23

93

G24

94

G25

95

G26

96

G27

99

B22 B23

1

B24

2

B25

5

B26

6

B27

- 27

- 28

- 29 79

R20

80

R21

89

G20

90

G21

97

B20

98

B21

-

ote 2

TA1- → TA1+

TB1- → TB1+

TC1TC1+

TCLK1TCLK1+

TD1TD1+

TA2- → TA2+

TB2TB2+

TC2- → TC2+

TCLK2TCLK2+

TD2TD2+ →

→

→ →

→

→ →

→

→ →

→

1

3

12

18

23

DA0-

2

DA0+

DA1-

4

DA1+

5

DA2-

6

DA2+

7

GND

8

CKA-

9

CKA+

10

DA3-

11 DA3+

DB0-

13

DB0+

14

GND

15

DB1-

16

DB1+

17

GND DB2-

19

DB2+

20

CKB-

21

CKB+

22

DB3DB3+

24

GND

25

TxSEL0 TxSEL1

26

GND VDD VDD VDD

30

CN1

Symbol

NLT Technologies, Ltd.

N

t

N

4.7.2 Mode B

Input data Note1

RA7 RA6 RA5

RA4 RA3 RA2 GA7 GA6 GA5

a

GA4

Pixel da

ote3 ote3

ote3

Pixel data

ote3 ote3 ote3

ote3

GA3 GA2 BA7 BA6 BA5 BA4 BA3 BA2 RSVD RSVD DE RA1 RA0 GA1 CG0 RA1 GA0 RSVD CLK RB7 RB6 RB5 RB4 RB3 RB2 GB7 GB6 GB5 GB4 GB3 GB2 BB7 BB6 BB5 BB4 BB3 BB2 RSVD RSVD RSVD RB1 RB0 GB1 GB0 BB1 BB0 RSVD CLK

odd

even

→

51

→

52

→

54

→

55

→

56

→ → → → →

11 TXIN12

→

12

→

14

→

15

→

19

→

20

→

22

→

23

→

24

→ 27 →

28

→

30

→

50

→ → → 10 →

16

→

18

→

25

→

31

→

51

→ 52 →

54

→

55

→

56

→ → → → →

11 TXIN12

→

12

→

14

→

15

→ 19 →

20

→

22

→

23

→

24

→

27

→

28

→

30

→

50

→ → →

10

→

16

→

18

→ 25 →

31

NLT Technologies Confidential and Proprietary

Transmitter

DS90CF383, C385

TXIN0 TXIN1 TA1TXIN2 TXIN3 TXIN4

3

TXIN6

4

TXIN7

6

TXIN8

7

TXIN9

TXIN13 TXIN14 TXIN15 TXIN18 TXIN19 1st TXIN20 TXIN21 TXIN22 TXIN24 TXIN25 TXIN26 TXIN27

2

TXIN5

8

TXIN10 TXIN11 TXIN16 TXIN17 TXIN23 CLKIN TXIN0 TXIN1 TXIN2 TXIN3 TXIN4

3

TXIN6

4

TXIN7

6

TXIN8

7

TXIN9

TXIN13 TXIN14 TXIN15 TXIN18 TXIN19 2nd TXIN20 TXIN21 TXIN22 TXIN24 TXIN25 TXIN26 TXIN27

2

TXIN5

8

TXIN10 TXIN11 TXIN16 TXIN17 TXIN23 CLKIN

TA1+

TB1-

TB1+

TC1-

TC1+

TCLK1TCLK1+

TD1TD1+

TA2-→ 12 TA2+

TB2-

TB2+

TC2-

TC2+

TCLK2TCLK2+

TD2-→ 22 TD2+

DOD-PP-1603 18/40

CN1

Symbol

ote2

→ →

→

→ →

→

→ →

→

1

DA0-

2

DA0+

3

DA1-

4

DA1+

5

DA2-

6

DA2+

7

GND

8

CKA-

9

CKA+

10

DA3-

DA3+

11

DB0-

13

DB0+

14

GND

15

DB1-

16

DB1+

17

GND

18

DB2-

19

DB2+

20

CKB-

21

CKB+

DB3-

23

DB3+

24

GND

25

TxSEL0

26

TxSEL1

27

GND

28

VDD

29

VDD

30

VDD

NLT Technologies, Ltd.

N

4.7.3 Mode C

Input data Note1

RA0 RA1 RA2

RA3 RA4 RA5 GA0 GA1 GA2 GA3 GA4

Pixel data

ote 3 ote 3

ote 3

Pixel data

ote 3 ote 3

ote 3

GA5 BA0 BA1 BA2 BA3 BA4 BA5 RSVD RSVD DE RA6 RA7 GA6 GA7 BA6 BA7 RSVD CLK RB0 RB1 RB2 RB3 RB4 RB5

GB0 GB1 GB2 GB3 GB4 GB5 BB0 BB1 BB2 BB3 BB4 BB5 RSVD RSVD RSVD RB6 RB7 GB6 GB7 BB6 BB7 RSVD CLK

odd

even

→

51

→

52

→

54

→ 55 →

56

→ 3 → 4 → → →

11 TXIN12

→

12

→

14

→

15

→

19

→

20

→

22

→

23

→

24

→ 27 →

28

→

30

→

50

→ → →

10

→

16

→

18

→

25

→

31

→

51

→

52

→

54

→

55

→

56

→ → → → →

11 TXIN12

→

12

→

14

→

15

→

19

→

20

→

22

→

23

→

24

→

27

→

28

→

30

→

50

→ → →

10

→

16

→

18

→

25

→

31

NLT Technologies Confidential and Proprietary

Transmitter

DS90CF383, C385 TXIN0 TXIN1 TA1-

TXIN2 TA1+ TXIN3 TXIN4 TB1TXIN6 TB1+ TXIN7

6

TXIN8 TC1-

7

TXIN9 TC1+

TXIN13 TCLK1TXIN14 TCLK1+ TXIN15 TXIN18 TD1TXIN19 1st TD1+ TXIN20 TXIN21 TXIN22 TXIN24 TXIN25 TXIN26 TXIN27

2

TXIN5

8

TXIN10 TXIN11 TXIN16 TXIN17 TXIN23 CLKIN TXIN0 TXIN1 TA2TXIN2 TA2+ TXIN3 TXIN4 TB2-

3

TXIN6 TB2+

4

TXIN7

6

TXIN8 TC2-

7

TXIN9 TC2+

TXIN13 TCLK2TXIN14 TCLK2+ TXIN15 TXIN18 TD2TXIN19 2nd TD2+ TXIN20 TXIN21

TXIN22 TXIN24 TXIN25 TXIN26

TXIN27

2

TXIN5

8

TXIN10 TXIN11 TXIN16 TXIN17 TXIN23 CLKIN

ote2

DOD-PP-1603 19/40

CN1

→ →

→ → 4

→ →

1 2

3

5 6 7 8 9

10 11

DA3+

12 13 14 15 16 17 18 19

20 21

22 23 24 25 26 27 28 29 30

Symbol DA0- DA0+

DA1- DA1+

DA2- DA2+ GND CKA- CKA+

DA3-

DB0DB0+ GND DB1DB1+ GND DB2DB2+

CKB- CKB+

DB3DB3+ GND TxSEL0 TxSEL1 GND VDD VDD VDD

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 20/40

Note1: LSB (Least Significant Bit) – RA0, GA0, BA0, RB0, GB0, BB0

MSB (Most Significant Bit) – RA7, GA7, BA7, RB7, GB7, BB7

Note2: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

Note3: Input signal RSVD is not used inside the product, but do not keep pin open to avoid noise

problem.

4.8 DISPLAY COLORS AND INPUT DATA SIGNALS

This product can display in equivalent to 16,777,216 colors in 256 gray scales in each RGB sub-pixel. Also the relation between display colors and input data signals is as the following table.

Data signal (0: Low level, 1: High level)

Display colors

Black

Blue

Red

Magenta

Green

Basic Colors

Cyan

Yellow

White Black

dark

bright

Red gray scale

Red

Black

dark

bright

Green gray scale

Green Black

dark

bright

Blue gray scale

Blue

RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0 RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0

↑ ↓

:

: 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

↑ ↓

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

↑ ↓

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GA7 GA6 GA5 GA4 GA3 GA2 GA1 GA0 GB7 GB6 GB5 GB4 GB3 GB2 GB1 GB0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0

:

: 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BA7 BA6 BA5 BA4 BA3 BA2 BA1 BA0 BB7 BB6 BB5 BB4 BB3 BB2 BB1 BB0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

:

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0

:

: 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1

NLT Technologies, Ltd.

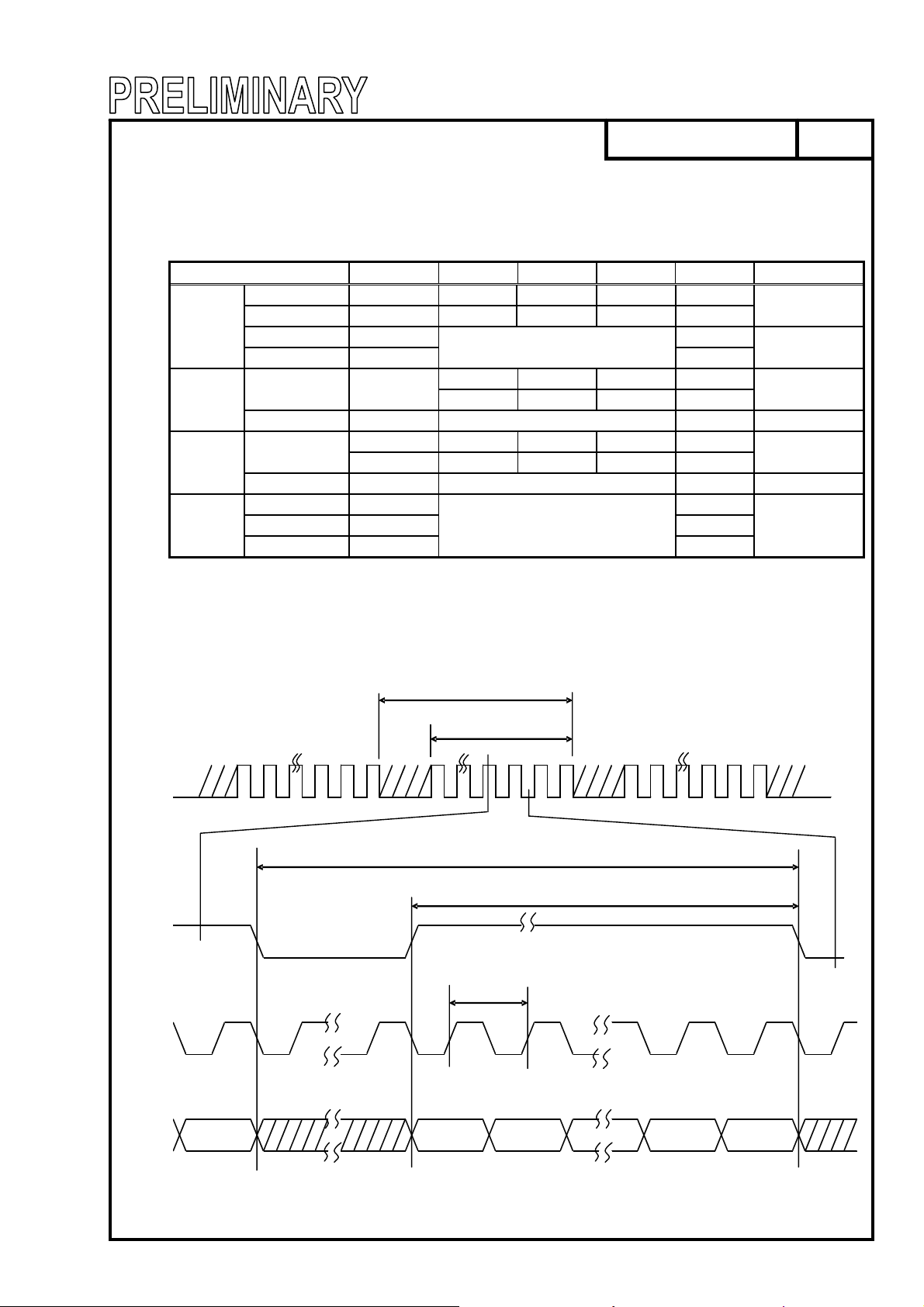

4.9 INPUT SIGNAL TIMINGS

4.9.1 Timing characteristics

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/ tc 60.0 64.5 65.0 MHz

CLK

Horizontal

Vertical

DE, DAT A

Pulse width tc 15.38 15.5 - ns Duty - Rise, fall -

Cycle th

Display period thd 800 CLK Cycle

Display period tvd 1,200 H Setup time - ns Hold time - ns Rise, fall -

Note1: During operation, fluctuation of horizontal cycle should be within ±1 CLK.

4.9.2 Input signal timing chart

DE

Invalid

DE

CLK

DATA (A), (B)

Invalid

NLT Technologies Confidential and Proprietary

DOD-PP-1603 21/40

LVDS transmitter

See the data sheet of LVDS transmitter.

13.1 13.3 19.2 848 860 1,156 CLK

tv 16.95 16.667 16.4 ms tv 1,206 1,250 - H

See the data sheet of LVDS transmitter.

tv

tvd = 1,200H (fixed)

Invalid

th

thd= 800CLK (fixed)

tc

Invalid

ns μs

ns

75.18kHz(typ.)

input

-

Note1

60.0Hz(typ.)

-

Invalid

NLT Technologies, Ltd.

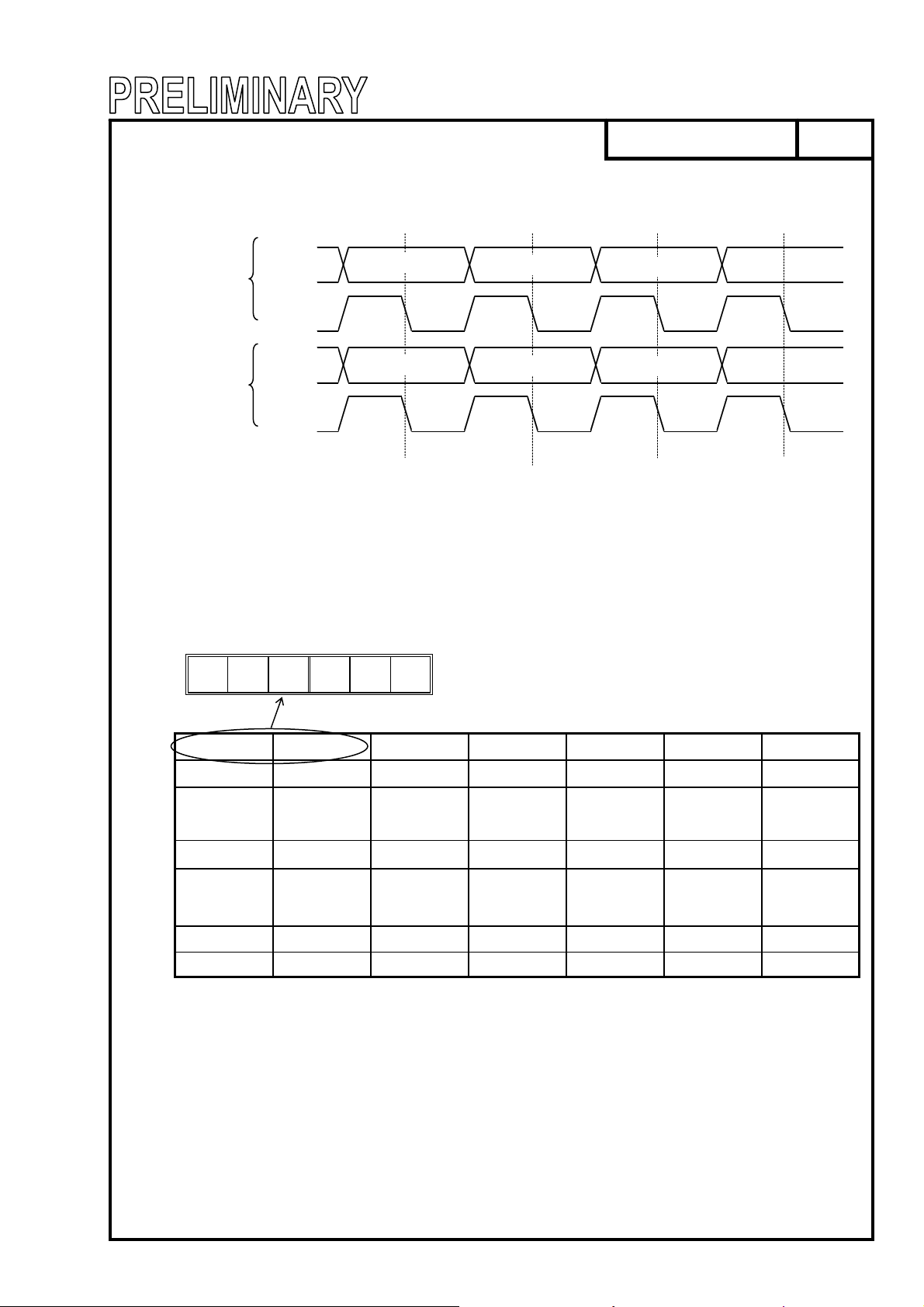

4.10 LVDS DATA TARANSMISSION METHOD

Pixel Data A

Pixel Data B

RA(7:0) GA(7:0) BA(7:0)

CLK

RB(7:0) GB(7:0) BB(7:0)

CLK

D0 (7:0)

D1 (7:0) D3 (7:0)

4.11 DISPLAY POSITIONS

Odd pixel: RA= R data Even pixel: RB= R data GA= G data GB= G data BA= B data BB= B data

D (1, 1) D (2, 1)

NLT Technologies Confidential and Proprietary

D2 (7:0)

DOD-PP-1603 22/40

D4 (7:0)

D5 (7:0)

RA GA BA RB GB BB

D( 1, 1) D ( 2, 1) D ( 1, 2) D ( 2, 2)

•

D ( 1, Y) D ( 2, Y)

•

D ( 1, 1199) D ( 2, 1199) D ( 1, 1200) D ( 2, 1200)

•

• • •

•

• • •

•

• • •

•

• • •

•

• • •

D ( X, 1) D ( X, 2)

•

D ( X, Y)

•

D ( X, 1199) D ( X, 1200)

• • •

•

• • •

•

• • •

•

• • •

•

• • •

D (1599, 1) D (1600, 1) D (1599, 2) D (1600, 2)

•

D (1599, Y) D (1600, Y)

•

D (1599, 1199) D (1600, 1199) D (1599, 1200) D (1600, 1200)

•

• • •

•

NLT Technologies, Ltd.

4.12 PIXEL ARRANGNMENT

1 2 1,600

NLT Technologies Confidential and Proprietary

DOD-PP-1603 23/40

R G B R G B

1

• • • • • • •

RG B

• • • • • •

• • • • • • •

•• •

1,200

R G B R G B • • • • • • • R G B

NLT Technologies, Ltd.

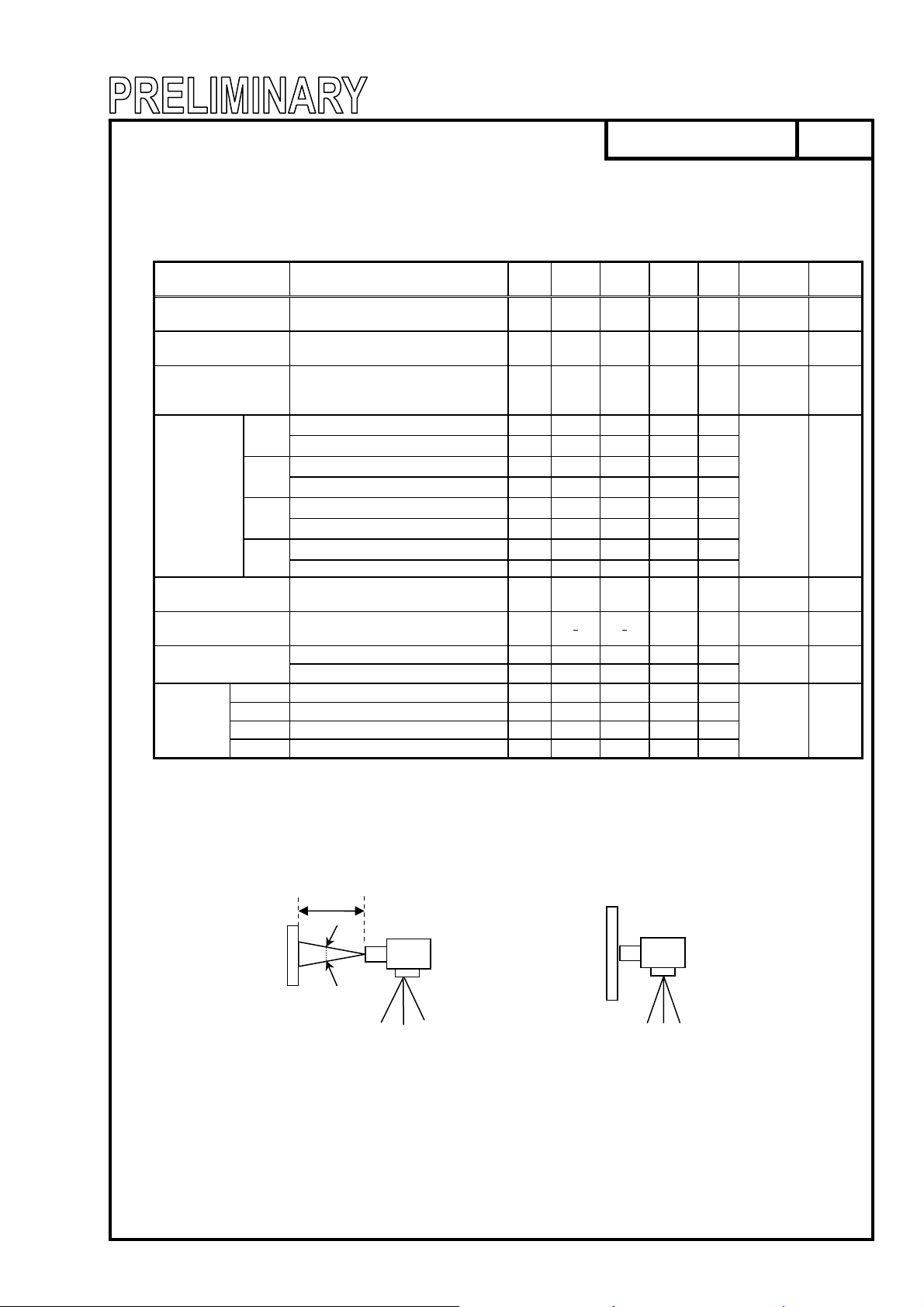

4.13 OPTICS

4.13.1 Optical characterist ics

Parameter Condition

Luminance

Contrast ratio

Luminance

uniformity

White

Chromaticity

Green

Color gamut

Color uniformity

Response time

Right

Viewing

angle

Left

Up

Down

Note1: These are initial characteristics. Note2: Measurement conditions are as follows.

Ta= 25 Horizontal cycle= 1/75.19 kHz, Vertical cycle= 1/60.0Hz

Optical characteristics are measured at luminance saturation 20minutes after the product works in the dark room. Also measurement methods are as follows.

LCD module

Note3: Product surface temperature at the maximum luminance control: TopF= 32°C,TopR= 43°C Note4: Product surface temperature at 450cd/m

Temperature difference in display area: Δ10°C

Note5: See "4.13.2 Definition of contrast ratio". Note6: See "4.13.3 Definition of luminance uniformity". Note7: See "4.13.4 Definition of color uniformity". Note8: These coordinates are found on CIE 1931 chromaticity diagram. Note9: See "4.13.5 Definition of response times". Note10: Product surface temperature TopF= 35°C Note11: See "4.13.6 Definition of viewing angles".

NLT Technologies Confidential and Proprietary

DOD-PP-1603 24/40

Symbol

White at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White/Black at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

255/255 gray scale

θR= 0°, θL= 0°, θU= 0°, θD= 0°

x coordinate Wx 0.269 0.299 0.329 - y coordinate Wy 0.285 0.315 0.345 -

Red

Blue

θR= 0°, θL= 0°, θU= 0°, θD= 0°

at center, against NTSC color space

θR= 0°, θL= 0°, θU= 0°, θD= 0°

x coordinate Rx - 0.65 - - y coordinate Ry - x coordinate Gx - y coordinate Gy - x coordinate Bx -

y coordinate By - 0.07 - -

204/255 gray scale

Black to White Ton - 20 30 ms White to Black Toff - 20 30 ms

θU= 0°, θD= 0°, CR≥ 10 θR θU= 0°, θD= 0°, CR≥ 10 θL

θR= 0°, θL= 0°, CR≥ 10 θU θR= 0°, θL= 0°, CR≥ 10 θD

LU

°C, VDD= 12.0V, VDDB= 12.0V, PWM: Duty 100%, Display mode: UXGA,

(Product)

50cm

Photodetector (BM-5A, BM-5A-10000

or SR-3) or equivalent

1°

2

luminance control: TopF= 30°C,TopR= 38°C

min. typ. max. Unit

L 670 900 - cd/m2

CR 1,000 1,400 - -

255 80 - - %

0.33

0.29

0.60

0.15

C 65 72 - % SR-3 Note3

Δu’v’

- - 0.01 - SR-3

70 88 70 88 70 88 70 88 -

LCD module

(Product)

- -

° ° ° °

Photodetector (EZ Contrast)

(Note1, Note2)

Measuring instrument

BM-5A or SR-3

BM-5A

SR-3

BM-5A

-10000

BM-5A

EZ Contrast

or

Remarks

Note3 Note3

Note5 Note4

Note6

Note3 Note8

Note4 Note7

Note9

Note10

Note3

Note11

NLT Technologies, Ltd.

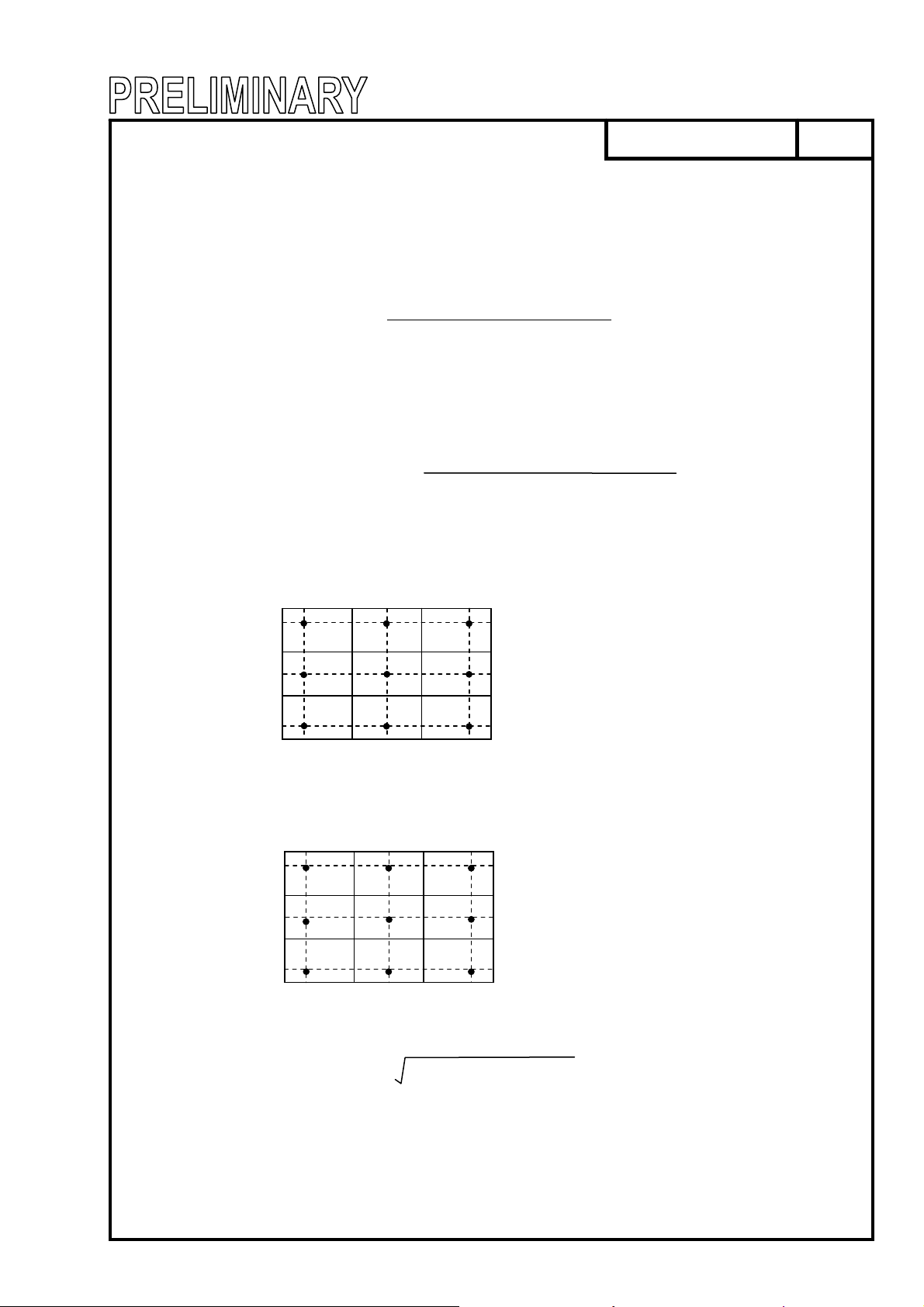

4.13.2 Definition of contrast ratio

The contrast ratio is calculated by using the following formula.

Contrast ratio (CR) =

4.13.3 Definition of luminance uniformity

The luminance uniformity is calculated by using following formula.

Luminance uniformity (LUxx) =

xx: 256 gray scale.

The luminance is measured at near the 9 points shown below.

120

160

①

600

④

1,080

⑦

4.13.4 Definition of color uniformity

The color (u', v') is measured at near the 9 points shown below

160 800

120

①

600

④

1,080

⑦

The color uniformity in each measuring point is calculated by using the following formula.

Color uniformity(Δu’v’)= (u’

, v’x: u’, v’ value at measuring point x.

u’

x

, v’y: u’, v’ value at measuring point y.

u’

y

Luminance of white screen Luminance of black screen

Minimum luminance from ① Maximum luminance from ①

800

②

⑤

⑧

1,440

③

⑥

⑨

1,440

②

⑤

⑧

x

③

⑥

⑨

- u’y)2 + (v’x - v’y)2

NLT Technologies Confidential and Proprietary

DOD-PP-1603 25/40

to ⑨

NLT Technologies, Ltd.

N

4.13.5 Definition of response times

Response time is measured at the time when the luminance changes from "black" to "white", or "white" to "black" on the same screen point, by photo-detector. Ton is the time when the luminance changes from 10% up to 90%. Also Toff is the time when the luminance changes from 90% down to 10% (See the following diagram.).

White

Luminance

Black

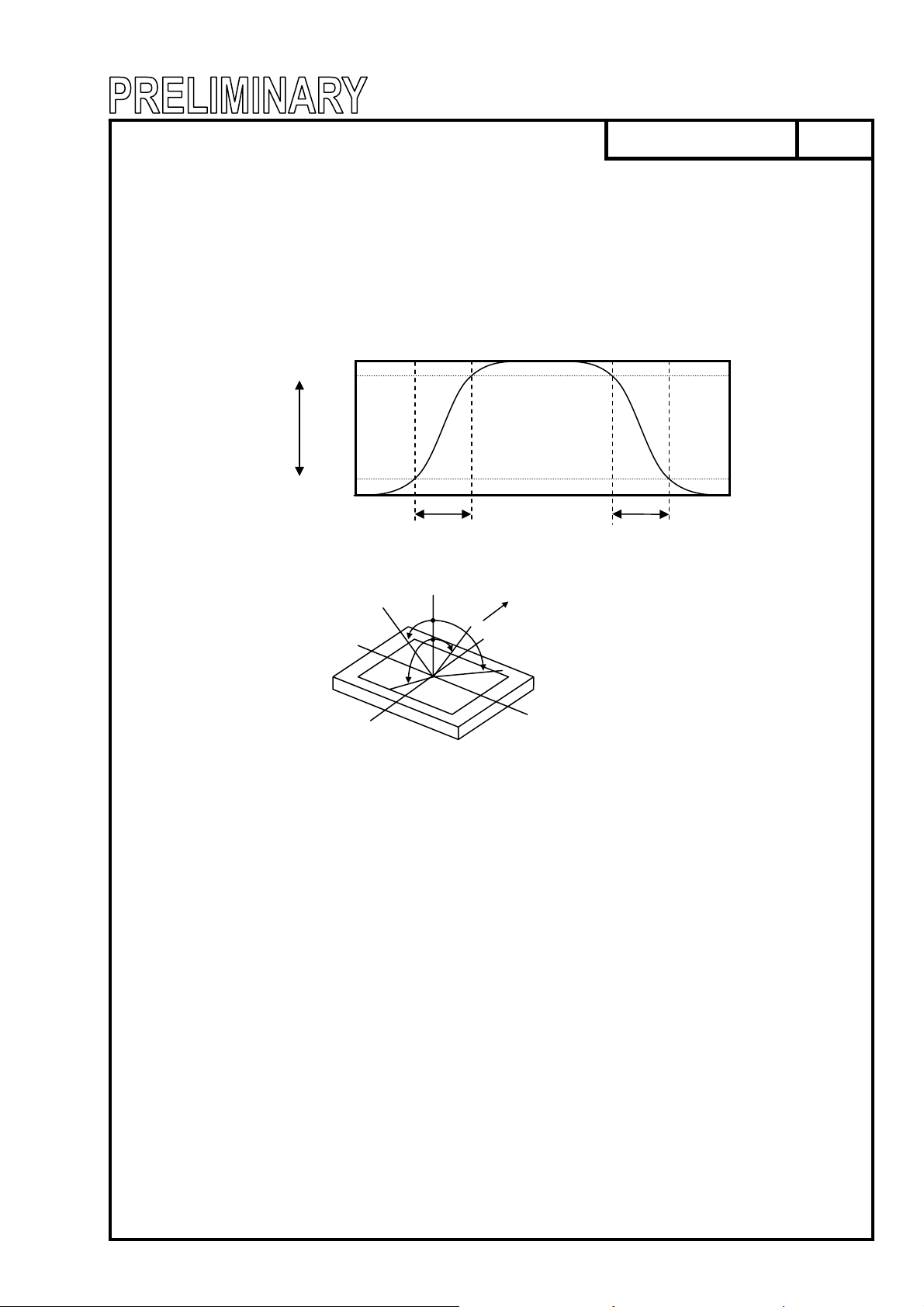

4.13.6 Definition of viewing angles

100%

90%

10%

0%

ormal axis (Perpendicular)

θL

Left

θD

Lower

Ton

θU

NLT Technologies Confidential and Proprietary

DOD-PP-1603 26/40

Toff

12 o’clock

Upper

θR

Right

NLT Technologies, Ltd.

4.14 DEFECT CRITERIA

4.14.1 Display specifications

(1) Line defects/Pixel Defects

Defect pattern Condition Criteria Remarks

Line defect - 0 line -

Bright dots

Dark dots

Note4

Close defect dots Total Bright dots + Dark dots ≤20dots -

1pixel

NLT Technologies Confidential and Proprietary

DOD-PP-1603 27/40

(Note1)

Full bright dots Note2 1 dot -

Single defect dot ≤10dots -

Half bright dots

Note3

Single defect dot ≤15dots Linked defect dots (D = 0 mm)

Close 2 same color bright dot Distance between each

Linked defect dots (D = 0 mm)

Note5

2 defect dots ≤1set Note6 3 defect dots or more 0 set Note7

2 defect dots ≤8set Note6 3 -4 defect dots ≤1set Note7

bright dots ≤6.5mm

R, G, B ≤4 sets each

Note8

R, G, B

1 sub pixel

Note1: Inspection conditions are as follows.

Temperature

Inspection viewing distance 20 cm (The distance between the inspector's eye and screen.)

Inspection direction

Inspection illumination 60 lx (at a display surface)

Luminance 400cd/m2

Note2: Definition of full bright dot

The full bright dot can be recognized at 160/255 gray scale in full screen in spite of bright dot size.

Note3: Definition of half bright dot

The half bright dot can be recognized at 60/255 gray scale in full screen and the defect area is larger than 1/3 of a sub-pixel.

Note4: Definition of dark dot

The dark dot can be recognized at 400cd/m sub-pixel.

Note5: D is the distance between defect dots.

25 ± 5 °C

0° ≤ θR ≤ 20°, 0° ≤ θL ≤ 20°

0° ≤ θU ≤ 20°

2

and the defect area is larger than 1/3 of a

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 28/40

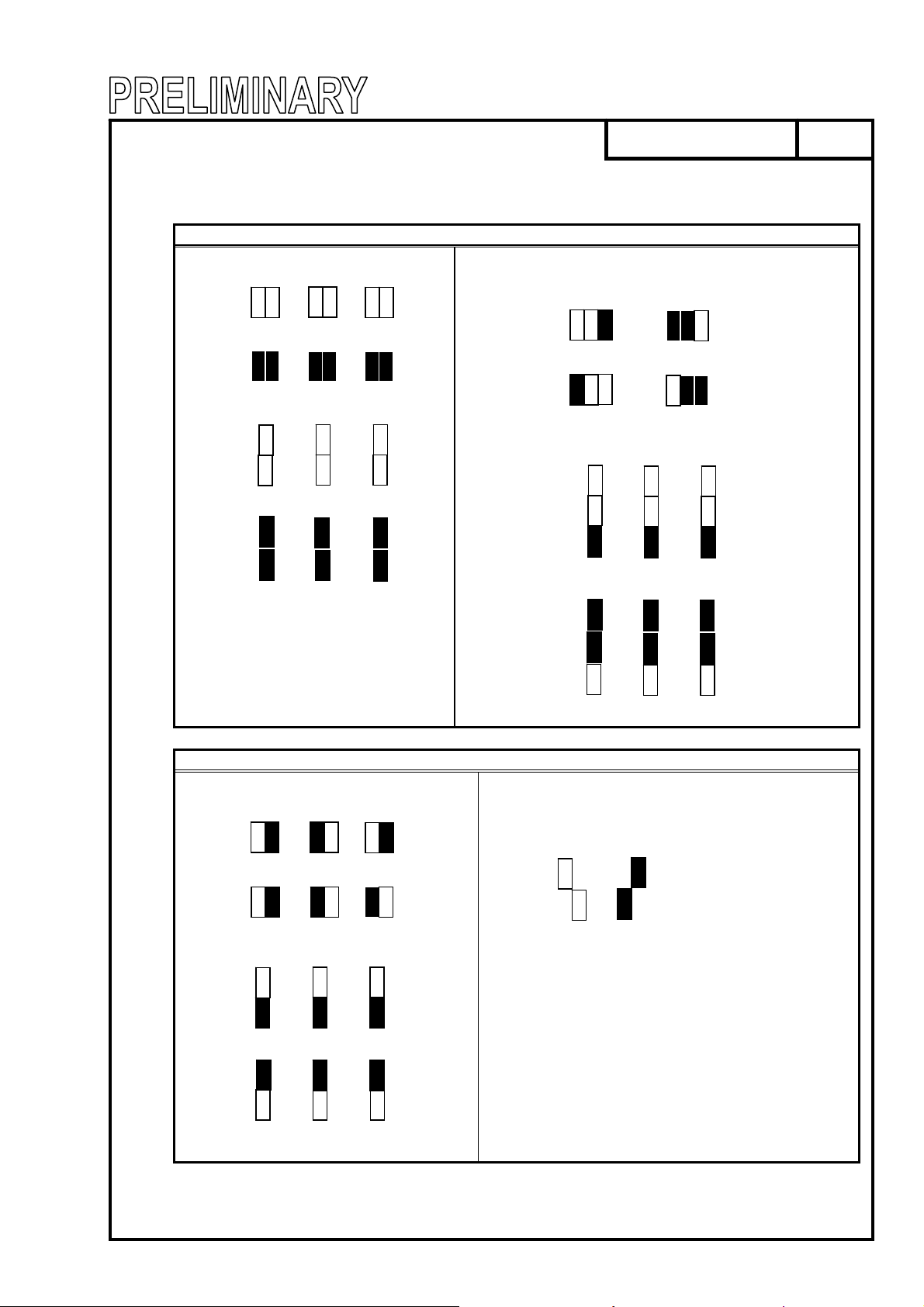

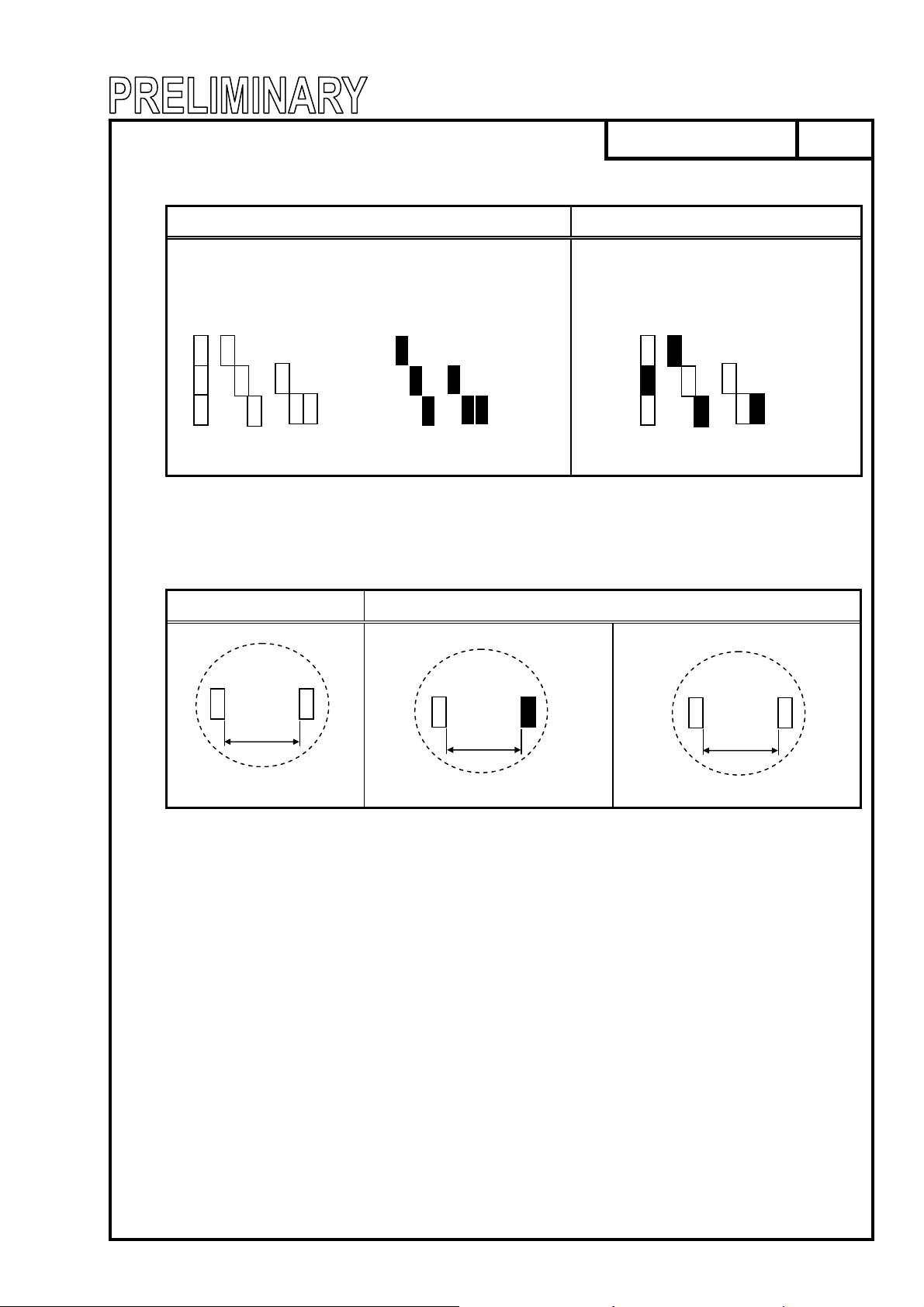

Note6: Linked 2 dots

Counted as NG

R G

G B

B R

The following combinations are also counted.

R G B

R G

G B

B R

R G B

R

G B

R

G B

G

B

Not counted

Combinations of bright and dark dots Combinations other than linked 2 defect dots

R G

G B

R G B

R

G

B R

B

R

G

R

G

Etc.

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 29/40

Note7: Linked 3-4 dots

Counted as NG Not counted

Note8: Close 2 same color bright dots

All of dots are bright dots and dark dots (The Defect criteria for linked 4 or 5 dots are under discussion.)

Etc.

Counted as NG Not counted

R

Combinations of bright and dark dots Combinations of different color dots

R

Combinations of bright and dark dots

Etc.

R G

≤6.5mm

NLT Technologies, Ltd.

4.14.2 Appearance specifications

Defect pattern Condition Note1 Criteria

Impure ingredient

Stains

Dust

Bubbles, Wrinkles, Dent

Panel dent

Polarizer scratch

Shape Specified label must be put. There must not be a missing part.

Note1: Definition of symbols is as follows.

d: A verage diameter

(This diameter is the average length of a long axis and a short axis in each defect pattern.)

W: Width, L: Length, S: Area

Note2: Inspection conditions are as follows.

Inspection viewing distance 20cm (The distance between the inspector's eye and screen.)

NLT Technologies Confidential and Proprietary

DOD-PP-1603 30/40

d < 0.2mm Allowed

0.2 mm ≤ d < 0.3 mm ≤ 10 points

Dot shape

Line shape

Temperature

Inspection direction

Illumination 700 lx (at an inspection desk surface)

0.05 mm ≤ W ≤ 0.1 mm

0.3 mm ≤ d ≤ 0.5 mm ≤ 3 points d > 0.5mm

Linked impure ingredient

W < 0.05 mm

L < 0.7 mm

0.7 mm ≤ L ≤ 1.0 mm ≤ 4 points L > 1.0 mm

W > 0.1 mm

d ≤ 0.2 mm

0.2 mm < d ≤ 0.5 mm ≤ 2 points d > 0.5 mm 0 point d ≤ 0.2 mm

0.2 mm < d ≤ 0.5 mm d > 0.5 mm 0 point

S ≤ 0.2 mm2 S > 0.2 mm

2

0 point

25 ± 5 °C

0° ≤ θR ≤ 45°, 0° ≤ θL ≤ 45°

0° ≤ θU ≤ 45°, 0° ≤ θD ≤ 45°

0 point

Allowed

0 point

Allowed

≤ 2 points

Allowed

NLT Technologies, Ltd.

5. ESTIMATED LUMINANCE LIFETIME

The luminance lifetime is the time from initial luminance to half-luminance.

This lifetime is the estimated value, and is not guarantee value.

Condition

NLT Technologies Confidential and Proprietary

DOD-PP-1603 31/40

Estimated luminance lifetime

(Life time expectancy)

Note1, Note2, Note3

Unit

LED elementary

substance

Note1: Life time expectancy is mean time to half-luminance. Note2: Estimated luminance lifetime is not the value for an LCD module but the value for LED

elementary substance.

Note3: By ambient temperature, the lifetime changes particularly. Especially, in case the product

works under high temperature environment, the lifetime becomes short.

6. PRODUCT INSPECTIONS

The following inspections are carried out for products, before shipment

(1) 100% inspection

• Power supply current

• Display

• Appearance

(2) Sampling inspection

• White luminance

• Contrast ratio

• Luminance uniformity

25°C (Ambient temperature of the product)

Continuous operation, PWM: Duty 100%

60°C (Temperature of the product front or rear panel)

Continuous operation, PWM: Duty 100%

70,000

h

60,000

NLT Technologies, Ltd.

7. RELIABILITY TESTS

Test item Condition Judgment Note1

NLT Technologies Confidential and Proprietary

DOD-PP-1603 32/40

High temperature and humidity

(Operation)

Heat cycle

(Operation)

Thermal shock

(Non operation)

Vibration

(Non operation)

Mechanical shock

(Non operation)

ESD

(Operation)

Non-operation

Low pressure

Operation

① 60 ± 2°C, RH= 60%, 240hours ② Display data is white. Note2

① 0 ± 3°C 1hour

60 ± 3°C 1hour

② 50cycles, 4hours/cycle ③ Display data is white. Note2

① -20 ± 3°C 30minutes

60 ± 3°C 30minutes

② 100cycles, 1hour/cycle ③ Temperature transition time is within 5

minutes.

① 5 to 100Hz, 11.76m/s ② 1 minute/cycle ③ X, Y, Z directions ④ 10 times each directions

2

① 294m/s ② X, Y, Z directions ③ 3 times each directions

① 150pF, 150Ω, ±10kV ② 9 places on a panel surface Note3 ③ 10 times each places at 1 sec interval

① 15 kPa (Equivalent to altitude 13,600m) ② -20°C±3°C 24 hours ③ +60°C±3°C 24 hours

① 53.3kPa (Equivalent to altitude 5,100m) ② 0°C±3°C 24 hours ③ +55°C±3°C 24 hours Note2

, 11ms

2

No display malfunctions

No display malfunctions No physical damages

No display malfunctions

Note1: Display and appearance are checked under environmental conditions equivalent to the

inspection conditions of defect criteria.

Note2: Luminance: 450cd/m

2

at luminance control.

Note3: See the following figure for discharge points

{ {

{

NLT Technologies, Ltd.

8. MARKINGS

The various markings are attached to this product. See "11 OUTLINE DRAWINGS" for attachment

positions.

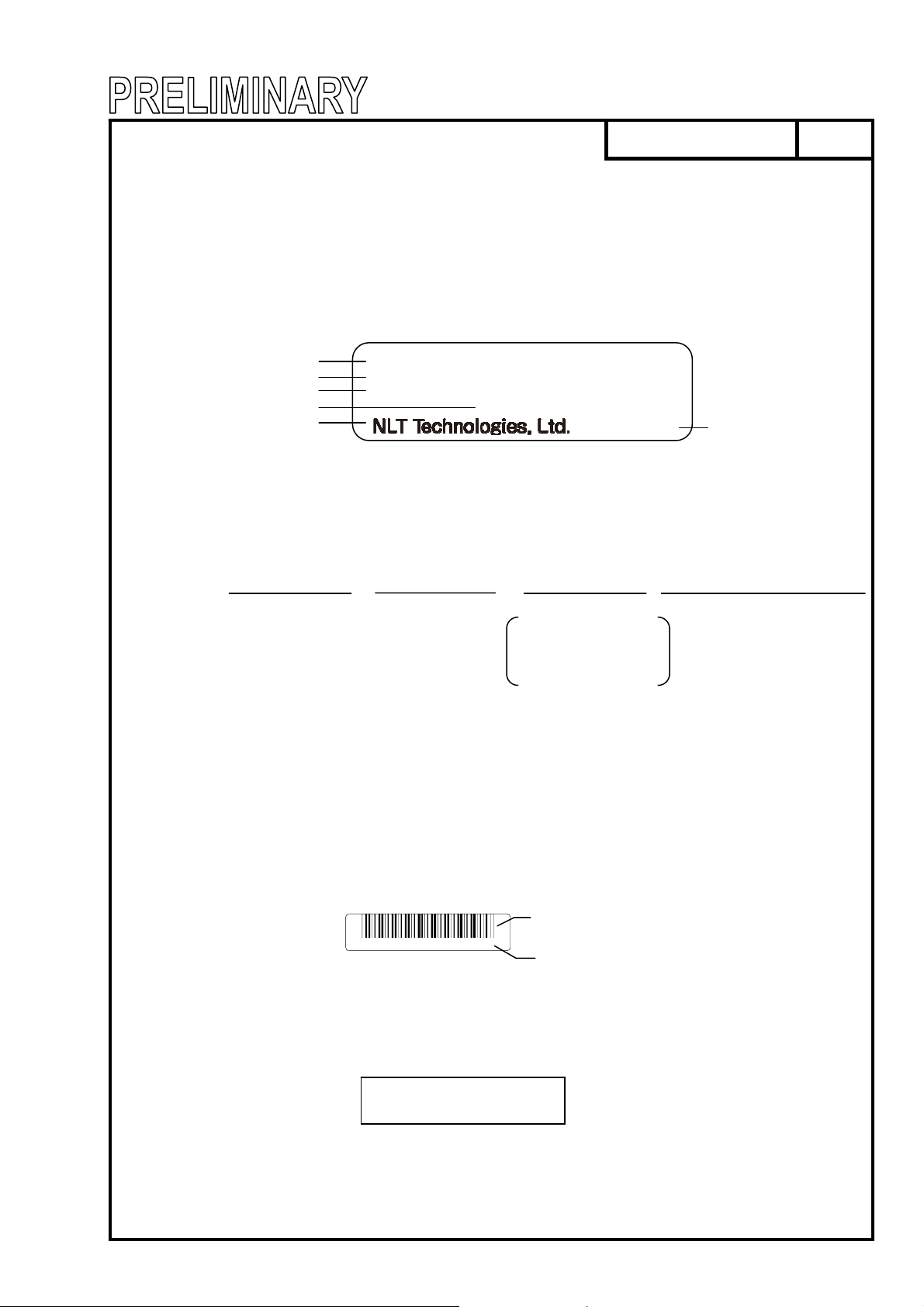

8.1 NAMEPLATE LABEL

Note1 Lot number

Inspection date

Company emblem

Note1: The meaning of lot number

• Example: A3310036

Note2: Do not attach anything such as label and so on, on the nameplate! In case repair the

product, NLT needs the contents of nameplate such as the lot number, inspection date and so on, to identify the warranty period with individual product. If NLT cannot decipher the contents of nameplate, such repair shall be entitled to charge. Also NLT may give a new lot number to repair products.

8.2 BARCODE LABEL

Note1: The same panel number is given to barcode label and nameplate label.

8.3 OTHER MARKINGS

NLT Technologies Confidential and Proprietary

DOD-PP-1603 33/40

Nameplate label

Type name

Panel number

MODEL: NL160120AC27-37

LOT : A3310036 PANEL:

*************

**.**.**/

MADE IN JAPAN

Note2

Country of manufacture

A 3 3 10036

Revision

1 letter

(Alphabet)

Manufacturing year

1 figure of the A.D. end

numbers

(e.g.: A.D 2013 is 3.)

Barcode label

*************

Material information marking for diffuser

Material Information

Light Guide >PMMA<

Manufacturing month

Jan. to Sep.: Number of month

1 letter

October: A

November: B

December: C

Barcode (Label code: 39)

Panel number Note1

Production number

Multi-letter

NLT Technologies, Ltd.

9. PACKING, TRANSPORTATION AND DELIVERY

NLT will pack products to deliver to customer in accordance with NLT's packing specifications, and will deliver products to customer in such a condition that products will not suffer from a damage during transportation. The delivery conditions are as follows.

9.1 INNER PACKING BOX

(1) Inner packing box

5 products are packed as the maximum in an inner packing box (See "9.5 OUTLINE FIGURE

FOR PACKING"). The type name and quantity are shown on outside of the inner packing box, either labeling or printing. In case the inner packing box with products is dropped from a height of 40cm or more, there is a risk of damage to products.

In case of shipping the product out of Japan, the product must not be transported only with the inner box, because there is a high risk of damage. Be sure to use an outer packing box which is shown below!

(2) Outer packing box

The inner box with products is packed in an outer packing box A or an outer packing box B (See

"9.5 OUTLINE FIGURE FOR PACKING"). The type name and quantity are shown on outside of the outer packing box, either labeling or printing. In case the outer packing box with products is dropped from a height of 40cm or more, there is a risk of damage to products.

Outer packing box is used only when shipping the product out of Japan.

9.2 INSPECTION RECORD SHEET

Inspection record sheets are included in an inner packing box with products. It is summarized to a

number of products for pass/fail assessment.

9.3 TRANSPORTATION

The product is transported by vehicle, aircraft or ship.

9.4 SIZE AND WEIGHT FOR PACKING BOXES

Packing box type

Parameter

Inner packing box Outer packing box

NLT Technologies Confidential and Proprietary

DOD-PP-1603 34/40

Unit

Size

Weight 2.5 (typ.) 1.9 (typ.) kg

Total weight

364(W) × 524(H) × 619(D) (typ.) 397(W) × 576(H) × 647(D) (typ.)

16.0 (typ.)

(with 5 products)

(with an inner packing box and 5

17.9 (typ.)

products)

mm

kg

NLT Technologies, Ltd.

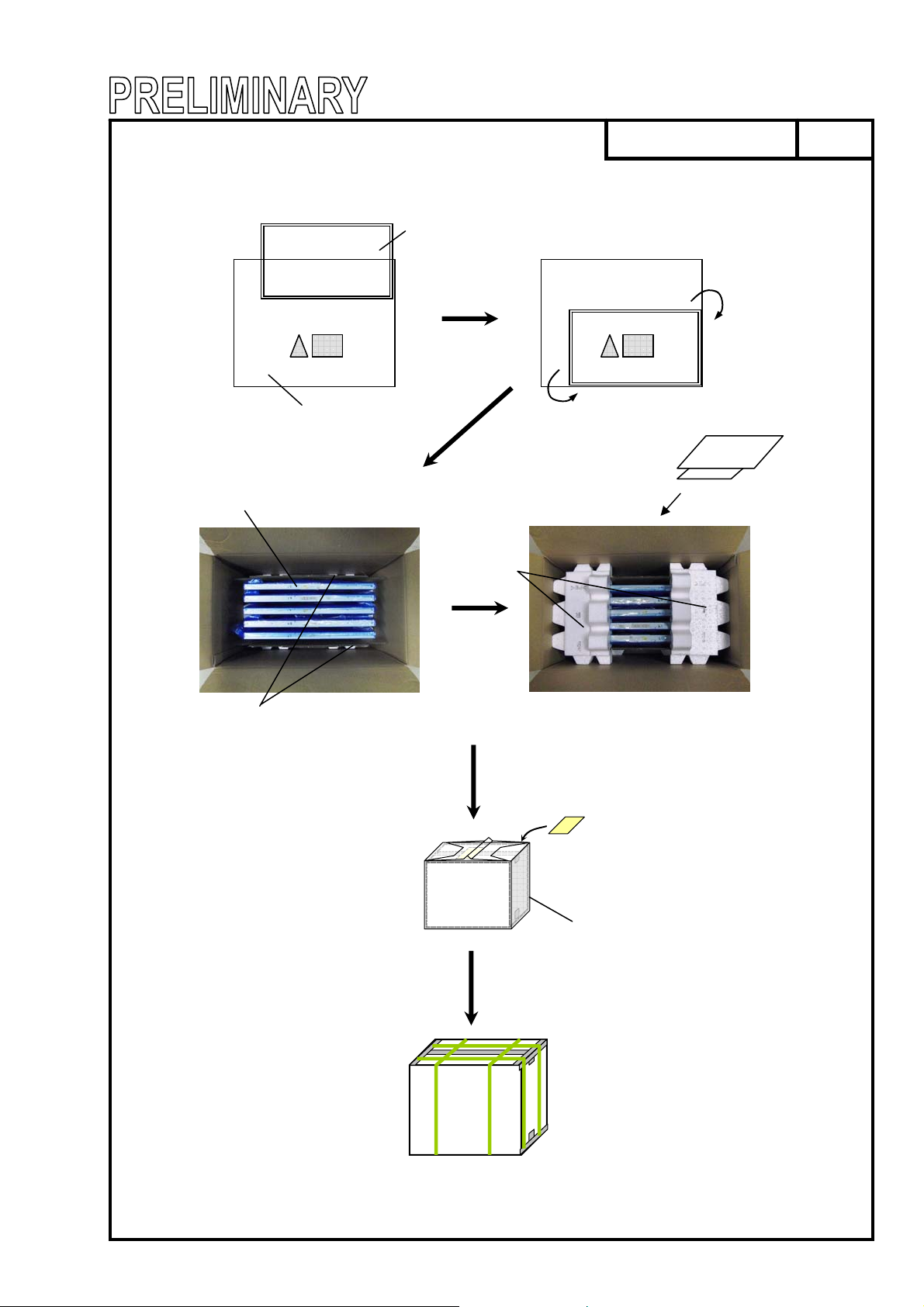

9.5 OUTLINE FIGURE FOR PACKING

Antistatic pouch

LCD Module

(Product)

Partition board

Overseas delivery

NLT Technologies Confidential and Proprietary

DOD-PP-1603 35/40

LCD module (Product)

Handling manual Inspection record sheet

Inner pad

Inner packing box

(Carton box)

Moisture absorber

Plastic bag for moisture prevention

Outer packing box

(Carton box)

NLT Technologies, Ltd.

!

10. PRECAUTIONS

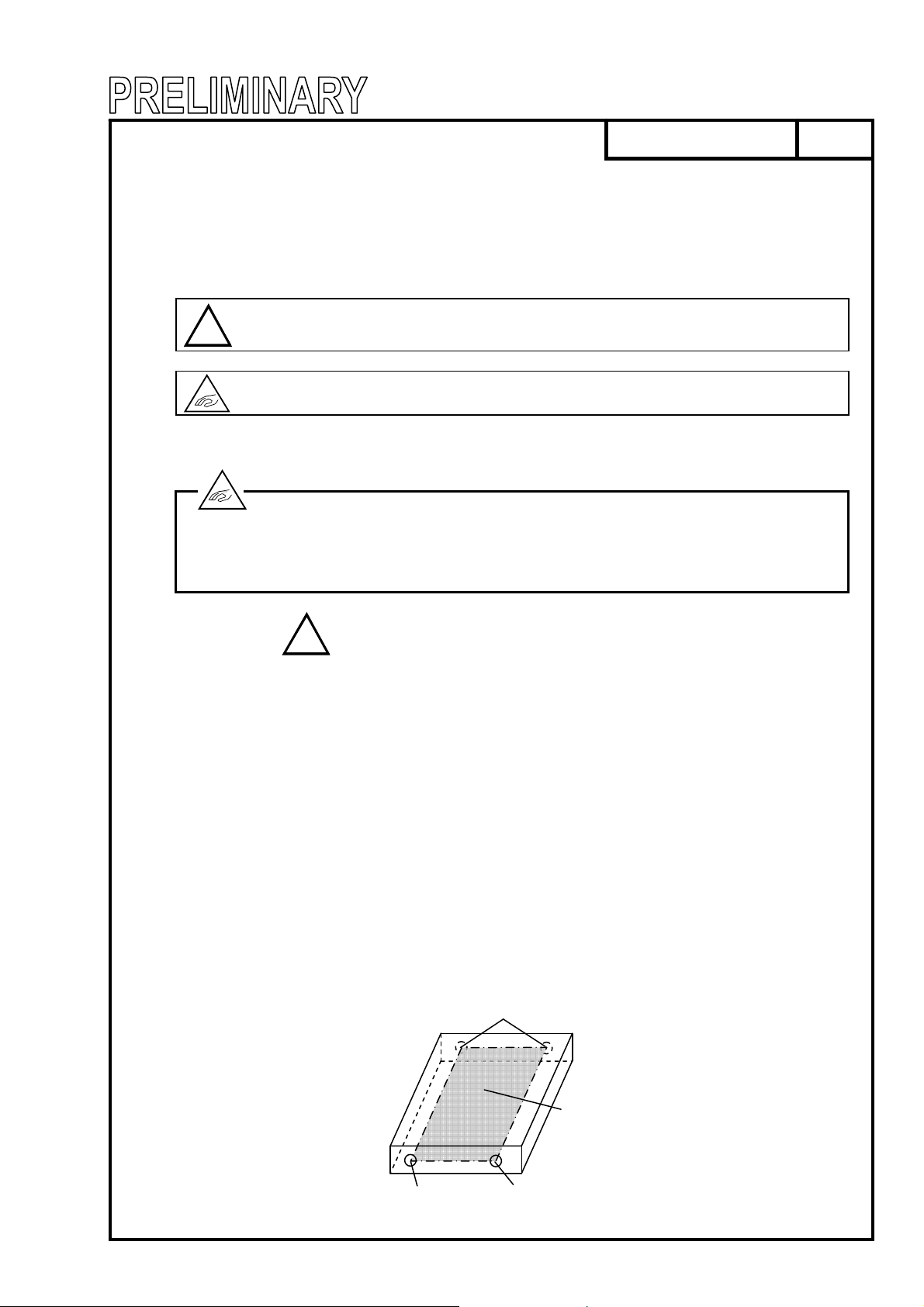

10.1 MEANING OF CAUTION SIGNS

The following caution signs have very important meaning. Be sure to read "10.2 CAUTIONS"

and "10.3 ATTENTIONS"!

This sign has the meaning that a customer will be injured or the product will sustain

damage if the customer practices wrong operations.

This sign has the meaning that a customer will be injured if the customer practices

wrong operations.

10.2 CAUTIONS

∗ Do not shock and press the LCD panel and the backlight! There is a danger of breaking,

because they are made of glass. (Shock: Equal to or no greater than 294m/s to or no greater than 11ms, Pressure: Equal to or no greater than 19.6N (φ16mm jig))

NLT Technologies Confidential and Proprietary

DOD-PP-1603 36/40

2

and equal

10.3 A TTENTIONS

10.3.1 Handling of the product

① Take hold of both ends without touching the circuit board when the product (LCD module) is

picked up from inner packing box to avoid broken down or misadjustment, because of stress to mounting parts on the circuit board.

② Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage. ③ When the product is put on the table temporarily, display surface must be placed downward. ④ When handling the product, take the measures of electrostatic discharge with such as earth band,

ionic shower and so on, because the product may be damaged by electrostatic.

⑤ The torque for product mounting screws must never exceed 0.735N⋅m. Higher torque might result

in distortion of the bezel. And the length of product mounting screws must be ≤ 5.0mm.

⑥ The product must be installed using mounting holes without undue stress such as bends or twist

(See outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or twist described above and undue stress to any portion may cause display mura. Recommended installing method: Ideal plane "A" is defined by one mounting hole (datum point) and other mounting holes. The ideal plane "A" should be the same plane within ±0.3 mm.

Mounting hole

Product

Ideal plane "A"

Mounting hole (Datum point) Mounting hole

NLT Technologies, Ltd.

⑦ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it

with a soft dry cloth.

⑧ Do not push or pull the interface connectors while the product is working. ⑨ When handling the product, use of an original protection sheet on the product surface (polarizer)

is recommended for protection of product surface. Adhesive type protection sheet may change color or characteristics of the polarizer.

⑩ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of

thin layer and the construction of LCD panel. But, if you contact with liquid crystal by any chance, please wash it away with soap and water.

10.3.2 Environment ① Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive

gases. Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and sunlight, when storing the product.

② In order to prevent dew condensation occurred by temperature difference, the product packing box

must be opened after enough time being left under the environment of an unpacking room. Evaluate the storage time sufficiently because dew condensation is affected by the environmental temperature and humidity. (Recommended leaving time: 6 hours or more with the original packing state after a customer receives the package)

③ Do not operate in high magnetic field. If not, circuit boards may be broken. ④ This product is not designed as radiation hardened.

10.3.3 Characteristics

The following items are neither defects nor failures.

① Response time, luminance and color may be changed by ambient temperature. ② Display mura, flickering, vertical streams or tiny spots may be observed depending on display

patterns.

③ Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

saver, if the fixed pattern is displayed on the screen.

④ The display color may be changed depending on viewing angle because of the use of condenser

sheet in the backlight.

⑤ Optical characteristics may be changed depending on input signal timings.

10.3.4 Others

① All GND, GNDB, VDD and VDDB terminals should be used without any non-connected lines. ② Do not disassemble a product or adjust variable resistors. ③ Pack the product with the original shipping package, in order to avoid any damages during

transportation, when returning the product to NLT for repairing and so on.

④ The LCD module by itself or integrated into end product should be packed and transported with

NLT Technologies Confidential and Proprietary

DOD-PP-1603 37/40

display in the vertical position. Otherwise the display characteristics may be degraded.

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

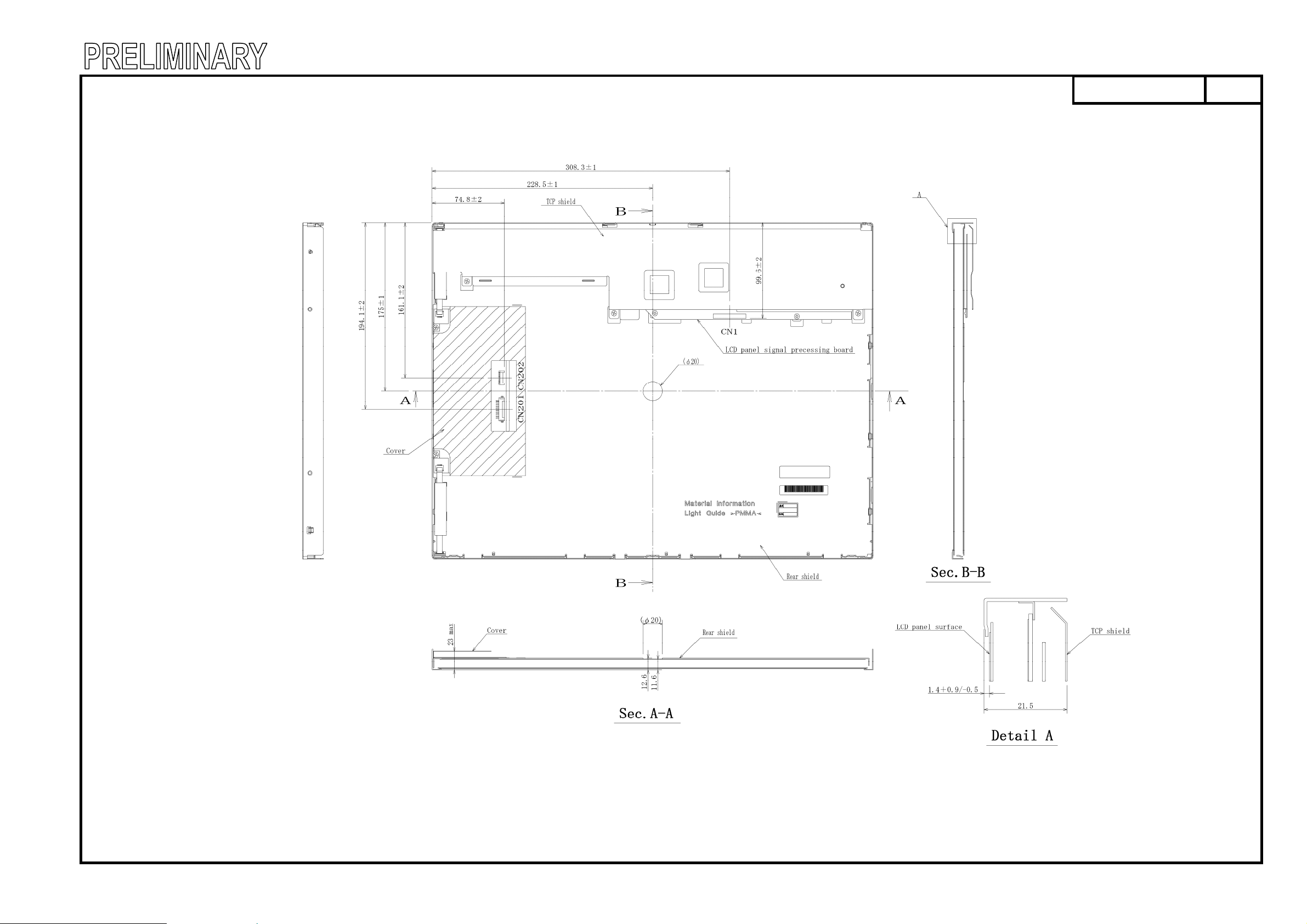

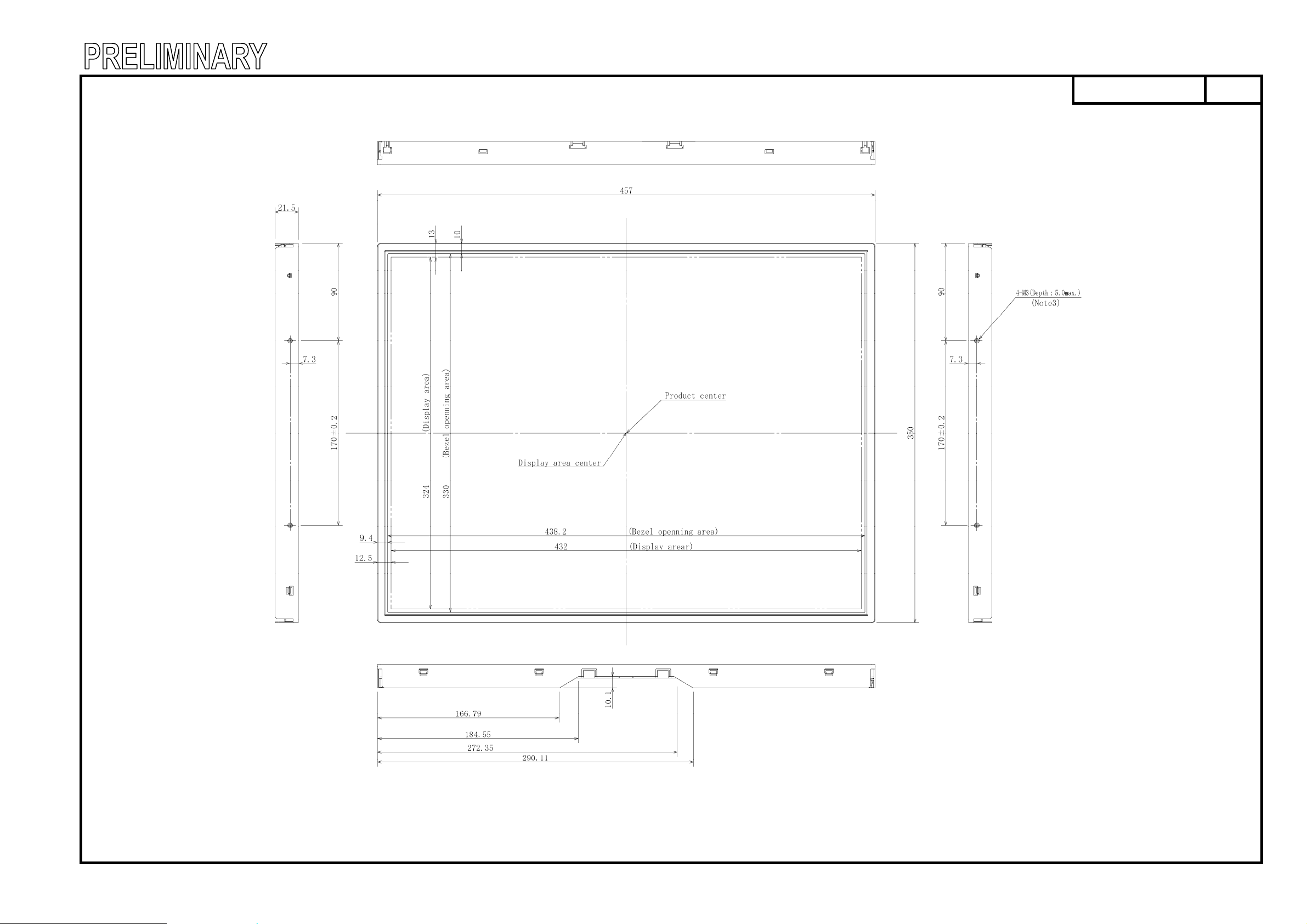

11. OUTLINE DRAWINGS

11.1 FRONT VIEW

Note1: Not shown tolerances of the dimensions are ±0.5mm. Note2: The torque for product mounting screws must never exceed 0.735N⋅m. Note3: The values in parentheses are for reference. Note4: The length of product mounting screws from surface of plate must be ≤ 5.0mm.

DOD-PP-1603

Unit: mm

38/40

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

±

11.2 REAR VIEW

Note1: Not shown tolerances of the dimensions are Note2: The torque for product mounting screws must never exceed 0.735N⋅m. Note3: The length of product mounting screws from surface of plate must be ≤ 5.0mm. Note4: The values in parentheses are for reference.

0.5mm.

DOD-PP-1603

Unit: mm

39/40

NLT Technologies, Ltd.

NLT Technologies Confidential and Proprietary

DOD-PP-1603 40/40

REVISION HISTORY

The inside of latest specifications is revised to the clerical error and the major improvement of previous edition. Only a changed part such as functions, characteristic value and so on that may affect a design of customers, are described especially below.

Mar. 15, 2013

Prepared

date

Revision contents

New issue

Signature of writer

Approved by

K. FUJIMOTO

Revision contents and signature

Checked by

Prepared by

E. YOSHIMURA

Edition

1st

edition

Issued

date

-

NLT Technologies, Ltd.

NLT NL160120AC27-37 Specification

INTRODUCTION

CONTENTS

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

1.2 APPLICA TION

1.3 FEATURES

2. GENERAL SPECIFICATIONS

3. BLOCK DIAGRAM

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

4.2 ABSOLUTE MAXIMUM RATINGS

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

4.3.2 LED Driver board

4.3.3 LED Driver board current wave

4.3.4 Power supply voltage ripple

4.3.5 Fuse

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

4.4.2 LED driver board

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

4.5.2 LED driver board

4.5.3 Positions of socket

4.6 LUMINANCE CONTROL

4.6.1 Luminance control methods

4.6.2 Detail of BRTP timing

4.7 LVDS data input map.

4.7.1 Mode A

4.7.2 Mode B

4.7.3 Mode C

4.8 DISPLAY COLORS AND INPUT DATA SIGNALS

4.9 INPUT SIGNAL TIMINGS

4.9.1 Timing characteristics

4.9.2 Input signal timing chart

4.10 LVDS DATA TARANSMISSION METHOD

4.11 DISPLAY POSITIONS

4.12 PIXEL ARRANGNMENT

4.13 OPTICS

4.13.1 Optical characterist ics

4.13.2 Definition of contrast ratio

4.13.3 Definition of luminance uniformity

4.13.4 Definition of color uniformity

4.13.5 Definition of response times

4.13.6 Definition of viewing angles

4.14 DEFECT CRITERIA

4.14.1 Display specifications

4.14.2 Appearance specifications

5. ESTIMATED LUMINANCE LIFETIME

6. PRODUCT INSPECTIONS

7. RELIABILITY TESTS

8. MARKINGS

8.1 NAMEPLATE LABEL

8.2 BARCODE LABEL

8.3 OTHER MARKINGS

9. PACKING, TRANSPORTATION AND DELIVERY

9.1 INNER PACKING BOX

9.2 INSPECTION RECORD SHEET

9.3 TRANSPORTATION

9.4 SIZE AND WEIGHT FOR PACKING BOXES

9.5 OUTLINE FIGURE FOR PACKING

10. PRECAUTIONS

10.1 MEANING OF CAUTION SIGNS

10.2 CAUTIONS

10.3 A TTENTIONS

10.3.1 Handling of the product

10.3.2 Environment ① Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive

10.3.3 Characteristics

10.3.4 Others

11. OUTLINE DRAWINGS

11.1 FRONT VIEW

11.2 REAR VIEW

REVISION HISTORY
