Nissan Tiida 2009 User Manual

FOREWORD READ FIRST—THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle sothat youmay enjoymany miles(kilometers) ofdriving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information Booklet explains details about the warranties covering your vehicle. The “NISSAN Service and Maintenance Guide” explains details about maintaining and servicing your vehicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.

Before driving your vehicle, please read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

● NEVER drive under the influence of alcohol or drugs.

● ALWAYS observe posted speed limits and never drive too fast for conditions.

●

ALWAYS give your full attention to driving and avoidusing vehicle features or taking other actions that could distract you.

●

ALWAYS use your seat belts and appropriate child restraint systems. Preteen children should be seated in the rear seat.

● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

● ALWAYS review this Owner’s Manual for important safety information.

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified.

Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.

WHEN READING THE MANUAL

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

APD1005

If you see this symbol, it means “Do not do this” or “Do not let this happen.”

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

BLUETOOTHt is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Xanavi Informatics Corporation.

XM Radio requires subscription, sold separately after first 90 days. Not available in Alaska or Hawaii. For more information, visit www.xmradio.com.

Manual may be reproduced orstored ina retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Mexicana, S. A. de C. V.

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES...

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-NISSAN-1 (1-800-647-7261)

For Canadian customers

1-800-387-0122

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

The ConsumerAffairs Departmentwill ask for the following information:

– Your name, address, and telephone number – Vehicle identification number (attached to the

top of the instrument panel on the driver’s

side) – Date of purchase – Current odometer reading – Your NISSAN dealer’s name – Your comments or questions OR

You can write to NISSAN with the information at:

For U.S. customers

Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003

For Canadian customers

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

Table of

Illustrated table of contents

Contents

Safety—Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Heater, air conditioner, audio and phone systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0 Illustrated table of contents

Air bags, seat belts and child restraints ..............0-2

Exterior front ......................................0-3

Exterior rear.......................................0-4

Passenger compartment ...........................0-6

Instrument panel...................................0-7

Engine compartment check locations ................0-8

Warning/indicator lights ............................0-9

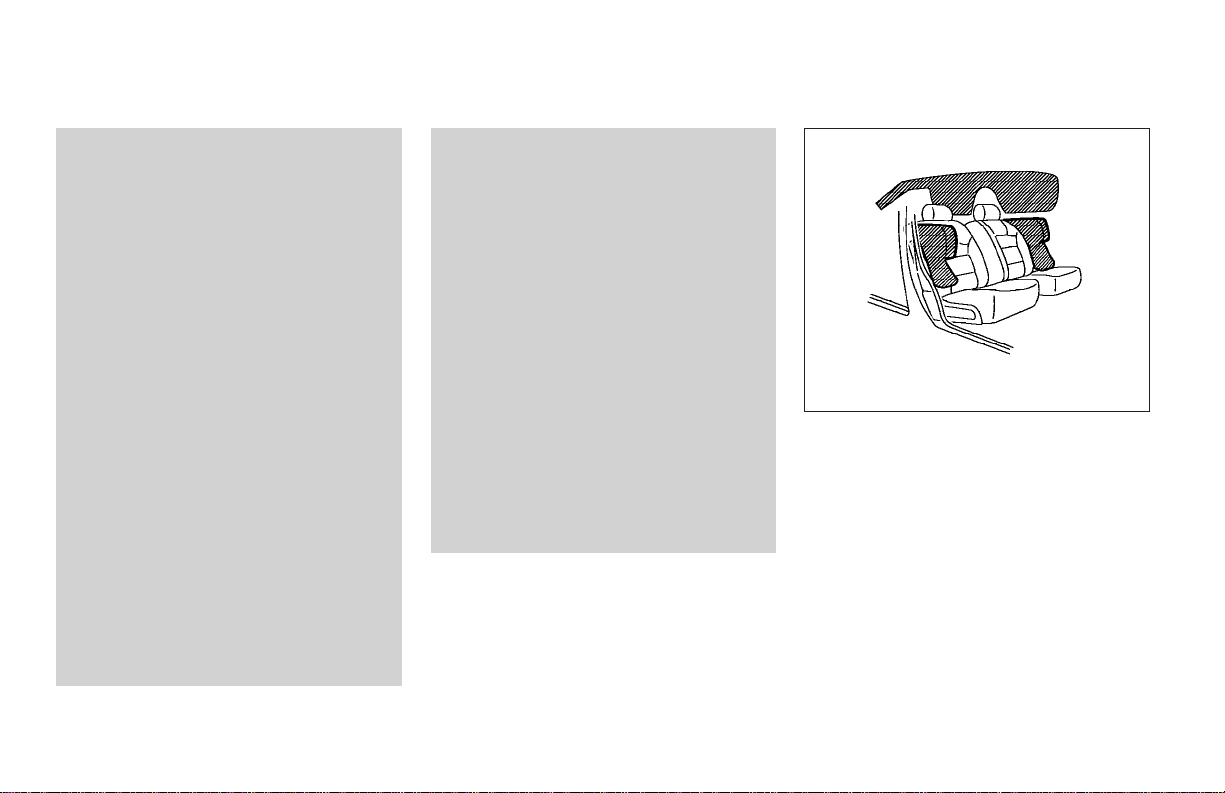

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS

1. Supplemental front-impact air bags (P. 1-36)

2. Roof-mounted curtain side-impact supplemental air bag (P. 1-36)

3. Front seat-mounted side-impact supplemental air bag (P. 1-36)

4. Front seat belts (P. 1-7)

5. Front-Seat Active Head Restraints (P. 1-6)

6. Rear seat belts (P. 1-7)

7. LATCH (Lower Anchors and Tethers for CHildren) (P. 1-17)

8. Seat belt with pretensioner (P. 1-49)

9. Seats (P. 1-2)

10. Occupant classification sensor (pressure sensor) (P.1-36)

See the page number indicated in parentheses for operating details.

0-2 Illustrated table of contents

WII0157

EXTERIOR FRONT

1. Engine hood (P. 3-22)

2. Windshield wiper and washer switch (P. 2-17)

3. Windshield (P. 8-19)

4. Moonroof (if so equipped) (P. 2-31)

5. Power windows (P. 2-28)

6. Door locks, keyfob, NISSAN Intelligent Key ™ (if so equipped), keys (P. 3-4, 3-7, 3-3, 3-2)

7. Mirrors (P. 3-29)

8. Tire pressure (P. 8-32)

9. Flat tire (P. 6-2)

10. Tire chains (P. 8-38)

11. Headlight and turn signal switch (P. 2-19)

12. Replacing bulbs (P. 8-27)

13. Fog light switch (if so equipped) (P. 2-19)

14. Tie down hook (if so equipped) (P. 6-13)

See the page number indicated in parentheses for operating details.

WII0101

Illustrated table of contents 0-3

EXTERIOR REAR

HATCHBACK MODEL

1. Rear hatch opener switch (P. 3-23)

2. Rear window defroster switch (P. 2-18)

3. Antenna (P. 4-27)

4. Child safety rear door locks (P. 3-6)

5. Fuel-filler door (P. 3-26)

6. Fuel-filler cap, fuel recommendation (P. 3-27, P. 9-3)

7. Replacing bulbs (P. 8-27)

8. Interior hatch release (P. 3-24)

9. Rear window washer (if so equipped) (P. 2-18)

See the page number indicated in parentheses for operating details.

0-4 Illustrated table of contents

WII0093

WII0102

SEDAN MODEL

1. Interior trunk lid release (P.3-26 )

2. Rear window defroster switch (P. 2-18)

3. Antenna (P. 4-27)

4. Child safety rear door locks (P. 3-6)

5. Fuel-filler door (P. 3-26)

6. Fuel-filler cap, fuel recommendation (P. 3-27, P. 9-3)

7. Replacing bulbs (P. 8-27)

8. Trunk opener switch/NISSAN Intelligent Key ™ (if so equipped) (P. 3-24 / 3-13)

See the page number indicated in parentheses for operating details.

Illustrated table of contents 0-5

PASSENGER COMPARTMENT

1. Cargo cover (hatchback model only) (P. 2-27)

2. Rear seat (P. 1-4)

3. Interior lights (P. 2-33)

4. Front seat (P. 1-2)

5. Sun visors (P. 3-28)

6. Moonroof switch (if so equipped) (P. 2-31)

7. Map lights (P. 2-34)

8. Sunglasses holder (P. 2-24)

9. Glove box (P. 2-26)

10. Parking brake, parking on hills (P. 5-23, P. 5-27)

11. Rear armrest (if so equipped) (P. 1-5)

See the page number indicated in parentheses for operating details.

0-6 Illustrated table of contents

LII0083

INSTRUMENT PANEL

1. Outside mirror control switch (if so equipped) (P. 3-29)

2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-19)

WIC1286

3. Steering wheel switch for audio control and BluetoothT hands-free phone system (if so equipped) (P. 4-26, 4-28)

4. Driver’s supplemental air bag/horn (P. 1-36, 2-22)

5. Meters and gauges (P. 2-3)

6. Cruise control main/set switches (if so equipped) (P. 5-24)

7. Windshield wiper/washer switch (P. 2-17, 2-18)

8. Audio system (P. 4-10)

9. Storage bin (P. 2-23)

10. Center ventilator (P. 4-2)

11. Passenger’s supplemental air bag (P. 1-36)

12. Side ventilator (P. 4-2)

13. Glove box (P. 2-26)

14. Hazard warning flasher switch (P. 2-21)

15. Cup holders (P. 2-25)

16. Shift selector (P. 5-14)

17. Defroster switch (P. 2-18)

18. Climate control (P. 4-3)

19. Passenger air bag status light (P. 1-44)

20. Ignition switch (P. 5-7)

21. Tilt steering (P. 3-28)

22. Hood release lever (P. 3-22)

23. Fuel-filler door release lever (P. 3-26)

24. Fuse block (P. 8-21)

25. Instrument brightness control (P. 2-20)

See the page number indicated in parentheses for operating details.

Illustrated table of contents 0-7

ENGINE COMPARTMENT CHECK LOCATIONS

1. Engine oil filler cap (P. 8-8)

2. Brake and clutch (*1) fluid reservoir

(P. 8-13)

3. Air cleaner (P. 8-18)

4. Battery (P. 8-14)

5. Fuse/fusible link box (P. 8-21)

6. Automatic transmission fluid (ATF)

dipstick (*2) (P. 8-11)

7. Radiator cap (P. 8-7)

8. Engine coolant reservoir (P. 8-7)

9. Engine oil dipstick (P. 8-8)

10. Drive belt location (P.8-17)

11. Windshield washer fluid reservoir

(P. 8-14) *1 For Manual Transmission (M/T) model *2 For Automatic Transmission (A/T)

model

NOTE: Engine cover removed for clarity. See the page number indicated in paren-

theses for operating details.

0-8 Illustrated table of contents

WDI0631

WARNING/INDICATOR LIGHTS

Warning

light

Name Page

Anti-lock Braking System (ABS) warning light (if so equipped)

Brake warning light 2-7

Charge warning light 2-8

Door open warning light

Electric power steering warning light

Engine oil pressure warning light

High temperature warning light (red)

2-7

2-8

Warning

light

Name Page

Intelligent Key lock warning light (M/T models) (if so equipped)

Low fuel warning light

Low tire pressure warning light

Low windshield washer fluid warning light (if so equipped)

NISSAN Intelligent Key ™ warning light (if so equipped)

P position selecting warning light (CVT models) (if so equipped)

Seat belt warning light and chime

2-9

2-10

2-11

Warning

light

Indicator

light

Name Page

Supplemental air bag warning light

Name Page

Automatic Transmission (A/T) / Continuously Variable Transmission (CVT) position indicator light

CRUISE main switch indicator light (if so equipped)

Cruise SET switch indicator light (if so equipped)

Front passenger air bag status light

High beam indicator light (blue)

2-11

2-12

Illustrated table of contents 0-9

Indicator

light

Name Page

Low temperature indicator light (blue)

Malfunction Indicator Light (MIL)

Overdrive OFF indicator light (A/T / CVT models)

Security indicator light

Turn signal/hazard indicator lights

0-10 Illustrated table of contents

2-12

2-13

1 Safety—Seats, seat belts and supplemental restraint system

Seats ............................................1-2

Front manual seat adjustment ....................1-2

Folding rear seat

(if so equipped for Hatchback models) ............1-4

Front-Seat Active Head Restraints................1-6

Head restraint adjustment .......................1-6

Seat belts ........................................1-7

Precautions on seat belt usage...................1-7

Child safety...................................1-10

Pregnant women ..............................1-11

Injured persons................................1-11

Three-point type seat belt with retractor..........1-11

Seat belt extenders ............................1-14

Seat belt maintenance .........................1-15

Child restraints...................................1-15

Precautions on child restraints ..................1-15

LATCH (Lower Anchors and Tethers for

CHildren) System .............................1-17

Top tether strap child restraint ..................1-19

Child restraint installation using LATCH ..........1-21

Child restraint installation using the seat

belts .........................................1-25

Booster seats ....................................1-31

Precautions on booster seats ...................1-31

Booster seat installation ........................1-33

Supplemental restraint system .....................1-36

Precautions on supplemental restraint

system .......................................1-36

Supplemental air bag warning labels.............1-50

Supplemental air bag warning light ..............1-50

SEATS

● The seatback should not be reclined any more than needed for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.

CAUTION

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damage.

WARNING

● Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “Precautions on seat belt usage” later in this section.

● After adjustment,gently rockin theseat to make sure it is securely locked.

● Do not leave children unattended inside the vehicle.They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

1-2 Safety—Seats, seat belts and supplemental restraint system

ARS1152

FRONT MANUAL SEAT ADJUSTMENT

WRS0692 WRS0720 WRS0694

Forward and backward

Pull the lever up and hold it while you slide the seat forwardor backward to the desiredposition. Release the lever to lock the seat in position.

Reclining

Torecline the seatback, pull the lever up andlean back. To bring the seatback forward, pull thelever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See “Precautions on seat belt usage” later in thissection. Also,the seatbackcan be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in P (Park) or N (Neutral) position with the parking brake fully applied.

Safety—Seats, seat belts and supplemental restraint system 1-3

Seat lifter (if so equipped for driver’s seat)

Pull upor push down the adjustinglever to adjust the seat height until the desired position is achieved.

WARNING

● Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an accident or sudden stop.

● Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.

● When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

● Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously injured. Keep the car locked, with the rear seatback and trunk lid securely latched when not in use, and prevent children’s access to car keys.

FOLDING REAR SEAT (if so equipped for Hatchback models)

Remove the cargo cover (hatchback model

only) from the rear seatback.

Pull the knob

down.

to fold each seatback

WRS0758

1-4 Safety—Seats, seat belts and supplemental restraint system

SSS0591

Type A

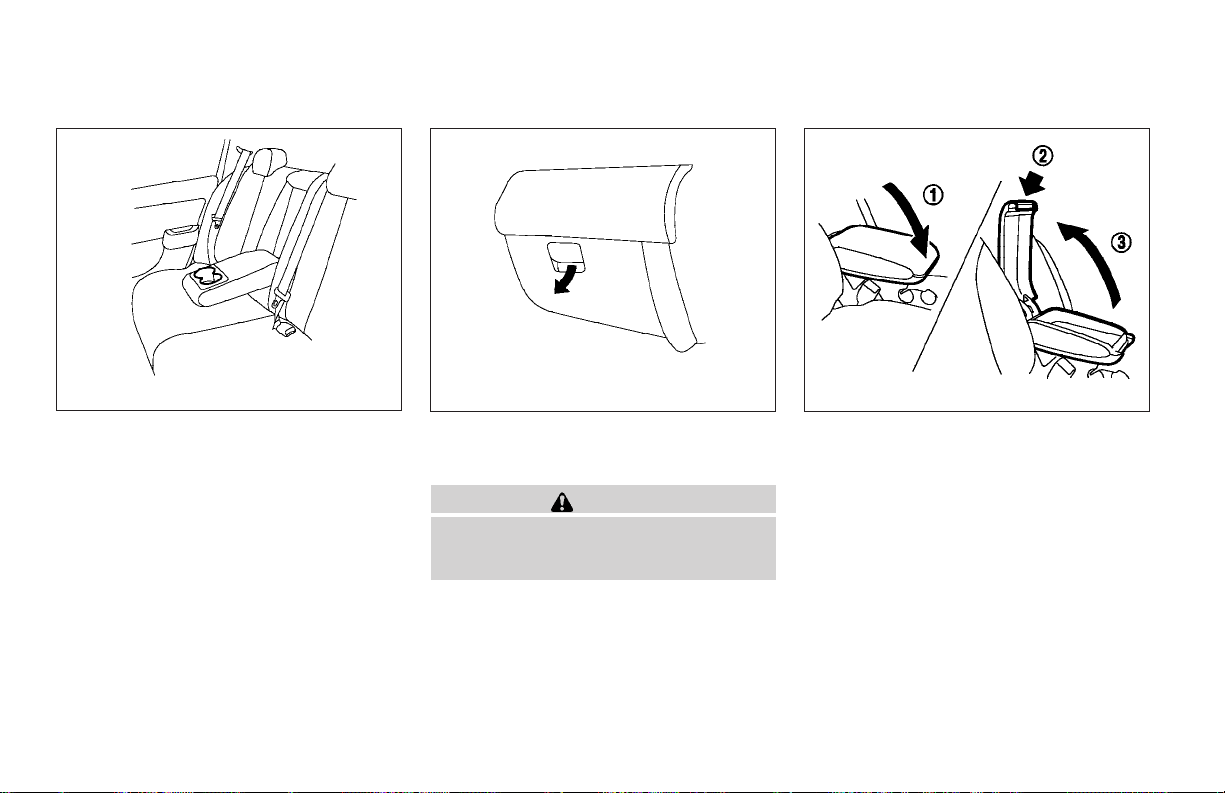

Interior trunk access (if so equipped for Sedan models)

Type A Fold down the rear center armrest

the trunk access panel

and open

SSS0592

Type B

to fold each seatback down

Pull the knob When returning the seatback to the upright posi-

tion, makesure theseat beltis routedthrough the guide

WARNING

● When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured,

passengers may be injured in an accident or sudden stop.

WRS0755

Center armrest (if so equipped)

Pull the armrest down until it is horizontal.

Safety—Seats, seat belts and supplemental restraint system 1-5

SPA1025 LRS0286

FRONT-SEAT ACTIVE HEAD RESTRAINTS

WARNING

● Always adjust the head restraints properly as specified in this section. Failure to doso can reduce the effectiveness of the Active Head Restraint.

● Active Head Restraints are designed to supplement other safety systems. Always wear seat belts. No system can prevent all injuries in any accident.

● Do not attach anything to the head restraint stalks. Doing so could impair Active Head Restraint function.

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active HeadRestraints are effective for collisions at low to medium speeds in which it is said that whiplash injuries occur most.

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Properly adjust the Active Head Restraints as described in this section.

HEAD RESTRAINT ADJUSTMENT

To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.

WARNING

Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

1-6 Safety—Seats, seat belts and supplemental restraint system

WRS0134 SSS0136

Adjust the head restraint so the center is level with the center of your ears.

SEAT BELTS

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted andyou are sitting upright and well backin your seat with both feeton the floor, your chances of beinginjured or killed in an accident and/orthe severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories specify that seat belts beworn at all times when a vehicle is being driven.

Safety—Seats, seat belts and supplemental restraint system 1-7

WARNING

● Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint.

1-8 Safety—Seats, seat belts and supplemental restraint system

SSS0134 SSS0016

WARNING

● The seat belt should be properly adjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident. Serious injury or death can occur if the seat belt is not worn properly.

SSS0014

WARNING

● Always route the shoulder belt over your shoulder and across your chest. Never put the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

● Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

● Be sure the seat belt tongue is securely fastened to the proper buckle.

● Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.

● Do not allow more than one person to use the same seat belt.

● Never carry more people in the vehicle than there are seat belts.

● If the seat belt warning light glows continuously while the ignition is turned ON with all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked by a NISSAN dealer.

● No changes should be made to the seat belt system. For example, donot modify the seat belt, add material, or install devices that may change the seat belt routing or tension. Doing so may affect the operation of the seat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.

● Once a seat belt pretensioner has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.

● Removal and installation of pretensioner system components should be done by a NISSAN dealer.

● All seat belt assemblies, including retractors and attaching hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage orimproper operation is noted.

● All child restraints and attaching hardware should be inspected after any collision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

Safety—Seats, seat belts and supplemental restraint system 1-9

CHILD SAFETY

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

There are three basic types of child restraint systems:

● Rear-facing child restraint

● Front-facing child restraint

● Booster seat

The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20lbs (9kg) should be placed in rear-facing child restraints. Front-facing child restraints are available for children who outgrow rear-facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a front-facing child restraint.

Infants and children need special protection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See “Child Restraints” later in this section.

Also, there are other types of child restraints available for larger children for additional protection.

NISSAN recommends that all pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.

This is especially important because your vehicle has a supplemental restraint system (Air bag system) for the front passenger. See “Supplemental restraint system” later in this section.

WARNING

1-10 Safety—Seats, seat belts and supplemental restraint system

Infants

Infants up to at least 1 year old should be placed in a rear-facing child restraint. NISSAN recommends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

Small children

Children that are over one year old and weigh at least 20 lbs (9 kg) can be placed in a forwardfacing child restraint. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

Larger children

Children who are too large for child restraints should beseated andrestrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5 cm) tall and weighs between 40 lbs (18 kg) and

80 lbs (36 kg). A booster seat should be used to obtain proper seat belt fit.

NISSAN recommends that a child be placed in a commercially available booster seat if the shoulder beltin the child’s seating position fits closeto the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.

WARNING

Never let a child stand or kneel on any seat and do not allow a child in the cargo areas while the vehicle is moving. The child could be seriously injuredor killed in an accident or sudden stop.

PREGNANT WOMEN

NISSAN recommends that pregnant women use seat belts. The seat belt should beworn snugand always position the lap belt as low as possible around thehips, notthe waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT WITH RETRACTOR

WARNING

● Every person who drives or rides in this vehicle should use a seat belt at all times.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly.

Safety—Seats, seat belts and supplemental restraint system 1-11

WRS0692

Manual front seat shown

Fastening the seat belts

1. Adjust the seat. See “Seats” earlier in this section.

Slowly pull the seat belt out of the retractor

and insert the tongue into the buckle until you hear and feel the latch engage.

● The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.

● If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

1-12 Safety—Seats, seat belts and supplemental restraint system

WRS0137 WRS0138

Position the lap belt portion low and snug

on the hips as shown.

Pull the shoulder belt portion toward the

retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The front passenger seat and the rear seating positions three-point seat belts have two modes of operation:

● Emergency Locking Retractor (ELR)

● Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat. TheELR locksthe seat belt when the vehicle slows down rapidly or during certain impacts.

The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated, the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. See “Child restraints” later in this section for more information.

The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALRmode should not be activated. If it is activated, it may cause uncomfortable seat belt tension. It can also change the operation of the front passenger air bag. See “Front passenger air bag and status light” later in this section.

WARNING

When fastening the seat belts, be certain that the seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

WRS0139

Unfastening the seat belts

Tounfasten the seatbelt, pressthe button on

the buckle. The seat belt automatically retracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat belt movement by two separate methods:

● When the seat belt is pulled quickly from the retractor.

● When the vehicle slows down rapidly.

Safety—Seats, seat belts and supplemental restraint system 1-13

To increase your confidence in the seat belts, check the operation as follows:

● Grasp the shoulder belt and pull forward quickly. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check or if you have any questions about seat belt operation, see a NISSAN dealer.

WARNING

● After adjustment, release the adjustment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.

● The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.

Shoulder belt height adjustment (front seats)

The shoulder belt anchor height should be adjusted to the position best for you. (See “Precautions on seat belt usage” earlier in this section.) To adjust, pull out the adjustment button move the shoulder belt anchor to the desired position the shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.

, so the belt passes over the center of

1-14 Safety—Seats, seat belts and supplemental restraint system

LRS0242

and

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lap/shoulder belt and fasten it, an extender is available which is compatible with the installed seat belts. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. See a NISSAN dealer for assistance if an extender is required.

WARNING

● Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.

● Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

● Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

● To clean the seat belt webbing,

mild soap solution or any solution recommended for cleaning upholstery or carpet. Then wipe with a cloth and allowthe seatbelts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

● If dirt builds up in the shoulder belt

guide of the seat belt anchors, the seat

belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

● Periodically check to see that the seat

belt andthe metal components, such as

buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.

apply a

CHILD RESTRAINTS

PRECAUTIONS ON CHILD RESTRAINTS

ARS1098 WRS0256

WARNING

● Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can result in serious injury or death.

● Infants and small children should never be carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

Safety—Seats, seat belts and supplemental restraint system 1-15

● Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An inflating front air bag could seriously injure or kill your child. A rear-facing child restraint must only be used in the rear seat.

● NISSAN recommends that the child restraint be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a front facing child restraint in the front seat, see “Child restraint installation using the seat belts” later in this section.

● Improper use or improper installation of a child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident.

● Follow all of the child restraint manufacturer’s instructions for installation and use. When purchasing a child restraint, be sure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.

● If the child restraint is not anchored properly, the risk of a child being injured in a collision or a sudden stop greatly increases.

● Child restraint anchor points are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses.

● Adjustable seatbacks should be positioned to fit the child restraint, but as upright as possible.

● After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment or by the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

● When your child restraint is not in use, keep it secured with the LATCH system or a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

CAUTION

Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the child restraint.

This vehicle is equipped with a universal child restraint lower anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHildren) system. Some child restraints include two rigid or webbing-mounted attachments that can be connected to these loweranchors. Fordetails, see “LATCH (Lower Anchors and Tethers for CHildren) system” later in this section.

If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used. See “Child restraint installation using the seat belts” later inthis section. In general, child restraints are also designed to be installed with a lap/shoulder seat belt.

1-16 Safety—Seats, seat belts and supplemental restraint system

Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind:

● Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the child restraintin yourvehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

● If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always followall recommended procedures.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. Canadian law requires the top tether strap on front-facing child restraints be secured to the designated anchor point on the vehicle.

The LATCH anchor points are provided to install child restraints in the rear outboard seating positions only. Do not attempt to install a child restraint in the center position using the LATCH anchors.

WRS0756

LATCH system anchor locations

LATCH (Lower Anchors and Tethers

for CHildren) SYSTEM

Your vehicle is equipped with special anchor points thatare used with LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint.

Safety—Seats, seat belts and supplemental restraint system 1-17

WRS0700

LATCH lower anchor location

LATCH lower anchor point locations

The LATCH anchors are located at the rear ofthe seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH anchors.

WARNING

● Attach LATCH system compatible child restraints only at the locations shown. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.

● Do not secure a child restraint in the center rear seating position using the LATCH anchors. The child restraint will not be secured properly.

LRS0661

LATCH webbing-mounted attachment

Installing child restraint LATCH anchor attachments

LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with LATCH. This information may also be in the instructions provided by the child restraint manufacturer.

1-18 Safety—Seats, seat belts and supplemental restraint system

LRS0662

LATCH rigid-mounted attachment

LATCH child restraints generally require the use of a top tether strap. See “Top tether strap child restraint” later in this section for installation instructions.

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. See“Child restraint installation using LATCH” later in this section.

TOP TETHER STRAP CHILD RESTRAINT

If the manufacturer of your child restraint requires the use of a top tether strap, it must be securedto the anchor point.

WARNING

● Your child could be seriously injured or killed in a collision if the child restraint top tether strap is damaged.

● If the cargo cover contacts the top tether strap when it is attached to the top tether anchor, remove the cargo cover from the vehicle or secure it on the cargo floor below its attachment location. If the cargo cover is not removed, it may damage the top tether strap during a collision. Your child could be seriously injured or killed in a collision if the child restraint top tether strap is damaged.

● Do not allow cargo to contact the top tether strap when it is attached to the top tether anchor. Properly secure the cargo so it does not contact the top tether strap. Cargo that is not properly secured or cargo that contacts the top tether strap may damage it during a collision. Your child could be seriously injured or killed in a collision if the top tether strap is damaged.

Safety—Seats, seat belts and supplemental restraint system 1-19

WRS0759

Hatchback

Top tether anchor point locations

Anchor points are located on the back of the rear seats (hatchback model) or on the rear parcel shelf (sedan model).

Installing top tether strap (hatchback model)

First, secure the child restraint with the LATCH system (rear outboard seat positions only) or the seat belt, as applicable.

1. Remove the head restraint. Store it in a secure location.Be sure to reinstall the head restraint when the child restraint is removed.

2. Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the seat directly behind the child restraint.

4. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

If you have any questions when installing a top tether strap child restraint on the rear seat, consult your NISSAN dealer for details.

Sedan

1-20 Safety—Seats, seat belts and supplemental restraint system

WRS0760

Installing top tether strap (sedan model)

First, secure the child restraint with the LATCH system (rear outboard seat positions only) or the seat belt, as applicable.

1. Flip up the anchor cover point which is located directly behind the child seat.

2. Position the top tether strap over the top of the seatback.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

If you have any questions when installing a top tether strap child restraint on the rear seat, consult your NISSAN dealer for details.

from the anchor

CHILD RESTRAINT INSTALLATION USING LATCH

WARNING

● Attach LATCH system compatible child restraints only at the locations shown. For the LATCH lower anchor locations see “LATCH (Latch Anchors and Tethers for CHildren) system”. Ifa child restraint is not secured properly, your child could be seriously injured or killed in an accident.

● The LATCH anchors are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses.

● Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH anchors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH anchors are obstructed.

Front-facing

Follow these steps to install a front-facing child restraint using LATCH:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

WRS0799

Front-facing web-mounted – step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCHattachment isproperly attached to the lower anchors.

3. The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. See“Head restraints” earlier in this section.

If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the child restraint is removed.

Safety—Seats, seat belts and supplemental restraint system 1-21

WRS0800

Front-facing rigid-mounted – step 2

If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

4. For child restraints that are equipped with

Front-facing – step 4

webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

5. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Top tether strap child restraint”in this section.

1-22 Safety—Seats, seat belts and supplemental restraint system

LRS0671

WRS0697

Front-facing – step 6

6. After attaching the child restraint, test it before you place the childin it.Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

7. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 3 through 6.

Rear-facing

Follow these steps to install a rear-facing child restraint using the LATCH system:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

WRS0801

Rear-facing web-mounted – step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCHattachment isproperly attached to the lower anchors.

Safety—Seats, seat belts and supplemental restraint system 1-23

WRS0802

Rear-facing rigid-mounted – step 2

5. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 2 through 4.

LRS0673

Rear-facing – step 3

3. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

4. After attaching the child restraint, test it be-

Rear-facing – step 4

fore you place the childin it.Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

1-24 Safety—Seats, seat belts and supplemental restraint system

LRS0674

WRS0256

CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

WARNING

● Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front passenger seat. Front air bags inflate with great force. A rear-facing child restraint could be struck by the front air bag in a crash and could seriously injure or kill your child.

● NISSAN recommends that child restraints be installed in the rear seat. However, if you must install a frontfacing child restraint in the front passenger seat, move the passenger seat to the rearmost position. Also, be sure the front passenger air bag status light is illuminated to indicate the passenger air bag isOFF. See “Front passenger air bag and status light” later in this section for details.

● The three-point seat belt in your vehicle is equipped with an Automatic Locking Retractor (ALR) which must be used when installing a child restraint.

● Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision. Also, it can change the operation of the front passenger air bag. See “Front passenger air bag and status light” later in this section.

● A child restraint with a top tether strap should not be used in the front passenger seat.

The instructions in this section apply to child restraint installation using the vehicle seat belts in the rear seat or the front passenger seat.

Safety—Seats, seat belts and supplemental restraint system 1-25

WRS0699

Front-facing (front passenger seat) – step 1

Front-facing

Follow these steps to install a front-facing child restraint using the vehicle seat belt in the rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a front-facing direction only. Move the seat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and therefore must not be used in the front seat.

2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions

The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. See“Head restraint adjustment” in this section.

If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the child restraint is removed.

If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

WRS0680

Front-facing – step 3

3. Route the seat belt tongue through the child restraint andinsert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

1-26 Safety—Seats, seat belts and supplemental restraint system

LRS0667

Front-facing – step 4

4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

LRS0668

Front-facing – step 5

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in thebelt.

Safety—Seats, seat belts and supplemental restraint system 1-27

WRS0681

Front-facing – step 6

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

9. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the retractor is in the ALR mode.

10. Check to make sure the child restraint is properly secured prior to each use. If the

WRS0698

Front-facing – step 8

seat belt is not locked, repeat steps 3 through 9.

7. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). See “Top tether strap child restraint” in this section. Do not install child restraints that require the use of a top tether strap to seating positions that do not have a top tether anchor.

8. After attaching the child restraint, test it before you place the childin it.Push it from side to side while holding the seat near the seat belt path. The child restraint should not move more than 1 inch (25 mm), fromside to side. Try to tug it forward and check to see if

1-28 Safety—Seats, seat belts and supplemental restraint system

WRS0475

Front-facing – step 11

11. If the child restraint is installed in the front passenger seat, place the ignition switch in the ONposition. The front passenger air bag

status light

should illuminate. If this light is not illuminated see 9Front passenger air bag and status light9 in this section.

Move the child restraint to another seating position. Have the system

checked by a NISSAN dealer.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

WRS0256

Rear-facing – step 1

Rear-facing

Follow these steps to install a rear-facing child restraint using the vehicle seat belt in the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and therefore must not be used in the front seat. Position thechild restraint on the seat.

Always follow the restraint manufacturer’s instructions.

WRS0761

Rear-facing – step 2

2. Route the seat belt tongue through the child restraint andinsert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

Safety—Seats, seat belts and supplemental restraint system 1-29

LRS0669

Rear-facing – step 3

3. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

LRS0670

Rear-facing – step 4

4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in thebelt.

5. Remove any additional slack from the child

Rear-facing – step 5

restraint; press downward and rearward firmly in the center of the child restraint to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

1-30 Safety—Seats, seat belts and supplemental restraint system

WRS0762

WRS0763

Rear-facing – step 6

6. After attaching the child restraint, test it before you place the childin it.Push it from side to side while holding the seat near the seat belt path. The child restraint should not move more than 1 inch (25 mm), fromside to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

BOOSTER SEATS

7. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more seat belt webbing out of the retractor, the retractor is in the ALR mode.

8. Check to make sure thatthe child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 7.

After the child restraint is removed and the seat belt fully retracted, the ALR mode (child restraint mode) is canceled.

ARS1098

PRECAUTIONS ON BOOSTER SEATS

WARNING

● Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint or booster seat can result in serious injury or death.

● NISSAN recommends that the booster seat be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a booster seat in the front seat, see “Booster seat installation” in this section.

● A booster seat must only be installed in a seating position that has a lap/ shoulder belt. Failure to use a threepoint type seat belt with a booster seat can result in a serious injury in sudden stop or collision.

● Improper use or improper installation of a booster seat can increase the risk or severity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident.

Safety—Seats, seat belts and supplemental restraint system 1-31

● Do not use towels, books, pillows or other items in place of a booster seat. Items such as these may move during normal driving or a collision and result in serious injury or death. Booster seats are designed to be used with a lap/ shoulder belt. Booster seats are designed to properly route the lap and shoulder portions of the seat belt over the strongest portions of a child’s body to provide themaximum protection during a collision.

● Follow all of the booster seat manufacturer’s instructions for installation and use. When purchasing a booster seat, be sure to select one which will fit your child andvehicle. It may not be possible to properly install some types of booster seats in your vehicle.

● If the booster seat and seat belt is not used properly, the risk of a child being injured in a collision or a sudden stop greatly increases.

● Adjustable seatbacks should be positioned to fit the booster seat, but as upright as possible.

● After placing the child in the booster seat and fastening the seat belt, make sure the shoulder portion of the belt is away from the child’s face and neck and the lap portion of the belt does not cross the abdomen.

● Do not put the shoulder belt behind the child or under the child’s arm. If you must install a booster seat in the front seat, see “Booster seat installation” later in this section.

● When your booster seat is not in use, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

CAUTION

Remember that a booster seat left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in the booster seat.

LRS0455

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

● Choose only a booster seat with a label certifying thatit complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

1-32 Safety—Seats, seat belts and supplemental restraint system

LRS0453 LRS0464

● Make sure the child’s head will be properly supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

● If the booster seat is compatible with your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat iscompatible withyour child. Always follow all recommended procedures.

is chosen, the

should be used.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.

Safety—Seats, seat belts and supplemental restraint system 1-33

BOOSTER SEAT INSTALLATION

WARNING

NISSAN recommends that booster seats be installed in the rear seat. However, if you must install a booster seat in the front passenger seat, move the passenger’s seat to the rearmost position.

CAUTION

Do not use the lap/shoulder belt Automatic Locking Retractor mode when using a booster seat with the seat belts.

Follow these steps to install a booster seat in the rear seat or in the front passenger seat:

WRS0699

1. If you must install a booster seat in the

Rear center position

front seat, move the seat to the rearmost position.

2. Position the booster seat on the seat. Only place it in a front-facing direction. Always follow the booster seat manufacturer’s instructions.

1-34 Safety—Seats, seat belts and supplemental restraint system

LRS0451

LRS0452

Rear outboard position

3. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head restraint to obtain the correct booster seat fit. See “Head restraint adjustment” earlier in this section. If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the booster seat is removed. If the seating position does not have an adjustable head restraint and it is interfering with the proper booster seat fit, try another seating position or a different booster seat.

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the belt routing.

5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the belt routing.

LRS0454

Front passenger position

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in “Three-point type seat belt with retractor” earlier in this section.

Safety—Seats, seat belts and supplemental restraint system 1-35

WRS0475

7. If the booster seat is installed in the front passenger seat, place the ignition switch in the ONposition. The front passenger air bag

status light

may or may not illuminate, depending on the size of the child and the type of booster seat being used. See “Front passenger air bag and status light” later in this section.

SUPPLEMENTAL RESTRAINT SYSTEM

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the following systems:

● Driver and passenger supplemental frontimpact air bag (NISSAN Advanced Air Bag System)

● Front seat-mounted side-impact supplemental air bag

● Roof-mounted curtain side-impact supplemental air bag

● Seat belt with pretensioner

Supplemental front- impact air bag system:

The NISSAN Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system: This system can help

cushion the impact force to the chest area of the driver and front passenger in certain side-impact collisions. The side air bags are designed to inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact supplemental air bag system: This system can help

cushion the impact force to the head of occupants infront andrear outboard seating positions in certain side-impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.

These supplemental restraint systems are designed to supplement the crash protection provided bythe driverand frontpassenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. (See “Seat belts” earlier in this section for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ignition switch is placed in the ON or START position.

After placing the ignition switch in the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the system is operational.

1-36 Safety—Seats, seat belts and supplemental restraint system

WARNING

● The front air bags ordinarily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

● The front passenger air bag will not inflate if the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” later in this section.

WRS0031

● The seat belts and the front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. Even with the NISSAN Advanced Air Bag System, if you are unrestrained, leaning forward, sitting sideways or out of position in any way, you are at greaterrisk of injury or death in a crash. You may also receive serious orfatal injuries from the front air bag if you are up against it when it inflates.Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.

● The driver and front passenger seatbelt buckles are equipped with sensors that detect if the seat belts are fastened. The Advanced Air Bag System monitors the severity of a collision and seat belt usage then inflates the air bags. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

● The front passenger seat is equipped with an occupant classification sensor (pressure sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” later in this section.

● Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the front air bag inflates.

Safety—Seats, seat belts and supplemental restraint system 1-37

1-38 Safety—Seats, seat belts and supplemental restraint system

ARS1133 ARS1041

WARNING

● Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

ARS1042 ARS1043 ARS1044

Safety—Seats, seat belts and supplemental restraint system 1-39

ARS1045 ARS1046

WARNING

● Children may be severely injured or killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

● Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An inflating front air bag could seriously injure or kill your child. See “Child restraints” earlier in this section for details.

1-40 Safety—Seats, seat belts and supplemental restraint system

SSS0101

Do not lean against the door.

WARNING

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bags:

● The side air bags and curtain air bags ordinarily will not inflate in the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

Do not lean against the door.

SSS0188

WARNING

● The seat belts, the side air bags and curtain air bags are most effective when you are sitting well back and upright in the seat with both feet on the floor. The side air bag and curtain air bag inflate with greatforce. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

WRS0032

WARNING

● When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

● Do not use seat covers on the front seatbacks. They may interfere with side air bag inflation.

Safety—Seats, seat belts and supplemental restraint system 1-41

SSS0159 SSS0162

1-42 Safety—Seats, seat belts and supplemental restraint system

1. Crash zone sensor

2. Supplemental front-impact air bag modules

3. Air bag Control Unit (ACU)

4. Front seat-mounted side-impact supplemental air bag modules

5. Roof-mounted curtain side-impact supplemental air bag

6. Side satellite sensor

7. Seat belt with pretensioner

8. Seat belt buckle switches on driver’s and passenger’s side

WRS0701

NISSAN Advanced Air Bag System (front seats)

This vehicle is equipped with the NISSAN Advanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada. However,

all of the information, cautions and warnings in this manual still apply and must be followed.

The driver supplemental front-impact air bag is located in the center of the steering wheel. The passenger supplemental front-impact air bag is mounted in the dashboard above the glove box.

Safety—Seats, seat belts and supplemental restraint system 1-43

The frontair bagsare designedto inflatein higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar tothose of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag system operation.

The NISSAN Advanced Air Bag System has dual stage inflators. It also monitors information from the crash zone sensor, the Air bag Control Unit (ACU), seat belt buckle sensors, occupant classification sensor (pressure sensor) and passenger seat belt tension sensor. Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, it additionally monitors the weight of an occupant or object on the seat and seatbelt tension.Based on informationfrom thesensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the weight detected on the passenger seat and how the seat belt is used.If thefront passenger airbag is OFF, the passenger air bag status light will be illuminated (ifthe seatis unoccupied,the lightwill not beilluminated, but the air bag will be off). See “Front passenger air bag and status light”later in

this section for further details. One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air bag system, please contact NISSAN oryour NISSAN dealer. If you are considering modification of your vehicle due to a disability, you may also contact NISSAN. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by the release of smoke. This smokeis not harmful and does not indicate a fire. Care shouldbe takento not inhaleit, asit may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Front air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with NISSAN air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the front occupants. Because of this, the force of the

front air bag inflating can increase the risk of injury if the occupant is too close to,or is against, the front air bag module during inflation.

The front air bags deflate quickly after a collision.

The front air bags operate only when the ignition switch is placed in the ON or START position.

1-44 Safety—Seats, seat belts and supplemental restraint system

WRS0475

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this section carefully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.

Status light

The front passenger air bag status light located near the climate controls. The light operates as follows:

● Unoccupied passenger’s seat: The OFF and the front passenger air bag is OFF and will not inflate in a crash.

● Passenger’s seat occupied by a small adult, child or child restraint as outlined in this

section: The that the front passenger air bag is OFF and will not inflate in a crash.

● Occupied passenger seat and the passenger meet the conditions outlined in this sec-

tion: The light the front passenger air bag is operational.

Front passenger air bag

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below in accordance with U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bagand otherair bags inyour vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such

illuminates to indicate

is OFF to indicate that

as children, by requiring the air bag to be automatically turned OFF. Certain sensors are used

to meet the requirements. One sensor used is the occupant classification

sensor (pressure sensor). Itis in the bottom ofthe

front passenger seat cushion and is designed to detect an occupant and objects on the seat by weight. It works together with seat belt sensors described later. For example, if a child is in the front passenger seat, the AdvancedAir Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, its weight and the child’s weight can be detected and cause the air bag to turn OFF. Occupant classification sensor operation can vary depending on the front passenger seat belt sensors.

The front passenger seat belt sensors are designed to detect if the seat beltis buckledand the amount of tension on the seat belt, such as when it is in the Automatic Locking Retractor (ALR) mode (child restraint mode). Based on the weight on the seat detected by the occupant classification sensor and the belt tension detected on the seat belt, the Advanced Air Bag System determines whether the front passenger air bag should be automatically turned OFF as required by the regulations.

Safety—Seats, seat belts and supplemental restraint system 1-45

Front passenger seat adult occupants who are properly seated and using the seat belt as outlined inthis manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however if the occupant takes his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. In addition, if the occupant improperly uses the seat belt in the ALR mode, this could cause the air bag to be turned OFF. Always be sure to beseated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

NISSAN recommends that pre-teens and children be properly restrained in a rear seat. NISSAN alsorecommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor and seat belt sensors are designed to operate as described above to turn the front passenger air bag OFF for specified child restraints as required by the regulations. Failing to properly secure child restraints and to use the ALR mode may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a

crash instead of being OFF. See “Child restraints” earlier in this section for proper use and installation.

If the front passenger seat is not occupied, the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object’s weight detected by the occupant classification sensor. Other conditions couldalso result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and allvehicle occupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front passenger seat is unoccupied.

If an adult occupant isin the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person isa smalladult, oris notsitting onthe seat properly or not using the seat belt properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child restraint beingused. Ifthe air bag status light is not illuminated (indicating that

the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Makesure that the child restraintis installed properly, the seat belt is used properly and the occupant is positioned properly. If the air bag status light is not illuminated, reposition the occupant or child restraint in a rear seat.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your NISSAN dealer can check that the system is OFF by using a special tool. However, until you have confirmed with your dealer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.

The air bag system and passenger air bag status light will take a few seconds to register a change in the passenger seat status. For example, if a large adult who is sitting in the front passenger seat exits the vehicle, the passenger air bag status light will go from OFF to ON for a few seconds and then to OFF. This is normal system operation and does not indicate a malfunction.

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warning

light

, located in the meter and gauges area

1-46 Safety—Seats, seat belts and supplemental restraint system

of the instrument panel, will blink. Have the system checked by a NISSAN dealer.

Other supplemental front-impact air bag precautions

WARNING

● Do not place any objects on the steering wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bags inflate.

● Immediately after inflation, several front air bag system components will be hot. Do not touch them; you may severely burn yourself.

● No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the front air bag system.

● Tampering with the front air bag system may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim material around the air bag system.

● Modifying or tampering with the front passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that are not specifically designed to assure proper air bag operation. Additionally,do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classification sensor (pressure sensor).

● No unauthorized changes should be made to any components or wiring of the seat belt system. This may affect the front air bag system. Tampering with the seat belt system may result in serious personal injury.

● Work on and around the front air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The Supplemental Restraint System (SRS) wiring should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the air bag system.

● A cracked windshield should be replaced immediately by a qualified repair facility. A cracked windshield could affect the function of the supplemental air bag system.

*The SRS wiring harness connectors are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

Safety—Seats, seat belts and supplemental restraint system 1-47

LRS0259

Front seat-mounted side-impact supplemental air bag and roofmounted curtain side-impact supplemental air bag systems

The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. These systems are designedto meet voluntary guidelines tohelp reduce the risk of injury to out-of-position occupants. However, all of the information, cau-

tions and warnings in this manual still apply and must be followed. The side air bags

and curtain air bags are designed to inflate in higher severity side collisions, although they may

inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflateon theside where the vehicle is impacted. They may not inflate in certain side collisions.

Vehicle damage (or lack of it) is not always an indication of proper side air bag and curtain air bag operation.

When the side air bags and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Careshould betaken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Side air bags, along with the use of seat belts, help to cushion the impact force on the chest of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries.However, aninflating sideair bag and curtain air bag may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the lower body.

The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the side air bag. Rear seat passengers should be seated as far away as

practical from the door finishers and side roof rails. Theside air bags and curtainair bags inflate quickly in order to help protect the front and rear outboard occupants. Because of this,the forceof the side air bag and curtain air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bags and curtain air bags will deflate quickly after the collision is over.

The side air bags and curtain air bags operate only when the ignition switch is in the ON or START position.

WARNING

● Do not place any objects near the seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if a side air bag inflates.

1-48 Safety—Seats, seat belts and supplemental restraint system

● Right afterinflation, severalside airbag and curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.

● No unauthorized changes should be made to any components or wiring of the side air bag and curtain air bag systems. This is to prevent damage to or accidental inflation of the side air bag and curtain air bag or damage to the side air bag and curtain air bagsystems.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the side air bag and curtain air bagsystems.

● Tampering with the side air bag system may result in serious personal injury. For example, do not change the front seats by placing material near the seatbacks or by installing additional trim material, such as seat covers, around the side air bag.

● Work around and on the side air bag and curtain air bag systems should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The SRS wiring harnesses* should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag system.

* The SRS wiring harness connectors are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.

Seat belts with pretensioners (front seats)

WARNING

● The pretensioners cannot be reused after activation. They must be replaced together with the retractor and buckle as a unit.

● If the vehicle becomes involved in a frontal collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced by your NISSAN dealer.

● No unauthorized changes should be made to any components or wiring of the pretensioner system. This is to prevent damage to or accidental activation of the pretensioners. Tampering with the pretensioner system may result in serious personal injury.

● Work around and on the pretensioner system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. Unauthorized electrical test equipment and probing devices should not be used on the pretensioner system.

● If you need to dispose of the pretensioner or scrap the vehicle, contact a NISSAN dealer. Correct pretensioner disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

The pretensioner system activates in conjunction with the front air bag system. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pretensioner is encased with the seat belt retractor. These seat belts areused the same way as conventional seat belts.

When a pretensioner activates, smoke is released and a loud noise may be heard. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

After pretensioner activation load limiters allow the seat belt to release webbing (if necessary) to reduce forces against the chest.

If any abnormality occurs in the pretensioner system, the supplemental air bag warning

light tion key is placed in the ON or START position. In this case, the pretensioner system may not function properly. They must be checked and repaired. Take your vehicle to the nearest NISSAN dealer.

will flash intermittently after the igni-

Safety—Seats, seat belts and supplemental restraint system 1-49

When selling your vehicle, we request that you inform the buyer about the pretensioner system and guide the buyer to the appropriate sections in this Owner’s Manual.

1. SRS Air Bag Warning Labels (located on the sun visors)

2. SRS Side Air Bag Warning Labels (located on the door pillar)

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental frontimpact air bag, front seat-mounted side-impact supplemental air bag and roof-mounted curtain side-impact supplemental air bag systems are placed in the vehicle as shown in the illustration.

1-50 Safety—Seats, seat belts and supplemental restraint system

LRS0695 LRS0100

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying

tors the circuits of the supplemental front-impact air bag, front seat-mounted side-impact supplemental air bag, roof-mounted curtainside-impact supplemental air bag and seat belt pretensioner systems. The monitored circuits include the Air bag Control Unit (ACU), crash zone sensor, satellite sensors, occupant classification system, front air bag modules, side air bag modules, curtain air bag modules, pretensioners and all related wiring.

in the instrument panel, moni-

When the ignition switch is placed in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing:

● The supplemental air bag warning light remains on after approximately 7 seconds.

● The supplemental air bag warning light flashes intermittently.

● The supplemental air bag warning light does not come on at all.

Under these conditions, the front air bag, side air bag, curtain air bag or pretensioner systems may not operate properly. They must be checked and repaired. Take your vehicle to the nearest NISSAN dealer.

WARNING

If the supplemental air bag warning light is on, it could mean that the front air bag, side air bags, curtain air bag and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

Repair and replacement procedure

The front air bags, side air bags, curtain air bags and pretensioners are designed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light remains illuminated after inflation has occurred. Repair and replacement of these supplemental air bag systems should be done only by a NISSAN dealer.

When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person performing the maintenance. The ignition switch should always be placed inthe LOCK position whenworking under the hood or inside the vehicle.

WARNING

● Once a front air bag, side air bag, or curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the front air bags inflate, the activated pretensioners must also be replaced. The air bag module and pretensioners should be replaced by a NISSAN dealer. The air bag module and pretensioners cannot be repaired.

● The front air bag, side air bag, curtain air bag systems and the pretensioner system should be inspected by a NISSAN dealer if there is any damage to the front end or side portion of the vehicle.

● If you need to dispose of a supplemental air bag or pretensioner or scrap the vehicle, contact a NISSAN dealer. Correct supplemental air bag and pretensioner system disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

Safety—Seats, seat belts and supplemental restraint system 1-51

MEMO

1-52 Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls

Instrument panel...................................2-2

Meters and gauges ................................2-3

Speedometer and odometer .....................2-3

Tachometer....................................2-4

Fuel gauge ....................................2-5

Warning/indicator lights and audible reminders .......2-6

Checking bulbs ................................2-7

Warning lights .................................2-7

Indicator lights ................................2-11

Audible reminders .............................2-13

Security systems (if so equipped) ..................2-14

Vehicle security system (if so equipped)..........2-14

NISSAN vehicle immobilizer system .............2-15

Windshield wiper and washer switch ...............2-17

Switch operation ..............................2-17

Rear window wiper and washer switch

(if so equipped) ..................................2-18

Rear window and outside mirror (if so equipped)

defroster switch ..................................2-18

Headlight and turn signal switch....................2-19

Headlight control switch........................2-19

Daytime running light system (Canada only) ......2-20

Instrument brightness control ...................2-20

Turn signal switch .............................2-21

Fog light switch (if so equipped) ................2-21

Hazard warning flasher switch .....................2-21

Horn ............................................2-22

Power outlet .....................................2-22

Storage .........................................2-23

Map pockets..................................2-23

Storage trays .................................2-23

Sunglasses holder (if so equipped) ..............2-24

Cup holders ..................................2-25

Glove box ....................................2-26

Console box (if so equipped) ...................2-26

Covered storage bin ...........................2-27

Cargo cover (Hatchback models only) ...........2-27

Windows ........................................2-28

Power windows (if so equipped) ................2-28

Manual windows (if so equipped)................2-31

Moonroof (if so equipped) .........................2-31

Automatic moonroof ...........................2-31

Interior light ......................................2-33

Map lights (if so equipped) ........................2-34

Luggage compartment light (Hatchback) ............2-34

Trunk light (Sedan) ...............................2-35

INSTRUMENT PANEL

1. Outside mirror control switch (if so equipped) (P. 3-29)

2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-19)

2-2 Instruments and controls

WIC1286

3. Steering wheel switch for audio control and BluetoothT hands-free phone system (if so equipped) (P. 4-26, 4-28)

4. Driver’s supplemental air bag/horn (P. 1-36, 2-22)

5. Meters and gauges (P. 2-3)

6. Cruise control main/set switches (if so equipped) (P. 5-24)

7. Windshield wiper/washer switch (P. 2-17, 2-18)

8. Audio system (P. 4-10)

9. Storage bin (P. 2-23)

10. Center ventilator (P. 4-2)

11. Passenger’s supplemental air bag (P. 1-36)

12. Side ventilator (P. 4-2)

13. Glove box (P. 2-26)

14. Hazard warning flasher switch (P. 2-21)

15. Cup holders (P. 2-25)

16. Shift selector (P. 5-14)

17. Defroster switch (P. 2-18)

18. Climate control (P. 4-3)

19. Passenger air bag status light (P. 1-44)

20. Ignition switch (P. 5-7)

21. Tilt steering (P. 3-28)

22. Hood release lever (P. 3-22)

23. Fuel-filler door release lever (P. 3-26)

24. Fuse block (P. 8-21)

25. Instrument brightness control (P. 2-20)

See the page number indicated in parentheses for operating details.

METERS AND GAUGES

1. Tachometer

2. Speedometer

3. Fuel gauge

4. Odometer (total/twin trip)

LIC0962

SPEEDOMETER AND ODOMETER Speedometer

The speedometer indicates the vehicle speed.

LIC0961

5. Automatic Transmission (A/T)/ Continuously Variable Transmission (CVT) position indicator

6. Trip odometer change button

Instruments and controls 2-3

Changing the display

Push thechange button as follows:

to changethe display

SIC2852 LIC0963

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed when the ignition switch is placed in the ON position.

The odometer vehicle has been driven.

The twin trip odometer of individual trips.

records the total distance the

records the distance

2-4 Instruments and controls

Trip

Resetting the trip odometer:

Push the change button second to reset the currently displayed trip odometer to zero.

→ Trip → Trip

for more than 1

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev the engine into the red zone

When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating the engine in the red zone may cause serious engine damage.

CAUTION

LIC0964

FUEL GAUGE

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the ignition switch is placed in the OFF position.

The low fuel warning light comes on when the amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge registers E (Empty).

The located on the passenger’s side of the vehicle.

indicates that the fuel-filler door is

CAUTION

● If the vehicle runs out of fuel, the (MIL) may come on. Refuel as soon as

possible. After a few driving trips, the light remains on after a few driving

trips, have the vehicle inspected by a NISSAN dealer.

● For additional information, see “Malfunction Indicator Light (MIL)” later in this section.

Malfunction Indicator Light

light should turn off. If the

Instruments and controls 2-5

WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS

or Anti-lock Braking System

(ABS) warning light (if so equipped)

or Brake warning light

Charge warning light NISSAN Intelligent Key™ warning light

Door open warning light P position selecting warning light

Electric power steering warning light Seat belt warning light and chime Overdrive OFF indicator light

Engine oil pressure warning light Supplemental air bag warning light Security indicator light

High temperature warning light (Red) Automatic Transmission (A/T)/Continuously

Intelligent Key lock warning light (M/T models) (if so equipped)

Low fuel warning light Cruise SET switch indicator light

Low tire pressure warning light Front passenger air bag status light

Low windshield washer fluid warning light (if so equipped)

(if so equipped)

(CVT models) (if so equipped)

Variable Transmission (CVT) position indicator light

CRUISE main switch indicator light (if so equipped)

(if so equipped)

High beam indicator light (Blue)

Low temperature indicator light (blue)

Malfunction Indicator Light (MIL)

(A/T / CVT models)

Turn signal/hazard indicator lights

2-6 Instruments and controls

CHECKING BULBS

With all doors closed, apply the parking brake and place the ignition switch in the ON position without starting the engine. The following lights will come on:

or , , , , ,

If equipped, the following lights come on briefly and then go off:

or , (red), , ,

(blue), , ,

If any light fails to come on, it may indicate a burned-out bulb or an open circuit in the electrical system. Have the system repaired promptly.

WARNING LIGHTS

or Anti-lock Braking

System (ABS) warning light (if so equipped)

When the ignition switch is placed in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is operational.

If the ABS warning light illuminates while the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock function isturned off.The brake system then operates normally, but without anti-lock assistance. See 9Brake system9 in the 9Starting and driving9 section.

or Brake warning light

This lightfunctions for both the parking brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON position, the light comes on when the parking brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON position, the light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. Add brake fluid as necessary. See “Brake fluid”in the “Maintenance and do-it-yourself” section of this manual.

2. If the brake fluid level is correct, have the warning system checked by a NISSAN dealer.

WARNING

● Your brake system may not be working properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.

● Pressing the brake pedal with the engine stopped and/or a low brake fluid level may increase your stopping distance and braking will require greater pedal effort as well as pedal travel.

● If the brake fluid level is below the MINIMUM or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked at a NISSAN dealer.

Instruments and controls 2-7

Charge warning light

If this light comes on while the engine is running, it may indicate the charging system is not functioning properly. Turn the engine off and check the drive belt. If the belt is loose, broken, missing, or if the light remains on, see a NISSAN dealer immediately.

CAUTION

Do not continue driving if the drive belt is loose, broken or missing.

Door open warning light

This lightcomes on when any of the doors are not closed securely while the ignition switch is placed in the ON position.

Electric power steering warning light

WARNING

● If the engine is not running or is turned off while driving, the power assist for the steering will not work. Steering will be harder to operate.

2-8 Instruments and controls

● When the power steering warning light illuminates with the engine running, there will be no power assist for the steering. You will still have control of the vehicle but the steering will be harder to operate. Have the power steering system checked by a NISSAN dealer.

When the ignition switch is placed in the ON position, the power steering warning light illuminates. After starting the engine, the power steering warning light turns off. This indicates the power steering system is operational.

If the power steering warning light illuminates while the engine is running, it may indicate the power steering system is not functioning properly and mayneed servicing.Have thepower steering system checked by a NISSAN dealer.

When the power steering warning light illuminates with the engine running, there will be no power assistfor thesteering but you will still have control of the vehicle. At this time, greater steering effort is required to operate the steering wheel, especially in sharp turns and at low speeds.

See “Power steering”in the “Startingand driving” section.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer or other authorized repair shop.

The engine oil pressure warning light is not designed to indicate a low oil level. Use the

dipstick to check the oil level. See “Engine oil” in the “Maintenance and do-it-yourself” section of this manual.

CAUTION

Running the engine with the engine oil pressure warning light on could cause serious damage to the engine almost immediately. Such damage is not covered by warranty. Turn off the engine as soon as it is safe to do so.

High temperature warning light (red)

When the ignition switch is placed in the ON position, the high temperature warning light illuminates and then turns off. This indicates thatthe high temperature sensor in the engine coolant system is operational.

CAUTION

If the high temperature warning light illuminates while the engine is running, it may indicate the engine temperature is extremely high. Stop the vehicle safely as soon as possible. If the vehicle is overheated, continuing vehicle operation may seriously damage the engine. See “If your vehicle overheats”in the “In case of emergency” section.

Intelligent Key lock warning light (M/T models) (if so equipped)

When the ignition switch is left in the OFF position instead of completely placing it in the LOCK position, the Intelligent Key lock warning light blinks red and the Intelligent Key room buzzer will sound. The light will keep blinking until the ignition switch is placed in the LOCK or ACC position.

If the Intelligent Key lock warning light blinks and the buzzer sounds, press the PUSH release button next to ignition switch, then place the ignition switch in either the LOCK or ACC position.

See “NISSAN Intelligent Key™ (if so equipped)” in the “Pre-driving checks and adjustments”section.

Low fuel warning light

This light comes on when the fuel level in the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches E (Empty). There willbe a small reserve of fuel

in the tank when the fuel gauge needle reaches E (Empty).

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure Monitoring System (TPMS) that monitors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low tire pressure or indicates that the TPMS is not functioning properly.

After the ignition switch is placed in the ON position, this light illuminates for about 1 second and turns off.

Low tire pressure warning: If the vehicle is being driven with low tire

pressure, the warning light will illuminate. When the low tire pressure warning light

illuminates, you should stop and adjust the tire pressure of all 4 tires to the recommended COLD tire pressure shown on the Tire and Loading Information label located

in the driver’s door opening. The low tire pressure warning light does not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.

For additional information, see “Tire Pressure Monitoring System (TPMS)” in the “Starting and driving”section andin the“In case of emergency” section.

TPMS malfunction:

If the TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition switch is placed in the ON position. The light will remain on after the 1 minute. Have the system checked by a NISSAN dealer.

For additional information, see “Tire Pressure Monitoring System (TPMS)” in the “Starting and driving” section and “Tire pressure” in the “Maintenance and do-it-yourself” section.

Instruments and controls 2-9

WARNING

● If the light does not illuminate with the ignition switch placed in the ON position, have the vehicle checked by a NISSAN dealer as soon as possible.

● If the light illuminates while driving, avoid sudden steering maneuvers or abrupt braking, reduce vehicle speed, pull off the road to a safe location and stop the vehicle as soon as possible. Driving with under-inflated tires may permanently damage the tires and increase the likelihood of tire failure. Serious vehicle damage could occur and may lead to an accident and could result in serious personal injury. Check the tirepressure for all four tires. Adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label located in the driver’s door opening to turn the low tire pressure warning light OFF. If the light still illuminates while driving after adjusting the tire pressure, a tire may be flat. If you have a flat tire, replace it with a spare tire as soon as possible.

2-10 Instruments and controls

● When a spare tireis mountedor awheel is replaced tire pressure will not be indicated, the TPMS will not function and the low tire pressure warning light will flash for approximately 1 minute. The light will remain on after 1 minute. Contact your NISSAN dealer as soon as possible for tire replacement and/or system resetting.

● Replacing tires with those not originally specified by NISSAN could affect the proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the regular tire pressure check. Be sure to check the tire pressure regularly.

● If the vehicle is being driven at speeds of less than 16 MPH (25 km/h), the TPMS may not operate correctly.

● Be sure to install the specified size of tires to the 4 wheels correctly.

Low windshield washer fluid warning light (if so equipped)

This light comes on when the windshield washer fluid is at a lowlevel. Add windshield washer fluid

as necessary. See “Window washer fluid” in the “Maintenance and do-it-yourself” section of this manual.

NISSAN Intelligent Key™ warning light (if so equipped)

The IntelligentKey warning light illuminates green when the ignition switch can be turned. The Intelligent Key warning light illuminates red when the ignition switch cannot be turned.

The Intelligent Key warning light blinks red if the Intelligent Key is taken outside of the vehicle while the ignition switch is placed in the ACC or ON position.

● If the Intelligent Key warning light blinks, make sure of the location of the Intelligent Key as soon as possible. The Intelligent Key should be carried by the driver while operating the vehicle.

● The Intelligent Key warning light turns off about 10 seconds after the Intelligent Key is brought inside the vehicle.

The Intelligent Key warning light blinks green indicating that the Intelligent Keybattery isalmost discharged.

See “NISSAN Intelligent Key™ (if so equipped)” in the “Pre-driving checks and adjustments”section.

P position selecting warning light (if so equipped)

The light blinks red and the warning buzzer sounds if you are outside of the vehicle with the Intelligent Key and the engine is off, but the shift selector is not in the P (Park) position.

When the warning light blinks, place the ignition switch in the ON position,move the shift selector to the P position, then place the ignition switch in the LOCK position.

Seat belt warning light and chime

The light and chime remind you to fasten your seat belts. The light illuminates whenever the ignition switch is placed in the ON or START position and remains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for about 6 seconds unless the driver’s seat belt is securely fastened.

The seat belt warning light may also illuminate if the front passenger’s seat belt is not fastened when thefront passenger’sseat is occupied . For 7 seconds after the ignition switch is placed in the ONposition, thesystem doesnot activate the warning light for the front passenger.

Refer to “Seat belts” in the “Safety—Seats, seat belts and supplemental restraint system”section for precautions on seat belt usage.

Supplemental air bag warning light

When the ignition switch is placed in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

If any of the following conditions occur, the front air bag, side air bag, curtain air bag, and pretensioner systems need servicing and your vehicle must be taken to a NISSAN dealer:

● The supplemental air bag warning light remains on after approximately 7 seconds.

● The supplemental air bag warning light flashes intermittently.

● The supplemental air bag warning light does not come on at all.

Unless checked and repaired, the supplemental restraint system (air bag system) and/or the pretensioners may not function properly. For additional details see “Supplemental restraint system” in the “Safety—Seats, seat belts and supplemental restraint system” section of this manual.

WARNING

If the supplemental air bag warning light is on, it could mean that the front air bag, side air bag, curtain air bag systems and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

INDICATOR LIGHTS

Automatic Transmission (A/T)/Continuously Variable Transmission (CVT) position indicator light (if so equipped)

When the ignition switch is placed in the ON position, thisindicator lightshows theshift selector position. See “Driving the vehicle” in the “Starting and driving” section of this manual.

Cruise main switch indicator light (if so equipped)

The light comes on when the cruise control main switch is pushed. The light goes out when the main switch is pushed again. When the cruise main switch indicator light comes on, the cruise control system is operational.

Instruments and controls 2-11

Cruise set switch indicator light (if so equipped)

The light comes on while the vehicle speed is controlled by the cruise control system. Ifthe light blinks while the engine is running, it may indicate the cruise control system isnot functioning properly. Have the system checked by a NISSAN dealer.

Front passenger air bag status light

The front passenger air bag status light ( ) will be lit and the passenger front air bag will be OFF depending on how the front passenger seat is being used.

For frontpassenger airbag statuslight operation, see “Front passenger air bag and status light” in the “Safety — Seats, seat belts andsupplemental restraint system” section of this manual.

High beam indicator light (blue)

This blue light comes on when the headlight high beams are on and goes out when the low beams are selected.

The high beam indicator light also comes on when the passing signal is activated.

2-12 Instruments and controls

Low temperature indicator light (blue)

The low temperature indicator light illuminates when the engine coolant temperature is low.

When the ignition switch is placed in the ON position, the low temperature indicator light illuminates and then turns off after the engine coolant has warmed up.

If the low temperature indicator light stays illuminated after the engine has sufficiently warmed up, it may indicate the low temperature sensor in the engine coolant system is not functioning properly and may need servicing. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly.

Malfunction Indicator Light (MIL)

If this indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control malfunction.

The Malfunction Indicator Light may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle has at least 3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the turn off if no other potential emission control system malfunction exists.

If this indicator light comes on steady for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/maintenance test. See “Readiness forinspection/maintenance (I/M)test” in the “Technical and consumer information”section of this manual.

Operation

The Malfunction Indicator Light will come on in one of two ways:

● Malfunction Indicator Light on steady — An emission control system malfunction has been detected. Check the fuel-filler cap. If the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the

vehicle. The a fewdriving trips. If the

turn off after a few driving trips, have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

light should turn off after

light should

light doesnot

● Malfunction Indicator Light blinking — An engine misfirehas beendetected whichmay damage the emission control system. To reduce or avoid emission control system damage:

– do not drive at speeds above 45 MPH

(72 km/h). – avoid hard acceleration or deceleration. – avoid steep uphill grades. – if possible, reduce the amount of cargo

being hauled.

The Malfunction Indicator Light may stop blinking and come on steady. Have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.

Overdrive off indicator light (A/T / CVT models)

The overdrive off indicator light illuminates when the overdrive off mode is selected.

For additional information, see “Driving the vehicle” in the “Starting and driving” section of this manual.

Security indicator light

For vehicles without Intelligent Key: This light blinks whenever the ignition switch is placed in the LOCK, OFF or ACC position.

For vehicles with Intelligent Key: This light blinks when the ignition switch is placed in the LOCK position with the key removed from the ignition switch.

The blinking security indicator light indicates that the security systems equipped on the vehicle are operational.

For additional information, see “Security systems” later in this section.

Turn signal/hazard indicator lights

The appropriatelight flashes when the turn signal switch is activated.

Both lightsflash whenthe hazardswitch isturned on.

AUDIBLE REMINDERS Brake pad wear warning

The discbrake padshave audible wear warnings. When a disc brake pad requires replacement, it makes a high pitched scraping sound when the vehicle is in motion, whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened while the key is leftin the ignition switch. Remove the key and take it with you when leaving the vehicle.

NISSAN Intelligent Key™ door buzzer (if so equipped)

The Intelligent Key door buzzer sounds if any one of the following improper operations is found.

● The ignition switch is not returned to the LOCK position when locking the doors.

● The Intelligent Key is left inside the vehicle when locking the doors.

● The Intelligent Key is taken outside the vehicle when operating the vehicle.

● Any doors are not closed securely when locking the doors.

Instruments and controls 2-13

SECURITY SYSTEMS (if so equipped)

When the buzzer sounds, be sure to check both the vehicle and the Intelligent Key. See “NISSAN Intelligent Key™ (if so equipped)” in the “Predriving checks and adjustments” section.

Light reminder chime

With the ignition switch placed in the OFF position, a chime sounds when the driver’s door is opened if the headlights or parking lights are on.

Turn the headlight control switch off before leaving the vehicle.

Parking brake reminder chime

A chime sounds if the parking brake is set and the vehicle is driven. The chime will stop if theparking brake is released or the vehicle speed returns to zero.

2-14 Instruments and controls

LIC0978

Your vehicle may have two types of security systems:

● Vehicle security system (if so equipped)

● NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM (if so equipped)

The vehicle security system provides visual and audible alarm signals if someoneopens thedoors when the system is armed. It is not, however, a motion detection type system thatactivates when a vehicle is moved or when a vibration occurs.

The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior or exterior vehicle components in all situations. Always secure your vehicle even if parking for a brief period. Never leave your keys in the ignition, and alwayslock the vehicle when unattended. Be aware of your surroundings, and park in secure, well-lit areas whenever possible.

Many devicesoffering additionalprotection, such as component locks, identification markers, and tracking systems, are available at auto supply stores and specialty shops. Your NISSAN dealer may also offer such equipment. Check with your insurance company to see if you may be eligible for discountsfor varioustheft protectionfeatures.

How to arm the vehicle security system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Place the ignition switch in the LOCK position and remove the key.

3. Close all doors. Lock all doors. The doors can be locked with:

● the power door lock switch (if the door is opened, locked and then closed).

● the key — master or mechanical (Intelligent Key models).

● any request switch (Intelligent Key models).

● the keyfob or Intelligent Key.

Keyfob and Intelligent Key operation:

● Push the The hazard lights flash twice and the horn beeps once to indicate all doors are locked.

● When the all doors locked, the hazard lights flash twice and the horn beeps once as a reminder that the doors are already locked.

The horn may or may not beep. Refer to “Silencing the horn beep feature” in the “Pre-driving checks and adjustments” section later in this manual.

4. Confirm that the on. The

seconds. The vehicle security systemis now pre-armed. After about 30 seconds the vehicle security system automatically shifts

into the armed phase. The to flash once every 3 seconds. If, during the 30-second pre-arm time period, the driver’s door is unlocked by the key, a request switch, the keyfob or Intelligent Key, or if the ignition switch is placed in the ACC or ON position, the system will not arm.

button. All doors lock.

button is pushed with

indicator light comes

light stays on for about 30

light begins

● If the key is turned slowly when locking the driver’s door, the system may not arm. Furthermore, if the key is turned beyond the vertical position toward the unlock position to remove the key, the system may be disarmed when the key is removed. If the indicator light fails to glow for 30 seconds, unlock the door once and lock it again.

● Even when the driver and/or passengers are in the vehicle, the system will arm with all doors closed and locked with the ignition switch placed in the OFF position.

Vehicle security system activation

The vehiclesecurity systemwill give the following alarm:

● The headlights blink and the horn sounds intermittently.

● The alarm automatically turns off after approximately 50seconds. However, the alarm reactivates if the vehicle is tampered with again. The alarm can beshut offby unlocking the driver’s door with the key, a request

switch or by pressing the the keyfob or Intelligent Key.

button on

The alarm is activated by:

● opening a door without using the key, a request switch, keyfob or Intelligent Key (even if the door is unlocked by using the inside lock knob or the power door lock switch).

How to stop an activated alarm

The alarm stops only by unlocking the driver’s door with the key, pressing the

the keyfob or Intelligent Key, or by unlocking all doors with any request switch (Intelligent Key models).

button on

NISSAN VEHICLE IMMOBILIZER SYSTEM

The NISSAN Vehicle Immobilizer System will not allow the engine to start without the use of a registered key.

If the engine fails to start using a registered key (for example, when interference is caused by another registered key, an automated toll road device or automatic payment device on the key ring), restart the engine using the following procedures:

1. Leave the ignition switch placed in the ON position for approximately 5 seconds.

Instruments and controls 2-15

2. Place the ignition switch in the OFF or LOCK position and wait approximately 10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the device (which may have caused the interference) separate from the registered key.

If theno start condition re-occurs, NISSANrecommends placing the registered key on aseparate key ring to avoid interference from other devices.

Statement related to Section 15 of FCC Rules for NISSAN Vehicle Immobilizer System (CONT ASSY — IMMOBILIZER, ANT ASSY — IMMOBILIZER)

This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

2-16 Instruments and controls

If the light still remains on and/or the engine will not start, see a NISSAN dealer for NISSAN Vehicle Immobilizer System service as soon as possible. Please bring all registered keys that you have when visiting your NISSAN dealer for service.

LIC0474

Security indicator light

For vehicles without Intelligent Key: This light blinks whenever the ignition switch is placed in the LOCK, OFF or ACC position.

For vehicles with Intelligent Key: This light blinks when the ignition switch is placed in the LOCK position with the key removed from the ignition switch.

This function indicates the NISSAN Vehicle Immobilizer System is operational.

If theNISSAN Vehicle ImmobilizerSystem ismalfunctioning, the light will remain on while the ignition switch is placed in the ON position.

WINDSHIELD WIPER AND WASHER SWITCH

Push the lever up tion (MIST) of the wiper.

Pull the lever toward you washer. Thewiper willalso operateseveral times.

to have one sweep opera-

to operate the

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm the windshield with the defroster before you wash the windshield.

● Pre-mix washer fluid concentrates with water to the manufacturer’s recommended levels before pouring the fluid into the window washer reservoir tank. Do not use the window washer reservoir tank to mix the washer fluid concentrate and water.

LIC0965

SWITCH OPERATION

The windshield wiper and washeroperates when the ignition switch is placed in the ON position.

Push the lever down to operate the wiper at the following speed:

Intermittent (INT) — intermittent operation

can be adjusted by turning the knob toward

(Slower) or

Low (LO) —continuous low speed operation

High (HI) — continuous high speed opera-

tion

(Faster).

CAUTION

● Do not operate the washer continuously for more than 30 seconds.

● Do not operate the washer if the reservoir tank is empty.

● Do not fill the window washer reservoir tank with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir tank.

Instruments and controls 2-17

REAR WINDOW WIPER AND WASHER SWITCH (if so equipped)

LIC0966 LIC0388

The rearwindow wiper and washer operate when the ignition switch is placed in the ON position.

Turn the switch clockwise from the OFF position to operate the wiper.

Intermittent (INT) – intermittent operation

(not adjustable)

ON – continuous low speed operation

Push the switch forward washer. Thewiper willalso operateseveral times.

to operate the

WARNING

In freezing temperatures the washer solution may freeze on the window and obscure your vision. Warm the rear window with the defroster before you wash the rear window.

CAUTION

● Do not operate the washer continuously for more than 30 seconds.

● Do not operate the washer if the reservoir tank is empty.

REAR WINDOW AND OUTSIDE MIRROR (if so equipped) DEFROSTER SWITCH

To defrost the rear window glass and outside mirrors (if so equipped), start the engine and push the rear window defroster switch on. The rear window defroster indicator light on the switch comes on. Push the switch again to turn the defroster off.

The rear window defroster automatically turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear window, be careful not to scratch or damage the rear window defroster.

2-18 Instruments and controls

HEADLIGHT AND TURN SIGNAL SWITCH

SIC2745

Type A

HEADLIGHT CONTROL SWITCH Lighting

When turning the switch to the posi-

tion, the front parking, tail, license plate and instrument panel lights come on.

When turning the switch to the posi-

tion, theheadlights comeon andall theother lights remain on.

SIC3019

Type B

CAUTION

Use the headlights with the engine running to avoid discharging the vehicle battery.

LIC0967

Headlight beam select

To select the high beam function, push the

lever forward. The high beam lights come on and the

Pull the lever back to select the low beam.

Pulling and releasing the lever flashes the

headlight high beams on and off.

light illuminates.

Battery saver system

If theignition switch is placed inthe OFF position while the headlight switch is in the or position, the headlights will turn off after

5 minutes.

Instruments and controls 2-19

CAUTION

Even though the battery saver feature automatically turns off the headlights after a period of time, you should turn the headlight switch to the OFF position when the engine is not running to avoid discharging the vehicle battery.

DAYTIME RUNNING LIGHT SYSTEM (Canada only)

The headlights automatically illuminate at a reduced intensity when the engine is started with the parking brake released. The daytime running lights operate with the headlight switch in the

OFF position or in the headlight switch to the

illumination when driving at night. If the parking brake is applied beforethe engineis

started, the daytime running lights do not illuminate. The daytime running lights illuminate when the parking brake is released. The daytime running lights will remain on until the ignition switch is placed in the OFF position.

position. Turn the

position for full

WARNING

When the daytime running light system is active, tail lights on your vehicle are not on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injuring yourself and others.

LIC0392

INSTRUMENT BRIGHTNESS CONTROL

The instrument brightness control operates when the headlight control switch is in the or position.

Turnthe controlto adjust the brightness of instrument panel lights when driving at night.

2-20 Instruments and controls

TURN SIGNAL SWITCH Turn signal

Move the lever up or down to signal the

turning direction. When the turn is completed, the turn signals cancel automatically.

Lane change signal

Tosignal a lane change, move the lever up or

down to the point where the indicator light begins to flash, but the lever does not latch.

HAZARD WARNING FLASHER SWITCH

LIC0968 SIC3020 LIC0394

FOG LIGHT SWITCH (if so equipped)

Toturn the fog lights on, turn theheadlight switch to the switch to the

To turn the fog lights off, turn the fog light switch to the OFF position.

The headlights must be on and the low beams selected for the fog lights to operate. The fog lights automatically turn off when the high beam headlights are selected.

position, then turn the fog light

position.

Push the switch on to warn other drivers when you must stop or park under emergency conditions. All turn signal lights flash.

WARNING

● If stopping for an emergency, be sure to move the vehicle well off the road.

● Do not use the hazard warning flashers while moving on the highway unless unusual circumstances force you to drive so slowly that your vehicle might become a hazard to other traffic.

● Turn signals do not work when the hazard warning flasher lights are on.

Instruments and controls 2-21

The flashers will operate with the ignition switch placed in any position.

Some state laws may prohibit the use of the hazard warning flasher switch while driving.

HORN POWER OUTLET

LIC0604 LIC0969

To sound the horn, push the center pad area of the steering wheel.

WARNING

Do not disassemble the horn. Doing so could affect proper operation of the supplemental front air bag system. Tampering with the supplemental front air bag system may result in serious personal injury.

The power outlet is forpowering electricalaccessories such as cellular telephones. The outlet is rated at 12 volt, 120 W (10A) maximum.

● The outlet and plug may be hot during or immediately after use.

● Only certainpower outletsare designed for use with a cigarette lighter unit. Do not use any other power outlet for an accessory lighter. See your NISSAN dealer for additional information.

CAUTION

2-22 Instruments and controls

● Do not use with accessories that exceed a 12 volt, 120W (10A) power draw. Do not use double adapters or more than one electrical accessory.

● Use power outlets with the engine running to avoid discharging the vehicle battery.

● Avoid using power outlets when the air conditioner, headlights or rear window defroster is on.

● Before inserting or disconnecting a plug, be sure the electrical accessory being used is turned OFF.

● Push the plug in as far as it will go. If good contact is not made, the plug may overheat or the internal temperature fuse may open.

● When not in use, be sure to close the cap. Do not allow water to contact the outlet.

STORAGE

MAP POCKETS

LIC0971

LIC0979

Coin holders

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays to help prevent injury in an accident or sudden stop.

Instruments and controls 2-23

Front

2-24 Instruments and controls

LIC0980

Rear

LIC0981

WIC1002

SUNGLASSES HOLDER (if so equipped)

To open the sunglassesholder, push andrelease the rear center portion

Keep the sunglasses holder closed while driving to prevent an accident.

of the holder.

WARNING

CAUTION

● Do not use for anything other than sunglasses.

● Do not leave sunglasses in the sunglasses holder while parking in direct sunlight. The heat may damage the sunglasses.

LIC0972

Front

CUP HOLDERS

CAUTION

● Avoid abrupt starting and braking when the cup holder is being used to prevent spilling the drink. If the liquid is hot, it can scald you or your passenger.

● Use only soft cups in the cup holder. Hard objects can injure you in an accident.

LIC0973

Rear — Type A

Instruments and controls 2-25

LIC0974

Rear — Type B

Lower the rear center armrest to access the cup holders.

2-26 Instruments and controls

LIC0975 SIC2861

GLOVE BOX

Open the glove box by pulling the handle.

WARNING

Keep glove box lid closed while driving to help prevent injury in an accident or a sudden stop.

CONSOLE BOX (if so equipped)

Fold down To open the console box, pull up on the lever

and raise the lid To close, push the lid down until the lock latches.

NOTE: Do not fold the console box up when it is

used for storage.

the console box.

LIC0976

COVERED STORAGE BIN

Raise the lid to access the storage bin.

CARGO COVER (Hatchback models only)

WARNING

● Never put anything on the cargo cover, no matter how small. Any object on it could cause an injury in an accident or sudden stop.

● Do not leave the cargo cover in the vehicle with it disengaged from the holder.

● Your child could be seriously injured or killed in a collision if the child restraint top tether strap is damaged.

– If the cargo cover contacts the top

tether strap when it is attached to the top tether anchor, remove the cargo cover from the vehicle or secure it on the cargo floor below its attachment location. If the cargo cover is not removed, it may damage the top tether strap during a collision.

– Do not allow cargo to contact the top

tether strap when it is attached to the top tether anchor. Properly secure the cargo so it does not contact the top tether strap. Cargo that is not properly secured or that contacts the top tether strap may damage the top tether strap during a collision.

The cargo cover keeps the luggage compartment contents hidden from the outside.

Only attach the hook and loop fastener on the cargo cover privacy cloth to the area on the rear seatback where it is supposed to be attached. Otherwise, the seat surface could be damaged.

Instruments and controls 2-27

To remove the cargo cover:

Remove the straps from the rear hatch.

Remove the edge of the cargo cover privacy

cloth from the rear seatback.

WIC1003

Remove the cargo cover holders from the

rear pillar.

WINDOWS

POWER WINDOWS (if so equipped)

WARNING

● Make sure that all passengers have their hands, etc. inside the vehicle while it is in motion and before closing the windows. Use the window lock switch to prevent unexpected use of the power windows.

● Do not leave children unattended inside the vehicle.They could unknowingly activate switches or controls and become trapped in a window. Unattended children could become involved in serious accidents.

The power windows operate when the ignition switch is placed in the ON position, or for about 45 seconds after the ignition switch is placed in the OFF position. If the driver’s or passenger’s door is opened during this period of about 45 seconds, power to the windows is canceled.

2-28 Instruments and controls

WIC1100 LIC0718

1. Window lock button

2. Power door lock switch

3. Front passenger’s side window switch

4. Right rear passenger’s window switch

5. Left rear passenger’s window switch

6. Driver’s side automatic switch

Driver’s side power window switch

The driver’s side control panel is equipped with switches to open or close the front and rear passenger windows.

To open a window, push the switch and hold it down. To close a window, pull the switch and hold itup. To stop theopening orclosing function at any time, simply release the switch.

Front passenger’s power window switch

The passenger’s window switch operates only the corresponding passenger’s window. To open the window, pushthe switchand holdit down To close the window, pull the switch up

Instruments and controls 2-29

LIC0718 LIC0410

Rear power window switch

The rear power window switches open or close only the corresponding windows. To open the window, push the switch andhold it down close the window, pull the switch up

.To

Locking passengers’ windows

When the window lock button is depressed, only the driver’s side window can be opened or closed. Push it again to cancel the window lock function.

Automatic operation

To fully open a window equipped with automatic operation, press the window switch down to the second detent and release it; it need not be held. The window automatically opens all the way. To stop the window, lift the switch up while the window is opening.

To fully close a window equipped with automatic operation, pull the switch up to thesecond detent and release it; it need not be held. The window automatically closes all the way. To stop the window, press the switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be activated when a window is closed by automatic operation.

Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the window occurs.

WARNING

There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the window.

If the vehicle’s battery is disconnected, replaced, or jumpstarted, the power window auto-reverse function may not operate properly. If this occurs, please contact a NISSAN dealer to re-initialize the power window auto-reverse system.

If the control unit detects something caught in a window equipped with automatic operation as it is closing, the window will be immediately lowered.

2-30 Instruments and controls

When power window switch does not operate

If the power window automatic function (closing only) does not operate properly, perform the following procedure to initialize the power window system.

1. Place the ignition switch in the ON position.

2. Open the window more than halfway by operating the power window switch.

3. Pull up and hold the window switch and hold it to close the window, and then hold the switch for more than 3 seconds after the window is closed completely.

4. Release the power window switch. Operate the window by automatic function to confirm the initialization is complete.

5. Perform steps 2 through 4 above for other windows.

If the power window automatic function does not operate properly after performing the above procedure, see a NISSAN dealer for assistance.

WIC0263 LIC0977

MANUAL WINDOWS (if so equipped)

The side windows can be opened or closed by turning the hand crank on each door.

MOONROOF (if so equipped)

AUTOMATIC MOONROOF

The moonroof will only operate when the ignition switch is placed in the ON position. The automatic moonroof is operational for about 45 seconds, even if the ignition switch is placed in the ACC or OFF position. If the driver’s door or the front passenger’s door is opened during this period of about 45 seconds, power to the moonroof is canceled.

Sliding the moonroof

To fully open the moonroof, push the switch toward

Instruments and controls 2-31

To fully close the moonroof, push the switch toward

Toopen orclose themoonroof part way, pushthe switch in any direction while the moonroof is sliding to stop it in the desired position.

Tilting the moonroof

Close the moonroof by pushing the switch toward the switch toward

moonroof up. To tilt the moonroof down, push the switch

toward

. Release the switch, then push

again to tilt the

WARNING

● In anaccident you could be thrown from the vehicle through an open moonroof. Always use seat belts and child restraints.

● Do not allow anyone to stand up or extend any portion of their body out of the moonroofopening while the vehicle is in motion or while the moonroof is closing.

2-32 Instruments and controls

CAUTION

● Remove water drops, snow, ice or sand from the moonroof before opening.

● Do not place heavy objects on the moonroof or surrounding area.

Resetting the moonroof switch

The moonroof switch may not operate properly after the battery terminal is disconnected, the electrical supply interrupted and/or some malfunction is detected. Use the following reset procedure to return moonroof operation to normal.

1. If the moonroof is open, close it fully by repeatedly pushing the

moonroof switch.

2. Push and hold the side of the moonroof switch to tilt the moonroof up.

3. Release the moonroof switch after the moonroof moves slightly up and down.

4. Push and hold the roof switch to fully tilt the moonroof down.

5. Check if the moonroof switch operates normally.

If the moonroof still does not operate properly, have the moonroof system checked, and if necessary repaired, by a NISSAN dealer.

side of the

side of the moon-

Auto reverse function (when closing or tilting down the moonroof)

The auto reverse function can be activated when the moonroof is closed or tilted down by automatic operation when the ignition switch is placed in the ON position or for about 45 seconds after the ignition switch is placed in the OFF position.

Depending on the environment or driving conditions, the auto reverse function may be activated if an impact or load similar to something being caught in the moonroof occurs.

WARNING

There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the moonroof.

When closing:

If the control unit detects something caughtin the moonroof as it moves to the front, the moonroof will immediately open backward.
