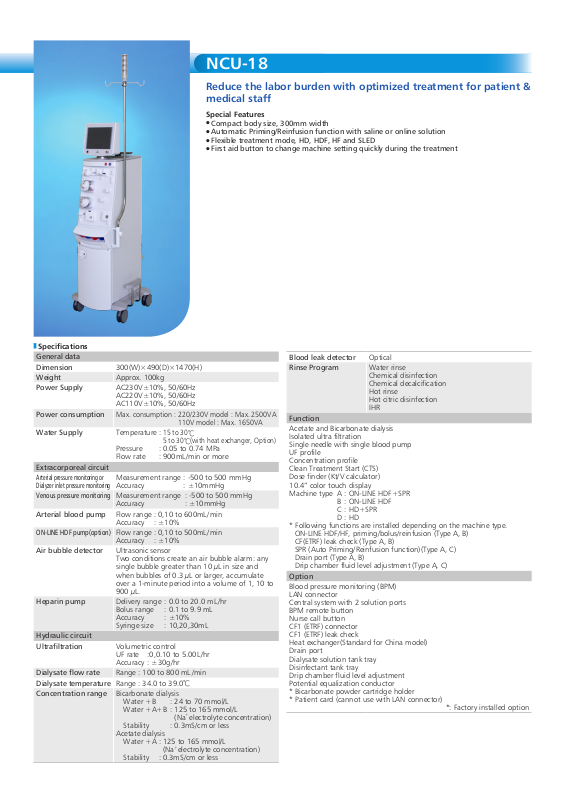

NCU-18
Reduce the labor burden with optimized treatment for patient &
medical staff
Special Features
●
Compact body size, 300mm width
●
Automatic Priming/Reinfusion function with saline or online solution
●
Flexible treatment mode, HD, HDF, HF and SLED
●
First aid button to change machine setting quickly during the treatment
Specifications
General data
Dimension 300(W)×490(D)×1470(H)
Weight Approx. 100kg
Power Supply AC230V±10%, 50/60Hz
AC220V±10%, 50/60Hz
AC110V±10%, 50/60Hz
Power consumption
Max. consumption : 220/230V model : Max. 2500VA
110V model : Max. 1650VA
Water Supply Temperature :
15 to 30℃
5 to 30℃(with heat exchanger, Option)
Pressure : 0.05 to 0.74 MPa
Flow rate : 900mL/min or more
Extracorporeal circuit
Arterial pressure monitoring or
Dialyzer inlet pressure monitoring
Venous pressure monitoring
Measurement range : -500 to 500 mmHg
Accuracy : ±10mmHg
Measurement range : -500 to 500 mmHg
Accuracy : ±10mmHg
Arterial blood pump Flow range : 0,10 to 600mL /min
Accuracy : ±10%
ON-LINE HDF pump(option)
Flow range : 0,10 to 500mL /min
Accuracy : ±10%
Air bubble detector Ultrasonic sensor
Two conditions create an air bubble alarm : any
single bubble greater than 10 μL in size and
when bubbles of 0.3 μL or larger, accumulate
over a 1-minute period into a volume of 1, 10 to
900 μL.
Heparin pump Delivery range : 0.0 to 20.0 mL /hr
Bolus range : 0.1 to 9.9 mL
Accuracy : ±10%
Syringe size : 10,20,30mL
Hydraulic circuit
Ultrafiltration Volumetric control
UF rate :0,0.10 to 5.00L /hr
Accuracy : ±30g/hr
Dialysate flow rate Range : 100 to 800 mL /min
Dialysate temperature
Range : 34.0 to 39.0
℃
Concentration range Bicarbonate dialysis
Water +B : 24 to 70 mmol/L
Water +A+B : 125 to 165 mmol/L
+
(Na
electrolyte concentration)
Stability : 0.3mS/cm or less
Acetate dialysis
Water +A : 125 to 165 mmol/L
+
(Na
electrolyte concentration)
Stability : 0.3mS/cm or less
Blood leak detector Optical
Rinse Program Water rinse
Chemical disinfection
Chemical decalcification
Hot rinse
Hot citric disinfection
IHR
Function
Acetate and Bicarbonate dialysis
Isolated ultra filtration
Single needle with single blood pump
UF profile
Concentration profile
Clean Treatment Start (CTS)
Dose finder (Kt/V calculator)
10.4” color touch display
Machine type A : ON-LINE HDF+SPR
B : ON-LINE HDF
C : HD+SPR
D : HD
* Following functions are installed depending on the machine type.
ON-LINE HDF/HF, priming/bolus/reinfusion (Type A, B)
CF(ETRF) leak check (Type A, B)
SPR (Auto Priming/Reinfusion function)(Type A, C)
Drain port (Type A, B)
Drip chamber fluid level adjustment (Type A, C)
Option
Blood pressure monitoring (BPM)
LAN connector
Central system with 2 solution ports
BPM remote button
Nurse call button
CF1 (ETRF) connector
CF1 (ETRF) leak check
Heat exchanger(Standard for China model)
Drain port
Dialysate solution tank tray
Disinfectant tank tray
Drip chamber fluid level adjustment
Potential equalization conductor
* Bicarbonate powder cartridge holder
* Patient card (cannot use with LAN connector)
*: Factory installed option
