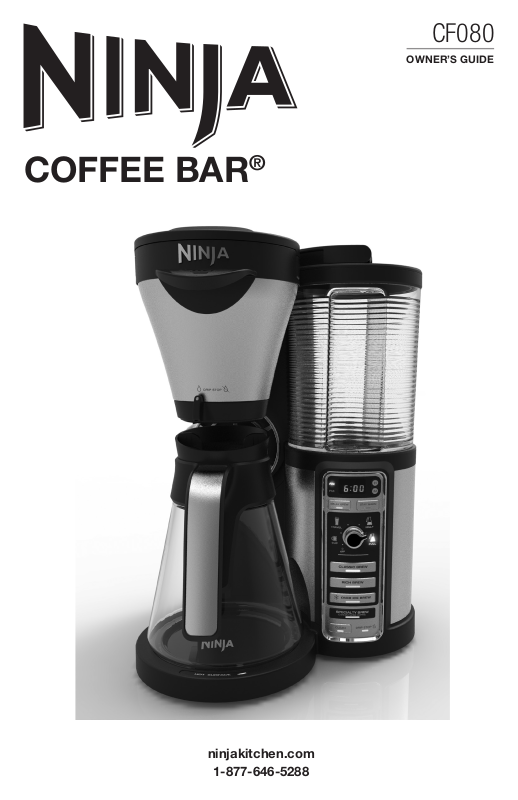

Page 1

CF080

OWNER’S GUIDE

COFFEE BAR

ninjakitchen.com

1-877-646-5288

Page 2

IMPORTANT SAFEGUARDS

For Household Use Only

READ ALL INSTRUCTIONS BEFORE USING YOUR NINJA COFFEE BAR®.

Safety Signal Words

This manual and the safety labels attached to this appliance utilize signal words that signify safety hazards with different levels of severity.

Below are the words used and the deﬁnitions for these words:

• WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

• CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

• NOTICE is used to address practices not related to physical injury.

The words “WARNING” and “CAUTION” are preceded by a triangle signifying that these are safety related.

The terms “IMPORTANT” and “NOTE” are also used to describe good ideas for better and more efﬁcient equipment use.

THIS BOOK COVERS MODEL NUMBER:

CF080 TECHNICAL SPECIFICATIONS

Voltage: 120V~, 60Hz. Power: 1450 Watts Water Reservoir Capacity: 43 Ounces

WARNING:

To reduce the risk of ﬁre, electric shock, serious injury, death or damage when using this appliance, follow these basic safety precautions.

General Precautions

1 Do not allow the appliance to be used by

children. Close supervision is necessary when used near children. This is not a toy.

2 To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will ﬁt into a polarized outlet only one way. If the plug does not ﬁt fully into the outlet, reverse the plug. If it still does not ﬁt, contact a qualiﬁed electrician. Do not force into outlet or try to modify to ﬁt.

3 To protect against electrical shock, do not

submerge the appliance or allow the power cord to come into contact with water or any other liquid.

4 Allow the appliance to cool before taking off

parts and before cleaning.

5 Do not abuse the power cord. Never carry

the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.

6 Do not operate any appliance with a

damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner.

7 Do not let the power cord hang over the edge

of table or counter or touch hot surfaces such as the stove.

8 Do not remove the brew basket or carafe

while the appliance is brewing. Scalding

may occur if any of these parts are removed during brewing cycles.

1-877-646-5288

Page 3

9 The use of an accessory not recommended

by the manufacturer may result in ﬁre, electric shock, create an overﬂow condition and scalding hazard or personal injury.

10 Do not operate your appliance in an

appliance garage or under a wall cabinet. When storing in an appliance garage always unplug the unit from the electrical outlet. Not doing so could create a risk of ﬁre, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

Operating Notice

11 Clogging and backing up of water and/or

coffee in the ﬁlter basket can occur under any or a combination of any of the following conditions: The use of too ﬁnely ground coffee, using two or more paper ﬁlters, using the permanent ﬁlter in conjunction with a paper ﬁlter, not cleaning coffee grounds from the permanent ﬁlter, or allowing coffee

grounds to spill over the ﬁlter. 12 Always use appliance on a dry, level surface. 13 Do not use this appliance for anything other

than its intended use. Do not use outdoors. 14 Do not touch hot surfaces. Use handles

orknobs. 15 Do not touch warming plate while the brewer

is in use.

Glass Carafe

16 The carafe is designed for use with this

appliance. It must never be used on a range

top. 17 Do not set a hot carafe on a wet or cold

surface. 18 Do not use a cracked or scratched carafe or

a carafe having a loose or weakened handle. 19 Do not clean carafe with abrasive cleansers,

steel wools pads, or other abrasive material. 20 Do not place carafe in microwave.

21 Do not expose carafe to extreme temperature

changes.

22 Do not place on or near a hot gas or electric

burner or in a heated oven. 23 Do not use for carbonated beverages. 24 Do not drink directly from the carafe! Liquid

from the carafe may be very hot! 25 Do not use the carafe to store any other type

of food when not in use. 26 Ensure that the carafe is completely empty

before starting a cleaning or brewing cycle.

Starting a cycle with water or coffee in the

carafe will cause an overﬂow.

Maintenance

27 Remove the power cord from the electrical

outlet, allow to cool before removing brew

basket, water reservoir, or ﬁlters and before

surface cleaning. 28 Clean the glass carafe with a soft brush or

sponge. Do not use a wire brush. 29 To prevent illness from bacterial growth in

the appliance, follow all cleaning instructions

in the “Care & Maintenance” section of this

owner’s guide. 30 If the product is not operating properly

contact SharkNinja Operating LLC at

1-877-646-5288 or ninjakitchen.com for

examination, repair or adjustment. 31 Clean the system on a weekly basis.

Cord Statement

32 A short power-supply cord is provided to

reduce the risks resulting from becoming entangled in or tripping over a longer cord.

33 Do not use extension cord with this produc

SAVE THESE

INSTRUCTIONS

ninjakitchen.com

Page 4

1-877-646-5288

Page 5

Contents

Thank you for purchasing the Ninja Coffee Bar®.

Getting To Know Your Ninja Coffee Bar® .......................................................................................5

Control Panel .............................................................................................................................6

Features Of The Ninja Coffee Bar® ...............................................................................................7

Before First Use . .......................................................................................................................8

Setting The Clock And Delay Brew ...............................................................................................9

Assembly ................................................................................................................................10

Preparing For Use ....................................................................................................................12

Filling The Water Reservoir ....................................................................................12

How Much Coffee Do You Get In Your Cup...............................................................12

Would You Like A Hotter Coffee ..............................................................................13

Filling The Brew Basket With Coffee .......................................................................13

Drip Stop ..............................................................................................................14

Intelligent Warming Plate .......................................................................................14

Stay Warm Button .................................................................................................14

Brewing Coffee .....................................................................................................15

Classic And Rich Brew .......................................................................................15

Over Ice Brew ...................................................................................................16

Specialty Brew ..................................................................................................16

Care & Maintenance ................................................................................................................17

Cleaning After A Brew ...........................................................................................17

Cleaning Your Carafe ............................................................................................ 17

Cleaning Your Water Reservoir ..............................................................................17

Cleaning & Descaling Your Brewing System ............................................................ 18

Troubleshooting Guide ..............................................................................................................19

Replacement Parts ...................................................................................................................21

Warranty & Registration ............................................................................................................22

ninjakitchen.com

Page 6

Getting To Know Your Ninja Coffee Bar

DELAY

BREW

STA

Y WARM

TRAVEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BRE

SPECIALTY BREW

(CONCENTR

CLEAN

A TE

COFFEE

)

DRIP

STOP

a Flip Top Water Reservoir Lid b Removable Water Reservoir c Brewer d Control Panel e Removable Brew Basket f Drip Stop Toggle

1-877-646-5288

g Brew-Through Carafe Lid h Glass Carafe i Multi-Serve Cup Platform j Intelligent Warming Plate k Double Sided Scoop: Carafe Side and Single Serve Side l Power Cord & Wrap (not shown)

Page 7

Control Panel

DELAY BREW

TRAVE

CUP

STAY WARM

OFF

CLASSIC BREW

ALF

FULL

1 Programmable Digital Clock

2 Clock Hour and Minute Buttons

3 Delay Brew Button

4 Stay Warm Button

5 Multi-Serve Dial

a Cup b Travel Mug c Half Carafe d Full Carafe e Off - Turns off all functions except the clock

6 B rew Types a Classic Brew Button b Rich Brew Button c Over Ice Brew Button d Specialty Brew Button

7 Intelligent Clean Cycle Indicator/Button

8 Drip Stop Indicator

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

ninjakitchen.com

Page 8

Features of the Ninja Coffee Bar

• Thermal Flavor Extraction® Technology -

Blends Precision Water Delivery with automated controls for Calibrated Temperature, Pre-infusion, Coffee Saturation, and Flavor Richness. Ninja’s Thermal Flavor E xtraction technology can truly unlock the full ﬂavor potential of your coffee

• Multi Serve – Ability to brew directly into your favorite cup, travel mug, or carafe.

• Brew Types – Control the strength and style of your coffee:

a. Classic Brew for smooth, balanced hot coffee.

b. Rich Brew for a richer-than-classic and still smooth coffee with more room for milk and cream.

c. Over Ice Brew for smooth, rich, freshly brewed iced coffee that’s not watered down.

d. Specialty Brew for a strong extract for specialty milk based drinks or blended iced drinks.

• Multi Serve Cup Platform – Pull it down and place your favorite cup on it and brew directly into it.

• Removable Water Reservoir with Easy Access Flip Top Lid – For quick and easy ﬁlling.

• Auto-iQ® – The Ninja Coffee Bar® knows how much water to use for each size and brew type.

• 43 oz Glass Carafe

• LED Control Panel with Programmable Digital Clock

• 24-HR Programmable Delay Brew Button – Set it to automatically brew the following morning.

• Drip Stop – Stops the ﬂow of coffee from the brew basket allowing you to pour a cup mid-brew; switch toggle to the closed position to prevent dripping once the brew cycle is ﬁnished.

• Clean Function – It illuminates when your Ninja Coffee Bar senses that there is hard water calcium build up in your brewer which can affect the ﬂavor of your coffee. When it illuminates, follow the cleaning instructions in the Care & Maintenance section or printed on the back of your brewer.

• Stay Warm Button – Your warming plate will automatically turn on after brewing a carafe and turn off after 2 hours. The Stay Warm button allows you to manually turn the warming plate off.

• Intelligent Warming Plate – Automatically adjusts the temperature of the warming plate to keep your coffee at the ideal drinking temperature without burning it.

• Pre-Heat Mode – The Ninja Coffee Bar brewer will be in an idle mode keeping the internal water pre-heated for 72 hours.

• Sleep Mode – After 72 hours the Ninja Coffee Bar will enter sleep mode to conserve energy or turn the Multi-Serve dial to “OFF” to manually turn off the pre-heat and all other functions.

• Audible Ready Signal – Alerts you that your coffee is ready.

• 2 hour shut off – Automatically turns off the warming plate two hours after you brew coffee.

Multi Serve

Brew into a cup, travel mug, or classic carafe or half carafe.

Classic Carafe or Half CarafeTravel MugCup

DELAY

BREW

STA

Y WARM

TRAVEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

D COFFEE)

CLEAN

DRIP

STOP

1-877-646-5288

DELAY

BREW

STA

Y WARM

TRAVEL

HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BRE

SPECIALTY BREW

(CONCENTR

A TE

D COFFEE)

CLEAN

DRIP

STOP

DELAY

BREW

TRAVEL HALF

CUP

CLASSIC BREW

RICH BREW

OVE

SPECIALTY BREW

(CONCENTR

CLEAN

STA

Y WARM

FULL

R ICE BREW

A TE

D COFFEE)

DRIP

STOP

Page 9

Before First Use

PLEASE KEEP THESE IMPORTANT SAFEGUARDS IN MIND WHEN USING THE APPLIANCE:

CAUTION: APPLIANCE CREATES HOT LIQUID.

HANDLE WITH CARE.

CAUTION: DO NOT remove the vessel while

the appliance is running without the Drip Stop in the closed position. Return the vessel quickly and open the Drip Stop to continue the brew.

CAUTION: Never open the brew basket when

the coffeemaker is in use.

CAUTION: Please ensure that you are using

at least a 12 oz. cup for the Cup size and a 16 oz. travel mug for the Travel mug size to prevent overﬂow and a scalding injury.

IMPORTANT: DO NOT run the appliance

without water.

IMPORTANT: Always place a vessel beneath

the brew basket to receive the brewed coffee.

IMPORTANT: DO NOT overﬁll the water

reservoir, ﬁll water only to the Max Fill line.

1 Remove all packaging material, stickers and labels from

the brewer.

NOTE: The glass carafe is dishwasher safe. Place on

top rack only.

2 Wash the water reservoir, glass carafe and brew basket

in warm, soapy water with a soft cloth.

3 Rinse and dry thoroughly.

4 Wipe the intelligent warming plate with a damp cloth.

5 Before ﬁrst use, run two full carafe cycles with water

only and discard water.

ninjakitchen.com

Page 10

Setting the Clock & Delay Brew

DELAY BREW

TRAVELHALF

CUP

OFF

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

Fig. 1

STAY WARM

FULL

DELAY BREW

TRAVELHALF

CUP

CLEAN DRIP STOP

Fig. 2

TO SET THE CLOCK

1 Plug the power cord into an electrical outlet. The clock will

ﬂash on the control panel to indicate that the time has not been set. (Fig. 1)

2 Press the H (hour) or M (minute) button until you reach the

current time. The AM or PM indicator will illuminate on the left side of the display as you are setting the time. (Fig. 2)

3 After 5 seconds the clock will stop ﬂashing and the clock will

be set.

NOTE: If the clock stops ﬂashing and does not display the

correct time of day, pressing the H (hour) or the M (minute) button at any time will cause the clock to ﬂash again. You can now re-program the correct time of day by following the steps above.

NOTE: If you unplug the brewer or in the event of an extended

power loss, you will need to reset the clock the next time the brewer is plugged in.

TO SET THE DELAY BREW TIME

NOTE: The Ninja Coffee Bar® must remain on in order for the delay

brew function to work. Do not power off after setting Delay Brew.

1 Press Delay Brew. The Delay Brew button will illuminate and

the clock will begin to ﬂash “12:00” or the last delay brew time that was set. (Fig. 2)

2 While the clock is ﬂashing, press the H (hour) or M (minute)

button to set the time that you would like the delay brew to begin. The AM or PM indicator will illuminate on the left side of the display as you are setting the desired time.

STAY WARM

OFF

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

FULL

DELAY BREW

TRAVELHALF

CUP

OFF

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

STAY WARM

FULL

Fig. 3

3 Once the proper time has been set, select the size of the

vessel that you would like to brew.

4 Select the Brew Type that you desire from the 4 ﬂashing

buttons. The selected brew type will be lit. (Fig. 3)

5 Once the time, brew size, and brew type have been set, allow

the Delay Brew to ﬂash and lock in or press the Delay Brew button to activate the Delay Brew. When the Delay Brew is activated, the light on the Delay Brew button will illuminate and an audible signal will play to verify the Delay Brew is set.

6 The Delay Brew time is now set and your Ninja Coffee Bar will

automatically brew at the time you programmed.

NOTE: To deactivate the Delay Brew cycle, press the Delay

Brew button once more and the light on the Delay Brew button will turn off. Any change to the selected brew size or starting any other brew will cancel the programmed Delay Brew.

7 Place the appropriate-sized

vessel under brew basket for the selected size.

IM POR TA N T: Make sure the Drip

Stop is in the open position.

Go to ninjakitchen.com for more

information and how-to videos.

1-877-646-5288

Page 11

Assembly

DELAY

BREW

TRAVEL HALF

CUP

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

CLEAN

STA

Y WARM

FULL

A TED

COFFEE)

DRIP

STOP

DELAY

BREW

TRAVEL HALF

CUP

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

CLEAN

STA

Y WARM

FULL

A TE

COFFEE)

DRIP

STOP

Fig. 4

Fig. 4a

Fig. 4b

1 Place the brewer on a dry, clean and level surface.

2 Holding the water reservoir by the grip, twist

counterclockwise to remove. (Fig. 4) Either ﬂip the lid top over (Fig. 4a) or remove lid by twisting counterclockwise to remove (Fig. 4b). Fill with water up to, but not exceeding the carafe line (43 oz. Max Fill line). To replace the water reservoir, place on top of the base and twist clockwise until a click indicates it is locked in place.

Fig. 5

Fig. 6

3 Slide brew basket out and angle up slightly to remove

it from the brewer. (Fig. 5) To reinsert, align the brew basket with the rails and slide back into the brewer.

(Fig. 6)

4 Once the brew basket is in place, slide all the way into

place until you hear a slight click.

ninjakitchen.com

Page 12

Assembly - cont.

Fig. 7

Fig. 8

5 Twist the brew-through lid clockwise onto the glass

carafe to lock into place. (Fig.7 )

6 Center the carafe below the brew basket. (Fig. 8)

NOTE: Do not use any coffee for the ﬁrst two brew

cycles in order to clean the brewer.

7 Plug the brewer into an electrical outlet.

STAY WARM

ALF

FULL

RICH BREW

DELAY

TRA

VEL HALF

CUP

CLEAN

BREW

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

DELAY BREW

TRAVE

CUP

STA

Y WARM

FULL

A TED

COFFEE

)

DRIP

STOP

OFF

CLASSIC BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

Fig. 9

8 Once all par ts are securely in place, press the Clean

button to thoroughly clean the machine before ﬁrst use.

(Fig. 9)

9 Discard the water in the carafe and repeat, beginning

with step 2, with one more clean cycle of water before ﬁrst use.

1-877-646-5288

Page 13

Preparing for Use

CAUTION: Only ﬁll water reservoir up to, but not exceeding the Max Fill line with water; we recommend fresh,

cool, ﬁltered water. Do not ﬁll water reservoir with any other liquids such as brewed coffee, carbonated beverages, etc. as other liquids may damage your brewer.

DELAY

BREW

STA

Y WARM

TRAVEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BRE

SPECIALTY BREW

(CONCENTR

A TED

COFFEE)

CLEAN

DRIP

STOP

Fi g. 11a Fi g. 11b

Fig. 10

FILLING THE WATER RESERVOIR

1 For easy ﬁlling, remove the water reservoir by slightly

twisting counterclockwise until it is free from the brewer. (Fig. 10)

2 Either ﬂip the lid top over or remove lid by twisting

counterclockwise to remove. (Fig. 11a, Fig. 11b)

NOTE: The water reservoir and water reservoir lid can

lock in multiple locations.

3 For best results, ﬁll the water reservoir with fresh,

cool, ﬁltered water. Ensure that the water is above the minimum ﬁll line for the brew size that is selected. Do not exceed the Max Fill line. The machine’s intelligence will automatically measure the amount of water needed. To avoid reﬁlling after each cup, ﬁll to the carafe line.

NOTE: Do not ﬁll past the Max Fill line. If overﬁlled,

remove the water reservoir from the brewer and empty to the Max Fill line.

Depending on the size and brew type, you may

have water left in the reservoir.

4 Place the water reservoir back on the brewer and twist

clockwise until you feel the reservoir lock into place.

5 Place the vessel that you would like to brew into

underneath the brew basket-ensure that the vessel is centered under the brew basket. (Fig. 12)

NOTE: After removing the water reservoir, there may be

a small amount of water in the reservoir valve. This can be easily removed with a dry cloth.

DELAY

BREW

STA

Y WARM

TRA

VEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BRE

SPECIALTY BREW

(CONCENTR

TE D

COFFEE

)

CLEAN

DRIP

STOP

Fig. 12

HOW MUCH COFFEE DO YOU GET IN YOUR CUP?

Each size and brew type produces a different amount of coffee to optimize strength, taste, and size.

NOTE: The coffee grounds will absorb some of the water that is brewed, resulting in slightly less brewed coffee than water used.

CAUTION: Please ensure that you are using at

least a 12 oz. cup for the Cup size and a 16 oz. travel mug for the Travel mug size.

Approximate Brew Volume

Size/Brew Classic Rich Specialty

Cup 9.5 oz. 8.8 oz. 3.1 oz.

Travel Mug

Half Carafe

Full Carafe

Size/Brew Over Ice

Cup 3.7 oz. 9.5 oz.

Travel Mug

Half Carafe

Full Carafe

14 oz. 13.2 oz. 4 oz.

21 oz. 19.5 oz. 5 oz.

38 oz. 35.5 oz. 10 oz.

Coffee Only With Ice

5.8 oz. 14 oz.

10.5 oz. 21 oz.

15.8 oz. 38 oz.

ninjakitchen.com

Page 14

Preparing for Use - cont.

WOULD YOU LIKE A HOTTER COFFEE?

Have you ever wondered why you get paper cups on the go? The type of cup you brew into can drastically inﬂuence the drinking temperature!

CUP TYPE CERAMIC CUP NINJA® CUP PAPER CUP

Cup Temperature

Drinking Temperature

Room Temp Pre-warmed with

hot water

Pre-warmed in

microwave with milk

Room Temp Room Temp

Hot Hotter Hotter Hotter Hottest

Why is there a difference?

A cold ceramic

mug will steal

heat from the

coffee as it warms

itself up.

If the mug is

already warm, it

will not steal as

much heat from

the coffee.

Fi g. 14

DELAY

BREW

STA

Fig. 13

Y WARM

TRA

L HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BRE

SPECIALTY BREW

(CONCENTR

A TE D

COFFEE

)

CLEAN

DRIP

STOP

Ninja Scoop

Carafe

FILLING THE BREW BASKET WITH COFFEE

For best results, use the below measurements of ground coffee for each size brew–the amount of ground coffee for each size will remain the same for any brew type that you select. For example, if you select Cup and Classic Brew, you will use the same amount of coffee grounds as if you select Cup and Specialty Brew.

CAUTION: The maximum capacity for ground

coffee is 12 rounded tablespoons or 6 Ninja Carafe Scoops. Exceeding this amount or using ﬁne ground coffee may cause overﬂow.

1 Open the brew basket by sliding the brew basket out of

the brewer. (Fig. 13)

NOTE: The brew basket can be removed from the

brewer by lifting the brew basket at a slight upward angle (similar to a cabinet drawer).

NOTE: Check for any loose grounds that may be left

in the brew basket. Remove and rinse brew basket ifneeded.

2 Using a #4 paper cone ﬁlter, fold along the seams,

open it fully, and ﬁrmly press it into the brew basket making sure that it is fully seated. (Fig. 14)

Just like your

cold mug, cold milk lowers the temperature of

your coffee.

Single

Serve

The Ninja® double wall cup is designed to retain initial coffee temp

better than a ceramic cup.

Unlike a ceramic

mug, a thinner

paper cup

does not steal substantial heat from the coffee.

DELAY

BREW

STA

Y WARM

TRAVEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

A TE

D COFFEE)

CLEAN

DRIP

STOP

Fig . 15 a

Fig . 15

3 Use the Ninja Scoop ( Fig. 15a) and follow the

measurements below to ﬁll the paper ﬁlter. These measurements are based on level scoops—adjust to your preferred taste. (Fig. 15 ) We suggest using a medium grind size if grinding whole beans.

Single Serve

Ninja® Scoop

(Single Serve Side)

Tablespoon

Cup 2–3 scoops 2–3 Tbsp.

–

Travel Mug 3

Carafe Ninja

Half Carafe 2

Full Carafe 4

4 scoops 3–4 Tbsp.

Scoop

(Carafe Side)

–

3 scoops 5–7 Tbsp.

–

6 scoops 8–12 Tbsp.

Tablespoon

Note: Exceeding the recommended medium grind size

for whole beans and 6 Ninja Carafe Scoops may cause the brew basket to overﬂow.

4 Slide the brew basket back into the brewer and click in

place.

1-877-646-5288

Page 15

CAUTION: HOT WATER. Do not remove the brew basket or vessel while brewing. CAUTION: STEAM. Do not touch steam vents or the top of the brewer while brewing. CAUTION: The brew basket is hot after brewing. Always allow the brewer to cool down before cleaning.

DELAY

BREW

STA

Y WARM

TRAVEL HALF

CUP

FULL

CLASSIC BREW

RICH BREW

Fig. 16

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

CLEAN

A TED

COFFEE

)

DRIP

STOP

Fi g. 17

DRIP STOP

NOTE: If the Drip Stop is closed before you begin a brew, the brewer will notify you with 5 beeps. Set the Drip Stop to the open position and select your brew concentration level.

CAN’T WAIT FOR THAT FIRST CUP TO BE READY?

When brewing a carafe, close the Drip Stop to pause the brew cycle and pour a cup. Remember to reopen the Drip Stop to complete the brew. (Fig. 16)

NOTE: If you forget to open the Drip Stop, the Ninja Coffee Bar® will pause the brew, and after 20 seconds it will give you a friendly audible reminder. After 6 minutes the brew will be canceled.

CAN’T WAIT FOR THE LAST FEW DROPS?

When the brew cycle is complete, set the Drip Stop to the closed position to stop dripping from the brew basket.

NOTE: While the Drip Stop is closed the Drip Stop indicator will light up in the bottom right hand corner of the control panel.

NOTE: Remember to open the Drip Stop when you’re ready to brew again. If you forget, your Ninja Coffee Bar will give you a friendly audible reminder.

INTELLIGENT WARMING PLATE

The Intelligent Warming Plate will automatically turn on after a Classic or Rich on Carafe or Half Carafe. The Intelligent Warming Plate will adjust the heat it produces in order to avoid burning the coffee over time.

CAUTION: The HOT SURFACE light will illuminate when the warming plate is hot. Do not touch the surface when this light is illuminated.

STAY WARM BUTTON

Press the Stay Warm Button after the brew to turn the Intelligent Warming Plate off. You can turn the Intelligent Warming Plate back on within 2 hours of the brew by pressing the stay warm button again if desired. (F ig. 17 )

If you would like the Warming Plate to stay on longer, you can program it to stay on up to 4 hours.

1 Turn the Multi-Serve dial to half carafe or full carafe.

2 Press and hold Stay Warm until the clock begins to

ﬂash the current time the warming plate will stay on for.

3 Quickly press the hour or minute (H or M) to increase

the time up to 4 hours.

4 The time will lock in after 5 seconds or you can press

the Stay Warm button.

ninjakitchen.com

Page 16

Preparing for Use- cont.

DELAY BREW

TRAVE

CUP

OFF

CLASSIC BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

STAY WARM

ALF

FULL

RICH BREW

BREWING COFFEE

NOTE: Each brew has a pre-infusion cycle with varying times. The brew will begin, stop, and be quiet for a short period of time before it begins again. This process is used to evenly saturate your coffee grounds.

NOTE: For a hotter coffee, rinse the coffee cup, mug or

glass carafe with hot water prior to brewing.

CAUTION: Ensure the carafe is completely empty before starting a brewing cycle. Starting a brewing cycle with coffee in the carafe will cause an overﬂow.

CLASSIC OR RICH BREW

Classic Brew - For a smooth, balanced ﬂavor.

Rich Brew - For a coffee that is richer than Classic

Brew and still smooth, with more room for milk and cream.

1 After ﬁlling the water reservoir and adding ground

coffee to the ﬁlter, be sure that the Drip Stop is open and the reservoir, basket, and ﬁlter are securely in place.

2 Use the multi-serve dial to select the size of coffee you

would like to brew. Place the empty vessel that you would like to brew into underneath the brew basket.

NOTE: If making a single cup, lower the multi-serve cup

platform down and center the cup or mug on the cup platform. Please ensure that you are using at least a 12 oz. cup for the cup size and a 16 oz. travel mug for the travel mug size.

DELAY BREW

TRAVE

CUP

OFF

CLASSIC BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

STAY WARM

ALF

FULL

RICH BREW

Fig. 19Fig . 18

3 Press the Classic Brew or the Rich Brew button and the

brew will begin. (Fig. 18, Fig. 19) Press the Classic or Rich button again or turn the Multi-Serve Size dial to Off to cancel the brew.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This process is used to evenly saturate your coffee grounds.

NOTE: If brewing a half carafe or a full carafe, the

Stay Warm indicator and Intelligent Warming Plate will automatically turn on. (Fig. 18, Fig. 19) This can be turned off by pressing the Stay Warm button once illuminated. The Intelligent Warming Plate will turn off automatically after 2 hours.

NOTE: Do not remove water reservoir, brew basket, or

vessel while brewing.

4 The Ninja Coffee Bar® will beep to signal a

completedbrew.

NOTE: Rich Brew will use slightly less water and yield

slightly less brewed coffee than Classic Brew.

1-877-646-5288

Page 17

OVER ICE BREW

Designed to brew hot coffee over ice to lock in the ﬂavor for a rich, freshly brewed, smooth iced coffee without becoming watered down. Be sure your vessel is ﬁlled with ice before brewing.

CAUTION: DO NOT USE GLASSWARE.

1 After ﬁlling the water reservoir, add ground coffee to the

ﬁlter (feel free to add more coffee if you like a stronger taste), be sure that the Drip Stop is open, reservoir, basket, and ﬁlter are securely in place.

2 Use the multi-serve dial to select the size of coffee that

you would like to brew.

3 Before Brewing, ﬁll the desired vessel to the top with

ice cubes and place the vessel below the brew basket. Press “Over Ice Brew” and the brew will begin. (Fig. 20) Press the Over Ice button again or turn the Multi-Serve Size dial to Off to cancel the brew.

IMPORTANT: Always ﬁll the desired vessel to

the top with ice before placing it below the brew basket. Do not add ice to the water reservoir.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This process is used to evenly saturate your coffee grounds.

NOTE: If making a Carafe of Over-Ice-Brew ﬁll the carafe

with ice and brew without the brew-through lid.

4 The Ninja Coffee Bar® will beep to signal a completed

brew. Stir to cool coffee completely.

NOTE: When brewing coffee in the Over Ice Brew, the

Intelligent Warming Plate will not turn on.

APPROXIMATE BREW VOLUME

CAUTION: Make sure to use the proper cup size, not doing so may lead to coffee overﬂowing the cup.

Size/Brew Over Ice

Coffee Only With Ice

Cup 3.7 oz. 9.5 oz.

Travel Mug

Half Carafe

Full Carafe

5.8 oz. 14 oz.

10.5 oz. 21oz.

15.8 oz. 38 oz.

DELAY BREW

TRAVE

CUP

SPECIALTY BREW

CLEAN DRIP STOP

Fig. 20

OFF

CLASSIC BREW

RICH BREW

OVER ICE BREW

(CONCENTRATED COFFEE)

STAY WARM

ALF

FULL

DELAY BREW

TRAVE

CUP

OFF

CLASSIC BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTRATED COFFEE)

CLEAN DRIP STOP

Fig . 21

STAY WARM

ALF

FULL

RICH BREW

SPECIALTY BREW

The Specialty Brew delivers a strong coffee concentrate perfect for an iced blended coffee drink or milk based specialty drink. Refer to the Let’s Get Started Guide for inspiring recipes.

1 After ﬁlling the water reservoir and adding ground

coffee to the ﬁlter, be sure that the Drip Stop is open, reservoir, basket, and ﬁlter are securely in place.

2 Use the multi-serve dial to select the size of coffee that

you would like to brew.

NOTE: If brewing an iced blended drink, ﬁll the desired

vessel with the amount of ice recommended in the recipe before brewing.

3 Place the vessel that you would like to brew into

underneath the brew basket. Press “Specialty Brew” and the brew will begin. (Fig. 21) Press the Specialty button again or turn the Multi-Serve Size dial to Off to cancel the brew.

NOTE: The brew will begin, stop, and be quiet for

a short period of time before it begins again. This process is used to evenly saturate your coffee grounds.

NOTE: If brewing a half carafe or a full carafe, the

Intelligent Warming Plate will not turn on.

4 The Ninja Coffee Bar. will beep to signal a completed

brew.

Go to ninjakitchen.com for more

information and how-to videos.

ninjakitchen.com

Page 18

Care & Maintenance

CLEANING AFTER A BREW

CAUTION: Make sure that the brewer is

unplugged from the power source before cleaning.

CAUTION: Be sure to allow the brewer to cool

before cleaning.

IMPORTANT: Discontinue use if the glass carafe

is scratched or handle is loose or damaged.

NOTE: Do not leave coffee in the glass carafe for

an extended period of time after a brew.

NOTE: Do not leave water in the reservoir unused

for multiple days. Rinse and replace with freshwater.

1 Before cleaning, close the Drip Stop.

2 After each brew is complete and the coffee grounds

have cooled, carefully remove the paper ﬁlter and discard. Remove brew basket from the brewer, rinse and wash with soap and warm water.

NOTE: The brew basket is not dishwasher safe.

NOTE: If coffee grounds spilled over into the brew

basket or in the overﬂow channels, remove and rinse under water until grounds are removed.

3 Wash the carafe and brew-through lid with soap and

warm water. Use a bottle brush or a cloth to wash the inside of the carafe.

NOTE: The brew-through lid, glass carafe and water

reservoir are top shelf dishwasher safe.

IMPO RTA NT: Clean the glass carafe with a soft brush

or sponge. Do not use a wire brush.

4 Wipe machine down with a warm cloth with soap and

water. Let the warming plate cool before cleaning with a wet cloth and soap and water. Do not immerse the

base in water.

NOTE: For best results, use a bottle brush. This will

allow you to scrub all of the inside with soap and hot water.

CLEANING YOUR CARAFE

We recommend rinsing your

carafe with warm soapy water, or placing in the top shelf of your dishwasher.

If you want to clean the carafe more

thoroughly, we recommend using a soft foam brush such as the one shown.

CLEANING YOUR WATER RESERVOIR

1 Empty the water reservoir.

2 Hand wash with dish soap and rinse or place on the top

rack of your dishwasher.

1-877-646-5288

Page 19

Fig. 22

DELAY

BREW

STA

Y WARM

TRA

L HALF

CUP

FULL

CLASSIC BREW

RICH BREW

OVER ICE BREW

SPECIALTY BREW

(CONCENTR

A TED

COFFEE

)

CLEAN

DRIP

STOP

CLEANING & DESCALING YOUR BREWING SYSTEM

CAUTION: Be sure to allow the brewer to cool

before wiping down any surface for cleaning.

CAUTION: DO NOT immerse the coffeemaker into

water or any other liquid.

The CLEAN button will illuminate when a cleaning cycle

is recommended for your Ninja Coffee Bar®, as calcium scale buildup could be affecting the ﬂavor of your coffee.

To clean and descale your Ninja Coffee Bar:

NOTE: The clean cycle takes approximately 60 minutes.

1 Select the Full Carafe size and set the empty carafe

beneath the brew basket.

2 Use a descaling solution speciﬁcally formulated for

coffeemaker cleaning and follow the directions on the package. Fill the water reservoir up to, but not exceeding, the Max Fill line (43 oz.).

Fill the water reservoir to the Travel Mug line (16 oz.)

with white vinegar, then ﬁll the rest of the reservoir with water up to, but not exceeding, the Max Fill line (43oz.).

IMPORTANT: Use only white vinegar.

3 Once the water reservoir is ﬁlled with your cleaning

solution and water mixture, press the CLEAN button. (Fig. 22)

NOTE: To cancel the clean cycle, turn the multi-serve

dial to the ‘OFF’ position or press the CLEAN button once. The unit will beep, and stop brewing through the cleaning mixture. Discard any remaining cleaning mixture in the reservoir and the carafe, and thoroughly clean each. Reﬁll the reservoir with fresh water up to, but not exceeding, the Max Fill line, and set the empty carafe beneath the brew basket. Run a Full Carafe, Classic Brew with water only to remove any cleaning solution that could affect the ﬂavor of your coffee.

IMPORTANT: If you cancel the clean cycle, your

machine will not be properly descaled, and the CLEAN indicator light will remain on.

4 The clock will display and countdown the remaining

clean cycle time, as this takes approximately 60 minutes to complete. Your Ninja Coffee Bar will deliver a small amount of cleaning solution to distribute it through the system. It will then pause for a half an hour, deliver additional cleaning solution, and pause for another half hour. The extended pauses allow for maximum cleaning and descaling.

CAUTION: DO NOT remove the carafe at any time

throughout the clean cycle.

5 Upon completion, the brewer will beep, and the CLEAN

light will turn off.

6 Empty and thoroughly clean the carafe and water

reservoir with warm, soapy water to remove any cleaning solution that could affect the ﬂavor of your coffee.

7 Fill the reservoir with fresh water up to, but not

exceeding, the Max Fill line (43 oz.) and set the empty carafe beneath the brew basket.

8 Flush the system by running a Full Carafe, Classic

Brew cycle with water only. After the cycle is complete, discard the water and thoroughly clean the carafe to remove any cleaning solution that could affect the ﬂavor of your coffee.

NOTE: If the CLEAN light illuminates again, then calcium

scale buildup is still present. Repeat the steps above and the CLEAN light will automatically shut off when your brewer is clean.

Please call Customer Service at 1-877-646-5288 to

purchase descaling solution or if the brewer needs any servicing.

ninjakitchen.com

Page 20

Troubleshooting Guide

PROBLEMS POSSIBLE REASONS & SOLUTIONS

Ensure the water reservoir is locked in place and is ﬁlled with enough water for the desired brew.

Check the CLEAN indicator light. If illuminated, run a clean cycle with the appropriate

My Ninja Coffee Bar® beeped and did not complete the full brew that I selected.

descaling solution or a white vinegar mixture. See Care & Maintenance section.

Check the Drip Stop indicator light. If illuminated, ensure the brew basket is fully inserted into the brewer and open the Drip Stop once the vessel is placed under the brew basket.

If the CLEAN cycle was run and the Ninja Coffee Bar is still not completing the brew OR the CLE AN light is ﬂashing, you may have hard water and a critical amount of calcium build up.

If the problem persists please call customer service at 1-877-646-5288.

My CLEAN button is ﬂashing and beeping.

The clock is ﬂashingcln.

Sediment in my coffee.

Grounds in my coffee.

Brew Basket dripping after brew.

Paper ﬁlter falling over.

Coffee is not hot enough.

Over Ice Brew is not cold.

Weak coffee.

The Ninja Coffee Bar senses that there is a critical amount of calcium or mineral deposits built up in the internal parts of the brewer. Run a clean cycle using a Descaling solution or a white vinegar solution. Please see the Care & Maintenance section on page 18.

If there is sediment at the bottom of the brewed coffee, this may be due to ﬁnely ground coffee in a permanent ﬁlter.

To reduce the amount of sediment in the brewed coffee use a slightly coarser grind or use a paper ﬁlter.

If there are grounds in your coffee, check to make sure the brew basket did not overﬂow. If there are too many grounds in the brew basket, or you are using a ﬁne ground

coffee, the grounds will ﬂow into an overﬂow channel designed to make sure overﬂow is captured in the brew vessel. For best results use medium ground coffee in the recommended measurements.

Check to see if the Drip Stop toggle is set to the closed, no drip position. If the Drip Stop is set to the closed, no drip position and the brewer continues to drip, run

a clean cycle or wash the brew basket thoroughly with warm, soapy water.

The Ninja Coffee Bar is designed to take a #4 cone ﬁlter. Be sure you are using this size and shape for best results.

Be sure the paper ﬁlter is ﬁrmly pressed into the brew basket. Wet the corners of the ﬁlter for best results. If problem persists, try using a permanent ﬁlter.

Your Ninja Coffee Bar System is equipped with a pre-heating function that ensures your cup of coffee as hot as it possibly can be. After turning your Ninja Coffee Bar on, the pre-heat notiﬁcation will illuminate for 3 minutes as it warms up. Once it has warmed up to temperature the pre-heat notiﬁcation will turn off indicating it is time to brew.

To brew the hottest possible cup with your Ninja Coffee Bar, keep it plugged in and powered on at all times to allow the brewing system to remain warm and ready to brew.

The Over Ice Brew is designed to brew hot coffee over ice to lock in the ﬂavor for rich, smooth iced coffee. Make sure your cup, travel mug, or carafe is ﬁlled all the way to the top with ice cubes.

If the coffee tastes weak, try adding more coffee grounds into the brew basket for the next brew cycle.

If the coffee is still weak after adding more coffee grounds, try Rich Brew to make a stronger more concentrated cup.

1-877-646-5288

Page 21

PROBLEMS POSSIBLE REASONS & SOLUTIONS

Coffee too strong.

Brew will not start.

Brew cycle is too slow.

My cup, travel mug or carafe overﬂowed.

Brew basket overﬂowed.

Water left in my reservoir.

Does it take coffee pods?

My Ninja Coffee Bar® is leaking.

Try using a more coarse grind. If the coffee is still too strong, try using less coffee grounds.

Check to make sure the brewer is plugged in and water is in the water reservoir. If the drip stop is in the open position, check that the brew basket is pushed all the way

into the brewer. If you hear 5 beeps, check that the drip stop is in the open position. NOTE: The brew will begin, stop, and be quiet for a short period of time before it begins

again. This process is used to evenly saturate your coffee grounds.

A carafe brew will take approximately 8 minutes and the single cup will take approximately 4 minutes.

If the brew cycle is taking longer than normal, run the clean cycle with the descaling solution.

The cup, travel mug or carafe may not have been empty prior to brewing.

The water exceeded the Max Fill line on the water reservoir prior to brewing.

The Ninja Coffee Bar® is designed to dispense the following amounts on classic brew:

Cup 9.5 oz Travel Mug 14 oz Half Carafe 21 oz Carafe 38 oz

Please ensure that you are using at least a 12 oz. cup for the cup size and a 16 oz. travel mug for the travel mug size.

NOTE: On Rich Brew, Over Ice Brew, and Specialty Brew there will be less volume dispensed.

Check the amount of coffee or type of grind used.

Ninja Coffee Bar allows you to ﬁll the reservoir up to but not exceeding the Max Fill line and Auto-iQ® One Touch Intelligence will only use the water needed for the brew size and style selected.

After a brew you may notice left over water in your water reservoir after ﬁlling to the minimum ﬁll line of the size selected. The water reservoir markings are minimum ﬁll lines that indicate if there is enough water for the proper brew size in the reservoir for any brew style in that size, but all brew styles use different amounts of water to create the proper ﬂavor and concentration.

You can brew multiple cups before needing to reﬁll.

This brewer is designed to brew coffee grounds only. Do not insert pods or K-Cups®*.

If the leak is coming from the brew basket, be sure all the parts are ﬁt securely in the brewer.

If the leak is coming from the bottom of the brewer call customer service at 1-877-646-5288.

*K-Cup is a registered trademark of Keurig Green Mountain, Inc. Use of the K-Cup trademark does not imply any afﬁliation with or endorsement by Keurig Green Mountain, Inc.

ninjakitchen.com

Page 22

Troubleshooting Guide - cont.

PROBLEMS POSSIBLE REASONS & SOLUTIONS

Why is the second cup that I brewed hotter than the ﬁrst brew?

How long does pre-heat take to give me the hottest cup?

I noticed the carafe design & lid. What are the beneﬁts?

Coffee Brew Volume: What impacts coffee brew volume?

Once the Ninja Coffee Bar® has brewed the ﬁrst cup, the brewing system is pre-warmed. This enables any following brews to be slightly hotter. For a hot ﬁrst cup try pre-warming your mug.

After turning your Niinja Coffee Bar on, the pre-heat minutes as it warms up. Once it has warmed up to temperature the pre-heat will turn off indicating it is time to brew.

To brew the hottest possible cup with your Ninja Coffee Bar, keep it plugged in and powered on at all times to allow the brewing system to remain warm and ready to brew.

Our unique carafe shape and design has the following beneﬁts: Easy grip design making it easy to pour coffee without dripping. Thoroughly mix your coffee from the ﬁrst drop to the last thanks to the Brew-Through

Carafe Lid. Optimize coffee temperature. Allow you to brew both hot and iced coffee.

When you make hot coffee, coffee grounds will absorb some of the water that is brewed resulting in slightly less brewed coffee than the water used. The more coffee you use, the more water will be absorbed. Additionally, our wider bottom carafe holds most of the volume coffee at the base which helps control the temperature more evenly.

Classic Brew:

Full Carafe Half Carafe

notiﬁcation

will illuminate for 3

notiﬁcation

How does the Ninja Coffee Bar keep coffee at the right temperature?

The carafe is designed to keep most of the coffee volume in the bottom so it can be held closer to the Precise Temp Warming plate. This helps maintain the coffee at the ideal drinking temperature.

Go to ninjakitchen.com for more

information and how-to videos.

Replacement Parts

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, please visit our website: ninjaaccessories.com or feel free to contact customer service: 1-877-646-5288.

1-877-646-5288

Page 23

ONE (1) YEAR LIMITED WARRANTY

SharkNinja Operating LLC warrants this product to be free from material defects and workmanship for a period of

one (1) year from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions andexceptions.

The liability of SharkNinja Operating LLC is limited solely to the cost of the repair or replacement of the unit at our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alteration to the product or any of its parts, which have been performed by a repair person not authorized by SharkNinja Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, return the complete appliance and accessories, freight prepaid. For assistance with warranty service options or customer support, please call our customer care and product specialists at, call 1 (877) 646-5288 or visit our website ninjakitchen.com/warranty.

If the appliance is found to be defective in material or workmanship, SharkNinja Operating LLC will repair or replace it free of charge. Proof of purchase is required and a fee of $19.95 will apply to cover the cost of return freight. *

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or conventional warranties. The responsibility of SharkNinja Operating LLC if any, is limited to the speciﬁc obligations expressly assumed by it under the terms of this Limited Warranty. In no event is SharkNinja Operating LLC liable for incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state or from province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach tag to item before packing with your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with the item. We recommend you insure the package (as damage in shipping is not covered by your Limited Warranty). Mark the outside of your package “ATTENTION CUSTOMER SERVICE”.

Product Registration

Please visit registeryourninja.com or call 1-877-646-5288 to register your new Ninja

days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notiﬁcation. By registering you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.

product within ten (10)

ninjakitchen.com

Page 24

VISIT US ONLINE AT:

ninjakitchen.com

Or follow us on any of our social media pages:

fb.me/ninjacoffeebar

youtube.com/ninjacoffeebar

@ninjacoffeebar

pinterest.com/ninjakitchen

@ninjakitchen

SharkNinja Operating LLC

US: Needham, MA 02494 CAN: Ville St-Laurent, QC H4S 1A7

1-877-646-5288

ninjakitchen.com

For SharkNinja U.S. Patent information visit sharkninja.com/USPatents.

Auto-iQ, Ninja, Ninja Coffee Bar, and Thermal Flavor Extraction are registered trademarks of SharkNinja Operating LLC.

Printed in China

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the speciﬁcations contained herein are subject to change without notice.

CF080_69_170510_19
