USER MANUAL
1
SUMMARY
PREFACE ................................................................................................................................................................. 5
PRECAUTIONS ..................................................................................................................................................... 5
DESCRIPTION....................................................................................................................................................... 5
TECHNICAL SPECIFICATIONS ....................................................................................................................... 6
STRUCTURE .......................................................................................................................................................... 8
EVO MM93 Structure ...................................................................................................................................... 8
LED ....................................................................................................................................................................... 8
OPERATING INSTRUCTIONS ......................................................................................................................... 9
Charge ................................................................................................................................................................. 9
Battery installation ............................................................................................................................................ 9
TFT display installation ..................................................................................................................................... 9
PRELIMINARY OPERATIONS ......................................................................................................................... 11
LEGENDA ............................................................................................................................................................. 12
FRONT SELECTORS AND SETTINGS MENU ........................................................................................... 13
PARAMETERS SETTING ................................................................................................................................... 14
VIDEO PARAMETERS SETTING .................................................................................................................... 14
CAMERA SETTING PARAMETERS ................................................................................................................ 18
2
SYSTEM PARAMETERS SETTING .................................................................................................................. 20
STARTING STEPS ............................................................................................................................................... 23
USING THE VIDEO CAMERA ........................................................................................................................ 23
Photo shooting mode: ................................................................................................................................ 24
PLAYING A FILE (PLAYBACK) ....................................................................................................................... 24
Deleting a file ............................................................................................................................................... 26
Lock /Unlock file ......................................................................................................................................... 26
OUTPUT INTERFACES .................................................................................................................................... 28
WI-FI CONNECTION ...................................................................................................................................... 30
Video recording ........................................................................................................................................... 31
Photo ............................................................................................................................................................. 31
3
Settings .......................................................................................................................................................... 32
File preview mode (Playback) ................................................................................................................... 33
Change name and connection .................................................................................................................. 34
Change password ........................................................................................................................................ 34
TECHNICAL SPECIFICATIONS ..................................................................................................................... 35
PRECAUTIONS ................................................................................................................................................... 36
WARRANTY AND LEGAL NOTES .............................................................................................................. 37
4
PREFACE
Thanks for choosing EVO MM93, the high-definition digital camera. Easy to use, compact and with an integrated design. With its high-definition and dynamic image capturing technology it can record your daily activities at anytime and anywhere, so you can remember your experiences and share them with your family and friends. This manual will clearly explain you how to use and install the video camera, providing detailed information as well as technical specifications. Please read this Manual carefully before the use and keep it for long-term reference.
PRECAUTIONS
Please observe the following points when using EVO MM93:
• Do not drop, hit or shake the camera.
• Keep the device away from any electromagnetic source, such as magnets or electro
motors, or from any other object emitting strong radio waves, like antennas. Strong magnetic fields may cause failures to the camera or damages to image and audio.
• Do not expose the camera to high temperatures or to sunlight directly.
• Keep the memory card away from electromagnetic sources, such as TVs, speakers or
magnets. Do not put it in any place with potential static, as the data stored may be lost.
• If the device overheats, smokes or smells in charging, please disconnect the power supply immediately.
• Keep the camera out of the reach of children in charging, as the power cord may cause accidental suffocation or electric shock.
• Keep the camera in a cool, dry and dust-free place.
DESCRIPTION
EVO MM93 is a compact, high-level and digital camera for professional use, able to perform the following functions:
l
High-definition (HD) digital photos.
l
Data-voice Storage function.
l
Real-time image display.
l
Recorded Video recall function.
l
Photo files recall function.
l
Time display.
l
Smartphone applications for Wi-Fi control.
l
10X digital zoom.
l
External microphone connection for special use.
l
2.0 USB High-Speed data transfer.
l
USB cable for battery charging.
l
All accessories are easy to use to facilitate shooting in any place and at any time.
Supplemented by its accessories, this product is the result of multiple patented technologies and can be used for recording anything, anytime, anywhere.
5
TECHNICAL SPECIFICATIONS
EVO MM93 camera has the following specifications:
• 170° ultra wide-angle lens f/2.7.
• HD lens, supporting 1080P, 960P, 720P video recording
• 16 mega pixel photo shooting function, supporting a maximum resolution of 4608x3456.
• Device Wi-Fi control via Smartphone applications (Apps).
• 10X digital zoom.
• Fast shot, for shooting up to 10 photos per second.
• Different shooting modes: single shot, continuous shot and self shot.
• Long-time voice recording function.
• Built-in vehicle black box for continuous real-time recording during driving.
• New generation Exmoor R CMOS sensor with doubled sensitivity.
• 180° photo rollover function.
• Possibility of connection to an external screen for video viewing and photos playback.
• Better video effects in multiple video output modes:
• 1920X1080P60 frames/second
• 1920X1080P 48 frames/second
• 1920X1080P 30 frames/second
• 1920X1080P 24 frames/second
• 1280x960P60 frames/second
• 1280x960P 48 frames/second
• 1280x720P 120 frames/second
• 1280x720P 60 frames/second
• Battery level and free capacity of the memory card detection
• Supports micro SD up to 64GB capacity.
• Compact and fashionable design.
• Built-in stereo microphone and external microphone for high quality recordings.
• HDMI and AV output for an easy connection to a monitor or TV for the recall of recorded
files.
• MP4 video files recording, ready to be recalled directly on PC or to be uploaded on video- sharing websites.
• High colour fidelity for clearer and more natural video images.
• Playback, file deleting and other functions on the local video camera.
• Fast video fast forwarding and rewinding when viewing.
• Internal G-sensor for automatic rotation function and black box for auto.
• The accessories will have reinforced structures for higher stability and durability.
• Chargeable high capacity lithium ion battery.
• Shock proof scratch resistant structure.
• With multiple types of accessories for sport recording.
• Shockproof features to withstand mild drops and knocks.
6
• Automatic standby for power saving and audio/video data saving.
7
STRUCTURE
1. Exposure meter
8. Status led
(available for future
1.Green status led (d)
11.Photo and video view key
Red Led
Green Led
Blue Led
Front (b), Top (e)
Front (d) Top (e) Bottom
Front (a)
Status
Power
On Video
Slow flashing
Audio
Slow flashing
Shoot photo
Single flash
Mem. full
On Charging
Slow flashing
Charge
On
Low battery
5 sec. fast flashing, then off
Data
Slow flashing
WI-
FI on
Slow flashing

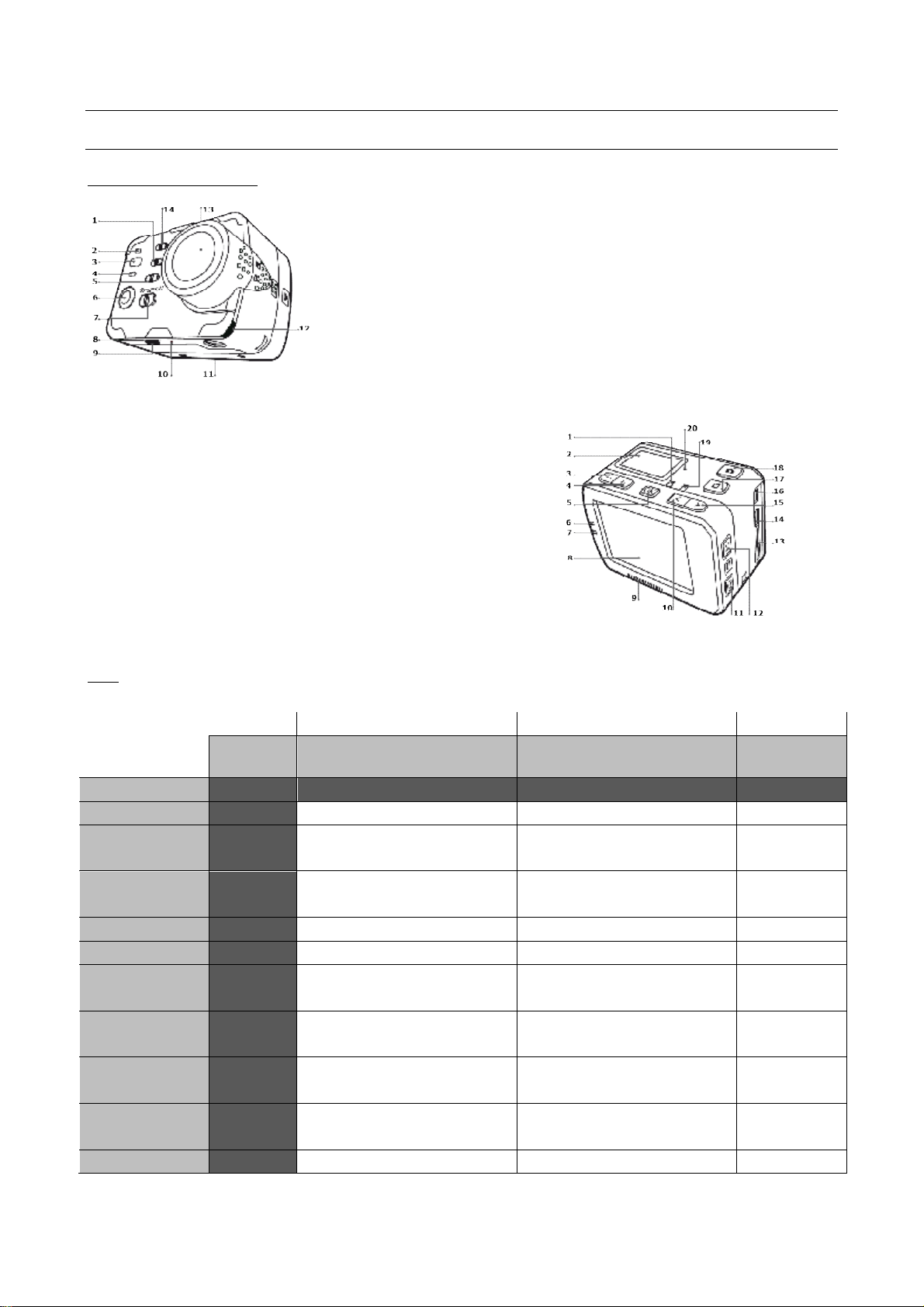

EVO MM93 STRUCTURE
2.LCD Display
3.Downward Key
4.Upward Key
5.OK Key
6.Status led (available for future use)
7.Status led (available for future use)
8.TFT display
9.Speaker
10.Left Key
LED
2. Blue Wi-Fi status led (a)
3. Green status led
4. Red status led (b)
5. G-sensor
6. "Record" Key
7. Power Switch
12.Menu Key
13.MicroSD Slot
14.USB interface
15.Right Key
16.Mini HDMI Interface
17.Stop Key
18.Shutter key
19.Red status led (e)
20.Microphone
use)
9. Battery lock release
10. Microphone
11. Threaded interface
12. Green status led (c)
13. Lens unit
recording
recording
(if off)
(if off)
level
transmission
Position
(c)
8
OPERATING INSTRUCTIONS
EVO MM93
comes with a 2" removable TFT screen to
CHARGE
Turn on the video camera and check battery status; if low, charge it. Either a computer USB port of power adapter (not included) can be used to charge it. When ECO is charged in off status, the red status led will flash slowly. When finished charging, the red led will remain on. The charge process inhibits video camera operations.

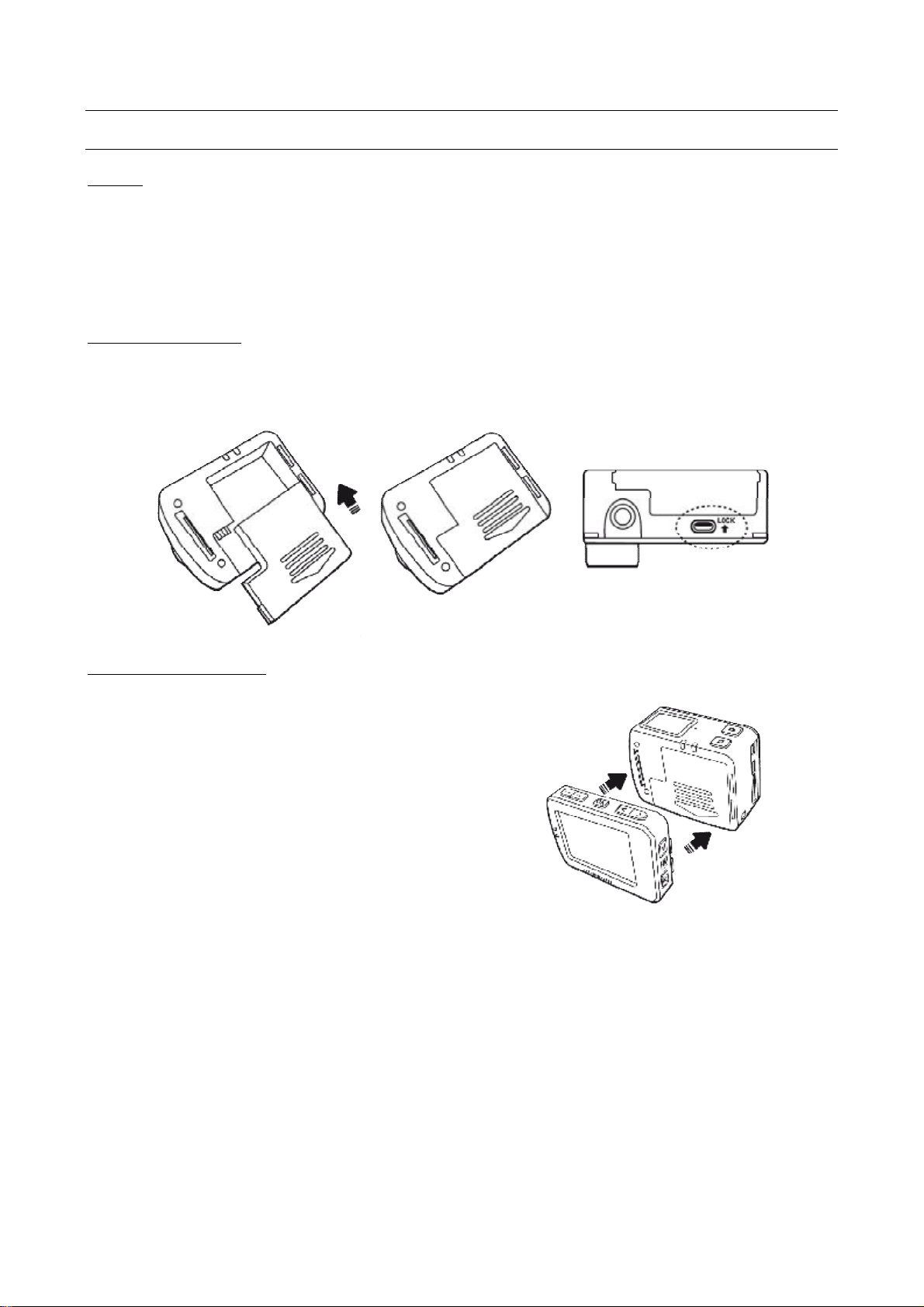

BATTERY INSTALLATION
Before inserting the battery, make sure the lock/release button is open; fully insert the battery in the compartment and close using the lock/release button.
TFT DISPLAY INSTALLATION
view saved photos and videos. Install the display as illustrated.
.
9

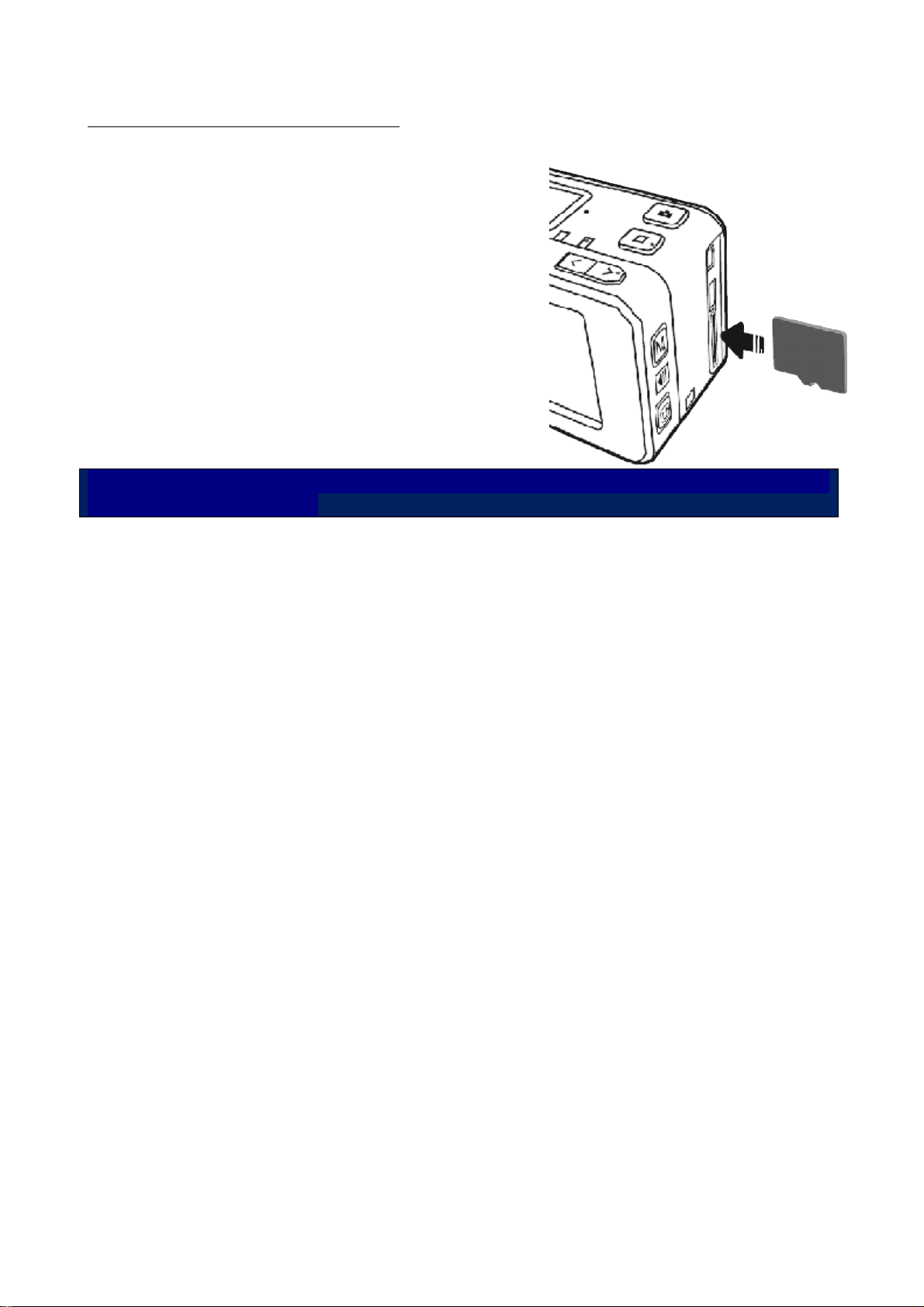

INSERTING AND REMOVING THE MEMORY CARD
The
EVO MM93
video camera supports TF memory cards
Before connecting the
EVO MM93
to any Wi
-
Fi device, make sure the
with capacity up to 64 GB. Any type of Micro SD card can be used but we recommend high speed cards to optimise performance.
• Installation.
1 Make sure the video camera is off 2 Insert the card in its slot, being careful that it is inserted in the correct direction until a click is heard.
• Removal.
1 Turn off the video camera 2 Press the centre of the back of the card and release it; then remove it.
memory card is inserted.
10
PRELIMINARY OPERATIONS
6. Modify the values and move from an item to another with the following keys
and
Before using EVO MM93, set the date and time as well as the display language. All EVO MM93 settings are accompanied by explicative graphic symbols. The three small icons on the left of the screen represent:
- A video camera: to select to edit video settings.
- A camera: to select to edit photo settings.
- A gear: to select to edit common settings. The icon is outlined in blue when the option is selected.
DATE/TIME SETTING
It allows to adjust the date and the time
1.Key
2. Press and key to scroll the setting menu up to
3. Press and to reach the item
4. Press to confirm the selection
5. Select one of the available formats:
• Y-M-D-H-M (year, month, day, hour, minutes)
• D-M-Y-H-M (day, month, year, hour, minutes)
• M-D-Y-H-M (month, day, year, hour, minutes)
7.Press key to confirm
LANGUAGE
Lets you select the standard language.
1.Key
2. Press key to scroll the setting menu up to
3. Press and to reach the item
4. Press to confirm the selection
5. The choices available are:
• English, Italian, Portuguese, Spanish, French, German, Greek, Korean
11
LEGENDA
Displayed in the upper left corner, it indicates the
Displayed at the top left when
EVO MM93
is in
Displayed in the centre position, it indicates the
Displayed at the centre, in alternative to the video
Displayed on the bottom right, it indicates the
Displayed at the centre, it indicates whether the
Displayed in small letters at the bottom left, it
Displayed in small letters at the bottom left, it
Displayed in the upper left corner, it indicates the
Displayed in the whole TFT display during the
Displayed at the top left with the shutter key is
Displayed in the upper right corner, it indicates
Displayed in the bottom left corner, it indicates
Displayed at the top left, it indicates Wi
-
Fi
Displayed at the top centre, it indicates that
Displayed at the top left, it indicates that

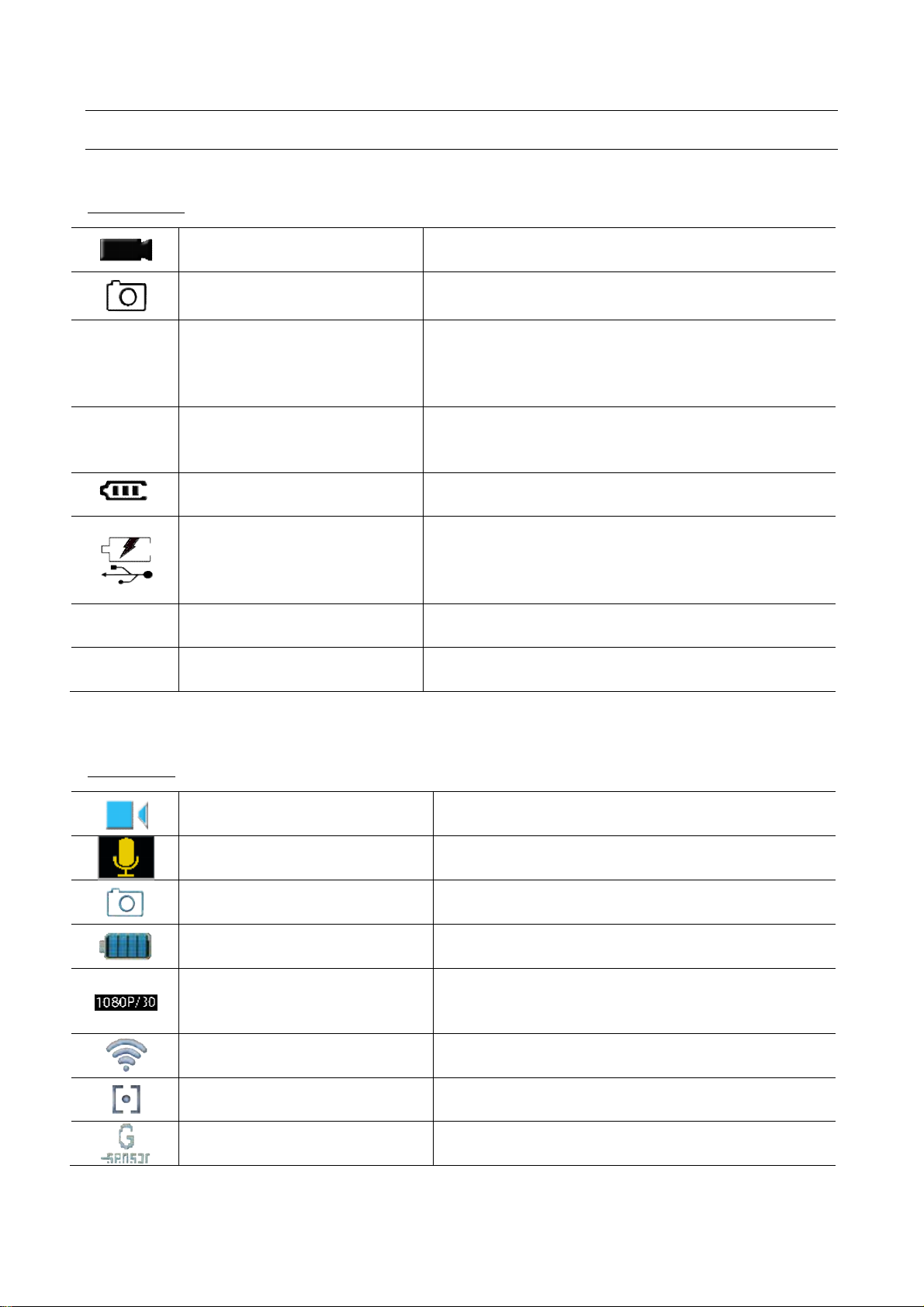

Following are the symbols that most commonly appear on the screen.
LCD SYMBOLS
Video recording mode
Photo camera mode
00:00:22
100-102
2H:17 Residual capacity
5307 Residual capacity
A series of symbols are also displayed on the TFT screen at the same time; some similar to those already seen, others more specific.
Video recording duration
Number of remaining photos
Battery capacity indication
USB connection mode
video recording mode photo camera mode
duration of the current recording video. The time is synchronously displayed with the one on the TFT screen.
recording length. Indicates the number of photos taken
battery level. camera has been connected to a PC. EVO MM93 is
charging and is connected to transfer files to the PC.
indicates the memory available space for videos. indicates the memory available space for pictures
TFT SYMBOLS
Video recording mode Audio recording mode Photo camera mode Power symbol
Video/Photo resolution
Wi-Fi Exposure meter G-SENSOR
video recording mode audio registration pressed once the battery level the resolution active in that moment. If in photo
mode, it displays resolution in mega pixels connection on the video camera exposure meter SPOT mode is on automatic movement detection is on
12
