SCRUBTEC 770 S SCRUBTEC 770 L SCRUBTEC 784 S SCRUBTEC 784 L SCRUBTEC 795 S SCRUBTEC 795 L

Operator's Manual

MODELS: 05210F, 05210G, 05211F, 05220F, 05220G, 05221F 05230F, 05231F

U.S. Patent No. 6,760,947; No. 6,105,192; No. RE39,581 (Deluxe Machines)

Form No. 70935A 11/07, Revised 12/09 Printed in the U.S.A.

English (2-30)

Parts List (31-67)

READ THIS MANUAL

READ THIS BOOK

This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Nilﬁ sk ALTO machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If your operator(s) cannot read this manual, have it explained fully before attempting to operate this machine.

All directions given in this book are as seen from the operator’s position at the rear of the machine.

Table of Contents

Operator Safety Instructions ................................................................................................................................................................................................................................3

Introduction .........................................................................................................................................................................................................................................................4

Machine Speciﬁ cations ........................................................................................................................................................................................................................................5

Procedures For Transporting ............................................................................................................................................................................................................................... 7

Symbols Used On S & L Models .........................................................................................................................................................................................................................8

Machine Control Panel S Models .......................................................................................................................................................................................................................10

Machine Control Panel L Models ......................................................................................................................................................................................................................... 12

Display Screen For L Models...............................................................................................................................................................................................................................14

Machine Controls and Features ..........................................................................................................................................................................................................................15

How To Prepare The Machine For Operation ......................................................................................................................................................................................................16

How To Install The Batteries .........................................................................................................................................................................................................16

Battery Maintenance .....................................................................................................................................................................................................................17

How To Charge The Batteries .......................................................................................................................................................................................................18

How To Install The Brushes Or Pad Drivers ..................................................................................................................................................................................19

How To Remove The Brushes Or Pad Drivers ..............................................................................................................................................................................19

How To Operate The Machine ............................................................................................................................................................................................................................. 20

How To Operate The One Touch System ......................................................................................................................................................................................20

Reprogramming One Touch ..........................................................................................................................................................................................................20

How To Return One Touch To Factory Default Setting ..................................................................................................................................................................20

How To Operate The Squeegee....................................................................................................................................................................................................21

How To Fill The Solution Tank .......................................................................................................................................................................................................21

How To Traverse Machine ............................................................................................................................................................................................................22

How To Clean A Floor ...................................................................................................................................................................................................................22

Maintenance ........................................................................................................................................................................................................................................................23

How To Correct A Problem .................................................................................................................................................................................................................................28

Common Error Codes (SRUBTEC 770 L, 784 L & 795 L) ................................................................................................................................................................................... 29

Accessories .........................................................................................................................................................................................................................................................30

Section II Parts and Service Manual

Solution Tank Assembly .......................................................................................................................................................................................................................................32-33

Recovery Tank Assembly ....................................................................................................................................................................................................................................34-35

Electrical Panel Assembly S Models (Solo Controller) ........................................................................................................................................................................................36-37

Electrical Panel Assembly S Models (I-Drive Controller) ..................................................................................................................................................................................... 38-39

Electrical Panel Assembly L Models .................................................................................................................................................................................................................... 40-41

Control Panel Assembly L Models ....................................................................................................................................................................................................................... 42

Control Panel Assembly S Models (Solo Controller) ...........................................................................................................................................................................................43

Control Panel Assembly S Models (I-Drive Controller) ........................................................................................................................................................................................ 44-45

Squeegee Swing Arm Assembly ..........................................................................................................................................................................................................................46-47

Squeegee Assembly 770, 784 ............................................................................................................................................................................................................................. 48-49

Squeegee Assembly 795 .....................................................................................................................................................................................................................................50-51

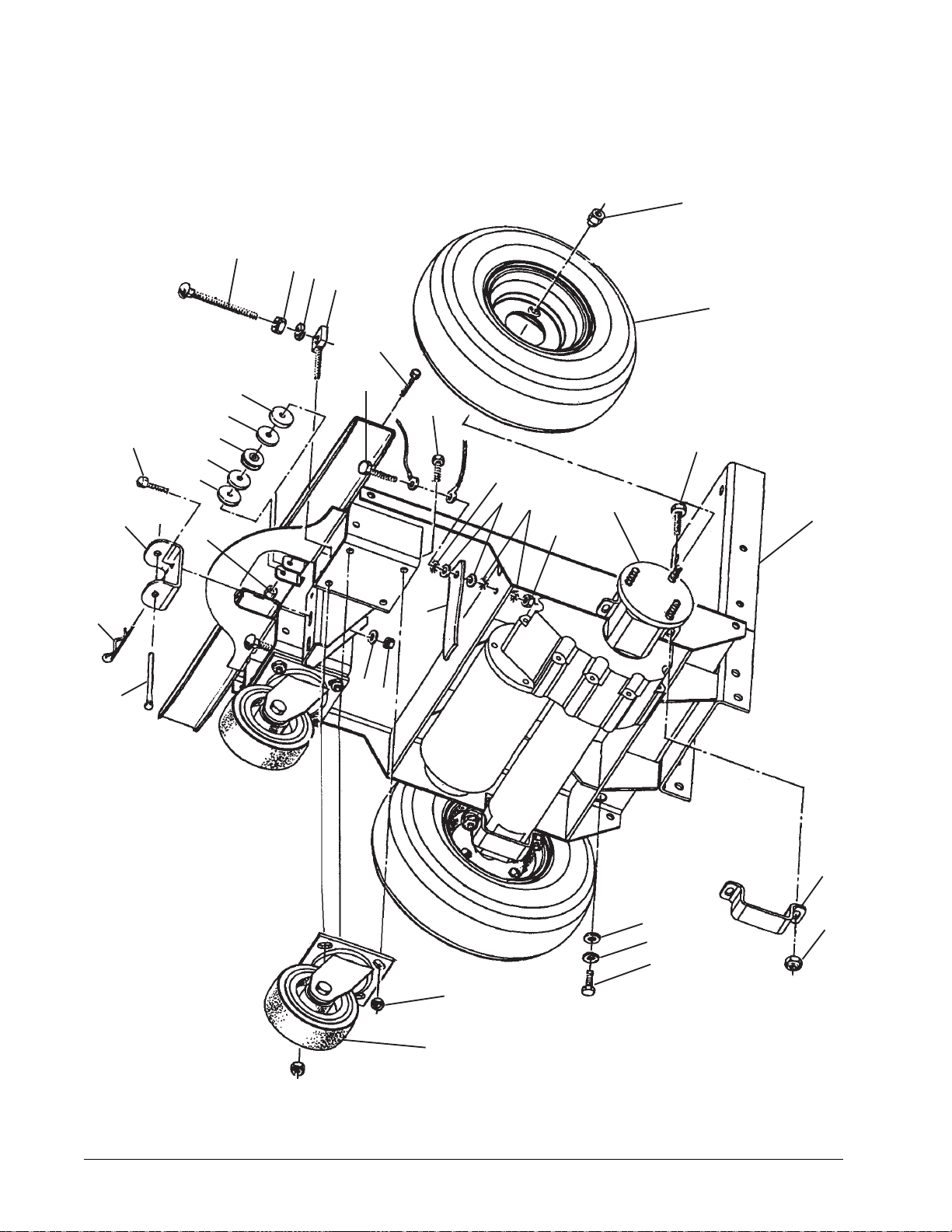

Traverse System Assembly .................................................................................................................................................................................................................................52-53

Brush Head Assembly .........................................................................................................................................................................................................................................54-55

Brush Motor .........................................................................................................................................................................................................................................................56

Gearbox ...............................................................................................................................................................................................................................................................57

Imperial Transaxle Parts ......................................................................................................................................................................................................................................58-59

Electrical Schematic S Models (Solo Controller) .................................................................................................................................................................................................61

Electrical Schematic S Models (I-Drive Controller) .............................................................................................................................................................................................. 62

Electrical Schematic L Models ............................................................................................................................................................................................................................. 63

-2- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

OPERATOR SAFETY INSTRUCTIONS

DANGER!

Failure to read and observe all DANGER statements could result in severe bodily injury or death. Read and observe all DANGER statements found in your Owner’s Manual and on your machine.

WARNING!

Failure to read and observe all WARNING statements could result in injury to you or to other personnel; property damage could occur as well. Read and observe all WARNING statements found in your Owner’s Manual and on your machine.

CAUTION!

Failure to read and observe all CAUTION statements could result in damage to the machine or to other property. Read and observe all CAUTION statements found in our Owner’s Manual and on your machine.

DANGER!

Failure to read the Owner’s Manual prior to operating or attempting any service or maintenance procedure to your Nilﬁ sk Alto machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If your operator(s) cannot read English, have this manual explained fully before attempting to operate this machine.

DANGER!

Operating a machine that is not completely or fully assembled could result in injury or property damage. Do not operate this machine until it is completely assembled. Inspect the machine carefully before operation.

DANGER!

Machines can cause an explosion when operated near ﬂ ammable materials and vapors. Do not use this machine with or near fuels, grain dust, solvents, thinners, or other ﬂ ammable materials. This machine is not suitable for picking up hazardous dust.

DANGER!

Lead acid batteries generate gases which can cause an explosion. Keep sparks and ﬂ ames away from batteries. Do not smoke around the machine. Charge the batteries only in an area with good ventilation. Make sure that you unplug the AC charger from the wall outlet before operating the machine.

DANGER!

Working with batteries can be dangerous! Always wear eye protection and protective clothing when working near batteries. Remove all jewelry. Do not put tools or other metal objects across the battery terminals, or the tops of the batteries.

DANGER!

Using a charger with a damaged power cord could result in an electrocution. Do not use the charger if the power cord is damaged.

WARNING!

Operating this machine from anywhere other than the back of the machine could result in injury or damage. Operate this machine only from the rear.

WARNING!

This machine is heavy. Get assistance before attempting to transport or move it. Use two able persons to move the machine on a ramp or incline. Always move slowly. Do not turn the machine on a ramp. If operating machine on a gradient over 2%, do not stop, turn or park. Read the “Procedures For Transporting” in this manual before transporting.

WARNING!

Machines can topple over if guided over the edges of stairs or loading docks and cause injury or damage. Stop and leave this machine only on a level surface. When you stop the machine, turn the key “OFF”. Set the parking brake.

WARNING!

Maintenance and repairs performed by unauthorized personnel could result in damage or injury. Maintenance and repairs must be performed by authorized Nilﬁ sk Alto personnel only.

WARNING!

Any alterations or modiﬁ cations of this machine could result in damage to the machine or injury to the operator or other bystanders. Alterations or modiﬁ cations not authorized by the manufacturer voids any and all warranties and liabilities.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 3 -

OPERATOR SAFETY INSTRUCTIONS

WARNING!

Electrical components of this machine can “short-out” if exposed to water or moisture. Keep the electrical components of the machine dry. Wipe the machine down after each use. For storage, keep the machine in a dry building.

WARNING!

Operating a machine without observing all labels and instructional information could result in injury or damage. Read all machine labels before attempting to operate. Make sure all of the labels and instructional information are attached or fastened to the machine. Get replacement labels and plates from your Nilﬁ sk Alto distributor.

WARNING!

Wet ﬂ oor surfaces can be slippery. Water solutions or cleaning materials used with this type of machine can leave wet areas on the ﬂ oor surface. These areas can cause a dangerous condition for the operator or other persons. Always put “Caution” signs around/

near the area you are cleaning.

WARNING!

Improper discharge of waste water may damage the environment and be illegal. The United States Environmental Protection Agency has established certain regulations regarding discharge of waste water. Also, city and state regulations regarding this discharge may be in your area. Understand and follow the regulations in your area. Be aware of the environmental hazards of chemicals that you dispose.

CAUTION!

Use of this machine to move other objects or to climb on could result in injury or damage. Do not use this machine as a step or furniture. Do not ride on this machine.

CAUTION!

Your machine warranty will be voided if anything other than genuine Nilﬁ sk Alto parts are used on your machine. Always use Nilﬁ sk Alto parts for replacement.

-4- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

INTRODUCTION

Nilﬁ sk ALTO’s newly designed Scrubtec 795, 784 & 770 automatic scrubbers are efﬁ cient and superior ﬂ oor cleaning machines. The Scrubtec 795 uses two brushes or pads to scrub a path 97 cm wide. The Scrubtec 784 uses two brushes or pads to scrub a path 84 cm wide. The Scrubtec 770 uses two brushes or pads to scrub a path 71 cm wide. A squeegee wipes the ﬂ oor while the vacuum motor removes the dirty solution from the ﬂ oor - all in one pass.

The Scrubtec 795, 784 & 770 automatic scrubbers come complete with six - 6 volt batteries, ﬁ ve battery connector cables, two battery cables, either two brushes or two pad drivers, and one operator’s manual.

Machine Speciﬁ cations

Model Scrubtec 795S Scrubtec 784S Scrubtec 770S

Model Number 05230F 05220F / 05220G 05210F / 05210G

Motor, Vac 1 HP (.74kw) three stage tangen-

Power Supply 36 volt (6-6V batteries)

Solution Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Recovery Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Motors, Brush (2) 1 hp PM (.74kw) 1 hp PM (.74kw) 1 hp PM (.74kw)

Motor Traction .50 hp PM (.37kw) .50 hp PM (.37kw) .50 hp PM (.37kw)

Brushes (2) 19 inch (48cm)

Brush Speed 200 rpm 200 rpm 200 rpm

Brush Pressure Variable 150 lbs. - 220 lbs. Variable 150 lbs. - 220 lbs. Variable 150 lbs. - 220 lbs.

Speed, Forward Variable to 230 ft./min. Variable to 230 ft./min. Variable to 230 ft./min.

Speed, Reverse Variable to 180 ft./min. Variable to 180 ft./min. Variable to 180 ft./min.

Charger 36V, 21A, 115V/60hz 36V, 21A, 115V/60hz 36V, 21A, 115V/60hz

Length 68.28 inches (173 cm) 67 inches (170 cm) 65.0 inches (165 cm)

Width - Machine 40.33 inches (102 cm) 35.70 inches (91 cm) 30.0 inches (76 cm)

Height 43.75 inches (112cm) 43.75 inches (112 cm) 43.75 inches (112 cm)

Cleaning Rate 42,000 sq ft/hr (3,901 sq. m/hr) 35,000 sq ft/hr (3,252 sq. m/hr) 29,700 sq ft./hr (2,750 sq ft./hr)

tial discharge

242AH, 310AH

w/.5” (1.5cm) overlap

1HP (.74kw) three stage tagential discharge

36 volt (6-6V batteries) 242AH, 310AH

17 inch (43cm) w/.5” (1.5 cm) overlap

1HP (.74kw) three stage tagential discharge

36 volt (6-6V batteries) 242AH, 310AH

14 inch (36cm) w/.5” (1.5 cm) overlap

Cleaning Swath 38 inch (97 cm) 33 inch (84 cm) 28 inch (71 cm)

Grade Cleaning 6° Incline 6° Incline 6° Incline

Weight w/Batteries (310AH) 1025 lbs. 465kg 1015 lbs. 460kg 1005 lbs. 456kg

Shipping Weight w/batteries (310AH)

Noise 76.5 dBA 76.5 dBA 76.5 dBA

Vibration <2.5 m/s

1328 lbs. 602kg 1318 lbs. 598kg 1308 lbs. 593kg

<2.5 m/s

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 5 -

SPECIFICATIONS:

Model

Scrubtec 795L Scrubtec 784L Scrubtec 770L

Model Number 05231F 05221F 05211F

Motor, Vac 1 HP (.74kw) three 1HP (.74kw) three 1HP (.74kw) three

stage tangential stage tagential stage tagential

discharge discharge discharge

Power Supply 36 volt (6-6V batteries) 36 volt (6-6V batteries) 36 volt (6-6V batteries)

242AH, 310AH 2420AH, 310AH 242AH, 310AH

Solution Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Recovery Tank 30 gallon (114 liter) 30 gallon (114 liter) 30 gallon (114 liter)

Motors, Brush (2) 1 hp PM (.74kw) 1 hp PM (.74kw) 1 hp PM (.74kw)

Motor Traction .50 hp PM (.37kw) .50 hp PM (.37kw) .50 hp PM (.37kw)

Brushes (2) 19 inch (48cm) 17 inch (43cm) 14 inch (36cm)

w/.5” (1.5cm) overlap w/.5” (1.5 cm) overlap w/.5” (1.5 cm) overlap

Brush Speed 200 rpm 200 rpm 200 rpm

Brush Pressure Variable 140 lbs. - 220 lbs. Variable 140 lbs. - 220 lbs. Variable 140 lbs. - 220 lbs.

Speed, Forward Variable to 230 ft./min. Variable to 230 ft./min. Variable to 230 ft./min.

Speed, Reverse Variable to 180 ft./min. Variable to 180 ft./min. Variable to 180 ft./min.

Charger 36V, 21A, 115V/60hz 36V, 21A, 115V/60hz 36V, 21A, 115V/60hz

Length 68.28 inches (173 cm) 67 inches (170 cm) 65.0 inches (165 cm)

Width - Machine 40.33 inches (102 cm) 35.70 inches (91 cm) 30.0 inches (76 cm)

Height 43.75 inches (112cm) 43.75 inches (112 cm) 43.75 inches (112 cm)

Cleaning Rate 42,000 sq ft/hr 35,000 sq ft/hr 29,700 sq ft./hr

(3,901 sq. m/hr) (3,252 sq. m/hr) (2,750 sq ft./hr)

Cleaning Swath 38 inch (97 cm) 33 inch (84 cm) 28 inch (71 cm)

Grade Cleaning 6° Incline 6° Incline 6° Incline

Weight w/Batteries (310AH)

Shipping Weight

1025 lbs. 465kg 1015 lbs. 460kg 1005 lbs. 456kg

1328 lbs. 602kg 1318 lbs. 598kg 1308 lbs. 593kg

w/batteries (310AH)

Noise 76.5 dBA 76.5 dBA 76.5 dBA

Vibration <2.5 m/s2 <2.5 m/s2 <2.5 m/s2

-6- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

PROCEDURES FOR TRANSPORTING

How To Put The Machine In A Van Or Truck

WARNING:

The machine is heavy. Make sure you use two able persons to assist the machine in climbing the ramp.

1. Make sure the loading ramp is at least eight (8) feet long, and strong enough to support the machine.

2. Make sure the ramp is clean and dry.

3. Put the ramp in position.

4. Remove squeegee assembly, brush housings, & brushes or pad drivers before loading.

5. Turn key switch “ON”.

6. Align the machine on a level surface ten (10) feet in front of the ramp.

7. Put the traverse speed switch in the “HI” position.

8. Press one or both forward switches.

9. Push the machine to the top of the ramp.

10. Turn the key switch “OFF”.

11. Fasten the machine to the vehicle.

How To Remove The Machine From A Van Or Truck

1. Make sure there are no obstructions in the area.

2. Make sure the unloading ramp is at least eight (8) feet long and strong enough to support the machine.

3. Make sure the ramp is clean and dry.

4. Put the ramp in position.

5. Unfasten the machine.

WARNING:

The machine is heavy. Make sure you use two able persons to assist in moving the machine down the ramp.

6. Turn the key switch “ON”.

7. Carefully and slowly, drive the machine to the top of the ramp by pressing and holding either of the forward switches and the reverse switch.

8. Put the traverse speed switch to the mid range speed setting. As the machine begins to travel down the ramp, maintain a slow downward speed by pressing either of the forward switches.

9. Replace squeegee assembly, brush housings, & brushes or pad drivers after the machine is unloaded and ready to use.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 7 -

SYMBOLS USED ON SCRUBTEC 770, 784, 795

SYMBOLS USED ON SCRUBTEC 770S, 784S, 795S / 770L, 784L, 795L

Hazard Alert Symbol

On/Off Key Switch

SYMBOLS USED ON

SCRUBTEC 770S, 784S, 795S

Additional Brush Pressure Brush Up/Down

Power Traverse Speed Control

SYMBOLS USED ON

SCRUBTEC 770L, 784L, 795L

Squeegee Up/Down

Solution Control

Hour Meter Switch

Solution Control Charge/Battery Meter (Solo)

Charge Indicator One Touch Switch

Charge Indicator (I-Drive)

-8- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Brush Up/Down

SYMBOLS USED ON SCRUBTEC 770, 784, 795

WARNING

READ OPERATOR'S MANUAL BEFORE OPERATING THIS MACHINE

RISK OF FIRE

• Use only commercially available ﬂ oor cleaners and waxes intended for machine operation.

• Do not use ﬂ am- mable materials.

RISK OF INJURY OR DAMAGE TO MACHINE

• Do not turn, stop

71018A

or leave machine on a ramp or dock.

WARNING

READ OPERATOR'S MANUAL BEFORE OPERATING THIS MACHINE

EXPLOSIVE GASES, CAN CAUSE SEVERE INJURY, DEATH OR DAMAGE TRANSFORMER.

• Keep ﬂ ammable materials away from batteries. Charge in a cool well ventilated

BATTERIES CONTAIN SULFURIC ACID. CAN CAUSE SEVERE INJURY.

• Avoid contact with skin eyes, or clothing. If contact, ﬂ ush with water. Get medical attention. If internal. contact call physician.

71017A

WARNING

MOVING PARTS. CONTACT CAN CAUSE SEVERE INJURY.

• Do not place hands or feet under machine when in use.

71015A

71014A

WEAR PROTECTIVE EYE GEAR.

WARNING

FALLING PARTS CAN CAUSE SEVERE INJURY.

• Make sure tank is secure before servicing.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 9 -

MACHINE CONTROL PANEL 770S, 784S & 795S

Key Switch (See Figure #1, Item “A”)

The key switch turns “ON” the power to the control panel. “0” is “OFF” and “I” is “ON”.

Traverse Speed Switch (See Figure #1, Item “B”) The speed control varies from low to high speed. To increase the speed, turn the knob to the right. To decrease the speed, turn the knob to the left.

Brush Up/Down Switch (See Figure #1, Item “C”) The brush switch has two positions: “Up” positions the brushes up; “Down” positions the brushes on the ﬂ oor. The brush motors start when the brushes are down and the traverse switch is depressed.

Increase Brush Pressure Switch (See Figure #1, Item D) This switch is used to increase the brush pressure. Increased brush pressure may be required when stripping or cleaning heavily soiled ﬂ oors. To increase brush pressure, ﬁ rst lower the brushes by pressing the brush up/down switch (Item “C”) to the down position. This will lower the brushes to the normal scrub position. To increase brush pressure, press and hold the switch (Item “D”) until the desired brush pressure is reached or the brush deck stops moving downward. To reposition the brush pressure to normal scrub, press the brush up/down switch (Item “C”) to the up position and after the brush deck is completely raised, then return the switch to the down position for normal scrub.

Solution Control Knob (See Figure #1, Item “E”) The solution control knob regulates the ﬂ ow of cleaning solution to the ﬂ oor. To increase the ﬂ ow turn the knob clockwise. To decrease the ﬂ ow, turn the knob counter-clockwise.

Forward Switch (See Figure #1, Item “F”) The forward switch turns the traverse motor “on” and if the brush motors are in the down position, it also activates the brush motors and solution control module. Either the right or the left switch can be used.

Reverse Switch (See Figure #1, Item “G”) The reverse switch, when used in conjunction with one of the forward switches, causes the machine to reverse direction. The reverse speed is 70% of the forward speed.

Charge / Battery Meter (Solo) (See Figure #1, Item “H1”) The charge/battery meter indicates the battery is being charged when the charger is plugged into an AC outlet. It also indicates the amount of charge that is left in the batteries while the machine is in use. When the battery charger gets too low the red light will begin ﬂ ashing and the brush/pad motors will shut off.

Battery Meter / Charge Indicator Light (I-Drive) (See Figure #1, Item “H2”)

The battery meter indicates the amount of charge remaining in the batteries while the machine is in use. When the charger is plugged into an AC Outlet, the charge green indicator light will ﬂ ash on and off. When the batteries become fully charged, the green indicator light will remain on until the charger is unplugged.

Circuit Breakers (See Figure #1, Item “I”-”M”) The circuit breaker reset buttons are located on the control panel. The breakers are located as follows: Item I & J - Brush Motors (35A); Item K - Traverse Motor (30A); Item L - Vac Motor (25A); Item M - Actuator Motor, Brush Head (5A)

If a circuit breaker trips, determine which motor is not operating and turn the key switch “OFF”. Wait ﬁ ve minutes and push the reset button back in. Turn the key switch “ON”, and try again. An authorized service person should be contacted if the breaker trips again.

Hour Meter (See Figure #1, Item “N”) The hour meter indicates the number of hours the machine has operated. It runs only when the machine is moving forward or reverse.

-10- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

MACHINE CONTROL PANEL 770S, 784S & 795S

Figure #1

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 11 -

MACHINE CONTROL PANEL 770L, 784L & 795L

Key Switch (See Figure #2 Item “A”)

The key switch turns “ON” the power to the control panel. “O” is “OFF” and “I” is “ON”.

Traverse Speed Switch (See Figure #2, Item “B”) The speed control varies from low to high speed. To increase the speed, turn the knob to the right. To decrease the speed, turn the knob to the left.

Squeegee Up/Down Switch (See Figure #2, Item “C”) The squeegee switch is used to raise and lower the squeegee and to turn on and off the vacuum motor. The squeegee will lower and the vacuum motor will turn on when the switch is placed in the lower position. To raise the squeegee, place the switch in the up position. The vacuum motor will stop, after a short delay, when the switch is placed in the up position.

The middle switch position is used for the one touch control. The squeegee will raise and lower and the vacuum will turn on and off automatically when the one touch control function is used. NOTE: The squeegee switch must be in the middle position for the squeegee and vacuum to

operate properly with the one touch feature.

Brush Up/Down Switch (See Figure #2, Item D)

To lower brush head, push the brush switch in the down (+) position. To increase brush pressure, continue to push the brush switch in the down (+) position until the desired pressure is reached or until brush head travel stops. The brush motors will start and solution will ﬂ ow (provided the solution is turned “ON”) when the machine begins to traverse. To raise the brush head, push the brush switch in the up (-) position until the brush head travel stops or desired position is reached.

Solution Flow Control (See Figure #2, Item “E”) The solution ﬂ ow switch regulates the ﬂ ow of chemical solution to the ﬂ oor. To increase the ﬂ ow, push the solution ﬂ ow switch in the down (+) posi- tion until desired ﬂ ow is reached. To decrease the ﬂ ow, push the solution ﬂ ow switch in the up (-) position until the desired ﬂ ow is reached. To shut off the solution, push the solution ﬂ ow switch in the up (-) position until no indicators are visible on the display. NOTE: DO NOT run dry! NOTE: No

solution will ﬂ ow when the machine does not traverse.

Forward Switch (See Figure #2, Item “F”)

The forward switch turns the traverse motor “on” and if the brush motors are in the down position, it also activates the brush motors and solution control module. Either the right or the left switch can be used.

Reverse Switch (See Figure #2, Item “G”) The reverse switch, when used in conjunction with one of the forward switches, causes the machine to reverse direction. The reverse speed is 70% fo the forward speed.

One Touch (See Figure #2, Item “H”) The one touch button is a green button that lowers and raises the brush head and squeegee with one touch. NOTE: For more information about the one touch feature see the section “How to Operate the Machine”.

LCD Display (See Figure #2, Item “I”) The main display indicates the state of battery charge, brush head, solution and squeegee status. It will also display machine run hours and error codes. NOTE: When the battery charger gets too low the battery display will begin ﬂ ashing and the brush/pad motors will shut off.

Display Button (See Figure #2, Item “J”) Pressing the black display button will toggle between the main machine functions and the hour meter. The hour meter indicates the number of hours the machine has operated. It displays brush motor, vacuum motor, traverse motor and total key on hours.)

Circuit Breakers (See Figure #2, Item “K”, “L”, “M”) The circuit breaker reset buttons are located on the control panel. The breakers are located as follows: Item “K” and “L” - Brush Motors (35A); Item “M” - Key Switch (5A).

-12- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

MACHINE CONTROL PANEL 770L, 784L & 795L

G B

Figure #2

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 13 -

DISPLAY SCREENS FOR SCRUBTEC 770L, 784L, 795L

Position arrow indicating current position of squeegee (up or down)

Screens Available to Operator

SCREEN 1

“Battery” blinks when low voltage occurs.

SCREEN 2

Example

Water “droplets” off when solution is off and they are ﬂ ashing when solution is on.

Arrows indicating vacuum status. They are ﬂ ashing when vac is on and off when vac is off.

SCREEN 3 (Diagnostic)

Indicators are on all the time showing current settings.

The Diagnostic only. It will not show unless a fault with the machine occurs. When the fault happens the icon and error code will be displayed.

See "Common Error Codes" at end of "Maintenance Section".

-14- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

MACHINE CONTROLS & FEATURES

Squeegee Lift Handle (“S Class” models only) See Figure #3a, 3b, & 3c.

The squeegee lift handle is located below the control handles on the right side. It is used to raise or lower the squeegee. The vac motor is turned on when the handle is lowered.

Parking Brake (Optional)See Figure #4. The parking brake prevents movement of the machine. The brake is located on the left hand side of the transaxle motor. Turn the key switch off or disconnect the power to the battery to apply the brake.

There is a mechanical lever located on the brake. This lever is an override. To manually release the brake, rotate the lever toward the rear of machine (counter clockwise). To return the brake to normal or to apply the brake, rotate the lever towards the front of the machine (clockwise). NOTE: If the lever is left in the

override position, the brake will not function with the key switch, and the machine will not operate.

CAUTION!

Do not activate the brake while the machine is moving.

Float Shut Off See Figure #5. The shut-off switch for the vac motor is located in the recovery tank. It automatically turns off the vac motor when the recovery tank is full.

Figure #4

Figure #3a

Figure #3b

Figure #5

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 15 -

Figure #3c

HOW TO PREPARE THE MACHINE FOR OPERATION

How To Install The Batteries

The Scrubtec machines use six 6-volt batteries. The batteries are located in the battery compartment under the recovery tank.

To Install the batteries, follow this procedure:

1. Turn key switch off.

2. Make sure both tanks are empty.

38720B

38722B

38720B

3. Disconnect the hoses from the recovery tank (upper tank) & unplug the vac motor and ﬂ oat switch.

4. Remove the tank support bracket.

5. Remove the recovery tank.

6. Place the batteries in the solution tank as shown in ﬁ gures 6a and 6b.

WARNING!

Lifting batteries without help could result in an injury. Get help to lift the batteries. The batteries are heavy.

WARNING!

Working with batteries can be dangerous. Always wear eye protection and protective clothing when working near batteries. NO SMOKING!

7. Connect the battery cables between batteries and install long battery cable assembly as indicated. See ﬁ gure 6a and 6b.

8. Install the tank, reconnecting hoses and plugging in vac motor and ﬂ oat switch connectors. Install tank support bracket.

NOTE: Charge the batteries before using the machine.

Figure #6a

38722B

Figure #6b

38722B

38720B

38722B

-16- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

HOW TO PREPARE THE MACHINE FOR OPERATION

Battery Maintenance

The electrical power to operate the machine comes from the storage batteries. Storage batteries need preventive maintenance.

WARNING!

Working with batteries can be dangerous. Always wear eye protection and protective clothing when working near batteries. NO SMOKING!

To maintain the batteries in good condition, follow these instructions:

1. Keep the electrolyte at the correct level. The correct level is between

1/4” below the bottom of the tube in each cell and above the tops of the plates. Check the level of the electrolyte each time you charge the batteries. See ﬁ gure #7.

NOTE: Check the level of electrolyte prior to charging the batteries. Be sure the plates in each cell are covered with electrolyte . Do not top off the cells prior to charging the battery. Electrolyte expands during charging. As a result, the electrolyte could overﬂ ow from the cells. Always top off the cells with distilled water after charging.

CAUTION!

Irreversible damage will occur to the batteries if the electrolyte level does not cover the plates. Keep the electrolyte at the correct level.

CAUTION!

Machine damage and discharge across the tops of the batteries can occur if the batteries are ﬁ lled above the bottom of the tube in each cell. Do not ﬁ ll the batteries up to the bottom of the tube in each cell. Wipe any acid from the machine or the tops of the batteries. Never add acid to a battery after installation.

Correct ﬁ ll level

Figure #7

CAUTION!

Tap water may contain contaminants that will damage batteries. Batteries must be re-ﬁ lled with distilled water only.

2. Keep the tops of the batteries clean and dry. Keep the terminals and connectors clean. To clean the top of the

batteries, use a damp cloth with a weak solution of ammonia or bicarbonate of soda solution. To clean the terminals and connectors, use a terminal and connector cleaning tool. Do not allow ammonia or bicarbonate of soda to get into batteries.

3. Keep the batteries charged.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 17 -

HOW TO PREPARE THE MACHINE FOR OPERATION

How To Charge The Batteries

WARNING!

Charging the batteries in an area without adequate ventilation could result in an explosion. To prevent an explosion, charge the batteries only in an area with good ventilation.

WARNING!

Lead acid batteries generate gases which could explode. Keep sparks and ﬂ ames away from batteries. NO SMOKING!

To charge the batteries, follow this procedure:

1. Make sure the key switch is in the “OFF” position.

2. Before charging the batteries, the battery compartment needs to be vented. To vent compartment, tip up the recovery tank until it locks in the open position (see ﬁ gure #8). To close the tank, pull up on the arm and then slowly lower the tank to the closed position.

CAUTION!

Before raising tank, be sure tank is empty.

Figure # 8

WARNING!

Do not operate or perform maintenance on the machine while the recovery tank is in the open position. The tank can be accidentally bumped and it may slam shut.

3. Put the charger on a ﬂ at surface. Make sure the vents on the sides are at least two inches away from walls and other objects. Make sure there are no objects near the vents on the bottom of the charger.

4. Disconnect the battery pack connector from the batteries.

5. Connect the DC connector on the charger to the battery pack connector. See ﬁ gure #8A.

6. Connect the battery charger AC cord located at the rear of the machine to a 10 amp (min) 230V properly grounded wall receptacle.

7. Observe indicator light to ensure the charging process has started. Flashing light(s) indicates that the batteries are being charged. Steady on green light indicates the batteries are fully charged.

NOTE: Make sure you plug into a circuit that is not loaded by other equipment. Wall breakers may be tripped and no charge will occur.

Figure 8A

WARNING!

Never charge a GEL battery with an unsuitable battery charger. Carefully follow the instructions given by the manufacturer of the batteries and battery charger.

NOTE: To prevent permanent damage to the batteries, avoid their complete discharge. Never leave the batteries completely discharged, even if the machine is not being used. When recharging the batteries, keep the recovery tank open. After every 20 recharging cycles, check the level of the electrolyte and if necessary top off with distilled water.

-18- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

HOW TO PREPARE THE MACHINE FOR OPERATION

How To Install The Brushes Or Pad Drivers

To install the brushes or pad drivers on the machine, follow this procedure:

1. Turn the key switch “ON”.

2. Put the brush switch in the “UP” position.

3. Turn the key switch “OFF”.

4. Go to the front of the machine.

5. Unlatch right and left brush housings and remove them. See

ﬁ gure #9.

6. Put a brush or pad driver under the brush motor plate. See

ﬁ gure #10.

7. Align the lugs on the motor gimbal with the slots in the brush

gimbal.

8. Pull the brush up until the gimbal locks.

9. Repeat steps 6, 7, and 8 to install the second brush or pad

driver.

How To Remove The Brushes Or Pad Drivers

To remove the brushes or pad drivers from the machine, follow this procedure:

1. Turn the key switch “ON”.

2. Put the brush switch in the “UP” position.

3. Turn the key switch “OFF”.

4. Go to the front of the machine.

5. Push down on two sides of the brush or pad driver until the

gimbals release.

Figure #9

Figure #10

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 19 -

HOW TO OPERATE THE MACHINE

How to Operate the One Touch System (“L Class” models only)

One touch cleaning is a feature on the new Scrubtec Walk-behind Scrubber. The factory defaults for this setting are two bars of brush pressure and four bars for solution ﬂ ow and squeegee in the down position.

1. Press and release the green button for all cleaning functions to begin, see ﬁ gure #11, item A.

2. The squeegee and brush head lower to the ﬂ oor and the vacuum starts. NOTE: The squeegee switch must be in the center position for the squeegee to operate with the one touch feature, see ﬁ gure #11, item B.

3. The brushes and solution will begin only when you begin to traverse.

4. The cleaning will be at the factory default settings, however you can reprogram these settings to your speciﬁ cations. See “Reprogramming One Touch” section below.

5. To end cleaning process, press the green button again and solution will stop; brushes will raise; after a short delay squeegee will raise; and the motor will turn off.

NOTE: It is intended that this be done while traversing. If you stop and do it, some solution can be left on the ﬂ oor.

Reprogramming One Touch

If you do not want to use the factory default settings, you may reprogram the setting by following the procedures below:

1. Place the machine in the desired scrub condition by using the one touch and individual switches.

2. Press and hold the green one touch button until you see the LCD display ﬂ ash, then release the button. NOTE: The time required should be approximately 5 seconds.

3. When you activate or deactivate the one touch, it will now be set to your preference for cleaning. These settings will remain until you disconnect power or reprogram them. NOTE: When programming one touch, be sure squeegee is in automatic (middle) position, otherwise you may program squeegee either up or down all the time.

How to Return One Touch to Factory Default Settings

To restore the factory settings, follow the procedures below:

1. Press and hold the green one touch button until you see the LCD display ﬂ ash two times (5 seconds between ﬂ ashes), see ﬁ gure 11. NOTE: The time required for this will be

approximately 10 seconds.

2. The settings should be returned to 4 bars of solution and 2 bars of brush pressure. NOTE: The squeegee vac switch must be in the middle position for default settings to work.

Figure #11

-20- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

HOW TO OPERATE THE MACHINE

How To Operate the Squeegee (“S Class” models only)

The squeegee wipes the ﬂ oor while the vacuum motor removes the dirty solution from the ﬂ oor. Use your right hand to lower or raise the squeegee handle. To operate the squeegee, follow this procedure:

1. To lower the squeegee and start the vac motor move the

squeegee lever to the right and down. See ﬁ gure #12.

2. To raise the squeegee, lift the squeegee lever up. See ﬁ gure

#13.

Note: The center position lets the vac motor continue to run with the squeegee off the ﬂ oor to avoid drips.

How to Fill The Solution Tank

CAUTION!

Make sure water or solution does not enter the opening for the vacuum motor See ﬁ gure #14.

The solution tank can be ﬁ lled in the front or through the clear drain hose at the rear of the machine. To ﬁ ll the solution tank follow this procedure:

1. Remove the solution tank lid. See ﬁ gure #15.

2. Fill the solution tank with water.

3. Add a cleaning chemical to the water. for the correct amount,

follow the directions shown on the container.

Figure #12

Figure #13

Figure #14

WARNING!

Water solutions or cleaning materials used with this type of machine can leave wet areas on the ﬂ oor surface. These areas can cause a dangerous condition for the operator or other persons. Always put CAUTION signs near the area you are cleaning.

WARNING!

Machines can ignite ﬂ ammable materials and vapors. Do not use with or near ﬂ ammables such as gasoline, grain dust, solvents, and thinners. Only use a cleaning concentration recommended by the chemical manufacturer.

WARNING!

Nilﬁ sk Alto recommends a maximum water temperature of 120°F(49°C)

4. Replace the solution tank lid.

5. When ﬁ lling the machine from the rear, position the clear drain

hose against bracket and insert hose as shown in ﬁ gure 16. Solution level can be viewed from the back of the machine.

Figure #15

Figure #16

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 21 -

HOW TO OPERATE THE MACHINE

How To Traverse Machine

NOTE: Put the machine in the slow traverse speed (see ﬁ gure #17). Use the machine in an area that has no furniture and objects until you can do the following:

1. Move the machine in a straight direction, forward and backward.

2. Stop the machine safely.

3. Move the machine in a straight direction after you turn the machine.

To move the machine, follow this procedure:

1. Turn the key switch “ON” position.

2. Put the brush switch in the “UP” position.

3. Raise the squeegee.

4. To go forward, push one or both of the yellow forward switches (see ﬁ gure #18).

5. To stop the machine, release the yellow forward switches.

6. To go backward, push in on the white reverse button and one of the yellow forward switches at the same time (see ﬁ gure #19).

7. To turn the machine, push the rear of the machine to the side.

8. When you stop the machine, turn the key switch “OFF”.

How to Clean a Floor

Figure # 17

WARNING!

Water solutions or cleaning materials used with this type of machine can leave wet areas on the ﬂ oor surfaces. These areas can cause a dangerous condition for the operator or other persons. Always put CAUTION signs near the area you are cleaning.

To clean a ﬂ oor, follow this procedure:

1. Put the water and a cleaning chemical in the clean solution tank.

2. Turn the key switch “ON”. If one touch feature is used, press the green button and proceed to step 6 (deluxe models only).

3. Lower the squeegee.

4. Put the brush switch in the “DOWN” position.

5. Adjust the ﬂ ow of clean solution to the ﬂ ow desired.

6. Move the machine across the ﬂ oor in the forward direction.

7. Make a 180 degree turn.

NOTE: When you make more passes across the ﬂ oor, let the brushes clean approximately 2 inches of the area already cleaned by the brushes.

NOTE: During most cleaning procedures, apply and remove the solution in one operation.

Figure #18

Figure #19

Page -22- Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

HOW TO OPERATE THE MACHINE

How to Clean a Very Dirty Floor

To clean a very dirty ﬂ oor, follow this procedure:

1. Apply solution to the ﬂ oor.

2. Do not lower the squeegee.

3. Do not activate the vacuum motor.

4. Lower the brushes and scrub the ﬂ oor.

5. Leave the solution on the ﬂ oor long enough for the solution to begin

cleaning the ﬂ oor.

6. Scrub the ﬂ oor again with additional solution, picking up all the solution

with the squeegee

MAINTENANCE

WARNING!

Maintenance and repairs must be done by authorized personnel only.

WARNING!

Always empty the solution tank and recovery tank before doing any maintenance.

Figure #20

WARNING!

Keep all fasteners tight.

These Maintenance Procedures Must Be Done Every Day

Keep the machine clean, it will need fewer repairs and have longer life.

Do These Procedures When You Begin Your Work Period

1. Turn off key switch.

2. Unplug charger from AC outlet and wrap cord around bracket at rear of

machine.

3. Make sure the recovery tank lid is on correctly (see ﬁ gure #20).

4. Make sure the Screen ﬁ lter over the vacuum motor is clean and in position

(see ﬁ gure #20).

5. Make sure the valve on the recovery drain hose is clean. Tightly close the

valve.

6. Make sure brush housings and skirts are in position on the brush head.

7. Make sure the brushes are in position and installed correctly

8. Check the installation of the squeegee and squeegee hose.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 - 23 -

MAINTENANCE

Do These Procedures When You End Your Work

1. Drain the solution tank (Figure #21, item A) and the recovery tank (Figure #21, item B). To drain the tanks , follow this procedure:

a. Turn the key switch “OFF”.

b. Remove the drain hose from the back of the machine.

c. Put the end of the hose over a drain or bucket.

d. Recovery Tank: Turn the valve housing to the left (see ﬁ gure #22). To open the

valve completely, turn the housing fully to the left and pull the housing off of the valve.

Solution Tank: When hose is lowered below water level, the water will drain (see

ﬁ gure 23).

2. Flush the tanks. To ﬂ ush the tanks, put clean water in the tank through the opening on top of the tank.

3. If a tank or drain hose has an obstruction, use a high pressure water hose to ﬂ ush the tank or hose. Put the water hose into the drain hose.

4. Leave the tanks and the drain valves open to dry in the air.

5. Check the squeegee blade. Use a cloth to clean the squeegee blade. If the squeegee blade is damaged or worn, turn or replace the blade.

6. Check and clean the recovery lid gasket. Use a mild cleaning solution and rinse the parts in clean water.

Check the batteries and add distilled water as needed. The correct level is within 1/4 inch of the bottom of the tube in each cell.

Figure #21

Figure #22

CAUTION!

Tap water may contain contaminants that will damage batteries. Batteries must be re-ﬁ lled with distilled water only.

WARNING!

Lead acid batteries generate gases which can cause an explosion. NO SMOKING. Always wear eye protection and protective clothing when working near batteries.

Use a clean cloth and wipe the surface of the machine.

Charge the batteries. See the instruction in the section of this book called “How To Charge The Batteries”.

Figure #23

-24- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

MAINTENANCE

These Maintenance Procedures Must Be Done Every Week:

WARNING!

Maintenance and repairs must be done by authorized personnel only. Always empty the solution tank and the recovery tank before doing any maintenance. Keep all fasteners tight.

WARNING!

Always wear eye protection and protective clothing when working near batteries. Do not put tools or other metal objects across the battery terminals or the tops of the batteries.

CAUTION!

To prevent damage to the machine, and discharge across the tops of the batteries, do not ﬁ ll the batteries above the bottom of the tube in each cell. Wipe any acid from the machine or the tops of the batteries. Do not add acid to battery after installation.

NOTE: Always turn off key switch before servicing the machine.

WARNING!

Always wear eye protection and protective clothing when working near batteries. NO SMOKING!

1. To inspect batteries, tip up recovery tank until it locks in up position.

See Figure #24.

2. Disconnect the batteries. Use a cloth and a solution of ammonia

or bicarbonate of soda to wipe the top of the batteries. Clean the battery terminals. Reconnect the batteries.

3. Check the hoses for leaks, obstructions and other damages.

4. Check and clean the ﬁ lter screen in the solution hose. To clean the

screen, follow this procedure:

a. Turn the connector to the left.

b. Remove and clean the ﬁ lter screen.

c. Install the ﬁ lter screen in the hose. Turn the connector to the

right to connect the hose.

5. Use a grease gun to lubricate the drive wheel and the casters. See

ﬁ gure #25.

6. Check tire pressure. Tire pressure should be about 50 psi (3.45

bar).

Figure #24

Figure #25

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 25 -

MAINTENANCE

7. Check the squeegee and the scrub brushes or the pad drivers for damage.

8. Check the squeegee and the vacuum hose for damage, leaks and obstructions.

Maintenance For The Squeegee

To remove the squeegee, follow this procedure:

1. Remove the squeegee assembly by loosening the two knobs that attach the squeegee to the machine. Pull the squeegee assembly off. See ﬁ gure #26.

2. Inspect the squeegee blade.

3. If the blade is worn, turn the blade so that a new edge is in the wiping position.

4. Reinstall squeegee assembly on the machine.

How To Adjust The Squeegee

The following adjustments are set at the factory, however they may require slight adjustment.

Adjusting Squeegee Pressure:

To adjust the pressure, refer to Figure #27. Proper adjustment will produce a uniform ﬂ are along the rear blade when the machine is moved forward. To increase pressure, tighten the nuts on each side of the swing arm. To decrease the pressure, loosen the nuts on each side.

Adjusting Squeegee Tilt:

The tilt of the squeegee causes the rear blade to raise up in the center or on the ends, depending on which direction the tilt is changed. For tilt adjustment, refer to ﬁ gure # 28. Loosen left and right screw “X”. In order to bring the rear blade down in the center, tip “Y” down. To bring both ends down, tip “Y” up. Make very small adjustments and try it until a uniform ﬂ are is achieved. Changing the tilt may also require readjusting the squeegee pressure.

Figure #26

Figure #27

Figure #28

-26- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

MAINTENANCE

Adjusting Squeegee Blades

When properly installed the front blade should be approximately .12 above the rear blade. See ﬁ gure #29.

WARNING!

Maintenance and repairs must be done by authorized personnel only.

WARNING!

Electrical repairs must be done by authorized personnel only.

Consult your Nilﬁ sk Alto Authorized Service Person to do the service procedures.

0.12" (3.0 mm)

Use only genuine Nilﬁ sk Alto parts.

How to Clean the Solution Line

If the solution line becomes clogged, pull the ﬁ lter assembly out from behind the brush housing (Figure 30). Turn solution vavle off. Remove the ﬁ lter screen (Figure 31, B) and clean or replace it. Turn solution valve back on (ﬁ gure 31, A) and push ﬁ lter assembly back inside frame.

Figure #29

Figure #30

Figure #31

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 27 -

HOW TO CORRECT PROBLEMS IN THE MACHINE

PROBLEM CAUSE ACTION

The machine does not remove all the water from the ﬂ oor.

The squeegee is up Lower the squeegee.

The vacuum tank is full. Drain the tank.

The screen ﬁ lter is dirty. Clean the screen ﬁ lter.

The batteries do not give the normal running time.

There is an obstruction or damage in the squeegee, squeegee hose or standpipe.

The vacuum motor is not running. Check for tripped breaker. Have an

The squeegee hose is disconnected. Connect the hose.

The squeegee blade is damaged, worn, or incorrectly installed.

The squeegee pressure is not correctly adjusted.

The gaskets on the cover of the recovery tank are damaged.

The battery terminals are dirty or damaged. Clean the terminals and connectors.

The electrolyte level is too low. Add distilled water to each cell and charge

The batteries are not fully charged. Charge the batteries for a full 16 hour

The charger is damaged. Have an authorized service person repair

The battery is defective. Check voltage of each cell while

The batteries are disconnected. Connect the batteries.

Remove the obstruction or repair the damage.

authorized service person make repairs.

Turn or replace the squeegee blade. Correctly install the squeegee blade.

Adjust the pressure of the squeegee.

Replace the gaskets.

Replace the damaged cables. Charge the batteries.

the batteries.

charge.

the charger.

discharging.

The cleaning is not even. The scrub brushes or pads are worn. Replace the scrub brushes or pads.

There is damage to the brush assembly, casters or the solution valve.

The brush motors are not running. Check for tripped breaker, reset. Check for

The solution level is low. Fill the solution tank.

Have an authorized service person make the needed repairs.

loose connections.

NOTE: If the motors continue to stop

The machine does not run. The machine loses power. Reset the circuit breaker.

consult an authorized service person.

Check wire connection to traverse motor. Replace the fuses. Check the batteries connections. Check parking brake overide lever position (if installed) NOTE: If the motors continue to stop, consult an authorized service person.

-28- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770L / 784L / 795L WB Common Error Codes

ERROR CODE CAUSE ACTION

3100 3101 3102 3103 3104 3105

7600 Open circuit on brush motors

7603 Possible short circuit on

7800 Open circuit on traction motor. Check the traction motor connection on

7802 Traction motor current has exceeded

9000 Brushes not ﬁ tted. Brushes 2F01 Drive system activated prior to turning key

NOTICE: IF ERROR CODE/FAULT OCCURS TURN KEY SWITCH OFF AND THEN BACK ON.

For further codes and explanations, contact a Nilﬁ sk Alto Service Center.

Probable short circuit of output device. Check the traction, brush and vac motor

connections on the trio and check wiring from these connectors down to the traction, brush and vac motors.

Check the brush motor connection on the

or brush motor wiring.

brush motors or wiring.

current limit for the fold back time.

switch “ON”.

trio and check the wiring from this connector down to the brush motor.

trio and wiring down to motor. Excessive driving up an incline, or machine

driven up against an obstacle or step.

Release traverse switch and reactivate.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 29 -

-30- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770 S SCRUBTEC 770 L SCRUBTEC 784 S SCRUBTEC 784 L SCRUBTEC 795 S SCRUBTEC 795 L

Section II

Parts and Service Manual

(70935A)

U.S. Patent No. 6,760,947; No. 6,105,192; No. RE39, 581 (Deluxe Machines)

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 31 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Solution Tank Assembly 12/09

-32- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Solution Tank Assembly 12/09

Item Ref. No. Qty Description

1 881317 6 Battery - 250 AH - 6 Volt 891384 6 Battery - 330 AH - 6 Volt 2 842406 3 Series Cable - 9” 3 40613A 1 Battery Cable, Black NOTE 1 4 40612A 1 Battery Cable, Red NOTE1 5 61713A 1 Tank Support Bracket 6 170892 2 Washer, Lock 1/4 7 170915 2 Screw, 1/4-20 x 3/4 Hex 8 962027 2 Screw, 8-32 x 1/2 PN 9 50966A 1 Latch 10 30590A 1 Solution Tank 11 60480A 1 Hose Bracket 12 80108A 4 Screw, 10-24 x 1/2 PN 13 30598A 1 Drain Hose 14 51346A 1 Spring, Hose 15 872010 1 Hose Clamp 16 98465A 1 Clamp, Metal 17 980657 1 Washer, Lock 1/4 18 962139 1 Screw, 1/4-20 x 5/8 Hex 19 61590A 1 Hose Hanger Bracket 20 59614A 1 Battery Drain Valve 21 53571A 4 Hose Clamp 22 30453A 1 Hose 23 822802 1 Elbow 24 30445A 2 Solution Hose 25 50358A 1 Connector 26 838517 1 Filter Screen 27 830214 1 Hose Adapter 28 50359A 1 Solution Adapter 29 53568A 1 Hinge 30 980614 6 Washer, 1/4 External 31 85395A 6 Screw, 1/4-20 x 1/2 PN 32 30655A 1 Front Cover 33 81105A 2 Nut, 3/8-16 ESNA 34 980645 2 Washer, 3/8 Flat 35 962798 1 Screw, 10-24 x 1/2 PN 36 30498A 1 Solution Lid 37 38020A 1 Strap 38 920296 2 Nut, 10-24 ESNA 39 50966A 1 Keeper, Latch 40 930090 2 Rivet, 5/32 x 9.16 (Prior to DL0055) 85614A 2 Screw, 8-32 x 3/4 PN (starting w/DL0055) 41 962666 1 Screw, 10-24 x 3/4 PN 42 962522 2 Screw, 3/8-16 x 2 Hex 43 87054A 2 Washer, 3/8 Fender 44 80289A 2 Screw, 10 x 1/2 Tapping PN 45 50248A 2 Clamp, Hose 46 81109A 2 Nut, 8-32 SS Elastic Lock 47 54088A 1 Valve, Shut-off

NOTE 1: Only used on the following models: 05210G, 05220G.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 33 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Recovery Tank Assembly 12/09

-34- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Recovery Tank Assembly 12/09

Item Ref. No. Qty Description

1 962798 1 Screw, 10-24 x 1/2 PN 2 30057A 1 Recovery Lid 3 920296 2 Nut, 10-24 ESNA 4 30065B 1 Gasket, Lid 5 38020A 1 Strap 6 962666 1 Screw, 10-24 x 3/4 PN 7 58069A 1 Vac Filter 8 39338B 1 Stand Tube 9 837304 2 O-Ring 10 82100A 1 Locknut 11 41809A 4 Contact 12 43402A 2 Housing, Blue 13 920797 1 Nut 14 643418 1 Gasket, Vac 15 58533A 3 Vac Motor Spacer 16 45019A 1 Vac Motor (order 2 each #11 and #19) [ ] 40830A 2 Brushes, Carbon 17 87026A 3 Washer, 1/4 Flat 18 85728A 3 Screw, 1/4-20 x 4 Hex 19 43401A 2 Housing, Black 20 872010 3 Clamp 21 674110 1 Vac Exhaust Hose 22 962957 2 Screw, 10-16 x 1/2 PN 23 52206A 1 Chain 24 30620A 1 Squeegee Adapter 25 35192A 1 Squeegee Hose 26 30227A 1 Drain Housing 27 30226A 1 Drain Plug 28 52560A 1 O-Ring 29 30225A 1 Drain Body 30 832002 1 Drain Valve Clamp 31 35165A 1 Recovery Drain Hose 32 61591A 1 Recovery Tank Support 33 87622A 1 Washer, Nylon 34 80043A 1 Shoulder Screw 35 30068A 2 Hinge Pin (included with item #36) 36 30673A 1 Tank, Recovery, 770 S 30697A 1 Tank, Recovery, 770 L 30698A 1 Tank, Recovery, 784 S 30699A 1 Tank, Recovery, 784 L 30700A 1 Tank, Recovery, 795 S 30701A 1 Tank, Recovery, 795 L 37 40002A 1 Float Switch (includes items, #38 & 2 ea. #11& #12) 38 56459A 1 Strain Relief (included in item #37) 39 87612A 1 Seal

[ ] = Not Shown

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 35 -

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Panel Assembly / Solo Speed Controller 12/09

-36- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Panel Assembly / Solo Speed Controller 12/09

Item Ref. No. Qty Description

1 40838A 1 Cord, Charger NOTE1 2 61598A 1 Bracket, Cord Wrap NOTE1 3 85391A 4 Screw, 1/4-20 x 5/8 PN 4 30594A 1 Rear Cover 5 81104A 16 Nut, ESNA 1/4-20 6 87007A 3 Washer, 1/4 Flat 7 980651 6 Washer, 5/16 Flat 8 80030A 2 Shoulder Bolt 9 52548A 1 Screw Tab NOTE 1 10 40739B 1 Charger, Battery NOTE 1 11 920110 4 Nut, ESNA 5/16-18 12 53569A 4 Spacer 13 80285A 4 Screw, Set 5/16-18 x 1 3/4 14 83302A 1 Stud, 1/4-20 15 854849 1 Insulator 16 170781 1 Screw, Set 1/4-20 x 3/4 17 193951 1 Trim, 8” 18 83307A 11 Stud, 1/4-20 19 61589A 1 Electrical Panel 20 54764A 4 Insert, 1/4-20 21 54763A 2 Insert, 8-32 22 40736A 1 Main Wiring Harness, Std. 23 40125A 1 Contactor, Vacuum 24 41801A 1 Contactor, Brush 25 41802A 1 Contactor, Main 26 61682A 1 Cable, Upper 27 40735A 1 Controller, Solo 28 40759A 1 Traverse Harness 29 80254A 2 Screw, 8-32 x 1 30 962666 1 Screw, 10-24 x 3/4 31 912287 1 Rectiﬁ er 32 920296 1 Nut, ESNA 10-24 33 85700A 1 Screw, 1/4-20 x 1 34 87026A 2 Washer, 1/4 Flat 35 608210 1 Spacer 36 65628A 1 Lever, Cable 37 962304 2 Screw, Set 5/16-18 x 1/2 (must use red Loctite) 38 61584A 1 Squeegee Lift Bracket 39 920056 2 Nut, ESNA #6-32 40 61586A 1 Shaft 41 61585A 1 Squeegee Lift Lever 42 438360 1 Spring 43 960510 1 Shoulder Screw 44 52557A 1 Squeegee Knob 45 980666 1 Washer, 3/8 External 46 85389A 1 Screw, 3/8-16 x 5/8 47 68643A 1 Wear Plate 48 980675 2 Washer 49 962546 2 Screw, 10-24 x 1/2 50 47388A 1 Switch 51 962980 2 Screw, 6-32 x 1 52 962139 2 Screw, 1/4-20 x 5/8 53 980614 2 Washer, 1/4 External 54 902731 2 Nylon Bearing 55 54436A 1 Plug, Hole 1 3/8

[ ] 40856A 1 Cable-Electrical Panel NOTE 2 [ ] 40855A 1 Cable-Battery NOTE 2

[ ] = Not Shown

NOTE 1: Only used on the following models: 05210G, 05220G. NOTE 2: Only used on the following models: 05210F, 05211F, 05220F, 05221F, 05230F, 05231F

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 37 -

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Panel Assembly / I-Drive Speed Controller 12/09

-38- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Panel Assembly / I-Drive Speed Controller 12/09

Item Ref. No. Qty Description

1 40838A 1 Cord, Charger NOTE 1 2 61598A 1 Bracket, Cord Wrap NOTE 1 3 85391A 4 Screw, 1/4-20 x 5/8 PN (QTY of 2 on models without onboard charger) 4 30594A 1 Rear Cover 5 81104A 16 Nut, ESNA 1/4-20 (QTY of 9 on models without onboard charger) 6 87007A 3 Washer, 1/4 Flat 7 980651 6 Washer, 5/16 Flat 8 80030A 2 Shoulder Bolt 9 52548A 1 Screw Tab NOTE 1 10 40739B 1 Charger, Battery NOTE 1 11 920110 4 Nut, ESNA 5/16-18 12 53569A 4 Spacer 13 80285A 4 Screw, Set 5/16-18 x 1 3/4 14 83302A 1 Stud, 1/4-20 15 854849 1 Insulator 16 170781 1 Screw, Set 1/4-20 x 3/4 17 83307A 11 Stud, 1/4-20 18 61589C 1 Electrical Panel 19 54764A 4 Insert, 1/4-20 20 54763A 2 Insert, 8-32 21 40288A 1 Main Wiring Harness, Std. 22 40125A 1 Contactor, Vacuum 23 41801A 1 Contactor-Brush 24 41801A 1 Contactor-Main 25 61682A 1 Cable, Upper 26 41019A 1 Controller I-Drive [ ] 41021A 1 Traverse Harness 27 80380A 2 Screw 8-32 x 1.25 28 962666 1 Screw, 10-24 x 3/4 29 912287 1 Rectiﬁ er 30 962727 1 Scr 8-32 x .50 31 41007A 1 Relay-Traverse power 32 920296 1 Nut, ESNA 10-24 33 85700A 1 Screw, 1/4-20 x 1 34 87026A 2 Washer, 1/4 Flat 35 608210 1 Spacer 36 65628A 1 Lever, Cable 37 962304 2 Screw, Set 5/16-18 x 1/2 (must use red Loctite) 38 61584A 1 Squeegee Lift Bracket 39 920056 2 Nut, ESNA #6-32 40 61586A 1 Shaft 41 61585A 1 Squeegee Lift Lever 42 438360 1 Spring 43 960510 1 Shoulder Screw 44 52557A 1 Squeegee Knob 45 980666 1 Washer, 3/8 External 46 85389A 1 Screw, 3/8-16 x 5/8 47 68643A 1 Wear Plate 48 980675 2 Washer 49 962546 2 Screw, 10-24 x 1/2 50 47374A 1 Switch 51 962980 2 Screw, 6-32 x 1 52 962139 2 Screw, 1/4-20 x 5/8 53 980614 2 Washer, 1/4 External 54 902731 2 Nylon Bearing 55 54436A 1 Plug, Hole 1 3/8

[ ] 40856A 1 Cable-Electrical Panel NOTE 2 [ ] 40855A 1 Cable-Battery NOTE 2

[ ] = Not Shown

NOTE 1: Only used on the following models: 05210G, 05220G. NOTE 2: Only used on the following models: 05210F, 05211F, 05220F, 05221F, 05230F, 05231F

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 39 -

Nilﬁ sk ALTO

SCRUBTEC 770 L / 784 L / 795 L

Electrical Panel Assembly Drawing 2/07

Drawing # 10855E

-40- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770 L / 784 L / 795 L

Electrical Panel Assembly Parts List 2/07

Item Ref. No. Qty Description

1 962798 1 Screw 2 87624A 2 Washer, Pulley 3 85391A 2 Screw, 1/4-20 x 5/8 PN 4 30626A 1 Rear Cover 5 81104A 10 Nut, ESNA 1/4-20 6 87007A 4 Washer, 1/4 Flat 7 980651 6 Washer, 5/16 Flat 8 80030A 2 Shoulder Bolt 9 57275A 1 Pulley 10 980614 2 Washer, 1/4 External Lk 11 920110 4 Nut, ESNA 5/16-18 12 53569A 4 Spacer 13 80285A 4 Screw, Set 5/16-18 x 1 3/4 14 83302A 2 Stud, 1/4-20 15 854849 2 Insulator 16 170781 2 Screw, Set 1/4-20 x 3/4 17 193951 1 Trim, 8” 18 83307A 3 Stud, 1/4-20 19 61589A 1 Electrical Panel 20 54764A 2 Insert, 1/4-20 21 54763A 2 Insert, 8-32 22 40742A 1 Main Wiring Harness, Dlx 23 61680A 1 Cable, Spring 24 53424A 1 Spring, Cable 25 58409A 1 Sleeve, Spring 26 61681A 1 Cable, Upper 27 41802A 1 Contactor 28 40854A 1 Harness, Interface 29 40743B 1 Controller, Trio 30 80105A 2 Screw, 8-32 x 1 1/4 31 86004A 2 Screw, 1/4-20 x 1 1/2 32 61595A 1 Bracket, Actuator 33 920296 1 Nut 34 40745A 1 Actuator, Squeegee 35 962139 2 Screw, 1/4-20 x 5/8 Hex 36 69872A 1 Bracket, Pulley 37 54436A 1 Plug, Hole 1 3/8”

Nilﬁ sk ALTO

Drawing # 10855E

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 41 -

Nilﬁ sk ALTO

SCRUBTEC 770L / 784L / 795L

Control Panel Assembly 12/09

18A 18B

Item Ref. No. Qty Description

1 30592A 1 Control Handle 2 85815A 2 Screw, 5/16-18 x 1 1/2 3 980205 6 Washer, 5/16 Flat 4 85813A 4 Screw, 5/16-18 X 1 5 920110 4 Nut, LK 5/16-18 6 52556A 1 Reverse Switch 7 40750A 1 Traverse Potentiometer “L” 8 50962A 1 Knob, Traverse 9 962262 2 Screw, Set 8-32 x 1/2 (included w/# 8 & 36) 10 11131A 2 Switch Asm. 12 50961A 4 Spring, Switch 13 80104A 4 Screw, 10-32 x 1/2 Oval 15 980608 4 Washer, #6 Flat 16 962330 4 Screw, 6-32 x 3/8 Pan 17 *see table 1 Key (included w/ # 18) 18A 40883A 1 Switch, Key (*see table below) 18B 40786A 1 Switch, Key (*see table below) 19 40748A 1 Switch, Green Push Button 20 40880A 1 LCD Display 21 40758A 1 Switch, Black Push Button 22 40168B 2 Switch, Momentary Rocker 23 40747A 1 Switch, 3 Position Rocker

Item Ref. No. Qty Description

24 962957 4 Screw, 10-16 x 1/2 25 *see table 1 Label, Control 26 34264A 1 Gasket 27 *see table 1 Panel, Control “L” 28 41431B 2 Circuit Breaker, 35A 29 41423B 1 Circuit Breaker, 5A 30 85391A 3 Screw, 1/4-20 x 5/8 31 980614 2 Washer, 1/4 External 32 920208 2 Nut, 1/4-20

40883A 17 53831A x Key (included with #18A) 18A 40883A x Switch, Key 25 70885A x Label, Control 27 61597A x Panel, Control

40786A 17 40786K x Key (included with #18B) 18B 40786A x Switch, Key 25 70962A x Label, Control 27 61739A x Panel, Control NI 40786S 1 Spacer, Key Switch

-42- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770S / 784S / 795S

Control Panel Assembly / Solo Speed Controller 12/09

Item Ref. No. Qty Description

1 30592A 1 Control Handle 2 85815A 2 Screw, 5/16-18 x 1 1/2 3 980205 6 Washer, 5/16 Flat 4 85813A 4 Screw, 5/16-18 X 1 5 920110 4 Nut, LK 5/16-18 6 52556A 1 Reverse Switch 7 40738A 1 Traverse Potentiometer “S” 8 50962A 1 Knob, Traverse 9 962262 4 Screw, Set 8-32 x 1/2 (included w/# 8 & 36) 10 11131A 2 Switch Asm. 12 50961A 4 Spring, Switch 13 80104A 4 Screw, 10-32 x 1/2 Oval 15 980608 4 Washer, #6 Flat 16 962330 4 Screw, 6-32 x 3/8 Pan 17 *see table 1 Key (included w/ # 18) 18A 40883A 1 Switch, Key (*see table below) 18B 40786A 1 Switch, Key (*see table below) 24 962957 4 Screw, 10-16 x 1/2 26 34264A 1 Gasket 28 41431B 2 Circuit Breaker, 35A 29 41423B 1 Circuit Breaker, 5A 30 85391A 3 Screw, 1/4-20 x 5/8 31 980614 2 Washer, 1/4 External

Item Ref. No. Qty Description

32 920208 2 Nut, 1/4-20 33 962968 2 Screw, 10-24 x 1/2 34 40749A 1 Switch, Momentary Rocker 35 47381B 1 Switch, Mantain Rocker 36 55502A 1 Knob, Control 37 *see table 1 Label, Control 38 *see table 1 Panel, Control 39 41448B 1 Circuit, Breaker, 30A 40 41422B 1 Circuit, Breaker, 25A 41 44308B 1 Solution Modulator 42 920296 2 Nut, Lk 10-24 43 40898A 1 Meter, Battery/Charger 44 912226 1 Meter, Hour

40883A 17 53831A x Key (included with #18A) 18A 40883A x Switch, Key 37 70852A x Label, Control 38 61588A x Panel, Control

40786A 17 40786K x Key (included with #18B) 18B 40786A x Switch, Key 37 70961A x Label, Control 38 61720A x Panel, Control NI 40786S 1 Spacer, Key Switch

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 43 -

Nilﬁ sk ALTO

SCRUBTEC 770S / 784S / 795S

Control Panel Assembly / I-Drive Speed Controller 12/09

-44- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770S / 784S / 795S

Control Panel Assembly / I-Drive Speed Controller 12/09

Item Ref. No. Qty Description

1 30592A 1 Control Handle 2 85815A 2 Screw, 5/16-18 x 1 1/2 3 980205 6 Washer, 5/16 Flat 4 85813A 4 Screw, 5/16-18 X 1 5 920110 4 Nut, LK 5/16-18 6 52556A 1 Reverse Switch 7 40738A 1 Traverse Potentiometer “S” 8 50962A 1 Knob, Traverse 9 920056 2 Nut 6-32 Elastic Stop 10 11131A 2 Switch Asm. 12 41423B 1 Circuit Breaker-5A (brush actuator motor) 13 41422B 1 Circuit Breaker-22A (vac motor) 14 41448B 1 Circuit Breaker-30A (traverse motor) 15 41431B 1 Circuit Breaker-35A (brush motor) 16 41431B 1 Circuit Breaker-35A (brush motor) 17 55502A 1 Knob, Control 18 47381B 1 Switch-Maintain Rocker (brush UP/DOWN) 19 40749A 1 Switch-Momentary Rocker (brush pressure) 20 41008A 1 Display-Tru-Charge 21 40786A 1 Switch, Key [ ] 40786K A/R Key (for 40786A) 4 40786S 1 Spacer-Key Switch 22 962957 4 Screw, 10-16 x 1/2 23 920208 2 Nut 1/4-20 24 980614 2 Washer-External 25 85391A 3 Scr 1/4-20 x .625 26 912226 1 Hour Meter 27 61720B 1 Panel-Control [ ] 34264A 3 Gasket 28 70961B 1 Label-Console 29 44308B 1 Solution Modulator 30 85313C 2 Scr 6-32 x .38

[ ] = Not Shown

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 45 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Squeegee Swing Arm Assembly 12/09

-46- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770 / 784 / 795

Squeegee Swing Arm Assembly 12/09

Item Ref. No. Qty Description

1 81303A 1 Nut, ¼-28 2 61679A 1 Cable, Lower 3 87625A 4 Washer,Nylon 1¼x¼x1/32 4 87623A 2 Washer, Nylon 1¼x¼x1/8 5 38021A 1 Strap 6 60678C 1 Pivot Bracket 7 87624A 2 Washer, Nylon 1½x¼x1/8 8 80015A 1 Screw, Shoulder 9 86004A 2 Screw 1/4-20 x 1½ 10 87026A 4 Washer 11 51613A 1 Bumper 12 980657 1 Washer, ¼ Lock 13 920208 1 Nut, Hex ¼-20 14 962798 1 Screw, 10-24 x .50 15 68016A 2 Stud 16 920256 2 Nut, Hex 17 170915 2 Screw, SS Hex 18 64905A 3 T Handle 19 980651 2 Washer, Flat .312 20 81104A 5 Nut, Hex ESNA SS 21 61267A 1 Tube Bracket 22 85730A 1 Screw, .375-16 x 1¼ 23 87031A 1 Washer, 3/8 Flat 24 920296 1 Nut, 10-24 ESNA SS 25 81105A 1 Nut, ESNA SS 26 53423A 2 Spring, Squ. Pressure 27 920110 1 Nut, ESNA 28 60452A 1 Swing Arm, Front 29 57275A 2 Pulley 30 60332A 1 Swing Arm, Rear

Nilﬁ sk ALTO

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 47 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784

Squeegee Assembly 12/09

-48- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770 / 784

Squeegee Assembly 12/09

Item Ref. No. Qty Description

10803KL Squeegee Asm. 1 25201B 2 Knob 2 34260B 1 Squeegee Gasket 3 81301A 2 Nut, 3/8-16 Jam SS 4 30048A 2 Wheel, Gide 4” Diam. 5 53185A 2 Ring, 3/8 ID Snap 6 60272B 1 Channel, Sq. Weldment 7 30058A 1 Spacer, Squeegee 8 30069L 1 Blade, Rear Linatex (STD) [ ] 30557A 1 Blade-Rear Gum Rubber (OPT) 9 80280A 2 Nut, Squeegee,Backup 10 80011A 2 Screw, 3/8-16 x 3 11 60252A 1 Strap, Clamp Sq. Ret. 12 930086 2 Rivet, 3/16 x .450 Alum. 13 50835A 1 Latch, Sq. Clamp 14 30717L1 1 Blade, Front Linatex (STD) [ ] 30091A 1 Blade-Front Urethane (OPT) 15 60254A 2 Bolt, Shoulder 5/16 x 2 ¼ 16 30049B 4 Wheel, Squeegee 17 81104A 2 Nut, ¼ -20 18 60243A 2 Bracket, Sq. Wheel 19 60358A 2 Shim, Squeegee Wheel 20 980657 4 Washer, ¼ Lock 21 962720 4 Screw, ¼ -20 x ½ Hex

Nilﬁ sk ALTO

NOTE: When changing squeegee blades, it might be necessary to loosen screw #10; install and secure blades with clamp #13; then retighten screw #10. This will allow for different thickness.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 49 -

Nilﬁ sk ALTO

SCRUBTEC 795

Squeegee Assembly 12/09

-50- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 795

Squeegee Assembly 12/09

Item Ref. No. Qty Description

10817KL 1 Squeegee Assy (STD) 1 25201B 2 Knob 2 34260B 1 Squeegee Gasket 3 81301A 2 Nut, Jam SS 4 60248A 2 Sleeve 5 30048A 2 Guide Wheel 6 81217A 2 Nut, 1/4-20 ESNA 7 80316A 2 Screw, ¼-20 x 1 Flat SS 8 38715A 2 Spacer (38) 9 62712A 1 Air Duct 10 37016A 1 Grip Pad 11 80011A 2 Screw, .375-16 x 3.00 12 30718L2 1 Blade, Inner Linatex (STD) * 30718A 1 Blade-Front Gum Rubber (OPT) * 30954A 1 Blade-Front Urethane (OPT) 13 30935L 1 Blade, Outer Linatex (STD) * 30935A 1 Blade-Rear Gum Rubber (OPT) 14 62444A 1 Clamp, Weld 15 170932 2 Rivet 16 55722A 1 Squeegee Strap Latch 17 86004A 1 Screw, .25-20 x 1.50 Hex 18 62421A 1 End Clamp 19 54766A 2 Insert,Threaded 5/16-24 20 85702A 2 Screw, .25-20 x 1.75 21 64905A 2 T-Handle 22 85816A 2 Screw, .312-18 x 1.75 23 59971A 2 Wheel 24 65975A 2 Wheel Mount Bracket 25 920110 3 Nut, ESNA 26 81104A 6 Nut, Hex ESNA SS 27 69675A 1 Squeegee Base

Nilﬁ sk ALTO

* = Optional, Not Included

NOTE: When changing squeegee blades, it might be necessary to loosen screw #11; install and secure blades with clamp #14; then retighten screw #11. This will allow for different thickness.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 51 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Traverse System Assembly 2/05

30 13

-52- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

SCRUBTEC 770 / 784 / 795

Traverse System Assembly 2/05

Item Ref. No. Qty Description

1 66531A 1 Swing Arm Pin 2 836711 1 Hair Pin 3 81104A 2 Nut, .25-20 ESNA 4 69877A 1 Swing Bracket 5 85811A 2 Screw, .312-18 x .75 6 57275A 1 Cable Pulley 7 87623A 2 Washer, Nylon 1¼x¼IDx.120 8 86004A 1 Screw, .25-20 x 1.50 9 962288 6 Screw, .375-16 x 1 10 85700A 1 Screw, .25-20 x 1 11 920110 2 Nut, .312-16 ESNA 12 899769 2 Caster Assembly 13 81105A 12 Nut, .375-16 ESNA 14 59116A 1 Transaxle-Imperial NOTE 1 59116E 1 Transaxle-Imperial NOTE 2 15 85730A 4 Screw, Hex 16 59969A 2 Wheel Assembly [ ] 30039A 1 Innertube 59955A 2 Wheel, Foam Filled (opt.) 18 81221A 6 Lug Nut, 50-20 UNF 19 980614 3 Washer, Star Lock .25 20 61594A 1 Main Frame 21 65963A 2 Transaxle Mount 23 87625A 2 Washer, Nylon 1¼x¼IDx3/32 24 80011A 2 Screw, 3/8-16 x 3 25 81207A 2 Nut, 3/8-16 26 170883 2 Washer, Lock 3/8 27 58419A 2 Stud, 3/8M x 3/8F 28 980205 2 Washer, .25 Fender 29 69639A 1 Strap, Static 30 980645 6 Washer, Flat 3/8 31 962244 4 Screw, 3/8-16 x ¾ 32 980638 4 Lockwasher 3/8

Nilﬁ sk ALTO

[ ] 32417B 2 Wheel Cover NOTE 2

[ ] = Not Shown

NOTE 1: Only used on the following models: 05210G, 05220G. NOTE 2: Only used on the following models: 05210F, 05211F, 05220F, 05221F, 05230F, 05231F.

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 53 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Brush Head Assembly Drawing 2/05

-54- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Brush Head Assembly Parts List 11/07

Item Ref. No. Qty Description

1 82501A 2 Pin 2 766780 2 Hair Pin 3 38723A 2 Nylon Spacer 4 52497A 1 Actuator & Tube Asm. (S) 52499A 1 Actuator & Tube Asm. (L) [ ] 40910a 1 Potentiometer (Circuit Board) [ ] 40866A 1 Housing-Potentiometer 5 980673 4 Washer NOTE 1 6 920278 16 Nut, Jam 50-20 7 980626 8 Washer, Lock .50 8 67705B 8 Sleeve Bearing 9 63032A 4 Linkage Bar 10 85838A 8 Screw, .50-201.50 11 41601A 4 Connector 40645A 4 Housing 12 45036B 2 Brush Motor 1.00 HP NOTE 3 13 170915 4 Screw, Hex 14 48703A 1 Electric Valve 15 50248A 2 Hose Clamp 16 30455A 1 Hose 17 81104A 5 Nut, .25-20 ESNA 18 87007A 2 Washer, Flat .25 19 38014A 1 Solution Splitter 20 962992 4 Screw, 8-32x.62 SS 21 55721A 1 Latch 22 30574A 1 Left Brush Housing (770) 30583A 1 Left Brush Housing (784) 30355A 1 Left Brush Housing (795) 23 38246A 1 Left Skirt (795) 24 782002 2 Clamp 25 30453A 2 Brush Hose 26 722021 2 Hose Clamp 27 81109A 4 Nut, 8-32 ESNA SS 28 962244 8 Screw, .375-16x.75 29 980638 8 Washer, Lock .375 30 962495 6 Screw, .25-20x1.00Pn Hd 31 838301 2 Brush Holder Spring 32 833802 2 Gimbal, Female 33 962737 6 Screw, 10-16x.88 (Pad Driver Only) 34 56941A 2 Center-Lock Asm. (Pad Driver Only)

Item Ref. No. Qty Description

35 11427B 2 Poly Brush Assembly-14 (770) 11424B 2 Poly Brush Assembly-17 (784) 11434B 2 Poly Brush Assembly-19 (795) 11426B 2 Grit Brush Assembly-14 (770) 11425B 2 Grit Brush Assembly-17 (784) 11433B 2 Grit Brush Assembly-19 (795) 17521C 2 Pad Driver Assembly-14 (770) 17520C 2 Pad Driver Assembly-17 (784) 17524B 2 Pad Driver Assembly-19 (795) 36 962714 2 Screw,.312-18x.75 Soc. 37 34400B 2 Gimbal, Male 38 61658A 2 Gimbal Collar 39 59856A 2 Rubber Washer 40 66232A 1 Brush Plate-28 61587A 1 Brush Plate-33 66234A 1 Brush Plate-38 41 85811A 4 Screw, .312-18x.75 Hex 42 85610A 1 Screw, .375-16x2.5 SS Pn 43 85616A 11 Screw, 10-22x.62 Pn SS (795) 44 69186A 1 Latch Tab 45 82004A 12 “T” Nut 10-32 (795) 46 55451A 1 Keeper 47 30575A 1 Right Brush Housing (770) 30584A 1 Right Brush Housing (784) 30247A 1 Right Brush Housing (795) 48 980638 1 Lockwasher 49 920248 2 Nut, .375-16 Jam Thin ESNA 50 59950A 1 Guide Wheel 51 980645 2 Washer, Flat .375 52 38247A 1 Right Skirt (795) 53 915102 2 Key 54 65966A 1 Brush Head Mount 55 920110 6 Nut, .312-18 ESNA [ ] 77091A 2 Label, Moving Parts NOTE 2

NOTE 1: Used only as required to square up linkage bars #9 to the frame. NOTE 2: Attach to Brush Motor. NOTE 3: Includes Item #11

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 55 -

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Brush Motor #45036A 2/05

Seam Location

Rotation

Item Ref. No. Qty Description

1 46734A 1 Stator Assembly (w/Magnets & Clips) 2 40318A 1 Armature Asm.(w/B.E. & F.E. bearings) 3 902654 1 Bearings B.E. 4 902550 1 Bearing F.E. 5 51840A 1 Commutator Bracket Assembly (w/Brush BRD Assembly Leads) 6 50520A 1 Commutator Bracket 7 56480A 2 Strain Relief 8 962546 2 Brush Board Screw 9 50517A 1 Brush Board Asm. (w/springs & brushes) 10 448396 4 Brush Spring 11 40826A 4 Brush Assembly 12 55657A 1 Lead Assembly, Positive 13 55656A 1 Lead Assembly, Negative 14 59805A 1 Helical Washer 15 50515A 2 Thru Bolt 16 80501A 1 Shaft Key 17 54238A 1 B.E. Bracket Assembly (Gear Box)

-56- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Gear Box #54238A 2/05

Item Ref. No. Qty Description

1 57846A 1 Ring, Snap 2 507641 1 Seal, Oil, Small 3 52050A 1 Cap End 4 56668A 1 O’Ring 5 51176A 1 Bearing, Large 6 58316A 1 Shaft & Gear, Gearbox 7 902605 1 Bearing, Small 8 54883A 1 Housing 9 58144A 1 Seal, Oil Large NI 4oz. Darina Grease

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 57 -

Nilﬁ sk ALTO

4 53375A Axle Bearing 4

SCRUBTEC 770 / 784 / 795

Imperial Transaxle Parts 2/05

PN 59116A

MFG. IN USA

16:1 Ratio

PERMANENT MAGNET MOTOR

Model 4BC-2800 HP .50

RPM 1200 Ins. Cl. F

Volt 36 VDC Mount Flange

AMP. 15 Shaft Tang

Duty Cont

Date Ser. No.

Wheel Flange Kit (includes Flange,

Clarke

1 10357A Studs, Key, Snap Rings & Shims) 2

2 36508A Rubber Mount 2

Ref # Part # Description Qty

3 53374A Axle Oil Seal 2

To replace coupler

remove these two

screws (Black)

to separate the

motor from gearbox

to allow access to

coupler

-58- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 / 784 / 795

Imperial Transaxle Parts 2/05

PN 59116A

Item Ref. No. Qty Description

Wheel Flange Kit (includes Flange, 1 10357A 2 Studs, Key, Snap Rings & Shims) 2 36508A 2 Rubber Mount 3 53374A 2 Axle Oil Seal 4 53375A 4 Axle Bearing 5 53376A 1 Short Axle 6 53377A 1 Output Gear 7 53378A 1 Input Plug 8 53379A 1 Outer Pinion Bearing 9 53380A 1 Pinion 10 53381A 1 Inner Pinion Bearing 11 52663A 1 Steel Ring, Coupler 12 69195A 1 Rubber Coupler 13 45048A 1 Motor 14 51720A 4 Brushes w/Springs 14 40784A 1 Brush, Carbon Set (4 - 51720A & 4 - 30074A) 15 30074A 4 Motor Brush Cap (internal Threads) 53382A 4 Motor Brush Cap (External Threads) 16 53383A 1 Long Axle 54282A 1 Gearbox Asm w/o motor 17 53435A 4 Miter Gear

Parking Brake Spare Parts

53384A 1 Pad, Friction 53385A 1 Hub, Shaft 80121A 1 Key, 4 MM - Hub 80122A 1 Set Screw, M3 - Hub

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 59 -

ACCESSORIES

Description Part No.

Power Wand System Kit 10892A Soft Caster Asm. 52127A Drive Wheel, Foam Filled 59955A Imperial Electric Parking Brake Kit 10684B Clarke Battery Maintenance System (CBMS) 53390A Chemical Mixing System 11081A Chemical Mixing System Spare Tank 11037A

OPTIONAL SQUEEGEE BLADES

Machine Part No. Description

28, 33 30069L Rear Linatex 28, 33 30717L1 Front Linatex 28, 33 30557A Rear Gum Rubber 28, 33 30091A Front Urethane 38 30935L Rear Linatex 38 30718L2 Front Linatex 38 30935A Rear Gum Rubber 38 30718A Front Gum Rubber 38 30954A Front Ribbed Urethane

BRUSHES:

Size Description Part No.

17” Poly 11424B 17” Grit-Heavy 11425B 17” Grit-Medium 11430B 17” Grit-Lite 10384A 17” Soft Nylon 10875A 14” Poly 11427B 14” Grit-Heavy 11426B 14” Grit-Medium 11431B 14” Grit-Lite 10383A 14” Soft Nylon 10874A 19” Poly 11434B 19” Grit-Heavy 11433B 19” Grit-Medium 11432B 19” Grit-Lite 10385A 19” Soft Nylon 11435B

PAD DRIVERS:

Size Part No.

19” 17524B 17” 17520C 14” 17521C

-60- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Schematic (Solo Controller) 9/05

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 61 -

Nilﬁ sk ALTO

SCRUBTEC 770 S / 784 S / 795 S

Electrical Schematic (I-Drive Controller) 12/09

-62- FORM NO. 70935A Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795

Nilﬁ sk ALTO

SCRUBTEC 770 L / 784 L / 795 L

Electrical Schematic 9/05

Nilﬁ sk ALTO Operator's Manual - SCRUBTEC 770 / 784 / 795 FORM NO. 70935A - 63 -

Overenstemmelseserklaering Declaration de conformité Samsvarserklaering Declaration of conformity Verklaring van overeenstemming Vaatimustenmukaisuusvakuutus Konformitätserklärung Dichiarazione di conformità Atitikties deklaracija Declaración de conformidad Vastavussertifikaat Osvědčení o shodě Atbilstības deklarācija Deklaracja zgodności Certifikát súladu Megfelelősségi nyilatkozat Försäkran om överensstämmelse Certifikat o ustreznosti

Modell/ Modèle/ Model/ Malli/ Modelo/ Μοντέλο/ Modelo/ Modelis/Модель: Floor Treatment Machines

Type/ Tyyppi/ Tipo/ Τύπος/ Tüüp/ Tipas/ Tips/ Typ/ Típus/ Тип/ Tip: Scrubtec Boost 70, Scrubtec 770 L, Scrubtec 784 L, Scrubtec 795 L,

Scrubtec 770 S, Scrubtec 784 S and Scrubtec 795 S

D Der Unterzeichner bestätigt hiermit dass die oben erwähnten Modelle gemäß den folgenden Richtlinien und Normen hergestellt

wurden.

GB The undersigned certify that the above mentioned model is produced in accordance with the following directives and standards. DK Undertegnede attesterer herved, at ovennævnte model er produceret i overensstemmelse med følgende direktiver og standarder. N Undertegnede attesterer att ovennevnte modell är produsert I overensstemmelse med fölgende direktiv og standarder. E El abajo firmante certifica que los modelos arriba mencionados han sido producidos de acuerdo con las siguientes directivas y

estandares.

I Il sottoscritto dichiara che i modelli sopra menzionati sono prodotti in accordo con le seguenti direttive e standard. EST Allakirjutanu kinnitab, et ülalnimetatud mudel on valmistatud kooskõlas järgmiste direktiivide ja normidega. LV Ar šo tiek apliecināts, ka augstākminētais modelis ir izgatavots atbilstoši šādām direktīvām un standartiem. CZ Níže podepsaný stvrzuje, že výše uvedený model byl vyroben v souladu s následujícími směrnicemi a normami. SLO Spodaj podpisani potrjujem, da je zgoraj omenjeni model izdelan v skladu z naslednjimi smernicami in standardi. F Je soussigné certifie que les modèles ci-dessus sont fabriqués conformément aux directives et normes suivantes. NL Ondergetekende verzekert dat de bovengenoemde modellen geproduceerd zijn in overeenstemming met de volgende richtlijnen

en standaards.

FIN Allekirjoittaia vakuuttaa että yllämainittu malli on tuotettu seuraavien direktiivien ja standardien mukaan. S Undertecknad intygar att ovannämnda modell är producerad i överensstämmelse med följande direktiv och standarder. GR Ο κάτωθι υπογεγραμμένος πιστοποιεί ότι η παραγωγή του προαναφερθέντος μοντέλου γίνεται σύμφωνα με τις ακόλουθες οδηγίες

και πρότυπα.

P directivas e normas.

LT PL Niżej podpisany zaświadcza, że wymieniony powyżej model produkowany jest zgodnie z następującymi dyrektywami I normami. H Alulírottak igazoljuk, hogy a fent említett modellt a következő irányelvek és szabványok alapján hoztuk létre. SK Dolu podpísaný osvedčuje, že hore uvedený model sa vyrába v súlade s nasledujúcimi smernicami a normami.

A presente assinatura serve para declarar que os modelos supramencionados são produtos em conformidade com as seguintes

Toliau pateiktu dokumentu patvirtinama, kad minėtas modelis yra pagamintas laikantis nurodytų direktyvų bei standartų.

EC Machinery Directive 98/37/EC EN 12100-1, EN 12100-2, EN 294, EN 349 EC Low Voltage Directive 73/23/EEC, 93/68/EEC, 06/95/EEC EN 60335-1, EN 60335-2-72

EC EMC Directive 89/336/EEC EN 61000, EN 50366,

EN 55012

10.22.2009

Don Legatt, Engineering Director Nilfisk-Advance, Inc. 14600 21st Avenue North Plymouth, MN 55447 USA

Nilfisk-Alto Industrivej 1 9560 Hadsund, Denmark

Year of Affixing the CE marking 2009

.pas

Nilﬁ sk ALTO LIMITED U.S. WARRANTY

This Nilﬁ sk ALTO Industrial/Commercial Product is warranted to be free from defects in materials and workmanship under

normal use and service, when operated and maintained in accordance with Nilﬁ sk ALTO's Maintenance and Operations instructions. The warranty period is subject to the conditions stated below.

3 YEARS FOR PARTS AND 1 YEAR FOR SERVICE LABOR (See exceptions below)

Motors must be inspected for carbon motor brush wear at six-month intervals by an authorized Nilﬁ sk ALTO repair station. Failure to comply with the six-month inspection requirement or failure to replace worn motor brushes identiﬁ ed during the inspection will void the warranty on the motors. Cost of the six-month inspection and replacement of carbon motor brushes is the responsibility of the purchaser. In the event of a warranty claim on the motors, proof of inspection and any required motor brush replacement must be provided. This warranty is extended only to the original purchaser for use of the product. It does not cover normal wear parts such as electrical cable, rubber parts, hoses and motor brushes.

BATTERY WARRANTY

In addition to the items above, any original equipment Nilﬁ sk ALTO Battery which becomes unserviceable under normal use within a period of ninety (90) days from date of sale to the original user will be repaired or replaced with one of equal speciﬁ cation at our option, F.O.B. any authorized Nilﬁ sk ALTO Sales or Service Branch, with no charge to the user, except transportation costs. After expiration of the above ninety (90) day period, any battery which fails under normal use will be adjusted to the original user with a new battery of equal speciﬁ cation on an eighteen (18) months pro rate basis from the date of purchase. Adjustment will be determined using the then current list price, plus transportation costs.

Warranty is rendered null and void if battery is not kept ﬁ lled to the proper level with DISTILLED WATER.

Nilﬁ sk ALTO: POLYDUR® AUTOMATIC SCRUBBER SOLUTION AND RECOVERY TANK EIGHT-YEAR

U.S. GUARANTEE

Your new Nilﬁ sk ALTO machine has polydur Solution and Recovery Tanks. Polydur is a rotationally molded, low-density linear polyethylene that won't crack or dent, and withstands most corrosives and temperature extremes. Nilﬁ sk ALTO backs up your Polydur tanks with an eight-year guarantee. If a tank breaks or leaks under normal use within eight years of the date of purchase, it will be replaced free.

Nilﬁ sk ALTO UNIBODY FRAME FIVE-YEAR U.S. WARRANTY

Nilﬁ sk ALTO warranties the frame for a period of ﬁ ve years against defects in materials and workmanship under normal use and service.

STATED WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED

Nilﬁ sk ALTO's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to pur- chaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED. A warranty registration card is provided with your Nilﬁ sk ALTO product. Return the card to assist Nilﬁ sk ALTO in providing the performance you expect from your new ﬂ oor machine.

If a difﬁ culty develops with the product, you should: a) Contact the nearest authorized Nilﬁ sk ALTO repair location or contact Nilﬁ sk-Advance for the nearest authorized Nilﬁ sk ALTO repair location. Only these locations are authorized to make repairs to the product under this warranty. (b) Return the product to the nearest Nilﬁ sk ALTO repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. Nilﬁ sk ALTO will repair the product and/or replace any defective parts with out charge within a reasonable time after receipt of the product.

Nilﬁ sk ALTO reserves the right to make changes or improvements to its machine without notice.

Always use genuine Nilﬁ sk ALTO Parts for repair.

Division of Nilﬁ sk-Advance A/S Industrivej 1 9560 Hadsund Denmark Tel.: (+45) 72 18 21 00 Fax: (+45) 72 18 21 11 E-mail: salg@nilﬁ sk-alto.dk E-mail: service@nilﬁ sk-alto.dk www.nilﬁ sk-alto.dk

Nilfisk SCRUBTEC 770 S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
