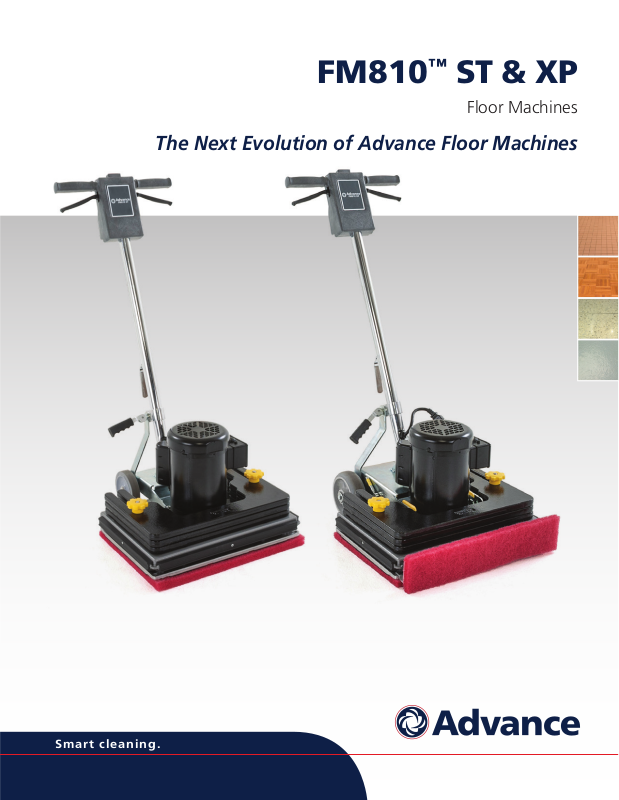

FM810™ ST & XP

Floor Machines

The Next Evolution of Advance Floor Machines

Smart cleaning.

FM810

™

ST & XP

Floor Machines

Ideal applications include:

• Supermarkets

• Schools and Universities

• Hospitals

• Office Buildings

• Hotels / Motels

• Heavy Manufacturing Plants

• Bathrooms

• Gymnasiums

Introducing the Advance FM810

The next evolution of Advance orbital scrubbing floor
machines is here: the Advance FM810™. The FM810 floor
machine delivers the ultimate combination of ease of use
and versatility for unmatched cleaning performance in
both wet and dry applications. Available in both a
standard ST model and a deluxe XP model packed with
exclusive patent-pending features geared to BSCs and
other power users.

Elevating Power

Featuring a full 1.5 horsepower motor, 160 pounds of
down pressure and a 3,540 RPM pad driver, the FM810 is
designed to get cleaner floors in fewer passes. That
means operators aren’t just getting the floors clean or
stripped faster—they are also able to do it with less labor.

™

Expanding Applications

• Easily reach small, hard-to-reach areas where large
automatic scrubbers will not fit or don’t make sense.

• Supplement Advance REV™ machines to complete
chemical-free floor finish removal projects in all areas
of a room.

• Leverage standardized 14 x 20 inch pad deck to attach
pads for cleaning grout in bathrooms, prepping gym
floors for recoats, bonnet cleaning carpet, and even
burnishing terrazzo, marble, and concrete.

Use 3M™ SPP or Diamond Pads to abrade a
wide variety of floor surfaces.

Baseboard cleaner, standard on the XP model,
eliminates the need for getting down on your
hands and knees or using a dedicated baseboard
cleaning machine. (Optional on ST machine)

Minimizing Disruption – With strategically
placed vibration-dampening materials
packed into the body of the machine, the
FM810 is significantly quieter even at its
higher operating speed. That means you
get full cleaning performance without
noise disruption.

4

Baseboard cleaner

1

Three 21 pound weights

2

FM810™ XP: Deluxe Features – The FM810 XP

(shown) adds an additional package of innovative
features that enhance ease of use, functionality
and transport.

5

2

Innovative Wheels-Up / Wheels-Down Feature

Adjustable, detachable handle

3

Safety switch – protects against

4

unintended machine start-up

3

1.5 hp heavy duty motor

5

driving a 3,540 rpm
orbital deck

6

6 inch wheels can be

6

raised or lowered for ease
of use, functionality and
transportation

1

Full Modularity for Easy Transport

Switchable Modes – Easily switch between operating modes with the wheels up or on
the floor. When the wheels are up, the FM810 XP provides the full-directional, high
maneuverability of traditional floor machines. When the wheels are down, it delivers the
high productivity forward-and-backward motion like a burnisher, giving you control so
balanced that you can operate it with one hand, and not get fatigued.

Baseboard Cleaner Tool

The FM810 XP comes with an innovative
baseboard cleaner attachment as a standard
feature. This simple device easily attaches
to the front of the machine to provide
a convenient alternative for cleaning
baseboards without having to purchase a
separate machine, or worse, getting down
on your hands and knees to scrub.

The FM810 XP is fully modular to allow
BSCs and other operators who frequently
lift and transport their equipment between
job sites to separate it without tools into
more manageable pieces. Each modular
attachment component is painted bright
yellow for easy identification, making
disassembly and reassembly a breeze.

Three 21 pound weight plates are
easily removed.

Technical Specifications

Model FM810™ ST FM810™ XP

Cleaning Pad Size 14 in x 20 in 14 in x 20 in
Motor 1.5 hp 1.5 hp
Voltage/Frequency 120 V / 60 Hz 120 V / 60 Hz
Orbit Speed 3,540 rpm 3,540 rpm
Orbit Diameter 1/4 in (6.4 mm) 1/4 in (6.4 mm)
Power Cable 50 ft (15 m), 14/3 Safety Yellow 50 ft (15 m), 14/3 Safety Yellow
Sound Level 68 dB A 68 dB A
Machine Total Weight 161 lb (73 kg) 169 lb (76.7 kg)
Machine w/o Weights 98 lb (44.5 kg) 106 lb (48 kg)
Weights 63 lb (28.5 kg) 63 lb (28.5 kg)
Dimensions (L x W x H) 20 in x 20.5 in x 44 in

(50.8 cm x 52 cm x 112 cm)
Warranty 3 Years Parts, 2 Years Labor 3 Years Parts, 2 Years Labor
Additional Standard Features

Part Number 56105614 56105616

Specifications are subject to change without notice.

Three 21 lb Weights Three 21 lb Weights

Safety Switch Safety Switch

5 in Wheels 6 in Wheels

Wheels-Up Only Wheels-Up/Wheels-Down

20.75 in x 20.5 in x 44.5 in

(52.7 cm x 52 cm x 113 cm)

Baseboard Cleaner
Detachable Handle

Accessories and options

• 3M SPP Pads

• Red Scrub Pads

• Blue Scrub Pads

• Black Scrub Pads

• Carpet Bonnet

• Grout Pad

• Diamond Pads

• Sand Screens

• Dust Containment Kit

• Solution Tank Kit

• Baseboard Cleaner (FM810™ XP Standard)

Dust Containment Kit for dry applications

Smart cleaning.

Our products are designed using innovative

technologies that increase productivity

and drive down the cost to clean.

Maintain peak performance with

Nilfisk Parts.

©2015 Nilfisk, Inc. Form L3407A 10-1-15

Grout PadScrub Pads Sand ScreensDiamond Pads

SNAP

IT!

Solution Tank Kit for wet applications
