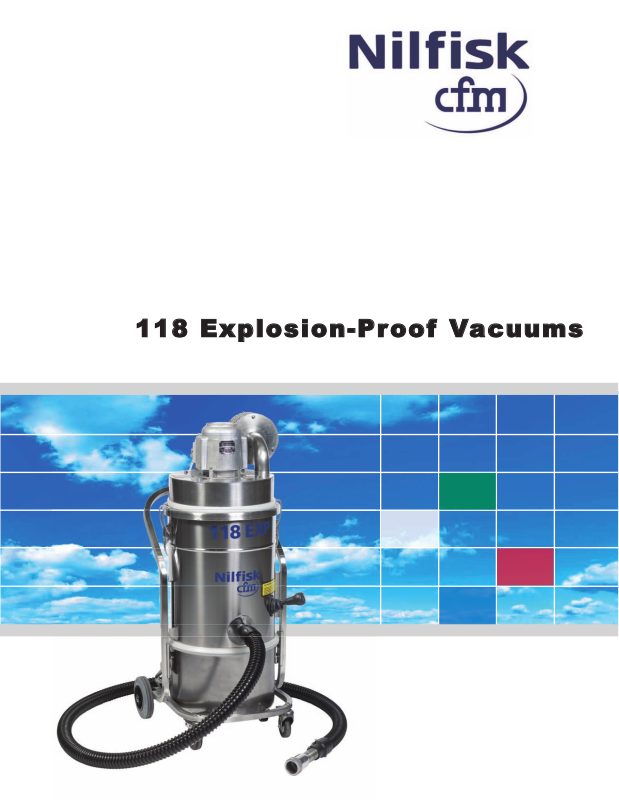

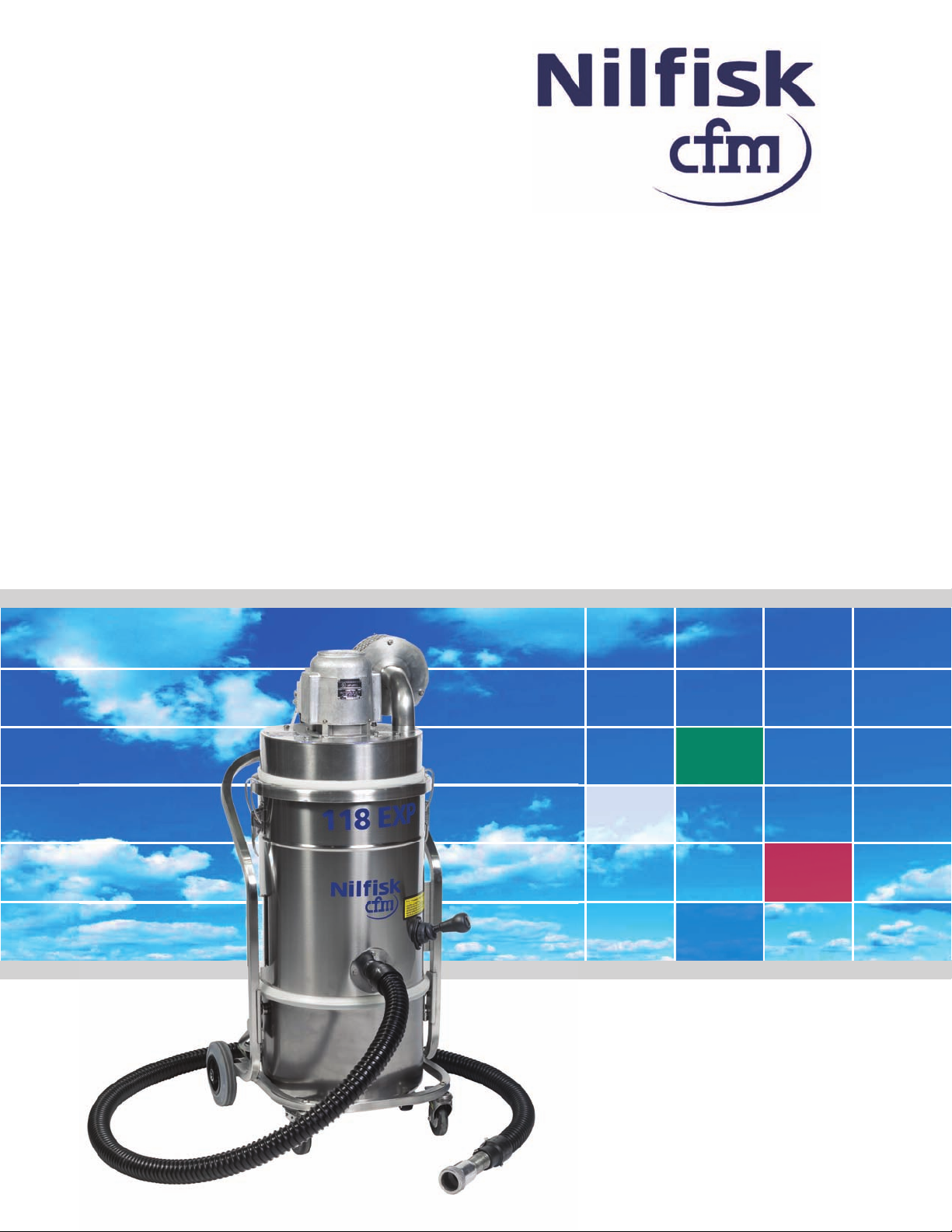

Nilfisk 118 brochure

111188 EExxpplloossiioonn--PPrrooooff VVaaccuuuummss

Certified Explosion-Proof Vacuums

Nilfisk CFM’s line of electric explosion-proof / dust
ignition-proof vacuums feature two separate
models to meet all your cleaning needs. The 118
EXP is designed for dry material collection while the
118 EXPW is equipped for picking up liquids and
other wet hazardous materials. Both vacuums are
CSA certified for use in Class I, Group D, and Class II,
Groups E*, F, and G environments. The units are
made of 304 stainless steel and feature optional
HEPA or ULPA filtration.

• All stainless steel construction including container,
filter chamber and trolley

• Both units feature an ergonomic design, including
an easy to remove wheeled-collection container on
the 118EXP

• Antistatic filter with large surface area and
external filter shaker on the dry-only unit
guarantees high filtration efficiency and prevents
premature clogging

111188 EEXXPP

• Optional downstream HEPA/ULPA filtration
available on both units; Upstream HEPA available
for dry model only. HEPA filter retains 99.97% of
particles, down to and including 0.3 microns. ULPA
retains 99.999% down to and including 0.12
microns

• Non-sparking, conductive accessory kit included to
meet a wide range of hazardous cleaning needs

• For more information on combustible dust and
best housekeeping practices, visit our focus site at
www.explosionproof-vacuum.com.

Technical Features 118 EXP 118 EXPW

Voltage @ 60 Hz. volts 120 120

Type of power no. of phases single single

Power watts 1000 1000

Amps, max. amps 10 10

Waterlift, max. inches H2O 69 69

Airflow, max. cfm 130 130

Noise level @ 3’3” (1 meter) dB(A) 78 78

Filter area, main filter sq. ft. 8.8 ---

Tank capacity gallons 6.6 13.2

Dimensions (L x W x H) inches 20 x 24 x 45 20 x 24 x 45

Weight lbs. 57 65

Filter efficiency, HEPA DOP-tested 99.97% @ 0.3 microns 99.97% @ 0.3 microns

Filter efficiency, ULPA DOP-tested 99.999% @ 0.12 microns 99.999% @ 0.12 microns

* Collection of commercial alloys is subject to individual approval by our application engineer.
** Specifications are subject to change without notice.

Explosion-proof, totally enclosed fan cooled (TEFC) motor

111188 EEXXPPWW

External filter shaker on dry model

Collection container with
release system on dry unit

Anti-static, conductive accessories come standard for ultimate
safety

Optional downstream
HEPA/ULPA filter

Watch the 118
EXP in action!
Scan the bar
code with your
smart phone to
see a demo
video of the
Nilfisk CFM
118EXP!

A Spotless Reputation with a Guarantee to Prove It!

We’ve earned our solid reputation by consistently producing top-quality vacuums
and offering the industry’s most complete selection of vacuum filtration options,
attachments, and accessories.

We back all of our products with our industry-leading two-year warranty.
Nilfisk-Advance America empowers you with complete buying confidence.

For a list of major customers in your industry, please contact our headquarters or
your local representative.
