Niles Audio VCS-2D-HP User Manual
NILES
MODEL
VCS-2D-HP
VCS-2D-HP
VCS-2D-HP
HIGH POWER STEREO VOLUME CONTROL
INSTALLATION & OPERATION GUIDE
HH
NILES
II GG HHPPOO WW EE RRSSTT EE RR EE OO
VCS-2D-HP
High Power Stereo
Volume Control
VV
OO LL UU MM EE
CC
OO NN TT RR OO LL
TABLE OF CONTENTS
Introduction 1
Features and
Benefits 1
Installation
Considerations 3
Installation 8
Operation 10
Specifications 10
Introduction
The VCS-2D-HP is a wall-mount, Decora®style speaker volume control. It connects between the speaker-level output
of an amplifier, speaker selector, etc. and a pair of speakers.
A perfect application for the VCS-2D-HP is adjusting the
volume of remotely located speakers.TheVCS-2D-HP adjusts
the volume of speakers connected to it by attenuating the
amplifier signal. Niles volume controls use autoformers
instead of L-pads for the volume controlling element. The use
of autoformers assures minimal internal power dissipation
with virtually no power wasted as heat.
Features and Benefits
The VCS-2D-HP offers a number of improvements over
other volume controls.
● High Power Handling – Power handling: 200 watts /chan-
nel peak music power. 1 00 watts per channel continuous.
● Premium 12 Step Control – The VCS-2D-HP uses a 12-
position control, which is superior to 10-position designs.
You get a broader range of adjustment—there are 10 steps
HH
II GG HHPPOO WW EE RRSSTT EE RR EE OO
VV
OO LL UU MM EE
of attenuation instead of 8. Steps 11- 6 attenuate -3 dB per
step; steps 5-2 are -6 dB per step. Step 12 is “full-on” and step
1 is “full-off ”. The VCS-2D-HP delivers “POP-FREE” switching
between all steps.
● Silent When Off – Niles controls completely silence your
speakers when they are at the full-off position

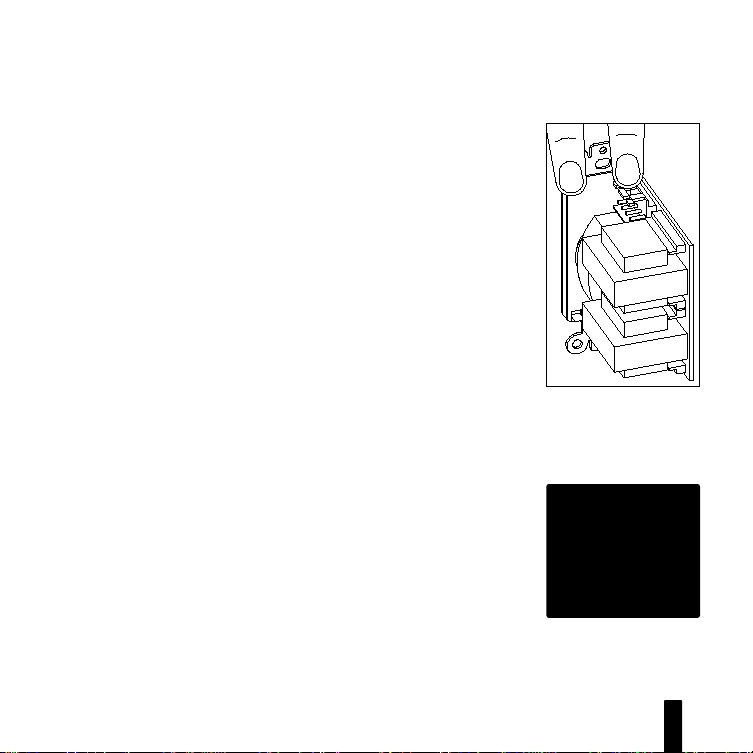

● Removable Connnectors – The connectors on the VCS-
2D-HP are removable and accommodate up to 14 gauge
speaker wire. The connectors simplify your installation:
• The speaker wires are easier to attach—no heavy
control to hold onto.
• The control may be removed without disconnecting
any wiring.
• ”Wire-Guard” barriers between each connector
terminal reduce the chance of a short-circuit.
● Mounting depth of only 2 9/16”. Fits into standard 18cu. in.
1-gang electrical boxes.
● Printed circuit board construction uses no hand wiring,
assuring high reliability.
● Tested Performance – 100% tested, electronically and
acoustically, for frequency response, distortion and power
handling.
CC
OO NN TT RR OO LL
2
HH
II GG HHPPOO WW EE RRSSTT EE RR EE OO
TOOLS REQUIRED
• No. 2 Phillips
Screwdriver
• 1/8" Standard
Slotted Screwdriver
• 1/4" Standard
Slotted Screwdriver
• Wire Stripper
• 5/64" Allen Wrench
VV
OO LL UU MM EE
● Isolated left and right channel grounds make it safe for
CC
OO NN TT RR OO LL
use with any amplifier.
● May be used with 4, 6, or 8 ohm speaker systems.
● Ideal for both home and commercial sound installations.
● Available colors: White, Bone, Almond, or Black.
● Proudly made in the USA
● Ten year parts and labor warranty.
Installation Considerations

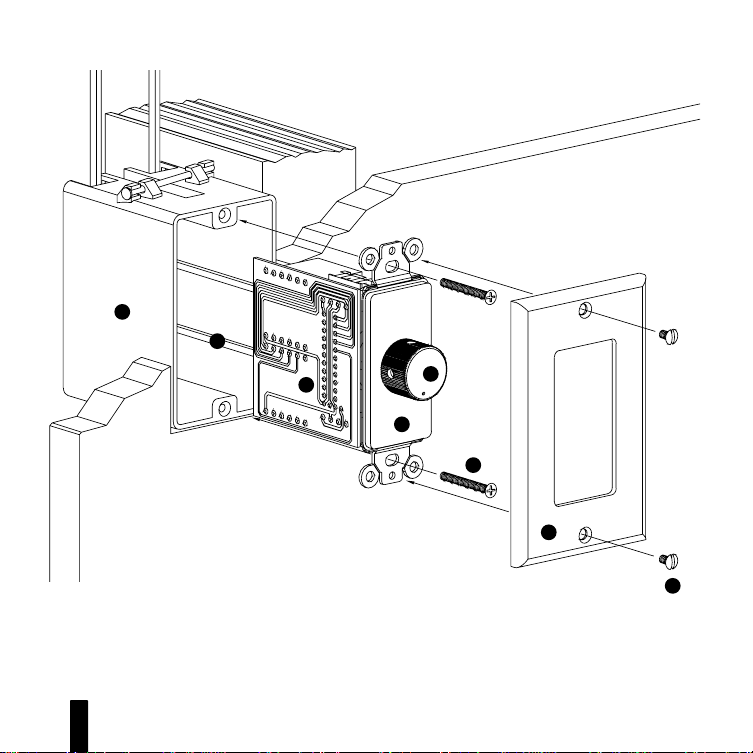

The VCS-2D-HP is a Decora-style module and is designed to
use standard Decora-style faceplates and mounting
hardware. Decora faceplates (up to 6-gang) with colormatched plate screws are available from your Niles dealer.
*
P-Rings and Electrical Boxes
The mounting depth of the VCS-2D-HP is 2
installed, the unit extends 2
(assuming
1/2” sheetrock). For installation, you must choose
between a standard light switch plaster ring (p-ring) or a
standard 18 cu. in. (or larger) electrical box. Suitable p-rings
and electrical boxes are available from your Niles dealer or
local electrical supply company. Using the p-ring is best
because it gives you unobstructed access to the full depth
5/16” behind the sheetrock wall
9/16”. When
3
*
Only required if changing color of unit.
