Niles Audio RCA-TT User Manual
I N S T A L L A T I O N G U I D E
REMOTE CONTROL ANYWHERE!
RCA-TT
®
KIT
CONGRATULATIONS!
Thank you for choosing the RCA-TT Remote Control Anywhere! Kit from Niles. With proper
installation and operation, you should enjoy years of trouble-free use.
Niles manufactures the industry’s most complete line of custom installation components and
accessories for audio/video systems. To see the complete Niles product assortment, visit us on the
internet at: www.nilesaudio.com.
TABLE OF CONTENTS
Introduction 1
Contents 1
Installation Considerations 2
Installation 3
Specifications 19
Limited Warranty 20
II
INTRODUCTION
The Niles RCA-TT Remote Control Anywhere! Kit enables you to operate your remote controlled
audio/video equipment from virtually any location. Now you can place your audio/video (A/V)
components out of sight (behind cabinet doors, in the rear of a room, or in a different room) and still
conveniently control your system.
CONTENTS
Check that your RCA-TT Remote Control Anywhere! Kit contains the following:
• Connection hub
• Table-top sensor
• 12VDC power supply
• MicroFlashers® (3)
• Category 5 sensor cable (50’)
Connection Hub
Table-Top Sensor
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
12VDC Power
Supply
CAT 5 Sensor
Cable (50ft)
MicroFlashers (3)
1
INSTALLATION CONSIDERATIONS
WARNING – TO PREVENT POSSIBLE INJURY, THE FOLLOWING BASIC SAFETY PRECAUTIONS SHOULD BE
OBSERVED IN THE INSTALLATION AND USE OF YOUR RCA-TT REMOTE CONTROL ANYWHERE! KIT.
1. Read through the entire manual – Before attempting any installation, read this manual
thoroughly and keep it for future reference.
2. Avoid contact with all high voltage electrical wiring and equipment.
3. Keep away from water and moisture – Never use or install electronic products near water, ie.,
near a bathtub, sink, washing machine, in a wet basement, near a swimming pool, or anywhere
else the product may be exposed to water or moisture.
4. Power supply cord protection – Do not run the power cord where it may be subject to wear or
abuse. Do not allow anything to rest on or roll over the power cord which may damage it.
6. Lightning – It is suggested that you remove the power supply from the wall if your system will
not be used for long periods of time. Power surges due to lightning strikes may damage your
equipment.
7. Check your local building and electrical codes – There may be specific requirements regarding
running low voltage in your area.
2
INSTALLATION
TOOLS REQUIRED
• Pencil
• Drywall saw
• Standard screwdriver
• Phillips screwdriver
• Wire strippers
• Drill (and assorted bits)
GETTING STARTED
While the Remote Control Anywhere! Kit is compatible with most brands of audio/video components,
there are a few exceptions. You should perform a temporary hook-up to test for compatibility
before you conceal wire or permanently mount any parts.
Steps One through Five describe how to perform a quick and easy check for compatibility. Once you
have determined that all of your remote controlled A/V components are compatible, proceed
with the rest of the installation.
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
3
INSTALLATION (CONTINUED)
STEP 1 – PLACING THE CONNECTION HUB
Place the Connection Hub so that the MicroFlasher wires will reach the components.
Never place the connection hub closer than 1’ away from a television set (Figure 1).
Figure 1 Connection Hub Placement
4
INSTALLATION (CONTINUED)
STEP 2 – CONNECTING THE SENSOR CABLE TO THE
CONNECTION HUB
Select four conductors of the supplied CAT 5 wire and strip approximately 1/4” of insulation from
the wire. Insert each wire into the appropriate hole on the removable connector plug (Figure 2),
and snap the locking tab down. To help you, the connector plug is keyed. Insert the smooth side of
the connector plug into the smooth side of the socket. Don’t force the scalloped side of the connector plug into the smooth side of the socket.

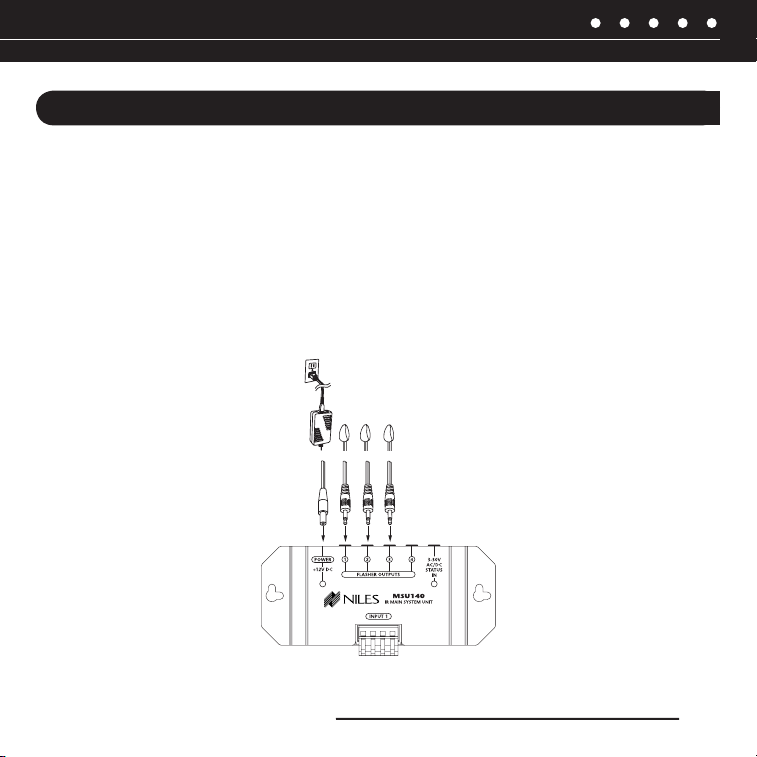

To Niles IR Flasher
To unswitched
AC Outlet
MSU140
TS110 Sensor
Figure 2: MSU140 Installation
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
To 12VDC Power Supply
Plugged into an switched AC
Outlet. Typically found in back of
a receiver.
MSU140 Sensor Connection
5
INSTALLATION (CONTINUED)
STEP 3 – CONNECTING THE SENSOR CABLE TO THE
TABLE-TOP SENSOR
Pull out the removable connector from the bottom of the table-top sensor. Insert each wire into
the appropriate hole on the removable connector plug (Figure 3), and snap the locking tab down.
To help you, the connector plug is keyed. Insert the smooth side of the connector plug into the
smooth side of the socket. Don’t force the scalloped side of the connector plug into the smooth
side of the socket.
Figure 3: Removable Connector Plug
TECH TIP: Wire size is expressed by it’s AWG (American Wire Gauge) number. The lower
the AWG number, the larger the wire, i.e., 20 AWG wire is physically larger than 22 AWG.
6
