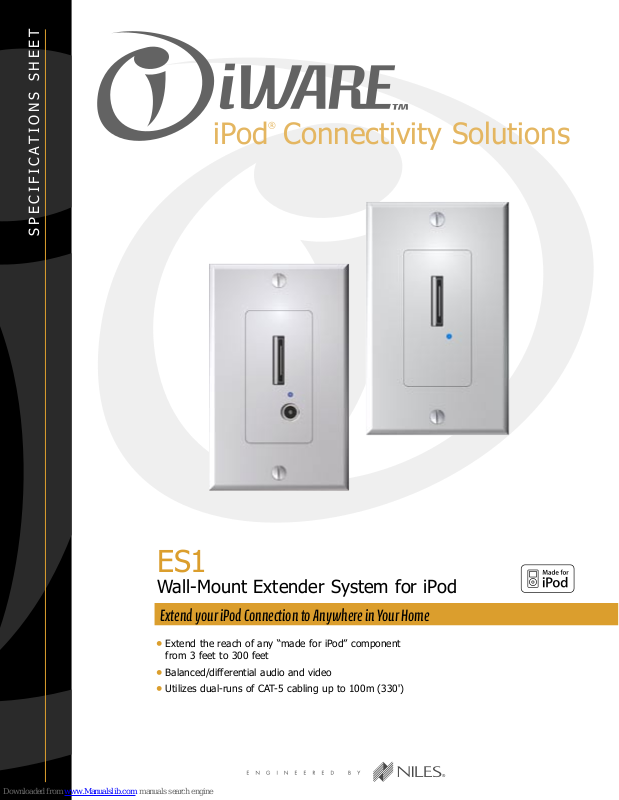

S P E C I F I C A T I O N S S H E E T
iPod® Connectivity Solutions
ES1
Wall-Mount Extender System for iPod
Extend your iPod Connection to Anywhere in Your Home
Extend the reach of any “made for iPod” component
•
from 3 feet to 300 feet
Balanced/differential audio and video
•
Utilizes dual-runs of CAT-5 cabling up to 100m (330')
•
Page 2
Power
Supply
Dual-run of CAT-5
cables up to 100m (300')
Speakers
Home Entertainment System
(must have 30 pin connector)
30 pin
connector
ES1
Input Wall Plate
iPod
®
ES1
Output Wall Plate
iWARE SmartDock™ (sold seperately)
Specifications Sheet
ES1
Extend your iPod Connection to Anywhere in Your Home
Wall-Mount Extender
System for iPod
Stock Number
FG01267
C O N N E C T I V I T Y S O L U T I O N S
®
i P O D
Features
Extend the reach of any “made for iPod” component, or any
•
30 pin iPod enabled home theater system, to an iPod from 3
feet to 330 feet
Balanced/differential audio to preserve audio quality and
•
reject noise and hum pickup. Also prevents mutual cross-talk
between the audio, video, and RS232.
Balanced/differential video to preserve video quality and
•
reject noise and hum pickup. Also prevents mutual cross-talk
between the audio, video, and RS232.
Includes power supply
•
Specifications
Power: 12V DC @ 1A
•
Dimensions: 2.75” W x 4.5” H
•
Warranty: Two-year limited
•
Shipping weight: 1 lb.
•
ES1 Connection Diagram
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
©2006 Niles Audio Corporation. All Rights Reserved. Niles, the Niles logo and iWARE are registered trademarks of Niles Audio Corporation.
SmartDock is a trademark of Niles Audio Corporation. iPod and iTunes are trademarks of Apple Computer, Inc. CS0023A
