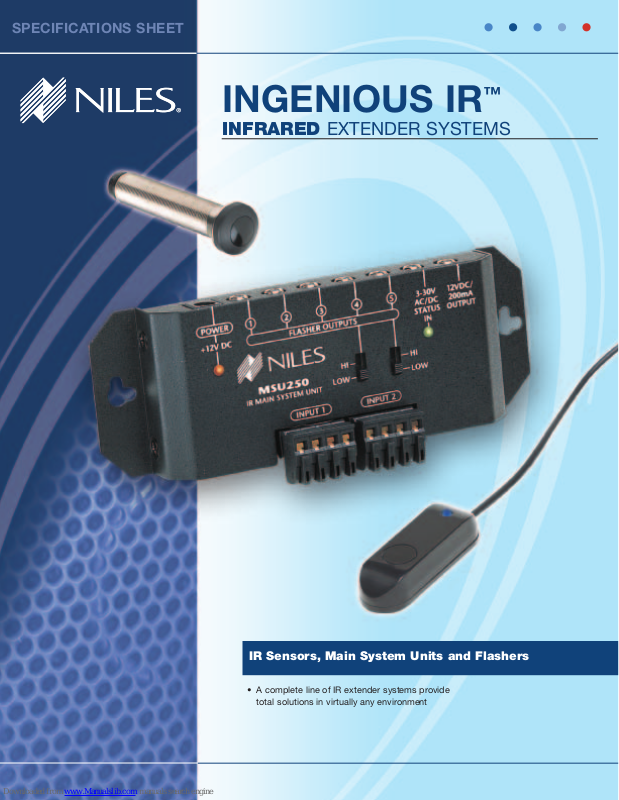

SPECIFICATIONS SHEET
™
INGENIOUS IR
INFRARED EXTENDER SYSTEMS
IR Sensors, Main System Units and Flashers
• A complete line of IR extender systems provide
total solutions in virtually any environment
Page 2
Infrared Extender Systems
PLASMA-PROOF SENSORS
WS100
W
all-Mount IR Sensor
MAIN SYSTEM UNITS
INFRARED EXTENDER SYSTEMS
MSU140
1 sensor input/4 flasher outputs
FLASHERS FOR EVERY APPLICATION
IRB1
High-Output IR Flasher
Features
PLASMA-PROOF DESIGN
Enables any sensor to be placed near plasma displays
FLUORESCENT INTERFERENCE RESISTANT
Expands installation flexibility to areas with fluorescent lighting
WORKS IN INDIRECT SUNLIGHT
Eliminates environmental restrictions
PLUG-AND-PLAY CONNECTIONS
Facilitates quick and easy system installation
SINGLE & MULTIZONE CONFIGURATIONS
Installers have an IR solution for virtually every application
12 VOLT TRIGGERS AND CONTACT CLOSURES
Provides unique automation capabilities for advanced system designs
®
MS100
Minia
ture Flush-Mount IR Sensor
MSU250
2 sensor inputs/5 flasher outputs
MF1
IR MicroFlasher
®
MS200
Minia
ture Surface-Mount IR Sensor
MSU480
4 sensor inputs/8 flasher outputs
MF1VF
IR MicroFlasher® with Visible Feedback
TS100
T
able-Top IR Sensor
MSU440Z
4-zoned sensor inputs
8 flasher outputs
MF2
Dual IR MicroFlasher
CS100
Ceiling-Mount IR Sensor
IRH610
IR Sensor Expansion Hub
®
MF2VF
Dual IR MicroFlasher
with Visible Feedback
®
Details
Model Number of Number of Number of Adjustable 12 Volt Contact Retail
Zones Sensor Inputs Flasher Outputs Hi/Lo Switch Output Closure Price
MSU140 1 1 4 N N N $69.95
MSU250 1 2 5 Y Y N $89.95
MSU480
1 4 8 Y Y Y $129.95
MSU440Z 4 4 8 Y Y Y(2) $249.95
IR610
NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.289.4434 – www.nilesaudio.com LT00204A
© 2004 Niles Audio Corporation. All rights reserved. Niles and the Niles Logo are registered trademarks of Niles Audio Corporation. Ingenious IR is a trademark of Niles Audio Corporation.
