En
User’s Guide
For Those Using the WT-7 with the D810, D810A, D750, or D7200
See the manual supplied with the WT-7 for specifications
and other information.
• Read this manual thoroughly before using the camera.
• After reading this manual, keep it in a readily accessible
place for future reference.
What the WT-7 Can Do for Users of the D810, D810A, D750, and D7200
What the WT-7 Can Do for Users of the D810, D810A, D750, and D7200
This guide describes how to attach the WT-7 to a D810, D810A,
D750, or D7200 digital camera and connect the camera to a
computer, ftp server, or other device over Ethernet or wireless
networks. It also describes the operations that can be performed
once a connection is established.
Before connecting the WT-7, confirm that the firmware for the camera
and WT-7 have been updated to the latest version. For more
information, visit the websites listed on page x.
Model Name: WT-7 (N1504) Model Name: WT-7A (N1534)
Model Name: WT-7B (N1535) Model Name: WT-7C (N1536)
ii
Before using the WT-7 network function, connect the camera to
a network.
Ethernet Networks
For information on connecting to a computer, see page 9.
For information on connecting to an ftp server, see page 51.
Wireless Networks
For information on connecting to a computer, see page 17.
For information on connecting to an ftp server, see page 57.
What the WT-7 Can Do for Users of the D810, D810A, D750, and D7200
iii
Once a network connection has been established, you can:
Image Transfer (030) FTP Upload (070)
Computer
ftp server
Camera Control (035) HTTP Server (038)
Camera Control Pro 2
iPhone
Computer
Upload existing photos and movies
What the WT-7 Can Do for Users of the D810, D810A, D750, and D7200
Take or browse photos remotely
Nikon User Support for India and Australia
Contact a Nikon representative for technical assistance with the operation
of your Nikon product or products. For information on the Nikon
representatives in your area, visit http://www.nikon-asia.com/support.
iv
Trademark Information
IOS is a trademark or registered trademark of Cisco Systems, Inc., in the
United States and/or other countries and is used under license. Windows
is either a registered trademark or a trademark of Microsoft Corporation in
the United States and/or other countries. Mac, OS X, and iPhone® are
registered trademarks of Apple Inc. in the United States and/or other
countries. The SD, SDHC, and SDXC logos are trademarks of the SD-3C,
LLC. CompactFlash is a trademark of SanDisk Corporation. Wi-Fi and the
Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi Alliance.
All other trade names mentioned in this guide or the other
documentation provided with your Nikon product are trademarks or
registered trademarks of their respective holders.
Memory Cards
Throughout this guide, CompactFlash and SD memory cards are referred
to as “memory cards”.
Apple Public Source License
This product includes Apple mDNS source code that is subject to the
terms of the Apple Public Source License located at URL
http://developer.apple.com/opensource/.
This file contains Original Code and/or Modifications of Original Code as
defined in and that are subject to the Apple Public Source License Version
2.0 (the ‘License’). You may not use this file except in compliance with the
License. Please obtain a copy of the License at
http://www.opensource.apple.com/license/apsl/ and read it before using
this file.
What the WT-7 Can Do for Users of the D810, D810A, D750, and D7200
The Original Code and all software distributed under the License are
distributed on an ‘AS IS’ basis, WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, AND APPLE HEREBY DISCLAIMS ALL SUCH
WARRANTIES, INCLUDING WITHOUT LIMITATION, ANY WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET
ENJOYMENT OR NON-INFRINGEMENT. Please see the License for the
specific language governing rights and limitations under the License.
v
Notices
•
No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without Nikon’s prior written permission.
• Nikon reserves the right to change the appearance and specifications of the
hardware and software described in this guide at any time and without prior
Notices
notice.
• Nikon will not be held liable for any damages resulting from the use of this
product.
• While every effort has been made to ensure that the information in this
guide is accurate and complete, we would appreciate it were you to bring
any errors or omissions to the attention of the Nikon representative in your
area (address provided separately).
Copyright
Comply with copyright notices. Under copyright law, photographs or recordings
of copyrighted works made with the camera can not be used without the
permission of the copyright holder. Exceptions apply to personal use, but note
that even personal use may be restricted in the case of photographs or
recordings of exhibits or live performances.
Security
Although one of the benefits of this product is that it allows others to freely
connect for the wireless exchange of data anywhere within its range, the
following may occur if security is not enabled:
• Data theft: Malicious third-parties may intercept wireless transmissions to
steal user IDs, passwords, and other personal information.
• Unauthorized access: Unauthorized users may gain access to the network
and alter data or perform other malicious actions. Note that due the design
of wireless networks, specialized attacks may allow unauthorized access
even when security is enabled.
vi
Table of Contents
What the WT-7 Can Do for Users of
the D810, D810A, D750, and D7200............................................ii
Notices.......................................................................................................vi
Introduction 1
Parts of the WT-7 ....................................................................................2
Getting Ready ..........................................................................................3
Network Functions Available with the D810, D810A, D750,
and D7200.............................................................................................7
Transfer, Control, and HTTP 9
Ethernet Connections ...........................................................................9
Step 1: Connecting the Equipment..........................................10
Step 2: Configuring the Hardware for
Ethernet Connections...............................................................11
Step 3: The Connection Wizard.................................................. 12
Step 4: Pairing .................................................................................. 15
Wireless Connections......................................................................... 17
Step 1: Readying the Equipment............................................... 18
Step 2: Enable Camera Wireless................................................. 19
Step 3: The Connection Wizard.................................................. 20
Step 4: Network Settings.............................................................. 27
Image Transfer...................................................................................... 30
Camera Control .................................................................................... 35
HTTP Server ........................................................................................... 38
Computer Web Browsers .............................................................43
iPhone Web Browsers.................................................................... 47
vii
FTP 51
Ethernet Connections ........................................................................ 51
Step 1: Connecting the Hardware .............................................52
Step 2: Configuring the Hardware for
Ethernet Connections ...............................................................53
Step 3: The Connection Wizard ..................................................54
Wireless Connections ......................................................................... 57
Step 1: Connecting the Equipment ..........................................58
Step 2: Enable Camera Wireless .................................................59
Step 3: The Connection Wizard ..................................................60
Step 4: Network Settings ..............................................................67
FTP Upload............................................................................................. 70
Menu Guide 75
Choose Hardware ................................................................................ 75
Network Settings .................................................................................76
The Profile List ..................................................................................76
Create Profile.....................................................................................76
Copy to/from Card ..........................................................................77
Deleting Network Profiles ............................................................77
Editing Network Profiles ...............................................................78
Options.................................................................................................... 81
Auto Send...........................................................................................81
Delete After Send ............................................................................81
Send File As........................................................................................81
Overwrite If Same Name...............................................................82
Protect If Marked for Upload.......................................................82
Send Folder........................................................................................82
viii
Deselect All?...................................................................................... 83
HTTP User Settings ......................................................................... 83
Battery Info........................................................................................83
Auto Power off Delay..................................................................... 84
MAC Address ....................................................................................84
Firmware Version ............................................................................ 84
Appendices 85
Copying Profiles ................................................................................... 85
Creating Profiles on a Computer ................................................... 88
Creating an FTP Server ...................................................................... 90
Manual Profile Creation..................................................................... 98
Troubleshooting ................................................................................100
Index.......................................................................................................102
ix
A Background Knowledge
This guide assumes basic knowledge of ftp servers, local area networks
(LANs), and wireless networks. For more information on installing,
configuring, and using devices in a network, contact the manufacturer
or network administrator.
A Illustrations
The appearance and content of the software and operating system
dialogs, messages, and displays shown in this guide may vary with the
operating system used. For information on basic computer operations,
see the documentation provided with the computer or operating
system.
A Camera Controls
The camera and menu operations described in this guide are for the
D810 and may differ from those for the D810A, D750, and D7200.
A Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing
product support and education, continually-updated information is
available on-line at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support/
• For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information,
tips, answers to frequently-asked questions (FAQs), and general advice
on digital imaging and photography. Additional information may be
available from the Nikon representative in your area. See the following
URL for contact information: http://imaging.nikon.com/
x
Introduction
D
This icon marks cautions, information that should be read before
use to prevent damage to the product.
A
This icon marks notes, information that should be read before
using the device.
0
This icon marks references to other pages in this guide.
Thank you for your purchase of a WT-7 wireless transmitter for
compatible Nikon digital cameras. Please read this guide
thoroughly and keep it where all those who use the product can
read it.
The following symbols and conventions are used throughout this
guide:
1Introduction
Parts of the WT-7
1 Mounting screw................................. 4
2 Power connector cover ....................6
3 Battery-chamber cover .................... 3
4 Battery latch........................................ 3
5 Power switch.................10, 18, 52, 58
6 Status LEDs....................33, 36, 41, 73
POWER (green/yellow),
LINK (green), ERROR (orange)
7 Attachment wheel.............................4
8 Ethernet connector cover
9 USB connector cover
10 USB connector.................................... 4
11 Ethernet connector
1
Parts of the WT-7
4
2
3
A The POWER LED
When the WT-7 is on, the POWER LED glows green to indicate that the
battery is fully charged or that an AC adapter is connected. At battery
levels below 10%, it will flash to warn that the battery requires charging.
When the WT-7 is turned off, the POWER LED briefly turns yellow as the
product powers down.
2 Introduction
11
10
6
5
7
8
9
Getting Ready
Inserting the Battery
The WT-7 takes one EN-EL15 rechargeable Li-ion battery. Insert the
battery as described below.
1 Open the battery-chamber cover.
Unlatch the cover by sliding it as shown
(q).
Open the cover (w).
2 Insert the battery.
Using the battery to keep the battery
latch pressed to one side, slide the
battery in until the latch clicks back into
place. For safety precautions and
information on charging the battery, see
the battery and charger manuals.
Getting Ready
3 Close the battery-chamber cover.
Reverse the instructions in Step 1 to close
and latch the cover as shown. Be sure the
cover is securely latched.
3Introduction
Attaching the WT-7
After checking that the camera is off, align the WT-7 mounting
screw with the camera tripod socket and tighten by rotating the
attachment wheel in the direction shown by the LOCK arrow.
Getting Ready
Connecting the USB Cable
Connect the WT-7 to the camera using the USB cable supplied
with the WT-7 (D810 or D810A) or with the camera (D750 or
D7200).
4 Introduction
The Wireless Transmitter Utility
The Wireless Transmitter Utility is used for pairing in image transfer
and camera control modes (015) and can also help create
network profiles (088). You can install the utility after
downloading it from the following website:
http://downloadcenter.nikonimglib.com/
Be sure to use the latest versions of the Wireless Transmitter Utility
and the camera firmware.
A Removing the Battery
Being careful not to drop the battery, open the
WT-7 battery-chamber cover and remove the
battery as shown at right.
Getting Ready
A Stand-By Mode
When the WT-7 is disconnected from the camera or the camera is
turned off, the WT-7 will turn off automatically after the delay chosen for
Network > Options > Auto power off delay in the camera setup menu
(084), reducing the drain on the battery.
5Introduction
A Battery Level
The level of the battery inserted in the WT-7 can be determined by
connecting the WT-7 to the camera (04) and checking the battery level
using the Options > Battery info in the Network menu (083).
A Using an AC Adapter
To prevent loss of power when adjusting settings or transmitting
Getting Ready
images, use a fully-charged battery or an optional EP-5B power
connector and EH-5b AC adapter. An optional EH-5/EH-5a AC adapter
can also be used. Insert the power connector as shown below.
1 Unlatch the battery-chamber cover (q).
2 Open the battery-chamber (w) and power
connector covers (e).
3 Using the power connector to keep the battery
latch pressed to one side, slide the connector in
until the latch clicks back into place (r).
4 Position the power connector so that the cord
passes through the power connector slot and
close the battery-chamber cover (t). Be sure
that the cover is securely latched.
6 Introduction
Network Functions Available with the D810, D810A, D750, and D7200
The WT-7 wireless transmitter connects D810, D810A, D750, or
D7200 digital cameras to Ethernet and wireless networks.
Photographs on the camera can then be transmitted to a
computer or ftp server and the camera controlled remotely from a
computer. The WT-7 supports the following functions:
Network Functions Available with the D810, D810A, D750, and D7200
FTP upload
(070)
Image transfer
(030)
Camera control
(035)
HTTP server
(038)
Before data can be transferred over a wireless or Ethernet network,
the camera must be supplied with a network profile providing
information on the host computer or ftp server.
Upload existing photos and movies to a computer
or ftp server, or upload new photos as they are
taken.
Control the camera using optional
Camera Control Pro 2 software and save new
photos and movies directly to the computer.
View and take pictures remotely using a browserequipped computer or iPhone.
7Introduction
D Choosing a Power Source
To prevent the camera or WT-7 powering off unexpectedly during setup
or data transfer, use fully-charged batteries or optional AC adapters
designated for use with the camera or WT-7. For more on camera power
sources, see the camera manual.
A FTP Servers
Network Functions Available with the D810, D810A, D750, and D7200
Servers can be configured using standard ftp services available with
supported operating systems, such as IIS (Internet Information
Services). Connection to computers on other networks via a router,
Internet ftp connections and ftp servers running third-party software
are not supported.
A Ethernet Connection
No adjustments to wireless LAN settings are required when the camera
is connected to a LAN by an Ethernet cable.
A HTTP Server Mode
Internet connections are not supported in http server mode.
A Routers
Connection to computers on other networks via a router is not
supported.
A Firewall Settings
TCP ports 21 and 32768 through 61000 are used for ftp, TCP ports 22
and 32768 through 61000 for sftp, and TCP port 15740 and UDP port
5353 for connections to computers. File transfer may be blocked if the
server firewall is not configured to allow access to these ports.
8 Introduction
Transfer, Control, and HTTP
Ethernet Connections
Follow the steps below to connect via an Ethernet network. For
information on wireless connections, see page 17.
Image transfer Camera control HTTP server
Install the Wireless Transmitter Utility (0 5)
Step 1: Connect the camera, WT-7, and computer (010)
Step 2: Configure the hardware for Ethernet connections (011)
Step 3: Run the connection wizard (012)
Step 4: Pair the camera and computer (015)
Transfer pictures (030) Control the camera (035) Access the camera (038)
9Transfer, Control, and HTTP
Step 1: Connecting the Equipment
Power switch
Before proceeding with the following steps, start the computer
and log in.
1 Insert a memory card.
Turn the camera off and insert a memory card (do not turn the
Ethernet Connections
camera off or disconnect the Ethernet cable while data are
being transferred to the computer). This step can be omitted
in camera control mode (0 35).
2 Attach the WT-7 (0 4).
3 Connect an Ethernet cable.
Connect the Ethernet cable as shown below. Do not use force
or insert the connectors at an angle.
4 Turn the camera on.
Rotate the power switch to turn the camera on.
5 Press the power switch for about a
second to turn the WT-7 on.
10 Transfer, Control, and HTTP
Step 2: Configuring the Hardware for Ethernet Connections
Configure the WT-7 for use with Ethernet networks.
1 Select Choose hardware.
In the setup menu, select Network, then
highlight Choose hardware and press 2.
The menu offers a choice of Wired LAN
and Wireless LAN.
2 Select Wired LAN.
Highlight Wired LAN and press J to
select the highlighted option and return
to the network menu.
Ethernet Connections
11Transfer, Control, and HTTP
Step 3: The Connection Wizard
Follow the on-screen instructions to create a network profile.
1 Display network profiles.
In the network menu, highlight Network
settings and press 2 to display the
Ethernet Connections
profiles list and other network settings.
2 Select Create profile.
Highlight Create profile and press 2.
Note that if the list already contains nine
profiles, you will need to delete an
existing profile using the O (Q) button
before proceeding (077).
3 Start the connection wizard.
Highlight Connection wizard and press
2 to start the connection wizard.
4 Choose a connection type (07).
Highlight Image transfer, Camera
control, or HTTP server and press 2.
12 Transfer, Control, and HTTP
5 Name the new network profile.
Enter the name that will appear in the
profile list and press J (to use the default
name, press J without making any
changes). Profile names can be up to
16 characters long.
6 Obtain or select an IP address.
Highlight one of the following options
and press J.
• Obtain automatically: Select this option if
the network is configured to supply the
IP address automatically.
• Enter manually: When prompted, enter an IP address and
subnet mask by pressing 4 and 2 to highlight segments
and 1 and 3 to change. Press J to proceed when entry is
complete.
Ethernet Connections
13Transfer, Control, and HTTP
7 Choose your next step.
The IP address will be displayed; press J. Your next step
depends on the connection type selected in Step 4 on page 12:
Ethernet Connections
If you chose Image transfer or Camera
control, proceed to page 15.
If you chose HTTP server, proceed to Step 8.
8 Exit the wizard.
Highlight one of the following options
and press J.
• Connect and exit wizard: Save the new
network profile and connect to the
server.
• Exit wizard: Save the new network profile and exit.
Proceed to “HTTP Server” (038).
A Routers
Connection to computers on other networks via a router is not
supported.
14 Transfer, Control, and HTTP
Step 4: Pairing
If you selected Image transfer or Camera control in Step 4 of the
connection wizard (0 12), pair the camera with the computer as
described below. Pairing allows the computer to connect to the
camera.
1 Connect the camera to the
computer via USB.
Disconnect the USB cable from the WT-7
and connect it to the computer.
2 Start the Wireless Transmitter Utility.
When prompted, start the copy of the
Wireless Transmitter Utility installed on
the computer. Pairing will begin
automatically.
Ethernet Connections
15Transfer, Control, and HTTP
3 Disconnect the camera.
The message at right will be displayed
when pairing is complete. Disconnect the
USB cable from the computer and
reconnect it to the WT-7.
Ethernet Connections
4 Exit the wizard.
Highlight one of the following options
and press J.
• Connect and exit wizard: Save the new
network profile and connect to the
server.
• Exit wizard: Save the new network profile and exit.
Proceed to “Image Transfer” (030) or “Camera Control” (035).
16 Transfer, Control, and HTTP
Wireless Connections
Follow the steps below to connect to a wireless network.
Image transfer Camera control HTTP server
Install the Wireless Transmitter Utility
Step 1: Ready the camera and WT-7 (018)
Step 2: Enable Camera Wireless (0 19)
Step 3: Run the connection wizard (020)
Step 4: Adjust network settings (027)
Adjust settings for the chosen connection type
Pair the camera and computer
Wireless Connections
Transfer pictures
(030)
Control the camera
(035)
Access the camera
(038)
A Wireless LANs
These instructions assume that the computer and wireless LAN access
point are already connected to the network.
17Transfer, Control, and HTTP
Step 1: Readying the Equipment
Power switch
After starting the computer and logging in, ready the camera and
WT-7 as described below.
1 Insert a memory card.
Turn the camera off and insert a memory card (do not turn the
Wireless Connections
camera off while data are being transferred to the computer).
This step can be omitted in camera control mode (07).
2 Attach the WT-7 (04).
3 Turn the camera on.
Rotate the power switch to turn the camera on.
4 Press the power switch for about a
second to turn the WT-7 on.
18 Transfer, Control, and HTTP
Step 2: Enable Camera Wireless
Ready the camera for connection to a wireless network.
1 Select Choose hardware.
In the setup menu, select Network, then
highlight Choose hardware and press 2.
The menu offers a choice of Wired LAN
and Wireless LAN.
2 Select Wireless LAN.
Highlight Wireless LAN and press J to
select the highlighted option and return
to the network menu.
Wireless Connections
19Transfer, Control, and HTTP
Step 3: The Connection Wizard
Follow the on-screen instructions to create a network profile.
1 Display network profiles.
In the network menu, highlight Network
settings and press 2 to display the
Wireless Connections
profiles list and other network settings.
2 Select Create profile.
Highlight Create profile and press 2.
Note that if the list already contains nine
profiles, you will need to delete an
existing profile using the O (Q) button
before proceeding.
3 Start the connection wizard.
Highlight Connection wizard and press
2 to start the connection wizard.
4 Choose a connection type (07).
Highlight Image transfer, Camera
control, or HTTP server and press J.
20 Transfer, Control, and HTTP
5 Name the new network profile.
Enter the name that will appear in the
profile list and press J (to use the default
name, press J without making any
changes). Profile names can be up to 16
characters long.
6 Choose a connection method.
Highlight the connection method used
by the network and press J. More
information can be found on the pages
listed below.
Wireless Connections
Search for wireless
network
Push-button WPS
PIN-entry WPS
Direct connection
(ad hoc)
Choose from a list of networks detected by the
camera. Proceed to page 22.
Choose for wireless LAN access points with pushbutton WPS. Proceed to page 24.
Choose for wireless LAN access points with PINentry WPS. Proceed to page 25.
Connect directly to a host computer or ftp server in
ad hoc mode (supported in Windows 7 only).
Proceed to page 26.
21Transfer, Control, and HTTP
❚❚ Search for Wireless Network
SSID
Select Search for wireless network in Step 6
on page 21 to choose from a list of the
networks (wireless LAN access points)
detected by the camera.
Wireless Connections
1 Choose a network.
Highlight a network SSID and press J (if
the desired network is not displayed,
press X to search again). If the selected
network is encrypted (h), you will be
prompted to enter the encryption key as
described in Step 2. If the network is not
encrypted, proceed to Step 3.
The network type is indicated by the icons to the left of the ID:
h Signal encrypted
j/i Infrastructure/ad hoc
A Hidden SSIDs
Networks with hidden SSIDs are indicated
by blank entries in the network list. If you
select a network with a hidden SSID, you will
be prompted to provide the network name;
enter a name and press J to proceed to
Step 2.
22 Transfer, Control, and HTTP
2 Enter the encryption key.
Enter the encryption key and press J (if
the network uses open authentication,
this dialog will not be displayed; proceed
to Step 3).
3 Choose your next step.
The message at right is displayed when a
connection is established. Proceed to
page 27.
Wireless Connections
23Transfer, Control, and HTTP
❚❚ Push-Button WPS
Choose Push-button
WPS in Step 6 on page 21
if the wireless LAN access
point uses push-button
WPS.
Wireless Connections
1 Press the WPS button on the wireless LAN access point.
For more information, see the documentation provided with
the wireless LAN access point.
2 Press J button on the camera.
The camera will connect to the access
point automatically.
3 Choose your next step.
The message at right is displayed when a
connection is established. Press J and
proceed to page 27.
24 Transfer, Control, and HTTP

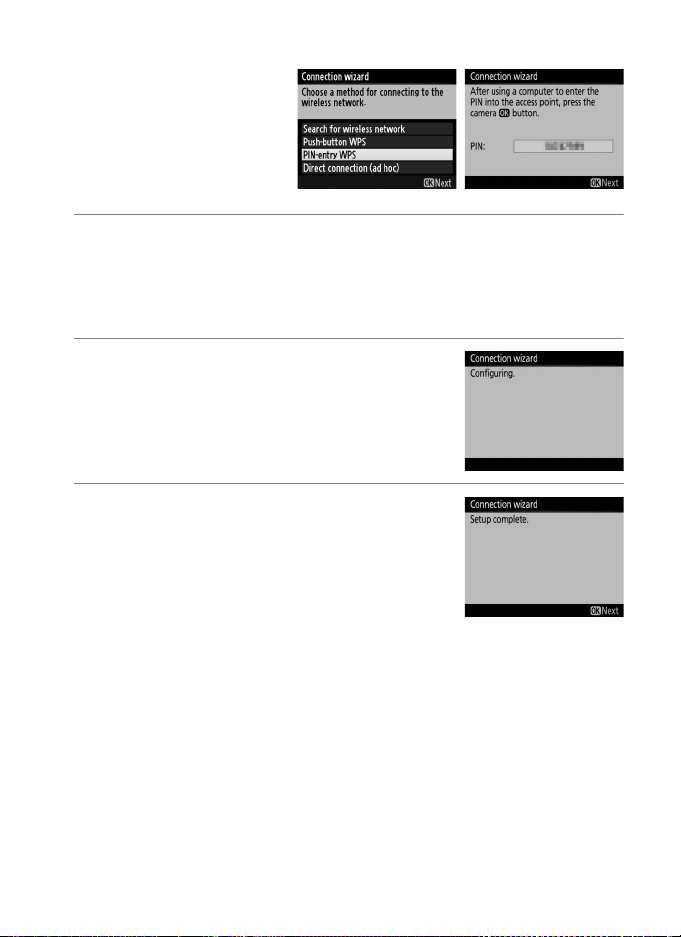

❚❚ PIN-Entry WPS
Choose PIN-entry WPS
in Step 6 on page 21 if
the wireless LAN access
point uses PIN-entry
WPS.
1 Enter the PIN for the wireless LAN access point.
From a computer, enter the PIN for the wireless LAN access
point. For more information, see the documentation provided
with the wireless LAN access point.
2 Press J button on the camera.
The camera will connect to the access
point automatically.
3 Choose your next step.
The message at right is displayed when a
connection is established. Press J and
proceed to page 27.
Wireless Connections
25Transfer, Control, and HTTP
❚❚ Direct Connection (Ad Hoc)
To connect directly to an ftp server or
computer in ad hoc mode, select Direct
connection (ad hoc) in Step 6 on page 21.
Wireless Connections
1 Enter the SSID.
Enter a network name (SSID) and press J.
The default name is “WT” followed by the
MAC address of the WT-7.
2 Enter the encryption key.
Enter an encryption key and press J (the
default key is “nikon”). Proceed to page 27.
26 Transfer, Control, and HTTP
Step 4: Network Settings
Choose an IP address.
1 Choose whether to copy the profile
to the computer.
Highlight one of the options at right and
press J. To copy the new WT-7 network
profile to the computer (085), select Ye s
(note that network settings for other
operating systems may be overwritten).
2 Obtain or select an IP address.
Highlight one of the following options
and press J.
• Obtain automatically: Select this option if
the network is configured to supply the
IP address automatically.
• Enter manually: When prompted, enter an IP address and
subnet mask by pressing 4 and 2 to highlight segments
and 1 and 3 to change. Press J to proceed when entry is
complete.
Wireless Connections
A Routers
Connection to computers on other networks via a router is supported
only when HTTP server is selected.
A MAC Address Filtering
If the network uses MAC address filtering, the filter must be supplied
with the MAC address of the WT-7. After attaching the WT-7 to the
camera, choose Network > Options > MAC address from the camera
setup menu and note the MAC address.
27Transfer, Control, and HTTP
3 Confirm the IP address.
The camera IP address will be displayed
as shown at right; press J. If Image
transfer or Camera control is selected,
proceed to Step 4; otherwise, proceed to
Step 6.
Wireless Connections
4 Connect the
camera to the
computer.
Disconnect the USB
cable from the WT-7
and connect it to the
computer.
28 Transfer, Control, and HTTP
5 Start the Wireless Transmitter Utility.
When prompted, start the copy of the
Wireless Transmitter Utility installed on
the computer (05). Pairing will begin
automatically.
6 Disconnect the camera.
The message at right will be displayed
when pairing is complete. Disconnect the
USB cable from the computer and
reconnect it to the WT-7.
7 Exit the wizard.
Highlight one of the following options
and press J.
• Connect and exit wizard: Save the new
network profile and connect to the
network.
• Exit wizard: Save the new network profile and exit.
Proceed to “Image Transfer” (030), “Camera Control” (035), or
“HTTP Server” (0 38).
Wireless Connections
29Transfer, Control, and HTTP
Image Transfer
Image transfer is used to upload photographs and movies to the
computer from a camera memory card. The explanation that
follows assumes that existing pictures are used.
Image Transfer
1 Display network profiles.
In the setup menu, select Network >
Network settings to display the profiles
list. Image transfer profiles are indicated
by a K icon. Highlight a profile and
press J to select the highlighted profile
and return to the network menu.
The profile name will be displayed in
green when a connection is established.
2 View pictures.
Press the K button to view pictures.
Display the first picture to be sent in
single-image playback or highlight it in
the thumbnail list.
30 Transfer, Control, and HTTP
3 Upload pictures.
Press J. A white transfer icon will appear
on the picture and upload will begin
immediately. The transfer icon turns
green during upload, and turns blue
when upload is complete. Additional
pictures will be uploaded in the order selected.
To upload a picture that has already been
uploaded once, press J once to remove
the blue transfer icon, and then press J
again to mark the image with a white
transfer icon.
Uploading New Photographs as They Are Taken
To upload new photographs as they are taken,
select On for Network > Options > Auto send in
the setup menu (081).
Image Transfer
31Transfer, Control, and HTTP
Interrupting Transmission/Removing Transfer Marking
To cancel transmission of images marked with white or green
transfer icons, select the images during playback and press J. The
transfer icon will be removed. Any of the following actions will also
interrupt transmission:
• Turning the camera off
Image Transfer
• Selecting Ye s for Network > Options > Deselect all? (083; this
option also removes transfer marking from all images)
D During Upload
Do not remove the memory card or disconnect the Ethernet cable
during upload.
A Interval Timer Photography
Upload will be interrupted if the standby timer expires while interval
timer photography is in progress. Choose a long standby time before
starting the interval timer.
A Loss of Signal
Wireless transmission may be interrupted if the signal is lost, but can be
resumed by turning the camera off and then on again.
A Turning the Camera Off
“Send” marking will be saved if the camera or WT-7 is turned off while
transmission is in progress. Transmission of images marked with a
“send” icon will resume when the camera or WT-7 is turned on.
A Destination Folders
By default, images are uploaded to the following folders:
• Windows: \Users\(user name)\Pictures\Wireless Transmitter Utility
• Mac: /Users/(user name)/Pictures/Wireless Transmitter Utility
The destination folder can be selected using the Wireless Transmitter
Utility.
32 Transfer, Control, and HTTP
Transfer Status
The POWER LED lights when the WT-7 is on.
Signal quality is shown by the LINK LED: the
faster the LED flashes, the better the signal and
the faster data can be transmitted. The ERROR
LED flashes to show that an error has occurred.
During playback, the status of images selected for upload is shown
as follows:
: “Send”
a
Images that have been selected for upload
are marked with a white
: “Sending”
b
A green
c
Images that have been uploaded successfully are marked with a
blue
b icon is displayed during upload.
: “Sent”
c icon.
a icon.
A Network Status
The status of the link between the host and the WT-7 is shown by the
status LEDs and by the display in the top level of the network menu.
The Status LEDs
Image Transfer
Status POWER LINK ERROR
WT-7 off I (off) I (off) I (off )
USB cable not connected K (on) I (off) I (off )
Connecting to host K (on) K (on) I (off )
Waiting to send or sending data K (on) H (flashes) I (off)
Connection error K (on) I (off) H (flashes)
WT-7 hardware or battery malfunction H (flashes) H (flashes) H (flashes)
33Transfer, Control, and HTTP
The Status Display
Signal strength: Wireless signal
strength. Ethernet connections are
shown by d.
Status area: The status of the
connection to the host. The host
name is displayed in green when a
connection is established. While files
are being transferred, the status
display shows “Now sending”
preceded by the name of the file
being sent. Any errors that occur
during transfer are also displayed
here (0100).
e, f: The estimated
time required to
send the remaining
images.
Battery level: The
charge state of the
battery in the WT-7.
Network status can also be viewed in the top level of the network menu.
Image Transfer
34 Transfer, Control, and HTTP
Camera Control
Select this option to control the camera from a computer running
Camera Control Pro 2 (available separately) and save photographs
directly to the computer hard disk instead of the camera memory
card (movies will still be saved to the camera memory card; insert a
memory card before shooting movies). Note that the camera
standby timer do not turn off when the camera is in camera
control mode.
1 Display network profiles.
In the setup menu, select Network >
Network settings to display the profiles
list. Camera control profiles are indicated
by a L icon. Highlight a profile and
press J to select the highlighted profile
and return to the network menu.
The profile name will be displayed in
green when a connection is established.
2 Start Camera Control Pro 2.
Start the copy of Camera Control Pro 2 (available separately)
installed on the host computer. For information on using
Camera Control Pro 2, see the Camera Control Pro 2 manual
(pdf).
Camera Control
35Transfer, Control, and HTTP
A Ethernet Networks
The POWER LED lights when the WT-7 is on.
Signal quality is shown by the LINK LED: the
faster the LED flashes, the better the signal and
the faster data can be transmitted. The ERROR
LED flashes to show that an error has occurred.
Do not disconnect the Ethernet cable while the camera is on.
D Wireless Networks
Operations may take longer on wireless networks. If the signal is
disrupted while pictures are being transferred to Camera Control Pro 2,
the LED on the WT-7 will flash orange; turn the camera off and then on
Camera Control
again. Transfer will resume when the connection is re-established. Note
that transfer can not be resumed if you turn the camera off again before
transfer is complete.
A Network Status
The status of the link between the host and the WT-7 is shown by the
status LEDs and by the display in the top level of the network menu.
The Status LEDs
Status POWER LINK ERROR
WT-7 off I (off) I (off ) I (off )
USB cable not connected K (on) I (off) I (off)
Connecting to host K (on) K (on) I (off)
Waiting to send or sending data K (on) H (flashes) I (off)
Connection error K (on) I (off) H (flashes)
WT-7 hardware or battery malfunction H (flashes) H (flashes) H (flashes)
36 Transfer, Control, and HTTP
The Status Display
Signal strength: Wireless signal strength.
Ethernet connections are shown by d.
Status area: The status of the connection
to the host. The host name is displayed
in green when a connection is
established. Any errors that occur
during transfer are also displayed here
(0100).
Battery level: The
charge state of the
battery in the WT-7.
Network status can also be viewed in the top level of the network menu.
Camera Control
37Transfer, Control, and HTTP
HTTP Server
Select HTTP server to view the pictures on the camera memory
card or take photographs from the web browser on a computer or
iPhone (see page 42 for system requirements). Up to five users can
access the camera at one time, although only one can take
HTTP Server
photographs. Note that the exposure meters do not turn off
automatically when the camera is in http server mode.
1 Display network profiles.
In the setup menu, select Network >
Network settings to display the profiles
list. HTTP server profiles are indicated by
a M icon. Highlight a profile and press
J to select the highlighted profile and
return to the network menu.
The URL used for connection to the
camera is displayed when a connection
is established.
2 Launch the web browser on the computer or iPhone.
38 Transfer, Control, and HTTP
3 Enter the camera URL.
Enter the camera URL (“http://” followed
by the camera IP address, as shown in the
network menu) in the browser window
address field.
HTTP Server
39Transfer, Control, and HTTP
4 Log in.
Enter your user name and password in the web browser login
dialog (the user name and password are set using Network >
Options > HTTP user settings in the network menu as
described on page 83; the default user name is “nikon” while
the default password is blank).
HTTP Server
5 Choose a language.
6 Choose an operating mode.
Choose Shooting/Viewer to take pictures (043, 47) and
Shooting/Viewer or Viewer to view existing pictures (045,
49). Up to five users at a time can connect using Viewer, but
only one user at a time can connect using Shooting/Viewer
(if another user is already connected using Shooting/Viewer,
Shooting/Viewer will not be displayed and only four users
will be able to connect using Viewer).
40 Transfer, Control, and HTTP
A Network Status
The POWER LED lights when the WT-7 is on.
Signal quality is shown by the LINK LED: the
faster the LED flashes, the better the signal and
the faster data can be transmitted. The ERROR
LED flashes to show that an error has occurred.
Signal strength: Wireless signal strength.
Ethernet connections are shown by d.
Status area: The status of the connection
to the host. The camera URL is
displayed in green when a connection
is established. Errors are also displayed
here (0100).
Battery level: The
charge state of the
battery in the WT-7.
The status of the link between the host and the WT-7 is shown by the
status LEDs and by the display in the top level of the network menu.
The Status LEDs
Status POWER LINK ERROR
WT-7 off I (off) I (off) I (off )
USB cable not connected K (on) I (off) I (off )
HTTP server starting up K (on) K (on) I (off )
HTTP server in operation K (on) H (flashes) I (off )
Connection error K (on) I (off) H (flashes)
WT-7 hardware or battery malfunction H (flashes) H (flashes) H (flashes)
The Status Display
Network status can be viewed in the top level of the network menu.
HTTP Server
41Transfer, Control, and HTTP
A HTTP Server System Requirements
Operation has been confirmed with the following systems:
Windows
OS Windows 10, Windows 8.1, Windows 7
• Windows 10: Microsoft Edge
HTTP Server
Browser
Monitor
OS OS X version 10.11, 10.10, or 10.9
Browser
Monitor
OS iOS 9, iOS 8
Browser The version of Safari included with the operating system
• Windows 8.1: Internet Explorer 11
• Windows 7: Internet Explorer 10
• Resolution: 1,024 × 768 pixels (XGA) or more; 1,280 × 1,024
pixels (SXGA) or more recommended
• Color: 24-bit color (True Color) or more
Mac
• OS X version 10.11: Safari 9
• OS X version 10.10: Safari 8
• OS X version 10.9: Safari 7
• Resolution: 1,024 × 768 pixels (XGA) or more; 1,280 × 1,024
pixels (SXGA) or more recommended
• Color: 24-bit color (millions of colors) or more
iPhone
42 Transfer, Control, and HTTP
Computer Web Browsers
Display panel (044)
Camera settings (044)
Exposure mode
Tes t but ton (044)
Shutter button (044)
Still photography/movie button
Logout button
Home button
Shoot button
Zoom buttons Focus buttons
Live view button
Viewfinder
View button (045)
Resolution (live view)
This section describes the http server displays for computer web
browsers (note that the display varies with the model of camera).
Click to adjust camera settings. For information on the displays for
iPhones, see page 47.
The Shooting Window
The following controls can be accessed by selecting Shooting/
Viewer on the server home page. To display the view through the
camera lens in the viewfinder area, click the live view button. Click
the button again to exit live view.
HTTP Server
A Movie Live View
The information at right appears in the camera
settings area (044) in movie live view.
43Transfer, Control, and HTTP
Display panel
Small
Large
Camera settings
Shutter button
HTTP Server
Test button
Contains the exposure indicator and shows the battery
level and number of exposures remaining.
Settings for still photography and movie recording can
be adjusted by clicking the icons in the camera settings
panel. See the camera manual for more information.
Take a photograph or start and end movie recording. To
focus, click the desired subject in the viewfinder area.
Take a test photo and display it in the viewfinder
without recording it to the camera memory card. Not
available in movie live view.
A Focus Buttons
The size of the focus adjustment increases with
the distance of the button from the center of
the display.
44 Transfer, Control, and HTTP
The Viewer Window
Navigation controls
Thumbnails (click to view
pictures full frame).
Movies are indicated by
1.
Page number
Full-frame view (046)
Film-strip view (0 46)
Thumbnail view
View most recent
picture in folder
Thumbnails per
page
Page controls
Folder selection
The viewer window can be accessed by selecting Viewer on the
server home page or clicking the view button in the shooting
window. The viewer window for computer web browsers offers a
choice of thumbnail, film-strip (0 46), and full-frame views (046).
❚❚ Thumbnail View
View multiple small (“thumbnail”) images per page. The controls at
the top of the window can be used for navigation.
A Navigation Controls
HTTP Server
45Transfer, Control, and HTTP
❚❚ Film-Strip View
Current picture (click H or F
to view additional pictures)
Copy current pic ture to
computer
Thumbnails (click to select)
Current picture (click H or
F to view additional
pictures)
Copy current picture to
computer
Choose the picture displayed from the thumbnails at the bottom
of the window.
HTTP Server
❚❚ Full-Frame View
View pictures full frame.
46 Transfer, Control, and HTTP
iPhone Web Browsers
Display panel (044)
Shutter button (044)
Logout button
Home button
Shoot button
Exposure mode
View button (049)
Zoom buttons
Camera settings
(044)
Viewfinder (tap to
focus on selected
subject)
Live view button
Camera settings
(044)
This section describes the http server displays for iPhone web
browsers (note that the display varies with the model of camera).
Tap to adjust camera settings. For information on computer
displays, see page 43.
The Shooting Window
The following controls can be accessed by selecting Shooting/
Viewer on the server home page. Use the live view button to start
live view photography (C) or movie live view (1). The view
through the camera lens will be displayed in the viewfinder area.
To exit live view, use the live view button to turn live view off.
HTTP Server
47Transfer, Control, and HTTP
A The Live View Button
Tap to choose from live view off, photo live
view, and movie live view.
A Movie Live View
The information at right appears in the
camera settings area (044) in movie live
HTTP Server
view.
48 Transfer, Control, and HTTP
The Viewer Window
Thumbnails (tap to
view pictures full
frame). Movies are
indicated by 1.
Next page
Thumbnails per page
Page numb er
Previous page
View most recent
pictures in folder
Folde r selec tion
The viewer window can be accessed by selecting Viewer on the
server home page or tapping the view button in the shooting
window. The viewer window for iPhone web browsers offers a
choice of thumbnail and full-frame views (0 50).
❚❚ Thumbnail View
View multiple small (“thumbnail”) images per page. The controls at
the top and bottom of the thumbnail area can be used for
navigation.
HTTP Server
49Transfer, Control, and HTTP
❚❚ Full-Frame View
Current picture (tap to
return to thumbnail
view)
Show next imageShow previous
View most recent picture in folderThumbnail view
View pictures full frame.
HTTP Server
50 Transfer, Control, and HTTP
FTP
Ethernet Connections
Follow the steps below to connect to an ftp server via an Ethernet
network. For information on wireless connections, see page 57.
FTP server
Step 1: Connect the camera, WT-7, and ftp server (052)
Step 2: Select Ethernet (053)
Step 3: Run the connection wizard (054)
Transfer pictures (070)
D Choosing a Power Source
To prevent the camera or WT-7 powering off unexpectedly during setup
or data transfer, use fully-charged batteries or optional AC adapters
designated for use with the camera or WT-7. For more on camera power
sources, see the camera manual.
A FTP Servers
Servers can be configured using standard ftp services, such as IIS
(Internet Information Services), available with supported operating
systems (090). Connection to computers on other networks via a
router, Internet ftp connections and ftp servers running third-party
software are not supported.
51FTP
Step 1: Connecting the Hardware
Power switch
After starting the ftp server, connect the camera as described
below.
1 Insert a memory card.
Turn the camera off and insert a memory card (do not turn the
Ethernet Connections
camera off or disconnect the Ethernet cable while data are
being transferred to the computer).
2 Attach the WT-7 (04).
3 Connect an Ethernet cable.
Connect the camera to the ftp server as shown below. Do not
use force or insert the connectors at an angle.
4 Turn the camera on.
Rotate the power switch to turn the camera on.
5 Press the power switch for about a
second to turn the WT-7 on.
52 FTP
Step 2: Configuring the Hardware for Ethernet Connections
Configure the WT-7 for use with Ethernet networks.
1 Select Choose hardware.
In the setup menu, select Network, then
highlight Choose hardware and press 2.
The menu offers a choice of Wired LAN
and Wireless LAN.
2 Select Wired LAN.
Highlight Wired LAN and press J to
select the highlighted option and return
to the network menu.
Ethernet Connections
53FTP
Step 3: The Connection Wizard
Follow the on-screen instructions to create a network profile.
1 Display network profiles.
In the network menu, highlight Network
Ethernet Connections
settings and press 2 to display the
profiles list and other network settings.
2 Select Create profile.
Highlight Create profile and press 2.
Note that if the list already contains nine
profiles, you will need to delete an
existing profile using the O (Q) button
before proceeding (077).
3 Start the connection wizard.
Highlight Connection wizard and press
2 to start the connection wizard.
4 Choose a connection type.
Highlight FTP upload and press J.
54 FTP
5 Name the new network profile.
Enter the name that will appear in the
profile list and press J (to use the default
name, press J without making any
changes). Profile names can be up to 16
characters long.
6 Obtain or select an IP address.
Highlight one of the following options
and press J.
• Obtain automatically: Select this option if
the network is configured to supply the
IP address automatically.
• Enter manually: When prompted, enter an IP address and
subnet mask by pressing 4 and 2 to highlight segments
and 1 and 3 to change. Press J to proceed when entry is
complete.
7 Choose the server type.
Highlight FTP or SFTP (secure ftp) and
press J.
Ethernet Connections
8 Enter the IP address.
Enter the server URL or IP address and
press J to connect.
55FTP
9 Log in.
Highlight one of the following options
and press J.
• Anonymous login: Select this option if the
server does not require a user ID or
Ethernet Connections
password.
• Enter user ID: Enter a user ID and password when prompted
and press J.
10
Choose a destination folder.
Highlight one of the following options
and press J.
• Home folder: Select this option to upload
pictures to the server’s home folder.
• Enter folder name: Select this option to
upload pictures to another folder (the folder must already
exist on the server). Enter a folder name and path when
prompted and press J.
11
Exit the wizard.
Highlight one of the following options
and press J.
• Connect and exit wizard: Save the new
network profile and connect to the
server.
• Exit wizard: Save the new network profile and exit.
Proceed to “FTP Upload” (070).
56 FTP
Wireless Connections
Follow the steps below to connect to a wireless network.
FTP upload
Step 1: Ready the camera and WT-7 (058)
Step 2: Configure the hardware for wireless networks (059)
Step 3: Run the connection wizard (060)
Step 4: Adjust network settings (067)
Transfer pictures (070)
Wireless Connections
A Wireless LANs
These instructions assume that the computer and wireless LAN access
point are already connected to the network.
57FTP
Step 1: Connecting the Equipment
Power switch
After starting the computer and logging in, ready the camera and
WT-7 as described below.
1 Insert a memory card.
Turn the camera off and insert a memory card (do not turn the
Wireless Connections
camera off while data are being transferred to the computer).
2 Attach the WT-7 (04).
3 Turn the camera on.
Rotate the power switch to turn the camera on.
4 Press the power switch for about a
second to turn on the WT-7.
58 FTP
Step 2: Enable Camera Wireless
Ready the camera for connection to a wireless network.
1 Select Choose hardware.
In the setup menu, select Network, then
highlight Choose hardware and press 2.
The menu offers a choice of Wired LAN
and Wireless LAN.
2 Select Wireless LAN.
Highlight Wireless LAN and press J to
select the highlighted option and return
to the network menu.
Wireless Connections
59FTP
Step 3: The Connection Wizard
Follow the on-screen instructions to create a network profile.
1 Display network profiles.
In the network menu, highlight
settings
Wireless Connections
list and other network settings.
and press 2 to display the profiles
Network
2 Select Create profile.
Highlight
that if the list already contains nine profiles,
you will need to delete an existing profile
using the
Create profile
O (Q)
button before proceeding.
and press 2. Note
3 Start the connection wizard.
Highlight
to start the connection wizard.
Connection wizard
and press 2
4 Choose FTP upload (07).
Highlight FTP upload and press J.
60 FTP
5 Name the new network profile.
Enter the name that will appear in the
profile list and press J (to use the default
name, press J without making any
changes). Profile names can be up to
16 characters long.
6 Choose a connection method.
Highlight the connection method used
by the network and press J. More
information can be found on the pages
listed below.
Wireless Connections
Search for wireless
network
Push-button WPS
PIN-entry WPS
Direct connection
(ad hoc)
Choose from a list of networks detected by the
camera. Proceed to page 62.
Choose for wireless LAN access points with pushbutton WPS. Proceed to page 64.
Choose for wireless LAN access points with PINentry WPS. Proceed to page 65.
Connect directly to a host computer or ftp server in
ad hoc mode (supported in Windows 7 only).
Proceed to page 66.
61FTP
❚❚ Search for Wireless Network
SSID
Select Search for wireless network in Step 6
on page 61 to choose from a list of the
networks (wireless LAN access points)
detected by the camera.
Wireless Connections
1 Choose a network.
Highlight a network SSID and press J (if
the desired network is not displayed,
press X to search again). If the selected
network is encrypted (h), you will be
prompted to enter the encryption key as
described in Step 2. If the network is not
encrypted, proceed to Step 3.
The network type is indicated by the icons to the left of the ID:
h Signal encrypted
j/i Infrastructure/ad hoc
A Hidden SSIDs
Networks with hidden SSIDs are indicated
by blank entries in the network list. If you
select a network with a hidden SSID, you will
be prompted to provide the network name;
enter a name and press J to proceed to
Step 2.
62 FTP
2 Enter the encryption key.
Enter the encryption key and press J (if
the network uses open authentication,
this dialog will not be displayed; proceed
to Step 3).
3 Choose your next step.
The message at right is displayed when a
connection is established. Proceed to
page 67.
Wireless Connections
63FTP
❚❚ Push-Button WPS
Choose Push-button
WPS in Step 6 on page 61
if the wireless LAN access
point uses push-button
WPS.
Wireless Connections
1 Press the WPS button on the wireless LAN access point.
For more information, see the documentation provided with
the wireless LAN access point.
2 Press J button on the camera.
The camera will connect to the access
point automatically.
3 Choose your next step.
The message at right is displayed when a
connection is established. Proceed to
page 67.
64 FTP
❚❚ PIN-Entry WPS
Choose PIN-entry WPS
in Step 6 on page 61 if
the wireless LAN access
point uses PIN-entry
WPS.
1 Enter the PIN for the wireless LAN access point.
From a computer, enter the PIN for the wireless LAN access
point. For more information, see the documentation provided
with the wireless LAN access point.
2 Press J button on the camera.
The camera will connect to the access
point automatically.
3 Choose your next step.
The message at right is displayed when a
connection is established. Proceed to
page 67.
Wireless Connections
65FTP
❚❚ Direct Connection (Ad Hoc)
To connect directly to an ftp server or
computer in ad hoc mode, select Direct
connection (ad hoc) in Step 6 on page 61.
Wireless Connections
1 Enter the SSID.
Enter a network name (SSID) and press J.
The default name is “WT” followed by the
MAC address of the WT-7.
2 Enter the encryption key.
Enter an encryption key and press J (the
default key is “nikon”). Proceed to page 67.
66 FTP
Step 4: Network Settings
Follow the steps below to connect to the ftp server.
1 Obtain or select an IP address.
Highlight one of the following options
and press J.
• Obtain automatically: Select this option if
the network is configured to supply the
IP address automatically. The camera
will display the IP address provided by the network; press J
to proceed.
• Enter manually: When prompted, enter an IP address and
subnet mask by pressing 4 and 2 to highlight segments
and 1 and 3 to change. Press J when entry is complete.
The camera will display the selected IP address; press J to
proceed.
2 Choose the server type.
Highlight FTP or SFTP (secure ftp) and
press J.
Wireless Connections
67FTP
3 Enter the IP address.
Enter the server URL or IP address and
press J to connect.
Wireless Connections
4 Log in.
Highlight one of the following options
and press J.
• Anonymous login: Select this option if the
server does not require a user ID or
password.
• Enter user ID: Enter a user ID and password when prompted
and press J.
A MAC Address Filtering
If the network uses MAC address filtering, the filter must be supplied
with the MAC address of the WT-7. After attaching the WT-7 to the
camera, choose Network > Options > MAC address from the camera
setup menu and note the MAC address.
68 FTP
5 Choose a destination folder.
Highlight one of the following options
and press J.
• Home folder: Select this option to upload
pictures to the server’s home folder.
• Enter folder name: Select this option to
upload pictures to another of the folders existing on the
server. Enter a folder name and path when prompted and
press J.
6 Exit the wizard.
Highlight one of the following options
and press J.
• Connect and exit wizard: Save the new
network profile and connect to the
server.
• Exit wizard: Save the new network profile and exit.
Proceed to “FTP Upload” (070).
Wireless Connections
69FTP
FTP Upload
Photos and movies can be uploaded from camera memory cards
to an ftp server as described below, or photos can be uploaded as
they are taken. For information on setting up an ftp server, see
page 90.
FTP Upload
1 Display network profiles.
In the setup menu, select Network >
Network settings to display the profiles
list. FTP server profiles are indicated by a
N icon. Highlight a profile and press J
to select the highlighted profile and
return to the network menu.
The profile name will be displayed in
green when a connection is established.
70 FTP
2 View pictures.
Press the K button to view pictures.
Display the first picture to be sent full
frame or highlight it in the thumbnail list.
3 Upload pictures.
Press J. A white transfer icon will appear
on the picture and upload will begin
immediately. The transfer icon turns
green during upload, and turns blue
when upload is complete. Additional
pictures will be uploaded in the order
selected.
To upload a picture that has already been
uploaded once, press J once to remove
the blue transfer icon, and then press J
again to mark the image with a white
transfer icon.
FTP Upload
71FTP
Uploading New Photographs as They Are Taken
To upload new photographs as they are taken,
select On for Network > Options > Auto send in
the setup menu (081).
FTP Upload
Interrupting Transmission/Removing Transfer Marking
To cancel transmission of images marked with white or green transfer
icons, select the images during playback and press J. The transfer icon
will be removed. Any of the following actions will also interrupt
transmission:
• Turning the camera off
• Selecting Yes for Network > Options > Deselect all? (083; this option
also removes transfer marking from all images)
D During Upload
Do not remove the memory card or disconnect the Ethernet cable
during upload.
A Interval Timer Photography
Upload will be interrupted if the standby timer expires while interval
timer photography is in progress. Choose a long standby time before
starting the interval timer.
A Loss of Signal
Wireless transmission may be interrupted if the signal is lost, but can be
resumed by turning the camera off and then on again.
A Turning the Camera Off
“Send” marking will be saved if the camera or WT-7 is turned off while
transmission is in progress. Transmission of images marked with a
“send” icon will resume when the camera or WT-7 is turned on.
72 FTP
Transfer Status
The POWER LED lights when the WT-7 is on.
Signal quality is shown by the LINK LED: the
faster the LED flashes, the better the signal and
the faster data can be transmitted. The ERROR
LED flashes to show that an error has occurred.
During playback, the status of images selected for upload is shown
as follows:
: “Send”
a
Images that have been selected for upload
are marked with a white
: “Sending”
b
A green
c
Images that have been uploaded successfully are marked with a
blue
b icon is displayed during upload.
: “Sent”
c icon.
a icon.
A Network Status
The status of the link between the host and the WT-7 is shown by the
status LEDs and by the display in the top level of the network menu.
The Status LEDs
FTP Upload
Status POWER LINK ERROR
WT-7 off I (off) I (off) I (off )
USB cable not connected K (on) I (off) I (off )
Connecting to host K (on) K (on) I (off )
Waiting to send or sending data K (on) H (flashes) I (off )
Connection error K (on) I (off) H (flashes)
WT-7 hardware or battery malfunction H (flashes) H (flashes) H (flashes)
73FTP
The Status Display
Signal strength: Wireless signal
strength. Ethernet connections are
shown by d.
Status area: The status of the
connection to the host. The host
name is displayed in green when a
connection is established. While files
are being transferred, the status
display shows “Now sending”
preceded by the name of the file
being sent. Any errors that occur
during transfer are also displayed
here (0100).
e, f: The estimated
time required to
send the remaining
images.
Battery level: The
charge state of the
battery in the WT-7.
Network status can also be viewed in the top level of the network menu.
FTP Upload
74 FTP
Menu Guide
This section describes the settings available
for the Network option in the camera setup
menu when the WT-7 is connected.
Choose Hardware
Choose the hardware used to connect to the
network: Ethernet (Wired LAN) or wireless
LAN (Wireless LAN).
75Menu Guide
Network Settings
Connection type (0 7)
Profile name
(013, 21, 55, 61, 78)
SSID (wireless
connections only)
Highlight Network settings and press 2 to display the network
profiles list, where you can create new profiles or select an existing
profile.
Network Settings
The Profile List
The camera can store up to nine network
profiles. Highlight a profile and press 2 to
connect to the highlighted host computer or
ftp server, or press O (Q) to delete the
highlighted profile (077). To view
information on the highlighted profile, press
L (Z/Q).
To edit the highlighted profile, press W (078).
Create Profile
Choose Connection wizard to create network profiles with the
help of a wizard (012, 20, 54, 60), Configure manually to enter
ftp and http server settings manually (0 98).
76 Menu Guide
Copy to/from Card
This option is available only with ftp and http server connections.
Select Copy profile from card to copy profiles from the memory
card to the profile list. Selecting Copy profile to card displays the
camera profile list; highlight a profile and press J to copy the
profile (excluding the encryption key and ftp password) to the
card (password-protected profiles can not be copied; 078). If
there are two memory cards inserted in the camera, the card in the
primary slot will be used for both “copy from” and “copy to”
operations.
Deleting Network Profiles
Press O (Q) to delete the profile currently
highlighted in the profile list. A confirmation
dialog will be displayed; highlight Ye s and
press J.
Network Settings
77Menu Guide
Editing Network Profiles
To edit network profiles, highlight the profile
in the profile list, press W, and choose from
the following options:
Network Settings
General Edit the profile name and password.
Wireless
TCP/IP Edit TCP/IP settings (080).
FTP Edit ftp settings (080).
❚❚ General
Choose Profile name to edit the profile
name, Password protection to enter a profile
password and enable or disable password
protection. Enabling password protection
prevents others from viewing network
settings.
Edit wireless settings (wireless connections only;
079).
D Editing Profiles
If the shutter-release button is pressed while menus are displayed, the
monitor will turn off and any changes to the current profile will be lost.
78 Menu Guide
❚❚ Wireless
Edit the following wireless settings:
• SSID (required): Enter the name (SSID) of the
network on which the host computer or ftp
server is located.
• Communication mode: Select Infrastructure
for wireless communication via a wireless network access point,
Ad hoc if the camera is connected to the ftp server or computer
directly.
• Channel: Select a channel (ad hoc only; in infrastructure mode, the
channel will be selected automatically).
• Authentication: The authentication used on the network. Choose
from open system, shared key, WPA-PSK, and WPA2-PSK
(infrastructure) or open system and shared key (ad hoc).
• Encryption: The encryption used on the network. The options
available depend on the authentication used:
Open: None; 64- or 128-bit WEP
Shared: 64- or 128-bit WEP
WPA-PSK: TKIP; AES
WPA2-PSK: AES
• Encryption key: If the network uses encryption, enter the network
key. The number of characters required depends on the type of
key used:
WEP (64-bit) WEP (128-bit) TKIP, AES
Number of characters (ASCII) 5 13 8–63
Number of characters (hex) 10 26 64
• Key index: If WEP64 or WEP128 is selected for Encryption in
infrastructure mode, choose a key index matching that used by
the access point or host computer. A key index is not required
when No encryption is selected.
Network Settings
79Menu Guide
❚❚ TCP/IP
If the network is configured to supply IP
addresses automatically, select Enable for
Obtain automatically. Otherwise select
Disable and enter the following information:
Network Settings
• Address/Mask: Enter an IP address and subnet
mask.
• Gateway: If the network requires a gateway address, select Enable
and enter the address supplied by the network administrator.
• Domain Name Server (DNS): If a Domain Name Server exists on the
network, select Enable and enter the address supplied by the
network administrator.
❚❚ FTP
Edit the following ftp settings:
• Server type: Choose ftp or sftp and enter the
URL or IP address (required), destination
folder, and port number.
• PASV mode: Select Enable to enable PASV
mode.
• Anonymous login: Select Enable for anonymous login, or select
Disable to supply a User ID and Password.
• Proxy server: If a proxy server is required for ftp, select Enable and
enter the address and port number for the proxy server.
80 Menu Guide
Options
Edit the following settings.
Auto Send
If On is selected for image transfer or ftp
server connections, photos will automatically
be uploaded to the computer or ftp server as
they are taken (note, however, that photos
can only be taken when a memory card is
inserted in the camera). Movies can not be
uploaded using this option; transfer movies during playback as
described on pages 30 and 70.
Delete After Send
Select Ye s to delete photographs from the
camera memory card automatically once
upload is complete (image transfer and ftp
server connections only; files marked for
transfer before this option is selected are
unaffected). Regardless of the option selected
for file number sequence in the camera Custom Settings menu,
sequential number is used while this option is in effect, even if the
folder changes or the memory card is replaced. Deletion may be
suspended during some camera operations.
Options
Send File As
When transferring NEF+JPEG images to a
computer or ftp server (image transfer and ftp
server connections only), choose whether to
upload both the NEF (RAW ) and JPEG files or
only the JPEG copy.
81Menu Guide
Overwrite If Same Name
Choose Ye s to overwrite files with duplicate
names during upload to an ftp server, No to
add numbers to the names of newly
uploaded files as necessary to prevent
existing files being overwritten.
Options
Protect If Marked for Upload
Select Ye s to automatically protect files
marked for upload to an ftp server. Protection
is removed as the files are uploaded.
Send Folder
Select a folder for upload (image transfer and
ftp server connections only). All photos in the
selected folder (including those already
marked as “sent”) will be uploaded,
beginning immediately. Movies can not be
uploaded using this option; transfer movies
during playback as described on pages 30 and 70.
82 Menu Guide
Deselect All?
Select Ye s to remove transfer marking from
all images selected for upload to a computer
or ftp server (image transfer and ftp server
connections only). Upload of images with a
“sending” icon will immediately be
terminated.
HTTP User Settings
Enter a user name and password for
connection to an http server (http server
connections only).
Battery Info
Display information for the battery inserted in
the WT-7. The five-level Battery age display
shows the battery age: 0 indicates that
battery performance is unimpaired, 4 that the
battery has reached the end of its charging
life and requires replacement.
Options
83Menu Guide
Auto Power off Delay
Choose how long the WT-7 remains on once
the camera has turned off or the USB
connection to the camera is terminated.
Options
MAC Address
Display the MAC address of the hardware
selected for Choose hardware (075).
Firmware Version
View the current WT-7 firmware version.
84 Menu Guide
Appendices
Copying Profiles
Camera network profiles can be copied to a computer, which will
then automatically be configured for wireless connection (note
that Windows 7 is required if you wish to use this option in ad-hoc
mode).
1 Enable copying.
When the connection wizard prompts
you to choose whether to copy the profile
to a computer (027), highlight Ye s and
press J.
2 Connect the camera to the
computer.
When prompted, connect the camera to
the computer using the USB cable
supplied with the camera.
3 Start the Wireless Transmitter Utility.
When prompted, start the copy of the
Wireless Transmitter Utility installed on
the computer (05).
85Appendices
4 Choose an adapter.
Choose an adapter from the pull-down menu and click Next. If
Image transfer or Camera control is selected, the Wireless
Transmitter Utility will automatically pair the camera and
computer.
Copying Profiles
86 Appendices
5 Disconnect the camera.
The camera will display the message
shown at right when the process is
complete. After disconnecting the USB
cable from the computer and connecting
it to the WT-7, exit the Wireless
Transmitter Utility.
The camera will display the options
shown at right; choose an option to exit
the wizard.
Copying Profiles
D Ad Hoc Mode
The camera will not automatically connect in ad hoc mode. Choose the
network profile on the computer before connecting.
87Appendices
Creating Profiles on a Computer
The Wireless Transmitter Utility (05) can be used to create
network profiles.
1 Connect the camera.
Creating Profiles on a Computer
Start the computer and connect the camera using the USB
cable supplied with the camera.
2 Turn the camera on.
Rotate the power switch to turn
the camera on.
88 Appendices
3 Start the Wireless Transmitter Utility.
Double-click the Wireless Transmitter Utility icon on the
desktop (Windows) or click the Wireless Transmitter Utility
icon in the Dock (Mac).
4 Create a profile.
Follow the on-screen instructions to create a network profile.
Creating Profiles on a Computer
89Appendices
Creating an FTP Server
Images can be uploaded to ftp servers created using the standard
ftp services included with Windows 10 (Enterprise/Pro/Home),
Windows 8.1, Windows 8.1 (Enterprise/Pro), and Windows 7
(Professional/Enterprise/Ultimate). Under Windows, Internet
Creating an FTP Server
Information Services (IIS) are required to configure ftp servers
(installation instructions are available from Microsoft).
The following settings are used below for illustrative purposes:
IP address: 192.168.1.3
Subnet mask: 255.255.255.0
ftp server port: 21
ftp server
1 Go to Network and Sharing Center.
Click Control Panel > Network and Internet > Network and
Sharing Center.
2 Display the network adapter list.
Click Change adapter settings.
90 Appendices
