Nikon WP-CP3 User Manual
WATERPROOF CASE
En
De
(En/De/Fr/Es/It/Ck/Ch/Kr)
Fr
Es
It
Ck
Ch
Kr
User's Manual
WATERPROOF CASE
WP-CP3
En
User’s Manual
For Your Safety
To prevent damage to your Nikon product or injury to yourself or to others,
read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product
will read them.
The consequences that could result from failure to observe the precautions
listed in this section are indicated by the following symbol:
This icon marks warnings, information that should be read before using this
Nikon product to prevent possible injury.
WARNINGS
Turn camera off immediately in the event
of malfunction
Should you notice smoke or an unusual
smell coming from the equipment,
remove the batteries from the camera
immediately, taking care to avoid burns.
Continued operation could result in injury. After removing the batteries, take
the equipment to a Nikon-authorized
service representative for inspection.
Do not use in the presence of fl ammable
gas
Do not use electronic equipment in the
presence of fl ammable gas, as this could
result in explosion or fi re.
Observe caution when using the strap
Never place the strap around the neck
of an infant or child.
Keep out of reach of children
Particular care should be taken to prevent infants from putting small parts
into their mouths.
Do not disassemble
Failure to observe this precaution could
result in injury or product malfunction.
Should the product break as the result
of a fall or other accident, take it to a
Nikon-authorized service representative
for inspection, being careful not to injure yourself on the broken parts.
Observe proper precautions when han-
dling camera batteries
If improperly handled, batteries may
emit gases that will collect inside the
waterproof case, where they may cause
explosion or fi re. Observe the following precautions when handling camera
batteries:
• Use only batteries approved for use in
the camera.
• Batteries are prone to leakage when
fully discharged. Remove the camera
from the case when not in use.
• Should water enter the case, remove
the batteries from the camera immediately.
• Keep the battery terminals dry. Failure
to observe this precaution could result
in injury or product malfunction.
Do not swallow silica gel or O-ring grease
The silica gel desiccant and O-ring
grease used in this product are not
edible.
Keep out of direct sunlight
Do not leave the WP-CP3 in direct
sunlight. The case could focus sunlight,
causing fi re.
i
Do not dive while holding
To prevent injury caused by the case
striking the body, do not jump or dive
into water while holding the WP-CP3.
Do not use below 40 m
Do not use at depths below 40 m (130´).
Failure to observe this precaution could
result in leakage or other malfunction.
Keep the case watertight
Do not clean the case with a high-pressure jet. Do not open the case where it
would be exposed to dust or sand, and
be sure to remove any foreign objects
from the O-ring and any parts of the
case that are in contact with the Oring before closing the case. Failure to
observe these precautions could result
in leakage.
Do not exposure to high temperatures
Do not expose the product to temperatures over 40 °C (104 °F). Failure to
observe this precaution could cause the
product to warp, resulting in leakage.
Observe caution when operating the
fl ash
Using the fl ash close to your subject’s
eyes could cause temporary visual
impairment. Particular care should
be observed if photographing infants,
when the fl ash should be no less than
one meter (39˝) from the subject.
ii
Cautions
To ensure continued enjoyment of your Nikon product, observe the following
precautions when storing or using the device.
Preventing Leakage
WATER INSIDE THE CASE COULD NOT ONLY EXPOSE THE CAMERA TO IRREPARABLE DAMAGE BUT ALSO RE SULT
IN FIRE, ELECTRIC SHOCK, OR EXPOSURE TO POISONOUS GASES. THE ENTRY OF WATER INTO THE CASE CAN BE
PREVENTED BY OBSERVING THE FOLLOWING PRECAUTIONS:
Before using the WP-CP3 in or near water, test for leaks as described on pages 6–7
and 12 of this manual.
• Before sealing the case, examine the O-ring, watertight channel, and any parts of
the case that are in contact with the O-ring carefully to ensure that they are free of
dirt, hair, lint, dust, sand, and other foreign objects. Make sure that the O-ring is not
twisted or out of position.
• The O-ring requires periodic replacement. Replace the O-ring immediately if it is damaged, cracked, warped, or has lost elasticity. O-rings should be replaced at least once
a year; do not use a worn O-ring or a type of O-ring or O-ring grease not designated
for use in this product. Do not use NIKONOS O-ring lubricant (grease).
• Be careful not to damage the O-ring when removing it from the case. Do not use
metal objects or objects with sharp points when removing the O-ring.
• Do not use force when removing or positioning the O-ring. Excessive force may permanently stretch the ring, causing the case to leak.
• To prevent wear, use only COOLPIX O-ring grease designated for use with this product. Do not use NIKONOS O-ring lubricant (grease) or other types of O-ring grease.
• Do not open the waterproof case in areas exposed to spray, high winds, dust, or
sand.
• Do not drop the case, place under heavy objects, or subject to excessive force. Failure
to observe this precaution could cause the case to warp, resulting in leakage.
• In the event of leakage, stop use immediately, dry the camera and the interior of the
case, and take the camera and case to a Nikon-authorized service representative.
Shock and Vibration
The waterproof case is not designed to protect the camera from blows or vibration. Do
not drop the case, strike it against hard objects, throw it into the water, jump into the
water holding the case, or leave the case in an area subject to extreme vibration. Failure
to observe these precautions could result in damage to the camera.
Maximum Depth
The WP-CP3 is waterproof to 40 m (130´). At greater depths, the case could leak,
break, or change shape, resulting in damage to the camera.
iii
Temperature
Do not leave the case in areas exposed to high temperatures, such as inside a car, near
a heater, on a beach, or in direct sunlight. Failure to observe this precaution could
weaken or warp the case, resulting in damage to the camera. Sudden changes in
temperature could result in condensation inside the case, which could also damage the
camera. To prevent condensation:
• Before exposing the case to sudden changes in temperature, place it in a sealed plastic
bag. Do not open the bag until the case has reached the same temperature as its
surroundings.
• Place the supplied desiccant (silica gel) in the case with the camera as directed on
page 10 of this manual.
• Do not expose the case to high temperatures by leaving it on the beach or in direct
sunlight before entering the water.
Chemicals
• Do not expose the case to volatile chemicals or their vapors. Failure to observe this
precaution could result in damage to the case.
• Do not use chemical detergents, rust inhibitors, thinner, alcohol, or other volatile
chemicals when cleaning the case. Wash in fresh water only.
• Use only desiccants designated for use with this product (see page 19).
• Use only COOLPIX O-ring grease designated for use with this product (see page 19).
Do not use NIKONOS O-ring lubricant (grease).
• Do not use sealants or anti-fog chemicals.
• Do not handle the case after applying sunscreen. Sunscreen can damage the clear
plastic parts of the case.
• Do not apply stickers to the case, as the adhesive could cause the case to deteriorate.
Travelling by Air
If possible, include the case in your carry-on baggage when travelling by air. When
packing the case with checked luggage, leave the case open or remove the O-ring. If
the case is sealed, changes in air pressure may damage the case or prevent the case
from opening.
High Altitudes
When travelling from high to low altitudes, open the case periodically to equalize the
pressure. If the case is kept sealed, changes in air pressure may damage the case or
prevent the case from opening.
iv
Table of Contents
For Your Safety ................................................................................................ i
Cautions ........................................................................................................... iii
Notices.............................................................................................................. vi
Introduction 1
Package Contents............................................................................................ 1

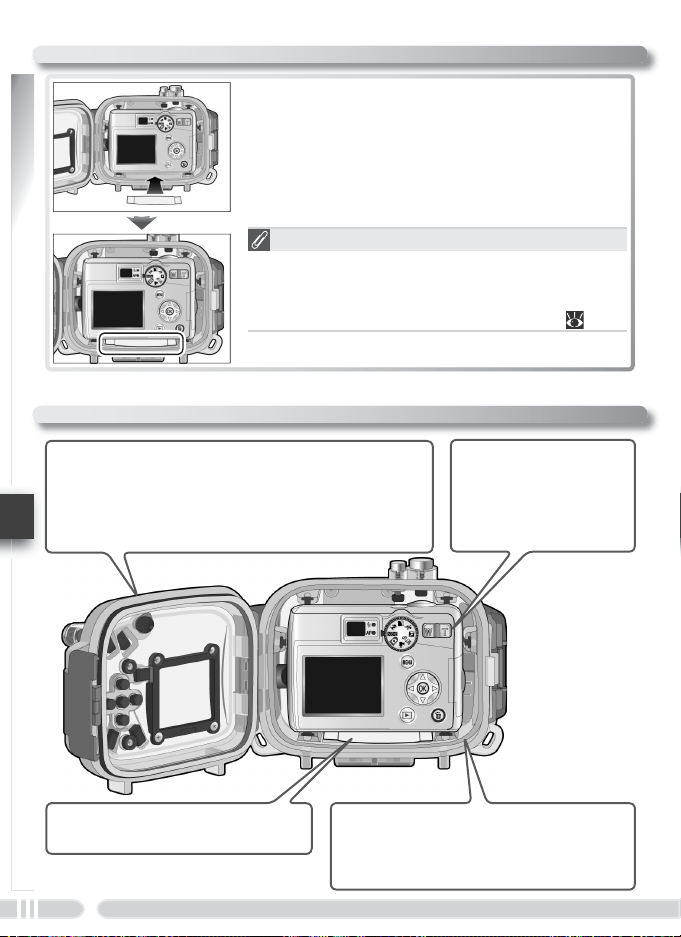

Parts of the WP-CP3 ........................................................................................ 2

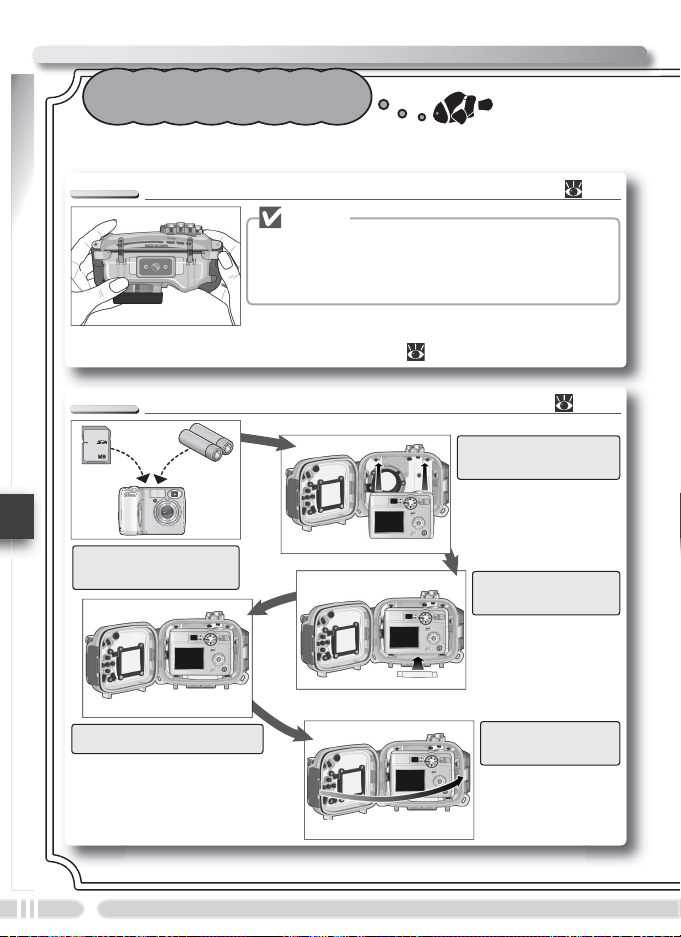

Overview.......................................................................................................... 4
Check for Leaks 6
Insert the Camera 8
1. Ready the Camera ....................................................................................... 8
2. Insert the Camera........................................................................................ 9
3. Insert Desiccant............................................................................................ 10
4. Perform a Final Check ................................................................................. 10
5. Close the Case.............................................................................................. 11
Check for Leaks Again 12
Take Pictures 13
1. Turn the Camera On.................................................................................... 13
2. Adjust Settings............................................................................................. 13
3. Take Pictures................................................................................................ 14
Clean the Case 15
Maintenance 17

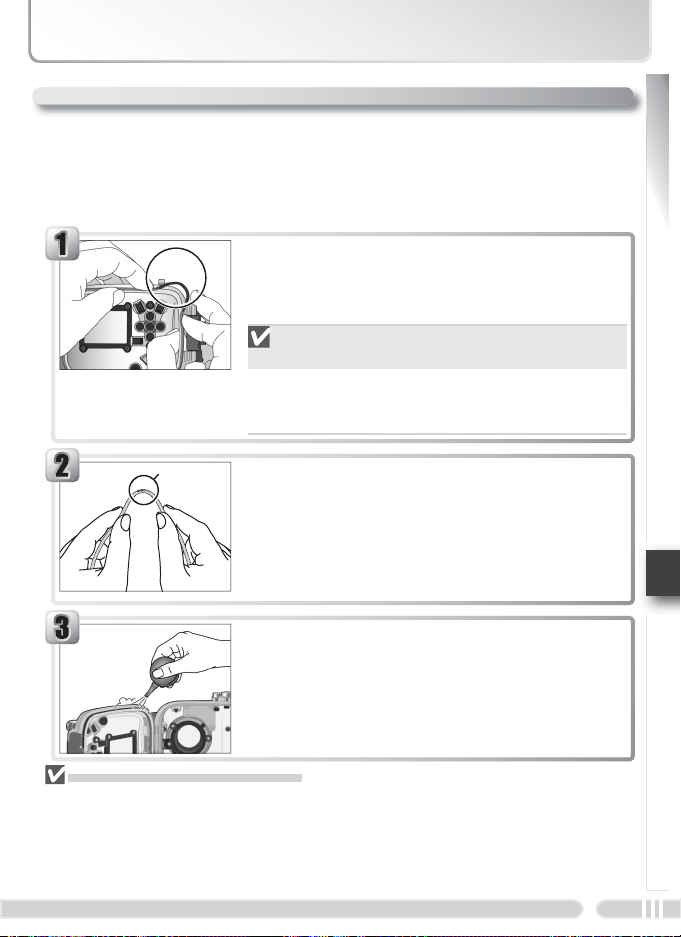

Caring for the O-ring ...................................................................................... 17
Storage............................................................................................................. 19
Technical Notes 19
Specifi cations ................................................................................................... 19
Optional Accessories ....................................................................................... 19
v
Notices
• No part of the manuals included with
this product may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language
in any form, by any means, without
Nikon’s prior written permission.
• Nikon reserves the right to change the
specifi cations of the hardware and software described in these manuals at any
time and without prior notice.
Important: Use Only with Compatible Cameras
Use only with cameras that list the WP-CP3 in the “Optional Accessories” section of
the camera manual. Do not place other objects in the WP-CP3. Additional compatibility information may be available from the websites listed below.
Important: Before Using This Product
Before using this product, be sure that the camera is functioning normally and that
the case does not leak (
product could result in irreparable damage to the camera, batteries, or memory
card. Nikon will not be held liable for damages or lost profi ts that may result from
leakage or product malfunction.
Important: Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include complex electronic circuitry. Only Nikon brand electronic accessories (including battery
chargers, batteries, and AC adapters) certifi ed by Nikon specifi cally for use with this
Nikon digital camera are engineered and proven to operate within the operational
and safety requirements of this electronic circuitry.
For more information about Nikon brand accessories, contact a local authorized
Nikon dealer.
6–7, 12). Failure to check for leaks before using the
• Nikon will not be held liable for any
damages resulting from the use of this
product.
• While every effort has been made to
ensure that the information in these
manuals is accurate and complete, we
would appreciate it were you to bring
any errors or omissions to the attention
of the Nikon representative in your area
(address provided separately).
Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing prod uct sup port and
ed u ca tion, con tin u al ly-updated information is avail able on-line at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support
• For users in Asia, Oceania and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product in for ma tion, tips, an swers to
fre quent ly-asked ques tions (FAQs), and gen er al advice on digital imaging and pho tog ra phy. Ad di tion al information may be available from the Nikon rep re sen ta tive in your
area. For contact in for ma tion, visit http://nikonimaging.com/
vi
Introduction
T
Thank you for your purchase of a WP-CP3 waterproof case for Nikon COOLPIX
5600 and 4600 digital cameras. The WP-CP3 is waterproof to a depth of
40 m (130´), allowing pictures to be taken underwater or in mist and rain. This
manual has been written to help you enjoy taking pictures using the waterproof case. Keep this manual where all those who use the product will read it,
and be sure to read both it and the camera manual thoroughly before use.
To make it easier to fi nd the information you need, the following symbols and
conventions are used:
This icon marks cautions, information that should be read before use
to prevent damage to the camera.
This icon marks notes, information
that should be read before using
the camera.
This icon marks tips, additional information that may be helpful when
using the camera.
This icon indicates that more information is available elsewhere in this
manual.
Package Contents
ake the case and accessories out of the box and check that the package
contains all the following items:
COOLPIX O-ring
grease
WP-AN1 strap
Introduction
WP-CP3 (with O-ring in place;
check that O-ring is undam-
aged before use)
Warr anty
Warranty
Spare O-ring
WATERPROOF CASE
En
De
Fr
Es
It
Ck
Ch
Kr
User's Manual
User’s Manual (this booklet)
Silica gel desiccant
(1 package of 5; reseal
after opening)
1
Parts of the WP-CP3
Shutter-release button ( 14; ) Power switch ( 13; )
Introduction
Buckle
(
6, 9, 11)
Latch
( 6, 9, 11)
O-ring / O-ring guide ( 17)
Rear cover
Watertight channel ( 10, 17)
Attaching the Strap
Camera guides (
9)
Diffusion panel
Lens window
Front cover
O-ring seal (
10, 17)
2
MENU button
Monitor window
(playback) button
( 14; )
Tripod socket
Mode dial
13; )
(
( 13; ) Zoom out (W/ ) button
( 14; )
Zoom in (T /
) button
( 14; )
(delete) button
( 13; )
Eyelet for strap
2)
(
Buckle release
button (
9)
Introduction
Multi selector (
13; )
Camera multi selectorWaterproof case
: Performs same function as corresponding camera control. See camera Guide to
Digital Photography for details.
3
Overview
Using the WP-CP3
Introduction
Using the WP-CP3
Follow these steps when using the waterproof case:
Check for Leaks ( 6–7)
Important!
To prevent water damage to the camera, be
sure to check for leaks before placing the
camera in the case.
If water enters the case, check the O-ring and
confi rm that the case is properly sealed (
Insert the Camera ( 8–11)
1. Ready the camera
10).
2. Insert the camera
3. Insert desiccant
4. Perform a fi nal check
4
5. Close the case
Check for Leaks Again ( 12)
If water enters the case, check the O-ring and
confi rm that the case is properly sealed ( 10).
If the cause of the leak can not be determined,
take the case to a Nikon-authorized service representative.
Take Pictures ( 13–14)
1. Turn the camera on
2. Adjust settings
3. Take pictures
Clean the Case ( 15–16)
1. Wash the case in fresh water
2. Wipe dry
3. Remove the camera
4. Soak the case in fresh water for 2–3 hours
5. Wipe dry
6. Let the case dry in the shade
Maintenance ( 17–19)
• Caring for the O-ring
• Storage
Introduction
5
Check for Leaks
Check for Leaks
Important!
Before placing the camera in the case, be sure that the camera is functioning normally and that the case does not leak. Failure to check for leaks
before use could result in irreparable damage to the camera. Note that
leaks may result if the case is cracked or damaged. Check the case for
cracking and other damage before use, and consult with a Nikon service
representative in the event that any cracking or damage is found.
Close the case
After making sure that the O-ring is in place,
slowly close the case, being careful not to pinch
your fi ngers in the gap.
Latch the case
With front and rear halves of the case lightly
touching but the case not fully closed (햲), fl ip the
buckle onto the front half of the case (햳).
Press the case closed until the latch clicks shut.
Check that the case is properly sealed, that the
O-ring is in place, and that no foreign objects are
caught in the seal.
Immerse the case
Slowly immerse the case in water, stopping if
water enters the case. Test the case in a shallow
area (1 m / 3´ or less) or in a tub or bucket. Do not
use hot water, as this could exceed the operating
temperature range of 0–40 °C (32–104 °F).
6
Check for leaks
Keep the case immersed and check whether any
bubbles are emitted. After two to three seconds,
take the case out of the water and check whether
any droplets are inside.
Test the shooting controls
Immerse the case and operate the controls underwater for two to three minutes, checking whether
any bubbles are emitted or any water enters the
case.
Check for water inside the case
Take the case out of the water and check for water inside the case. If water has entered the case,
check the O-ring ( 10, 17–18). If the cause of
the leak can not be determined, take the case to a
Nikon-authorized service representative.
After checking for leaks, dry the case thoroughly before inserting the camera.
Check for Leaks
7
Insert the Camera
U N D E R W AT E R
1. Ready the Camera
Insert the batteries and memory card
Before using the camera, check the battery level
and number of exposures remaining.
Make sure that the batteries are undamaged, are
from the same pair, and have the same charge.
Do not use damaged batteries or mix old and new
batteries, batteries of different makes, or batteries with different charges. Failure to observe these
precautions could result in fi re or in damage to
the batteries. For more information, see the camera Guide to Digital Photography.
Select (Underwater) mode
To optimize camera settings for underwater
photography, rotate the mode dial to SCENE and
select (Underwater) mode. See the camera
UNDERWATER
UNDERWATER
manual for details.
Batteries
Exit
8
Set
Help
Remove the camera strap
To ensure that the camera strap does not get
caught in the seal and cause a leak, be sure to
remove the strap before placing the camera in
the case.
2. Insert the Camera
Turn the camera off
Insert the Camera
Release the buckle
Pressing the buckle release button (햲), slide the
latch forward (햳) and open the buckle (햴).
Open the case
Opening the Case
Do not open the case in areas exposed to blown
sand or spray. Keep the case upright; do not
place the open case with the O-ring or O-ring seal
face down.
Insert the camera
Position the camera in the camera guides with the
lens in the lens window.
9
3. Insert Desiccant
Insert the Camera
To prevent condensation from forming inside the
case, insert the silica gel desiccant between the
bottom of the camera and the case. Slide the
desiccant to the front of the case, where it will
not interfere with proper closing of the case. Improper placement could cause the case to leak.
Replacing the Desiccant
Used desiccant loses its ability to absorb moisture.
We recommend replacing the desiccant each time
the case is used ( 19).
4. Perform a Final Check
• Is the O-ring cracked or damaged?
• Is the O-ring twisted or out of position?
• Is the O-ring free of hair, dust, sand, and other
foreign objects?
• Is the camera in the
correct orientation?
• Has the camera strap
been removed?
Is the desiccant correctly placed? Are the O-ring seal and watertight
channel free of hair, dust, sand, and
other foreign objects?
10
5. Close the Case
Close the case
Insert the Camera
After making sure that the O-ring is in place,
slowly close the case, being careful not to pinch
your fi ngers in the gap.
Latch the case
With front and rear halves of the case lightly
touching but the case not fully closed (햲), fl ip the
buckle onto the front half of the case (햳).
Press the case closed until the latch clicks shut.
Check that the case is properly sealed, that the
O-ring is in place, and that no foreign objects are
caught in the seal.
11
Check for Leaks Again
Check for Leaks Again
Important!
Before use, be sure that the camera is functioning normally and that the
case does not leak. Failure to check for leaks before use could result in
irreparable damage to the camera.
After sealing the case, perform a fi nal check for leaks.
Immerse the case in water and check for leaks as
described in Steps 3–6 of “Check the Case for
Leaks” ( 6). Check that the desiccant stays dry
and that no water enters the case. If a leak is
detected, immediately remove the case from the
water, dry the camera and case thoroughly, and
check that the O-ring is intact and the case properly sealed. If the cause of the leak can not be
determined, take the case to a Nikon-authorized
service representative.
12
Take Pictures
97
AUTO
5M
1. Turn the Camera On
Press the power switch on the waterproof case.
The camera power-on lamp will light and the
monitor will turn on.
If you will be using the camera underwater, check
5M
AUTO
that the camera is in
97
(Underwater) mode.
2. Adjust Settings
The controls on the case correspond to the following camera controls. For
more information, see the camera Guide to Digital Photography.
Mode dial
Zoom buttons
MENU button
Multi selector
*
Take Pictures
* Direction of rotation is reversed.
(delete) button
(playback) button
13
3. Take Pictures
Take Pictures
Ready the camera
Hold the case steadily in both hands.
Don’t Block the Shot
Keep fi ngers and other objects away from the lens
window and diffusion panel.
Frame the picture
Use the zoom buttons on the case to frame the
subject in the monitor.
Use the Monitor
The viewfi nder can not be used when the camera is in the case. Use the monitor to frame
Zoom out Zoom in
pictures.
Focus and shoot
Press the shutter-release button on the case halfway to focus. Smoothly press the button the rest
of the way down to shoot. Pictures can be played
back using the button on the case.
Underwater Photography
The best time for underwater photography is when the sun is directly overhead (note
that pictures taken underwater may have a blue cast). While shooting, avoid exhaling
bubbles into the frame.
Shots can be taken at ranges of as little as 4 cm (1.6˝) when the camera is zoomed out
to where the icon in the monitor turns green. Note that the fl ash may be unable to
light the entire subject when the camera is zoomed out, and its range may vary with
depth and clarity. It may also refl ect from suspended materials, producing brights spots
in the picture. Take a test shot and view the results in the monitor.
Reactivating the Monitor
If the monitor has turned off to save power, it can be reactivated by pressing the power
button or by pressing the shutter-release button halfway. By default, the monitor will
turn off automatically if no operations are performed for one minute. The length of
time the monitor remains active can be adjusted using the Auto off option in the
camera setup menu.
14
Clean the Case
Wash the case in fresh water
The case should be cleaned immediately after use.
Before opening the case and removing the camera, wash the case in a basin of fresh water.
Wipe dry
Dry the exterior of the case thoroughly with a
soft, dry cloth.
Drying the Case
Be careful to remove water that may have collected in the buckle, controls, or strap eyelet.
Remove the camera
Remove the camera and dry the inside of the case
with a soft, dry cloth.
Removing the Camera
Do not open the case in areas exposed to blown
sand or spray. When removing the camera, be
careful not to drop the device and make sure that
droplets from your hair, body, or other objects do
not fall into the case or onto the camera. If water
does fall on the camera, dry it off immediately.
Keep the case upright; do not place the open case
with the O-ring or O-ring seal face down.
Clean the Case
Soak the case in fresh water
Reseal the case and leave it in a basin of fresh
water for two to three hours. Operate each of the
controls a few times to remove salt. If salt drys on
the controls, they may cease to function or their
metal parts may rust, causing leakage.
15
Clean the Case
Wipe dry
Dry the case thoroughly with a soft, dry cloth. Do
not use a cloth to which salt has adhered.
Let the case dry in the shade
Leave the case out to dry in a shady, well-ventilated area.
Do Not Exposure to Sunlight or Heat
Do not use a hair dryer or other heat source or
place the case in direct sunlight. Heat could cause
the O-ring to deteriorate, resulting in leakage.
Cleaning the Interior of the Case
Use a blower or a soft, dry cloth to clean the interior of the case. Do not use water,
detergents, or chemical agents of any kind. Water can damage the coating on the
inside of the lens window.
16
Loading...
