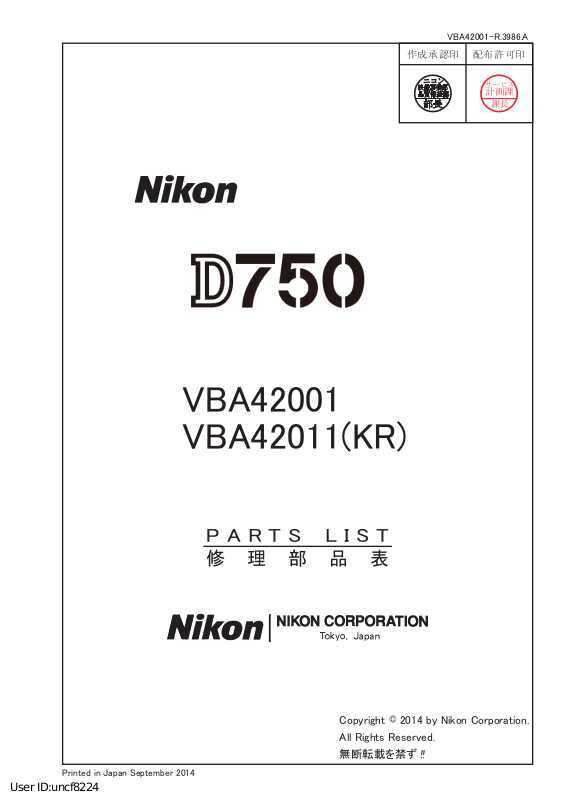

Nikon D750 Parts List

VBA42001-R.3986.A

作成承認印配布許可印

サービス

計画課

課長

VBA42001 VBA42011(KR)

PARTS LIST

修理部品表

Printed in Japan September 2014

User ID:uncf8224

!!

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

10J1Nx4(10)

1K107-601(5)

1126R(5)

10C8Jx3(10)

Fig.10,11

10C6Ux3(5)

1146A(1)

User ID:uncf8224

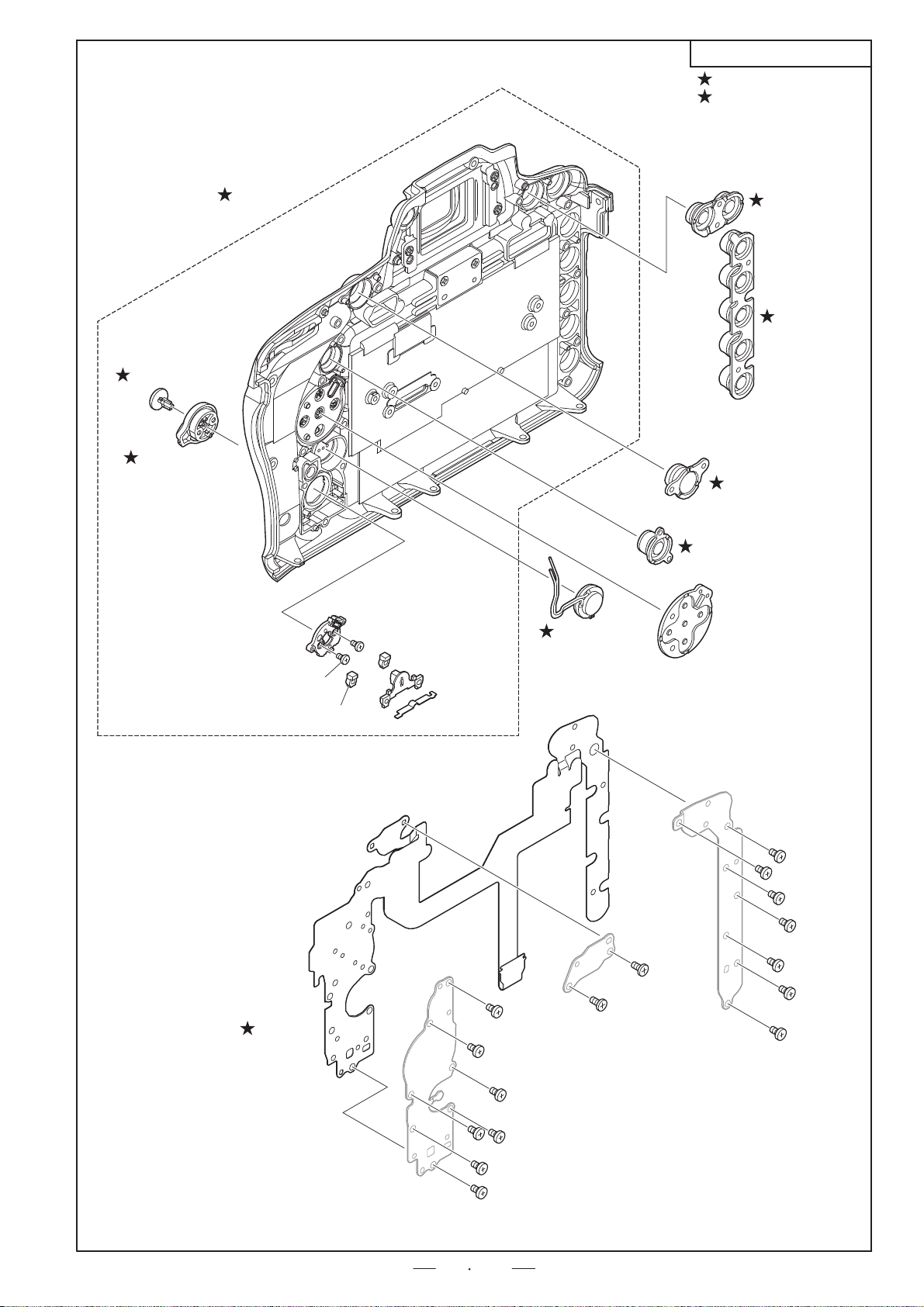

Fig.6～9

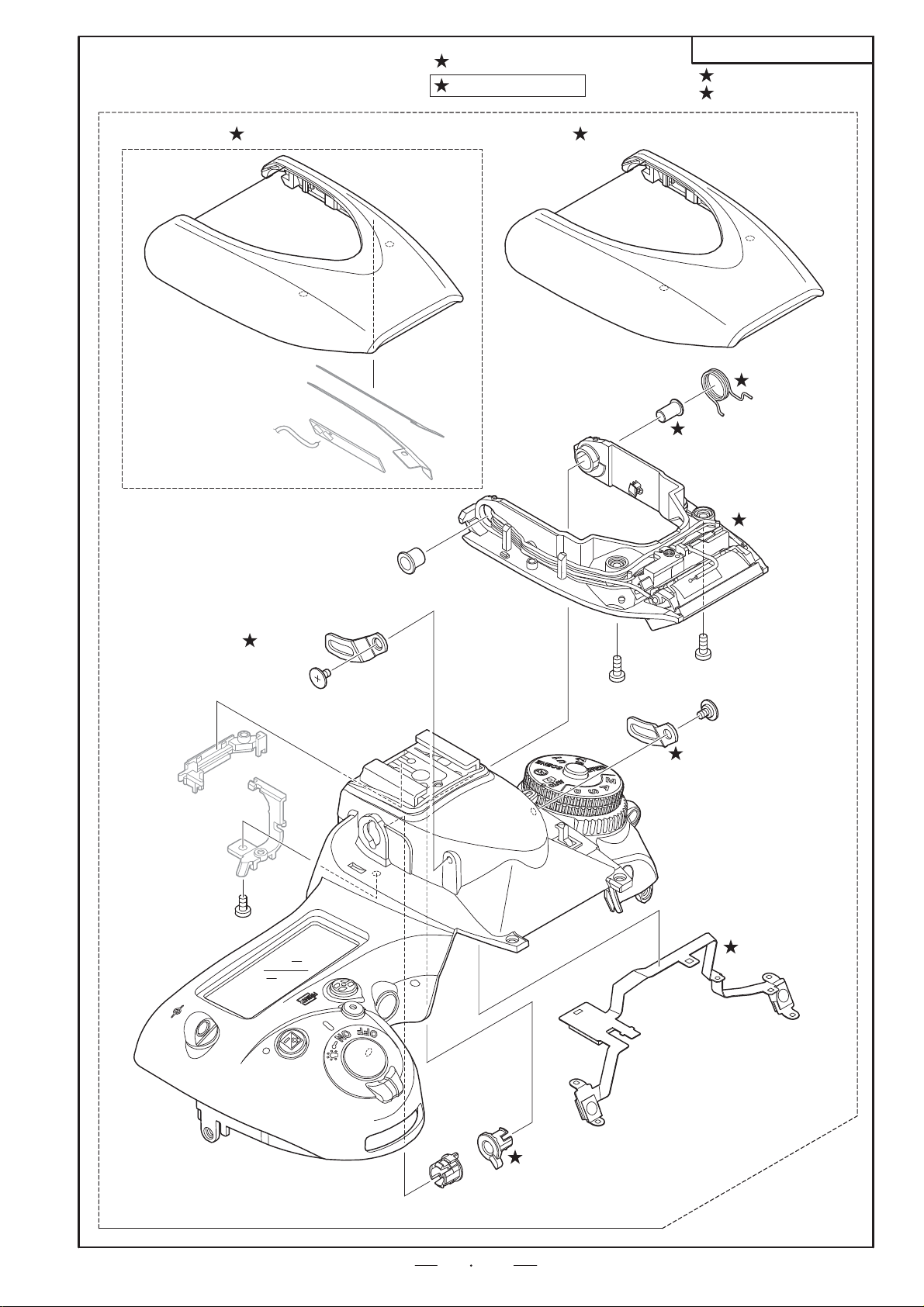

Fig. 1

F1 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

Fig.1

117N4(5)

111SBx2(5)

111SAx2(5)

115Z2(1)

111TF(5)

11A5L(1)

1K010-958(10)

111RU(1)

111JJ(5)

10K13x2(10)

User ID:uncf8224

10K13(10)

1K011-092x2(10)

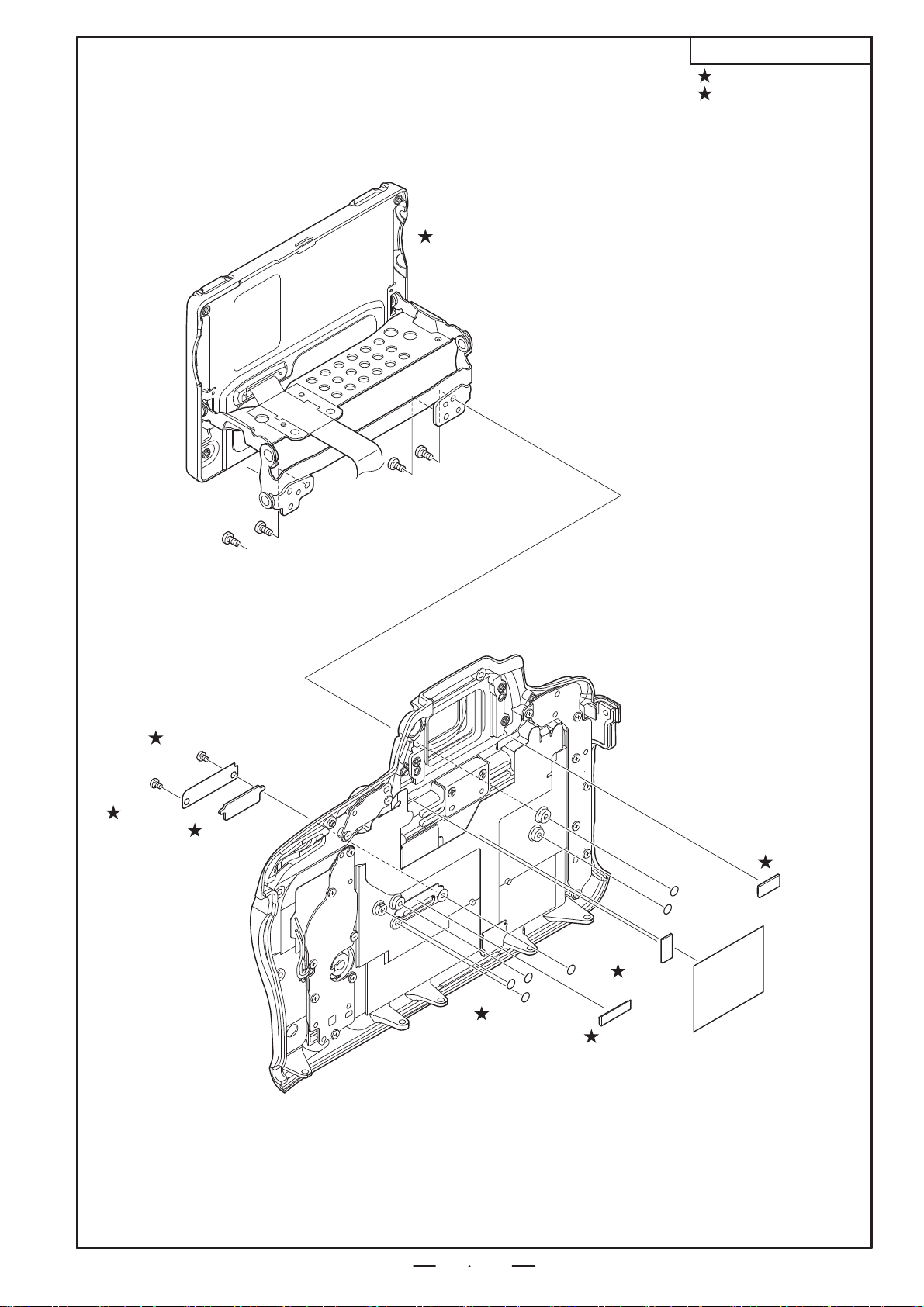

Fig. 2

F2 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

114Y0(1)

1K011-125x2(10)

11D4E(1)

1K001-480(10)

VBA42001-R.3986.A

D750の新規部品

New parts for D750

111MP(5)

111MS(5)

111MT(5)

10H9V(10)

1K001-530(10)

1125G(5)

111MR(5)

111MW(5)

116C5(1)

113GXx2(10)

Fig.12

115EV(1) VBA42001 119TL(1) VBA42011

User ID:uncf8224

Fig.2

10J1Px2(10)

10K13x2(10)

1K011-099x2(10)

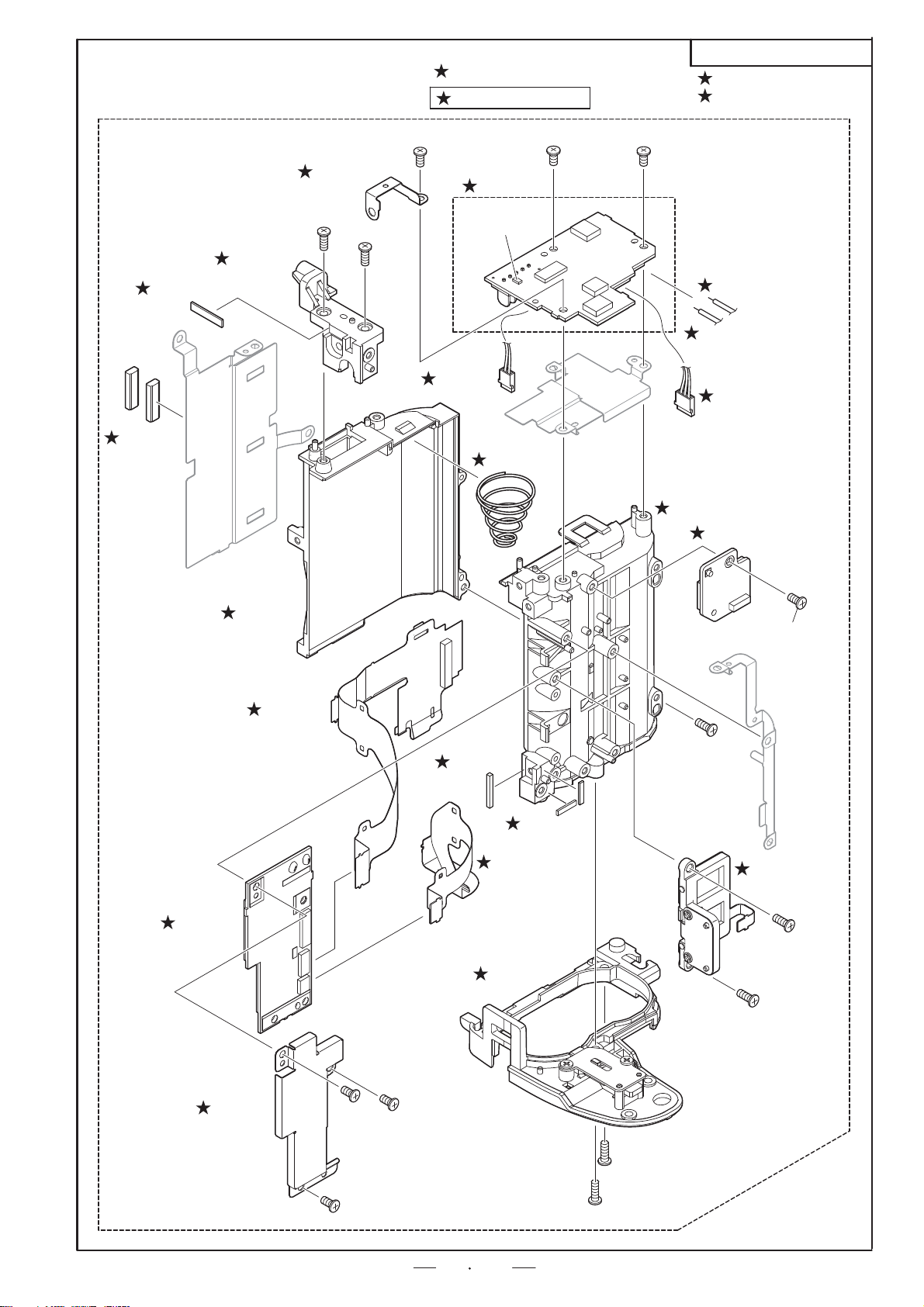

Fig. 3

F3 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

A1-17035FSx2(10)

1K130-866V01(10)

1K201-614(5)

1K104-015(10)

1K632-391(5)

G1-17030FAx2(10)

VBA42001-R.3986.A

D750の新規部品 New parts for D750

113G4(10)

1K011-095x2(10)

Fig.13～17

1K011-053x4(10)

Fig.18,19

111T6(5)

11A5G(1)

115J4(1)

1K011-095(10)

1K010-958x2(10)

1K011-053(10)

115HC(5)

1K010-953x3(10)

User ID:uncf8224

111VN(5)

10K13(10)

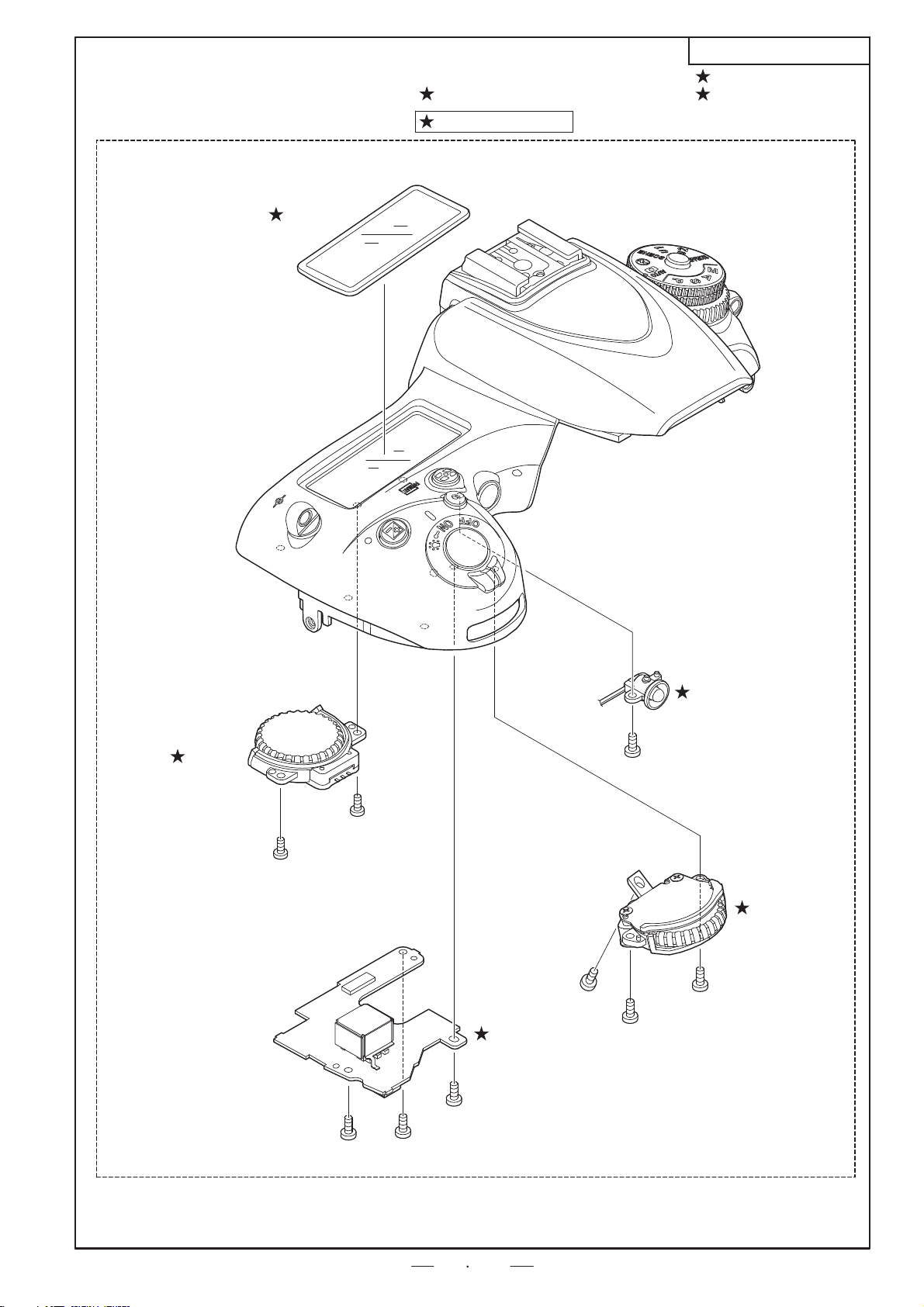

F4 D750

Fig.3

1K010-954(10)

1K011-092x2(10)

1K010-954(10)

Fig. 4

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

1K080-005-2(10)

Nikon

1F998-078(5)

Nikon

VBA42001-R.3986.A

D750の新規部品

New parts for D750

1K080-005-2(10)

1K100-035-1(10)

115KH(5)

111XC(5)

1K110-923(5)

Fig.4

115K9(5)

111TK(5)

111RZ(5)

1K105-350(5)

1K088-307(5)

111VJ(5)

115KG(5)

111VB(5)

VBA42011 111S2(5) KR 55 -

117U8x3(5)

111S4(1)

1K011-098x2(10)

1K011-087x2(10)

111S1(5) 119L6(5) 119L7(5) 119L8(5) 119L9(5) 119LA(5) 119LB(5) 119LC(5) 119LD(5) 119LE(5)

J 20 U 30 -

CN 50 EU 60 -

HK 80 SG 85 AS 87 IN 88 -

ME 89 -

CK 90 -

117U9(5)

111S3(5)

115KB(5)

Fig. 5

User ID:uncf8224

F5 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

11A5J(1)

115FV(1)

113BX(5)

111GY(5)

1K011-058(10)

1K360-430-1(5)

1K130-841(10)

115G5(1)

111J3(5)

1H998-493(5)

1K011-058x2(10)

111J5(5)

1K011-058x2(10)

111J0(5)

1K011-125(10)

111G1(5)

User ID:uncf8224

111G0(1)

1K011-053x4(10)

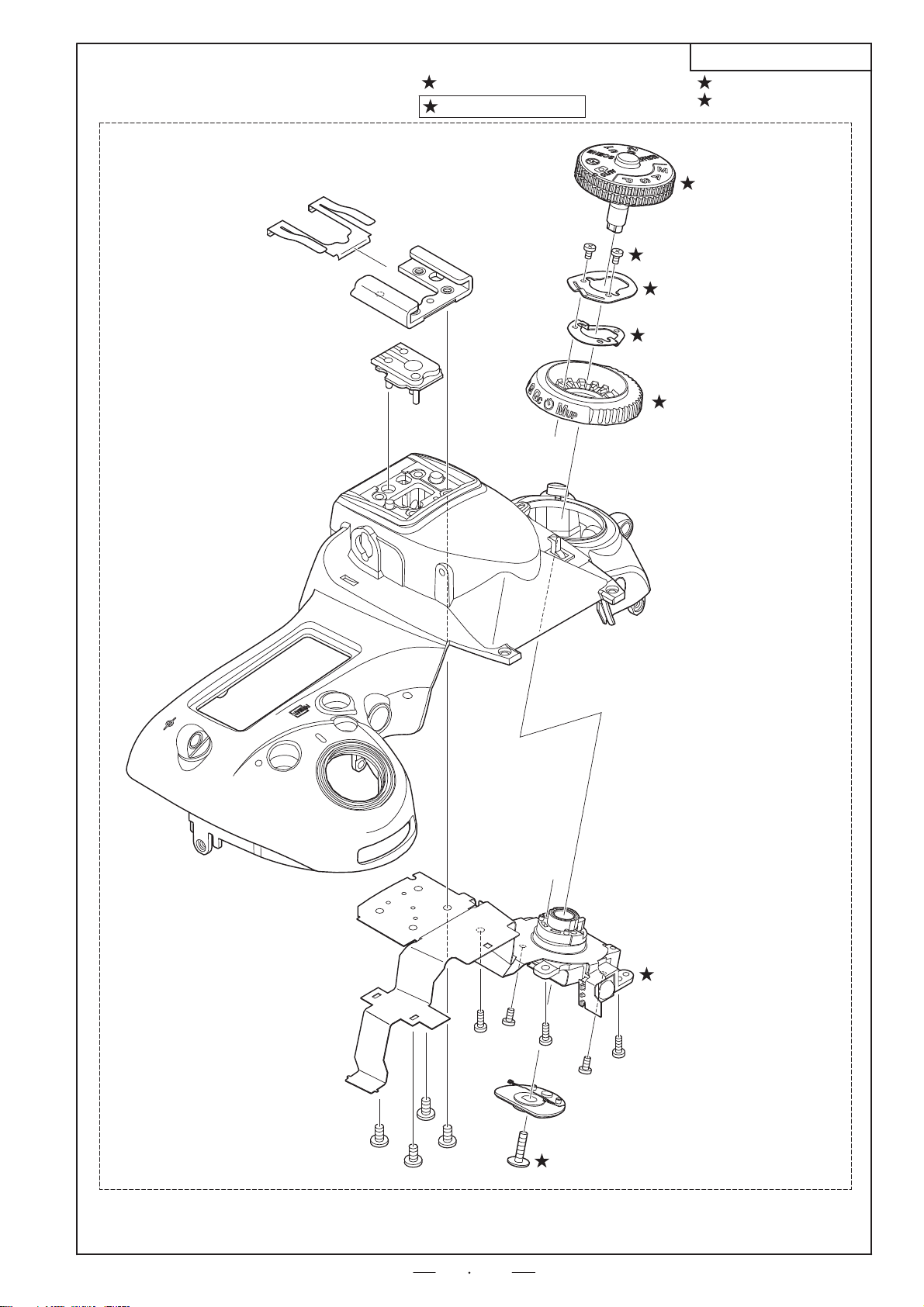

Fig. 6

F6 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

1K011-053x2(10)

115G6(1)

1K220-781(5)

1H998-489(5)

VBA42001-R.3986.A

D750の新規部品 New parts for D750

11A5J(1)

1K011-029(10)

111JD(10)

1K233-502(5)

111G9(5)

1H998-255(5)

1K603-736(5)

1K240-468-4(5)

111JP(5)

111HZ(5)

1137N(10)

1K404-164-1(5)

1K604-222(5)

1K120-616(10)

114A3(5)

115GA(1)

1K120-616(10)

1K011-060(10)

User ID:uncf8224

1K107-090(5)

1K011-061x4(10)

1K130-855(10)

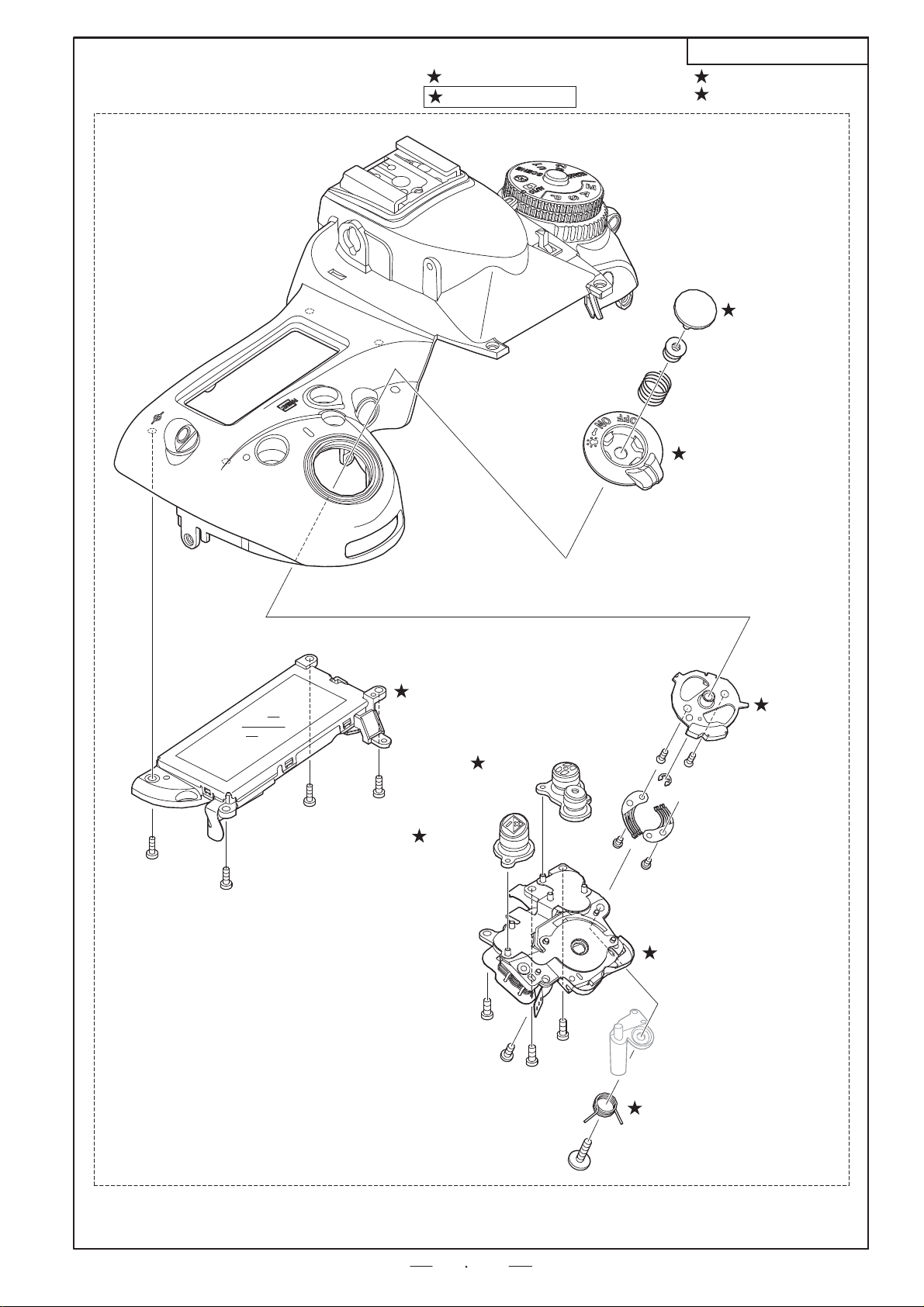

Fig. 7

F7 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

1K011-118(10)

VBA42001-R.3986.A

D750の新規部品

New parts for D750

11A5J(1)

10F9E(5)

10F9G(5)

114WX(1)

10F9H(5)

115GP(5)

111GX(5)

1K011-058x2(10)

1K360-169-1(5)

113F5x2(10)

1K220-689x3(10)

1K011-114(10)

115FT(1)

1K010-954x2(10)

115GN(5)

111HZ(5)

1K233-503V01(5)

1K014-115(10)

111HX(5)

111JD(10)

User ID:uncf8224

115GR(1)

1K020-019x3(10)

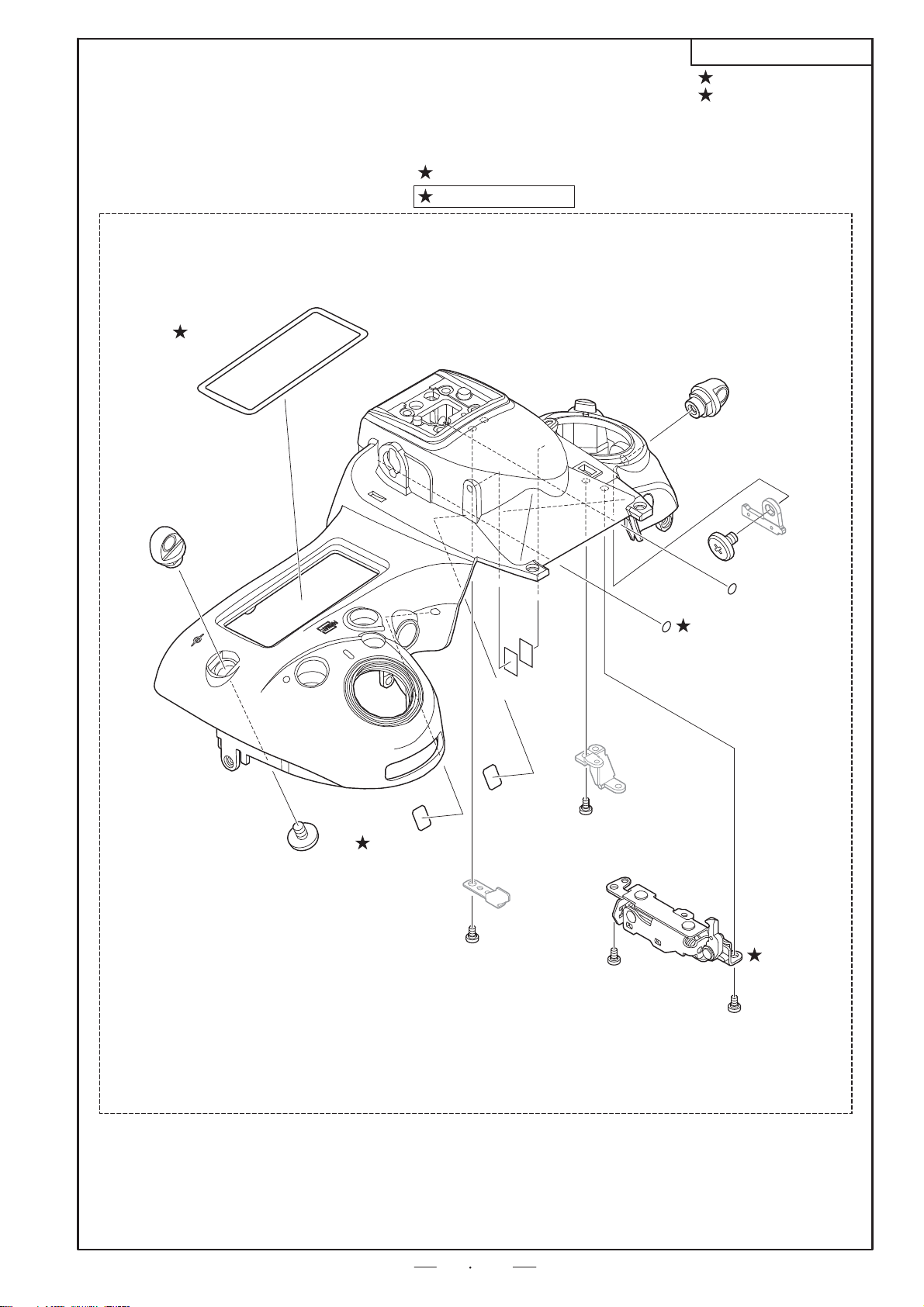

Fig. 8

F8 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

113GXx3(10)

11A5J(1)

VBA42001-R.3986.A

D750の新規部品

New parts for D750

115GM(1)

1125M(5)

111JA(5)

114X7(1)

111HY(1)

1126M(10)

1126N(10)

1K011-058x2(10)

1126L(10)

1126K(10)

1126Y(5)

User ID:uncf8224

111N7x3(10)

1126X(5)

115ZHx2(10)

F9 D750

115GU(1)

1125P(5)

1K011-053x2(10)

H1-20055FAx2(10)

1K011-125(10)

1124C(1)

Fig. 9

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

11A5K(1)

1K011-059V01x3(10)

115FG(1)

113GXx2(10)

111H1(1)

111H2(5)

1K011-059V01x2(10)

115FF(5)

115FB(1)

1K220-779(5)

1K107-153(5)

111HS(5)

111HA(5)

1126B(1)

111H7(5)

1K107-620x2(5)

111H5(5)

1K010-852x3(10)

Fig. 10

User ID:uncf8224

F10 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

1K011-058x4(10)

11A5K(1)

VBA42001-R.3986.A

D750の新規部品

New parts for D750

1126W(5)

1K011-058x2(10)

1124Z(1)

11A5H(1)

115FJ(5)

111JHx2(5)

1K105-022(5)

1K107-151(5)

1G415-030-1(1)

1K107-150(5)

111H3(5)

1126P(5)

TA-0016 (7x12)

1K604-233(10) 1K604-234(10) 1K604-235(10) 1K604-236(10) 1K604-237(10)

Fig.10

1K107-167(5)

111HM(5)

User ID:uncf8224

1K233-470(5)

Fig. 11

F11 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

115EV(1) VBA42001

119TL(1)

VBA42011

VBA42001-R.3986.A

D750の新規部品

New parts for D750

111W6(5)

1170Hx2 (5)

113GXx2(10)

111VH(5)

111VW(5)

1K011-059V01(10)

1S460-057(10)

1126S(5)

1K011-059V01x2(10)

1123W(1)

1126H(10)

1126J(10)

1126T(5)

111VE(5)

111VD(1)

117UA(1)　VBA42001

1123U(1)

111VF(1)

1175M(5)

11A9R(5)

115EX(1)

11A9Sx2(5)

1125N(5)

1K011-059V01(10)

113GX(10)

11A5M(1)

113GXx2(10)

User ID:uncf8224

115F0(5)

1K011-059V01x3(10)

10K13x2(10)

Fig. 12

F12 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

111DS(5)

1B002-961V01(5)

119S8(1)

119S9(1)

VBA42001 VBA42011

1B002-961V01(5)

1K014-124(10)

111DTx2(5)

1K011-032(10)

111YGx2(5)

1K103-372x2(10)

1K011-032(10)

1150H(1)

1K011-032x2(10)

User ID:uncf8224

Fig.13

F13 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

119S8(1)

119S9(1)

VBA42001 VBA42011

VBA42001-R.3986.A

D750の新規部品

New parts for D750

1150M(5)

1K240-867(5)

1K406-032-2(5)

1F998-400(5)

1K011-027x2(10)

111EP(5)

111EW(5)

1150L(1)

A

Fig.13

User ID:uncf8224

1K014-103x4(10)

A

1150K(1)

1K011-053x3(10)

1K011-032x2(10)

1H998-483(5)

1K011-024(10)

Fig.14

F14 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

119S8(1) 119S9(1)

VBA42001

VBA42011

VBA42001-R.3986.A

D750の新規部品

New parts for D750

Fig.14

111EA(5)

1K105-118(5)

1K220-281-1(5)

111EC(5)

1K011-053x4(10)

1151C(1)

111EM(5)

1K001-462x4(10)

111EL(5)

114JM(5)

1K011-111x2(10)

S1-01200SX(10)

1K241-486-1x2(10)

1K011-055x2(10)

115EE(1)

111ED(5)

User ID:uncf8224

1K011-094(10)

Fig.15

F15 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

119S8(1)

119S9(1)

VBA42001 VBA42011

VBA42001-R.3986.A

D750の新規部品

New parts for D750

1151E(1) VBA42001

1K330-126(5)

111F2(1) VBA42011

1138G(5)

111F4(5)

114BL(1)

1K130-858-1(10)

1K011-059V01(10)

111F8(5)

1K010-953x2(10)

1K130-858-1(10)

111F7(5)

Fig.17

117L4(5)

User ID:uncf8224

111FA(5)

1K631-690-1(5)

Fig.16

F16 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

111DM(5)

119S8(1)

119S9(1)

VBA42001

VBA42011

VBA42001-R.3986.A

D750の新規部品

New parts for D750

Fig.16

117L6(5)

1K011-059V01x2(10)

1137Z(5)

1K011-053(10)

117L7(5)

1K011-102(10)

1K011-053x2(10)

115EH(1)

1K011-053x3(10)

User ID:uncf8224

Fig.17

F17 D750

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

111XS(5)

111XM(5)

11A5N(1)

1H998-273(5)

1126C(5)

111XP(5)

111XT(5)

111XN(5)

111XR(5)

1K685-511(5)

1K011-028x2(10)

1K107-018x2(5)

114Y9(1)

1K603-994(5)

1K241-886V01(5)

1K010-958x2(10)

1K010-958x7(10)

User ID:uncf8224

1K010-958x7(10)

F18 D750

Fig.18

部品番号の記載のないものは部品設定なし RP is not set unless part no.is indicated.

VBA42001-R.3986.A

D750の新規部品

New parts for D750

114YJ(1)

111XA(5)

1K010-953x4(10)

Fig.18

113G8x2(10)

111Y7(5)

111YK(5)

User ID:uncf8224

111YGx6(5)

F19 D750

111YM(5)

TA-0024(23x28)

Fig.19
