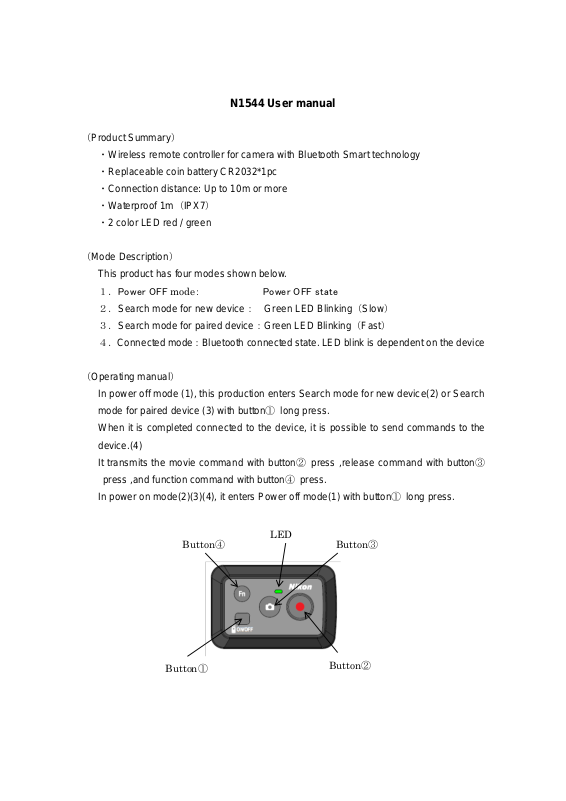

N1544 User manual

Button①

Button②

Button③

Button④

LED

（Product Summary）

・Wireless remote controller for camera with Bluetooth Smart technology
・Replaceable coin battery CR2032*1pc
・Connection distance: Up to 10m or more
・Waterproof 1m（IPX7）
・2 color LED red / green

（Mode Description）

This product has four modes shown below.

１．Power OFF mode： Power OFF state
２．Search mode for new device： Green LED Blinking（Slow）
３．Search mode for paired device：Green LED Blinking（Fast）
４．Connected mode：Bluetooth connected state. LED blink is dependent on the device

（Operating manual）

In power off mode (1), this production enters Search mode for new device(2) or Search
mode for paired device (3) with button① long press.
When it is completed connected to the device, it is possible to send commands to the
device.(4)
It transmits the movie command with button② press ,release command with button③

press ,and function command with button④ press.

In power on mode(2)(3)(4), it enters Power off mode(1) with button① long press.

Federal Communication Commission Interference Statement

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Part 15 Subpart B

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

Part 15 Subpart C §15.247

This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

RF Exposure Compliance

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment and meets the FCC radio frequency (RF) Exposure

Guidelines. This equipment has very low levels of RF energy that is deemed to comply

without testing of specific absorption rate(SAR).
