Nikon 4804 User Manual

Nikon Close-up Speedlight Commander Kit

R1C1

Nikon Close-up Speedlight Remote Kit

Wireless Speedlight Commander

SU-800

Wireless Remote Speedlight

SB-R200

Instruction Manual

For your safety

Before using your product, please read the following safety precautions carefully and thoroughly to ensure correct and safe use and to help prevent damage to your Nikon product or injury to yourself or others. For quick reference by those who use the product, please keep these safety instructions near the product.

In this manual, safety instructions are indicated with these symbols:

WARNING

CAUTION

WARNINGS for the Wireless Speedlight Commander SU-800 and the Wireless Remote Speedlight SB-R200

1 If corrosive liquids seep from the batteries and get in your eyes,

immediately wash your eyes with running water and consult with a doctor. Your eyes could be seriously damaged if they are not treated

quickly.

2 If corrosive liquids seep from the batteries and come in contact with

your skin or clothes, wash immediately with running water. Prolonged

contact could injure your skin.

3 Never attempt to disassemble or repair the flash unit by yourself, as this

could result in you receiving an electric shock and could also cause the unit to malfunction; such malfunction could lead to personal injury.

4 If the flash unit is dropped and damaged, do not touch any exposed

interior metal parts. Such parts, especially the speedlight’s capacitor and

associated parts, could be in a high-charge state and if touched could cause an electric shock. Disconnect the power or remove the batteries and be sure that you do not touch any of the product’s electrical components, and then bring the flash unit to your local Nikon dealer or authorized service center for repair.

5 If you detect heat, smoke or notice a burning smell, immediately stop

operation and remove the batteries to prevent the unit from catching on

fire or melting. Allow the flash unit to cool down so that you can safely touch it and remove the batteries. Then bring the unit to your local Nikon dealer or authorized service center for repair.

Disregarding instructions marked with this symbol could result in personal injury, or death and property damage.

Disregarding instructions marked with this symbol could result in property damage.

6 The flash unit should never be submerged in liquid or exposed to rain,

saltwater or moisture unless it is properly protected from the liquids and moisture. Underwater use requires a certified underwater housing.

If water or moisture gets inside the unit, this could cause the unit to catch on fire or cause an electric shock. In such instances you should immediately remove the batteries from the speedlight and then bring the unit to your local Nikon dealer or authorized service center for repair.

Note: electronic devices that are penetrated by water or moisture are often

not economically repairable.

7 Do not use the unit in the presence of flammable or explosive gas.

If the flash unit is operated in areas where there is a flammable gas, including propane, gasoline and dust, it could cause an explosion or fire.

8 Do not fire the flash unit directly at the driver of a moving car, as this

could temporarily impair the driver’s vision and cause an accident.

9 Do not fire the flash unit directly into the eyes of someone that is at

close range, as it could damage their eyes’ retinas. Never fire the flash unit

closer than 1 meter from infants.

10 Do not fire the unit while the flash head is touching a person or object.

Such use can result in the person being burned, and/or their clothes igniting from the heat of the flash’s firing.

11 Keep small accessories out of the reach of children to avoid the

possibility of the accessory being swallowed. If an accessory is accidentally swallowed, immediately consult with a doctor.

12 Use only the batteries specified in this instruction manual. Batteries

other than those specified could leak corrosive liquids, explode or catch on fire or otherwise not perform satisfactorily.

13 Non-rechargeable batteries such as manganese, alkaline-manganese

and lithium batteries should never be charged in a battery charger

because they could leak corrosive liquids, explode or catch on fire.

 Preparation

For your safety

CAUTIONS for the Wireless Speedlight Commander SU-800 and the Wireless Remote Speedlight SB-R200

1 Do not touch the flash unit with wet hands, as this could cause an

electric shock.

2 Keep the flash unit away from children to prevent them from putting the

unit in or near their mouth, or otherwise touching a dangerous part of the product; as such contact could cause an electric shock.

3 Do not apply strong physical shocks to the unit, as this could cause a

malfunction that could cause the unit to explode or catch on fire.

4 Never use active agents that contain flammable substances such as

paint thinner, benzene or paint remover to clean the unit, and never store the unit in locations containing chemicals such as camphor and naphthalene, as this could damage the plastic case, cause a fire or cause

an electric shock.

5 Remove any batteries from the unit before storing the unit for a long

time to prevent the unit from catching on fire or leaking corrosive liquids.

6 Do not point the Commander SU-800’s commander transmit window

directly into the eyes of someone at close range, as this can cause

serious eye damage.

WARNINGS for Lithium Batteries

1 Never heat or throw batteries into a fire, as this could cause the batteries

to leak corrosive liquids, generate heat or explode.

2 Do not short-circuit or disassemble the batteries because this could

cause the batteries to leak corrosive liquids, generate heat or explode.

3 Do not install batteries in the reverse direction as this could cause the

batteries to leak corrosive liquids, generate heat or explode.

4 Do not carry or store batteries along with metallic materials such as

necklaces and hair pins because such materials could cause the batteries

to short-circuit, leading to battery leakage, heat generation or an explosion.

In addition, specially when carrying a quantity of batteries, place them carefully in a storage case that prevents the battery terminals from touching another battery’s terminals because if they touch in reverse

order it could also cause the batteries to short-circuit, leading to battery leakage, heat generation or an explosion.

5 If corrosive liquids seep from the batteries and get in your eyes,

immediately wash your eyes with running water and consult with a doctor. Your eyes could be seriously damaged if they are not treated

quickly.

6 If corrosive liquids seep from the batteries and come in contact with

your skin or clothes, wash immediately with running water. Prolonged

contact could injure your skin.

7 Always follow the warnings and instructions printed on the batteries to

avoid activities that could cause the batteries to leak corrosive liquids, generate heat or catch on fire.

8 Be sure to use only batteries specified in this instruction manual, to

avoid the possibility of batteries leaking corrosive liquids, generating heat or exploding.

9 Never open the casing surrounding batteries or use batteries whose

casing has been breached as such batteries could leak corrosive liquids,

generate heat or explode.

10 Keep batteries out of the reach of children to help avoid the possibility of

them being swallowed. If a battery is accidentally swallowed, immediately consult with a doctor.

11 Batteries should not be submerged in water, exposed to rain, moisture

or saltwater unless they are properly protected from the wet environment. If water or moisture gets inside the batteries, this could cause

them to leak corrosive liquids or generate heat.

12 Do not use any battery that appears abnormal in any way, including a

change in color or shape. Such batteries could leak corrosive liquids or

generate heat.

13 When recycling or disposing of batteries, be sure to insulate their

terminals with tape. If the battery’s positive and negative terminals

shortcircuit after coming into contact with metallic objects, it could cause fire, heat generation or an explosion. Dispose of used batteries in accordance with local government regulations.

14 Non-rechargeable batteries should never be charged in a battery

charger because they could leak corrosive liquids or generate heat.

15 Remove dead batteries from your equipment immediately, as they could

leak corrosive liquids, generate heat or explode.

 Preparation

CAUTION for Lithium Batteries

Do not throw or apply strong physical shocks to the batteries as this

could cause batteries to leak corrosive liquids, generate heat or explode.

WARNING for TTL Cord SC-30

Never attempt to disassemble or repair the cord by yourself, as this

could result in an electric shock and could also cause the unit to malfunction, which could lead to injury.

Foreword

Thank you for purchasing the Nikon Wireless Speedlight system. To get the most out of your Speedlight system, please read this instruction manual thoroughly before use. Also read “Close-up Speedlight Photography Examples,” a separate booklet that provides an overview of Speedlight flash-shooting capabilities and contains photographic examples. Keep your camera and Speedlight instruction manuals handy for quick reference.

Main features and functions

This Speedlight system, which features the Nikon Creative Lighting System (CLS), provides a variety of wireless multiple flash and close-up flash operations. The Speedlight system mainly consists of the Wireless Speedlight Commander SU-800, which controls flash output when mounted on CLS-compatible cameras; the Wireless Remote Speedlight SB-R200, which has a guide number of 10/33 (ISO 100, m/ft.) or 14/46 (ISO 200, m/ft.); and the Attachment Ring SX-1, which is used to attach the SB-R200 to the front of the lens.

• When using CLS-compatible cameras, you can divide the Speedlight units into three groups and control the flash output independently for each group.

• Wireless close-up flash operation is possible when the SU-800 is mounted on a CLS-compatible camera to control the SB-R200 (p. 65).

• The SB-R200 can be attached to the front of the lens, held in your hand, or freely positioned by using the Speedlight Stand AS-20, which comes with the unit.

• The SU-800 features a Commander function that can trigger wirelessly remote flash units such as the SB-R200 and SB-600 without firing itself (p. 79).

• Included with the kit are a variety of accessories to help you enjoy close-up flash shooting, such as the Extreme Close-Up Positioning Adapter SW-11, Color Filter Set SJ-R200, Diffuser SW-12, and Flexible Arm Clip SW-C1.

• When using the SU-800 with cameras not compatible with CLS, only close-up flash operation (using cords) is possible in use with the optional TTL Cord SC-30 (p. 109).

Nikon Creative Lighting System (CLS)

CLS offers various flash shooting possibilities by taking advantage of the improved digital data communication capabilities of Nikon Speedlights and cameras. The major features are as follows:

• i-TTL Mode

This is a TTL auto flash mode in CLS. When using the i-TTL auto flash mode, Monitor Preflashes are fired at all times. The flash output level is adjusted by measuring the flash illumination that is reflected back from the subject, resulting in an exposure that is less affected by ambient light (p. 116).

• Advanced Wireless Lighting

The wireless multiple flash operation in TTL (i-TTL) mode can be accomplished with CLS-compatible cameras. The remote flash units can be divided into three groups and flash output can be independently controlled for each group, expanding the range of creative multiple flash shooting techniques (p. 26).

• Flash Value Lock

Flash Value, or “FV,” is the amount of flash exposure for the subject. Using FV Lock with compatible cameras, you can lock in the appropriate flash exposure for the main subject. This flash exposure is locked in, even if you change the aperture or composition, or zoom the lens in and out (p. 98).

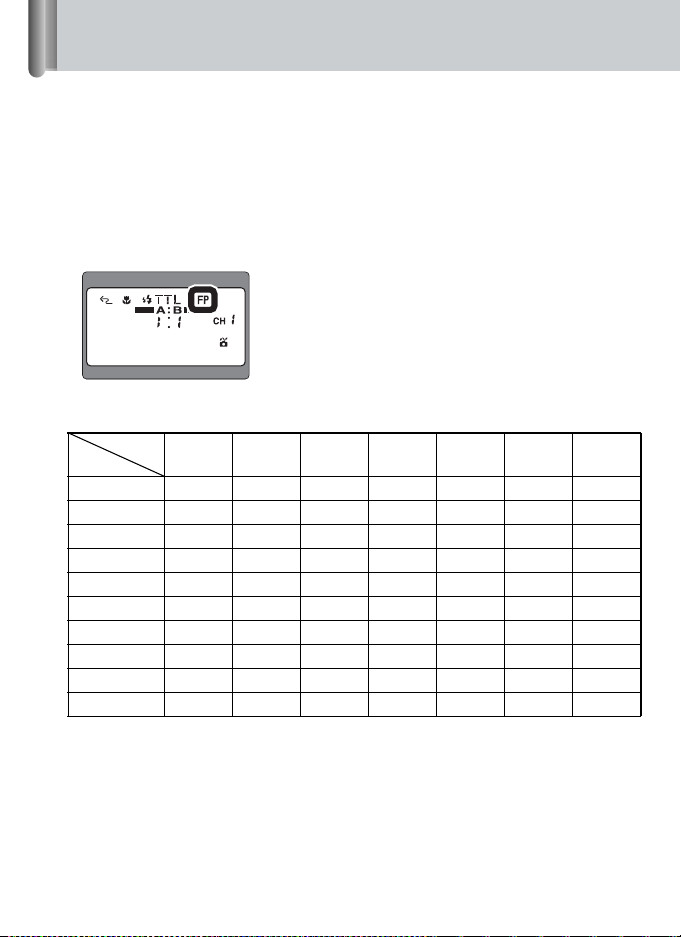

• Auto FP High-Speed Sync

High-Speed flash synchronization at your camera’s highest shutter speed is now possible. This is useful when you want to use a wider aperture to ensure a shallow depth of field blurs the background (p. 96).

See your CLS-compatible camera instruction manual for details on the Nikon Creative Lighting System (CLS).

 Preparation

Foreword

 Life-long learning

As part of Nikon’s “Life-long learning” commitment to ongoing product support and education, continually updated information is available online at the following sites:

• For users in the U.S.A.: http://www.nikonusa.com/

• For users in Europe and Africa: http://www.europe-nikon.com/support/

• For users in Asia, Oceania and the Middle East: http://www.nikon-asia.com/

Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently asked questions, and to receive general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. See the URL below for contact information: http://nikonimaging.com/

Notes

• Default: Functions and flash modes preset before being shipped from the

• CLS: Hereafter, Nikon Creative Lighting System is abbreviated to CLS.

• “Cameras compatible with Nikon Creative Lighting System” are abbreviated as “CLS-compatible cameras.”

• In this manual, the Wireless Speedlight Commander SU-800 is called the “Commander SU-800” or “SU-800” and the Wireless Remote Speedlight SB-R200, the “Remote Speedlight SB-R200” or “SB-R200.”

Symbols used in this manual

 : Denotes important points to prevent malfunction or shooting failure.

•

 : Useful points that should be remembered to better enjoy the Speedlight.

•

 : Provides convenient reference information for using the Speedlight

factory are referred to as “Default” settings in this manual.

system.

Symbol for separate collection applicable in European countries

This symbol indicates that this product is to be collected separately. The following apply only to users in European countries.

• This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.

• For more information, contact the retailer or the local authorities in charge of waste management.

Contents

Preparation

• For your safety ..................................................................... 2

• Foreword.............................................................................. 6

• Tips on using the Speedlight ............................................. 12

• Recommended cameras and lenses ................................ 13

• Confirm receipt of contents in your kit............................... 15

Available flash operations depending on each kit Contents vary according to each kit

• Speedlight parts, their functions, and accessories ...........18

SU-800’s LCD panel and icons ..................................... 20

• Wireless multiple flash operation in the Nikon Creative

Lighting System (CLS) .................................................... 26

Flash operation using the Nikon Close-up Speedlight Commander Kit R1C1

(Used with Nikon CLS-compatible cameras) ....................27

• Procedures for close-up flash operation ........................... 28

• Procedures for Commander flash operation ..................... 38

Preparation

Flash operation using the R1C1

Flash operation using the R1

Functions and use of the SU-800

Functions and use of the SB-R200

Flash operation using the Nikon Close-up Speedlight Remote Kit R1

(Used with Nikon CLS-compatible cameras) ....................45

Functions and use of the SU-800

• SU-800’s available flash operations ..................................54

• Using the SU-800 .............................................................. 55

• Functions of the SU-800 .................................................... 58

Functions and use of the SB-R200

• SB-R200’s available flash operations ................................ 60

• Using the SB-R200 ............................................................ 61

• Functions of the SB-R200 .................................................. 64

Details on close-up flash operation and shooting procedures

Details on Commander flash operation and shooting procedures

Other functions

Flash operation using various accessories

Flash shooting using SLRs not compatible with CLS

Reference information

Contents

Details on close-up flash operation and shooting procedures (Used with CLS-compatible cameras)

• Close-up flash operation ................................................... 66

• Overview of close-up flash operation................................ 68

• Procedures for close-up flash operation ........................... 70

Details on Commander flash operation and shooting procedures (Used with CLS-compatible cameras)

• Commander flash operation .............................................. 80

• Overview of Commander flash operation .......................... 82

• Procedures for Commander flash operation ..................... 84

Other functions

• Test firing to confirm exposure .......................................... 88

• Checking illumination before taking pictures

(modeling illumination).................................................... 89

• Using the Target Light (focus-assist illuminator) ............... 90

• Autofocus flash operation in low light................................ 91

• Flash output level compensation....................................... 92

• Repeating (RPT) flash operation ....................................... 93

• Auto FP High-Speed Sync................................................. 96

• Flash Value Lock (FV Lock) ............................................... 98

Flash operation using various accessories

• Flash shooting with colored gel filters ............................. 100

• Flash shooting with the Extreme Close-Up Positioning

Adapter SW-11 ............................................................. 103

• Flash shooting with the Diffuser SW-12 and Flexible

Arm Clip SW-C1 ............................................................ 105

• Flash shooting with Speedlight Stand AS-20 .................. 107

Flash shooting using SLR cameras not compatible with CLS

• Overview of close-up flash operation (using cords) ....... 110

• Procedures for close-up flash operation (using cords) ... 112

Reference information

• Available flash modes ..................................................... 116

• Usable lenses with limited functions with the SB-R200 ...120

• Notes on continuous flash operation (in close-up flash

operation (using cords)) ............................................... 122

• Optional accessories.......................................................123

• Tips on Speedlight care .................................................. 124

• Notes on batteries ........................................................... 125

• Troubleshooting...............................................................126

• Specifications .................................................................. 130

• Index ................................................................................132

Preparation

Flash operation using the R1C1

Flash operation using the R1

Functions and use of the SU-800

Functions and use of the SB-R200

Details on close-up flash operation and shooting procedures

Details on Commander flash operation and shooting procedures

Other functions

Flash operation using various accessories

Flash shooting using SLRs not compatible with CLS

Reference information

Tips on using the Speedlight

Take trial shots

Take test photos before photographing important events, such as weddings and graduations.

Have Nikon regularly spot-check your Speedlight

Nikon recommends that you have your Speedlight serviced by an authorized dealer or service center at least once every two years.

Using your Speedlight correctly

The Nikon Speedlight’s performance has been optimized for use with Nikon brand cameras and accessories, including lenses. Camera and accessories made by other manufacturers might not meet Nikon’s specification criteria, and nonconforming cameras and accessories could damage the Speedlight’s components. Nikon cannot guarantee the Speedlight’s performance when used with non-Nikon products.

Recommended cameras and lenses

Recommended cameras

Cameras compatible with Nikon Creative Lighting System (CLS)

A variety of wireless multiple flash and close-up flash operations using the SU-800 and the SB-R200 are available with Nikon CLS-compatible cameras.

• Refer to your camera instruction manual for details on available camera functions.

Usable CLS-compatible cameras: D2-Series, D70-Series, D50, F6, etc.

Recommended lenses

Micro Nikkor lenses Micro Nikkor lenses provide a maximum reproduction ratio of 1:1 or 1:2. These lenses offer high optical performance that is best suited to Nikon cameras, allowing you to take texture-quality pictures anywhere from close-up to infinity.

AF Micro-Nikkor 60mm f/2.8D AF Micro-Nikkor 105mm f/2.8D AF Micro-Nikkor 200mm f/4D IF-ED

 Using the Nikon D70-Series camera’s Commander mode

Be sure to set the channel number of the remote flash unit(s) to 3 and set the group of the remote flash unit(s) to group A when performing wireless multiple flash with a Nikon D70-Series camera’s built-in flash as a Commander, otherwise the remote flash unit(s) will not fire.

 With SLR cameras incompatible with CLS

Use the TTL Cord SC-30 (optional) to connect the SU-800 and the SB-R200 (p. 109).

 COOLPIX-Series digital cameras

The SU-800 and SB-R200 cannot be used with the COOLPIX-Series digital cameras (p. 126).

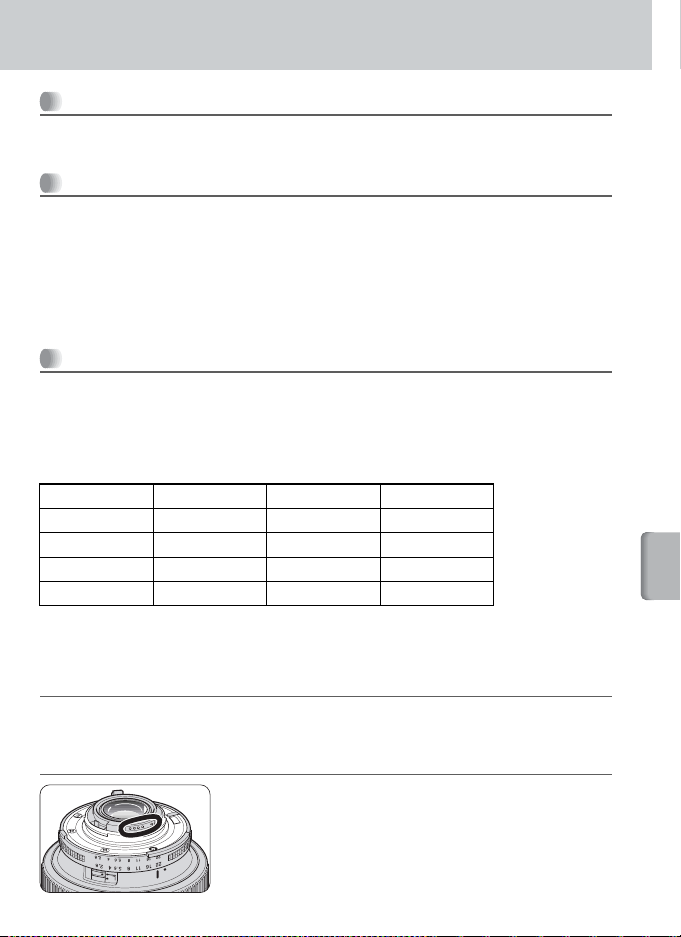

 Usable lenses with limited functions with the SB-R200

The maximum number of SB-R200 units that can be attached to the front of the lens and which focal lengths can be used vary depending on the lens in use. For more details, refer to “2 Usable lenses with limited functions with the SB-R200” (p. 120).

 Lenses unusable with the SB-R200

AF Nikkor lenses with a ring that rotates during AF operation.

 Preparation

Recommended cameras and lenses

 Using lenses that extend and retreat during AF operation

Nikkor lenses that extend and retreat in length during AF operation may not autofocus correctly, or may lead to damage of the lens or camera’s autofocus mechanism due to the weight of the flash head. Therefore, do not perform autofocus operation, but use manual focus instead.

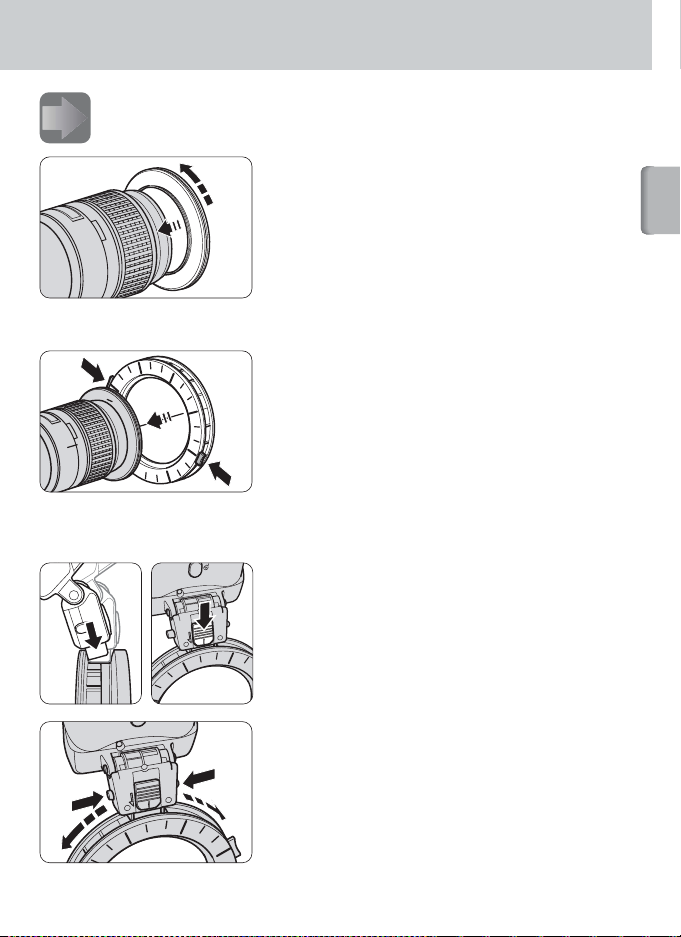

 Using an AF Micro-Nikkor 60mm f/2.8D lens

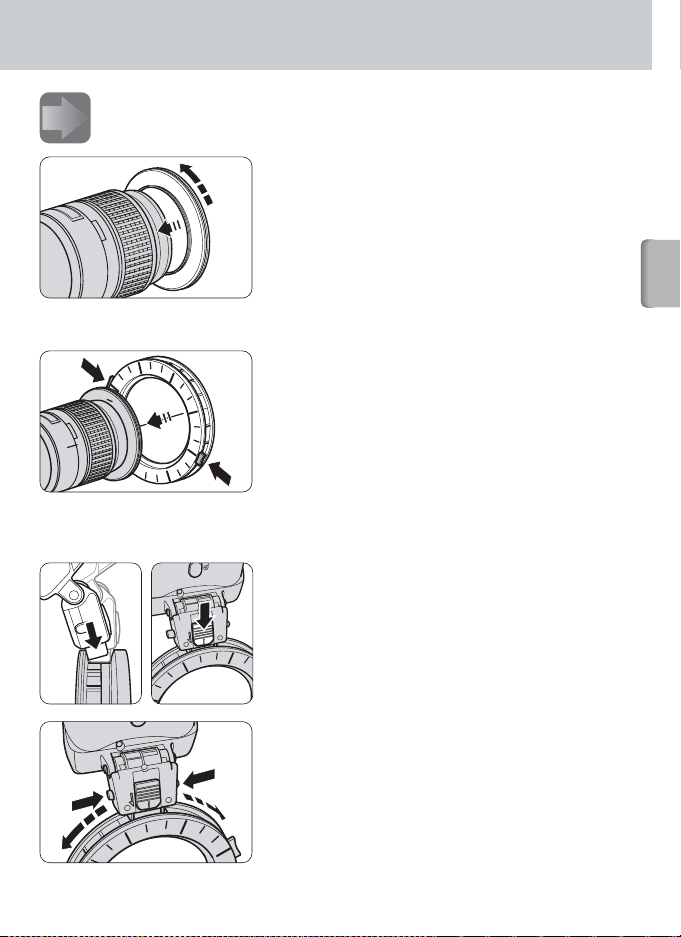

• Be sure to attach the Dedicated Adapter Ring UR-5 (optional) to the AF Micro-Nikkor

60mm f/2.8D lens, then attach the SX-1 to the lens with the Adapter Ring SY-1-72.

Lens UR-5 SY-1-72 SX-1

 Notes on using an AF Micro-Nikkor 105mm f/2.8D lens

Autofocus operation is possible if you attach the Attachment Ring SX-1 to the AF MicroNikkor 105mm f/2.8D lens using the Adapter Ring SY-1-62.

SX-1

SY-1-62

Confirm receipt of contents in your kit

Available flash operations depending on each kit

Available flash operation varies according to each kit. Accessories other than those included in the kit may be necessary. Refer to the table below. Users of the Nikon Close-up Speedlight Commander Kit R1C1 should read through this instruction manual. Users of the Nikon Close-up Speedlight Remote Kit R1, Commander SU-800 and Remote Speedlight SB-R200 should read the sections necessary for each kit.

Products Available flash

Nikon Closeup Speedlight Commander Kit R1C1

Nikon Closeup Speedlight Remote Kit R1

Commander SU-800

Remote Speedlight SB-R200

*1 The optional TTL Cord SC-30 is required (p. 123). Note: With CLS-compatible cameras, the TTL Cord SC-30 (optional) is not required.

operations

Close-up CLS-compatible cameras

Commander CLS-compatible cameras —

Close-up CLS-compatible cameras

Commander CLS-compatible cameras

Close-up CLS-compatible cameras

Commander CLS-compatible cameras SB-R200 or

Close-up CLS-compatible cameras

Commander CLS-compatible cameras

Usable cameras Speedlight and

Cameras not compatible with CLS

with Commander function.

Cameras not compatible with CLS

CLS-compatible cameras with Commander function

with Commander function.

Commander not included in the kit

—

SU-800 or SB-800

SB-R200

SB-800, SB-600

SU-800

—

SB-800 or SU-800

 Preparation

Confirm receipt of contents in your kit

Contents vary according to each kit

The following products should be packed with your kit. Please make sure they are all included.

• The below illustrations differ in scale.

Nikon Close-up Speedlight

Commander Kit R1C1

H G I L

E E P

L E

A M M

O C

Wireless Speedlight Commander SU-800

Wireless Remote Speedlight

E I G

S R

B-

R20

SB-R200 (x2)

Soft Case SS-SU800 for SU-800

Soft Case SS-R200 for SB-R200 (x2)

Flexible Arm Clip SW-C1

Speedlight Stand AS-20 (x2)

Commander SU-800

Nikon Close-up Speedlight Remote Kit R1

Attachment Ring SX-1

IR Panel for Built-in Flash SG-3IR

Extreme Close-Up Positioning Adapter SW-11 for SB-R200 (x2)

Soft Case SS-SX1 for SX-1

W S

2 1

W S

Diffuser SW-12

Adapter Ring Set (5 rings) (x1)

Color Filter Set SJ-R200 (for SB-R200 package) (4 filters in 4 models) (x2)

Color Filter Holder SZ-1 (x2)

-M

Close-up Speedlight Kit Case SS-MS1

T H

G I L

E E P

S S

E R I

M O C

Wireless Speedlight Commander SU-800

Soft Case SS-SU800 for SU-800

Nikon

Close-up

Speedlight

Commander

Kit R1C1

Nikon

Close-up

Speedlight

Remote Kit

Commander

SU-800

Remote

Speedlight

SB-R200

Wireless Speedlight Commander SU-800 1 — 1 —

Wireless Remote Speedlight SB-R200 2 2 — 1

Attachment Ring SX-1 1 1 — —

Adapter Ring Set

Extreme Close-Up Positioning Adapter SW-11 for SB-R200

1 set (5 rings) 1 set (5 rings)

— —

2 2 — —

Color Filter Holder SZ-1 2 2 — 1

Color Filter Set SJ-R200 (for SB-R200 package)

2 sets

(4 models,

4 filters)

2 sets

(4 models,

4 filters)

— 4 models,

4 filters

Speedlight Stand AS-20 2 2 — 1

IR Panel for Built-in Flash SG-3IR 1 1 — —

Flexible Arm Clip SW-C1 1 1 — —

Diffuser SW-12 1 1 — —

Close-up Speedlight Kit Case SS-MS1 1 1 — —

Soft Case SS-SU800 for SU-800 1 — 1 —

Soft Case SS-R200 for SB-R200 2 2 — 1

Soft Case SS-SX1 for SX-1 1 1 — —

 Preparation

Remote Speedlight SB-R200 Color Filter Set SJ-R200

SPE

I R

E I G

SB-R2

Wireless Remote Speedlight

Soft Case SS-R200 for SB-R200

AS-20

SB-R200

(for SB-R200 package) (4 filters in 4 models) (x1)

Speedlight Stand AS-20

Color Filter Holder SZ-1

Speedlight parts, their functions, and accessories

 Wireless Speedlight Commander SU-800

WIRELESS SPEEDLIGHT COMMANDER SU-800

MODE

ILL

ON/OFF

EAD

-8

9 8

1 LCD Panel (p. 20) 2 Control Buttons 3 Ready-light

Lights up when the Speedlight is fully recycled and ready to fire.

4 Mounting Foot-lock Lever (p. 29) 5 Terminal Cover 6 TTL Cord Terminal

Connects the SU-800 with the SB-R200 when used with cameras not compatible with CLS. (p. 110)

7 Mounting Foot (p. 29) 8 Hot-shoe Contacts

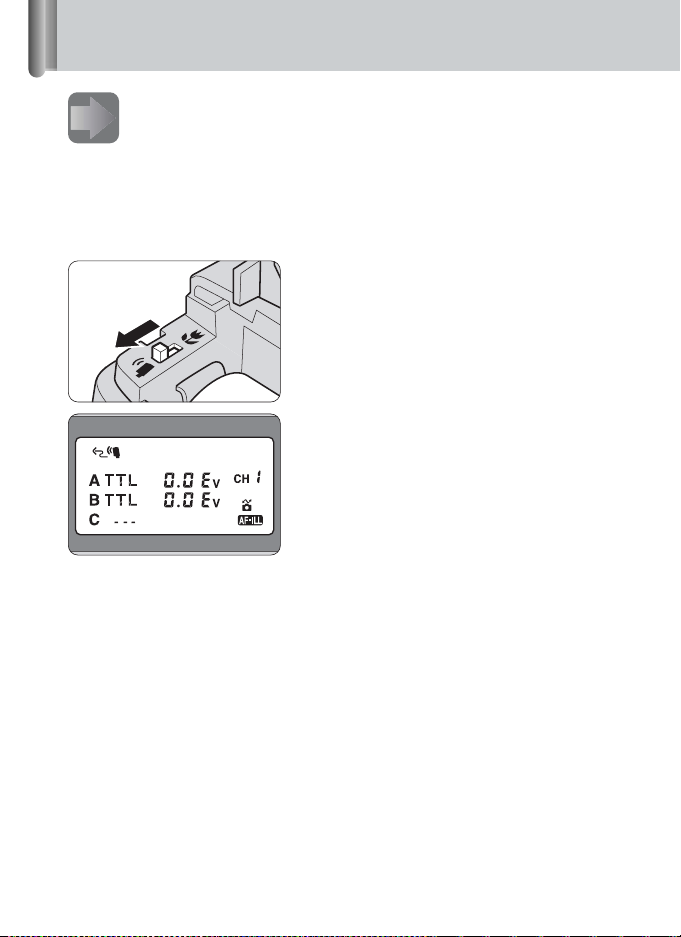

9 Mount Pin 10 Battery Chamber lid (p. 28) 11 AF-assist Illuminator 12 Commander Transmit Window 13 Commander/Close-up Select

Switch

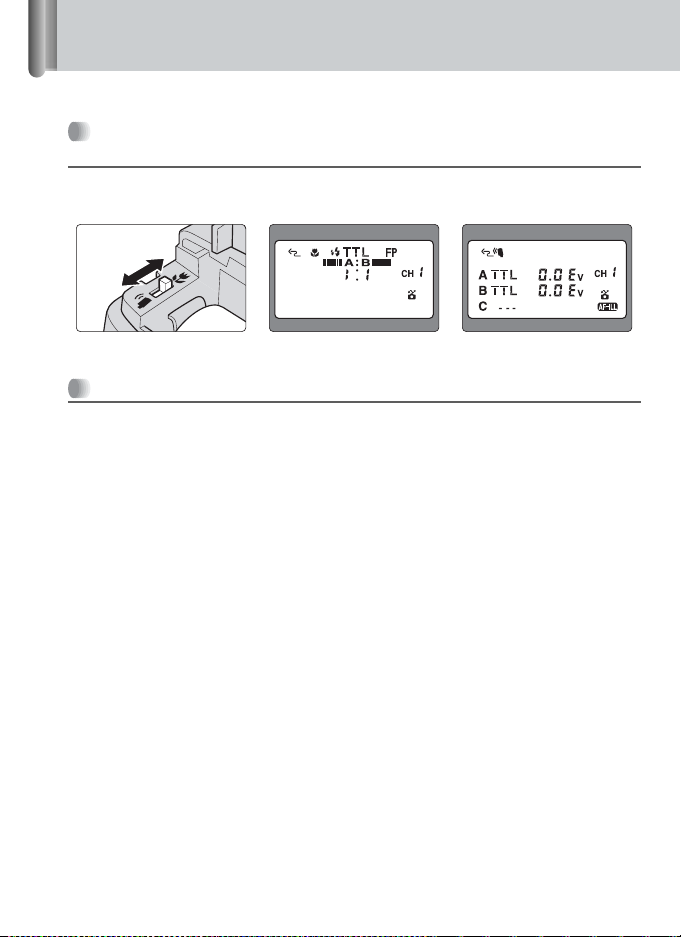

Toggles between the close-up and Commander modes. (p. 58)

20 19

MODE

NO AF-ILL

READY

SEL

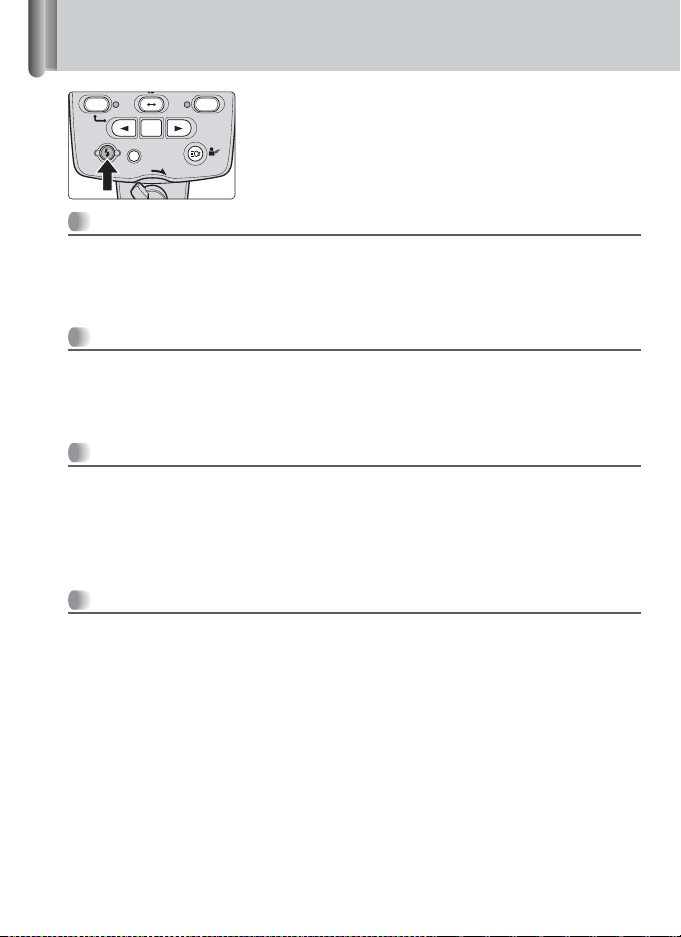

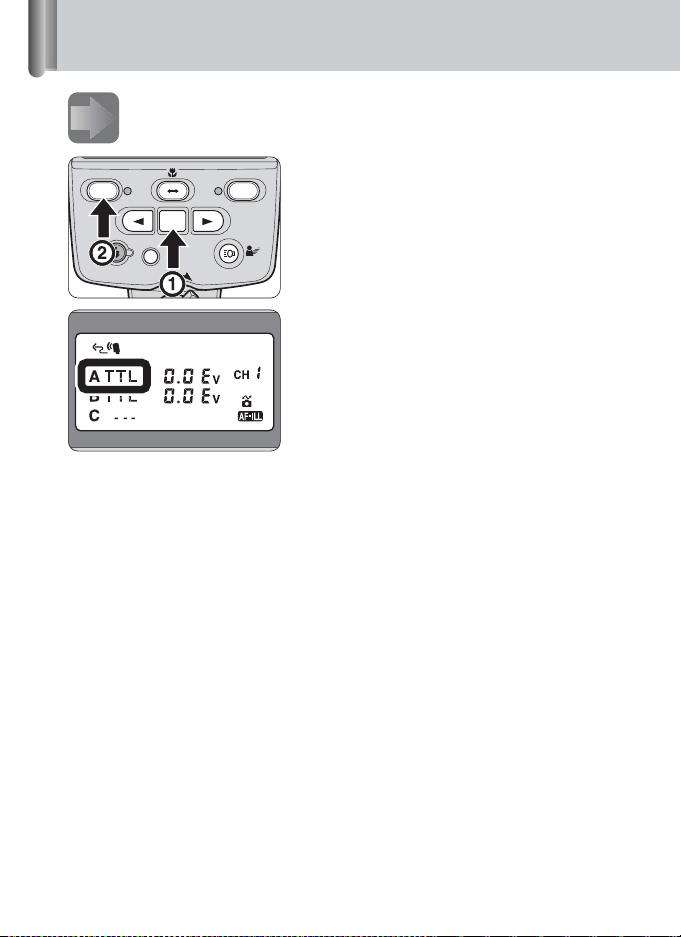

 Control buttons on the SU-800

14 [ON/OFF] Button

Press to turn the power on or off. To avoid accidental firing or a malfunction when carrying the SU-800 in your camera bag, turn off the flash unit.

15 [SEL](FUNC.) button

• Press to select the items to be set. The

selected item will blink and can be changed using the [] and [] buttons.

• Press for approx. 2 sec. to display another

setting.

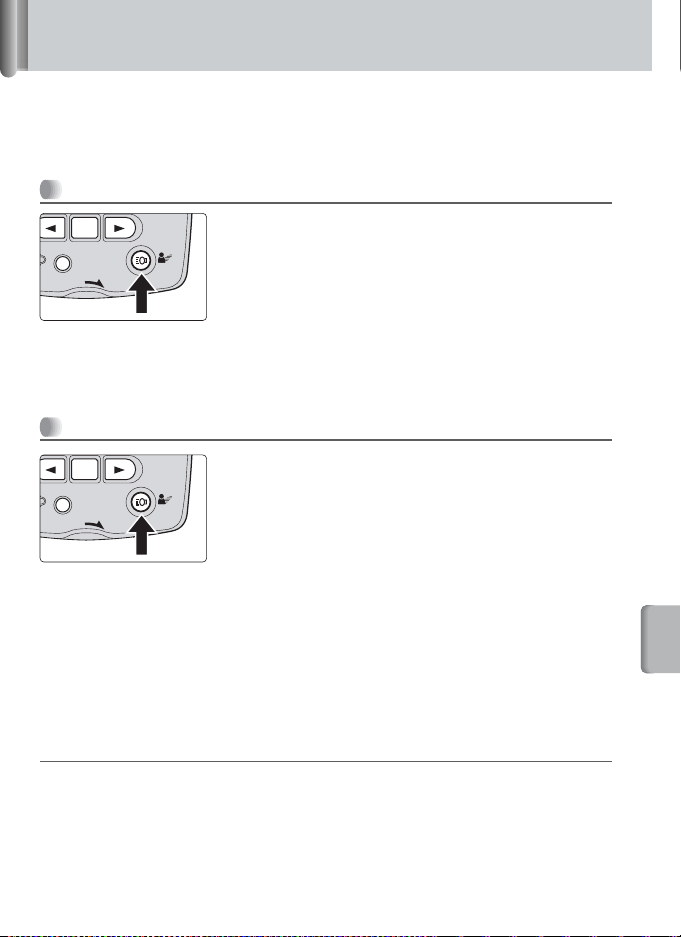

16 Target Light Button

• Press to turn the Target light (focus-assist

illuminator). (p. 89)

• Press for approx. 1 sec. to activate or cancel

the target light. (p. 90)

Simultaneously press the [ON/OFF] and [MODE] buttons

ON/OFF

MODE

NO AF-ILL

READY

SEL

LOCK

(two-button reset) to reset all settings (selected by the Commander/Close-up select switch) to their default values. The LCD panel will blink 3 times.

ON/OFF

LOCK

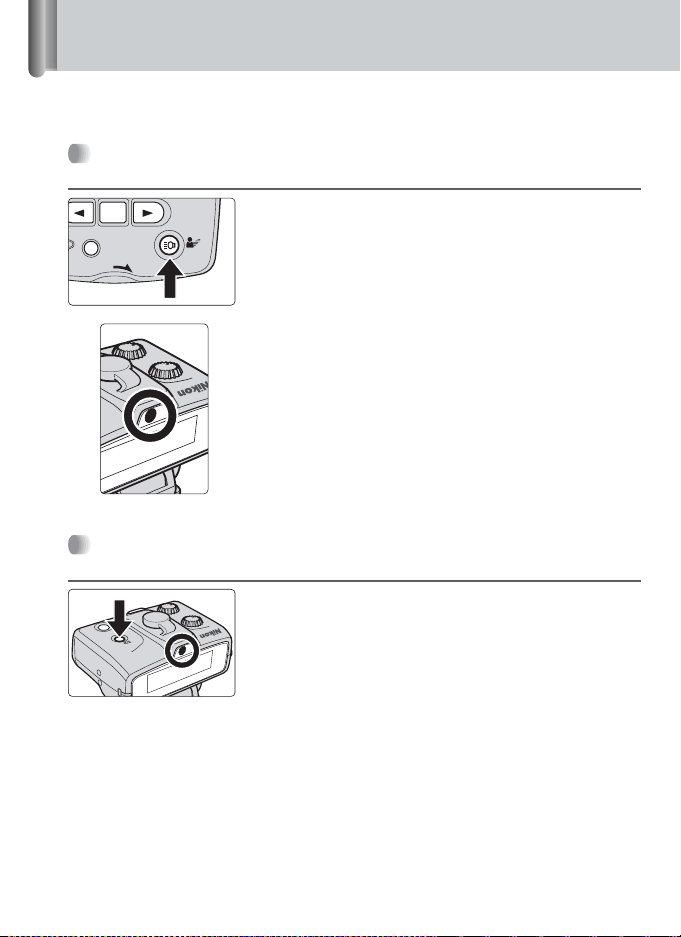

17 Test Button

Press to test fire the flash. (p. 88)

18 [] (left) Button

[] (right) Button

Press to change the values of the items or settings that are blinking.

19 [MODE] Button

Press to set the flash mode.

20 [A B] Select Button

In the close-up mode, press to set the flash units in groups A and B to fire or to cancel.

14 15

 Preparation

Using the SU-800 in low light

Press any button on the SU-800 to turn the illuminator on (when the SU-800’s power is on), and it will remain lit for about 16 seconds.

• The SU-800’s control button illuminator comes on when the camera’s LCD panel illuminator is turned on.

• The control button illuminator goes out when the shutter is released.

Speedlight parts, their functions, and accessories

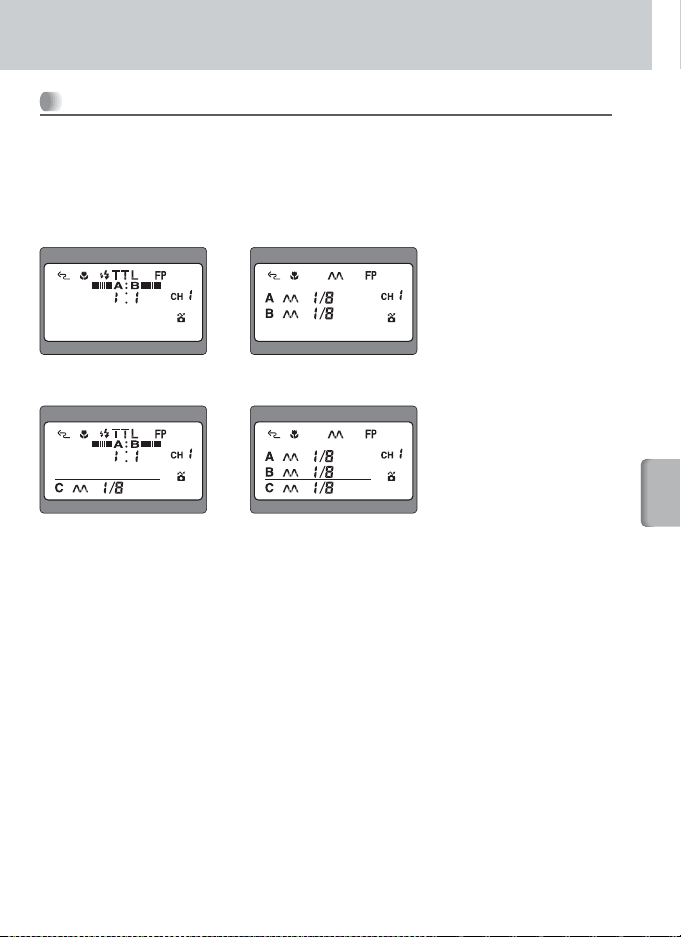

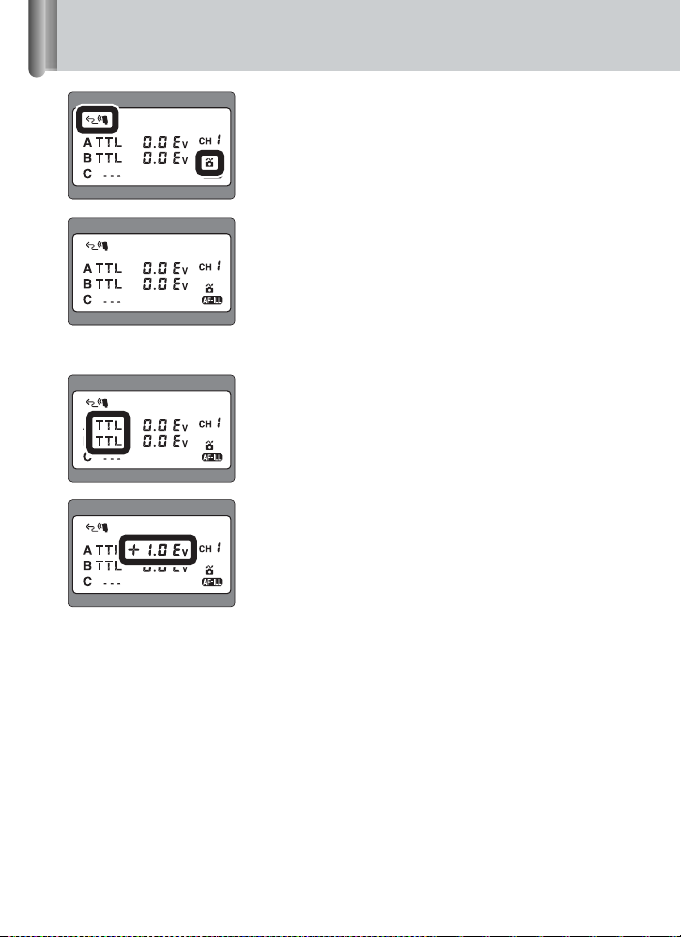

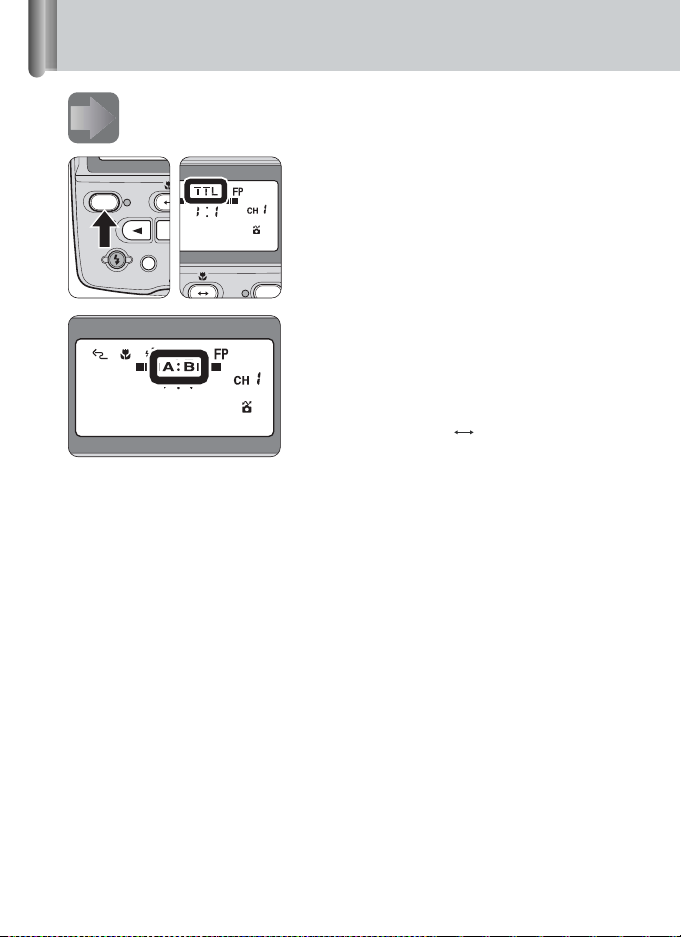

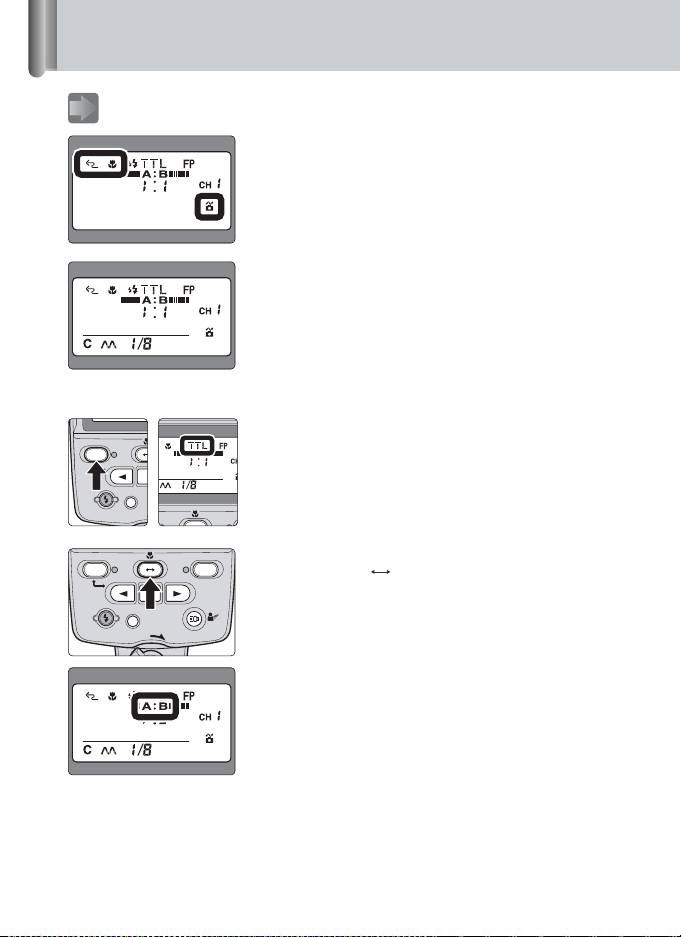

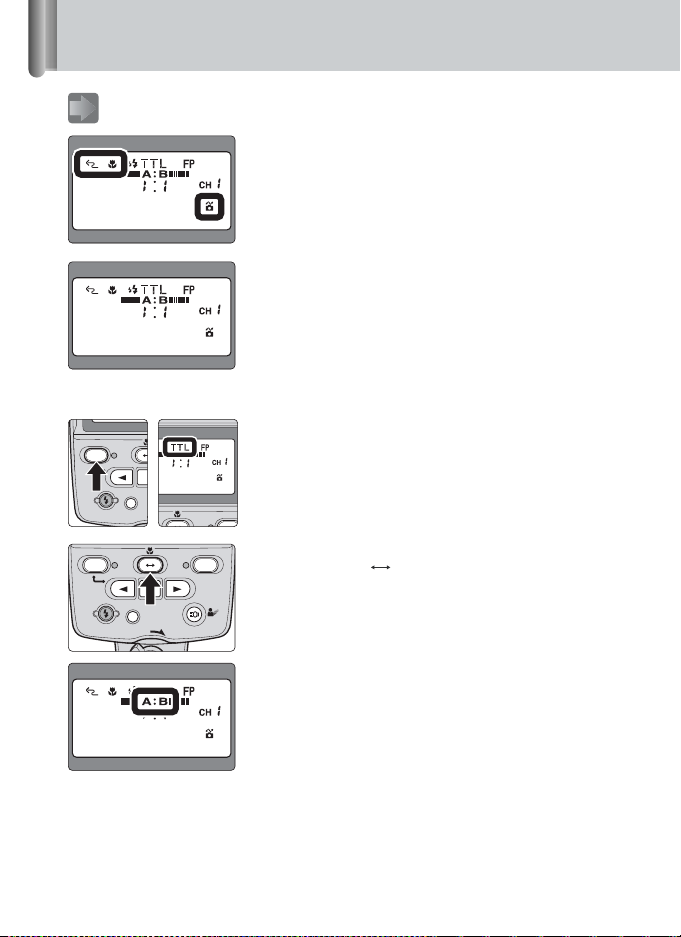

SU-800’s LCD panel and icons

Icons on the SU-800’s LCD panel show the status of the operations set. These icons vary depending on the settings and the combination of camera and flash units in use.

• The below illustrations are for reference only and may differ to the actual display.

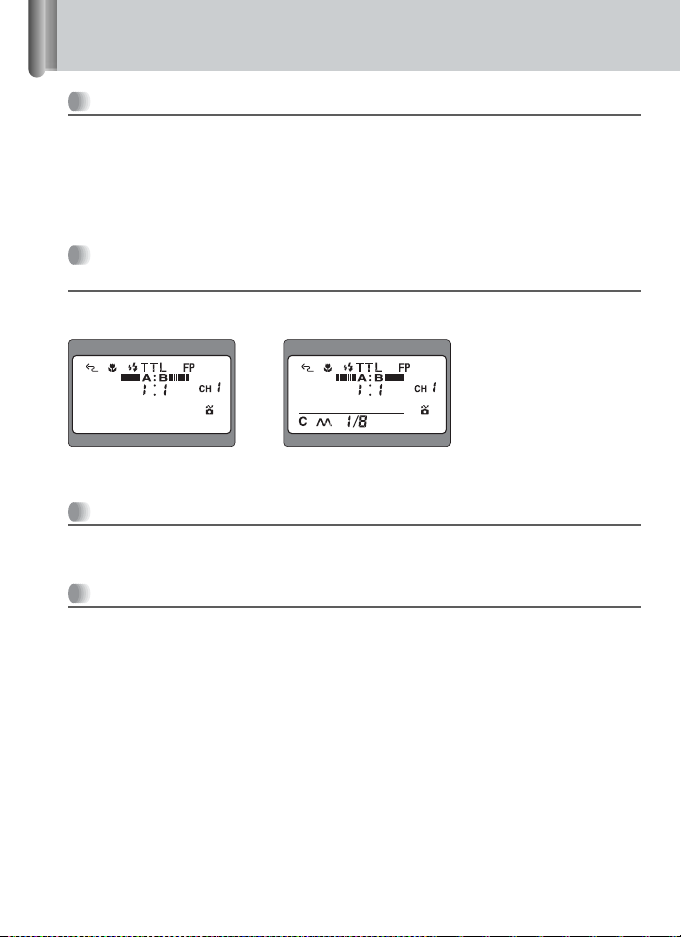

Icons in close-up flash operation

Display in TTL mode Display in M (manual) mode

1 Wireless Flash

A control signal is sent from the SU-800 to the remote flash units such as the SB-R200.

2 Close-up Mode

Close-up function is set to “activated.”

3 Monitor Preflashes

Just before the flash fires, the Speedlight fires a series of imperceptible preflashes to collect necessary data for actual flash firing.

4 TTL Mode

Measuring the flash illumination reflected back from the subject, the camera automatically controls the flash output level to give the correct exposure.

5 Auto FP High-Speed Sync

Auto FP High-Speed Sync. is available when the SU-800 is connected to cameras compatible with Auto FP HighSpeed Sync. (p. 96).

6 Low Battery-power

Replace the battery.

7 Flash Output Level (Group A)

Visually indicates the group A’s flash output level in the TTL mode.

8 Flash Output Level (Group B)

Visually indicates the group B’s flash output level in the TTL mode.

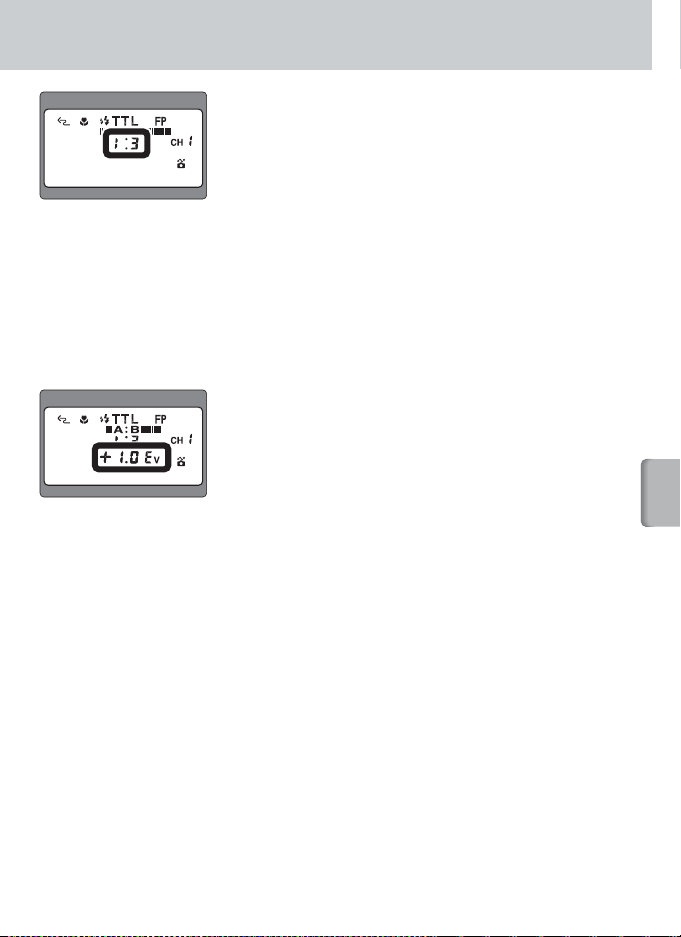

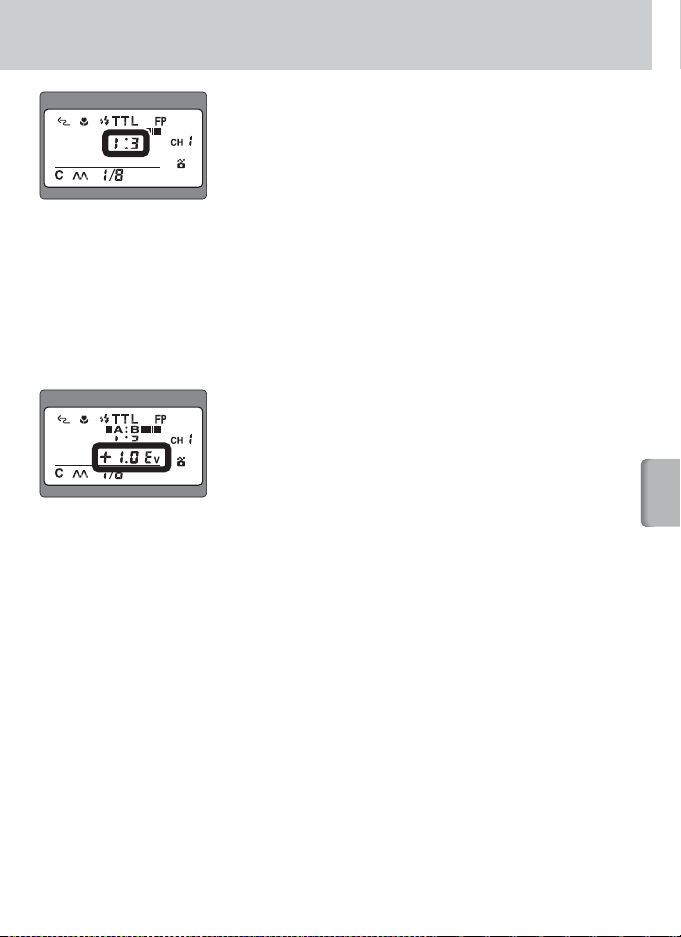

Flash Output Level Ratio (Groups A : B)

Indicates the flash output level ratio between groups A and B in the TTL mode.

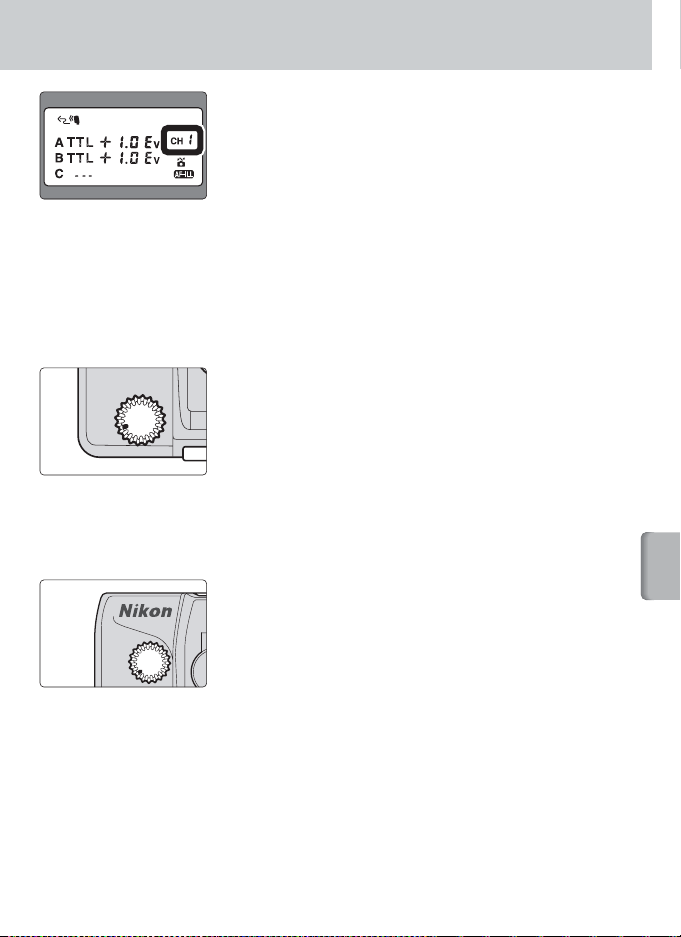

0 Channel

Represents the communication channel number through which the SU-800 and SB-R200 exchange data.

! Flash Output Level Compensation

(Groups A, B)

Represents flash output level compensation for groups A and B in the TTL mode.

@ CLS-compatible camera

The SU-800 is connected to cameras compatible with CLS.

# Manual Flash

The flash always fires at a specified output in combination with the aperture and light output level (guide number).

$ Manual Flash Output Level

Represents flash output level for each group in Manual flash mode.

Icons in Commander flash operation

4 Channel

Represents the communication channel number through which the Commander and Speedlight exchange data.

5 CLS-compatible camera

The SU-800 is connected to cameras compatible with CLS.

6 AF-Assist Illuminator activated

The AF-Assist Illuminator comes on. NO AF-ILL appears when the AF-Assist

1 Wireless Flash

A control signal is sent from the SU-800 to the remote flash units such as the SB-R200.

2 Commander Mode

Commander function is activated.

3 Low Battery-power

Replace the battery.

Illuminator is canceled (p. 91).

7 Group

Represents the group names and flash mode in each group.

8 Flash Output Level Compensation

Value

Flash output level compensation value.

9 Manual Flash Output Level

Represents flash output level for each group in Manual flash mode.

Icons in close-up flash operation (using cords)

Display in TTL BL mode Display in M (manual) mode

1 Close-up Mode

Close-up function is activated.

2 Monitor Preflashes

Just before the flash fires, the Speedlight fires a series of imperceptible preflashes.

3 TTL Mode

Measuring the flash illumination reflected back from the subject, the camera automatically controls the flash output level to give the correct exposure.

4 Balanced Fill-Flash

The flash output level is automatically controlled for a well-balanced exposure of the main subject and background.

5 Low Battery-power

Replace the battery.

6 Flash firing (Group A)

Flash unit(s) in Group A fires in the TTL mode.

7 Flash firing (Group B)

Flash unit(s) in Group B fires in the TTL mode.

 Preparation

Speedlight parts, their functions, and accessories

8 Using Cords

The SU-800 is connected to the SB-R200 using cords when mounted on cameras not compatible with CLS. This indicator blinks if the SB-R200 is not correctly connected.

9 Flash Output Level Compensation

Value (Groups A, B)

Indicates the flash output level compensation for groups A and B in the TTL mode.

0 Manual Mode

The flash always fires at a specified output in combination with the aperture and light output level (guide number).

Displays when blinking

Indicate that these items can be adjusted or changed. Stop after blinking six times unless an adjustment is made.

• Icons blinking also indicate warning and errors.

• When the [ON/OFF] + [MODE] buttons are simultaneously pressed (two-button reset) for approx. 2 sec., the display blinks three times (p. 19).

 Using the SU-800 in low light

Press any button on the SU-800 to turn the illuminator on (when the SU-800’s power is on), and it will remain lit for about 16 seconds.

• The SU-800’s control button illuminator comes on when the camera’s LCD panel illuminator is turned on.

• The control button illuminator goes out when the shutter is released.

 Characteristics of the LCD panel

• Due to the directional characteristics of LCDs, the LCD display is difficult to read when viewed from above. However, the display can be seen clearly from a somewhat lower angle.

• The LCD display becomes darker at high temperatures (approx. 60°C/140°F), but returns to normal at normal temperatures (20°C/68°F).

• The LCD’s response time slows down at low temperatures (approx. 5°C/41°F and below), but returns to normal at normal temperatures (20°C/68°F).

 Wireless Remote Speedlight SB-R200

OCK

ON/OFF

SPEEDLIGHT

WIRELESS REMO

SB-R200

1 [CHANNEL] select dial

Sets the communication channel through which the Commander and SB-R200 units exchange data (p. 35).

2 [GROUP] select dial

Sets the group of the SB-R200 (p. 36).

3 Target Light (Focus-Assist

Illuminator) 4 Flash head 5 Release button

Hold down and slowly move the SB-R200 until

it comes to the desired position, then release

the button to secure (p. 31).

6 Mounting Foot (p. 31) 7 Target Light Button

Sets the target light to turn on or off (p. 90).

8 [ON/OFF] button

Press to turn the power on or off.

To avoid accidental firing or a malfunction when

carrying the SB-R200 in your camera bag, turn

off the flash unit.

9 TTL cord terminal

Connects the SU-800 to the SB-R200 via a cord

when used with cameras that are not compatible

with CLS (p. 110).

 Preparation

OCK

10 Terminal cover

Close the cover when not using the TTL cord.

11 Ready-light

The lamp lights up in green when the power is on. It turns red when the SB-R200 is fully recycled and ready to fire. The green lamp blinks when battery power is weak.

12 Battery chamber lid (p. 30) 13 Light sensor window for wireless

remote flash

14 Lock switch

Secures the SB-R200 to the Attachment Ring (p. 31).

Speedlight parts, their functions, and accessories

 Attachment Ring SX-1

The SX-1 is used to secure the SB-R200 by attaching it to the Adapter Ring on the front of the lens. The SB-R200 is detachable at any position around the Attachment Ring. You can slide the SB-R200 freely around the ring. There are click stops every 15° on the Attachment Ring.

Mounting groove

Mounting button

 Adapter Rings (SY-1-52, SY-1-62,

SY-1-67, SY-1-72, SY-1-77)

These rings can be attached to the front of the lens for mounting the Attachment Ring SX-1. Five Adapter Rings, with diameters of ø52mm, ø62mm, ø67mm ø72mm and ø77mm are provided.

 Extreme Close-Up Positioning

Adapter SW-11

The SW-11 can be attached to the SB-R200 and used to curve flash light toward the optical axis to create lighting effects when taking close-up shots (p. 103).

 Color Filter Set SJ-R200

(for SB-R200 package)

The set comprises a total of 4 filters: the FL-G1 for fluorescent light, the TN-A1 for incandescent/tungsten light, Blue and Red (p. 100).

 Speedlight Stand AS-20

The AS-20 can be used to freely position and steady the SB-R200. The Attachment Ring SX-1 can be attached to a tripod (p. 107).

Speedlight mounting shoe

AS-20

Tripod socket

 IR Panel for Built-in Flash SG-3IR

The SG-3IR can be attached to a camera’s hot shoe when a Nikon digital camera’s built-in flash (such as D70-Series) is used as a Commander (p. 50).

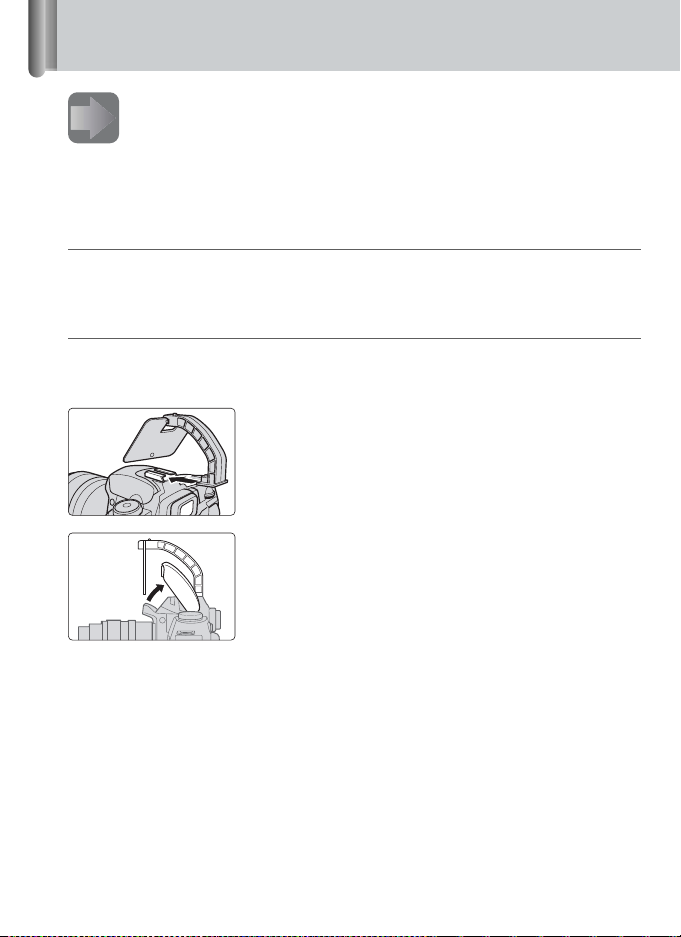

 Flexible Arm Clip SW-C1

The SW-C1 can be used to hold a Diffuser. It can also be attached to the mounting groove on the Attachment Ring SX-1 (p. 105).

 Color Filter Holder SZ-1

The SZ-1 is used to attach a colored gel filter (SJ-R200 or optional SJ-2) to the flash head of the SB-R200 (p. 102).

Stopper

Mounting groove

 Diffuser SW-12

The SW-12 is a milky-white board that can be used to diffuse flash light (p. 105).

 Soft Case SS-SU800 for SU-800

 Soft Case SS-SX1 for SX-1

 Close-up Speedlight Kit Case SS-MS1

S S

The SC-30 is optional.

W S

Caring for the Close-up Speedlight Kit Case SS-MS1

• Do not clean the case with a moistened cloth. Never use organic solvent or a bleaching agent such as thinner or benzene.

• If the case gets wet, wipe it with a dry, soft cloth, and fully dry in the shade.

• Be careful not to leave the case for a long time in locations subject to high humidity or direct sunlight, otherwise the surface may become stiff, cracked, or faded in color.

 Soft Case SS-R200 for SB-R200

SB-R200

AS-20

SZ-1

SJ-R200

0 0

SU-8 R E D

M M CO

G I DL

PEE

S S S E

L E IR

0 0 2

B-

S M E

T R

H S

I S E

DL L

E E

E R I

S W

1 1

 Preparation

Wireless multiple flash operation in the Nikon Creative Lighting System (CLS)

When the SU-800 is used with Nikon CLS-compatible cameras, the remote flash units can be divided into a maximum of 3 groups, and the flash output level can be separately set for each group of Master/Commander and remote flash unit(s), providing wireless multiple flash operation (Advanced Wireless Lighting).

 Master flash unit and remote flash unit(s)

In this instruction manual, the Commander SU-800 and Speedlight mounted on the camera, a built-in flash or the one directly connected to the camera via a TTL Cord is called the Master/Commander flash unit. All other flash units are called remote flash units.

Details of Advanced Wireless Lighting

Group B

(remote flash units)

Group A

(remote flash units)

Master/Commander flash unit

• Remote flash units can be divided into a maximum of three groups (A, B and C).

• One or more remote flash units can be set to one group.

• Flash mode and flash output-level compensation values can be set independently on the Master/Commander flash unit and for three other groups of remote flash units.

• Select one of the four available channels through which the Master/Commander flash unit and three other groups exchange data.

• If a photographer performs the same Advanced Wireless Lighting near you, your remote flash unit(s) might accidentally fire in sync with that photographer’s master flash unit. If this happens, select a different channel number.

Group C

(remote flash units)

Flash operation

using the Nikon Close-up Speedlight Commander Kit R1C1

(Used with Nikon CLS-compatible cameras)

This section describes the necessary procedures for wireless close-up and Commander flash operations with a CLS- compatible camera when using the Nikon Close-up Speedlight Commander Kit R1C1.

• For details on close-up flash operation, see page 65.

• For details on Commander flash operation, see page 79.

Procedures for close-up flash operation

1 Installing batteries in the SU-800.

2 Attaching the SU-800 to the camera.

3 Installing batteries in the SB-R200.

4 Attaching the SB-R200 to the front of the lens.

5 Turning on the camera, the SU-800 and SB-R200.

6 Setting the flash mode on the SU-800.

7 Setting a channel number on the SU-800 and SB-R200.

8 Setting a group on the SB-R200.

9 Compose a picture and shoot with flash.

Procedures for Commander flash operation

1 Setting Commander function on the SU-800.

2 Setting up the SB-R200.

3 Turning on the camera, the SU-800 and SB-R200.

4 Setting the flash mode on the SU-800.

5 Setting a channel and a group.

6 Compose a picture and shoot with flash.

Procedures for close-up flash operation

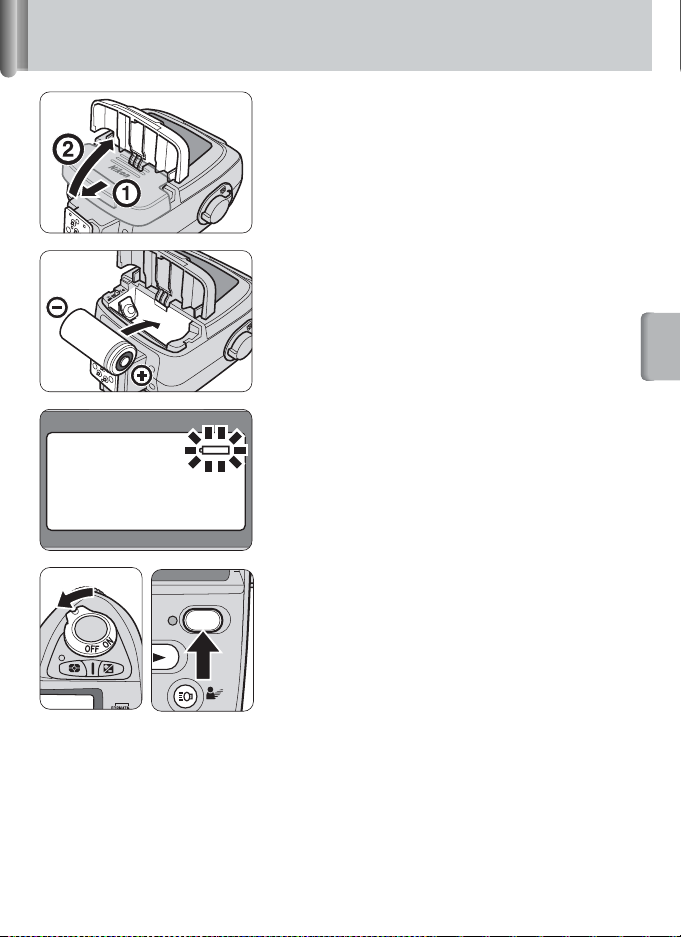

Installing batteries in the SU-800.

Slide open the battery chamber lid

in the direction of the arrow.

Install the battery, then close the

battery chamber lid by sliding it back into place.

Use CR123A (3V) lithium batteries.

Battery chamber

Confirming the close-up mode setting

Make sure that the Commander/Close-up select switch in the battery chamber is set to “Close-up” position.

Replacing the battery

The Low Battery-power Indicator blinks when the SU-800’s ready-light does not come on within about 30 seconds of turning on the power or after the flash has fired.

• Replace the battery.

Attaching the SU-800 to the camera.

ON/OFF

READY

LOCK

SEL

LOCK

READY

LOCK

Ensure the SU-800 and camera

body are turned off.

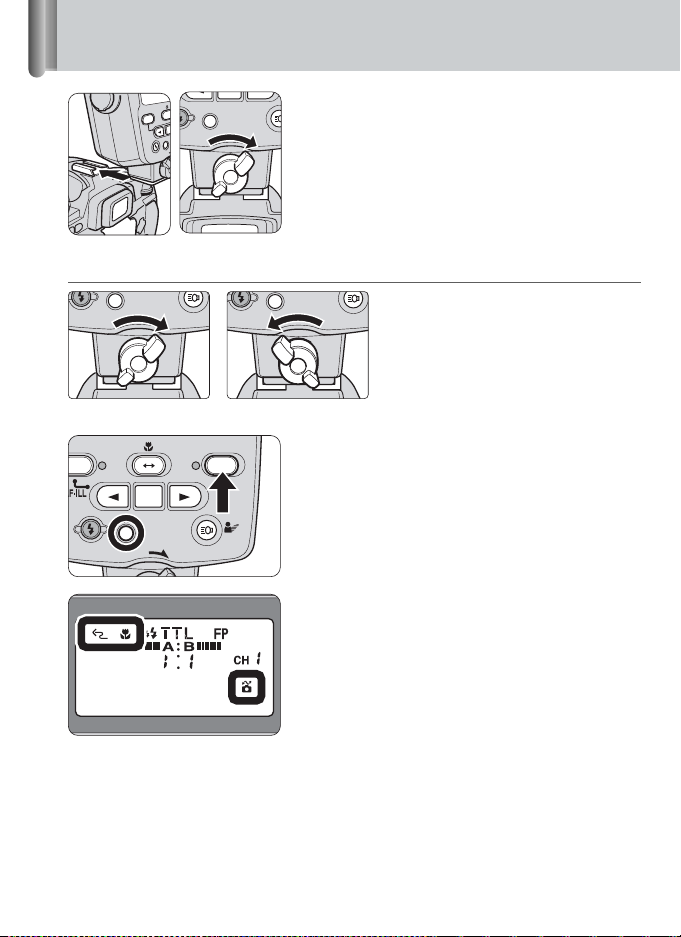

Rotate the Mounting Foot-lock lever

to the left, slide the SU-800’s Mounting Foot into the camera’s accessory shoe and turn the lock lever to the right.

 Mounting Foot-lock lever

To lock the Speedlight in place, turn the lock lever clockwise approx. 90° until it stops. To unlock, turn the lever counterclockwise until it stops.

Lock Unlock

 Flash operation using the R1C1

Procedures for close-up flash operation

SPE

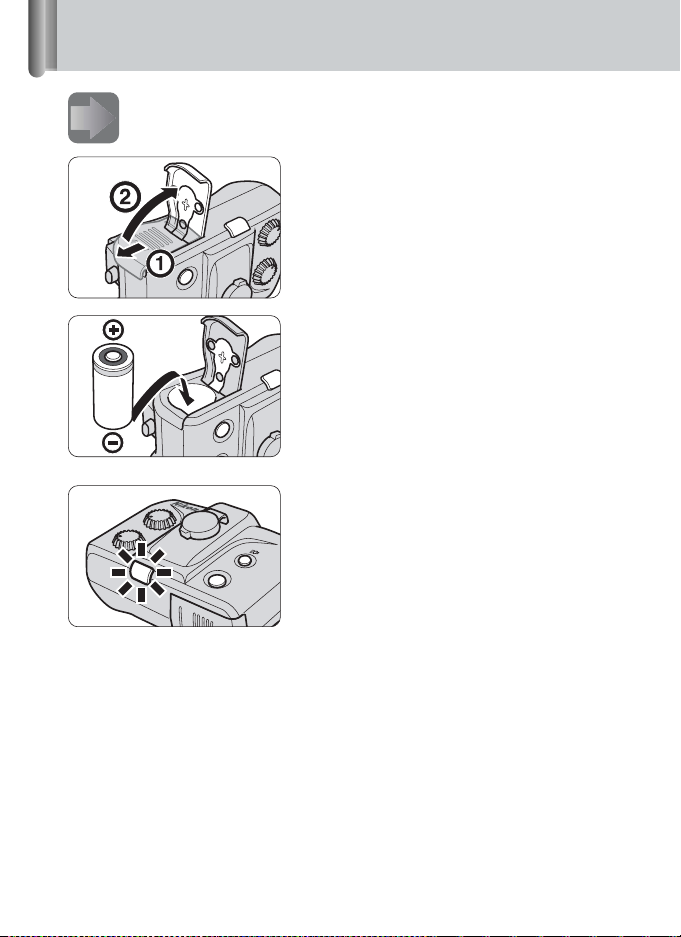

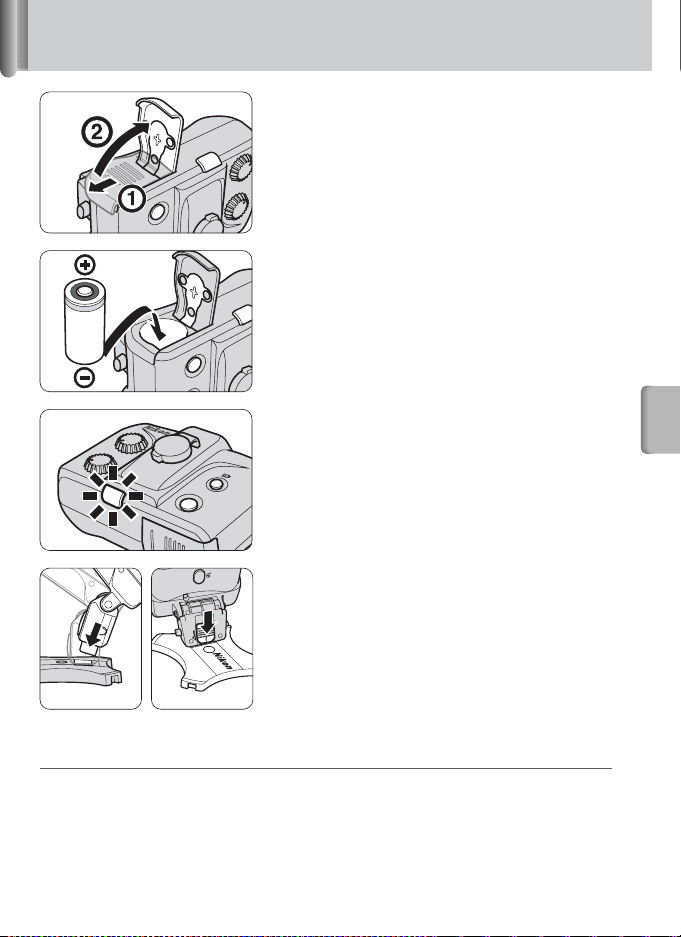

Installing batteries in the SB-R200.

Slide open the battery chamber lid

in the direction of the arrow.

Install the battery, then close the

battery chamber lid by sliding it into place.

Use CR123A (3V) lithium batteries.

Replacing the battery

When the SB-R200’s battery power is weak, the green ready-light blinks after the power is turned on or after the flash has fired.

• Replace the battery.

+ 104 hidden pages
