IPHONE NIGHT VISION CAMERA ADAPTOR
Fits: PVS-7 | PVS-14 | LRM-14 | LRB-7

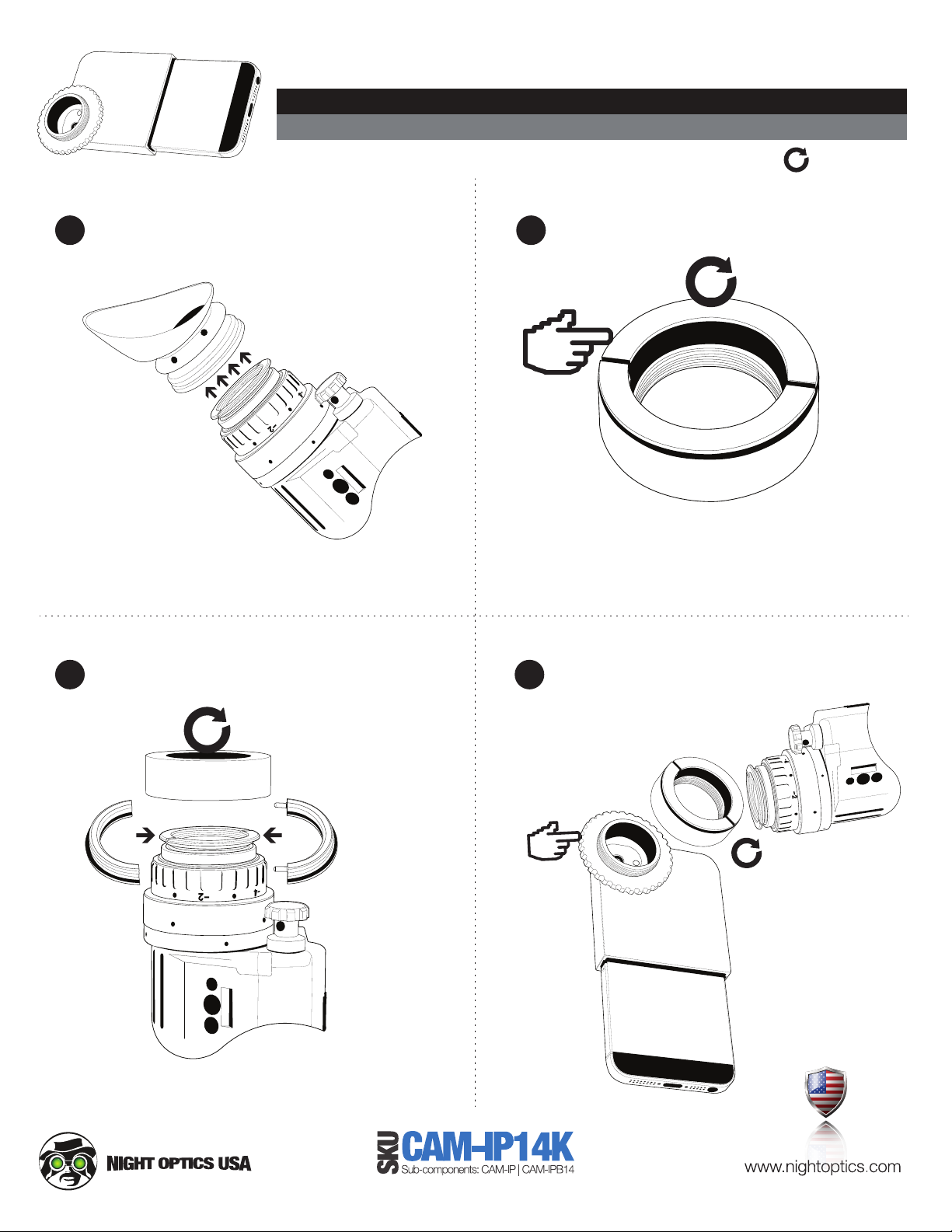

Instructions
Thread on/off

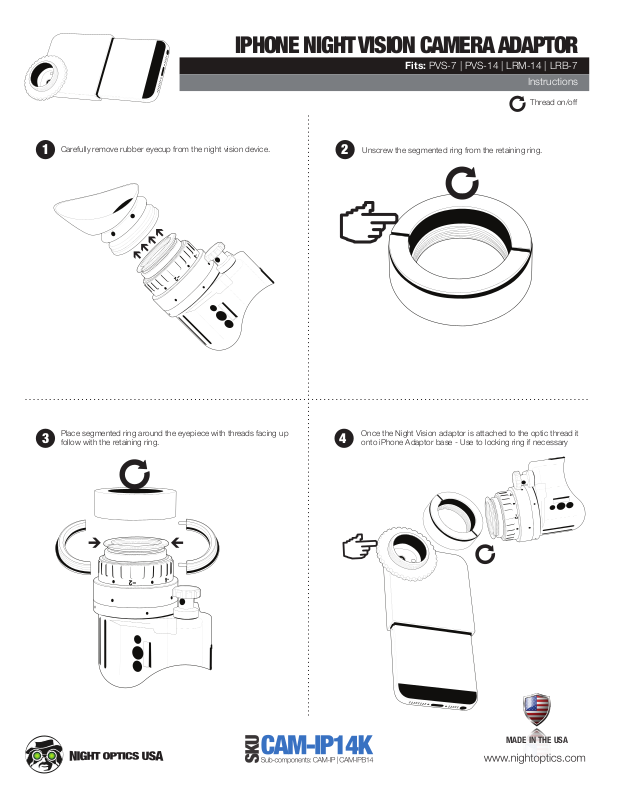

Carefully remove rubber eyecup from the night vision device.
1 2
Place segmented ring around the eyepiece with threads facing up
3
follow with the retaining ring.
4
Unscrew the segmented ring from the retaining ring.
Once the Night Vision adaptor is attached to the optic thread it
onto iPhone Adaptor base - Use to locking ring if necessary
MADE IN THE USA
Page 2
IPHONE NIGHT VISION CAMERA ADAPTOR
Fits: 740 | 750 | 760 Weapon Sights
Instructions
Thread on/off

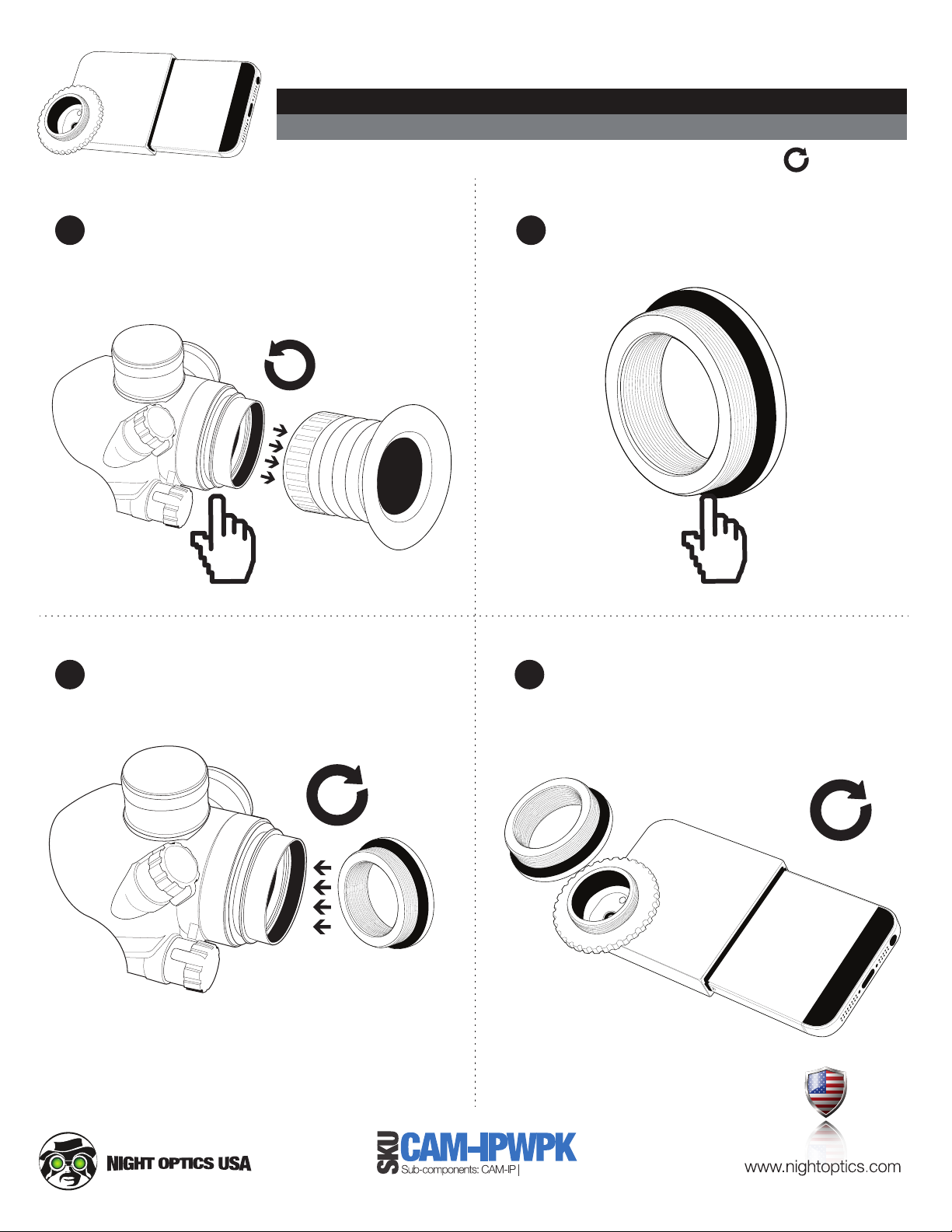

To remove the rubber eyecup turn the diopter towards the
1 2
left side of the scope so that it is fully extended out.
Place the index finger all the way inside the eyecup and
the thumb on the other side and gently lift up over the
retainer ring and pull it off.
Thread the adaptor ring into the eyepiece of the weapon
3
scope. It should be firm, take care not to over-tighten.
4
Ensure that the threads on the iPhone adaptor ring are
clean and clear of debris.
Thread the eyepiece ring onto the iPhone adaptor base.
Before fully tightening, position the adaptor at the desired
angle and adjust the locking ring accordingly.
We recommend using landscape mode to maximize the
field of view. Tap the screen to focus the image.
MADE IN THE USA
CAM-IPBWP
