Page 1
DAY/NIGHT ADAPTOR
For PVS-14 & D-300 Night Vision Monoculars
Operator Manual
NIGHT OPTICS USA, INC | www.nightoptics.com
Page 2
TABLE OF CONTENTS
Product Description 1
Overview 2
Technical specifications 2
Device Operation 3-4
Maintenance 4
Warranty 5
Page 3

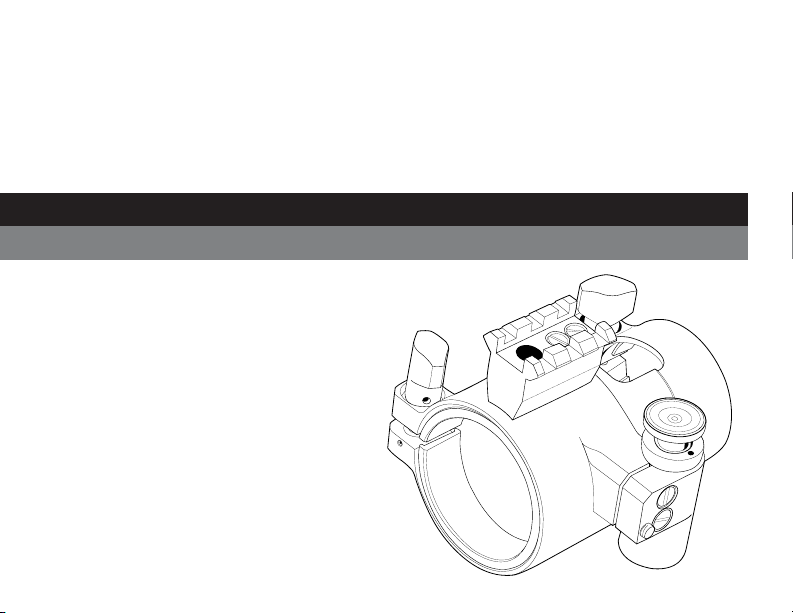

PRODUCT DESCRIPTION
The Night Optics USA, Inc. proprietary (Patented)
Day/Night Adaptor quickly transforms a daytime rifle scope
into a 24-hour system by allowing quick connection of a
Night Vision Monocular to the eyepiece of daytime optics.
A unique adaptor mechanism ensures the Day/Night
Adaptor can be attached to or detached from virtually any
daytime scope in the field without tools.
Use with
Compatibility
Eyepiece Range
Weather Resistant
IR Illuminator
Weight
Warranty
The Adaptor provides an easy and secure alignment of
the two systems while allowing the night vision device to
swing to an alternate locked position on the side of the
weapon. Configuring a riflescope for either day or night
firing without loss of weapon zero is now as simple as
pressing a button.
TECHNICAL SPECIFICATIONS
PVS-14 | D-300
Rifle scopes & spotting scopes
1.5 in. - 1.75 in. O.D.
Yes
Yes. (Weaver mount attachment required)
7 oz (198.4 g)
1 year
1
Page 4
OVERVIEW

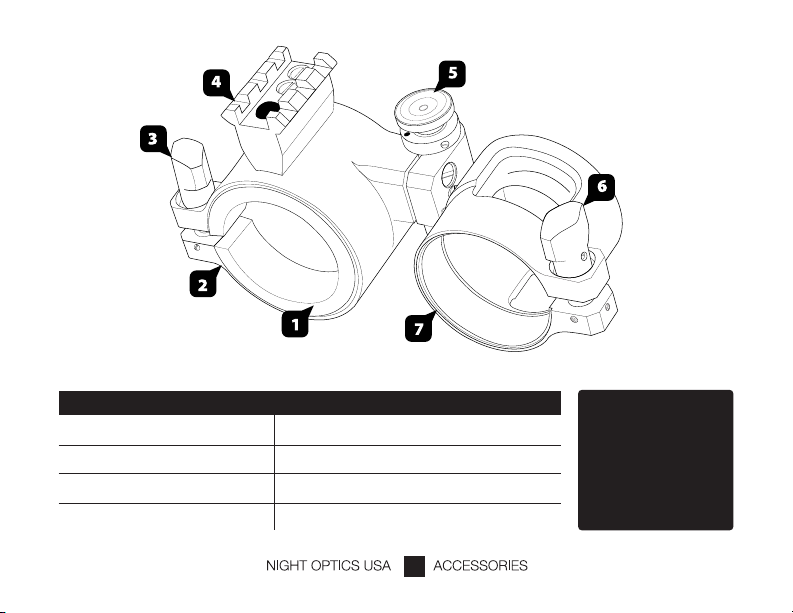

PRODUCT BREAK-DOWN Figure 1
[1] Adaptor Bushing
[2] Eyepiece Mount
[3] Eyepiece Thumbscrew
[5] Release Plunger
[6] Night Vision Device Thumbscrew
[7] Night Vision Device Mount
[4] Weaver Base
2
Note:
With the enclosed set of (7)
bushings the Day/Night
Adaptor will fit on the
eyepiece optics with an
outside diameter ranging
from 1.5-1.75 inches.
Page 5
OPERATION
1. Using the Day/Night Adapter:
a. Remove the Adaptor and bushings (set of 7) from protective wrapping.
b. Estimate the size of the eyepiece diameter (in mm) and insert that bushing into the NVD mount portion of the adaptor (Fig. 1.1)
c. Loosen the eyepiece thumbscrew (Fig. 1.3) as far as it will go and place the adaptor onto the eyepiece as shown (Fig. 1.2).
d. The end of the eyepiece mount should grab at least a ¼ in of the end of the day/rifle scope to be securely mounted. Tighten the
eyepiece thumbscrew (Fig. 1.3).
e. Remove the daylight cover from your device and insert it into the adapter so the end of the NVD mount is flush with the device
body and tighten the NVD thumbscrew. (Fig. 1.6).
Note:
You will be unable to place the daylight cover back onto the
front of the NVD.
f. To move the NVD into position behind the eyepiece, place your thumb and fore finger on opposite sides of the release plunger (Fig.
1.5) and press together firmly to disengage the lock and
g. Turn on the device. Adjust the objective focus (if applicable) first and then the eyepiece diopter for the best view.
h. To return the NVD to the rear of the day/rifle scopes eyepiece, place your thumb and fore finger on opposite sides of the release
plunger and press together firmly to disengage the lock and swing the NVD back into position beside the scope.
i. If needed, during periods of very low ambient light, an Infrared Illuminator can be mounted to the weaver base (Fig. 1.4). swing the
NVD into position behind the scopes eyepiece.

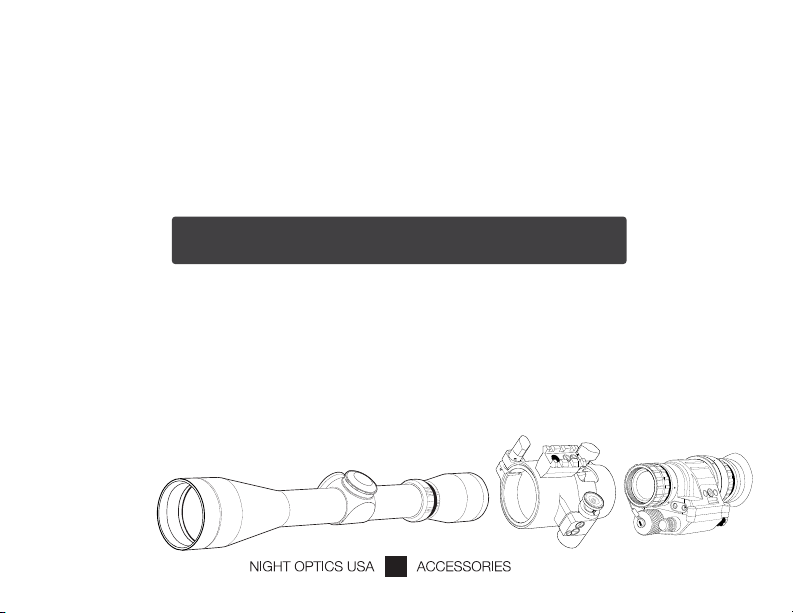

Figure 2
a. Day Scope | b. Night Optics Day/Night Adaptor | c. Night Vision Device
a.
b.
3
c.
Page 6
OPERATION
2. Focusing on Rifle or Spotting Scope:
The best method to use in getting your image focused is to pre-focus both the scope and NVD prior to use. Then turn
the objective focus on the NVD fully counterclockwise, as you are looking through it, then clockwise approximately ¼
turn clockwise before you fine tune the scope.
MAINTENANCE
Moisture
The Day/Night Adapter is water resistant. Take care to remove moisture to prevent damage to the locking mechanism
after prolonged exposure. After drying the adaptor, lubricate the thumbscrews and plunger to help prevent corrosion.
Salt Water
If the Day/Night Adapter is exposed to a salt water environment, flush it with fresh water and dry it thoroughly.
After drying the adaptor, lubricate the thumbscrews and plunger to help prevent corrosion.
Warning:
Improper care or unauthorized maintenance can damage
device and may result in warranty nullification.
4
Page 7
The Day/Night Adapter is covered by a limited 1 year warranty from time of sale. The warranty is valid only for the original purchaser.
The manufacturer warrants its products to be free from defects in material and workmanship during the warranty period. If the product proves to be
defective during this period, the manufacturer will repair the original product or replace it with a like product at the sole discretion of the manufacturer.
This limited warranty does not cover:
1. Any product on which the serial number has been defaced, modified, or removed.
2. Any product that has experienced deterioration or a malfunction from: accidents, misuse, neglect, fire, water, lighting or other acts of nature,
unauthorized product modification or failure to follow instructions supplied with the product, repair or attempted repair by anyone not authorized to
do so, use of supplies or parts not meeting manufacturer’s specifications, normal wear and tear, and/or extreme wear and tear caused by battlefield
conditions or other extreme environments.
No other warranties, expressed or implied, are valid without an agreement in writing provided by the manufacturer. All shipping involved in warranty
work/replacement is the sole responsibility of the purchaser.
LIMITATIONS OF LIABILITY
Night Optics USA, Inc. will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages or liabilities arising out of the use of
this product. Operation and use of this product are the sole responsibility of the Customer. Night Optics USA, Inc.’s sole responsibility is limited to
providing the products and service outlined herein in accordance with the terms and conditions of this Agreement.
The provision of products sold and services performed by Night Optics USA, Inc. to the Customer shall not be interpreted, construed, or regarded,
either expressly or implied, as being for the benefit or creating any obligation toward any third party of legal entity outside Night Optics USA, Inc. and
Customer; Night Optics USA, Inc.’s obligations under this Agreement extend solely to the Customer.
Night Optics USA, Inc.’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges
paid to Night Optics USA, Inc. by the Customer or the Customer’s dealer. Night Optics USA, Inc. shall not, in any event, be liable for
special, indirect, incidental, or consequential damages, including, but not limited to, lost income, lost revenue, or lost profit, whether
such damages were foreseeable or not at the time of purchase, and whether or not such damages arise out of breach of warranty, a
breach of agreement, negligence, strict liability, or any other theory of liability.
5
WARRANTY
Page 8
NIGHT OPTICS USA, INC
15182 Triton Lane, Suite 101 | Huntington Beach, CA 92649
Ph: (714) 899-4475 | Fax: (714) 899-4485
