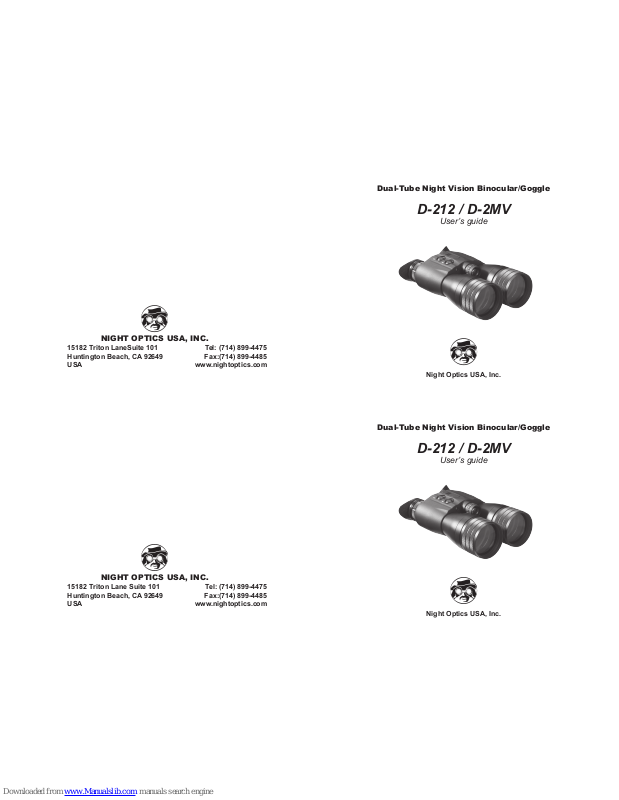

Dual-Tube Night Vision Binocular/Goggle
D-212 / D-2MV
User’s guide
Night Optics USA, Inc.
NIGHT OPTICS USA, INC.
15182 Triton Lane Suite 101 Tel: (714) 899-4475
Huntington Beach, CA 92649 Fax:(714) 899-4485
USA www.nightoptics.com
Dual-Tube Night Vision Binocular/Goggle
D-212 / D-2MV
User’s guide
Night Optics USA, Inc.
NIGHT OPTICS USA, INC.
15182 Triton LaneSuite 101 Tel: (714) 899-4475
Huntington Beach, CA 92649 Fax:(714) 899-4485
USA www.nightoptics.com
Page 2
2
!WARNING!
Do not operate this device until you
are familiar with the contents of
this manual. Keep this manual in a
safe place for future reference.
This Night Vision Device should
only be used during night or low
light conditions. It contains a light-
sensitive image intensier tube
that can be damaged if exposed to
excessive light. To prolong tube life
and avoid damage, do not turn the
unit on in daylight without the protective cover.
This Night Vision Device is
equipped with a built-in IR illuminator that can be seen by other Night
Vision Devices when it is turned on.
Use this feature with caution.
This device will not show the difference between colored lights. It
produces only a green viewing image. When color differentiation is
needed, verication with unaided
eyes is recommended.
All Image Intensied Devices require some light to operate such
as moonlight or ambient starlight.
Night vision devices will not penetrate smoke, fog, rain, or heavy
snowfall. Cloud cover and tree
shadows will reduce the effectiveness of this device.
Do not operate this Night Vision
Device in a potentially explosive
environment near gasoline fumes
or other volatile materials. This is a
high voltage electrical device.
Do not disassemble, puncture, recharge, or expose the battery to
re or high temperature. Doing so
may result in an explosion and resulting chemical burns. When the
device is not in operation for a prolonged period, remove the battery
from the device and keep it separately in a cool and dry place.
15
ACCEPTANCE CERTIFICATE
Night Vision Goggle/Binocular D-212 conforms
to manufacturer’s specications.
Serial # ___________________
Date of Sale ___________________
Signature: ___________________
2
!WARNING!
Do not operate this device until you
are familiar with the contents of
this manual. Keep this manual in a
safe place for future reference.
This Night Vision Device should
only be used during night or low
light conditions. It contains a light-
sensitive image intensier tube
that can be damaged if exposed to
excessive light. To prolong tube life
and avoid damage, do not turn the
unit on in daylight without the protective cover.
This Night Vision Device is
equipped with a built-in IR illuminator that can be seen by other Night
Vision Devices when it is turned on.
Use this feature with caution.
This device will not show the difference between colored lights. It
produces only a green viewing image. When color differentiation is
needed, verication with unaided
eyes is recommended.
All Image Intensied Devices require some light to operate such
as moonlight or ambient starlight.
Night vision devices will not penetrate smoke, fog, rain, or heavy
snowfall. Cloud cover and tree
shadows will reduce the effectiveness of this device.
Do not operate this Night Vision
Device in a potentially explosive
environment near gasoline fumes
or other volatile materials. This is a
high voltage electrical device.
Do not disassemble, puncture, recharge, or expose the battery to
re or high temperature. Doing so
may result in an explosion and resulting chemical burns. When the
device is not in operation for a prolonged period, remove the battery
from the device and keep it separately in a cool and dry place.
15
ACCEPTANCE CERTIFICATE
Night Vision Goggle/Binocular D-212 conforms
to manufacturer’s specications.
Serial # ___________________
Date of Sale ___________________
Signature: ___________________
Page 3
14
LIMITATIONS OF LIABILITY
Night Optics USA, Inc. will not be liable for
any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of
the use of this product. Operation and use of
this product are the sole responsibility of the
Customer. Night Optics USA, Inc.’s sole responsibility is limited to providing the products
and service outlined herein in accordance with
the terms and conditions of this Agreement.
The provision of products sold and services
performed by Night Optics USA, Inc. to the
Customer shall not be interpreted, construed, or
regarded, either expressly or implied, as being
for the benet or creating any obligation toward
any third party of legal entity outside Night
Optics USA, Inc. and Customer; Night Optics
USA, Inc.’s obligations under this Agreement
extend solely to the Customer. Night Optics
USA, Inc.’s liability hereunder for damages,
regardless of the form or action, shall not
exceed the fees or other charges paid to
Night Optics USA, Inc. by the Customer or
the Customer’s dealer. Night Optics USA,
Inc. shall not, in any event, be liable for special, indirect, incidental, or consequential
damages, including, but not limited to, lost
income, lost revenue, or lost prot, whether
such damages were foreseeable or not at the
time of purchase, and whether or not such
damages arise out of breach of warranty, a
breach of agreement, negligence, strict liability, or any other theory of liability.
3
TABLE OF CONTENTS
Technical Specications . . . . . . . . . . . . . 4
General View (D-2MV) . . . . . . . . . . . . . . 4
Description. . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 6
Night Vision
Characteristics . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limitations of Liability . . . . . . . . . . . . . . . 14
Acceptance Certicate. . . . . . . . . . . . . . . 15
Night Optics USA, Inc. . . . . . . . . . . . . . . . 16
14
LIMITATIONS OF LIABILITY
Night Optics USA, Inc. will not be liable for
any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of
the use of this product. Operation and use of
this product are the sole responsibility of the
Customer. Night Optics USA, Inc.’s sole responsibility is limited to providing the products
and service outlined herein in accordance with
the terms and conditions of this Agreement.
The provision of products sold and services
performed by Night Optics USA, Inc. to the
Customer shall not be interpreted, construed, or
regarded, either expressly or implied, as being
for the benet or creating any obligation toward
any third party of legal entity outside Night
Optics USA, Inc. and Customer; Night Optics
USA, Inc.’s obligations under this Agreement
extend solely to the Customer. Night Optics
USA, Inc.’s liability hereunder for damages,
regardless of the form or action, shall not
exceed the fees or other charges paid to
Night Optics USA, Inc. by the Customer or
the Customer’s dealer. Night Optics USA,
Inc. shall not, in any event, be liable for special, indirect, incidental, or consequential
damages, including, but not limited to, lost
income, lost revenue, or lost prot, whether
such damages were foreseeable or not at the
time of purchase, and whether or not such
damages arise out of breach of warranty, a
breach of agreement, negligence, strict liability, or any other theory of liability.
3
TABLE OF CONTENTS
Technical Specications . . . . . . . . . . . . . 4
General View (D-2MV) . . . . . . . . . . . . . . 4
Description. . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 6
Night Vision
Characteristics . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limitations of Liability . . . . . . . . . . . . . . . 14
Acceptance Certicate. . . . . . . . . . . . . . . 15
Night Optics USA, Inc. . . . . . . . . . . . . . . . 16
Page 4
4
TECHNICAL SPECIFICATIONS
D-2MV Goggle D-212
Binocular
Image Intensier Generation 1+
Resolution (Center) 40 lp/mm
Magnication 1x (3.6x optional) 3.6x (1x optional)
Lens System 26mm f1.2 80mm f1.6
FOV
@1000 yards
@1000 meters
40˚
2184 ft
728m
15˚
790 ft
263 m
Range of Focus 10” / 25 cm to innity
Detection Range 410’ / 125m 500’ / 152m
Recognition Range 328’ / 100m 410’ / 125m
Diopter Adjustment +4 to -4
Weather Resistant Yes
Camera/Camcorder
Adaptable
No
IR Illuminator Yes (Focusable)
Battery Type/Life CR123 (x1) /40 hours
Dimensions 4.9” x 4.4” x 2.3”
124mm x 112mm
x 58mm
7.2” x 4.7” x 2.3”
183mm x 119mm
x 58mm
Weight 17oz / 482gr 32oz / 907gr
Operating Temperature -4° F to 113° F / -20°C to +45°C
Warranty 1 year
GENERAL VIEW (D-2MV)
12
1
3
2
3
1
5
5
10
4
4
7
9
6
7
11
1. Body
2. Eyepiece
3. Diopter Adj.
4. Front Lens
5. Focusing Ring
6. IR Illuminator
7. ON/OFF Switch
8. Decorative Cover
9. Battery Compartment
10. Lens Cover
11. IR Illuminator ON/OFF
Switch
12. Bright Light Exposure
Sensor
13. 2-Color LED
GREEN: Binocular
Power “ON”
RED: IR “ON”
13
WARRANTY
The D-212 is covered by a limited 1 year warranty from time of sale. The warranty is valid
only for the original purchaser.
The manufacturer warrants its products to be
free from defects in material and workmanship during the warranty period. If the product
proves to be defective during this period, the
manufacturer will repair the original product or
replace it with a like product at the sole discretion of the manufacturer.
This limited warranty does not cover:
1. Any product on which the serial number has been
defaced, modied, or removed.
2. Any product that has experienced deterioration or
a malfunction from: accidents, misuse, neglect, re,
water, lighting or other acts of nature, unauthorized
product modication or failure to follow instructions
supplied with the product, repair or attempted repair
by anyone not authorized to do so, use of supplies
or parts not meeting manufacturer’s specications,
normal wear and tear, and/or extreme wear and
tear caused by battleeld conditions or other extreme environments.
Customer is hereby notied that
operation of this device during daylight hours or under excessive light
conditions may permanently damage internal components and said
damage will not be covered under
this warranty.
No other warranties, expressed or implied, are
valid without an agreement in writing provided
by the manufacturer.
All shipping involved in warranty work/replacement is the sole responsibility of the purchaser.
4
TECHNICAL SPECIFICATIONS
D-2MV Goggle D-212
Binocular
Image Intensier Generation 1+
Resolution (Center) 40 lp/mm
Magnication 1x (3.6x optional) 3.6x (1x optional)
Lens System 26mm f1.2 80mm f1.6
FOV
@1000 yards
@1000 meters
40˚
2184 ft
728m
15˚
790 ft
263 m
Range of Focus 10” / 25 cm to innity
Detection Range 410’ / 125m 500’ / 152m
Recognition Range 328’ / 100m 410’ / 125m
Diopter Adjustment +4 to -4
Weather Resistant Yes
Camera/Camcorder
Adaptable
No
IR Illuminator Yes (Focusable)
Battery Type/Life CR123 (x1) /40 hours
Dimensions 4.9” x 4.4” x 2.3”
124mm x 112mm
x 58mm
7.2” x 4.7” x 2.3”
183mm x 119mm
x 58mm
Weight 17oz / 482gr 32oz / 907gr
Operating Temperature -4° F to 113° F / -20°C to +45°C
Warranty 1 year
GENERAL VIEW (D-2MV)
12
1
3
2
3
1
5
5
10
4
4
7
9
6
7
11
1. Body
2. Eyepiece
3. Diopter Adj.
4. Front Lens
5. Focusing Ring
6. IR Illuminator
7. ON/OFF Switch
8. Decorative Cover
9. Battery Compartment
10. Lens Cover
11. IR Illuminator ON/OFF
Switch
12. Bright Light Exposure
Sensor
13. 2-Color LED
GREEN: Binocular
Power “ON”
RED: IR “ON”
13
WARRANTY
The D-212 is covered by a limited 1 year warranty from time of sale. The warranty is valid
only for the original purchaser.
The manufacturer warrants its products to be
free from defects in material and workmanship during the warranty period. If the product
proves to be defective during this period, the
manufacturer will repair the original product or
replace it with a like product at the sole discretion of the manufacturer.
This limited warranty does not cover:
1. Any product on which the serial number has been
defaced, modied, or removed.
2. Any product that has experienced deterioration or
a malfunction from: accidents, misuse, neglect, re,
water, lighting or other acts of nature, unauthorized
product modication or failure to follow instructions
supplied with the product, repair or attempted repair
by anyone not authorized to do so, use of supplies
or parts not meeting manufacturer’s specications,
normal wear and tear, and/or extreme wear and
tear caused by battleeld conditions or other extreme environments.
Customer is hereby notied that
operation of this device during daylight hours or under excessive light
conditions may permanently damage internal components and said
damage will not be covered under
this warranty.
No other warranties, expressed or implied, are
valid without an agreement in writing provided
by the manufacturer.
All shipping involved in warranty work/replacement is the sole responsibility of the purchaser.
Page 5
12
TROUBLESHOOTING
Symptom Probable Cause Corrective Action
No visible Image a. Objective lens cap not been removed.
b. Battery cover is loose.
c. Incorrect battery polarity
d. Weak battery
a. Remove cap
b. Tighten cover
c. Re-insert battery
d. Replace battery
Image ickers, ashes, or
clicking is heard
a. Normal for new battery to cause this for
rst ve minutes.
a. If condition continues contact manufacturer for service
instructions
Dark spots on screen a. Cosmetic blemishes. Normal for this
technology.
a. Acceptable as long as it does not interfere with operation
of the device
Image not clear a. Focus is not adjusted.
b. Too close to object
a. Adjust focus
b. Increase viewing distance.
Fixed pattern noise.
(honeycomb)
a. Cosmetic blemishes caused by too
mach illumination.
a. Acceptable as long as target resolution can be resolved.
Pattern of dark thin lines
(chicken wire)
a. Normal under worst conditions. These
lines will form hexagonal or square waveshaved lines.
a. Acceptable as long as it does not interfere with operation
of the device
Image dimmer than
usual.
a. Weak batteries
b. Low natural illumination level.
a. Replace the batteries.
b. Turn on IR illuminator.
5
DESCRIPTION
D-212 is the only Generation 1+ enhanced
binocular equipped with a built-in photocell that
guards the unit against bright light exposure.
This light-weight unit offers true-stereo depth
perception and features a built-in focusable IR.
The unique, wide exit pupil design eliminates
the need for interpupillary adjustment. The
optional 1x lens kit converts the D-212 into the
D-2MV Goggle for hands-free us or mounting on
a ip-up Headgear.
12
TROUBLESHOOTING
Symptom Probable Cause Corrective Action
No visible Image a. Objective lens cap not been removed.
b. Battery cover is loose.
c. Incorrect battery polarity
d. Weak battery
a. Remove cap
b. Tighten cover
c. Re-insert battery
d. Replace battery
Image ickers, ashes, or
clicking is heard
a. Normal for new battery to cause this for
rst ve minutes.
a. If condition continues contact manufacturer for service
instructions
Dark spots on screen a. Cosmetic blemishes. Normal for this
technology.
a. Acceptable as long as it does not interfere with operation
of the device
Image not clear a. Focus is not adjusted.
b. Too close to object
a. Adjust focus
b. Increase viewing distance.
Fixed pattern noise.
(honeycomb)
a. Cosmetic blemishes caused by too
mach illumination.
a. Acceptable as long as target resolution can be resolved.
Pattern of dark thin lines
(chicken wire)
a. Normal under worst conditions. These
lines will form hexagonal or square waveshaved lines.
a. Acceptable as long as it does not interfere with operation
of the device
Image dimmer than
usual.
a. Weak batteries
b. Low natural illumination level.
a. Replace the batteries.
b. Turn on IR illuminator.
5
DESCRIPTION
D-212 is the only Generation 1+ enhanced
binocular equipped with a built-in photocell that
guards the unit against bright light exposure.
This light-weight unit offers true-stereo depth
perception and features a built-in focusable IR.
The unique, wide exit pupil design eliminates
the need for interpupillary adjustment. The
optional 1x lens kit converts the D-212 into the
D-2MV Goggle for hands-free us or mounting on
a ip-up Headgear.
Page 6
6
OPERATION
WARNING!
Please make sure that the lens
covers are on before switching the
D-212 on in high light conditions.
1. Battery Installation
The D-212 has a common body (1) (g. 1),
which contains two image intensiers and the
battery compartment. The lenses (4) (g. 1) and
the eyepiece assemblies (2) (g. 1) are joined
by threaded connections.
D-212
D-212
Insert CR123
battery (positive
terminal inside)
Place back the cover
+ +
Remove the
battery
compartment cover
11
MAINTENANCE
Optics
Always clean the optics with a suitable optical
cleaning cloth. Do not use detergents or excessive moisture to clean any part of the Night Vision Device.
Battery/Battery Compartment
Any Night Vision Device that is to be stored for a
long or undetermined amount of time must have
the batteries removed.
Moisture
The Night Vision Device is water resistant. No
warranties or guarantees apply to a Night Vision
Device that has been submerged in water. Take
great care when using any night vision in a wet
environment as the image intensier tube is
sensitive to moisture.
Salt Water
If the Night Vision Device is exposed to a salt
water environment, wipe it off with a clean cloth
slightly dampened with fresh water and dry it
thoroughly. Take special care of the optics as
noted above.
Sunlight
Night Vision is sensitive to light and must be
stored away from direct contact with bright light
sources of any kind.
!WARNING!
Improper care or unauthorized
maintenance can damage device
and may result in warranty nullication.
6
OPERATION
WARNING!
Please make sure that the lens
covers are on before switching the
D-212 on in high light conditions.
1. Battery Installation
The D-212 has a common body (1) (g. 1),
which contains two image intensiers and the
battery compartment. The lenses (4) (g. 1) and
the eyepiece assemblies (2) (g. 1) are joined
by threaded connections.
D-212
D-212
Insert CR123
battery (positive
terminal inside)
Place back the cover
+ +
Remove the
battery
compartment cover
11
MAINTENANCE
Optics
Always clean the optics with a suitable optical
cleaning cloth. Do not use detergents or excessive moisture to clean any part of the Night Vision Device.
Battery/Battery Compartment
Any Night Vision Device that is to be stored for a
long or undetermined amount of time must have
the batteries removed.
Moisture
The Night Vision Device is water resistant. No
warranties or guarantees apply to a Night Vision
Device that has been submerged in water. Take
great care when using any night vision in a wet
environment as the image intensier tube is
sensitive to moisture.
Salt Water
If the Night Vision Device is exposed to a salt
water environment, wipe it off with a clean cloth
slightly dampened with fresh water and dry it
thoroughly. Take special care of the optics as
noted above.
Sunlight
Night Vision is sensitive to light and must be
stored away from direct contact with bright light
sources of any kind.
!WARNING!
Improper care or unauthorized
maintenance can damage device
and may result in warranty nullication.
Page 7
10
these factors must be taken into account when
utilizing a Night Vision Device for observation or
navigation purposes.
Depth Perception
Night Vision does not present normal depth
perception. Use extreme caution when using a
Night Vision Device where reliance upon depth
perception is important.
Fog and Rain
Night Vision Devices are very responsive to
reected ambient light; therefore, fog or heavy
rain can reect too much light toward the Night
Vision Device and may seriously degrade its
performance.
Honeycomb
This is a faint hexagonal pattern throughout
the image area. This effect is more noticeable
under high light conditions. Do not be concerned
- the honeycomb effect is an inherent characteristic of all high-amplication night vision systems
that incorporate a microchannel plate in the
intensier.
Black Spots
These are cosmetic blemishes in the image
intensier. They do not affect the performance
or reliability of a night vision device and a number of sizes are inherent in the manufacturing
process.
Image Intensier Life
Night Vision Devices are designed to be robust.
The image intensier tube, however, does not
have an unlimited lifetime. The life of the image
intensier is dependent upon the amount of
use. Under normal operating conditions, it will
provide reliable performance for an extended
period of time.
7
2. Controls
The D-212 has an ON/OFF push switch (7) (g.
1). To switch on the unit, push switch (7). To
switch it off, push it again. If you want to switch
on the IR illuminator, push switch (11).
3. Lens Replacement (optional)
Follow the same procedure to replace 80mm
f1.6 lenses with 26mm f1.4 lenses.
D-2MV
Remove the lenses
26mm f1.2
Replace the lenses
80mm f1.6
D-212
10
these factors must be taken into account when
utilizing a Night Vision Device for observation or
navigation purposes.
Depth Perception
Night Vision does not present normal depth
perception. Use extreme caution when using a
Night Vision Device where reliance upon depth
perception is important.
Fog and Rain
Night Vision Devices are very responsive to
reected ambient light; therefore, fog or heavy
rain can reect too much light toward the Night
Vision Device and may seriously degrade its
performance.
Honeycomb
This is a faint hexagonal pattern throughout
the image area. This effect is more noticeable
under high light conditions. Do not be concerned
- the honeycomb effect is an inherent characteristic of all high-amplication night vision systems
that incorporate a microchannel plate in the
intensier.
Black Spots
These are cosmetic blemishes in the image
intensier. They do not affect the performance
or reliability of a night vision device and a number of sizes are inherent in the manufacturing
process.
Image Intensier Life
Night Vision Devices are designed to be robust.
The image intensier tube, however, does not
have an unlimited lifetime. The life of the image
intensier is dependent upon the amount of
use. Under normal operating conditions, it will
provide reliable performance for an extended
period of time.
7
2. Controls
The D-212 has an ON/OFF push switch (7) (g.
1). To switch on the unit, push switch (7). To
switch it off, push it again. If you want to switch
on the IR illuminator, push switch (11).
3. Lens Replacement (optional)
Follow the same procedure to replace 80mm
f1.6 lenses with 26mm f1.4 lenses.
D-2MV
Remove the lenses
26mm f1.2
Replace the lenses
80mm f1.6
D-212
Page 8
8
4. Head Mount Attachment (D-2MV)
1. Remove the decorative cover.
2. Turn screw (1) (g. 2) counter clockwise until it
stops.
3. Press button (2) (g. 2); insert the mounting adapter into the slot and release button.
4. Move the D-2MV along the sledge to the most
comfortable position and tighten screw (1).
5. Adjust head strap for maximum comfort.
6. To ip-up, press the rotation enable button (g. 2)
and move the D-2MV to the top position.
Fig.2
1
2
Head mask
D2MV
Rotations enable button
Mounting adapter
NVD
Decorative
Mountin
g
9
NIGHT VISION
CHARACTERISTICS
Monochromatic Image
Night Vision Devices produce a monochromatic
image. You will not be able to see any differentiation between colors. In particular, red and
green lights will both appear green. Take care to
verify color differences with unaided vision. Exercise extreme caution when operating aircraft,
ground vehicles, or marine vessels while using
night vision equipment.
Color Sensitivity
Night Vision Devices are more responsive to
red and white lights than green and blue lights.
Because of this, distant red and white lights may
appear closer than green or blue lights. Exercise extreme caution when using these lights for
navigation. Periodically verify the distances to
these lights with your unaided eyes.
Extreme Darkness
Night Vision Devices are effective under most
dark conditions including overcast starlight.
They are not practical in an extremely dark en-
vironment such as in a tunnel where there is no
natural ambient light. Without sufcient ambient
light, the operator may notice pinpoint-size sparkles (scintillation or noise) in the image area.
These sparkles are small amounts of energy
generated inside the image intensier that strike
the phosphor screen and are an indication that
the device is working.
Contrast Reversal
Night Vision Devices detect light that cannot
be seen by the human eye. This light is often
referred to as being in the near-infrared light
spectrum. The existence of this light and the
manner in which it reects is not normally visible
to the naked eye. For this reason, objects that
normally appear lighter than their surroundings
may appear dark against a light background. In
addition, the output image of the Night Vision
Device is dependent on the reective quality
of the objects the operator sees in the viewing
area. Objects that appear light during the day
but have a dull surface may appear duller when
viewed through a Night Vision Device. All of
8
4. Head Mount Attachment (D-2MV)
1. Remove the decorative cover.
2. Turn screw (1) (g. 2) counter clockwise until it
stops.
3. Press button (2) (g. 2); insert the mounting adapter into the slot and release button.
4. Move the D-2MV along the sledge to the most
comfortable position and tighten screw (1).
5. Adjust head strap for maximum comfort.
6. To ip-up, press the rotation enable button (g. 2)
and move the D-2MV to the top position.
Fig.2
1
2
Head mask
D2MV
Rotations enable button
Mounting adapter
NVD
Decorative
Mountin
g
9
NIGHT VISION
CHARACTERISTICS
Monochromatic Image
Night Vision Devices produce a monochromatic
image. You will not be able to see any differentiation between colors. In particular, red and
green lights will both appear green. Take care to
verify color differences with unaided vision. Exercise extreme caution when operating aircraft,
ground vehicles, or marine vessels while using
night vision equipment.
Color Sensitivity
Night Vision Devices are more responsive to
red and white lights than green and blue lights.
Because of this, distant red and white lights may
appear closer than green or blue lights. Exercise extreme caution when using these lights for
navigation. Periodically verify the distances to
these lights with your unaided eyes.
Extreme Darkness
Night Vision Devices are effective under most
dark conditions including overcast starlight.
They are not practical in an extremely dark en-
vironment such as in a tunnel where there is no
natural ambient light. Without sufcient ambient
light, the operator may notice pinpoint-size sparkles (scintillation or noise) in the image area.
These sparkles are small amounts of energy
generated inside the image intensier that strike
the phosphor screen and are an indication that
the device is working.
Contrast Reversal
Night Vision Devices detect light that cannot
be seen by the human eye. This light is often
referred to as being in the near-infrared light
spectrum. The existence of this light and the
manner in which it reects is not normally visible
to the naked eye. For this reason, objects that
normally appear lighter than their surroundings
may appear dark against a light background. In
addition, the output image of the Night Vision
Device is dependent on the reective quality
of the objects the operator sees in the viewing
area. Objects that appear light during the day
but have a dull surface may appear duller when
viewed through a Night Vision Device. All of
Loading...
