User manual
LEK
NIBE™ F470
Exhaust air heat pump
AHB GB 1040-1
031572
4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page 11.
How to scroll through menus and make different settings is described on
page 15.
6HW WKH LQGRRU FOLPDWH
;
The mode for setting the indoor temperature is reached, when in the start
mode in the main menu, by pressing the OK button twice. Read more
about the settings on page 29.
,QFUHDVH KRW ZDWHU YROXPH
;
;
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button twice.
Read more about the settings on page 48.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page 70
for instructions.
Table of Contents
1 Important information 2
Installation data 2
Safety information
3
Serial number
4
Country specific information
4
F470 – An excellent choice
7
2 The heat pump – the heart of the house 8
Heat pump function 9
Contact with F470
10
Maintenance of F470
19
3 F470 – at your service 28
Set the indoor climate 28
Set the hot water capacity
47
Get information
53
Adjust the heat pump
58
4 Disturbances in comfort 68
Info-menu 68
Manage alarm
68
Troubleshooting
70
5 Technical data 73
6 Glossary
74
Item register
79
1NIBE™ F470Table of Contents |
1
Important information
Installation data
F470Product
Serial number
Installation date
Installer
Accessories
✔
SetDefault
settings
NameNo.
Extra shunt ECS 40/410temperature (heating
curve offset)
1.1
Room unit RMU 409heating curve (curve
slope)
1.9.1
Communications
module SMS 40
20min. flow line temp.1.9.3
District heating module FJVM 220
50%ventilation
exhaust air fan (fan
speed, normal mode)
5.1.5
45%Supply air fan (fan
speed, normal mode)
5.1.6
Serial number must always be given
Certification that the installation is carried out according to instructions in
NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F470Chapter 1 | Important information2
Safety information
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Rights to make any design or technical modifications are reserved.
©NIBE 2010.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should observe
when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
F470 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regulations that are placed on it based on relevant EU directives. The CE mark is
obligatory for most products sold in the EU, regardless where they are made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
3NIBE™ F470Chapter 1 | Important information
Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number when reporting a fault.
Country specific information
Great Britain
This installation is subject to building regulation approval, notify the local
Authority of intention to install.
Use only manufacturer’s recommended replacement parts.
Nibe is a licensed member of the Benchmark Scheme which aims to improve
the standards of installation and commissioning of domestic heating and hot
water systems in the UK and to encourage regular servicing to optimise safety,
efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry
Council. For more information visit www.centralheating.co.uk
Warranty information
Thank you for installing a new NIBE heat pump in your home.
NIBE heat pumps are manufactured in Sweden to the very highest standard
so we are pleased to offer our customers a comprehensive guarantee.
NIBE™ F470Chapter 1 | Important information4
The product is guaranteed for 24 months for parts and labour from the date
of installation or 33 months from the date of manufacture, whichever is the
shorter.
The NIBE guarantee is based on the unit being installed and commissioned
by a NIBE accredited installer, serviced every year and the Benchmark documents completed. Where this condition is not met, any chargeable spare
parts or components issued within the applicable guarantee period still benefit
from a 12 month warranty from the date of issue by the manufacturer.
We recommend the installer completes and returns as soon as possible, your
guarantee registration card or completes the guarantee form on the NIBE
website www.nibe.co.uk.
Please ensure that the installer has fully completed the Benchmark Checklist
in the end of the Installation Instructions supplied with the product and that
you have signed to say that you have received a full and clear explanation of
its operation. The installer is legally required to complete a commissioning
checklist as a means of complying with the appropriate Building Regulations
(England and Wales).
All installations must be notified to Local Area Building Control either directly
or through a Competent Persons Scheme. A Building Regulations Compliance
Certificate will then be issued to the customer who should, on receipt, write
the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and
performance. The service engineer should complete the relevant Service Record
on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work
and as supporting documentation relating to home improvements in the
optional documents section of the Home Information Pack.
5NIBE™ F470Chapter 1 | Important information
NIBE™ F470Chapter 1 | Important information6
F470 – An excellent choice
F470 is part of a new generation of heat pumps, which have been introduced
to supply your home with inexpensive and environmentally friendly heating.
Heat production is safe and economical with integrated hot water heater,
immersion heater, circulation pump and control system.
The heat pump can be connected to an optional low temperature heat distribution system. e.g. radiators, convectors or under floor heating. It is also
prepared for connection to several different products and accessories, e.g.
extra water heater and climate systems with different temperatures.
F470 is equipped with a control computer for good comfort, good economy
and safe operation. Clear information about status, operation time and all
temperatures in the heat pump are shown on the large and easy to read
display. This means, for example, that external unit thermometers are not
necessary.
Excellent properties for F470:
႑
Integrated water heater
There is a water heater integrated in the heat pump, which is insulated
with environmentally friendly cellular plastic for minimal heat loss.
႑
Scheduling the indoor comfort and hot water
Heating and hot water as well as ventilation, can be scheduled for each
day of the week or for longer periods (vacation).
႑
Large display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
႑
Simple troubleshooting
In the event of a fault, the heat pump display shows what happened and
the actions to be taken.
7NIBE™ F470Chapter 1 | Important information
2
The heat pump – the heart of
the house
Värmebärare
Köldmedium
Rumsluft
Förångare
Kondensor
80 °C
22 °C0 °C
5 °C 0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH
&RPSUHVVRU
+HDW VRXUFH
The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house8
Heat pump function
An exhaust air heat pump uses the heat that is in the building's ventilation
air to heat up the accommodation. The conversion of the ventilation air's
energy to accommodation heating occurs in three different circuits. From the
outgoing ventilation air (1) , free heating energy is retrieved from the accommodation and transported to the heat pump. In the refrigerant circuit, (2) ,
the heat pump increases the retrieved heat's low temperature to a high
temperature. In the heating medium circuit, (3) , the heat is distributed around
the house.
Ventilation air
The hot air is transferred from the rooms to the heat pump via the house ventilation system.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air releases
the heating energy to the brine and the air's temperature drops significantly. The
cold air is then blown out of the house.
B
Refrigerant circuit
Another liquid circulates in a closed system in the heat pump, a refrigerant, which
also passes the evaporator. The refrigerant has a very low boiling point. In the
evaporator the refrigerant receives the heat energy from the ventilation air and
starts to boil.
C
The gas that is produced during boiling is routed into an electrically powered
compressor. When the gas is compressed, the pressure increases and the gas's
temperature increases considerably, from 5°C to approx. 80 °C.
D
From the compressor, gas is forced into a heat exchanger, condenser, where it
releases heat energy to the heat pump boiler section, whereupon the gas is cooled
and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve, where
the pressure drops so that the refrigerant returns to its original temperature. The
refrigerant has now completed a full cycle. It is routed to the evaporator again
and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved by
the climate system's water, heating medium, which is heated to 35 °C (supply
temperature).
G
The hot water circulates in a closed system and is pumped out to the radiators/heating coils of the house and to the heat pump supply air coil. The supply air battery
heats up the air that is blown out into the room with the supply air device.
H
The heat pump's integrated hot water heater is in the boiler section. The hot
boiler water heats the hot water.
I
9NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Contact with F470
External information
When the heat pump door is closed, information can be received via an information window and a status lamp.
,QIRUPDWLRQ ZLQGRZ
6WDWXV ODPS
Information window
The information window shows part of the display that is on the display unit
(located behind the door to the heat pump). The information window can
display different type of information, e.g. temperatures, clock, etc.
You determine what is to be displayed in the information window. Your own
combination of information is entered using the display unit. This information
is specific to the information window and disappears when the heat pump
door is opened.
Instructions on how to set the information window can be found on page
60.
Status lamp
The status lamp indicates the status of the heat pump: continuous green light
during normal function, continuous yellow light during activated emergency
mode or continuous red light in the event of a deployed alarm.
Alarm management is described on page 68.
The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house10
Display unit
$
%
&
'
(
)
'LVSOD\
6WDWXV ODPS
2. EXWWRQ
%DFN EXWWRQ
&RQWURO NQRE
6ZLWFK
,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
)
There is a display unit behind the heat pump door, which is used to communicate with F470. Here you:
႑
switch on, switch off or set the heat pump in emergency mode.
႑
sets the indoor climate and hot water as well as adjusts the heat pump
to your needs.
႑
receive information about settings, status and events.
႑
see different types of alarms and receive instructions about how they are
to be rectified.
Display
Instructions, settings and operational information are shown on the
display. The easy-to-read display and menu system, facilitates navigation
between the different menus and options to set the comfort or obtain
the information you require.
A
Status lamp
The status lamp indicates the status of the heat pump. It:
႑
lights green during normal operation.
႑
lights yellow in emergency mode.
႑
lights red in the event of a deployed alarm.
B
11NIBE™ F470Chapter 2 | The heat pump – the heart of the house
OK button
The OK button is used to:
႑
confirm selections of sub menus/options/set values/page in the
start guide.
C
Back button
The back button is used to:
႑
go back to the previous menu.
႑
change a setting that has not been confirmed.
D
Control knob
The control knob can be turned to the right or left. You can:
႑
scroll in menus and between options.
႑
increase and decrease the values.
႑
change page in multiple page instructions (for example help
text and service info).
E
Switch
The switch assumes three positions:
႑
On ( )
႑
Standby ( )
႑
Emergency mode ( )
Emergency mode must only be used in the event of a fault on the heat
pump. In this mode, the compressor switches off and the immersion
heater engages. The heat pump display is not illuminated and the
status lamp illuminates yellow.
F
NIBE™ F470Chapter 2 | The heat pump – the heart of the house12
Menu system
When the door to the heat pump is opened, the menu system’s four main
menus are shown in the display as well as certain basic information.
,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
,QGRRU WHPSHUDWXUH LI URRP VHQVRUV DUH LQVWDOOHG
+RW ZDWHU WHPS
7HPSRUDU\ OX[ LI
DFWLYDWHG
2XWGRRU WHPSHUDWXUH
(VWLPDWHG DPRXQW RI
KRW ZDWHU
,QIRUPDWLRQ DERXW
RSHUDWLRQ
INDOOR CLIMATE
Setting and scheduling the indoor climate. See page 28.
Menu 1
HOT WATER
Setting and scheduling hot water production. See page 47.
Menu 2
INFO
Display of temperature and other operating information and access to the
alarm log. See page 53.
Menu 3
HEAT PUMP
Setting time, date, language, display, operating mode etc. See page 58.
Menu 4
13NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Symbols in the display
The following symbols can appear in the display during operation.
DescriptionSymbol
This symbol appears by the information sign if there is information in menu 3.1 that you should note.
These two symbols indicate whether the compressor or addition
is blocked in F470.
These can, for example, be blocked depending on which operating mode is selected in menu 4.2, if blocking is scheduled in
menu 4.9.5 or if an alarm has occurred that blocks one of them.
Blocking the compressor.
Blocking additional heat.
This symbol appears if lux mode for the hot water is activated.
This symbol indicates the actual speed of the fan if the speed
has changed from the normal setting.
This symbol indicates whether "holiday setting" is activated in
menu 4.7.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house14
,1'225 &/,0$7(
+($7 3803 ,1)2
+27 :$7(5
WHPSHUDWXUH
,1'225 &/,0$7(
YHQWLODWLRQ
VFKHGXOLQJ
DGYDQFHG
RII
QRUPDO
0DUNHG PDLQ
PHQX
0HQX QXPEHU ದ PDUNHG
VXE PHQX
1DPH DQG PHQX QXPEHU
ದ PDLQ PHQX
6\PERO ದ
PDLQ PHQX
6WDWXV LQIRUPDWLRQ ದ VXE
PHQXV
1DPH ದ VXE PHQXV6\PEROV ದ VXE PHQXV
Operation
To move the cursor, turn the control knob to the left or the right.
The marked position is brighter and/or has a turned up tab.
Selecting menu
To advance in the menu system select a main menu by marking it and then
pressing the OK button. A new window then opens with sub menus.
Select one of the sub menus by marking it and then pressing the OK button.
15NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Selecting options
HFRQRP\
FRPIRUW PRGH
QRUPDO
OX[XU\
$OWHUQDWLYH
In an options menu the current selected option is indicated by a green
tick.
To select another option:
Mark the applicable option. One of the options is pre-selected
(white).
1.
Press the OK button to confirm the selected option. The selected
option has a green tick.
2.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house16
Setting a value
WLPH GDWH
WLPH
GD\
\HDU
PRQWK
KUV
K
GDWH
9DOXHV WR EH FKDQJHG
To set a value:
Mark the value you want to set using the control knob.1.
Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
2.
Turn the control knob to the right to increase the value and to
the left to reduce the value.
3.
Press the OK button to confirm the value you have set. To change
and return to the original value, press the Back button.
4.
17NIBE™ F470Chapter 2 | The heat pump – the heart of the house

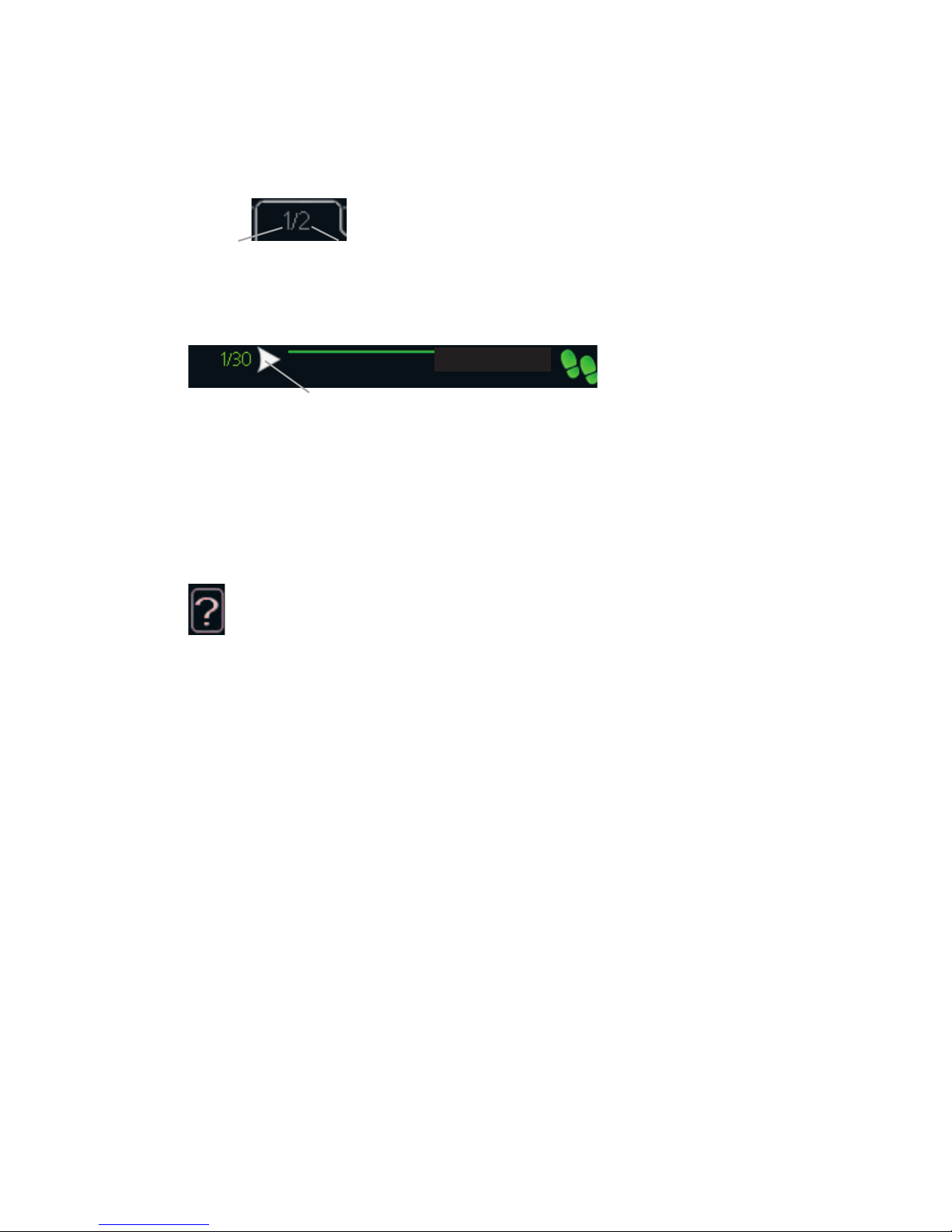

Scroll through the windows
A menu can consist of several windows. Turn the control knob to scroll
between the windows.
&XUUHQW PHQX
ZLQGRZ
1XPEHU RI ZLQGRZV
LQ WKH PHQX
Scroll through the windows in the start guide
VWDUW JXLGH
$UURZV WR VFUROO WKURXJK ZLQGRZ LQ VWDUW JXLGH
1.
Turn the control knob until one of the arrows in the top left corner (at
the page number) has been marked.
2.
Press the OK button to skip between the steps in the start guide.
Help menu
In many menus there is a symbol that indicates that extra help is available.
To access the help text:
1.
Use the control knob to select the help symbol.
2.
Press the OK button.
The help text often consists of several windows that you can scroll between
using the control knob.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house18
Maintenance of F470
Regular checks
All servicing must be carried out by a person competent for the job.
Your heat pump requires minimal maintenance after commissioning. However,
it is recommended that your installation is checked and serviced annually by
qualified personnel. This is to ensure the continued efficient operation of
your heat pump, and that the warranty remains valid during the warranty
period.
If something unusual occurs, messages about the malfunction appear in the
display in the form of different alarm texts. See alarm management on page
68.
Service hatch
Behind the service hatch are the safety valves, circulation pump etc. Remove
the hatch by pulling it towards you.
L
E
K
19NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Cleaning the ventilation devices
The building’s ventilation devices should be
cleaned regularly with, for example, a small brush
to maintain the correct ventilation.
The device settings must not be changed.
Also check the outdoor air's intake grilles on the
house facade and clean if necessary.
NOTE
If you take down more than one ventilation
device for cleaning, do not mix them up.
Cleaning the air filter
Clean F470's two air filters regularly, how often depends on the amount of
dust in the ventilation air.
When it is time to clean, an alarm indication occurs is displayed. Factory setting
for alarm indication is every three months.
1.
Set the switch to .
2.
Remove the upper front cover by pulling straight out.
3.
Pull out the filter cassette.
4.
Take out the filter and shake/vacuum off any dirt. Do not use water or
other liquids for cleaning.
5.
Check that the filter is not damaged.
6.
Carry out assembly in reverse order.
Even if the filter appears clean, dirt collects in it and this affects the efficiency
of the filter. Therefore, replace it after 2 years. New filters can be ordered via
the installer.
LEK
)LOWHU
NIBE™ F470Chapter 2 | The heat pump – the heart of the house20
Check pressure
F470 has a pressure gauge which shows the heating system pressure. The
pressure should be between 0.5 and 1.5 bar, but varies during temperature
changes. If the pressure drops to 0 or rises to 2.5 frequently, contact your
installer for troubleshooting.
L
EK
3UHVVXUH JDXJH
Safety valves
The water heater's safety valve sometimes releases a little water after hot
water usage. This is because the cold water, which enters the water heater
to replace the hot water, expands when heated causing the pressure to rise
and the safety valve to open. The climate system's safety valve must be
completely sealed and not release any water.
The function of the safety valves must be checked regularly. The valves are
accessed via the service hatch. Perform checks as follows:
1.
Open the valve by turning the knob anti-clockwise carefully.
2.
Check that water flows through the valve.
3.
Close the valve by releasing it. If it does not close automatically when
released, turn it anti-clockwise slightly.
4.
The climate system may need to be refilled after checking the safety valve,
see the section “Filling the climate system”.
21NIBE™ F470Chapter 2 | The heat pump – the heart of the house
L
E
K
LEK
6DIHW\ YDOYH IRU ZDWHU KHDWHU
6DIHW\ YDOYH IRU FOLPDWH V\VWHP
NOTE
Do not remove or adjust any components that are part of this pressurised
water heater. Contact your installer!
NOTE
If this pressurised water heater develops a fault, e.g. a flow of hot water
from the overflow pipe, turn the heat pump off and contact your installer.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house22
Filling the climate system
If the pressure is too low, increase as follows:
1.
Connect enclosed flexible hose between connection (QM11) and connection (QM12). Open filling valves. The boiler section and the rest of the
climate system are filled with water.
2.
After a while the pressure rises on the pressure gauge. When it is approx.
1.0 bar close the filler valve.
L
EK
LEK
)LOOHU YDOYH
9HQWLQJ YDOYH
3UHVVXUH JDXJH
6DIHW\ YDOYH
Venting the climate system
In event of repeated filling of the climate system or if bubbling sounds are
heard from the heat pump the system may need venting. This is carried out
as follows:
1.
Turn off the power supply to the heat pump.
2.
Vent the heat pump via the vent valve and the rest of the climate system
via the relevant vent valves.
3.
Vent the supply air battery via its vent valve.
4.
Keep topping up and venting until all air has been removed and the
pressure is correct.
NOTE
The vent pipe from the container must be drained of water before air can
be released. This means that the system is not necessarily bled despite the
flow of water when the bleed valve is opened.
23NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Saving tips
Your heat pump installation produces heat and hot water. This occurs via the
control settings you made.
Factors that affect the energy consumption are, for example, indoor temperature, hot water consumption, the insulation level of the house and whether
the house has many large window surfaces. The position of the house, e.g.
wind exposure is also an affecting factor.
Even the house ventilation affects the energy consumption. It is therefore
important to perform a ventilation adjustment shortly after installing the heat
pump. At ventilation adjustment, a ventilation technician sets the house
ventilation device and the fans in F470, according to the projected values of
the house. The ventilation technician also adjusts the supply air temperature
so that it is a few degrees below the desired room temperature.
TIP
Check the supply air temperature on a cold day. If the setting was made on
a hot day, the ventilation may require adjustment. If so, contact your installer.
Also remember:
႑
During the adjustment period (winter time) all thermostat valves should
be fully open. The heat pump's heating settings are then adjusted so that
the correct indoor temperature is obtained, in most rooms, regardless of
the outdoor temperature. In rooms where a lower temperature is required,
the thermostat valves are lowered to the desired level. After a few months,
the remaining thermostats can be lowered slightly to avoid an increase
of the room temperature due to solar radiation, stove heat etc. Further
reductions may be required later on.
႑
You can lower the temperature when away from the house by scheduling
"holiday setting" in menu 4.7. See page 62 for instructions.
႑
You can reduce the ventilation speed when you are away by scheduling
in menu 1.3.3. See page 34 for instructions.
႑
If you activate "Hot water Economy", less energy is used.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house24

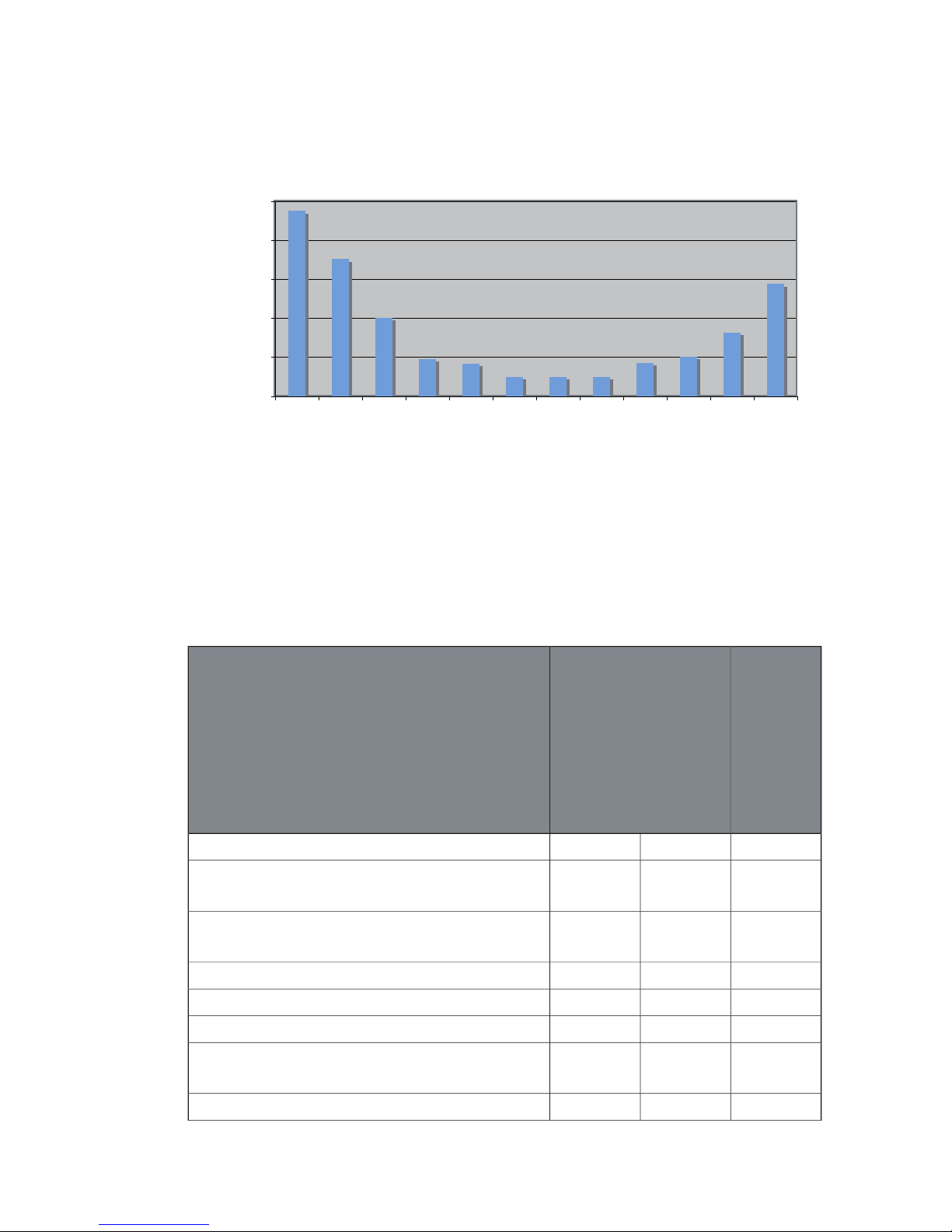

Power consumption
Energiförbrukning fördelat över året
0%
5%
10%
15%
20%
25%
jan feb mars april maj juni juli aug sep okt nov dec
Månad
%
av
årsförbrukningen
)V DSSUR[LPDWH
HQHUJ\ FRQVXPSWLRQ VSUHDG DFURVV WKH \HDU
0RQWK
-DQ )HE 0DU $SULO 0D\ -XQH -XO\ $XJ 6HS 2FW 1RY 'HF
RI DQQXDO
FRQVXPSWLRQ
Increasing the indoor temperature one degree increases power consumption
by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household uses
approx. 5000 kWh domestic electricity/year. In today's society it is usually
between 6000-12.000 kWh/year.
Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output (W)Equipment
StandbyOperation
3802200Flat-screen (Operation: 5 h/day, Standby: 19
h/day)
901011Digital box (Operation: 5 h/day, Standby: 19
h/day)
45515DVD (Operation: 2 h/week)
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
25NIBE™ F470Chapter 2 | The heat pump – the heart of the house
Approx-
imate
annual
con-
sump-
tion
(kWh)
Normal Output (W)Equipment
55-20Spot light, Halogen (Operation 8 h/day)
165-100Cooler (Operation: 24 h/day)
380-120Freezer (Operation: 24 h/day)
365-1500Oven, hob (Operation: 40 min/day)
310-3000Oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Operation
1 time/day)
730-2000Washing machine (Operation: 1 time/day)
730-2000Tumble drier (Operation: 1 time/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation: 1
h/day, 4 months a year)
These values are approximate example values.
Example: A family with 2 children live in a house with 1 flat-screen TV, 1 digital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2 bulbs
in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs outside,
a washing machine, tumble drier, fridge, freezer, oven, vacuum cleaner, engine block heater = 6240 kWh domestic electricity/year.
Energy meter
Check the accommodation's energy meter regularly, preferably once a month.
This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
New builds
Newly built houses undergo a drying out process for a year. The house can
then consume significantly more energy than it would thereafter. After 1-2
years the heating curve should be adjusted again, as well as the heating curve
NIBE™ F470Chapter 2 | The heat pump – the heart of the house26
offset and the building's thermostat valves, because the heating system, as
a rule, requires a lower temperature once the drying process is complete.
27NIBE™ F470Chapter 2 | The heat pump – the heart of the house
3
F470 – at your service
Set the indoor climate
Overview
WHPSHUDWXUH
,1'225 &/,0$7(
YHQWLODWLRQ
VFKHGXOLQJ
DGYDQFHG
RII
QRUPDO
Sub-menus
For the menu INDOOR CLIMATE there are several sub-menus. Status information for the relevant menu can be found on the display to the right of the
menus.
temperature Setting the temperature for the climate system. The status in-
formation shows the set values for the climate system.
ventilation Setting the fan speed. The status information shows the selected
setting.
scheduling Scheduling heating and ventilation. Status information "set" is
displayed if you set a schedule but it is not active now, "holiday setting" is
displayed if the vacation schedule is active at the same time as the schedule
(the vacation function is prioritised), "active" displays if any part of the
schedule is active, otherwise it displays "off".
advanced Setting of heat curve, adjusting with external contact, minimum
value for supply temperature and room sensor.
NIBE™ F470Chapter 3 | F470 – at your service28

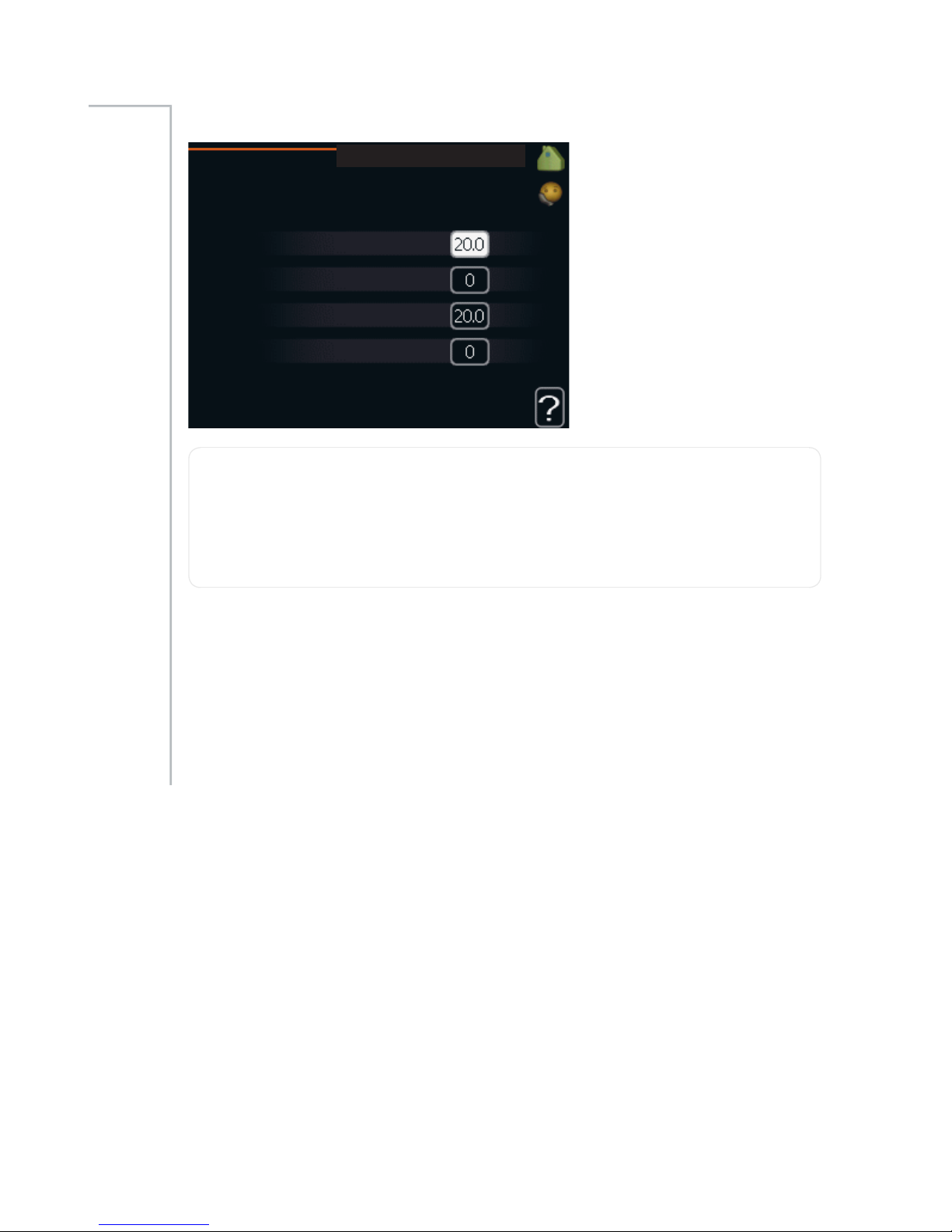

temperature
WHPSHUDWXUH
Menu
1.1
If the house has several climate systems, this is indicated on the display by a
thermometer for each system.
Set the temperature (with room sensors installed and activated):
Setting range: 5 - 30 °C
Default value: 20
The value in the display appears as a temperature in °C if the heating system
is controlled by a room sensor.
To change the room temperature, use the control knob to set the desired
temperature in the display. Confirm the new setting by pressing the OK button. The new temperature is shown on the right-hand side of the symbol in
the display.
Setting the temperature (without room sensors activated):
Setting range: -10 to +10
Default value: 0
The display shows the set values for heating (curve offset). To increase or reduce the indoor temperature, increase or reduce the value on the display.
Use the control knob to set a new value. Confirm the new setting by pressing
the OK button.
29NIBE™ F470Chapter 3 | F470 – at your service
The number of steps the value has to be changed to achieve a degree change
of the indoor temperature depends on the heating unit. One step for under
floor heating whilst radiators may require three.
Setting the desired value. The new value is shown on the right-hand side of
the symbol in the display.
Caution
An increase in the room temperature can be slowed by the thermostats for
the radiators or under floor heating. Therefore, open the thermostat valves
fully, except in those rooms where a cooler temperature is required, e.g.
bedrooms.
TIP
Wait 24 hours before making a new setting, so that the room temperature
has time to stabilise.

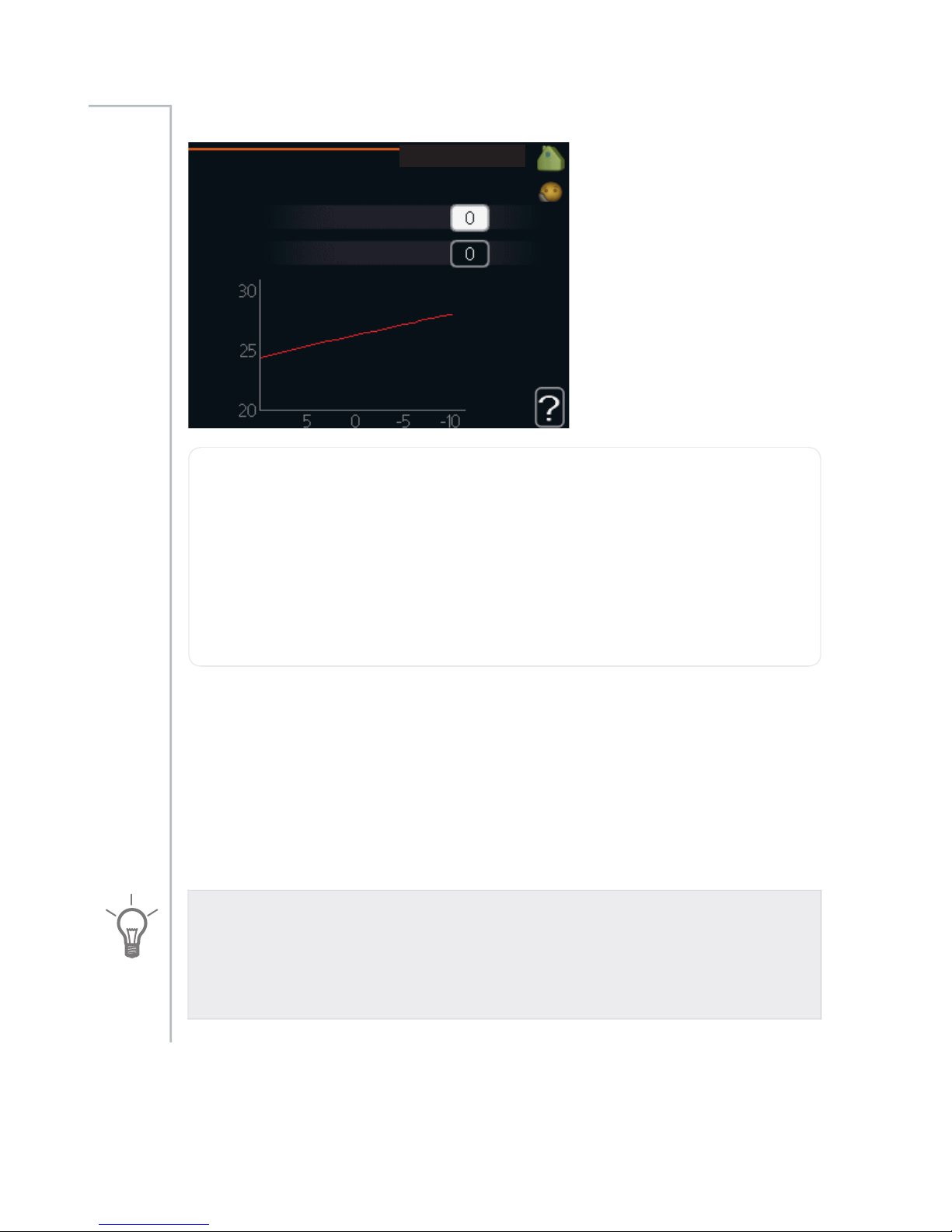

If it is cold outdoors and the room temperature is too low, increase the curve
slope in menu 1.9.1 by one increment.
If it is cold outdoors and the room temperature is too high, lower the curve
slope menu 1.9.1 by one increment.
If it is warm outdoors and the room temperature is too low, increase the
value in menu 1.1 by one increment.
If it is warm outdoors and the room temperature is too high, reduce the
value in menu 1.1 by one increment.
NIBE™ F470Chapter 3 | F470 – at your service30
ventilation
QRUPDO
YHQWLODWLRQ
VSHHG
VSHHG
VSHHG
VSHHG
Setting range: normal and speed 1-4
Default value: normal
Menu
1.2
The ventilation in the accommodation can be temporarily increased or reduced
here.
When you have selected a new speed a clock starts a count down. When the
time has counted down the ventilation speed returns to the normal setting.
If necessary, the different return times can be changed in menu 1.9.6.
The fan speed is shown in brackets (in percent) after each speed alternative.
TIP
If longer time changes are required use the holiday function or scheduling.
31NIBE™ F470Chapter 3 | F470 – at your service
scheduling
VFKHGXOLQJ
YHQWLODWLRQ RII
KHDWLQJ RII
Menu
1.3
In the menu scheduling indoor climate (heating/ventilation) is scheduled for
each weekday.
You can also schedule a longer period during a selected period (vacation) in
menu 4.7.
heating
Increases or decreases in the accommodation temperature can be scheduled
here for up to three time periods per day. If a room sensor is installed and
Menu
1.3.1
activated the desired room temperature (°C) is set during the time period.
Without an activated room sensor the desired change is set (of setting in
menu 1.1). A one degree change in room temperature requires one increment
for underfloor heating and approximately two to three increments for the
radiator system.
If two settings conflict with each other a red exclamation mark is displayed
at the end of the line.
NIBE™ F470Chapter 3 | F470 – at your service32
6&+('8/,1* +($7,1*
DFWLYDWHG
VFKHGXOH
V\VWHP
VFKHGXOH VFKHGXOH
DOO
PRQ
WXHV
ZH
WKXU
IUL
VDW
VXQ
r
7LPH SHULRG $GMXVWLQJ'D\
$FWLYDWHG 6FKHGXOH 6\VWHP
&RQIOLFW
Schedule: The schedule to be changed is selected here.
Activated: Scheduling for the selected period is activated here. Set times are
not affected at deactivation.
System: Which climate system the schedule is for is selected here. This alternative is only displayed if more than one climate system is present.
Day: Select which day or days of the week the schedule is to apply to here.
To remove the scheduling for a particular day, the time for that day must be
reset by setting the start time to the same as the stop time. If the line "all"
is used, all days in the period are set for these times.
Time period: The start and stop time for the selected day for scheduling are
selected here.
Adjusting: How much the heating curve is to be offset in relation to menu
1.1 during scheduling is set here. If the rooms sensor is installed the desired
room temperature is set in °C.
TIP
If you wish to set similar scheduling for every day of the week start by filling
in “all” and then changing the desired days.
33NIBE™ F470Chapter 3 | F470 – at your service
Caution
If the stop time is before the start time it means that the period extends past
midnight. Scheduling always starts on the date that the start time is set for.
Changes of temperature in accommodation take time. For example, short
time periods in combination with underfloor heating will not give a noticeable
difference in room temperature.
If the exhaust air temperature falls below 16 °C, the compressor is blocked
and the electrical addition is permitted to intervene. When the compressor
is blocked heat is not recovered from the exhaust air.
ventilation
Increases or decreases in the ventilation to the accommodation can be
scheduled here for up to two time periods per day.
Menu
1.3.3
If two settings conflict with each other a red exclamation mark is displayed
at the end of the line.
DOO
PRQ
WXHV
ZH
WKXU
IUL
VDW
VXQ
DFWLYDWHG
VFKHGXOH VFKHGXOH
6&+('8/,1* 9(17,/$7,21
VSHHG
7LPH SHULRG $GMXVWLQJ'D\
$FWLYDWHG
6FKHGXOH
&RQIOLFW
Schedule: The schedule to be changed is selected here.
Activated: Scheduling for the selected period is activated here. Set times are
not affected at deactivation.
Day: Select which day or days of the week the schedule is to apply to here.
To remove the scheduling for a particular day, the time for that day must be
NIBE™ F470Chapter 3 | F470 – at your service34
reset by setting the start time to the same as the stop time. If the line "all"
is used, all days in the period are set for these times.
Time period: The start and stop time for the selected day for scheduling are
selected here.
Adjusting: The desired fan speed is set here.
TIP
If you wish to set similar scheduling for every day of the week start by filling
in “all” and then changing the desired days.
Caution
If the stop time is before the start time it means that the period extends past
midnight. Scheduling always starts on the date that the start time is set for.
A significant change over a longer period of time may cause poor indoor
environment and worse operating economy.
advanced
DGYDQFHG
KHDWLQJ FXUYH
H[WHUQDO DGMXVWPHQW
PLQ IORZ OLQH WHPS
URRP VHQVRU VHWWLQJV
IDQ UHWXUQ WLPH
RZQ FXUYH
Menu
1.9
Menu advanced has orange text and is intended for the advanced user. This
menu has several sub-menus.
heating curve Setting the heating curve slope.
external adjustment Setting the heat curve offset when the external contact
is connected.
min. flow line temp. Setting minimum permitted flow line temperature.
35NIBE™ F470Chapter 3 | F470 – at your service
room sensor settings Settings regarding the room sensor.
fan return time Fan return time settings in the event of temporary ventilation
speed change.
own curve Setting own heat curve.
point offset Setting the offset of the heating curve at a specific outdoor
temperature.
heating curve
KHDWLQJ FXUYH
V\VWHP
RXWGRRU WHPS r&
IORZ WHPSHUDWXUH r&
heating curve
Setting range: 0 - 15
Default value: 9
Menu
1.9.1
In the menu heating curve the so-called heating curve for your house can
be viewed. The task of the heating curve is to give an even indoor temperature, regardless of the outdoor temperature, and thereby energy efficient
operation. It is from this heating curve that the heat pump’s control computer
determines the temperature of the water to the heating system, flow line
temperature, and therefore the indoor temperature. You can select heating
NIBE™ F470Chapter 3 | F470 – at your service36
curve and read off how the flow line temperature changes at different outdoor
temperatures here.
Curve coefficient
The slope of the heating curve indicates how many degrees the supply
temperature is to be increased/reduced when the outdoor temperature
drops/increases. A steeper slope
means a higher supply temperature
at a certain outdoor temperature.
30
40
50
60
70
°C
- 40°C
UTETEMPERATUR
- 10
0
10
- 20 - 30
Brantare kurvlutning
6XSSO\ WHPSHUDWXUH
2XWGRRU WHPSHUDWXUH
6WHHSHU FXUYH VORSH
The optimum slope depends on the climate conditions in your location, if the
house has radiators or under floor heating and how well insulated the house
is.
The heating curve is set when the heating installation is installed, but may
need adjusting later. Thereafter the heating curve should not need further
adjustment.
Caution
In the event of making fine adjustments for the indoor temperature, the heat
curve must be offset up or down instead, this is done in menu 1.1 temper-
ature .
Curve offset
An offset of the heating curve means
that the supply temperature changes
as much for all the outdoor temperatures, e.g. that a curve offset of +2
steps increases the supply temperature by 5 °C at all outdoor temperatures.
30
40
50
60
70
°C
- 40°C
UTETEMPERATUR
- 10
0
10
- 20 - 30
Förskjuten värmekurva
6XSSO\ WHPSHUDWXUH
2XWGRRU WHPSHUDWXUH
2IIVHW KHDWLQJ FXUYH
37NIBE™ F470Chapter 3 | F470 – at your service
Flow line temperature– maximum and minimum values
Because the flow line temperature
cannot be calculated higher than the
set maximum value or lower than the
set minimum value the heating curve
flattens out at these temperatures.
30
40
50
60
70
°C
- 40°C
UTETEMPERATUR
- 10
0
10
- 20 - 30
Maximivärde
Minimivärde
6XSSO\ WHPSHUDWXUH
2XWGRRU WHPSHUDWXUH
0D[LPXP YDOXH
0LQLPXP YDOXH
Caution
Underfloor heating systems are normally max flow line temperature set
between 35 and 45 °C.
Check the max temperature for your floor with your installer/floor supplier.
The figure at the end of the curve indicates the curve slope. The figure beside
the thermometer gives the curve offset. Use the control knob to set a new
value. Confirm the new setting by pressing the OK button.
Curve 0 is an own heating curve created in menu 1.9.7.
To select another heat curve (slope):
NOTE
If you only have one heating system, the number of the curve is already
marked when the menu window opens.
1.
Select the system (if more than one) for which the heat curve is to be
changed.
2.
When the system selection has been confirmed the heat curve number
is marked.
3.
Press the OK button to access the setting mode
4.
Select a new heating curve. The heat curves are numbered from 0 to 15,
the greater the number, the steeper the slope and the greater the supply
temperature. Heating curve 0 means that own curve (menu 1.9.7) is
used.
NIBE™ F470Chapter 3 | F470 – at your service38
5.
Press the OK button to exit the setting.
To read off a heating curve:
1.
Turn the control knob so that the ring on the shaft with the outdoor
temperature is marked.
2.
Press the OK button.
3.
Follow the grey line up to the heat curve and out to the left to read off
the value for the supply temperature at the selected outdoor temperature.
4.
You can now select to take read outs for different outdoor temperatures
by turning the control knob to the right or left and read off the corresponding flow temperature.
5.
Press the OK or Back button to exit read off mode.
TIP
Wait 24 hours before making a new setting, so that the room temperature
has time to stabilise.
If it is cold outdoors and the room temperature is too low, increase the curve
slope by one increment.
If it is cold outdoors and the room temperature is too high, lower the curve
slope by one increment.
If it is warm outdoors and the room temperature is too low, increase the
curve offset by one increment.
If it is warm outdoors and the room temperature is too high, lower the curve
offset by one increment.
39NIBE™ F470Chapter 3 | F470 – at your service
external adjustment
H[WHUQDO DGMXVWPHQW
FOLPDWH V\VWHP
FOLPDWH V\VWHP
FOLPDWH V\VWHP
FOLPDWH V\VWHP
r&
r&
climate system
Setting range: -10 to +10 or desired room temperature if the room sensor
is installed.
Default value: 0
Menu
1.9.2
Connecting an external contact, for example, a room thermostat or a timer
allows you to temporarily or periodically raise or lower the room temperature.
When the contact is on, the heat curve offset is changed by the number of
steps selected in the menu. If a room sensor is installed and activated the
desired room temperature (°C) is set.
If there is more than one climate system the setting can be made separately
for each system.
NIBE™ F470Chapter 3 | F470 – at your service40
min. flow line temp.
PLQ IORZ OLQH WHPS
FOLPDWH V\VWHP
FOLPDWH V\VWHP
FOLPDWH V\VWHP
FOLPDWH V\VWHP
r&
r&
r&
r&
climate system
Setting range: 20-70 °C
Default values: 20°C
Menu
1.9.3
Set the minimum temperature on the supply temperature to the climate system. This means that F470 never calculates a temperature lower than that
set here.
If there is more than one climate system the setting can be made separately
for each system.
TIP
The value can be increased if you have, for example, a cellar that you always
want to heat, even in summer.
You may also need to increase the value in "stop heating" menu 4.9.2 "auto
mode setting".
41NIBE™ F470Chapter 3 | F470 – at your service
room sensor settings
URRP VHQVRU VHWWLQJV
IDFWRU V\VWHP
FRQWURO URRP VHQVRU V\VW
FRQWURO URRP VHQVRU V\VW
IDFWRU V\VWHP
FRQWURO URRP VHQVRU V\VWHP
FRQWURO URRP VHQVRU V\VW

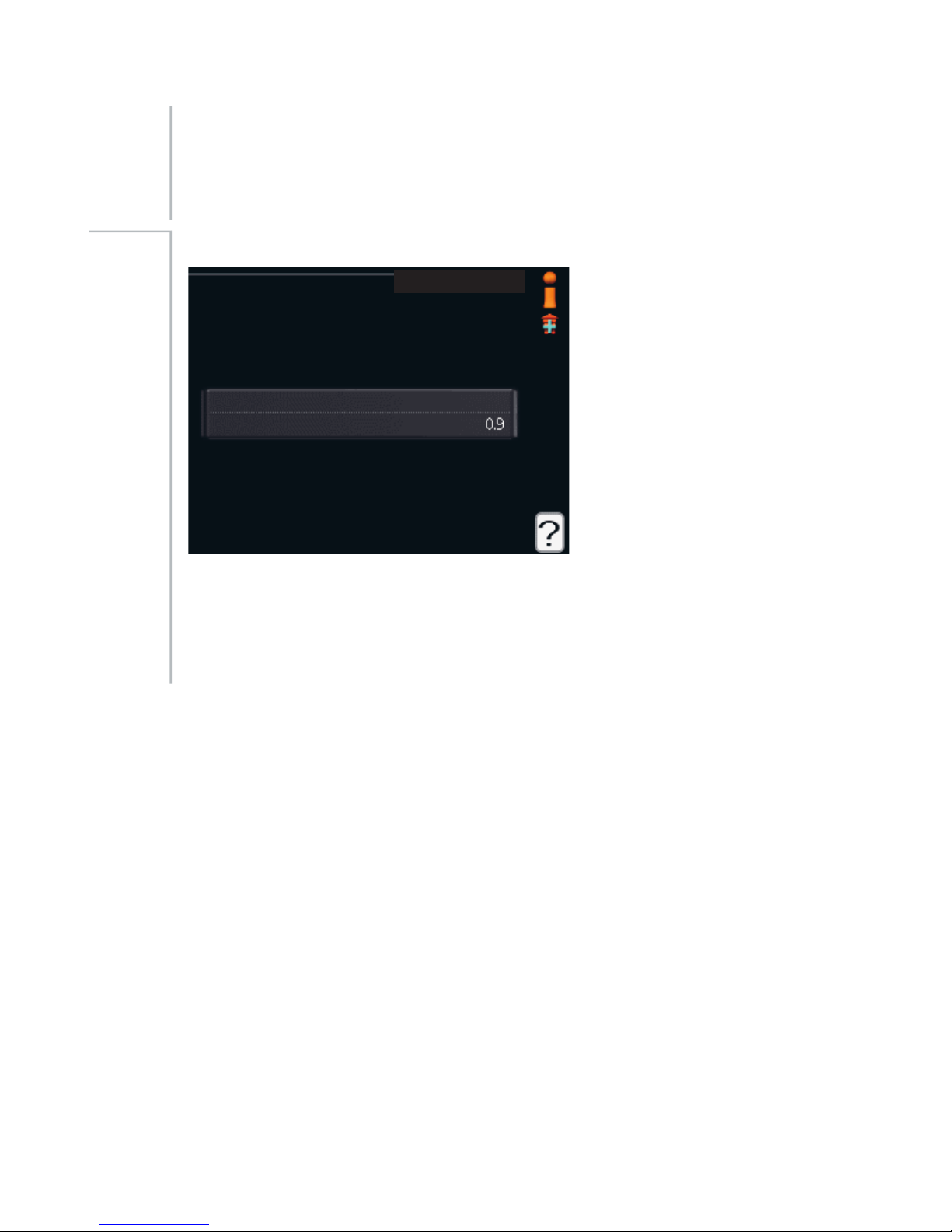

factor system
Setting range: 0.2 - 6.0
Default value: 2.0
Menu
1.9.4
Room sensors to control the room temperature can be activated here.
Here you can set a factor that determines how much the supply temperature
is to be affected by the difference between the desired room temperature
and the actual room temperature. A higher value gives a greater change of
the heating curve's set offset.
If several climate systems are installed the above settings can be made for
the relevant systems.
NIBE™ F470Chapter 3 | F470 – at your service42
fan return time
IDQ UHWXUQ WLPH
VSHHG
VSHHG
VSHHG
VSHHG
KUV
KUV
KUV
KUV
speed 1-4
Setting range: 1 – 99 h
Default value: 4 h
Menu
1.9.6
Here you select the return time for temporary speed change (speed 1-4) on
the ventilation in menu 1.2.
Return time is the time it takes before ventilation speed returns to normal.
43NIBE™ F470Chapter 3 | F470 – at your service
own curve
RZQ FXUYH
IORZ OLQH WHPS DW r&
IORZ OLQH WHPS DW r&
IORZ OLQH WHPS DW r&
IORZ OLQH WHPS DW r&
IORZ OLQH WHPS DW r&
IORZ OLQH WHPS DW r&
r&
r&
r&
r&
r&
r&
supply temperature
Setting range: 15 – 70 °C
You can create your own heating curve here, if there are special requirements,
by setting the desired supply temperatures for different outdoor temperatures.
Caution
Curve 0 in menu 1.9.1 must be selected for this curve to apply.
Menu
1.9.7
NIBE™ F470Chapter 3 | F470 – at your service44
point offset
SRLQW RIIVHW
FKDQJH LQ FXUYH
RXWGRRU WHPS SRLQW
r&
r&
RXWGRRU WHPS r&
IORZ WHPSHUDWXUH r&
outdoor temp. point
Setting range: -40 – 30 °C
Default value: 0 °C
change in curve
Setting range: -10 – 10 °C
Default value: 0 °C
Menu
1.9.8
Select a change in the heating curve at a certain outdoor temperature here.
A one degree change in room temperature requires one increment for underfloor heating and approximately two to three increments for the radiator
system.
The heat curve is affected at ± 5 °C from set outdoor temp. point.
It is important that the correct heating curve is selected so that the room
temperature is experienced as even.
TIP
If it is cold in the house, at, for example -2 °C, "outdoor temp. point" is set
to "-2" and "change in curve" is increased until the desired room temperature is maintained.
45NIBE™ F470Chapter 3 | F470 – at your service
Caution
Wait 24 hours before making a new setting, so that the room temperature
has time to stabilise.
NIBE™ F470Chapter 3 | F470 – at your service46
Set the hot water capacity
Overview
WHPSRUDU\ OX[
+27 :$7(5
FRPIRUW PRGH
VFKHGXOLQJ
DGYDQFHG
DFWLYH
HFRQRP\
RII
Sub-menus
For the menu HOT WATER there are several sub-menus. Status information
for the relevant menu can be found on the display to the right of the menus.
temporary lux Activation of temporary increase in the hot water temperature.
Status information displays “off" or what length of time of the temporary
temperature increase remains.
comfort mode Setting hot water comfort. The status information displays
what mode is selected, "economy", "normal" or "luxury".
scheduling Scheduling hot water comfort. Status information "set" displays
if any part of the schedule is active at present, "holiday setting" displays if
vacation setting is in progress (menu 4.7), otherwise it displays "off".
advanced Setting periodic increase in the hot water temperature.
47NIBE™ F470Chapter 3 | F470 – at your service
temporary lux
RII
WHPSRUDU\ OX[
KUV
KUV
KUV
Setting range: 3, 6 and 12 hours and mode "off"
Default value: "off"
Menu
2.1
When hot water requirement has temporarily increased this menu can be
used to select an increase in the hot water temperature to lux mode for a
selectable time.
Caution
If comfort mode "luxury" is selected in menu 2.2 no further increase can be
carried out.
The function is activated immediately when a time period is selected and
confirmed using the OK button. The time to the right displays the remaining
time at the selected setting.
When the time has run out F470 returns to the mode set in menu 2.2.
Select “off" to switch off temporary lux .
NIBE™ F470Chapter 3 | F470 – at your service48
comfort mode
HFRQRP\
FRPIRUW PRGH
QRUPDO
OX[XU\
Setting range: economy, normal, luxury
Default value: normal
Menu
2.2
The difference between the selectable modes is the temperature of the hot
tap water. Higher temperature means that the hot water lasts longer.
economy: This mode gives less hot water than the other, but is more economical. This mode can be used in smaller households with a small hot water
requirement.
normal: Normal mode gives a larger amount of hot water and is suitable for
most households.
luxury: Lux mode gives the greatest possible amount of hot water. In this
mode, the immersion heater, as well as the compressor, is used to heat hot
water, which may increase operating costs.
NOTE
In lux mode the heat pump prioritises hot water before room heating.
scheduling
What hot water comfort the heat pump is to work with can be scheduled
here for up to two different time periods per day.
Menu
2.3
Scheduling is activated/deactivated by ticking/unticking"activated". Set times
are not affected at deactivation.
If two settings conflict with each other a red exclamation mark is displayed.
49NIBE™ F470Chapter 3 | F470 – at your service
DOO
PRQ
WXHV
ZH
WKXU
IUL
VDW
VXQ
DFWLYDWHG
VFKHGXOH VFKHGXOH
6&+('8/,1* +27 :$7(5
QRUPDO
7LPH SHULRG $GMXVWLQJ'D\
$FWLYDWHG
6FKHGXOH
&RQIOLFW
Schedule: The schedule to be changed is selected here.
Activated: Scheduling for the selected period is activated here. Set times are
not affected at deactivation.
Day: Select which day or days of the week the schedule is to apply to here.
To remove the scheduling for a particular day, the time for that day must be
reset by setting the start time to the same as the stop time. If the line "all"
is used, all days in the period are set for these times.
Time period: The start and stop time for the selected day for scheduling are
selected here.
Adjusting: Set the hot water comfort that is to apply during scheduling here.
TIP
If you wish to set similar scheduling for every day of the week start by filling
in “all” and then changing the desired days.
Caution
If the stop time is before the start time it means that the period extends past
midnight.
Scheduling always starts on the date that the start time is set for.
NIBE™ F470Chapter 3 | F470 – at your service50
advanced
DGYDQFHG
SHULRGLF LQFUHDVHV
KRW ZDWHU UHFLUF
Menu
2.9
Menu advanced has orange text and is intended for the advanced user. This
menu has several sub-menus.
periodic increases
SHULRGLF LQFUHDVHV
DFWLYDWHG
SHULRG
VWDUW WLPH
1H[W SHULRGLF LQFUHDVH
GD\V
period
Setting range: 1 - 90 days
Default value: 14 days
start time
Setting range: 00:00 - 23:00
Default value: 00:00
Menu
2.9.1
To prevent bacterial growth in the water heater, the compressor and the
immersion heater can increase hot water temperature at regular intervals.
51NIBE™ F470Chapter 3 | F470 – at your service
The length of time between increases can be selected here. The time can be
set between 1 and 90 days. Factory setting is 14 days. Untick "activated" to
switch off the function.
hot water recirc.
KRW ZDWHU UHFLUF
RSHUDWLQJ WLPH
GRZQWLPH PLQ
PLQ
SHULRG
SHULRG
SHULRG
operating time
Setting range: 1 - 60 min
Default value: 3 min
downtime
Setting range: 0 - 60 min
Default value: 12 min
Menu
2.9.2
Set the hot water circulation for up to three periods per day here. During the
set periods the hot water circulation pump will run according to the settings
above.
"operating time" decide how long the hot water circulation pump must run
per operating instance.
"downtime" decide how long the hot water circulation pump must be stationary between operating instances.
NIBE™ F470Chapter 3 | F470 – at your service52
Get information
Overview
VHUYLFH LQIR
,1)2
FRPSUHVVRU LQIR
DGG KHDW LQIR
DODUP ORJ
RII
UXQV
LQGRRU WHPS ORJ
Sub-menus
For the menu INFO there are several sub-menus. No settings can be made
in these menus, it is just display of information. Status information for the
relevant menu can be found on the display to the right of the menus.
service info shows temperature levels and settings in the heat pump.
compressor info shows operating times, number of starts etc for the com-
pressor.
add. heat info displays information about the addition’s operating times
etc.
alarm log displays the latest alarm and information about the heat pump
when the alarm occurred.
indoor temp. log the average temperature indoors week by week during
the past year.
53NIBE™ F470Chapter 3 | F470 – at your service
service info
VHUYLFH LQIR
VWDWXV LQWHUQDO DGG
VHW PD[ HOHFWULFDO DGG
IXVH VL]H
FXUUHQW /
FXUUHQW /
FXUUHQW /
(%
RII
Menu
3.1
Information about the heat pump’s actual operating status (e.g. current
temperatures etc.) can be obtained here. No changes can be made.
The information is on several pages. Turn the control knob to scroll between
the pages.
Symbols in this menu:
HeatingCompressor
Hot waterAddition
Ventilation
compressor info
FRPSUHVVRU LQIR
VWDWXV
QXPEHU RI VWDUWV
WRWDO RSHUDWLQJ WLPH
RI ZKLFK KRW ZDWHU
LQLWLDWLQJ
WLPH IDFWRU
RI ZKLFK KRW ZDWHU
KUV
KUV
Menu
3.2
NIBE™ F470Chapter 3 | F470 – at your service54
Information about the compressor’s operating status and statistics can be
obtained here. No changes can be made.
The information is on several pages. Turn the control knob to scroll between
the pages.
add. heat info
DGG KHDW LQIR
VWDWXV
WLPH IDFWRU
RII
Menu
3.3
Information about the additional heat settings, operating status and statistics
can be obtained here. No changes can be made.
The information is on several pages. Turn the control knob to scroll between
the pages.
55NIBE™ F470Chapter 3 | F470 – at your service
alarm log
DODUP ORJ
7% DODUP
/3 DODUP
6HQVRU IOW%7
6HQV IOW%7
6HQVRU IOW%7
6HQVRU IOW%7
To facilitate fault-finding the heat pump operating status at alarm alerts is
stored here. You can see information for the 10 most recent alarms.
To view the run status in the event of an alarm, mark the alarm and press
the OK button.
DODUP ORJ
RXWGRRU WHPS
KHDW PHGLXP IORZ
KHDW PHGLXP UHWXUQ
KRW ZDWHU FKDUJLQJ
FRQGHQVHU RXW
RSHUDWLQJ WLPH
RS PRGH
7HPSHUDWXUH OLPLWHU DODUP
r&
r&
r&
r&
PLQ
RII
r&
Information about an alarm.
Menu
3.4
NIBE™ F470Chapter 3 | F470 – at your service56
indoor temp. log
ZHHN
H[KDXVW DLU r&
LQGRRU WHPS ORJ
Here you can see the average temperature indoors week by week during the
past year. The dotted line indicates the annual average temperature.
The average outdoor temperature is only shown if a room temperature
sensor/room unit is installed. Otherwise, the exhaust air temperature is shown.
To read off an average temperature
1.
Turn the control knob so that the ring on the shaft with the week number
is marked.
2.
Press the OK button.
3.
Follow the grey line up to the graph and out to the left to read off the
average indoor temperature at the selected week.
4.
You can now select to take read outs for different weeks by turning the
control knob to the right or left and read off the average temperature.
5.
Press the OK or Back button to exit read off mode.
Menu
3.5
57NIBE™ F470Chapter 3 | F470 – at your service
Adjust the heat pump
Overview
P\ LFRQV
+($7 3803
WLPH GDWH
ODQJXDJH ODQJXDJH
KROLGD\ VHWWLQJ RII
DXWRRS PRGH
DGYDQFHG
Sub-menus
For the menu HEAT PUMP there are several sub-menus. Status information
for the relevant menu can be found on the display to the right of the menus.
op. mode Activation of manual or automatic operating mode. The status
information shows the selected operating mode.
my icons Settings regarding which icons in the heat pump's user interface
that are to appear in the slot when the door is closed.
time & date Setting current time and date.
language Select the language for the display here. The status information
shows the selected language.
holiday setting Vacation scheduling heating and ventilation. Status inform-
ation "set" is displayed if you set a Vacation schedule but it is not active now,
"active" displays if any part of the Vacation schedule is active, otherwise it
displays "off".
advanced Setting heat pump work mode.
NIBE™ F470Chapter 3 | F470 – at your service58
op. mode
RS PRGH
DXWR
PDQXDO
DGG KHDW RQO\
op. mode
Setting range: auto, manual, add. heat only
Default value: auto
functions
Setting range: compressor, addition, heating
Menu
4.2
The heat pump operating mode is usually set to "auto". It is also possible to
set the heat pump to "add. heat only", but only when an addition is used,
or "manual" and select yourself what functions are to be permitted.
Change the operating mode by marking the desired mode and pressing the
OK button. When an operating mode is selected it shows what in the heat
pump is permitted (crossed out = not permitted) and selectable alternatives
to the right. To select selectable functions that are permitted or not you mark
the function using the control knob and press the OK button.
Operating mode auto
In this operating mode you cannot select which functions are to be permitted
because it is handled automatically by the heat pump.
Operating mode manual
In this operating mode you can select what functions are permitted. You
cannot deselect "compressor" in manual mode.
59NIBE™ F470Chapter 3 | F470 – at your service
Operating mode add. heat only
Caution
If you choose mode "add. heat only" the compressor is deselected and there
is a higher operating cost.
In this operating mode the compressor is not active and only additional
heating is used.
Functions
"compressor" is that which produces heating and hot water for the accommodation. If "compressor" is deselected, a symbol in the main menu on the
heat pump symbol is displayed. You cannot deselect "compressor" in
manual mode.
"addition" is what helps the compressor to heat the accommodation and/or
the hot water when it cannot manage the whole requirement alone.
"heating" means that you get heat in the accommodation. You can deselect
the function when you do not wish to have heating running.
Caution
If you deselect "addition" it may mean that insufficient hot water and/or
heating in the accommodation is achieved.
my icons
P\ LFRQV
RXWGRRULQGRRU WHPSHUDWXUH
KRW ZDWHU WHPSHUDWXUH
GLJLWDO FORFN
DQDORJ FORFN
Menu
4.3
NIBE™ F470Chapter 3 | F470 – at your service60
You can select what icon should be visible when the door to F470 is closed.
You can select up to 3 icons. If you select more, the ones you selected first
will disappear. The icons are displayed in the order you selected them.
time & date
WLPH GDWH
WLPH
GD\
\HDU
PRQWK
KUV
K
GDWH
Menu
4.4
Set time and date and display mode here.
language
ODQJXDJH
Menu
4.6
Choose the language that you want the information to be displayed in here.
61NIBE™ F470Chapter 3 | F470 – at your service
holiday setting
KROLGD\ VHWWLQJ
DFWLYDWHG
VWDUW GDWH
VWRS GDWH
KHDWLQJ
KRW ZDWHU FRPIRUW
YHQWLODWLRQ
QRUPDO
r
Menu
4.7
To reduce energy consumption during a holiday you can schedule a reduction
in heating, ventilation and hot water temperature.
If a room sensor is installed and activated the desired room temperature (°C)
is set during the time period. This setting applies to all climate systems with
room sensors.
If a room sensor is not activated, the desired offset of the heat curve is set.
This setting applies to all climate systems without room sensors. A one degree
change in room temperature requires one increment for under floor heating
and approximately two to three increments for the radiator system.
Vacation scheduling starts at 00:00 on the start date and stops at 23:59 on
the stop date.
TIP
Complete holiday setting about a day before your return so that room temperature and hot water have time to regain usual levels.
TIP
Set the vacation setting in advance and activate just before departure in order
to maintain the comfort.
NIBE™ F470Chapter 3 | F470 – at your service62
Caution
If you choose to switch off hot water production during the vacation “periodic increases" (preventing bacterial growth) are blocked during this time.
"periodic increases" started in conjunction with the vacation setting being
completed.
Caution
If the exhaust air temperature falls below 16 °C, the compressor is blocked
and the electrical addition is permitted to intervene. When the compressor
is blocked heat is not recovered from the exhaust air.
advanced
DGYDQFHG
DXWR PRGH VHWWLQJ
IDFWRU\ VHWWLQJ XVHU
VFKHGXOH EORFNLQJ RII
Menu
4.9
Menu advanced has orange text and is intended for the advanced user. This
menu has several sub-menus.
63NIBE™ F470Chapter 3 | F470 – at your service
auto mode setting
VWRS KHDWLQJ
VWRS DGGLWLRQDO KHDW
ILOWHULQJ WLPH
r&
r&
KUV
DXWR PRGH VHWWLQJ
stop heating
Setting range: -20 – 40 °C
Default values: 20
stop additional heat
Setting range: -20 – 40 °C
Default values: 15
filtering time
Setting range: 0 – 48 h
Default value: 24 h
Menu
4.9.2
When operating mode is set to "auto“ the heat pump selects when start and
stop of additional heat and heat production is permitted, dependent on the
average outdoor temperature.
Select the average outdoor temperatures in this menu.
You can also set the time over which (filtering time) the average temperature
is calculated. If you select 0, the present outdoor temperature is used.
Caution
It cannot be set "stop additional heat" higher than "stop heating".
NIBE™ F470Chapter 3 | F470 – at your service64
factory setting user
'R \RX ZDQW WR UHVHW DOO XVHU VHWWLQJV WR
IDFWRU\ VHWWLQJV"
IDFWRU\ VHWWLQJ XVHU
\HV
QR
Menu
4.9.4
All settings that are available to the user (including advanced menus) can be
reset to default values here.
Caution
After factory setting, personal settings such as heating curves, ventilation
etc must be reset.
65NIBE™ F470Chapter 3 | F470 – at your service
schedule blocking
The compressor can be scheduled to be blocked for up to two different time
periods here.
Menu
4.9.5
If two settings conflict with each other a red exclamation mark is displayed
at the end of the line.
When scheduling is active the actual blocking symbol in the main menu on
the heat pump symbol is displayed.
DFWLYDWHG
VFKHGXOH VFKHGXOH
DOO
PRQ
WXHV
ZH
WKXU
IUL
VDW
VXQ
VFKHGXOH EORFNLQJ
7LPH SHULRG %ORFNLQJ'D\
$FWLYDWHG
6FKHGXOH
&RQIOLFW
Schedule: The period to be changed is selected here.
Activated: Scheduling for the selected period is activated here. Set times are
not affected at deactivation.
Day: Select which day or days of the week the schedule is to apply to here.
To remove the scheduling for a particular day, the time for that day must be
reset by setting the start time to the same as the stop time. If the line "all"
is used, all days in the period are set for these times.
Time period: The start and stop time for the selected day for scheduling are
selected here.
Blocking: The desired blocking is selected here.
Blocking the compressor.
Blocking additional heat.
NIBE™ F470Chapter 3 | F470 – at your service66
TIP
If you wish to set similar scheduling for every day of the week start by filling
in “all” and then changing the desired days.
Caution
If the stop time is before the start time it means that the period extends past
midnight.
Scheduling always starts on the date that the start time is set for.
Caution
Long term blocking can cause reduced comfort and operating economy.
67NIBE™ F470Chapter 3 | F470 – at your service
4
Disturbances in comfort
In most cases, the heat pump notes operational interference (operational interference can lead to disturbance in comfort) and indicates this with alarms
and shows action instructions in the display.
Info-menu
All the heat pump measurement values are gathered under menu 3.1 in the
heat pump menu system. Looking through the values in this menu can often
simplify finding the fault source. See page 54 for more information about
menu 3.1.
Manage alarm
LQIR DFWLRQ
UHVHW DODUP
DLG PRGH
/RZ SUHVVXUH DODUP
DODUP
In the event of an alarm, some kind of malfunction has occurred, which is
indicated by the status lamp changing from green continuously to red continuously. In addition, an alarm bell appears in the information window.
Alarm
In the event of an alarm with a red status lamp a malfunction has occurred
that the heat pump cannot remedy itself. In the display, by turning the control
knob and pressing the OK button, you can see the type of alarm it is and reset
it. You can also choose to set the heat pump to aid mode.
info / action Here you can read what the alarm means and receive tips on
what you can do to correct the problem that caused the alarm.
NIBE™ F470Chapter 4 | Disturbances in comfort68
reset alarm In most cases it is enough to select "reset alarm" to correct the
problem that caused the alarm. If a green light illuminates after selecting
"reset alarm" the alarm has been remedied. If a red light is still visible and a
menu called ”alarm” is visible in the display, the problem that caused the
alarm remains. If the alarm disappears and then returns, contact your installer.
aid mode ”aid mode” is a type of emergency mode. This means that the
heat pump produces heat and/or hot water despite there being some kind
of problem. This can mean that the heat pump's compressor is not running.
In this case the immersion heater produces heat and/or hot water.
Selecting "aid mode” is not the same as correcting the problem that caused
the alarm. The status lamp will therefore continue to be red.
If the alarm does not reset, contact your installer for suitable remedial action.
NOTE
Always gives the heat pump's serial number when contacting your installer.
69NIBE™ F470Chapter 4 | Disturbances in comfort
Troubleshooting
If the operational interference is not shown in the display the following tips
can be used:
Basic actions
Start by checking the following possible fault sources:
႑
The switch's position.
႑
Group and main fuses of the accommodation.
႑
The property's earth circuit breaker.
Low hot water temperature or a lack of hot water
႑
Heat pump in incorrect operating mode.
႑
Enter menu 4.2. If mode "auto" is selected, select a higher value on
"stop additional heat“ in menu 4.9.2.
႑
If mode "manual" is selected, select "addition".
႑
Large hot water consumption.
႑
Wait until the hot water has heated up. Temporarily increased hot
water capacity (temporary lux) can be activated in menu 2.1.
႑
Too low hot water setting.
႑
Enter menu 2.2 and select a higher comfort mode.
႑
Closed or choked filling valve for the hot water heater.
႑
Open the valve.
Low room temperature
႑
Closed thermostats in several rooms.
႑
See the Saving tips section on page 24 and menu 1.1 on page 29 for
more detailed information about how to best set the thermostats.
႑
Heat pump in incorrect operating mode.
႑
Enter menu 4.2. If mode "auto" is selected, select a higher value on
"stop heating“ in menu 4.9.2.
႑
If mode "manual" is selected, select "heating". If this is not enough,
select "addition".
႑
Too low set value on the automatic heating control.
႑
Enter menu 1.1 (temperature) and adjust the heat curve offset of the
heat curve. If the room temperature is only low in cold weather the
NIBE™ F470Chapter 4 | Disturbances in comfort70
curve slope in the menu 1.9.1 (heating curve) needs to be adjusted
up.
႑
comfort modeluxury selected in combination with large hot water outlet.
႑
Enter menu 2.2 and select economy or normal.
Holiday mode activated in menu 1.3.4.
႑
Enter menu 1.3.4 and select “Off”.
႑
External switch for changing the room heating activated.
႑
Check any external switches.
႑
Air in the heating system.
႑
Vent the heating system.
႑
Closed valves to the heating system.
႑
Open the valves.
High room temperature
႑
Too high set value on the automatic heating control.
႑
Enter menu 1.1 (temperature) and adjust the heat curve offset
downwards. If the room temperature is only high in cold weather the
curve slope in menu 1.9.1 (heating curve) needs to be adjusted down.
႑
External switch for changing the room heating activated.
႑
Check any external switches.
Low system pressure
႑
Not enough water in the heating system.
႑
Top up the water in the heating system.
Low or a lack of ventilation
႑
Filter blocked.
႑
Clean or replace filter (see page 20).
႑
Exhaust air device blocked or throttled down too much.
႑
Check and clean the exhaust air devices (see page 20).
႑
Fan speed in reduced mode.
႑
Enter menu 1.2 and select “normal".
႑
External switch for changing the fan speed activated.
႑
Check any external switches.
71NIBE™ F470Chapter 4 | Disturbances in comfort
High or distracting ventilation
႑
The ventilation is not adjusted.
႑
Order ventilation adjustment.
႑
Fan speed in forced mode.
႑
Enter menu 1.2 and select “normal".
႑
External switch for changing the fan speed activated.
႑
Check any external switches.
႑
Filter blocked.
႑
Clean or replace the filter.
Low supply air temperature
႑
Air in the supply air battery
႑
Bleed the supply air battery.
႑
Trim valve too restricted
႑
Contact your installer!
High supply air temperature
႑
Trim valve not sufficiently restricted.
႑
Contact your installer!
The compressor does not start
႑
There is no heating requirement.
႑
The heat pump does not call on heating nor hot water.
႑
The heat pump defrosts.
႑
Minimum time between compressor starts has not been reached.
႑
Wait 30 minutes and check if the compressor has started.
႑
Alarm tripped.
႑
Follow the display instructions.
NIBE™ F470Chapter 4 | Disturbances in comfort72
5
Technical data
Detailed technical specifications for this product can be found in the installation manual (www.nibe.eu).
73NIBE™ F470Chapter 5 | Technical data
6
Glossary
Additional heat:
The additional heat is the heat produced in addition to the heat supplied by
the compressor in your heat pump. Additional heaters can be for example,
immersion heater, electric heater, gas/oil/pellet/wood burner or district heating.
Calculated flow line temperature
The temperature that the heat pump calculates that the heating system requires for an optimum accommodation temperature. The colder the outdoor
temperature, the higher the calculated supply temperature.
Circulation pump
Pump that circulates liquid in a pipe system.
Climate system
The climate system can also be called the heating and/or cooling system. The
building is cooled or heated using radiators, under floor coils or convector
fans.
Compressor
Compresses the gas state refrigerant. When the refrigerant is compressed,
the pressure and the temperature increase.
Condenser
Heat exchanger where the hot gas state refrigerant condenses (cooled and
becomes a liquid) and releases heat energy to the house heating and hot
water systems.
Disturbances in comfort
Disturbances in comfort are undesirable changes to the hot water/indoor
comfort, for example when the temperature of the hot water is too low or
if the indoor temperature is not at the desired level.
A malfunction in the heat pump can sometimes be noticed in the form of a
disturbance in comfort.
In most cases, the heat pump notes operational interference and indicates
this with alarms and shows instructions in the display.
NIBE™ F470Chapter 6 | Glossary74
Domestic hot water
The water one showers in for example.
Electrical addition
This is the electricity that, for example, an immersion heater produces when
the compressor's output is not sufficient to fulfil the property's heating demand.
Emergency mode
A mode that can be selected using the switch in the event of a fault, which
means that the compressor stops. When the heat pump is in emergency
mode, the building and/or hot water is heated using an immersion heater.
Evaporator
Heat exchanger where the refrigerant evaporates by retrieving heat energy
from the air which then cools.
Exhaust air
The air that comes from the exhaust air device in the various rooms of the
accommodation, to F470.
Exhaust air devices
Vents, usually in the ceiling, in the kitchen/bathroom/clothes closet where
the air is drawn in to be forwarded to F470.
Expansion valve
Valve that reduces the pressure of the refrigerant, whereupon the temperature
of the refrigerant drops.
Expansion vessel
Vessel with heating medium fluid with the task of equalising the pressure in
the heating medium system.
Extract air
The air that the heat pump has retrieved heat from and which has therefore
been cooled. This air is blown out of the building.
75NIBE™ F470Chapter 6 | Glossary
Flow pipe
The line in which the heated water is transported from the heat pump out
to the house heating system (radiators/heating coils).
Heat exchanger
Device that transfers heat energy from one medium to another without mixing
mediums.
Heat factor
Measurement of how much heat energy the heat pump gives off in relation
to the electric energy it needs to operate. Another term for this is COP.
Heating curve
The heating curve determines which heat the heat pump is to produce depending on the temperature outdoors. If a high value is selected, this tells
the heat pump that it must produce a lot of heat when it is cold outdoors in
order to achieve a warm indoor temperature.
Heating medium
Hot liquid, usually normal water, which is sent from the heat pump to the
house climate system and makes the accommodation warm. The heating
medium also heats the hot water.
Heating medium side
Pipes to the house’s climate system make up the heating medium side.
Hot water heater
Container where domestic water is heated. Is located inside the heat pump,
but an extra hot water heater can be installed in the event of large hot water
requirements.
Outdoor air
Air that is drawn into the heat pump and heated.
Outside sensor
A sensor that is located outdoors. This sensor tells the heat pump how hot
it is outdoors.
NIBE™ F470Chapter 6 | Glossary76
Pressostat
Pressure switch that triggers an alarm and/or stops the compressor if nonpermitted pressures occur in the system. A high pressure pressostat trips if
the condensing pressure is too great. A low pressure pressostat trips if the
evaporation pressure is too low.
Radiator
Another word for heating element. They must be filled with water in order
to be used with F470.
Refrigerant
Substance that circulates around a closed circuit in the heat pump and that,
through pressure changes, evaporates and condenses. During evaporation,
the refrigerant absorbs heating energy and during condensing, gives off
heating energy.
Return pipe
The line in which the water is transported back to the heat pump from the
house heating system (radiators/heating coils).
Return temp
The temperature of the water that returns to the heat pump after releasing
the heat energy to the radiators/heating coils.
Room sensor
A sensor that is located indoors. This sensor tells the heat pump how hot it
is indoors.
Safety valve
A valve that opens and releases a small amount of liquid if the pressure is
too high.
Shunt
A valve that mixes the hot water with a small amount of slightly cooler water.
There is a shunt in the heat pump that mixes the supply water with the return
line water so that the heating system reaches the correct temperature.
Supply air
The heated air that is blown from the heat pump and out into the room.
77NIBE™ F470Chapter 6 | Glossary
Supply air device
Valves, usually in the ceiling, where the heated supply air is blown out and
aids in heating up the accommodation.
Supply temperature
The temperature of the heated water that the heat pump sends out to the
heating system. The colder the outdoor temperature, the higher the supply
line temperature becomes.
NIBE™ F470Chapter 6 | Glossary78
Item register
A
Adjust the heat pump, 58
B
Back button, 12
C
Contact with F470, 10
Display unit, 11
External information, 10
Menu system, 13
Control knob, 12
D
Display, 11
Display unit, 11
Back button, 12
Control knob, 12
Display, 11
OK button, 12
Status lamp, 11
Switch, 12
Disturbances in comfort, 68
Manage alarm, 68
Troubleshooting, 70
E
External information, 10
Information window, 10
Status lamp, 10
F
F470 – An excellent choice, 7
F470 – at your service, 28
Adjust the heat pump, 58
Get information, 53
Set the hot water capacity, 47
Set the indoor climate, 28
G
Get information, 53
Glossary, 74
H
Heat pump function, 9
Help menu, 18
I
Important information, 2
F470 – An excellent choice, 7
Installation data, 2
Serial number, 4
Warranty information, 4
Information window, 10
Installation data, 2
M
Maintenance of F470, 19
Regular checks, 19
Saving tips, 24
Manage alarm, 68
Menu system, 13
Help menu, 18
Operation, 15
Scroll through the windows, 18
Selecting menu, 15
Selecting options, 16
Setting a value, 17
O
OK button, 12
Operation, 15
P
Power consumption , 25
R
Regular checks, 19
S
Saving tips, 24
Power consumption , 25
Scroll through the windows, 18
Selecting menu, 15
Selecting options, 16
Serial number, 4
Set the hot water capacity, 47
Set the indoor climate, 28
Setting a value, 17
Status lamp, 10, 11
Switch, 12
T
Technical data, 73
The heat pump – the heart of the
house, 8
Troubleshooting, 70
W
Warranty information, 4
79NIBE™ F470Chapter 7 | Item register
7
NIBE™ F470Chapter 7 |80
NIBE Energy Systems Ltd
3C Broom Business Park
Bridge Way
Chesterfield S41 9QG
Phone 0845 095 1200
Fax 0845 095 1201
info@nibe.co.uk
www.nibe.co.uk
031572
Loading...
