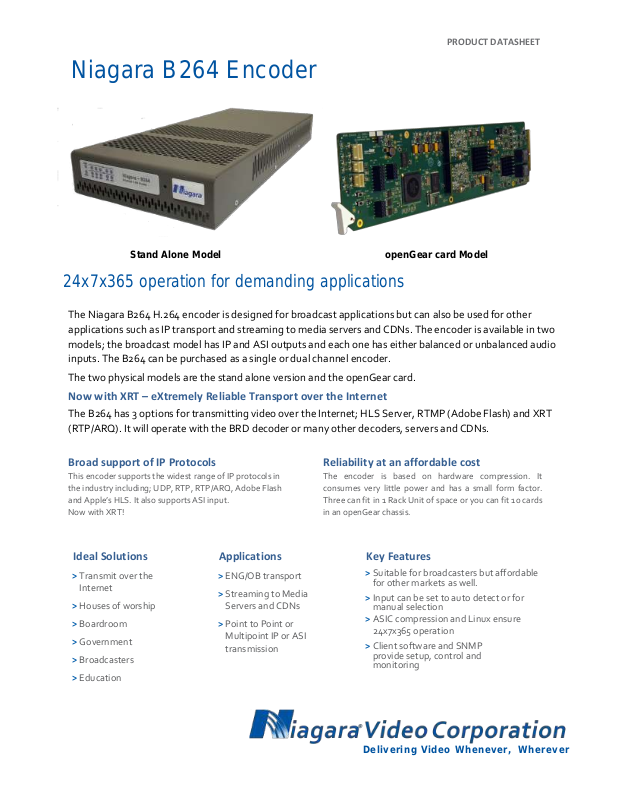

Niagara B264 Encoder
PRODUCT DATASHEET
Stand Alone Model openGear card Model
24x7x365 operation for demanding applications
The Niagara B264 H.264 encoder is designed for broadcast applications but can also be used for other
applications such as IP transport and streaming to media servers and CDNs. The encoder is available in two
models; the broadcast model has IP and ASI outputs and each one has either balanced or unbalanced audio
inputs. The B264 can be purchased as a single or dual channel encoder.
The two physical models are the stand alone version and the openGear card.
Now with XRT – eXtremely Reliable Transport over the Internet
The B264 has 3 options for transmitting video over the Internet; HLS Server, RTMP (Adobe Flash) and XRT
(RTP/ARQ). It will operate with the BRD decoder or many other decoders, servers and CDNs.
Broad support of IP Protocols
This encoder supports the widest range of IP protocols in
the industry including; UDP, RTP, RTP/ARQ, Adobe Flash
and Apple’s HLS. It also supports ASI input.
Now with XRT!
Reliability at an affordable cost
The encoder is based on hardware compression. It
consumes very little power and has a small form factor.
Three can fit in 1 Rack Unit of space or you can fit 10 cards
in an openGear chassis.
Ideal Solutions
> Transmit over the
Internet
> Houses of worship
> Boardroom
> Government
> Broadcasters
> Education
Applications
> ENG/OB transport
> Streaming to Media
Servers and CDNs
> Point to Point or
Multipoint IP or ASI
transmission
Key Features
> Suitable for broadcasters but affordable
for other markets as well.
> Input can be set to auto detect or for
manual selection
> ASIC compression and Linux ensure
24x7x365 operation
> Client software and SNMP
provide setup, control and
monitoring
Delivering Video Whenever, Wherever
Page 2
B264 Encoder
H.264 Encoder
Back View (Balanced Audio Option)
Video Inputs:
• 2 x SDI (BNC)
- 3G SMPTE 424 M
- HD SMPTE 292 M
SD SMPTE 259 M
-
Composite Video (NTSC/PAL)
-
Audio Inputs:
• Embedded SDI (up to 4 stereo pairs)
• 1 Pair Balanced Audio (Terminal blocks)
per channel
Stand Alone Models
Back View (Unbalanced Audio Option)
Video Inputs:
• 2 x SDI (BNC)
- 3G SMPTE 424 M
- HD SMPTE 292 M
SD SMPTE 259 M
-
Composite Video (NTSC/PAL)
-
Audio Input:
• Embedded SDI (Up to 4 stereo pairs)
• 1 Pair Unbalanced Audio (RCA) per chan
Specifications
Video Encoding Protocols:
• Adobe® Flash® H.264 (RTMP)
• Apple® HTTP Live Streaming (HLS)
• MPEG 2 Transport Stream, UDP and RTP
• XRT (RTP/ARQ)
SMPTE Protocols:
• SMPTE 2022 FEC
• SCTE 104/35 conversion
• SMPTE 2038, frame accurate
Audio Encoding Formats:
• AAC
• MPEG1 Layer II
• AC-3 Pass through
Video Format:
• HD: SMPTE 424M and 292M SDI standards
• SD: SMPTE 259M SDI, Analog NTSC and PAL
Connectivity:
• 4 x 1 Gbit Ethernet ports (Stand Alone)
• 2 x 1 Gbit Ethernet ports (openGear card)
• 2 x SDI Output
• 2 x ASI Outputs
• 1 x Balanced Analog Audio Input (Terminal
block) or
• 1 x Unbalanced Analog Audio Input (RCA)
Hardware:
• ASIC based hardware compression
• Control and Streaming Ethernet Ports
• IP and ASI outputs
Pre-Processing:
• CEA 608 and 708
• AFD/WSS
Weight:
• 3 lb (1.36 Kgs)
Dimensions:
• 1.73” H x 5.7” W x 14” D ( 3 will fit in 1
RU) (44mm x 146 x 356mm)
Power:
• 15 W maximum
Warranty:
• 3 year hardware and software warranty
Software:
• Client software for PC, Mac and Linux (DashBoard)
• SNMP MIB
© 2017 Niagara Video Corporation. Niagara®, GoStream® and Niagara SCX® are registered trademarks of Niagara Video. Flash is a
trademark of Adobe Systems Inc. iPad, iPod and iPhone are registered trademarks of Apple Inc. All other trademarks are the property of their
respective owners. Product specifications and availability may change without notice.
PHONE 925-399-7201 FAX 925-399-7204 www.niagara-video.com
B264_A17v2
