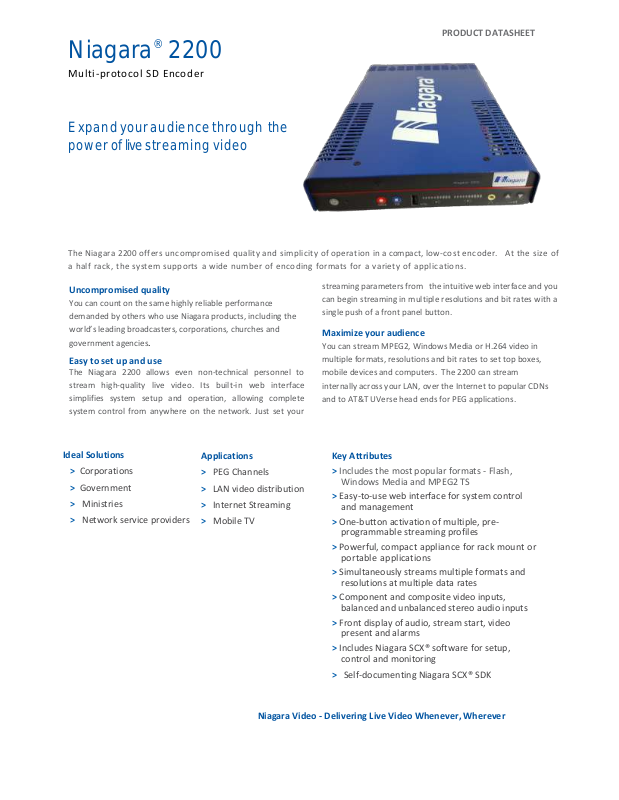

Page 1
Niagara® 2200
Multi-protocol SD Encoder
Expand your audience through the
PRODUCT DATASHEET
power of live streaming video
The Niagara 2200 offers uncompromised quality and simplicity of operation in a compact, low-cost encoder. At the size of
a half rack, the system supports a wide number of encoding formats for a variety of applications.
Uncompromised quality
You can count on the same highly reliable performance
demanded by others who use Niagara products, including the
world’s leading broadcasters, corporations, churches and
government agencies.
Easy to set up and use
The Niagara 2200 allows even non-technical personnel to
stream high-quality live video. Its built-in web interface
simplifies system setup and operation, allowing complete
system control from anywhere on the network. Just set your
streaming parameters from the intuitive web interface and you
can begin streaming in multiple resolutions and bit rates with a
single push of a front panel button.
Maximize your audience
You can stream MPEG2, Windows Media or H.264 video in
multiple formats, resolutions and bit rates to set top boxes,
mobile devices and computers. The 2200 can stream
internally across your LAN, over the Internet to popular CDNs
and to AT&T UVerse head ends for PEG applications.
Ideal Solutions
> Corporations
> Government
> Ministries
> Network service providers
Applications
> PEG Channels
> LAN video distribution
> Internet Streaming
> Mobile TV
Niagara Video - Delivering Live Video Whenever, Wherever
Key Attributes
> Includes the most popular formats - Flash,
Windows Media and MPEG2 TS
> Easy-to-use web interface for system control
and management
> One-button activation of multiple, pre-
programmable streaming profiles
> Powerful, compact appliance for rack mount or
portable applications
> Simultaneously streams multiple formats and
resolutions at multiple data rates
> Component and composite video inputs,
balanced and unbalanced stereo audio inputs
> Front display of audio, stream start, video
present and alarms
> Includes Niagara SCX® software for setup,
control and monitoring
> Self-documenting Niagara SCX® SDK
Page 2
Niagara® 2200
Multi-protocol Encoder
Niagara 2200 front view
Niagara 2200 back view
Niagara 2200 Encoder Properties Window
The built-in web interface of the Niagara 2200 simplifies system
setup and operation. Simply set your streaming parameters from
the intuitive web interface and you can begin streaming in
multiple bit rates and resolutions with the push of a button.
Delivering Video Whenever, Wherever
© 2017 - Niagara®, GoStream® and Niagara SCX® (and design)
Corporation. Flash is a trademark of Adobe Systems Inc. iPad, iPod and iPhone are registered trademarks of Apple
Inc. All other trademarks are the property of their respective owners. Product specifications and availability may
US PHONE 925-399-7201 FAX 925-399-7204 www.niagara-video.com
change without notice.
Encoding Formats:
• MPEG2 TS, MPEG2 and H.264 codecs
• Single Program Transport Stream (RTP or UDP)
• Microsoft
• Adobe
• MPEG-4 Part 2, H.263, and H. 264
• 3GPP/3GPP2, MP4 container support
Monitoring:
• Stereo audio headset
• Video presence indicator
• Audio level meters
Inputs:
Video:
• Component (3 x BNC)
• Composite (1 x BNC, RCA adapter included)
Audio:
• Balanced stereo (2 x XLR)
• Unbalanced stereo (2 x RCA)
Video Formats:
• NTSC or PAL
Connectivity:
USB ports:
• 1 Front and 1 Rear
Ethernet Ports:
• 2x1 Gigabit Rear
Software:
• Niagara SCX
• SimulStream
Hardware:
• Multi-core processor
• SATA SSD (250 GB)
Pre-Processing:
• Scaling, cropping, de-interlacing, inverse
telecine, closed-caption rendering
Weight:
• 4.9 lbs (2.2 Kgs)
Dimensions:
• 7.5” W x 11.5” L x 1.75” H (19 cm W x 29.2
cm L x 4.45 cm H)
Power:
• 12 V DC (AC to DC adapter included)
• 60W power supply
Warranty:
• 1 year software and hardware included
Windows Media®
®
Flash® H.264
®
with web interface
®
®
TM
are registered trademarks of Niagara Video
