GoStream Mini 400 Encoders Data Sheet
The new GoStream Mini 400s are flexible, low-cost 4 channel encoders with SDI or HDMI inputs and
support for common IP output protocols.
Applications indude:
IPTV systems
Internet streaming
IP distribution
Digital Signage
Security
Monitoring
Typical markets where this encoder fits are enterprise, government, education and broadcast. The
small form factor and low power consumption make this encoder versatile for usage in many physical
locations.

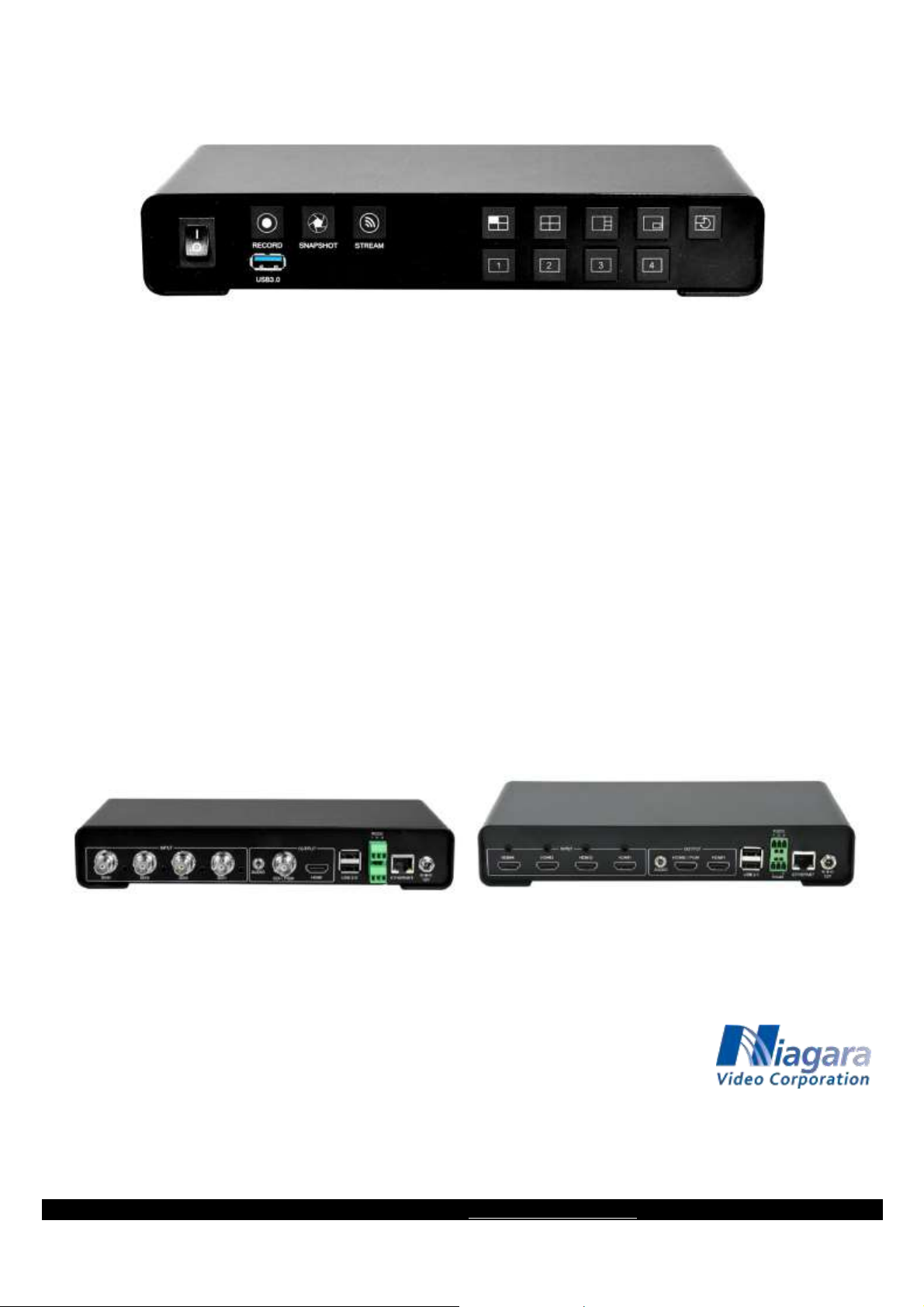

Mini 400S rear view Mini 400H rear view
Phone: 925.399.7201 www.niagara-video.com
Page 2
GoStream Mini 400 Encoders Data Sheet
Specifications
Model
Go Stream Mini 400S 400H
Max. FPS
1920×1080p@300fps(4 Streams + 1 PGM Channels)
Codecs
4 H.264 Encoding Channels
Recording
Mode
Hardware Compression, Real-Time Mode
Input
Interfaces
Video
4 x BNC for 3G / HD / SD-SDI (400S)
4 x HDMI (400H)
Audio
4 x 3.5 mm phone jack – line level
Video
Specs
H.264/AVC, Baseline/Main/High Profile
Configurable Bit Rate Up to 64Mbps
Supported Resolutions
Input:
1920×1080 ( P60/P50/P30/P25/P24/i60/i50 )
1280×720 ( P60/P50)
720×480 ( P60 ), 720×576 ( P50/i50 )
Output:
Resize Range from 160×120 to 1920×1080 ( P60 )
*Output Includes Down Scaling.
Audio
Specs
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate : 48KHz, 16bit
Network
Interface
1x RJ45 for 10/100Mbps Ethernet
DHCP client or Static IP
Streaming
Protocols
TS - UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (ONVIF)
HLS
RTMP – up to 4 outputs
Misc.
Features
2×USB2.0 (For Keyboard and mouse usage)
1×USB3.0 (For external storage usage)
1×RS232 + 1×RS485
Web UI for system configuration
Firmware upgradable
LED indicators
HDMI monitor output
Main function switch:
Record
Snapshot
Stream
Recording
Formats
MP4 / TS / AVI / MOV
System Requirement
Power
DC 12V (With DV Adapter)
