Niagara Video 96-02000 Data Sheet

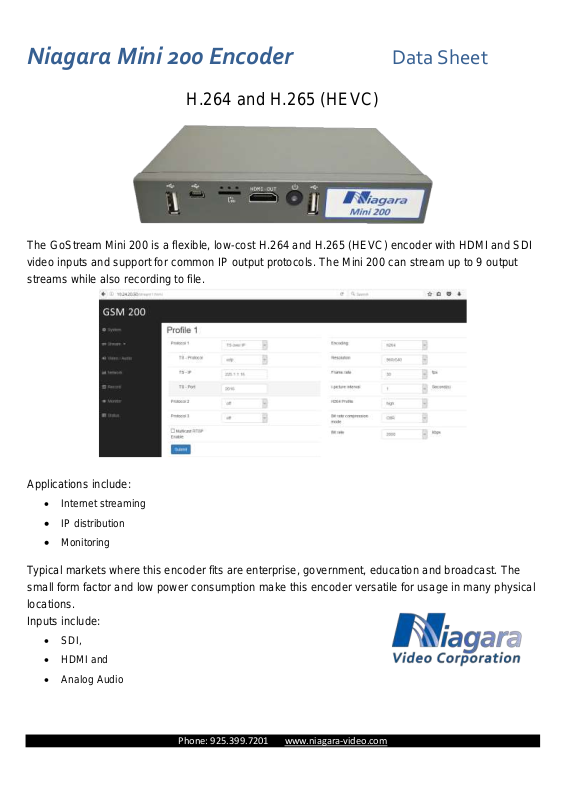

Niagara Mini 200 Encoder Data Sheet

H.264 and H.265 (HEVC)

The GoStream Mini 200 is a flexible, low-cost H.264 and H.265 (HEVC) encoder with HDMI and SDI
video inputs and support for common IP output protocols. The Mini 200 can stream up to 9 output
streams while also recording to file.

Applications include:

 Internet streaming

 IP distribution
 Monitoring

Typical markets where this encoder fits are enterprise, government, education and broadcast. The
small form factor and low power consumption make this encoder versatile for usage in many physical
locations.
Inputs include:

 SDI,
 HDMI and
 Analog Audio

Phone: [phone] www.niagara-video.com

Niagara Mini 200 Encoder Data Sheet

Specifications

Model

Go Stream Mini 200

Max. FPS

60/50fps @ 1920x1080p

Recording

Mode

Hardware Compression, Real-Time Mode

Input

Interfaces

Video

1 x BNC for 3G / HD / SD-SDI
1 x HDMI Input and 1 HDMI Monitor Output

Audio

1xStereo audio through

SDI/HDMI embedded audio
1 x 3.5 mm phone jack (Line level or Microphone level)

Video

Specs

H.264/AVC; Main / High Profile, HEVC Main Profile
Configurable bit rate from 64 kbps up to 32 Mbps
Supported Resolutions

Input:

1920x1080(P60/P50/P30/P25/i60/i59.94/i50), 1440x1050(P60),
1440x900(P60), 1360x768(P60), 1280x1024(P60), 1280x960(P60), 1280x800(P60),
1280x720(P60/P30/29.97), 720x576(P50),720x480(P60)

Output:

1920x1080(P30/P25/i60/i50), 1440x1050(P30),1440x1080(P30)
1440x900(P30), 1360x768(P30), 1280x1024(P30), 1280x960(P630), 1280x800(P30), 1280x720(P30),
960x540(P30),720x576(P50),720x480(P30),320x240(P30)

*Output Includes Down Scaling.

Audio
Specs

AAC-LC

Configurable bit rate range from 32Kbps to 128Kbps
Analog sample rate : 16, 32, 44.1 and 48KHz, 16bit

Network

Interface

1x RJ45 for 10/100Mbps Ethernet
DHCP client or Static IP

Streaming

Protocols

TS over TCP/UDP (unicast & multicast)
RTSP Multicast
RTMP
HLS Local (Internal Server)
Support for 3 different profiles (resolution/bit rate), each profile can support three output streams

Misc.

Features

2x USB 2.0 Host for USB storage and 4G LTE
Web UI for system configuration
Firmware upgradable
LED indicators

Recording

Format

MP4

System Requirement

Power

DC 12V (With DV Adapter)

Phone: [phone] www.niagara-video.com

Rear View

Niagara Mini 200 Encoder Data Sheet

GSM200_dsA17v2
